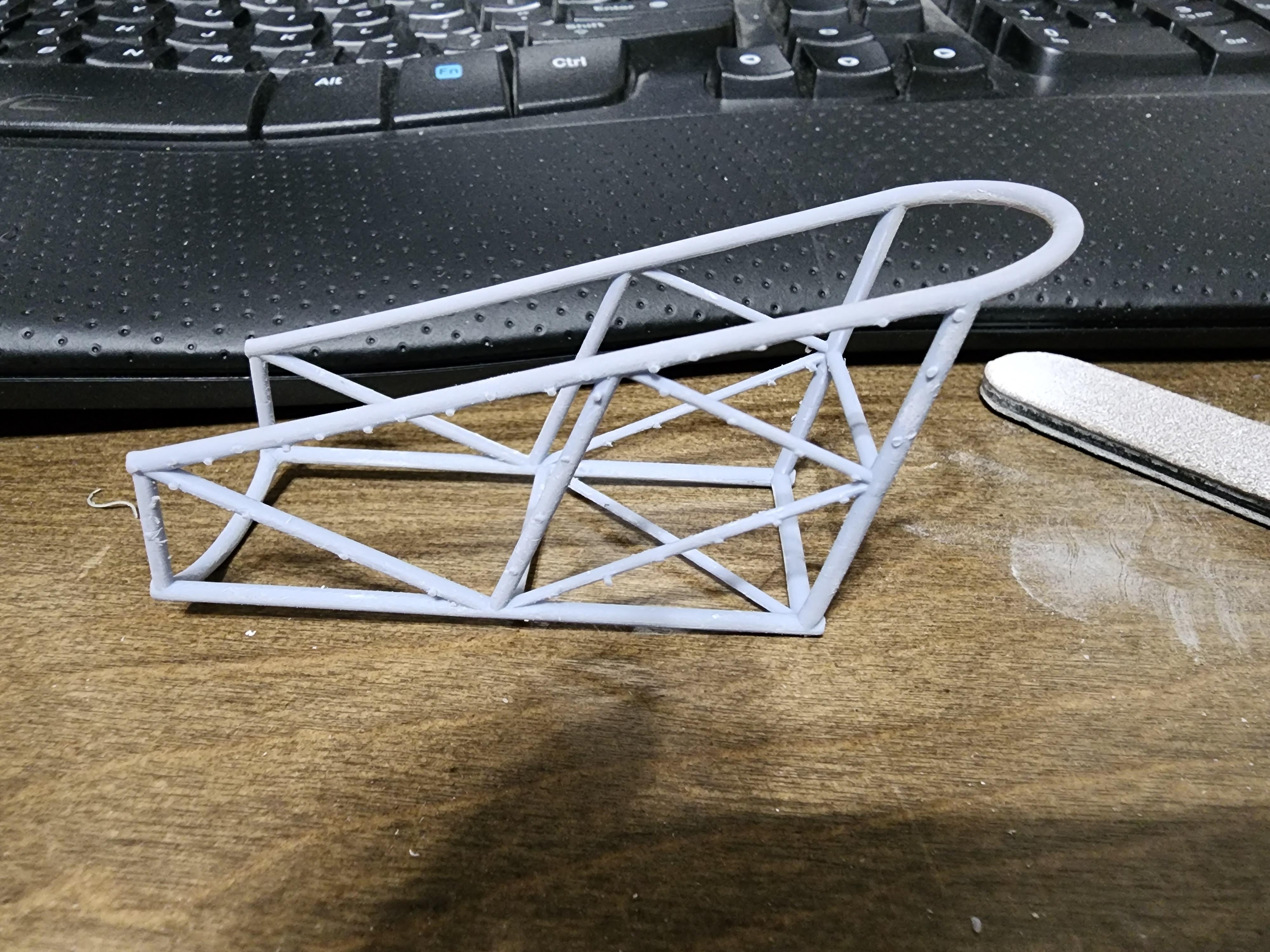

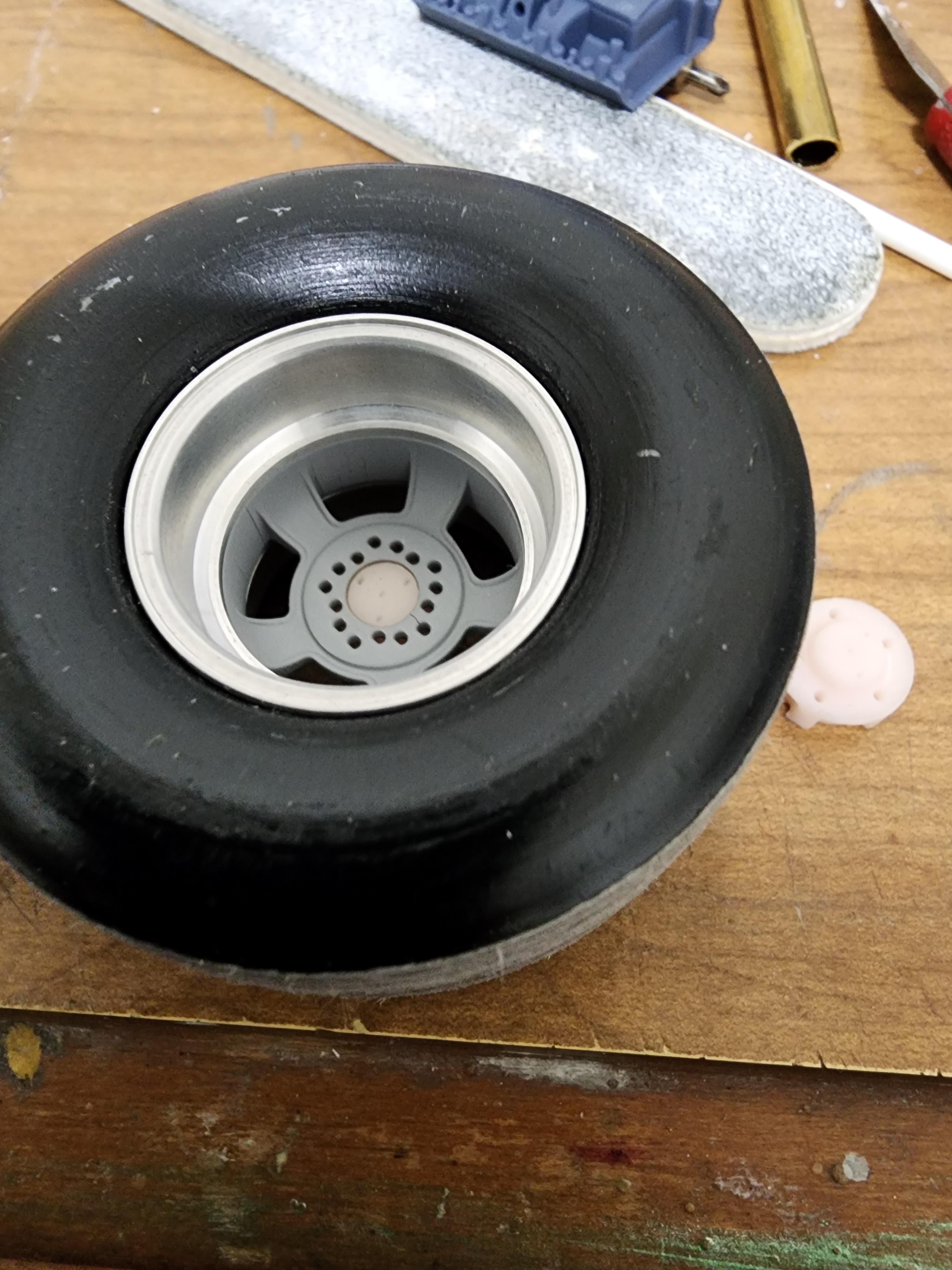

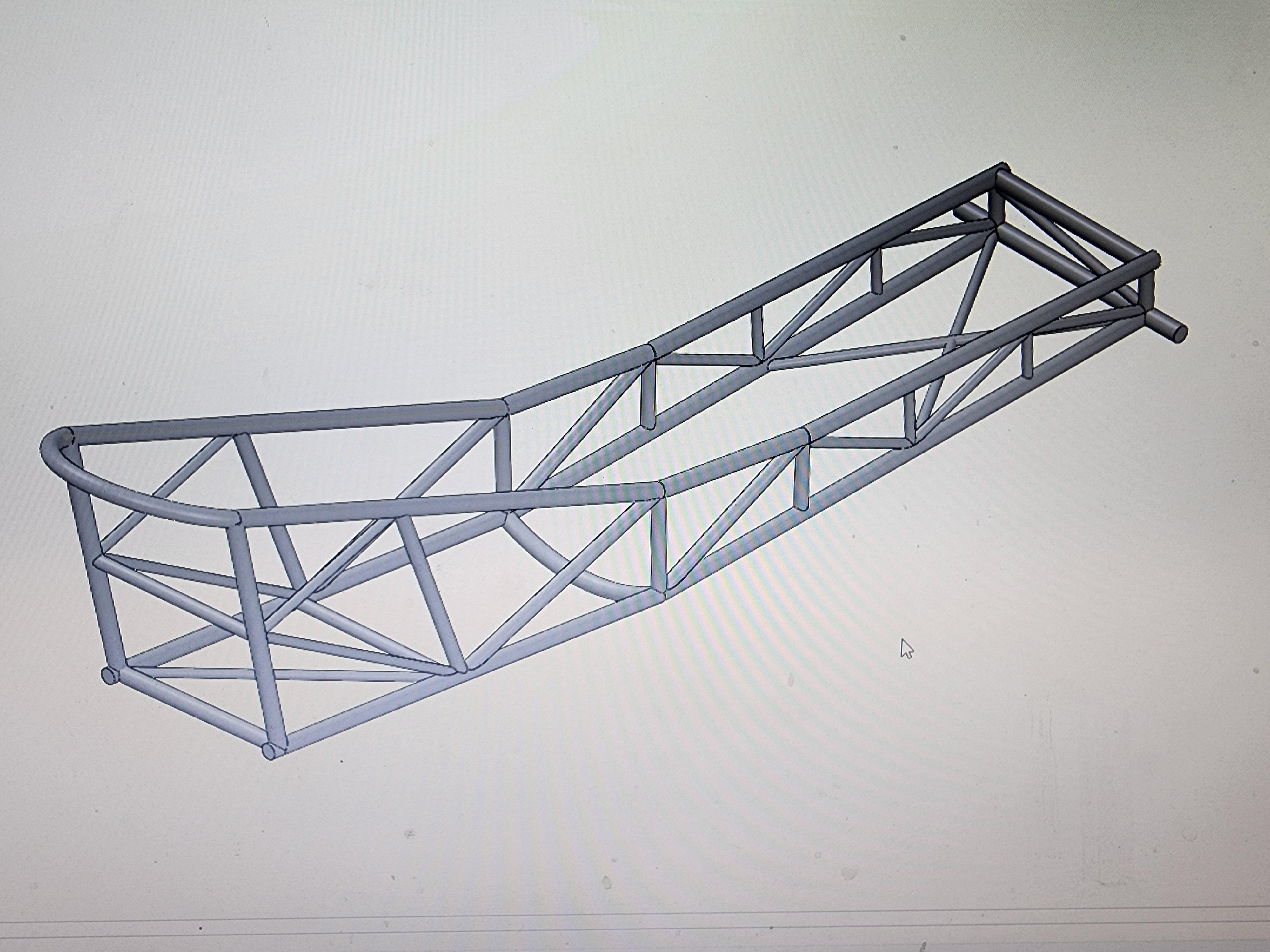

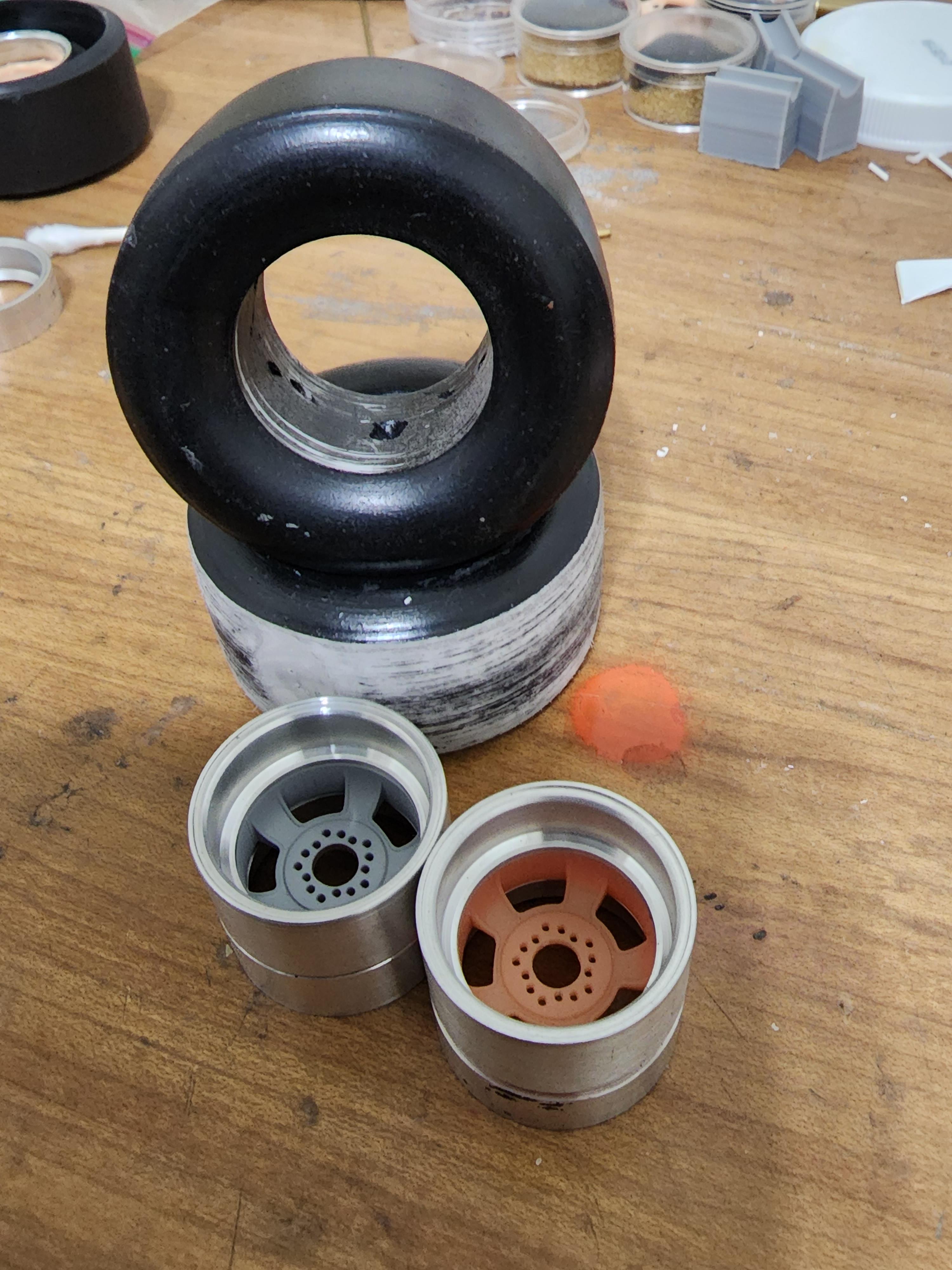

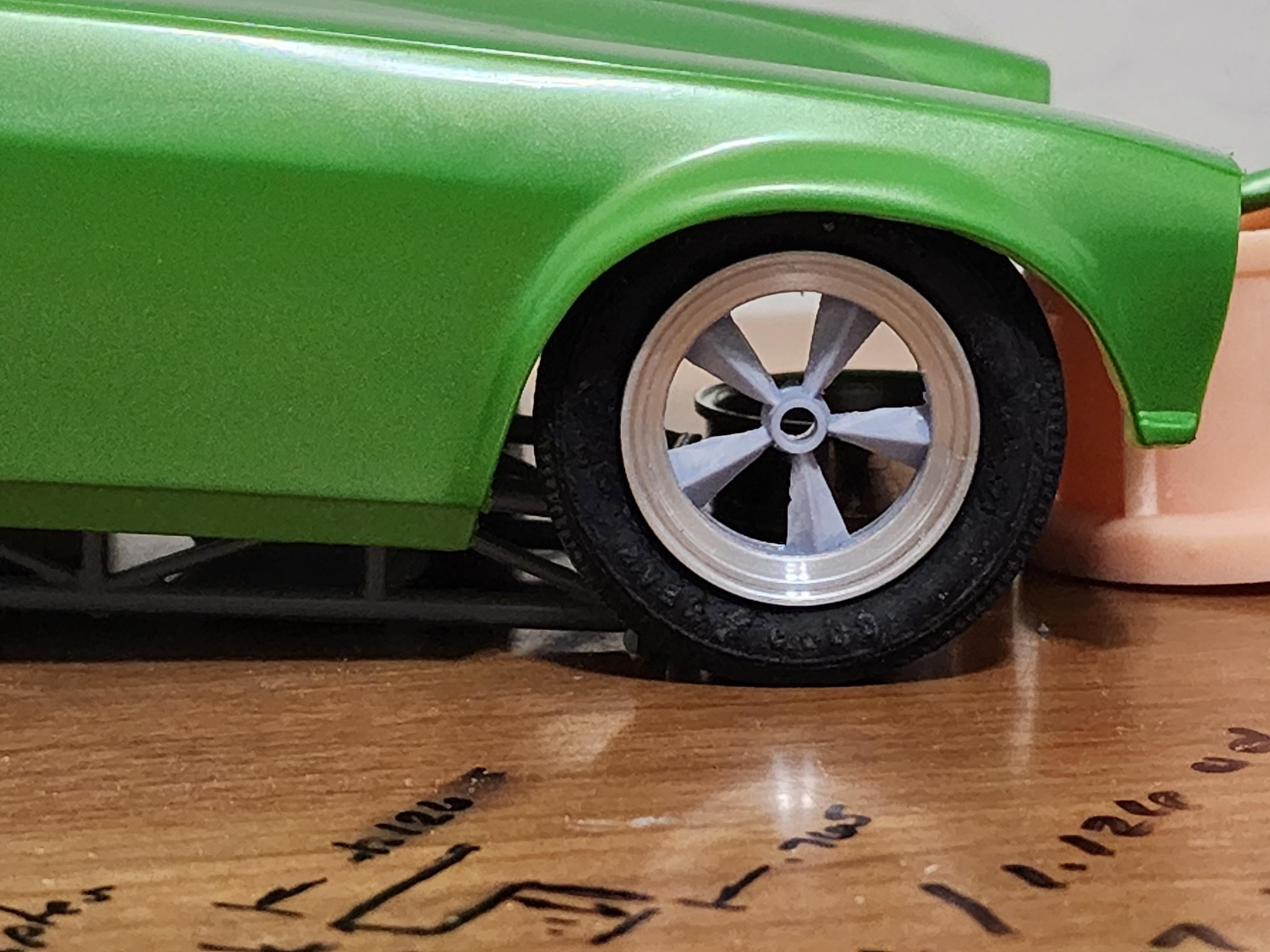

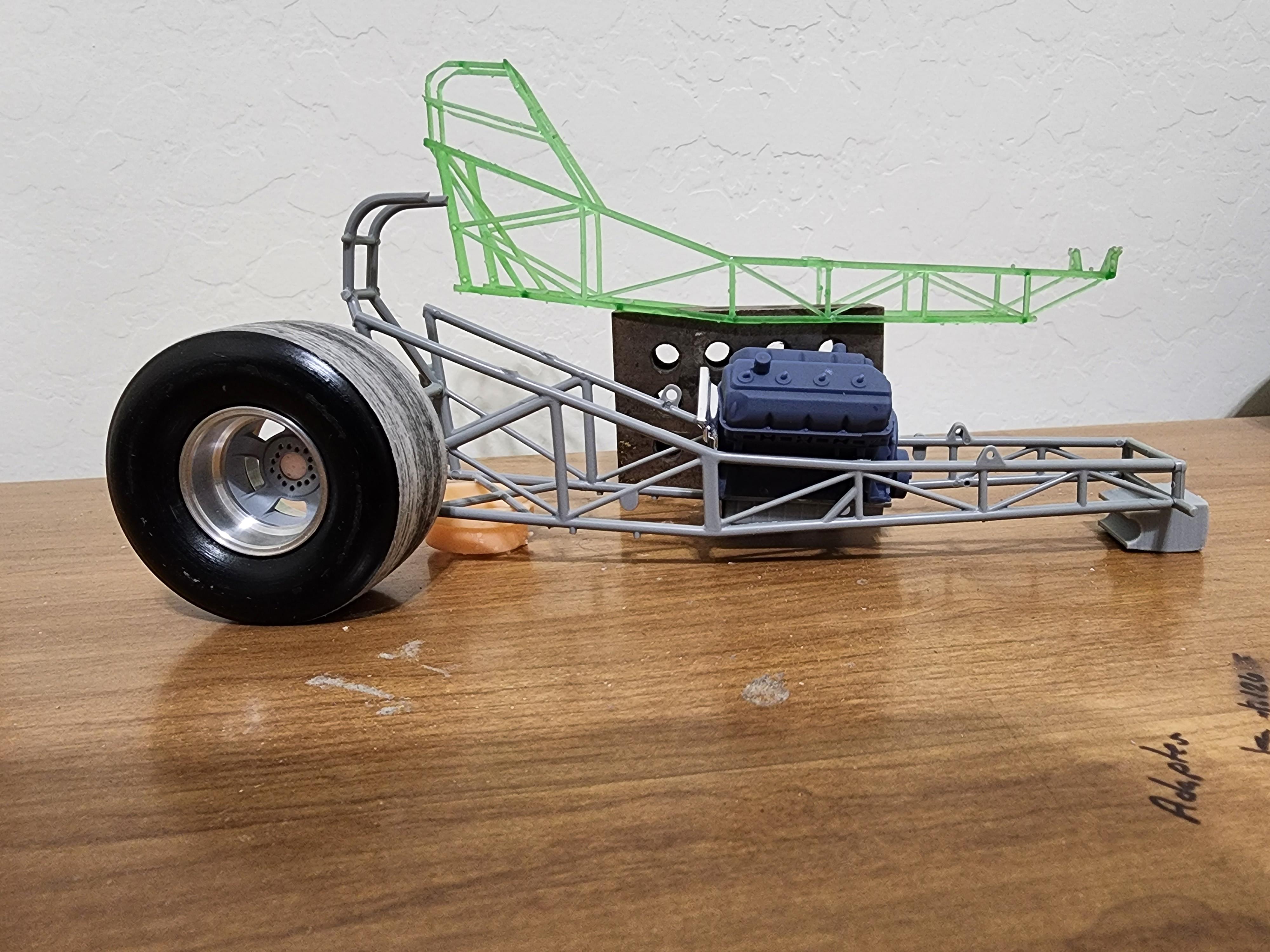

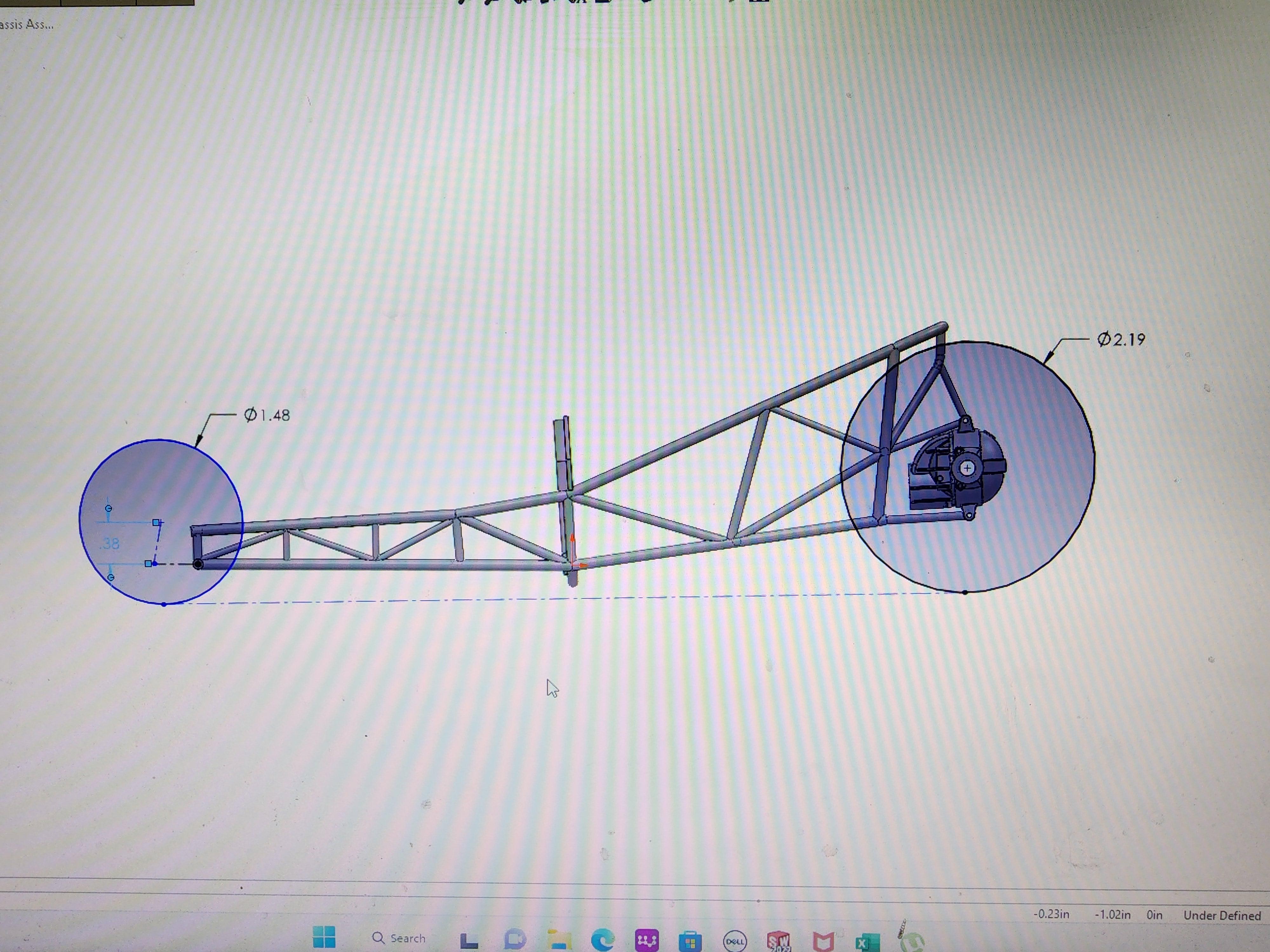

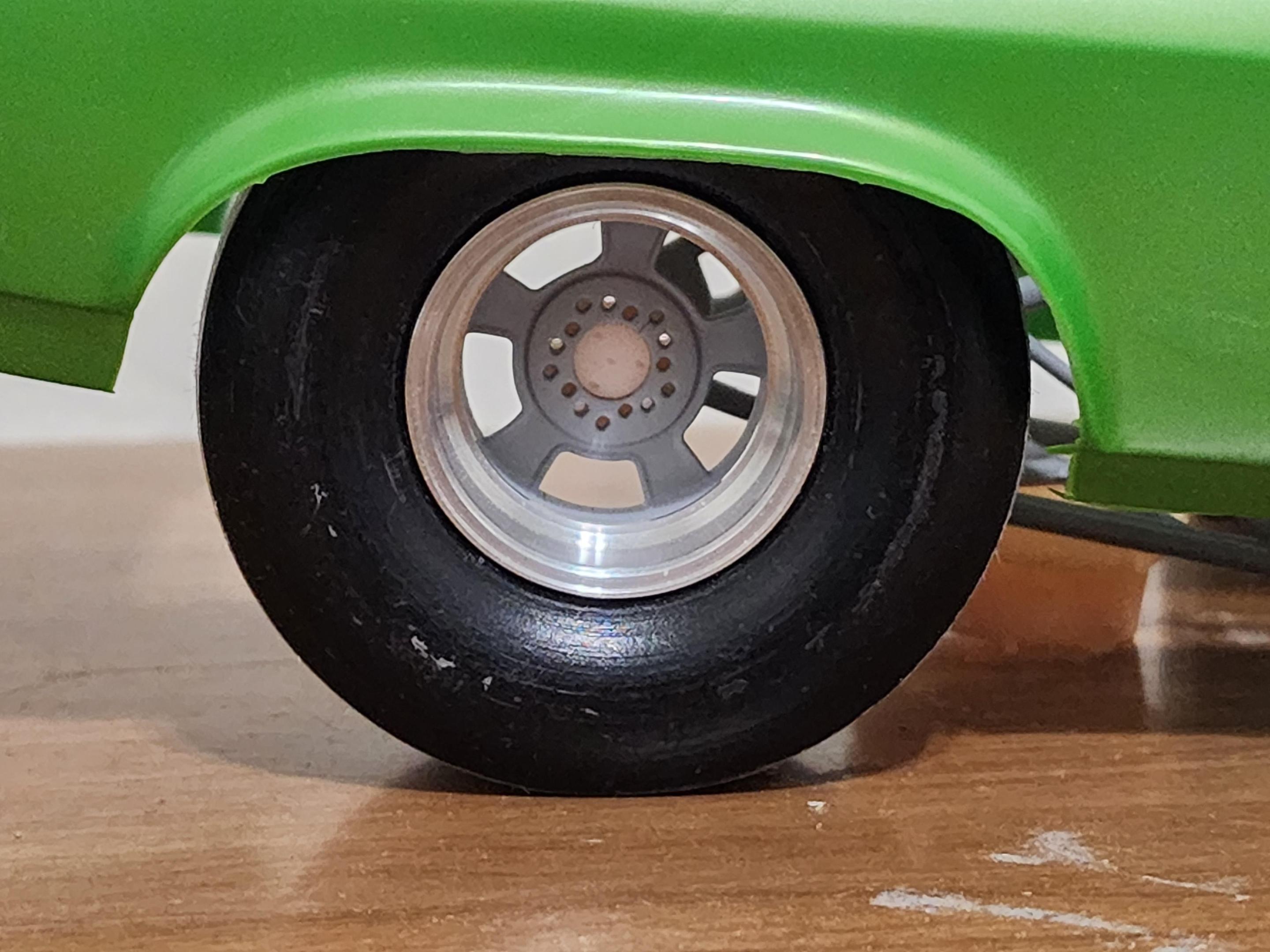

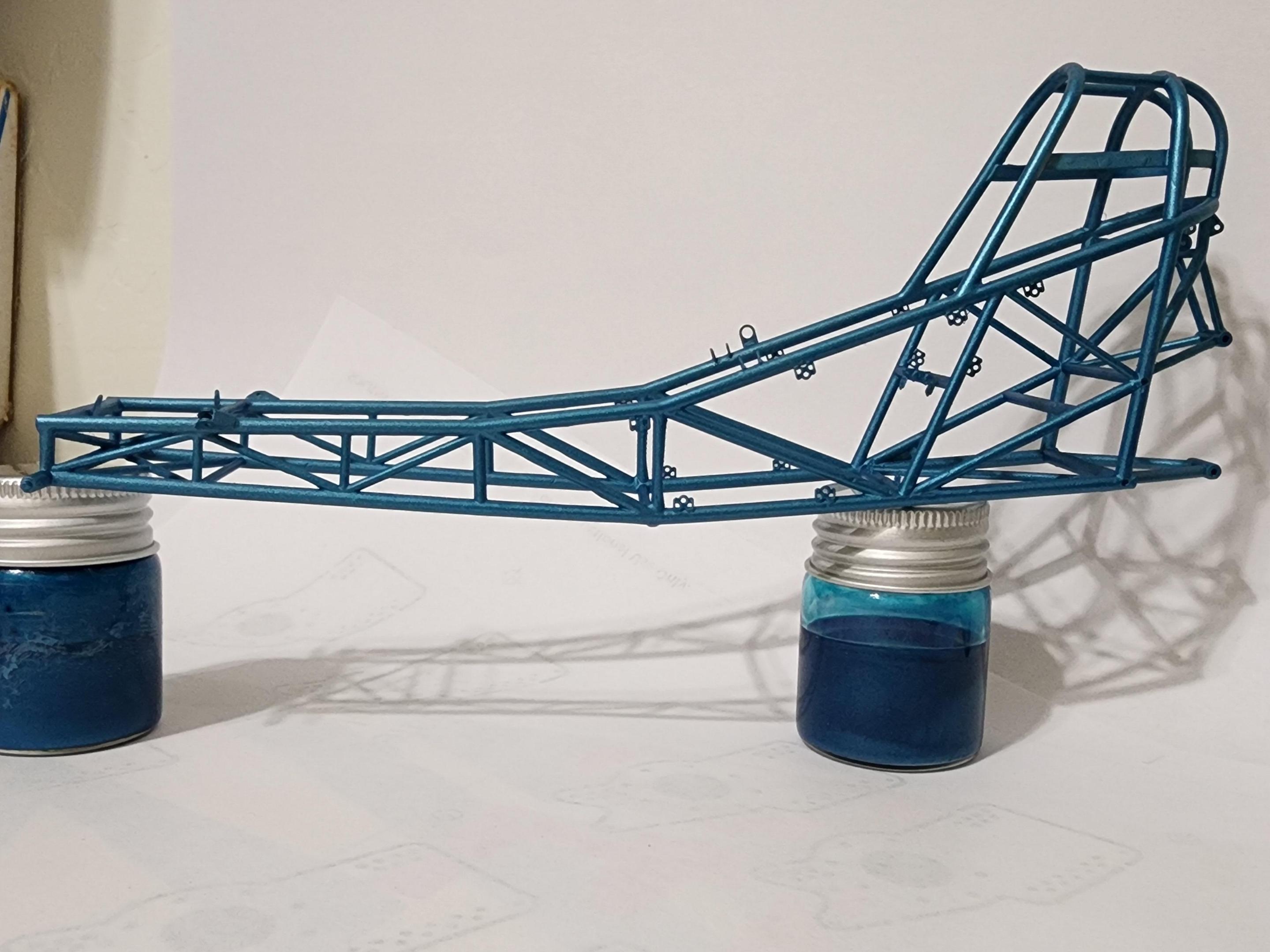

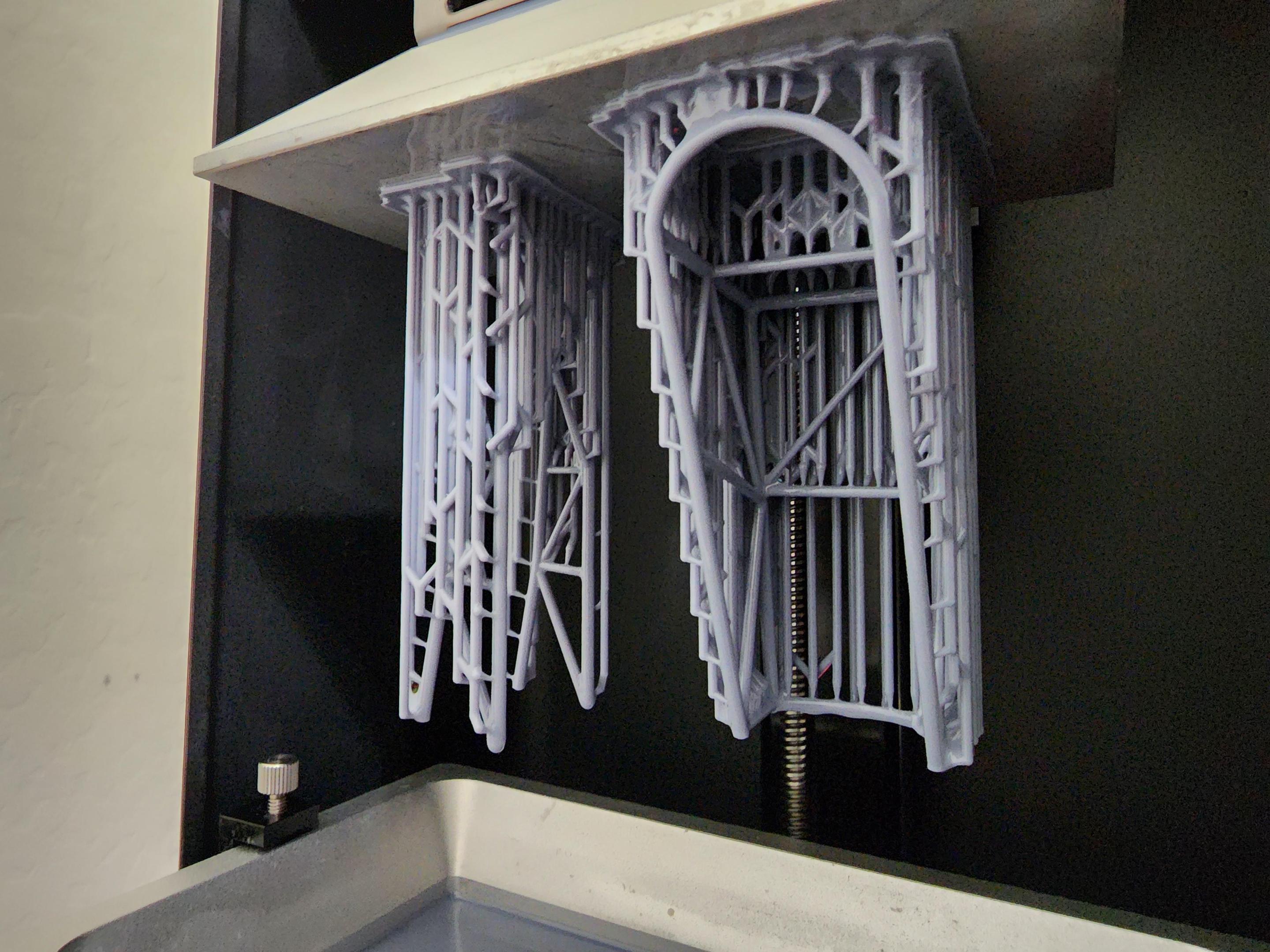

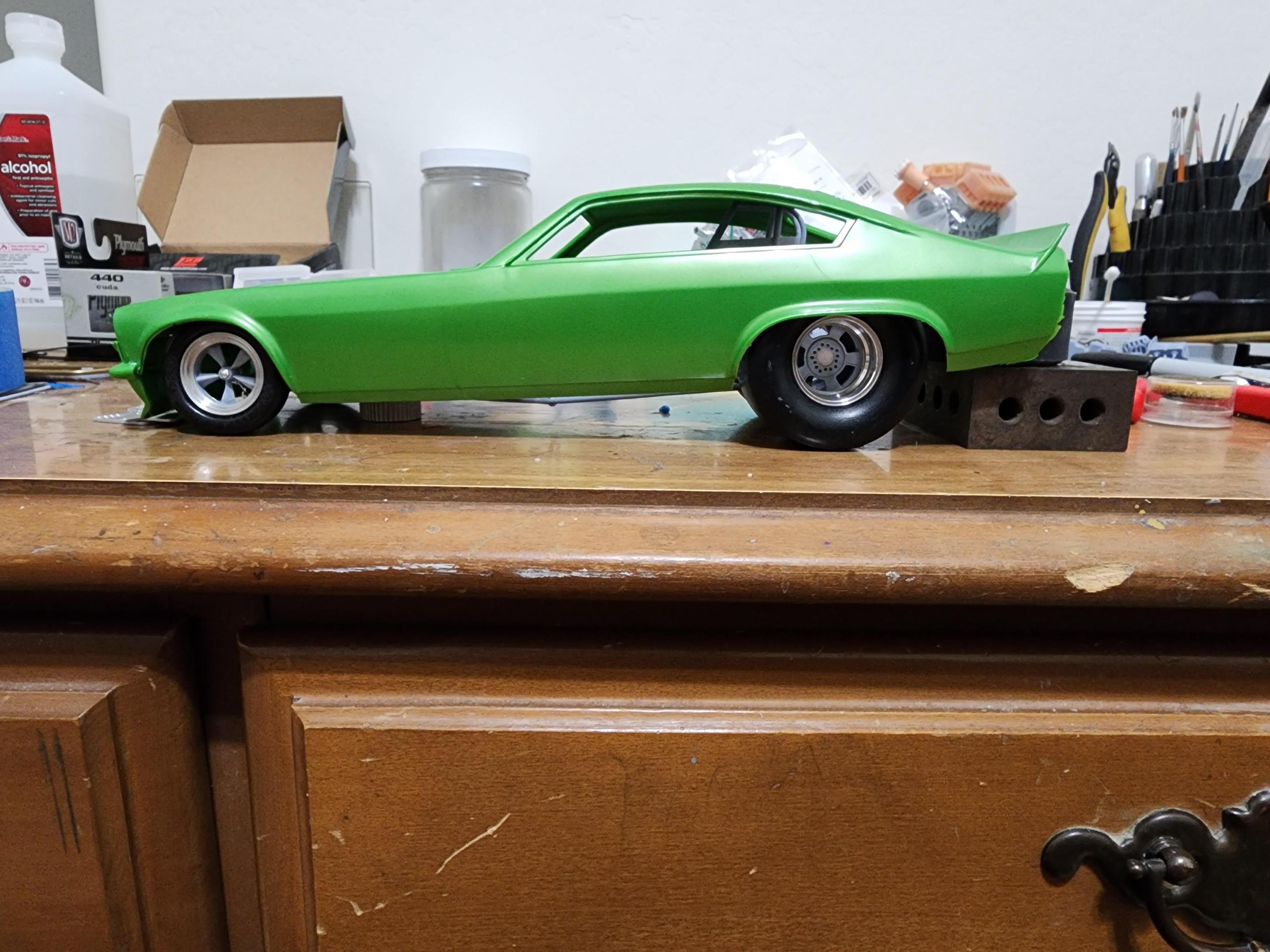

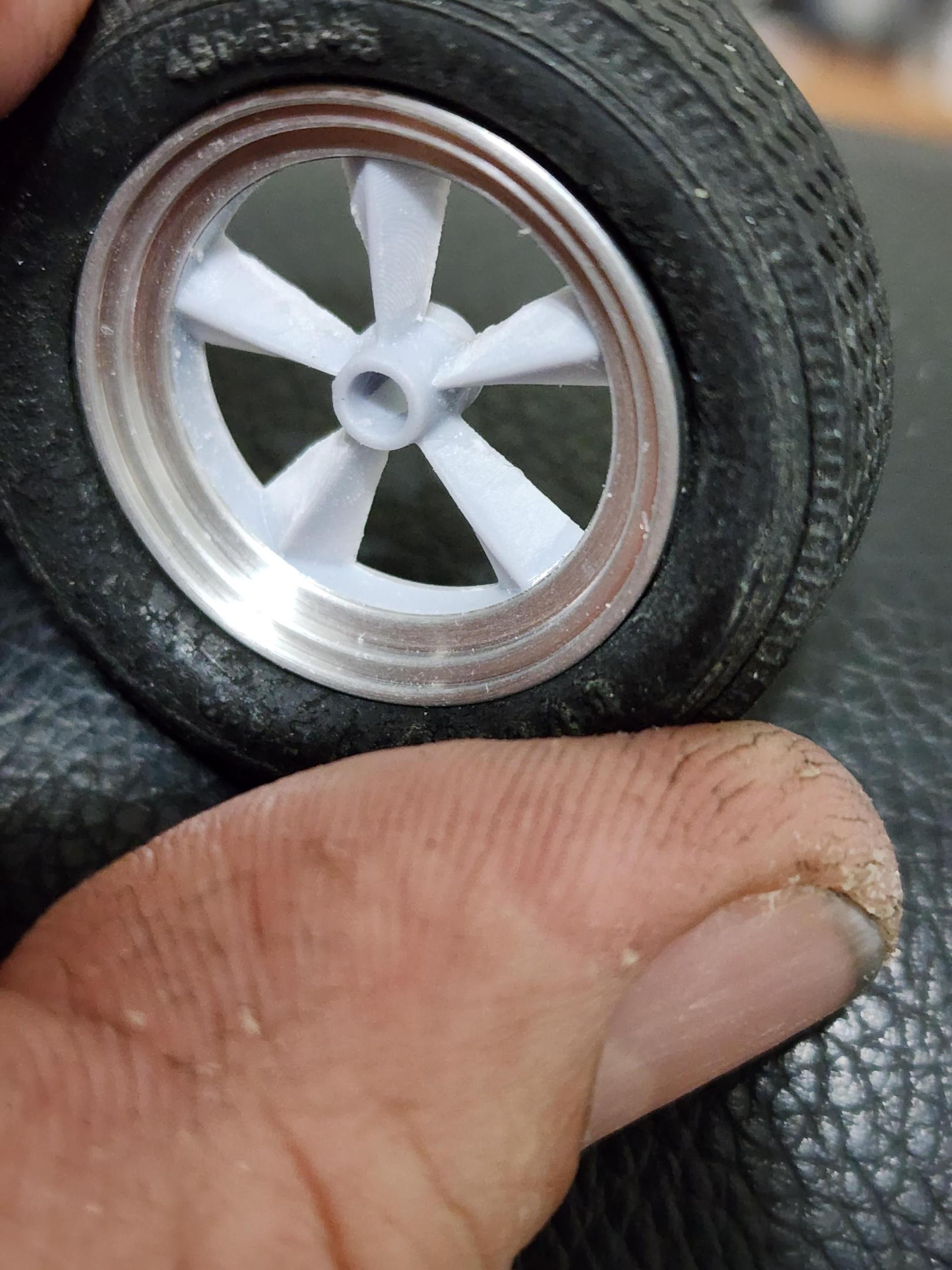

mr68gts Posted May 25 Share Posted May 25 So I started this project back in January of the Radici and Wise car. Using Tom West's excellent photos I've been recreating this in scale. Starting with an Atlantis Green Elephant as a base kit. The wheels and tires are a collaborative effort between Jeff Farris and I. Engine was sourced from Texas 3d in 16th scale. What started with modifying the kit chassis turned into a whole new 3d printed chassis. Using the Aurora chassis kit, much of its dimensions got me where I needed to be. The green chassis in the back ground is a Logghe stage IV with coil over front. 1 Quote Link to comment Share on other sites More sharing options...

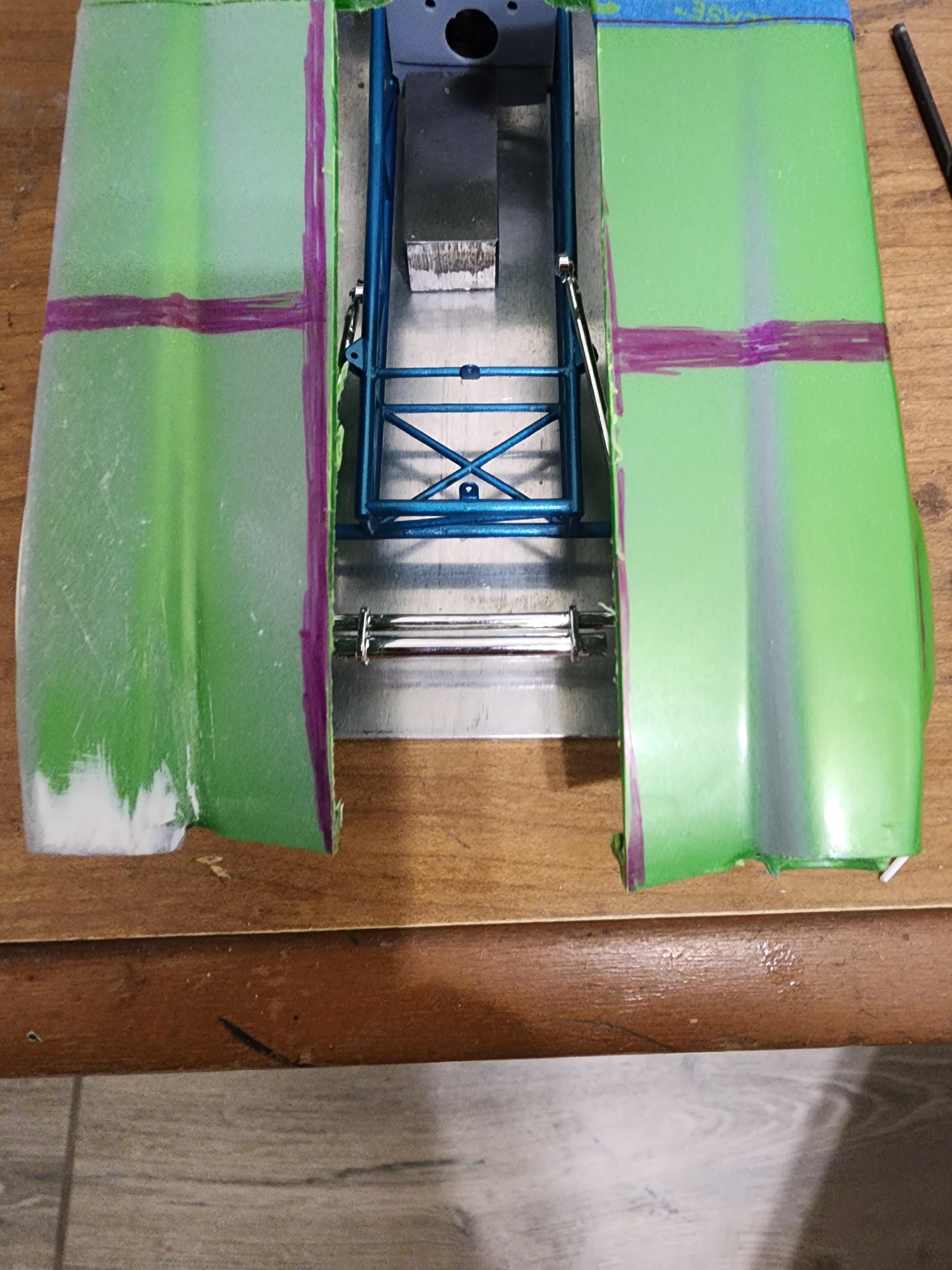

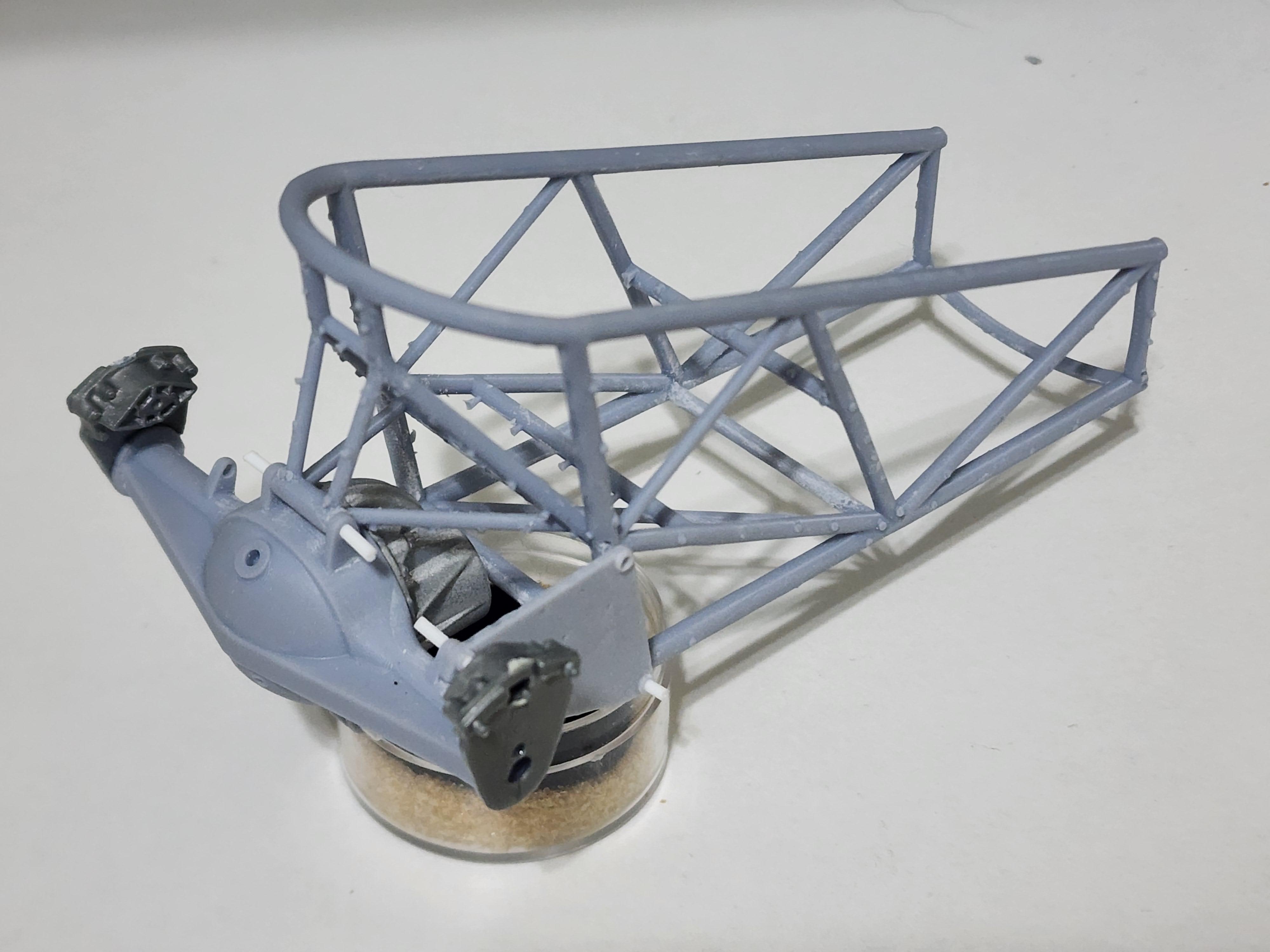

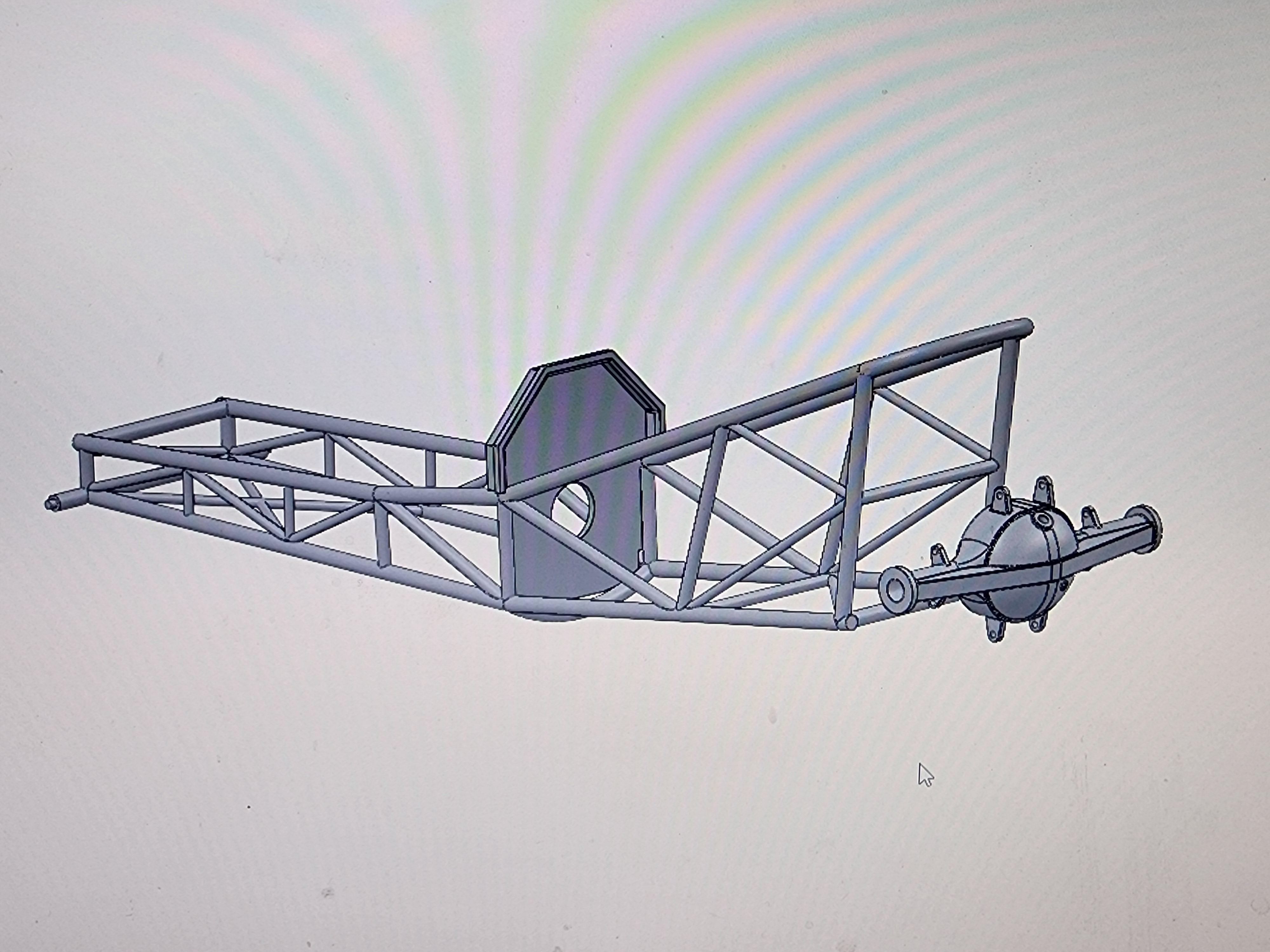

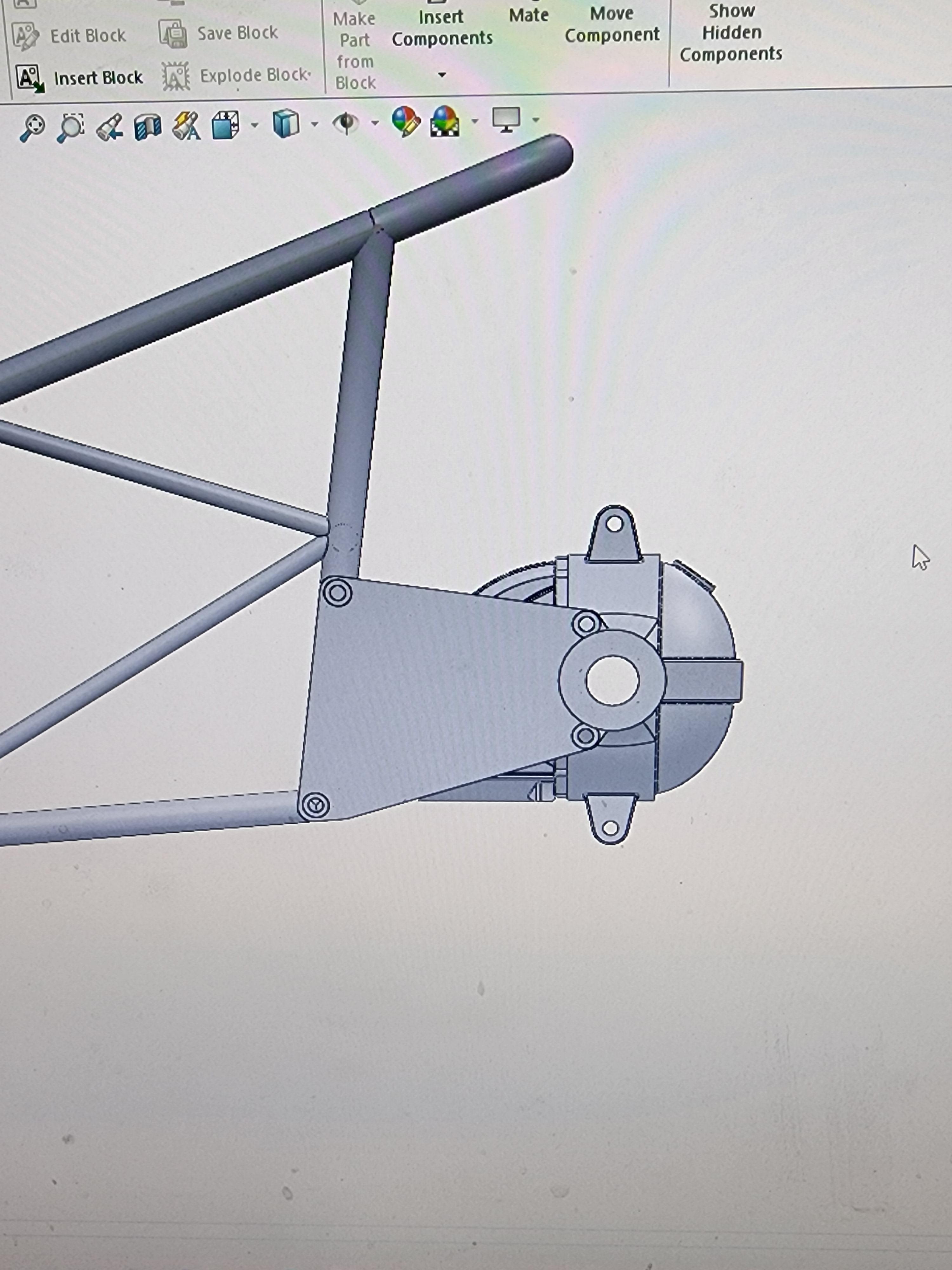

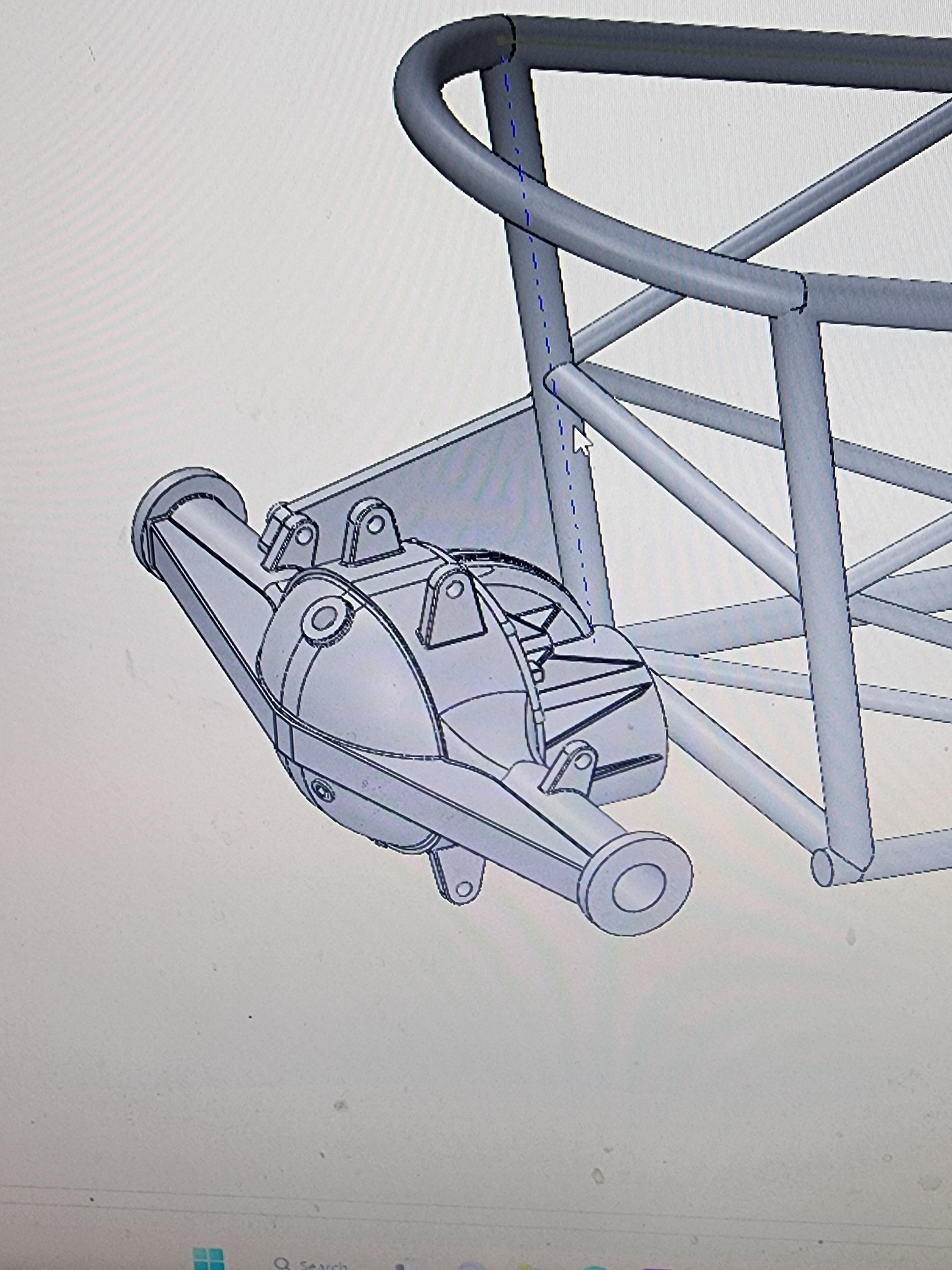

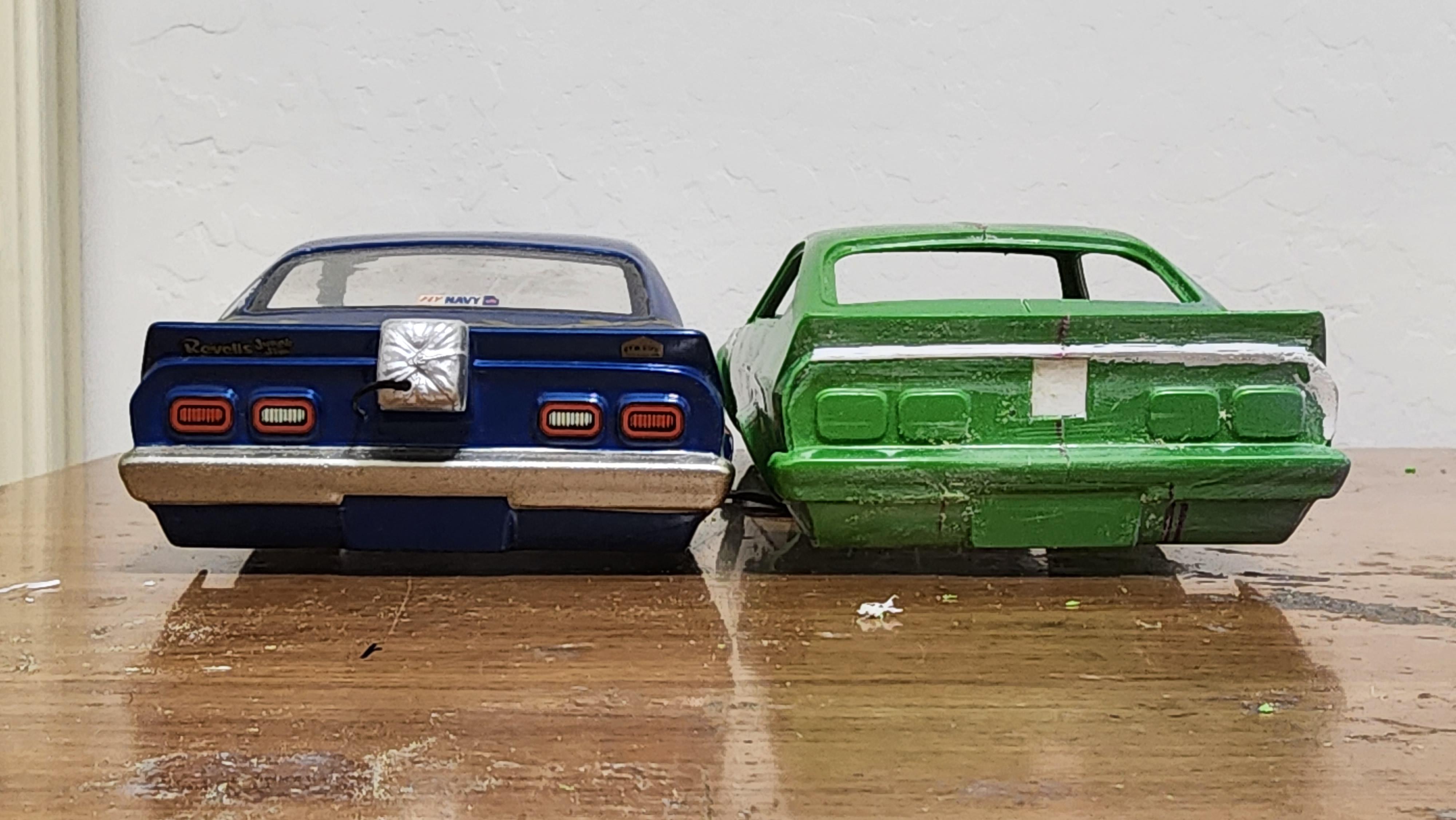

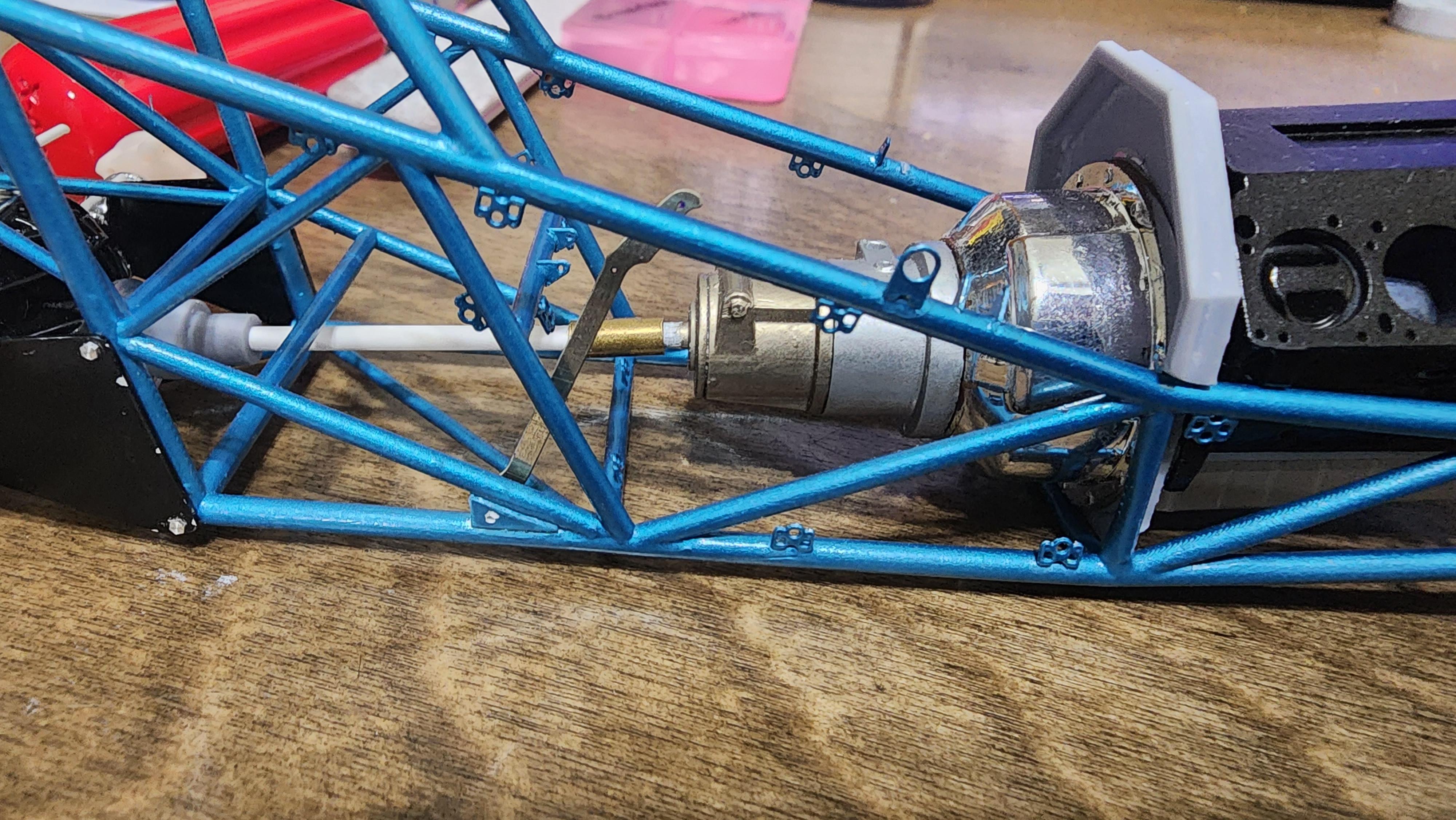

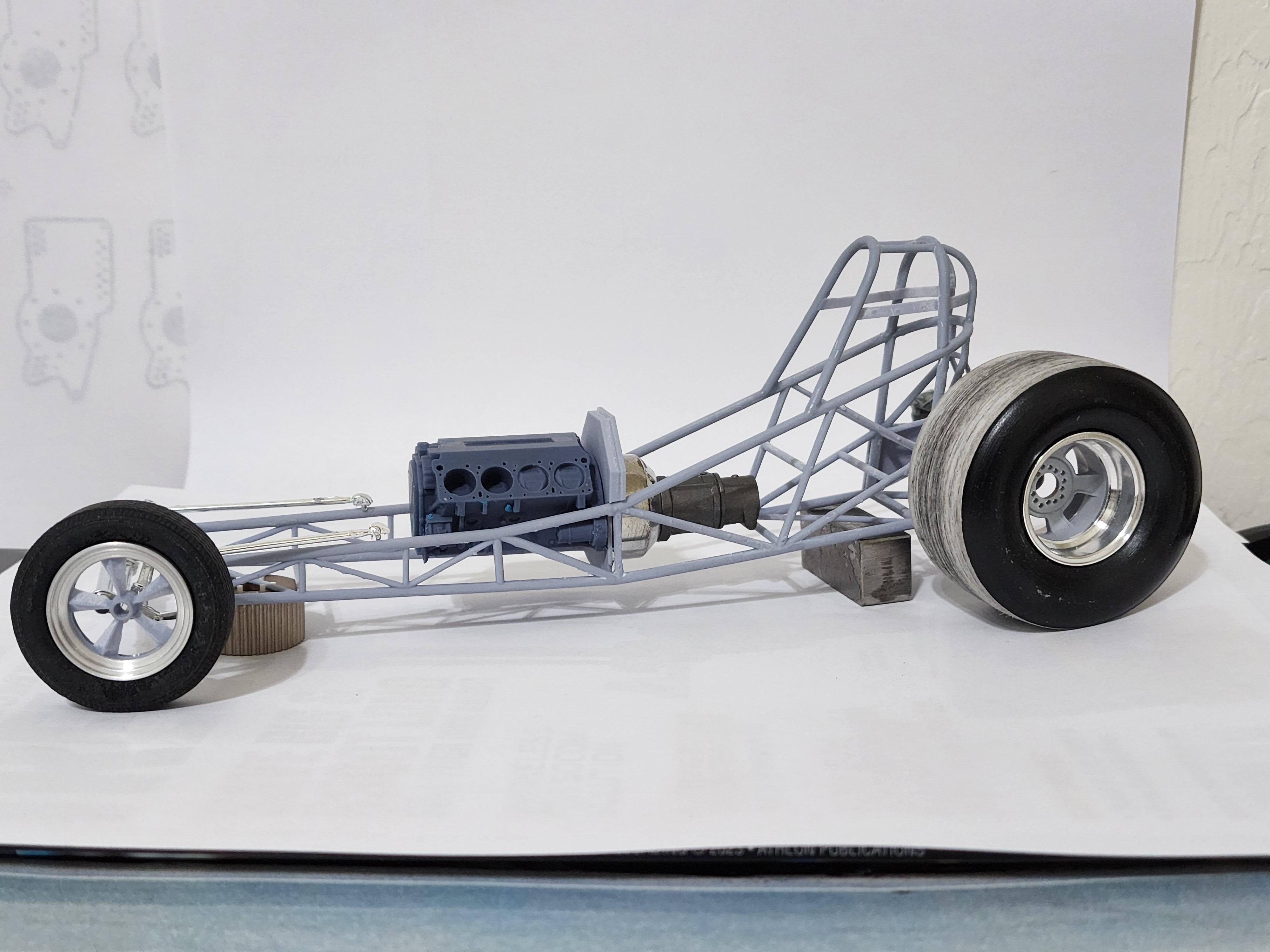

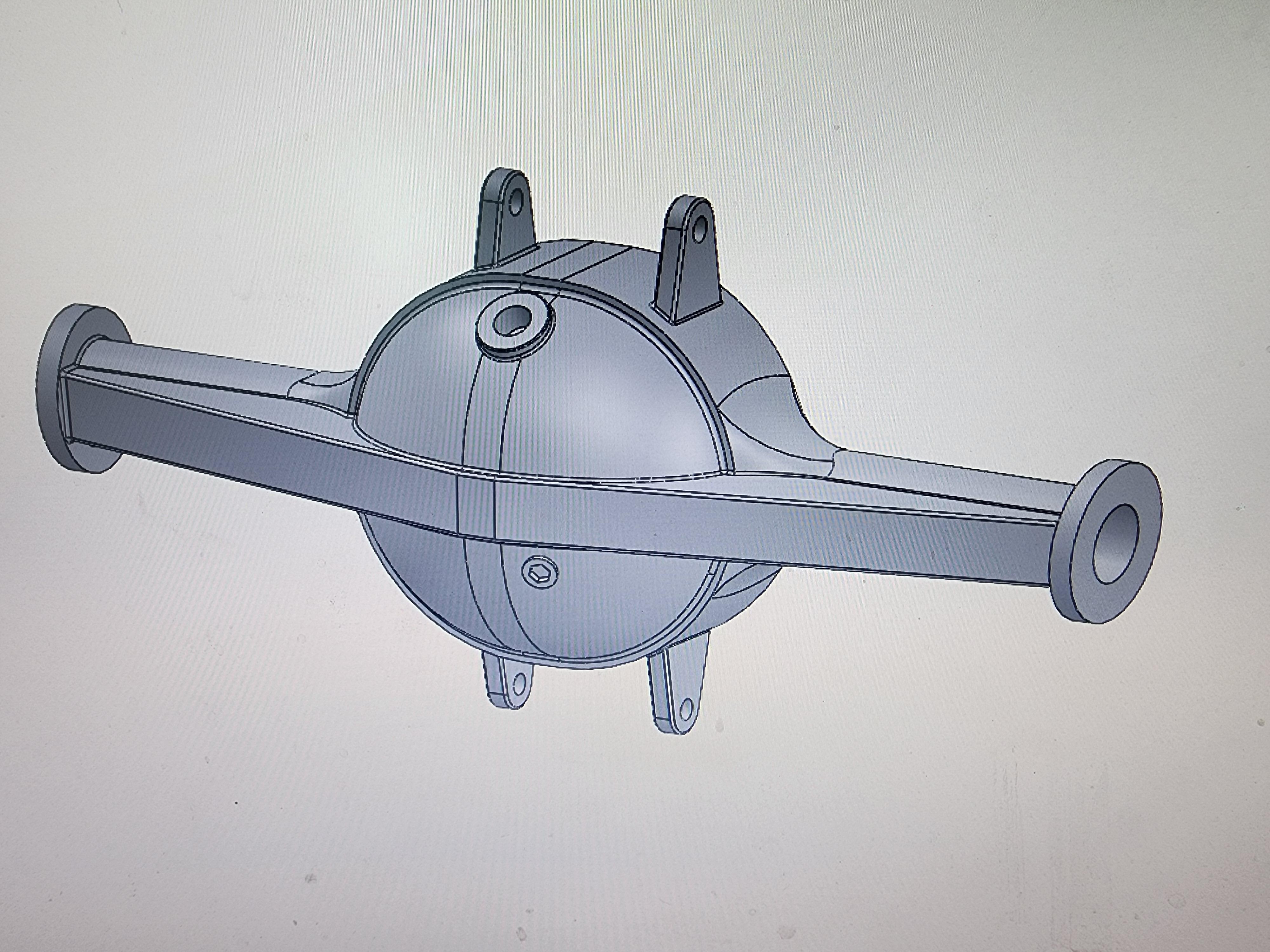

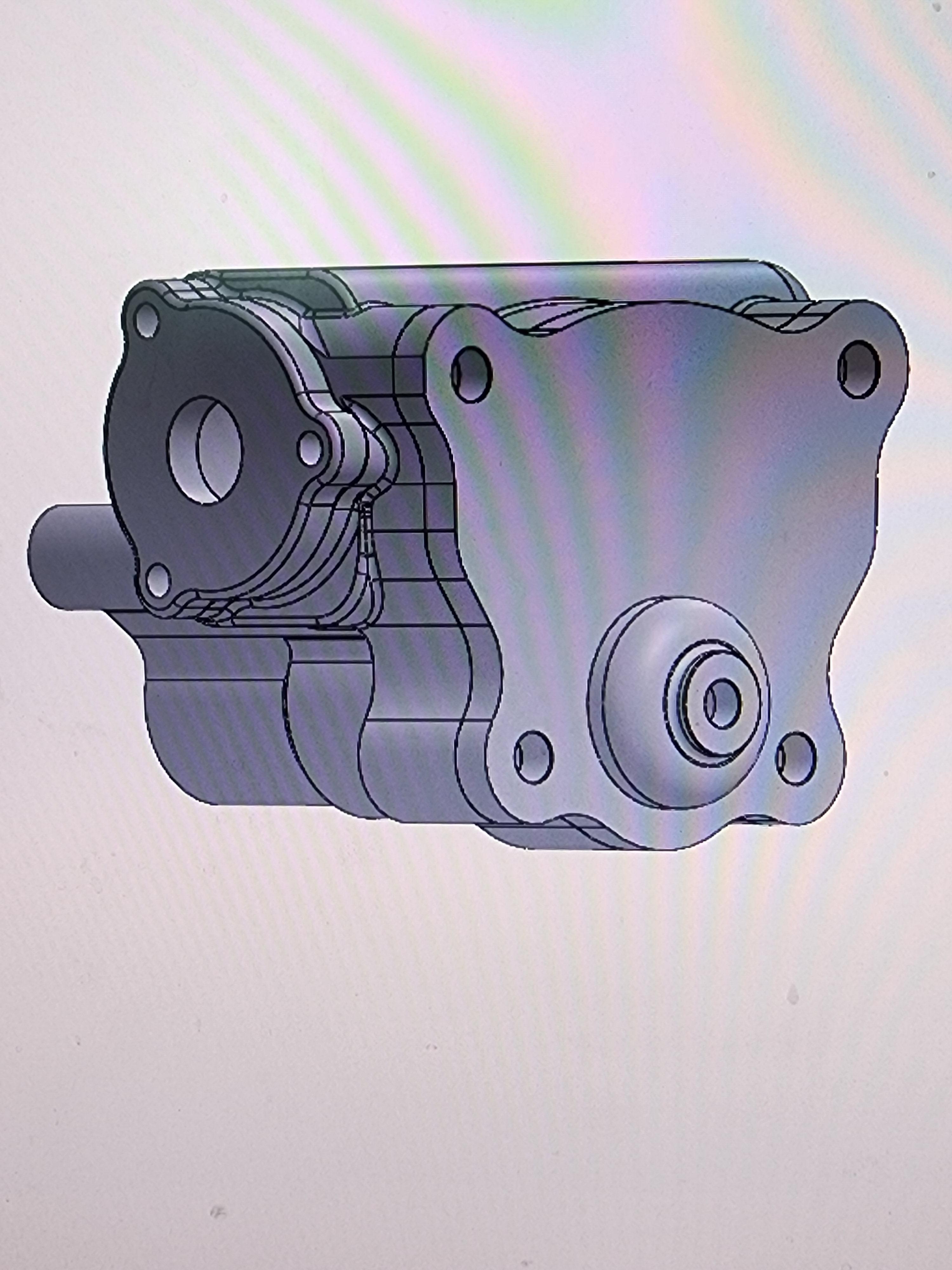

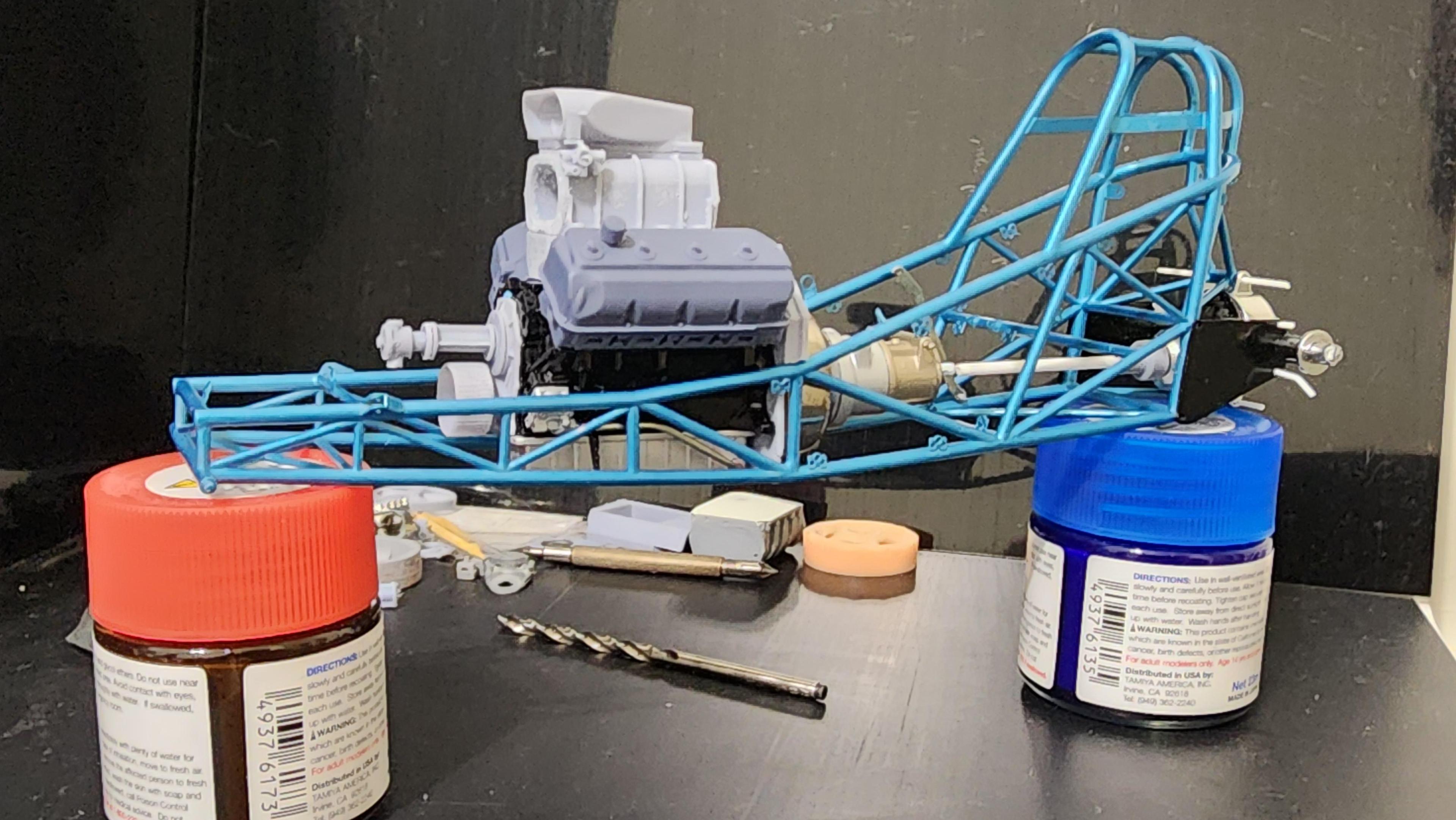

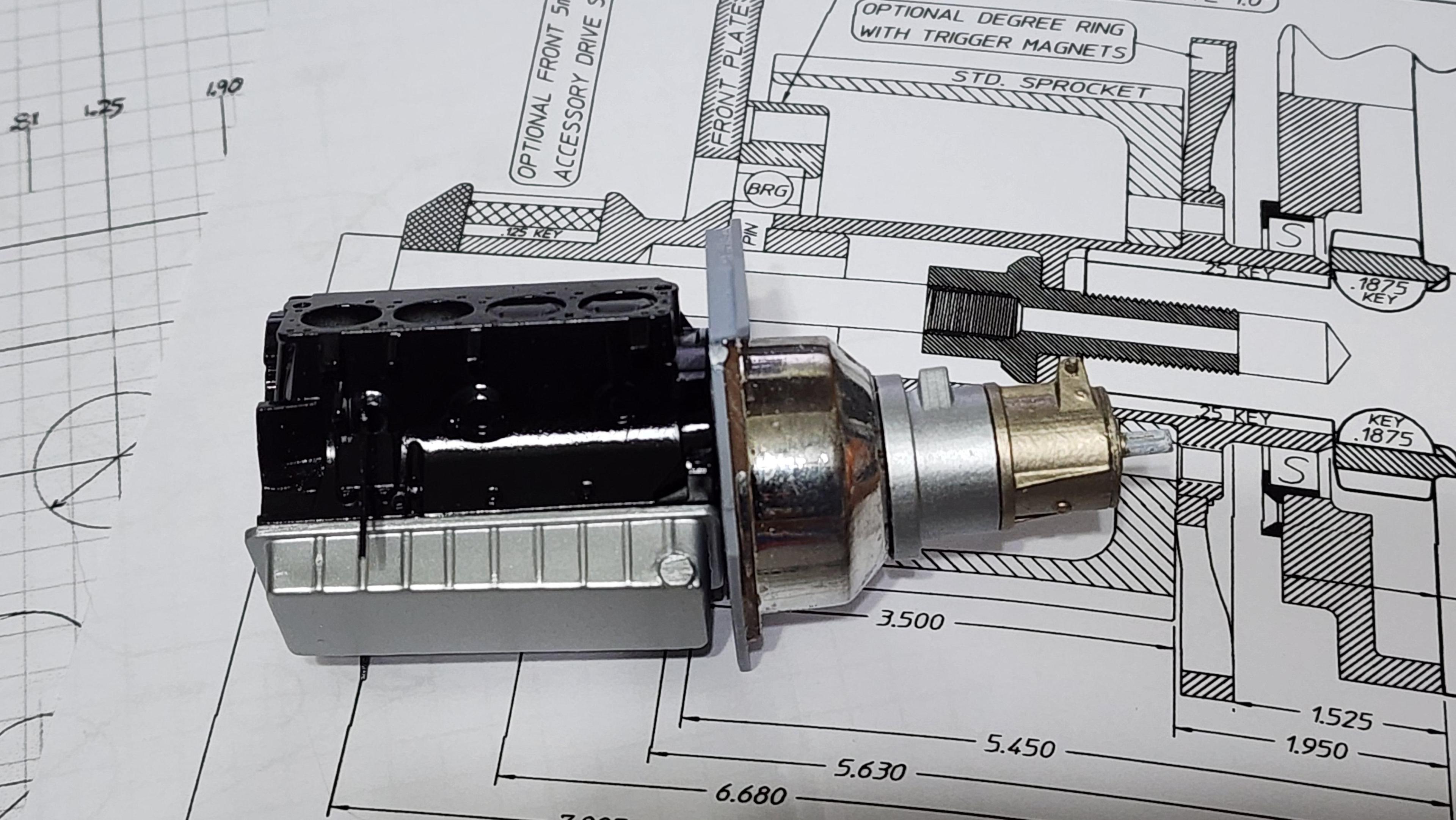

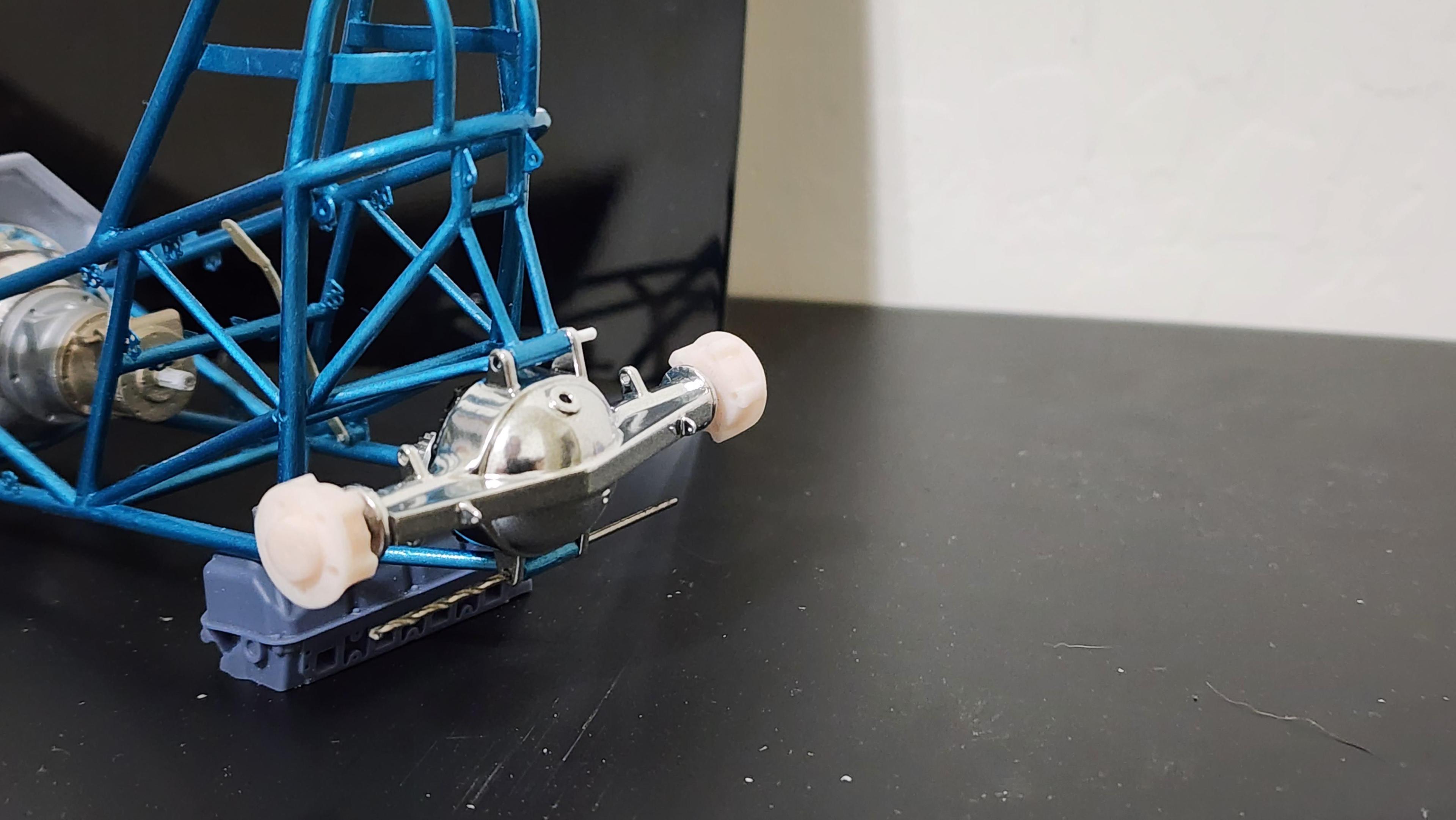

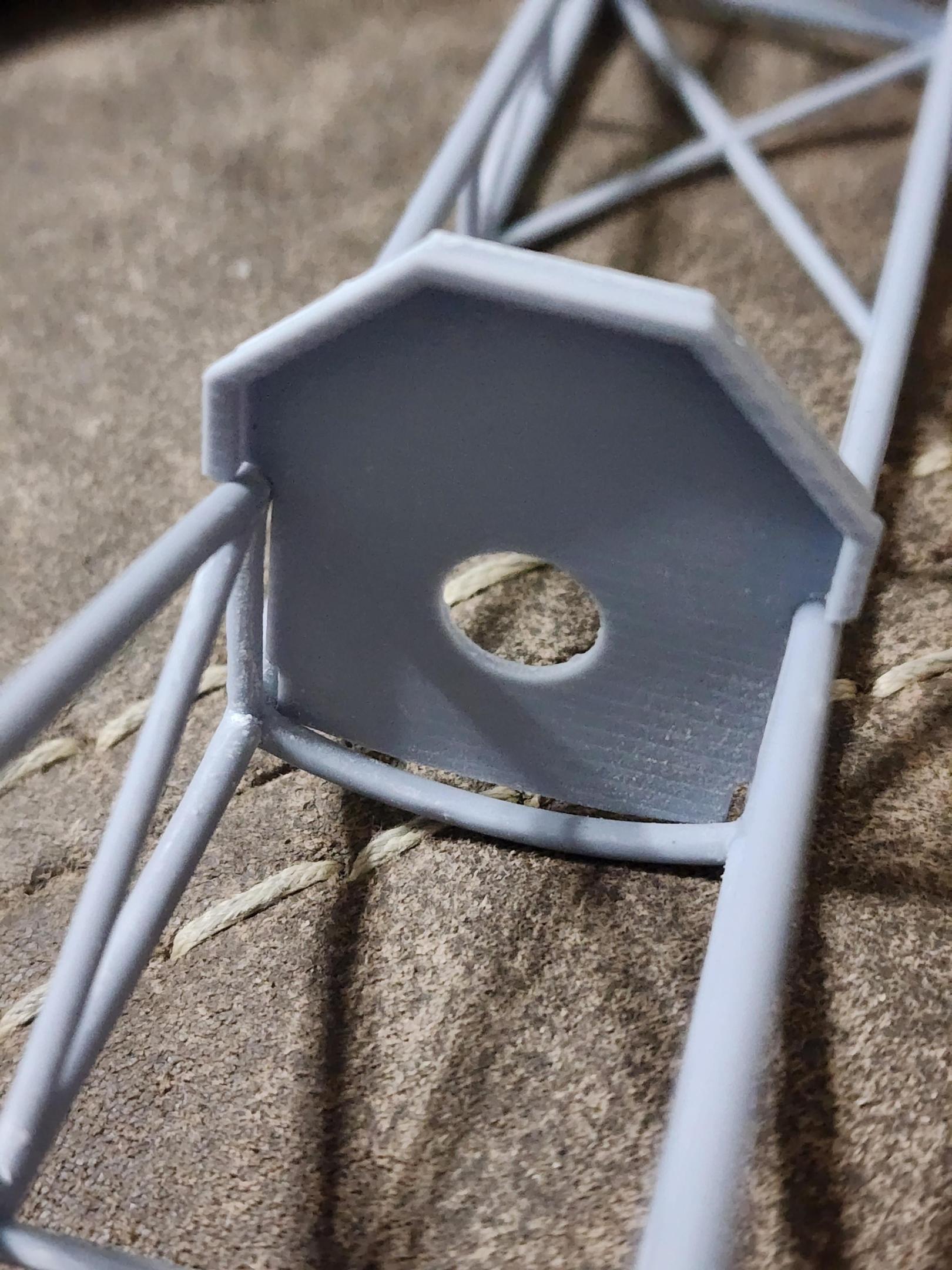

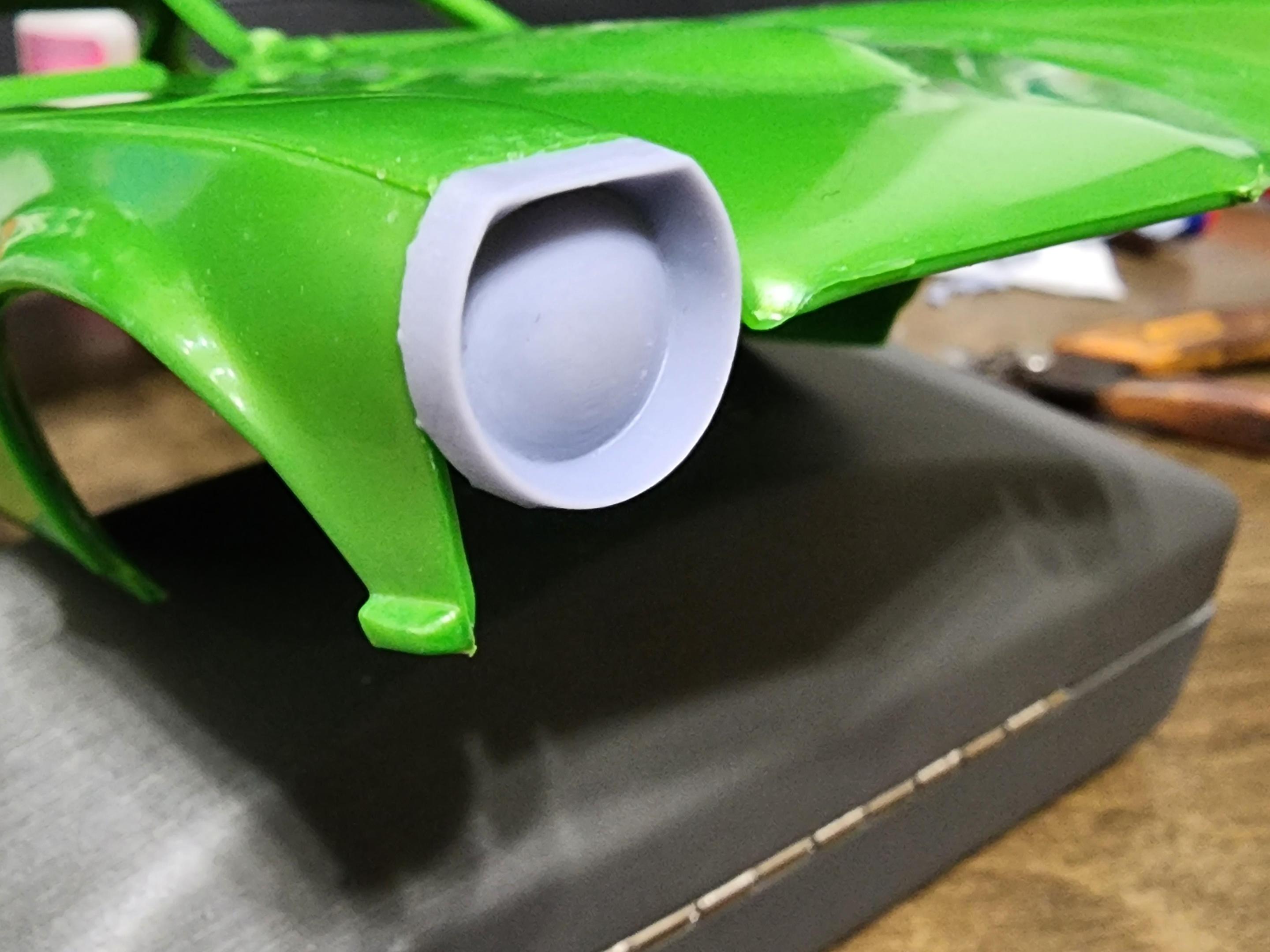

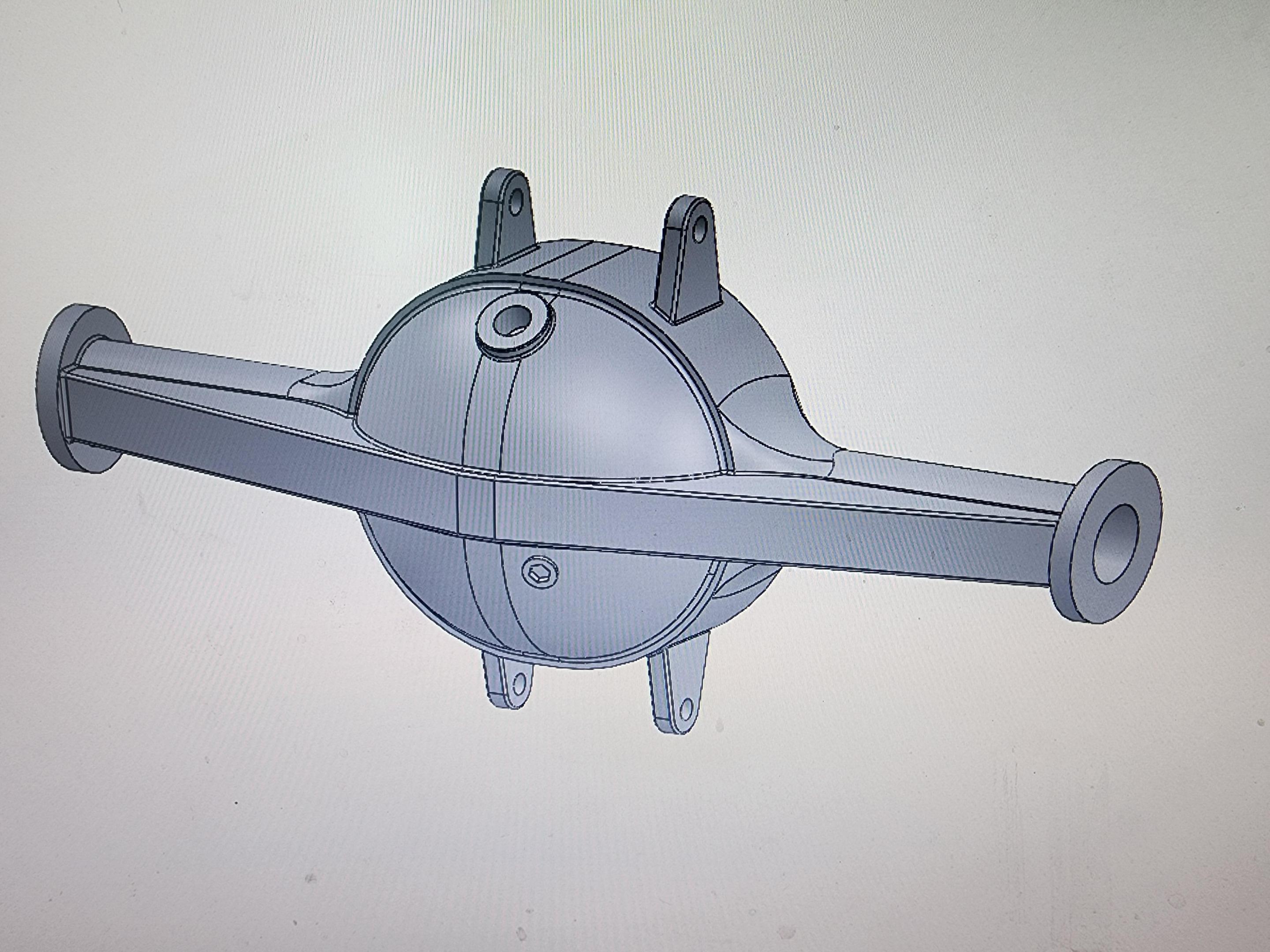

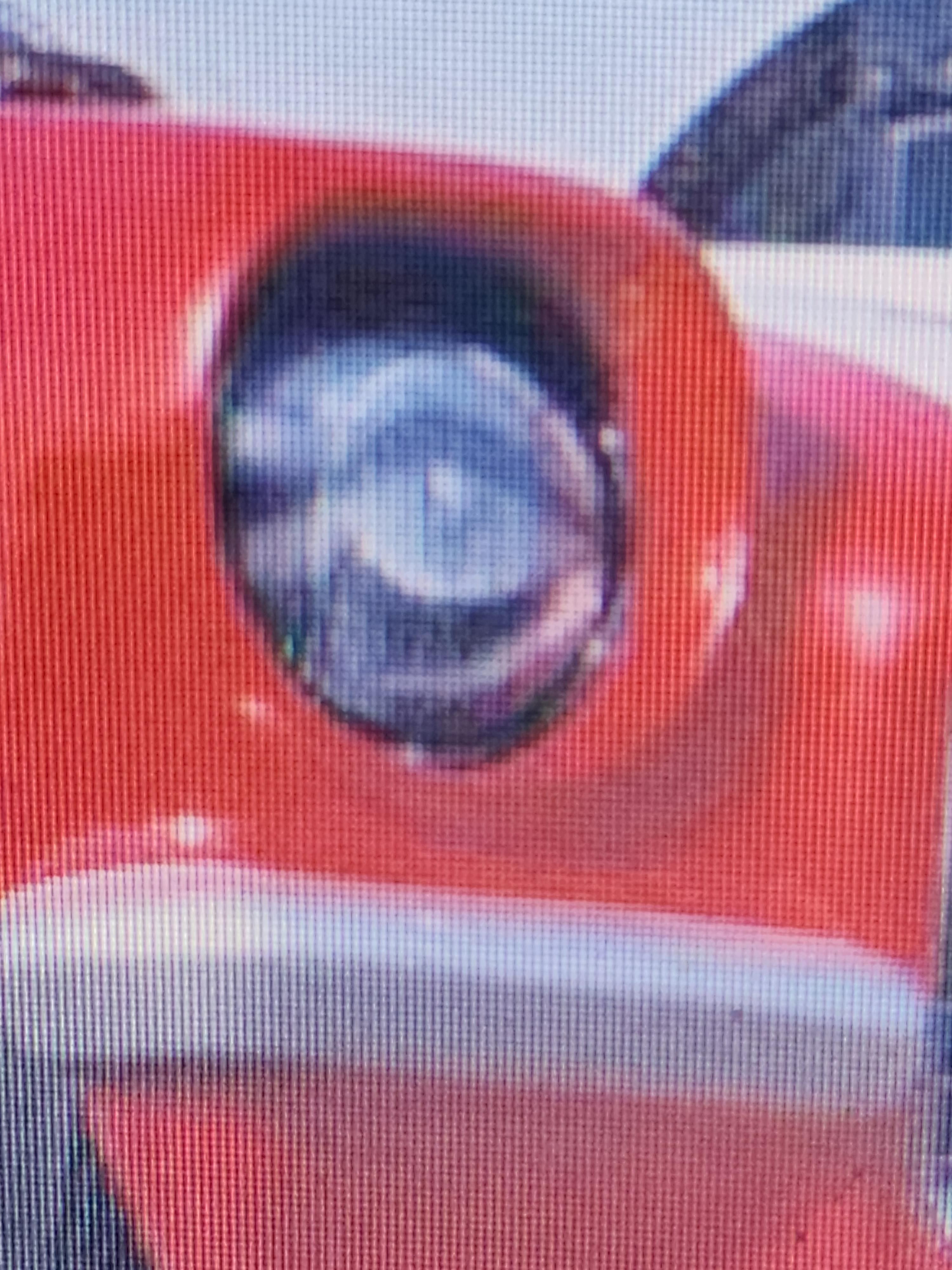

mr68gts Posted May 25 Author Share Posted May 25 The rear end is wrong in both kits for what I needed so it also got put in cad and printed. New head light buckets to correct the ones in the kit. (The kit body is a different body than what was ran in this car ) Brakes from the Aurora chassis kit are a match so they will be used on the rear end housing. Basic mock ups of the chassis. 1 Quote Link to comment Share on other sites More sharing options...

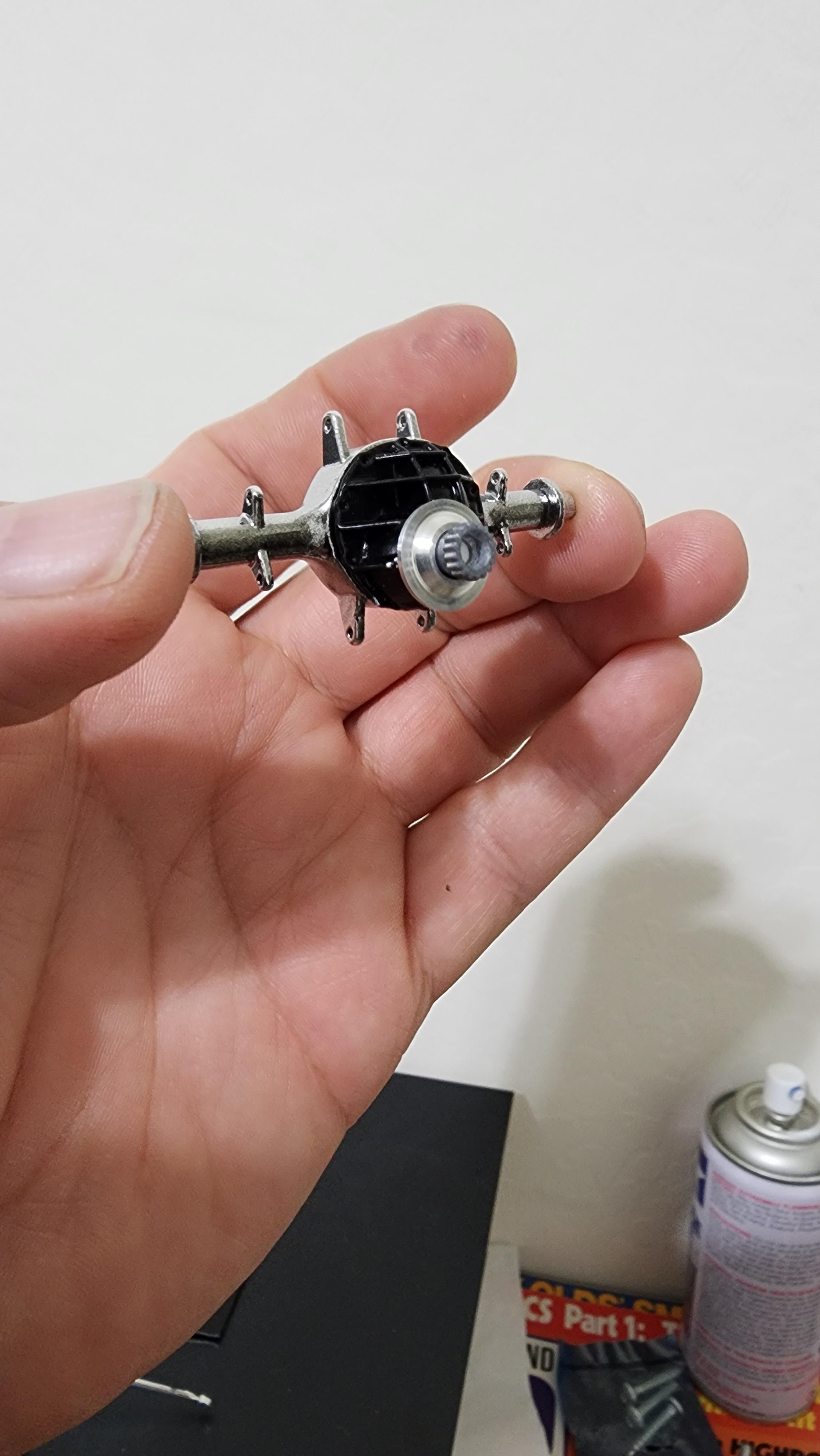

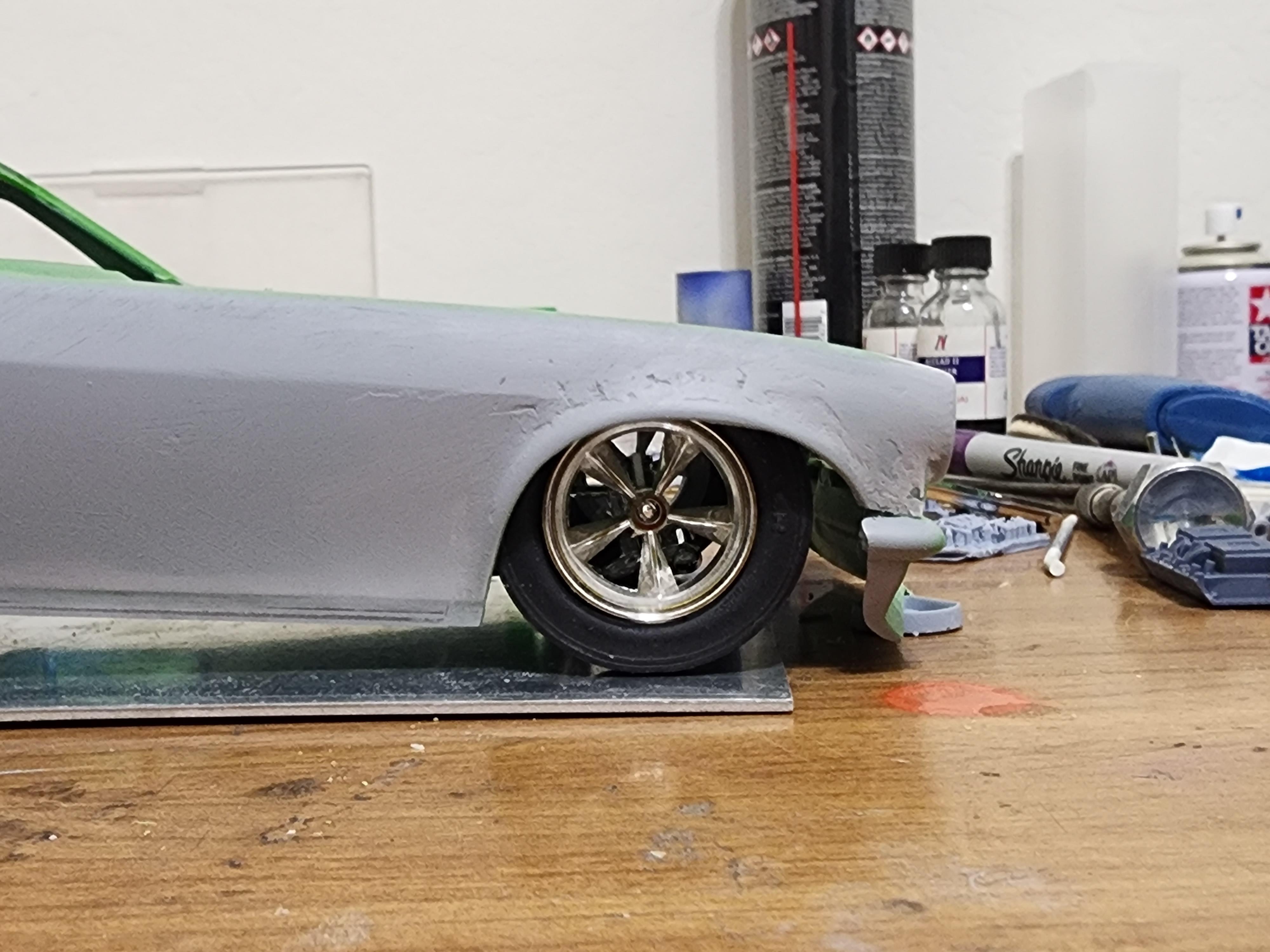

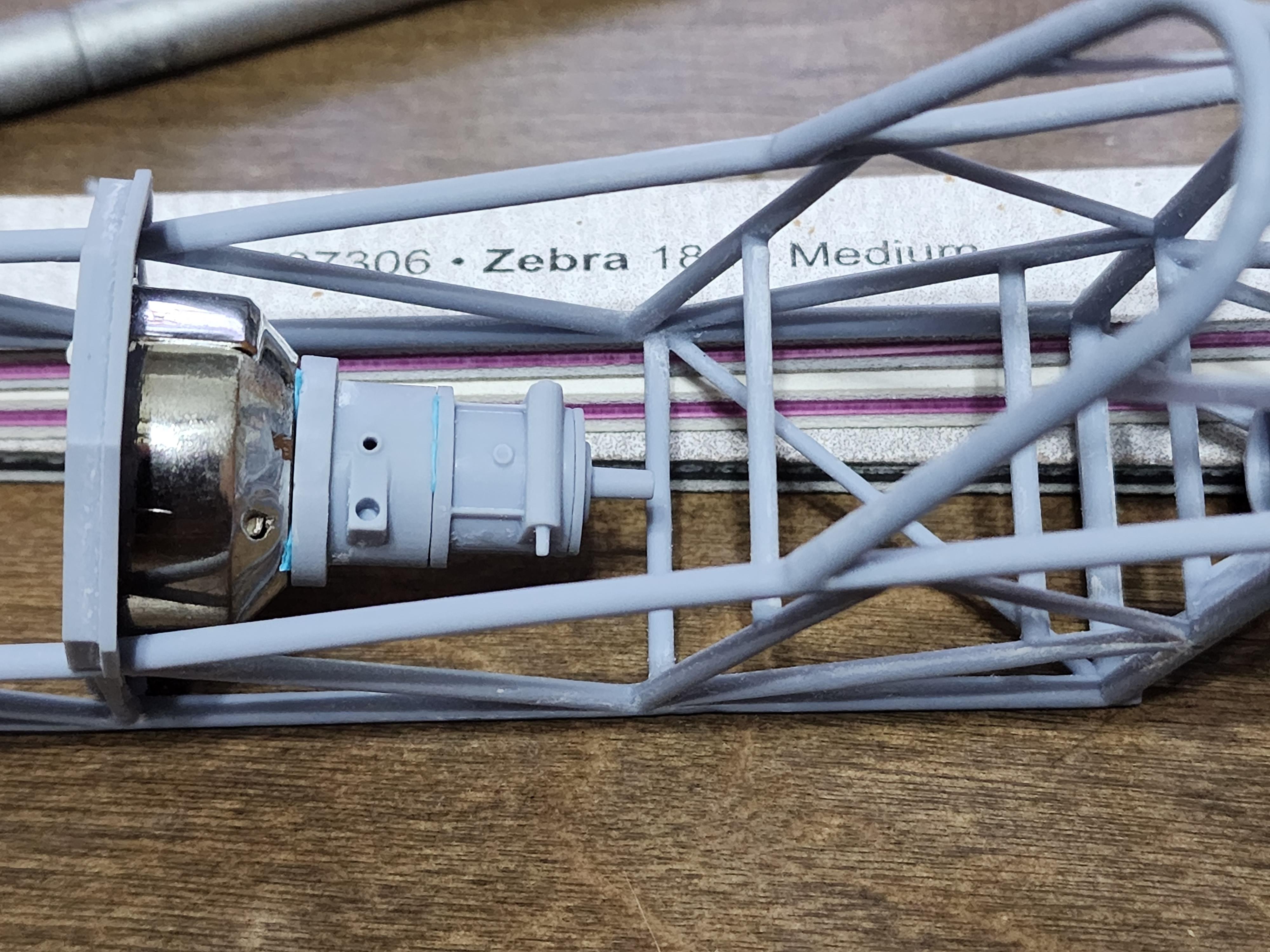

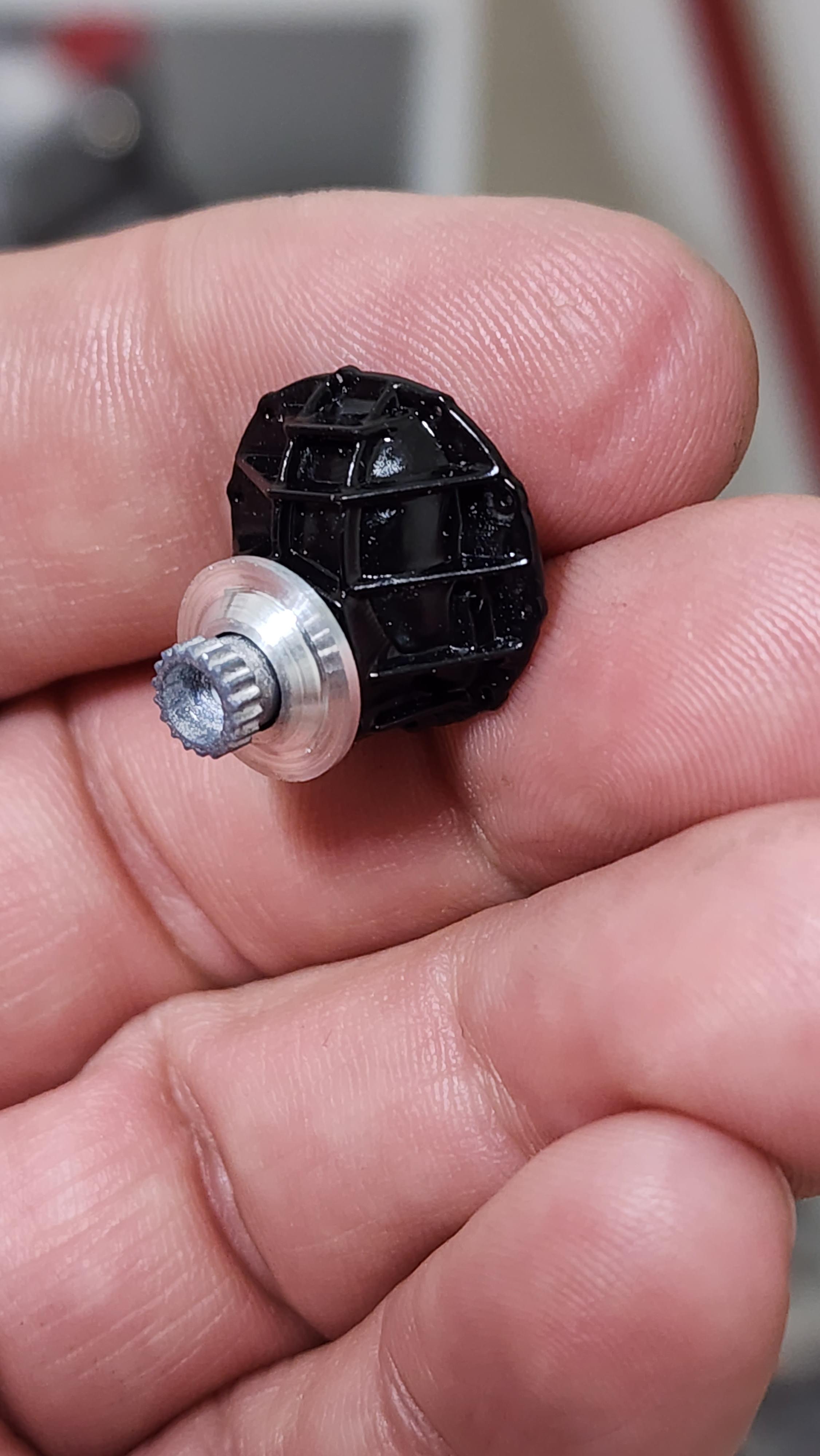

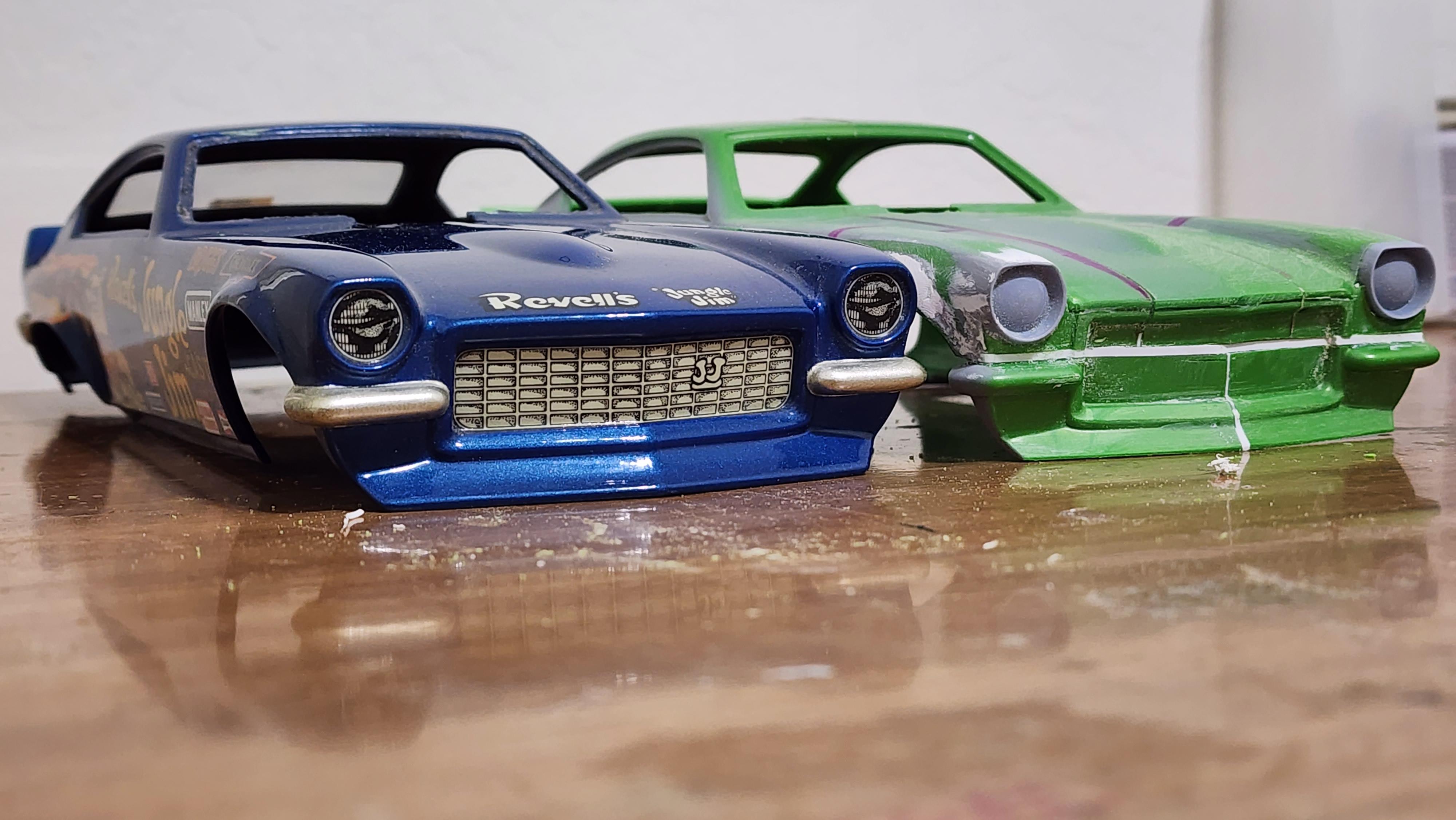

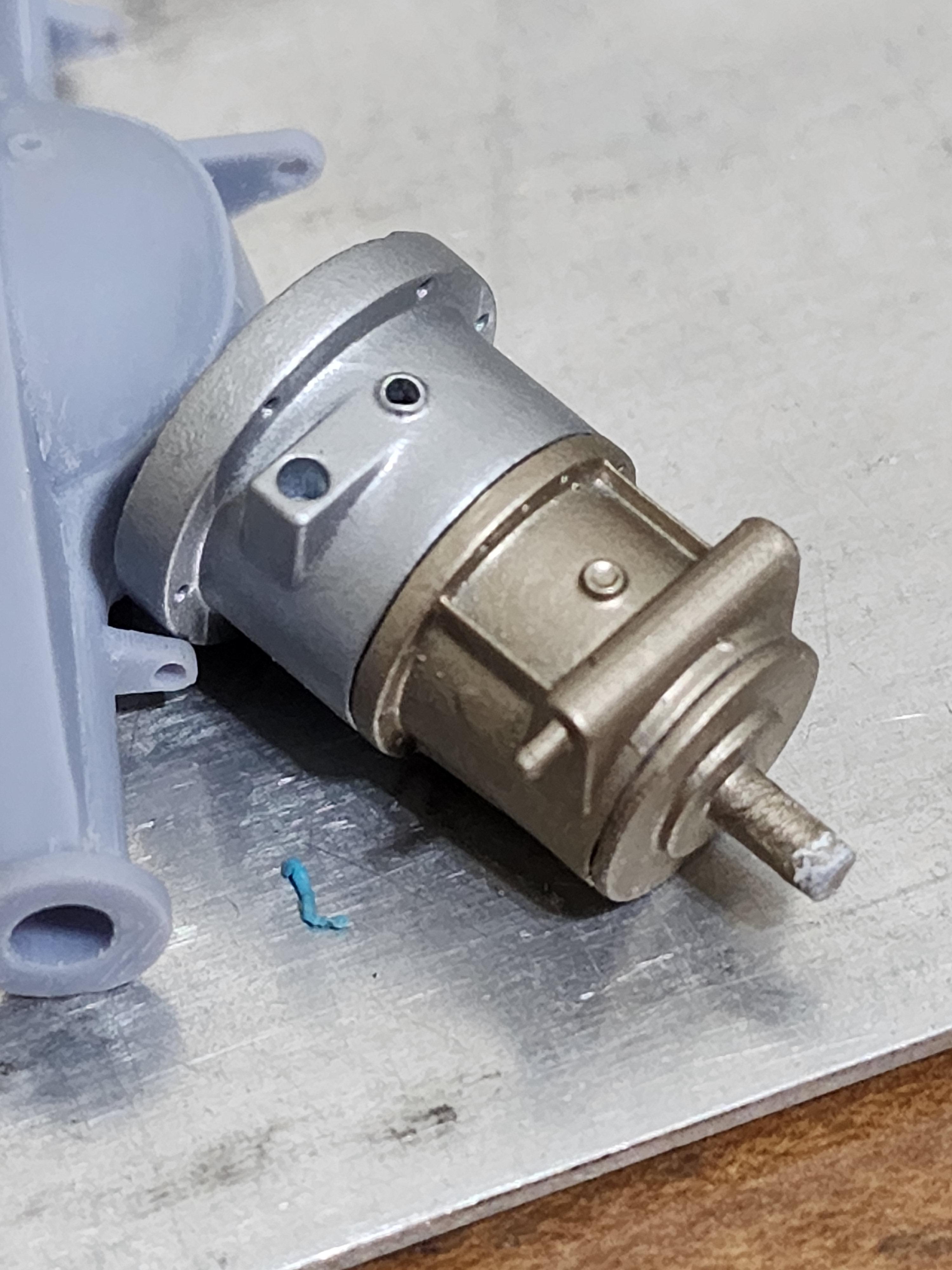

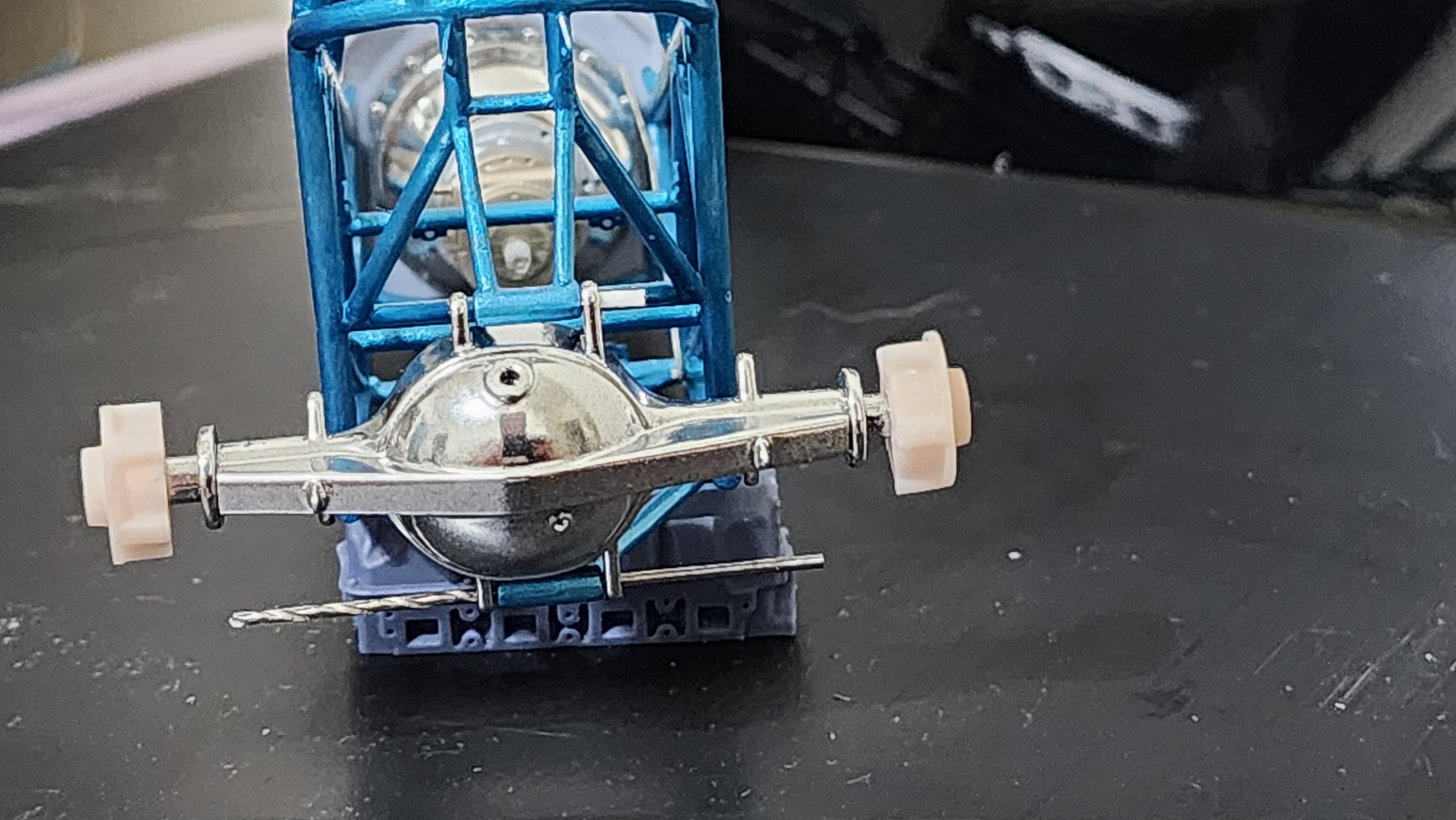

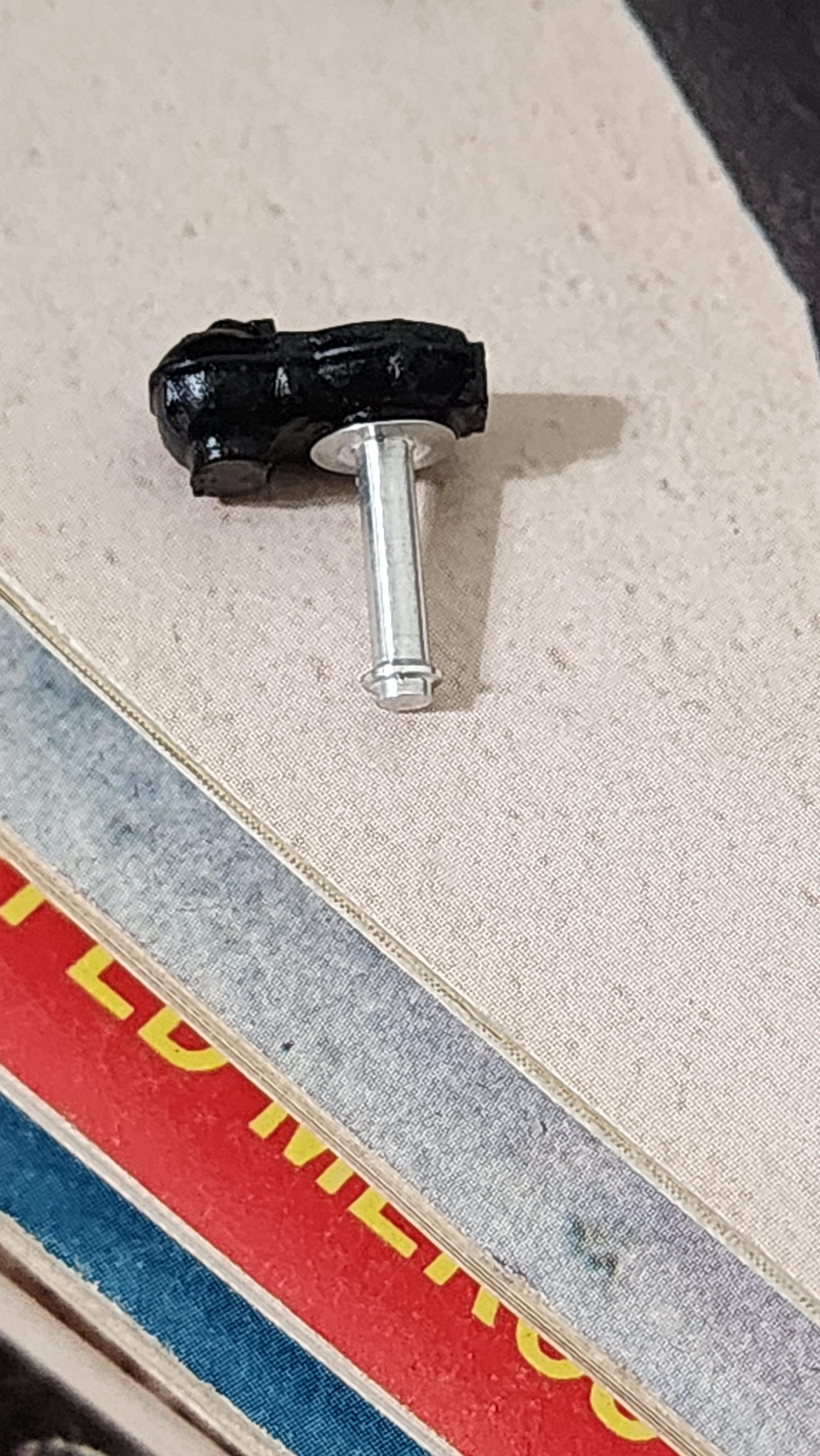

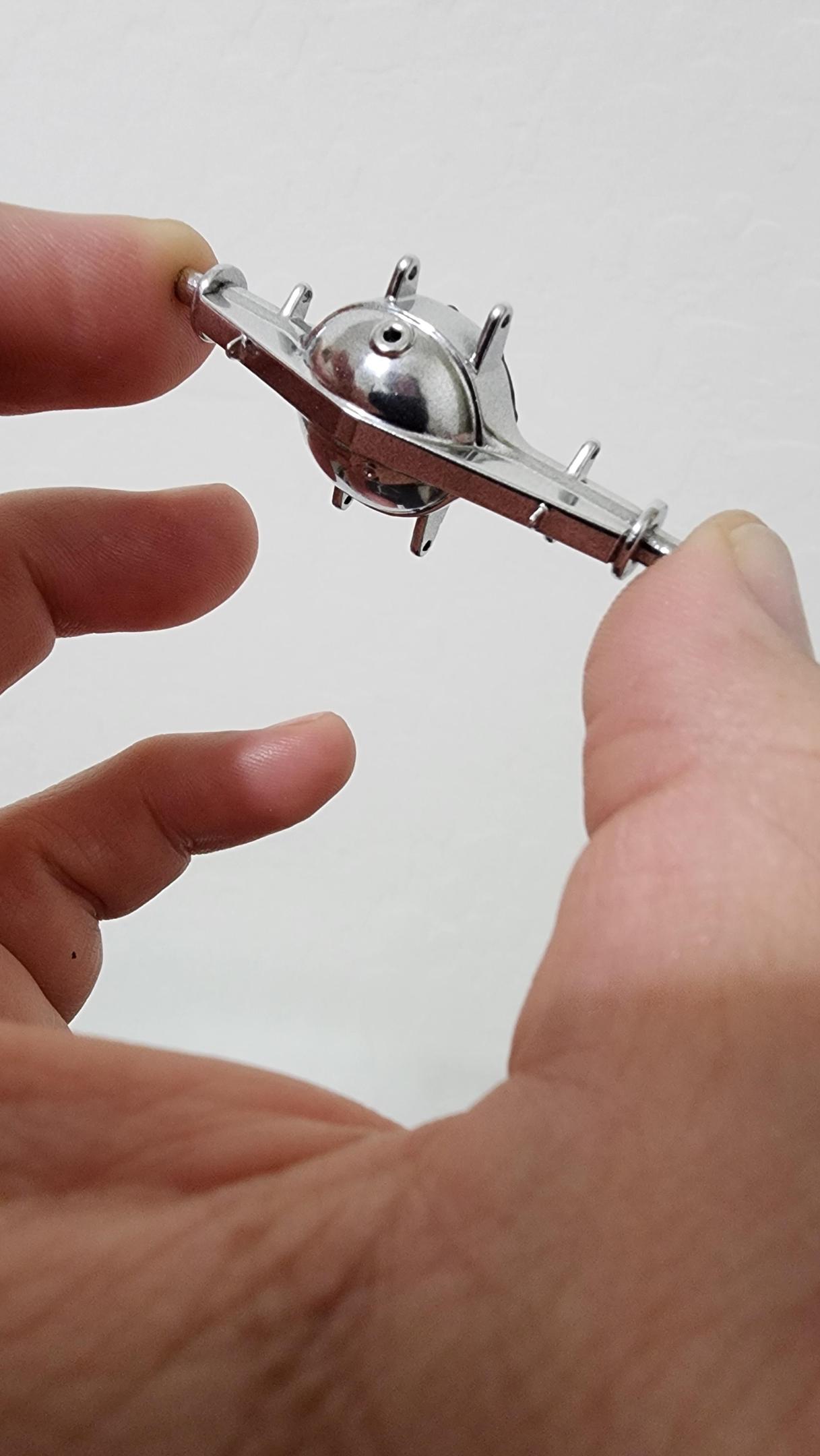

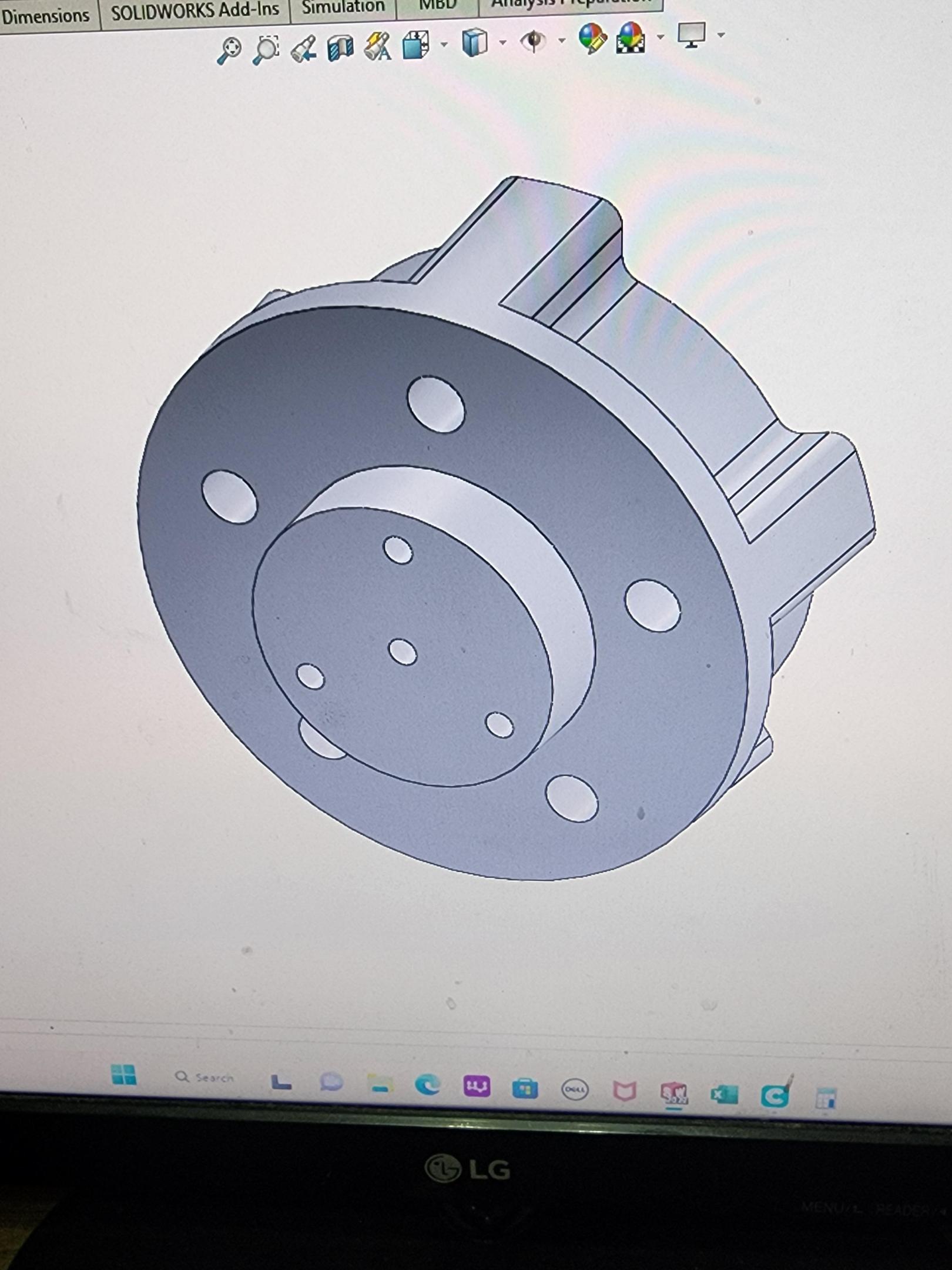

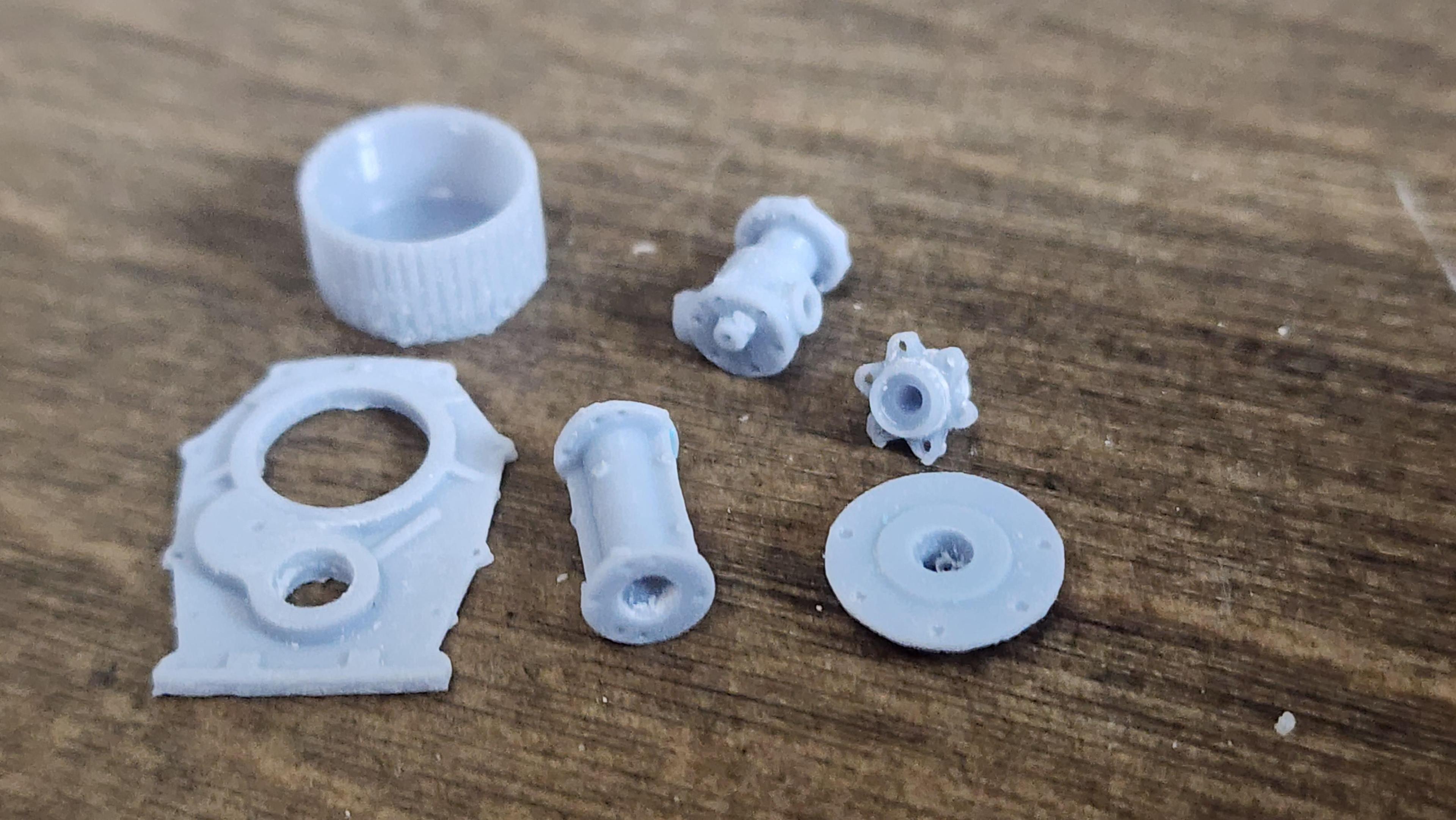

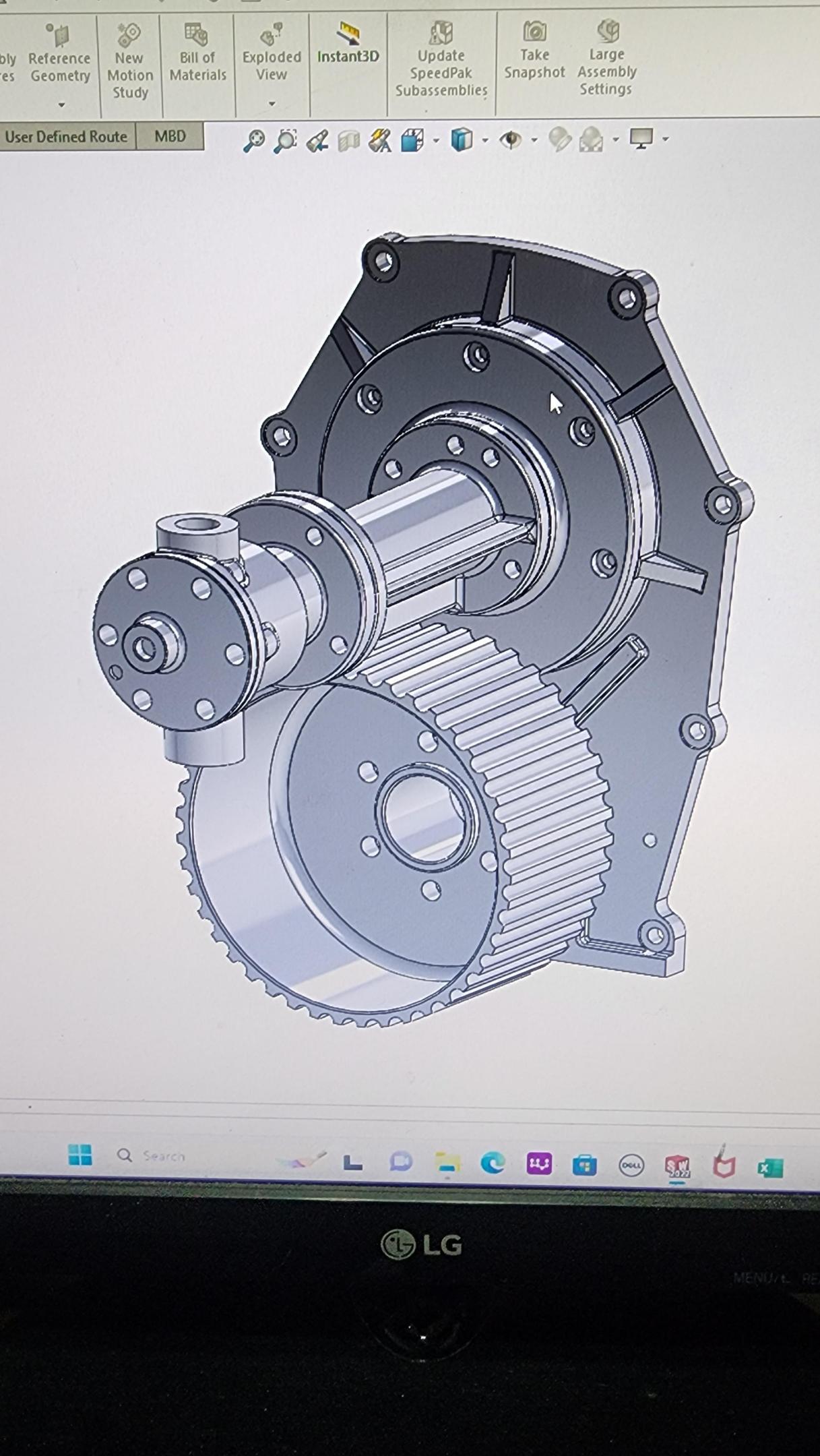

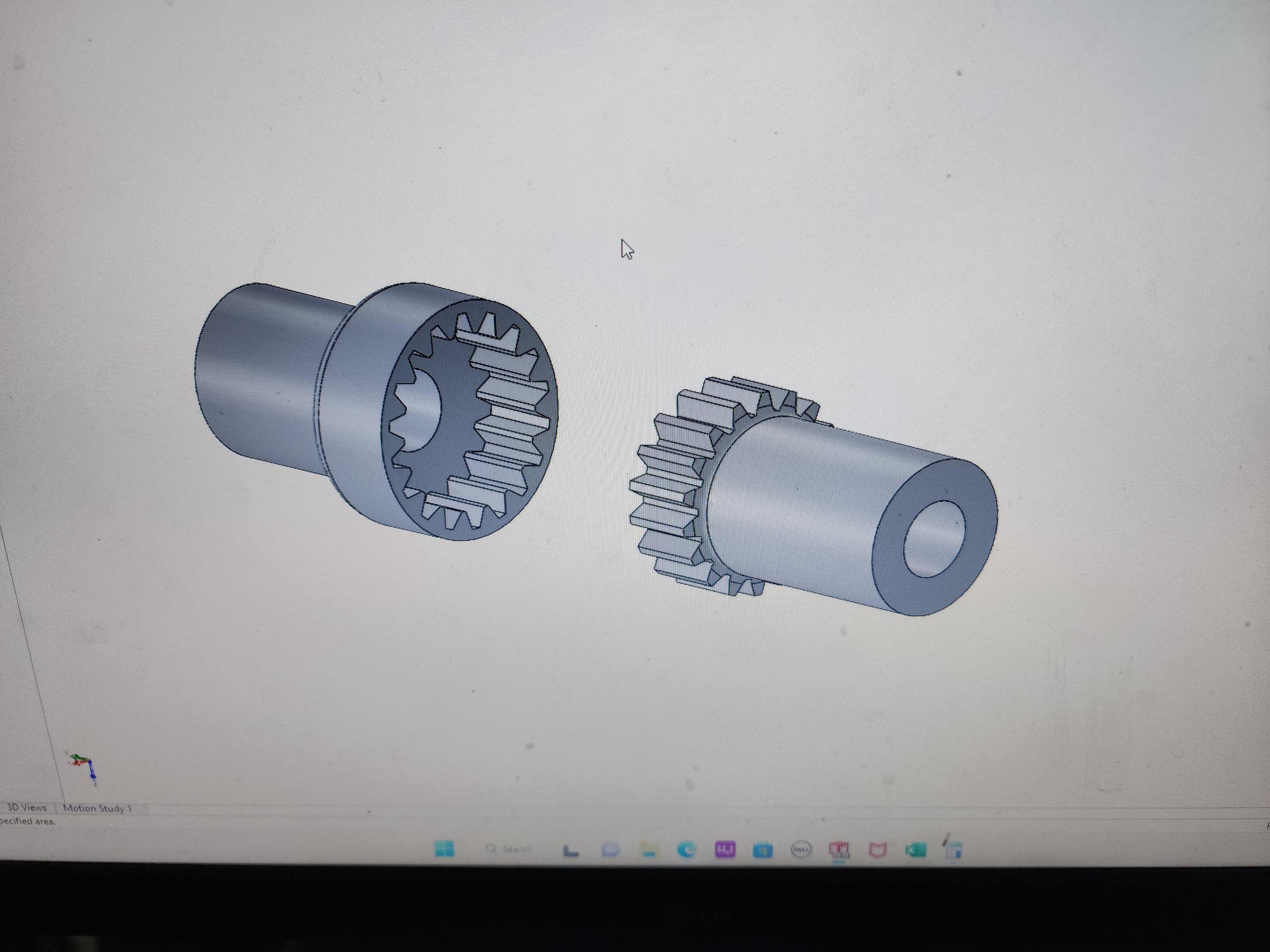

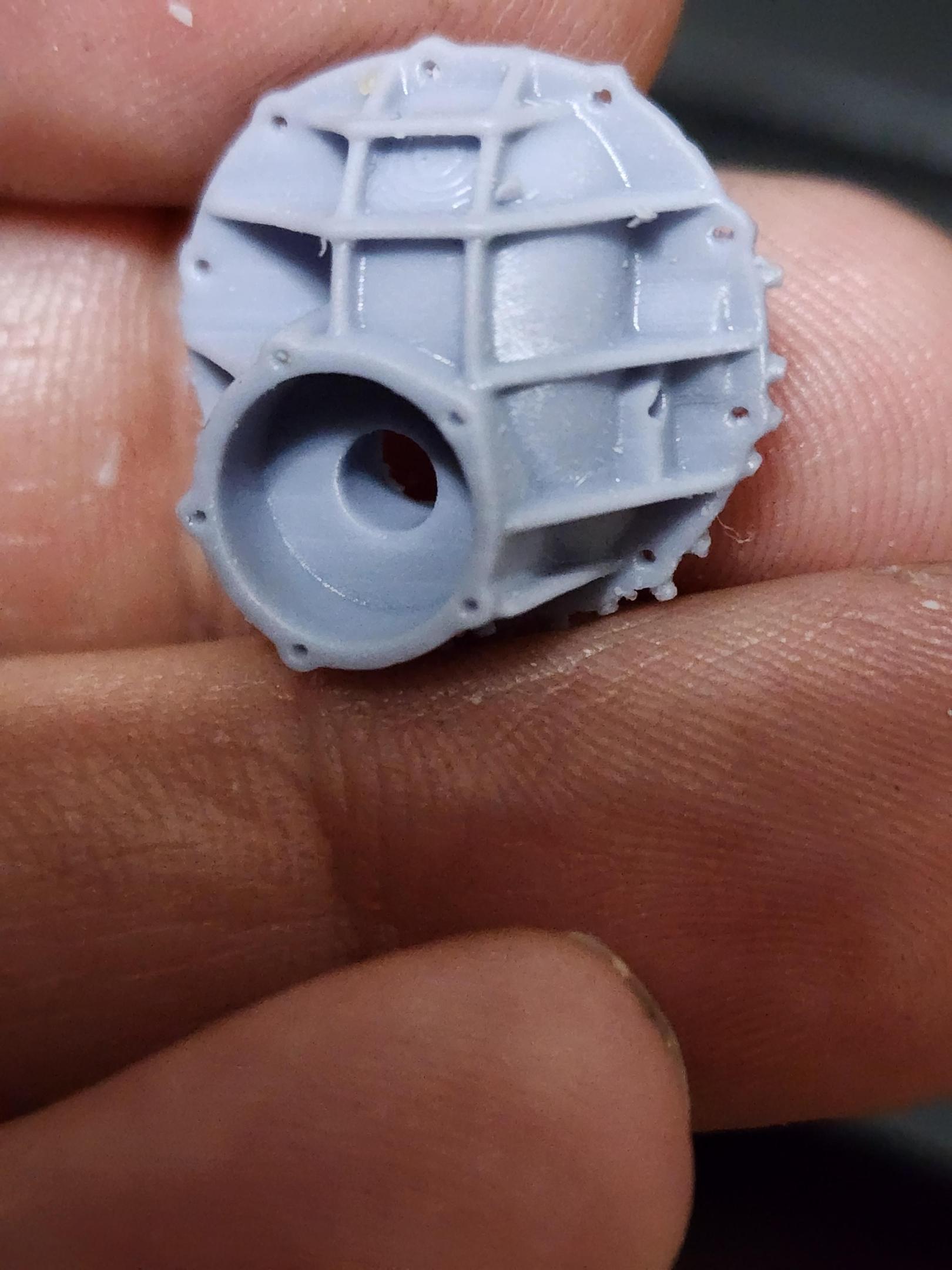

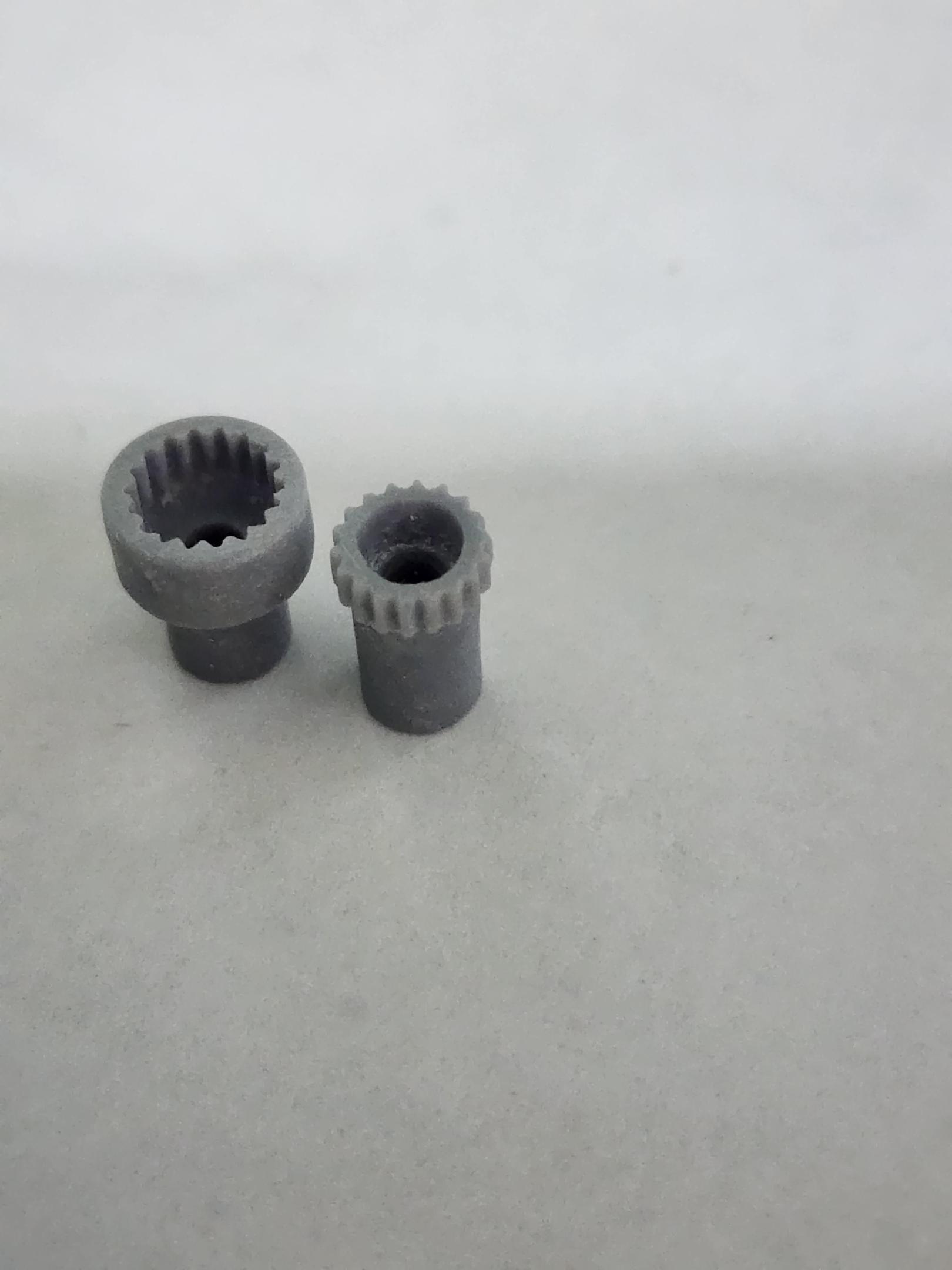

mr68gts Posted May 25 Author Share Posted May 25 Mocked up either the body, you can see how far our of whack the body is on the new chassis. 9 inch pumpkin supplied fromm good friend in NZ, he also supplied me with the barrel valve. Initially thought to have a 2 spd lenco, I soon realized that it wasn't a 2 spd but an overdrive unit. Back to the cad box I go...lol Working couplers for the rear end housing. This car ran a right side steer so it took a special mount to flip the box. Amd the chassis in paint with all the photo etch tab work done thanks to Futurattraction parts! 2 Quote Link to comment Share on other sites More sharing options...

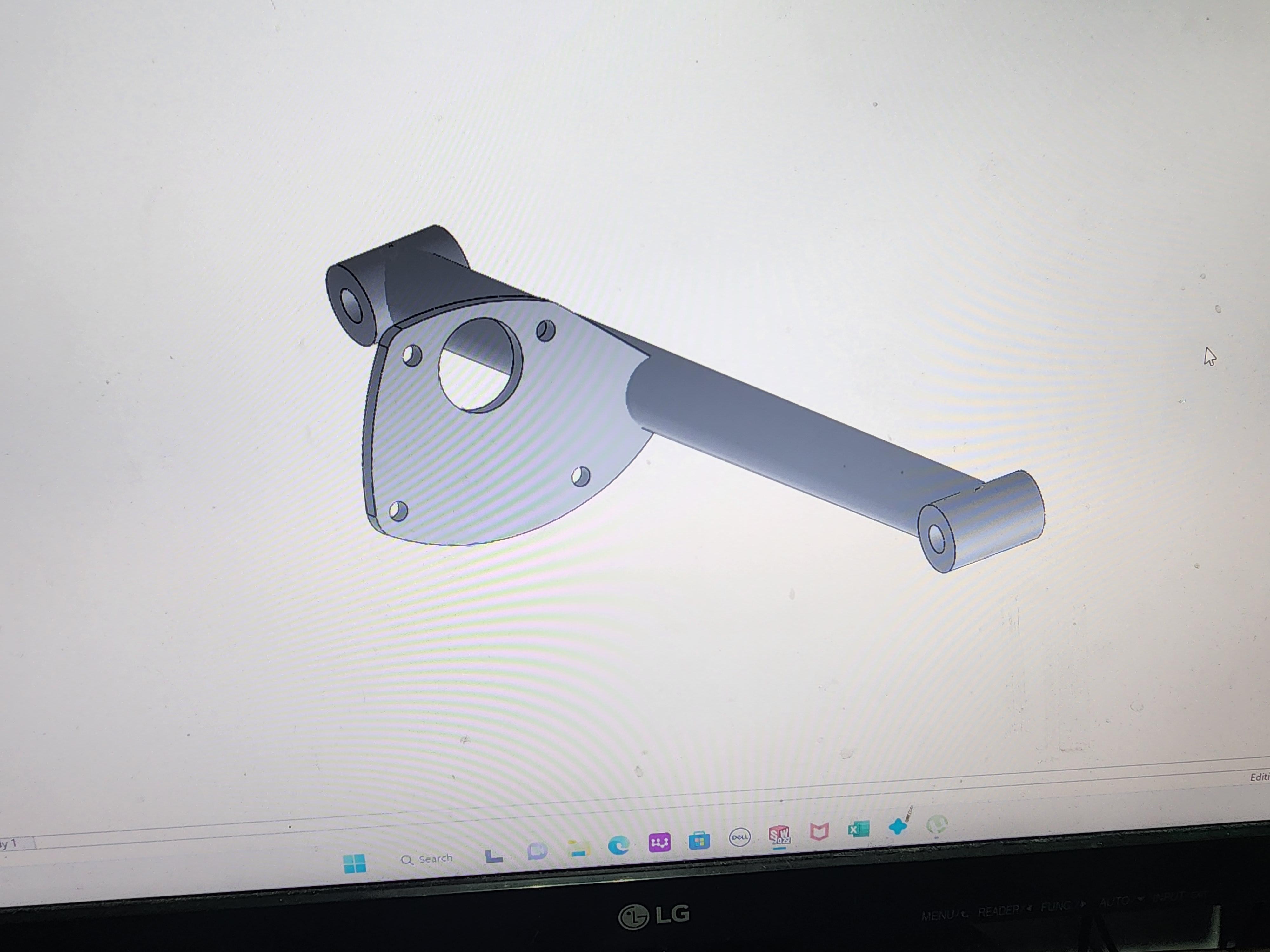

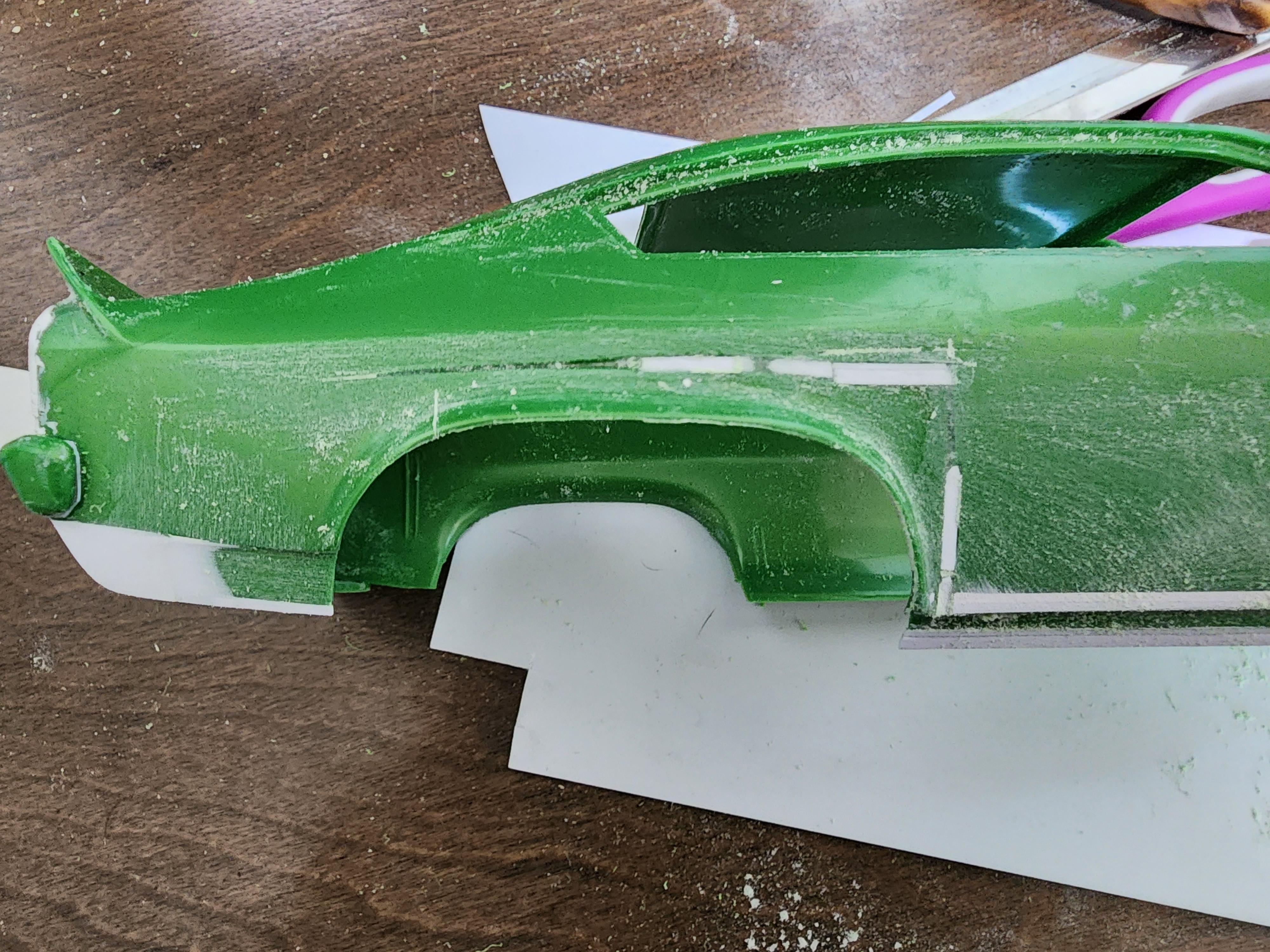

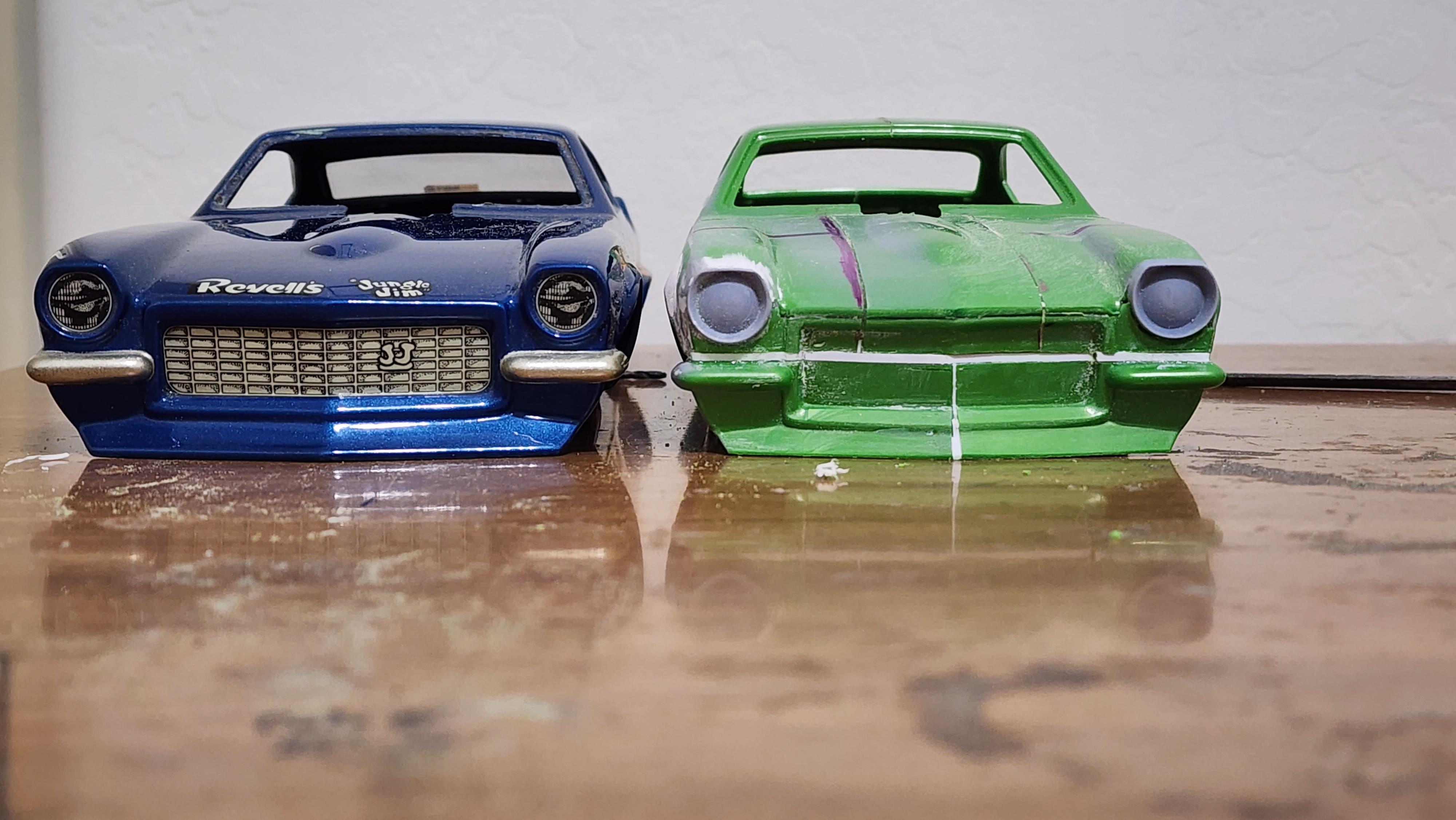

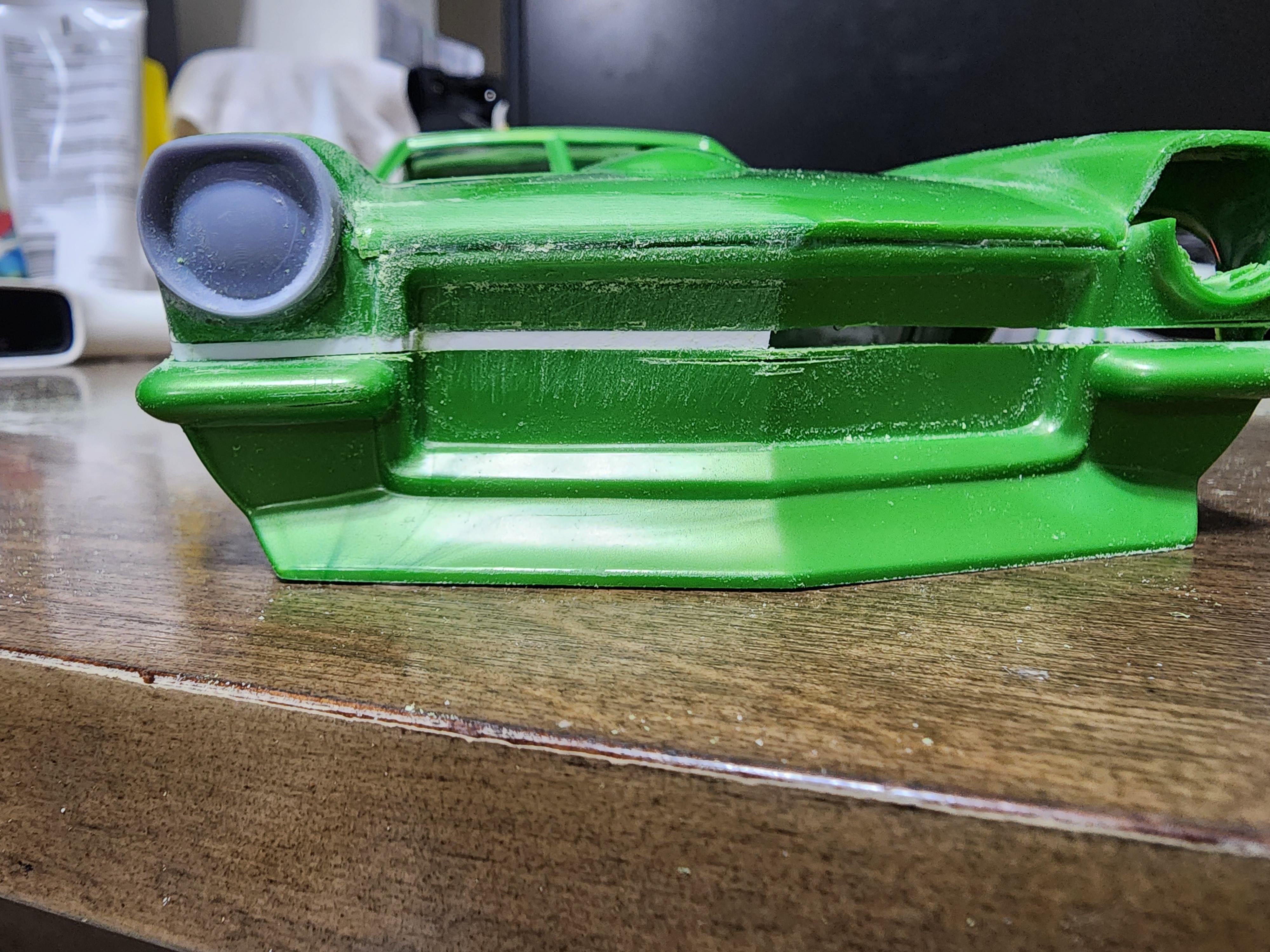

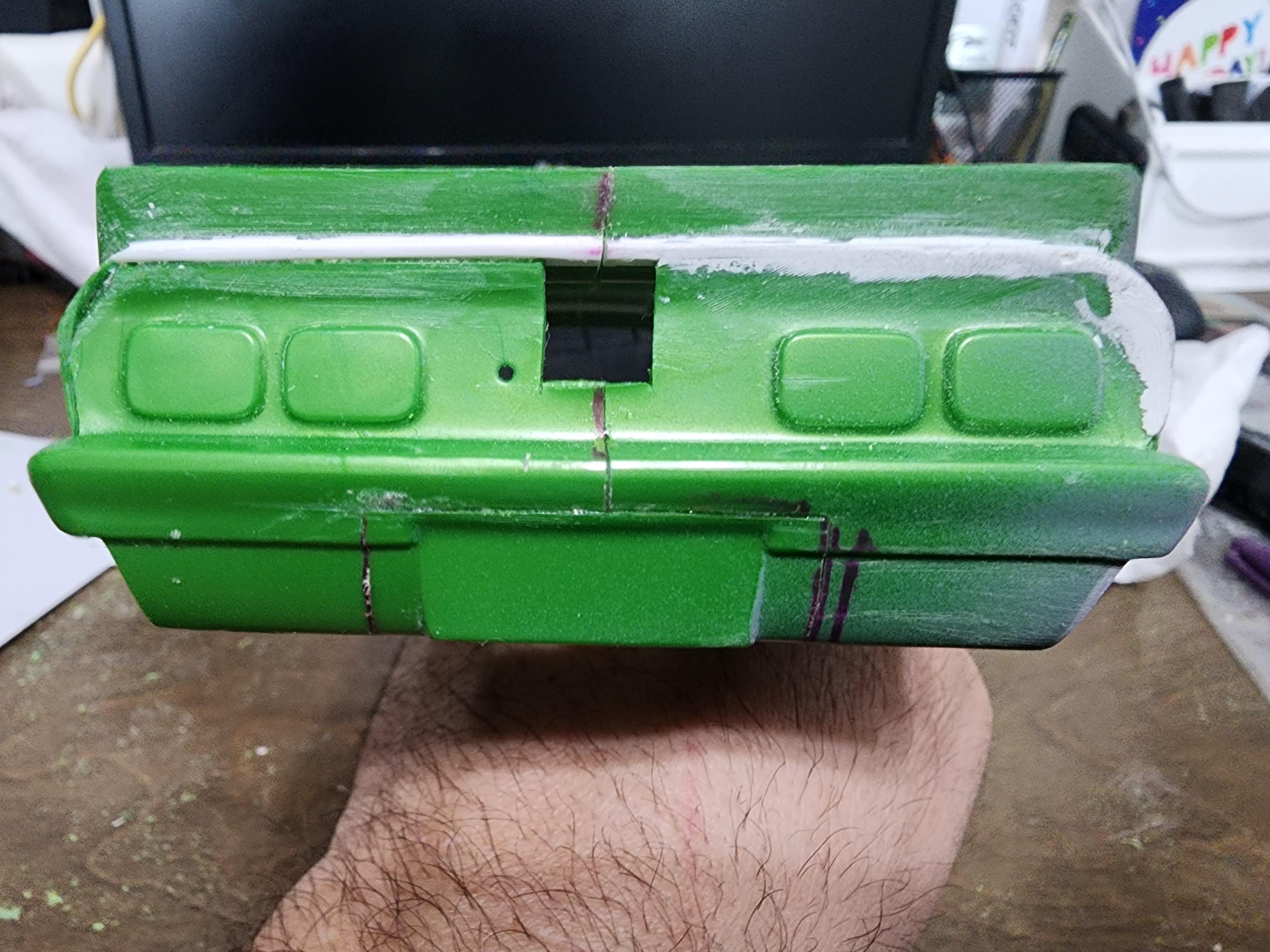

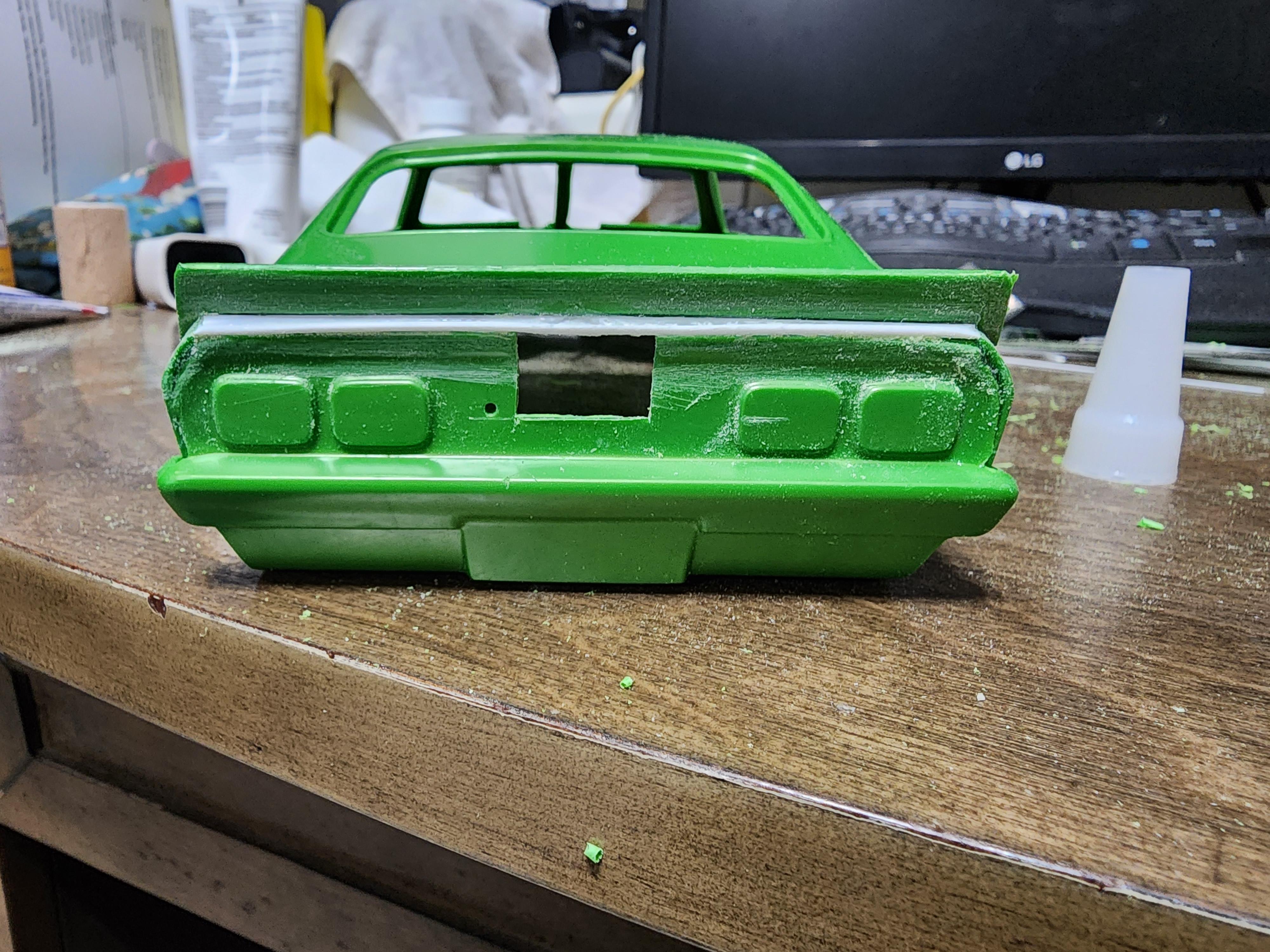

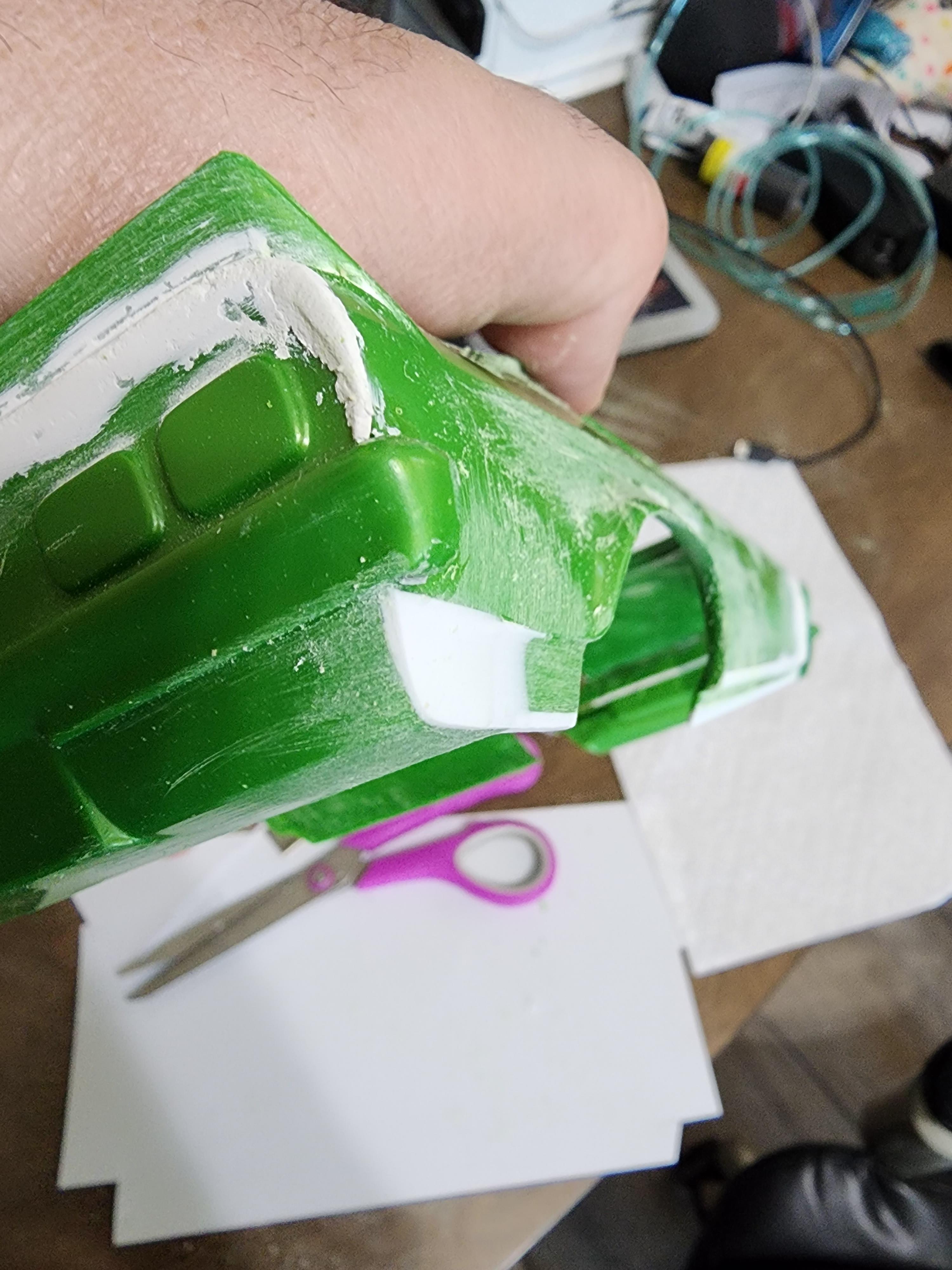

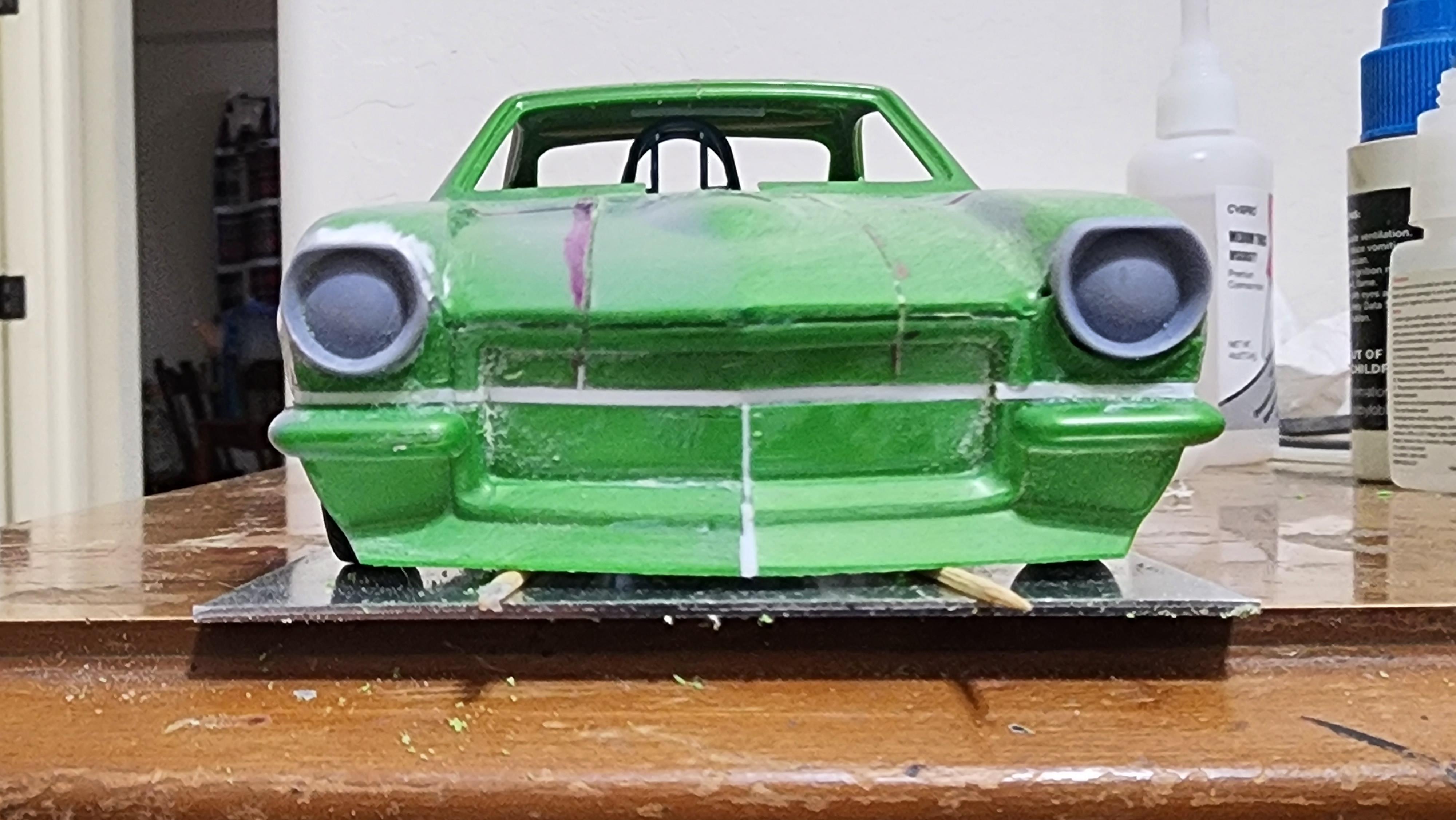

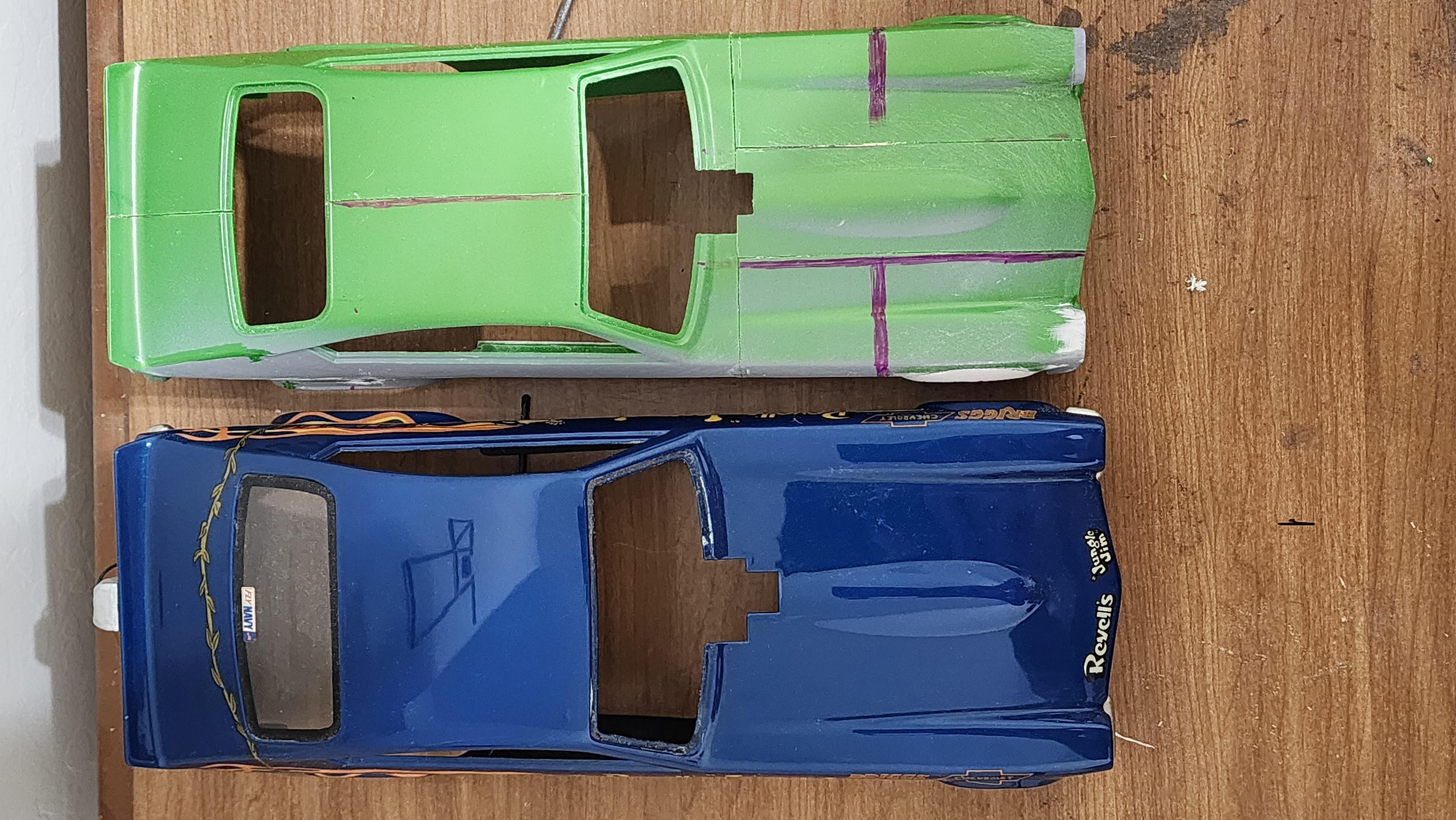

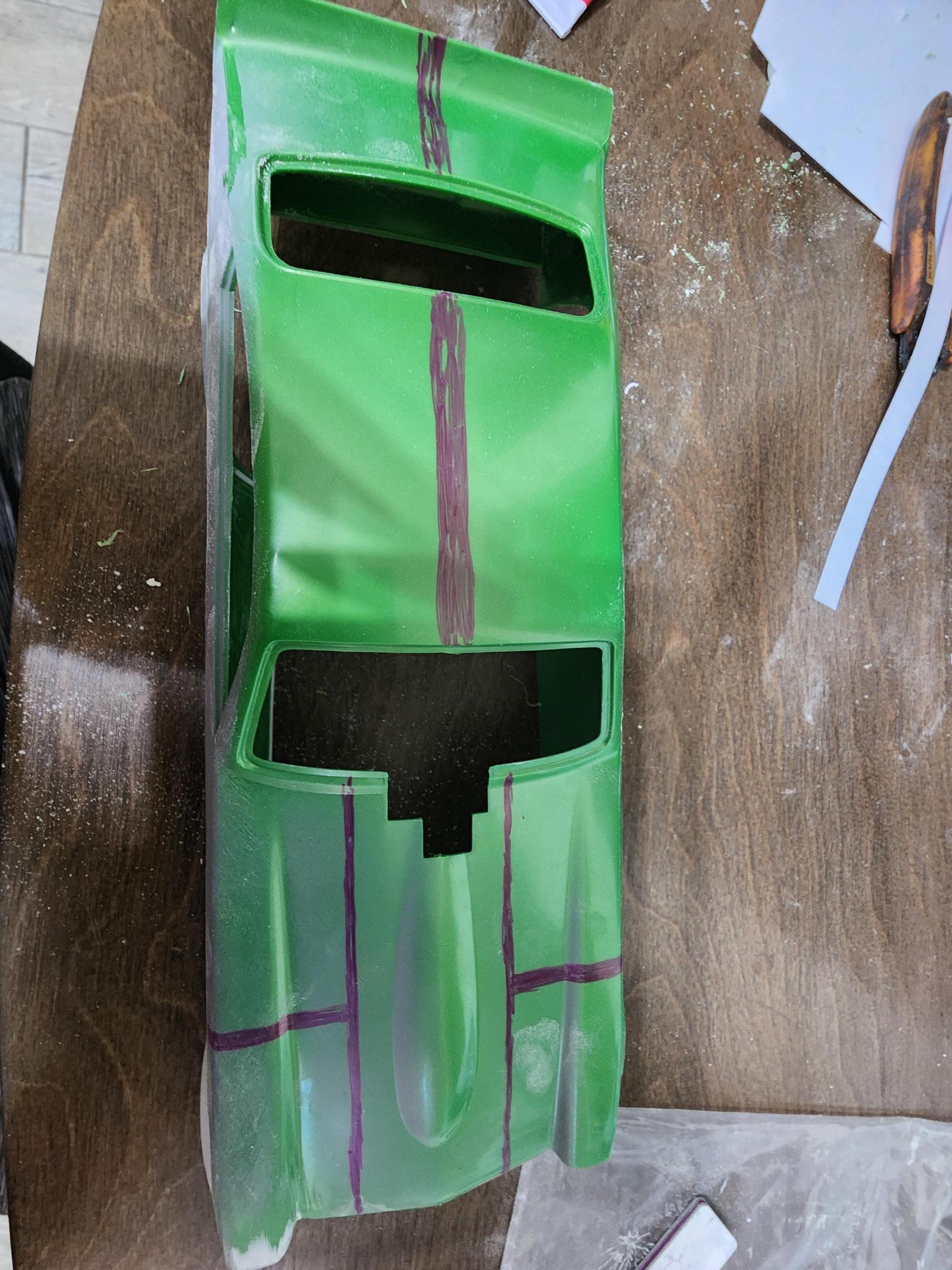

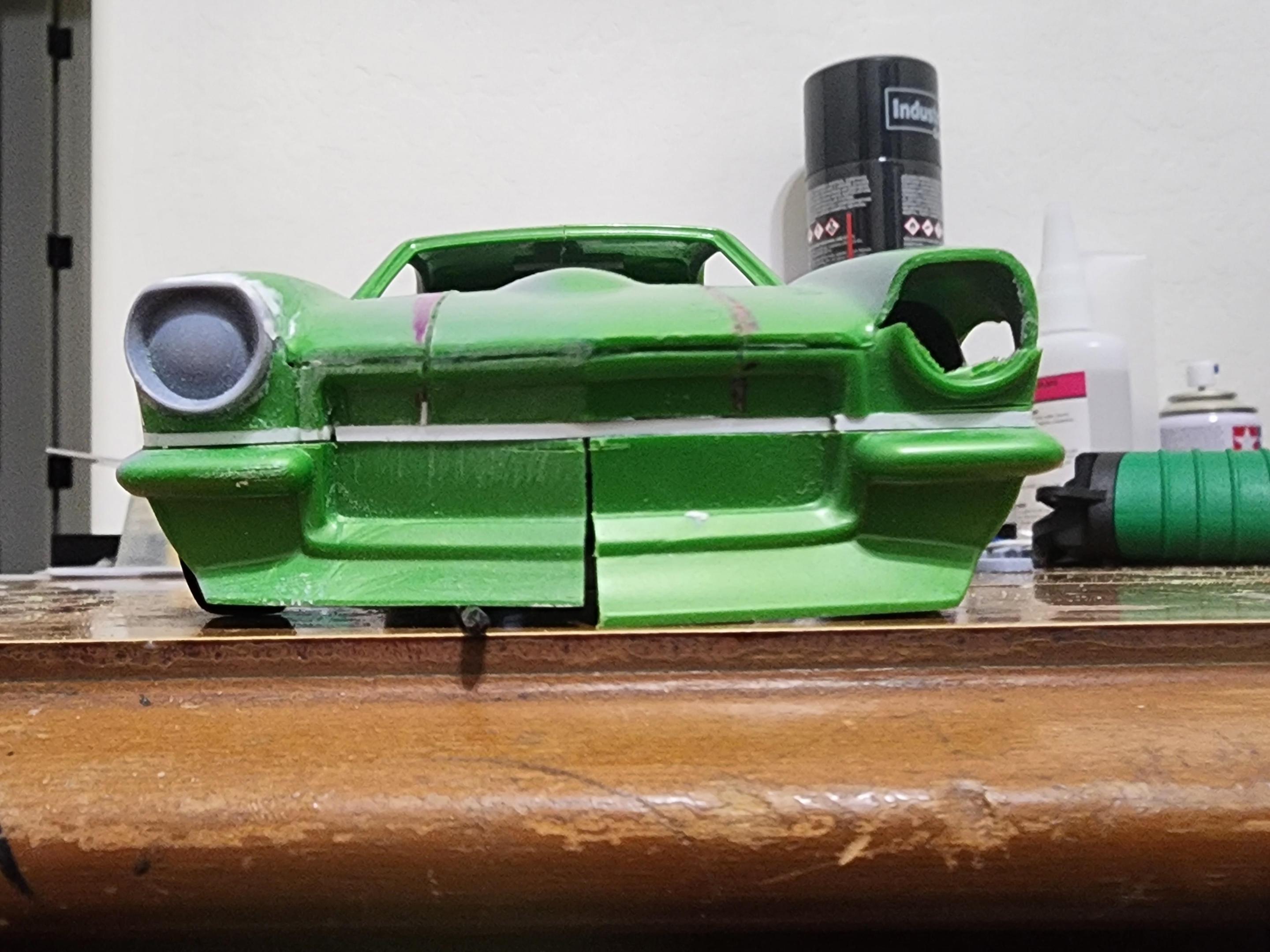

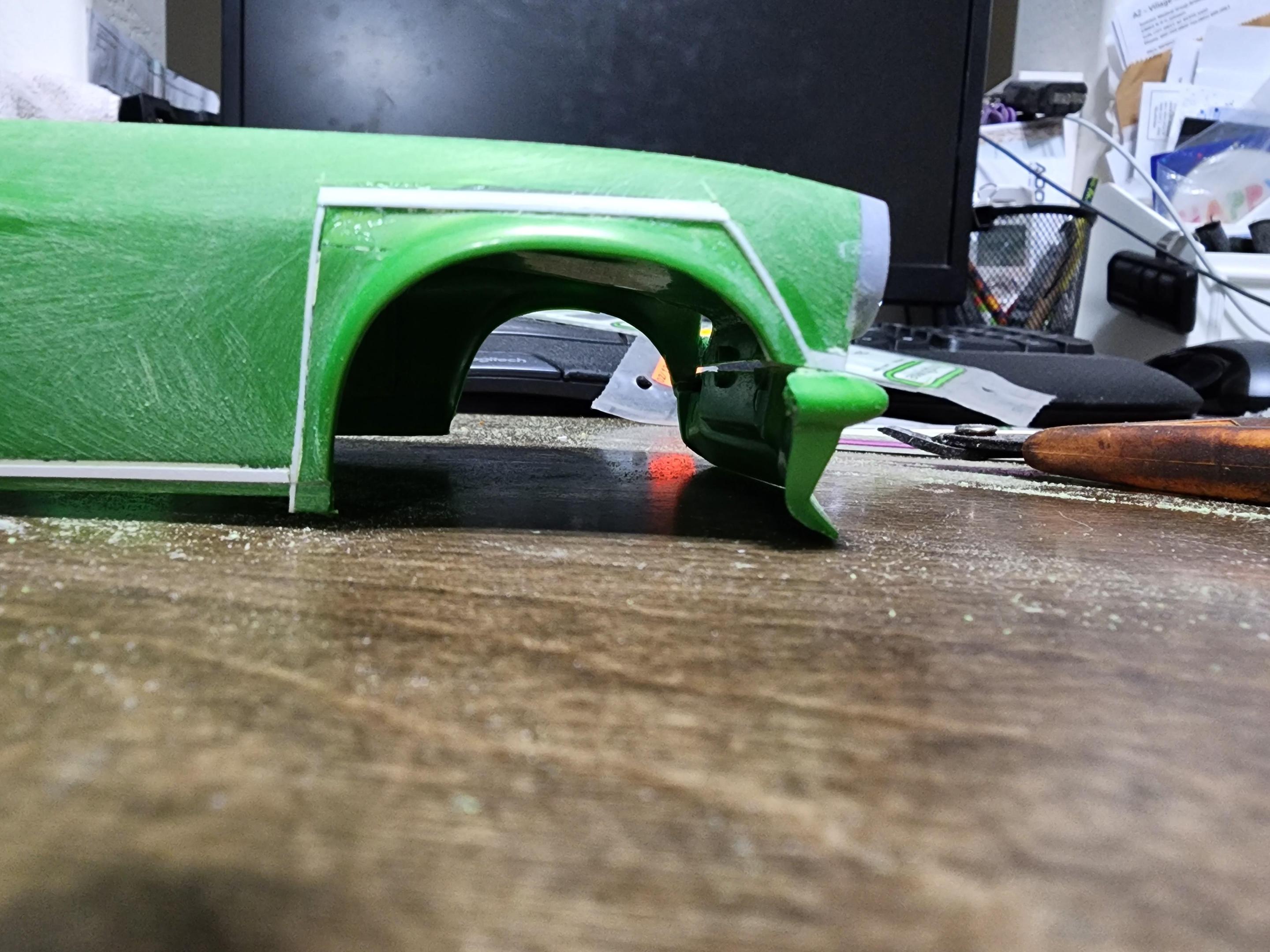

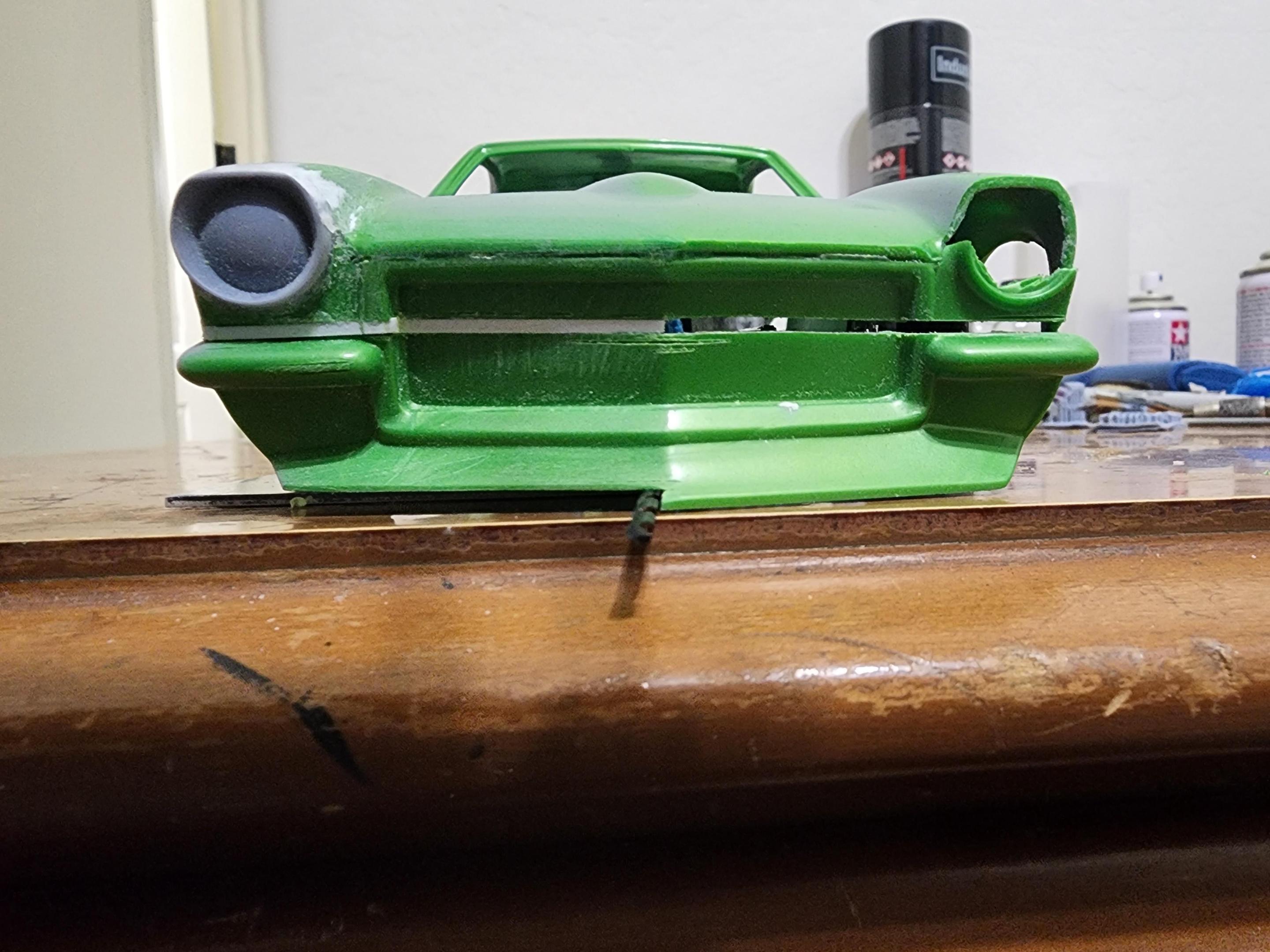

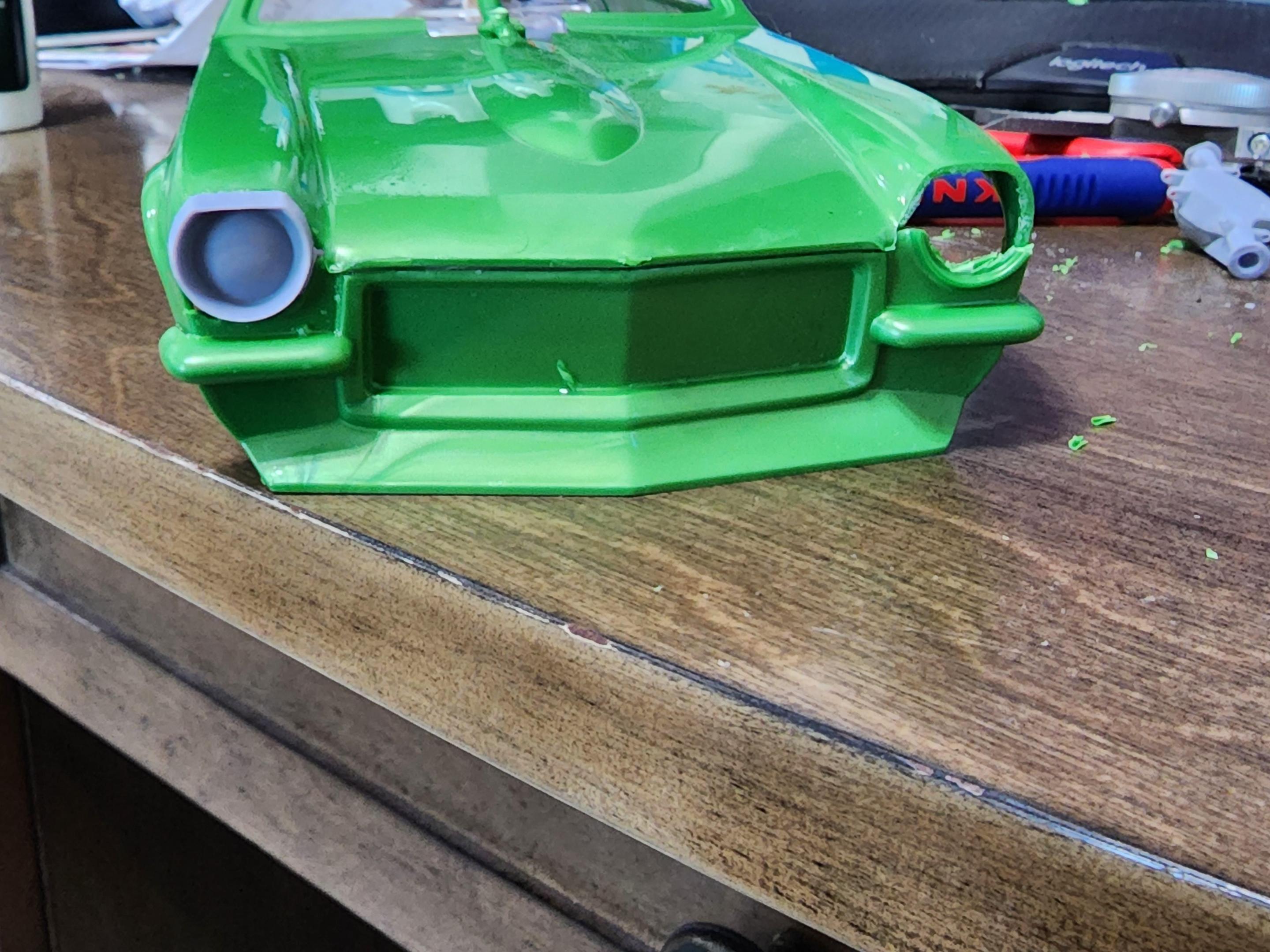

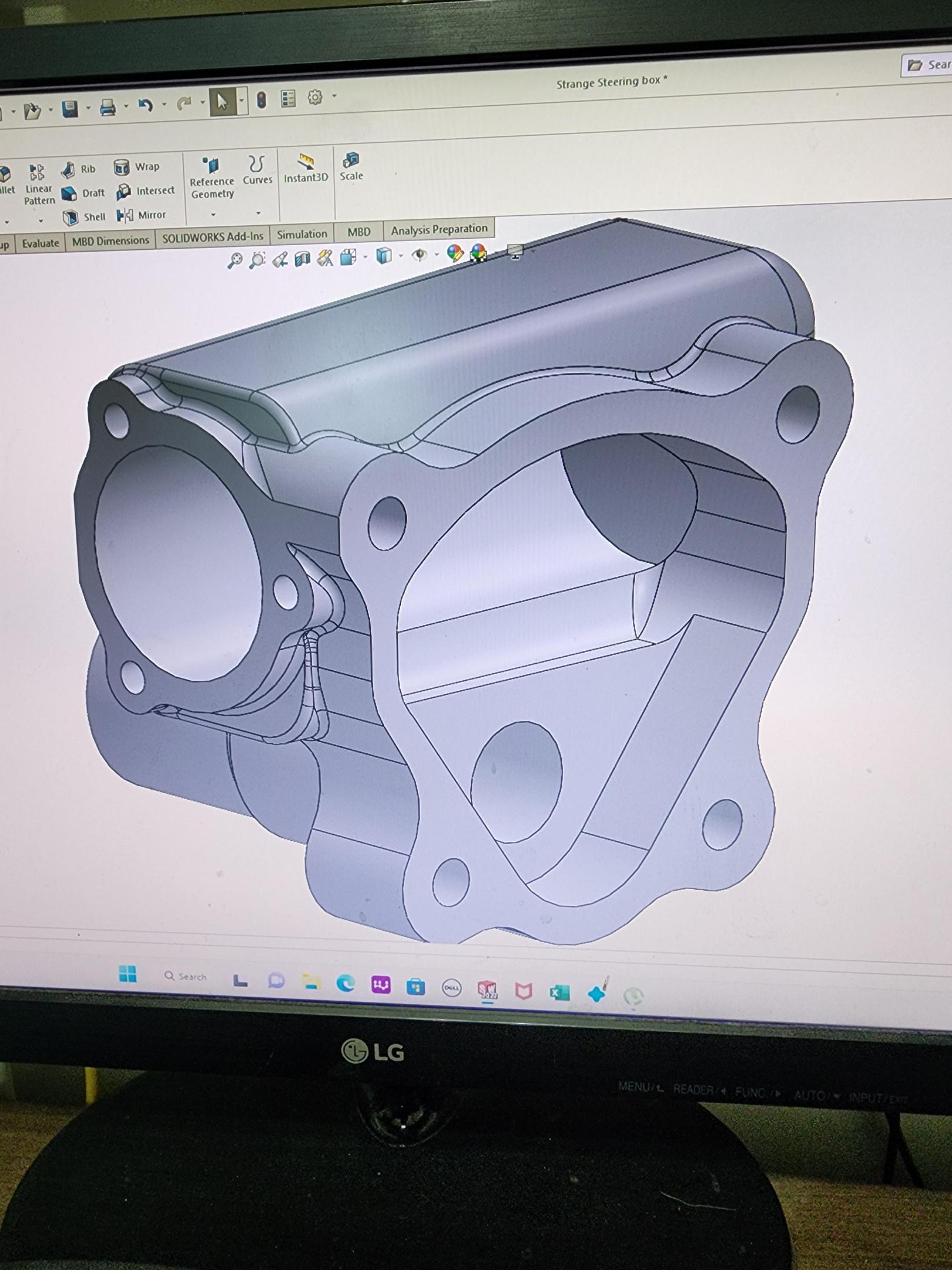

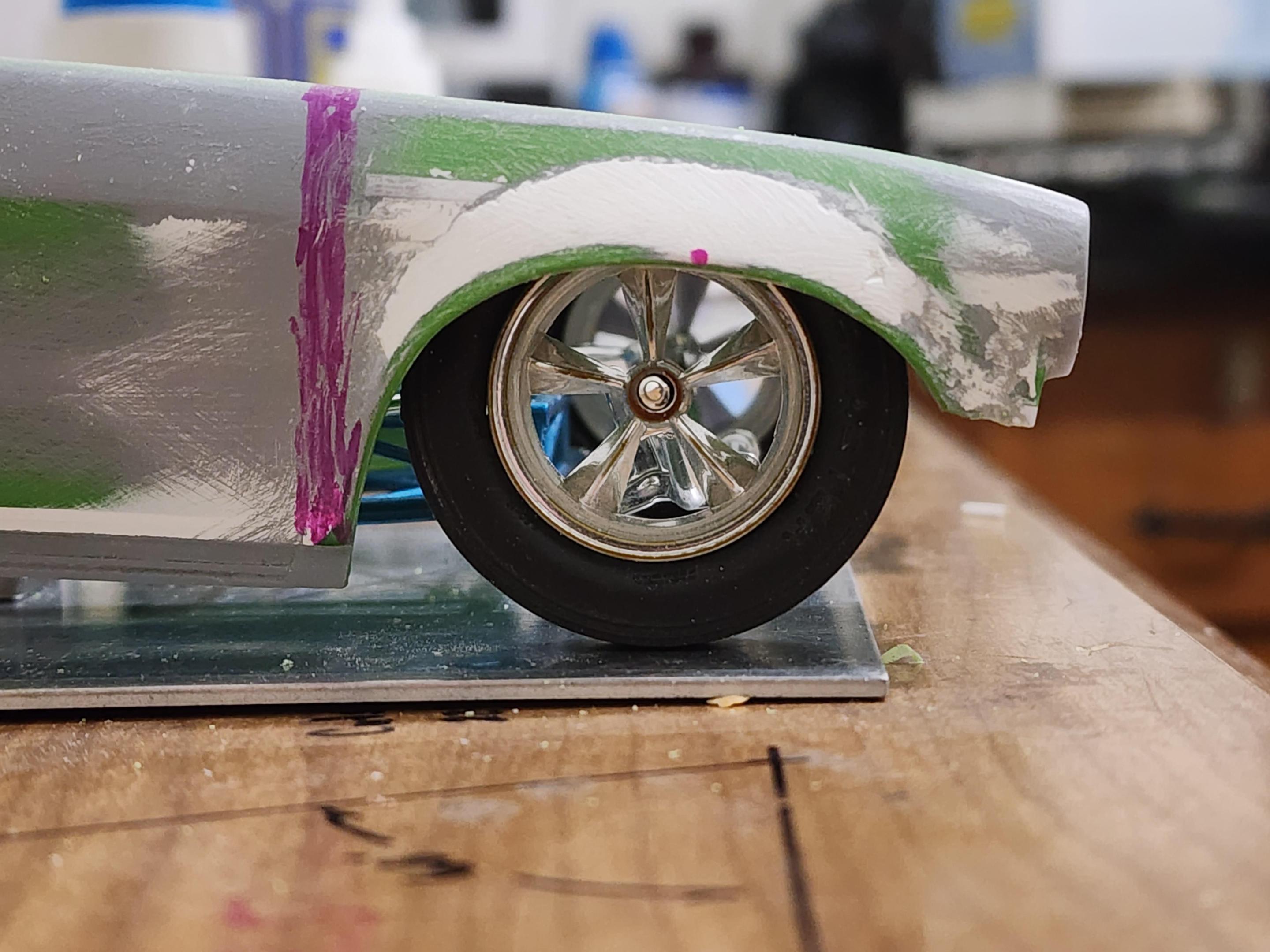

mr68gts Posted May 26 Author Share Posted May 26 New steering box was in order to replace the kit blob. The highly modified body. It cut into 14 pieces and glued back together! I have a rotory engraver so I put it to use. This will be on display with the model when it's taken to shows or where ever. 2 Quote Link to comment Share on other sites More sharing options...

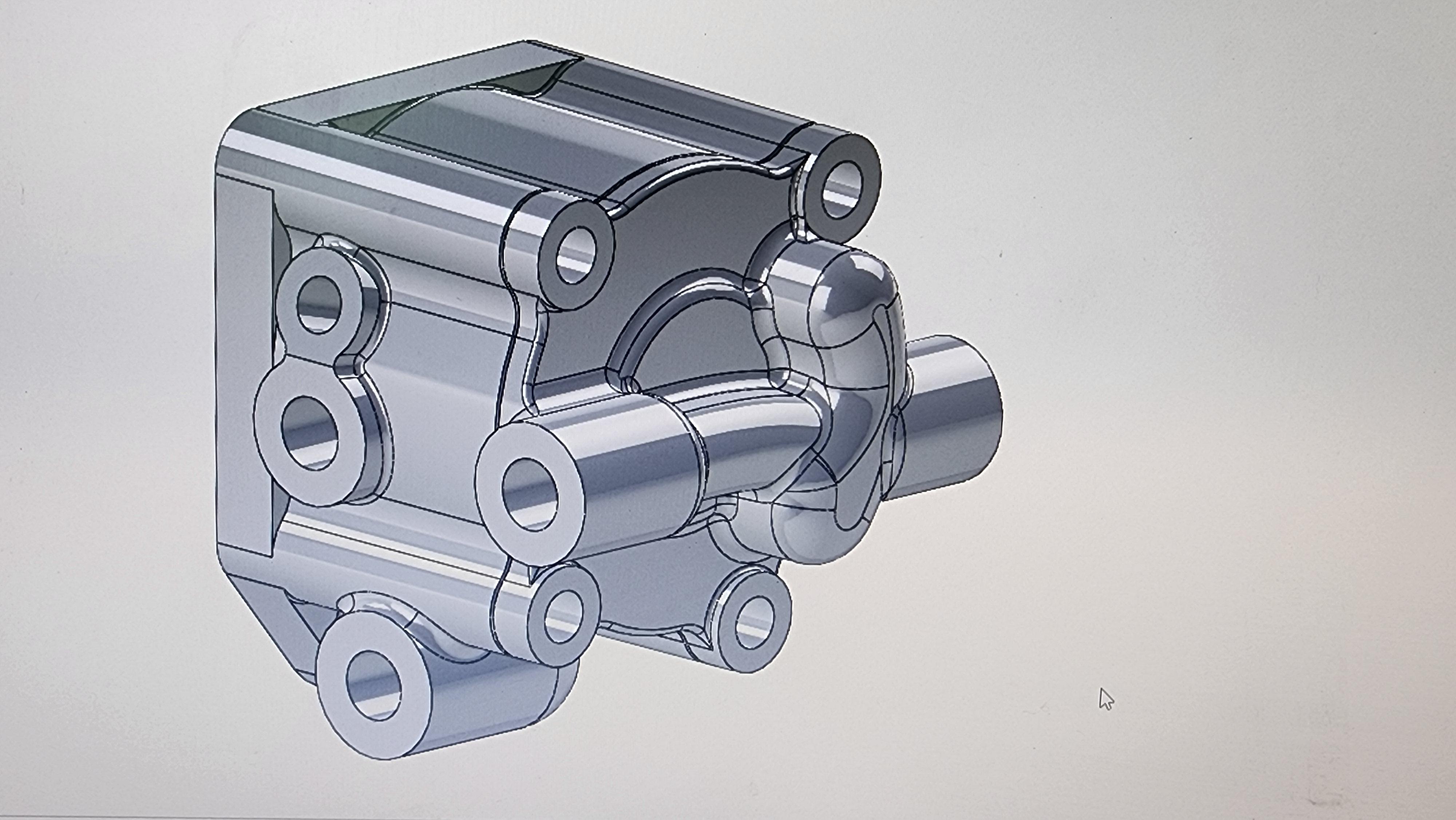

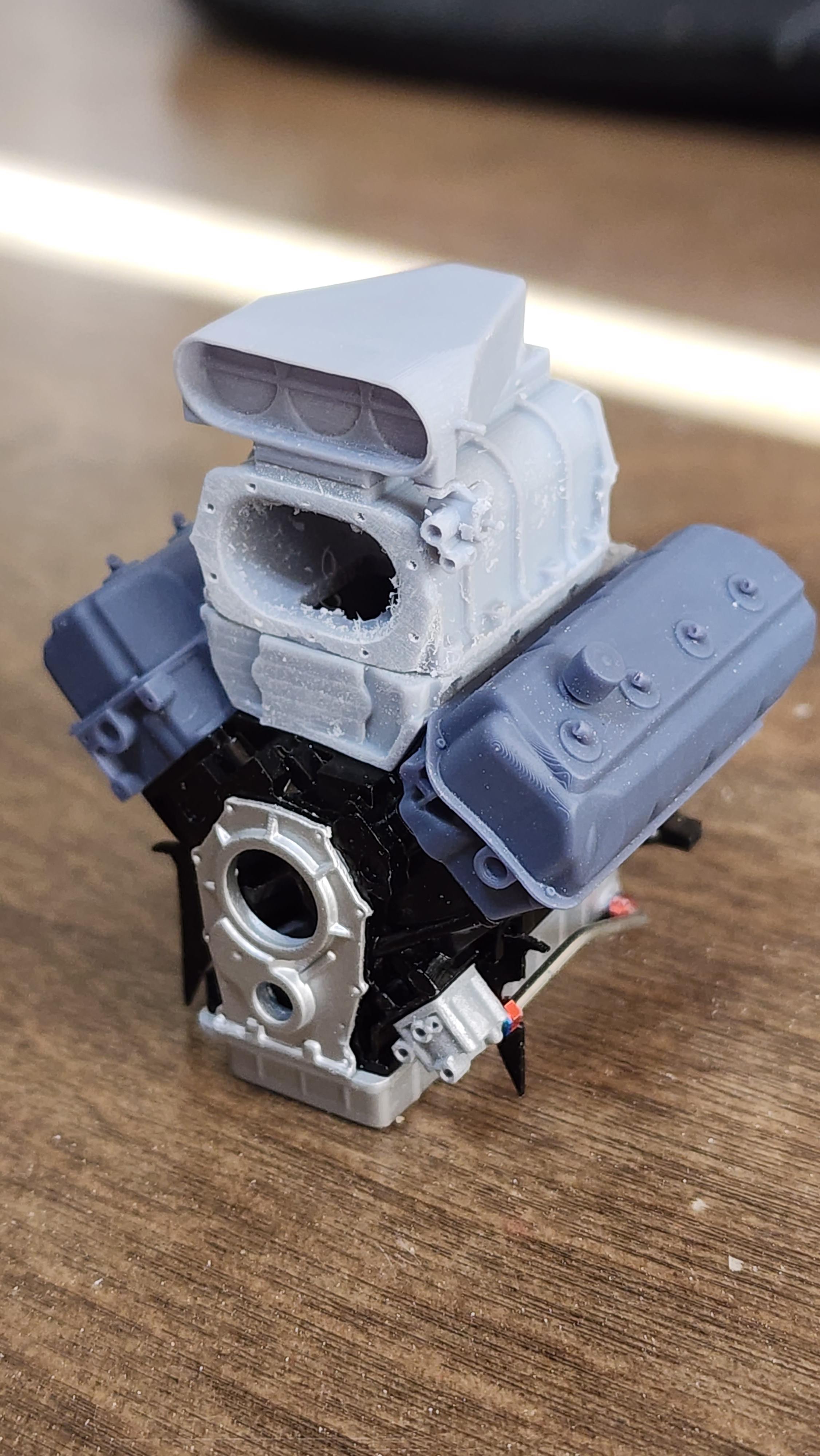

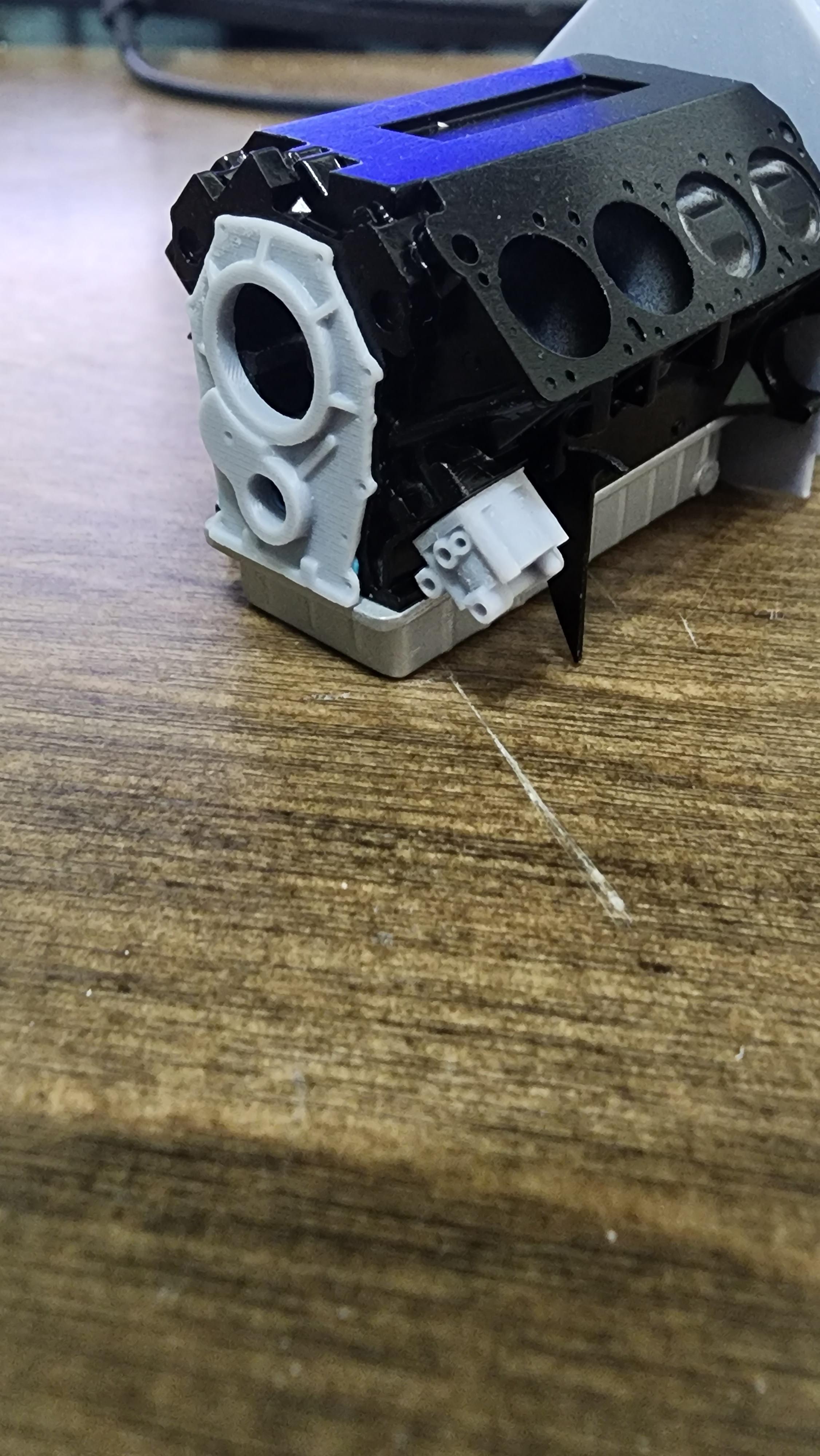

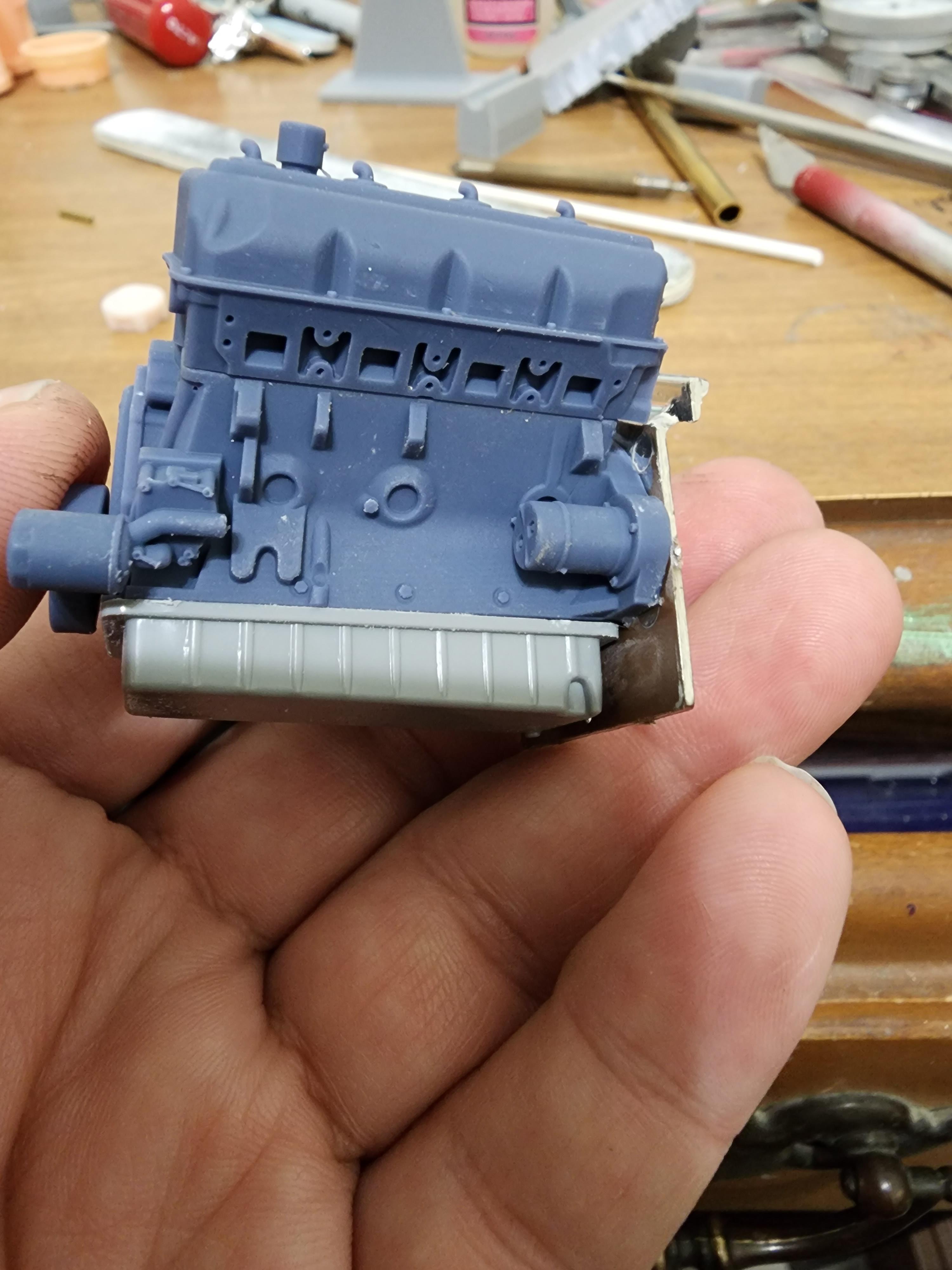

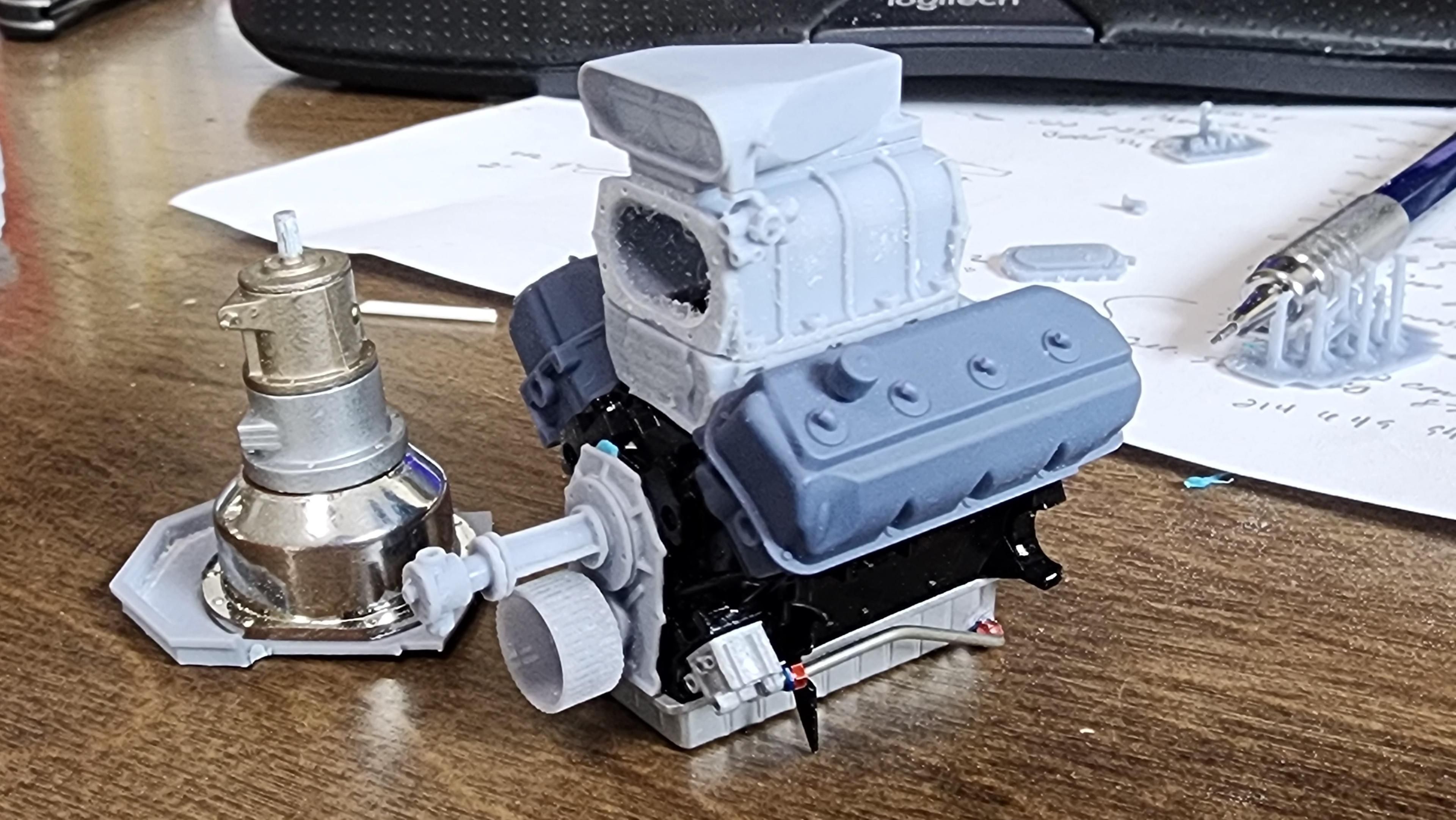

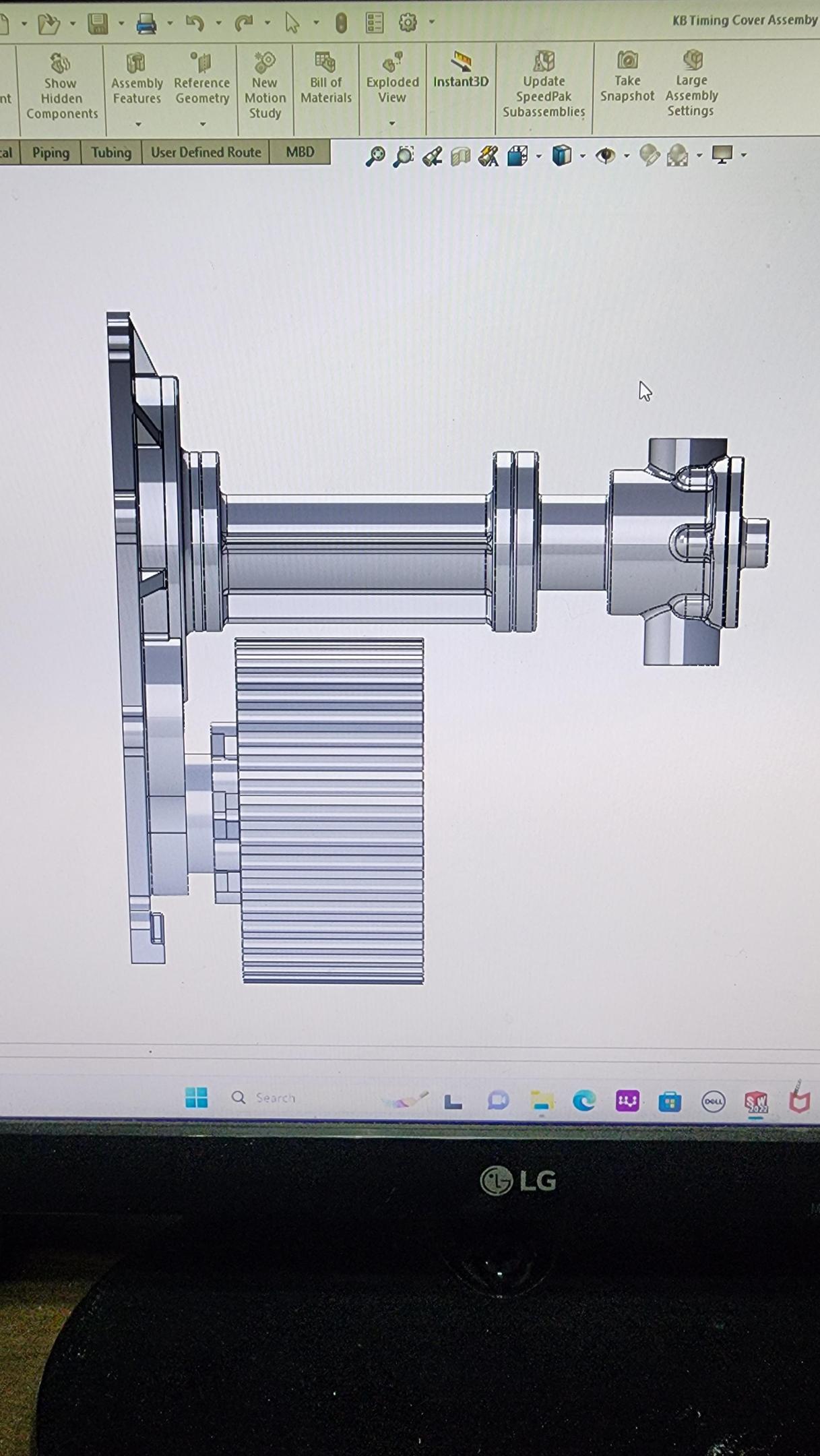

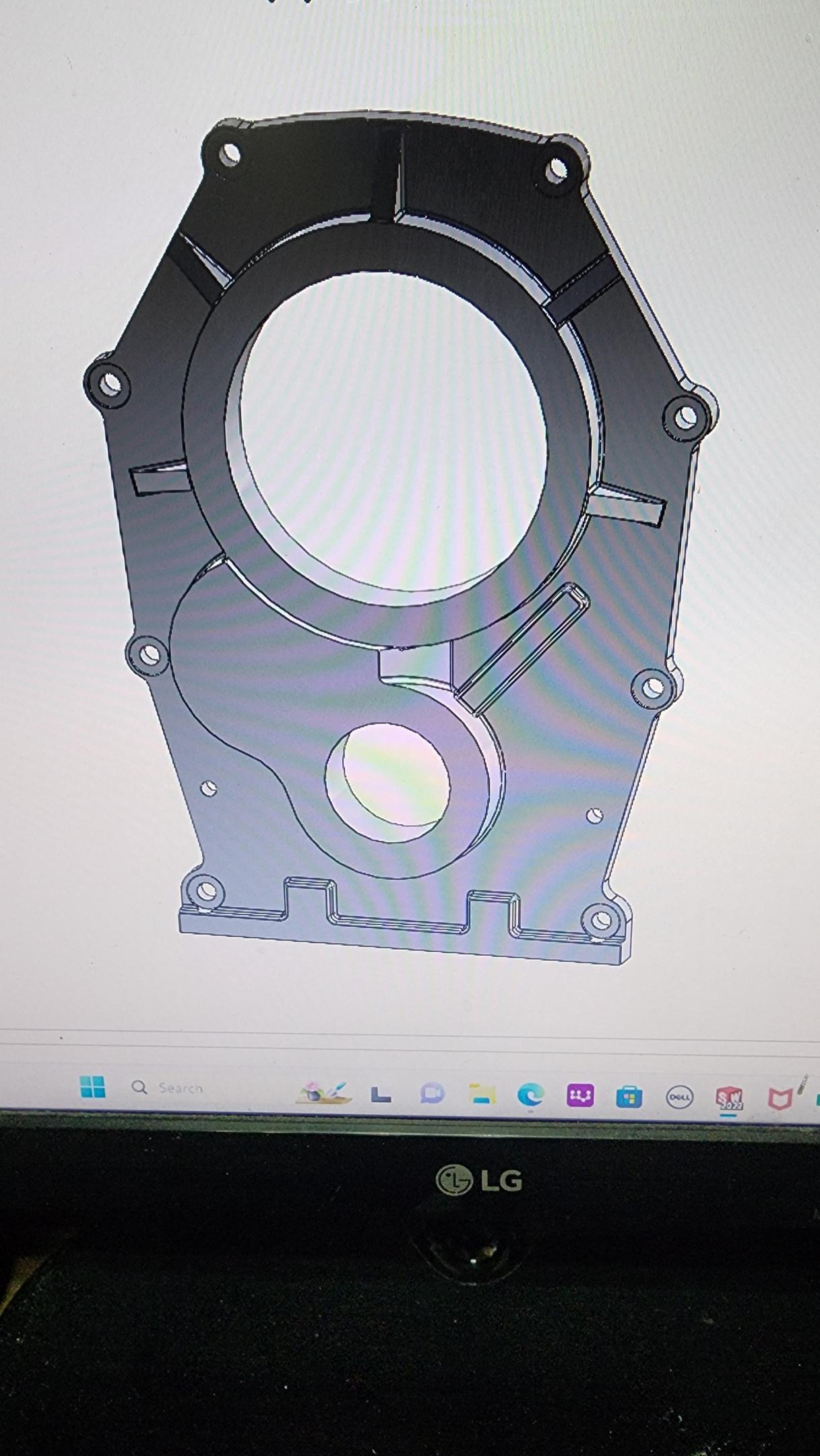

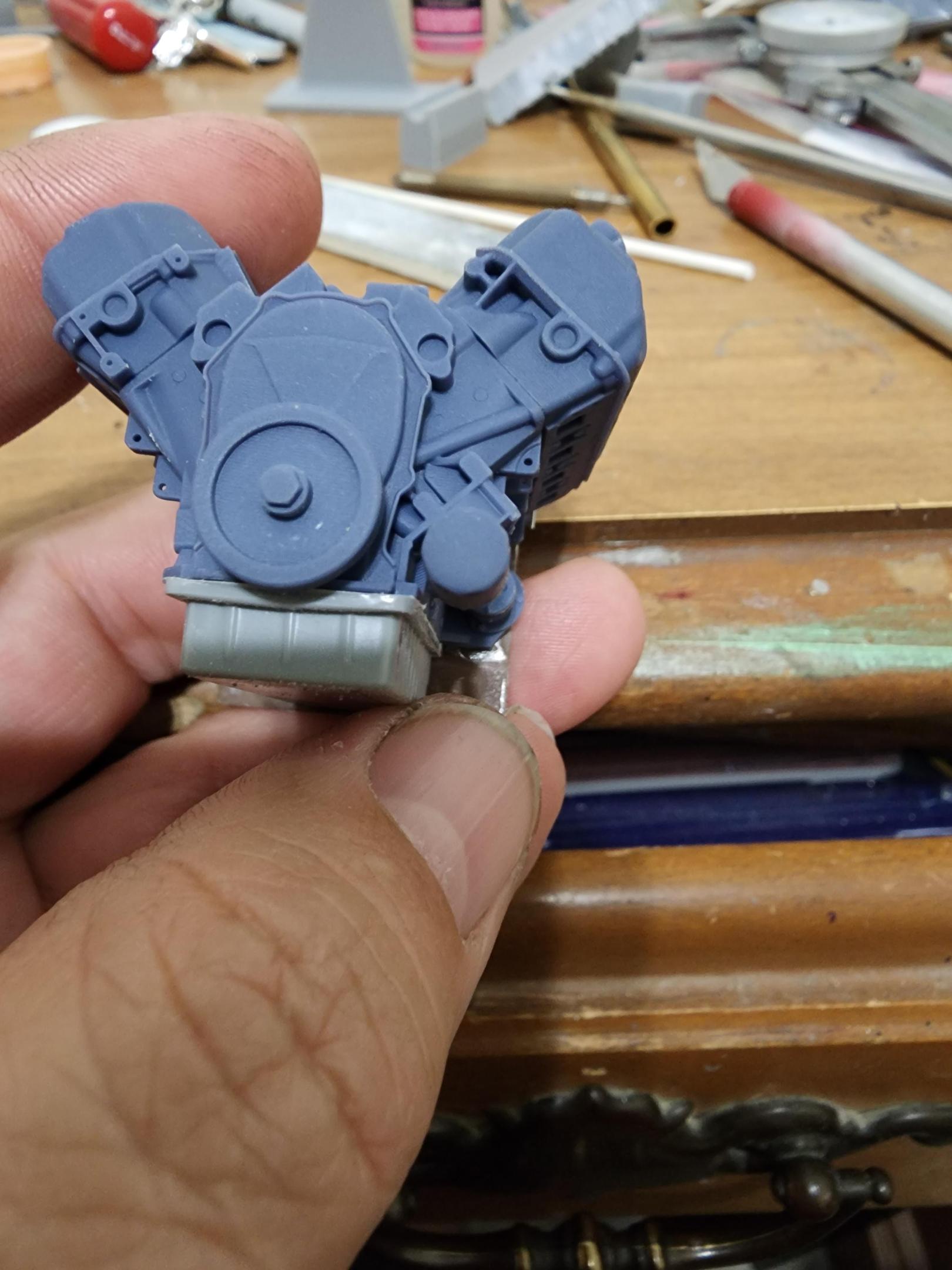

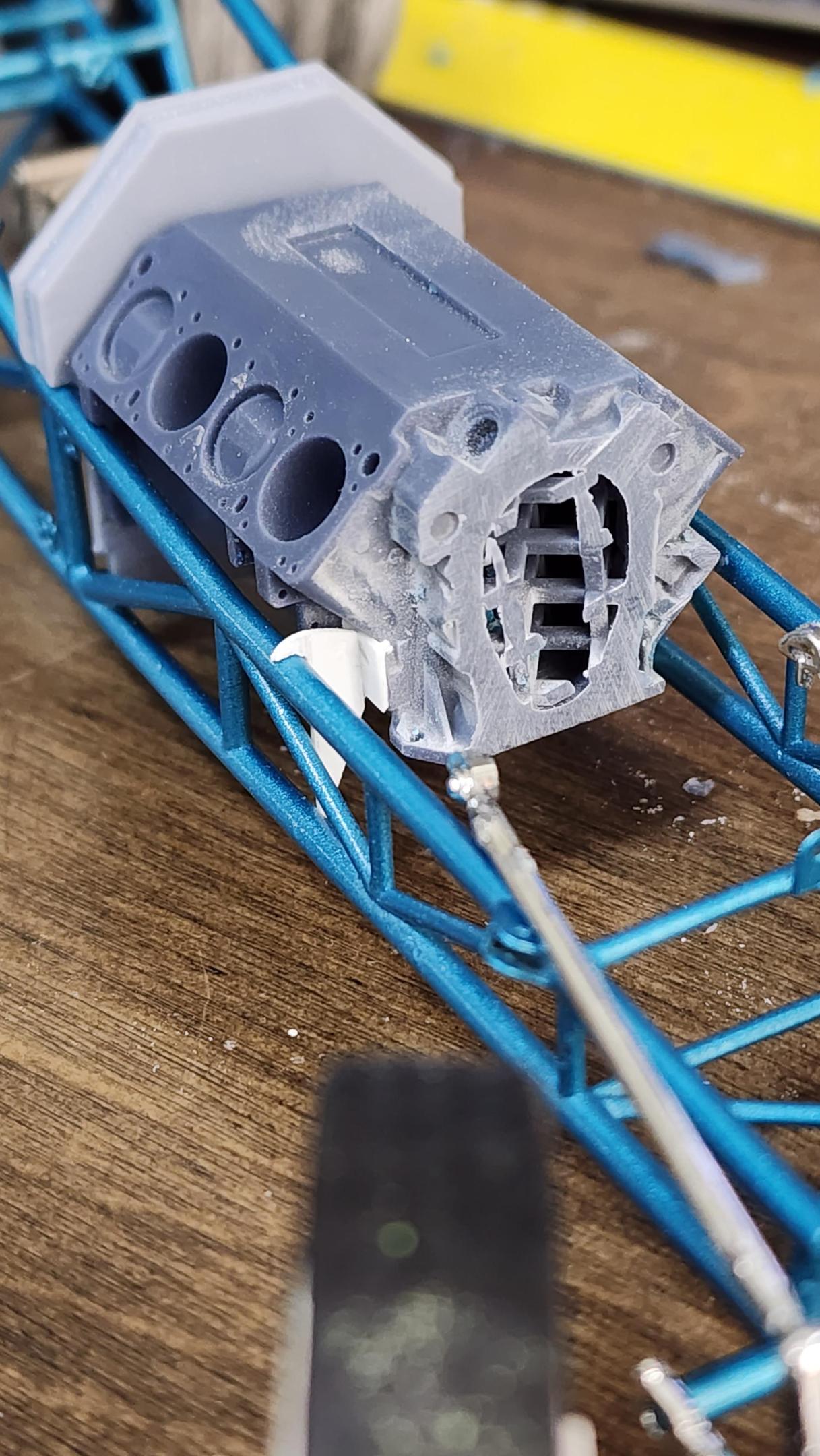

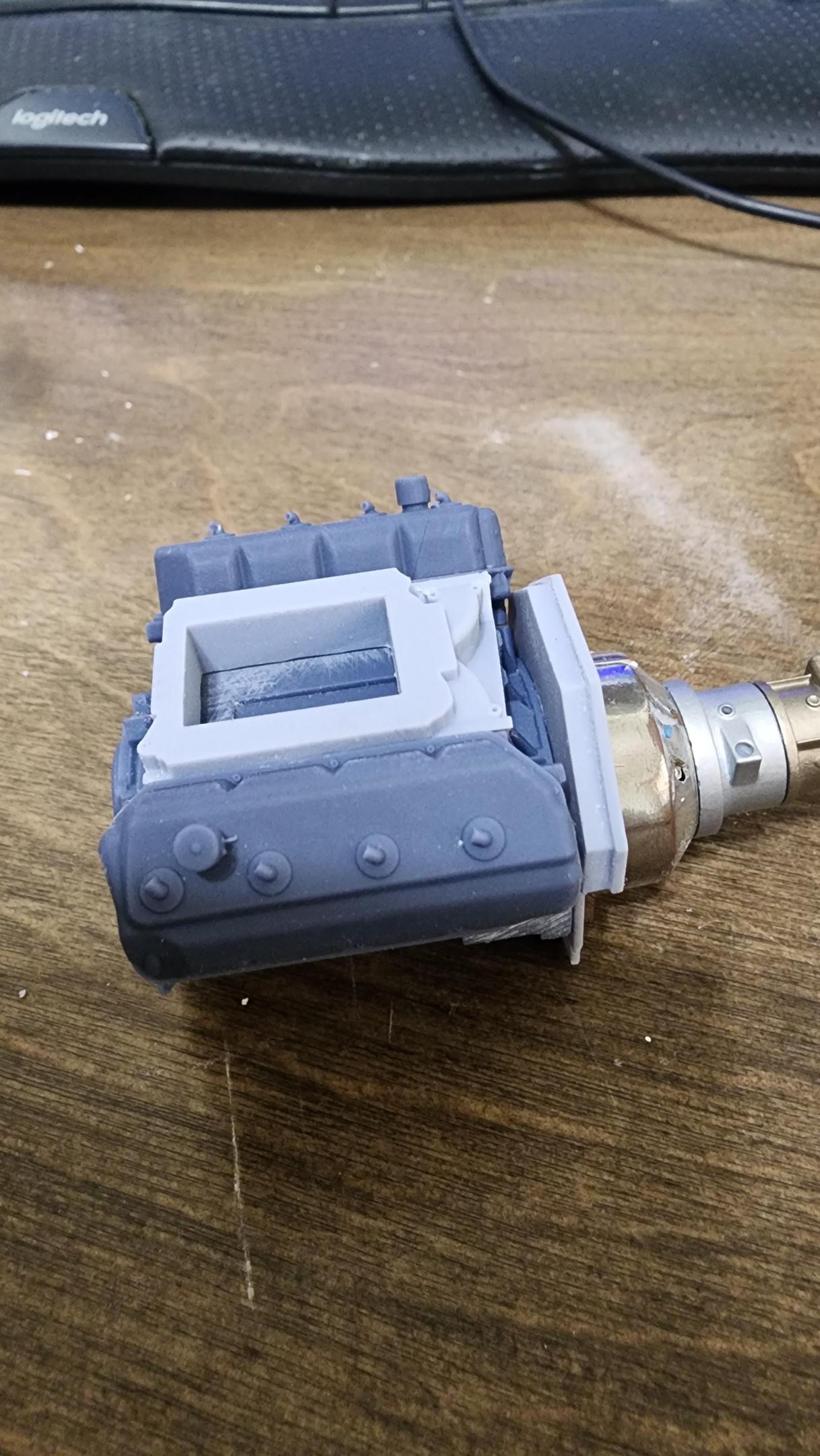

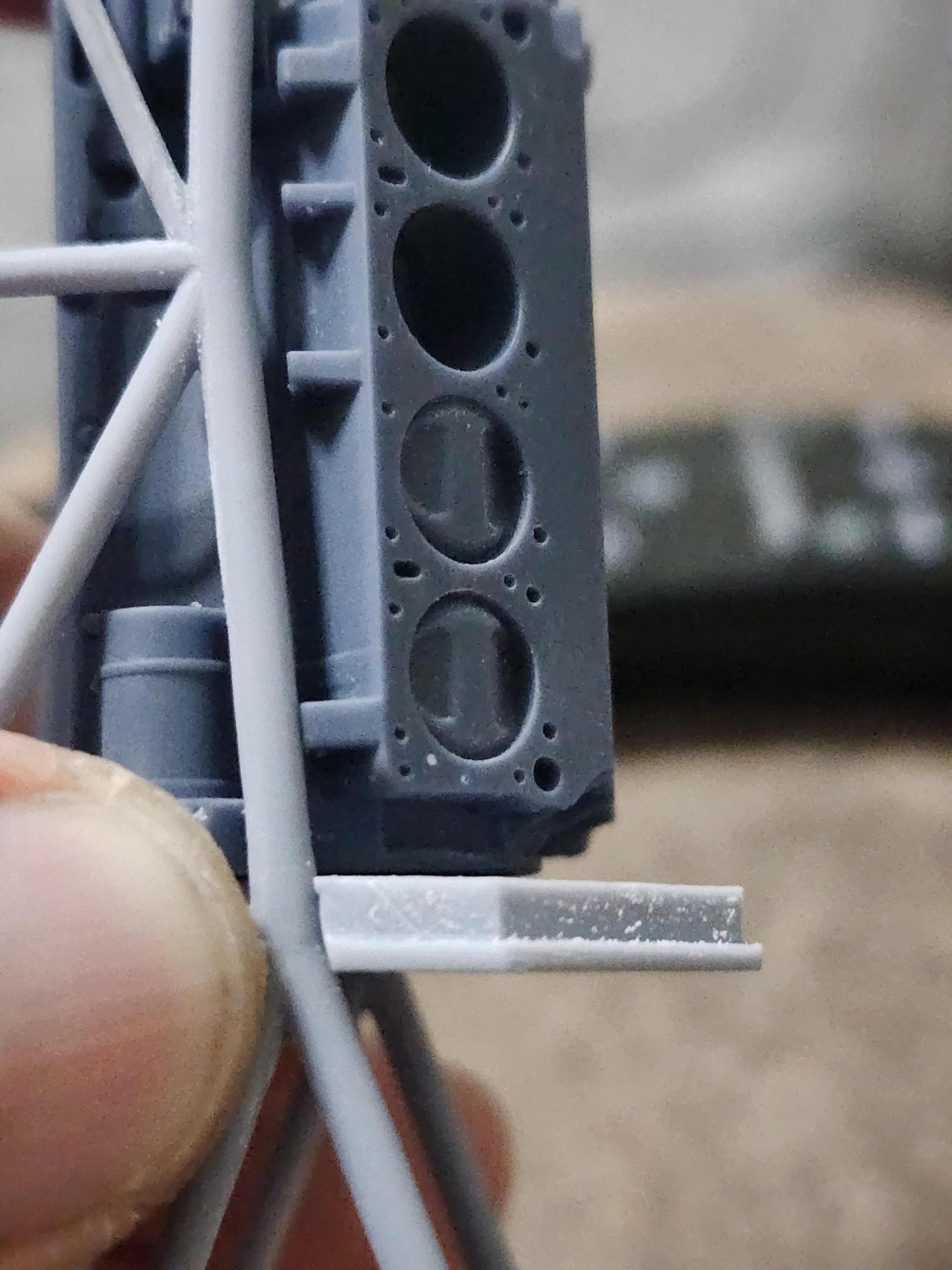

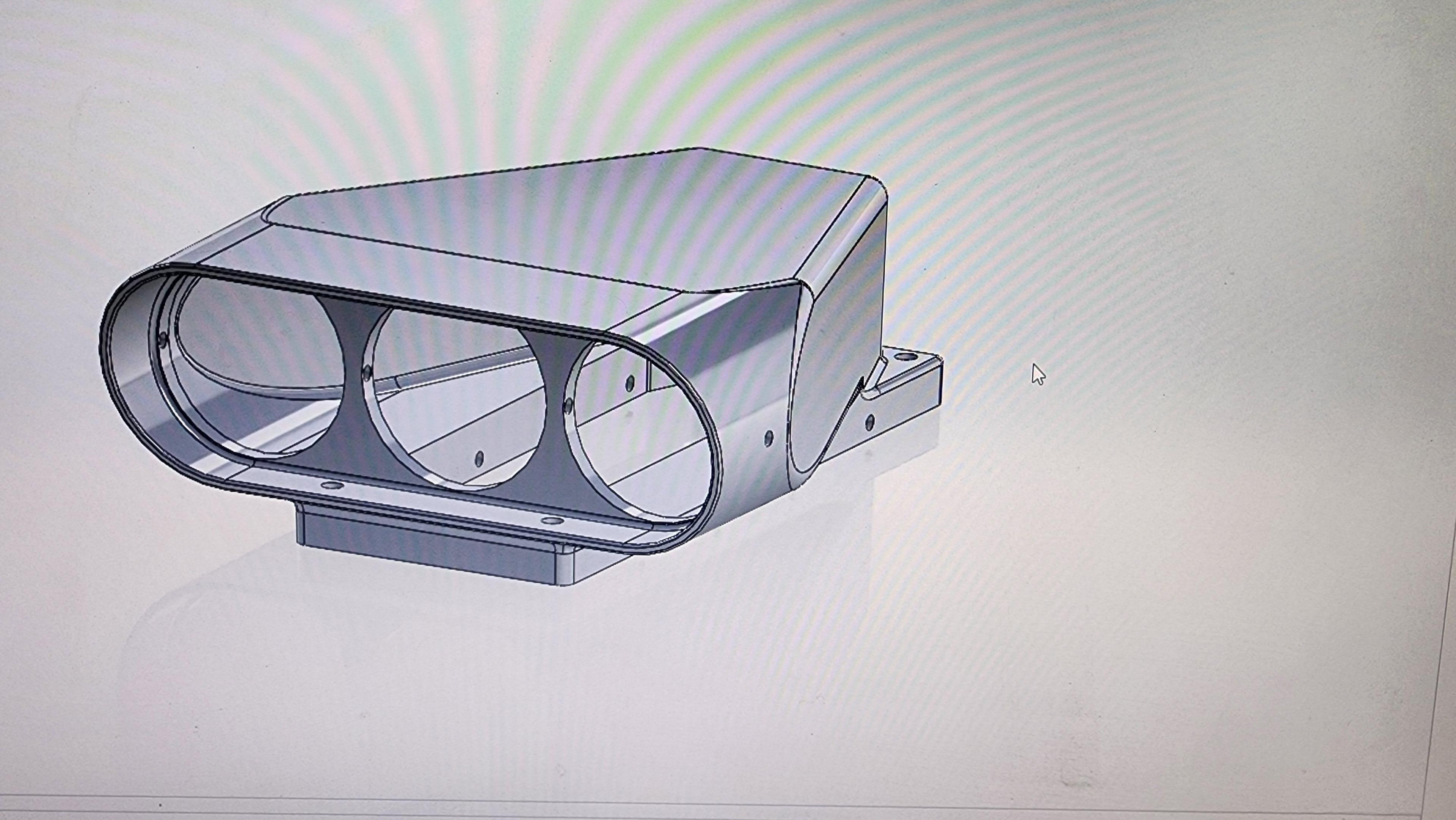

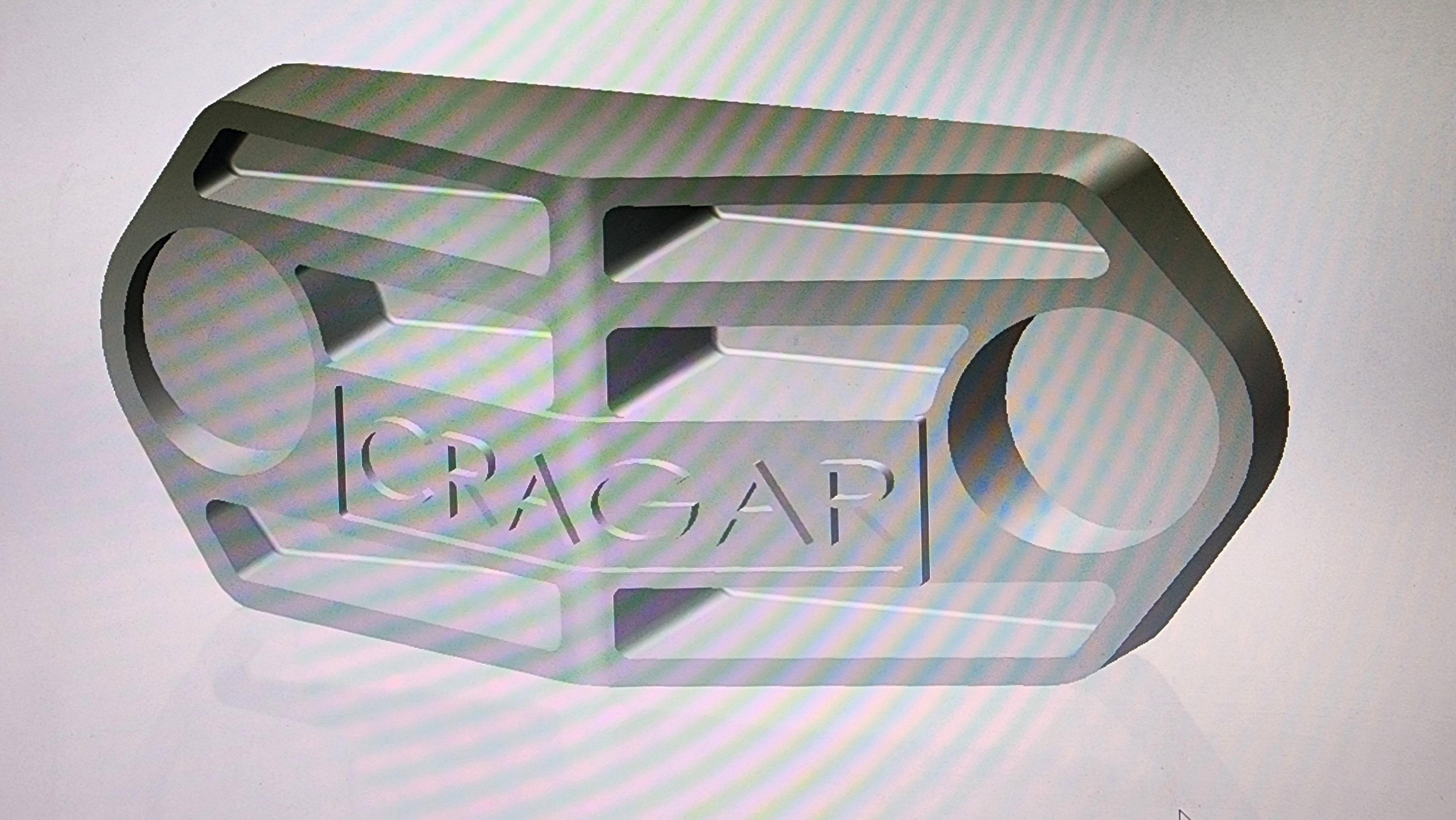

mr68gts Posted May 26 Author Share Posted May 26 I had to cut up the Texas 3d engine some as it had parts that didn't represent the one I'm building. All new front cover and drive parts are done ready to go. This also required a supercharger manifold as the engine one came carburated at the time. 2 Quote Link to comment Share on other sites More sharing options...

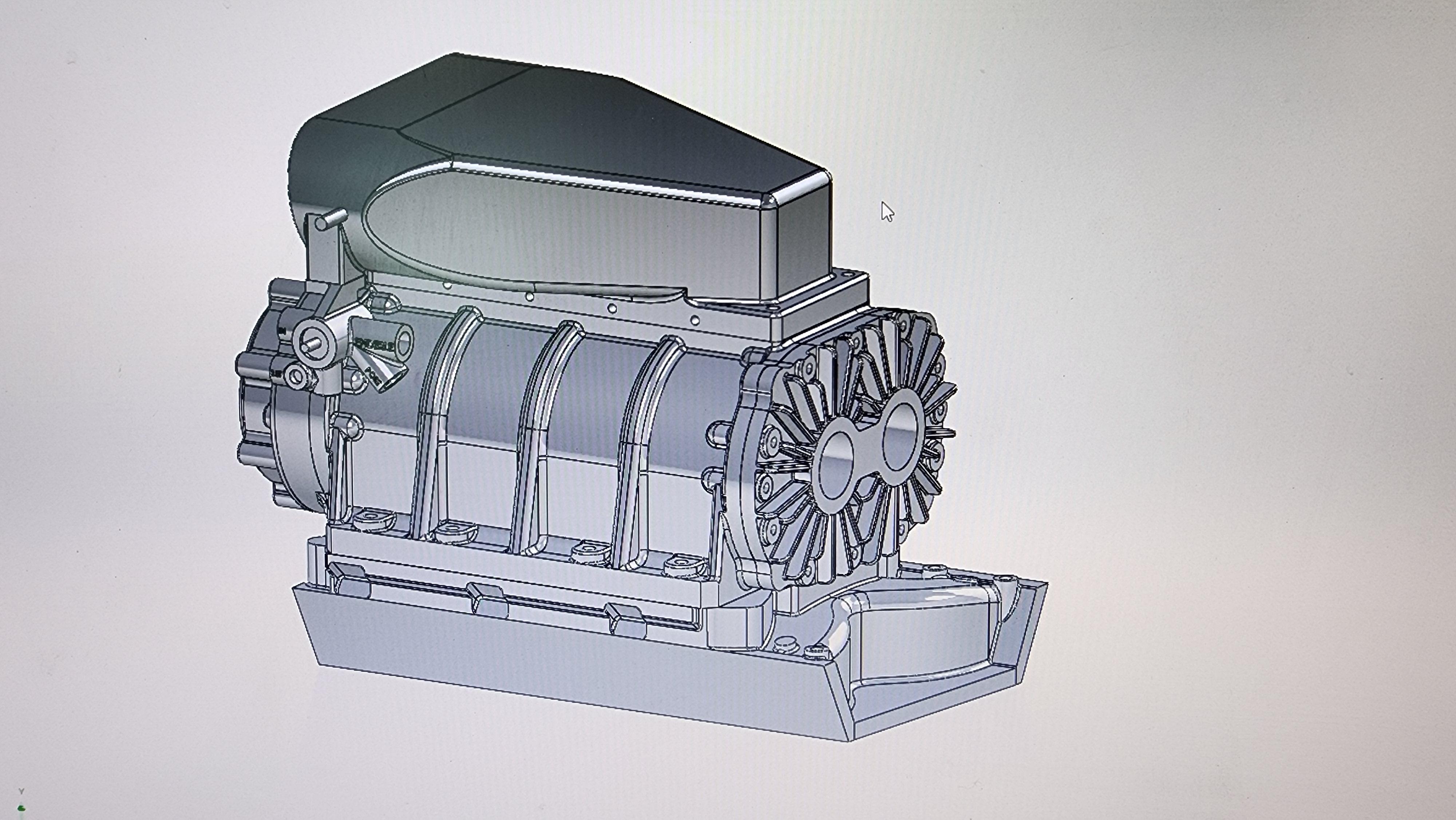

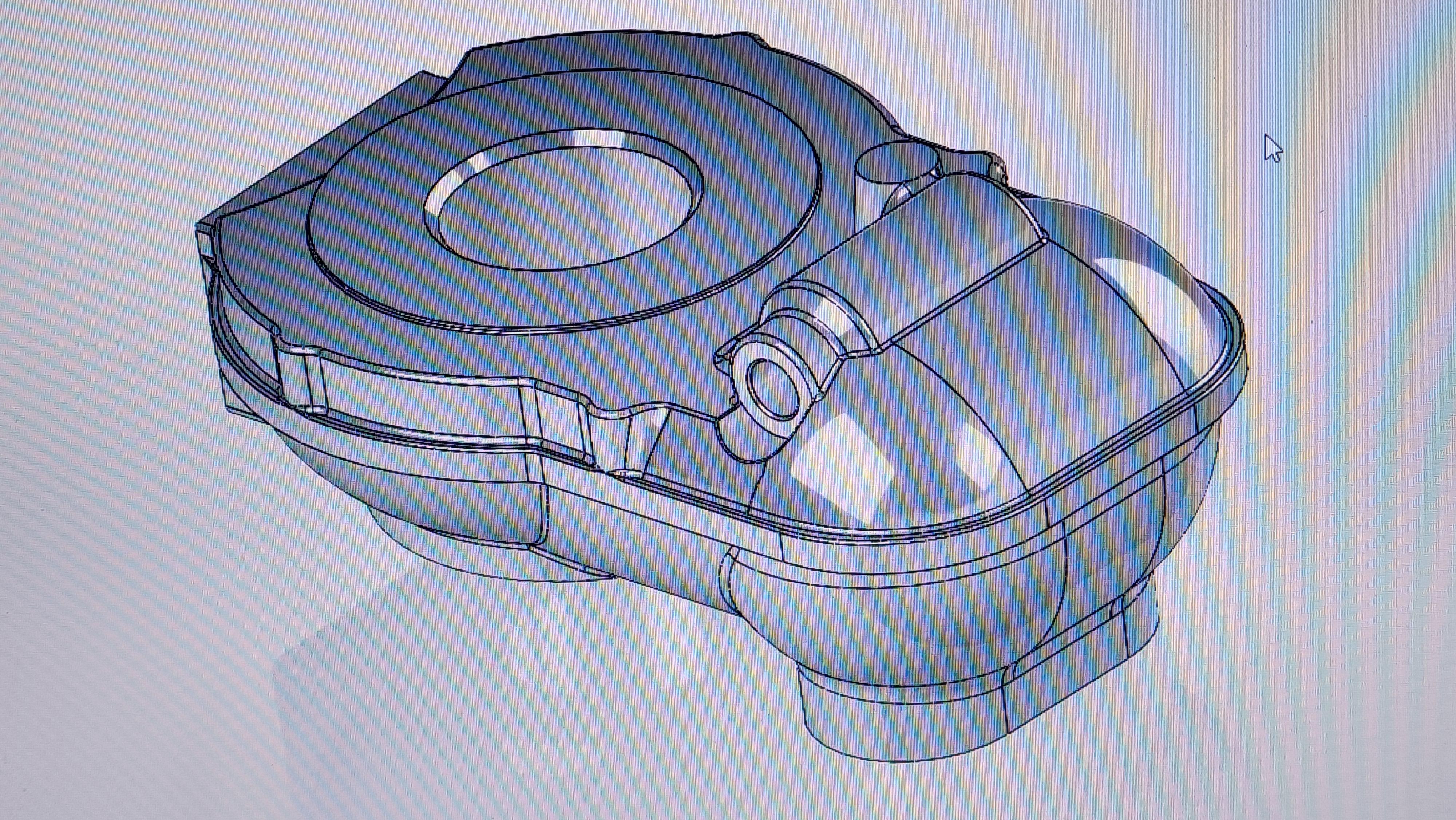

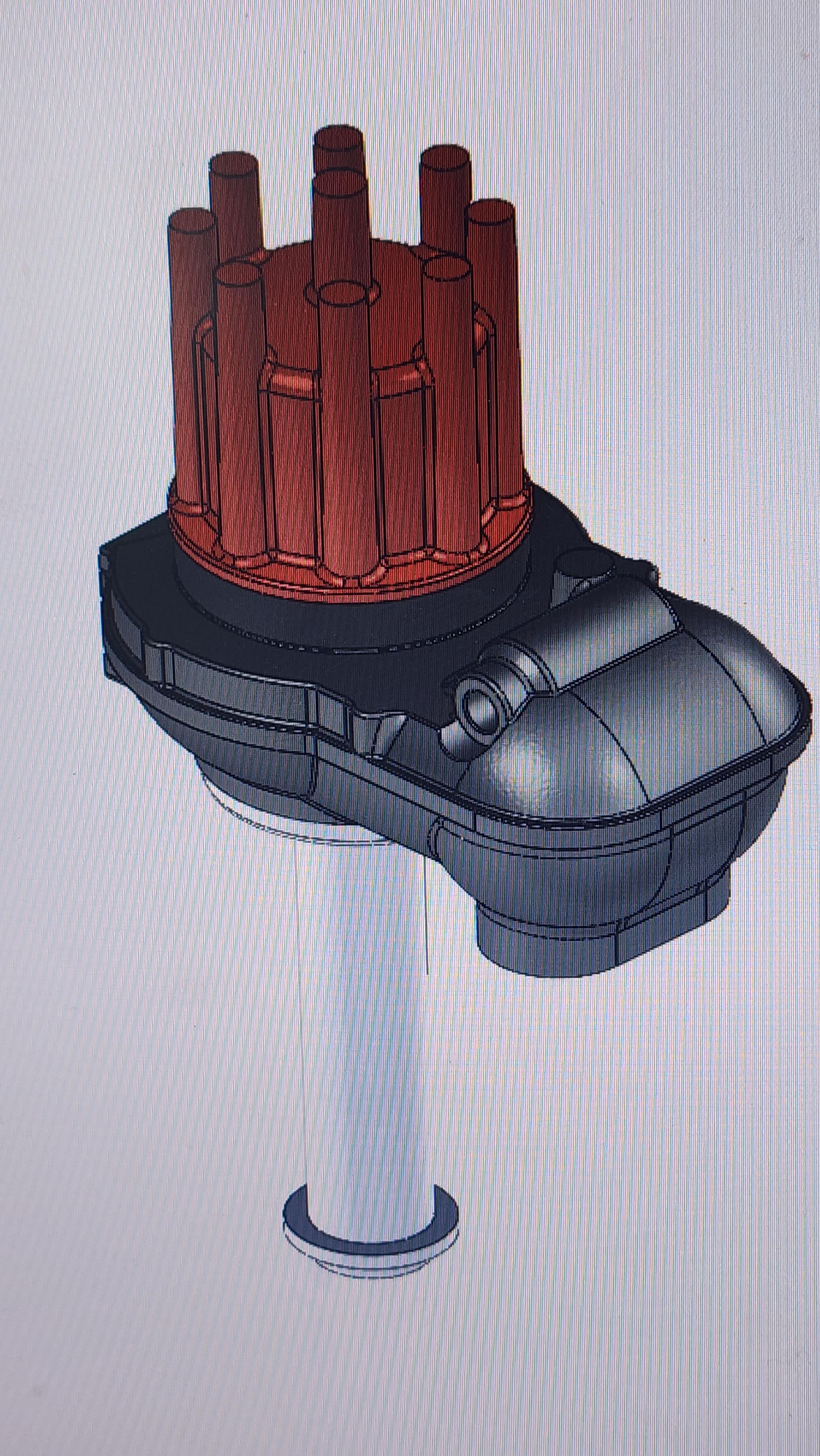

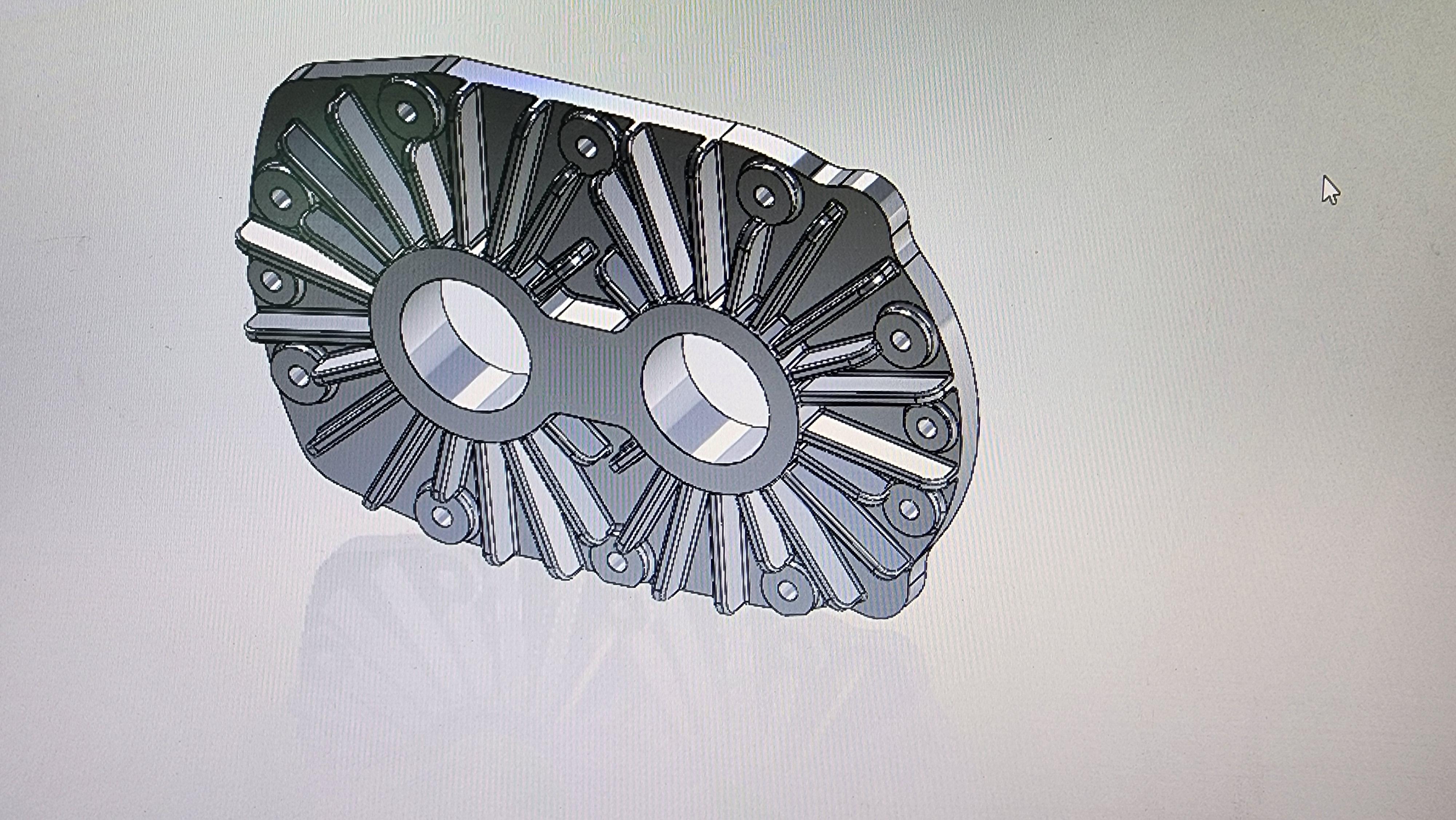

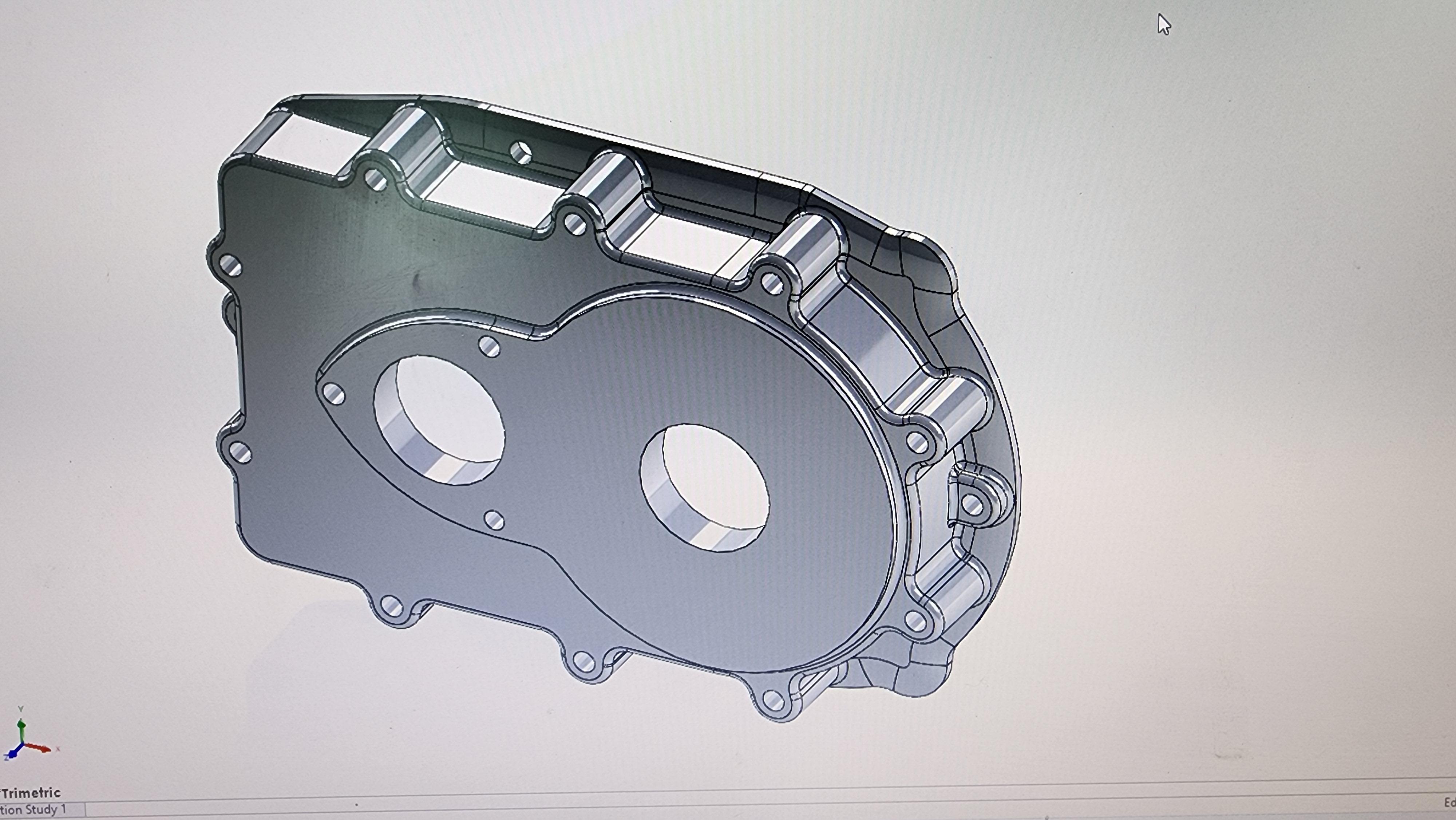

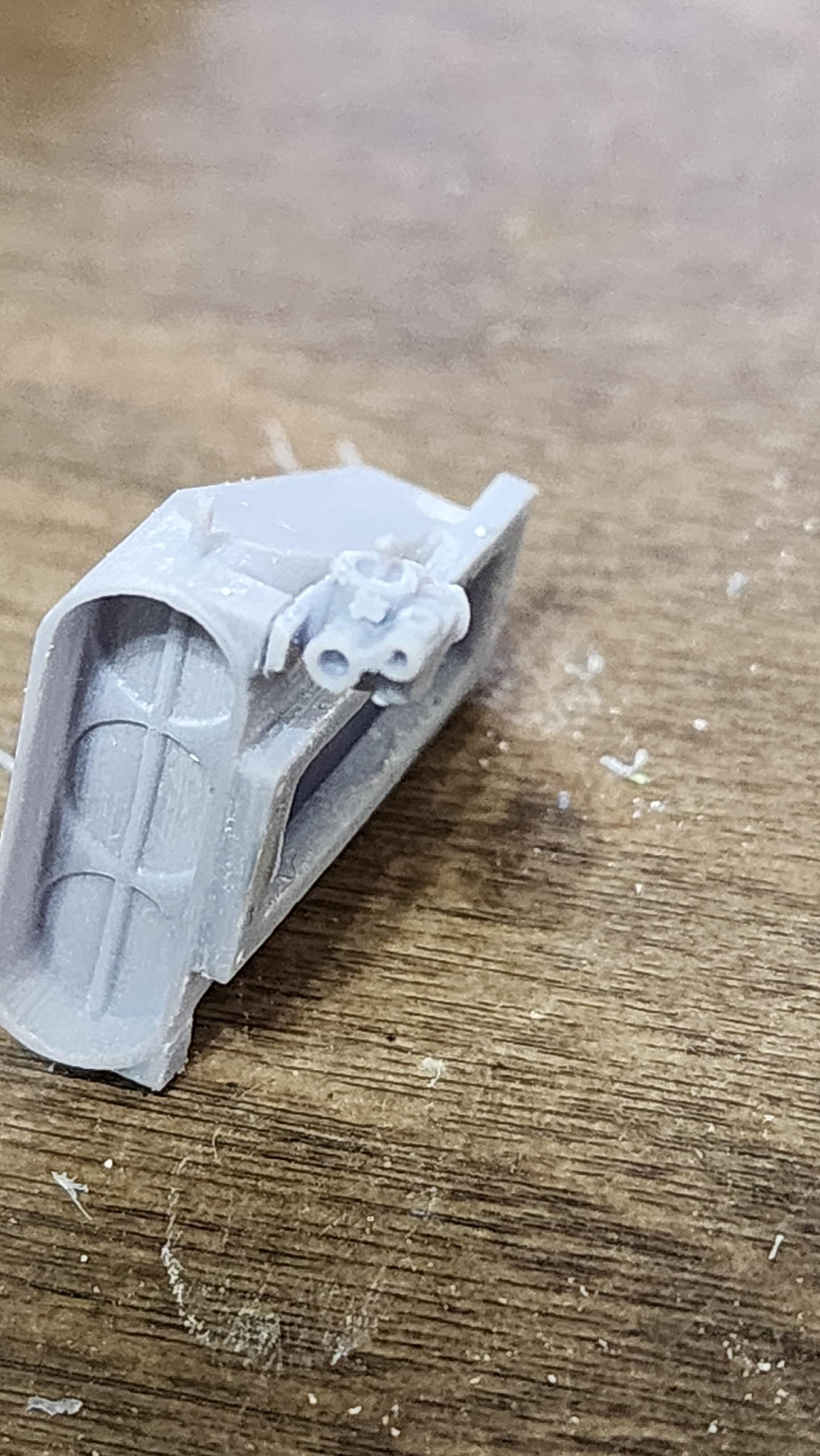

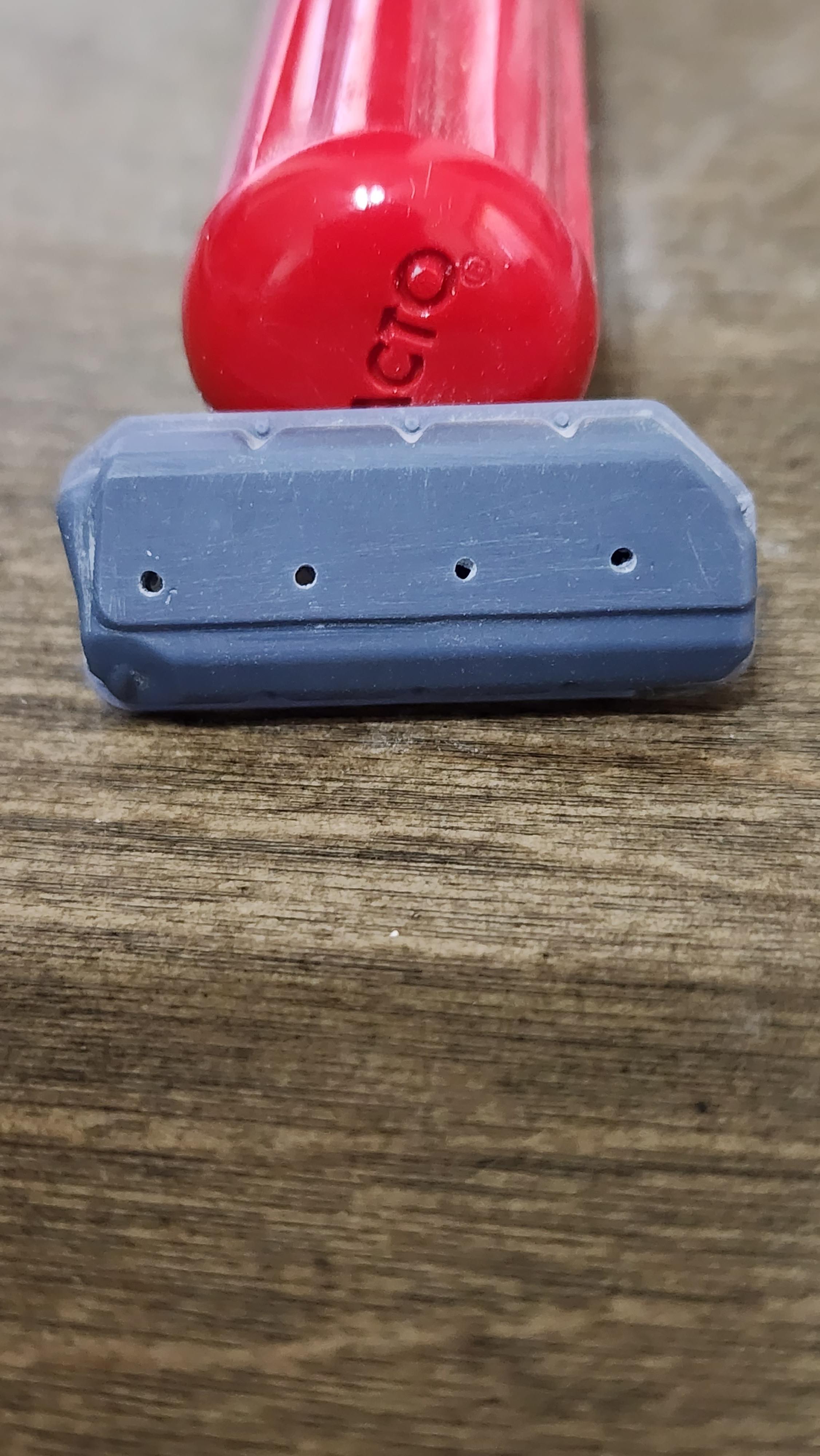

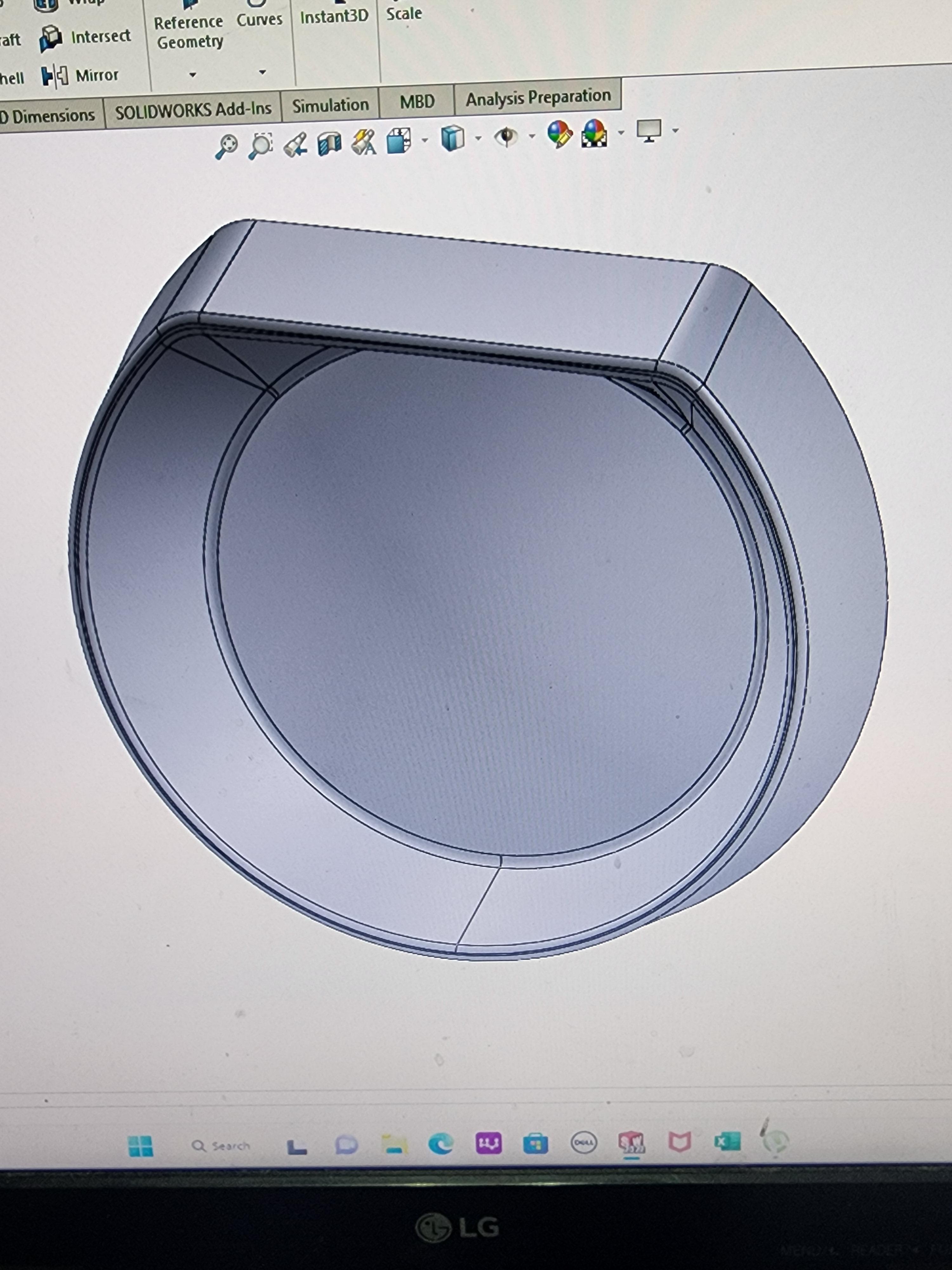

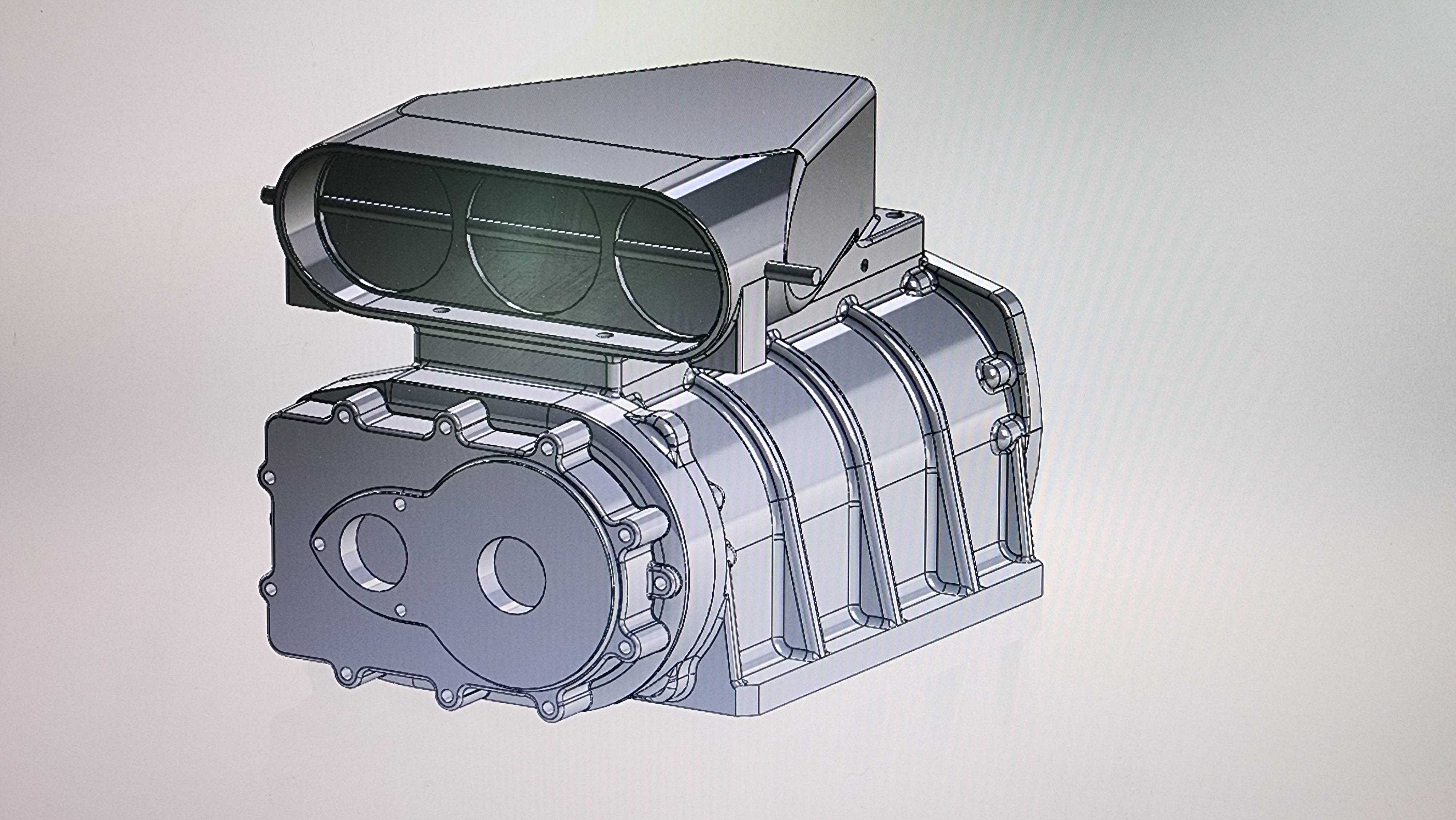

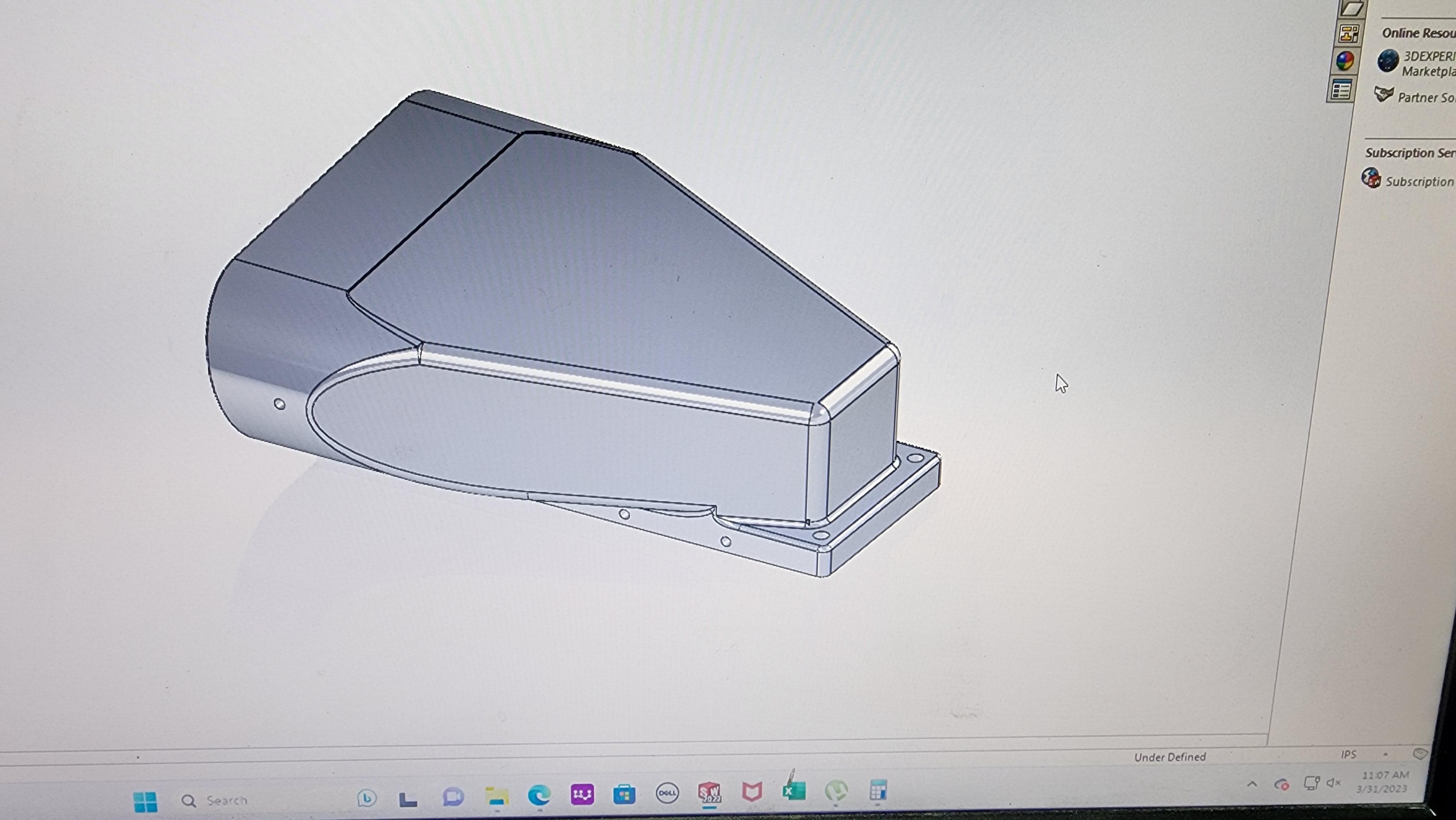

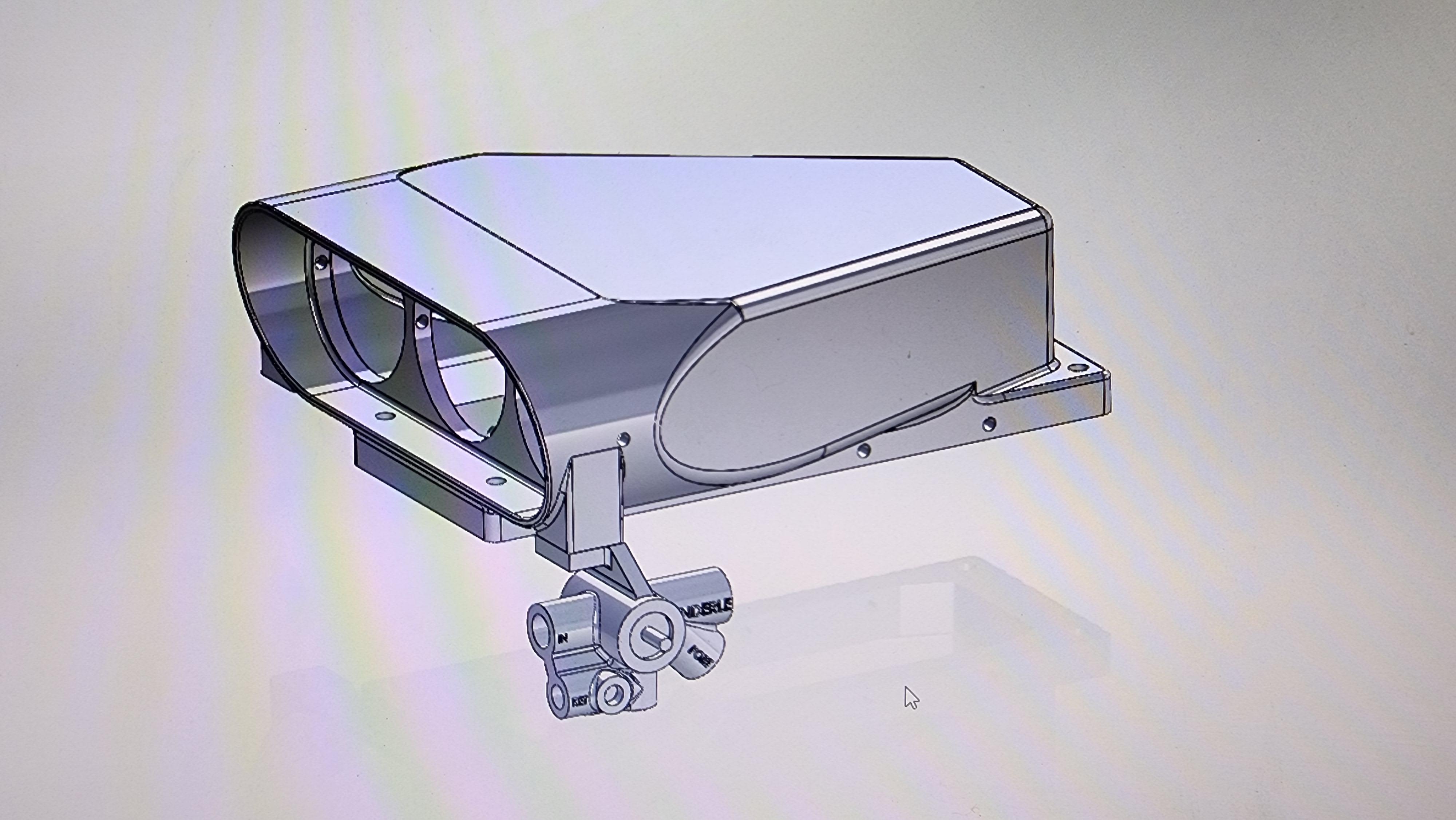

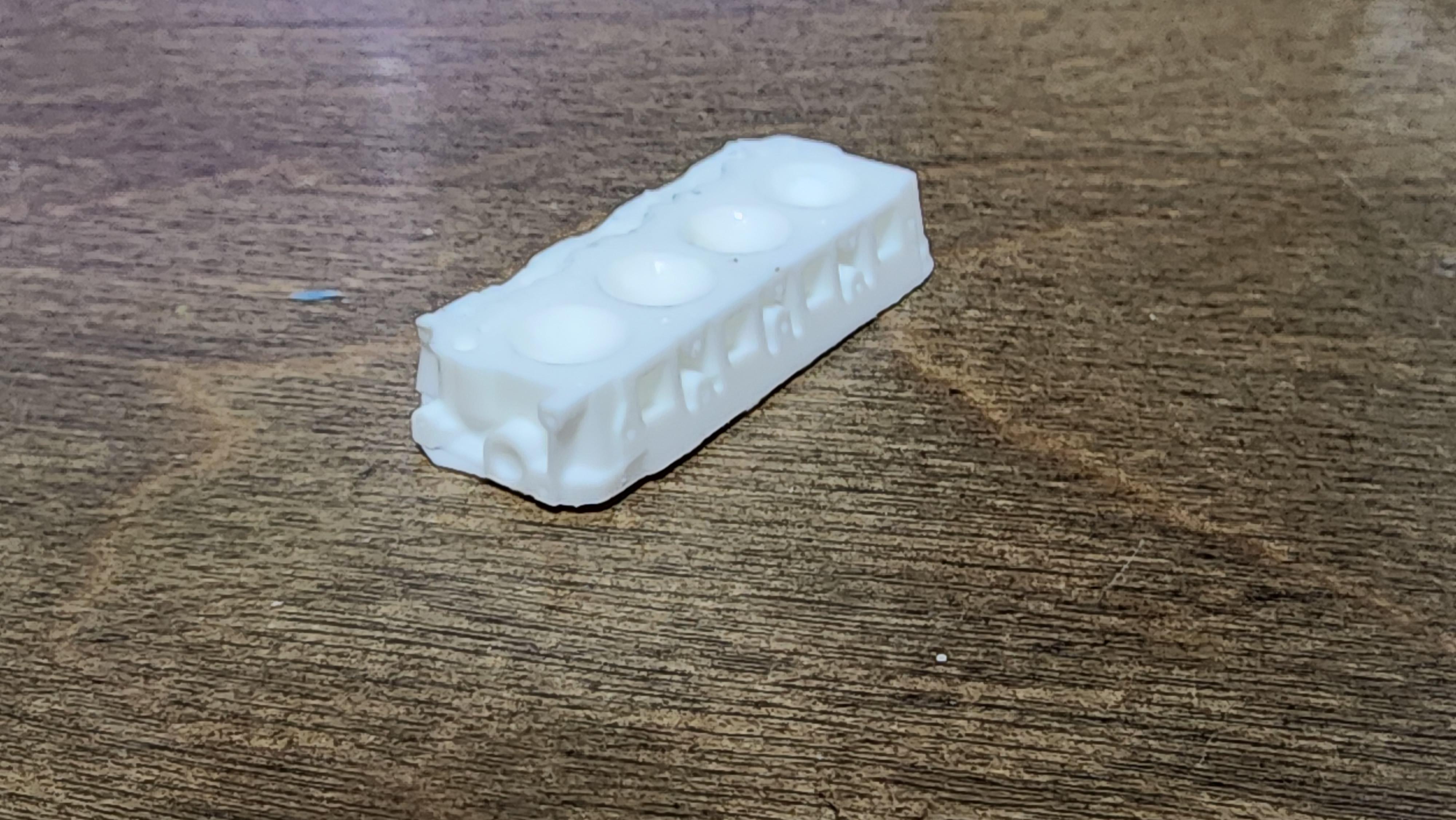

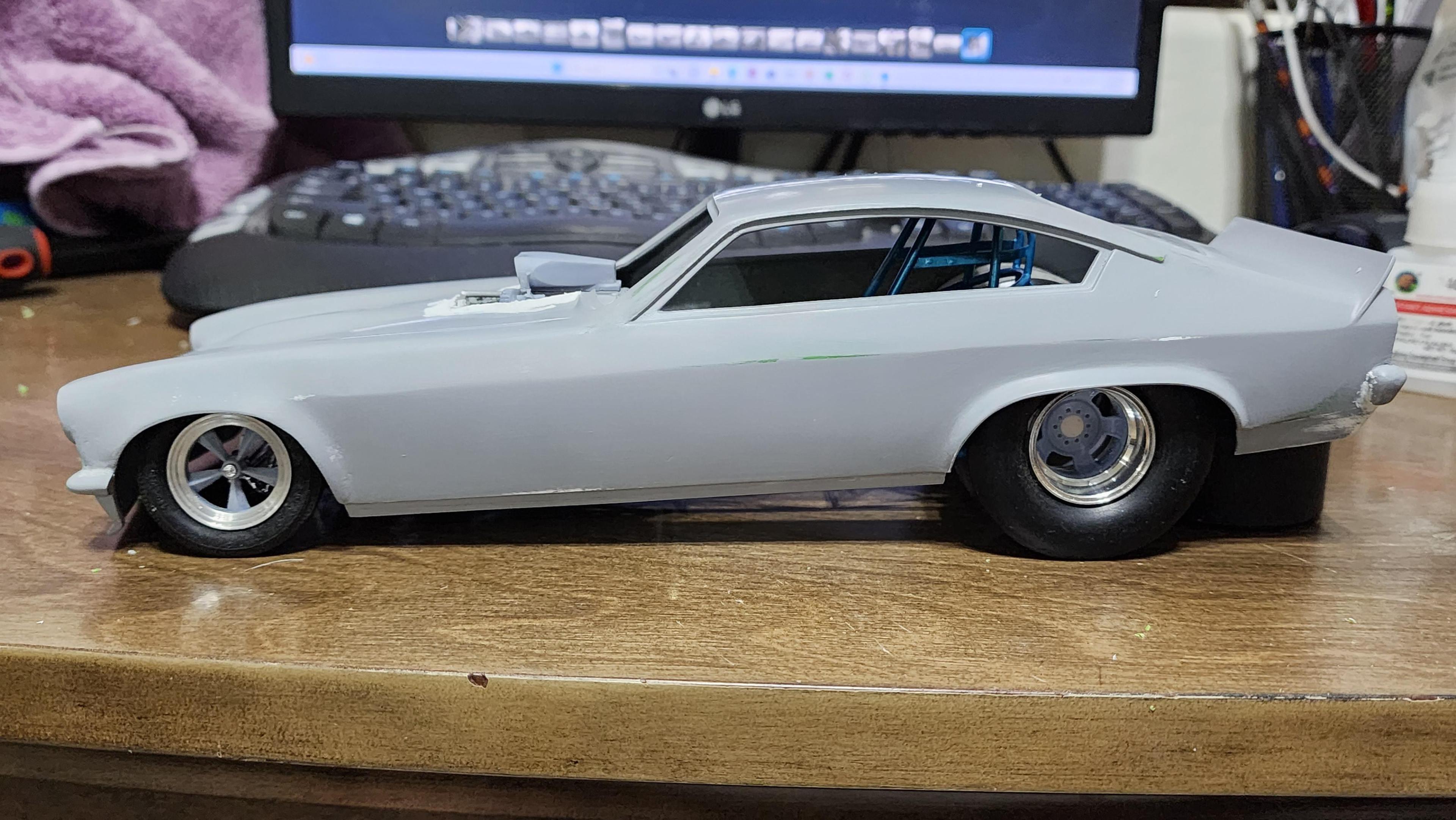

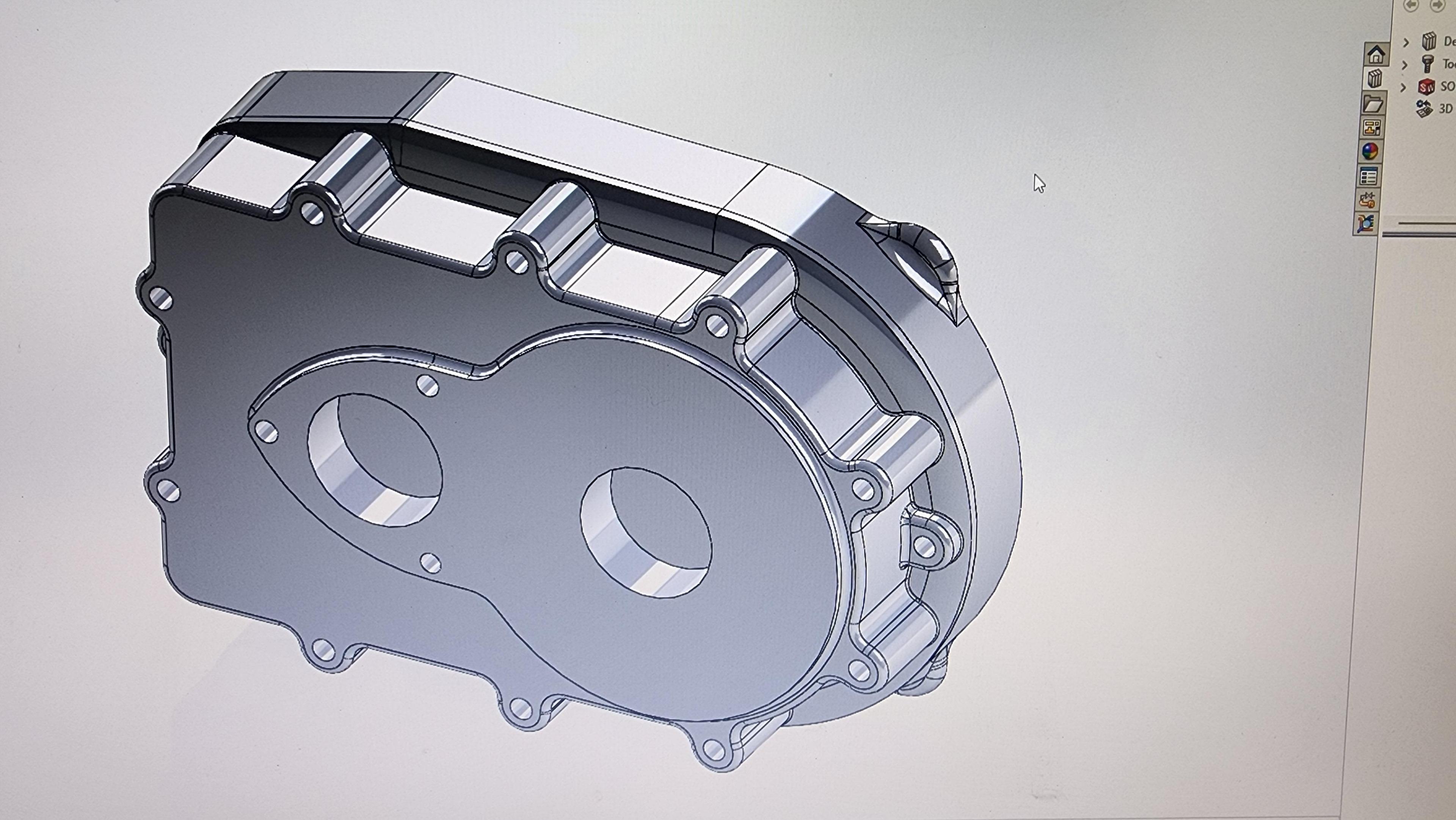

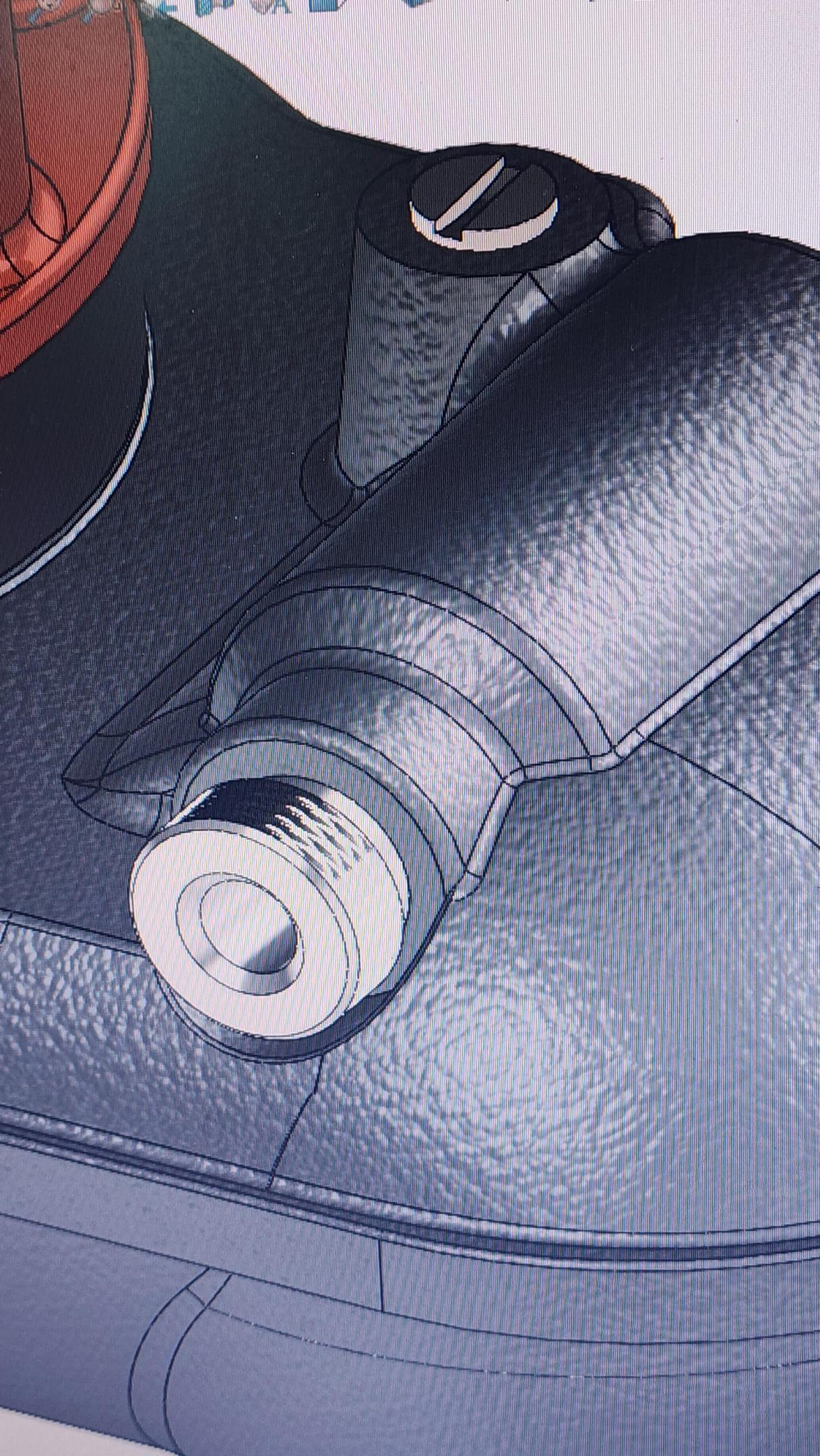

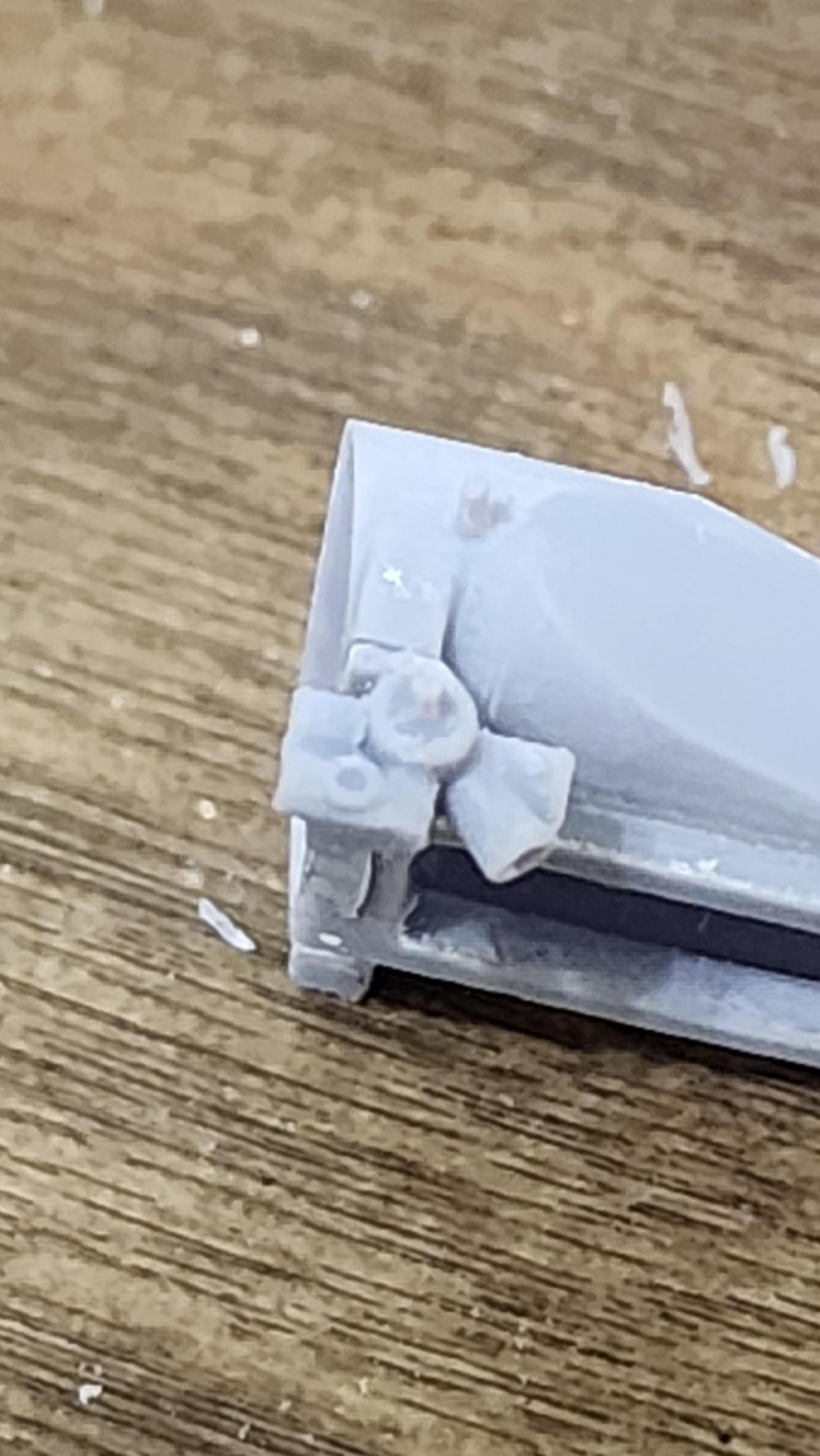

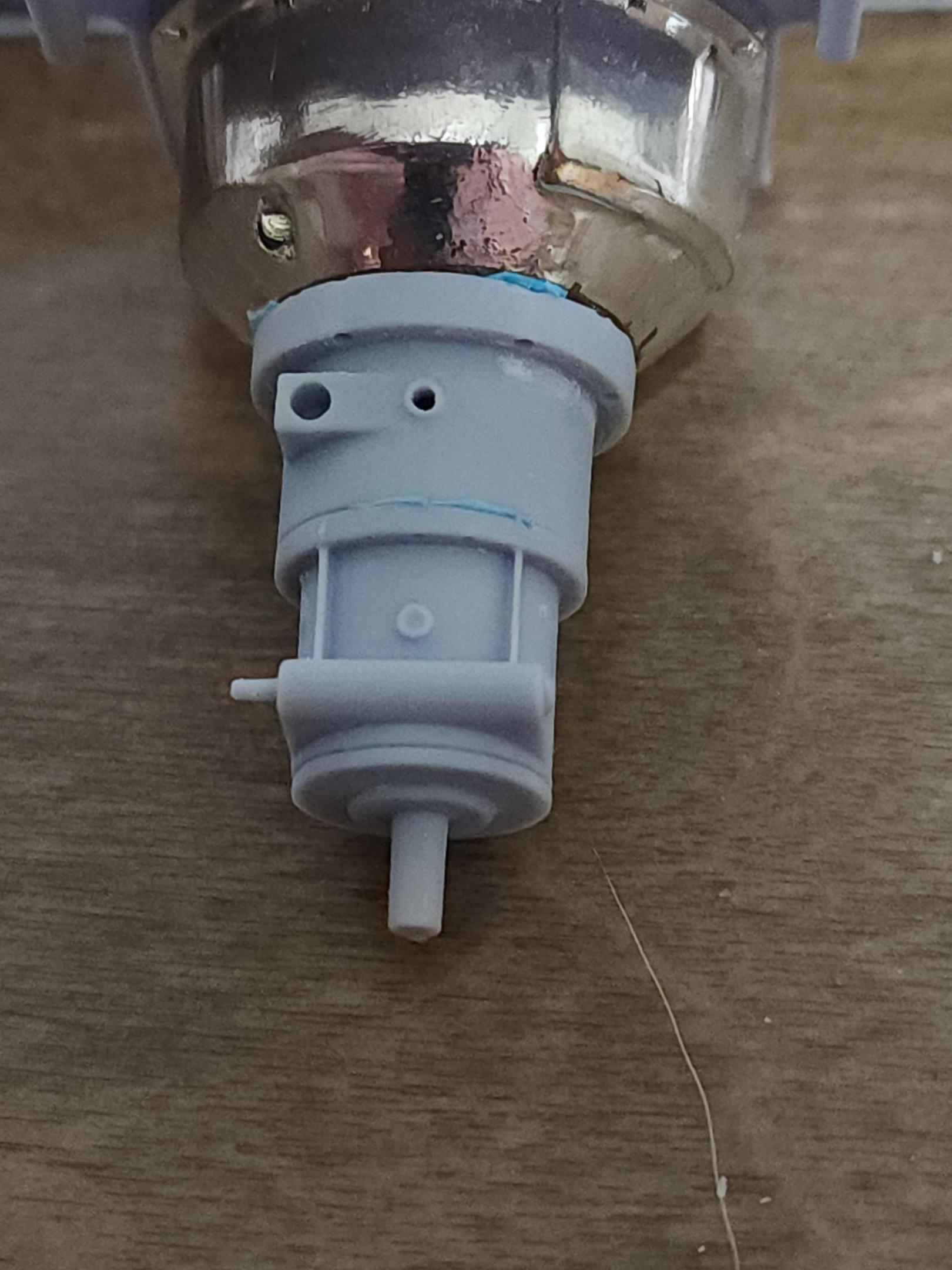

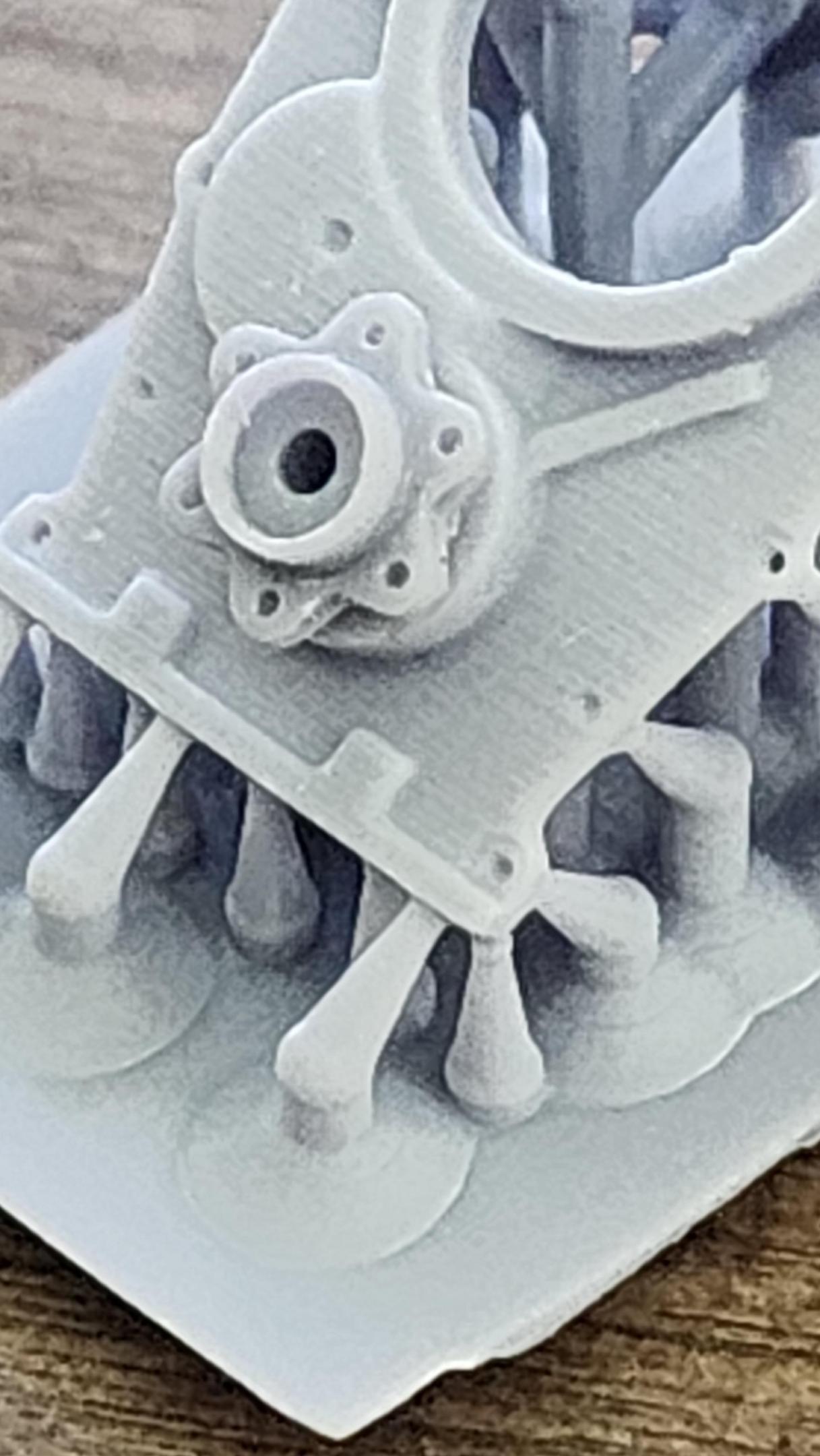

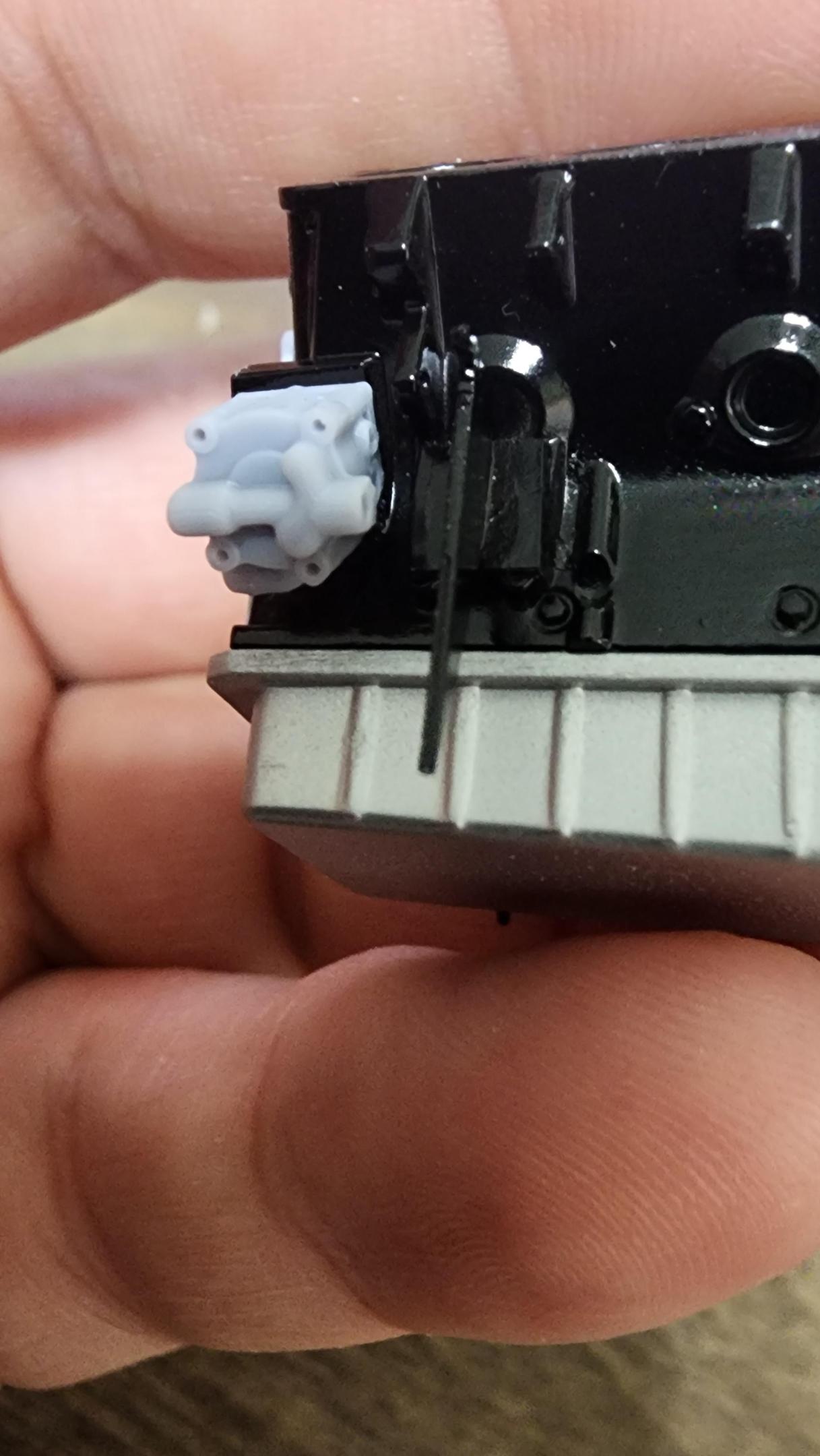

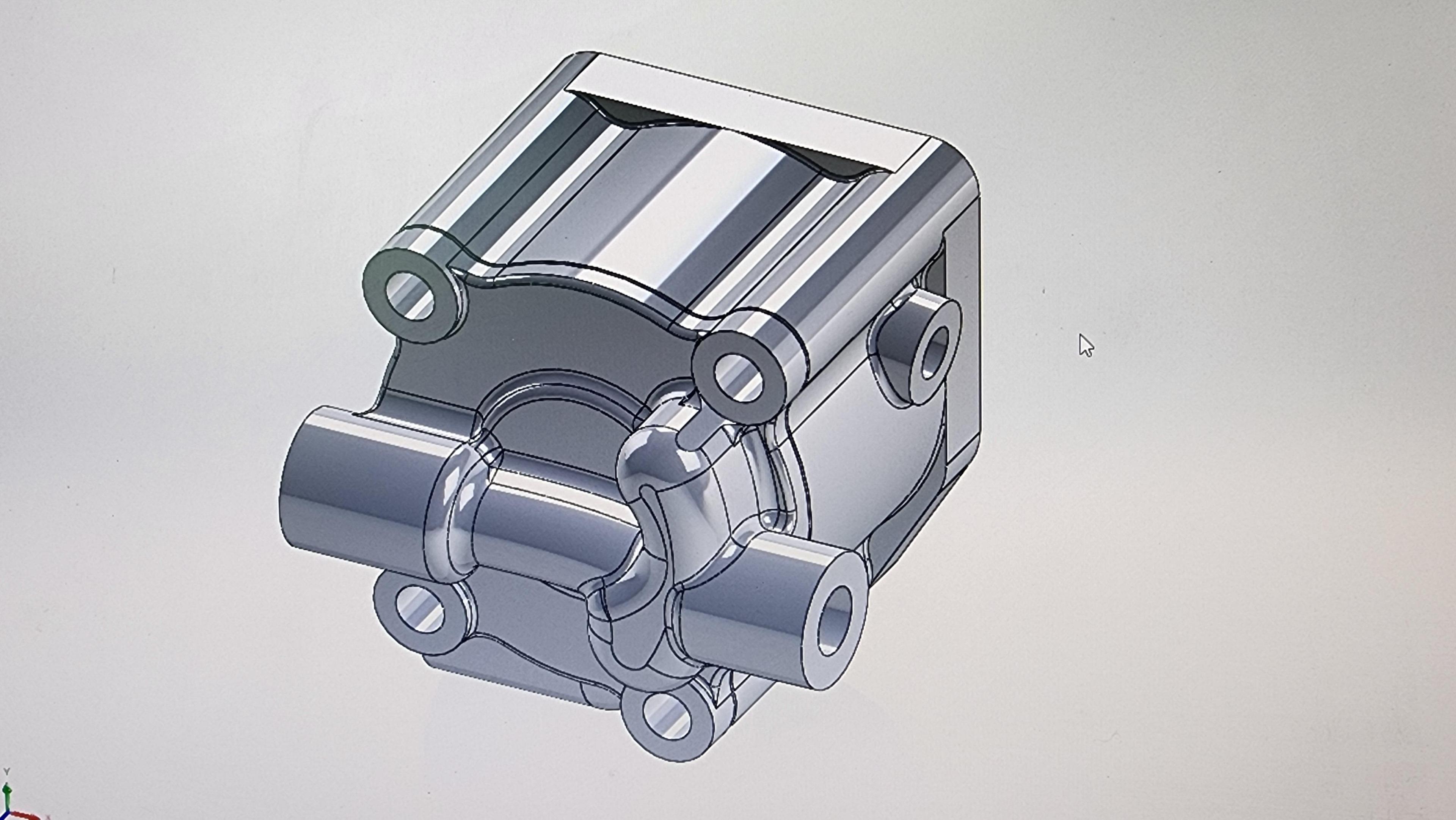

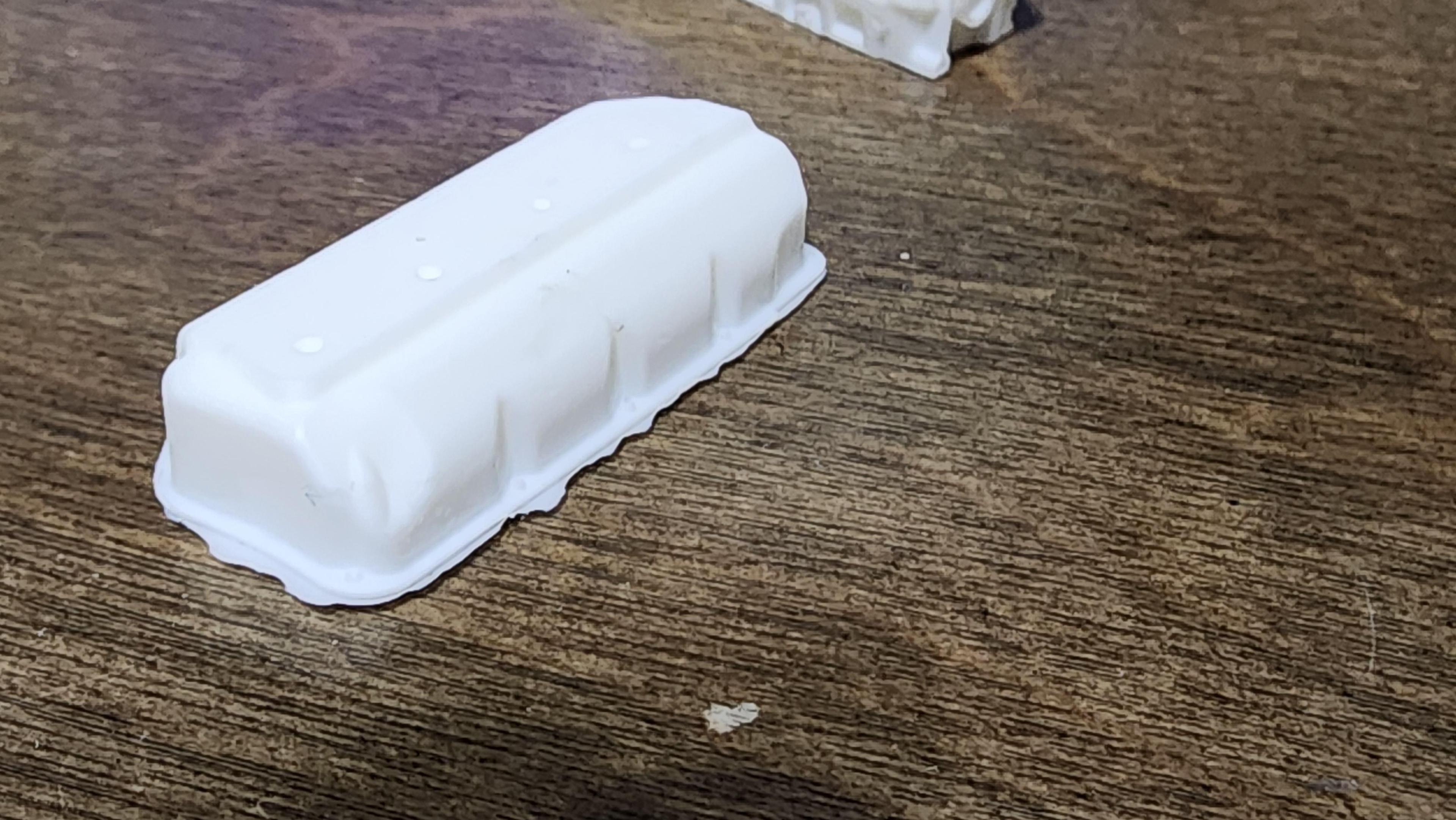

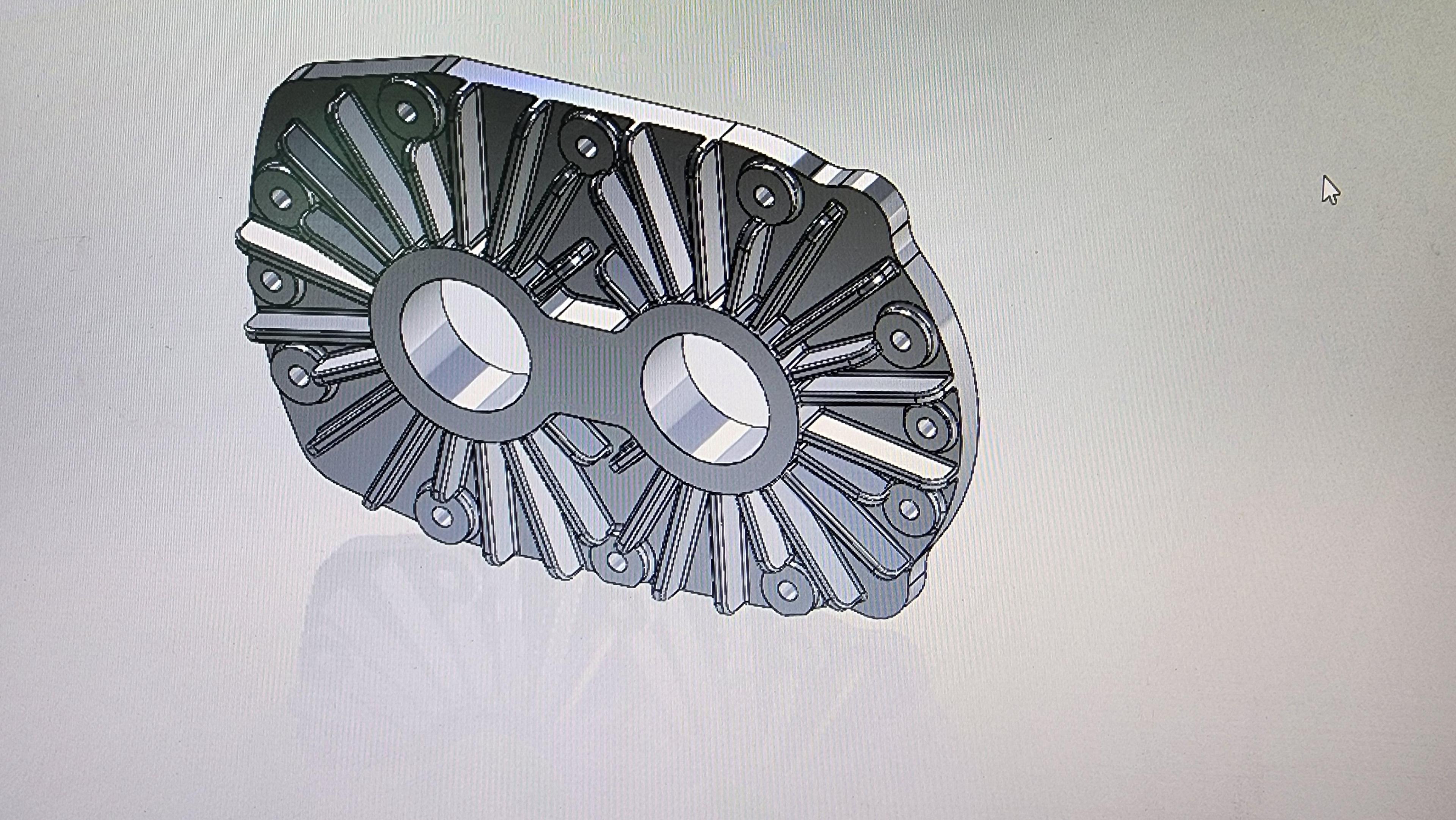

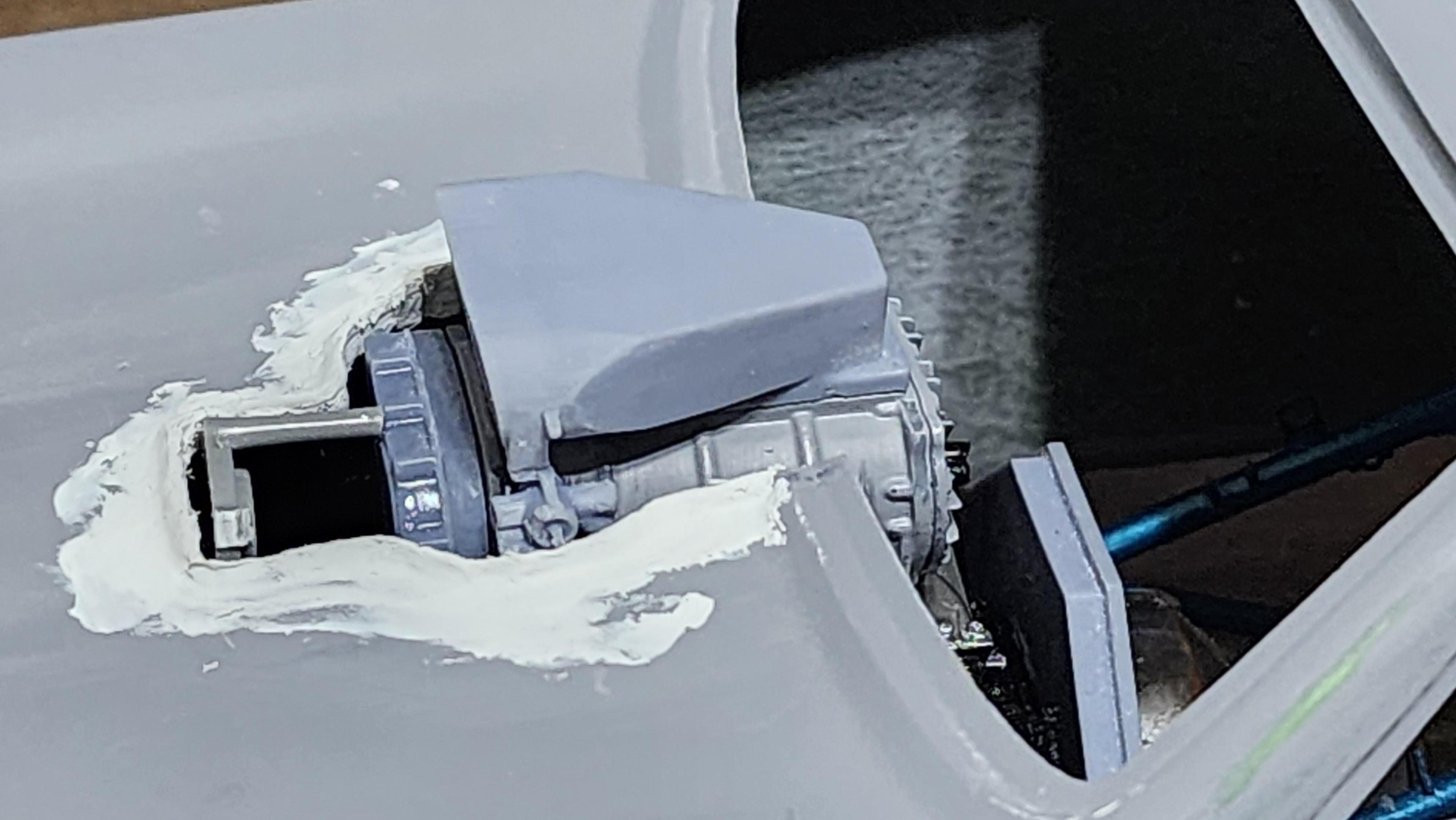

mr68gts Posted May 26 Author Share Posted May 26 Chris sobak provided me with a supercharger but it turned out I needed yet a different style case so a new one was put in cad and printed. The magneto in the kit was wrong so a new one made from a print I found was in order. I've discussed with Cirello what cap his dad used on these mags and will still have to model one up once I order the correct cap. I had to cut apart the Texas 3d hemi heads from the valve covers and cast them in resin for personal use. This way I don't have to mask either the head or valve cover to paint the pieces. Last part if the body mods is putting a lip around the hole in the body for the supercharger. There's still much to do but the body is close to paint. The inside will be getting cover in China silk. This does 2 things. 1) it strengthens all the joints, 2) it makes it look like fiberglass from the inside! I still need to cad a seat and print it for the chassis, soldier up a rear tree that attaches to the chassis. This supports and locates the rear of the body and provides a pivot point. I also need print the front axle that is already been done up on the computer. All said and done, the only parts from the kit are the body, oil pan, and bell housing! This concludes this for now and is up to date as of today. Paul 3 Quote Link to comment Share on other sites More sharing options...
