'30 Ford 5-window coupe - Chopped and Channeled

36 posts in this topic

Posted (edited) · Report post

Another “I need to start one more build like a whole in the head†project but I was so taken with the re-released ’30 5-window I had to get on it. The little coupe just screamed chopped and channeled at me. A real East-Coast style 50’s ride.

The frame is from the AMT Phantom Vicky and it fits perfectly. The Phantom Vicky kit is a treasure trove of ultra-cool parts. I buy the pre-painted kits at swap meets and on sale at my LHS because they seem to be quite common and are always mega-cheap, probably because they’re so ugly. I’m replacing the kit IFS with a resin dropped piece from Early Years Resin. I’ll probably leave the rear suspension as is. The top is chopped approx. 4†all around and the channel job is about 4†as well. The rear end will probably come up slightly when I lock in the stance. I plan to use a chopped Deuce grill so that the top of the shell lines up with the cowl without scraping the ground. The engine will be either a tri-carb Nailhead or a Hemi so I can use the cool headers that come in the Phantom Vicky kit. If I can I’d like to keep the stock firewall.

Color is up in the air. I’m very tempted to keep the pre-painted frame as is. I’m thinking perhaps a metallic green to go with the purple rails.

Here is a Scotch-taped mock up.

Thanx for lookin’.




Edited by gbk1

Share this post


Link to post
Share on other sites

Posted · Report post

Nice so far.

Share this post


Link to post
Share on other sites

Posted · Report post

Oh yeah ... drooped over those rails where they belong!!! I'm liking it... :D go for it, Bernard!

(I've never seen a Highboy I didn't think looked like a bus) ;)

Share this post


Link to post
Share on other sites

Posted (edited) · Report post

(I've never seen a Highboy I didn't think looked like a bus) :lol:

:lol:;):lol::lol::D

I've never heard it put any better...

Edited by gbk1

Share this post


Link to post
Share on other sites

Posted · Report post

Lookin' Good Mr. B, like the channel job that's pretty cool. Taking a little off the top always works in my book.

Share this post


Link to post
Share on other sites

Posted · Report post

It's coming on well Bernard. Has the right look already with the chop'n'channel....and loooove those steelies, baby moons and trim rings!

Share this post


Link to post
Share on other sites

Posted · Report post

Bernard,

While it's hard for me to see past the pea-green plastic to fully realize your vision for this build, ;) , the stance and ride height look right on the money!!

Yes, I too really like the steelies with the chrome rings and baby moon caps!! ;)

Keep going...you'll soon have more builds in your collection than Curt and myself combined!!

Later,

Share this post


Link to post
Share on other sites

Posted · Report post

Thanx everyone! While I'm pretty sure I'm keeping the purple frame the pea green plastic goes. It might finish up being green but not pea green ! ;) And, oh yeah... I guess I'm staying with these wheels! :P:angry:

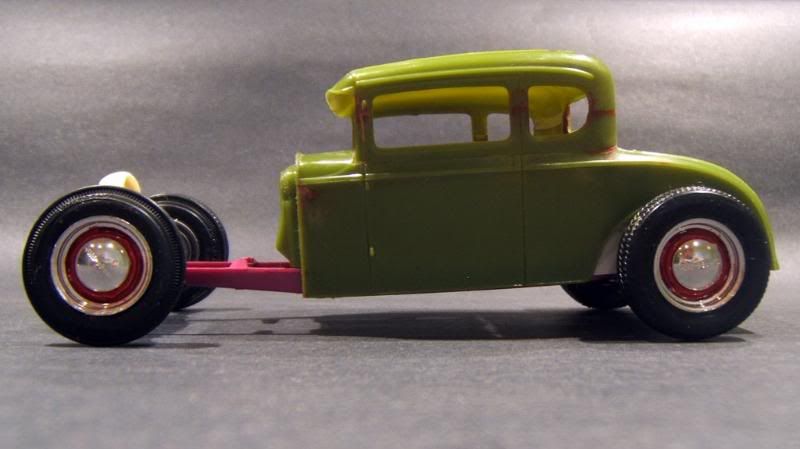

The stance is now set. This involved installing the front and rear suspension, gluing all the internal panels and bracing into place, especially the rear brace that locates the back end of the frame since it determines the rear ride height and, along with the firewall, sets the amount and rake of the channel. I also got started on cleaning up the chop. The car is now more raked than it was and doesn’t drag its hindquarters the way it did in the mockup. The grill is the Model Car Garage 6†chop Deuce shell with p/e grill.

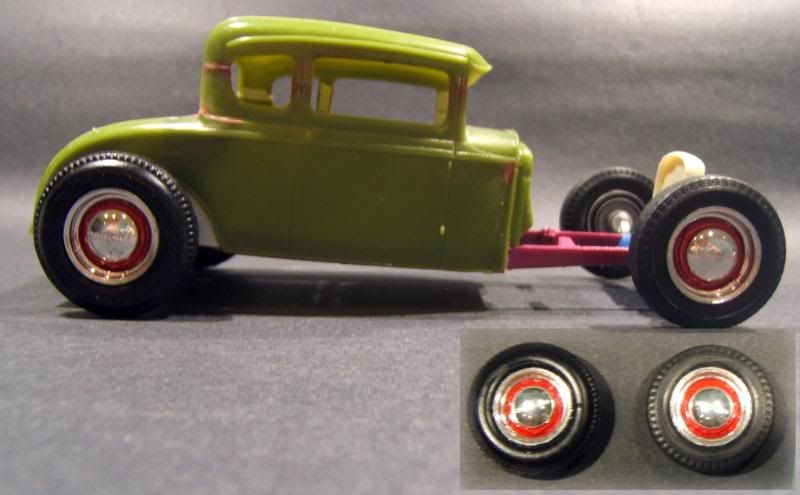

Here are some shots. Thanx for lookin’




Share this post


Link to post
Share on other sites

Posted · Report post

Hey now! .. you got a great eye.. that stance is right on the money!

Share this post


Link to post
Share on other sites

Posted · Report post

are you ganna put the flat head in it? that's what i'm puttin it in my 32 ford sedan. gives it the classic-ish look :(

Share this post


Link to post
Share on other sites

Posted · Report post

Bernard,

While it's hard for me to see past the pea-green plastic to fully realize your vision for this build, :P , the stance and ride height look right on the money!!

Yes, I too really like the steelies with the chrome rings and baby moon caps!! ;)

Keep going...you'll soon have more builds in your collection than Curt and myself combined!!

Later,

Yeah Raul...ol' Bernard is really pumpin' em out isn't he! :P

great start Bernard, I'm still waiting for the '30 Ford Sedan to show up down here...LHS says not til late August :(

I like the steelies and baby moons as well, glad you're goin' away from the nice green ;)

Share this post


Link to post
Share on other sites

Posted · Report post

Looking forward to seeing this one done Bernard

Chris

Share this post


Link to post
Share on other sites

Posted · Report post

Thanx everyone. For some reason whenever I use these wheels they're a huge hit. People really like them. They're actually my mockup wheels and tires. Up to now they've never actually made it onto a build. They're the chrome wheels off the Revell '49 Merc with red painted centers and '40 Ford caps. I guess this time they're staying! :angry:

are you ganna put the flat head in it? that's what i'm puttin it in my 32 ford sedan. gives it the classic-ish look :P

The mill will be pretty traditional, but it won't be a Flattie. I've settled on a Buick Nailhead with 3 '97's and a set of Lime Fire Headers from The Parts Box ( http://www.thepartsbox.com/ ).



Unfortunately I've "misplaced" ;) the set I have so I've ordered another set. Hopefully I'll find the missing set while I'm building the engine. No harm in having another set. You never can have too many Lime Fire headers for your Buick Nailheads I always say (really, I always say that...).

Share this post


Link to post
Share on other sites

Posted · Report post

Another cool build you have going, Bernard! I've always thought '30/'31 Ford coupes are one of the most versatile hot rod bodies ever made. You can do just about anything with them.

Your chop and channel proportions look good and that sectioned radiator shell is a nice touch. Gotta do it to get those proportions right.

Where are you sourcing the Buick engine?

Are those the rear tires you're going to use? The rears look a little modern/small in comparison with the fronts.

Seeing all these '30 coupes pop up (you, Dave, Lyle) now I'm starting to get the itch. Meanwhile, my poor roadster and '40 coupe aren't done yet. Isn't this hobby great? :angry:

Share this post


Link to post
Share on other sites

Posted (edited) · Report post

...Where are you sourcing the Buick engine?

Are those the rear tires you're going to use? The rears look a little modern/small in comparison with the fronts.

Seeing all these '30 coupes pop up (you, Dave, Lyle) now I'm starting to get the itch. Meanwhile, my poor roadster and '40 coupe aren't done yet. Isn't this hobby great? :angry:

Thanx Dennis.

Aw c’mon, start another one… ;)

Unfortunately the rear tires will gave to stay as is. I simply can't find anything else that fits those rims that aren't the same width and diameter as the fronts. That's why these were always my mockup wheels. But I've been outvoted! :P

Now here’s more than you’ll ever want to know about 1/25 nailheads (although I’m sure I’m leaving lots of other stuff out…).

I'm probably going to build the Nailhead from one of the 4 Tommy Ivo Showboat engines I got. I bought the Revell Showboat kit strictly as a source for those beautifully detailed motors. So far I've used one on a rail I built last year:


Unfortunately what you get is essentially a shortblock with a nicely detailed Hilborn injection setup and really nice injector stacks. The oil pans have 45 degree slanted bottoms to make up for the angled mount of the motors in the drag car. For this build I made a new bottom for the pan but didn't need to do anything else. But there's no bellhousing, transmission, accessory drive, belts, pulleys, etc.

So... In the wonderful world of aftermarket parts I got this l;ittle item:


Beautifully cast by Norm Veber at Replicas and Miniatures Co. of Maryland, it's a re-pop of the oil pan, transmission, accessory drive and shift linkage from an old Revell Parts Pack Nailhead which itself used the block and injection from the Showboat. BTW, this item is NOT listed in Norms regular catalog. You have to ask… And... no drive pulleys and belts, generator, or carburetor manifold. For this I am using the parts that can be found in the AMT '40 Ford Sedan Delivery kit (You can also find it in the Coca Cola '40 Ford coupe variant). This has a complete nailhead including block-hugger headers if you were planning on using it in a more confined area. There are several other kits that offer Nailheads with various variations in terms of carburetion, valve covers, spark plug wire shields, etc., mainly various AMT 60's Buicks. The reason I'm not planning on using the AMT nailhead is the detailing on the block and heads is a bit soft.

And finally there's this item from The Parts Box in Australia:


This is the full monte as it were. I've ordered one today but I'm want to keep on building this guy so I'm probably going the Ivo route. At 18.00 AUD (about 14.50USD) it's about the price of a source kit for an AMT nailhead and less than a Showboat kit on e-bay (if you can score one). However they have a 25.00 AUD minimum order and shipping is about another 10.00 USD so it's best to have need some other of their cool stuff if ordering from them.

I know you are a confirmed kit basher so go to Bob Black's awesome DPMCC instruction sheet resource (http://public.fotki.com/drasticplasticsmcc/instruction_sheetsh/instruction_sheets/ ) and search the AMT section for the 40 Fords and various Buicks. Or you can be like me and help support the artisans of the aftermarket...

Edited by gbk1

Share this post


Link to post
Share on other sites

Posted · Report post

No! I will not start another project until at least the roadster is done! Hahaha. But, luckilly this weekend is final assembly time so next week I might drag that '30 kit out. I've already been planning it in my head and have even played with it some.

Thanks for the run down on the Buick engine options. The reason I asked is because I couldn't imagine you would use the one from the AMT '40 coupe / sedan delivery. Saying it's "soft" is being generous. I think it has it's place in a basic build up like those old AMT kits, but not in what you're doing.

And I'm not anti-aftermarket but, if I can build it or make it I will! :lol: That Parts Box Buick is frickin' awesome tho. I've looked at their site a few times and I think at some point an order is, um, in order.

Share this post


Link to post
Share on other sites

Posted · Report post

Yep...this one is coming along really nicely, Bernard!!

That Nailhead engine from the Parts Box is going to look GREAT sitting between those frame rails!!

Do you need another pair of tire like what is on the front? Are they Firestones?

Later,

Share this post


Link to post
Share on other sites

Posted (edited) · Report post

Yep...this one is coming along really nicely, Bernard!!

That Nailhead engine from the Parts Box is going to look GREAT sitting between those frame rails!!

Do you need another pair of tire like what is on the front? Are they Firestones?

Later,

Thanx Raul. The Parts Box Nailhead probably won't make it here in time but it sure will make a powerful weapon in reserve in case I screw up on the Ivo conversion! (And if I don't screw up it will make a powerful weapon in reserve for another build... or a parts swap!) I need to get the engine built and located so I can start working on the firewall and interior. I also need it to finalize the location and mounting of the grill shell. It's always a highly interdependent process, isn't it?

As regards the tires the problem is that those are probably accurate 1/25 scale 16" wheels from the Revell '49 kit. So most tires have an i.d. that's too small. I have no recollection at this point what the tires I am using came from, front or rear. I've got Lots of Firestones (the cool skinny ones with the ribbed tread and the Firestone script), quite a few of which came from your parts box :lol: . They make admirable front tires but the rears, as Dennis points out, are really where the problem lies. I must admit that whereas I think the wheels are just fine, the tires do bug me, too. I'll have to think about it some more. Maybe it's Dremel time!

Edited by gbk1

Share this post


Link to post
Share on other sites

Posted · Report post

...I've got Lots of Firestones (the cool skinny ones with the ribbed tread and the Firestone script), quite a few of which came from your parts box :lol: ...

That's the beauty of getting old...I remember that you were here, that we raided the parts boxes, but I probably can't remember a single thing that you took!! :lol:

Later,

Share this post


Link to post
Share on other sites

Posted · Report post

That's the beauty of getting old...I remember that you were here, that we raided the parts boxes, but I probably can't remember a single thing that you took!! :lol:

Later,

Innocence is bliss...

Share this post


Link to post
Share on other sites

Posted · Report post

The tire thing bugged me a bunch so I went through my parts stash and found a nice set of resin Hot Rod Big ‘n’ Littles I bought last year from The Parts Box ( http://www.thepartsbox.com/ , Part No. 640), reamed out the centers a bit with my Dremel and I think this will be an improvement. The fronts on the resin tires are the same width as the other ones but slightly larger in diameter (it works out to approx 28 scale inches vs. 27.5 scale inches) but the sidewall detail is much more interesting. The rear resin tires are visually larger in diameter than the old tires (it works out to approx 30.125 scale inches vs. 28.75 scale inches) and have the right ribbed tire pattern. Below are some pics. Tell me what you all think…




I bought some Tamiya TS-60 Pearl Green that looks like it might work. I’ll do some test shots and see if it’s a good alternative to Pea Green…(or did I just buy it ‘cause it’s spelling was almost Pea Green…)

Thanx!

B.

Share this post


Link to post
Share on other sites

Posted · Report post

I say that's a nice improvement! Go with those. :huh:

Share this post


Link to post
Share on other sites

Posted · Report post

That tire and wheel combo looks right on the money, Bernard!!

Pearl Green? I haven't seen that color yet. Are you going to do some spoon test shots with different base colors?

Later,

Share this post


Link to post
Share on other sites

Posted (edited) · Report post

First off, thanx to Dennis for keeping me honest on the tire thing. Not a big deal to make the resin tires fit, but I definitely needed someone to kick my lazy derriere... ;) Extra added benefit on the tire switch was that the larger rears added just a tiny bit more rake which I like...

... Are you going to do some spoon test shots with different base colors?

Yes, spoon tests are in order (actually fork tests since I'm almost out of plastic spoons). First off to make sure the color goes with the pre-painted frame color, and then, as always, to check the effect of different color primers, and finally, given the look of this build, to compare gloss against suede. Here's a color swatch courtesy of Tamiya USA:


It's supposed to be hot and sunny tomorrow so things should go quickly. Meanwhile, lotsa bodywork to get done, an engine to build, and an interior to invent.

Thanx for following along...

B.

Edited by gbk1

Share this post


Link to post
Share on other sites

Posted · Report post

First off, thanx to Dennis for keeping me honest on the tire thing. Not a big deal to make the resin tires fit, but I definitely needed someone to kick my lazy derriere... ;)

Well, happy I could help! And, if you need help on future projects my foot is always ready. :lol:

Share this post


Link to post
Share on other sites
