CLYDES II

129 posts in this topic

Posted · Report post

Clydes II is the name of the famous Bill Signs Trucking Peterbilt 359. It was created years ago and I think that the Revell guys did a good job.

http://www.truckin24.de/03c1989d840f69e01/03c1989e1510fe103.html

There are some differencies from the real truck though. Unlike the kit, Clydes II has extended hood. Unfortunatelly, I have never seen any picture of this truck with the hood opened. I was positive, that the truck was powered by 8v 3408 CAT. But then, just yesterday, I found this note on public fotki...

http://public.fotki.com/modeltrucks25thscale/truckkit_instructions/revell/07522_peterbilt/

Now I am uncertain, which engine I should use for the model. I was looking forward to installing 3408 in the 359 frame. Now it seems to be wrong. "Papa Clyde", the successor of "Clydes II" has the twin-turboed 3408, that is for sure. Maybe that´s why I thought that the 3408 was in the older truck too.

Anyway, I started the hood extension.

I had two short hoods, one of them cracked badly. I cut the damaged hood to pieces and used its parts for extension.



I cut the hood along the spinal stripe to compensate for the changed angle of the hood sides. But the change is so small, I could have omitted this step just as well.



But I made a mistake and extended the hood less than I intended. I had to repeat the process all over again.

Share this post


Link to post
Share on other sites

Posted · Report post

This is the hood after the second extension...



And here with the cab added...


I also extended the frame. Another possibily was to reposition the cab backwards. But I like the frame extension better...



The joint will secured by a metal stripe.

Share this post


Link to post
Share on other sites

Posted · Report post

If you have any questions about the real truck just sent an e-mail to Claus Lassen. I'm sure he will answer all of them. I've build this model a long time ago and Claus saw it on the Intermodellbau in Dortmund, I believe it was the year 2000. The book he wrote about wreckers in America is also very nice but it is in German.

Nice model though, this Bill signs

Hessel

Share this post


Link to post
Share on other sites

Posted · Report post

The Bill Sign's truck modeled by Revell had the KTA Cummins engine in it. I have a truck book around here that shows it, I will look for it. Very nice build you have there!!

Mark

Share this post


Link to post
Share on other sites

Posted · Report post

Thank you very much Mark. May I have one more question... or two... I do not know what the book shows but, could you tell me what color the engine is. Beige, white, metalic grey... ? Are there some chrome elements in the engine compartment?

I am sorry for taking your time. I have searched the internet all through looking for pictures and found... nothing.

Thanks for any help, I appriceate it.

Share this post


Link to post
Share on other sites

Posted · Report post

Great work so far.I sucks to have to redo the extention...looks good.Thank ya,Chris

Share this post


Link to post
Share on other sites

Posted · Report post

oooh! someone is building this kit .... and someone is doing the homework to correct this kit to accurate states!

Share this post


Link to post
Share on other sites

Posted · Report post

So that's how to extend the hood. Very nice work.

Share this post


Link to post
Share on other sites

Posted · Report post

Well, I continued with my research and addressed Klaus Lassen (thanks for the tip, Hessel). Klaus sent me a rock solid evidence that in 1993 the unit 402 called Clydes II was powered by CAT 3408.


This makes it possible for me to carry on according to my initial plan. I already started working on the CAT 3408 using the old Ken Smith articles for detailing. The parts of the engine are base colour painted.




Share this post


Link to post
Share on other sites

Posted · Report post

I also carried on with the hood. A added the fenders and some inside details. They are not very accurate but I can live with that. I just hope it will look better after the paint.




I added a line of rivets along the fender. I made them out of Evergreen plastic rod .020" inserted in the holes and cut along the hood surface.


All the chassis parts require an endless job of filling and sanding... filling and sanding... filling and sanding...

Have I forgotten something? Yeah, filling and sanding!


And that is what I have been doing for couple of weeks now.

Share this post


Link to post
Share on other sites

Posted · Report post

Nice work so far.

Tim

Share this post


Link to post
Share on other sites

Posted · Report post

Jarda your attn. to detail and doing the research is some nice modelin man! B) I'll be looking forward to seeing this completed..

Share this post


Link to post
Share on other sites

Posted · Report post

Very nice work!! And thank you for that 1:1 picture of old 402. I have one to build again one day, and I will be putting the 3408 in it too.

Mark

Share this post


Link to post
Share on other sites

Posted · Report post

Yeap, nice work so far...

Kostas.

Share this post


Link to post
Share on other sites

Posted · Report post

Hello there,

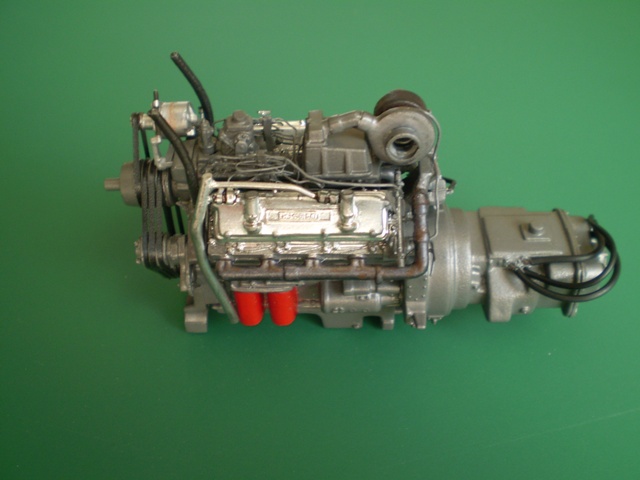

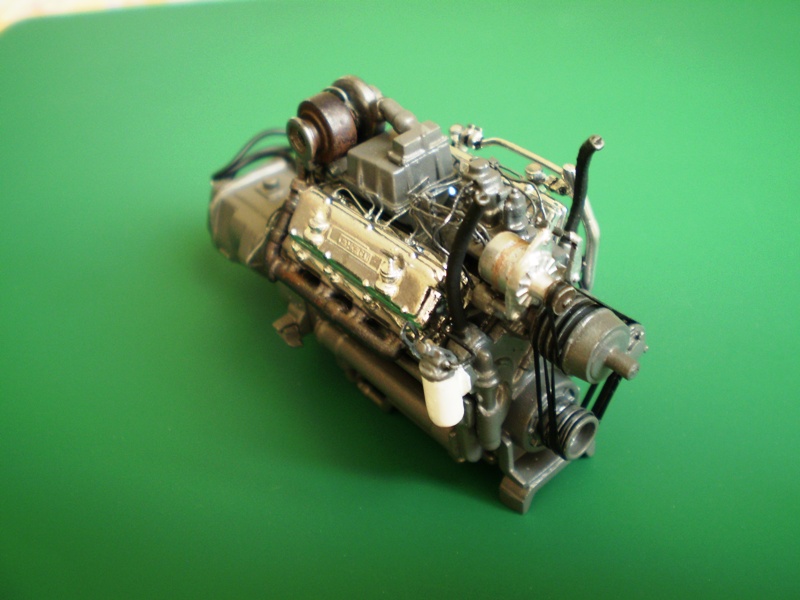

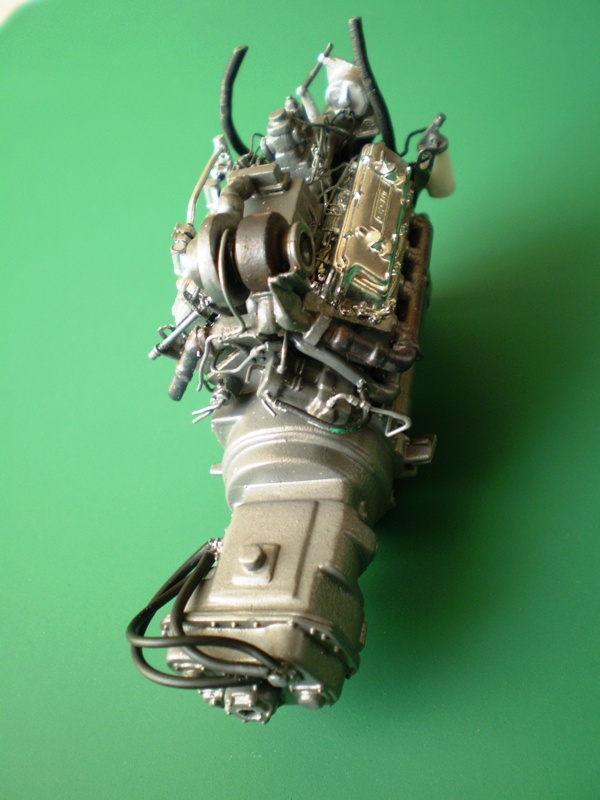

I finished the engine. Still not positive that the engine in Bill Signs unit is of the same color as the truck. But it is painted already. I used GSI 28 lightened by a drop or two of white. I added the plumbing and reworked the belts and puleys. Not a 100 % accurate but it is my first try.

post-8448-0-67564400-1317115431_thumb.jp

post-8448-0-75808200-1317115434_thumb.jp

post-8448-0-03348400-1317115438_thumb.jp

post-8448-0-52936900-1317115441_thumb.jp

post-8448-0-72332300-1317115444_thumb.jp

post-8448-0-16574600-1317115448_thumb.jp

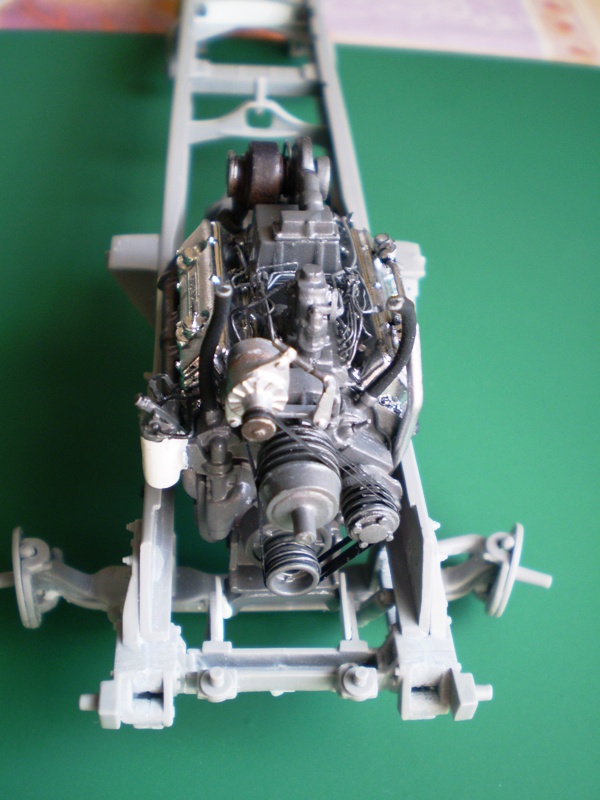

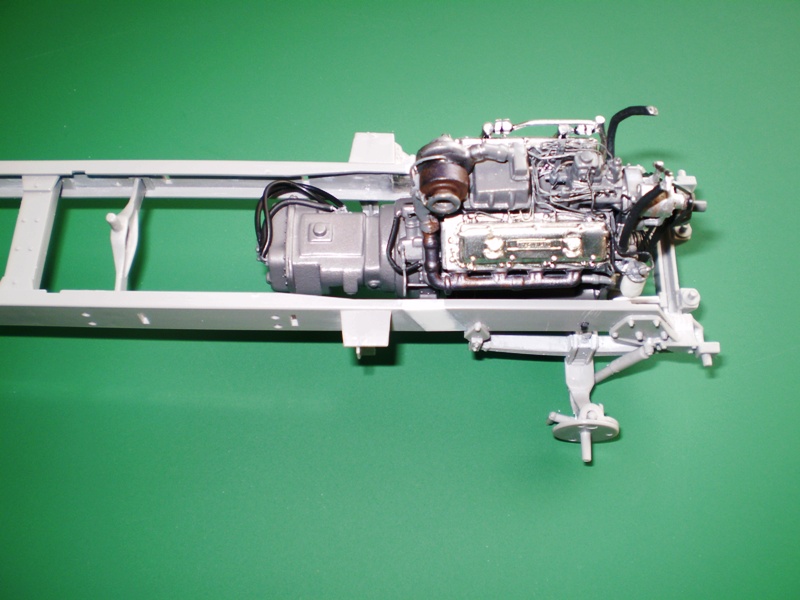

Here is a few mock-up shots of the engine in the frame.

post-8448-0-74067400-1317115598_thumb.jp

post-8448-0-56243600-1317115603_thumb.jp

post-8448-0-59758500-1317115606_thumb.jp

post-8448-0-75084100-1317115609_thumb.jp

post-8448-0-18238900-1317115613_thumb.jp

post-8448-0-56771600-1317115616_thumb.jp

Still some colour imperfections but they will be fixed.

Till next round

Jarda

Share this post


Link to post
Share on other sites

Posted · Report post

The engine is very realistic.

Tim

Share this post


Link to post
Share on other sites

Posted · Report post

Excellent job, Jarda.

Share this post


Link to post
Share on other sites

Posted · Report post

This is a very nice build the details just make it better.

I have two of these myself and I'm glad I ran across your accurate details that will make it more like the real one.

Thanks for showing us.

Share this post


Link to post
Share on other sites

Posted · Report post

Love the detail,It is always good to do your research before you start building, that can be just as much fun as building itself

Share this post


Link to post
Share on other sites

Posted · Report post

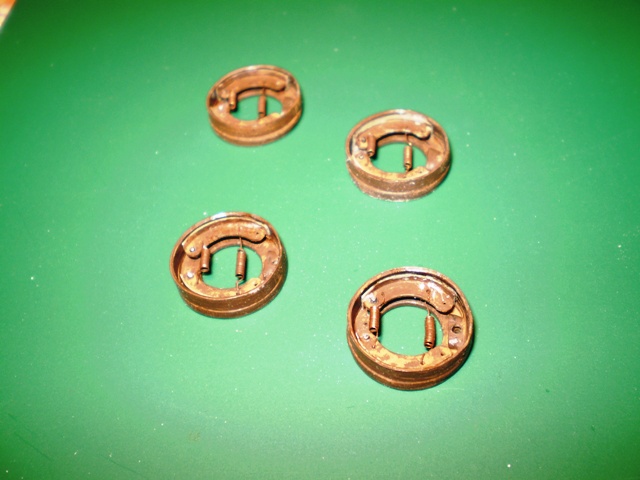

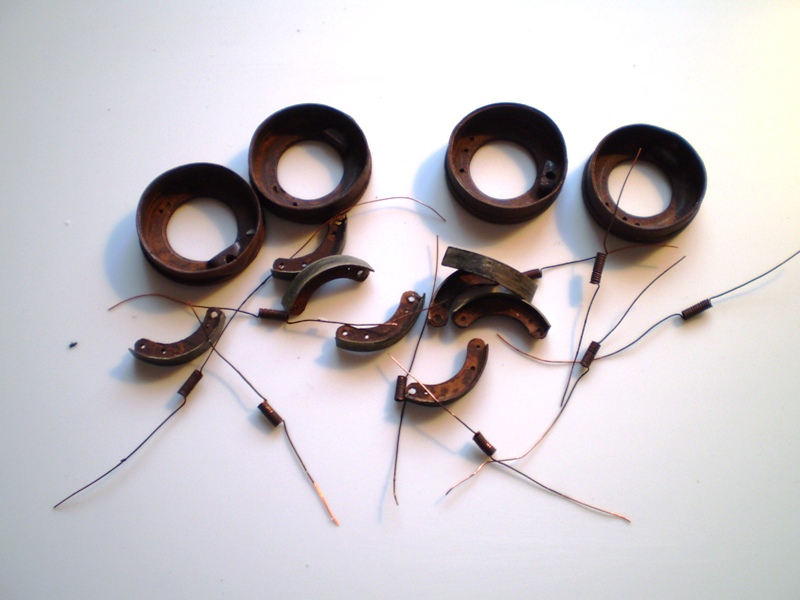

Again, I couldn´t resist and made me the brake details to rear axles. Not 100% accurate but still better than empty wheels. I used only a junk plastic sheets and a wire. The brake drums are made of a plastic stripe. I coudn´t find any tube.

post-8448-0-03945000-1319653659_thumb.jp

post-8448-0-61264800-1319653700_thumb.jp

post-8448-0-94285700-1319653791_thumb.jp

Jarda

Share this post


Link to post
Share on other sites

Posted · Report post

looking good!!

Share this post


Link to post
Share on other sites

Posted · Report post

Great job ,the brake set up is great looking

Share this post


Link to post
Share on other sites

Posted · Report post

Hello,

I am working on the air ride seats. I reshaped the Revell´s seats a bit and made a new springing mechanism. It is not the exact type that Clydes II has but it is quite common in Peterbilts, if I can judge. Anyway, it is the best I could come up with. These pics show the progress. More work is yet to be done.





Jarda

Share this post


Link to post
Share on other sites

Posted · Report post

Great Job my friend. Keep it up. One of these days I am gonna do a super detail like this.

Share this post


Link to post
Share on other sites

Posted (edited) · Report post

Now I am really hesitating... should I carry on with this build or give it up?

I finally sprayed the major parts of the truck using GSI colours "C" line. The shade appears much lighter on the pics than it actually is. The real truck looks pretty dark on some photographs and then quite light on some others. I tried to come up with something in the middle and I think I achieved that. But the colour reveals each and every fault, each and every scratch and imperfection. The stripe on top of the hood looks really bad. You know that I extended the hood twice. I think it´s okay on the skin, but I just could not align the stripe and every trial to make it look better ended up in worst and worst condition. Well, here I am, kinda helpless...




Jarda
