This something that I posted in Workbench Saturdays!! A few veiwers there asked that I make a build log of this so here it is. I started this project a while ago, but it has yet to really be glued together so I took it apart as far as I could to get a good start. This is a combination of a Revell 41 Chevy pickup and a Revell W900 Kenworth

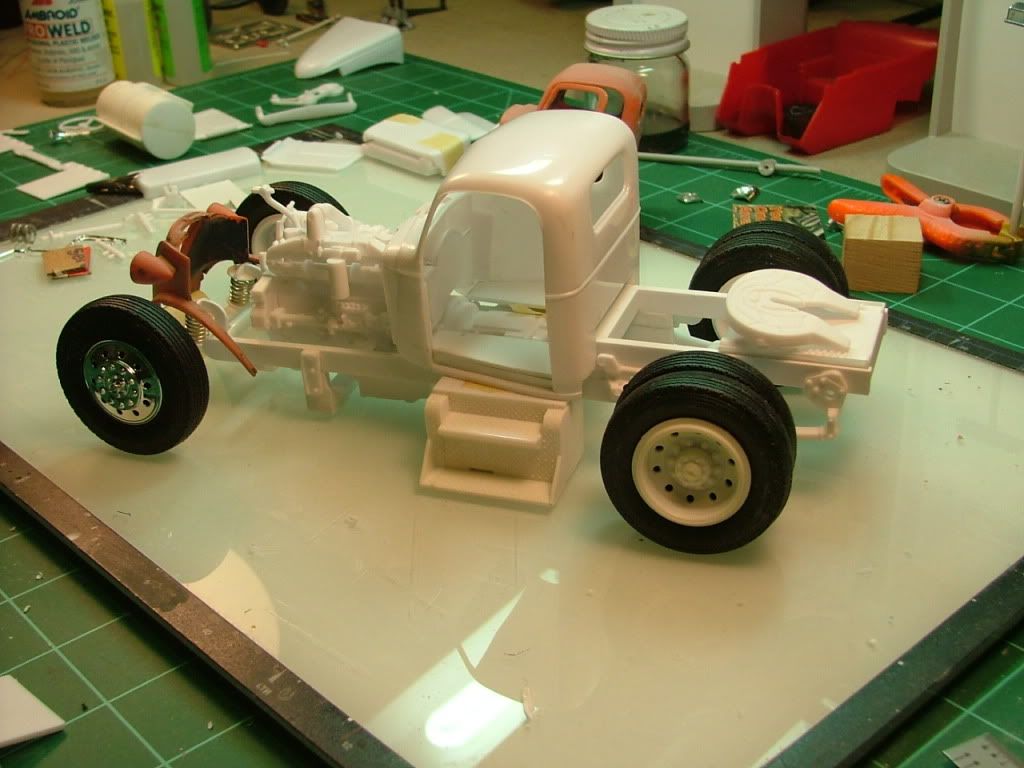

first I cut the frame up and removed the front leaf springs and any riveted brackets, crossmembers, details, etc. I built a box frame and put the front leafs on the rear and added crossmember detail.


I decided to go with coil springs in the front so I fabbed up some spring perches. I loosely assembled the cat engine to get an idea of what it will look like and cut the battery box steps down to a realistic size for what I'm doing. Had an Orange Crate cab and grill laying around and tried it on for size



To be continued.

Ken

Edited by kenb

Share this post


Link to post
Share on other sites

Posted · Report post

Wow, you definitely have my attention. Very interesting.

Share this post


Link to post
Share on other sites

Posted · Report post

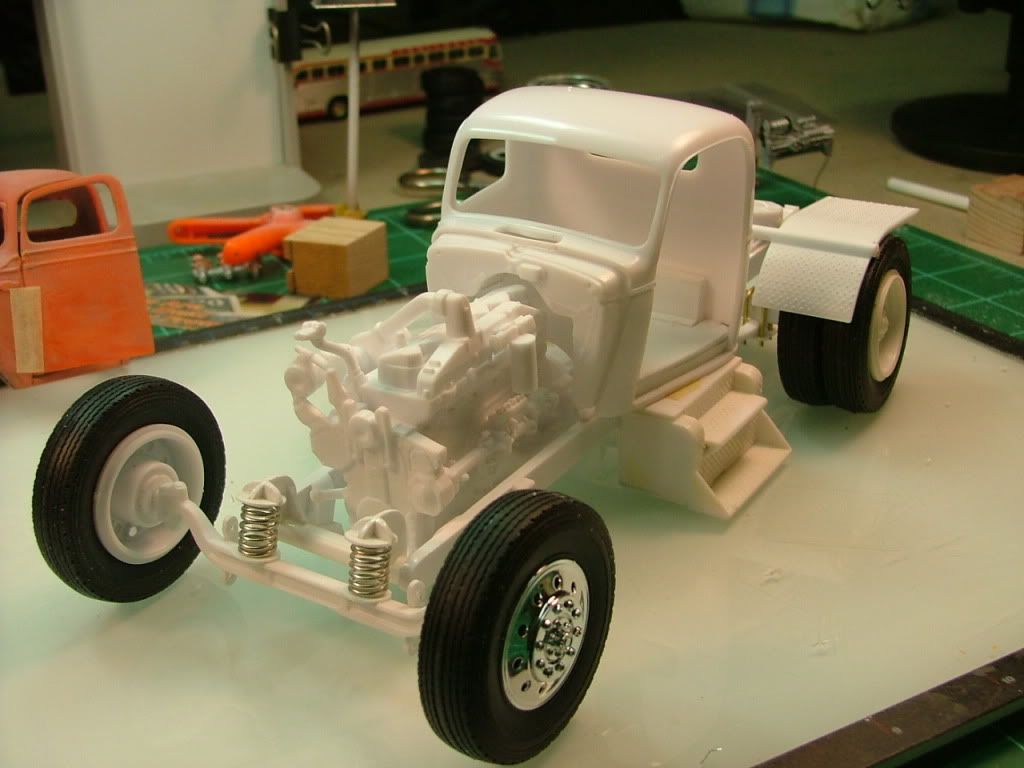

Well, din't care to much for that cab. Seemed just a bit too small. Got the cab from the 41 Chevy pickup. It's much better. I think if i had car tires and wheels on it the Orange crate cab would be ok. I had to cut up the rear panel and box it to clear the frame. Opened up the drivers door an cowl vent.



I need a different grill. I'm thinking something like a farm tractor type grill, or a 34 ford grill just larger. I layed the 5th wheel on the back of the frame an kind of liked it. My original intentions were to build wrecker hoise for the rear. This is all being built out of my head as I go along. Any thoughts, ideas or criticism are welcome. This will probably be a lengthy build as I don't build fast, but i don't build slow, I build kinda half fast. so you'll have to bear with me.

Ken

Share this post


Link to post
Share on other sites

Posted · Report post

Ken, :D I am real glad you are putting this up because this really caught my attention the other day and I hoped you would run this through :wub: ...Thanks

Share this post


Link to post
Share on other sites

Posted · Report post

That just oozes COOL!

Share this post


Link to post
Share on other sites

Posted · Report post

big time cool

Share this post


Link to post
Share on other sites

Posted · Report post

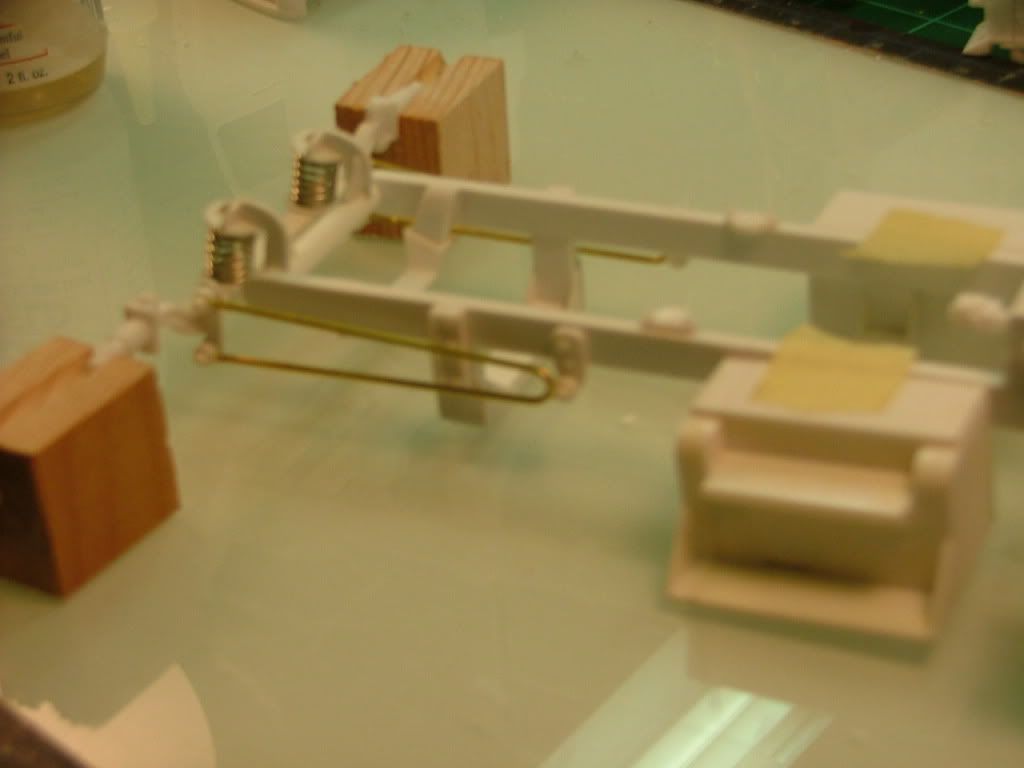

Sorry about the way some of the pictures are coming out. Using my old trusty Fuji S5000 and there must be something wrong with it. It's not trusty anymore. aoto focus just isn't working at times. will switch cameras for all future pics. Sat for a small session tonight and built the hairpins for the front end. Removed 2 pieces of frame section from the W900 that had rivet detail and made the hangers from that. Ken



Share this post


Link to post
Share on other sites

Posted · Report post

Ken.....like the progress.......very cool looking so far.

Share this post


Link to post
Share on other sites

Posted · Report post

This thing is beautiful as all get out, another artistry build that I cant take my eyes off ,will be waiting to see the finished product.

Share this post


Link to post
Share on other sites

Posted · Report post

way cool..

Share this post


Link to post
Share on other sites

Posted · Report post

I gotta say that when I opened this, I expected something like the truck in the Dennis Weaver movie, Duel. This is certainly a cool surprise!

Share this post


Link to post
Share on other sites

Posted · Report post

Very cool.

Share this post


Link to post
Share on other sites

Posted · Report post

Just amazing! Keep it going. Take your Cranky vitamins and keep it going.

Share this post


Link to post
Share on other sites

Posted · Report post

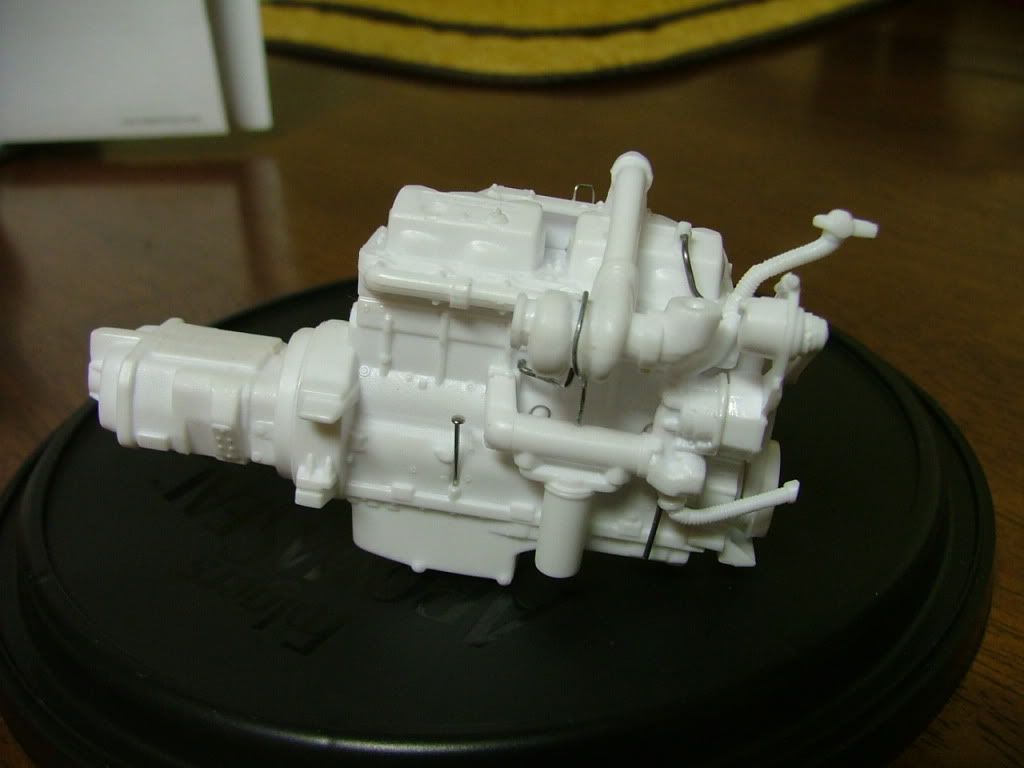

An update on the build. Did some detail work on the engine. Added plumbing and cleaned up the seam lines. Then primed. After I was done I realized that I put the injector lines on the wrong place on the head. Oh well, Not gonna change that now. This is what happens when you don't print out your reference photos and go from memory. At least I got the firing order right.

Ken





Share this post


Link to post
Share on other sites

Posted · Report post

These are the kinds of details that are going to pay off BIG! Great work!

Share this post


Link to post
Share on other sites

Posted · Report post

Now that's one monster of a truck!

David G.

Share this post


Link to post
Share on other sites

Posted · Report post

thankz for posting this! im paying attention to this definatly and will be doing something similar to one of my snap pete kits (once i get some of these others out of the way! :lol:

Share this post


Link to post
Share on other sites

Posted · Report post

This is a very cool build.

I have seen photo's of real rat rig's and even though I don't build rat rods I plan on doing one,one of these day's.

Share this post


Link to post
Share on other sites

Posted · Report post

This is a very cool build.

I have seen photo's of real rat rig's and even though I don't build rat rods I plan on doing one,one of these day's.

here is some "INSPIRE" ation for ya' to get this thing built!

Share this post


Link to post
Share on other sites

Posted · Report post

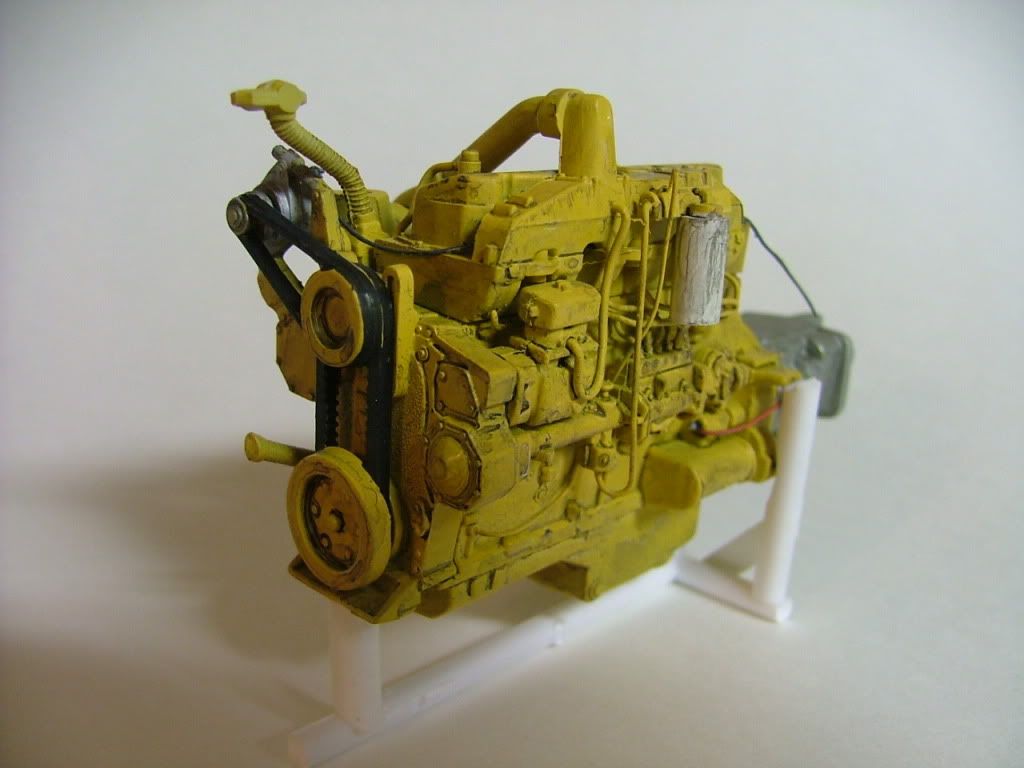

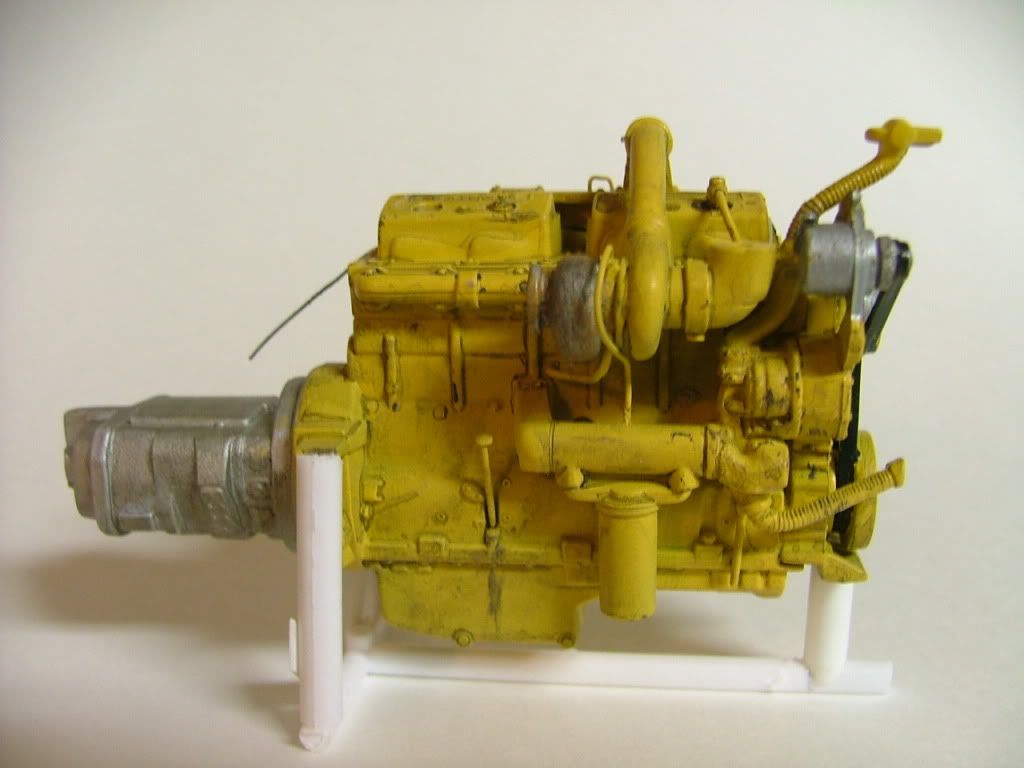

Well, been slaving at the workbench. Trying to get the right look for this Cat 3406 Engine. Don't know if I did the right thing by hitting it with the flat finish. I lost a lot of the weathing after that. Might do a light wash and a little more dry brushing on it tomorrow. Will have to see how it looks in frame.




Ken

Share this post


Link to post
Share on other sites

Posted · Report post

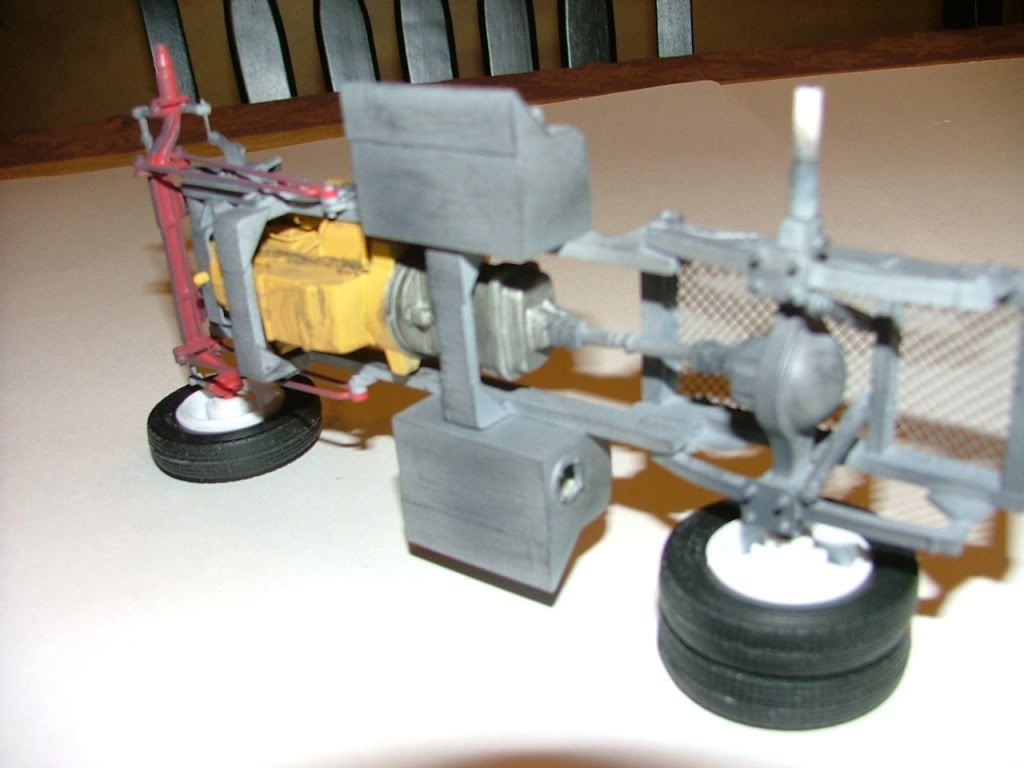

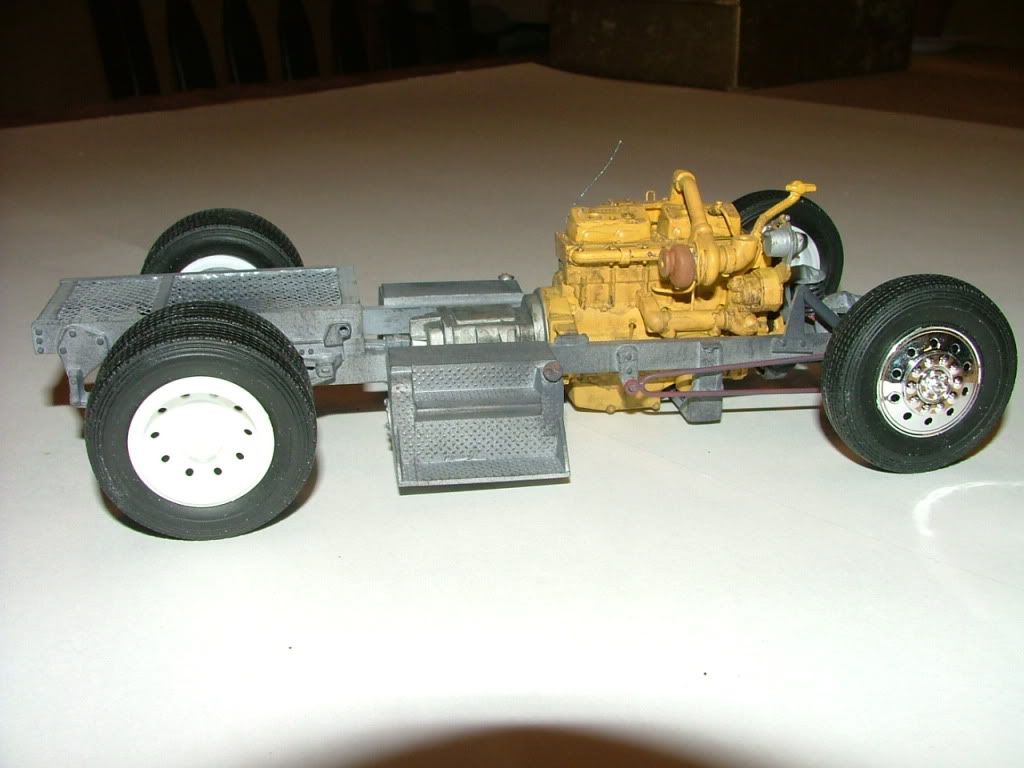

Well, I said i was a slow builder. Been getting some things done lately. Had trouble deciding on how to rig the steering, went with a cross steer system. Stil looking for the right wheels. Will probably order some resin ones. Want to put some 6 spoke like those found on early Macks. Here are some pics. Ken






Share this post


Link to post
Share on other sites

Posted · Report post

Here's a couple more shots



That hole in the right side fuel tank is where the exhaust will pass through, then turn up along side the cab. I was thinking of a way to make the exhaust while drinking a shake. I looked at the straw with the corrugation in it to make a bend. Hmmm this might work. That's what I'm going to use. Going to look like this...



Ken

Share this post


Link to post
Share on other sites

Posted · Report post

Now, THIS brought a smile to my face :D

About the straw: Be careful - priemrs and paints hardly get a grip of that darn thing ;) I've had quite a few problems with paint chipping off it ;)

Share this post


Link to post
Share on other sites

Posted · Report post

Very cool. I wanna see more.

Share this post


Link to post
Share on other sites

Posted · Report post

I think I have the problem with the paint sticking to the straw. Most of it will have header wrap on it. I'll make sure to rough it up a bit before paint as well. Ken

Share this post
