Building a replica of my gf's '79 El Camino for an Xmas gift...

44 posts in this topic

Posted · Report post

Well I had to put my '80s Supra project on hold so I can do a replica of my girl's '79 El Camino for her for one of her Christmas gifts. I think she'd absolutely love it! So anyways, here's what I'm replicating (and yes, that is my gf in the pic...my first modeling photo shoot):


And these are reference pictures of what I need to replicate:

Hood decal


Rear window decals (flaming bowtie and a Cherry Bomb decal on the driver's side)


Custom gauge cluster in the console blank


Share this post


Link to post
Share on other sites

Posted (edited) · Report post

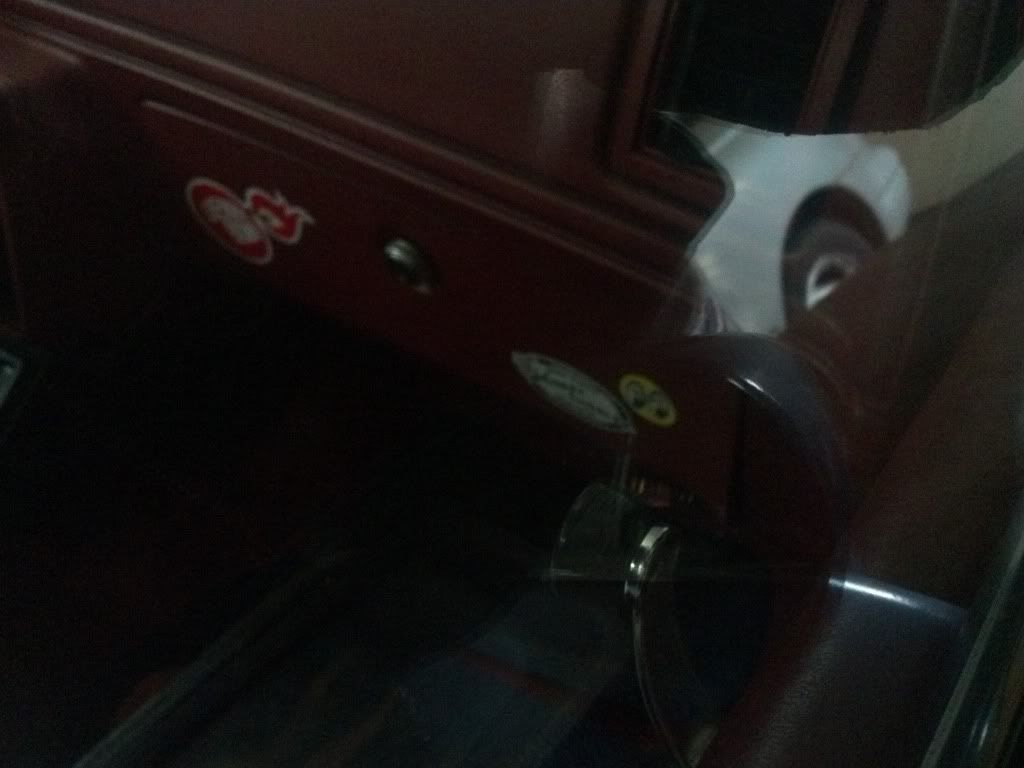

Another Cherry Bomb decal, an Honest Charley's decal and a Moon decal on the glovebox

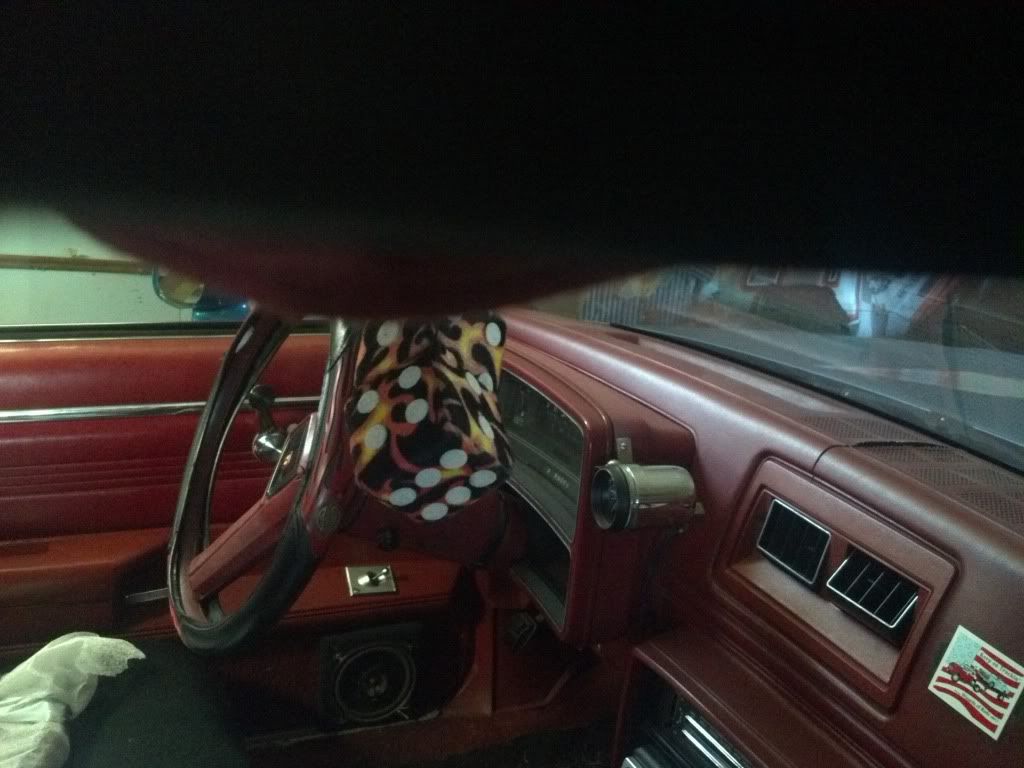

Vacuum and tach gauge pods and door speakers

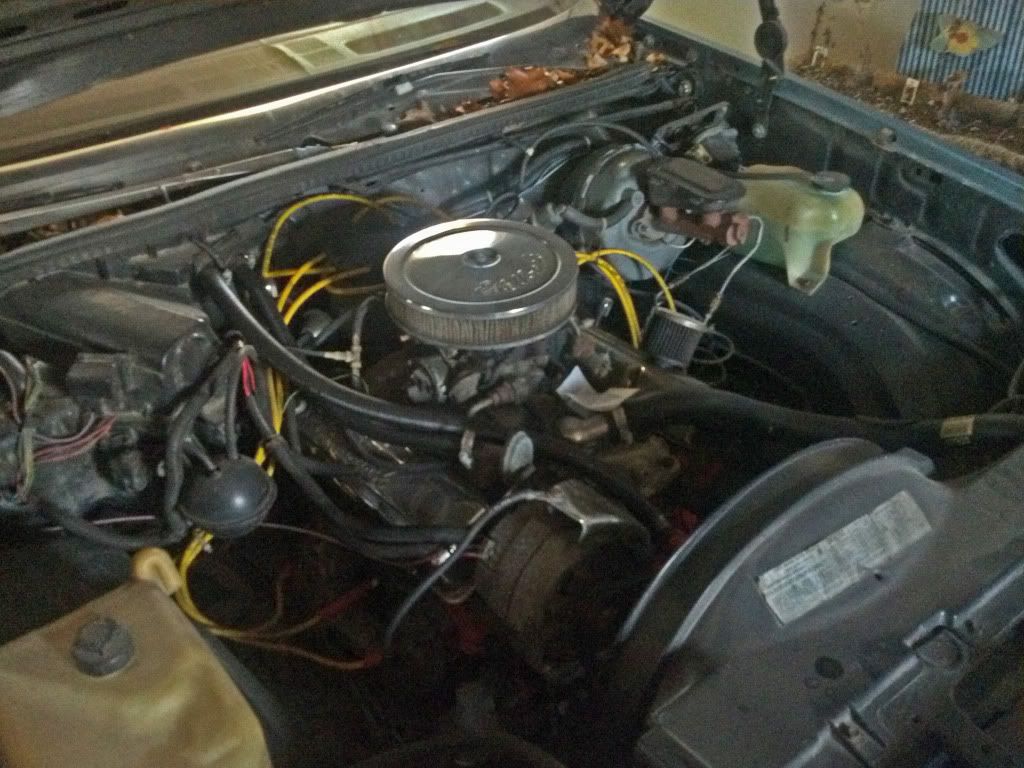

350 engine with Edelbrock air cleaner and valve covers, chrome valve cover breather and yellow spark plug wires

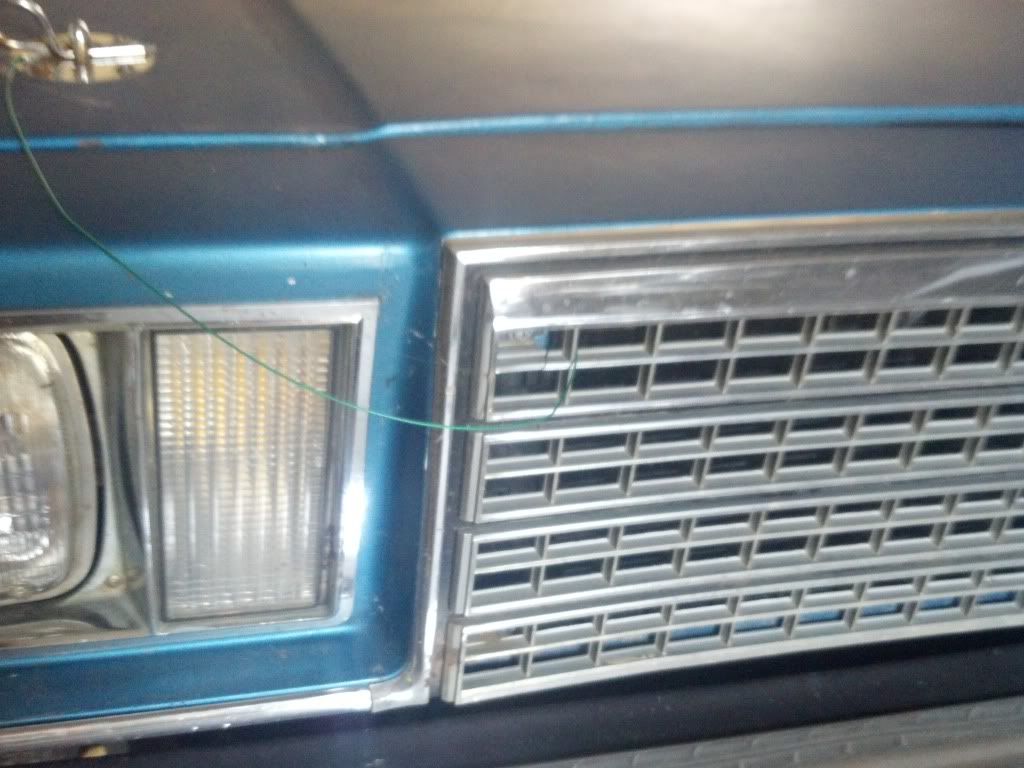

Hood pins with real chinsey transparent green wire


Edited by brodie_83

Share this post


Link to post
Share on other sites

Posted · Report post

Here are the kits that will make up this replica...Revell '79 El Camino Lowrider 3-in-1 kit for most of the build and a Revell '86 Monte Carlo SS 2-in-1 kit for the engine and possibly a few other things.

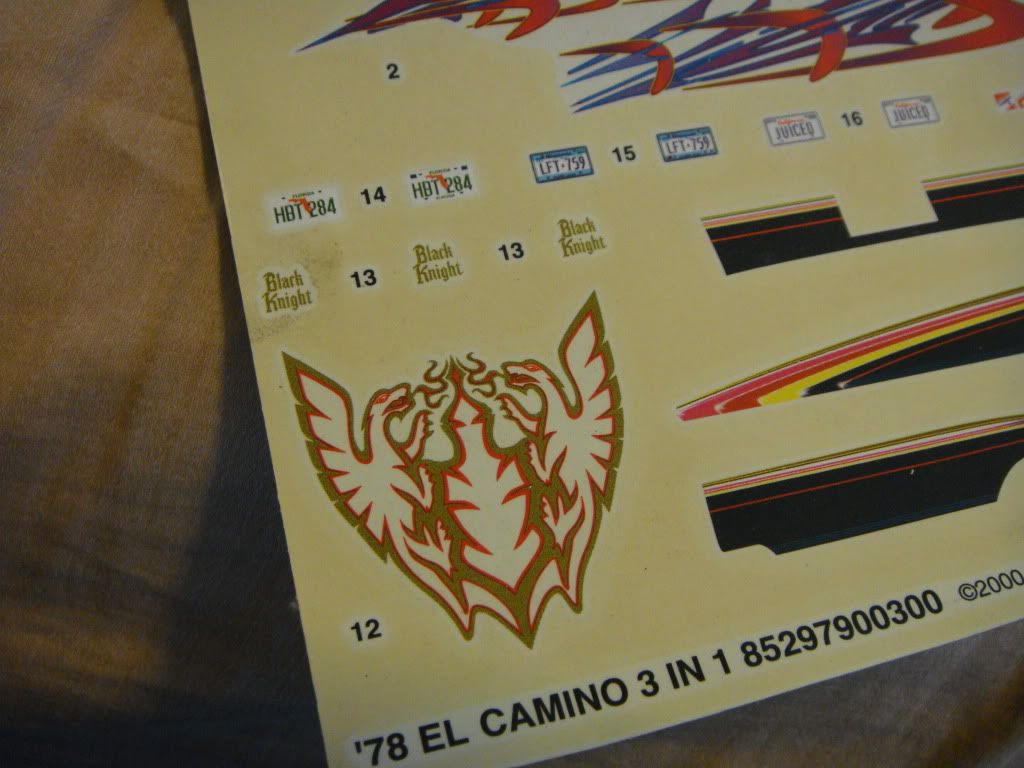

The El Camino kit came with the correct hood decal, just the wrong color, as well as the wrong "Knight" package. Her decal set is for a "Royal Knight", and the kit's decal set is a "Black Knight"...the same hood decal, but nothing else is the same.


I bought the Testors decal maker kit (yeah I know, there's much better stuff...I'm gonna try it out) and scan the decal sheet, make my own colored decals and print them out.

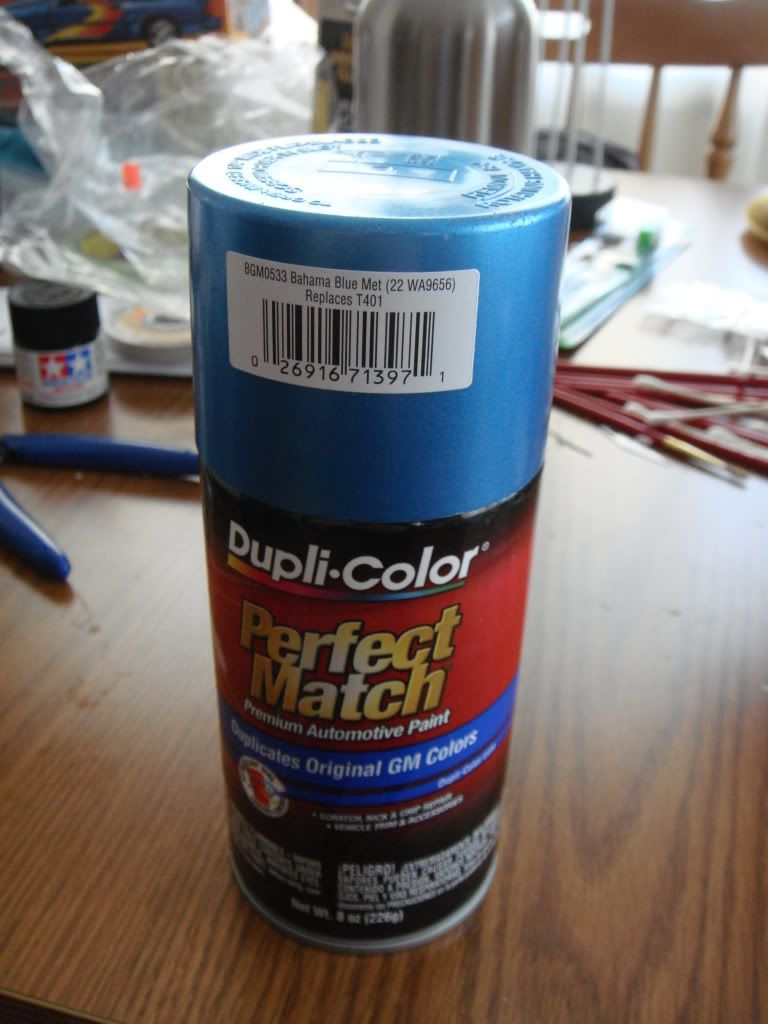

I also bought a can of "Bahama Blue" Duplicolor paint, which I believe is the color of her car. If it's not, it's ###### close.


So today I will start on the project and I'll have progress updated sometime later today. Stay tuned!

Share this post


Link to post
Share on other sites

Posted · Report post

I can't wait to see more progress on this one. Very cool build in progress.

Share this post


Link to post
Share on other sites

Posted · Report post

Looks like a fun project. :) Haven't used the decal kit, but the decal bonder spray works pretty good. The only drawbacks I've run into on printing decals is that you can't do metallics without having an ALPS printer.

Share this post


Link to post
Share on other sites

Posted · Report post

Cool!

Share this post


Link to post
Share on other sites

Posted (edited) · Report post

Should be an interesting build. I love building a replica with the 1:1 right in the garage, :)

The decal in the kit just looks like it just needs to be red where the gold is. You can do this in photo editing software after scanning it. Other decals you just have to get a good straight on camera shot and size correctly. It might be even easier for the hood to get a straight down photo (like from a bridge) and use that. You don't even have to trim it too close if you have a good natch on the paint. Do a few copies of the decals when printing as ink jet ink is a little transparent ans you might need to apply 2 decals on top of each other.

Edited by Foxer

Share this post


Link to post
Share on other sites

Posted · Report post

if you have a Hobby lobby near you, you can find some green wire in the Beading section, close to the right color..fyi

Share this post


Link to post
Share on other sites

Posted · Report post

Thanks guys, I've tried to build a 1:1 replica before, but with no luck. This time I'm determined, and with more skill than I thought I had, I'm very excited!

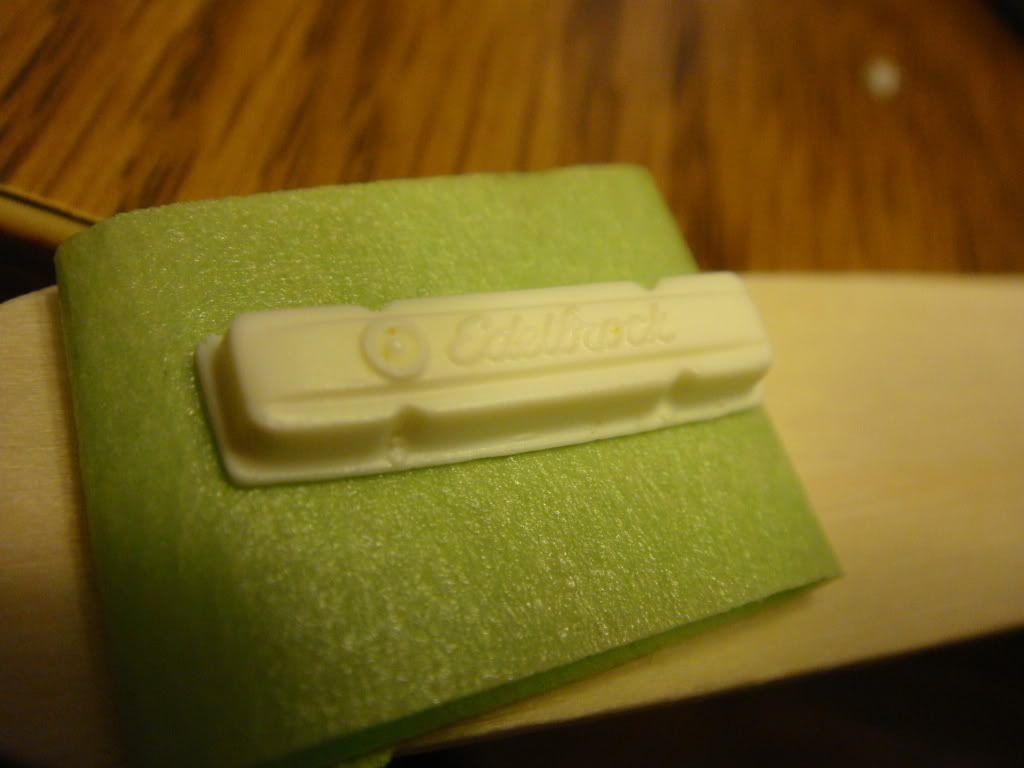

Well tonight's progress is pretty good...my first black wash "weathering" job on the engine. Turned out pretty good for my first time, but I think I did a tad too much black. Oh well...at least I have to make the intake manifold a little bit more brighter than it is now. The valve covers (I only did one tonight) are resin Edelbrocks that I bought from the Parts Box in Australia. I bought them for building a replica of my 1:1 Trans Am that I got rid of this late summer, but I think Laura will appreciate the detail I put into this, especially the Edelbrock covers. I don't have Alclad or whatever to make them chrome, so I just used my aluminum buffing metalizer. I rubbed a little too hard and went down to the bare resin, but that just made for a better effect when I black washed them. Granted, they look more like dirty polished aluminum than dirty chrome, but it can't be perfect.

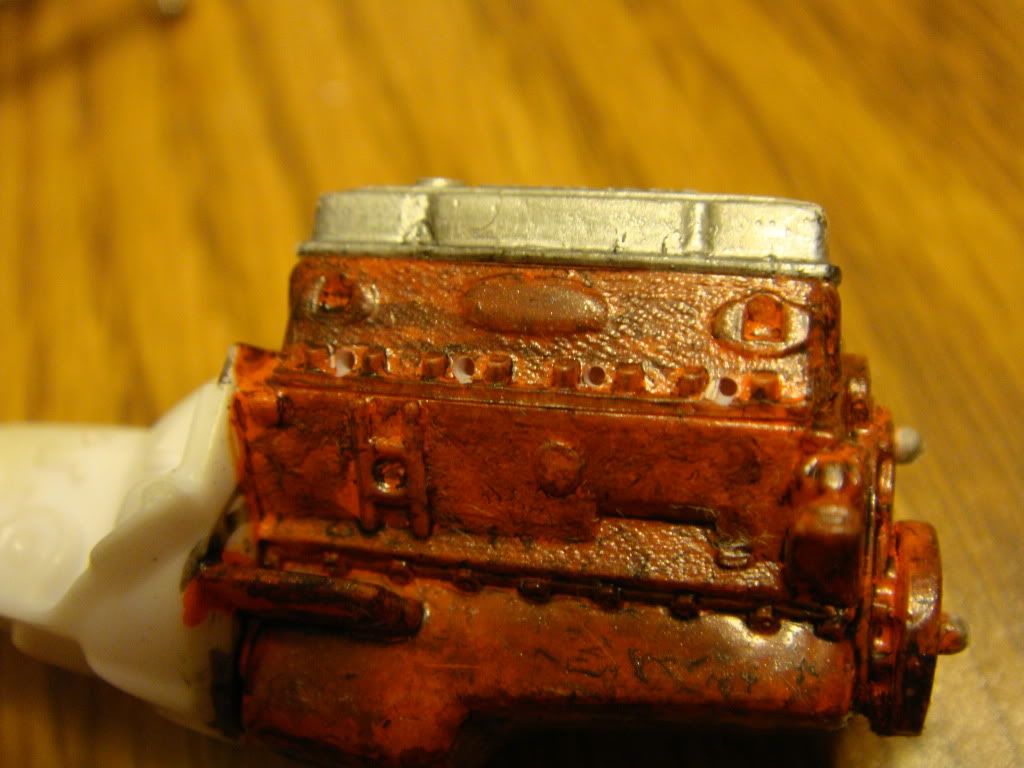

Freshly painted block/heads

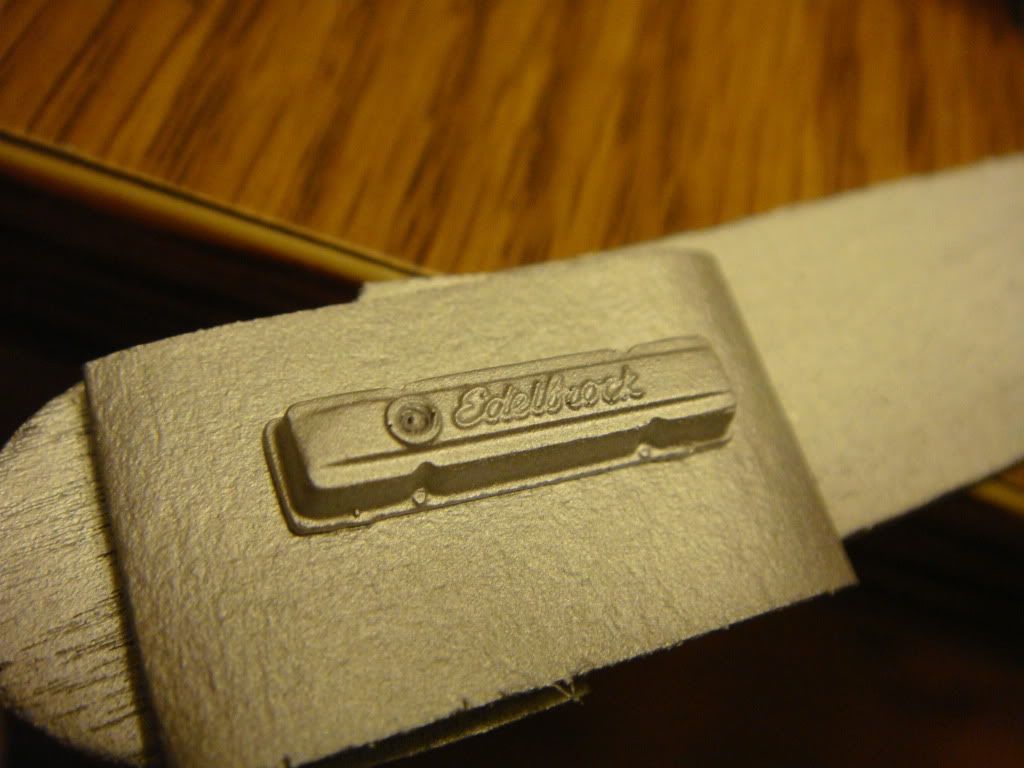

Ready for the aluminum buffing metalizer

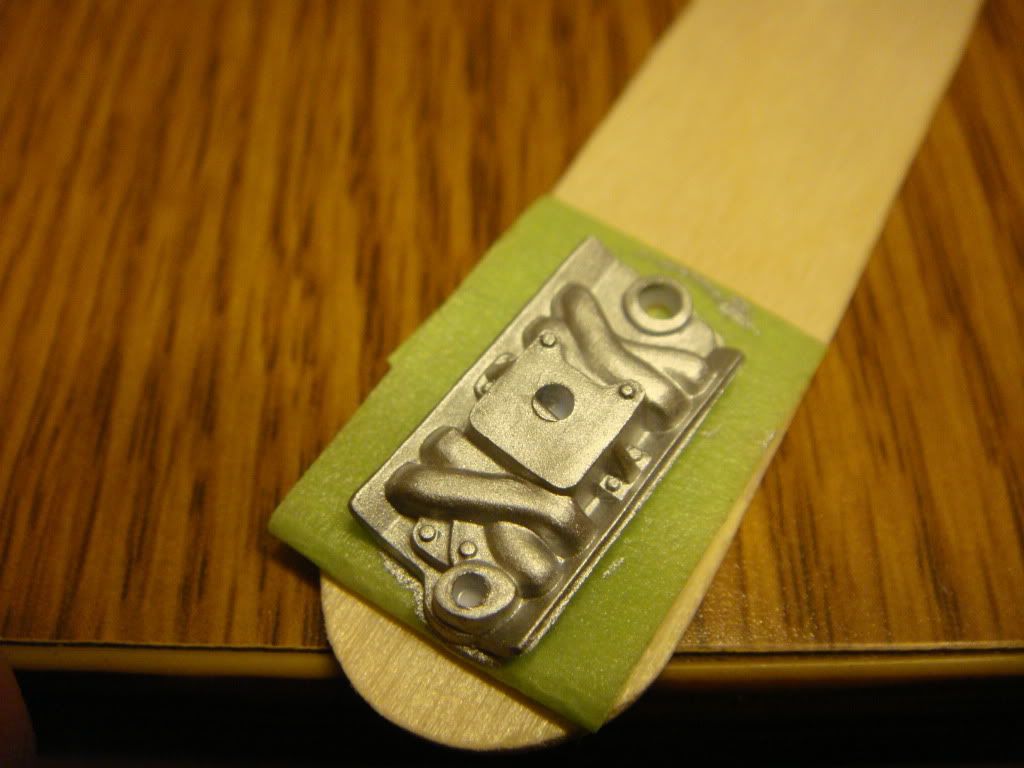

Freshly painted intake manifold

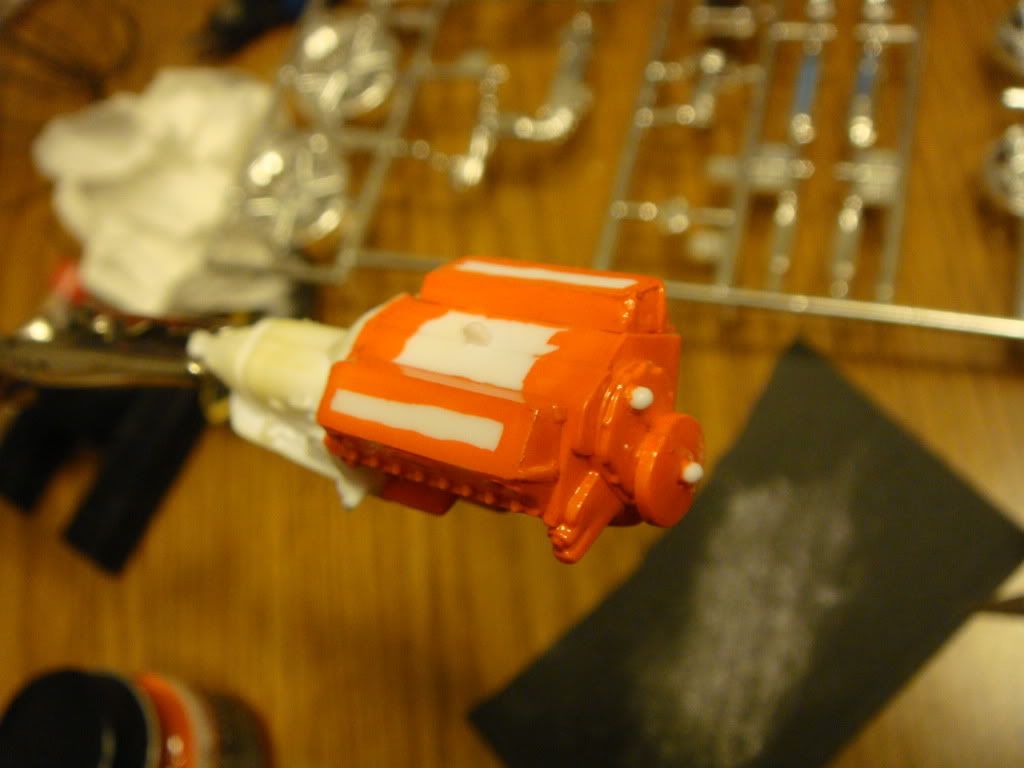

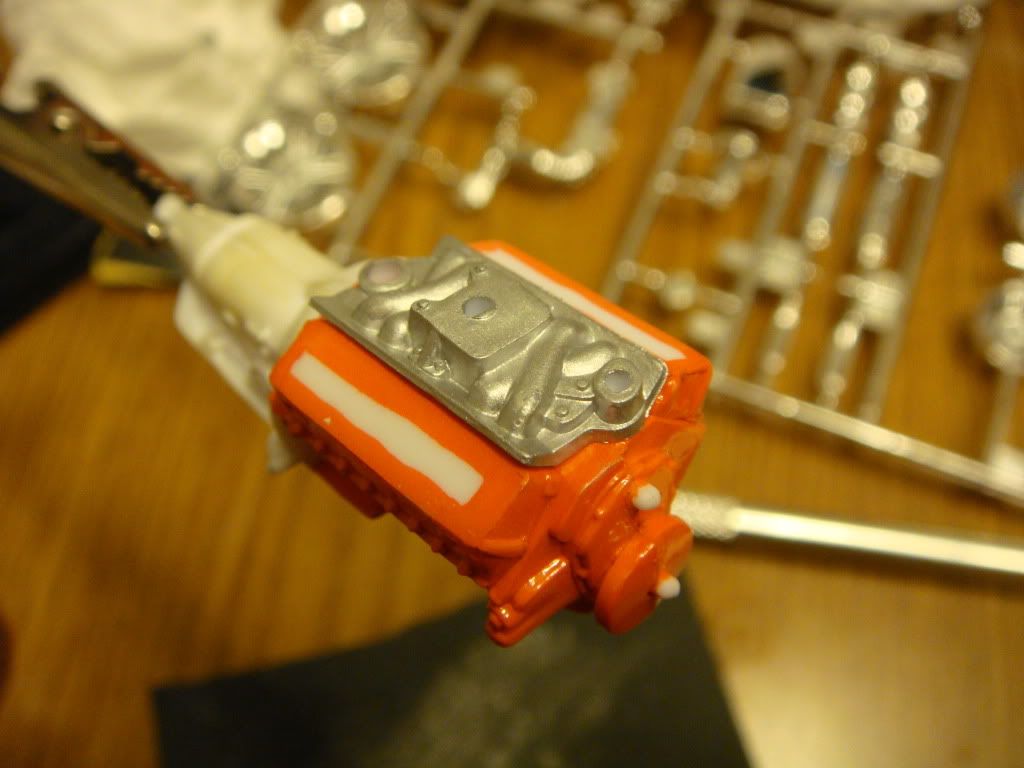

Intake manifold installed and just about ready for black washing


Share this post


Link to post
Share on other sites

Posted · Report post

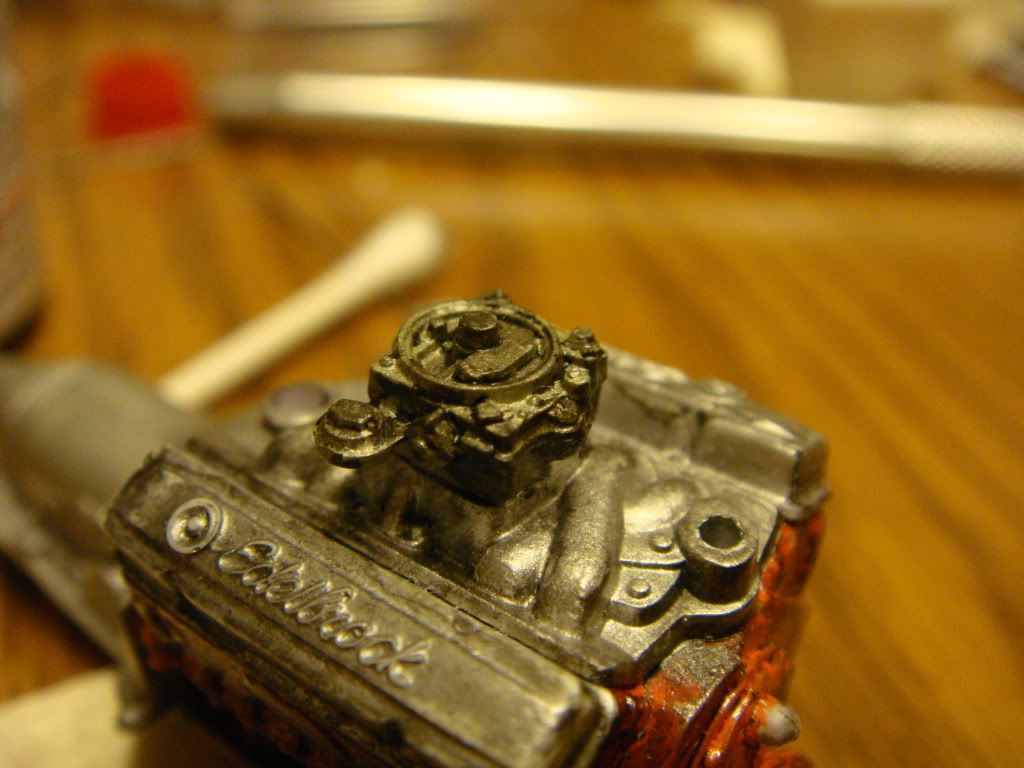

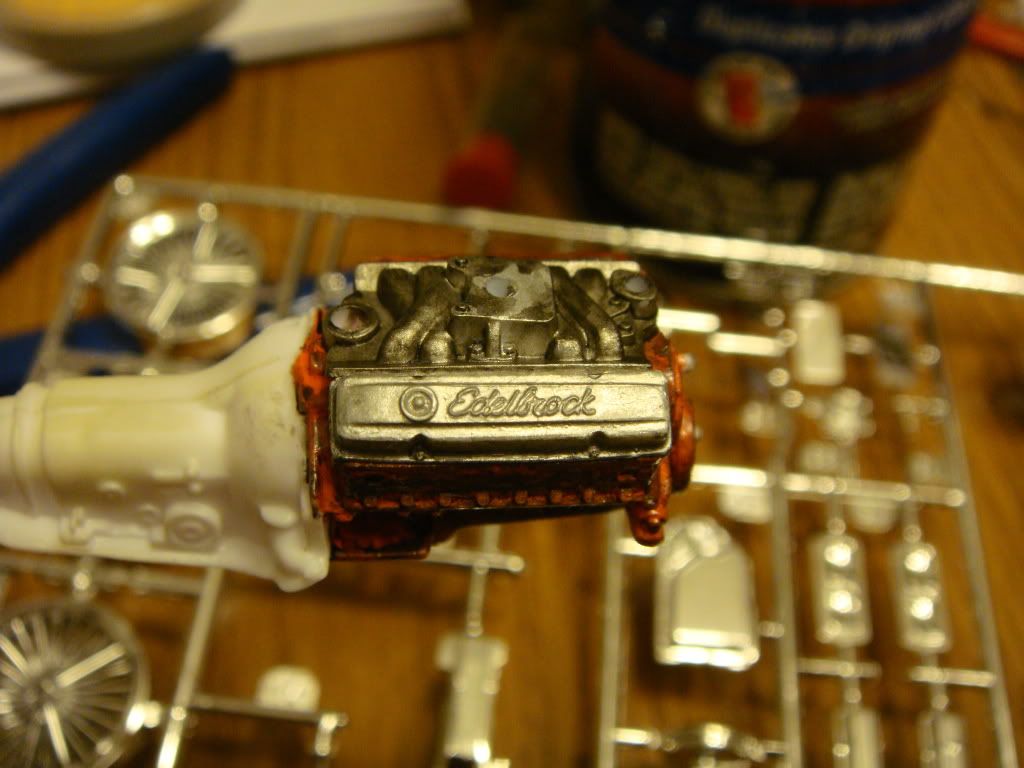

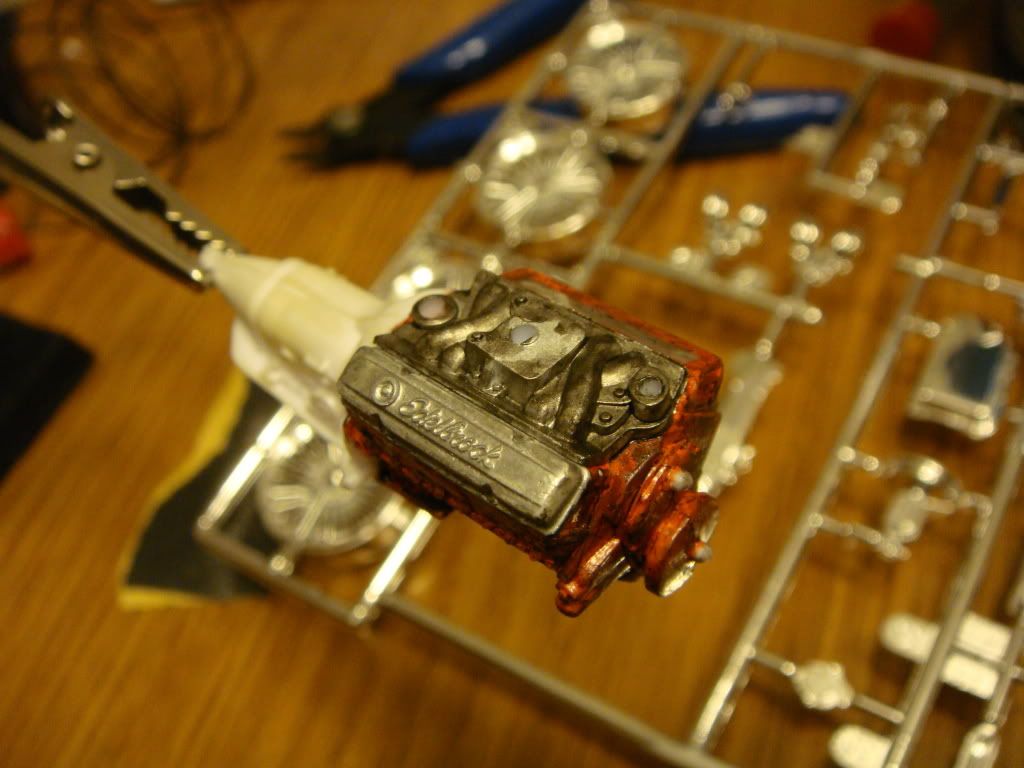

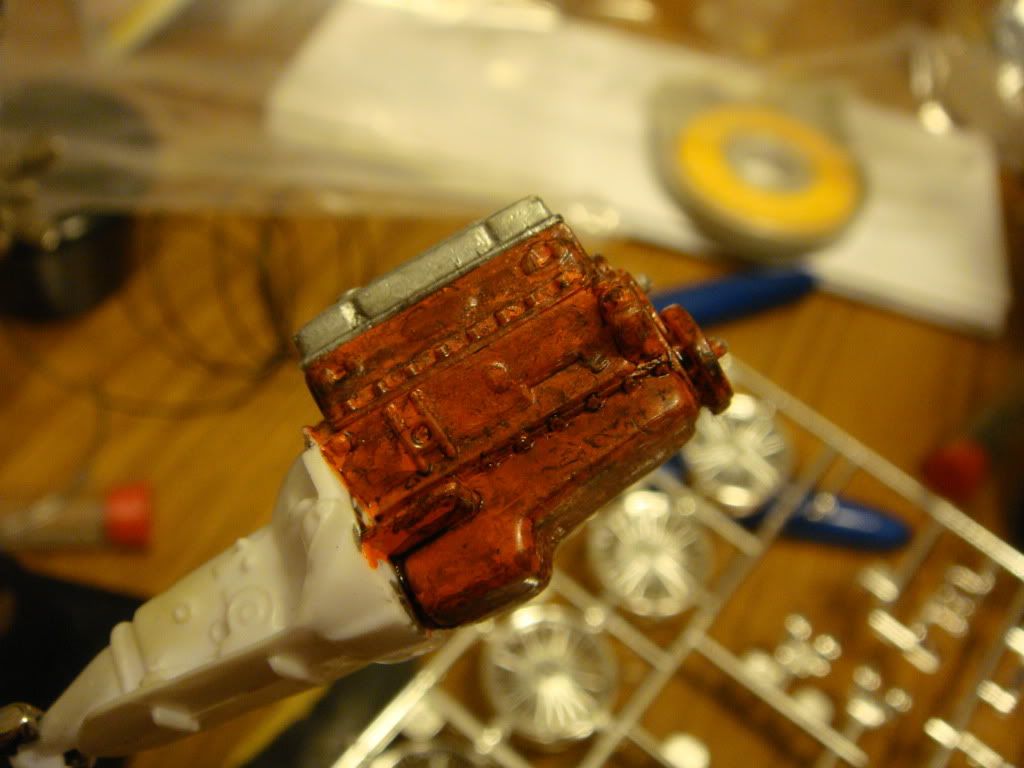

My first black wash job




Like I said, the intake manifold got a little too dark with the black wash, so I'll have to do it over again with a little less black and more water. All in all, not too shabby. Tomorrow I'll have the other valve cover installed, re-wash the intake manifold, paint and install accessories on engine, and paint transmission.

Share this post


Link to post
Share on other sites

Posted · Report post

looking very good so far!! very nice wash as well keep us posted

Share this post


Link to post
Share on other sites

Posted · Report post

I think there are only eleven women on the planet that like El Caminos, and one is your girlfriend. Of those eleven, there are only two that are hot. And your girlfriend is one of them. She's gonna love the gift! And lucky guy to have a girlfriend cool enough to drive an El Camino of all things...

Share this post


Link to post
Share on other sites

Posted · Report post

If the custom decals don't work out, you may be able to get very close to "Royal" using the "Black" letters. The "B" trimmed = "R", "k" trimmed and flipped = "y", the "a" and "l" stay the same, and you'll have to get creative with the "o".

Share this post


Link to post
Share on other sites

Posted · Report post

Interesting project, how is the quality of that El Camino kit? I'd like to have one too, but I have no idea about the quality... Engine looks good, nice job with the weathering. Keep it going, I'll be watching.

Share this post


Link to post
Share on other sites

Posted · Report post

This will be a cool one to watch! Nice work so far.

Share this post


Link to post
Share on other sites

Posted · Report post

A cute girl that like cars, and not run-of-the-mill ones, either! You lucky guy, you! Great shot, by the way, as well.

Charlie Larkin

Share this post


Link to post
Share on other sites

Posted · Report post

Thanks guys. The El Camino kit, like the usual Revell kits, is really nice. The only thing I don't get is that the only engine in the kit is a 6-cylinder...hence why I bought a Monte Carlo. I thought I might have a kit in my arsenal that had a carb'd 350 but I didn't, so I had to run to the LHS and find the Monte.

I got good results printing some practice decals on paper, but when I printed on the decal paper, the quality sucked! The black was all blotchy, so I think I'm just gonna cover the paper prints with tape and just glue them on the car. Should work fine. I've used this method for license plates in the past when I was a kid. Anyways, I should get downstairs and get back to work on it. Oh yeah, my dehydrator came in today so I picked it up. Now I just have to wait till I'm at the body painting process to try it out.

Share this post


Link to post
Share on other sites

Posted · Report post

be sure to let your decals dry, like for a day, and don't touch or go near them. It takes a while for ink to dry out as it's pretty much just sitting on the top of the decal paper. If it's gobbing up too much, try reducing the print quality slightly. To start, you should be using you printer's best quality.

Your engine weathering looks good.

Share this post


Link to post
Share on other sites

Posted · Report post

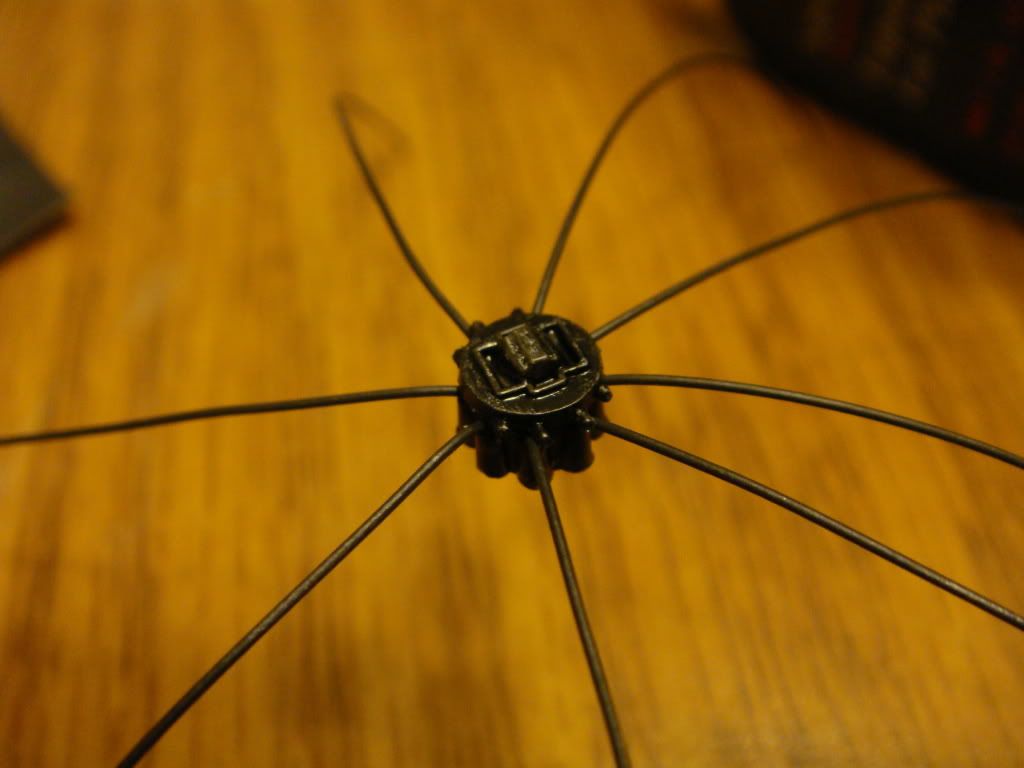

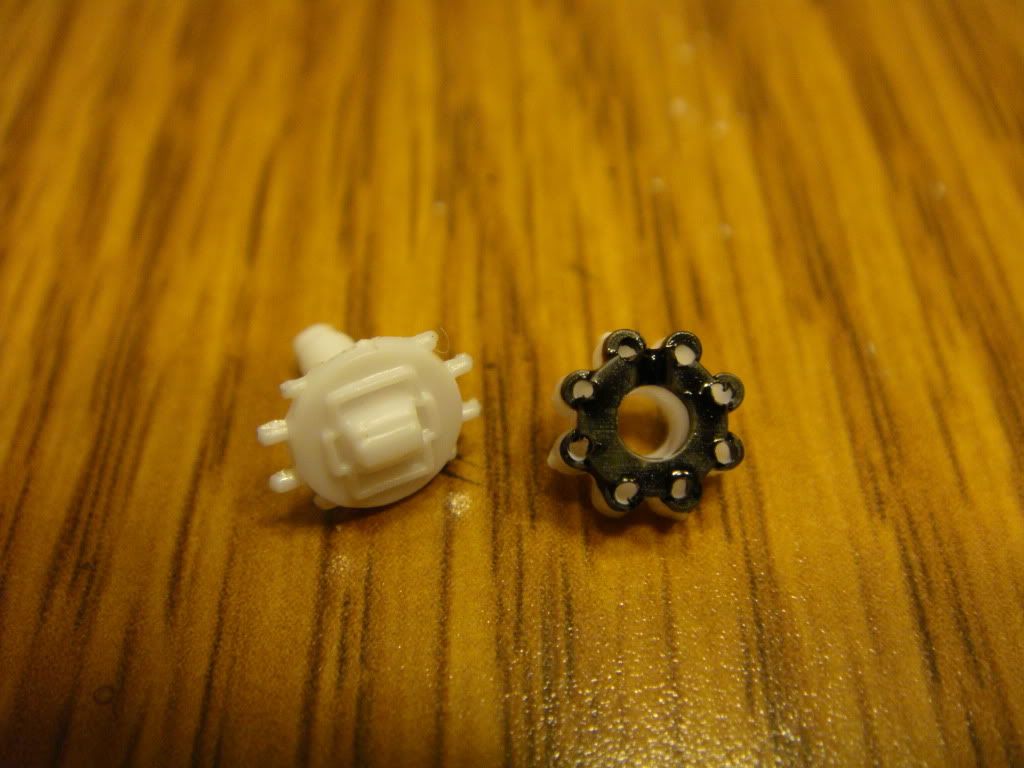

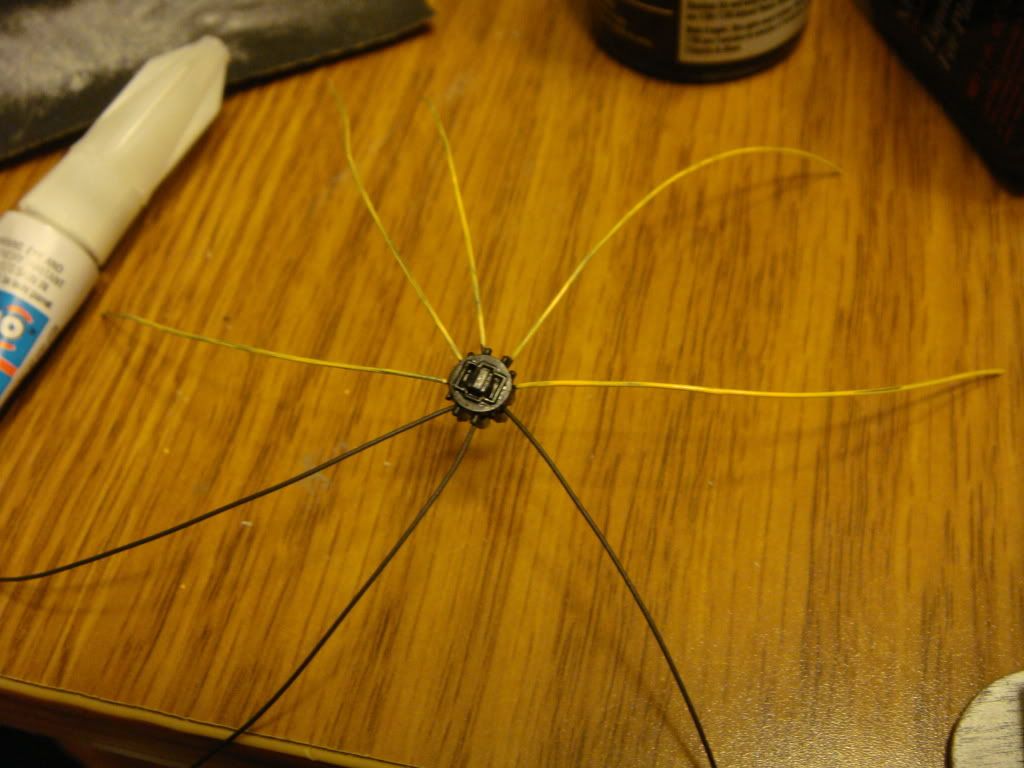

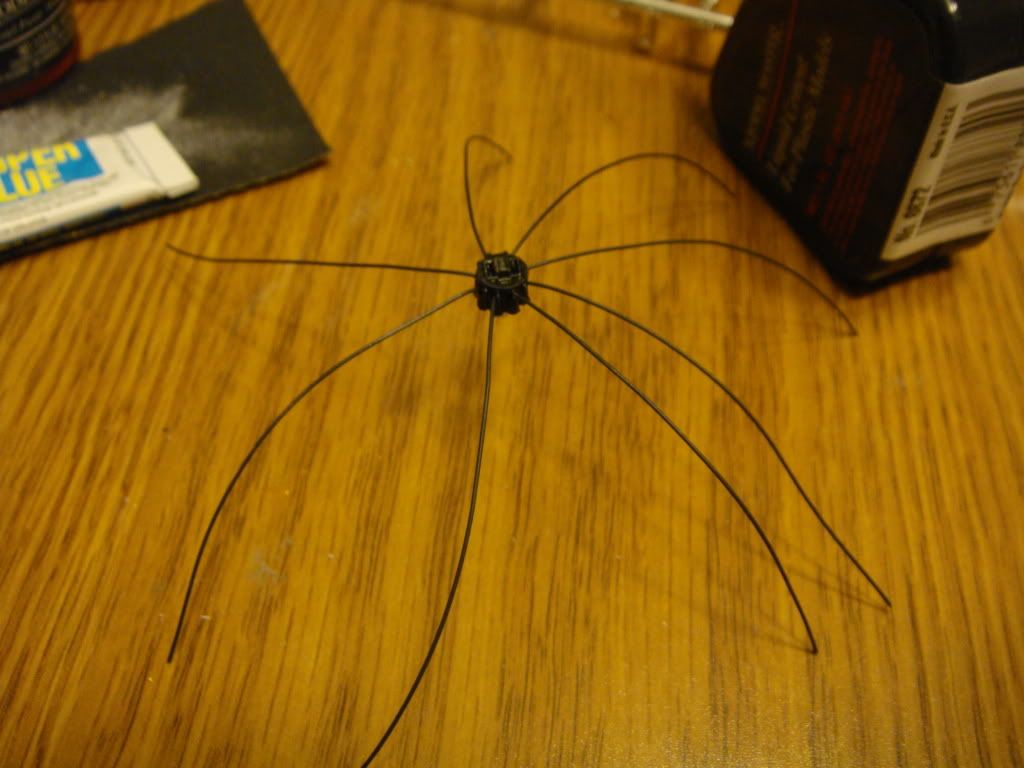

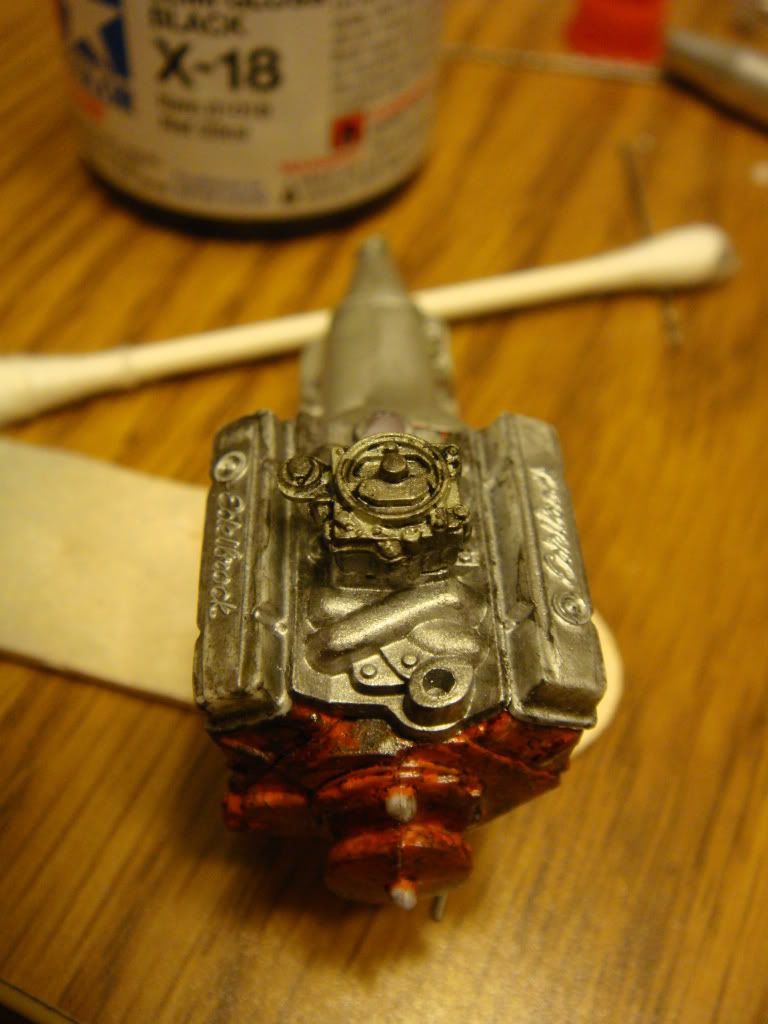

Here's tonight's progress. Not a whole lot, but got far enough to where I'm satisfied. I added a little more aluminum to the intake manifold to brighten it up a tad, then drilled plug wire holes in the distributor piece and painted it black, then drilled plug wire holes in the heads, then I painted the other valve cover and weathered it, then painted/installed the carb, then I painted the transmission, and then I started to paint the plug wires yellow like hers are in her car. So far I'm very pleased with how the engine detail is going. I'm not sure what I'm going to do about the air cleaner (maybe make my own?), but it's not going to say "Edelbrock" on it. On to the pics...









Share this post


Link to post
Share on other sites

Posted · Report post

I want to say the air cleaner from the AMT '33 Ford Sedan (the late '80s, molded in red with the very '80s directional wheels) kit is very close to what's on her engine.

Share this post


Link to post
Share on other sites

Posted · Report post

very rare elky she has most royal knights were black white and red ultimate cool in blue can wait to see the model finished

Share this post


Link to post
Share on other sites

Posted · Report post

Very cool project!

Share this post


Link to post
Share on other sites

Posted · Report post

Hers isnt a real Royal Knight...she just liked the decals when she first painted the car years ago. It's her very first car, so it has lots of sentimental value. Oh yeah...I guess I'm horrible at keeping Xmas secrets cuz for some reason she knows im building it...

Share this post


Link to post
Share on other sites

Posted · Report post

there is a PE aircleaner top that says edelbrock but it is finned :unsure: oh yea, superb work my friend, it is going to turn out awesome and if she is not pleased with it i'll take it lol :D

Share this post


Link to post
Share on other sites

Posted · Report post

I saw that air cleaner before. Not exactly what I want, but thanks. Thanks for the compliments! She'll be pleased with it...if not, I'll use it as a voodoo model, and I may just break a few things :D
