Frame jig and fixtures


18 posts in this topic

Posted (edited) · Report post

I picked up a magazine last night that had some information on making frmaes for 1:1. Since I make all my own frames I felt it would be good to read. I noted that it was all set up on a movable frame jig and held in place by a variety of fixtures and clamps, something I wish i had to make my frames. After looking at it more It was just some I beams in different directions that were movable and clamped or pinned in place. The fixtures looked like they were made for this project. meaning that each different frame had fixtures to match what they wanted. the main rack would keep everything in place and square. mmmmmmmmm. B) BY know you all know where this is heading. :rolleyes:

Yup...here it is :P




You have the main I beams (1/4" cut to width and length glued together) on a base that is 3.5" x 8". The long beams are 2" o.c. the short beams can be any length, mine are at this time 3.5". I can make longer as required. Then I made them so they can slide along the rack. I will drill holes for pins as I need them to hold in place. I made a few ficture samples that can be made as needed for any special need. Now I can set my frames up quickly and square each time with out guess work. A scale can be added to the base if you want or on the long rails to make things realy simple. :P

KennB

Edited by kennb

Share this post


Link to post
Share on other sites

Posted · Report post

At work, there was a table made of granite, about 24 inches thick, that was easy 10x15 feet. They used it to jig up the masters of the cars so they could best figure out where to place the robots to where they could weld the whole car together. It was also used to jig up the new bodies and it was built similar to yours,believe it or not. :D:);)

Share this post


Link to post
Share on other sites

Posted · Report post

No Need to get all fancy although that is very nice work you doing there. I just use a flat piece of whatever ( plywood, plexi, etc) and glue chunks of evergreen plastic to it to hold the engine, wheels, body, etc. where I want them and then I can build up the connective tissue - frame, suspension, brackets, mounting points, etc. It really helps achieve "The Look".





Share this post


Link to post
Share on other sites

Posted · Report post

Crazy AMAZING! Wow, you are creating some very interesting things on your work bench, please keep the eye candy coming.

Share this post


Link to post
Share on other sites

Posted · Report post

Between Ken, George, and Andy's input, I see a scrap of granite counter top with a brass jig attached to it...... danc.gif

Nice work Ken.

Share this post


Link to post
Share on other sites

Posted · Report post

Any way ya can square up the wheels is a good way. :D

Nice Jig.

Share this post


Link to post
Share on other sites

Posted · Report post

Kenb, It looks impressive. How about a picture of the jig in use.

Share this post


Link to post
Share on other sites

Posted · Report post

Now to figure out how to use this thing. :blink:;)

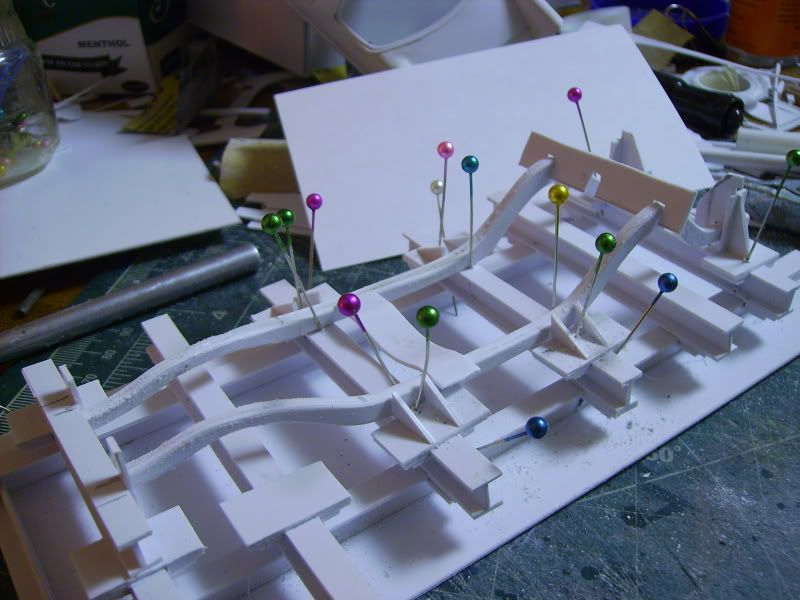

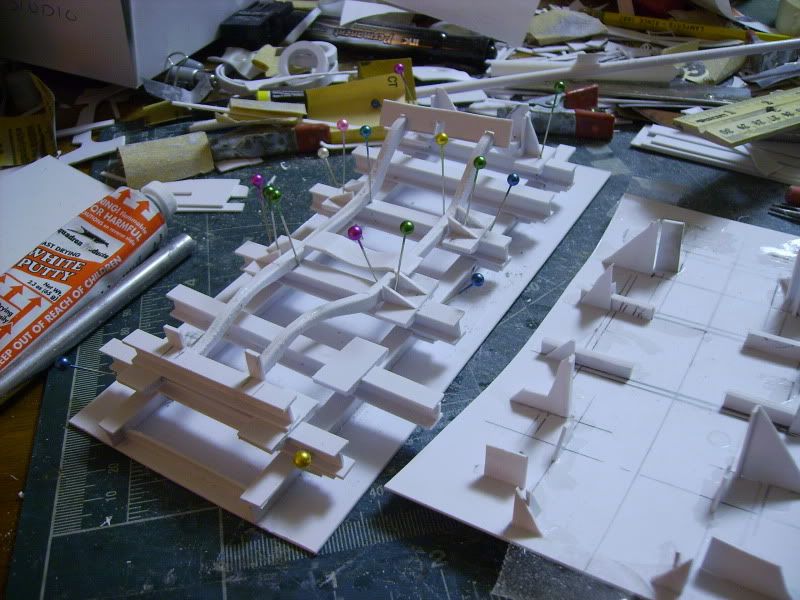

This is next to what I was using. :huh: I have started the T-Bird frame. The siderails are in place with an I beam in front to line things up. I made up some holders for the rear of the frame and side jigs slide on to the I beams to hold the sides in place and square. The pins are in place of bolts to hold the jigs in place. I can remove the parts and they go back to exaclty the same place each time.


It is better thn what I had been usign but not wure if it is "IT". <_<

KennB

Share this post


Link to post
Share on other sites

Posted · Report post

This is very cool. Thanks for sharing.

bobthehobbyguy

Share this post


Link to post
Share on other sites

Posted · Report post

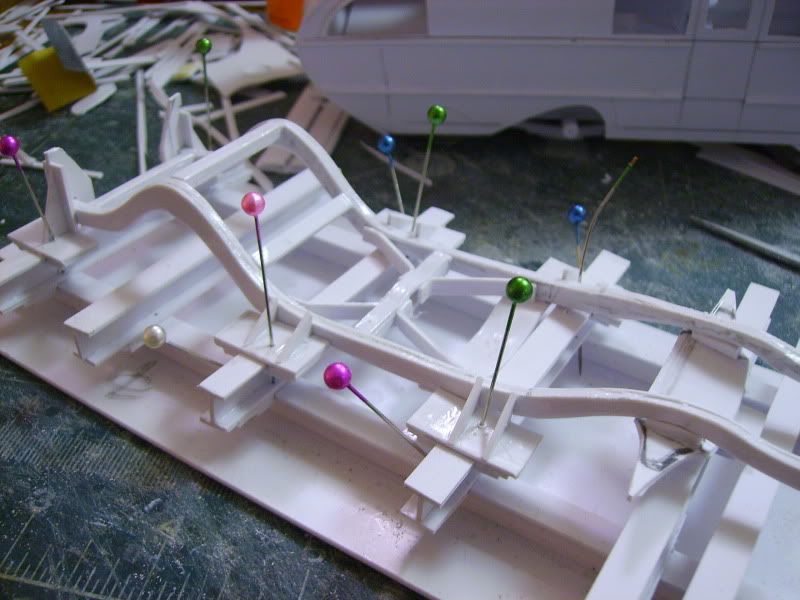

finding this is working nicely. :rolleyes:


KennB

Share this post


Link to post
Share on other sites

Posted · Report post

Nice jig. Are you drilling through the side supports into the I beam for the pins? I see countless upgrades and complexity spawning from this idea.

Although making it out of brass, or aluminum, so you can solder on it wouldn't be a bad idea.... scratchchin.gif

Share this post


Link to post
Share on other sites

Posted · Report post

Very nice, brilliant! I am so going to steal this idea! I can see a longer version of this used to help assemble big multi-piece model semi frames... One of the big issues with me... having to place every crossmember, is getting those frames square with themselves.

Share this post


Link to post
Share on other sites

Posted · Report post

And if you do make it out of plastic, you can lay Saran Wrap over the contact points so you don't super-glue your frame to the jig.....

I'm stopping at the LHS today for some materials.... I'm curious now. scratchchin.gif

Share this post


Link to post
Share on other sites

Posted (edited) · Report post

If you can get the shapes to start with it would be an easy build and a lot more accurate. It would also look nicer :rolleyes:

In setting this up for larger frames it would sure save a lot of frustration. You could easily make accessories to fit exactly what you need to hold down major members.

Kenn

Note: I heat the pins for the initial hole,,then they go through the plastic real easy :lol:

Edited by kennb

Share this post


Link to post
Share on other sites

Posted · Report post

cool this is the answer to a lot of ????? should work for street rods to :blink: i hope

Share this post


Link to post
Share on other sites

Posted · Report post

You could adapt this to fit any frame set up by making the jigs to hold things in place. I would pre drill the holes and use short pins to hold things in place. It just depends on how far you want to take it. If anyone wants furthe details on the jigs or how to make them I can post more information.

KennB

Share this post


Link to post
Share on other sites

Posted · Report post

With some forethought it could be used for almost any build. Frames and wheels always have to be square & perpendicular. I also see multi-piece bodies being jigged too.... not that there's many of those being built or made these days, but it does appear to be useful. I'm an auto technician by trade and know the value of a good tool-jig-fixture-assitance to make your life easier. This is one of those tools.

Post away.....

Share this post


Link to post
Share on other sites

Posted · Report post

I would market this build ,nice work man.
