2012 Camaro Pro Mod...5.3.12


58 posts in this topic

Posted (edited) · Report post

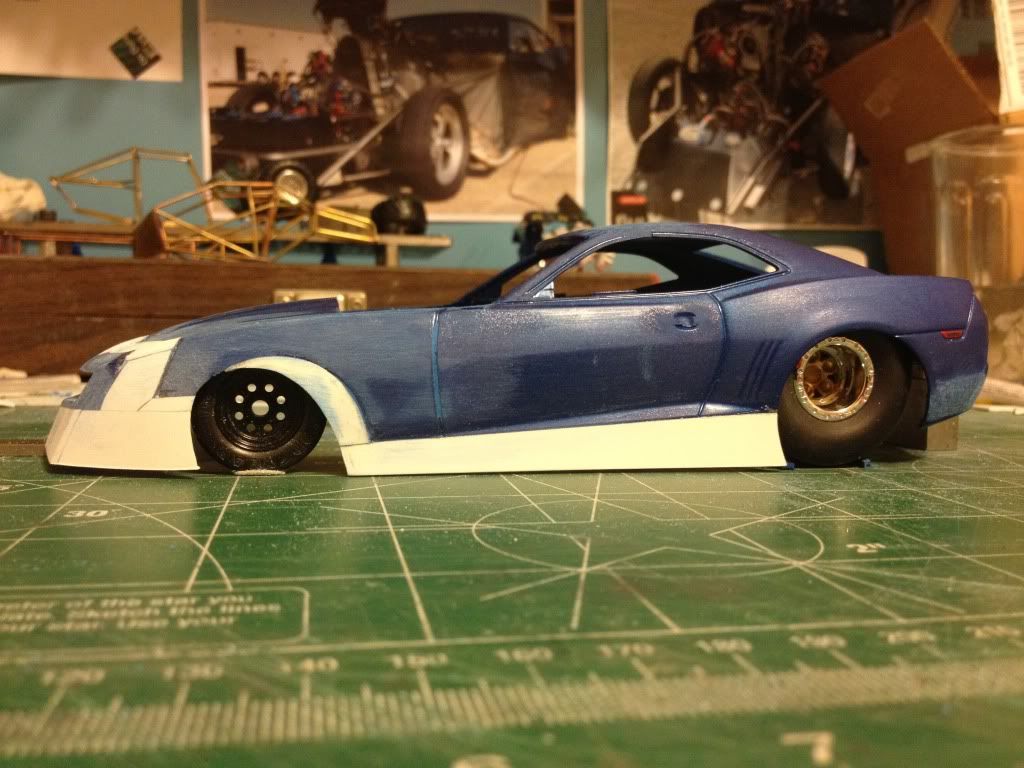

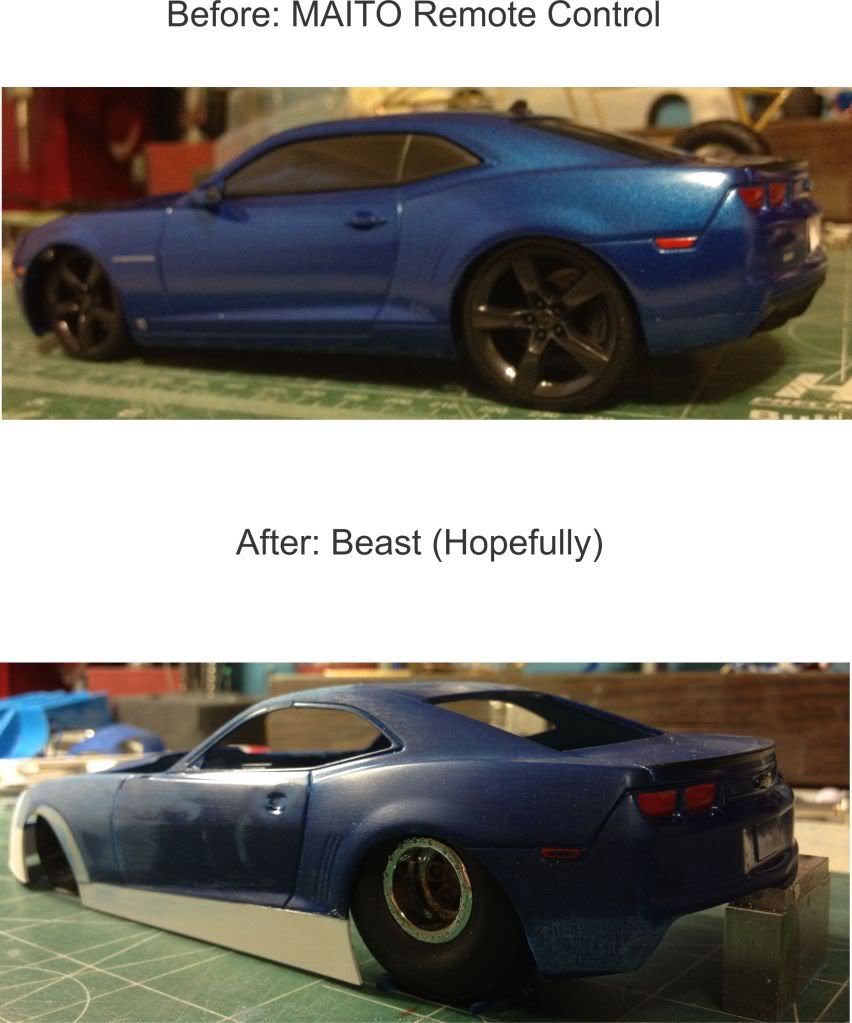

Hello all....new year, new project. I found this little Camaro at a local wally-world as a MAITO remote control car, 1/25. I thought it was cool, so picked it up and started hacking as usual.

I've been wanting to do a Camaro P/M for a really long time and thought this would be a good place to start. Once this one makes it to where some of my others are, I will hopefully probe them at work to generate my 3D models and maybe experiment with some 3D-printed protos, still a ways to go though.

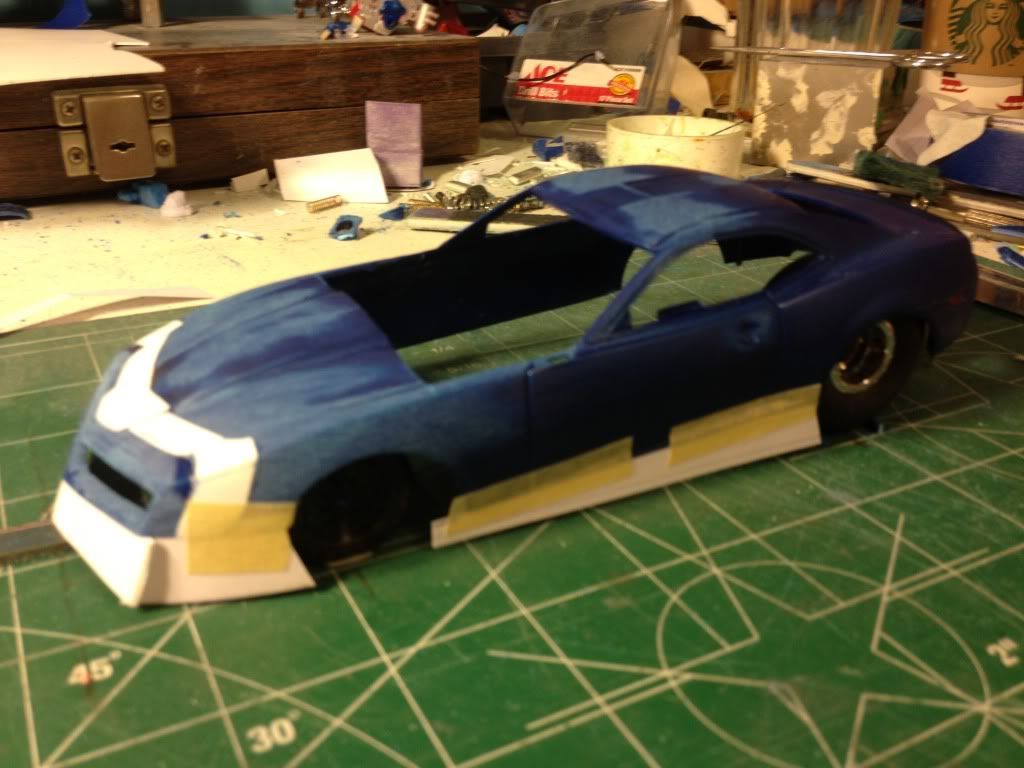

I started by ripping out the chassis and trying to figure out what next, wheelbase looked close without adding between the wheels...I did add around 3/16" actual behind the front wheels with cut and formed opening inserts. This also helps to figure out the style of wheel opening.

Also, out came a portion of the top, around 7/16" actual. The top is pretty close now after an angle adjust and the plan is to lay back the A-Pillar angles close to their original location.

The nose has rec'd the most work so far, still working on fine tuning the overall nose shape, actually I'm a little over the 45" spec for the 1:1's...I'll have to fix that.

Hope you follow along and enjoy the trip. I plan on trying a couple different things to help the overall profile that I've never done before, hope it works. Thanks for looking!!





Edited by hOLMS

Share this post


Link to post
Share on other sites

Posted · Report post

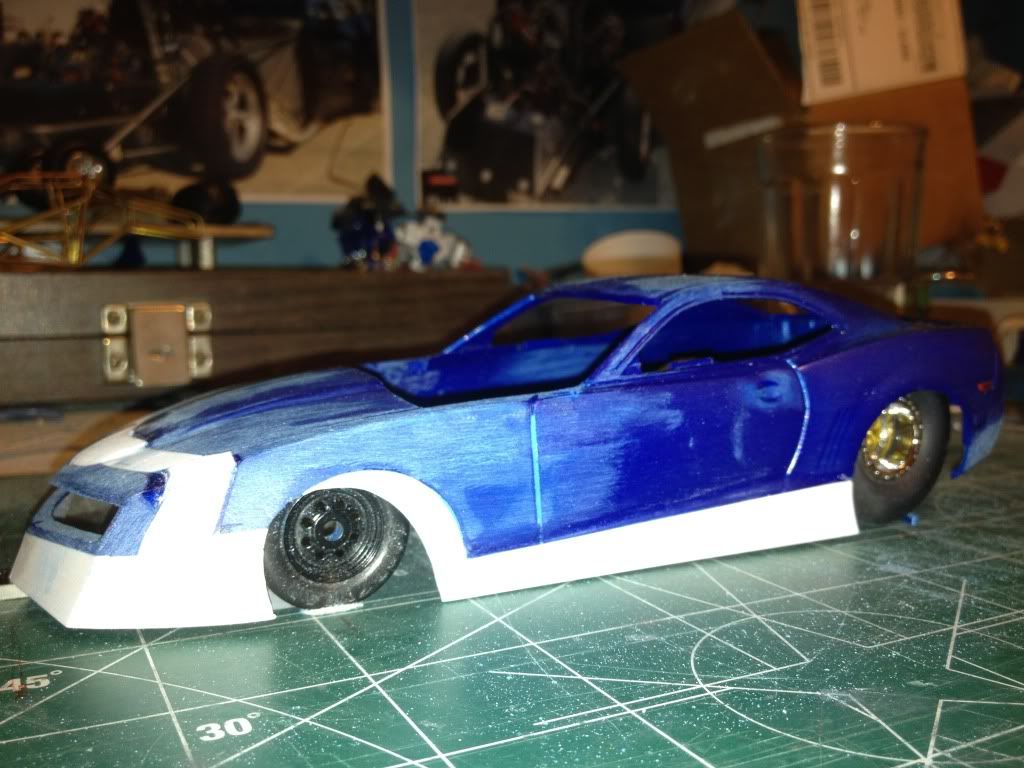

Couple more pix...





Share this post


Link to post
Share on other sites

Posted · Report post

Very cool Camaro project. Can't wait to see this done, are you going to take resin copies from it? Would be great to have one. Body modifications look very cool.

Pro Stock Camaro would be nice to see too... :)

Share this post


Link to post
Share on other sites

Posted · Report post

I really need to get my chit together, everytime I'm about to embark on a new body someone beats me to it, last 2 times its been you lol. Body looks great so far .

Share this post


Link to post
Share on other sites

Posted · Report post

Really looking good!

Share this post


Link to post
Share on other sites

Posted · Report post

Jeff, you really have an eye for making these bodys look just right....keep up the good work....

Share this post


Link to post
Share on other sites

Posted · Report post

Hey Jeff,

It's nice to see you've got something back on the chopping block...ha As Tyrone said, you've got an eye for this stuff that's almost beyond human comprehension.

Share this post


Link to post
Share on other sites

Posted · Report post

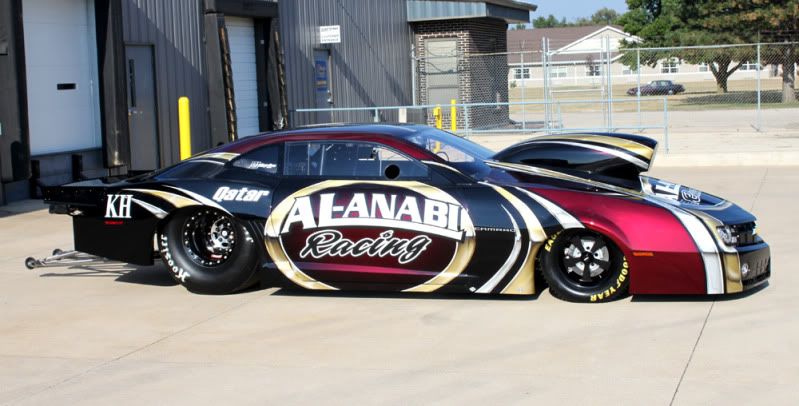

Looks pretty darn cool Jeff! Here are some photo's I pulled really quick, to get you back to that 45" really if anything you just need to pull your Chin back because they are pretty much straight up and down.

It looks like the prelim photos of your car your top is cut to short, vs. the way these are set up.



A suggestion may be to Sag that back end down some more and that will reduce your wedge some as well. And I think, not sure I would have to spend more time but that darn back window looks laid down. This Camaro is one heck of a modified Ride.... so I commend you, on taking this thing on full fledged. With one nice start... I always cringe when I cut into a body, because that is the point of no return! :lol:

Now keep in mind these are NHRA Pro Mod's so the wheelbase is only 100" vs. if they were going to be ADRL, I am sure they would be pulling them out to the 115" wheelbase Max number.

Keep up the Awesome work, and excited to get your work to the point where you can possibly do some 3D modelling I will have to keep an eye out for that! Keep them progress pics coming!

Share this post


Link to post
Share on other sites

Posted · Report post

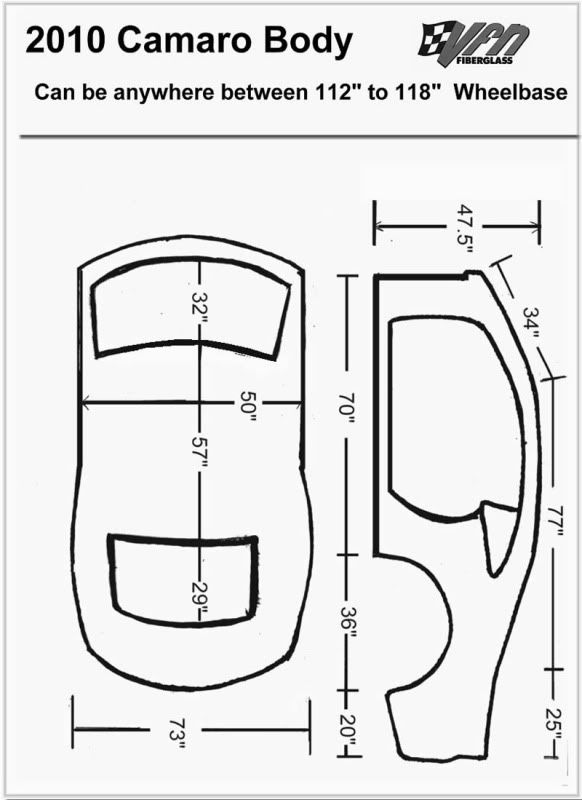

I just found this awesome site, and it even had dimensions of this car if you want it to be spot on.... Use as needed.

http://vfnfiberglass.com/site.htm

Click on the 2012 Camaro and scroll to the bottom, where the Pro Mod parts are and it has this Hand Drawn photo


Share this post


Link to post
Share on other sites

Posted · Report post

ReliableResin has had one of these bodys for ages,same style as yours as well

Share this post


Link to post
Share on other sites

Posted · Report post

ReliableResin has had one of these bodys for ages,same style as yours as well

I am sure Reliable Resins has had one for some time. But Resin is a pain, knowing it will be thicker that needed and would have to thin it down. I am sure Jeff can turn out a much better product, as some of the pro mod stuff is out of scale.

Share this post


Link to post
Share on other sites

Posted · Report post

ReliableResin has had one of these bodys for ages,same style as yours as well

None of the Reliable Resins pro mod bodies even come close to resembling a pro mod body, or at least the spirit of what a pro mod body should look like.

Share this post


Link to post
Share on other sites

Posted · Report post

None of the Reliable Resins pro mod bodies even come close to resembling a pro mod body, or at least the spirit of what a pro mod body should look like.

This is soooooooooo true !!!

Share this post


Link to post
Share on other sites

Posted · Report post

None of the Reliable Resins pro mod bodies even come close to resembling a pro mod body, or at least the spirit of what a pro mod body should look like.

Ok.... I am glad someone else feels the same way, I didn't want to crush any feelings from anyone that may have thought differently. :D

Share this post


Link to post
Share on other sites

Posted · Report post

Sounds like someone has a problem with ReliableResin

Share this post


Link to post
Share on other sites

Posted · Report post

Great start Jeff. I'm looking forward to seeing more.

Share this post


Link to post
Share on other sites

Posted · Report post

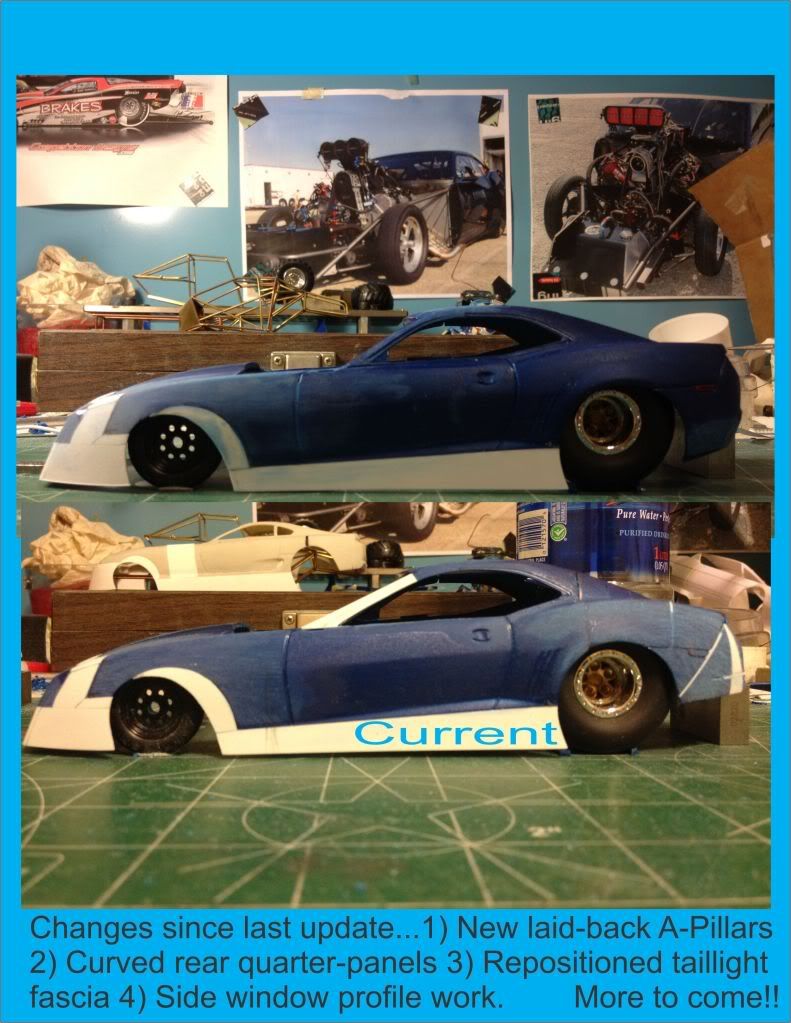

Thanks for following along guys. I've been able to do a little more to the Camaro. I still have a fair amount of work/plans to go, so hang in there with me.

Bart, thanks for sharing the info. I have had good plans for this one from the start which included some of the suggestions you had. As for trying to copy what the current 1:1's look like, really not my style. I prefer to give it a go and see how things shape-up or not...lol.

Thanks for looking and hope to have more updates soon.





Share this post


Link to post
Share on other sites

Posted (edited) · Report post

It's looking great, Jeff! I have a question for you... You have it designed in your mind's eye, but I'm curious if it could stand to have more length in the quarters behind the wheel well opening... Not to make more work, but I've been looking at some of the new Pro Stocks (I know this isn't a Pro Stock) and it seems that at least some of them not only slope the rear of the body, but also lengthen the rear deck/quarters, I'm sure for more down force. Just tossing it out there! I love it, either way.

Edited by futurattraction

Share this post


Link to post
Share on other sites

Posted · Report post

Good eye Scott, I had that very topic run thru my head while working on the rear. I'm really not sure what I'm going to do there. I first thought that I could extend the bumper, scratch my wing and see where it goes. One of two ways, I certainly have much more to do. Thanks.

Share this post


Link to post
Share on other sites

Posted · Report post

Hey Jeff. I thought of something after I went to bed last night. Felt kind of dumb for not having thought of it before I posted, but it was too late to edit my post. From an aesthetic standpoint, the longer deck lid/quarters might still merit consideration, but on the other hand, as a Pro Mod, they run so much spoiler that the down force issue that may be present with a much more limited-spoiler Pro Stock car probably doesn't come into play. So...it really probably comes down to aesthetics,

Share this post


Link to post
Share on other sites

Posted · Report post

you never stop amazing me!

Share this post


Link to post
Share on other sites

Posted · Report post

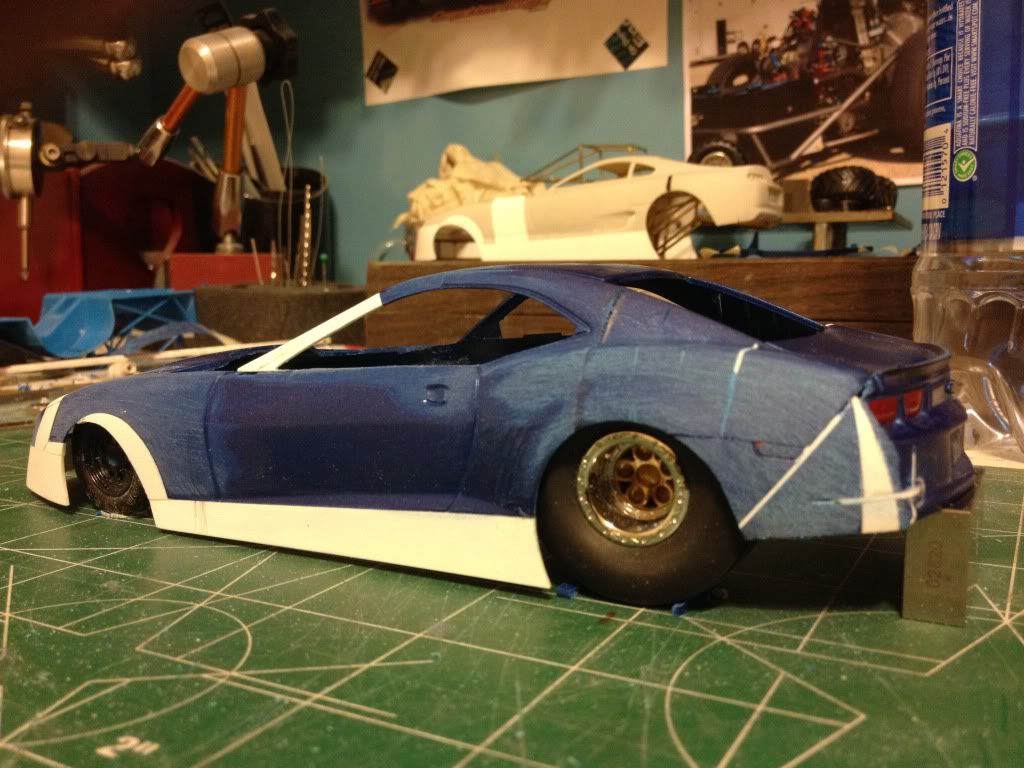

Thanks for looking in. I've been able to do some more.

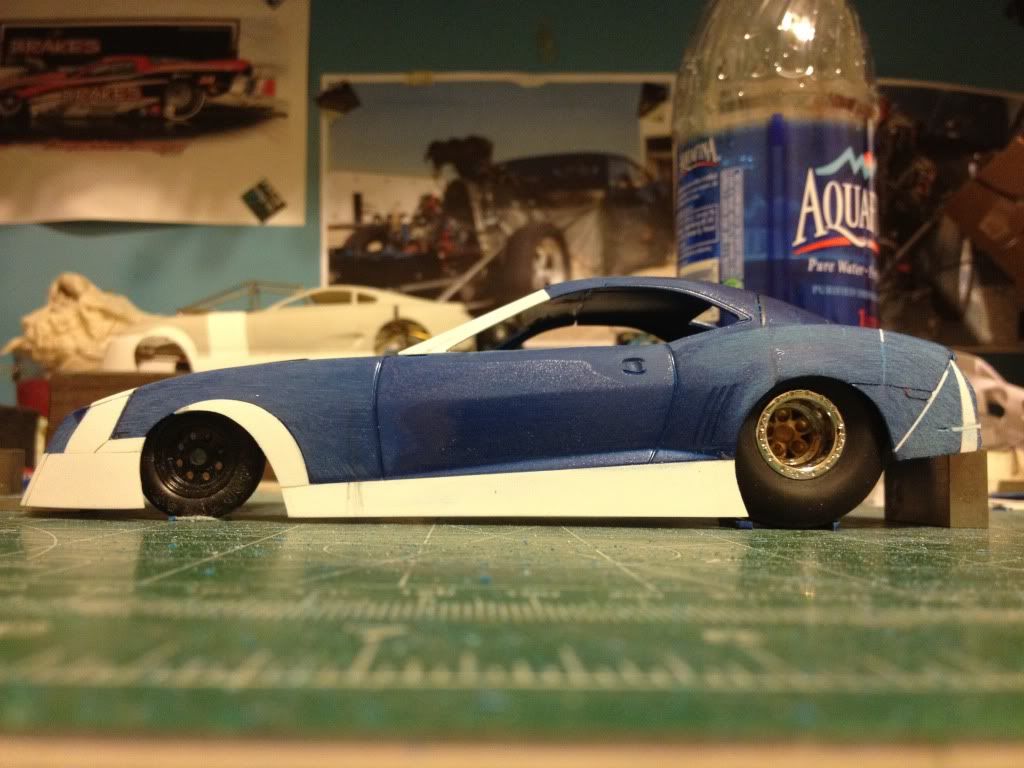

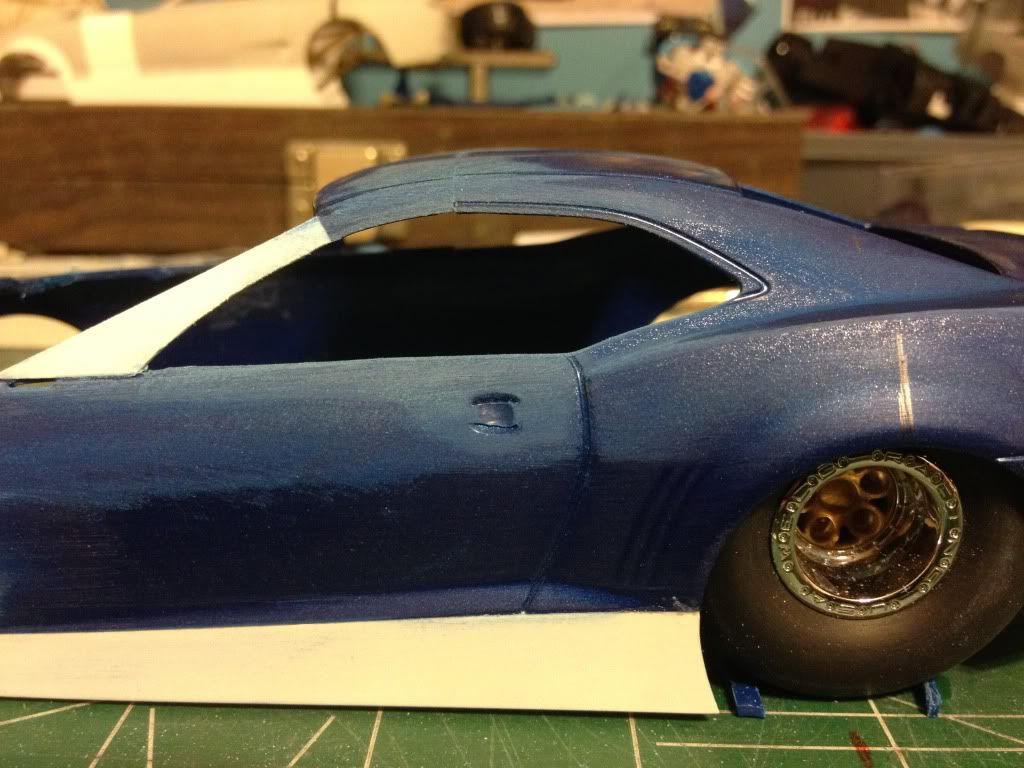

This time I've re-shaped the front fenderwell, more a-pillar work and chopped the top 1mm in the back. I've also pulled the bottom of the front airdam back toward the rear of the car and curved that section...

Next on the list is to add another 2mm to the nose length, add the grill insert and start filling/smoothing. Then I should be able to move to the back and shape it up, maybe start my rear wing. I still think I'll add another 1-2mm behind the rear wheels to lengthen it up a bit.





Share this post


Link to post
Share on other sites

Posted · Report post

Oh man, that's gonna be sweet!!!!!!!!!!!!!!!!!!!!!!

Share this post


Link to post
Share on other sites

Posted · Report post

Wow, that is incredible body work you have done.

I can't wait to see the end result.

Share this post


Link to post
Share on other sites

Posted · Report post

You do some really great body mods.....Keep it up!
