Petty 1968 Roadrunner

88 posts in this topic

Posted · Report post

Well, I am starting a new Petty car - I will be trying my hand at the '68 Roadrunner. I will be using the AMT Roadrunner kit:


I have yet to decide if I will be doing the black top car or the blue and white car. Here's pics of both:



Heck, if this turns out well, I may end up having to build a second one just so I can have both versions. More to come...

Share this post


Link to post
Share on other sites

Posted · Report post

Well, I sanded off the "GTX" logo that was molded onto the fender. Looks like the door handles are staying on this one. Not looking too bad so far...


I started sanding the mold seams and then realized that this car had B pillars - the kit doesn't. Okay, no problem. Time for me to jump in and get something started - we need some B pillars.

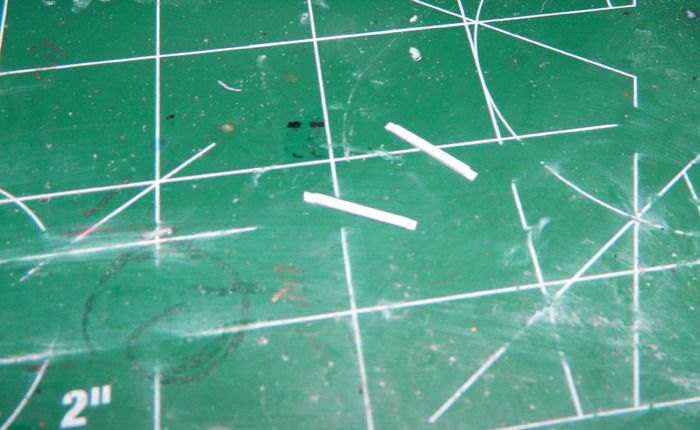

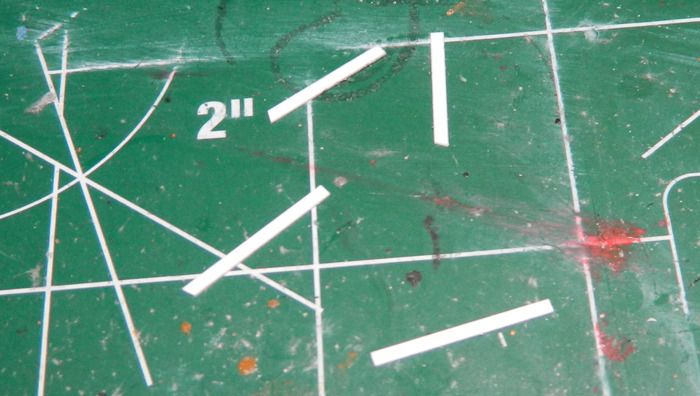

So I pulled out some plastic strip and start trimming until I get it just about right.


Then I realize that there's just these little teeny nubs at the ends of the pillars for support - chances are knowing my luck, I would break them a dozen different times. They need better support. So I cut a couple more pieces slightly longer than the first ones:


Yep, these are going to be used to support from the back - it'll give more contact area so less chance of breakage. I glued the "fitted" pieces to the slightly longer ones as so:

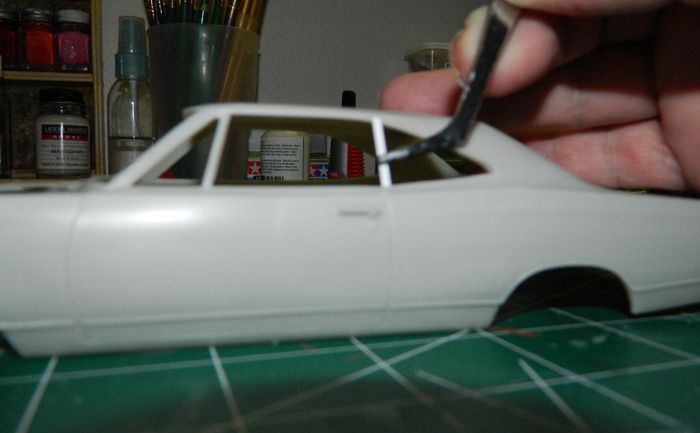

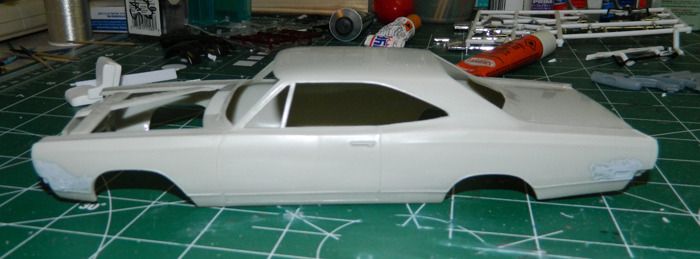

Now, I was able to put these in without worrying about them nearly so much. Here's the results:


Share this post


Link to post
Share on other sites

Posted · Report post

Good idea on backing the pillar with another longer one Scott and I'll have to remember that when I fix a broken one. Thanks.

Share this post


Link to post
Share on other sites

Posted · Report post

i built one a looong time ago and made mine orange with the vynyl top....

carry on.....

Share this post


Link to post
Share on other sites

Posted · Report post

I vote for the blue & white. Either way, I'm glued to the screen! Glad to see you putting the King back in a Mopar!

Share this post


Link to post
Share on other sites

Posted · Report post

Thanks for the comments, guys. I still have to sand down that trim around the bottom of the body, but the body is getting there.

Jacen, wasn't the off-center "43" only on the white one? Did the others have it, too?

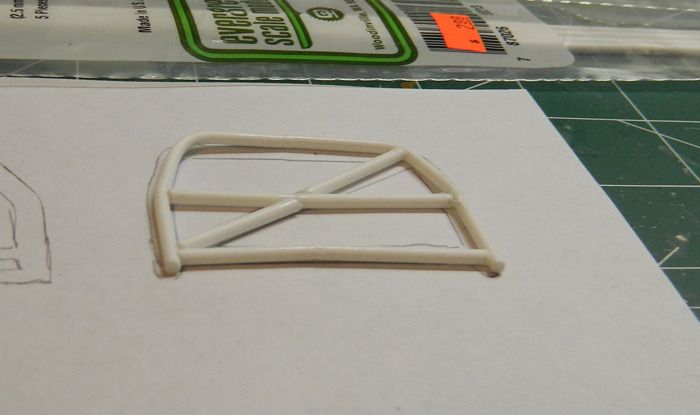

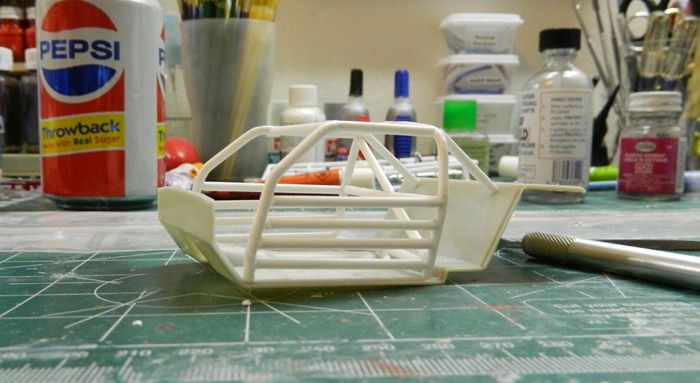

I did get started on the rollcage. Not much done yet, but it does fit so that's a good thing. I got a slight twist in it that I'll need to get out tomorrow. That's it for tonight.


Share this post


Link to post
Share on other sites

Posted · Report post

well, thank you for that info!! I swear, I am just gonna have to pick up a second or third kit now!!! ;)

Share this post


Link to post
Share on other sites

Posted · Report post

Looks like an awesome build..

WOW!! I never knew they had that much of a Rake on the 1:1..

Be watching.. B)

Share this post


Link to post
Share on other sites

Posted · Report post

Someone pointed out to me that the body I have is for a '69 GTX and not a '68 Roadrunner. So I will be doing some more sanding to get rid of the GTX trim on the body. I'll post pics when I have an update on that.

Share this post


Link to post
Share on other sites

Posted (edited) · Report post

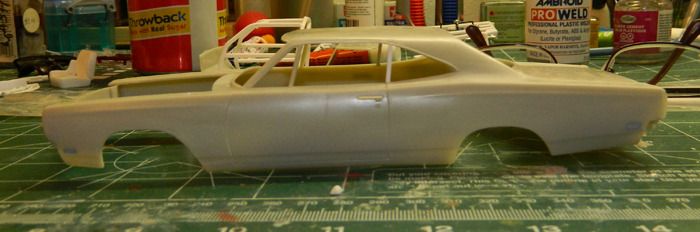

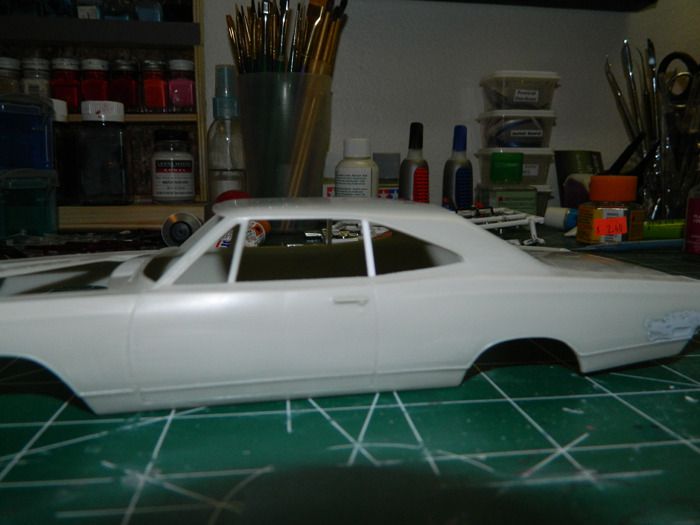

When reviewing the car body, it was found that the B pillars were at the wrong angle - they should be parallel with the wing windows as can be seen in the above photo. This has now been corrected. Also, all of the GTX trim has now been sanded off from the body sides and the wheel wells. This is starting to look more like it should now.


The rollcage is coming along. We're not done yet, but it is starting to take shape now.

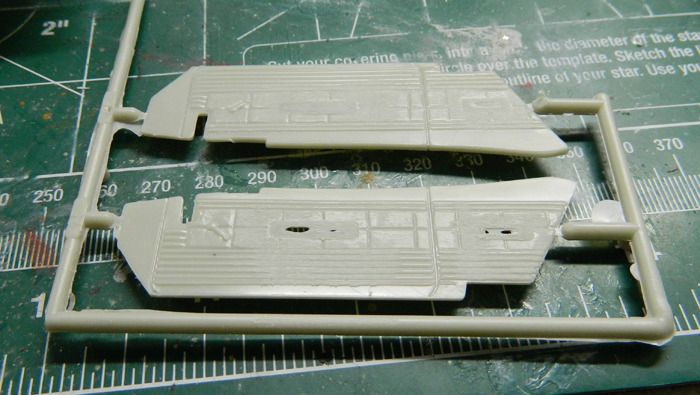

I can't be sure, but it seems that they still had the door panels on the inside of the car at this time. So I figured that I would use them. I sanded off the armrests from the interior doors. There's still some more work to be done on these doors to make them flat, but we're getting there. The only thing that should be on here are the window cranks (if I am wrong, please let me knpw).


Edited by Scottnkat

Share this post


Link to post
Share on other sites

Posted · Report post

According to a Maurice Petty article I read years ago on their 68 Daytona RR, it was their most cheated up car he ever built. Something about channeling the front end and filling in all the air cheating on the undercarriage. It just looked wierd compared to the one driven by Darel Darringer.

Share this post


Link to post
Share on other sites

Posted · Report post


Why not swap them left side to right side and use the back side of them??

Just a thought.. :)

Share this post


Link to post
Share on other sites

Posted · Report post

Good idea, Rodney - the back side has an AMT Ertl stamp on it, but it may be less work to fill in the holes where the armrests were and sand down the raised text - thanks for the suggestion.

Share this post


Link to post
Share on other sites

Posted · Report post

Coming along nicely, Scott. Ya got me on the edge of my seat!

Share this post


Link to post
Share on other sites

Posted · Report post

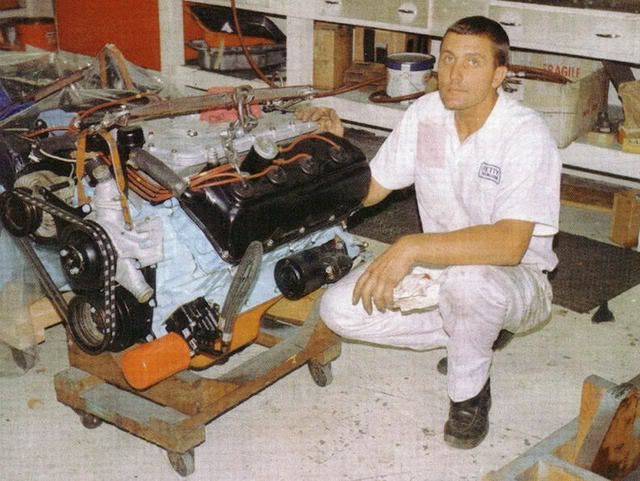

well, no pics yet, but I can tell ya what I have been doing. You see, there's this neat pic of Maurice with the engine from '68...


There's a couple of interesting things about this pic. First, note the orange oil pan. But the thing that got me was the old "bathtub" intake manifold. I searched all my kits but cannot find this manifold. So, I have been trying to make one from scratch. On a somewhat related note, I've also been scratch-building a fuel cell as the molded on gas tank aint gonna cut it. Maybe I can get some pics up tomorrow when I actually have something to show for the work.

Share this post


Link to post
Share on other sites

Posted · Report post

Scott, it's kinda hard for me to make out, but it sure looks like the same one they used on the '70 Superbird. Did the Johan kit have it? Just a thought.

Share this post


Link to post
Share on other sites

Posted · Report post

I'm not sure on that one, Bart - if so, then I could just make a casting of it and that would solve it. I'll see what I can find out. Thanks for the heads up on that.

Share this post


Link to post
Share on other sites

Posted · Report post

well, that is helpful! That explains about everything a bit more clearly. Okay, I'll see what I can do about that. Thanks, Jacen

Share this post


Link to post
Share on other sites

Posted · Report post

looking great. i'll be watching this one.

Share this post


Link to post
Share on other sites

Posted (edited) · Report post

For those wondering about the number on the roof, here is a picture I found on the Richard Petty Fan forum. Never seen a picture of this car until recently when doing research for my own Petty Model collection that I want to start.


By the way Scott, love your builds and will be following this one as well.

Edited by jjsipes

Share this post


Link to post
Share on other sites

Posted · Report post

Thanks, Jason! I appreciate the comment and the picture. I knew the number on top was off-center, but this shows it perfectly.

Share this post


Link to post
Share on other sites

Posted · Report post

Not much of an update, but I wanted to let you all know that I was still busy on the Petty car.

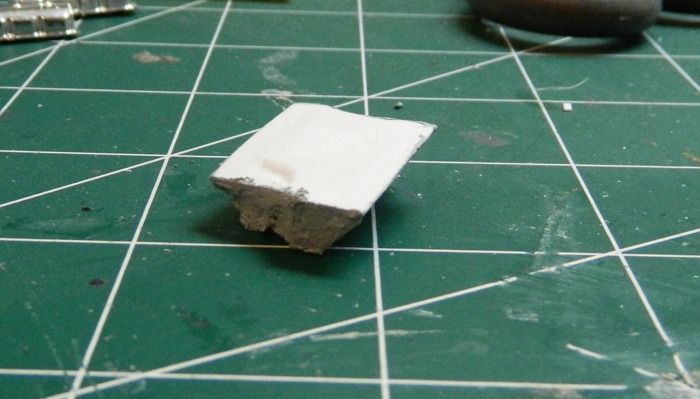

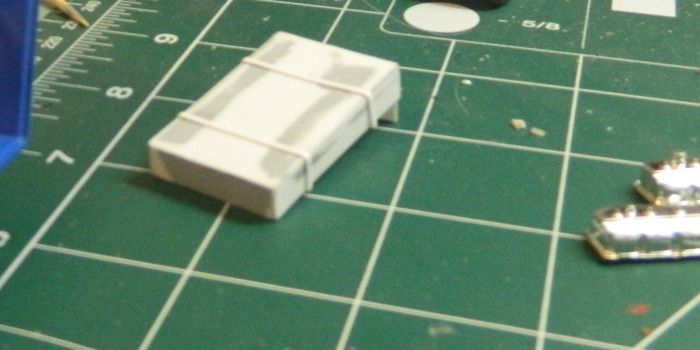

I started working on the fuel cell that will replace the kit's molded in gas tank - it's still kind rough, but at least you can get an idea for what I am going for here:

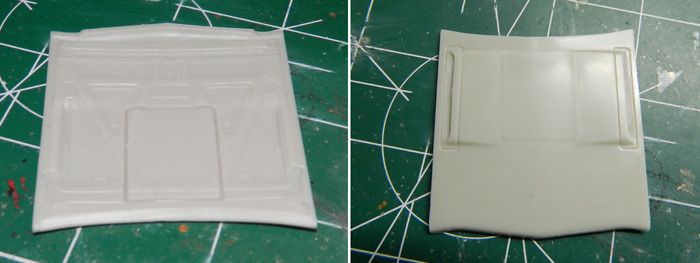

Also, I am going to have to address the hood. It has "cut outs" on the bottom so you can easily cut a hole in the hood - only problem is that this causes it to be visible (and you can feel it) on the top of the hood - I'm going to have to fill that then sand down the top of the hood to make it smooth between the two "bumps":


Finally, here is a very rough mock up of the intake manifold that I am working on - I know it is really rough, but with a little luck I can make this look much better.


Beyond that, I've just been priming, sanding, priming, sanding, etc.

Share this post


Link to post
Share on other sites

Posted · Report post

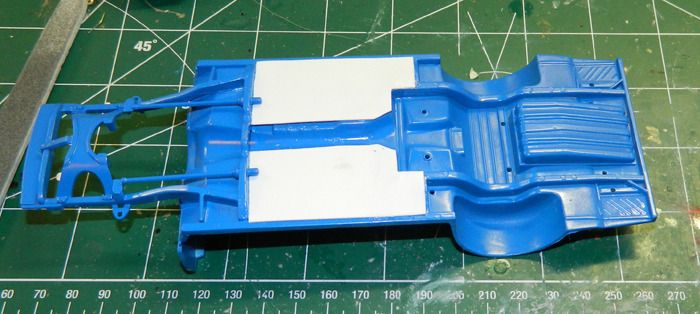

Well, I started covering the chassis pan. I have left the driveshaft tunnel uncovered. If anyone knows if this should be covered, too, please let me know.


Also, the slits cut into the hood have been filled, so I will (hopefully) start sanding the hood down tomorrow. I was going to primer the body today, but weather is against me, so maybe tomorrow.

Share this post


Link to post
Share on other sites
