WIP: 1/16 '68 Mustang Pro Mod


ClayK

Recommended Posts

Thank ya fellas! Finally making some good progress.

I've been working on the rear end all week. Lot going on here. Of course, I've got the awesome Micro Nitro rotor hats and Lamb calipers. The rotors are also from Jim. I machined the front pinion plate, and made the front driveshaft containment from brass rod and some Dirt Modeler PE. The brake lines and oil line is from #2 Detail Master fittings, and Pro Tech line. This whole unit is pretty well ready to be installed.





I've also been running the brake lines. Again DM #2 lines and fittings.

Rear....



Front...



Link to comment
Share on other sites

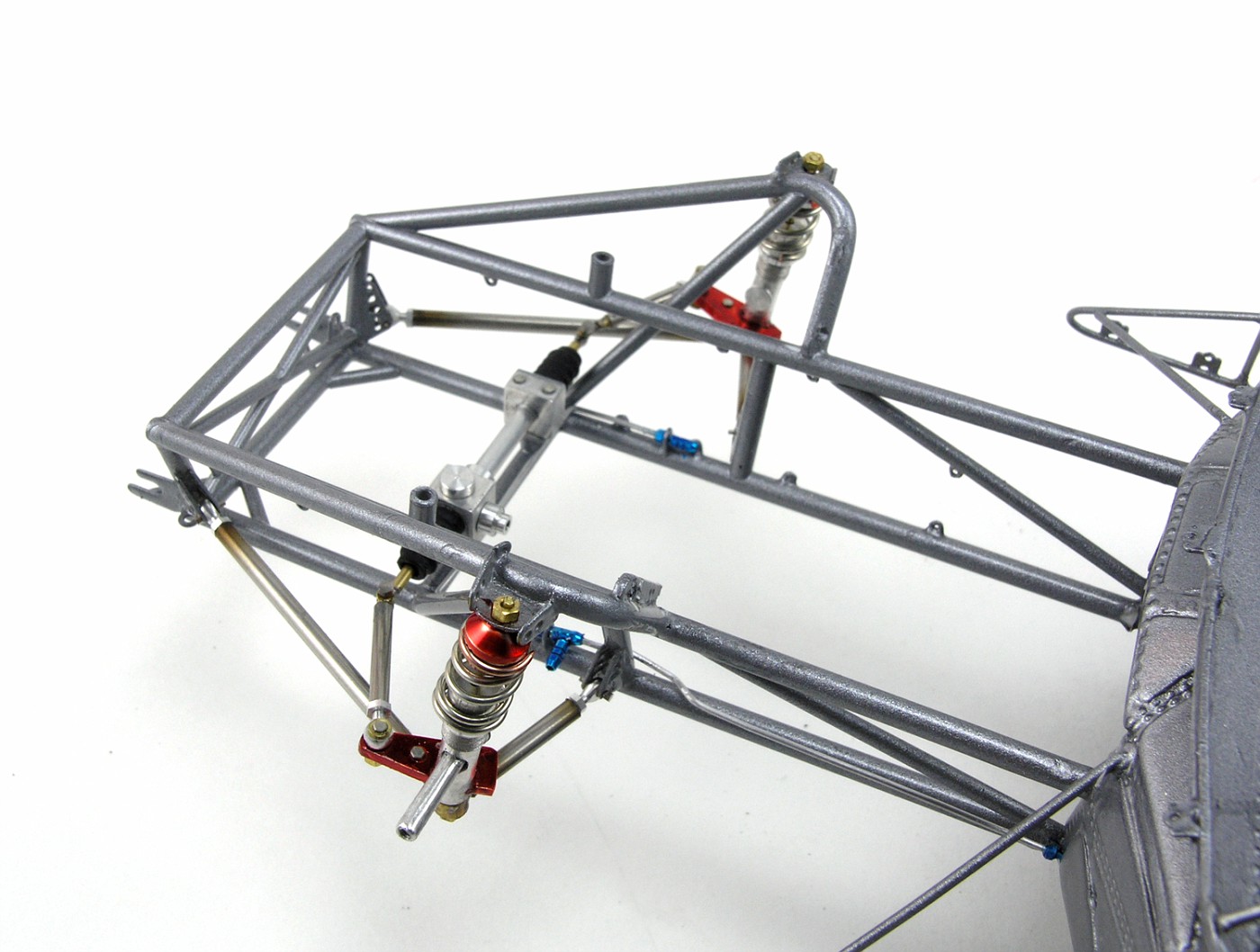

Up front I machined a new set of rotor hats/spindle caps. These will slide right over the strut axles, and also hold the rotors. And they fit Jim's wheels as well. I've also started on the front brake calipers. These are from Micro Nitro too.




Thanks for looking!

Link to comment
Share on other sites

It's so nice to see that you're back building this one, Clay! Your work is impressive and that rear end is looking like an 1:1 scale part. Nice detailing, and I'm taking notes for my possibly upcoming Pro Mod build...

Link to comment
Share on other sites

Clay: Hi, my name is Mitch. Your work is crazy good, so you can check into a hospital and leave the rest to me :D J/K! I have't read every page yet, but Chris Sobach will vouch for my sanity. I only build lowly P/S and P/M kits with ignition and fuel system upgrades and little bits and pieces as my ability will allow. I have a question for you if you would kindly answer. On the Blackbeard's Revenge build, if you're familiar with it, I believe the the pipes are chromed at the top and then change tint to a brownish/blue hue just like a real exhaust zoomie would when it has heat applied to it. Do you know of any way to create with kind of effect with a plastic exhaust pipe? Some combination of paints/colors or application technique you've discovered during your experience in modeling?

I just figured anyone with this amazing level of creativity and innovation in building might know. Chris, Comp, Tyrone, feel free to chime in if you might know! Thanks all!

Link to comment
Share on other sites

Mitch....Here's the complete album for my Blackbeard Pro Mod. You can see the headers towards the end of the album. I built them on the car, and actually painted them on the car. I misted very light coats of Alcald clear yellow, and Alcald Sepia and Violet to do the heat staining.

http://public.fotki.com/ClayK/drag-racing-projects/705-camaro-pro-mod/

Jim....feel free man! Basically I wanted to make sure the hub fit the center opening of your wheel tight, and fit the axle stub. That was what I came up with.

Thank you everyone!

Clay

Link to comment
Share on other sites

Clay: many thanks for this tip! I'm definitely going to try it out; I hope the new Alcald spray cans I've heard about have those tones included. It may be difficult to master the right application, but I'll try on parts tree or Evergreen rods first. Glad to find out your the builder (artist) of the Blackbeard car. The work is quite superb, especially the milling on the block and other engine parts!

Mitch

Link to comment
Share on other sites

  • 2 weeks later...

Slowly poking away on this thing....

I ran the front fire bottle lines along the upper frame rails. DM #3 fitting line and combo fittings.



I've also finally started working on the engine. I painted the block and heads with Alcald shades. The spark plug hole plates are exhaust flanges from the MCG No Bull sheet. They fit perfect. Slixx decals BAE logos, then I dull coated the valve covers.


The blower and intake were also painted. I cut a blower hold down plate from black sheet plastic. The hold down belts are medical tape painted black. I still need to add some attachments on the heads before they can be hooked up.


Should be no shortage of horsepower!



The rear end is also ready to be installed. I had to make a puke tank first. Once it is installed and hooked up, then I can add the rear end.

The puke tank is just sheet plastic and aluminum tubing. Nothing fancy.



And the rear end with the lower X-Link on, and lower 4 bars. Thanks to my man Scrappy for the chrome plating on the X-Link. It looks awesome!


Things are slowly starting to come together! Thanks for looking...
CK

Link to comment
Share on other sites

Clay.... that is one heck of an update my friend. I am still drooling over the awesome detail. You are making some big strides on this for sure. I love how you did the fire bottle lines, they are very clean. Are you using aluminum wire or piano wire? That chrome plating on the X-brace is killer and would love to know how Scrappy did it. I can't wait to see what you have in store for us for the paint on this one. Keep up the great work. I really enjoy following your builds.

Link to comment
Share on other sites

Holy smokes I ask about an update and wham you give us half a build, that amount of work and detail would take me a year. Clay you do astounding work I learn so much by looking at the details in your builds, thanks for sharing like you do.

Bob

Link to comment
Share on other sites

  • 1 month later...
  • 1 month later...

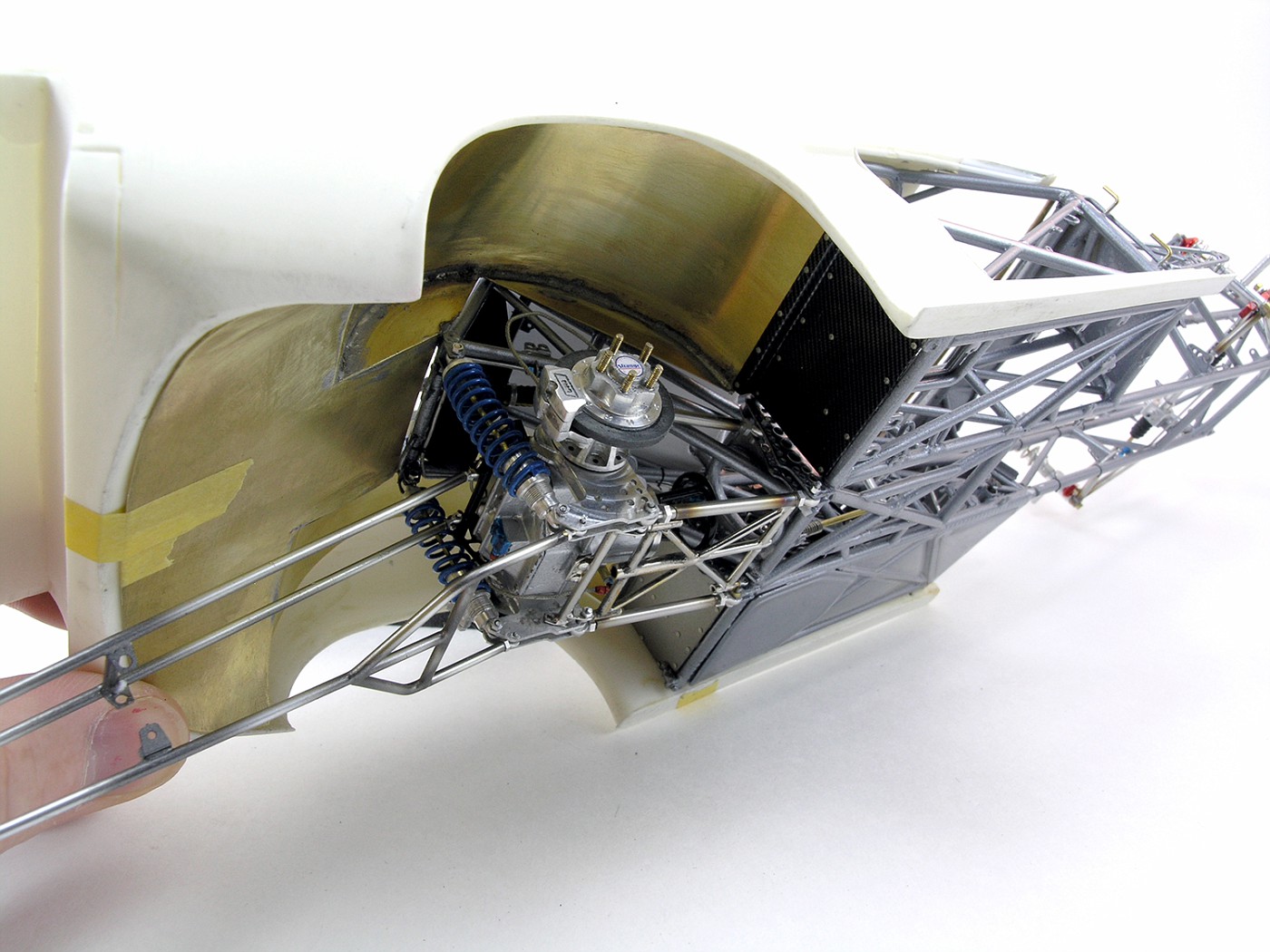

I've spend the last week or so working on the wheel tubs and filler panel. I wanted to match the way R2B2 does theirs as much as possible. I tried using the Shapeways 3D printed tubs I had, but they weren't big enough, so I went the brass route.

I started bending up one and fitting it in place, then I made the filler panel pieces, then I added the second remaining tub. It all fits in there pretty well, and seals off the body pretty decent. I still need add some more plastic pieces to show the junctions of where the pieces connect, but I'll get there eventually.

Once I did the tubs, I found out my rear tree didn't fit anymore. So I made a new one from brass rod. It all works together now, even though it will barely be seen once all together.






Link to comment
Share on other sites

As you can see, I also got all of the rear suspension installed for good. I still need to add the sway bar and links, and hook up the brake lines. The puke tank and hoses are installed, and I added the filler panels at the back of the cage too.

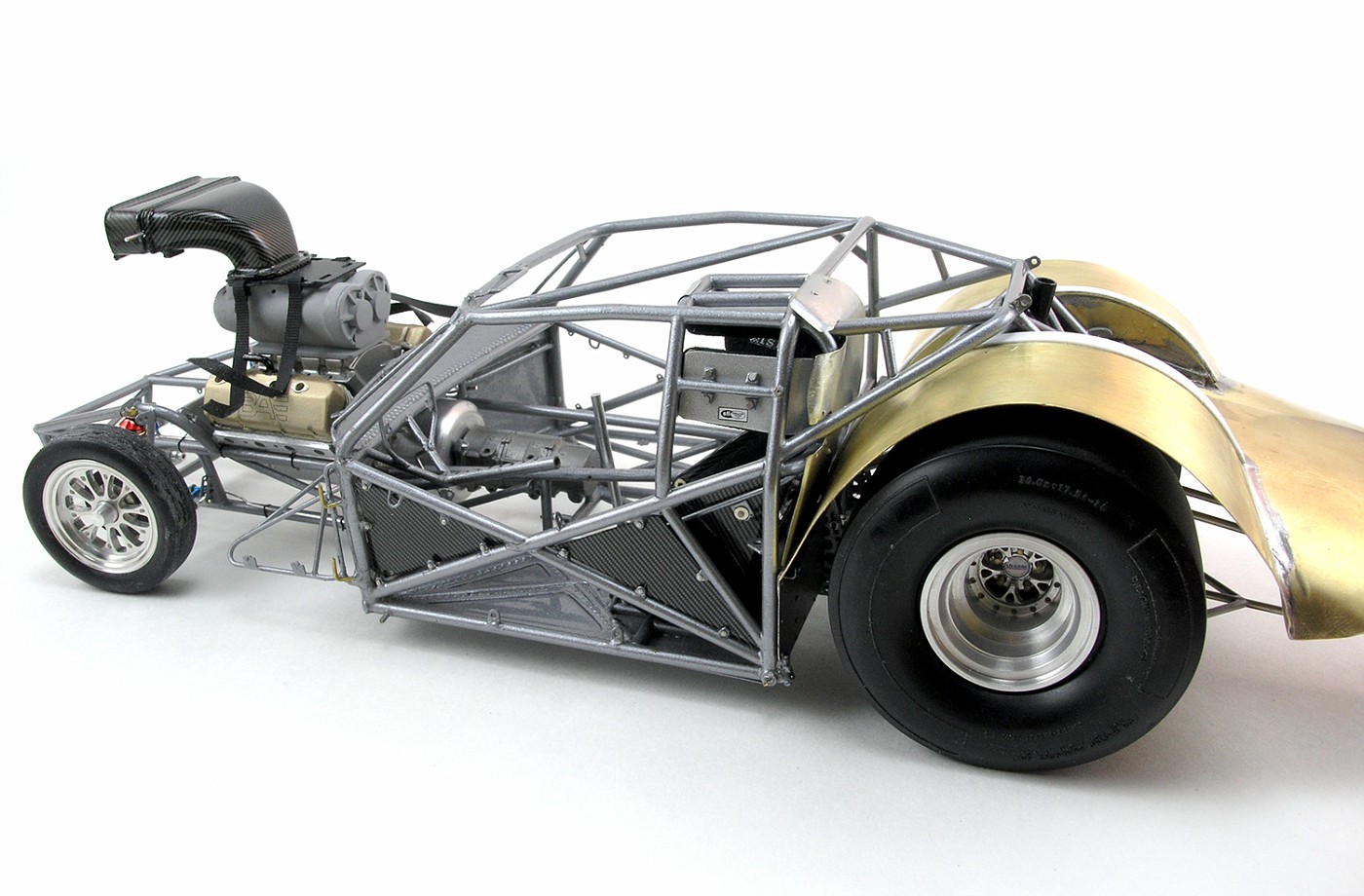

And a few with it all mocked up.





Now I can get the tubs painted black and start decaling them thanks to my man DaveT! I've also been working on the inner door skins.

CK

Link to comment
Share on other sites
