1/350 Tamiya USS Missouri, Aug, 1945. W.I.P. Thread

50 posts in this topic

Posted (edited) · Report post

I am posting this on this forum because I thought many of you might like to see a model, different from what you are used to seeing, take shape and form. Call it a rare treat and you don't have to travel far to see it. Also, I'm not a rivet counter and I think you all will be a little easier on me than some of the builders on other, more subject-specific sites. (Ahh hope!)

I build a lot of cars and trucks but suffer from SEVERE Modelers ADD. I'll build anything that sits still long enough... :blink: I'll be working on this one at my new 'Large Bench', not to be mistaken for my 'Small Bench' that resides in my bedroom. This way, I can keep up on this one and still fall back and work on something with fewer gun barrels and more wheels...

Just like the title says, this is a work in progress and like the Titanic I posted pics of, I am doing this one for someone other than me.... I am starting with the Tamiya offering and a Gold Medal Models PE set.

This is the kits parts, all laid out.... The hull is around 32" long...


The Photo Etch sheet from Gold Metal Models; Rails, radars, catapaults, cranes, gun sites and all sorts of little fiddly-bits. This set even incluses a scale figure of Admiral 'Bull' Halsey and the table and chairs where the surrender documents were signed, ending WWII...


Before I go farther, I want to add a shameless plug for myself. I think I have bought my last batch of #11 blades... One other sideline I've gotten into recently is custom knifemaking. I made this little knife from a piece of scrap power-hacksaw blade and a couple scraps of hardwood. It holds a wonderful edge and feels great in my hand. Every once in a blue moon, I'll have to make a few passes over a Arkansas Black Stone to fine tune the edge...


Now, onto some work. This is the forward superstructure, deck level 1. As you can see, the kit part is void of detail. That is easily remedied!


On go the first pieces of PE... The shepards hook looking items are oil tank vents. The Iowa class ships were oil fired and carried thousands of gallons of Bunker 'C' type fuel oil. These pipes vented the fuel tanks. I also added watertight doors, small crane davits and drilled portholes as per the PE kit instructions. You can see the difference before and after...


More to come!

Edited by Wagoneer81

Share this post


Link to post
Share on other sites

Posted (edited) · Report post

This post will bring us up to date on this build... That means I'll be sitting down here in a few hours and doing a bit more...

I wanted to start with a couple of PE details so as to get used to working with this type of PE. GMM makes a great product with brass that is firm and holds its shape well without being to soft and easily damaged.

First is the aircraft crane that sits at the stern, between the two aircraft catapaults. The kit offering isn't bad, a little drybrush detail makes it a passable item. I know, I built this kit around 12 years ago, box stock. It was my first 'adult' ship project.

This is the kit part and the PE part, bent into shape and mounted to the base that was cut from the kit part.


I'm finding it difficult to get good pics using my digital camera as it won't pick up the fine surfaces of the PE parts as a surface to focus on... I have to shoot them close to the bench...

This is the SK-2 Radar. It consists of 14 brass parts. You can see the kit part that it replaces in the first pic. Yes, that is a US dime...


Next up is a Mark 37 5" gun director. Here are the parts...


And here is the finished product. I have three more of these to make...

Here you can see the kit parts that were replaced, to the left of the pic.



That's all for now, I'll be back in a day or so with more!

Before I forget, CONSTRUCTIVE criticism is always welcomed by me. I'm always up to learning something new!

Thanks for looking!

Edited by Wagoneer81

Share this post


Link to post
Share on other sites

Posted · Report post

Awesome, I can't wait to see more. I grew up in New England and used to tour the battleship Massachusetts many times. I know it's a different class of ship than the Missouri but still just as impressive. I'd love to see these ships still part of our battle groups. Nothing impresses me more than a full broadside salvo from those 16" guns :wub:

Share this post


Link to post
Share on other sites

Posted · Report post

Those PE upgrades really make a huge difference. Very nice work so far. B)

Share this post


Link to post
Share on other sites

Posted · Report post

I'll be following along intently.

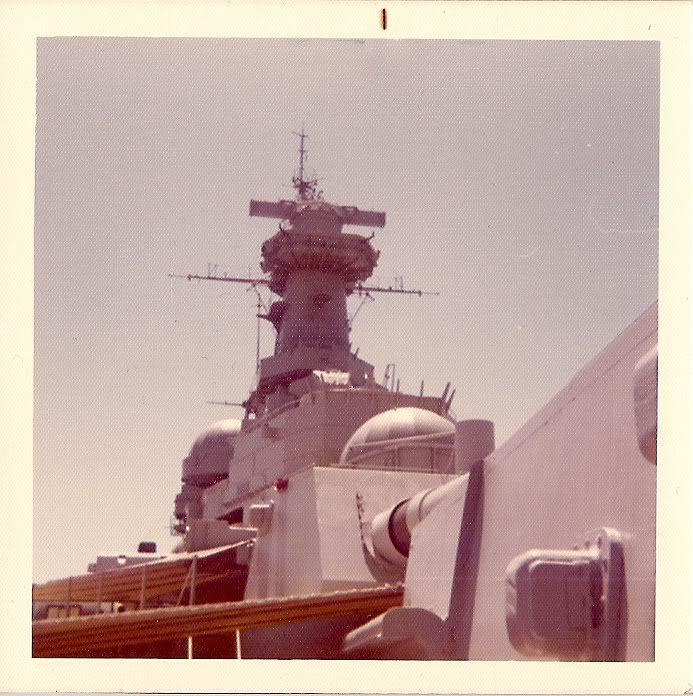

Here's a little inspiration for you. I took these in late '75 or early '76. Mighty Mo was mothballed then in the Puget Sound Naval Shipyard. I was assigned there as a gate guard after returning to the world.




G

Share this post


Link to post
Share on other sites

Posted · Report post

Very impressive build, and Harry's right; the P/E makes a huge difference.

There's just someing about standing on a battleship. Makes you feel safe. At least that's how I felt standing on the USS Massachusetts in Fall River.

Share this post


Link to post
Share on other sites

Posted (edited) · Report post

Thanks all! G, those pics are priceless, THANK YOU for sharing them!

Rick, nothing says "YOUR ATTENTION, DO WE HAVE IT?!?!?!" like a nine gun salvo!!!

James, you are correct about the feeling of invincibility you get. I remember a story, I think after Katrina... I believe it was the museaum staff rode out the hurricane on board the Alabama, locked in tight with bedrolls and supplies. The only 'damage', if you want to call it that was the ship shifting a little in the silt that had built up around her during her stay in Mobile Bay, causing just a slight list to one side. One of the people stated that when they closed the outer hatch, it was silent. You didn't even know you were in a hurricane!

Ok, small update today, one of the ships aircraft catapaults. These are really little gems and could stand alone in a small display all by themselves...

Here's the parts layout, with the kit supplied, two piece cat...


The assembly, coming together... Watch, be very careful with the really thin CA, I was holding this by one end and applied a drop at the other and the capillary action was so good, I immediately glued my fingers to the end I was holding...


Finished, with a small disk punched out of .020 styrene to give the base a little thickness...


Other side, finished view...


This was about 45 minutes worth of work, but well worth the effort. I'm not gonna want to give this one up when it's done, That's one reason I'm taking so many pictures during the build... I want to remember this one!

Next, the other Cat, and the other three Mk37 directors. By the time I get those completed along with building the main turrets and secondary and tertiary gun batteries, I will have the paint needed and will start the airbrush work on the hull and start building and detailing the superstructure.

Edited by Wagoneer81

Share this post


Link to post
Share on other sites

Posted · Report post

Very nice work ! Not long ago I built a Princeton for my BIL. Never again ! Way too many tiny parts for old eyes anymore.

Share this post


Link to post
Share on other sites

Posted · Report post

Looking good! There sure is a lot of detail in those GMM sets.

Share this post


Link to post
Share on other sites

Posted · Report post

I am following along here in awe Chris. Nice work so far!

Share this post


Link to post
Share on other sites

Posted · Report post

The cats are superb!

Right after the shipyard, I got sent on another all expense paid vacation, this time east to the Mediterranean and areas there in. We watched as the Wisconsin fired it's big guns onto positions outside Beirut.

OMG was that a sight, even from 10 miles away.

G

Share this post


Link to post
Share on other sites

Posted (edited) · Report post

Thanks, G! That would have been a site to behold!

Ray, I'd like to build a Princeton... I love the CVL's... As for the small parts, I'm thankful that I can build this scale again... For a time, a muscle disease (that's now in remission! WOOHOO!!!) messed with my dexterity so badly that I abandoned modeling in this scale for a while... That was actually the reason I started building 1/25 again... <_<

This is one of two PE sets that GMM offers for this ship. This one is the 'basic' set. The other one offers details above and beyond this one. It contains the ammo racks and rounds, in stripper clips, for the 40mm Quad Boror mount tubs, extra details for the 40's... The level of detail offered by the other set is INSANE!

Here's one last update for the day... I builds a turret... :huh::D Scraped off the cast on ladder detail and added PE ladders from the set... I drilled out the ends of the barrels to give that extra level...


The only thing that can be fairly mind numbing about these builds is the repetition... 60 some 20mm guns, 5 parts each; 16 quad 40 mounts; 10 5" twin turrets; and a partridge in a pear tree... :blink: Maybe this is why I like building ships in their pre-war fits... fewer AA guns.

Edited by Wagoneer81

Share this post


Link to post
Share on other sites

Posted · Report post

Christopher, I'd like to see pics of the New Jersey when you get back to her. Maybe you'll post a thread on her here? I've used WEM PE before, they too make excellent products. I have several 1/600 Airfix kits that I'll be building with WEM PE sets. I have Hood, Iron Duke, Warspite and Ark Royal and am casually looking for good deals on any other 1/600 kits as well... 1/700's still a bit small for me but 1/600 seems to be just perfect... I also love their detail sets for 1/72 aircraft!

Share this post


Link to post
Share on other sites

Posted (edited) · Report post

I started this ship last year, but some of the small pieces (from the AA quad guns, I think) wouldn't come off the sprues without breaking. Tamiya sent me more but I never got started again. The detail set is great but it sure adds a lot more time to the build. Or, maybe not if the parts don't break like the plastic ones. I see there's also wooden decks available for even more realism. It's my favorite Naval vessel so I hope I get back to it and also do the Yamato and the Bismark...the "Big Three" of WWII. Watching your build, Chris, is very inspiring.

Do you know which paint camoflage scheme you're gonna use? I did the WWII Pacific theme on one side and the plain "no camo" on the other. Makes it feel like I did two versions. Just thinking, I guess I could change the BB number on one side and say it's the MO and the NJ or Iowa. ;)

PORT:

009-vi.jpgHosted on Fotki

STARBOARD:

010-vi.jpgHosted on Fotki

Edited by deja-view

Share this post


Link to post
Share on other sites

Posted · Report post

Very happy for you that you can build again. I have been building for about 50 years and have built some of just about everything. When I got the Princeton ( my BIL was on it for a time) and saw the PE parts and the tiny crew I just about fainted. I made it through the build ok but I must admit it looked like a ghost ship because I could no way paint and add the crew. I think that ships are among the toughest kits to build and build well.

Share this post


Link to post
Share on other sites

Posted (edited) · Report post

Ray, If you still have the crew, I'd be interested in taking them off your hands... I have several 1/350 subjects that would benefit from them.

Ken, I finished my Missouri build in the Ms.32/22d, like in your first pic. This one will be done in the Ms.22, as seen in your second picture. I like how you spilt the build into the two schemes...

Edited by Wagoneer81

Share this post


Link to post
Share on other sites

Posted · Report post

Knowing I would never use those tiny crewman I tossed them. If I still had them you would have been welcome to them. When will I ever learn not to throw stuff away ?

Share this post


Link to post
Share on other sites

Posted · Report post

Ray, If you still have the crew, I'd be interested in taking them off your hands... I have several 1/350 subjects that would benefit from them.

Ken, I finished my Missouri build in the Ms.32/22d, like in your first pic. This one will be done in the Ms.22, as seen in your second picture. I like how you spilt the build into the two schemes...

If I have crewmen in the kit I'll send 'em to you. Do they come with it...cause I haven't even looked.

Share this post


Link to post
Share on other sites

Posted · Report post

No crewmen in the Missouri kit but most of the later Dragon 1/350 ship kits contain a half-dozen or so injection molded crewmen...

Share this post


Link to post
Share on other sites

Posted · Report post

Thank you, Ken! Those are pics that I don't have! I have been down, medically for the last couple of days (My back 'went south' on me last week and I'm to where I can sit up and walk without much difficulty again) so nothing new to report or show. I've had one MRI, numerous Dr. Appointments and several Physical Therapy sessions to occupy my time here of late... I will be back at it hopefully in the next couple of days and will have something new to show soon.

Share this post


Link to post
Share on other sites

Posted · Report post

:unsure: Just checking back on your progress Chris, looking good! Hope you are back in action soon, missed you at the last couple of clubs.

Share this post


Link to post
Share on other sites

Posted · Report post

Thanks, Ron! I'm working on getting back into the swing of things. The heat has really given me problems here, even with good AC... I did get some PE and paint work done on the central superstructure. I should be able to post an update in the next day or so...

Share this post


Link to post
Share on other sites

Posted · Report post

You are doing an amazing job! THe PE make a huge difference!

Share this post


Link to post
Share on other sites

Posted · Report post

increadable work!!
