Can one make 4x4 out of a Monogram Ford F-250 pickup, by using the axles and transfercase of the Monogram Bronco kit?

22 posts in this topic

Posted · Report post

Or not?

Thanks in advance for the info.

Luc

Share this post


Link to post
Share on other sites

Posted · Report post

Yes you can, the parts aren't a perfect fit but it can be done. The TTB front end is correct for an F-250.

Share this post


Link to post
Share on other sites

Posted · Report post

Yes you can, the parts aren't a perfect fit but it can be done. The TTB front end is correct for an F-250.

But I thought the F-250 used leaf springs with the TTB, while the F-150 shared the same front end components with the Bronco? I know the F-350 used leaf springs and a solid axle. Can a Ford expert verify which is which?

Share this post


Link to post
Share on other sites

Posted · Report post

Heck i used just another axle from a monogram f250 and di mine just with minor mods. It may not have been right for the truck, but it worked!!

Share this post


Link to post
Share on other sites

Posted · Report post

i just did that to a c1500 by amt it not hard to cut a rear axle and fit in front and a home made tcace

Share this post


Link to post
Share on other sites

Posted · Report post

I've never seen an F250 with the TTB up front and I've been around many of them. My brother-in-law owns an old '89 F250 and it has a solid axle front end with leaf springs. Still, that doesn't mean they were never made. I honestly don't think the TTB would be strong enough for an F250. Just make it an F150 and you'll be OK. If you have it,I would use the cross member from the Bronco also. I think it would make your swap a little easier.

Share this post


Link to post
Share on other sites

Posted · Report post

My '81 F-250 has TTB, but it is a light duty and has leaf springs. I don't think Ford used that setup for very long, by the time of the Monogram kit ('97-91), I believe they were using a solid axle, all the 250s I've seen have that setup.

Anyway, yes, the TTB from the Bronco could be made to work with the Monogram F-250, but it wouldn't be totally correct. On the other hand, you could just use the TTB, then put a small block in the truck and refer to it as an F-150 and sidestep all of that.

Share this post


Link to post
Share on other sites

Posted · Report post

To add to Chuck's comments, I think it was the mid to late 80's when they switched to solid axle/leaf spring for the F250s. I will do some more research and post up what I find.

Share this post


Link to post
Share on other sites

Posted · Report post

I believe I've seen all three front ends under 250s and I'm not sure what you do to get any specific front end on a particular truck. A guy at work had a 92-96 250 with a Powerstroke that had the leaf style TTB but another guy had the same body style with a 460 and a straight axle.

Share this post


Link to post
Share on other sites

Posted · Report post

I've rebuilt plenty of TTB F250 and 350s, with both leaf and coil frontends. The overall design is the same as the lighter F150, just with larger spindles, control arms, and lower balljoints. The HD versions also used a Dana 50 reverse rotation center section, but that won't be noticable in scale.

Share this post


Link to post
Share on other sites

Posted · Report post

Longbox55 is right I had a 96 f250 460 truck with the ttb on coils. Seems to be based on gvw options. As you know f250s and 350s have options for gvws (gross vehicle weight) ratings.

Share this post


Link to post
Share on other sites

Posted · Report post

Interesting info, guys.

Can anyone here point me to good sites with chassis photo's?

Thx again.

Share this post


Link to post
Share on other sites

Posted (edited) · Report post

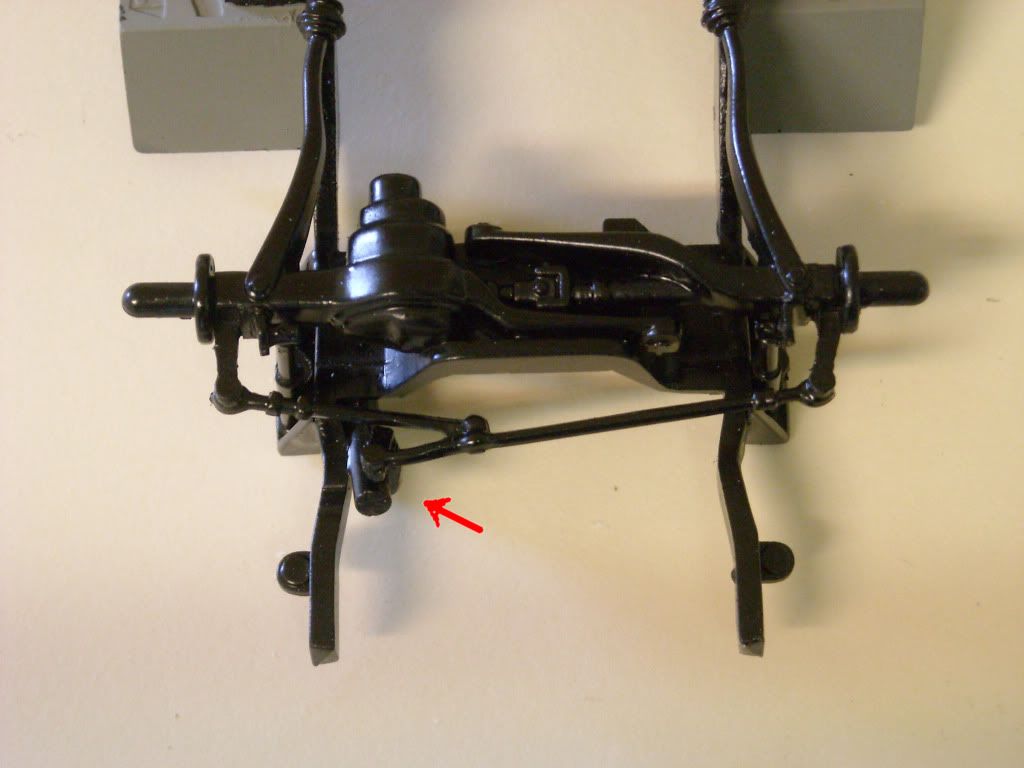

Here is the exact conversion you are talking about. Bronco axle on F250 chassis. I had to alter the crossmember and add the mounts for the double shocks. This is for a F150.

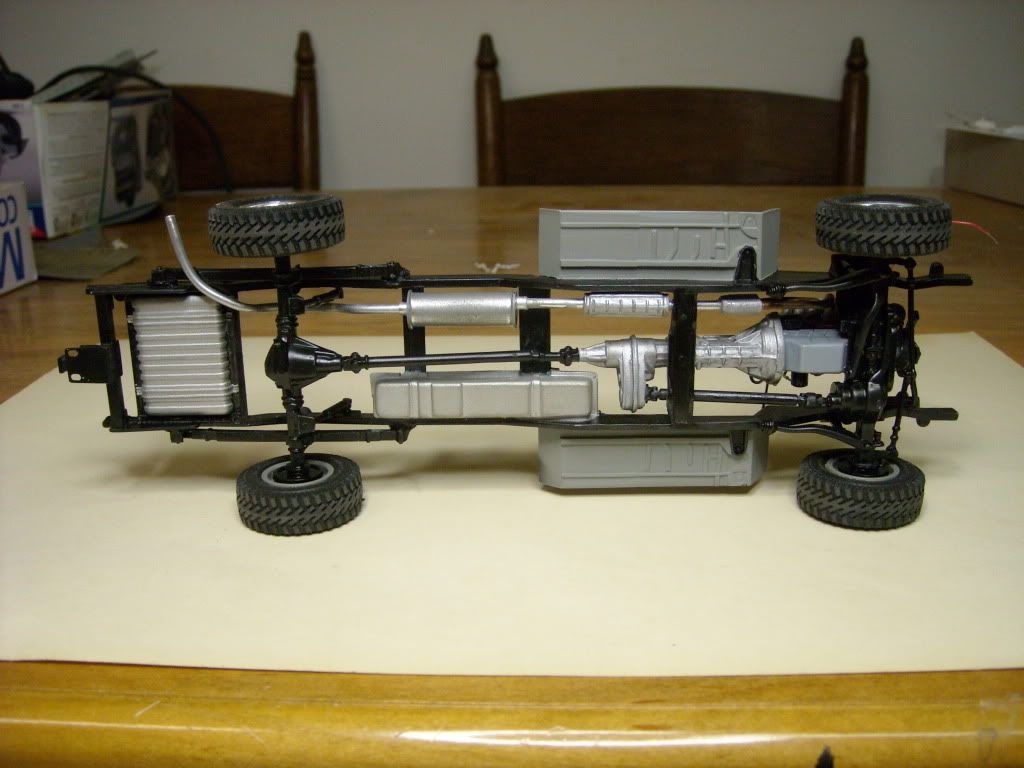

Here is the complete chassis showing the transfer case. This transmission and transfer case are from the LIndberg F150 Off Road 4x4.


The WIP for the conversion is here: http://www.modelcars...1990 +f150 +4x4

I have some pics of the 1:1 truck I will post if I get the chance.

Edited by Kit Basher

Share this post


Link to post
Share on other sites

Posted · Report post

Here is the exact conversion you are talking about.

I have some pics of the 1:1 truck I will post if I get the chance.

Many thanks Hugh!

Share this post


Link to post
Share on other sites

Posted · Report post

Luc, the front end from the Bronco will work for trucks that were equipped with the Dana 50 front end that used the coil spring suspension, but nothing heavier. All F250HDs and F350s in the late 80s/early 90s like the Revell/Monogram kits (recent reissue of the 250 and the older dually) had the leaf spring suspension and a Dana 60 front axle. Non HD models of the 250 did come with the Dana 50 in those years.

Also, just using the rear axle of the F250 or F350 kits as a front axle IS NOT a correct mod!! The kits use the Ford 10.25 rear axle, not a Dana 60 as commonly thought. The Ford 10.25 axle is ONLY a rear axle, Ford used the Dana 60 for the heavy duty F250s and all F350s for front axles on the 4x4s. I know for sure the axle in the kits are the Ford 10.25 rear ends because I have confirmed it by matching the rear end in the kit to my own 1:1 1990 F350 equipped with the Ford 10.25 rear axle.

Share this post


Link to post
Share on other sites

Posted · Report post

Quick note, the Dana 60 was used on the HD SFI trucks, the TTB and light duty used the Dana 50. Some SFI F350s did use a solid axle version of the Dana 50 '80-'88.

Share this post


Link to post
Share on other sites

Posted · Report post

in 1/24 scale the dana 44 in bronco will work

Share this post


Link to post
Share on other sites

Posted · Report post

Luc, the front end from the Bronco will work for trucks that were equipped with the Dana 50 front end that used the coil spring suspension, but nothing heavier. All F250HDs and F350s in the late 80s/early 90s like the Revell/Monogram kits (recent reissue of the 250 and the older dually) had the leaf spring suspension and a Dana 60 front axle. Non HD models of the 250 did come with the Dana 50 in those years.

Also, just using the rear axle of the F250 or F350 kits as a front axle IS NOT a correct mod!! The kits use the Ford 10.25 rear axle, not a Dana 60 as commonly thought. The Ford 10.25 axle is ONLY a rear axle, Ford used the Dana 60 for the heavy duty F250s and all F350s for front axles on the 4x4s. I know for sure the axle in the kits are the Ford 10.25 rear ends because I have confirmed it by matching the rear end in the kit to my own 1:1 1990 F350 equipped with the Ford 10.25 rear axle.

In which kits one would be able to find these parts?

Or...is there a resin caster who has all the hardware, needed to build a HD truck?

Interesting read guys!!

Share this post


Link to post
Share on other sites

Posted · Report post

Replicas and Minatures of Maryland show a Dana 60 rear end in their catalog, and I believe that Ma's Resins has one as well. Not sure if Alan is taking orders again, give Norm a call at RMoM- 410-768-3648.

Share this post


Link to post
Share on other sites

Posted · Report post

VCG Resins offers a Dana 60 center section in resin, you have to supply the axle tubes but this would be ideal to build your own front axle. They also offer a Ford resin transfer case.

Great guy, nice stuff and quick service! He is one of us and offers some neat items.

www.vcgresins.com

Share this post


Link to post
Share on other sites

Posted · Report post

VCG Resins offers a Dana 60 center section in resin, you have to supply the axle tubes but this would be ideal to build your own front axle. They also offer a Ford resin transfer case.

Great guy, nice stuff and quick service! He is one of us and offers some neat items.

www.vcgresins.com

Thanks for the tip!

And to all the guys who contributed to this tread, also many thanks!!

Share this post


Link to post
Share on other sites

Posted · Report post

Ford actually used the dana 50 all the way up until 2001 in the f250s and than they switched all axles to the dana 60. They used the ttb in al trucks up until 99 unless it had the dana 60 up front. Than they used a leaf spring solid axle type front end. A good place to look for reference and advice are powerstrokenation.com and powerstrokearmy.com. Ive been a member on both sites for years now.
