I like the look of the '37, but around here 4 wheel drive rules the back roads. So I came up with the idea of combining Revells '37 Ford pickup with Linndbergs 4x4 flare side F150.

First, the F150 frame required some "minor surgery".
Almost there:

Here's the frame, shortened 3/8" at the rear with the spring shackles moved forward about 1/4". The motor mounts were also moved up and back, as the body sits high on the frame.

To support the bed, it was necessary to add cross bracing. In true mountain man fashion, this was accomplished with some stout timber and lag bolts.
The "lag bolts" are 1mm simulated bolts from Scale Hardware.

Now the bed (still under construction) has a nice solid foundation.

I'll be adding angle iron brackets between the frame and the cross beams, but I haven't decided if they should be bolted or welded to the frame. Opinions?

More coming soon.

Edited by Shardik

Share this post


Link to post
Share on other sites

Posted · Report post

good promises.

stick some washers behind the bolts (you asked!)

Share this post


Link to post
Share on other sites

Posted · Report post

x2 on the washers.

I want to do one of these as well, but I'll go for more of a Marmon Herrington factory type of setup. I'll be watching to see how yours comes together.

Share this post


Link to post
Share on other sites

Posted · Report post

more of a stock ford look or a hodrod 4x4 truck i seen some there one down hear in fl for a long time that was lifted on some 44 boggers

Share this post


Link to post
Share on other sites

Posted · Report post

Joe: Good call on the washers. I can probably punch some out of foil that will look O.K.. Thanks.

Gluhead: I'm not familiar with the Marmon Herington. Any links handy? Hope you enjoy the ride, It should be fun.

Todd: I'm not so much going for a hot rod look as just something that a mountain boy with more resourcefullness than resources might cobble together. ie...Function over style.

James: I saw the Hermits' huntin' truck while I was looking for ideas for this project. I have in mind something very similar, yet slightly more "refined" (refinement being a relative concept :rolleyes: )

P.S.; Thanks for checking out the '48. Glad you liked it.

Share this post


Link to post
Share on other sites

Posted · Report post

great start on this I will be keeping an eye on this one

Share this post


Link to post
Share on other sites

Posted · Report post

Marmon-Herrington was the company that provided all wheel drive conversions for Ford. Ford didn't produce their own 4x4's from the factory until 1959.

Check this out. M-H is a little over halfway down the page. Lots of good info and pics of other makes as well. http://www.therangerstation.com/resources/history_of_4x4.htm

Share this post


Link to post
Share on other sites

Posted · Report post

Josh: Welcome to the rodeo. I hope you enjoy the ride; you make some fine trucks yourself.

Gluhead: Thanks for the link; I just bookmarked it.

Share this post


Link to post
Share on other sites

Posted · Report post

Thats really cool.. Awesome build.. Red

Share this post


Link to post
Share on other sites

Posted · Report post

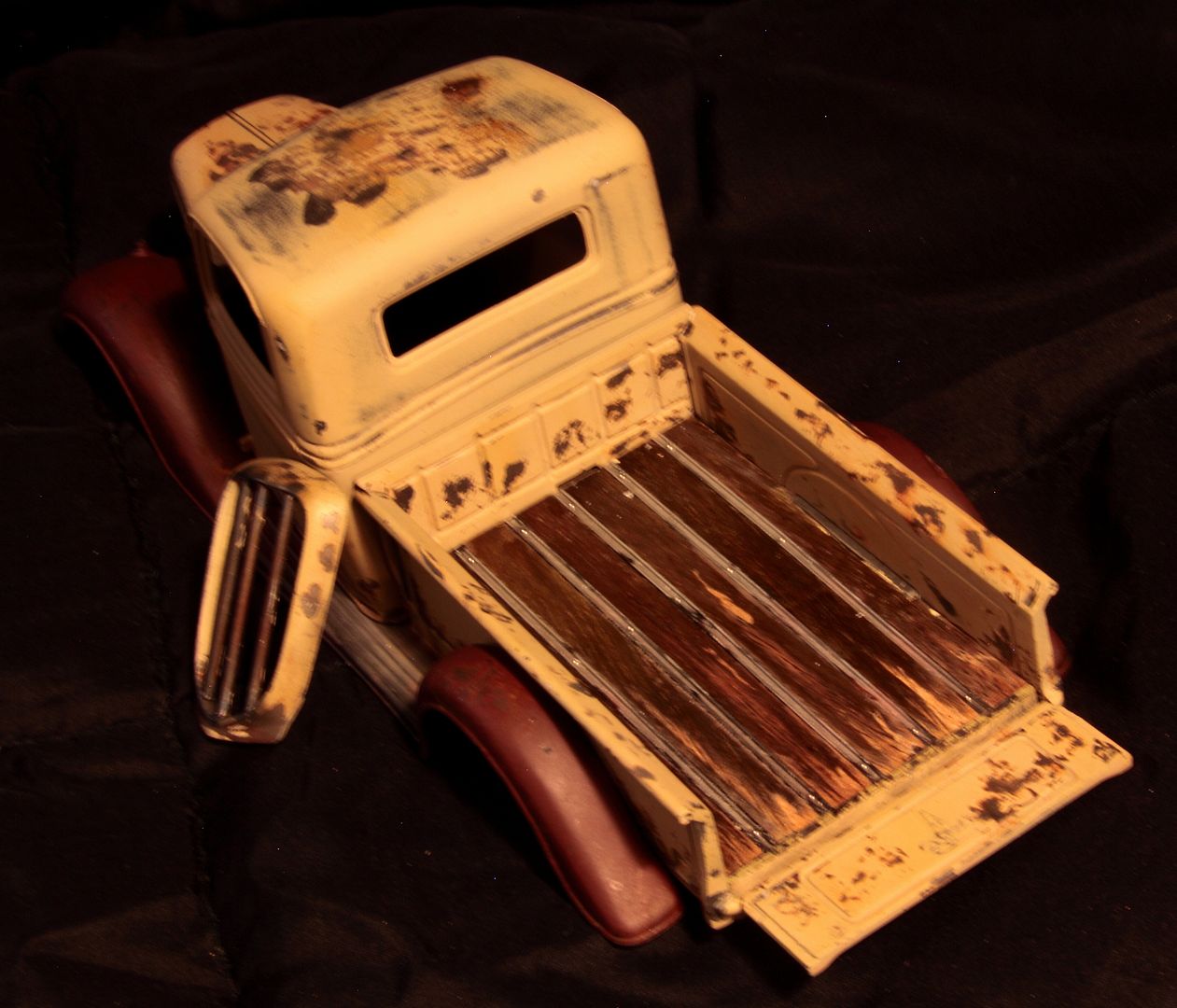

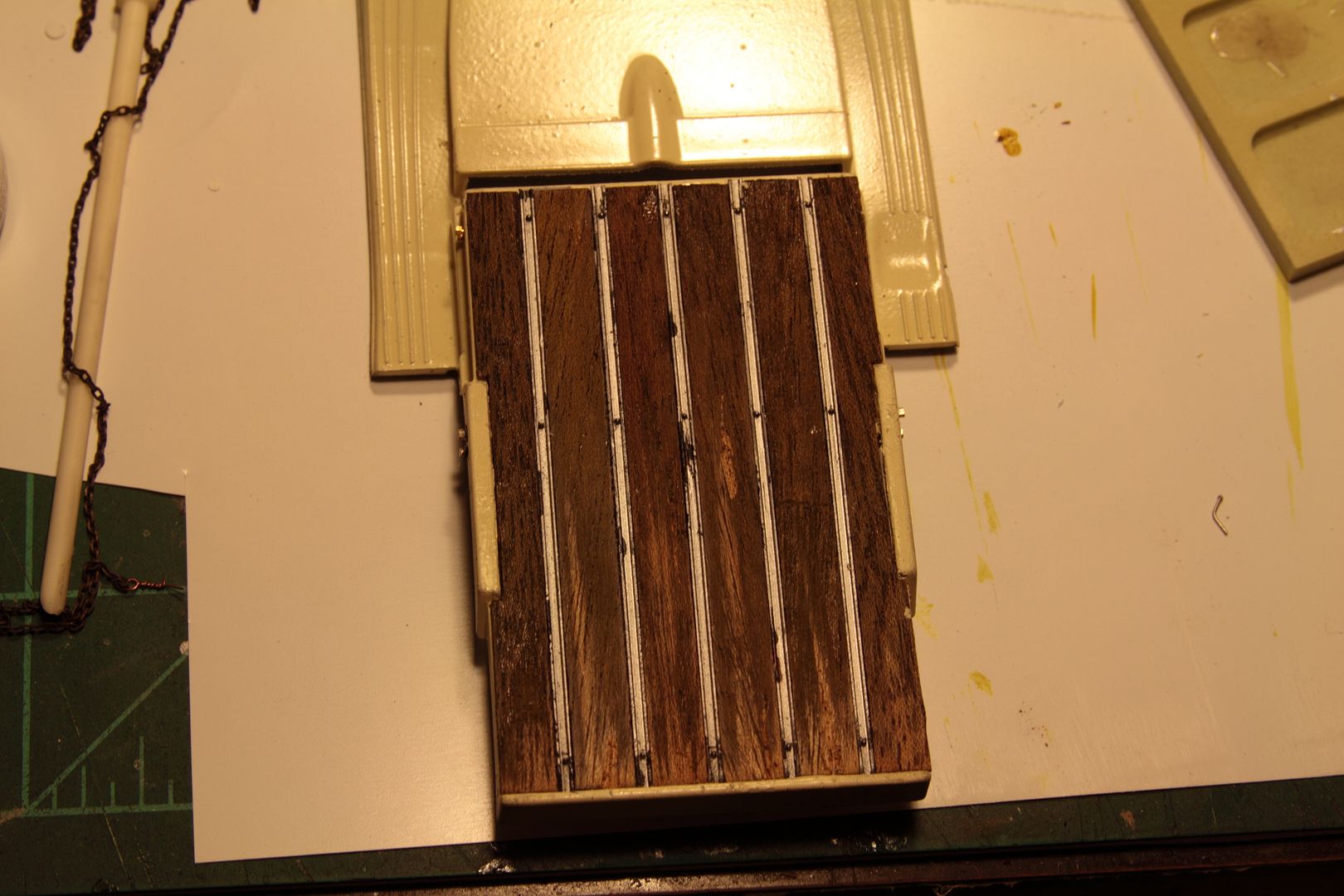

A small update. I finished the new bed, complete with peeling chrome on the rails, weathered wood and flaking varnish. This latter doesn't show up too well in the pictures; I'll have to work on my lighting set up.

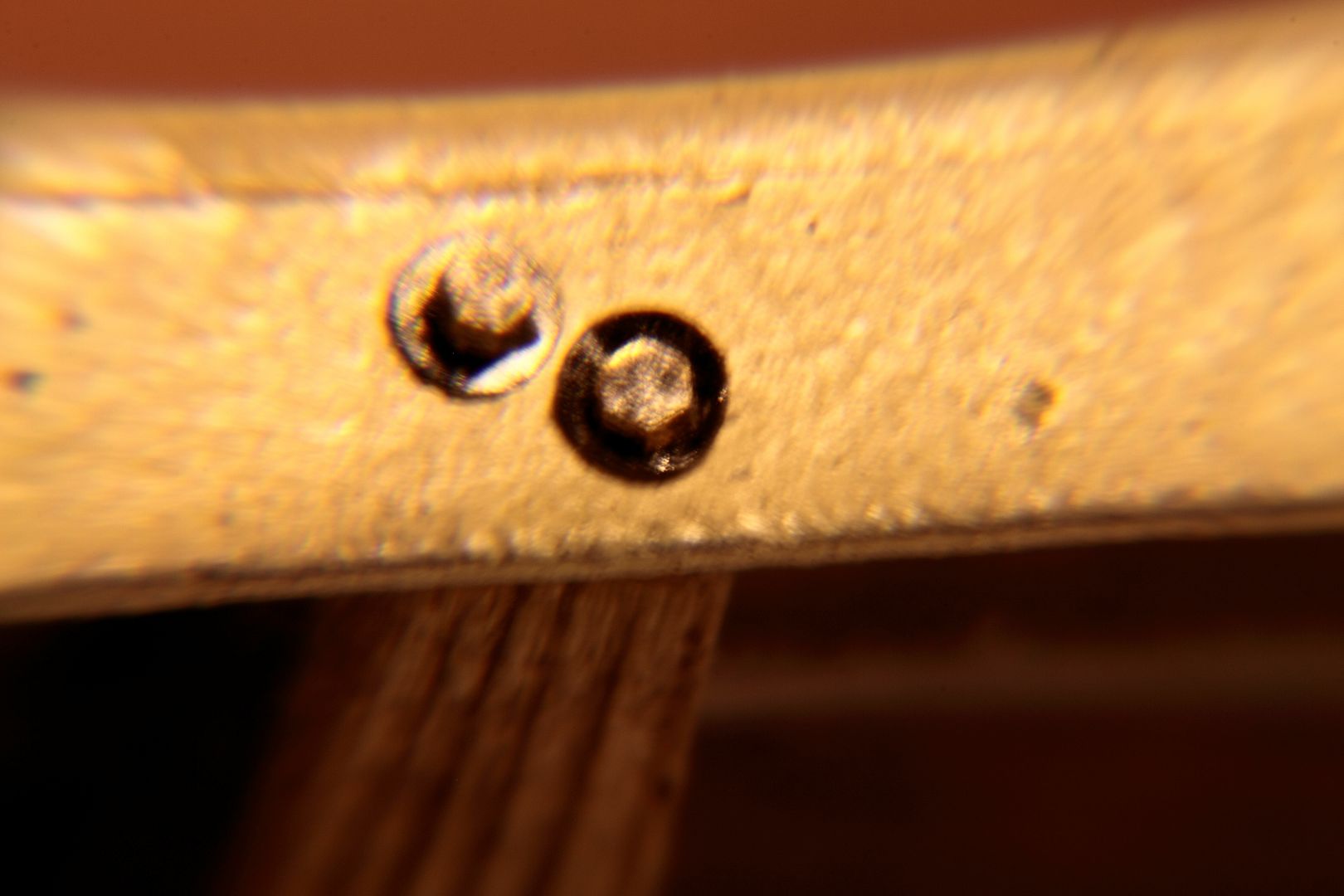

Here's a closer look at the "cairrage bolts" (.5mm rivets from Scale Hardware)

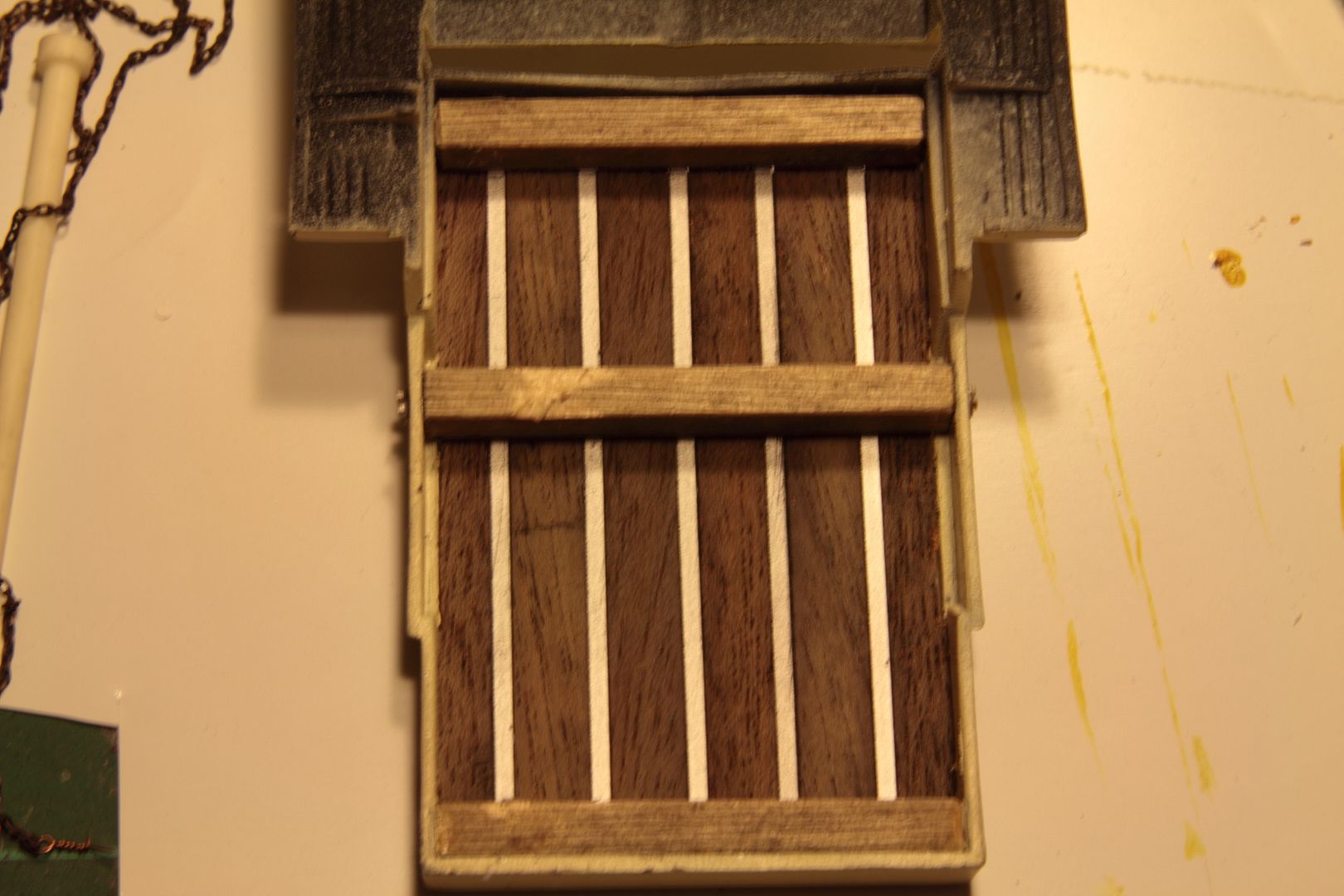

A look from the Ausie side.

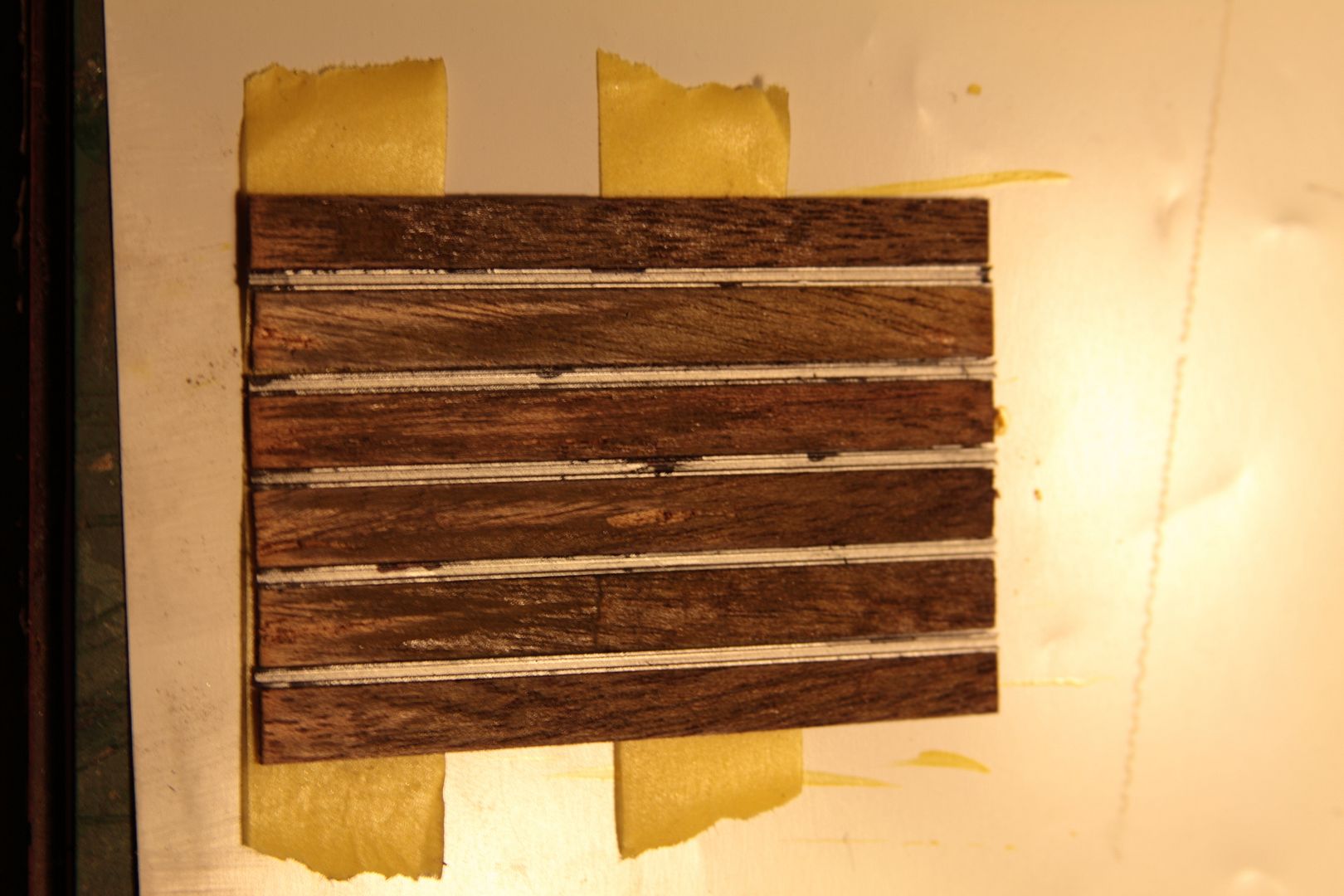

And here's one for you, Joe. Washers punched from .005" styrene. (My foil was too thin)


More coming soon. I finished the angle iron brackets last night, and started work on the shock mounts.

Any feedback will be appreciated.

Share this post


Link to post
Share on other sites

Posted · Report post

it feels "more sturdier" already!

Share this post


Link to post
Share on other sites

Posted · Report post

good job on the bed floor I like the weathering

Share this post


Link to post
Share on other sites

Posted (edited) · Report post

Lookin' good, Johann. The washers made all the difference in the world there. Planking looks good, too. Getting a realistic finish on engraved wood is something the eludes me. I have to get rid of it and replace it with the real stuff, or it just ends up looking like I smeared peanut butter on it. :D

With the lighting thing, you'd be surprised at how much light a digital camera can eat up. I snap my pics right on my desk, with the normal room overhead, and two desk lamps with 60w bulbs about a foot off to each side. The trick for me is to diffuse the desk lamps with a sheet of lightweight copier paper taped up in front of the bulbs. Super high tech! Haha! My camera is far from the latest-greatest (coolpix 210), but if I give it enough light, it does pretty okay.

Edited by Gluhead

Share this post


Link to post
Share on other sites

Posted · Report post

Hi Johann, Very nice work so far!! The bed looks just right.

Randy

Share this post


Link to post
Share on other sites

Posted · Report post

Joe, Josh & Randy: Thanks.

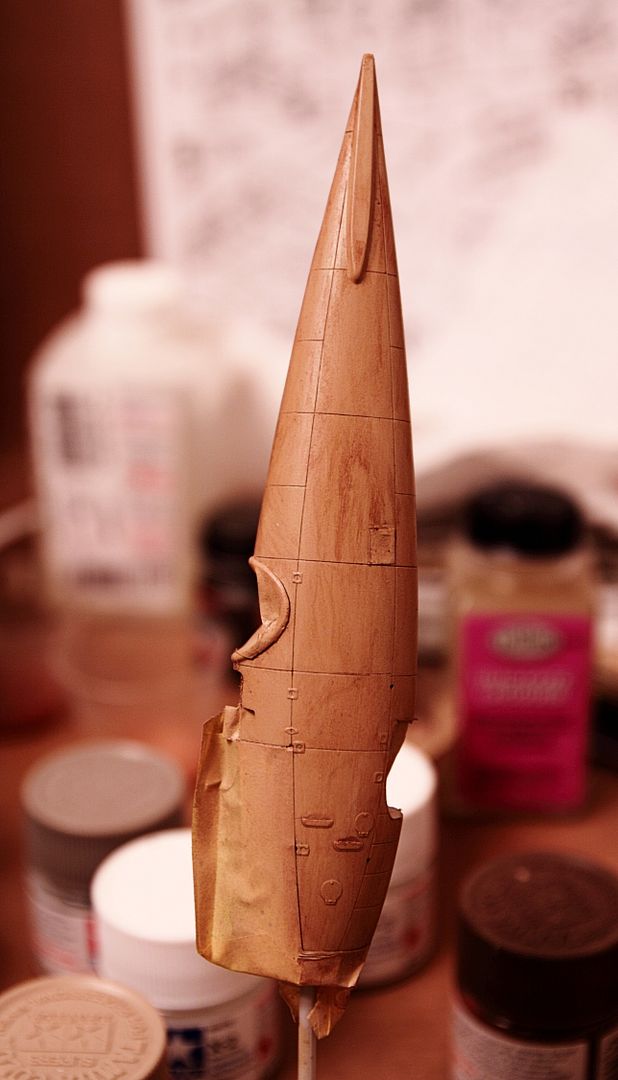

Gluhead: I have managed to paint some semi convincing woodgrain in the past:IMG_0956.jpg

But whenever possible, I prefer to use the real thing, as I've done here.


Share this post


Link to post
Share on other sites

Posted · Report post

Just a small update, as bench time has been minimal lately:

First, rear brake lines installed

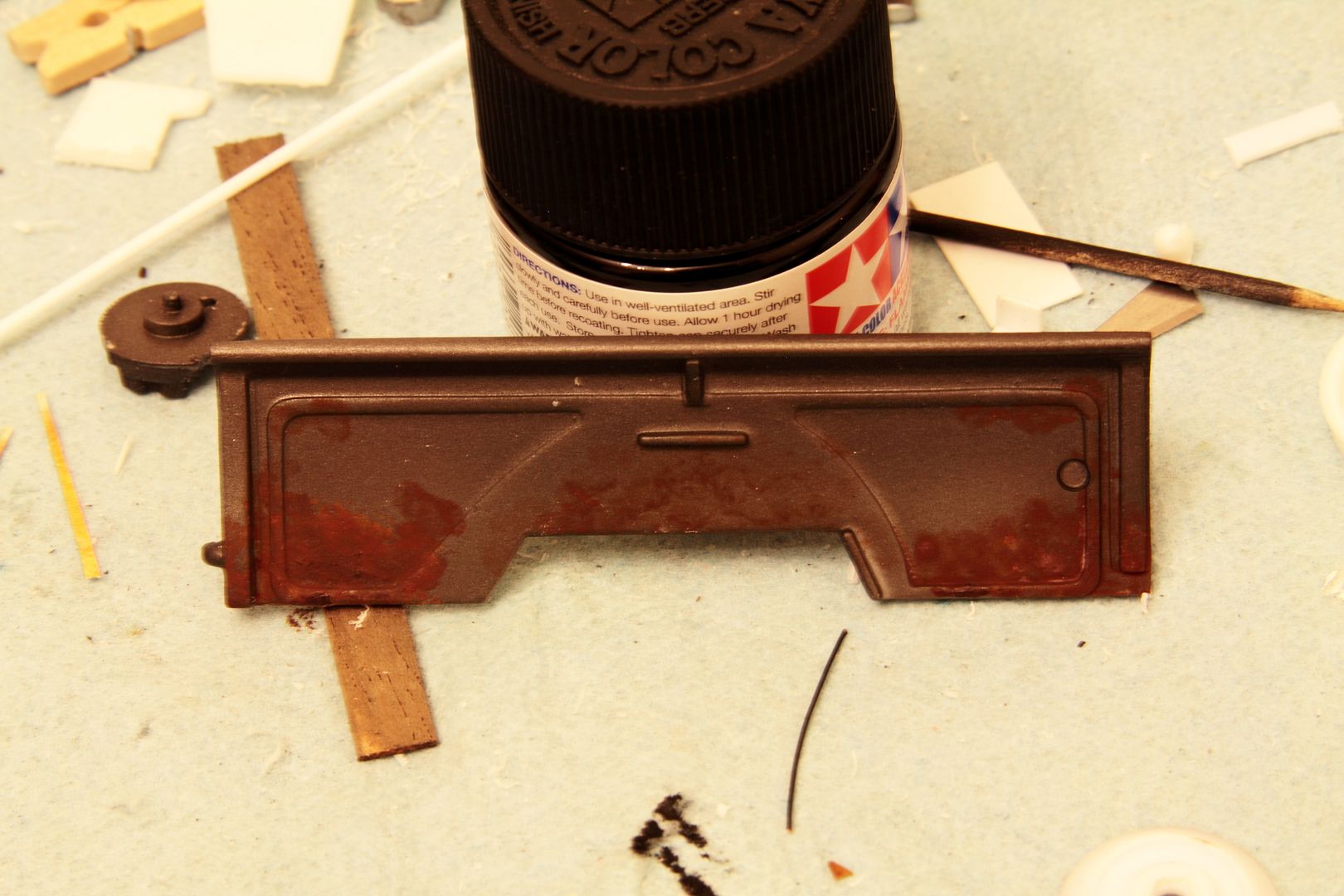

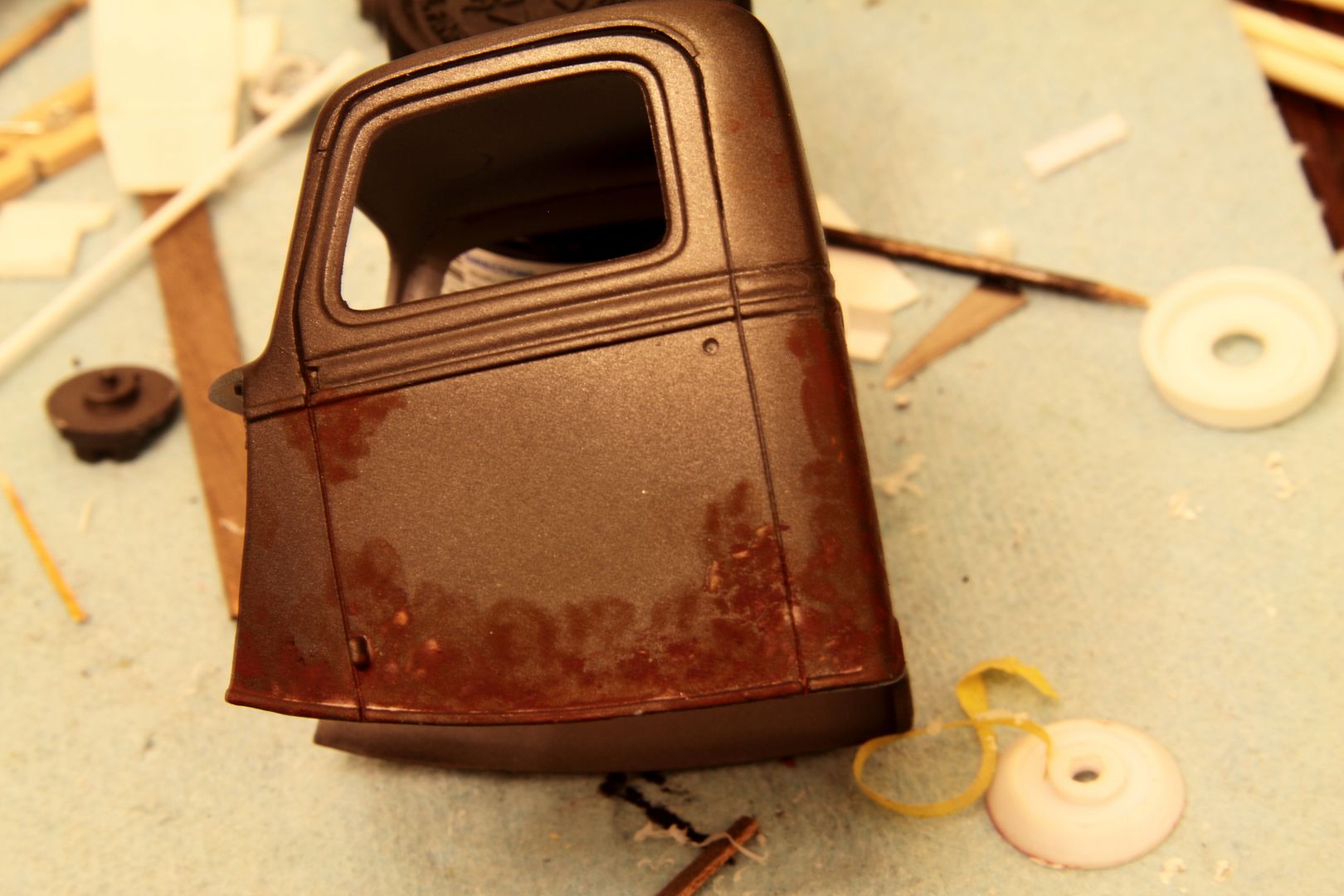

Next, a little demonstration of my multi-layered weathering technique.

After a coat of Allclad steel, I apply artists oils in various rust shades then seal it all with Tamiya flat clear.

Over this will be applied a coat of hairspray followed by an acrylic top coat, which I will chip away with a wet paint brush, exposing both rust and bare steel to represent fresh chips and scratches.



I hope to make more progress this week, since things are slowing down at work (O.T. is now limited to 8 hrs./week).

Feel free to critique, cajole, condemn, or just chime in.

Share this post


Link to post
Share on other sites

Posted · Report post

As promised, more progress.

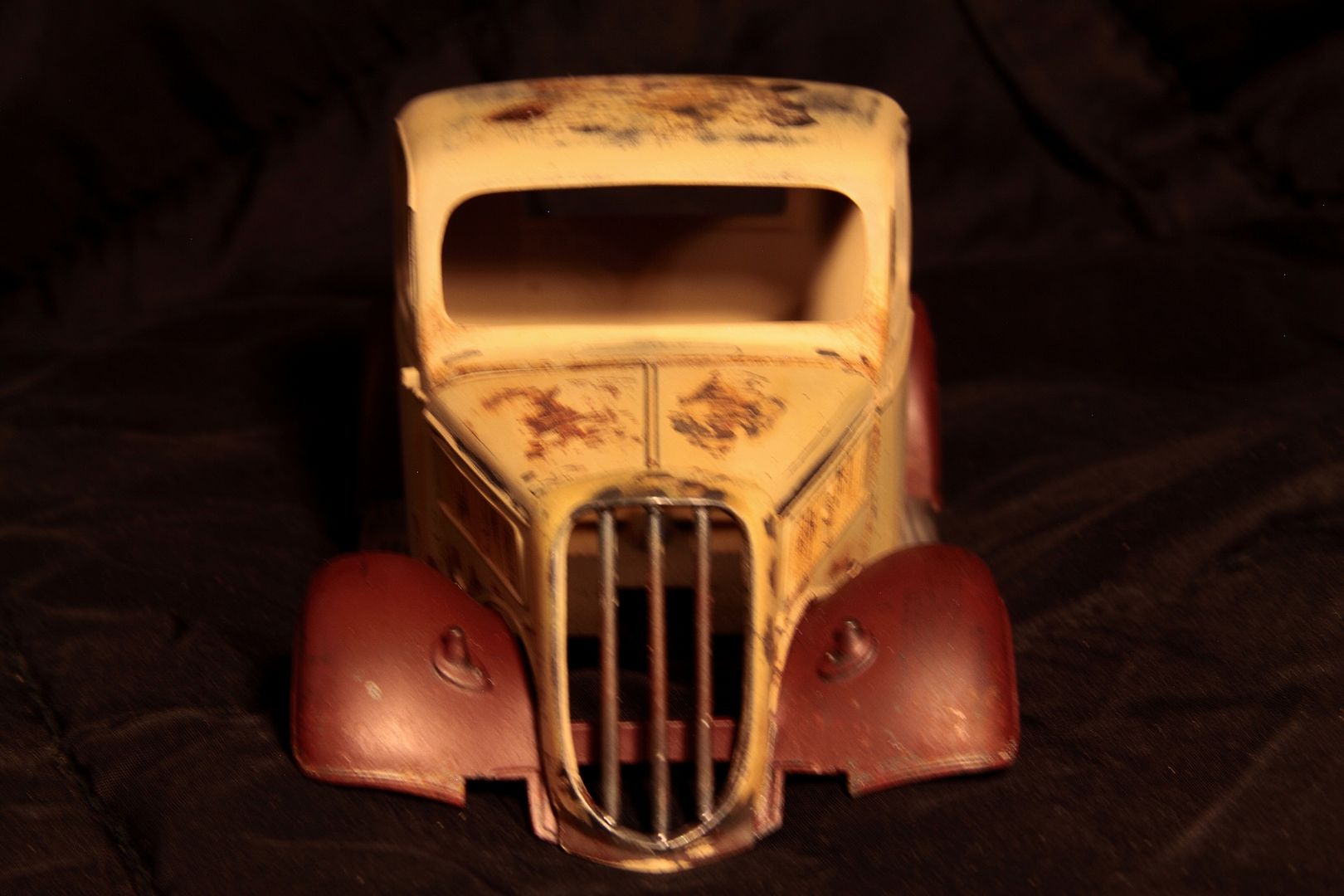

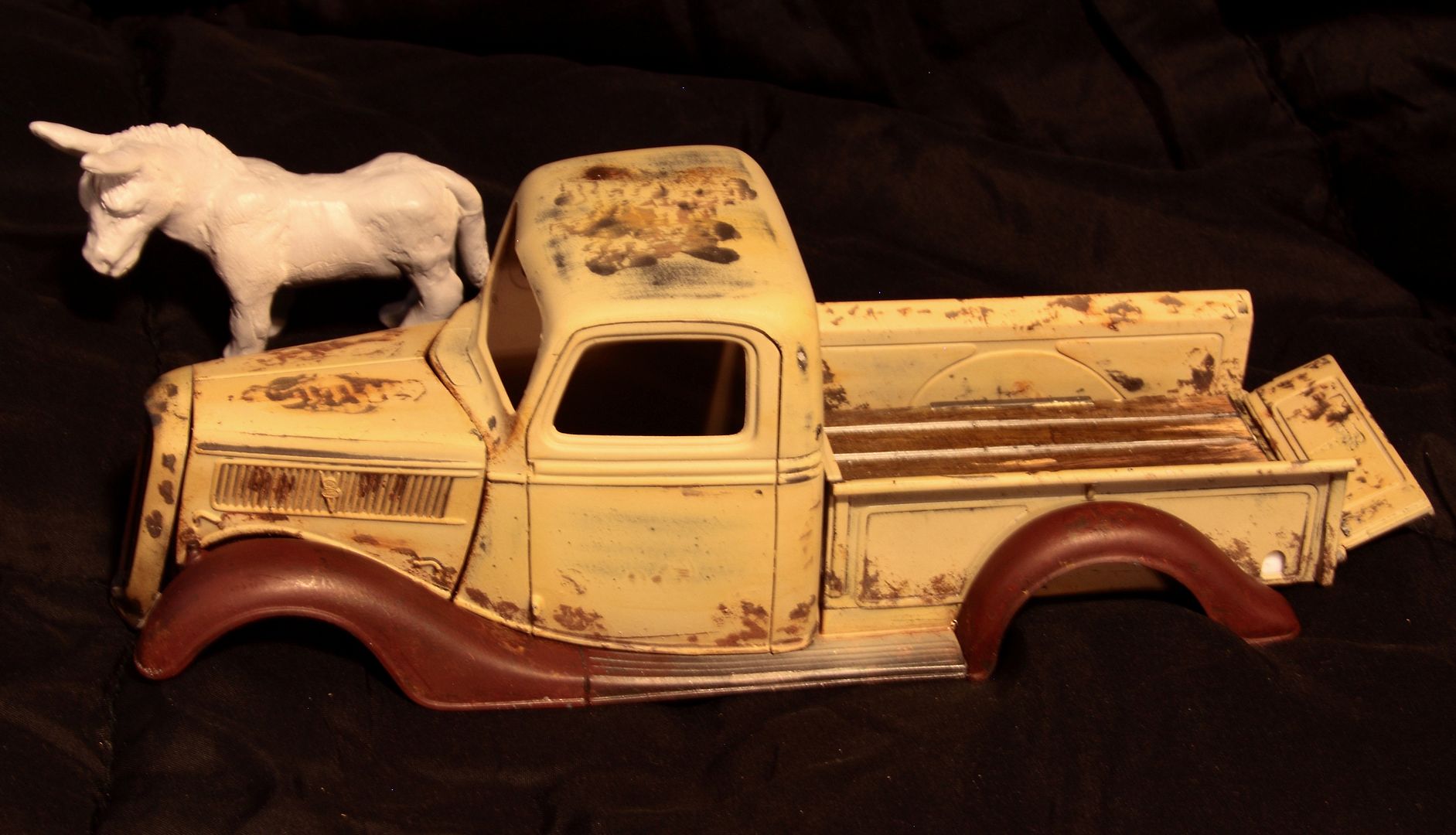

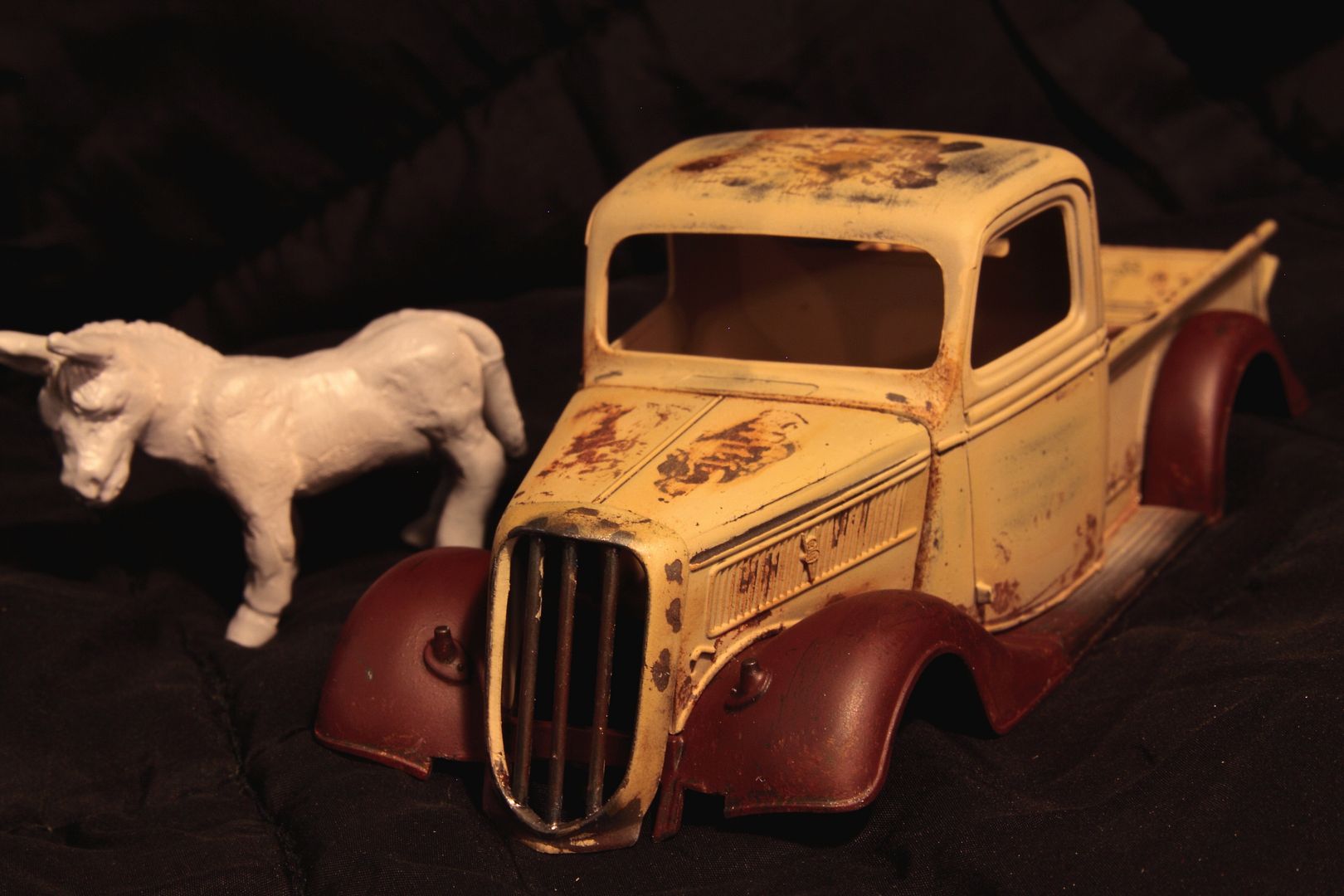

I got the body painted and WEATHERED. Actually, it's a little more weathered than I originally intended but I was having so much fun I got a little carried away :rolleyes: .

The first two shots include Roxanne the mule, which my daughter sculpted for me. I'm going to have fun painting her.





The cab, hood and grille are just set in place at this point.

By the way, I plagiarized the grille treatment from someone else on this forum, and I can't remember who originated it. If anybody can clue me in, I'd like to give credit where due.

I'm also thinking of adding some screen material either in front of, or behind the bars. What do you guys think?

Share this post


Link to post
Share on other sites

Posted · Report post

I'm also thinking of adding some screen material either in front of, or behind the bars. What do you guys think?

Yes please do. In my opinion this grill has a Max Max feel to it, not "weathered hot rod". Remember 1mm = 1 scale inch so those grill bars are as big as a tailpipe, which doesn't look in scale. Maybe down size to 1/16" rod and add a few more?

Share this post


Link to post
Share on other sites

Posted · Report post

Yes please do. In my opinion this grill has a Max Max feel to it, not "weathered hot rod". Remember 1mm = 1 scale inch so those grill bars are as big as a tailpipe, which doesn't look in scale. Maybe down size to 1/16" rod and add a few more?

I appreciate the feedback, Jantrix, but I think the poor quality of the photo is fooling your eye; Those are 1/16" rods :lol: . I agree with the "Mad Max" comparison, though. So I guess I'll be screening in the grill.

Thanks again.

Share this post


Link to post
Share on other sites

Posted · Report post

This one's back on the bench.

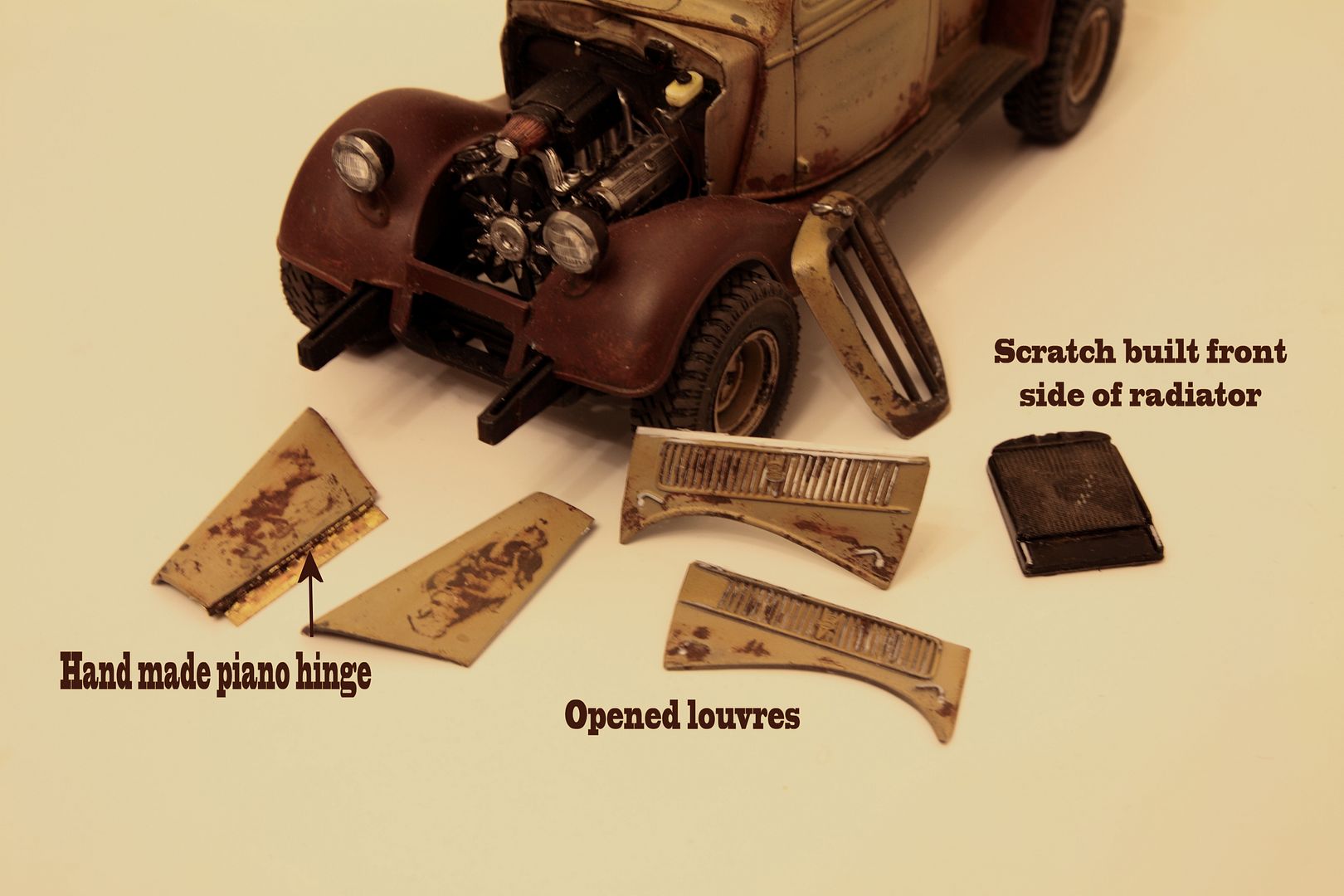

First, this is what's been holding me up: A scratch built piano hinge for the hood!

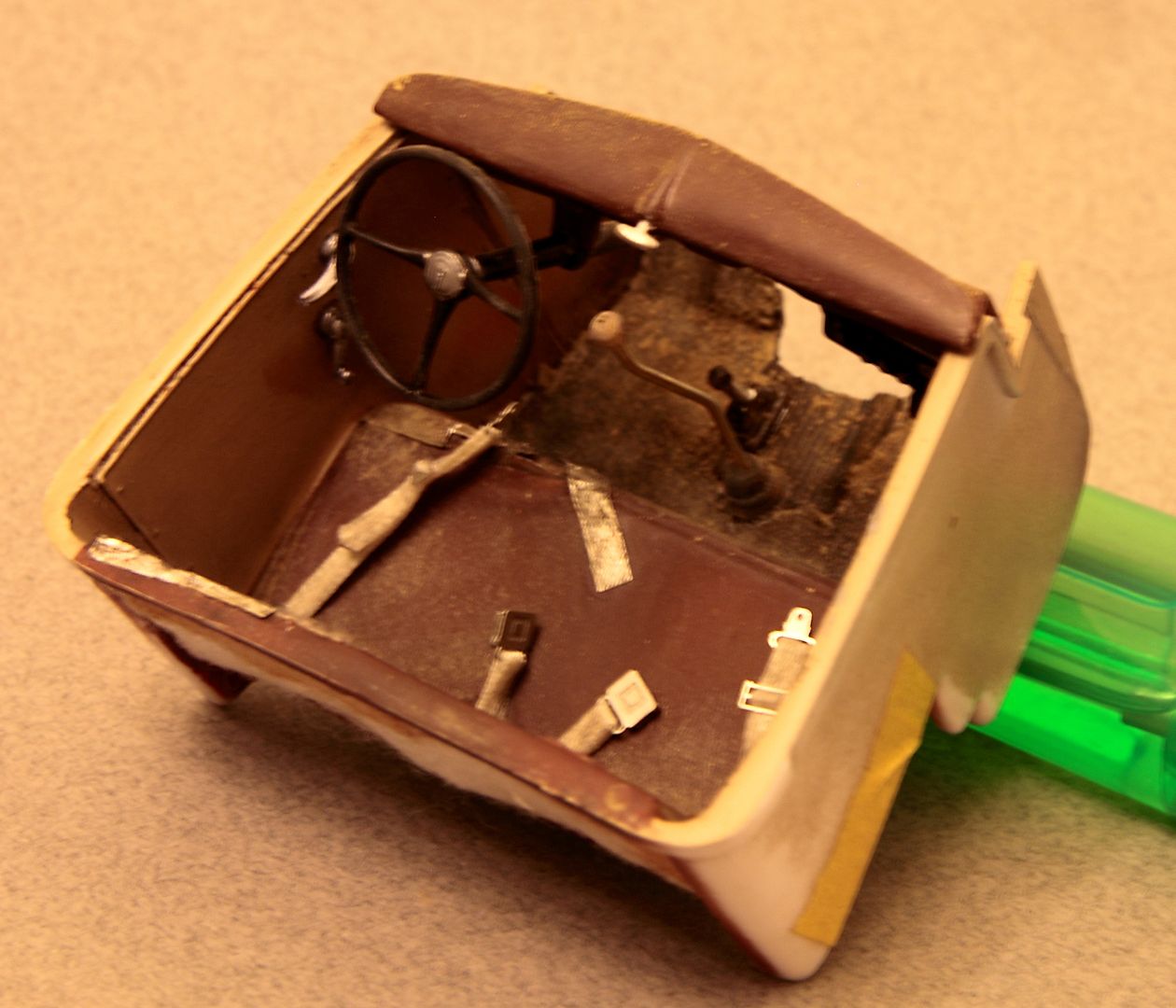

And a couple shots of the interior before it got buttoned up

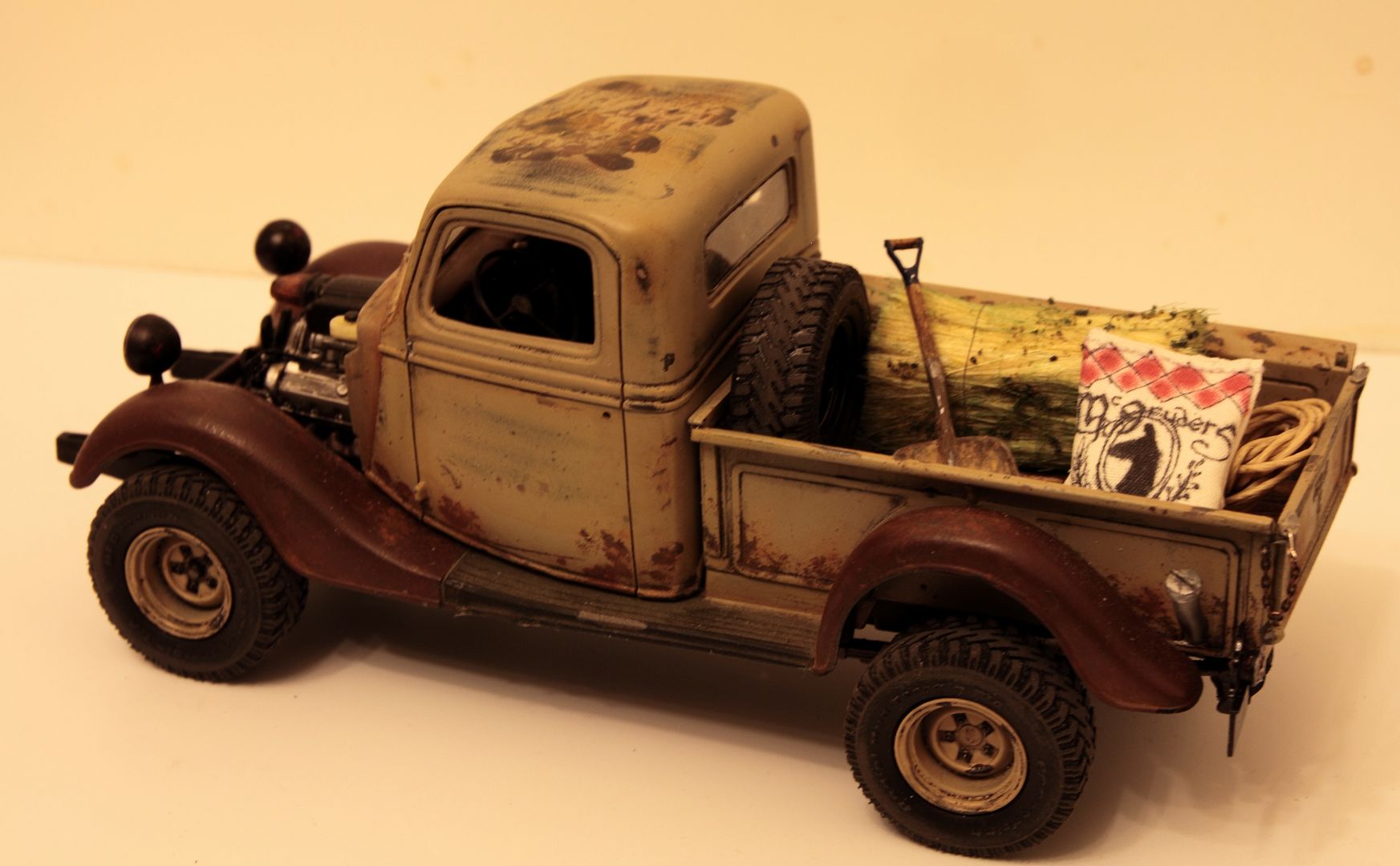

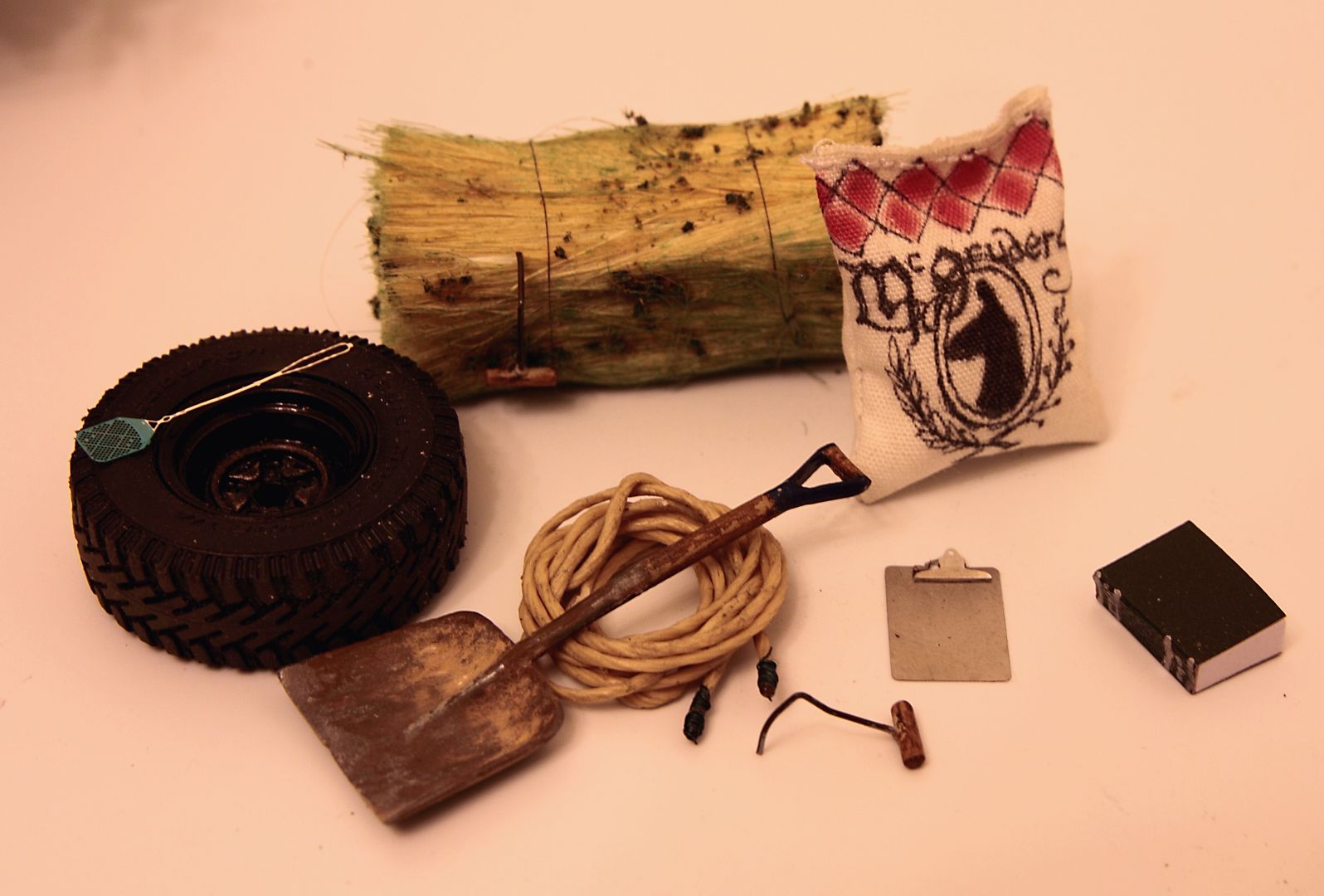

Here's the load out for the bed.
