Project: "Inferno" 49 Merc - *Update p17* 3/13/15

328 posts in this topic

Posted (edited) · Report post

What's one to do when they are in a jam with their other two builds.....start another of course. After seeing everyone building up some really cool mercs I thought I would finally take mine out of the box and give it a go.

I'm going with the Revell 49' Mercury Coupe, nothing to crazy, just simple clean mods, slammed, and a wild set of flames. Just your typical run of the mill hotrod.

I started by just laying down a couple sets of different sized flames to get an idea how I want it to look before I start the work.







Edited by JasonFL

Share this post


Link to post
Share on other sites

Posted · Report post

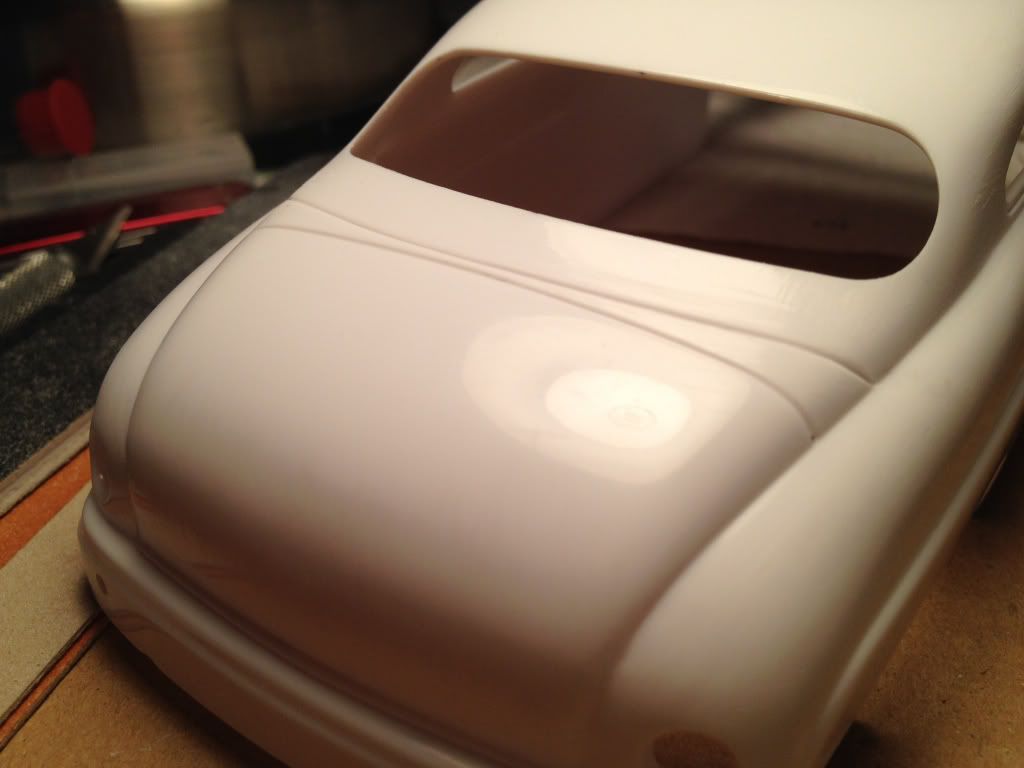

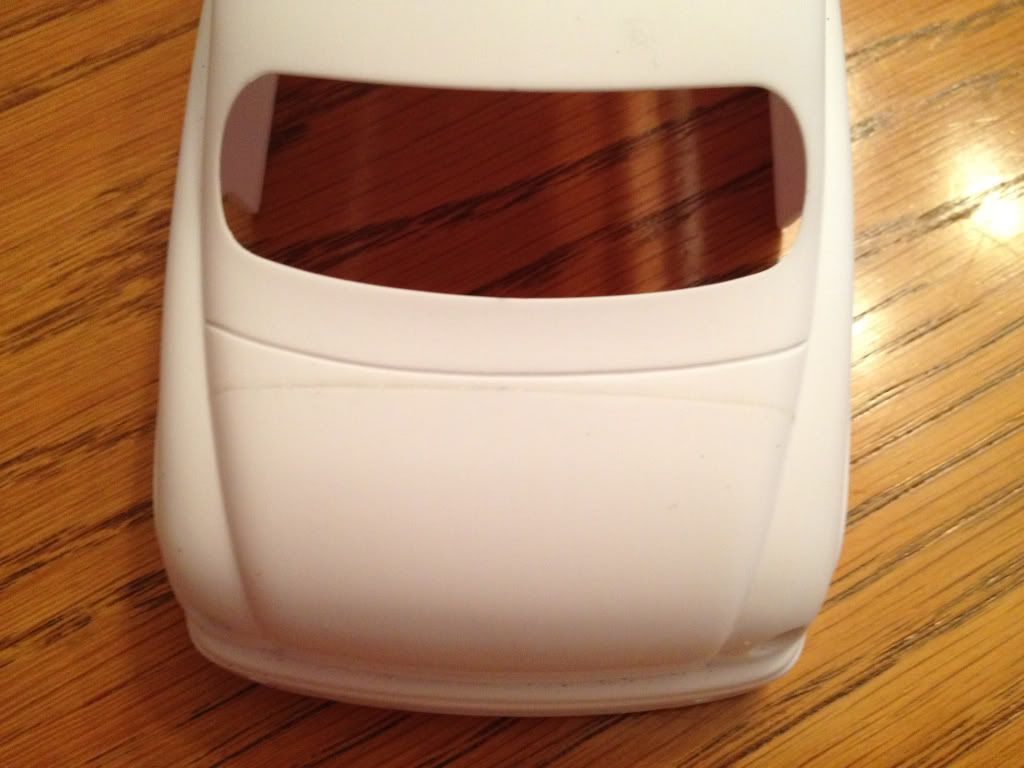

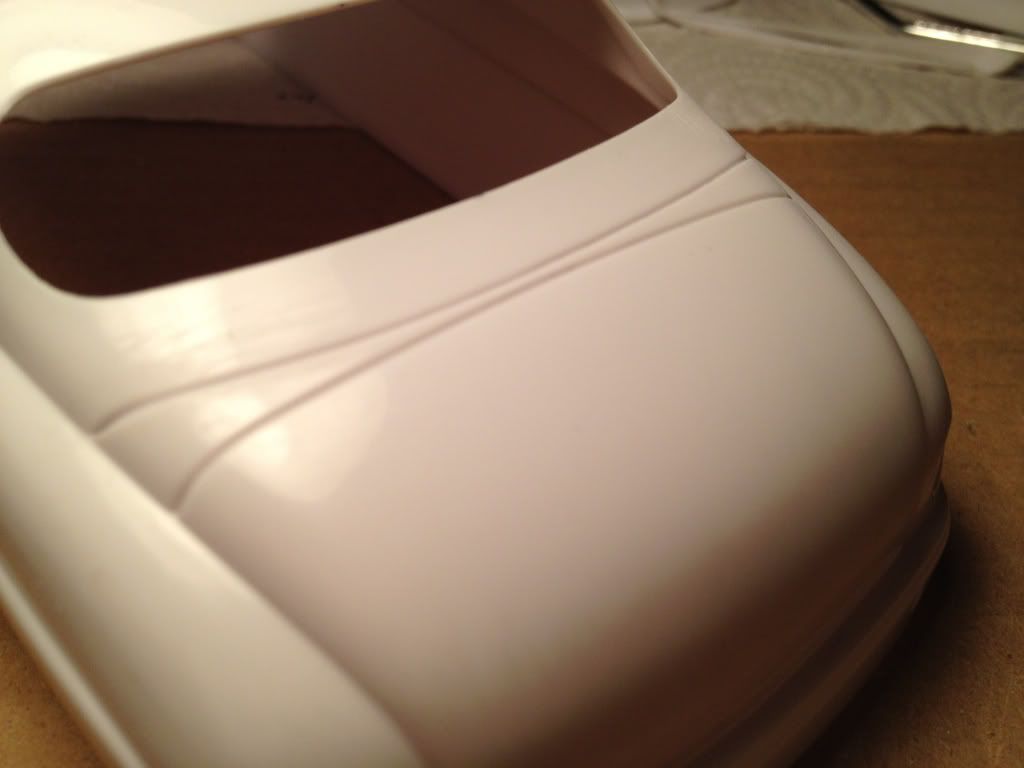

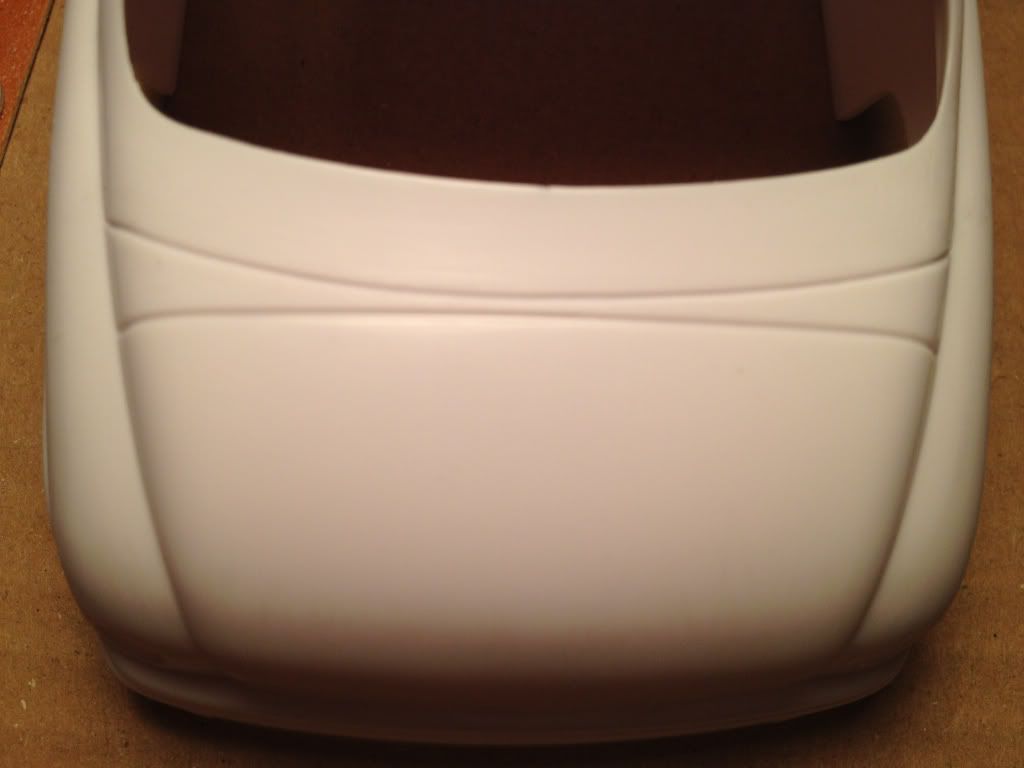

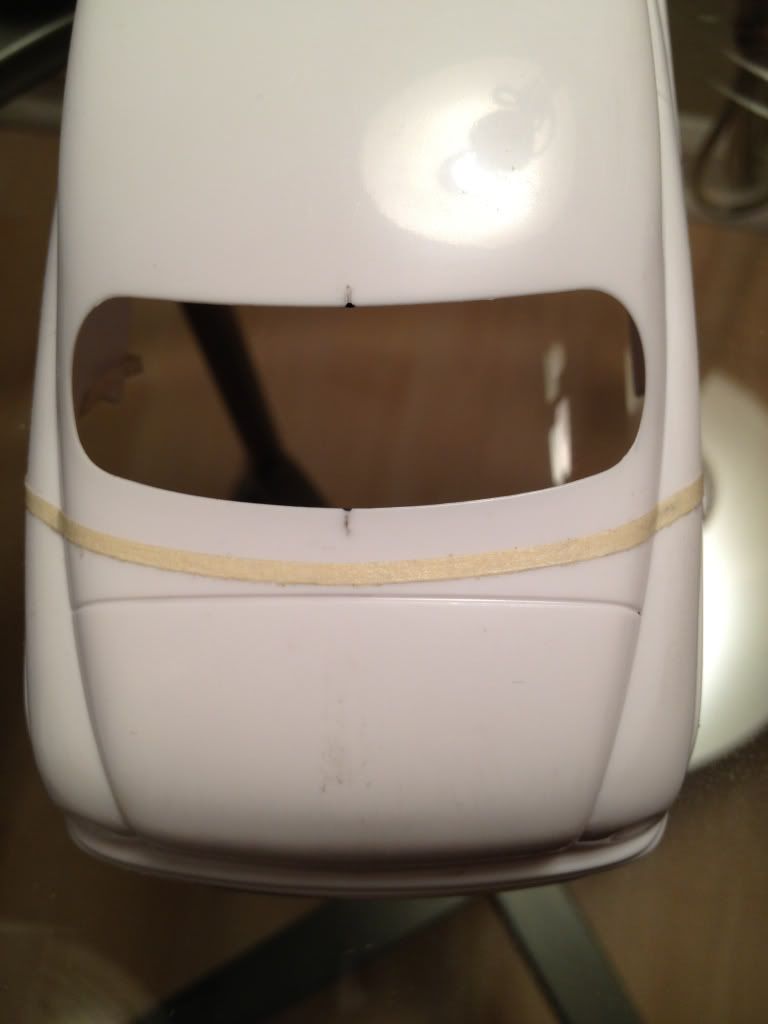

Some of the lines were really bothering me so I scribed in new trunk lines to match the rear window. Still unsure if I'll open it up or not.






Share this post


Link to post
Share on other sites

Posted (edited) · Report post

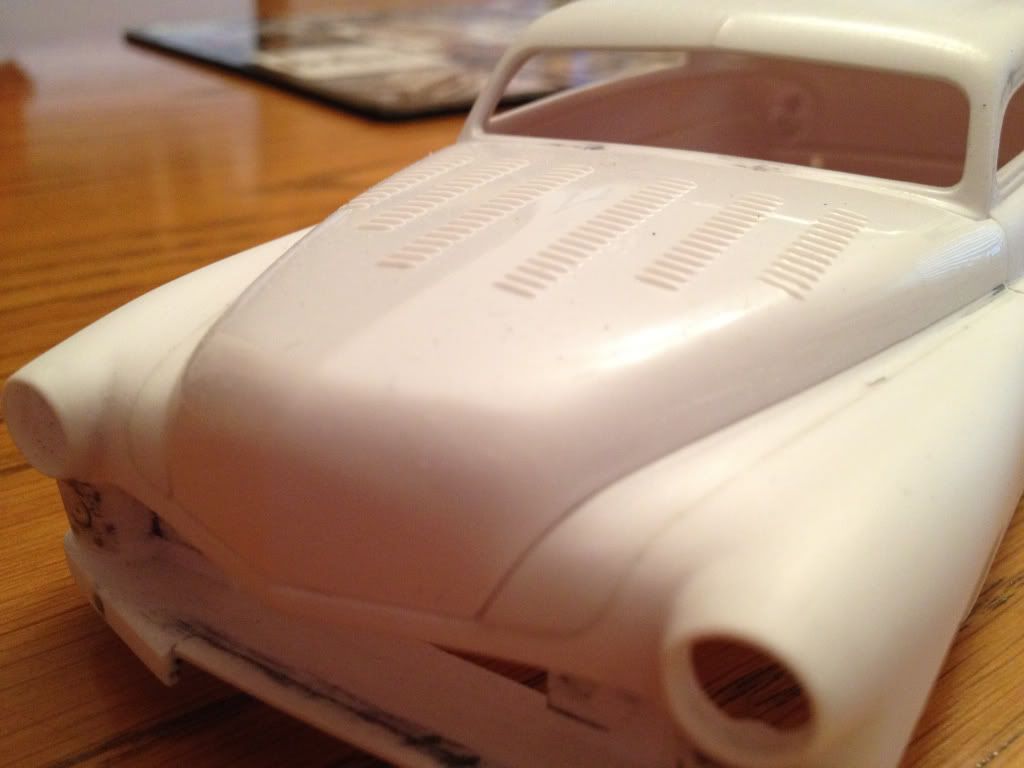

Then I moved to the hood lines. My plan was to use the all smooth hood but on my first attempt I cut the new lines downward instead of sideways which gave me huge ugly gapped lines so I had to go with the louvered hood. I guess its a good thing they give you a spare hood.

(If anyone knows how to shave the louvers off without leaving indents behind lmk, thanks)





I made the corners more straight edged to match the line of the trunk opening.

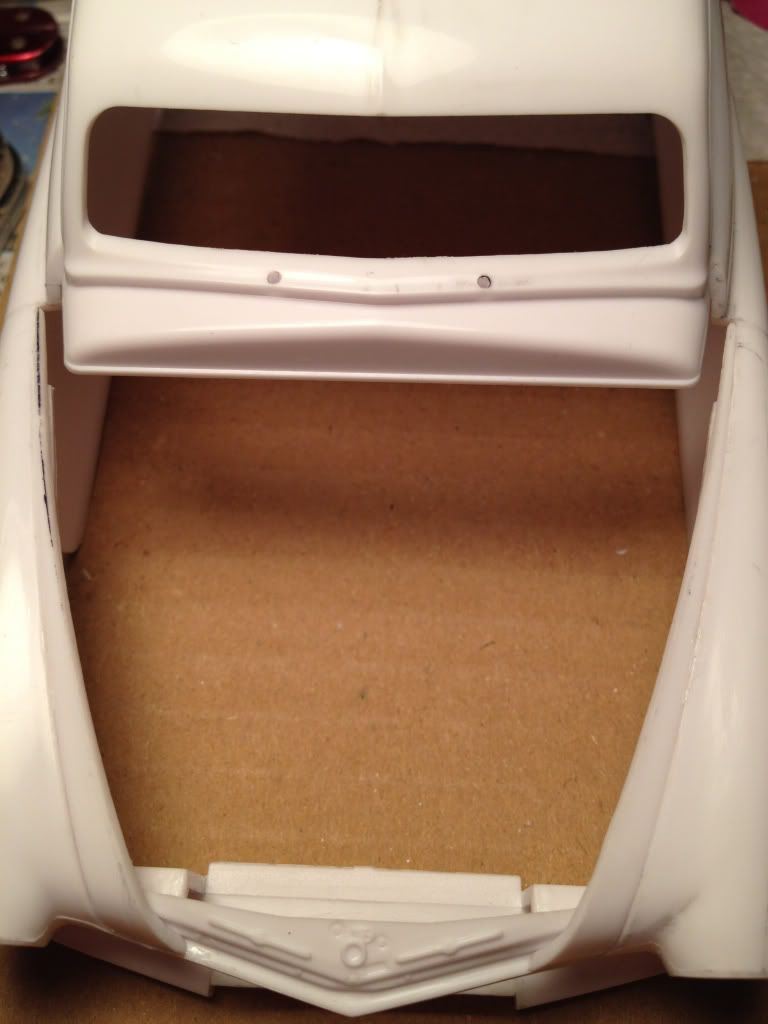

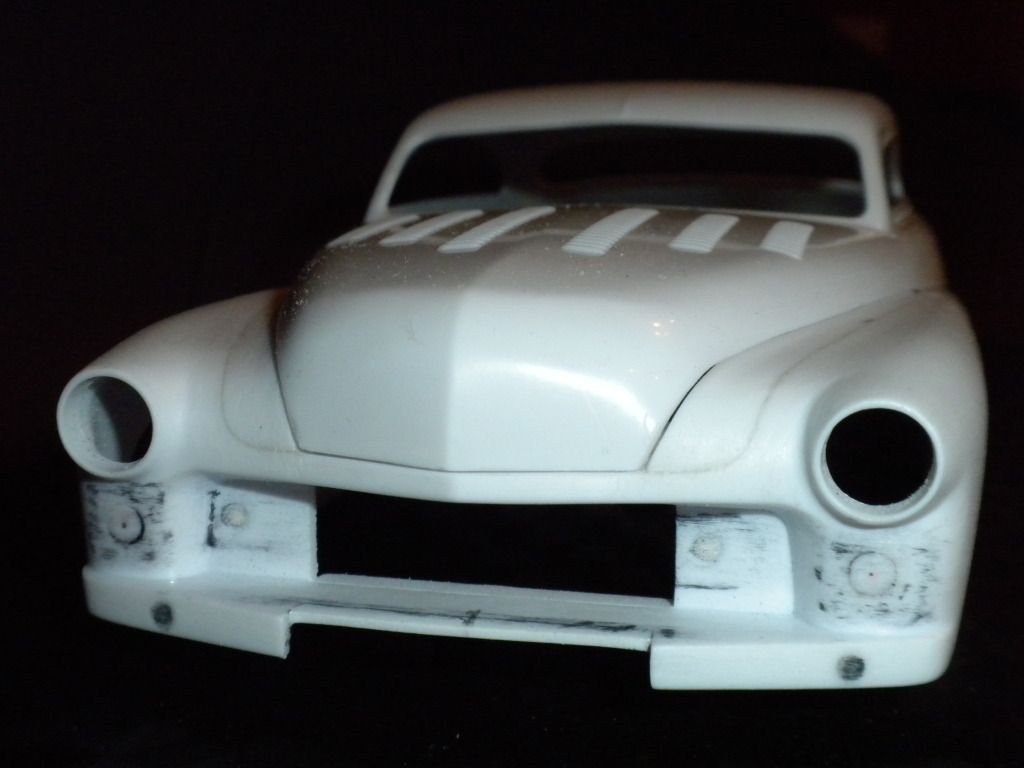

I also shaved the front marker light holes, bumper holes, and the middle grill holes. Then I had notched the front for the new bumper.


Edited by JasonFL

Share this post


Link to post
Share on other sites

Posted · Report post

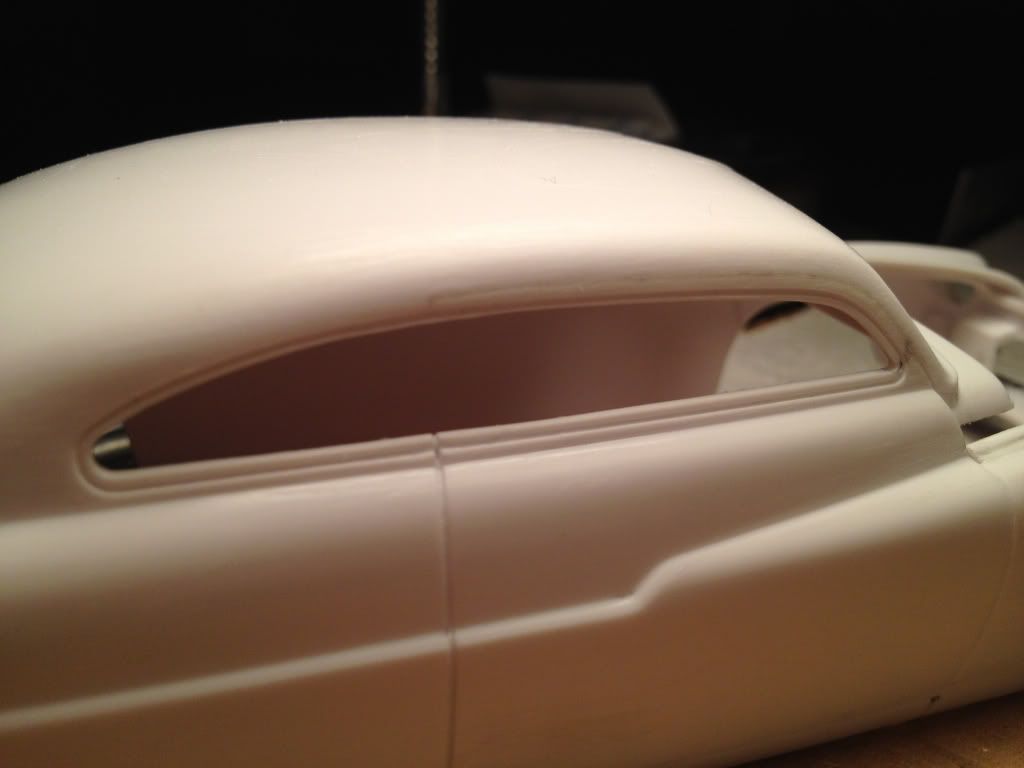

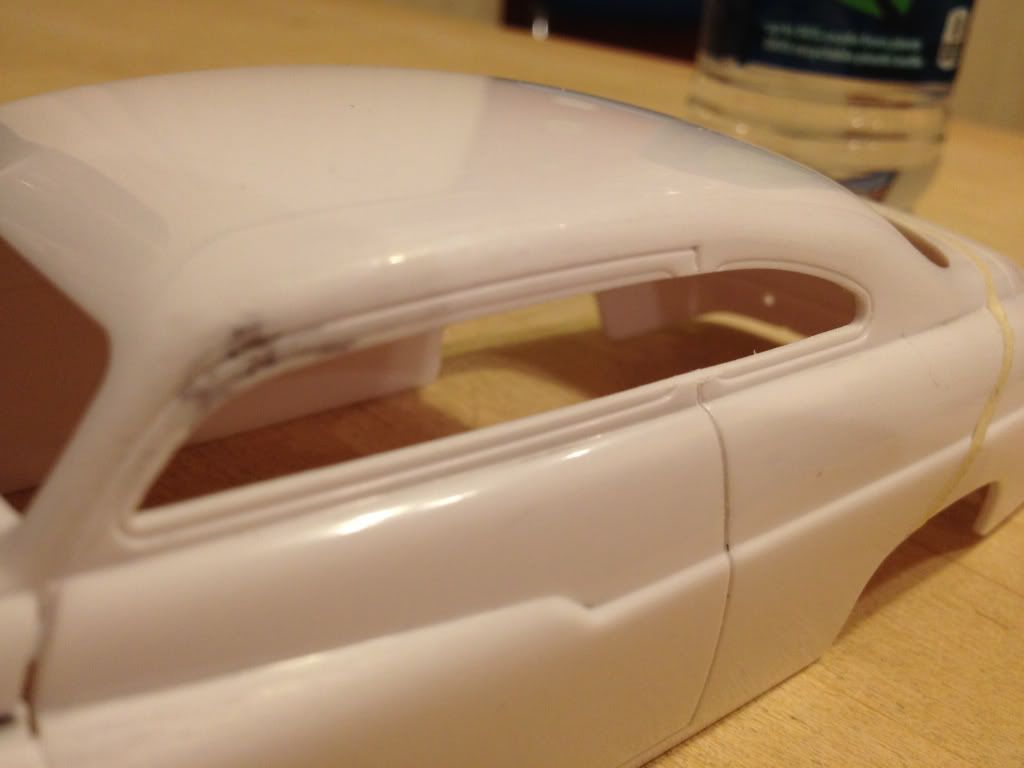

I cut the middle pillar out to give it a longer look.

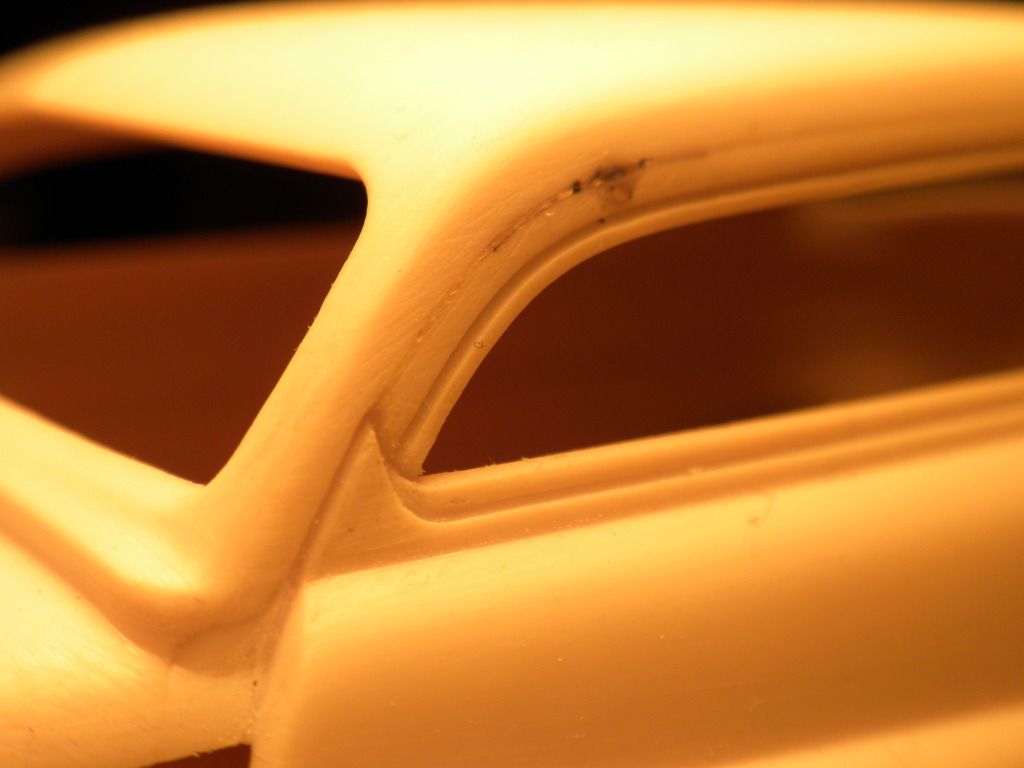

I like the lines around the window, so I scribed new ones to keep the flow, then I shaved the top of the old door lines and the hole for the mirror.



Had to continue the line so the door could open so this is what I came up with. I'm pretty happy with it. I might put the mirror here slopping down.

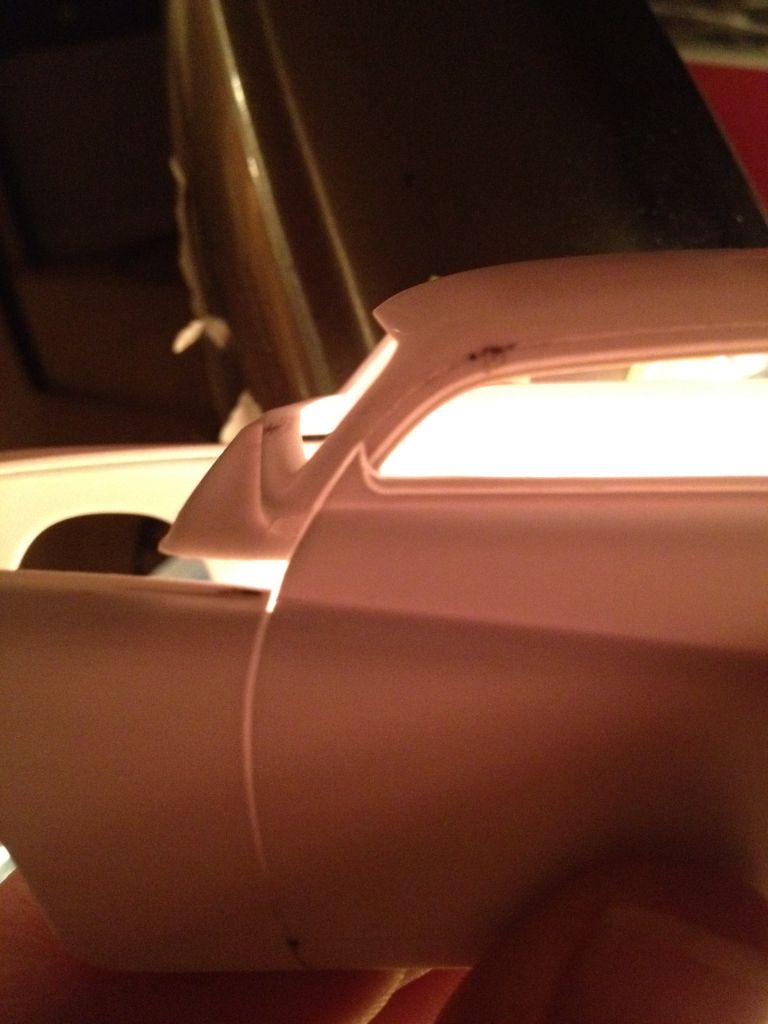

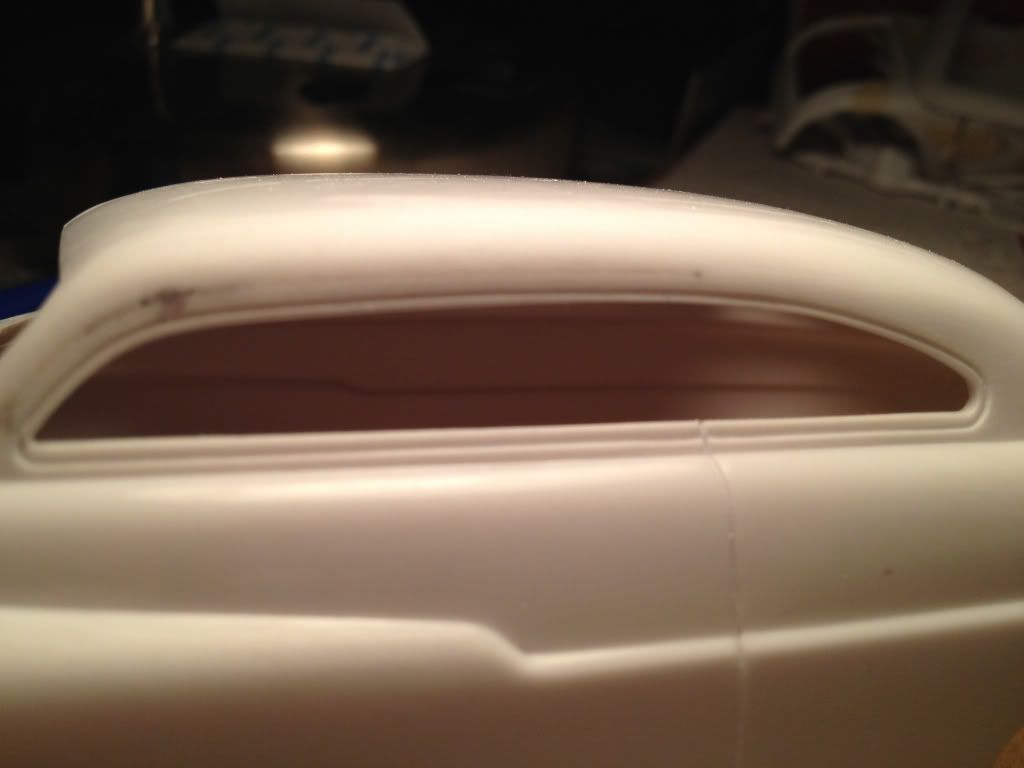

I use the lamp sometimes to help me scribe, thought this was a cool shot. Gives you more of an idea what it looks like.


Share this post


Link to post
Share on other sites

Posted · Report post

Lookin good. Can't wait to see more. Those flames look great too. Keep it comong

Share this post


Link to post
Share on other sites

Posted · Report post

Nice start.

Share this post


Link to post
Share on other sites

Posted · Report post

Excellent work, keep it going.

Share this post


Link to post
Share on other sites

Posted · Report post

Nice work so far, looking forward to seeing more. You're good at rescribing lines, I tend to jump out of the groove at the worst times. I like the flame job you're plotting out. What colors were you thinking of using?

Share this post


Link to post
Share on other sites

Posted · Report post

Your scribing skills are impressive. What tool do you use for it?

Share this post


Link to post
Share on other sites

Posted · Report post

Looks most excellent.

Share this post


Link to post
Share on other sites

Posted · Report post

Looking good, Jason! lt's all flowing together nicely. GREAT job on re-scribing the body lines. l think l understand your last e-mail now. Lotsa great minds here! Carry on! Bart.

Looking good, Jason! lt's all flowing together nicely. GREAT job on re-scribing the body lines. l think l understand your last e-mail now. Lotsa great minds here! Carry on! Bart.

Share this post


Link to post
Share on other sites

Posted · Report post

Wow...the rescribed trunk is a "why didn't I think of that" forehead slapper.

So simple yet subtle..great improvement and it just ...connects with the curve

of the Merc. Keep up the good work and don't get overwhelmed with too many

projects. The hood work ...ROCKS !

Share this post


Link to post
Share on other sites

Posted · Report post

Very nice work so far! I dig those wild flames, it reminds me of something Watson might do.

Share this post


Link to post
Share on other sites

Posted · Report post

Man, that is some beautiful work you've got going on there so far. I'm dyin' to see those flames in color.......

As far as getting the louvers off withoug leaving indents, I use a small flat-file, followed by 180 grit and then 600 grit paper (either free-cut paper used dry or preferably wet-or-dry paper used wet) wrapped around a very flat sanding stick. Finger-nail emery boards will work too. Just watch out for the peak in the hood. I'll usually run a line of masking tape down the crease on the side I'm not sanding on to protect it. And go s l o w.

Share this post


Link to post
Share on other sites

Posted · Report post

Lookin good. Can't wait to see more. Those flames look great too. Keep it comong

Thanks Joe.

Nice start.

Thanks Chris.

Share this post


Link to post
Share on other sites

Posted · Report post

Excellent work, keep it going.

Thanks Doc. I figured with all the inspirational mercs you build I'd better at least give it a shot. I will admit it has been a lot of fun so far.

Share this post


Link to post
Share on other sites

Posted · Report post

Nice work so far, looking forward to seeing more. You're good at rescribing lines, I tend to jump out of the groove at the worst times. I like the flame job you're plotting out. What colors were you thinking of using?

Thanks Tom. I've jumped the lines here and there but I find if you put a piece of tape down and do your first few lines REALLY slow it's well worth it. It's teaching me a lot about patients...lol.

Do to funds I only have two colors, flat black and lime ice. Im going to do something a little different and do the body lime ice and the flames flat black. Not sure what color pin stripe, maybe orange.

Your scribing skills are impressive. What tool do you use for it?

Thanks Rob, appreciate it. I just use the back of my exacto knife, I'm not even sure what size I use.(everyone on the forum seem to all suggest a #11 blade) I just start with the thinnest blade and go thicker if I need to. Then I just hit the edges with some sandpaper when I'm finished to dull them down a little.

Share this post


Link to post
Share on other sites

Posted · Report post

Looks most excellent.

Thanks Jim.

Looking good, Jason! lt's all flowing together nicely. GREAT job on re-scribing the body lines. l think l understand your last e-mail now. Lotsa great minds here! Carry on! Bart.

Thanks Bart I appreciate the compliments. I figured I'd stop jamming your email up with photos and share with everyone..haha. Which one of the 20 emails are you referring to? I'm guessing the one about the clearence issue.

Share this post


Link to post
Share on other sites

Posted · Report post

Wow...the rescribed trunk is a "why didn't I think of that" forehead slapper.

So simple yet subtle..great improvement and it just ...connects with the curve

of the Merc. Keep up the good work and don't get overwhelmed with too many

projects. The hood work ...ROCKS !

Thanks James. I was thinking the same thing about the trunk line, I was shocked when I couldn't find one person who changed it. Same with the hood lines, I made the corners more straight edged to match the line of the trunk opening.

I'm trying to make this the "simple" build as to not get overwhelmed. So far so good, thanks again.

Very nice work so far! I dig those wild flames, it reminds me of something Watson might do.

Wow! Thanks Glenn. That is one heck of a compliment, I'm glad you like them so far. Hopefully they come out that good with paint.

Share this post


Link to post
Share on other sites

Posted · Report post

Man, that is some beautiful work you've got going on there so far. I'm dyin' to see those flames in color.......

As far as getting the louvers off withoug leaving indents, I use a small flat-file, followed by 180 grit and then 600 grit paper (either free-cut paper used dry or preferably wet-or-dry paper used wet) wrapped around a very flat sanding stick. Finger-nail emery boards will work too. Just watch out for the peak in the hood. I'll usually run a line of masking tape down the crease on the side I'm not sanding on to protect it. And go s l o w.

Thanks Will. It will be a while until I can get the flames in color, I need to get me some sealer and clear.

Thanks again for coming to the rescue with some knowledge. I talk to Bart (Bartster) a lot through email and he was telling me the same thing. I was hoping there would be another way. I'll just have to leave them until I get some supplies.

Share this post


Link to post
Share on other sites

Posted · Report post

Wanted to keep the chrome look so I had to carefully cut the bumpers and mod them up.

Here's the bumper and the exhaust opening I found off a chrome tree



I took the rear bumper, cut it in half, shortened them up, brought them a little closer to the body, and then dropped them down just a hair or two.

Then I sanded the sides of the chrome cones down and I'm able to hide it behind the bumpers so it all looks connected.

Here it is all together kinda just sitting there but you get the idea. A little more tightening up and it should be there.




Any opinions on weather I should move the tailpipes out further and make room for a license plate?

Share this post


Link to post
Share on other sites

Posted · Report post

Awsume work so far...

Share this post


Link to post
Share on other sites

Posted · Report post

Love the exhaust, and I vote no on a plate.

Share this post


Link to post
Share on other sites

Posted · Report post

l see a custom to this extent as a trailer queen, which means you don't need plates. But if you DO wanna drive it you could use magnets & stick it anywhere on the back~

Share this post


Link to post
Share on other sites

Posted · Report post

WOW,that things looking GREAT!!! :D

Share this post
