'64 Dodge 330 Hot Rod.

34 posts in this topic

Posted · Report post

Yep, you read the title right, it sounds odd. :blink: Maybe the builder is bit odd too, but yes, I'm building a Hot Rod from '64 Dodge 330 Glue Bomb. I'm not sure will this be shiny, nicely finished HotRod or satin colored "Rat Rod"... We'll see. The inspiration for this build is this '66 Nova Roadster by Chuck Most: http://www.modelcarsmag.com/forums/index.php?showtopic=57970&st=0

I started working today. I'm building this while parts are drying for other builds, so I guess it's not gonna be finished in week or two. :lol: But it's not going to take forever. Honestly, I've been planning to build something like this for a while, but today I decided to test my new Razor Saw. It worked nicely. Here are some pictures.

The project Basis was this Glue Bomb.

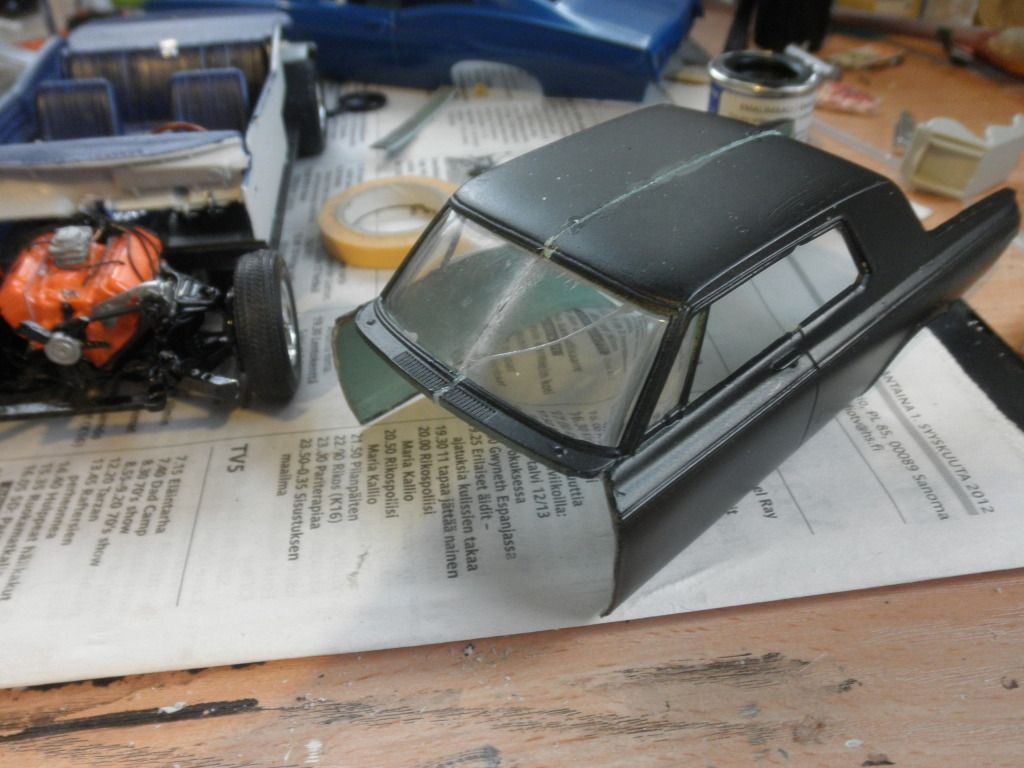

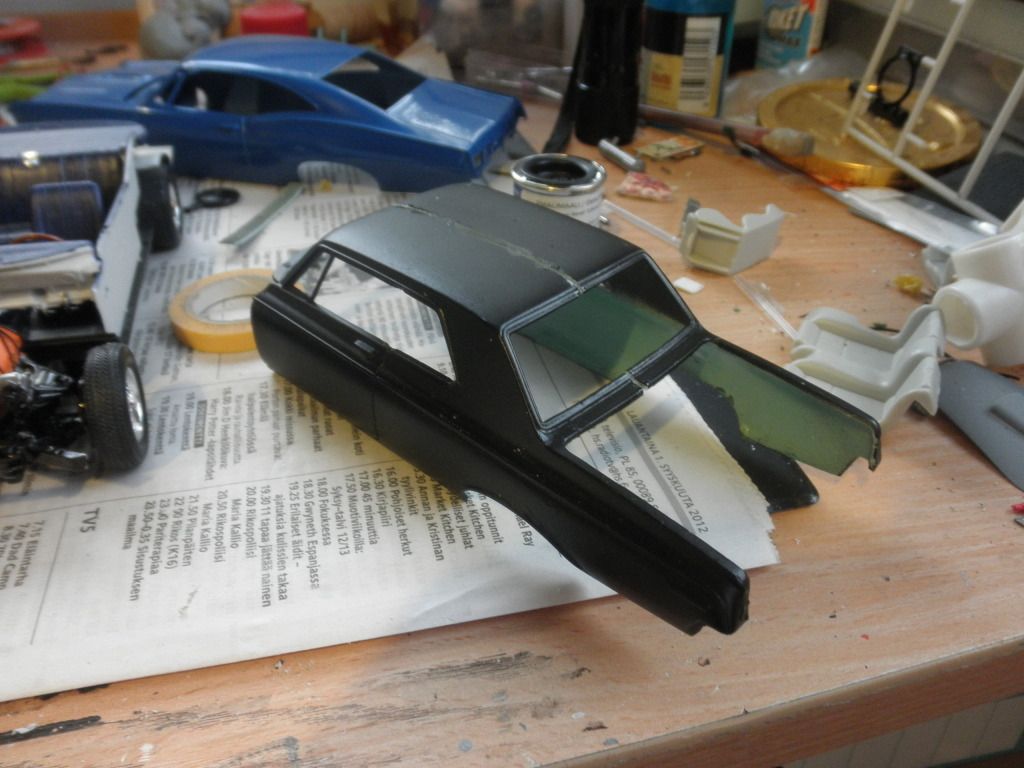

Well, of course the body was too wide, so..... ;):P Here is the top sawed.


More sawing:


Share this post


Link to post
Share on other sites

Posted · Report post

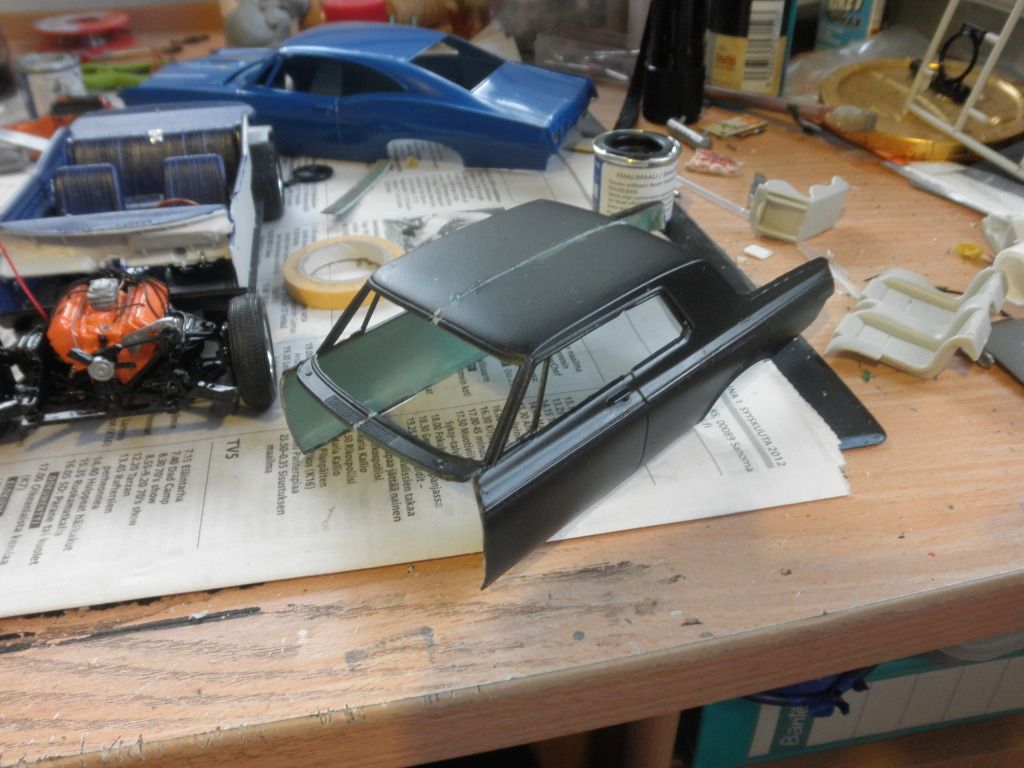

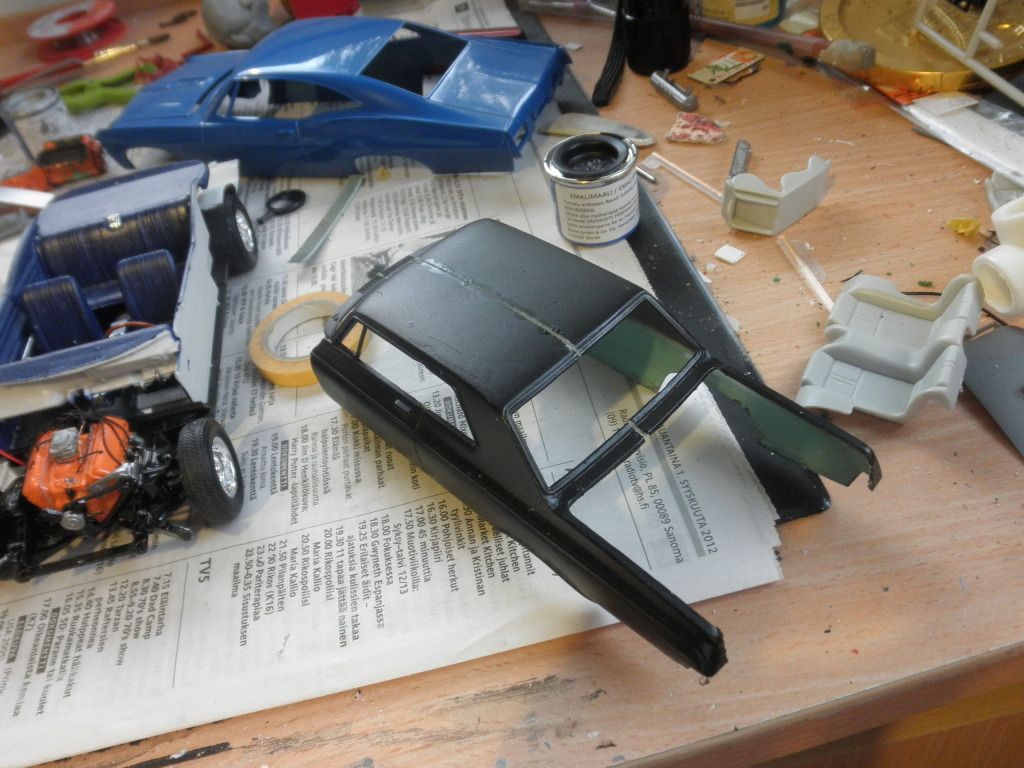

Then I glued the body halves together. Now some styrene and bondo, then it'll look better. I'm planning to fill the rear wheel openings from the body, move rear axle forward and shorten this body from rear side of rear axle.




And then I started making the windshield. It's not the easiest thing to do winshield for this, because nowhere will probably be correct glass, and it's inpossible to make one from actetate. So I took the kit's windshield which had seen better days, but that's not so important, since I will make it smooth now, after narrowing and then I will heat form new windshield from acetate.


Share this post


Link to post
Share on other sites

Posted · Report post

at first i going to see the tv movie''hotrod one that he wracked in first part of that movie.that was a dodge 330 had a hemi in it.

Share this post


Link to post
Share on other sites

Posted · Report post

Well this should be interesting :D

Looking at that body has me keen to crack open my 330. So many projects....... :P

Share this post


Link to post
Share on other sites

Posted · Report post

this will really be interesting! these are one of my favorite cars. going to be interesting to see the progress.

Share this post


Link to post
Share on other sites

Posted · Report post

very cool project! lookin great.........

cheers

bryan

Share this post


Link to post
Share on other sites

Posted · Report post

Thanks for the kind words guys!

This is really going to be something different, I'm planning right now what to do with the grille. Somehow I'd like use parts from the original one, or then just scratchbuild somekind of grille... :rolleyes: We'll see.

Yesterday I added some styrene for the seam on the top. I'm planning to do some sanding today to get it smoother, and then I will continue with other modifications.

Share this post


Link to post
Share on other sites

Posted · Report post

cool! looking forward to seeing more of this.......

cheers

bryan

Share this post


Link to post
Share on other sites

Posted · Report post

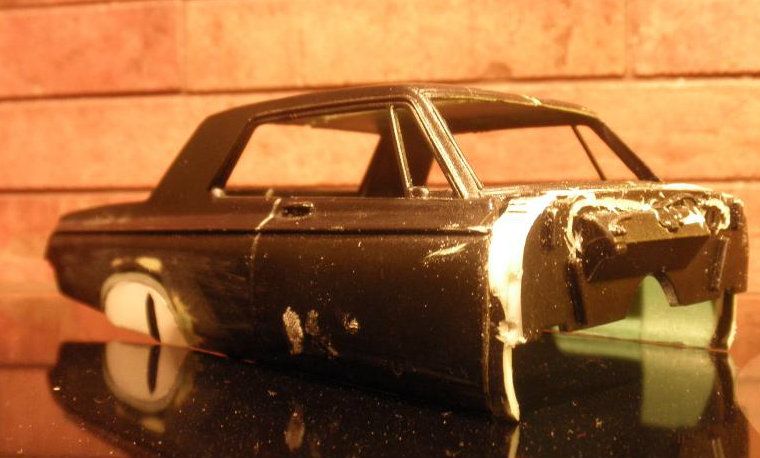

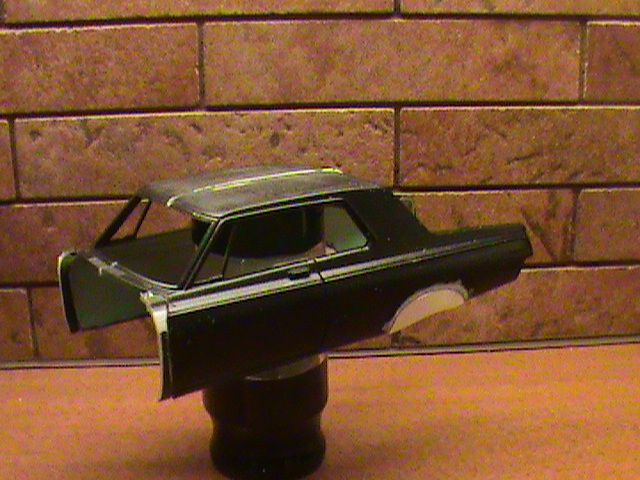

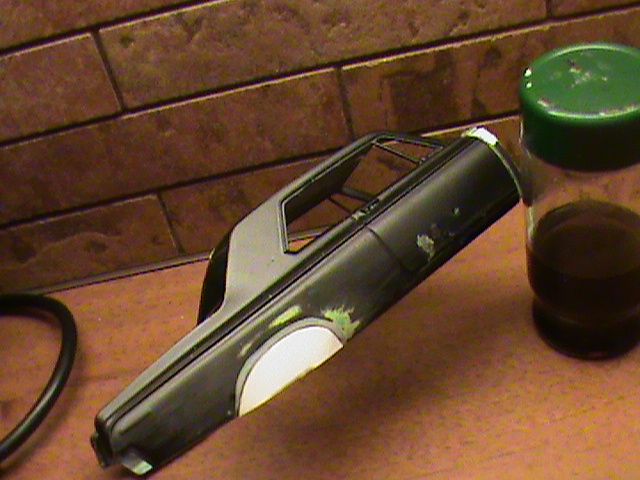

Here we go again, little more work done. I removed rear wheel openings from the body using styrene. I've also started building the firewall-area, but more on that later when I get some more done.

My camera is broken, and these pics are taken with my video camera, which don't take as good "still pictures" as normal camera does.



Share this post


Link to post
Share on other sites

Posted · Report post

Hey bud, it looks good, but in the old days a lot of altereds cut the fender well area out in a square shape. Then they cut the same section out of an area in front of the wheel well and moved it forward. Not telling you how to build it, just telling you how they did it. Keep up the goog work though. It is looking sharp.

Share this post


Link to post
Share on other sites

Posted (edited) · Report post

Thanks, TJ!

I love Altered WheelBase Cars (That's why I put together Gasser & AWB Community Build on this forum :P ). And I'm going to move the rear axle a bit forward, but my car will not have rear wheel openings on the body, the rear tires will be outside the bodyline, just like in "real" Hot Rod. :lol: This will not be Traditional HotRod or any other building style vehicle. :D

I just want to say that all opinions and ideas etc. are appreciated, and very welcome! If you have some thoughts or if you can see that I'm doing something wrong here, just let me know, all opinions are appreciated and welcome.

More coming soon...

Edited by W-409

Share this post


Link to post
Share on other sites

Posted · Report post

I shall be watching this to see how you go with it , I have a similar project using a 69 Charger I started a while ago but i kinda lost my way with it , it now sits in a box gathering dust .

Share this post


Link to post
Share on other sites

Posted · Report post

Looks like it's gonna be pretty cool Niko.

Corey

Share this post


Link to post
Share on other sites

Posted · Report post

Hi Niko, Good to see an update! Now just keep going :) :)

Randy

Share this post


Link to post
Share on other sites

Posted · Report post

Thanx Simon, Corey and Randy!

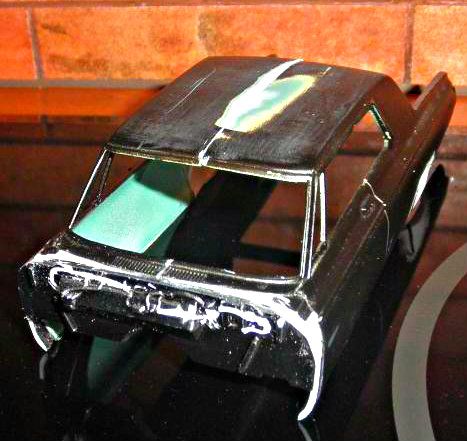

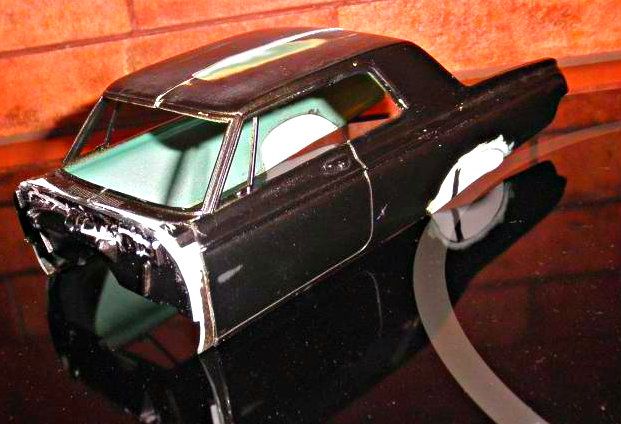

And sorry about the delay, it has been collecting dust, but today I pulled it back, and here we go again. I added little styrene to the front end to get that firewall fit right. I did not narrow it from the center, because it would not be easy to sand those putties smooth there because it's not straight part, so I trimmed the sides to match body shapes. As you can see, there's still some need for styrene.

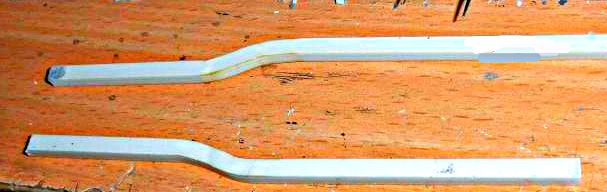

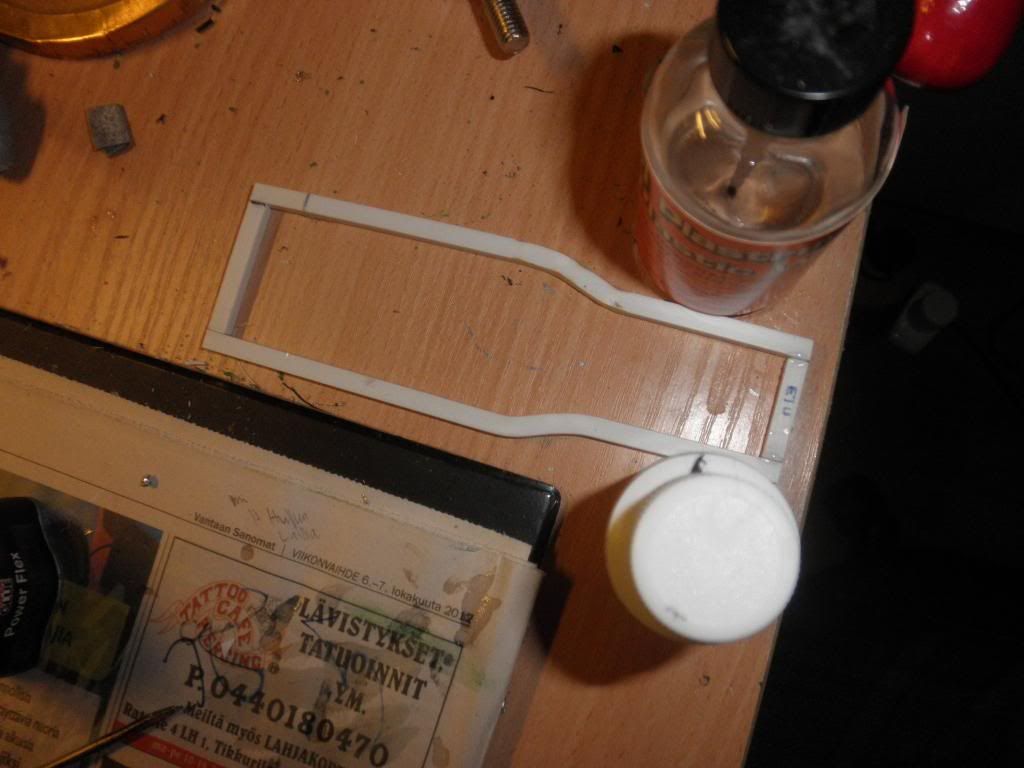

I also started making the frame. Not much done yet, but it's coming slowly....





More coming Soon!

Share this post


Link to post
Share on other sites

Posted · Report post

Looks like you're of to a great start.

Keep it going Niko.

Corey

Share this post


Link to post
Share on other sites

Posted · Report post

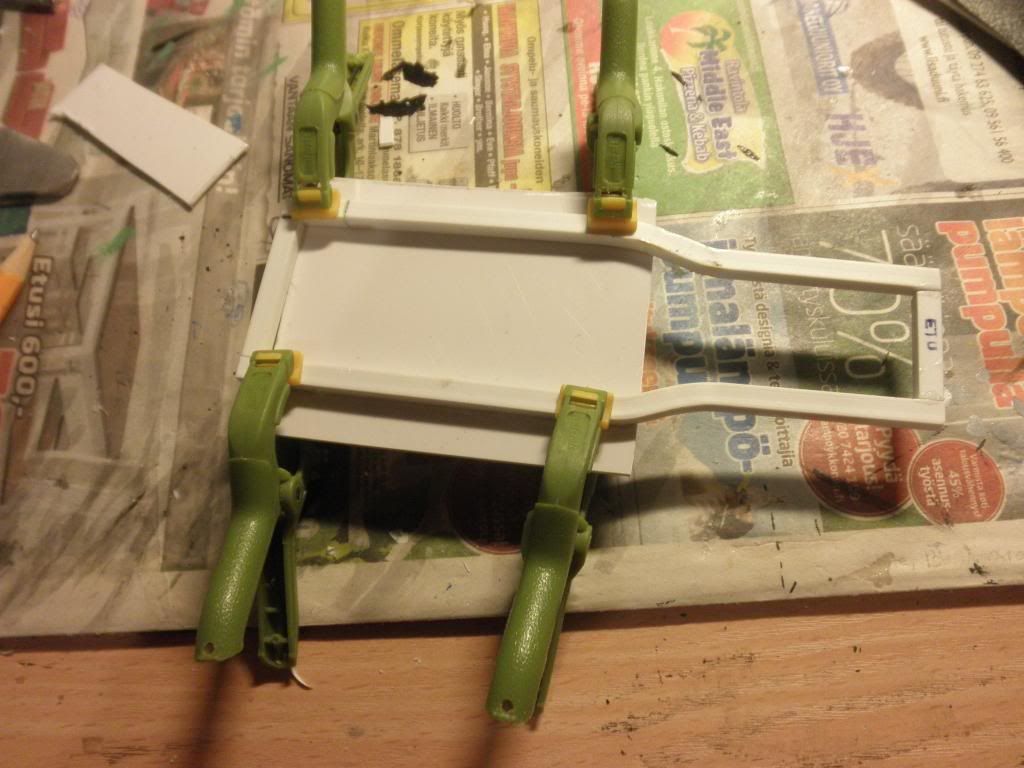

Thanks, Corey! I got some more done with it, started making the chassis. I know the frame rails are quite heavy stuff as you saw in the last picture, but that's the way I like it, bigger car, bigger frame, right? Started the floor too, it's sheet styrene and still taking shape, actually this project is still in rough stages. The driveshaft tunnel will be fabricated when I decide, what engine I'll use.

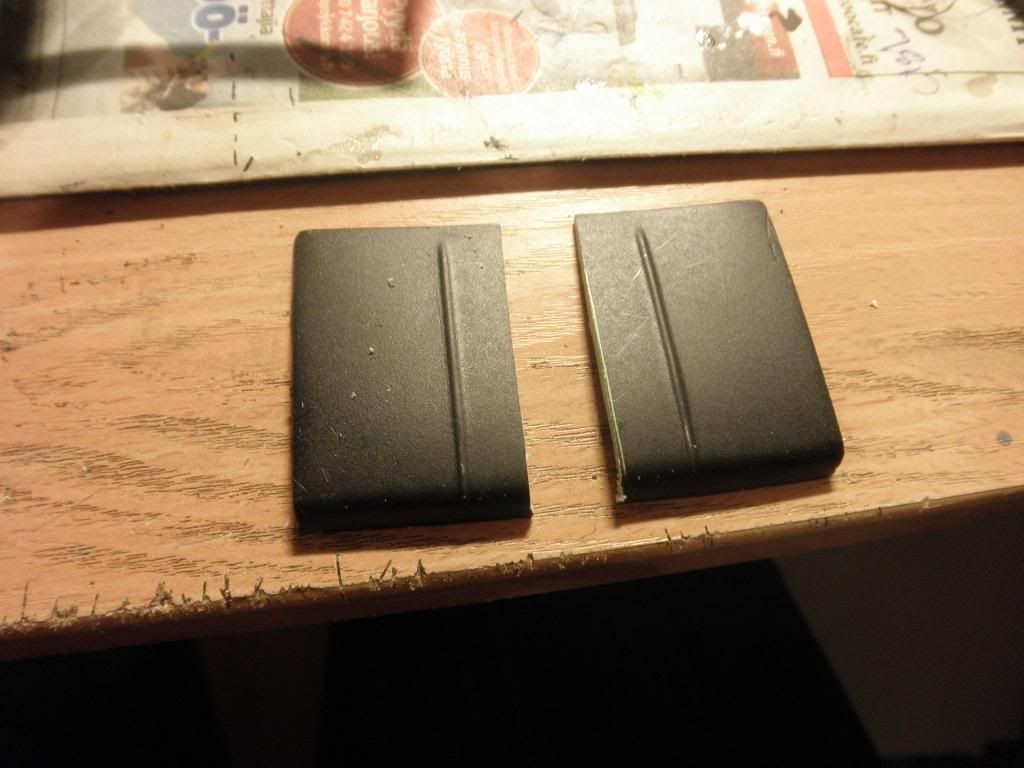

Also, here is the next victim: The Trunk Lid:


Share this post


Link to post
Share on other sites

Posted · Report post

Coming along nicely Niko.

Keep it goin buddy.

Corey

Share this post


Link to post
Share on other sites

Posted · Report post

This is going to be WAY Altered :)

Share this post


Link to post
Share on other sites

Posted · Report post

Thanks, Corey and Bruce!

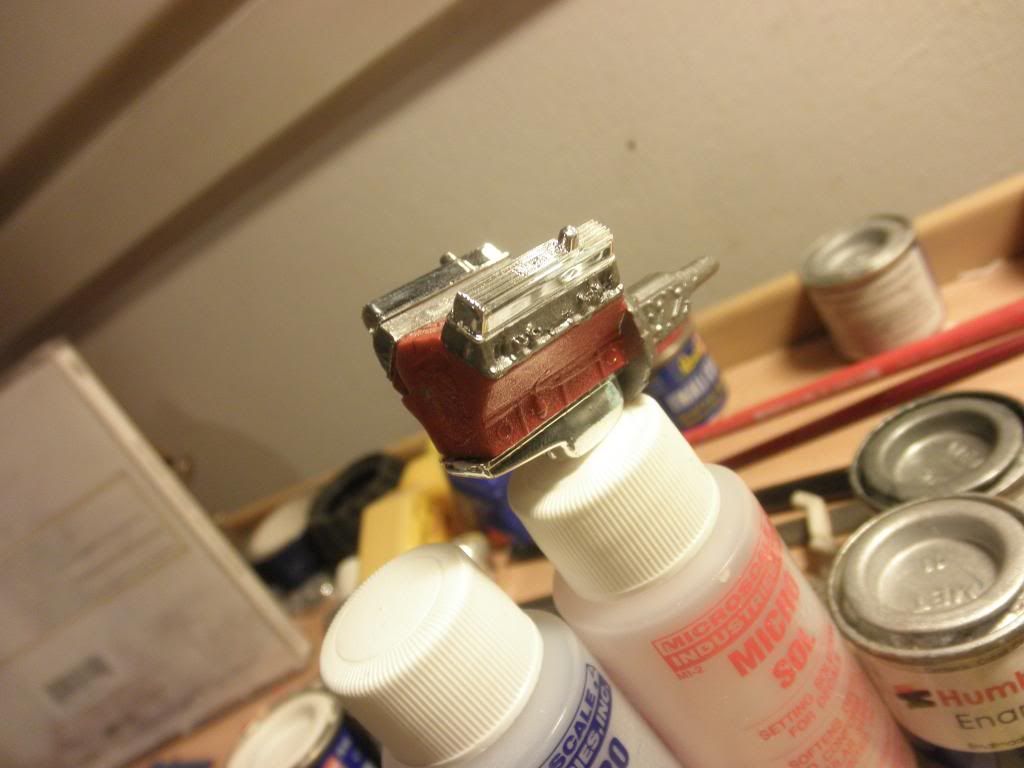

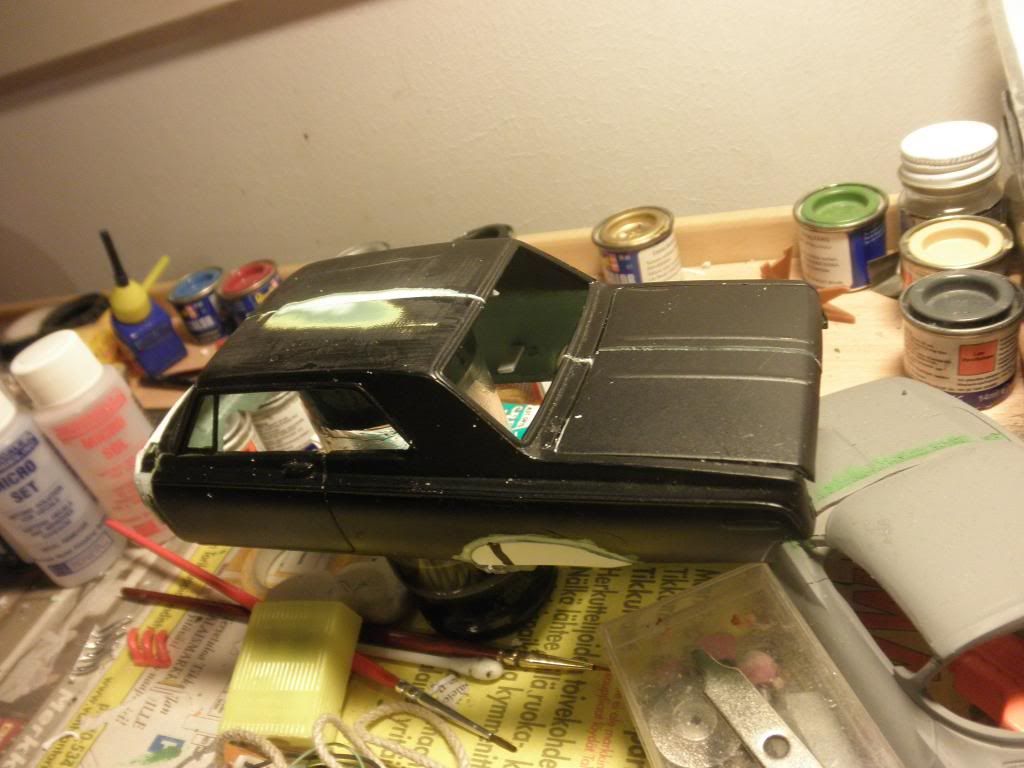

Here's some more. I got the trunk lid narrowed and glued to place. I'm planning to shave that whole trunk away, so there would be no panel lines there. Also, I found the engine basis, it's a Mopar and I guess it's Small Block. Not sure though. I've painted it that color few years ago, and it's going to stay in that color too.

Now I've been building the engine bit more than the pictures show, I should have the update soon before I finish installing and connecting carburetor fuel lines.



Share this post


Link to post
Share on other sites

Posted · Report post

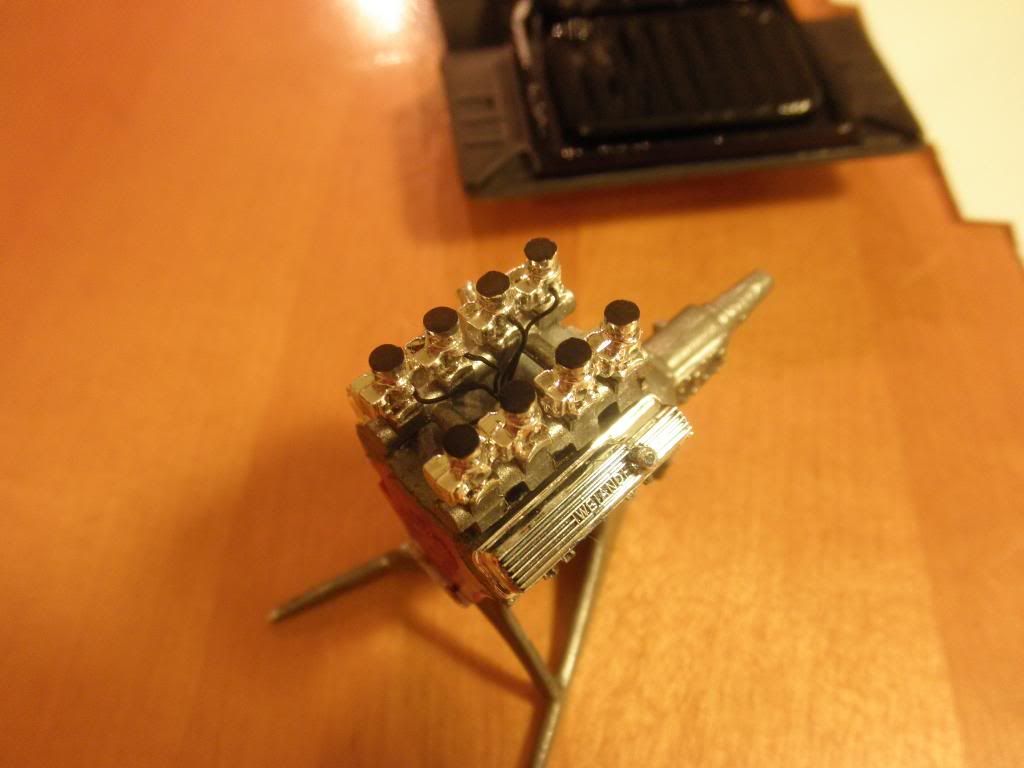

Enough Carburetors?

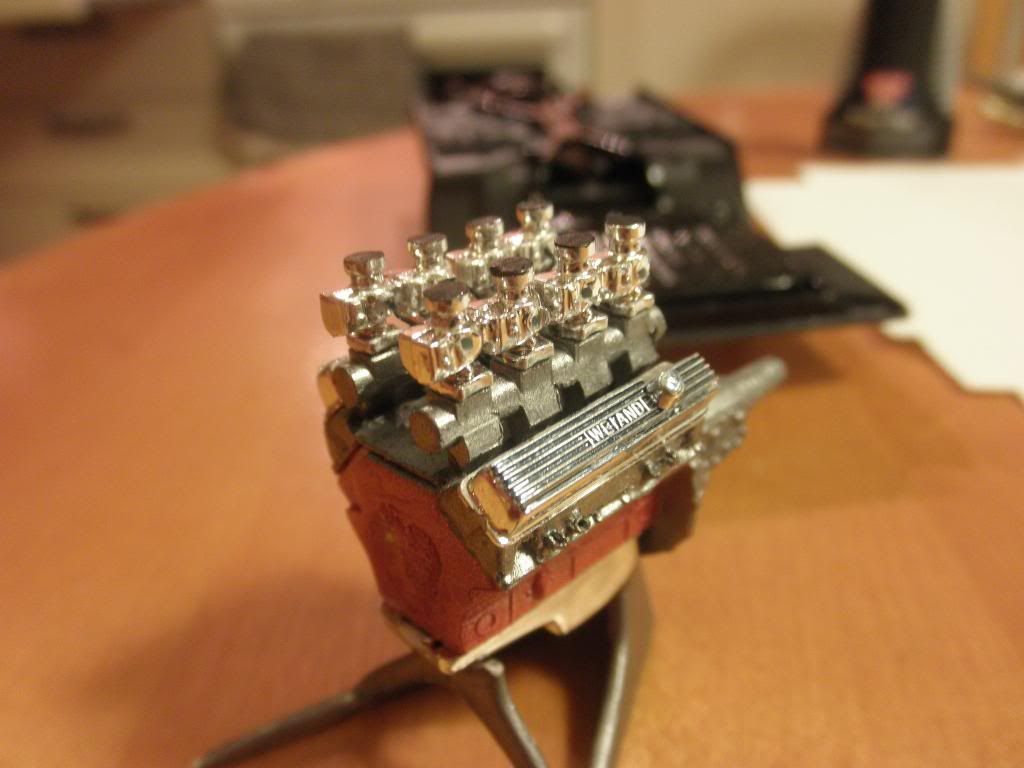

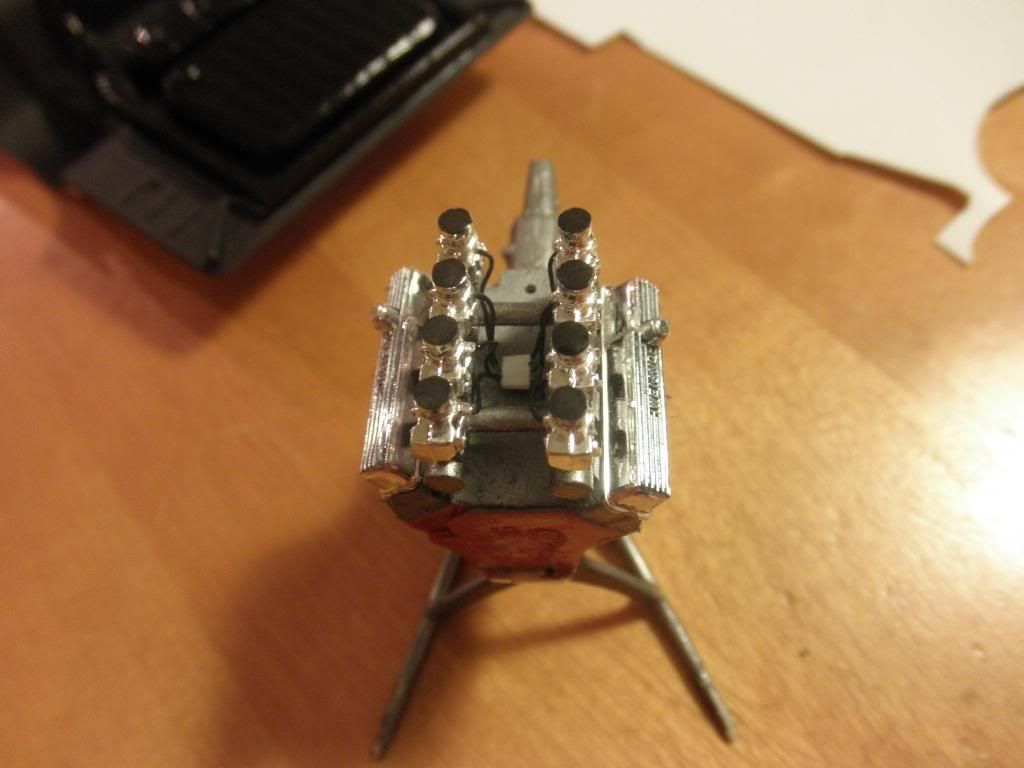

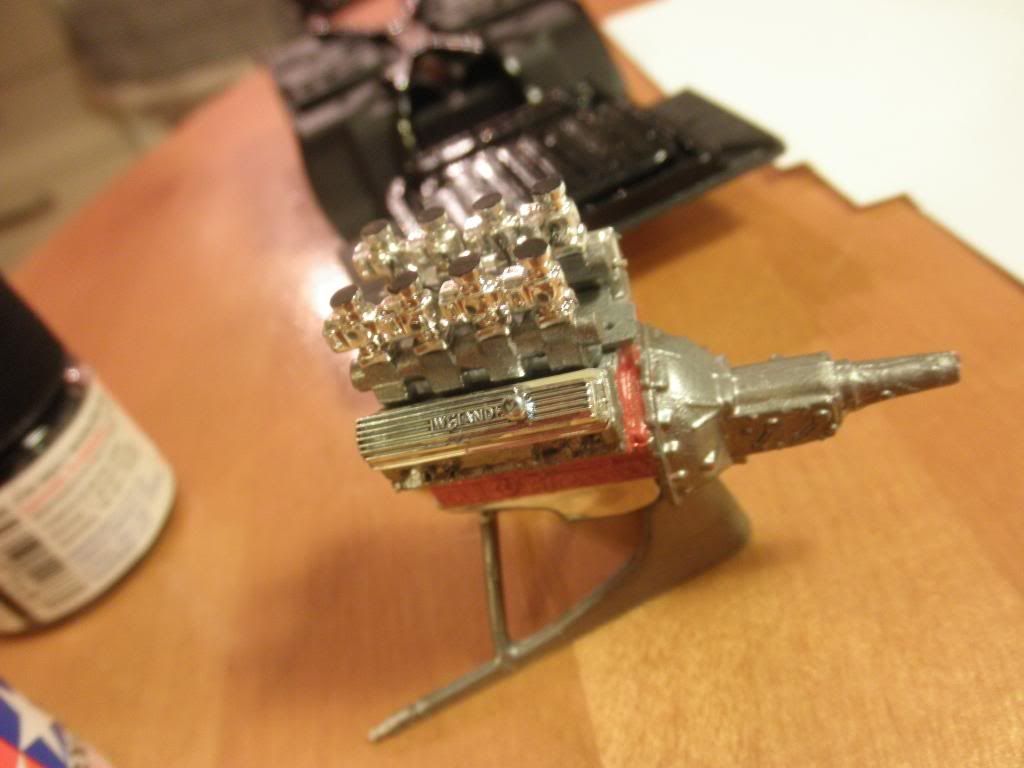

I installed the Eight-Carburetor intake manifold and the carbs from AMT Double Dragster kit. Not really easy job to do, but I'm quite happy about the looks. I started the fuel lines too, next I have to make carburetor linkage, which will be huge job to do.





Share this post


Link to post
Share on other sites

Posted · Report post

Hmm. I think you should end the body right where the trunk starts so that the rear of the frame and gas tank are visible. I really like what you're doing here. I've been kicking around the same thing but I haven't found the right victim yet.

Share this post


Link to post
Share on other sites

Posted · Report post

This looks very good! I think that engine is same 426 Wedge what come with AMT '49 Mercury so it's not small block. ;) But overall this is very interesting project and I will follow this project for sure.

Share this post


Link to post
Share on other sites

Posted · Report post

Lookin great Niko.

Keep it up man.

Corey

Share this post


Link to post
Share on other sites

Posted · Report post

Hmm. I think you should end the body right where the trunk starts so that the rear of the frame and gas tank are visible. I really like what you're doing here. I've been kicking around the same thing but I haven't found the right victim yet.

Thanks for the great suggestion, Rob! I guess I'm not going to end it completely, but maybe little shortening should work. Gotta try and see how it looks. Thanks!

The engine might be that Wedge too, since plastic color is quite close and instructions look quite same too. Nothing beats Cubic Inches, so always better when it's a Big Block. :lol: And Thanks!

Thanks, Corey, too :D !

It has been on li'l hold now, since I have a bunch of exams in the school now. Once I get them cleared, I'll continue this one.
