Late prewar-style dry-lakes '29 Ford, Engine/gearbox Oct.7

18 posts in this topic

Posted (edited) · Report post

I started this one a long time ago, intending to build a pretty much state-of-the-art dry-lakes racer from just before Pearl Harbor. It's 4-cyl. Ford powered with a Riley overhead-valve conversion, a Columbia 2-speed rear end from a '40 Ford, Packard rear wire wheels and tires, a '37 Ford tubular front axle with longitudinal quarter-elliptic leaf springs, all hung from '32 rails. Welded-shut doors, a sheetmetal tonneau and a Miller race-car radiator shell finish off the look.

Frame started as an AMT '32 blobular part, so I cut off the molded axle and fabbed kicked up rear rails.


Rear rail mods done, '40 crossmember installed to hang the Columbia, and the '37 front axle, 'bones and springs mocked up.


Had to make a hood to mate the '29 cowl and the Miller radiator shell.....


....so I made templates of both ends and filled in between....


Also scratch-built a hard tonneau from .020" styrene to get a center seating position...


Little car on its wheels....


And today with the hood fitted better, the rear deck cut out, first coat of primer, and the hole in the tonneau finished...


Edited by Ace-Garageguy

Share this post


Link to post
Share on other sites

Posted · Report post

Beautiful start Bill. This is a very underrepresented era in modelling. Can I ask you where the Miller rad shell came from ?

Share this post


Link to post
Share on other sites

Posted · Report post

You had me at "Blobular"....hahaha

Nice combo of parts and great Hot Rod era.

I'm sure the historians will chime in with more trivia

on it.

Share this post


Link to post
Share on other sites

Posted · Report post

Thats a great start. It will be very cool.

Share this post


Link to post
Share on other sites

Posted · Report post

Looks great !!

Share this post


Link to post
Share on other sites

Posted · Report post

Oh I like that a lot. This looks real good.

Share this post


Link to post
Share on other sites

Posted · Report post

Oh yeah!

My favorite, dry lakes racing.

Looking good!

G

Share this post


Link to post
Share on other sites

Posted · Report post

This. is. rad.

What's the Miller shell from?

Share this post


Link to post
Share on other sites

Posted · Report post

Glad you guys like the vintage dry-lakes thing. For those who asked, the Miller radiator shell is a resin copy I made from a vintage Aurora kit part.


Share this post


Link to post
Share on other sites

Posted · Report post

Funny, I was just leafing through the Throttle Magazine book and now this comes up. Looking forward to this!

Share this post


Link to post
Share on other sites

Posted · Report post

very cool Bill, I like it, great era!

Share this post


Link to post
Share on other sites

Posted · Report post

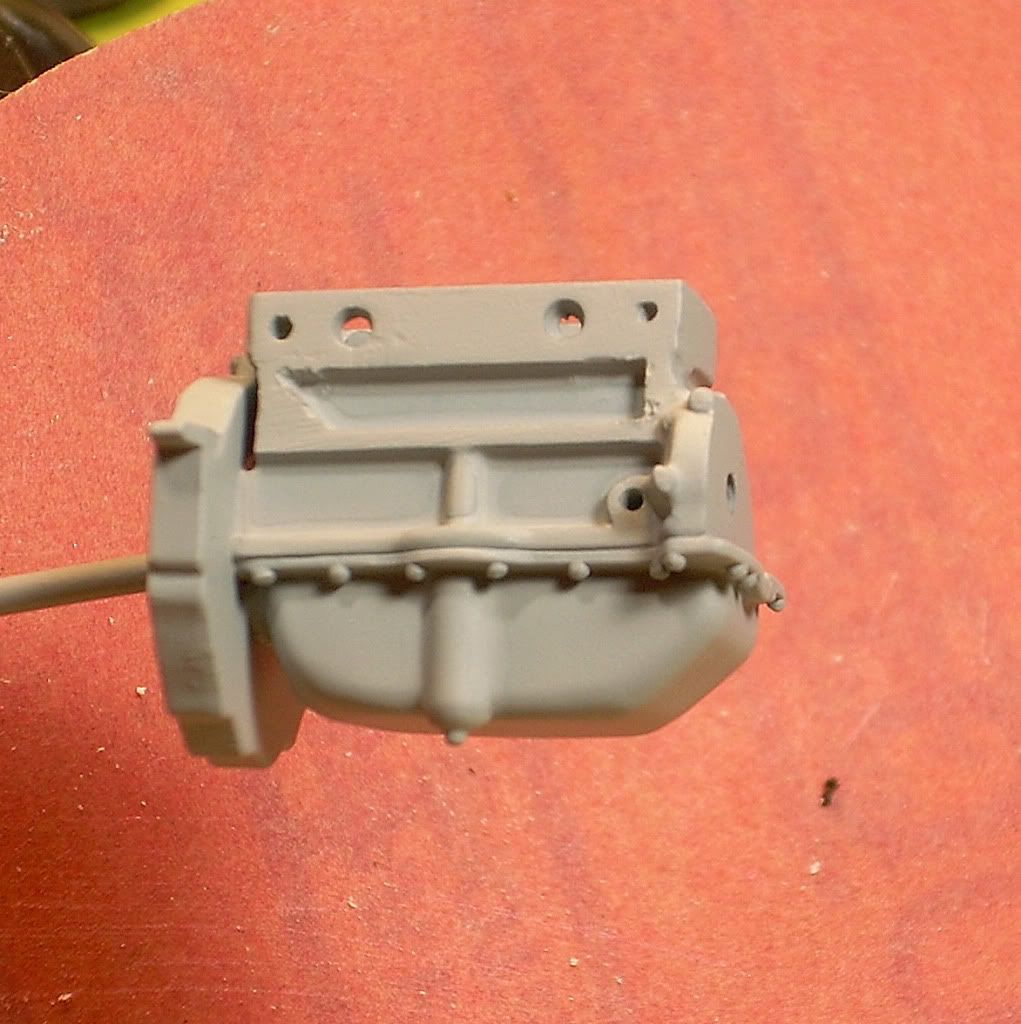

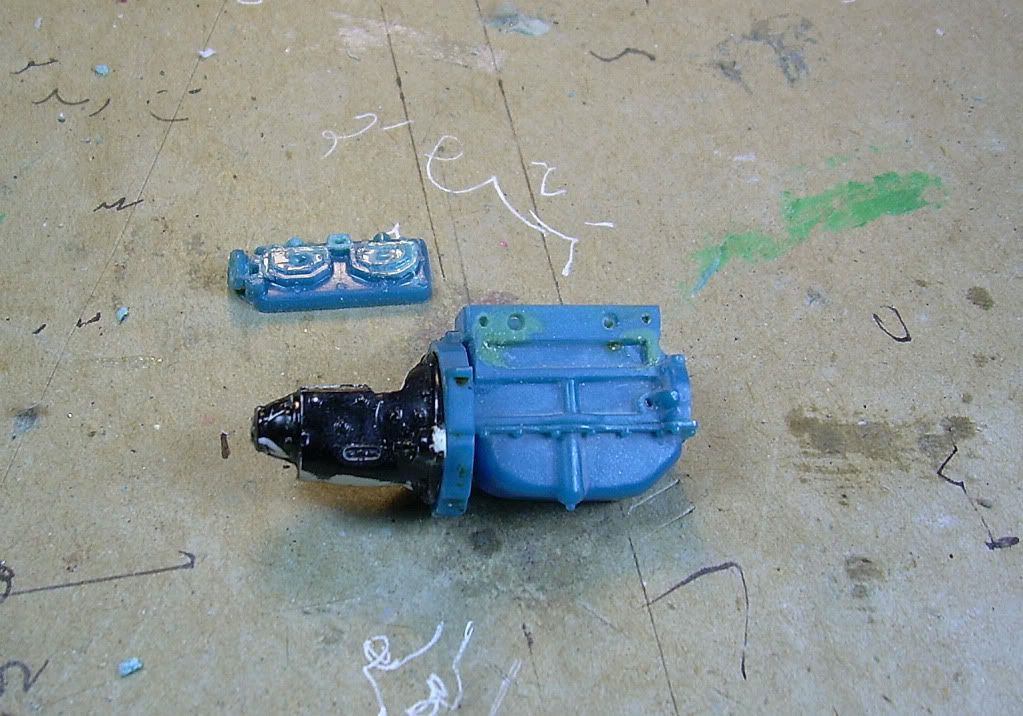

Revell Model A engine salvaged from a gluebomb. (Was put together with contact cement.) '39 Ford gearbox from a gluebomb Ala Kart. Have to scratch an adapter, and will be semi-scratching the head. Revell made a Riley 2-port (background) as did AMT, but nobody made a kit Riley 4-port, which was a lot faster.
