37 Ford Cabriolet

45 posts in this topic

Posted · Report post

I want to build this one, but I don´t know how to paint the body.

The two last bodies were in one piece, but this one have multiple pieces one including the interior floor, so I don´t know where to begin.

Any advice on this one is more than welcome!!


Share this post


Link to post
Share on other sites

Posted · Report post

I turned some aluminum rod for the engine pulleys, but I can´t figure how to make the belts.

so I think i´m gonna use the kit pulley arrangement.

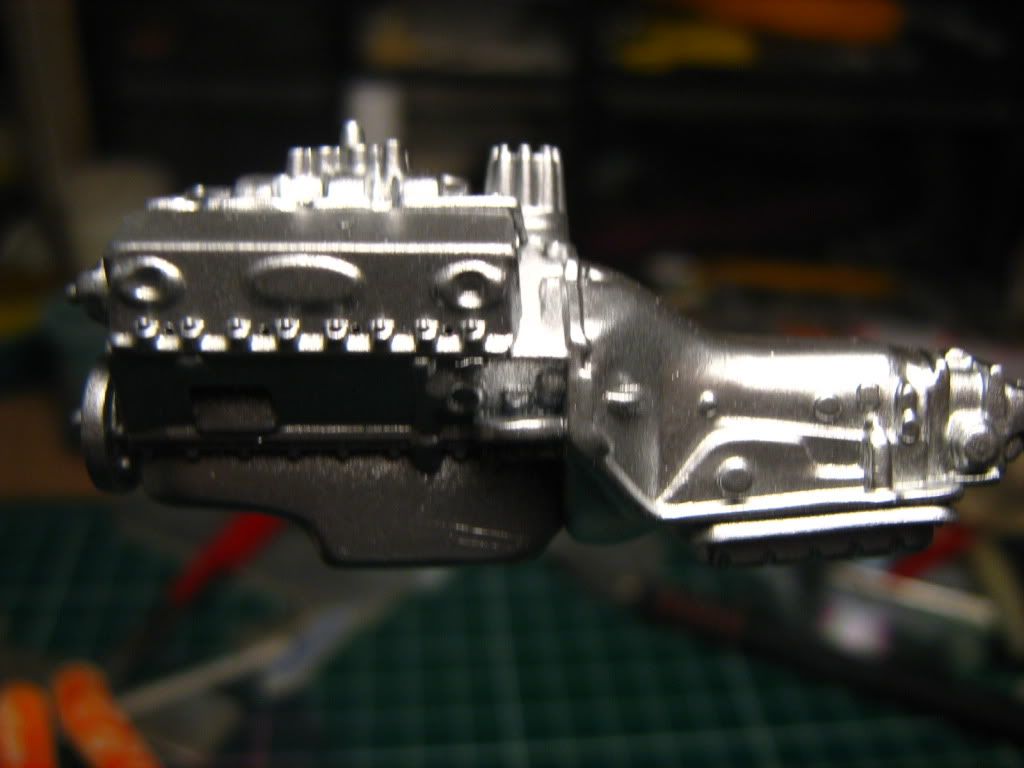

Painted the transmision in aluminum, also paint the engine block to find any flaws.

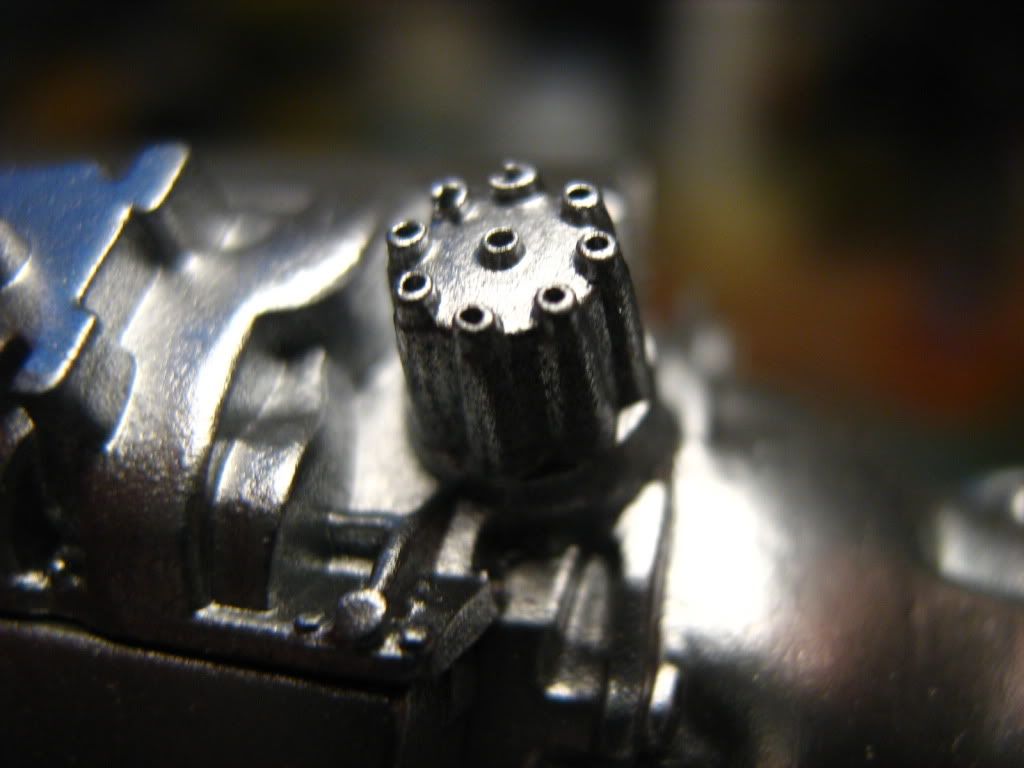

The distributor cap was drilled too.

Wich is the best way to make the spark wire boots??



Share this post


Link to post
Share on other sites

Posted · Report post

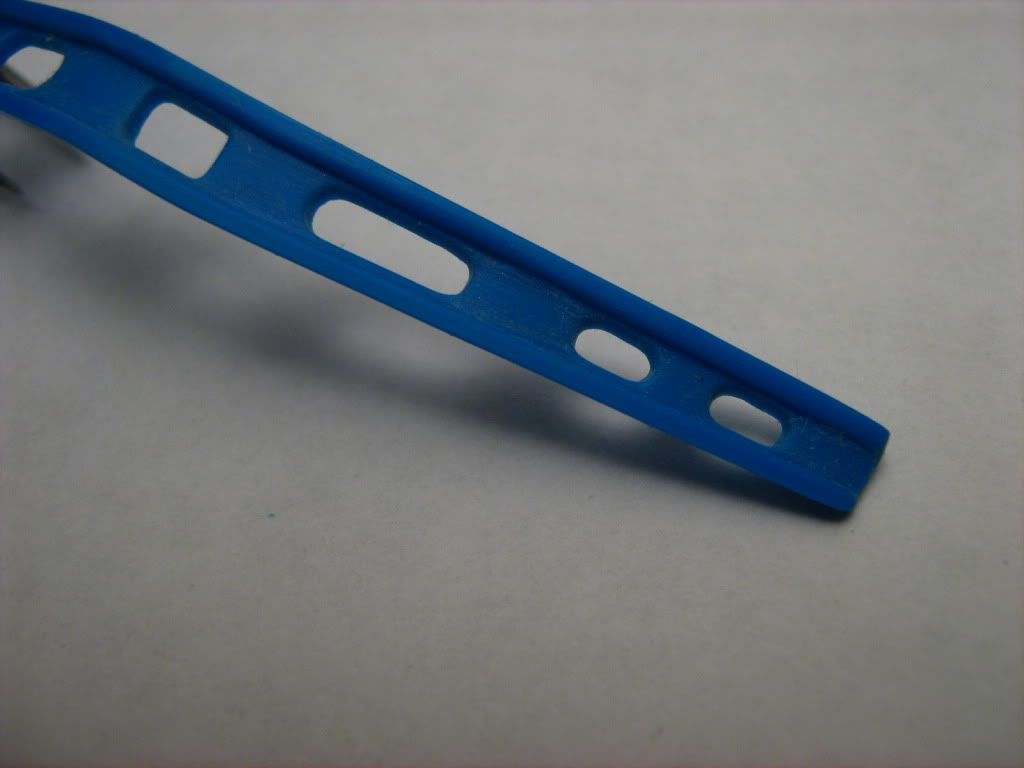

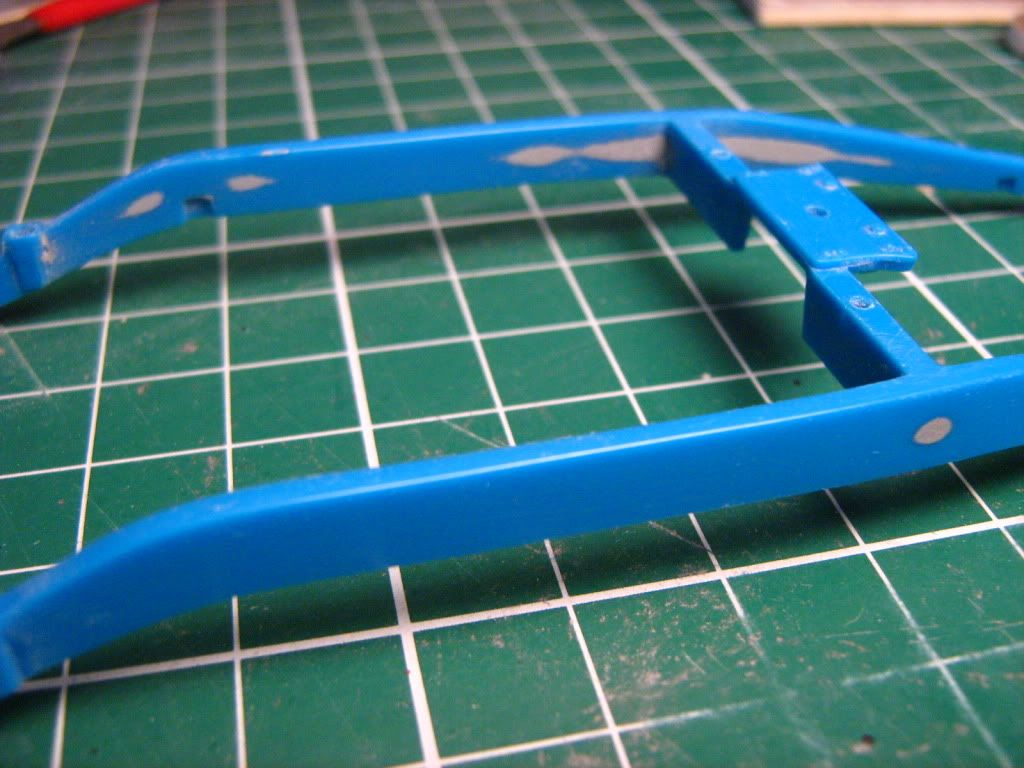

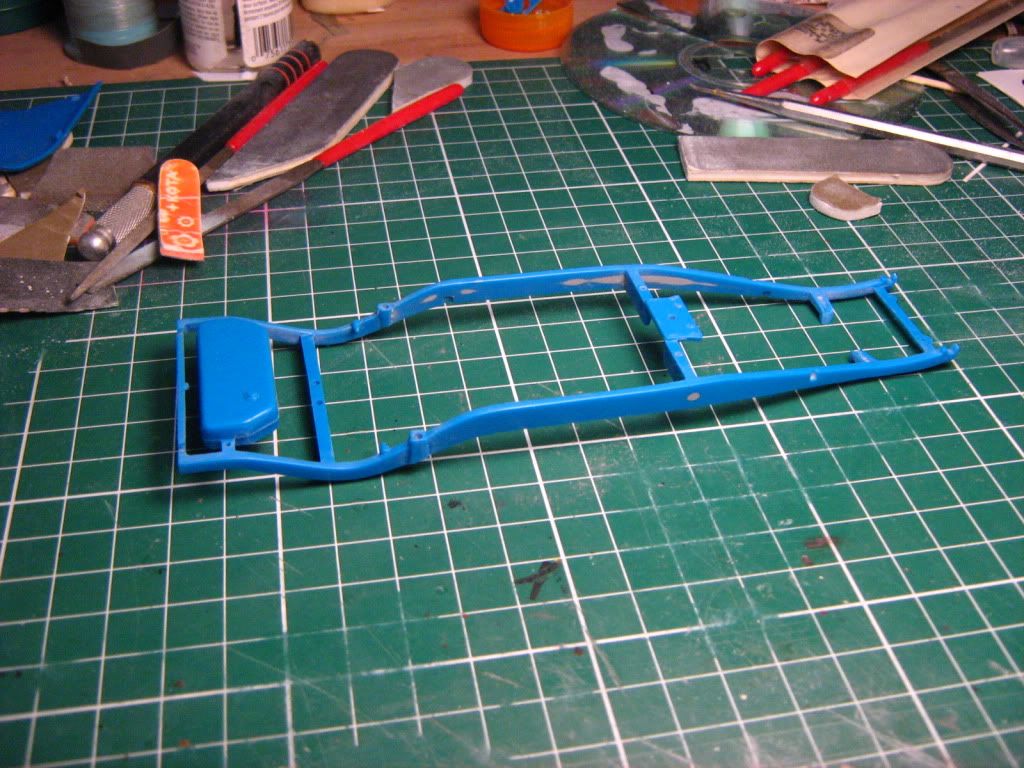

the chassis has too many sink marks, mold seams, ejector pin marks, etc.

It has to be filled, sanded and cleaned.



Share this post


Link to post
Share on other sites

Posted · Report post

You can use masking tape painted black for the belts and a slightly thicker wire for spark plug boots (slightly thicker than your spark plug wire).

Share this post


Link to post
Share on other sites

Posted · Report post

Thank you Erick, I´ll try the masking tape.

What do you think about vinyl tape?

Share this post


Link to post
Share on other sites

Posted · Report post

Minor update.

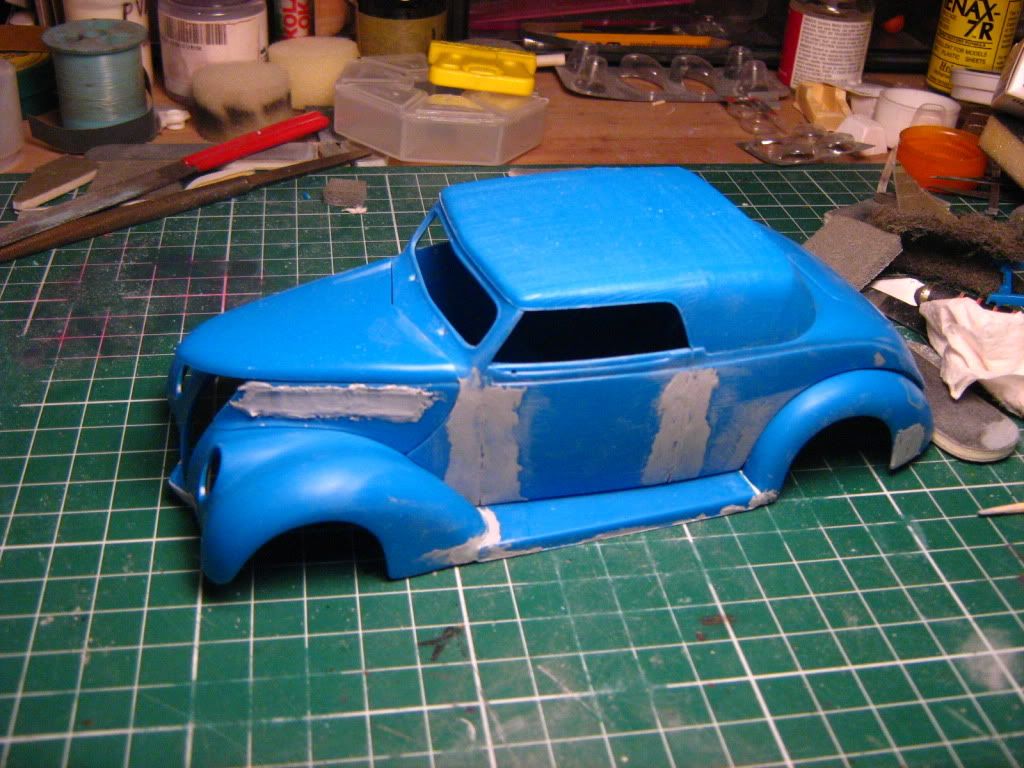

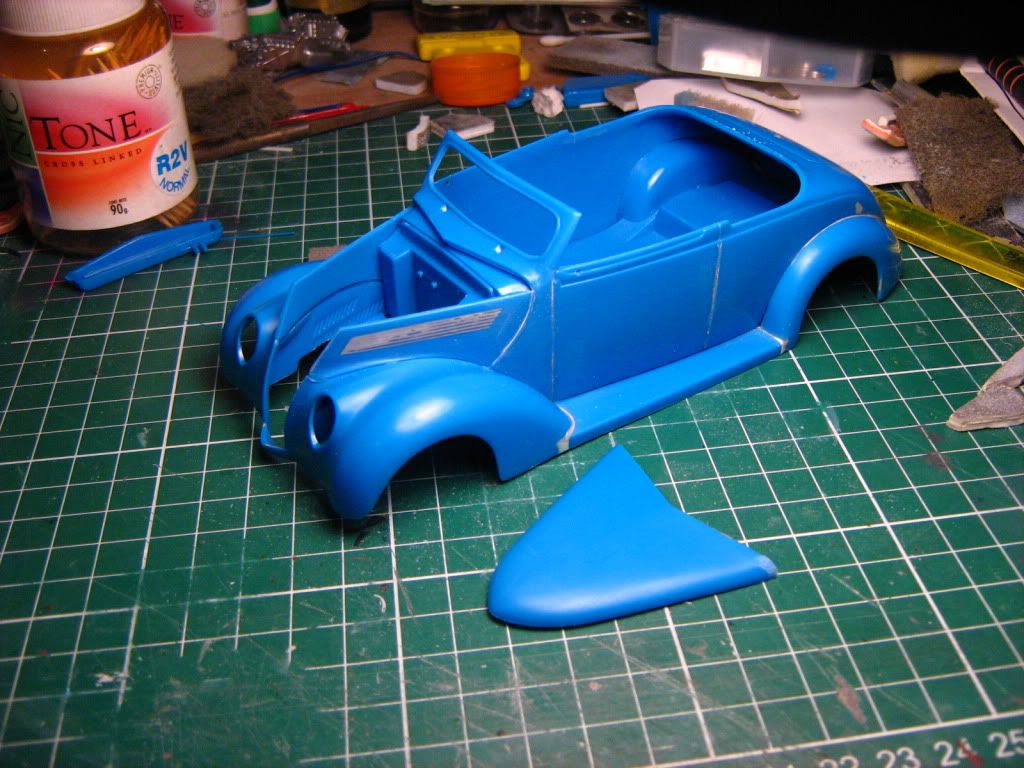

After sanding ( a lot ) discover many low spots, fill them and dry fitting the body.

Next..... more sanding!


Share this post


Link to post
Share on other sites

Posted · Report post

This is an interesting kit and yo have a good start....keep it going....

Share this post


Link to post
Share on other sites

Posted · Report post

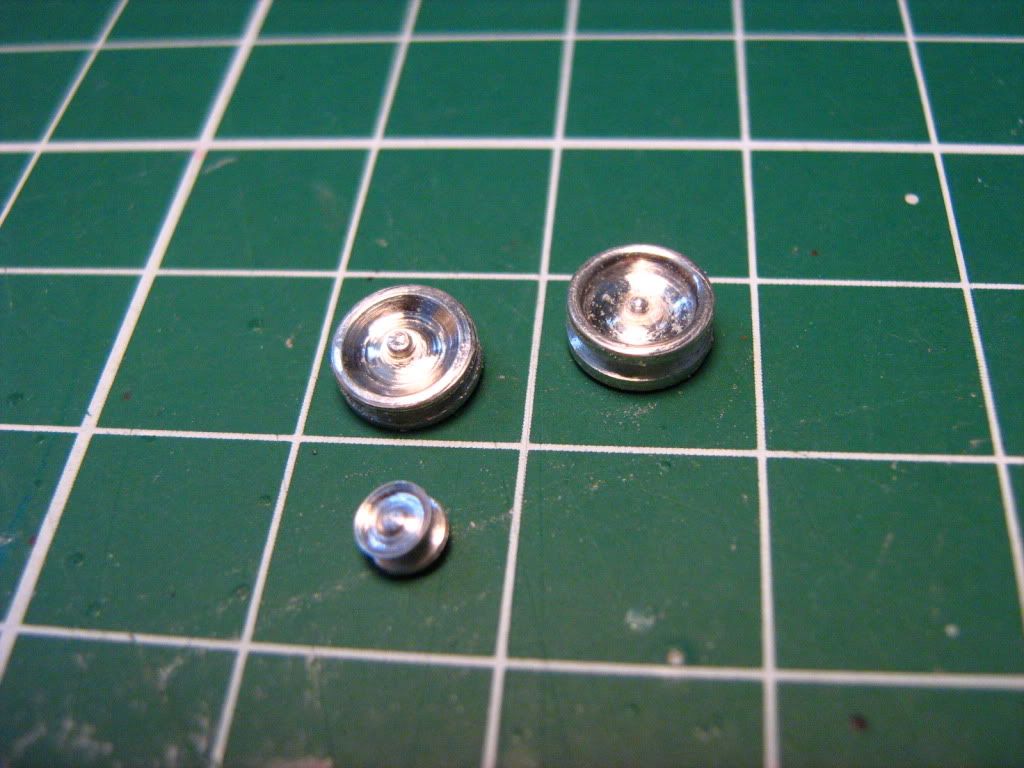

I made another set of pulleys for this model, and delete the AC one.

I hope this set will looks better.

I´m still sanding!



Share this post


Link to post
Share on other sites

Posted · Report post

go to a dollar store, and they sell bags of little tiny rubber bands that are black, they make perfect belts! for $1.00 you cant go wrong, and you get like 500 of them......

nice start, keep it goin

bryan

Share this post


Link to post
Share on other sites

Posted · Report post

thank´s Bryan I`ll try those rubber bands.

Share this post


Link to post
Share on other sites

Posted · Report post

they work really nice, and they look just like belts.

Bryan

Share this post


Link to post
Share on other sites

Posted · Report post

I always liked this kit... my build is sitting my display case..... I really like your progress so far.... keep it going...I will be very interested to see what this looks like!!!

Share this post


Link to post
Share on other sites

Posted · Report post

Thanks you're very kind.

I'm still sanding the body and figuring the color scheme.

Share this post


Link to post
Share on other sites

Posted · Report post

very very interesting because this kit is one of the cheap kits here in holland and i just saw this like a month ago and wondered if i would do this kit in the future ..

so fun to see what this kit is about :)

great start on the kit !!

Share this post


Link to post
Share on other sites

Posted · Report post

Cool build in progress. Thanks for the great tip, Mr. B.

Share this post


Link to post
Share on other sites

Posted · Report post

Thanks guys!

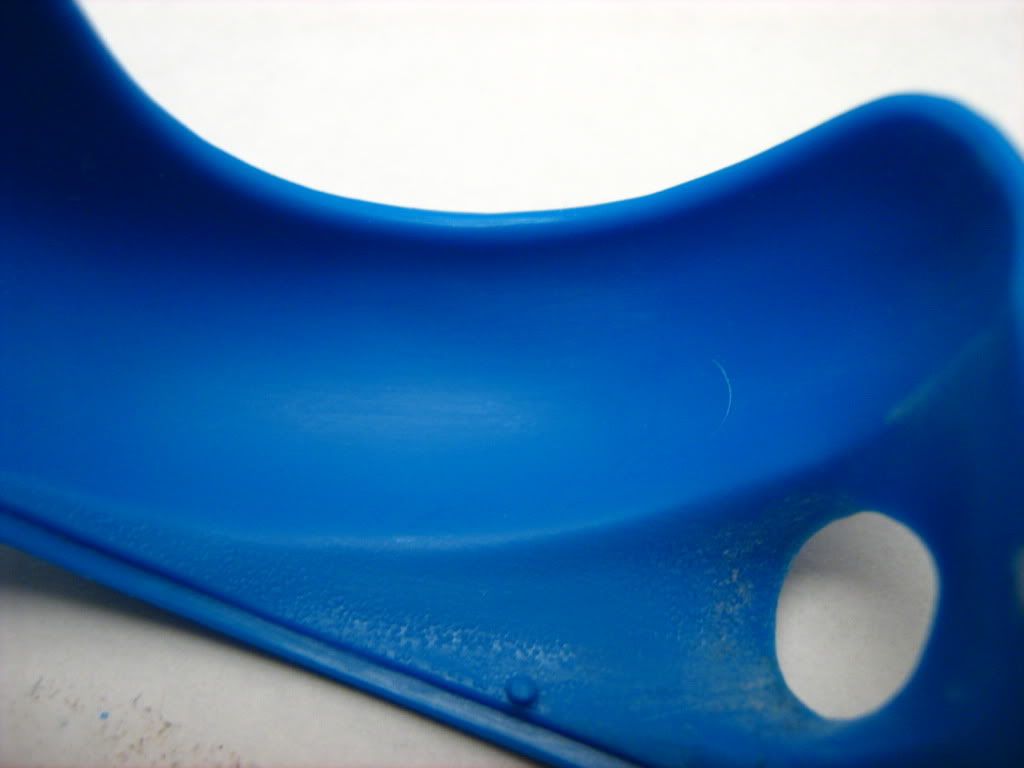

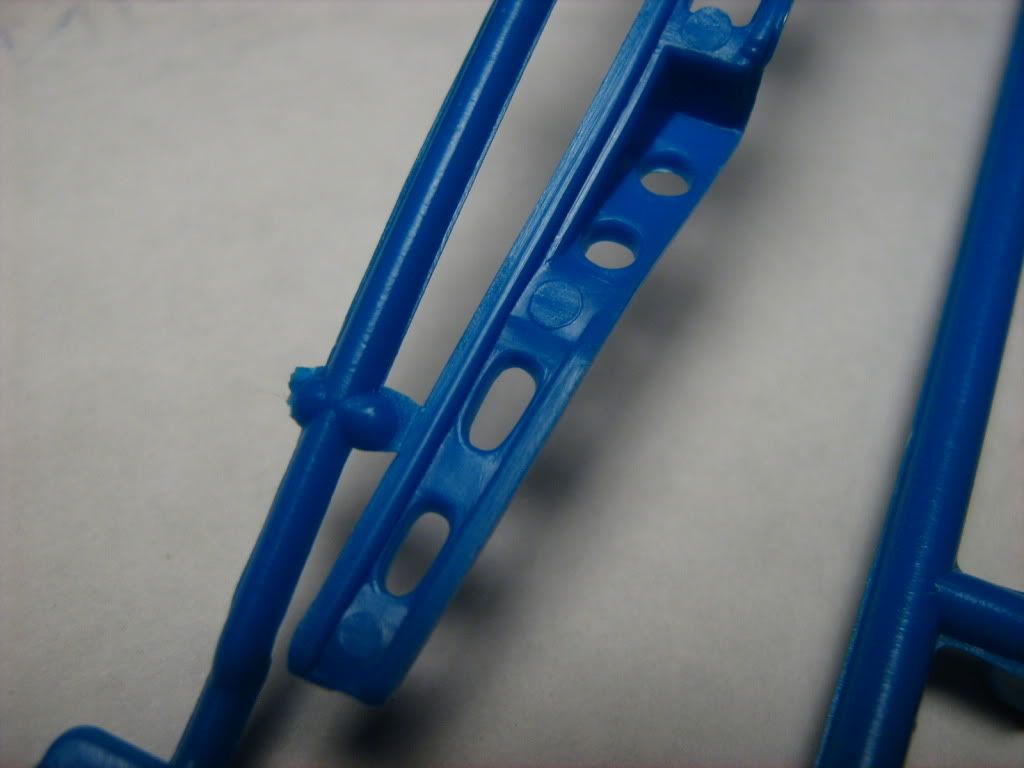

I have some troubles with this model, the big parts have many, many ejector pin marks, and the small parts have lots of flash and even some ejector pin marks.

I never see so many ejector pin marks in a small area on any aircraft model.

I have to fill and sand too much, my dear scale car modellers you have all my respect!!

did I mention that this kit have too many ejector pin marks?


Even this small area will be visible.

So sanding and cleaning is in order.

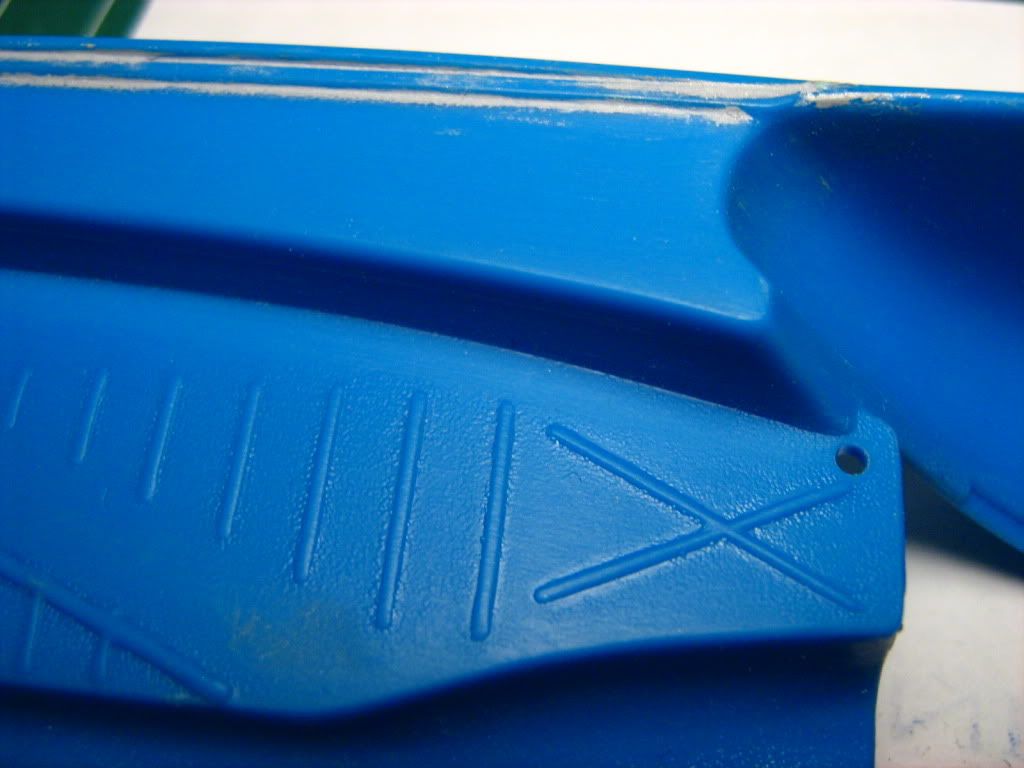

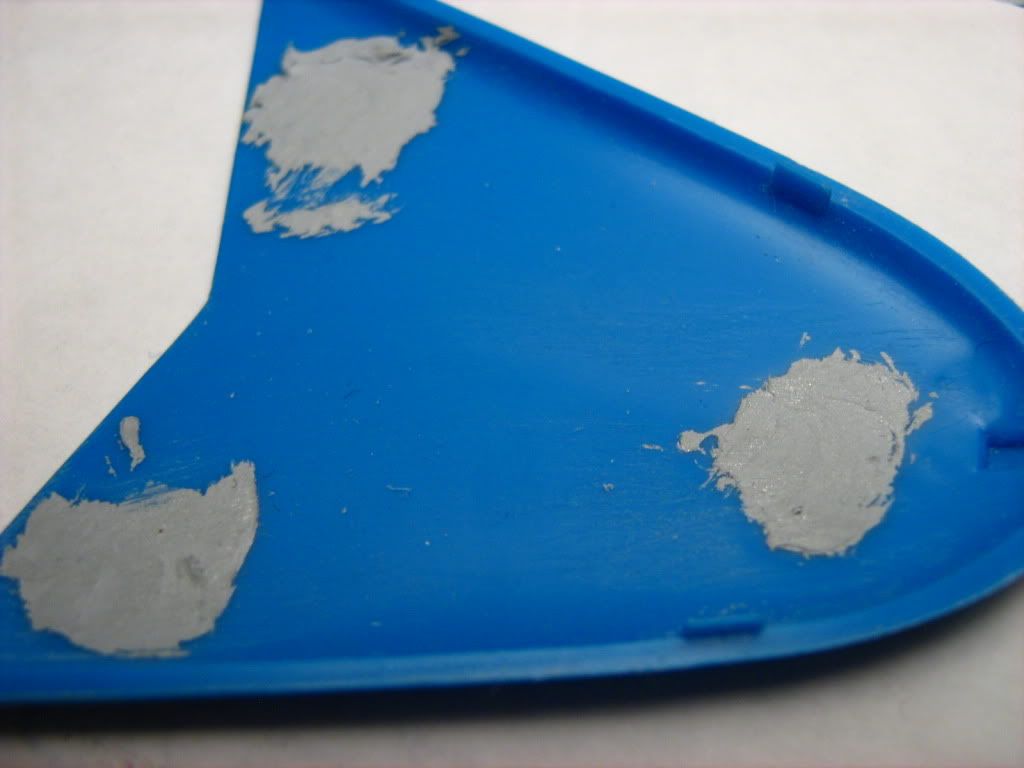

Under the body there are many ejector pin marks and flash.

I have to sand a lot here.



Under the hood there are more work to do.


I cut the gas tank to make the cleaning and paint work more easier.

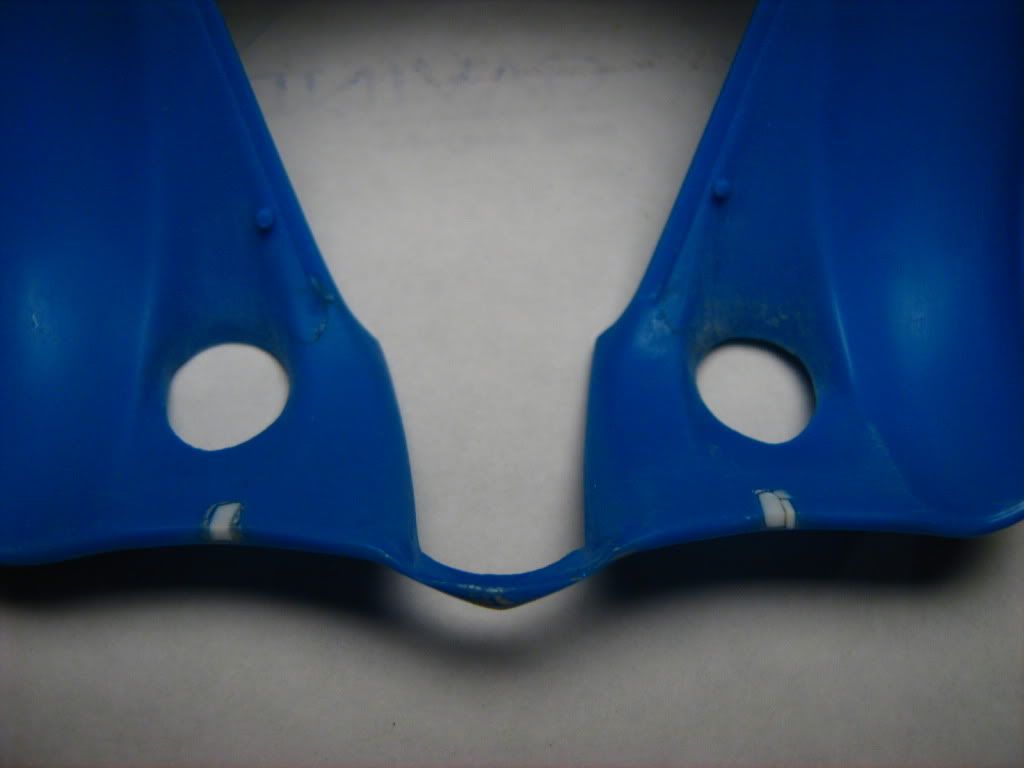

There are some notches that need to be filled, because I´m not planing to use the bumpers.


Share this post


Link to post
Share on other sites

Posted · Report post

Nice work, keep it going .

Thanks guys!

I have some troubles with this model, the big parts have many, many ejector pin marks, and the small parts have lots of flash and even some ejector pin marks.

I never see so many ejector pin marks in a small area on any aircraft model.

I have to fill and sand too much, my dear scale car modellers you have all my respect!!

This summer I started working on my first airplane in a long,long time and was amazed how well everything fit and was free of injector marks, flash etc.

A dream to build compared to a lot (most) N. American auto kits. Tamiya ,Aoshima ,Hasegawa and Fujimi seem to have raised the bar.

Since 90% of what I want to build is American it appears this is the price of doing business.

Share this post


Link to post
Share on other sites

Posted · Report post

Yes Wayne, looks like the Revel kits are a real challenge, but have very nice subjects.

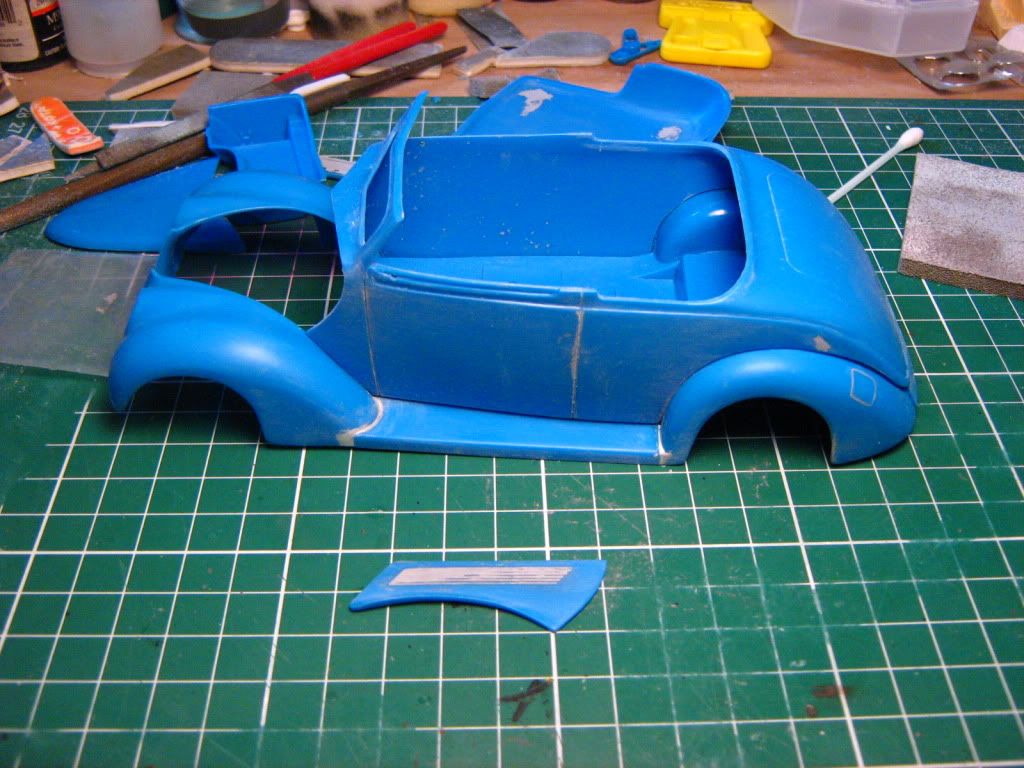

Ok. I glued the splash panes, the side panels and the upper body to the lower body.


Almost nothing fits well in this kit.

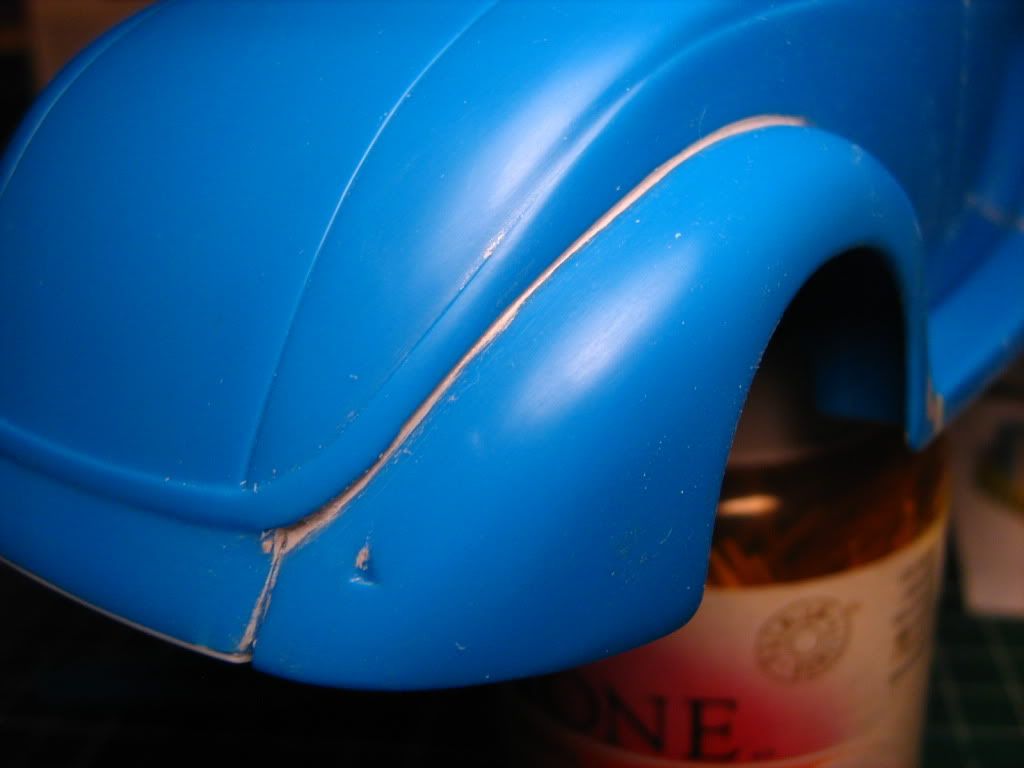

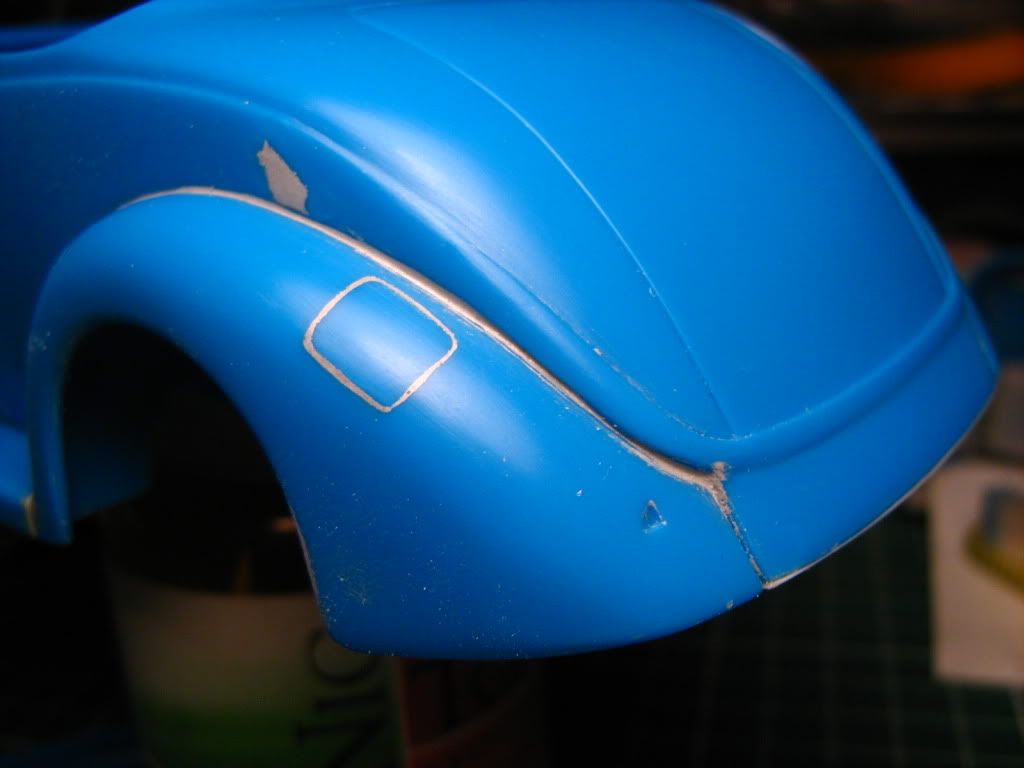

Specially the rear of the upper body, it leaves a very notorius gap.

I use basic tamiya putty to work this out.

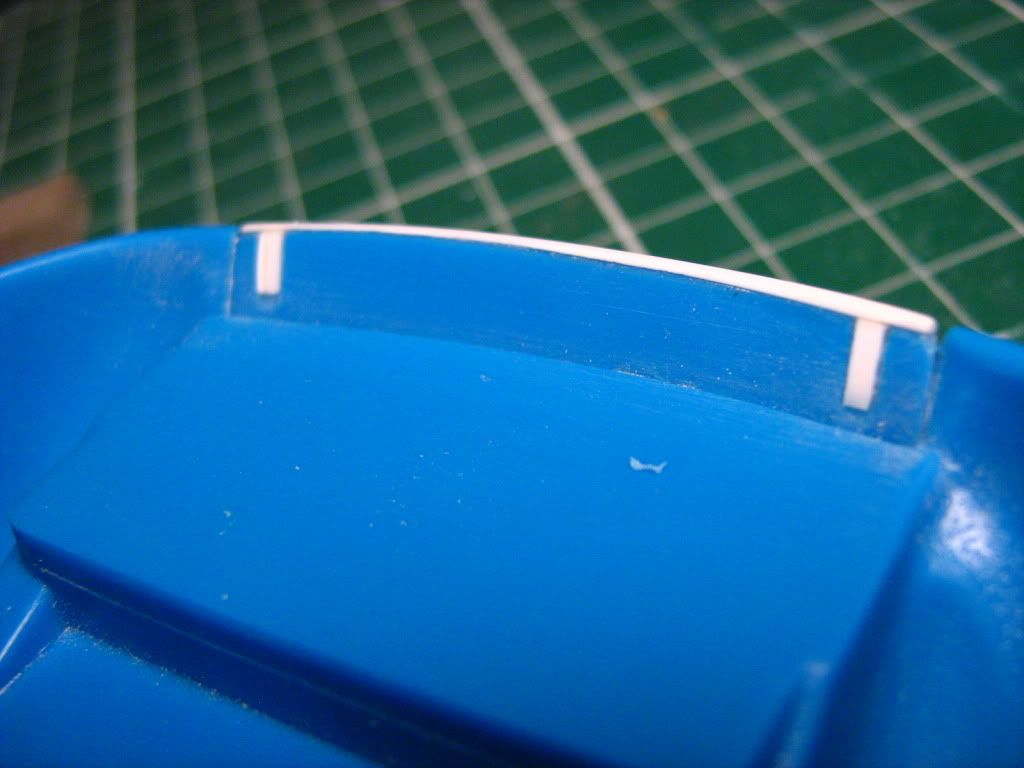

due to the bad fit the rear edges doesn´t line up well, so I add a thinplastic strip.

I glue it with super glue and then sand it to get the proper contour.


Share this post


Link to post
Share on other sites

Posted · Report post

Great work so far

Share this post


Link to post
Share on other sites

Posted (edited) · Report post

If you have glued the body to the fenders good luck getting the interior installed!

The underside of the floor and fenders are supposed to be textured as it represents a spray-on undercoating that is used to protected the underside of the car and prevent rocks from getting thrown up by the tires and causing a small dent from the inside out. Very common on full-scale street rods. Of course, if you wish it to be smooth that is okay as some street rods are this way too. Just pointing out it was intentional, not a quality issue.

This kit was orignally tooled in 1987 and at that time was conisidered one of the best street rod kits ever made with detail not previously seen. Even so, that was 25 years ago so the production techniques have no doubt improved since then.

Good luck with your project!

Edited by Dennis Lacy

Share this post


Link to post
Share on other sites

Posted · Report post

i def eant to say good job taking the time to get rid of all the sink anmd ejector marks ..

i also think its statisfiing to build a lousy made kit into a real stunner ... a good challenge is nice every ounce in a while right ?

i mean iof all kits where perfect all the time and came together too easy it would aslo take a way part of the fun

not saying only bad kits are fun :lol: i like a well cated kit as much as the otehr guy :wub:

Share this post


Link to post
Share on other sites

Posted · Report post

Thanks for your words guys.

The body is glued to the fenders, but I'm following the instruction sheet, I have no idea of the interior fiting problems to come.

I made a dry fitting try, and find no big problems, but Murphy is always near my bench.

I sand the underside smooth because, there are too many big raised ejector pin marks, so keeping the texture is near impossible.

Thank you for taking the time for visiting this WIP, any advise is always welcome, if they comes before I made mistakes is more than appreciated. :)

Share this post


Link to post
Share on other sites

Posted · Report post

More progress....very nice!!

Share this post


Link to post
Share on other sites

Posted · Report post

it's great to see the work that goes into some of these builds

can't get over the amount of filler and fit issues

Share this post


Link to post
Share on other sites

Posted · Report post

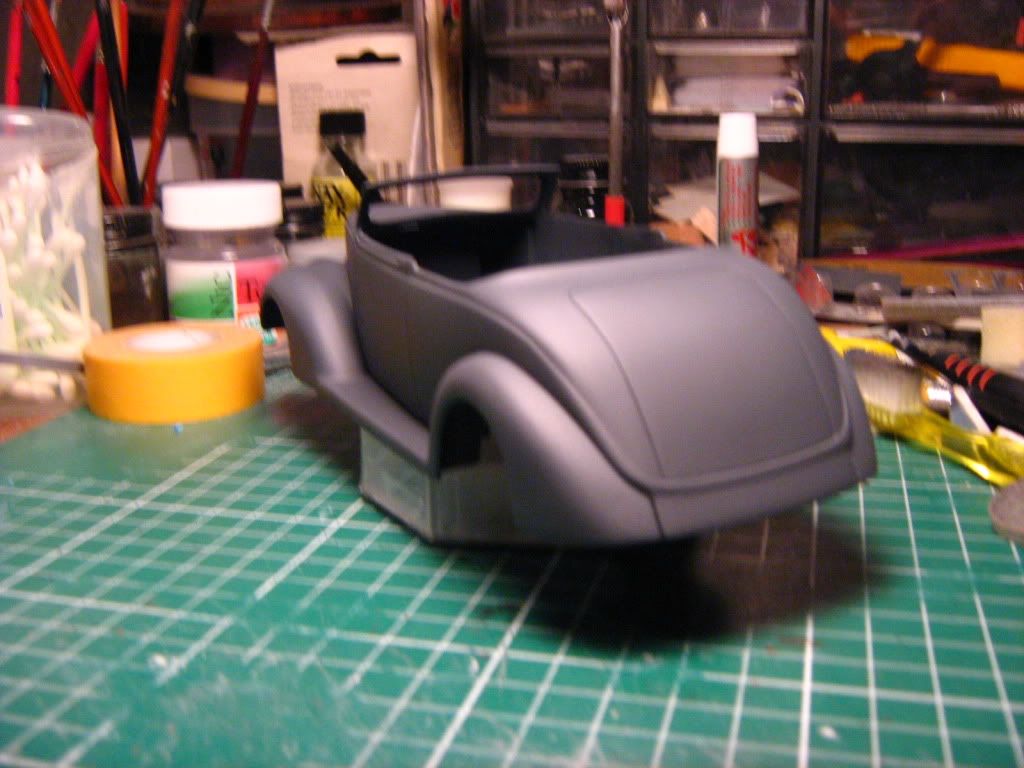

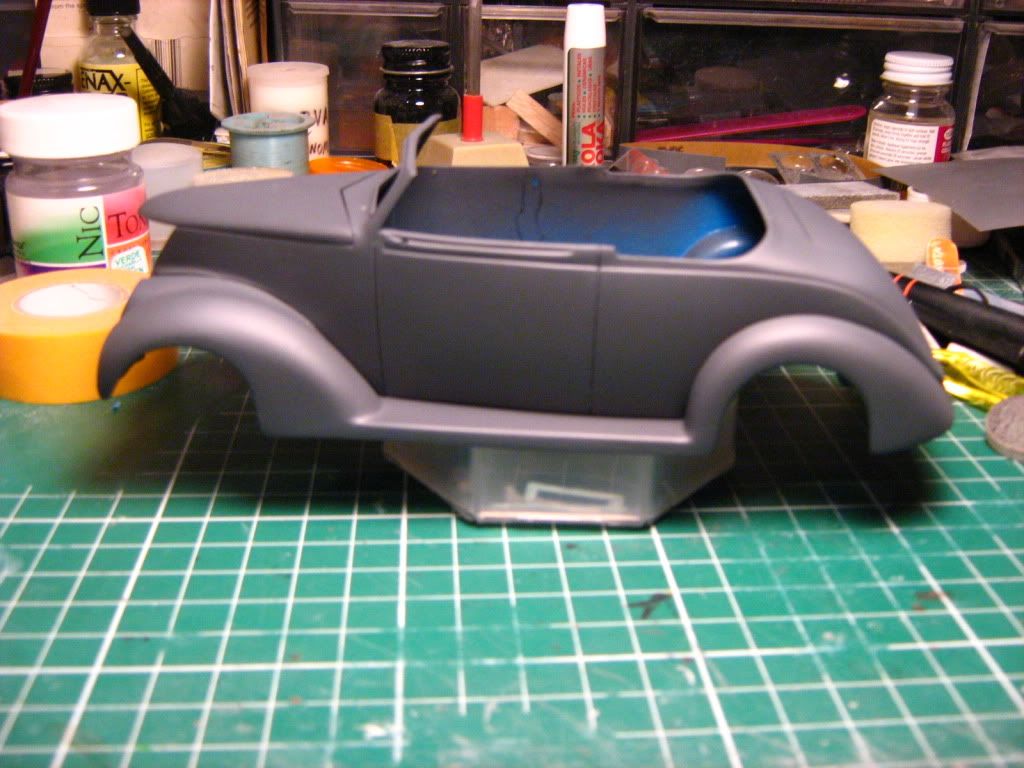

Ok. I use Dupli-Color sandable grey primer, and looks fine.

A couple of spots need some sanding.

I still don´t know wich color tu use :wacko:
