1/16th Cat 657G scraper Scratch build

35 posts in this topic

Posted · Report post

I Australia we do things a little different to you guys in the States, especially when it comes to heavy haulage, this is a trailer that I am in the process of building,

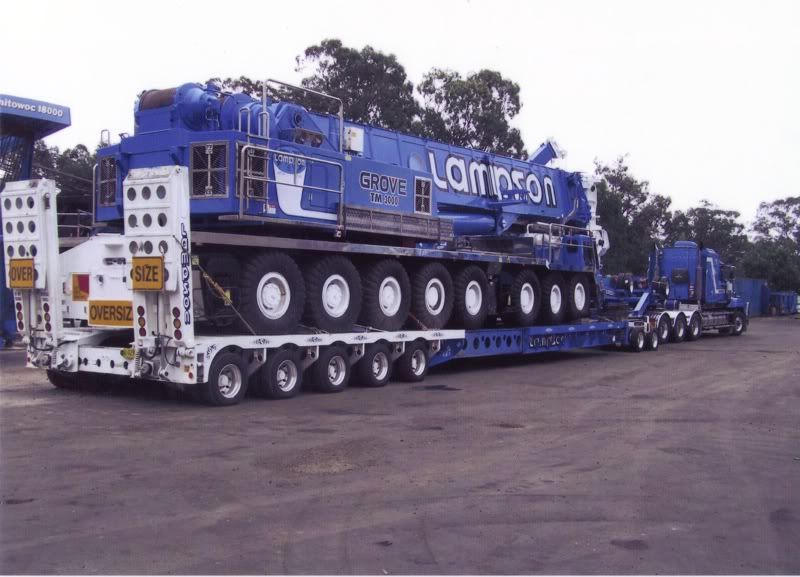

It is what we call a swing wing extendable, 5 rows of 8, (5 Axles with 8 wheels per axle set) with a 2 rows of 8 dolly 48 wheels and tyres in total plus spares

so far the drawings are close to being finished ready to be CNC cut, so while waiting for things to happen, I was thinking of a load for it, and what better than a

big lump of iron for the back, and having a interest in all things big, I decided to scratch build a cat 657 twin engine scraper, of course it is the biggest they make

Problem there is only 6 in Australia according to Cat here, all in mine jobs, so what to do, ......... how about up scale from a die cast

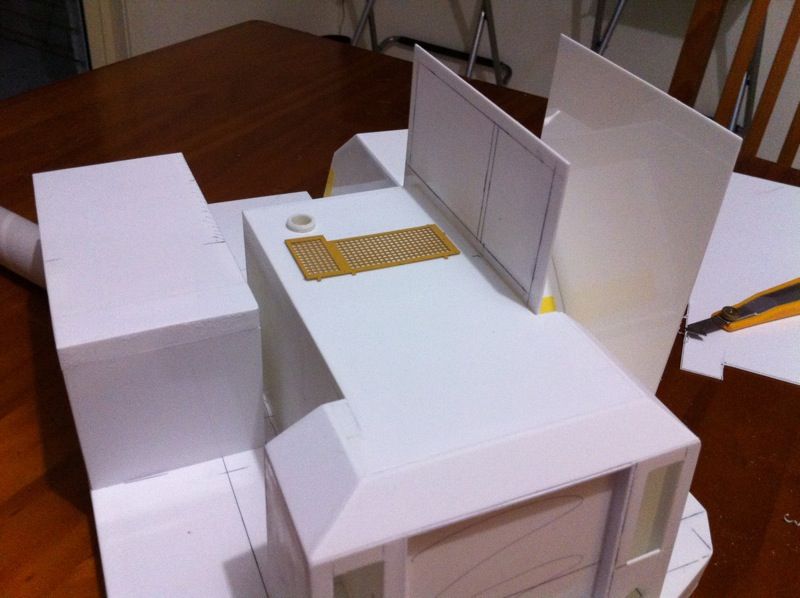

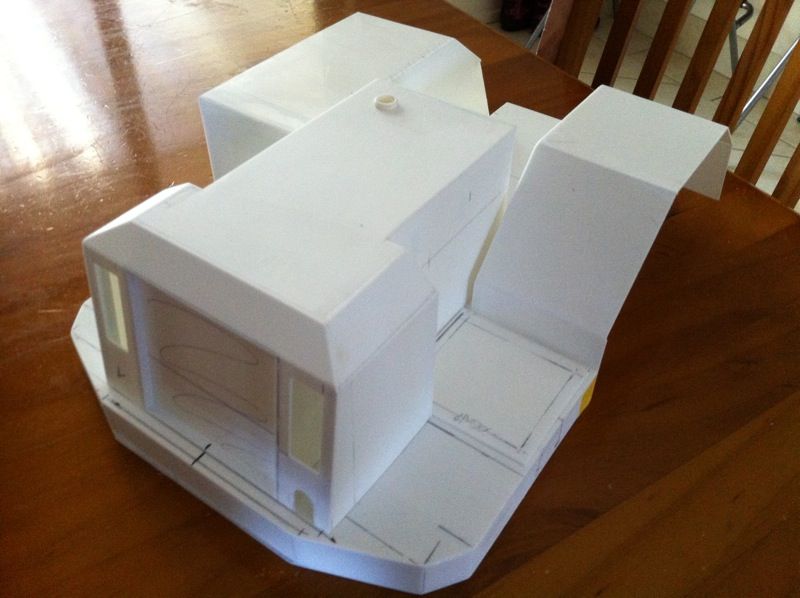

I started with the front tractor and this is where I am after 2 days roughin it in to get the shapes right, still a long long way to go

here are some pics

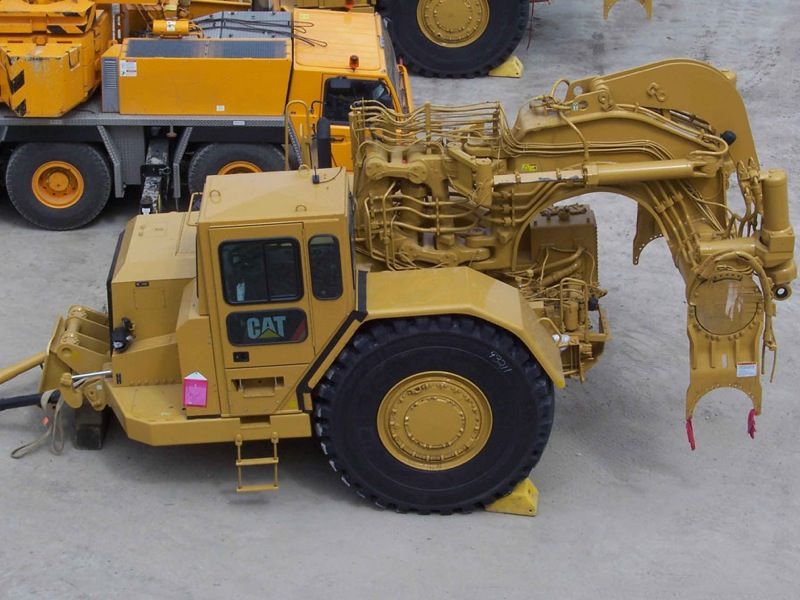

Part I have started with




Total length when finished will be almost 1100mm (43inches) of just the machine, with 2 full sheets of plastic to chop up

Share this post


Link to post
Share on other sites

Posted · Report post

This is gonna be huge............You got my attention......cant wait!!!!!!!!!!!

Share this post


Link to post
Share on other sites

Posted · Report post

I hope you have plenty of plastic sheet on hand! This will be huge.

Tim

Share this post


Link to post
Share on other sites

Posted · Report post

LARGE!!! i like

Share this post


Link to post
Share on other sites

Posted · Report post

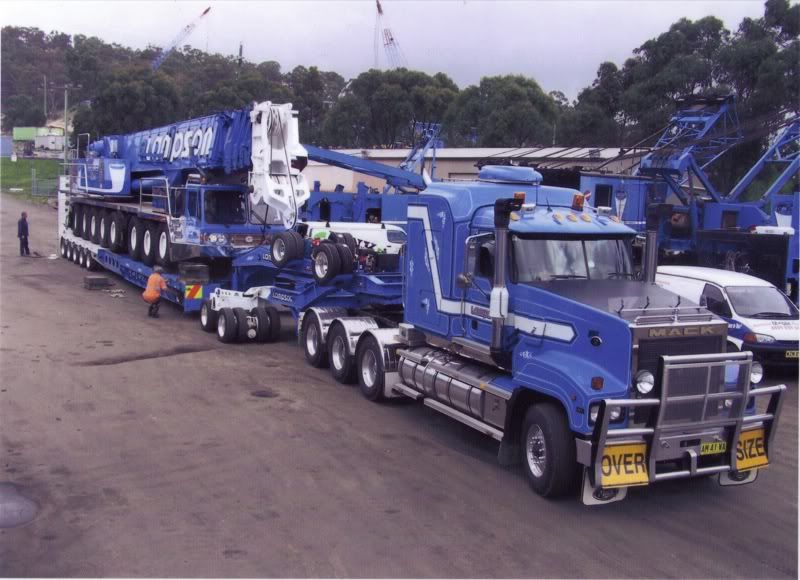

AWESOME! In that 1:1 pic, Its a Mack Titan pulling that monster!! R u gonna build it too!? Sorry to get off track!

Share this post


Link to post
Share on other sites

Posted · Report post

What a project! Nice start too. As said above, that will be HUGE!!

Doug

Share this post


Link to post
Share on other sites

Posted · Report post

Tony,

If "there's" anyone who can pull this unique build off...it is you...you have the knowledge and the talent....will be keeping an eye on this one...

Keep the pictures coming...Kurt

Share this post


Link to post
Share on other sites

Posted · Report post

Wow, that's gonna be something!!!!!! Can't wait to see more progress on this one!!!!!

Share this post


Link to post
Share on other sites

Posted · Report post

Thanks for all the kind comments,

Tony,

If "there's" anyone who can pull this unique build off...it is you...you have the knowledge and the talent....will be keeping an eye on this one...

Keep the pictures coming...Kurt

Thanks Kurt, but you are Far to kind, Hopefully it can be as good as Adam's stuff

AWESOME! In that 1:1 pic, Its a Mack Titan pulling that monster!! R u gonna build it too!? Sorry to get off track!

Good eye, it is Lampson tri drive Titan, as for building it, No, I don't build Mack's or Peterbilts

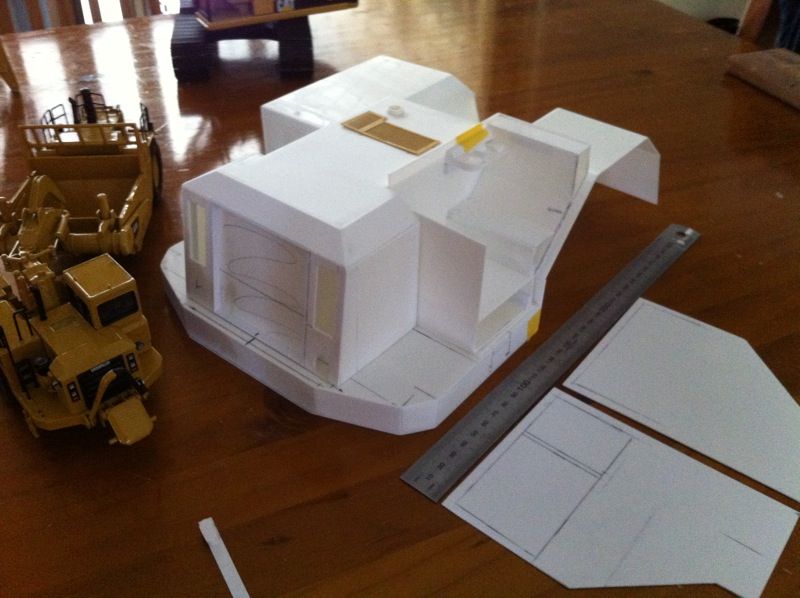

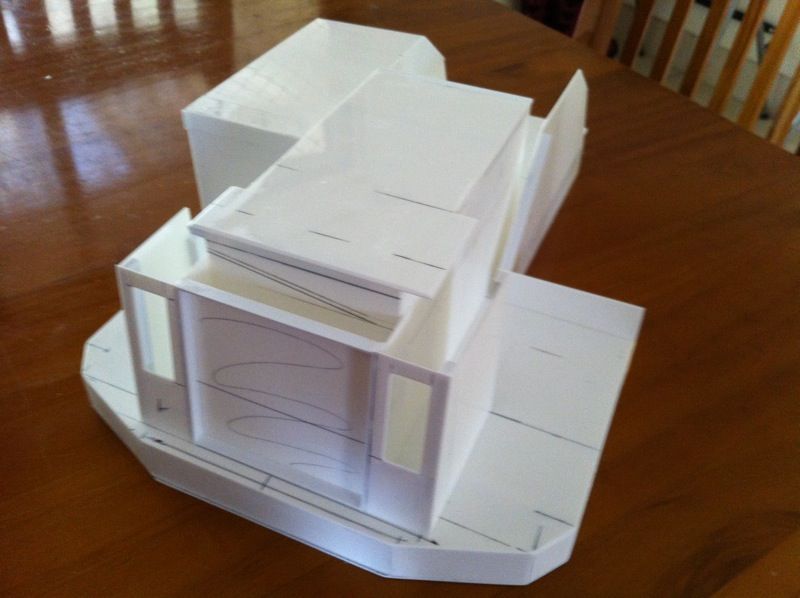

Little bit more done today, finished roughing in the front, now onto the cab


Share this post


Link to post
Share on other sites

Posted · Report post

Quote - "I don't build Mack's or Peterbilts"...How did the Klos KW turn out Tony, any progress?

Share this post


Link to post
Share on other sites

Posted · Report post

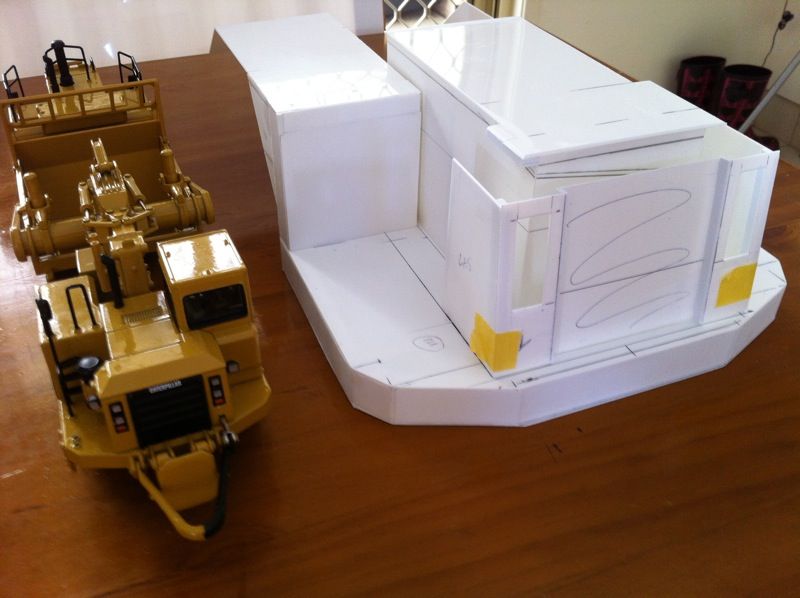

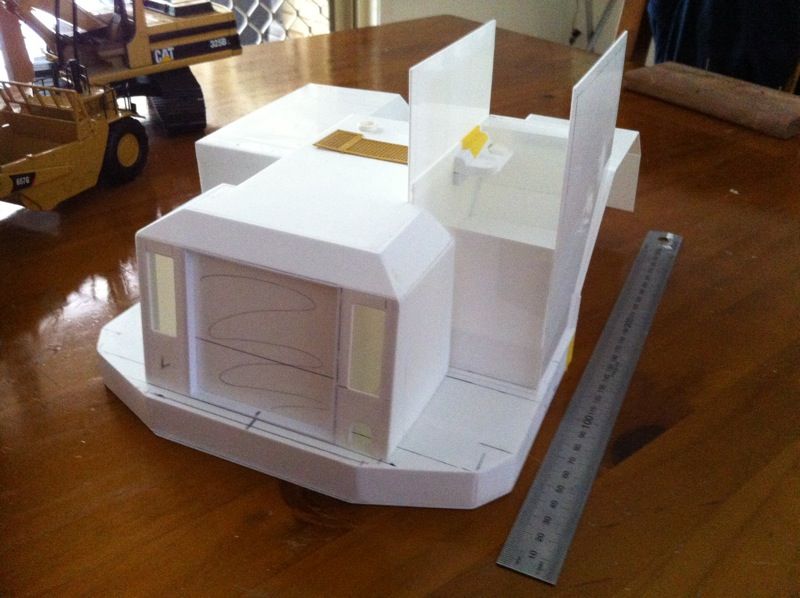

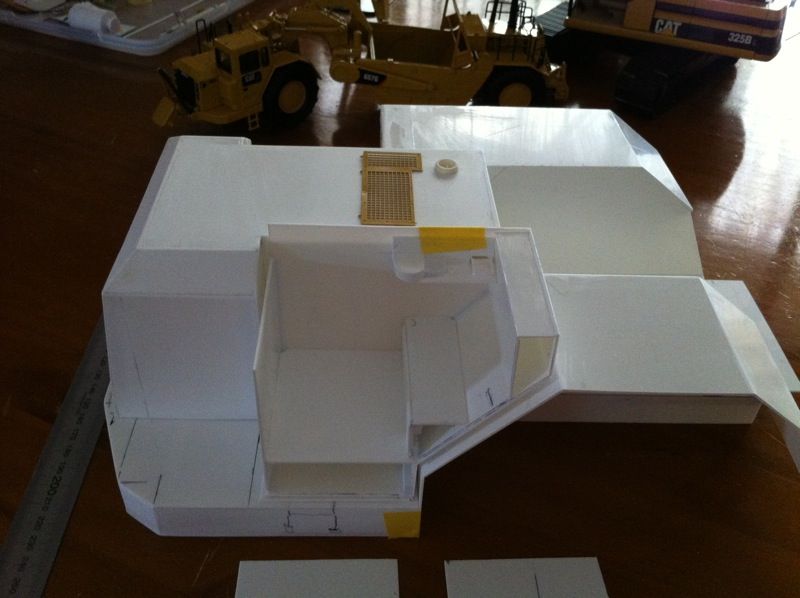

Little more work done, started on the cab, will be happy when this is done, then I can start on the scraper connection, so as it sits, most has been roughed in, ready for finishing when all the major components are finished






Share this post


Link to post
Share on other sites

Posted · Report post

I absolutely love seeing white stock being cut up into projects. GREAT scratchbuilding! Can't wait to see the finished product and also more in progress pics.

Share this post


Link to post
Share on other sites

Posted · Report post

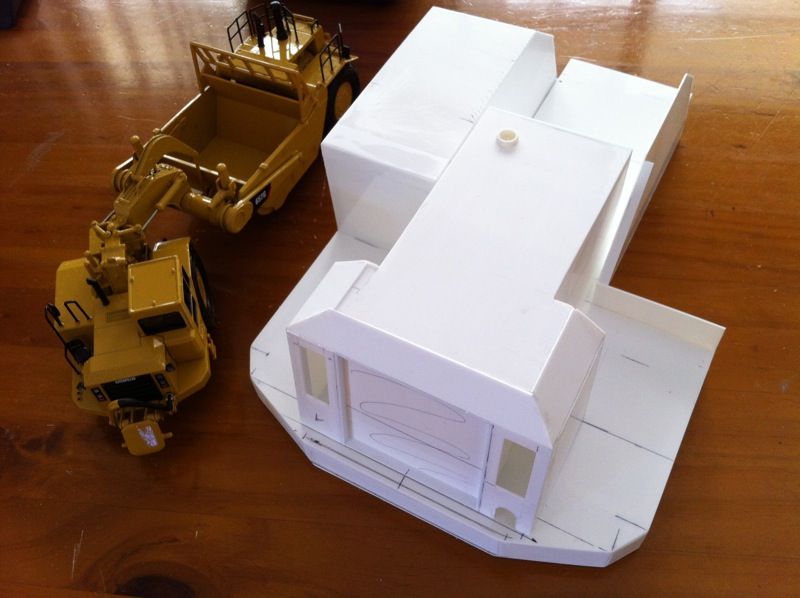

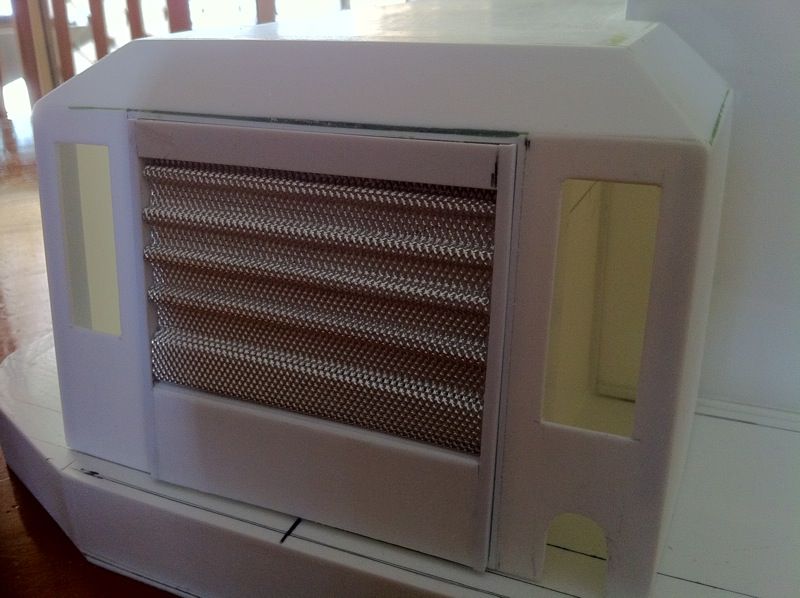

Folded up the grill today, the result is pretty much what I was going for, took about 3 hrs to
