58 Biscayne 20 Days to go!


58 posts in this topic

Posted (edited) · Report post

I started this a while ago and decided to post what I have got so far here.

This is what I'm aiming for:

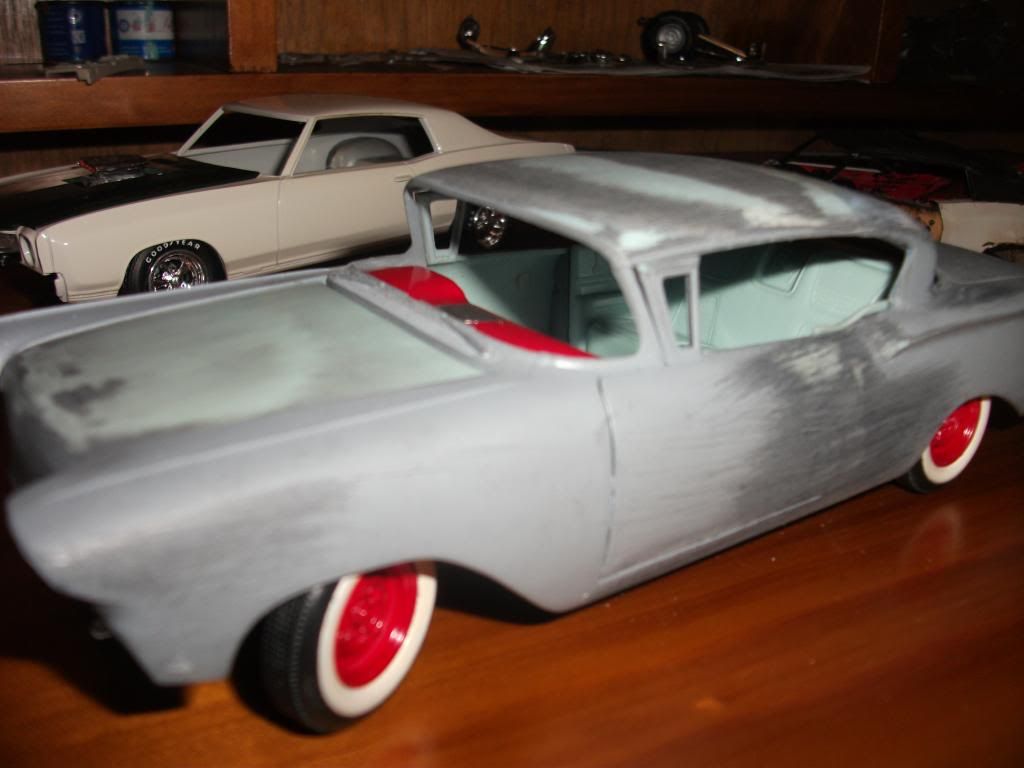

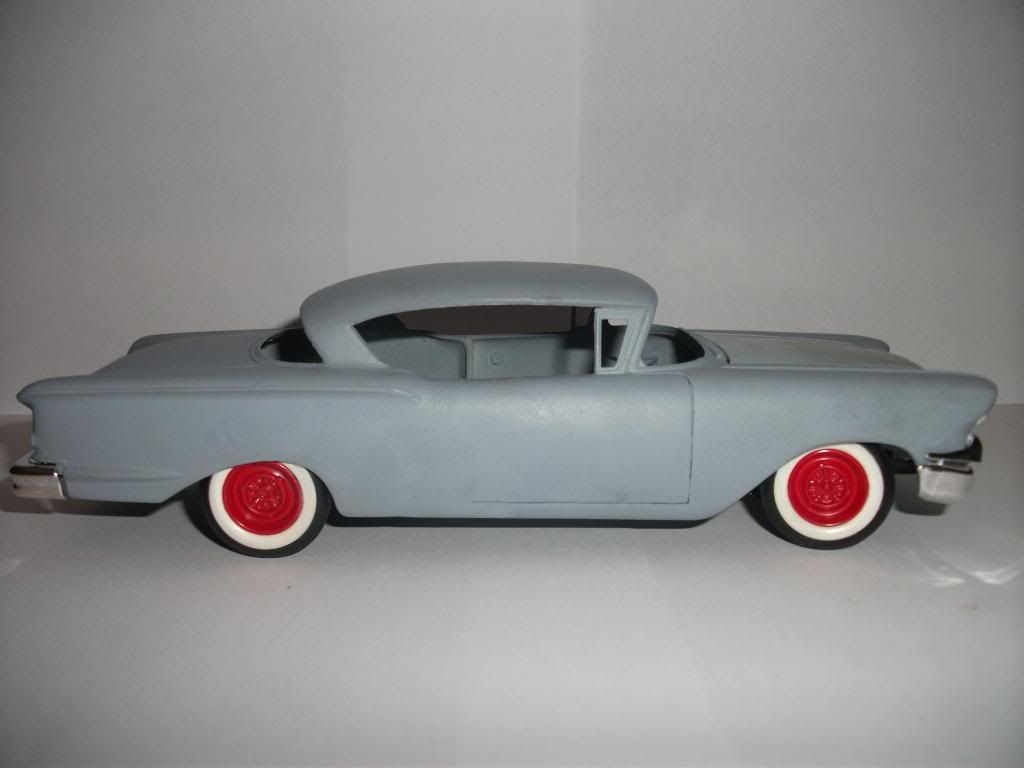

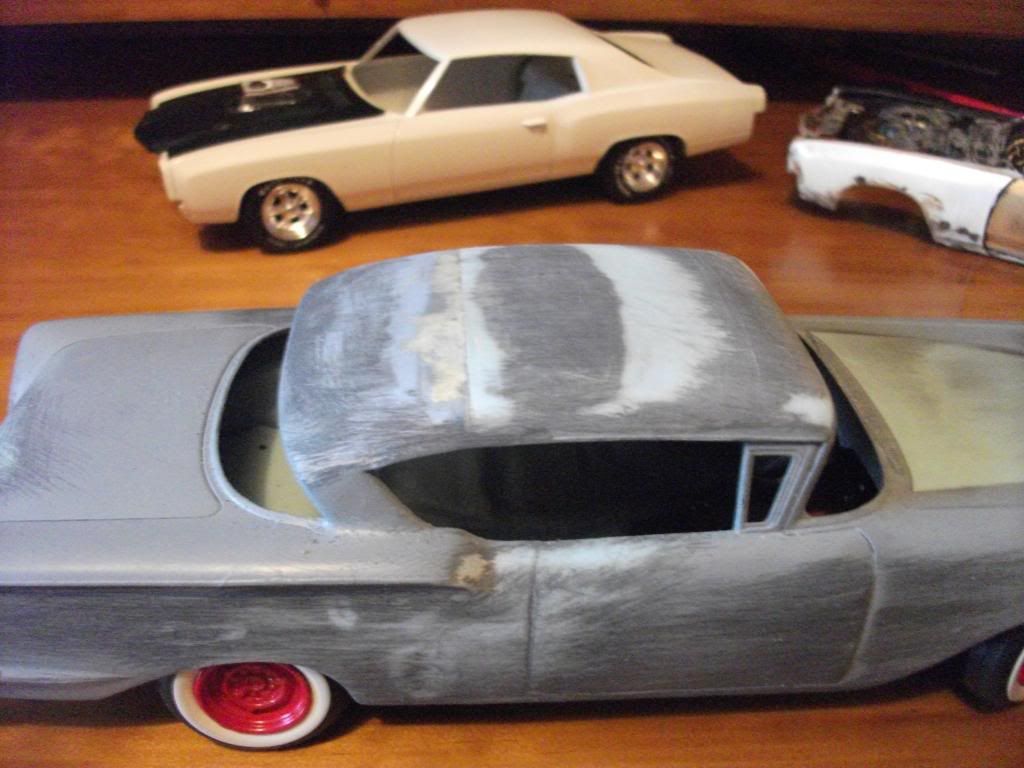

here is where I'm at now:



i have glued in the doors, removed all side trim, lengthened the roof and begun filling the door lines to make it a 4 door.

Edited by IMPALA SS 427

Share this post


Link to post
Share on other sites

Posted · Report post

oh and by the way its going to be right hand drive because I'm building this to replicate a car my dad once owned many years ago.


Even though it looks rough it is getting there.


Share this post


Link to post
Share on other sites

Posted · Report post


Here is a pic of the dash, it was my first dash conversion and i cut it into 9 pieces rearranged it sanded it into shape and:


Let me know what you think.

Share this post


Link to post
Share on other sites

Posted · Report post

Wow; That was my grandfathers car(orange & white) back in the late 50's & early 60's. As a little kid my grandfather would come and take me to school & pick me up. This is going to be an interest to me to see the build!

Share this post


Link to post
Share on other sites

Posted · Report post

Welcome aboard ! The car itself is not my cup of tea, but the build is pretty intense. Very nice work, so far. Let's see some more ! Bart.

Share this post


Link to post
Share on other sites

Posted · Report post

Cool subject Impala SS 427 !

Now , did you remember to convert the MPH speedo to KpH ? It was hard to ascertain by the photos you've provided :D .

Share this post


Link to post
Share on other sites

Posted · Report post

Thanks everyone for the comments :)

Share this post


Link to post
Share on other sites

Posted · Report post



Its getting there, just a final smooth and fill the last of the imperfections and then the roof and sides are almost done.

Share this post


Link to post
Share on other sites

Posted · Report post



hope to have more soon.

Share this post


Link to post
Share on other sites

Posted · Report post

Progressing nicely . Are you going to try to reshape the taillight area ? I'm trying to figure that out for a wagon I have in progress .

Share this post


Link to post
Share on other sites

Posted · Report post

Hi James,

another interesting built! Love the 58 Chevy.

Where did you lengthened the roof? Have you also replaced the c-pillar?

I like the idea with the right hand drive - very cool!

Share this post


Link to post
Share on other sites

Posted · Report post

Progressing nicely . Are you going to try to reshape the taillight area ? I'm trying to figure that out for a wagon I have in progress .

That would be the toughest part if for me if I were doing this! Reshaping the rear "gullwings" to a different angle, making a new decklid, new taillights, etc. :o

You're a braver man than I with this conversion!

Share this post


Link to post
Share on other sites

Posted · Report post

Thanks everyone. :)

I'm not sure about the tail light area yet I'm kinda avoiding that for now.

Here's how i did the roof:

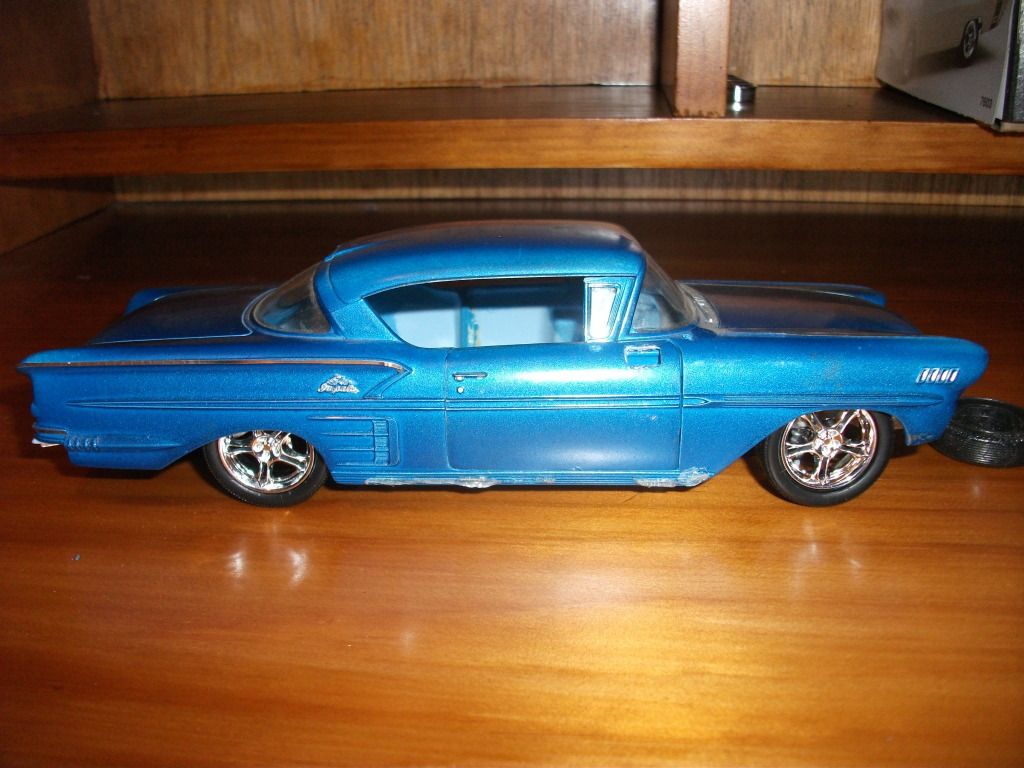

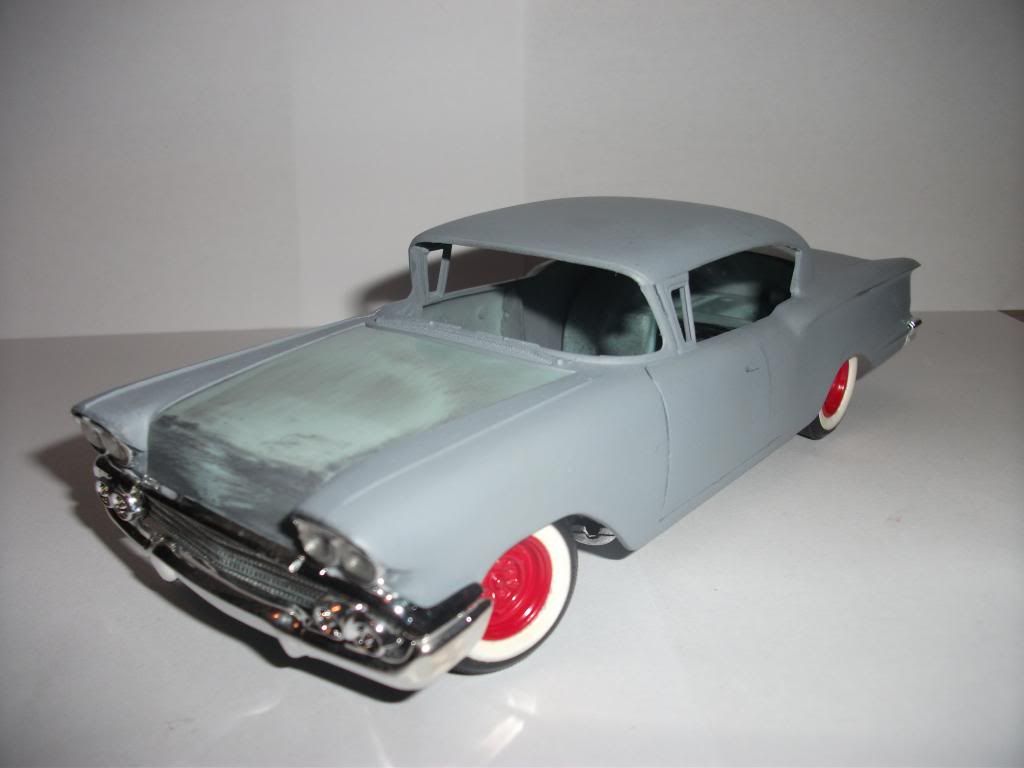

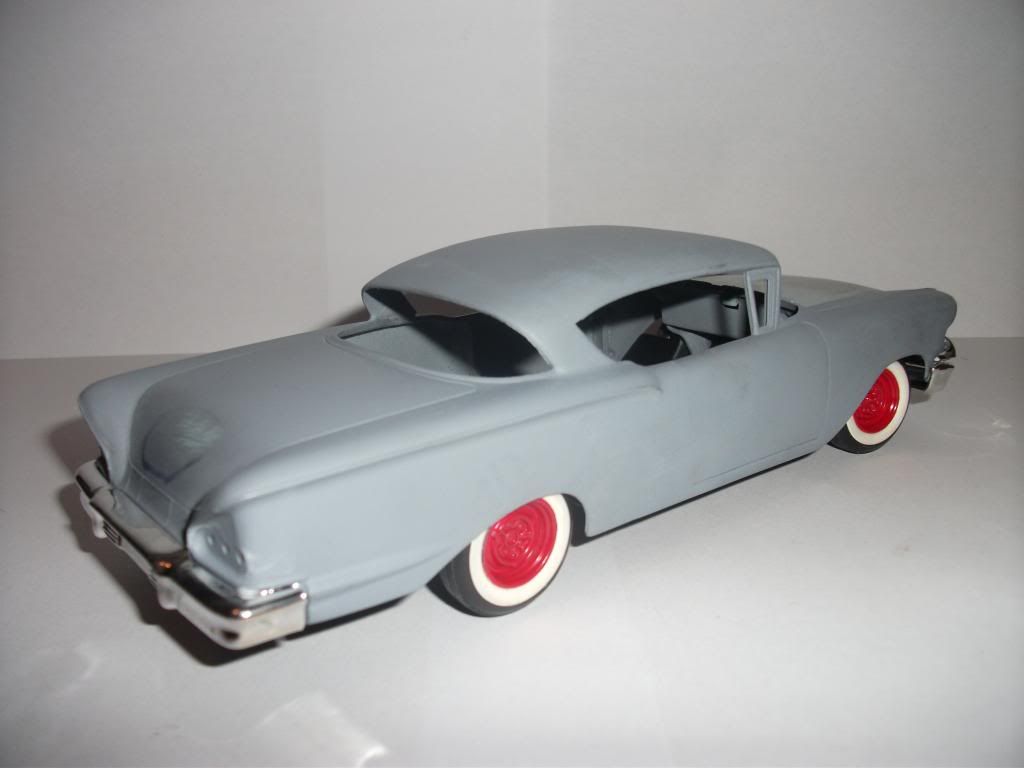

an old build up:

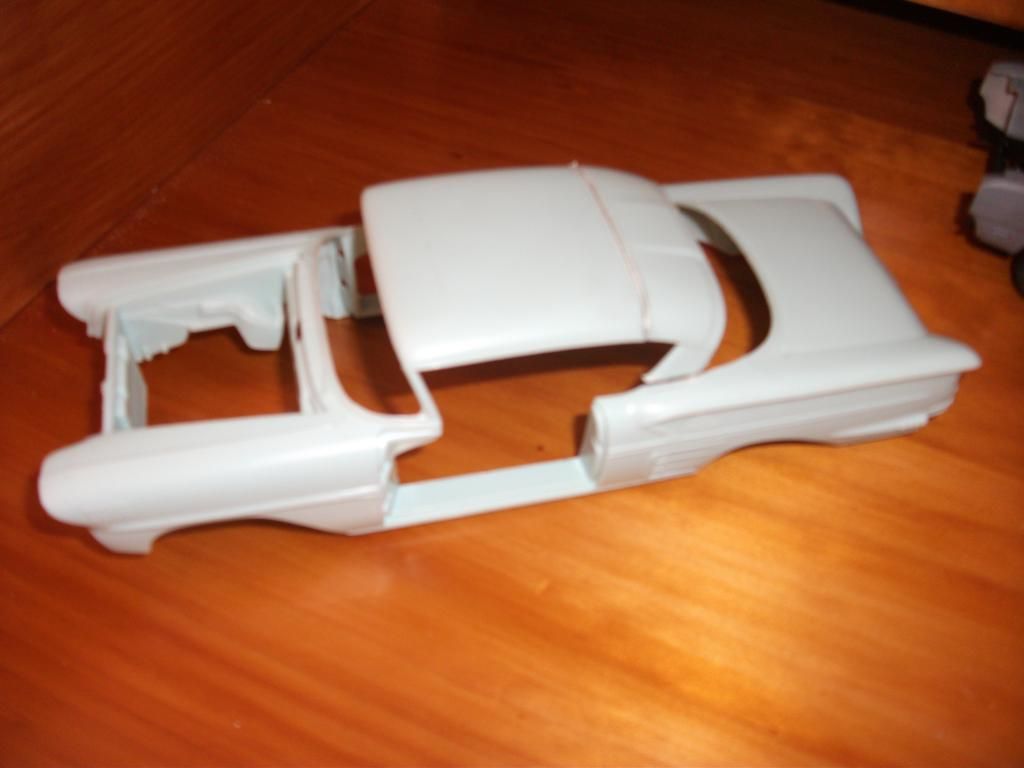

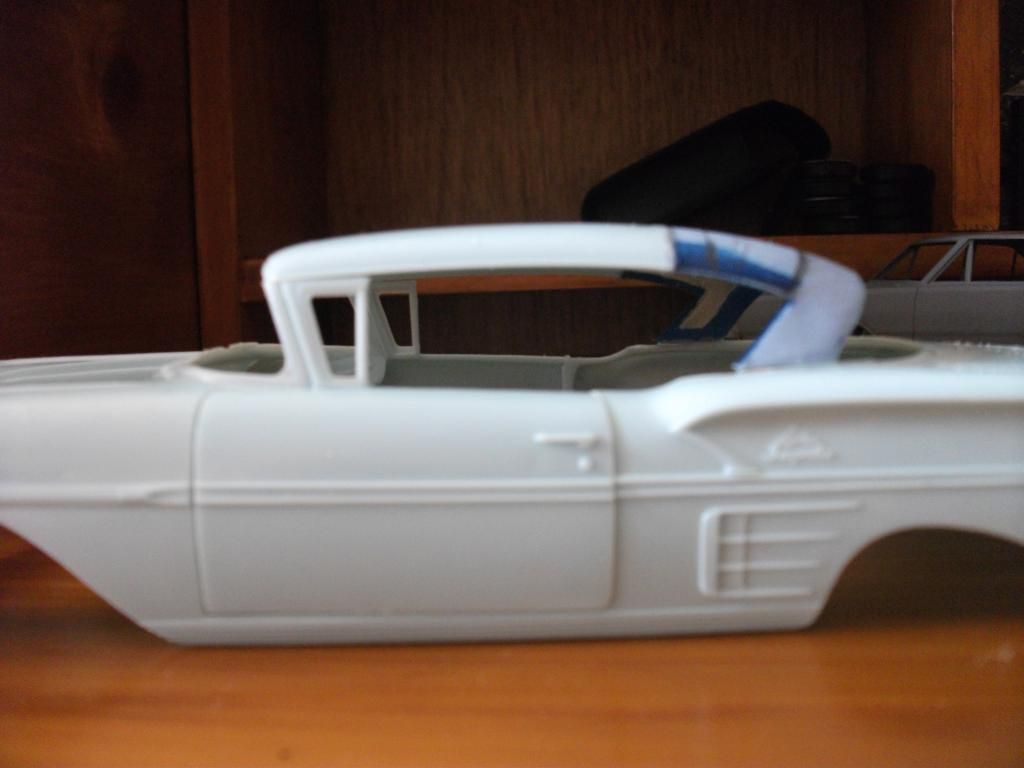

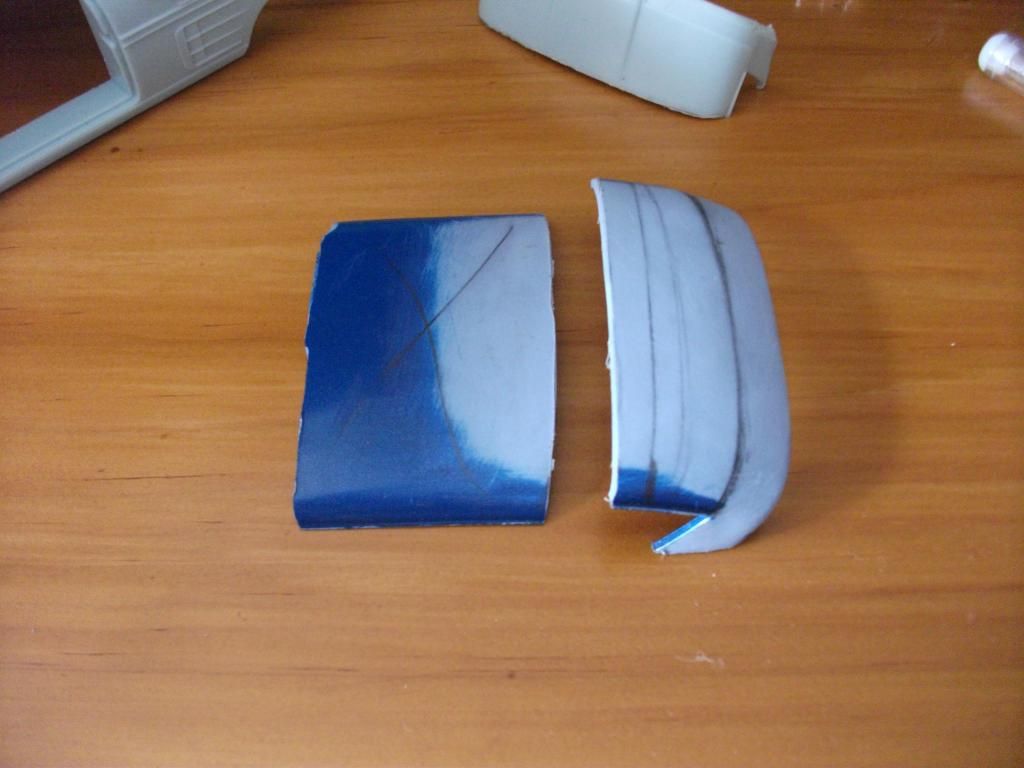

i cut the roof away to make this:



Then cut a small section of the impala roof and added the other roof which was a bit longer than the piece i cut out (5 scale inches i think)



and then lots of sanding.

Share this post


Link to post
Share on other sites

Posted · Report post

Ahhh :o

You're a perfect "recycler" think. Take a roof, make a convertible. Cool! Now "i see clear". Thank you James - for prompt answer.

Share this post


Link to post
Share on other sites

Posted · Report post

An abitious project!! Thank you for sharing how you are making this conversion and I am sure that it will give others some ideas as to how to section and convert a model into something that they want. I am especislly interested at this point as to how you will convert the dash to right hand drive.. can you please share that process in detail? Thanks.. and nice work! Don;t give up on this one and again, thank you for sharing. :D:D:D

Share this post


Link to post
Share on other sites

Posted · Report post

Thanks Dominik and Gary.

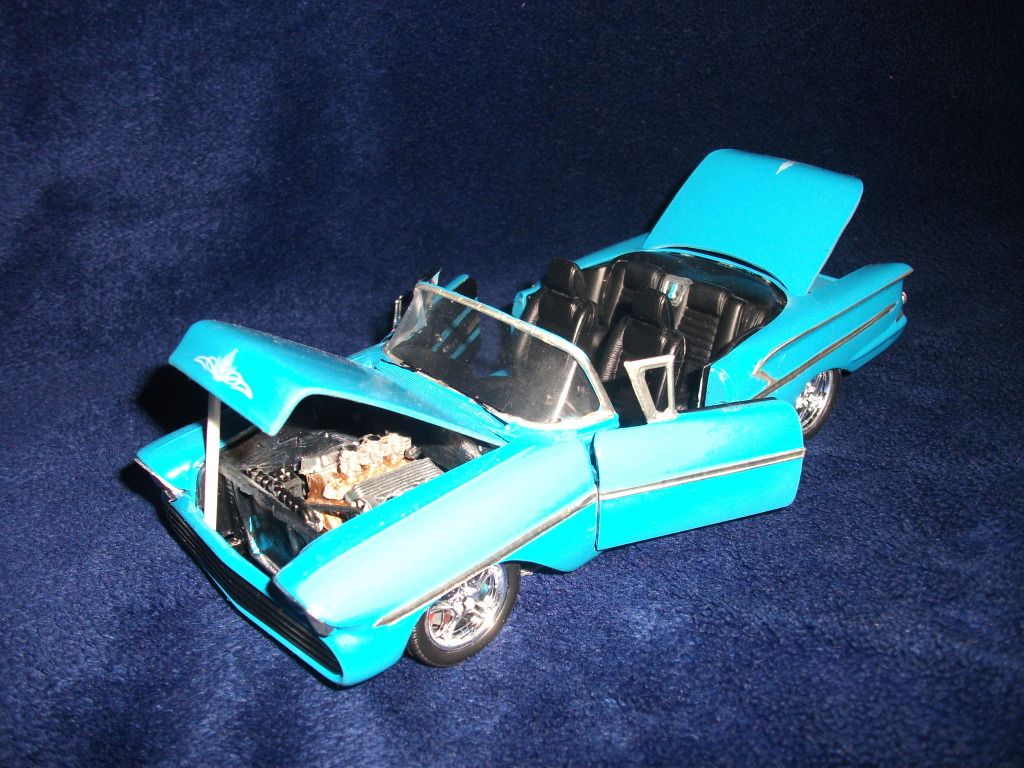

Dominik - After taking what I needed from the junk 58 I couldn't help but play around with a set of rims at my desk at the time and it looked really good. I neatened it up a bit and a few spare parts and 70 GTS hood vents for the sides and there you have it. It was a lot better than what I was going to do with it (take parts that were good and parts box the rest).

Gary I will find the pics (if I have any) of the dash while I converted it.

I am currently working on the rear lights "gullwing" shape and making it to the Biscayne style.

I will have pics tomorrow.

Share this post


Link to post
Share on other sites

Posted · Report post

Need to get rid of that 3rd tail light on each side. But lookin great sofar.

Share this post


Link to post
Share on other sites

Posted · Report post

Thanks Samuel.

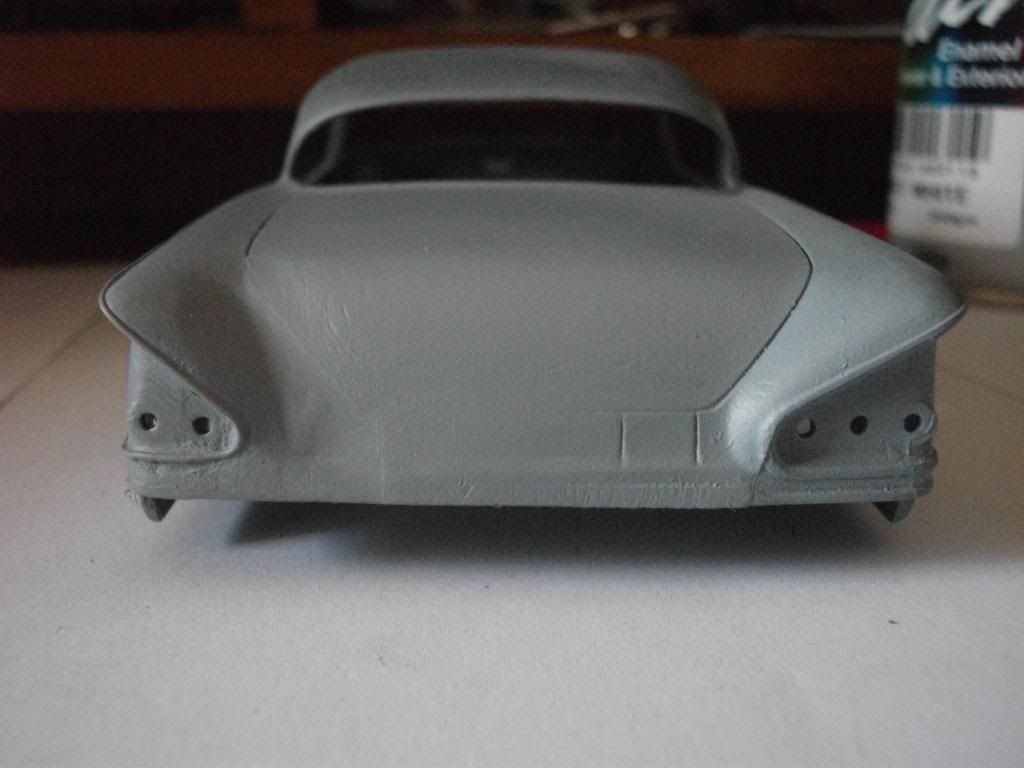

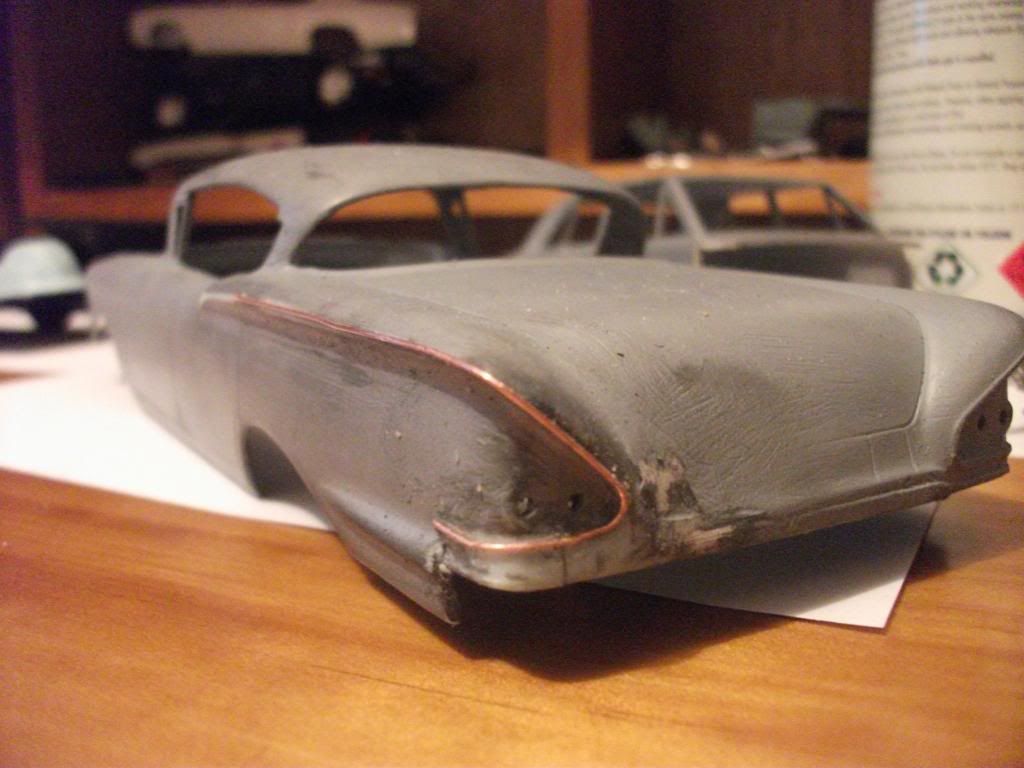

Ok I got the left light almost done.

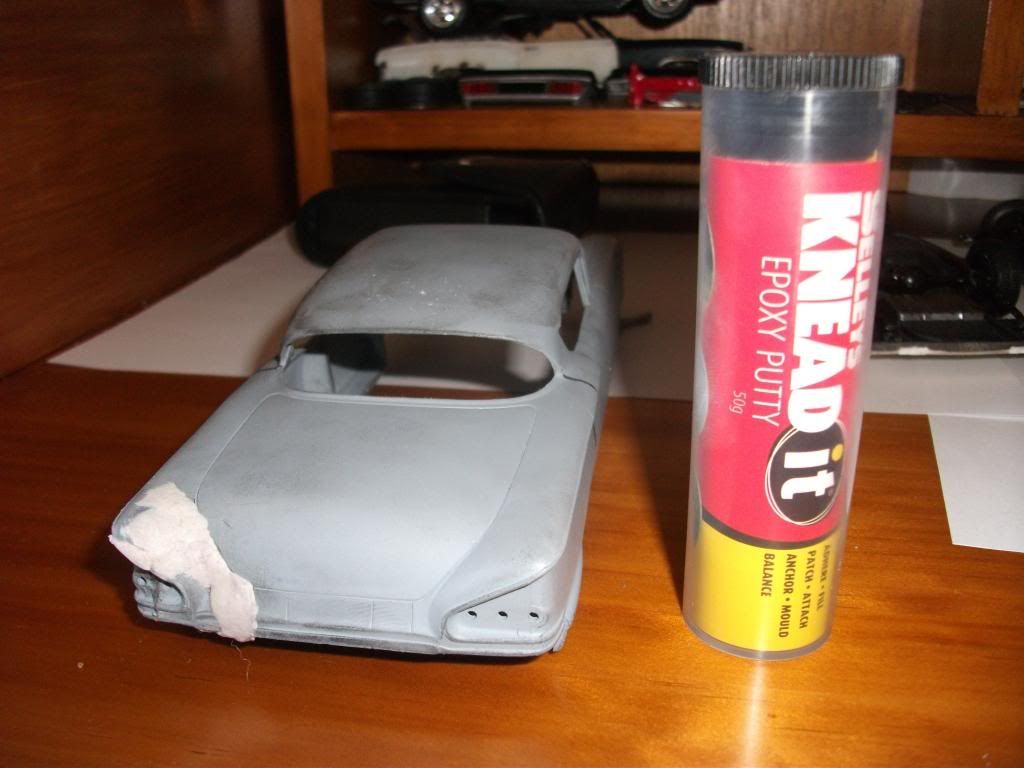

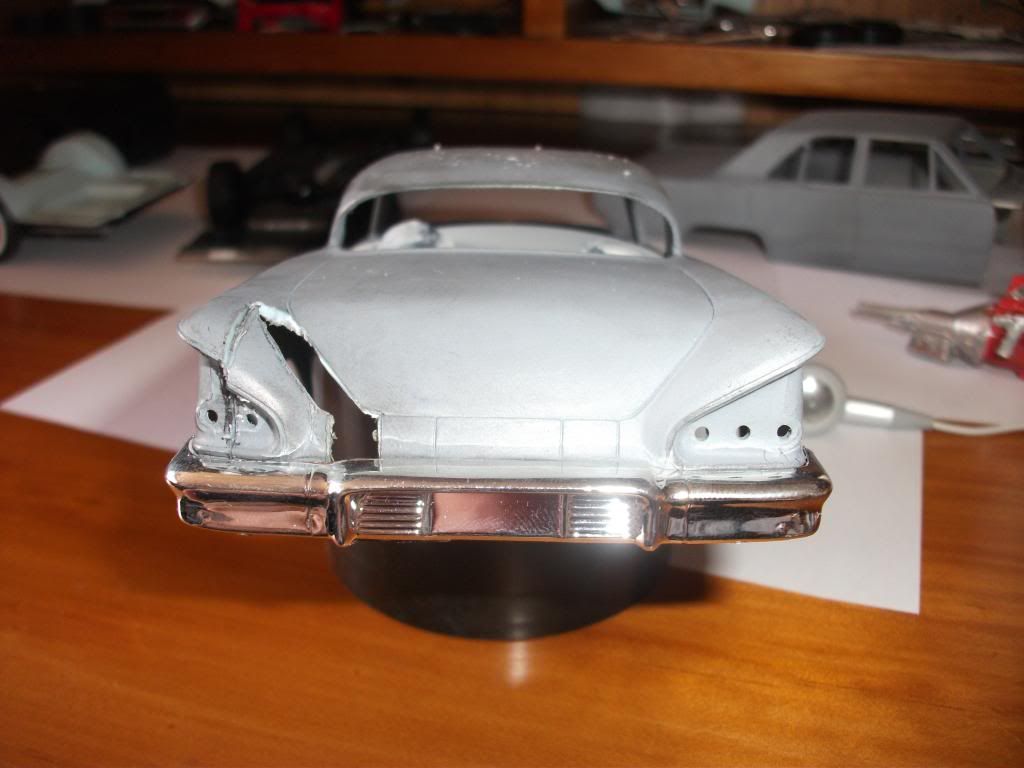

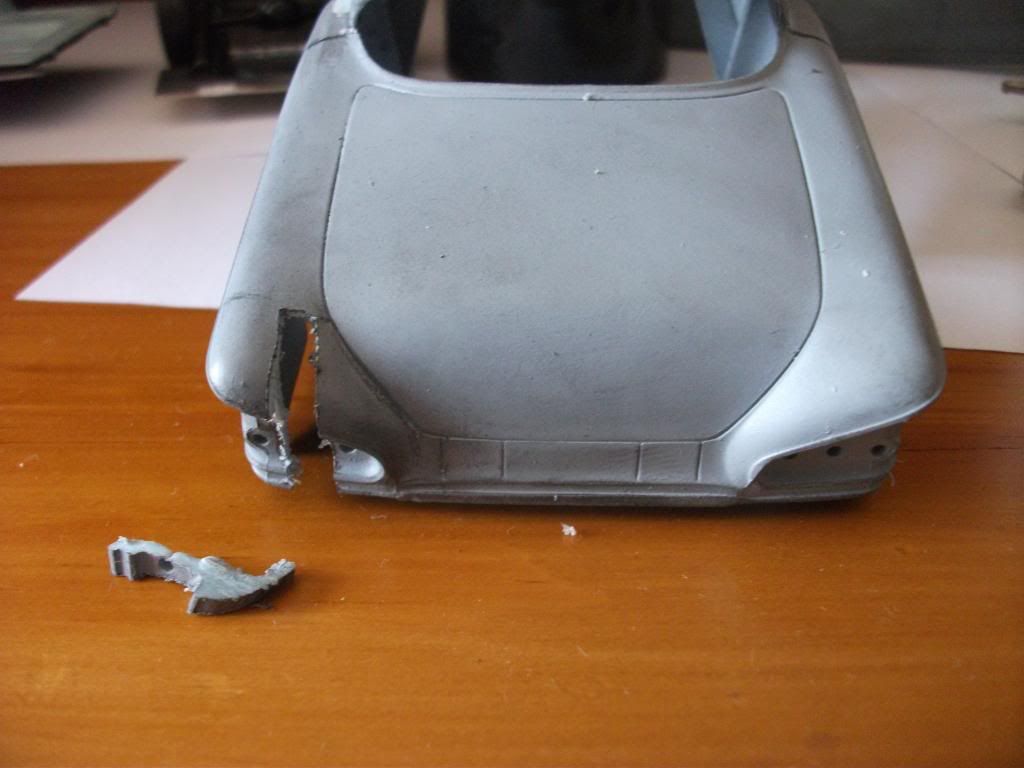

I cut the centre piece out and then cut along the trunk line and put the pieces together.


DSCF2583_zps3876fc1b.jpg'

I used epoxy putty to fill the gap and sanded it into shape.


I sanded away the trim and replaced it with metal wire.

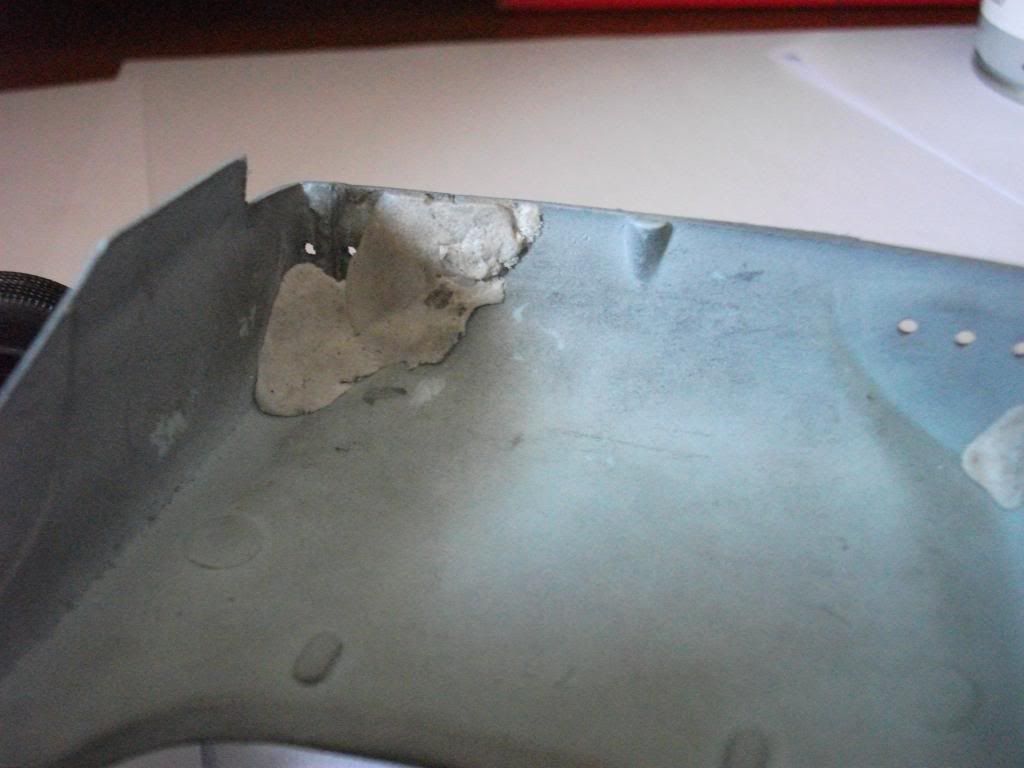

I added a bit of putty underneath in case I sanded through it.

Share this post


Link to post
Share on other sites

Posted · Report post

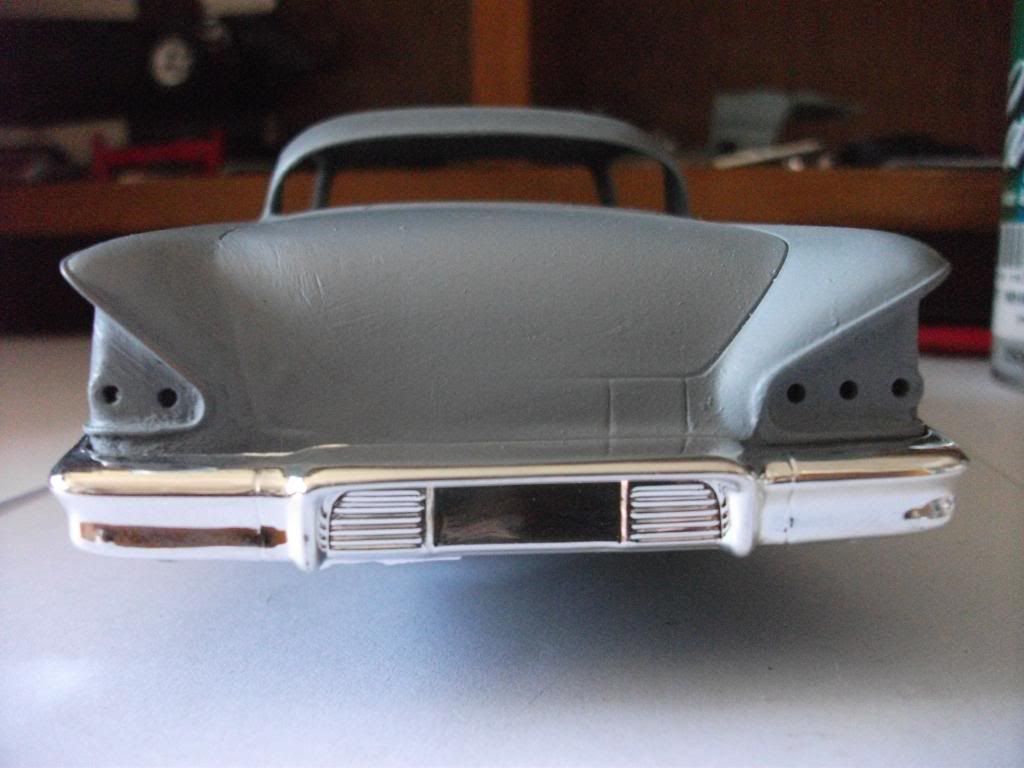

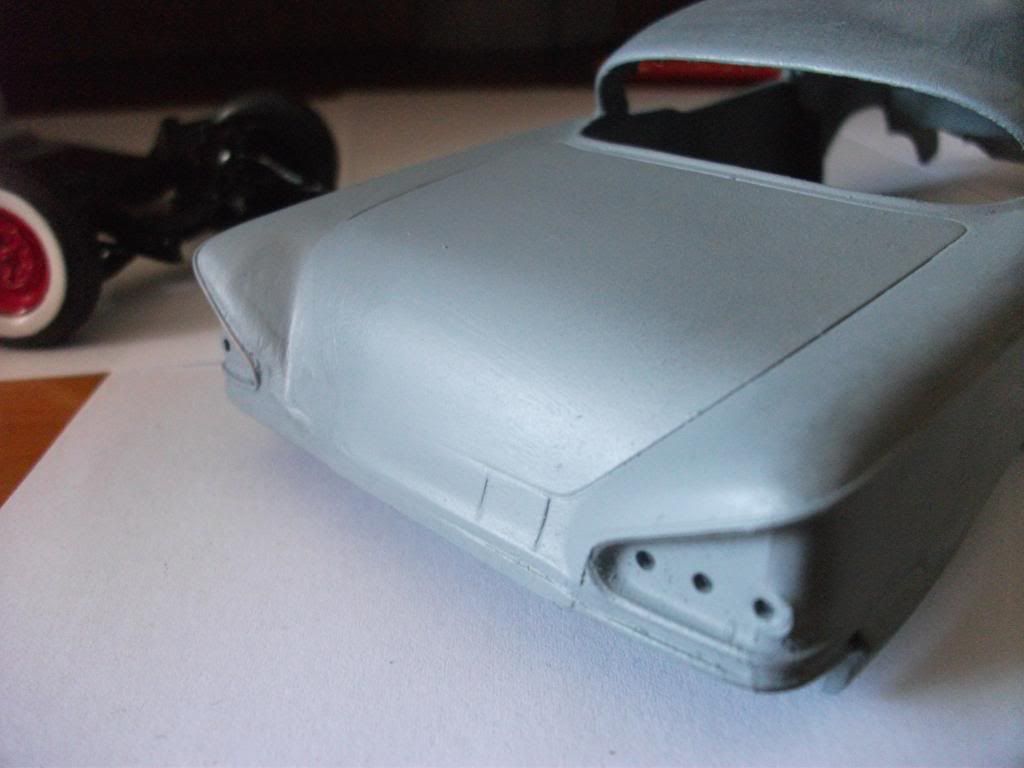

It is still a bit rough but as you can see its getting there.

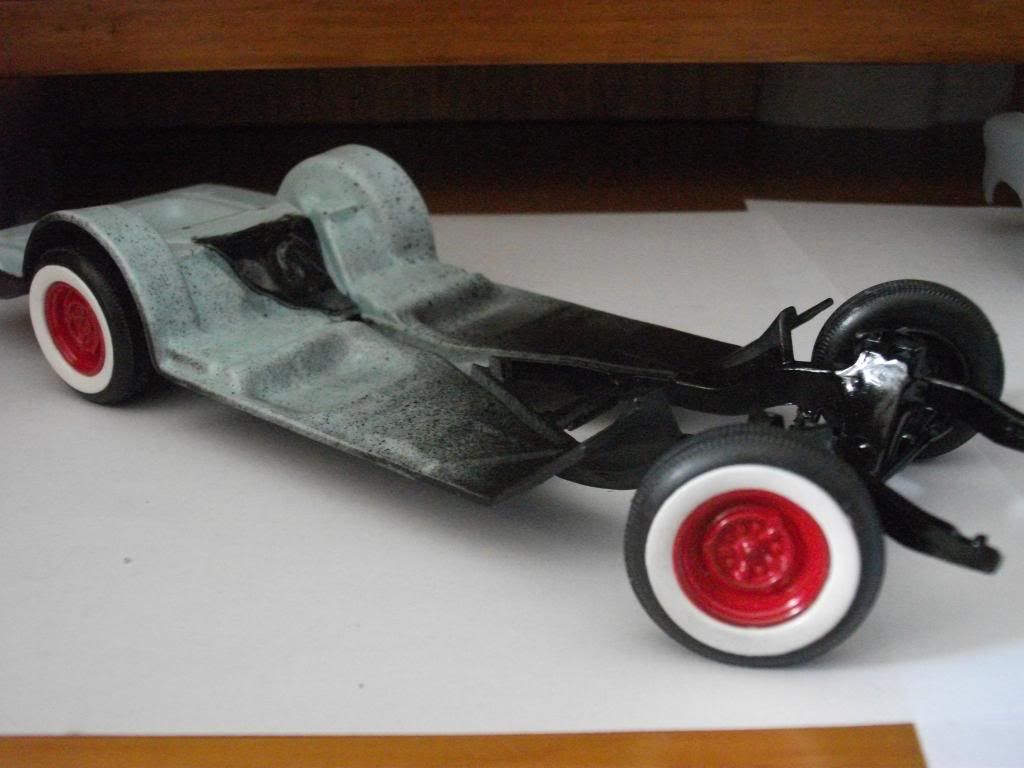

I also re painted the white wall inserts as they were looking a bit sad.



I've dot the side marked out and am ready to re scribe the door lines. I just need to get my hobby knife in the mail. (Im completely out of blades)

hope to have more soon.

Share this post


Link to post
Share on other sites

Posted · Report post

Nice progress! Thumps up James!!!

Share this post


Link to post
Share on other sites

Posted · Report post

Thanks Dominik.

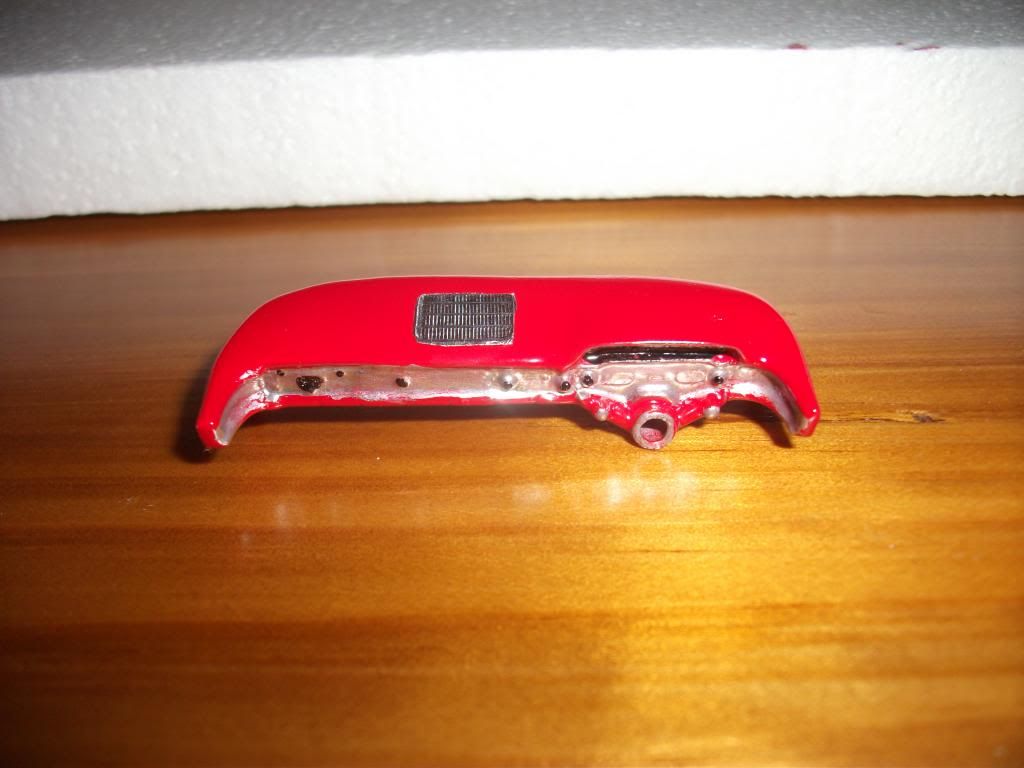

Gary i did find a few pics of the dash :

sorry for the poor quality but they are the only ones i had, you can see some of the lines where i cut it up.



Progress: I have 1 side almost done.

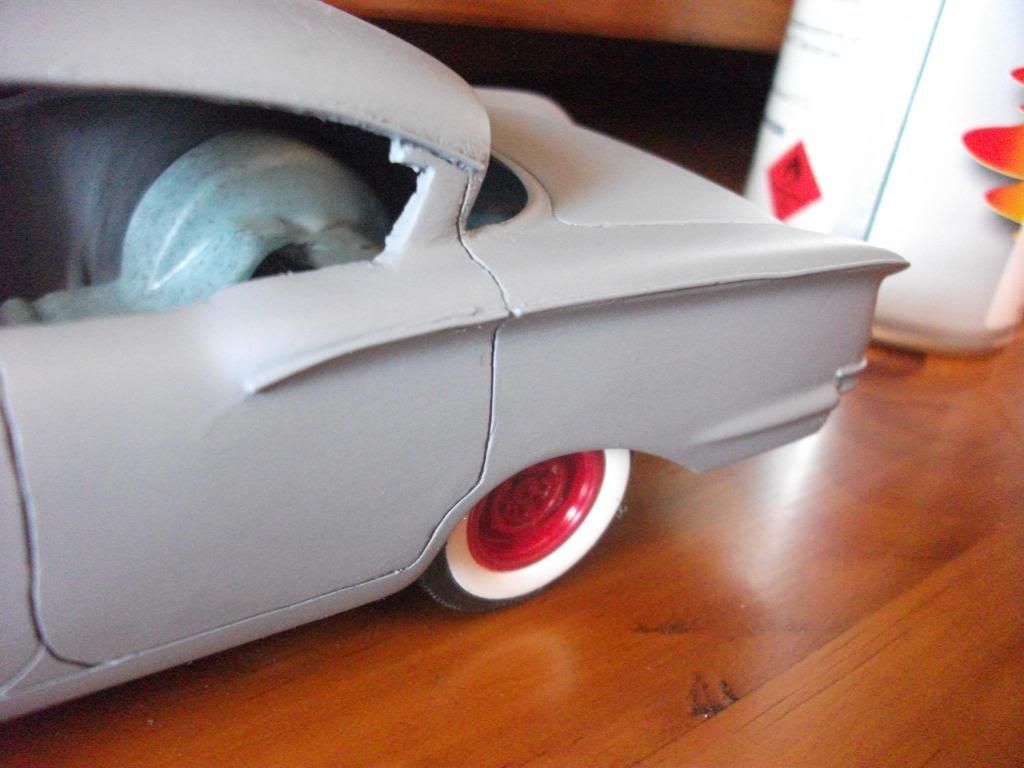

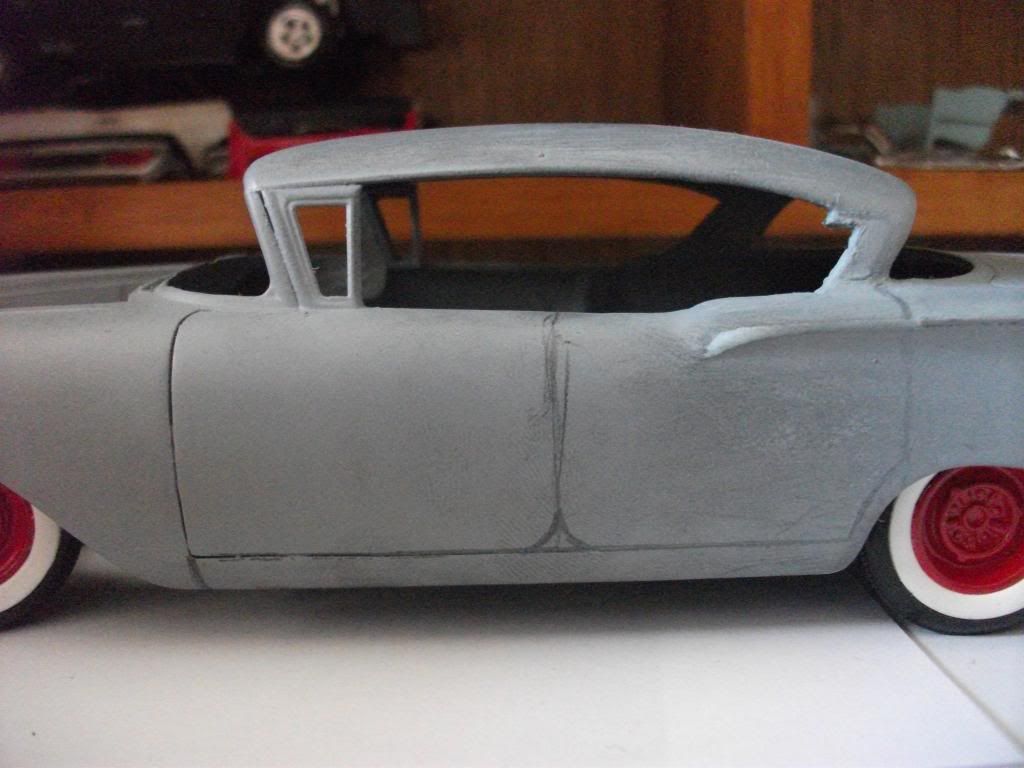

I got the door lines done:


The front guard gills:

The real thing and mine for a comparison.



Still needs work...

Share this post


Link to post
Share on other sites

Posted · Report post

more:

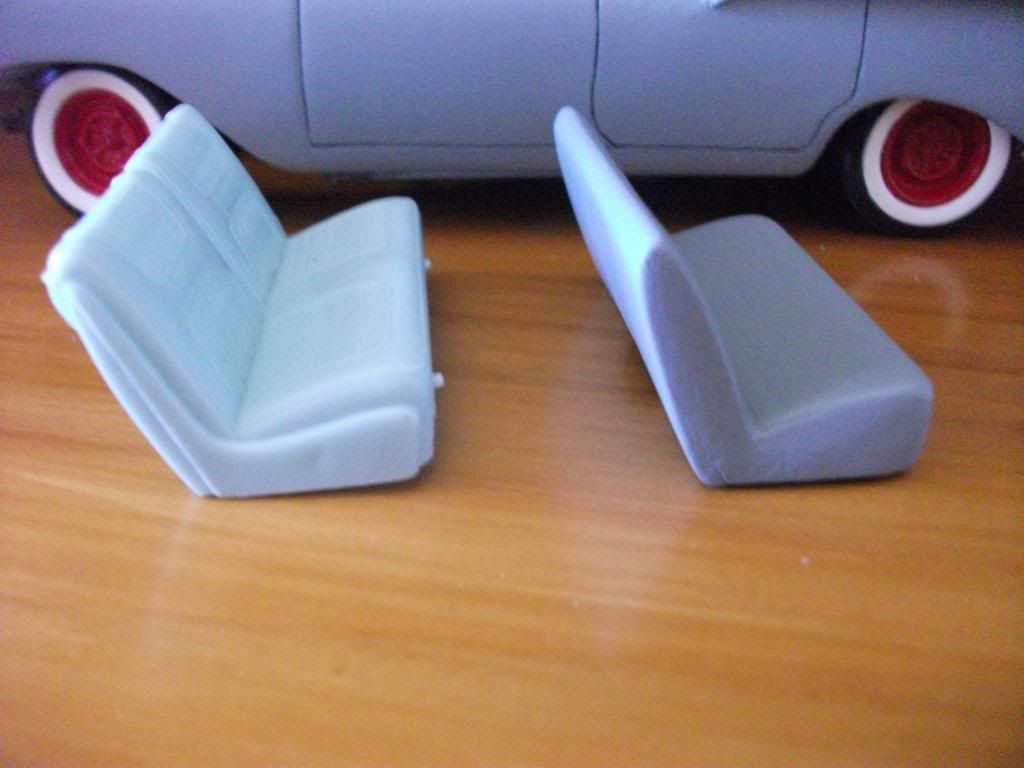

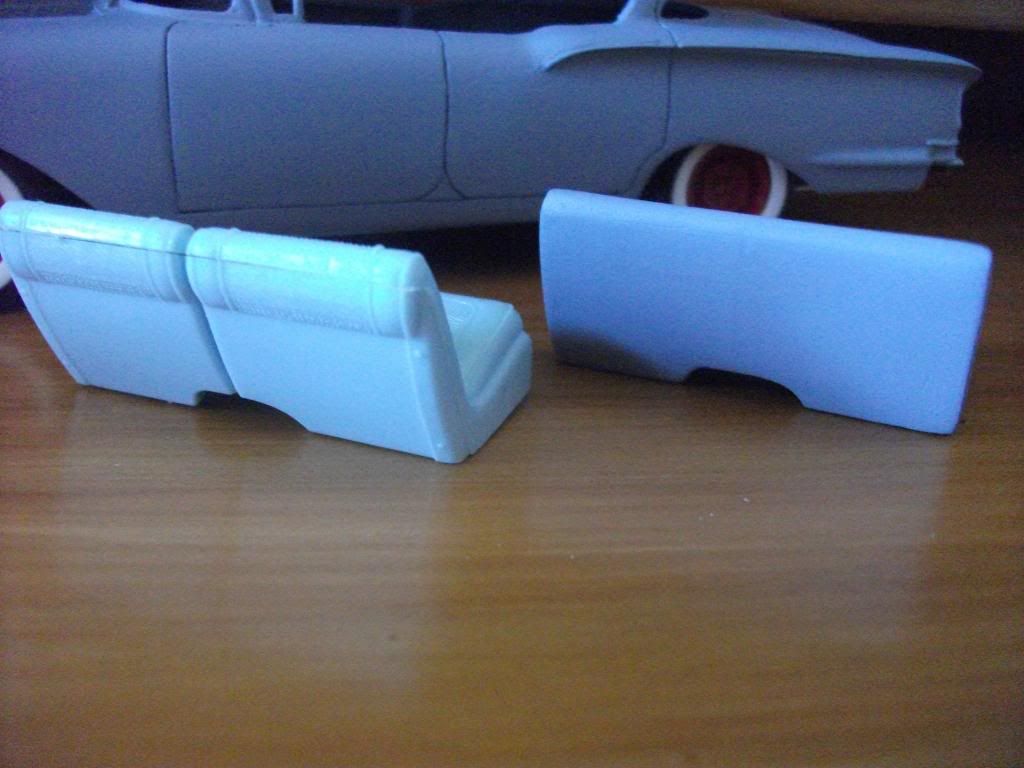

I have also smoothed the front seat completely. it still needs a little sanding and the new Biscayne seat trim.




Hope to have more soon, let me know what you think.

Share this post


Link to post
Share on other sites

Posted (edited) · Report post

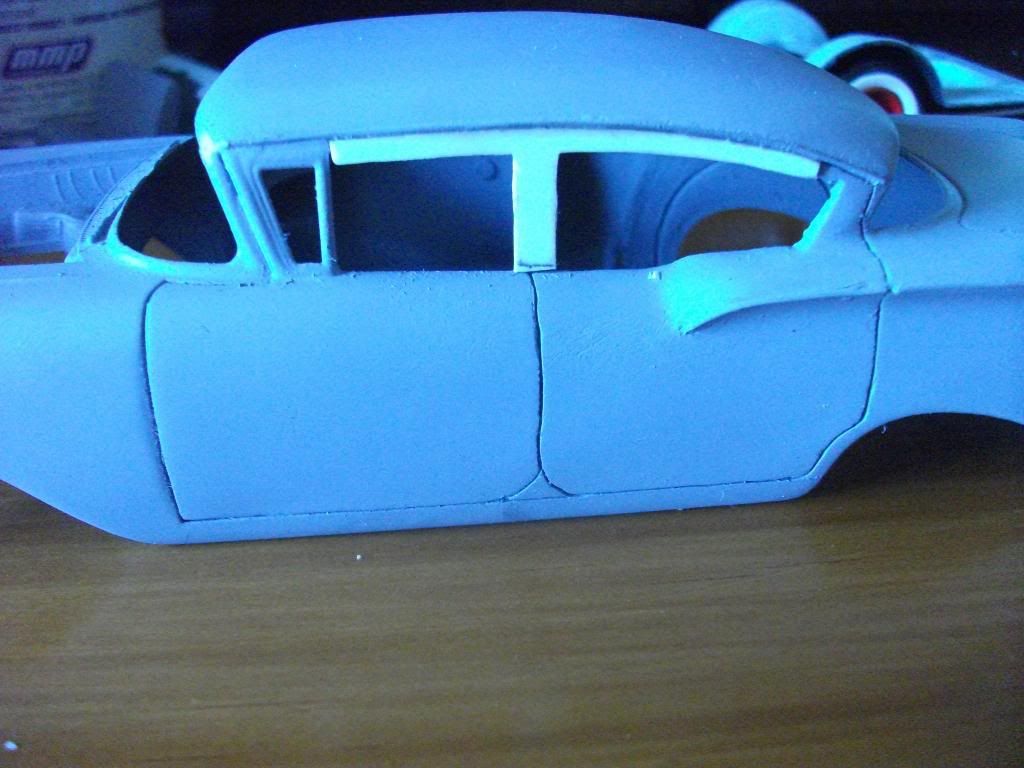

Ok major progress:


I started with the pillar and window frame and cut it out from sheet styrene.


Got the door line for the pillar scribed and then glued it in and made the rear window divider from wire.

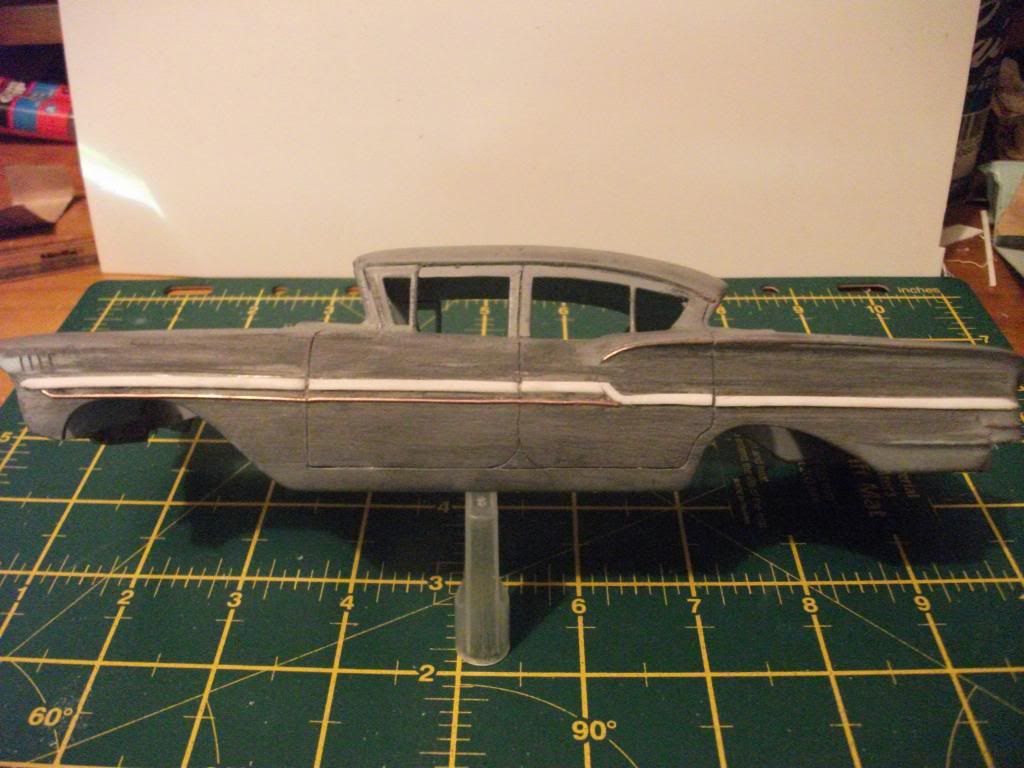

then i made the side trim from sheet styrene and metal wire.

Edited by IMPALA SS 427

Share this post


Link to post
Share on other sites

Posted · Report post

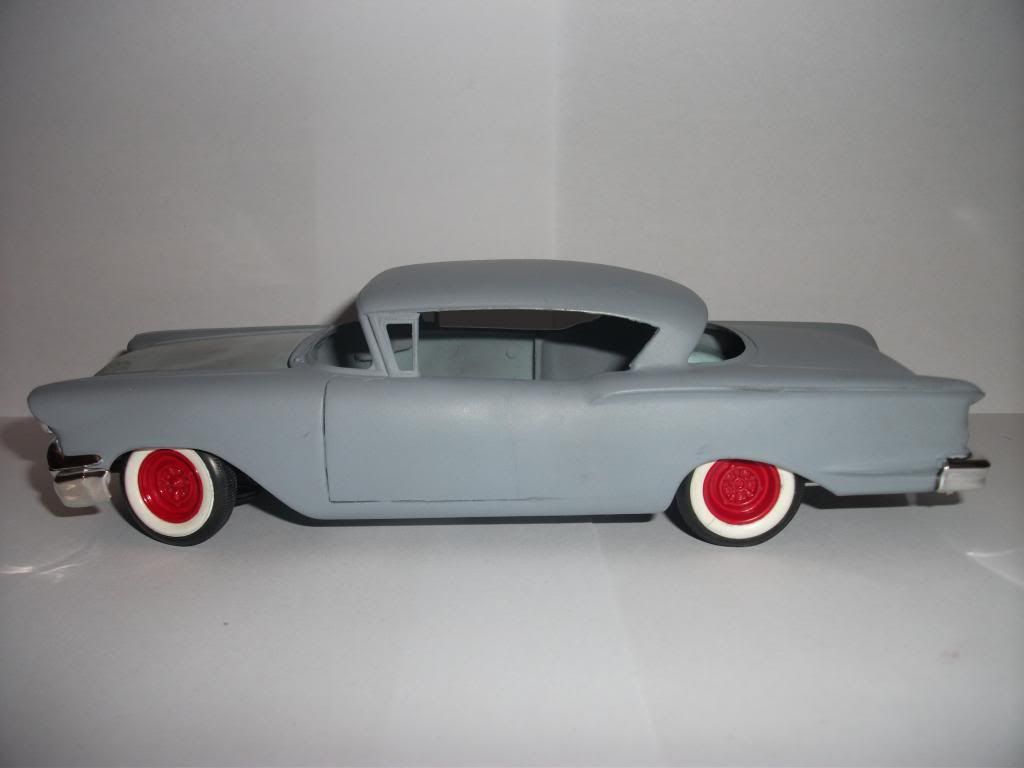

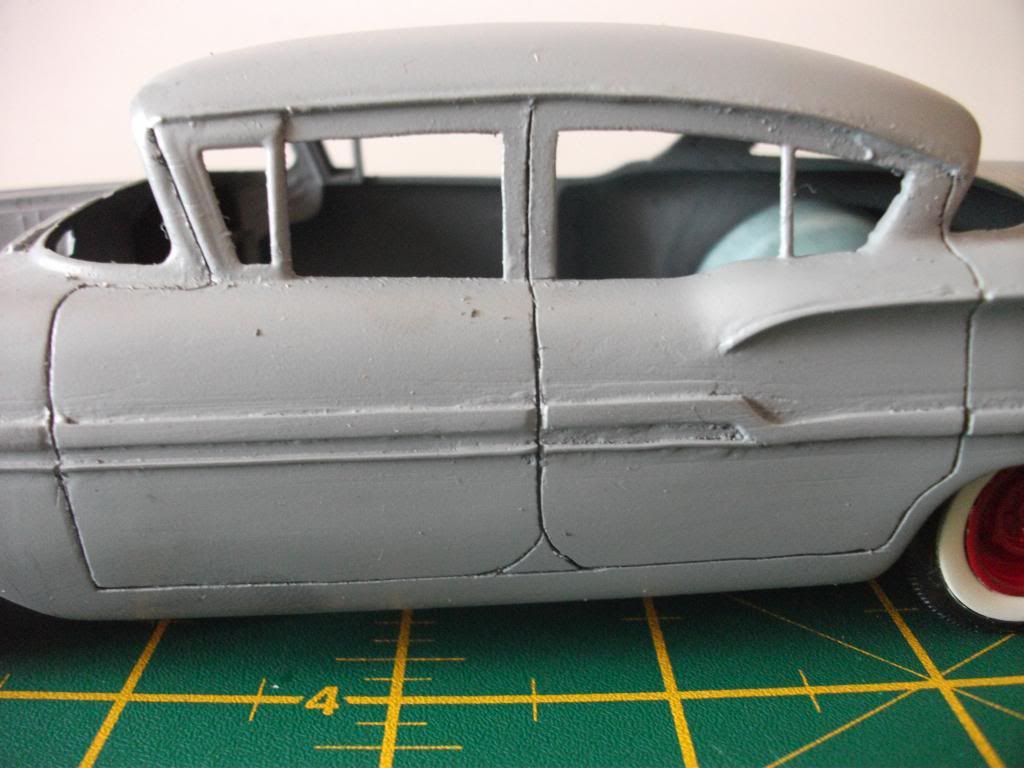

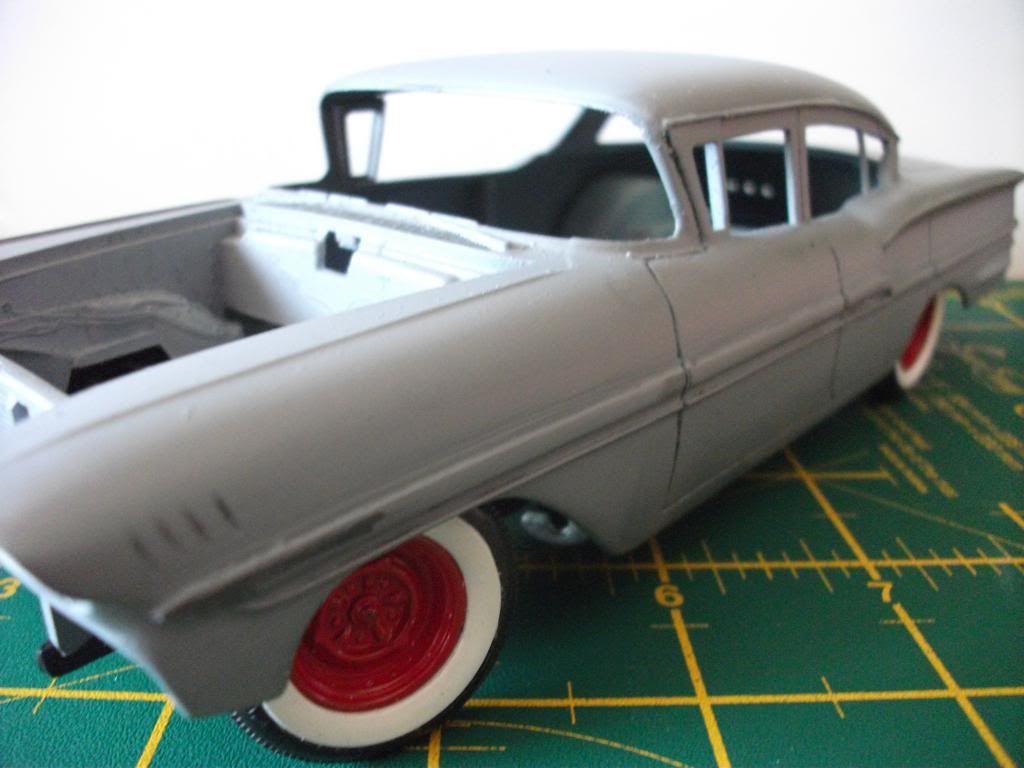

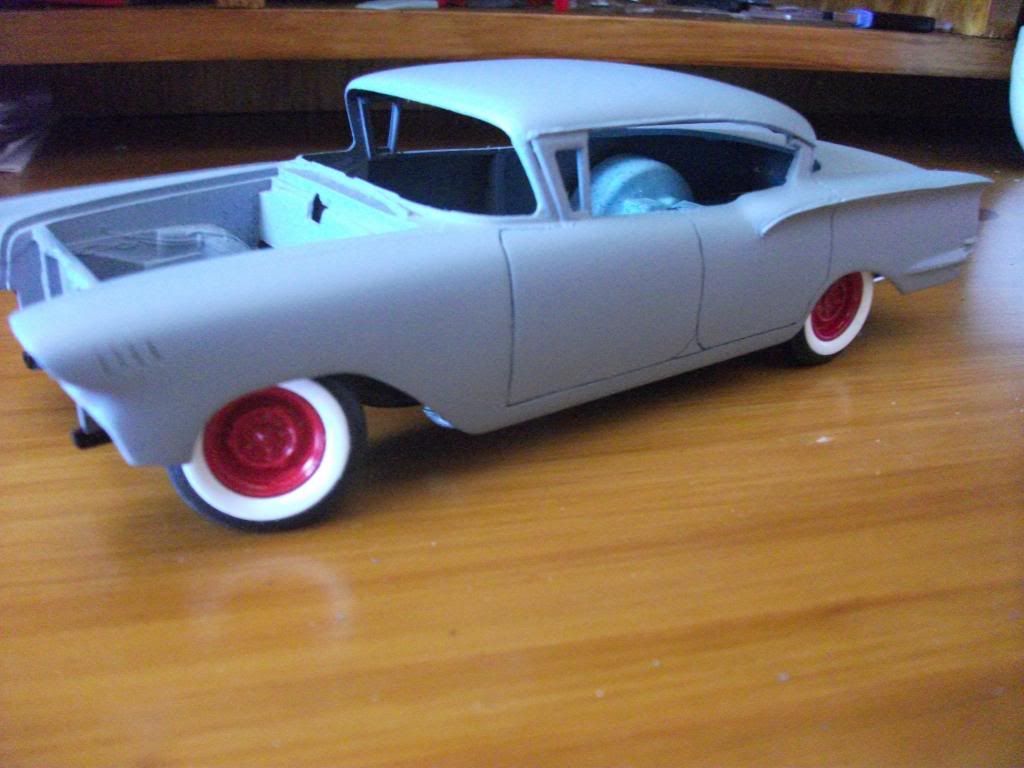

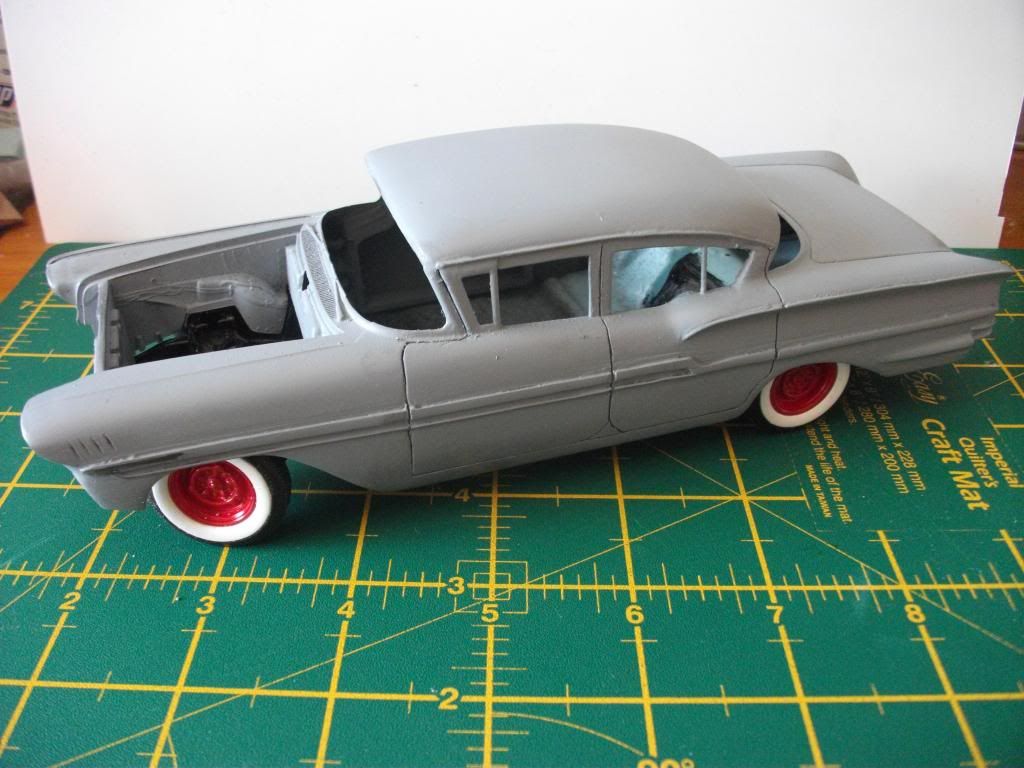

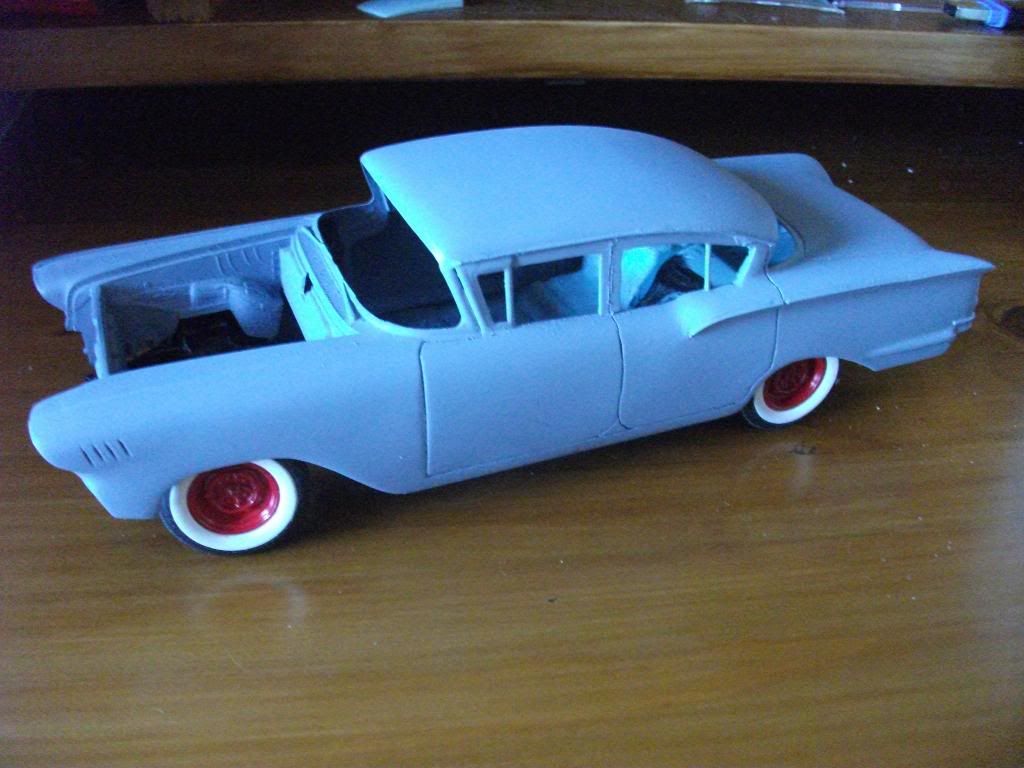

After a lot of rough sanding and removing excess glue its looking almost finished:




as you can see there is still a fair bit of sanding to do but this side is basicly done. after i have finished sanding this side i will start on the other side.

Share this post


Link to post
Share on other sites

Posted · Report post

Looking pretty good James. Don't you just love doing all that sanding... LOL.
