1977 Volare Roadrunner


36 posts in this topic

Posted · Report post

post-10498-0-88182500-1356752248_thumb.j

post-10498-0-23178300-1356752270_thumb.j

post-10498-0-83834300-1356752286_thumb.j

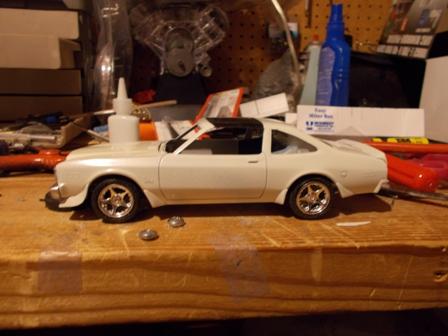

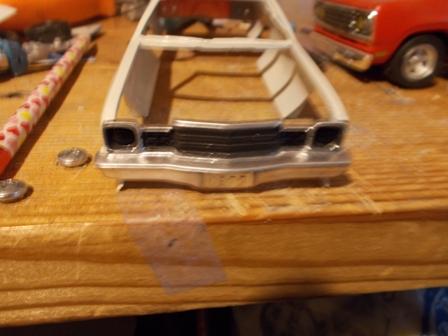

I have the remains of an original MPC Super Pak 77 Volare Roadrunner Kit. I am modifying a 71 duster street machine chassis and recreating the interior from modified duster parts, and some of the original parts. The plan is to have a fairly acurate front end under it, transverse torsion bars and all, when it is done. The body looks far better in my blurry pictures than in real life, as this will be the 4th paint job, after it is stripped. The louvers and the original front spoiler are missing, but The T-tops are intact, as are the flares and the rear spoiler.

Share this post


Link to post
Share on other sites

Posted · Report post

Good save of a not offten seen car.....

Share this post


Link to post
Share on other sites

Posted · Report post

dont see these anywhere near enough

you have my attention

Share this post


Link to post
Share on other sites

Posted · Report post

I like what you're doing. :) The Volare-based Road Runner was a rare bird. I had a plain old Volare years ago. Need to get a kit of it so I can summon the bad vibes from that car. It hated me. :)

Share this post


Link to post
Share on other sites

Posted · Report post

Very cool car and project!

Can't wait to it finished!

Share this post


Link to post
Share on other sites

Posted (edited) · Report post

Good to see someone else working on this oldie! A few tips. First, the kit doesn't come with any pedals. You'll need to add them. Second, the trim on the interior door panels is awful faint. Here's what I did to mine. I added some Evergreen strips and a resin window crank from Miniatures & Replicas of MD. Then I carved the arm rest out of a toothpick.


I may have the window louvers and front spoiler in my stash. PM me if you want them and I'll look.

Edited by Tom Geiger

Share this post


Link to post
Share on other sites

Posted · Report post

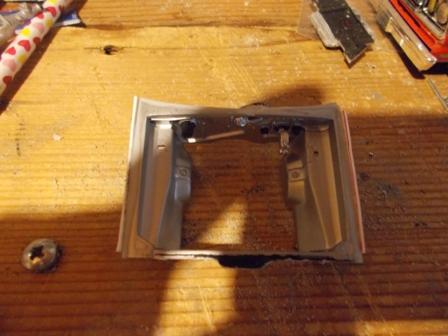

I think I have seen a pic of your interior before, it looks very good, especially the front bench. I actually cut the rear seat and console out to use, the side panels are going to be built up using the Dusters as the base, then i will be "reupholstering " the Duster seats to match the Volare pattern. But that will all come after I get the body work roughed in.

post-10498-0-14166300-1356832733_thumb.j

post-10498-0-75889500-1356832771_thumb.j

post-10498-0-17496800-1356832786_thumb.j

post-10498-0-00455600-1356832816_thumb.j

post-10498-0-48742500-1356832843_thumb.j

Share this post


Link to post
Share on other sites

Posted · Report post

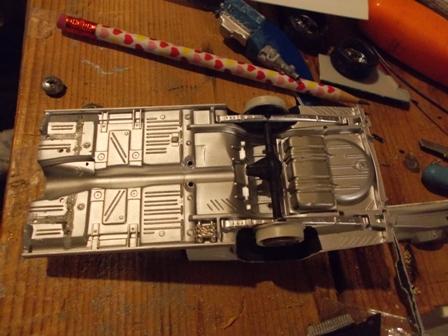

Some work going into the duster parts.

post-10498-0-91065900-1356892979_thumb.j

post-10498-0-69795200-1356892991_thumb.j

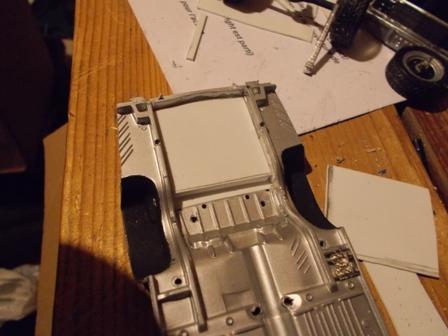

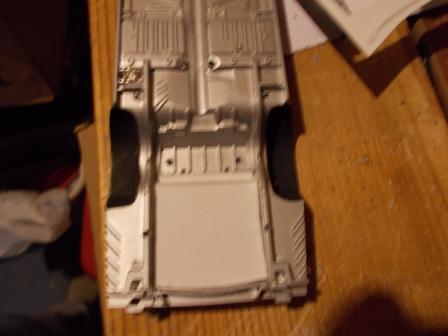

and after a little work

post-10498-0-46128500-1356893070_thumb.j

post-10498-0-63271100-1356893101_thumb.j

Fuel tank from the original chassis being fitted.

post-10498-0-99655600-1356893119_thumb.j

Share this post


Link to post
Share on other sites

Posted · Report post

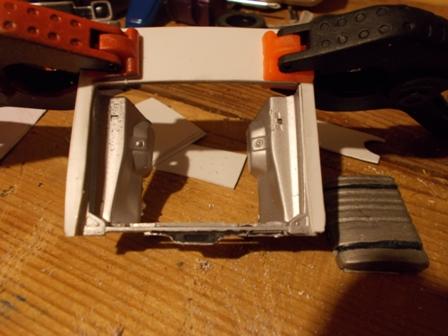

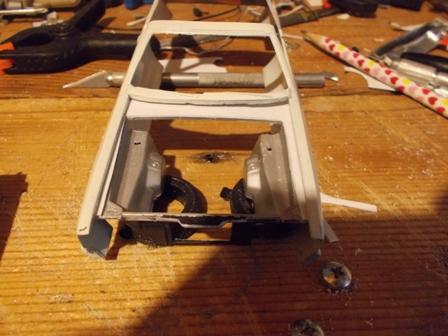

Adding material to raise the front to sit on the chassis right, and add a cowling.

post-10498-0-99022500-1356893225_thumb.j

post-10498-0-79803000-1356893279_thumb.j

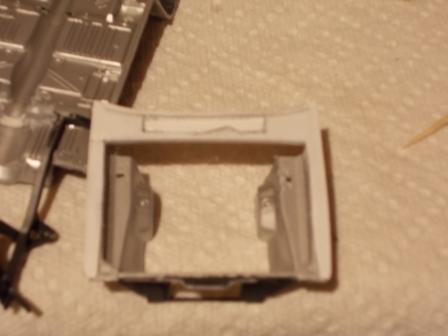

cowl vent is cut

post-10498-0-45941400-1356893304_thumb.j

Engine bay installed, with the shock mount removed.

post-10498-0-11868200-1356893423_thumb.j

Share this post


Link to post
Share on other sites

Posted · Report post

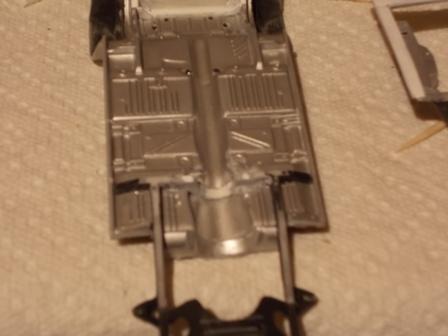

Some more work on the chassis.

post-10498-0-29744700-1356893508_thumb.j

post-10498-0-87266500-1356893518_thumb.j

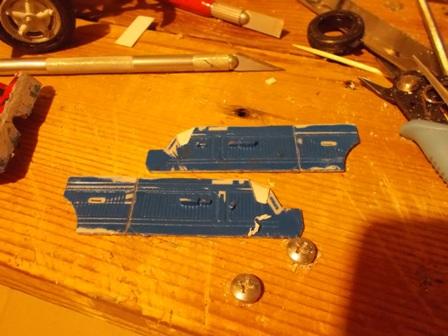

Started the door panels

post-10498-0-07798300-1356893572_thumb.j

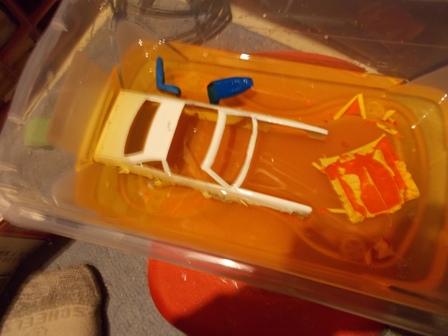

Body went in the bath (brake fluid)

post-10498-0-55966700-1356893608_thumb.j

Share this post


Link to post
Share on other sites

Posted · Report post

Some serious body isues.

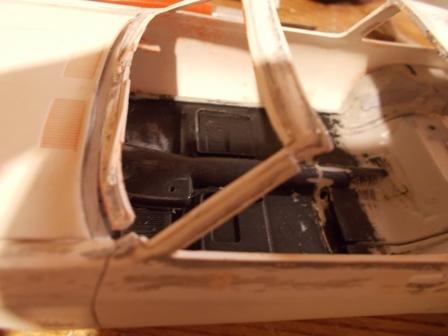

Body is broken at the A-pillar in two places

post-10498-0-05037300-1356893680_thumb.j

Trunk lid charactor line is mostly missing, with some of the window trim.

post-10498-0-82963800-1356893686_thumb.j

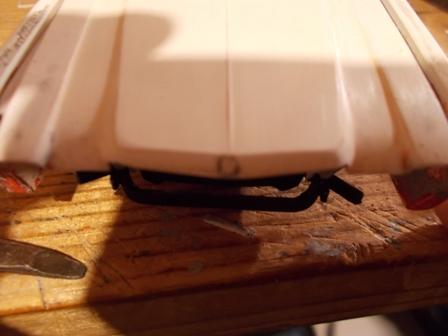

and a strange faint hood ornament.

post-10498-0-60047800-1356893706_thumb.j

Share this post


Link to post
Share on other sites

Posted · Report post

neat build i'll be watching

Share this post


Link to post
Share on other sites

Posted · Report post

Sharp looking car man.

Share this post


Link to post
Share on other sites

Posted · Report post

The white paint hid a lot of trouble. Can't wait to get this in primer, but I am not going to rush it.

Share this post


Link to post
Share on other sites

Posted · Report post

I glued some .030 Styrene square stock down the middle of the trunk lid, and into the broken out trim.

post-10498-0-62132000-1357092913_thumb.j

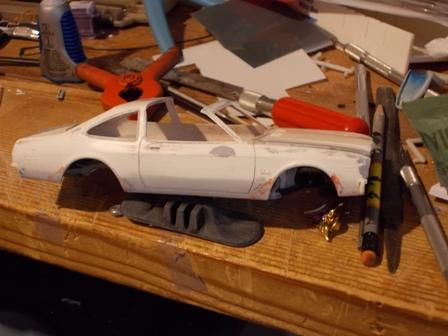

Cleaning up the glue damage on the sides

post-10498-0-94749000-1357092926_thumb.j

post-10498-0-22075000-1357092940_thumb.j

repaired the cowl at the A-pilllar and re glued the top

post-10498-0-35224400-1357092955_thumb.j

Share this post


Link to post
Share on other sites

Posted (edited) · Report post

This is, what, the third Volare I've seen since joining this board in Feb. 2007?

I'll be watching.

Edited by darquewanderer

Share this post


Link to post
Share on other sites

Posted · Report post

lots of nice work!

Share this post


Link to post
Share on other sites

Posted · Report post

I actually cut the rear seat and console out to use, the side panels are going to be built up using the Dusters as the base, then i will be "reupholstering " the Duster seats to match the Volare pattern. But that will all come after I get the body work roughed in.

Then you must've noticed how shallow the Volare rear seat bottom is! My first attempt at creating the front seat was cutting one of those out of the tub, but it was a lost cause!

Share this post


Link to post
Share on other sites

Posted · Report post

I added the lower section off of the Duster rear seat, and the made filler panels to hold the seat in place. The rear seat sits back further in the Volare, so I had to take the locator rib for the Duster seat off the floor. Fortunately I have a good source for reference photos on this one.

Share this post


Link to post
Share on other sites

Posted · Report post

That darn mid-'77 model year fuel tank change really messes with things in the trunk area, doesn't it?:


I have a ton of reference pics from my F-body days if you need any.

Share this post


Link to post
Share on other sites

Posted · Report post

SWEET! That early tank causes so many problems for guys. Is that your car Casey, if it is it is awful nice underneath.

I still need to move the rear of the frame rails outboard, and move the tank over a bit more, after I get the body straightened out.

Share this post


Link to post
Share on other sites

Posted · Report post

Time for some updates.

First off, the Hood wasn't fitting well, so i have been building up its edges with .010" styrene sheet.

post-10498-0-10646700-1357870957_thumb.j

The trunk Ridge is coming along

post-10498-0-73876300-1357870967_thumb.j

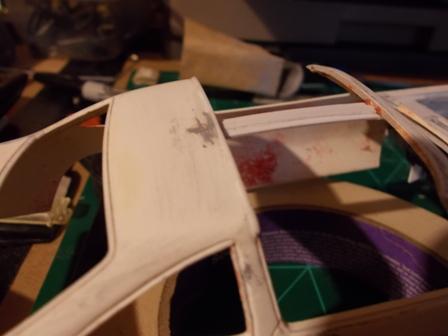

New "T-bar", and trim for the roof.

post-10498-0-33705500-1357870974_thumb.j

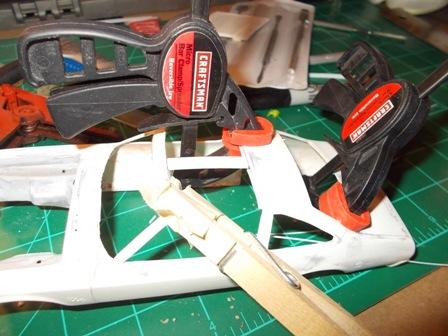

The plan is to have a small flange for the T-tops to sit on.

post-10498-0-39131100-1357870981_thumb.j

post-10498-0-50496800-1357870987_thumb.j

Share this post


Link to post
Share on other sites

Posted · Report post

I still need to order those parts from Ma's Resin......

Share this post


Link to post
Share on other sites

Posted · Report post

GOt some parts ordered for this one, can't wait for them to arrive.

Share this post


Link to post
Share on other sites

Posted · Report post

Man, that's a lot of work, but it will be nice when it's finished!

Sam
