Mini Cooper Mk1 998 c.c (Revell)

94 posts in this topic

Posted · Report post

I already had two of these in the stash, and the weekend I won another off eBay, it came this morning and instead of putting with the others in the stash, I decided I really needed to get one on the building board.
A quick look at the parts, and compairing it against the Tamiya version I can see some plus points on the Revell version, a little more detail and a slightly different way of building it ..

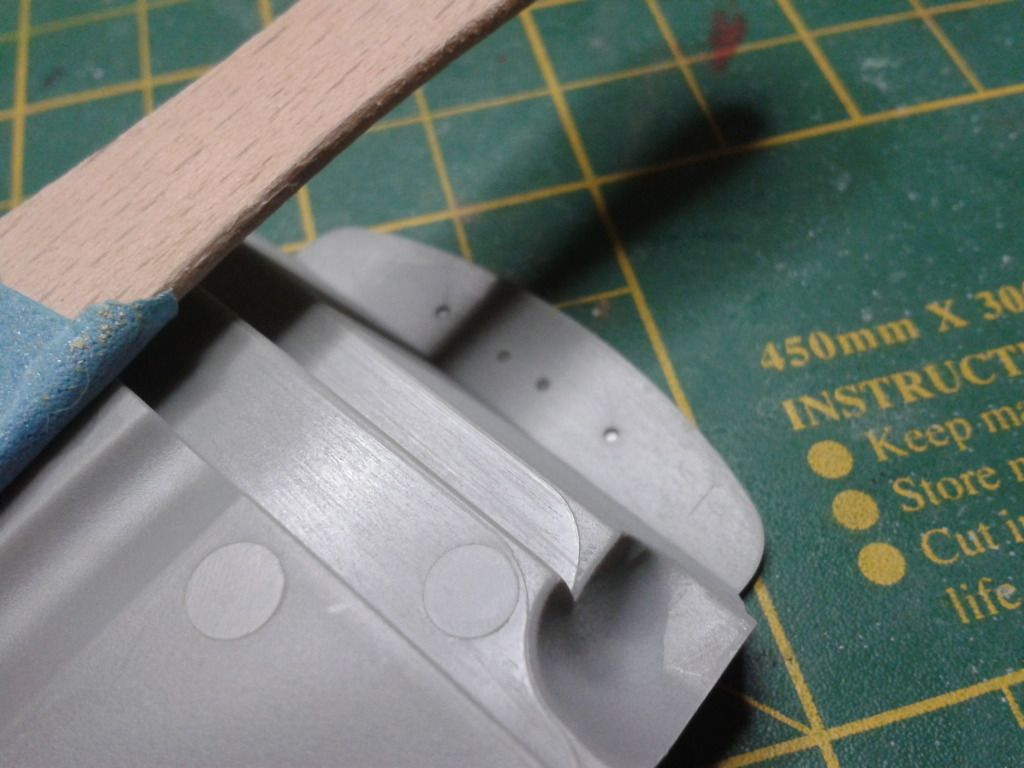

As always, I started with the body, not sure why, but I've always done it this way, one thing I noticed on the body was a moulding line on both front wings, the L/H side was slightly worst, and the line goes through the panel line that goes through the front valance and also goes around the top of the wings by the headlamps, it didn't take long to remove with a sanding stick, then smoothed out with a finer sanding pad.
Before
After
That was the worst part of the body and apart from just cleaning off a little bit of flash, the body is pretty good, there's a lot more mould lines to remove on the Tamiya version
After removing the bonnet and roof from the parts tree, and getting ready, I started on the engine, which goes together real well, I've left of certain parts until the engine has been sprayed green

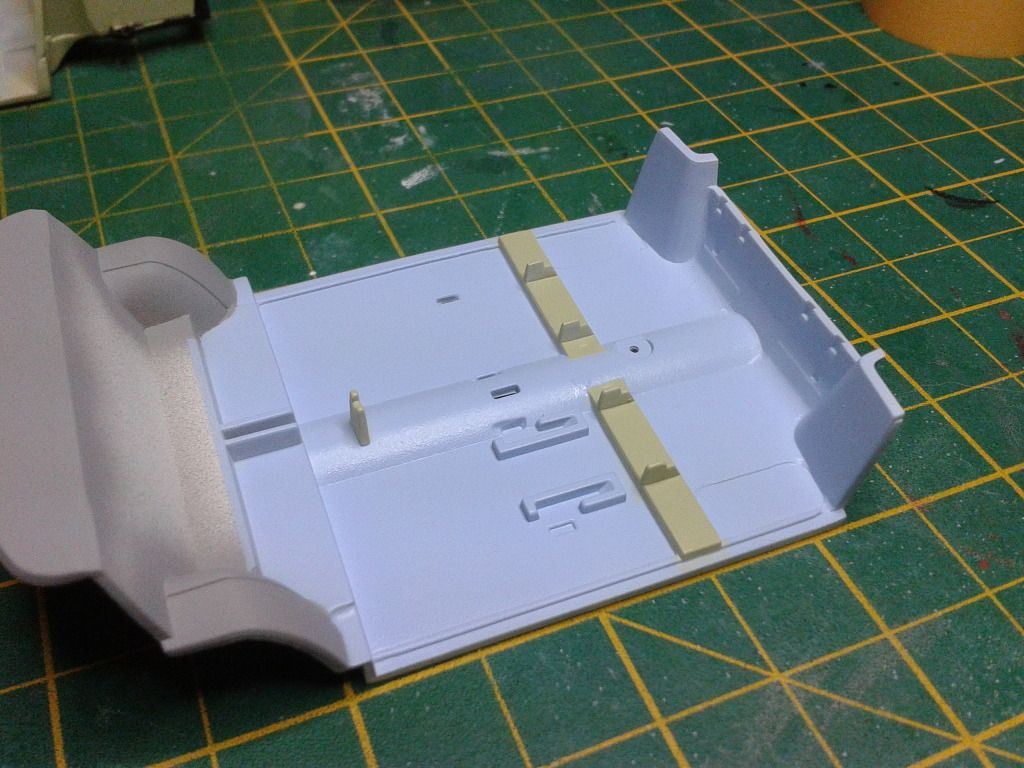

Although it tells you to fix in the engine first then fix on the inner wings, the Tamiya version has these moulded as part of the floorpan, I dry fitted the inner wings in place then tried to fix in the engine, which it did without any problems, so the inner wings and bulkhead were fixed into place, it will make painting a little easier and will of course look better
Another nice touch over the Tamiya version is seperate subframes, the Tamiya version has them moulded as part of the floorpan with just the outer parts of the subframe to add, which you do have to add to the Revell version, but should look a little better once fitted and also has the little fuel pump fitted to the subframe, this is a seperate part and fits on without problems.

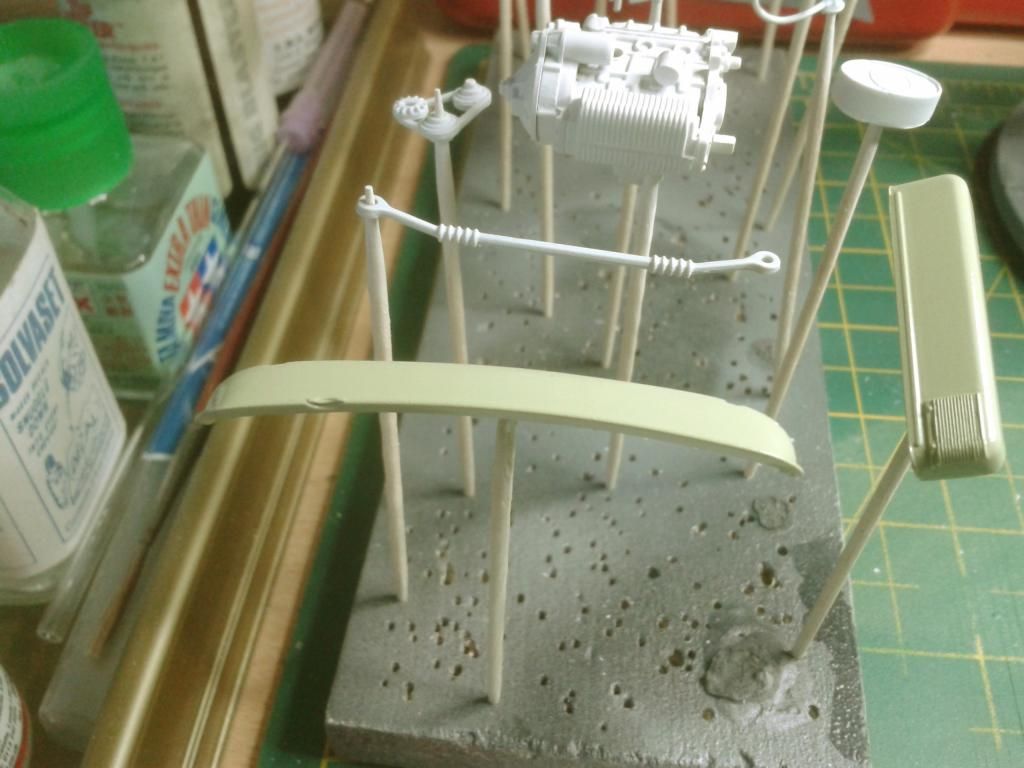

A few parts mounted on cocktail stick ready for painting
And the colour I'm going to be painting this one ?? I've had this paint for a while, as I was going to convert another Tamiya Mini to a Pre '66 body, I won't have to do this with the Revell version ....

Share this post


Link to post
Share on other sites

Posted · Report post

Nice to seeing this one going together ... I started on my New Mini Countryman but have an old Mini I want to do up the same way.

Share this post


Link to post
Share on other sites

Posted · Report post

Always enjoy your work! Looking forward to watching this one.

Share this post


Link to post
Share on other sites

Posted · Report post

Ill be watching!

Share this post


Link to post
Share on other sites

Posted · Report post

Great to see this - really looking forward to reading your progress!

Share this post


Link to post
Share on other sites

Posted · Report post

Already looking realy good, Cant wait for the next updates!

Share this post


Link to post
Share on other sites

Posted · Report post

What's up with the Morgan?

Share this post


Link to post
Share on other sites

Posted · Report post

Could you you post a picture of the box? I've built several tamiya minis but don't recall ever even seeing a revell version.

Share this post


Link to post
Share on other sites

Posted · Report post

What's up with the Morgan?

It's still on the bench, I have two builds going at the same time ....

Share this post


Link to post
Share on other sites

Posted · Report post

Could you you post a picture of the box? I've built several tamiya minis but don't recall ever even seeing a revell version.

post-2058-0-73130700-1361299017_thumb.jp

Share this post


Link to post
Share on other sites

Posted (edited) · Report post

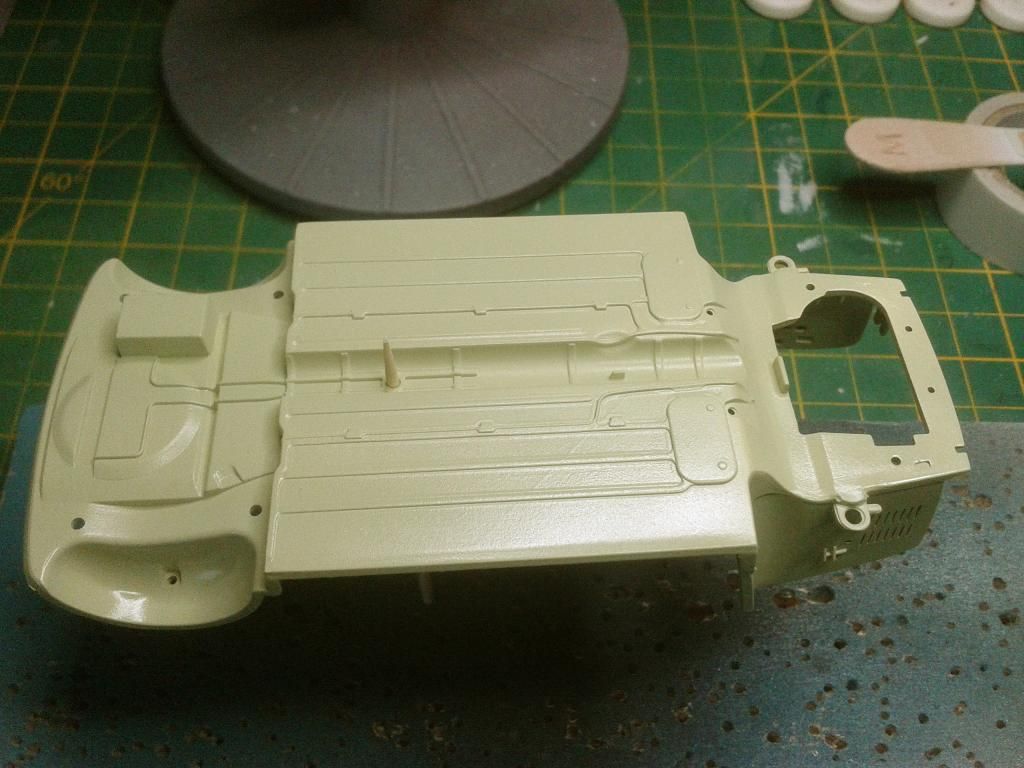

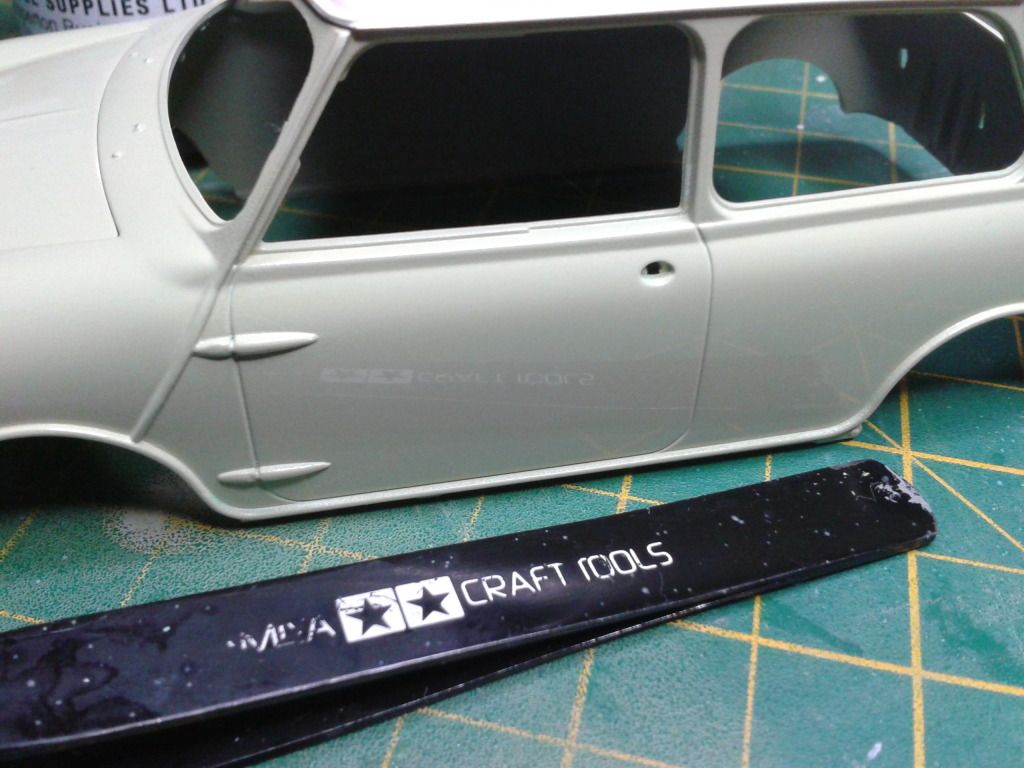

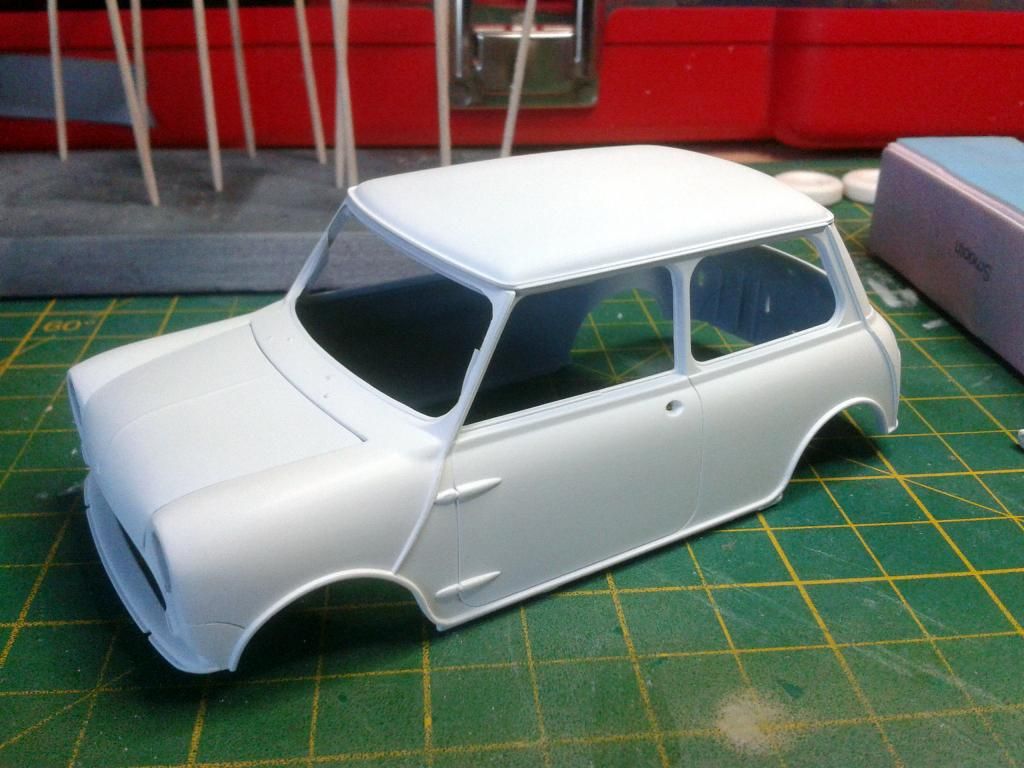

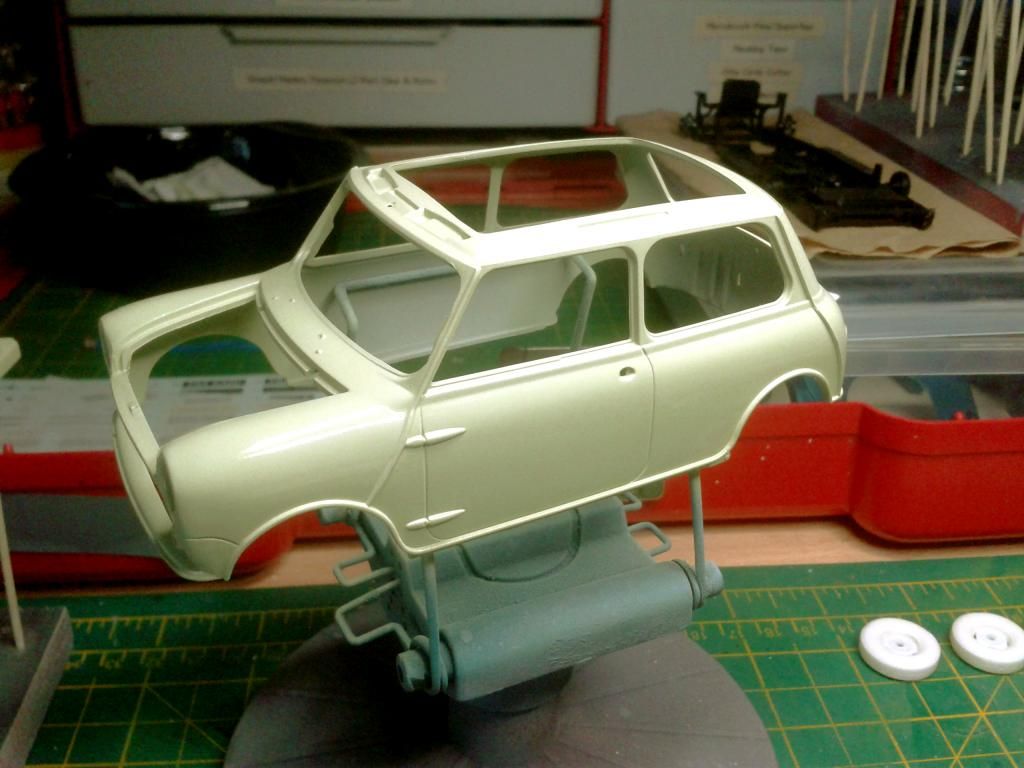

Got the body parts in primer this morning, a bit of block sanding this afternoon, and then I managed to get them in body colour, it will be left for a few days before getting wet sanded and polished up





Edited by GeeBee

Share this post


Link to post
Share on other sites

Posted · Report post

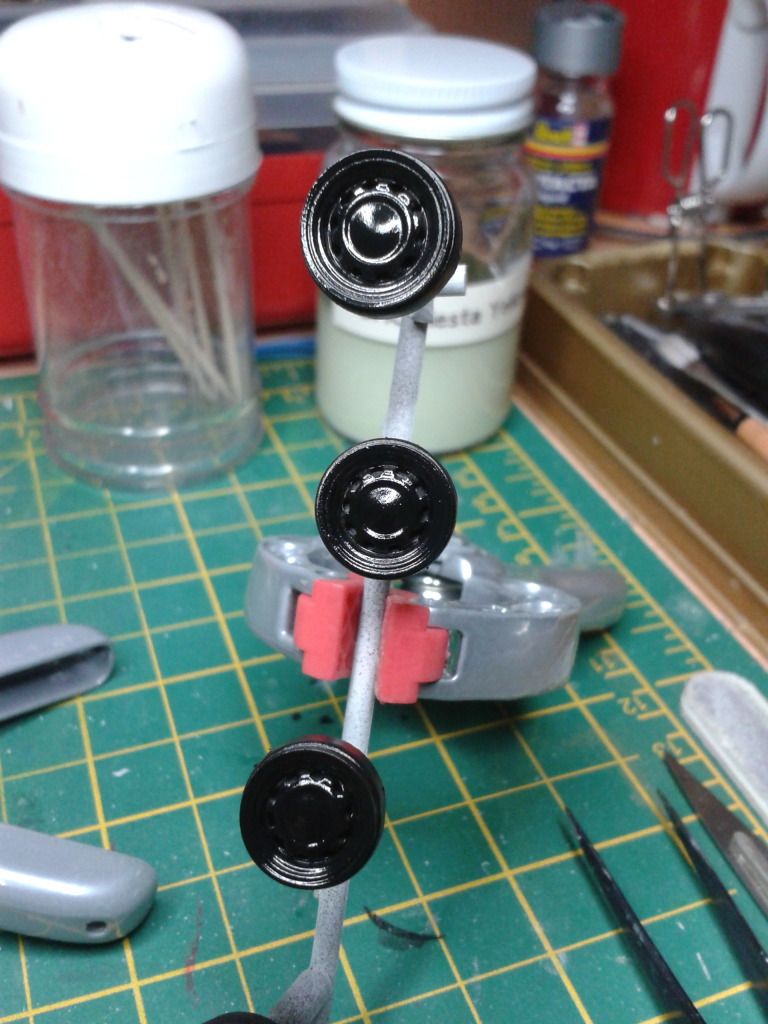

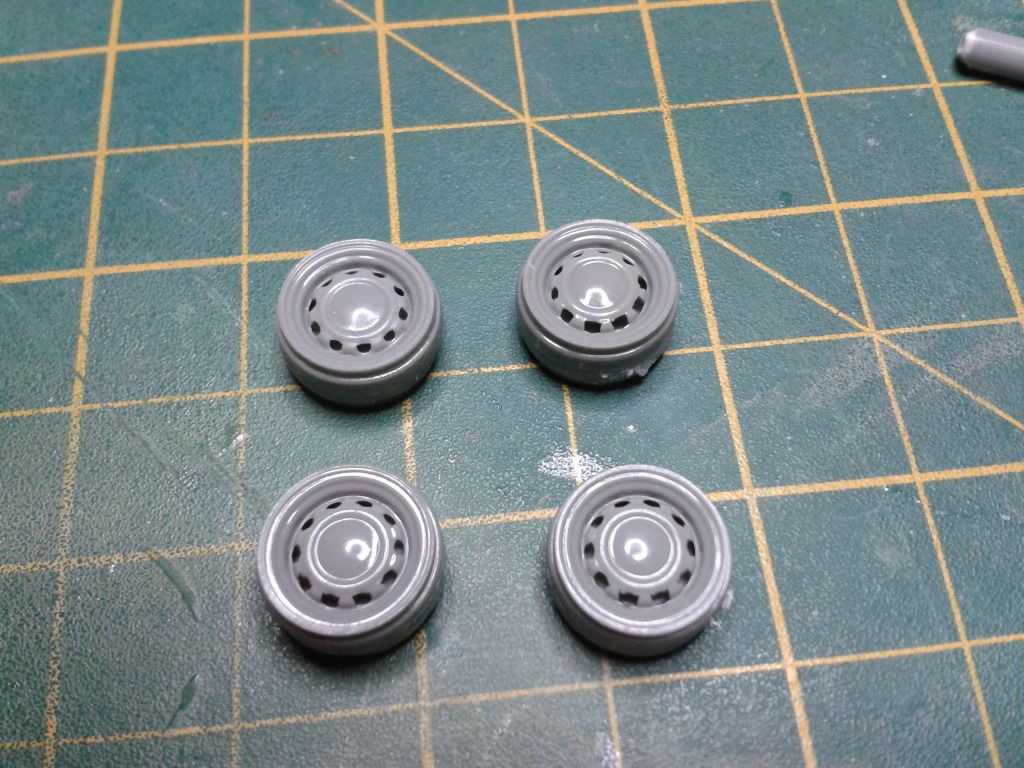

A little more progress on the Mini, the wheels were stripped of there chrome, as I think the chrome looks a little thick and of course the originals were made of polished stainless steel, so they were soaked in household bleach for around 20 min's, and then rinsed under cold running water, they were then primed, and then given a couple of coats of gloss black lacqer ready for the Alclad.

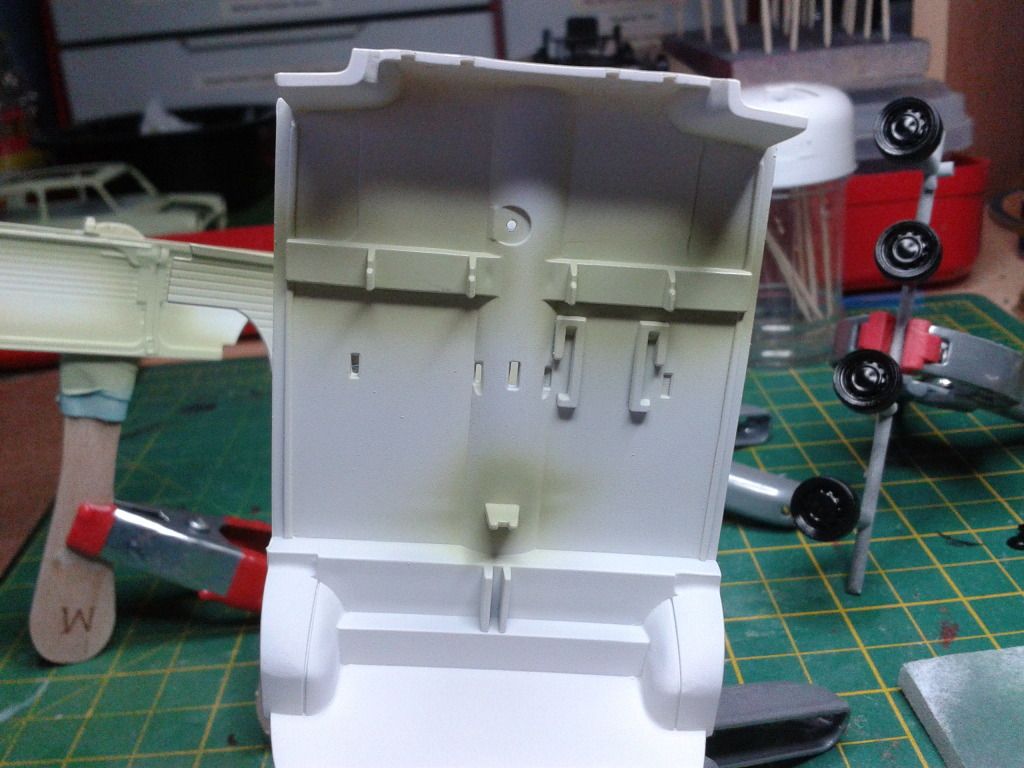

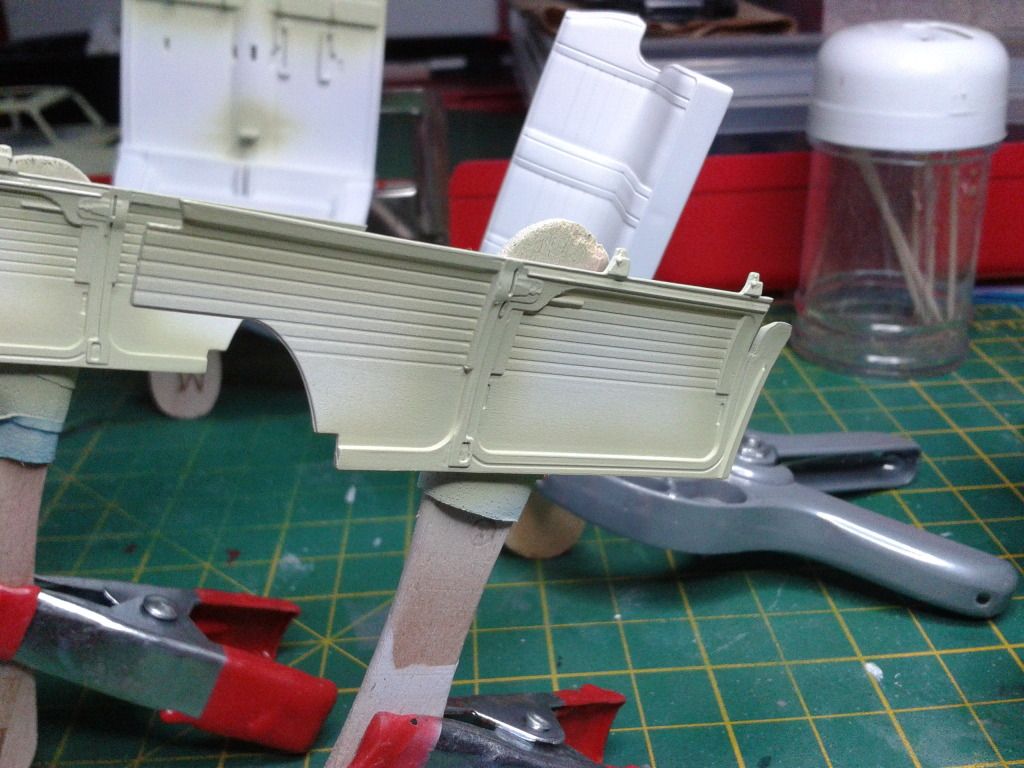

Most of the smaller parts have been airbrushed, and the interior panel have had there body colour parts painted, they will be masked up so the grey vinyl panels can be airbrushed, this is a little different to the way Tamiya do it on there Mini Cooper, but I think by the time it is all finished, it will look just fine,

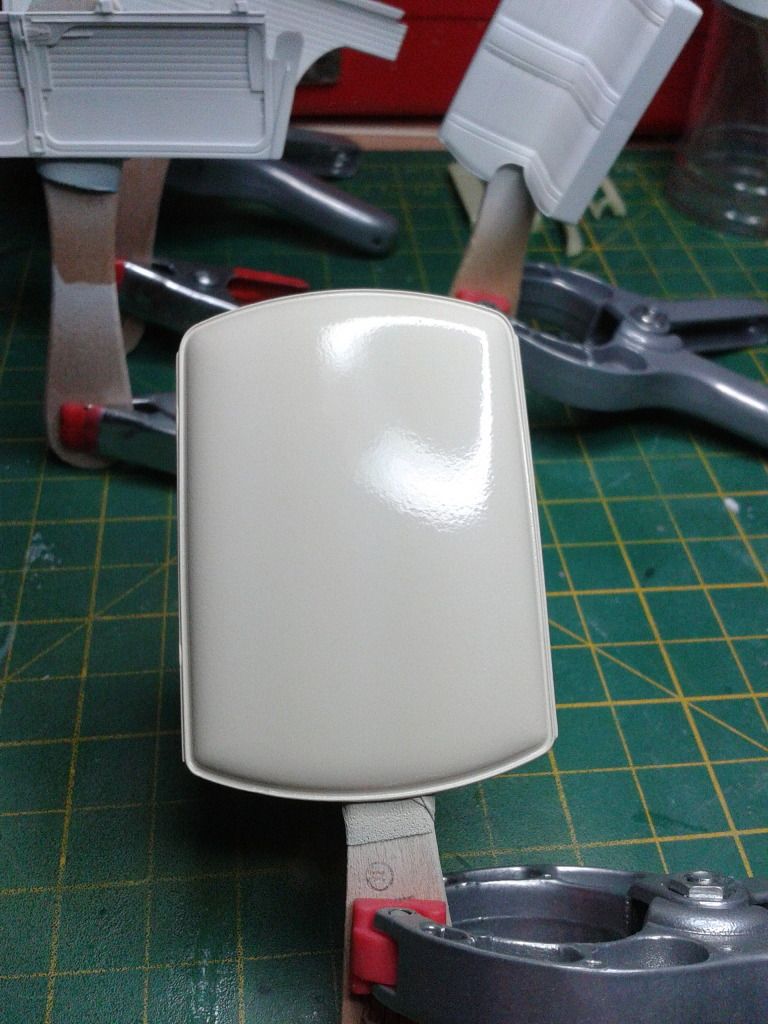

The roof panel was airbrushed in Old English White lacquer, it will wet sanded and polished out before painting the gutter rail in body colour

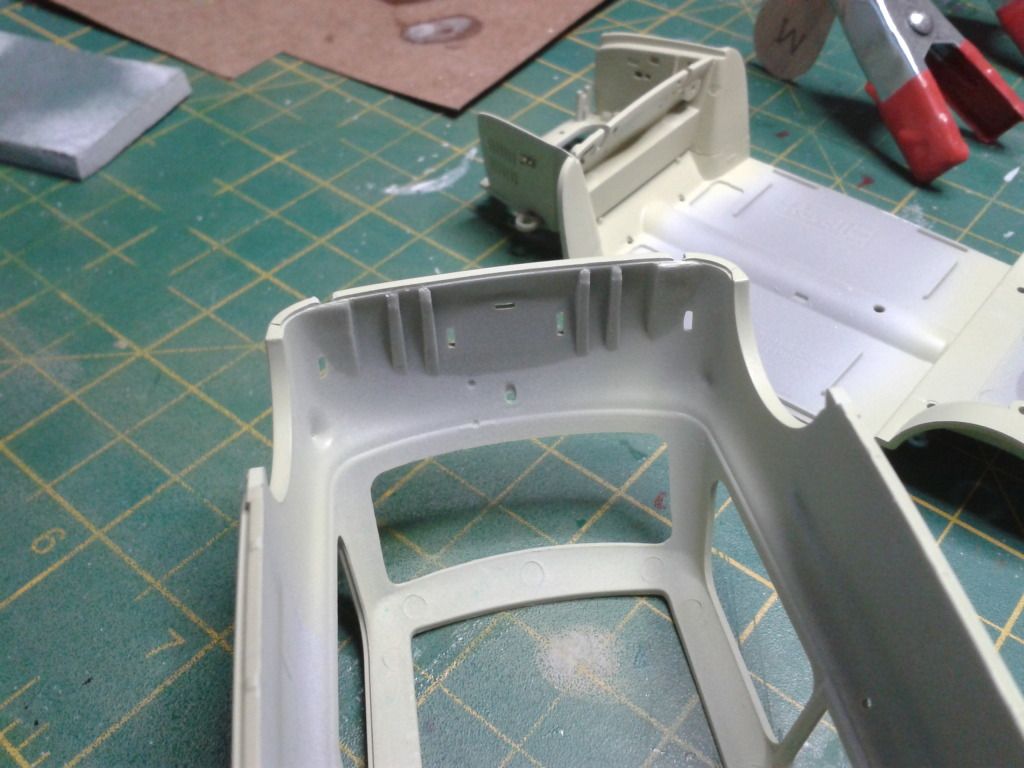

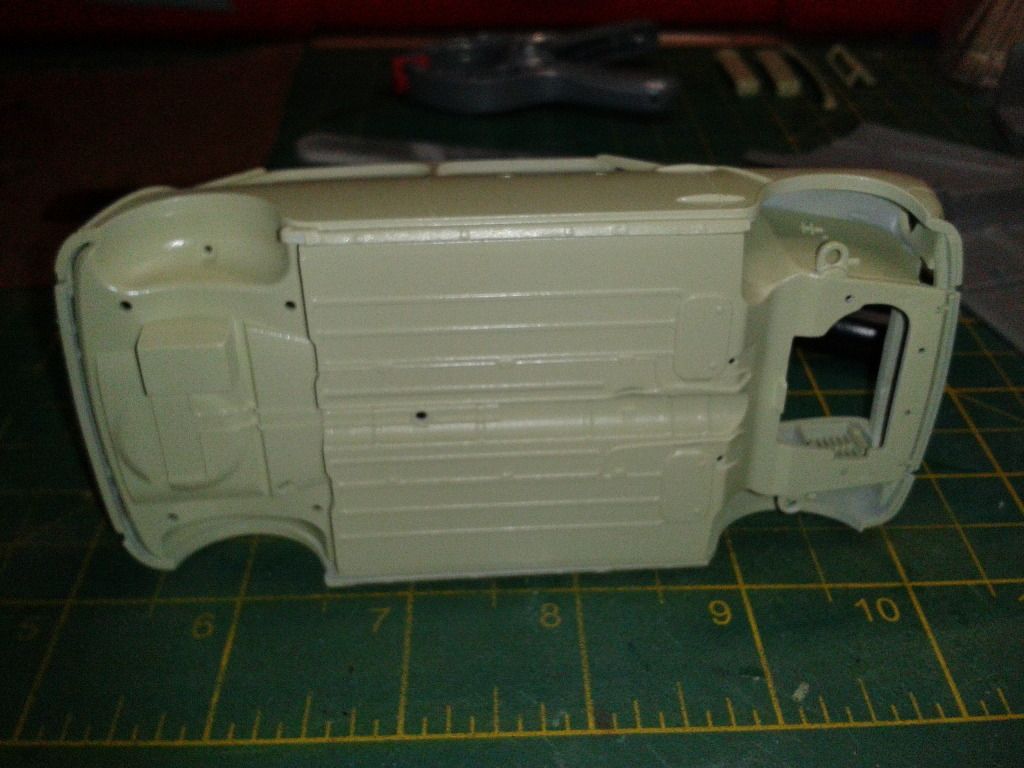

Now that body has had a bit of time to dry off, I thought before I do any polishing and then the BMF for the chrome trim, it was a good idea to see just how well the body and the chassis fitted together, as after building quite a few of the Tamiya versions, which can be a little tricky in getting the two together without a lot of bending etc, well I can report that the Revell version just falls together, there are two locating tabs at the front, but everything lines up absoloutely perfect ...




Share this post


Link to post
Share on other sites

Posted · Report post

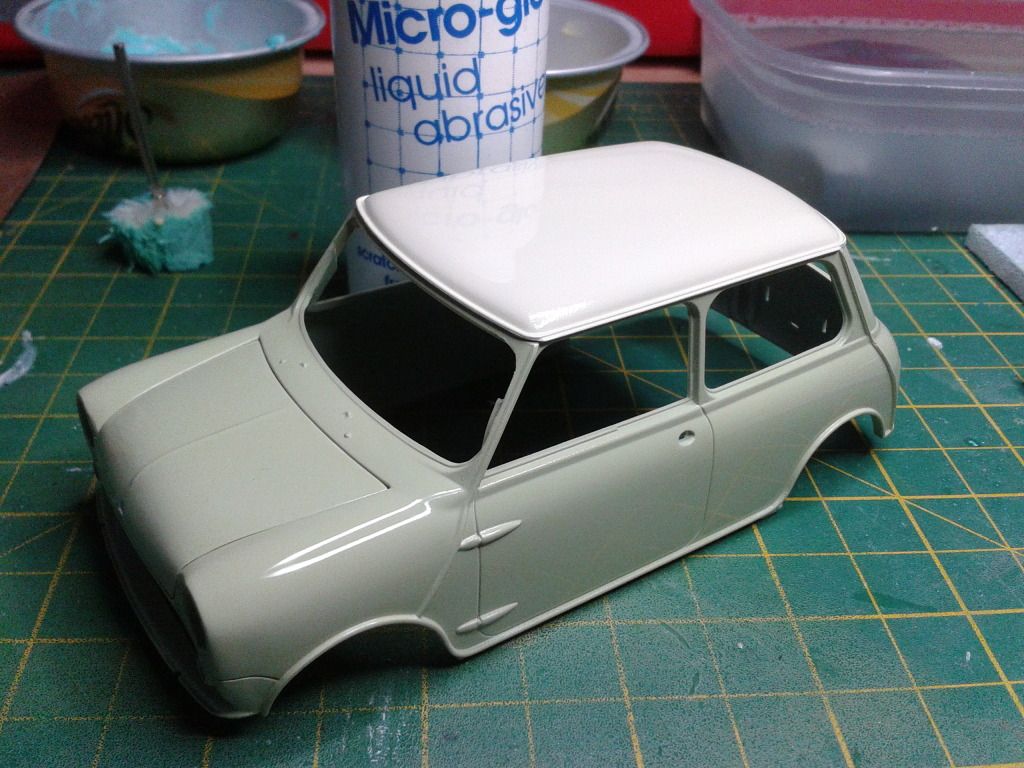

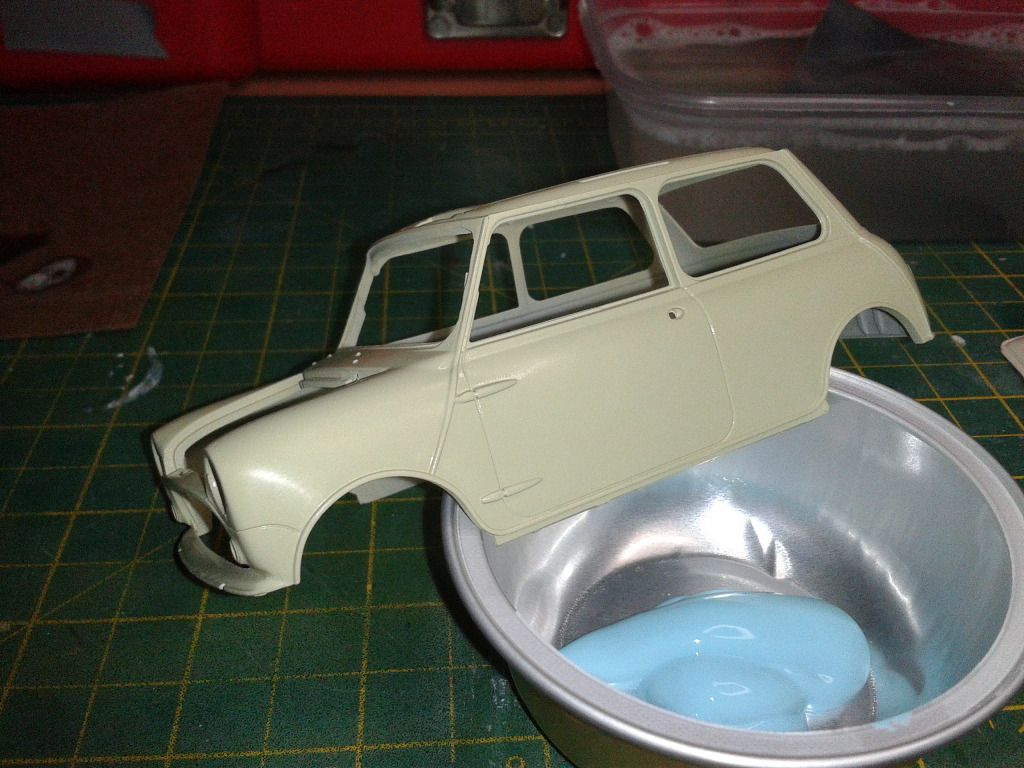

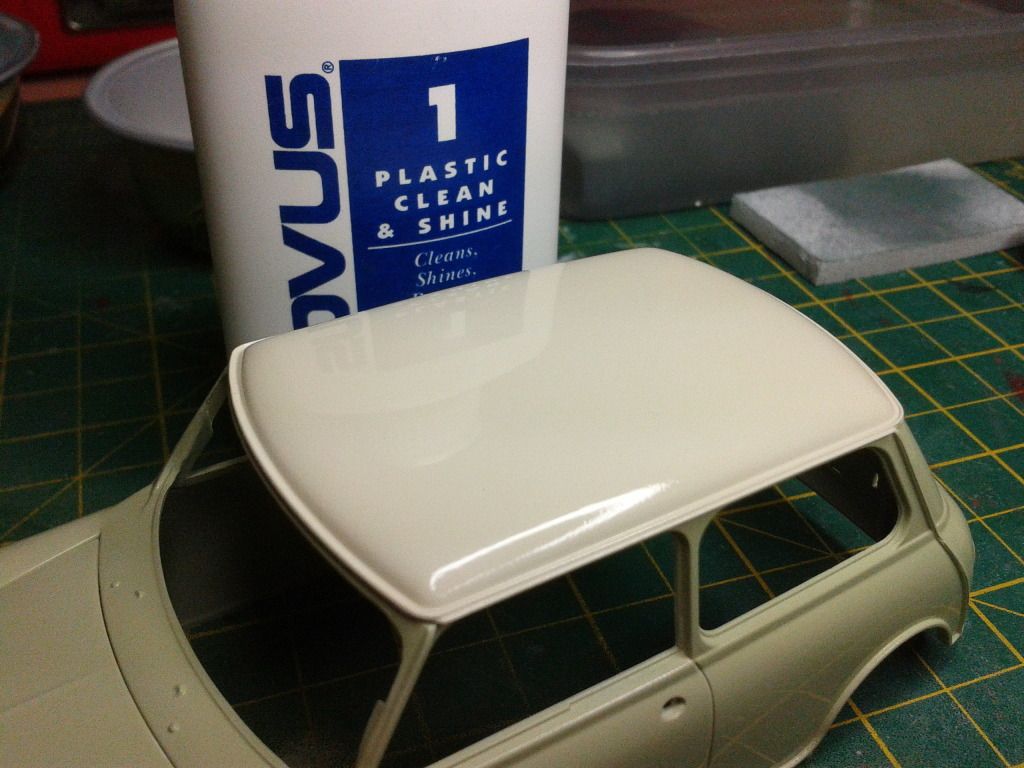

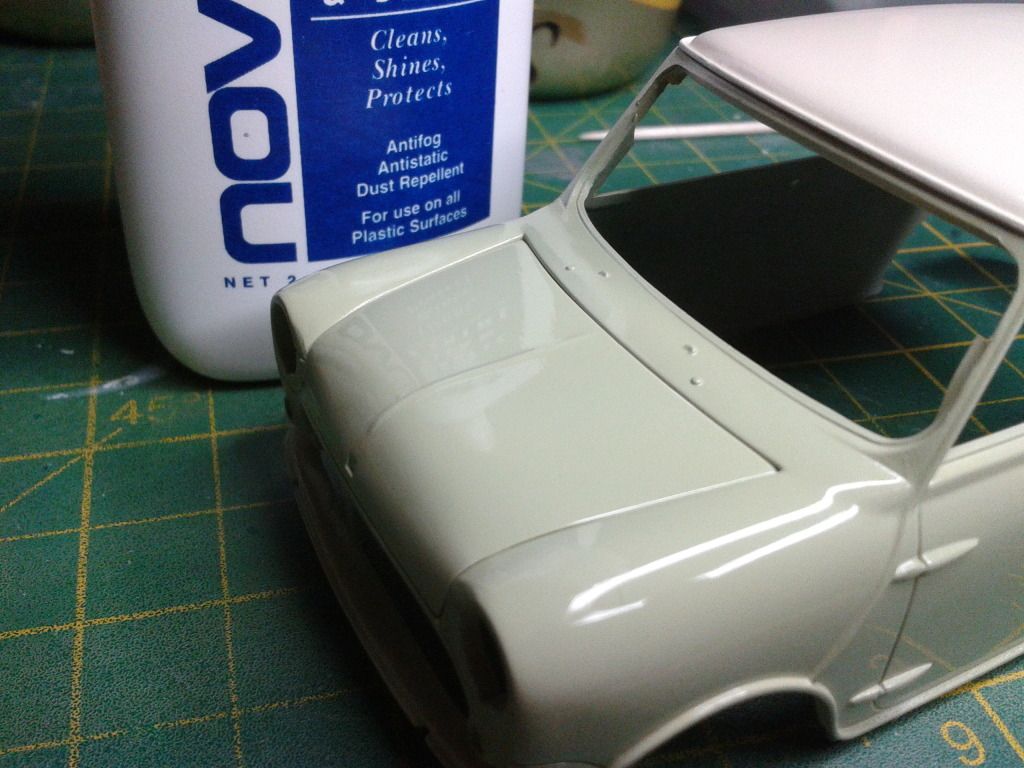

Did a little more to it today, the body, roof and bonnet got wet sanded, and then machine polished, followed by a hand polish, then a wipe over with Novus # 1






Share this post


Link to post
Share on other sites

Posted · Report post

Nice Classic Mini Mk I. That Color/Colour always looks great on a Mk I, looks like it polished out nicely. (We have a couple of Mk I's in the Mini Club I belong to, Old English White top looks great on them.) Can't wait to see the finished model. I was checking out your wheel build up and thought to myself, "Hey where are the cooling holes?" Not a "Cooper S" so no cooling holes! Wonder when Revell will come out with the "S" version? Then again who's complaining that's one sweet Classic Mini.

Share this post


Link to post
Share on other sites

Posted · Report post

nice , thats looking great !!!!!!

Share this post


Link to post
Share on other sites

Posted · Report post

Nice Classic Mini Mk I. That Color/Colour always looks great on a Mk I, looks like it polished out nicely. (We have a couple of Mk I's in the Mini Club I belong to, Old English White top looks great on them.) Can't wait to see the finished model. I was checking out your wheel build up and thought to myself, "Hey where are the cooling holes?" Not a "Cooper S" so no cooling holes! Wonder when Revell will come out with the "S" version? Then again who's complaining that's one sweet Classic Mini.

That colour, Fiesta Yellow was one of the the least popular colours on the Cooper's but I kind of like it, here what it should look like when it's finished

post-2058-0-39061900-1361808591_thumb.jp

I don't thin it will too long before Revell offer the 'S' version, as if you look on the inside of the body, there are two mold marks where the fuel tank fillers should be on a later 'S' version, also under the rear parcel shelf there are four holes molded in, not sure what these are for, are Revell going to be doing a Race/Rally version ??



Share this post


Link to post
Share on other sites

Posted · Report post

Not a great deal done today, as I had to do a bit of grocery shopping, then a visit to see Mom, but a little bit of masking, so I can crack out the airbrush tomorrow.

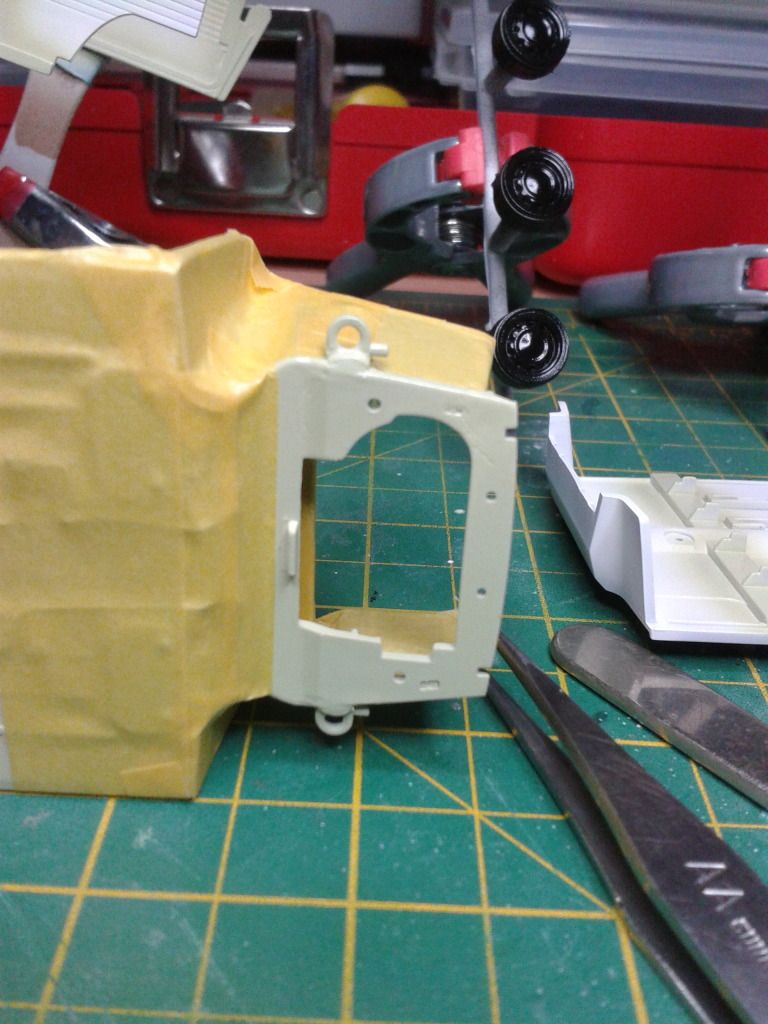

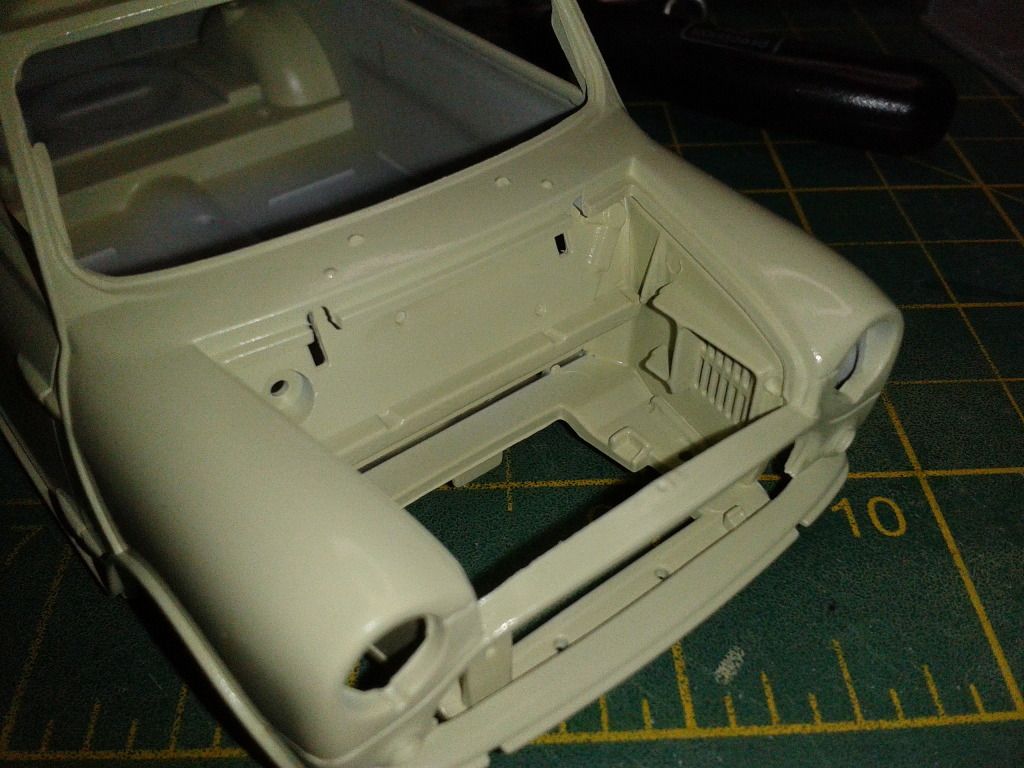

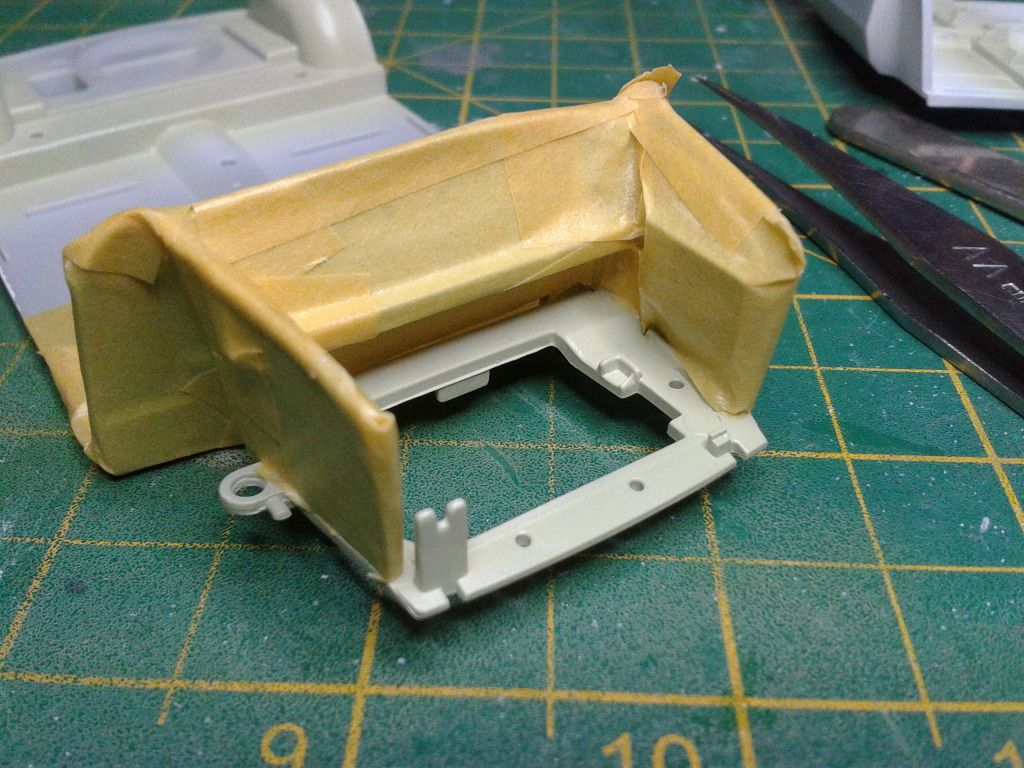

As I had built the front end up, and not follow the instructions, it needed masking as the base would be the subframe on the real thing, and these were black, or that's the colour they started off at, a few months, and they were usually covered in engine oil ....

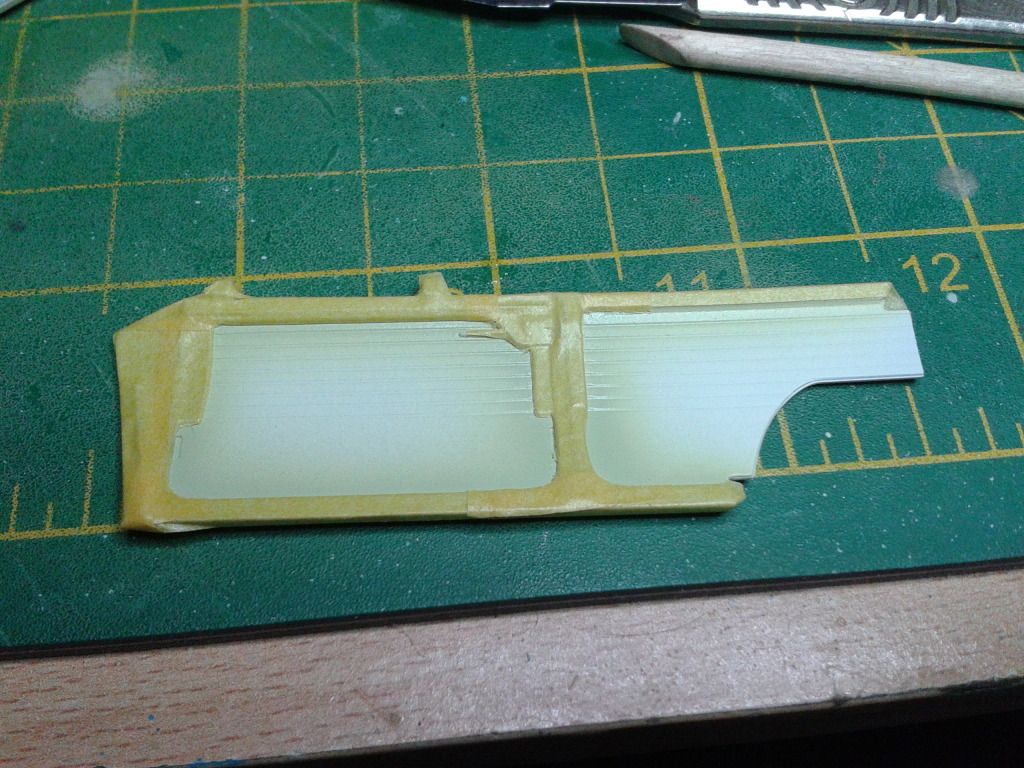

Also got the interior panels masked up ready for the light grey


Share this post


Link to post
Share on other sites

Posted · Report post

Unusual, but great colour! Will be interesting to see how the front subframe era looks when assembled, to see the appearance of the Revell compared to the Tamiya.

Share this post


Link to post
Share on other sites

Posted (edited) · Report post

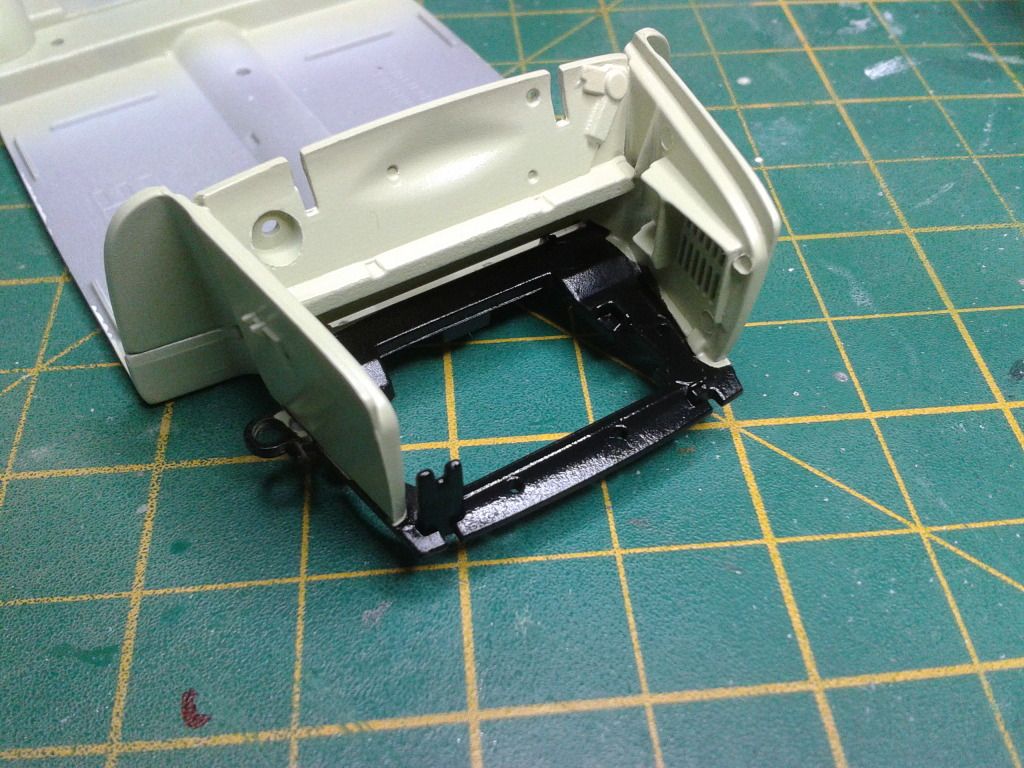

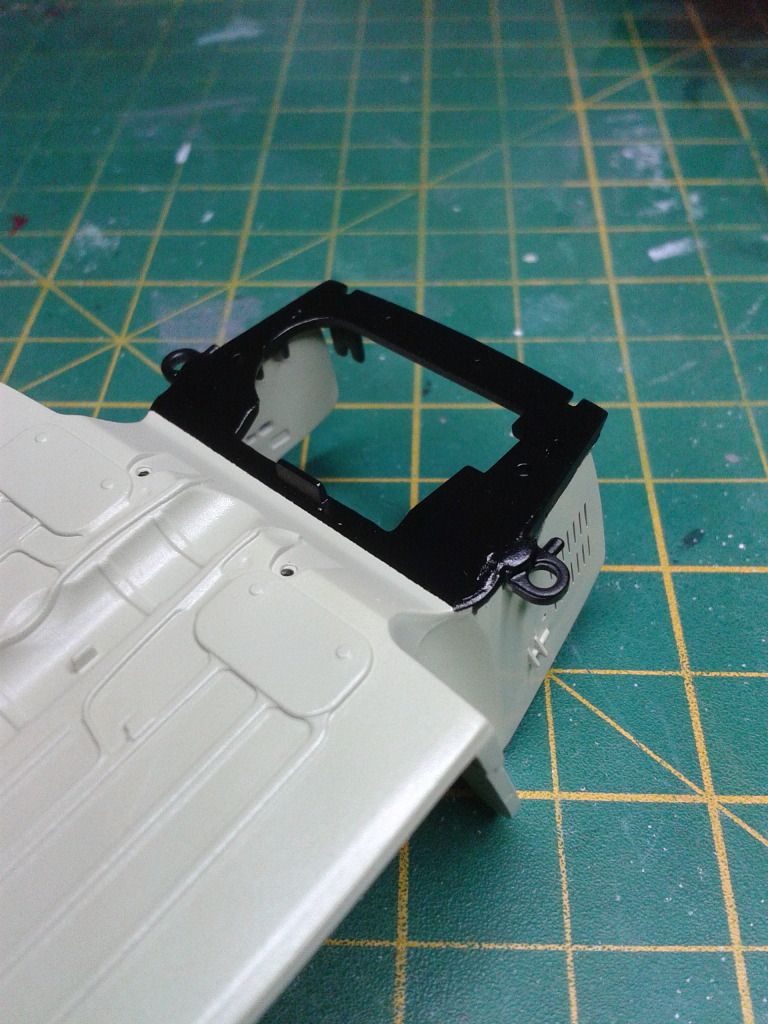

Got the parts airbrushed yesterday,



2013-02-26141818_zpscc251f59.jpg?t=13619


The interior was painted using acrylic artist paint, thinned to use through the airbrush


Edited by GeeBee

Share this post


Link to post
Share on other sites

Posted · Report post

Hi,

This build is looking good Geoff. I like your idea of using artists' acryclics - are they quite durable or do they need some clear over them?

Cheers,

Jim

Share this post


Link to post
Share on other sites

Posted · Report post

Hi,

This build is looking good Geoff. I like your idea of using artists' acryclics - are they quite durable or do they need some clear over them?

Cheers,

Jim

Well I did a build a few years ago, and I ended up stripping the interior parts, and the artists acrylic was the hardest to remove, and it needs no clear on top, you won't see this paint once the flocking has gone on, but for interior seats and vinyl parts, it looks great, just the right amount of sheen, and there's plenty of colours to choose from

Share this post


Link to post
Share on other sites

Posted · Report post

I've always preferred artist's acrylics like Liquitex for seats and other parts. It's easy to add subtle shading and a bit of texture, and you can create wrinkles using a gel medium. You can also change your mind in the process by washing some of it away with water.

Share this post


Link to post
Share on other sites

Posted · Report post

awsome paint job @@

)

o

Share this post


Link to post
Share on other sites

Posted · Report post

awsome paint job @@

)

o

Thank You .....

Share this post


Link to post
Share on other sites

Posted · Report post

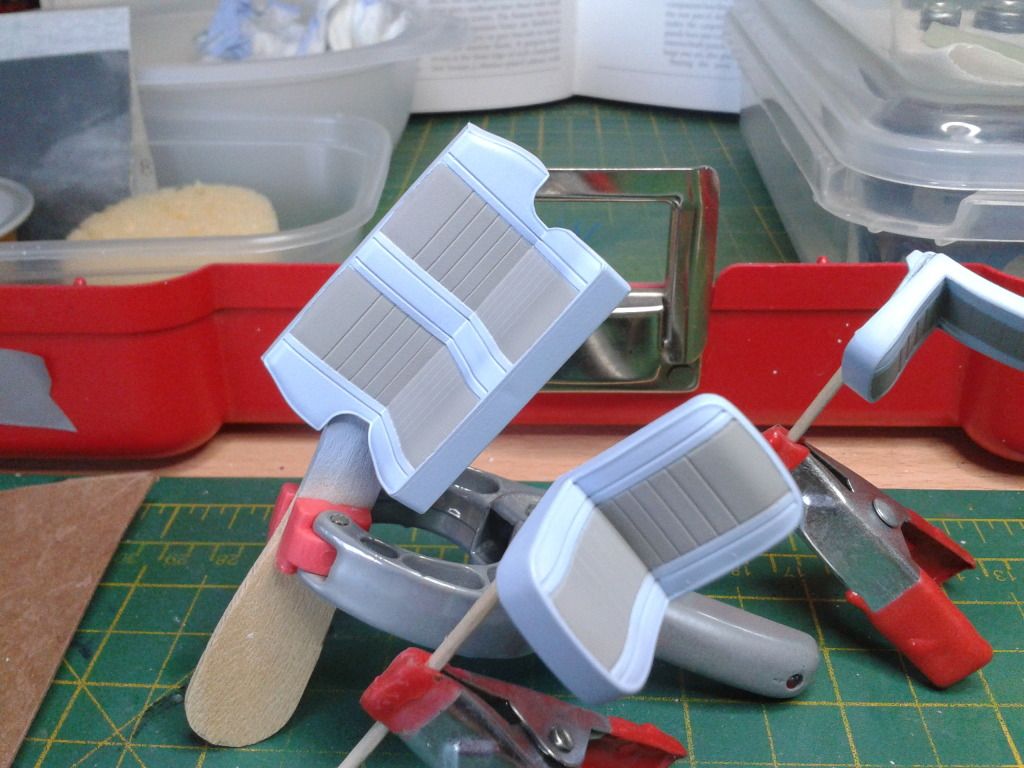

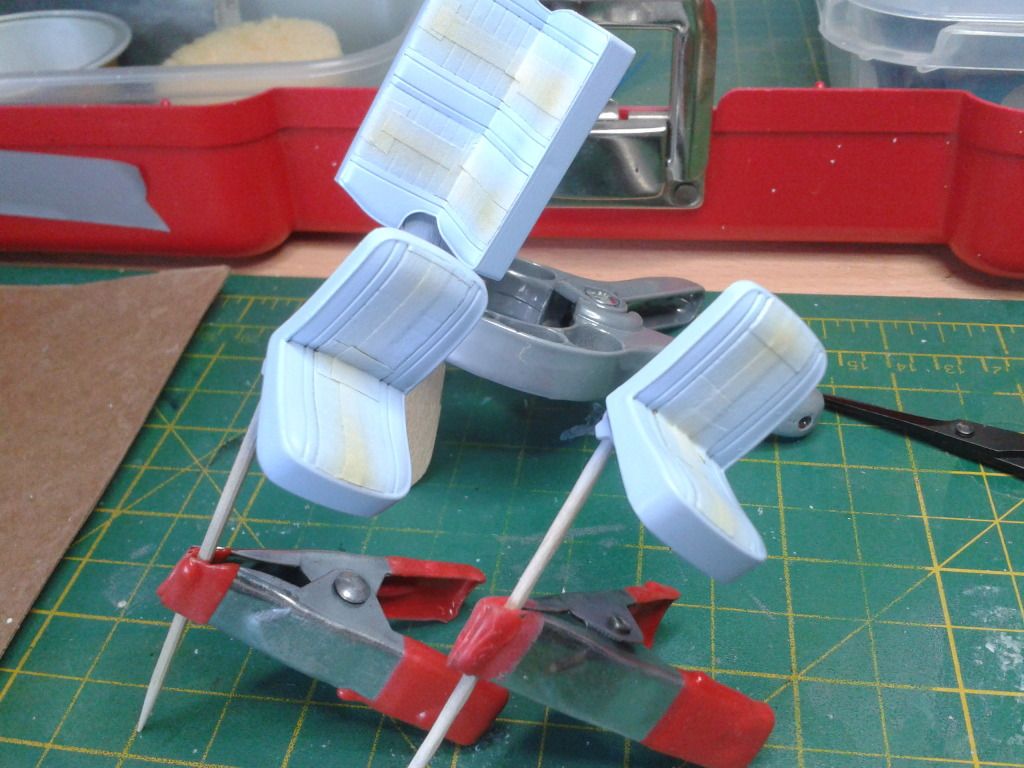

Got the seats masked up and airbrushed this morning, what I like about the artist paint shot through the airbrush is that I have never had any of the paint creep under the masking tape, thinned out, it really does spray well, and has that natural vinyl look to it

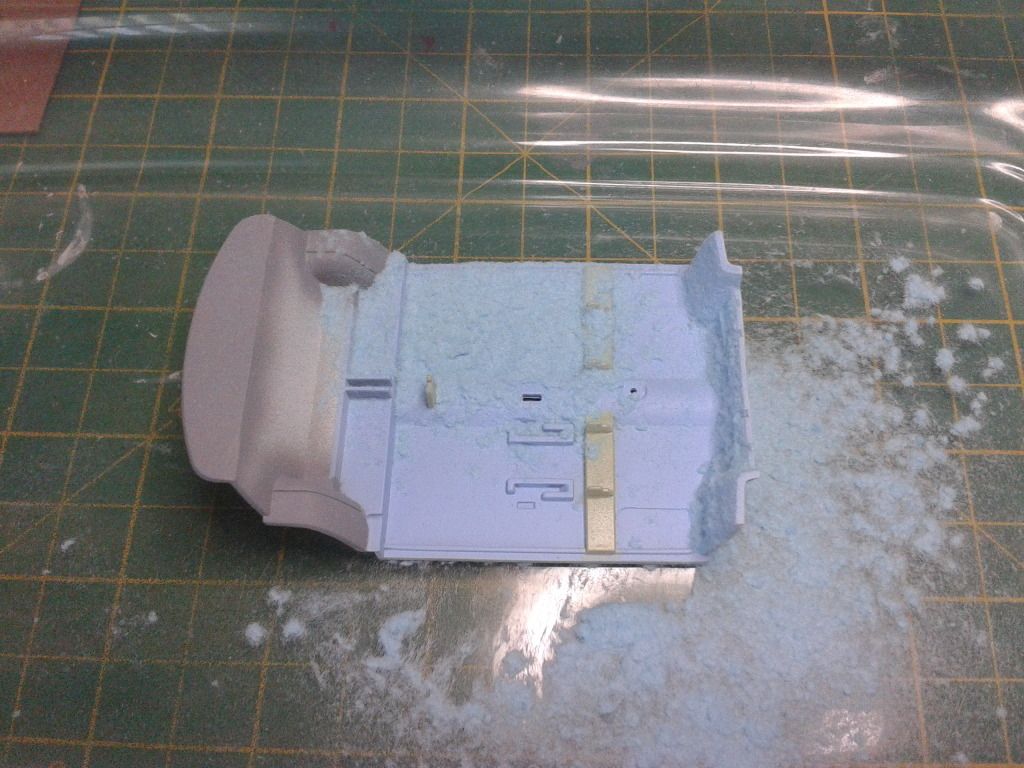

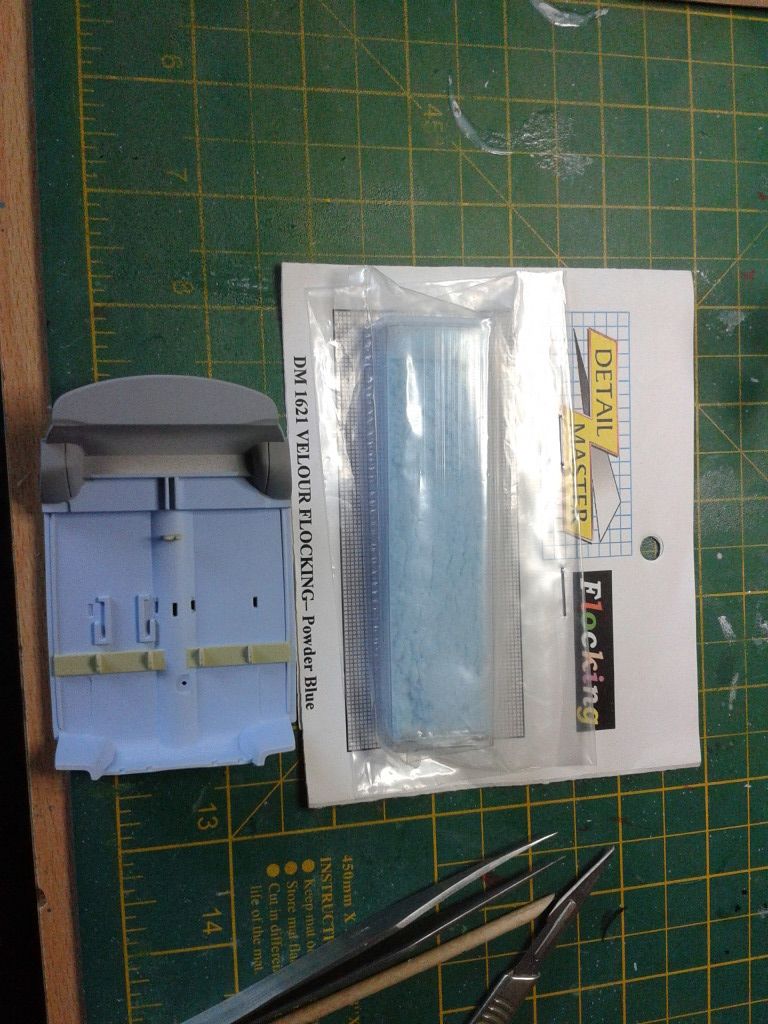

Also started on the flocking, the stuff I bought ages ago looks to be a good match



Share this post
