Chopped '30 Ford Woody "Lorena": Poncho blue, March 18

26 posts in this topic

Posted (edited) · Report post

I have several long-term builds waiting for the weather and my available time to coincide for paint, so I've opened up a couple of fill-in projects, including this one that's been shelved a while.

This is a vintage Monogram 1/24 1930 Ford woody street-rod. It looked pretty good in the auction listing with a few other built-ups, but the seller simply threw it in a box with zero padding, and when it arrived, it was just parts.


What didn't self-disassemble during shipping was held together with gobs of tube glue.


After breaking the joints, I had this. A straight restoration isn't worthwhile due to the damage, but it can cetainly be saved.

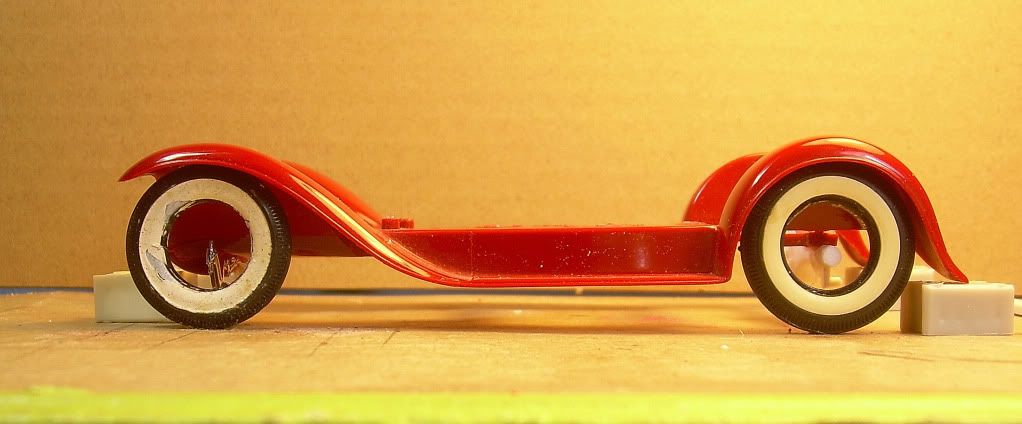

First order of business was to set up the stance. The relationship of the tires to the fenders shown here is about as low as you can go in 1:1 and still steer, and have sufficient suspension movement. Look in the center of the wheels, and you see I'm establishing the axle center-lines with available parts. Stance is everything, and the suspension will be built to keep the design-stance exactly.

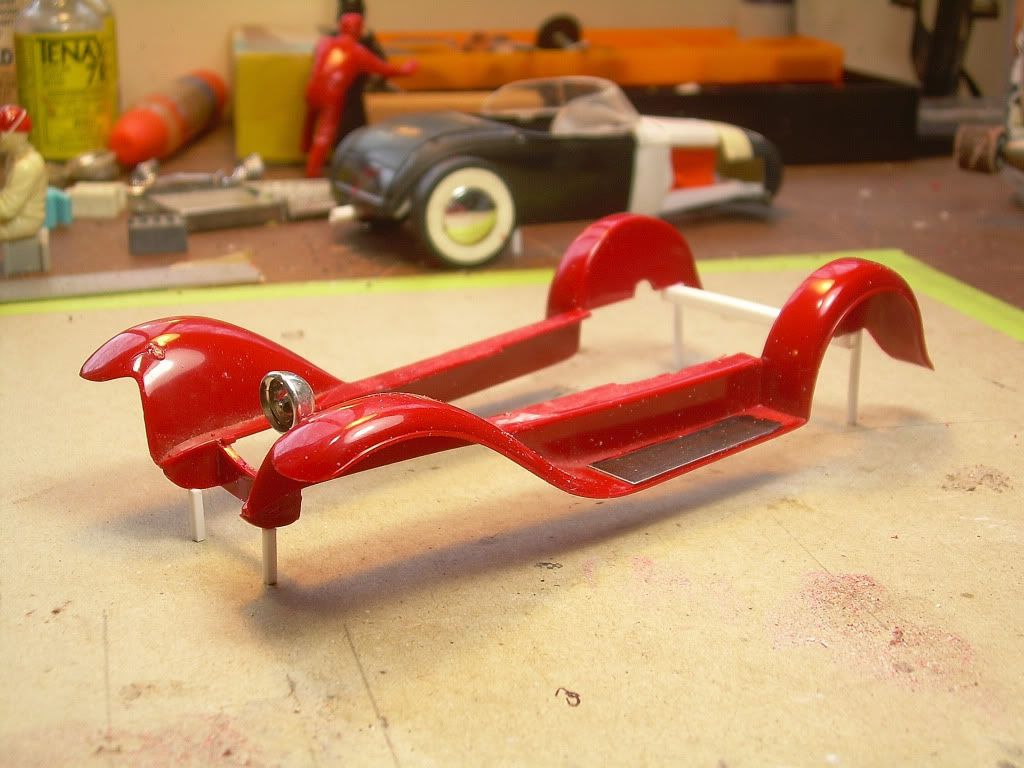

To lock it in, I made up temporary stands from 1/16" square stock.


I started the chop with a 1/8 inch cut (about 3 scale-inches) out of the windshield pillars, and followed by carefully cutting the side panels on the molded-in wood joints at the door tops and removing the same amount.


I adapted a '32 grille shell and hood, which had to be narrowed in the rear to fit the '30 cowl, slightly relocated the headlight, and had the first mockup.


The 3 inch chop removes some of the 'old-timey-ness' of the profile and still allows plenty of headroom for a real car. Ride height is a touch higher front and rear than the original fender-mockup was, but retains some hot-rod rake.


Edited by Ace-Garageguy

Share this post


Link to post
Share on other sites

Posted · Report post

GREAT SAVE!!! Nice Chop Too...

Share this post


Link to post
Share on other sites

Posted · Report post

ooh yes thats awsome already loving the chop and ride hight ..

one thing would really make this one perfect and that is if you shorten the wood body in lenght at the rear.

so what i mean is drasticly reduce the overhang at the back .. that would look so good proportion wise ~~~!

Share this post


Link to post
Share on other sites

Posted · Report post

followed by carefully cutting the side panels on the molded-in wood joints at the door tops and removing the same amount.

Brilliant! Thank you sir, you have made my day. I have a woody kit I was wondering how to chop.

Share this post


Link to post
Share on other sites

Posted · Report post

ooh yes thats awsome already loving the chop and ride hight ..

one thing would really make this one perfect and that is if you shorten the wood body in lenght at the rear.

so what i mean is drasticly reduce the overhang at the back .. that would look so good proportion wise ~~~!

I agree the proportions could be much improved by doing that, but I'll probably leave it long for room for more beer, volleyballs and girls. B)

Share this post


Link to post
Share on other sites

Posted · Report post

Brilliant! Thank you sir, you have made my day. I have a woody kit I was wondering how to chop.

Glad to be of service. I wish I'd cut it a little cleaner...it was kinda experimental and I got in a hurry...bit I think I can clean it up enough to pass.

Share this post


Link to post
Share on other sites

Posted · Report post

Very cool idea Bill, thanks for sharing B)

Share this post


Link to post
Share on other sites

Posted · Report post

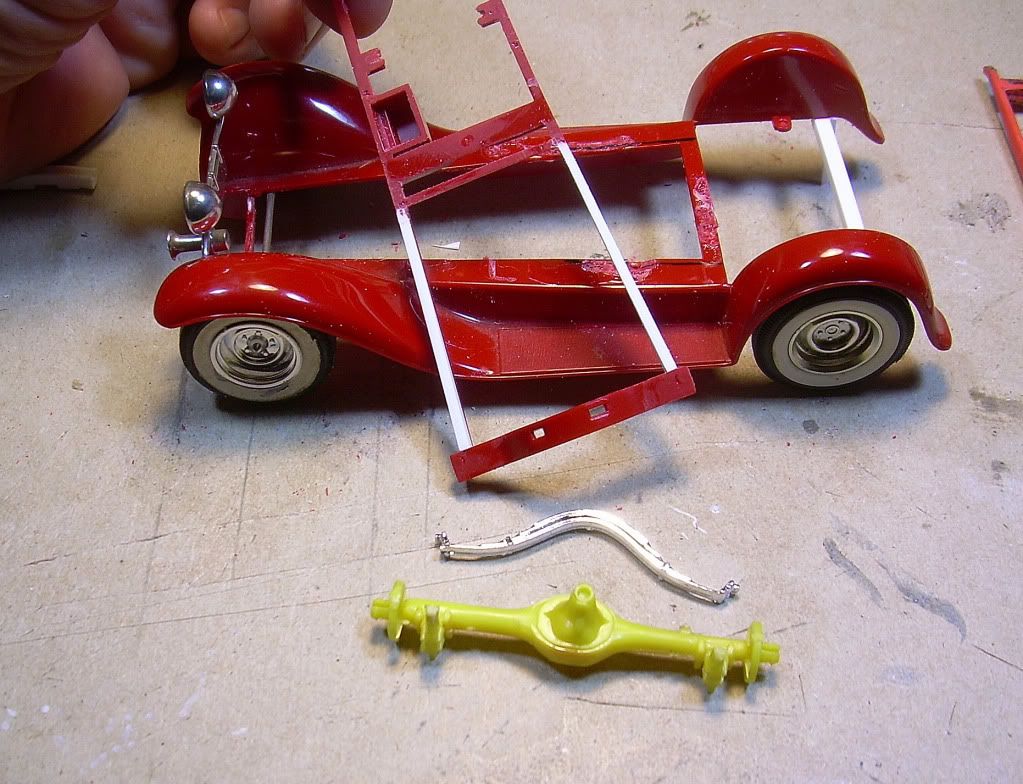

To lower the rear of a Ford Model A (1928-1931) you usually have to raise the rear crossmember relative to the frame. Easiest way to do this, after carefully cutting off the crossmember, is to add wedge-shaped pieces to the existing frame rails...

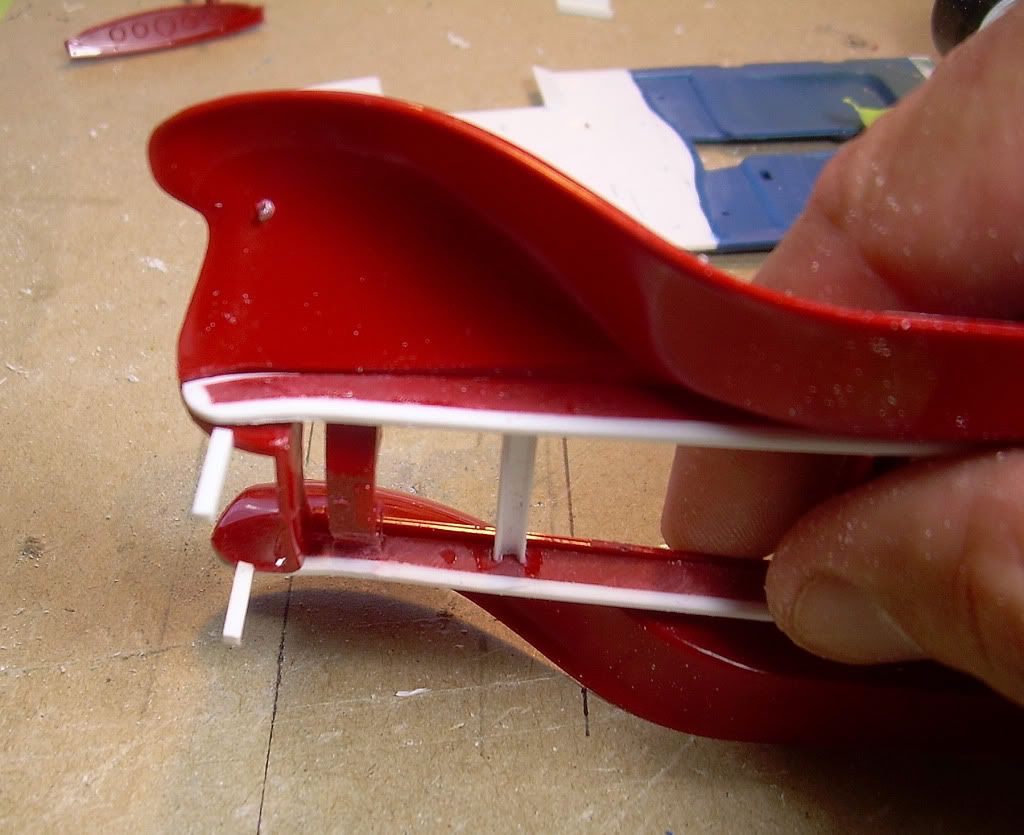

Then re-attach the crossmember in the new, higher position. This works on any model A kit, and the real cars. I've also reinforced the underside of these brittle old rails with 1/16 styrene square strip, and am reshaping the front of the rails to fit inside the fenders better.


Nice fit...


One thing to remember is that when you put the wedges on top of the frame rails in the rear, you have to make clearacce in the floor for them. This build will probably get a looks-like post-'57 Olds / Pontiac rear end, with scratched brackets to attach the buggy spring at the correct ride height.


With a little work it should be quite presentable.


Share this post


Link to post
Share on other sites

Posted · Report post

Lorena is lookin good, but what I want to know is what is that lil' black roadster in the back ground???????

Share this post


Link to post
Share on other sites

Posted · Report post

Nice work!!!

Share this post


Link to post
Share on other sites

Posted · Report post

.....but what I want to know is what is that lil' black roadster in the back ground???????

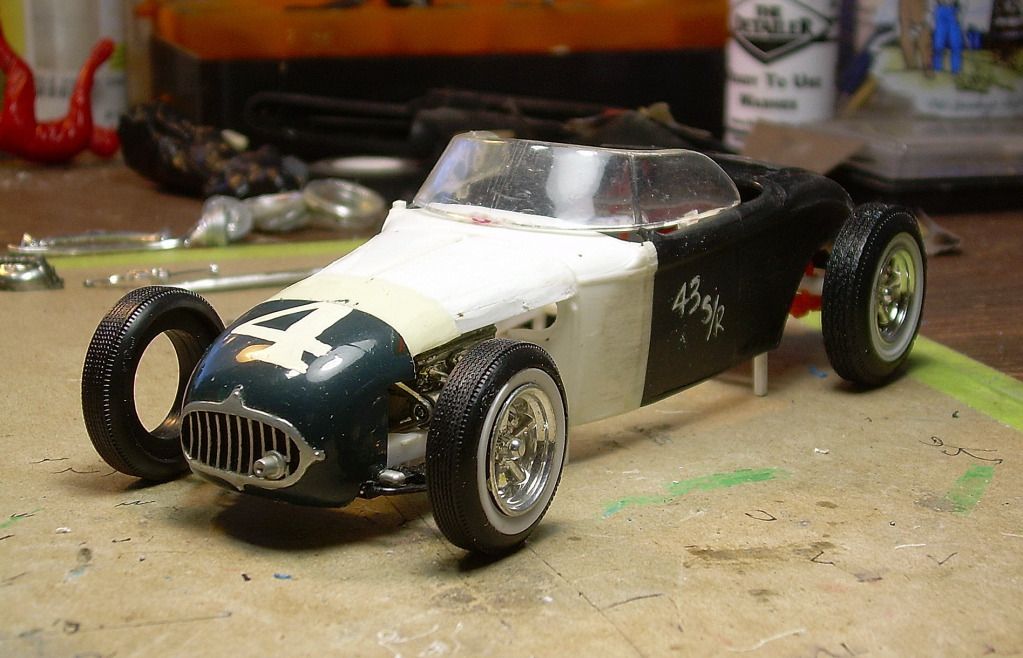

That's my Ace-Garage Special. It's actually a build for a 1:1 I'm doing for myself. I thought I had a thread going for it on this forum, but I can't find it.



Share this post


Link to post
Share on other sites

Posted · Report post

Now that is kool Bill!!!!!! I like the look of it for sure. If ya build a 1:1 of that you'll have tons of fun!!!!!!

Share this post


Link to post
Share on other sites

Posted · Report post

I really appreciate that you're considering how your modifications would work in the 1:1 world. I try to do this for my own scale customs, but I lack the 1:1 knowledge and experience which you have. Thanks for sharing your thoughts as well as your build.

Share this post


Link to post
Share on other sites

Posted · Report post

Wow! That is cool! Love the aggressive look it's acquired with the chop and the slope of the front roof section.

Share this post


Link to post
Share on other sites

Posted · Report post

Very cool. The chop looks great. Ya gotta love the way some people box up their stuff for shipping.

Share this post


Link to post
Share on other sites

Posted · Report post

I like where this is going Bill. BTW did you ever finish your 50 Olds Fastback?

Share this post


Link to post
Share on other sites

Posted · Report post

Bill, Really cool builds!!! I really like how the Woody looks so far, perfect stance and overall look. Same thing with the Ace Garage Special, they look excellent. I also started wondering, how many projects you got going on at the same time?

Share this post


Link to post
Share on other sites

Posted (edited) · Report post


this does look much better skootched down

Edited by southpier

Share this post


Link to post
Share on other sites

Posted · Report post

Sincere thanks for the interest and input.

....did you ever finish your 50 Olds Fastback?

It's currently the epoxy and new filler test car. I'd intended to do resin copies but other guys beat me to it. I'm in the process of reinforcing all the joints to go ahead with the chop, and opening the doors and deck.

... I also started wondering, how many projects you got going on at the same time?

Close to 70, but there are really only about 15 in the rotation that get worked on regularly.

Share this post


Link to post
Share on other sites

Posted · Report post

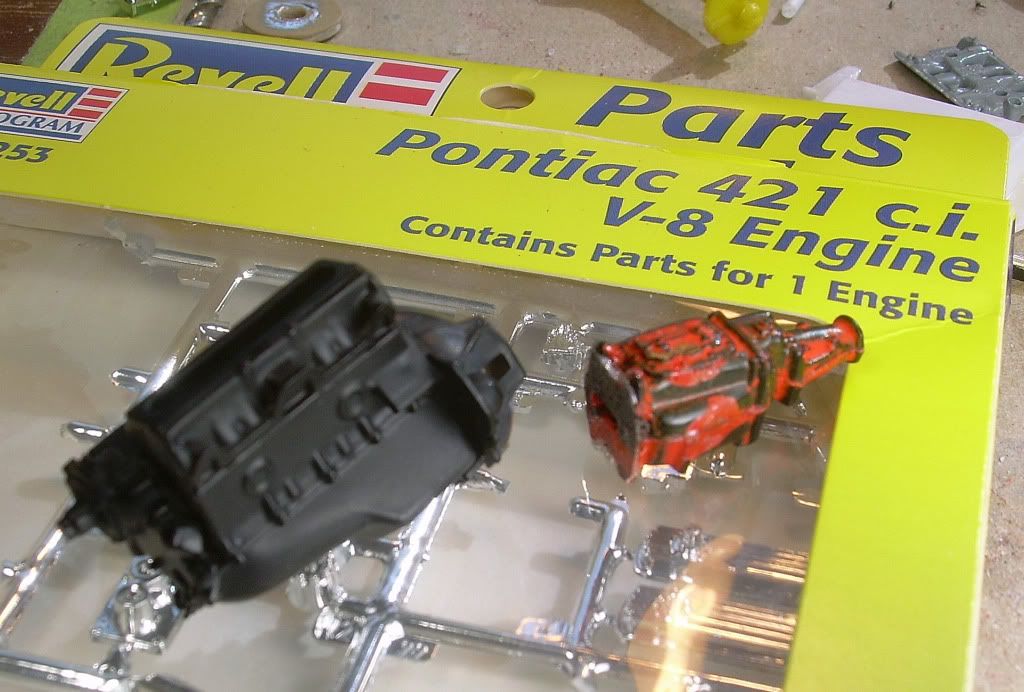

The engine will be a Pontiac from an old Revell Parts Pack kit. These build up beautifully with care.


Share this post


Link to post
Share on other sites

Posted · Report post

I'm liking this one. Love the chop, looks just right.

Share this post


Link to post
Share on other sites

Posted · Report post

Testors Model Master Big Bad Blue lacquer basecoat is pretty close to old Pontiac blue engine paint. I was looking for something to do the engines in the Challenger build, and tested it on this one. The un-cleared basecoat gives just the right low sheen for an engine.


Share this post


Link to post
Share on other sites

Posted · Report post

L I K E

Nice build!

Share this post


Link to post
Share on other sites

Posted · Report post

Any updates? This is a great project. Don't see many chopped woodies.

Share this post


Link to post
Share on other sites

Posted · Report post

one of my all time favorite Monogram kits...Makes me want to finish the few I had started but have never finished
