How to apply a carbon fiber finish to a contoured surface.

6 posts in this topic

Posted (edited) · Report post

I thought I would share something I did on a viper hood. I wanted the hood to match the spoiler on the ACR viper, the kit came with decals for the spoiler, but I didn't want to try and get decal material to lay down on the hood vents. So I decided to paint both parts together and try to get them to match.

2E11EEFE-B8C7-4A80-B194-78F10DB455BC-118

I started by painting the hood with a black crystal. I like this because it has a lot of silver in it already and pops really well.

FC3EAC3F-6835-4986-B28E-8570B42DD746-118

I cut out a piece of plastic window/door screen/netting found in the fabric section at Walmart.

Edited by moparmagiclives

Share this post


Link to post
Share on other sites

Posted · Report post

0F9D42C5-C394-4C58-AAFD-1F520F5C3C7A-118

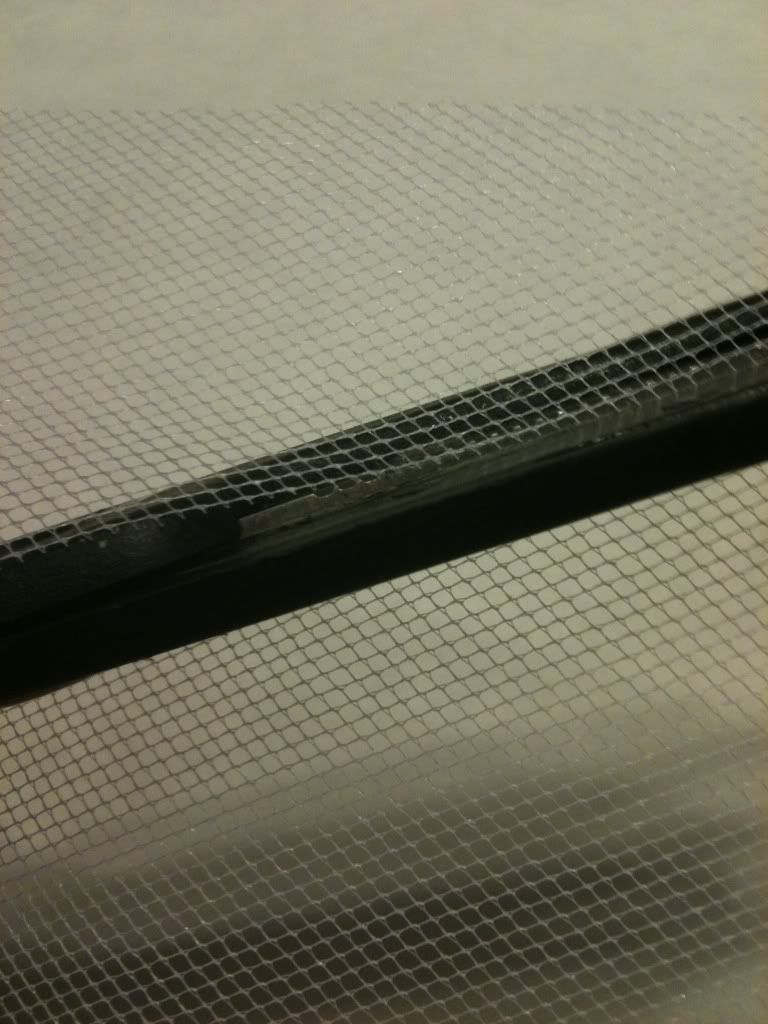

I wanted the pattern to run side to side on te hood, not diagonal so I started it with a straight edge across the top

1E60F39E-5A27-4B2C-AD4D-224AB19B14D6-118

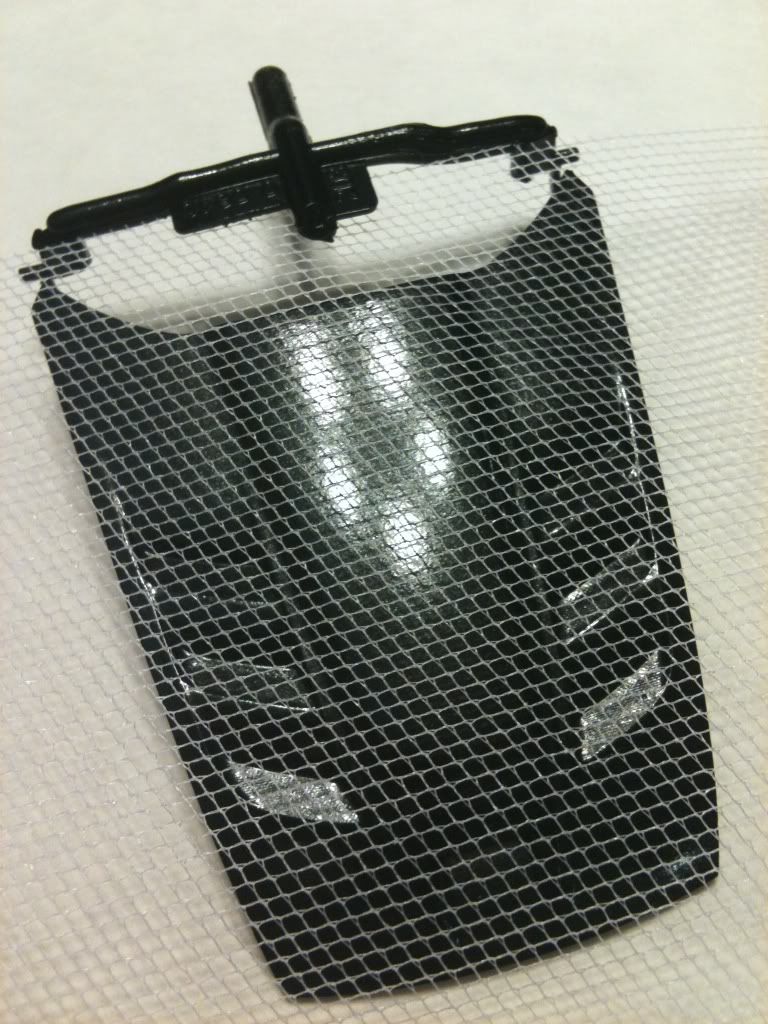

This puts the pattern running pretty even across the hood like the real thing.

Share this post


Link to post
Share on other sites

Posted (edited) · Report post

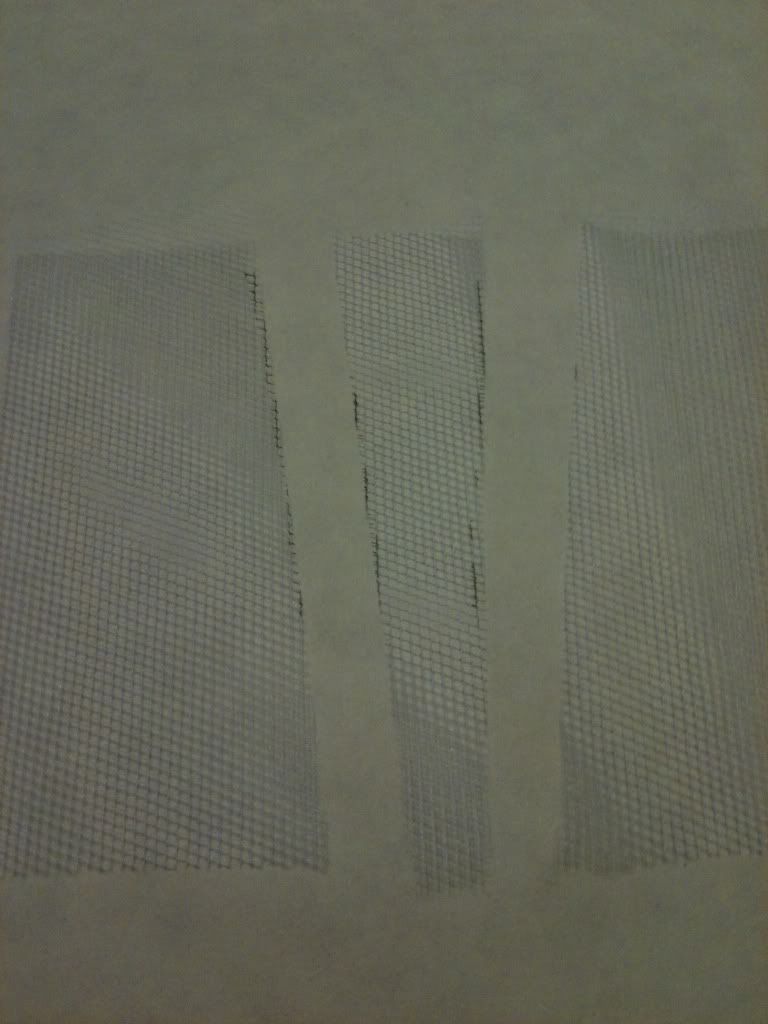

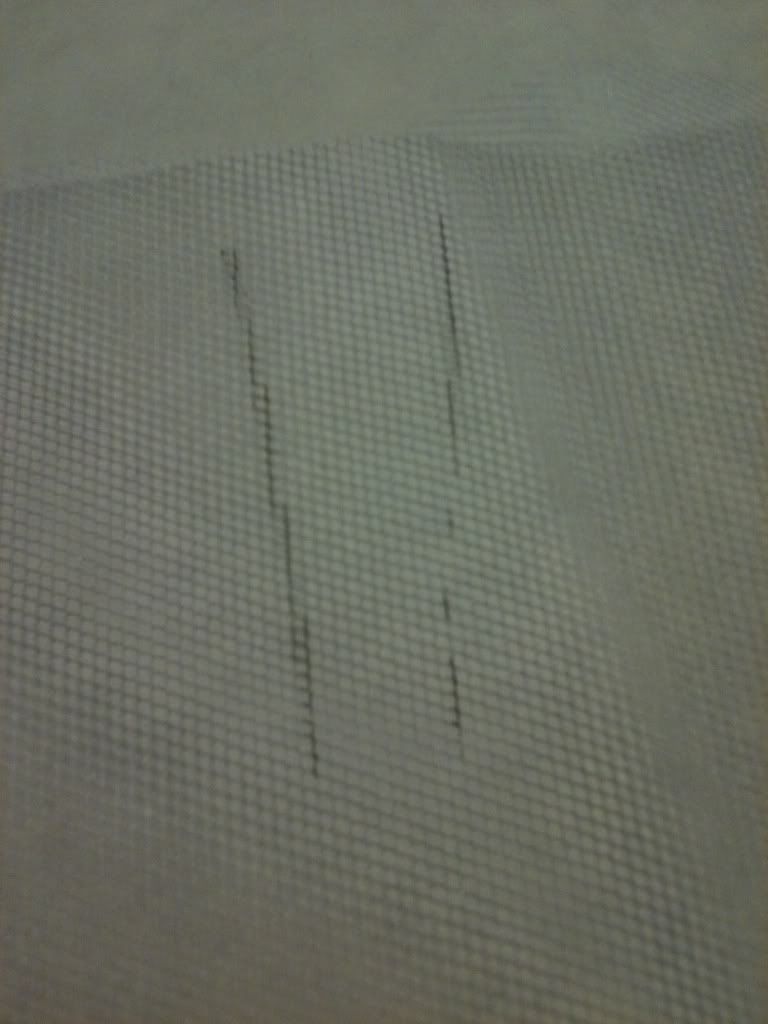

Because of the bulge on the top of the hood, I didn't want there to be to much detail lost from where the material wouldnt contact the hood side. So I traced the bulge on the screen then cut it out.

FAD3F1B1-5806-4FE7-9129-AAB205C8A048-118

3925F5F9-5208-4EB9-8D8E-A784F9CB8613-118

Edited by moparmagiclives

Share this post


Link to post
Share on other sites

Posted · Report post

BE03BBBC-BA54-4372-A641-C82B5F4ACBBC-118

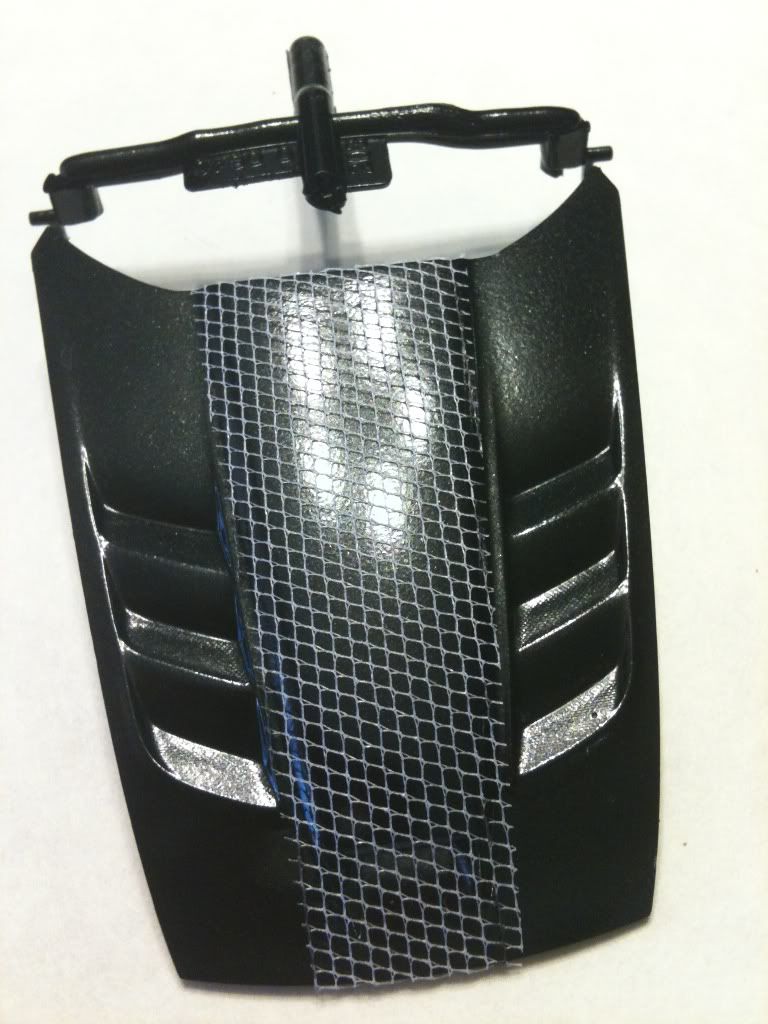

With the center cut out, it's stretched and taped to the back side of the hood.

D8FA2DE2-6785-4AA7-BC88-D127B995130D-118

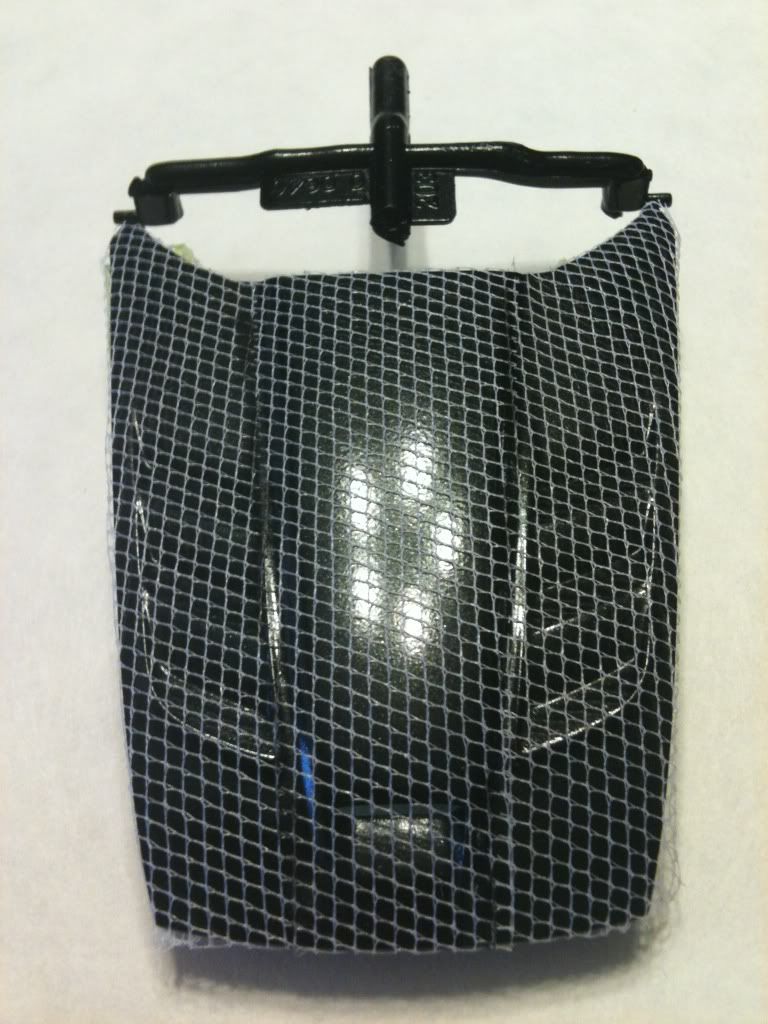

Fallowed by the sides, butted up as close as possible to keep a gap from forming when the paint is applied.

Share this post


Link to post
Share on other sites

Posted (edited) · Report post

8FE7F805-0B81-4C1D-B47F-F3E375D512A5-118

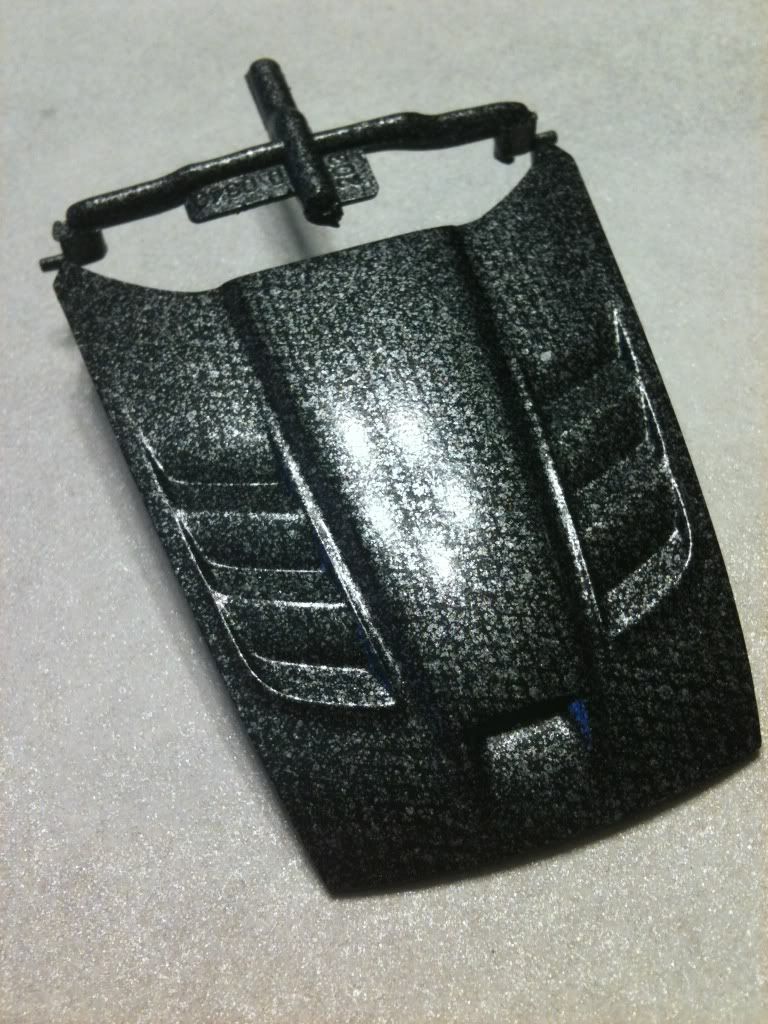

dusting with silver and gold, it gives a pretty good representation of the fiber pattern.

6498454A-105B-4CC9-A78B-AB53E3A76FDE-118

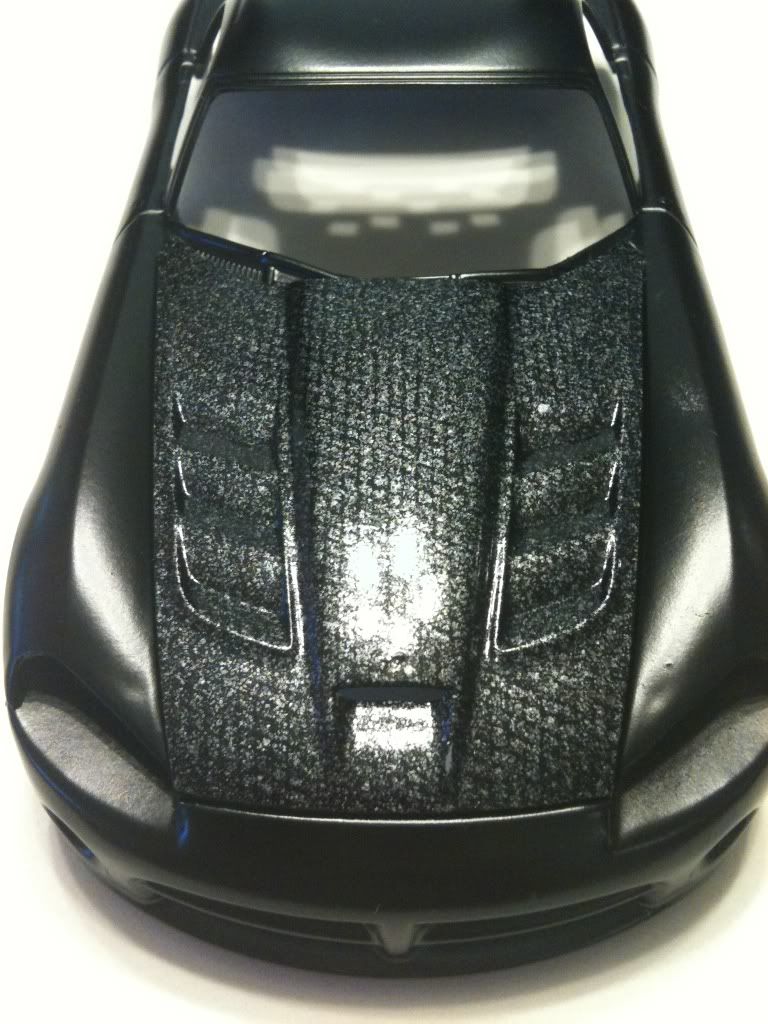

Once cleared, it has a pretty convincing effect.

A little wet sanding and some more clear will give it a very nice smooth finish over the sprayed pattern. It's not totally true to scale, but it gives a good representation.

I hope this helps someone, and I hope I'm not reposting someone else's idea. I looked but didn't find much on it. So I thought I would share mine.

Thanks for looking.

Edited by moparmagiclives

Share this post


Link to post
Share on other sites

Posted (edited) · Report post

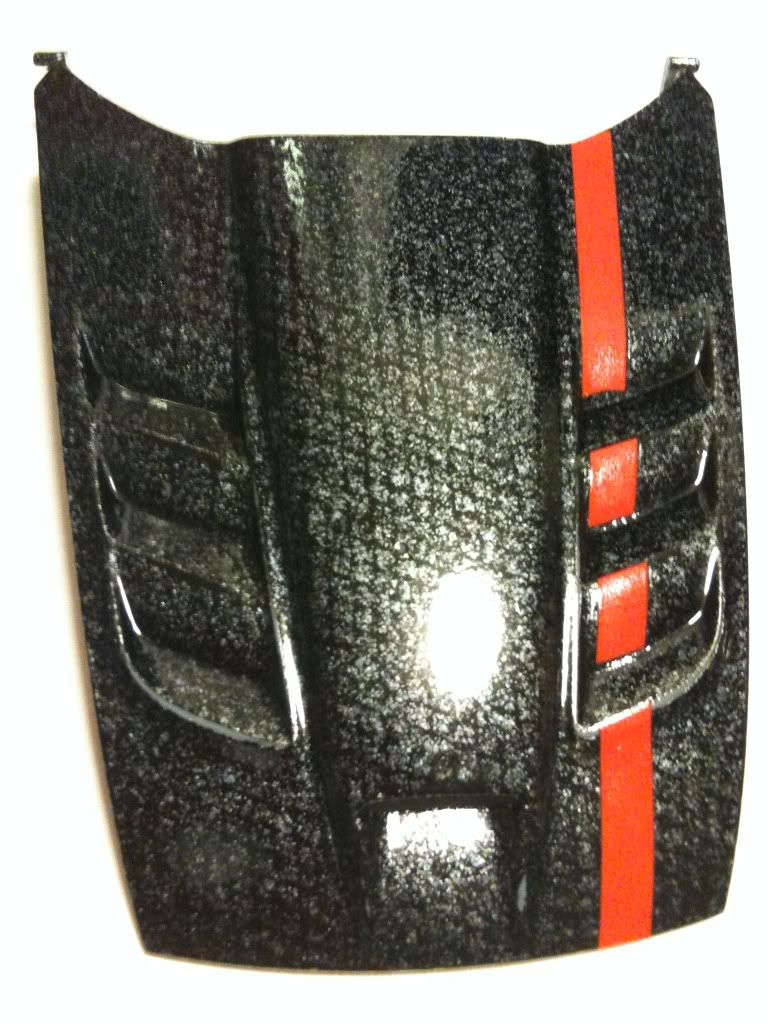

Little update, here she is cleared, color sanded, cleared, decaled and cleared again.

64958EA8-3945-40D0-8B4A-944E753FC9D1-444

Thanks for looking.
