I am going to be starting another saloon car from 1936. This time it is going to be a Bentley. I will be taking it from start to finish, naturally, and am anticipating about a 2 month build on this one. I will be doing some new things, new methods, and incorrperating working steering, and if someone has 3-D drawings of the engine for this and a 3-D printer they can make me a working engine, :lol: (in my dreams). I will also be incorrperating additional information on other builds as I go along as they relate to the construction of this car. I will also be making modifications to the car that are not on the origional as shown below but are common to the 1936 Bentley. :D

1935-Bentley-Saloon-aution-at-Brooklands

So, sit back and follow along and comment along the way whether good or bad.....critical suggestions are the way to good models since I can miss things or always make them better when incorrect areas are brought to light. B)

I am still in need of good chassis drawings and engine information on this. :huh:

Kenn :)

Share this post


Link to post
Share on other sites

Posted · Report post

We have a bunch of photos of the car...so what. Now how do we go from photos to building a car in scale with all the details and chassis and wheels and motor and,,,,,and,,,,,,,,,,,,,,,,,,,,,and,,,,,,,,,,,,,,,,,,,,, :blink:

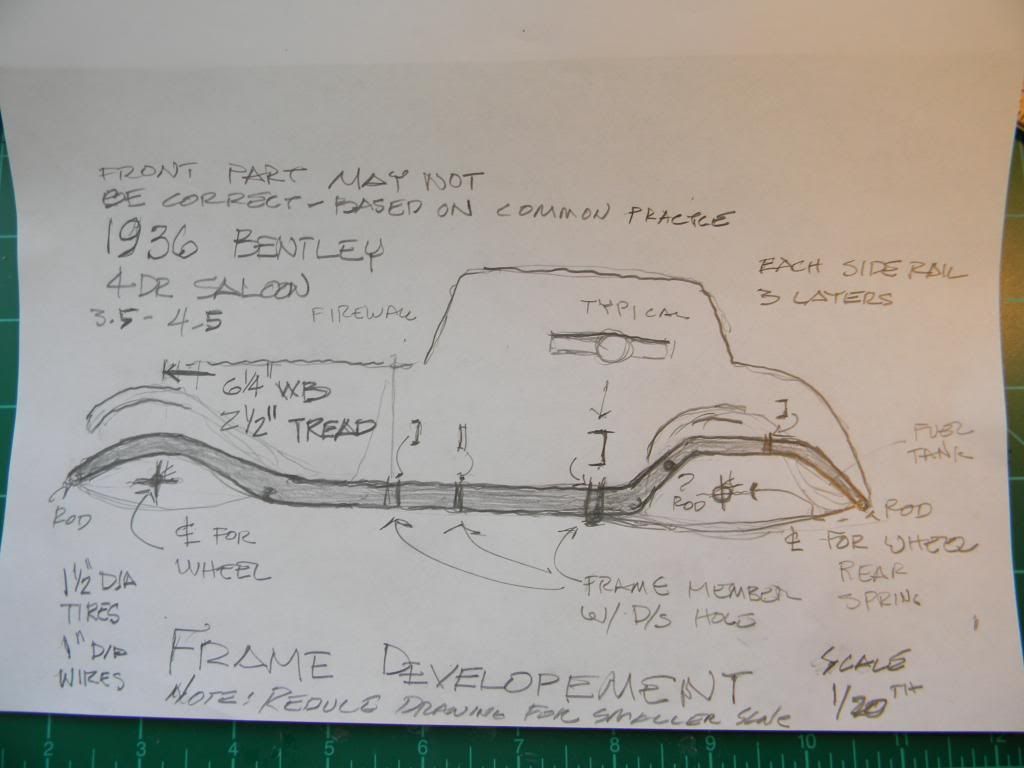

First,,,I print off a good clear side drawing of the car as I posted in the previous post. I measure the distance center to center on the wheels. This car has a wheelbase of about 117" depending on the builder and actural car. Since they were all hand made, and each was different it is a challenge. I made my drawing 6 1/4" center to center....about 1/20th scale, the same as the MG saloon.....I also found a decentt picture of the frame(chassis) from a decent angle but it was not perfect....for this it is good enough to produce a set of chassis drawings to work from that are the same scale as the photo. ;)


With the chassis photo on the computer and the colour rendering for reference I traced the outline and centers of the wheels on a seperate page and then roughed out a resonable chassis drawing in scale that I can work from. I willmake copies to build from and save the rigional to a file. (Hardcopy) B)

This is what I end up with to work from.


Next is the frame construction. I like the photo I have since it shows a lot of details that we can use in the model. :rolleyes:

Kenn :)

Share this post


Link to post
Share on other sites

Posted · Report post

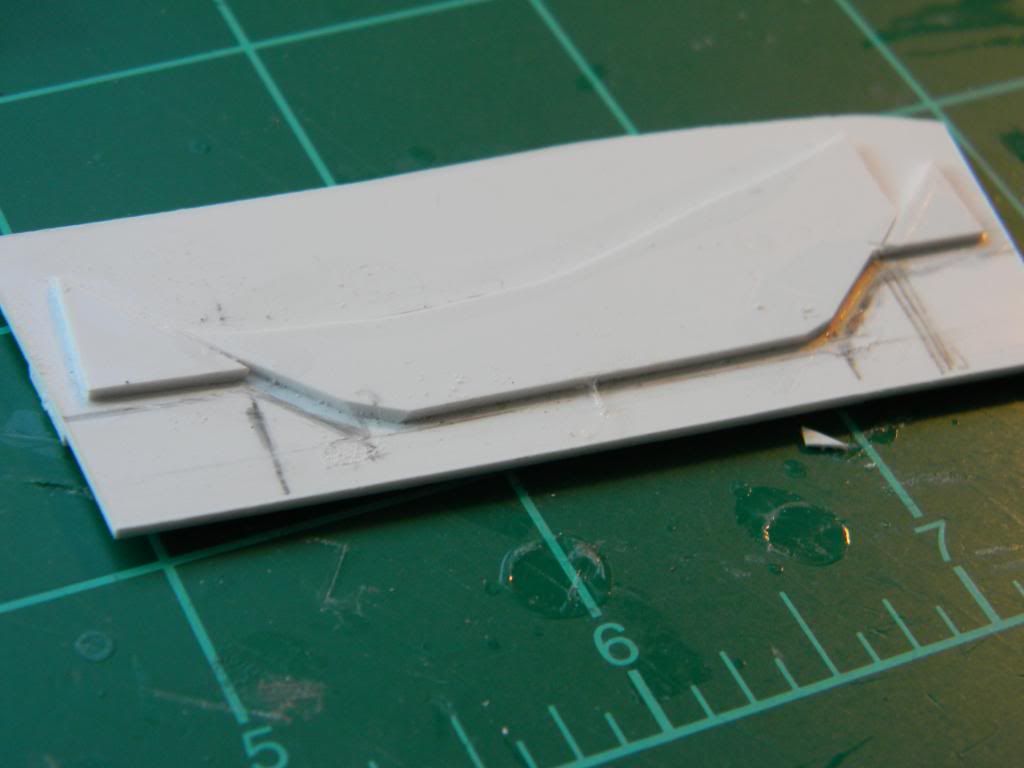

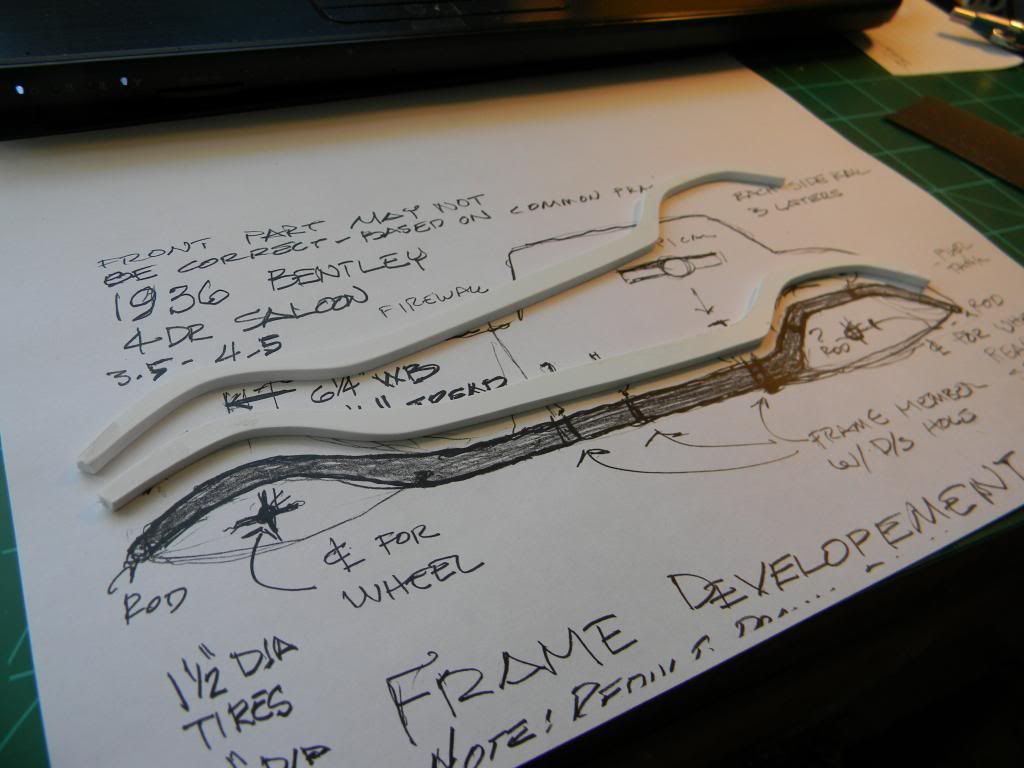

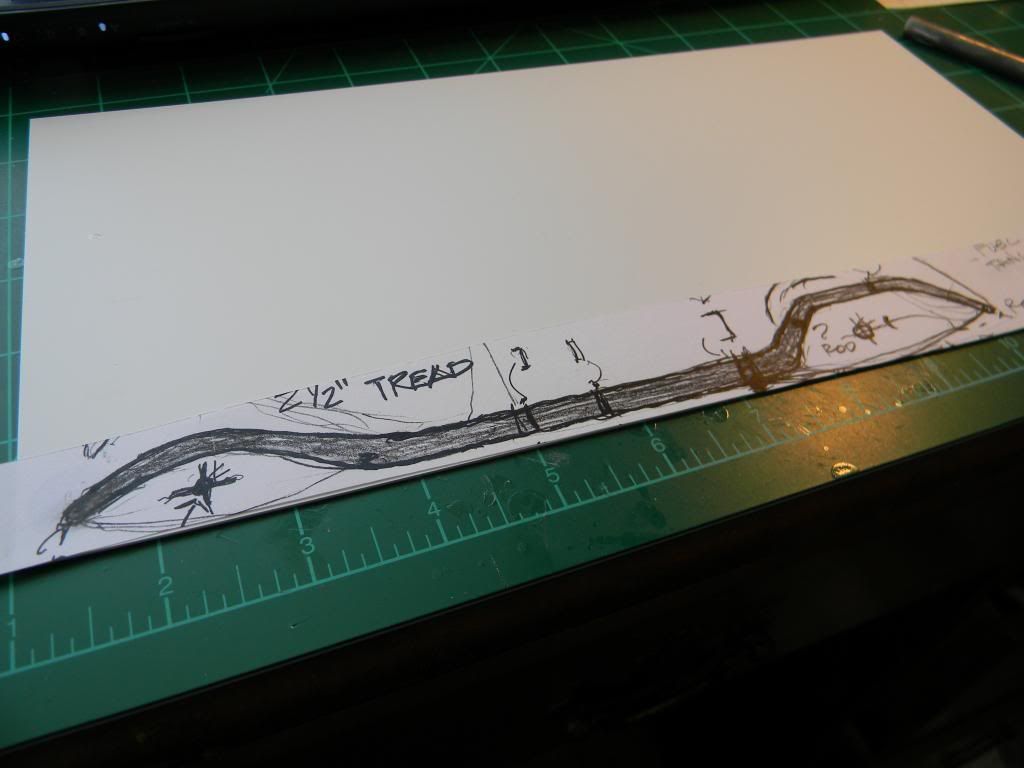

The frame rails are rather straight forward, gluing the template to the plasctic and cutting it out. B)

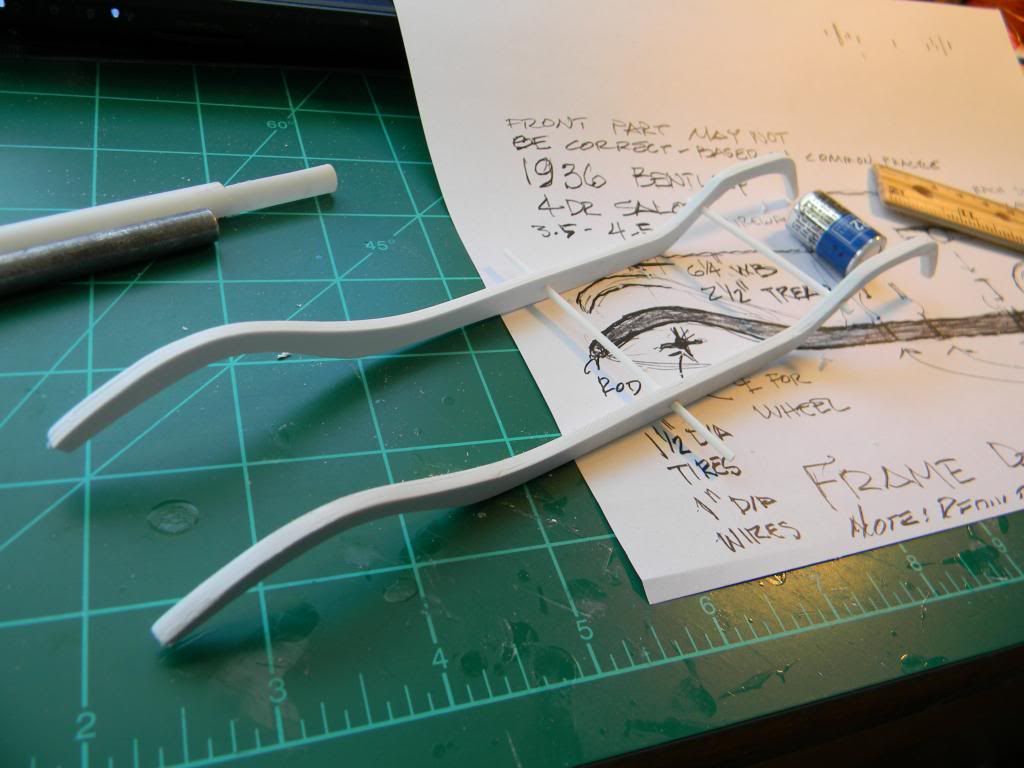

I need the frame 3 pieces thick for each side so I cut and glue and cut and glue,,,then tack to the plastic a forth time and repeat cutting and gluing so that I have 6 thicknesses divided buy a tacked center (3 each side). then sand even, drill 2 holes and seperate. :blink:



We will determine the distence apart next time...... :rolleyes:

I also want to start thinking ahead a little at this time to get plumbing areas....as we see it is all along the dirvers side on the frame.(the right side).

Since I am considering using a lot of fiber optics in this car I will use the fiber optic cable as brake lines and fuel lines, with the battery in the fuel tank. :huh:

I need to leave a space for all of this clear along the side. We will explore this next time also to see how it works out.

Kenn :)

Share this post


Link to post
Share on other sites

Posted · Report post

axels and springs....The front axel is bent on a jig with.80 rod.


rear axel is built up with .80 rod inside 3/16 tube and a 7/16 pumpkin.axels are run wild for now. -_-


Springs are made up with 5/32 flat .20 plastic and cut to length and glued up using the template for the frame. ;)



next we will set the springs in place and set the width, install axels setting the frame height. :blink:

Thanks for following along..............................comments are always welcome.

Kenn :)

Share this post


Link to post
Share on other sites

Posted · Report post

You cant be form this galaxy no you just can t be. Your builds are out of this world. But allways nice to follow along and mayby learn something from.

Share this post


Link to post
Share on other sites

Posted · Report post

The theme for Twilight Zone plays in the backgorund.

Scene: the cutting table on Mars hidden away..

Action: Madly drawing out cutting sheets and plugging them into the plasma cutter.

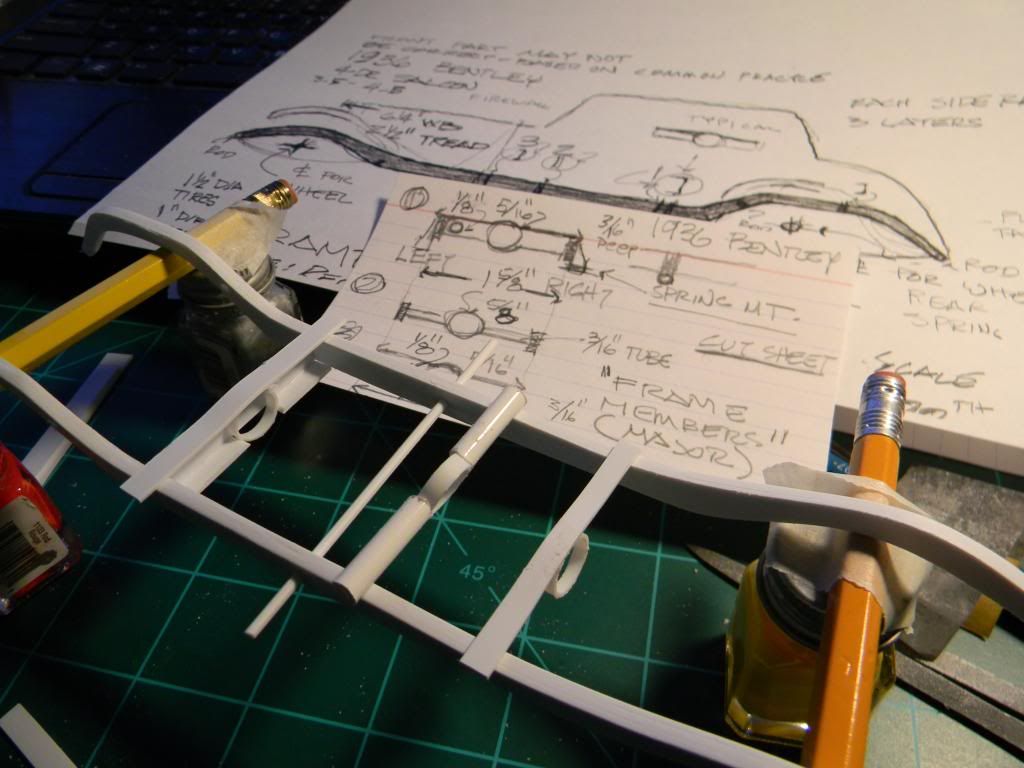

for the cross members on the chassis.



Aside note: center to be cut to fit when others are in place.

Light fades to dark and scene closes> :blink:

Kenn B)

Share this post


Link to post
Share on other sites

Posted · Report post

WOW!:)

Share this post


Link to post
Share on other sites

Posted · Report post

Lol :lol:

Share this post


Link to post
Share on other sites

Posted · Report post

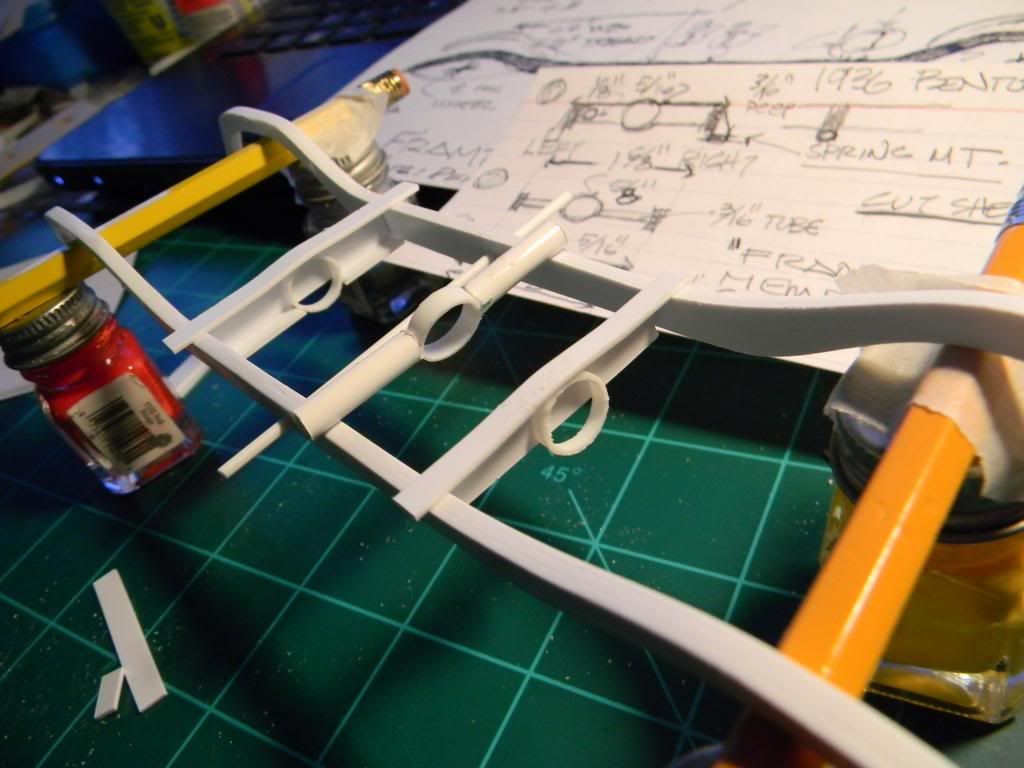

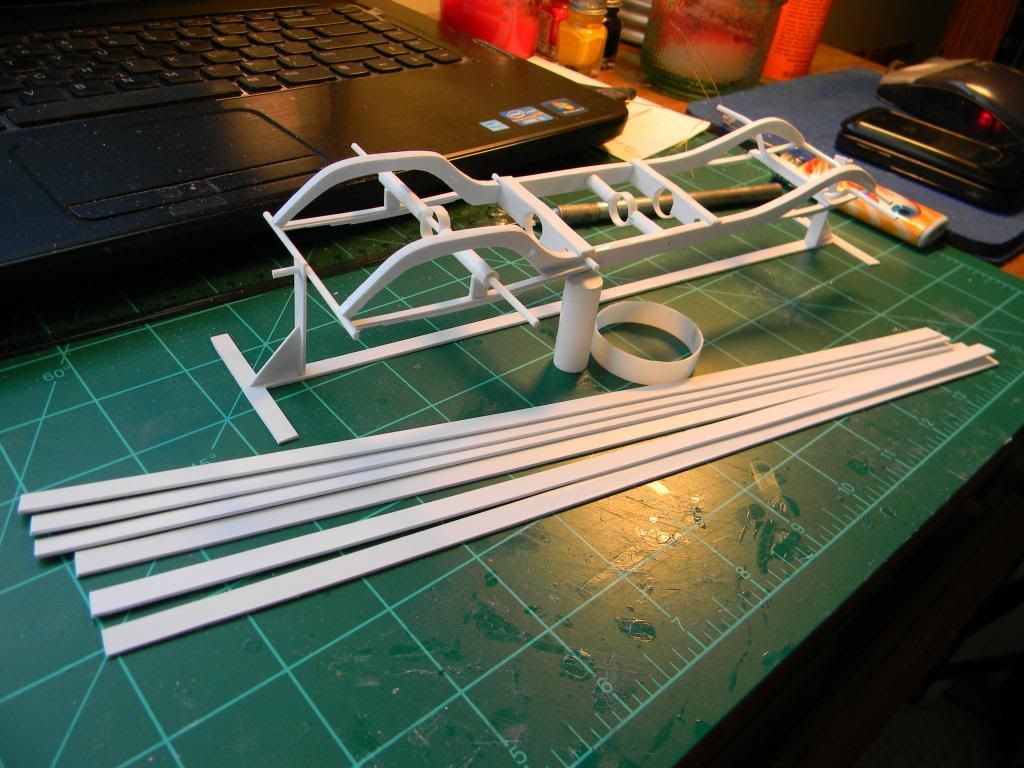

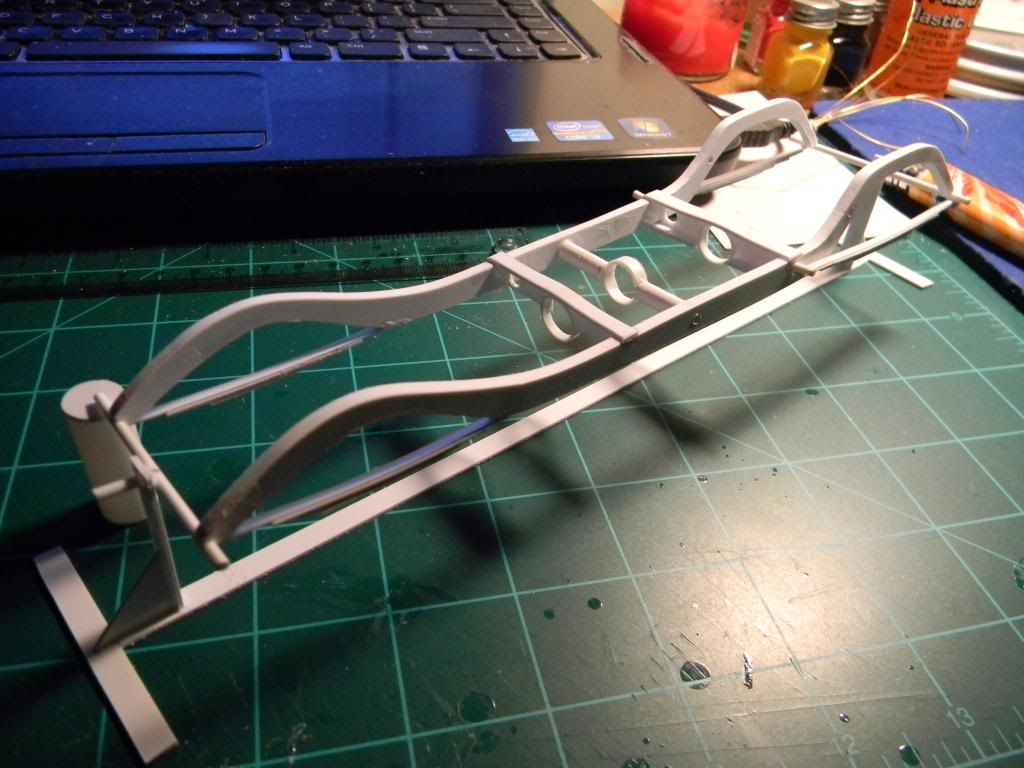

from a planet far far away comes another edition of the Bentley chassis......assembled so far on a simple rotisuree (sp). ;)


Thank you for the comments and watching....................

Kenn <_<

Share this post


Link to post
Share on other sites

Posted · Report post

Axels have been placed glued and dimensions checkd and varified with the drawings and photos. Chassis squared....3/8"x9" strips cut to make the wheels....... -_-


Kenn :)

Share this post


Link to post
Share on other sites

Posted (edited) · Report post

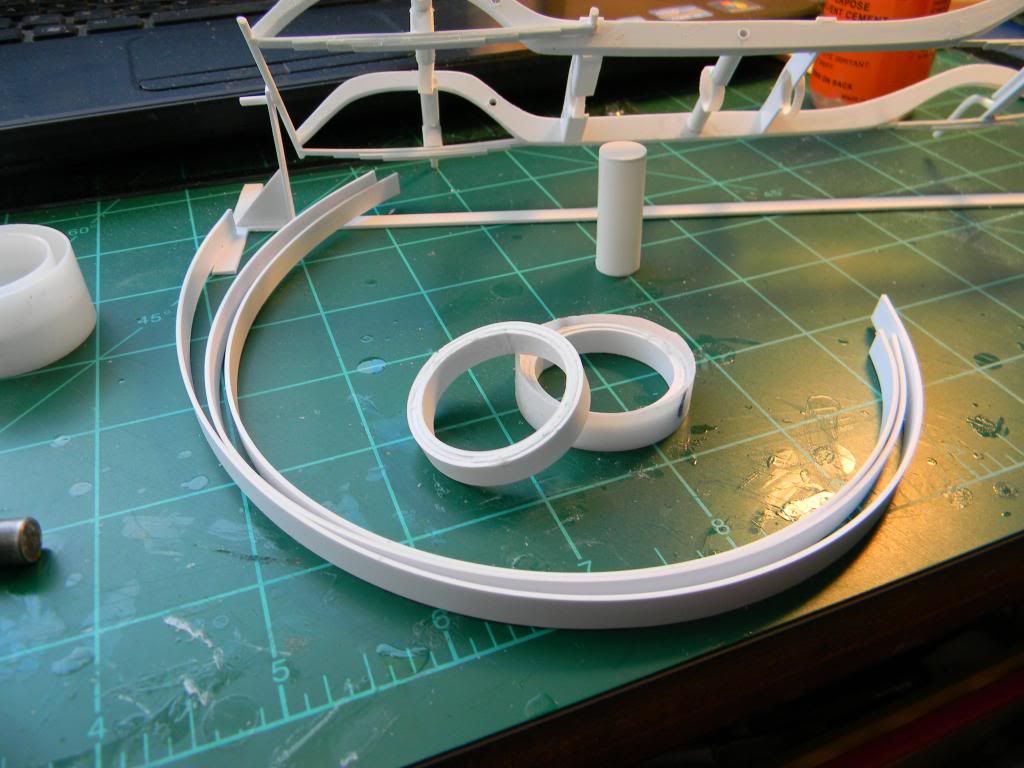

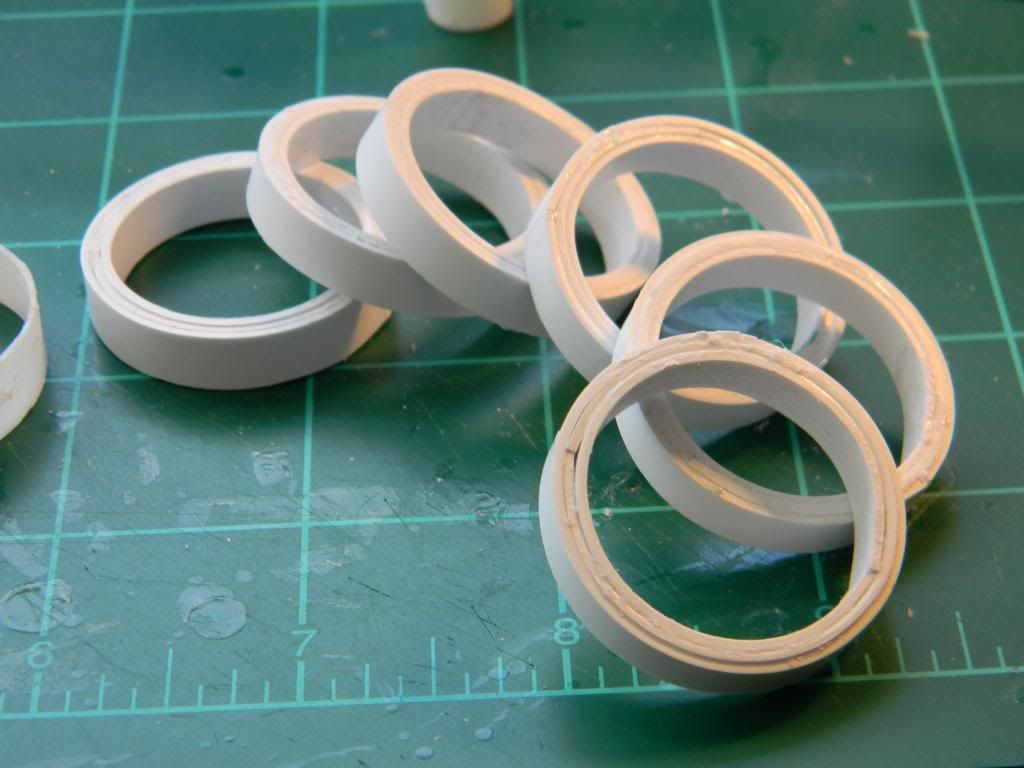

tires and wires....................................................tires are made of the 3/8" strips glued together. ;)

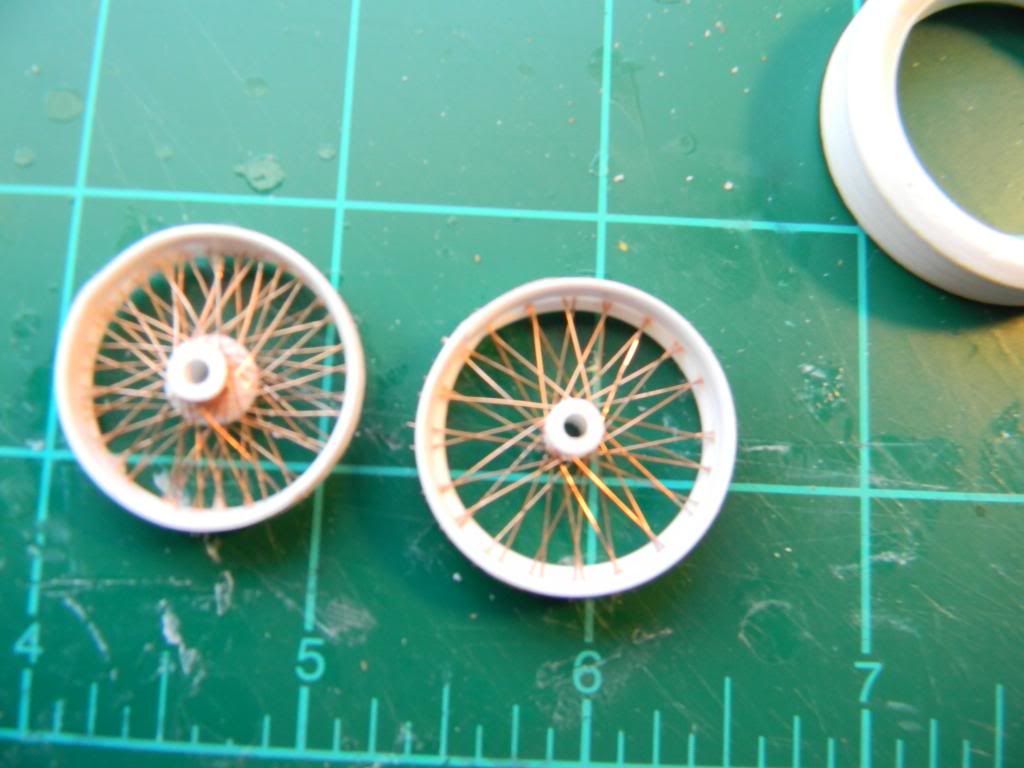

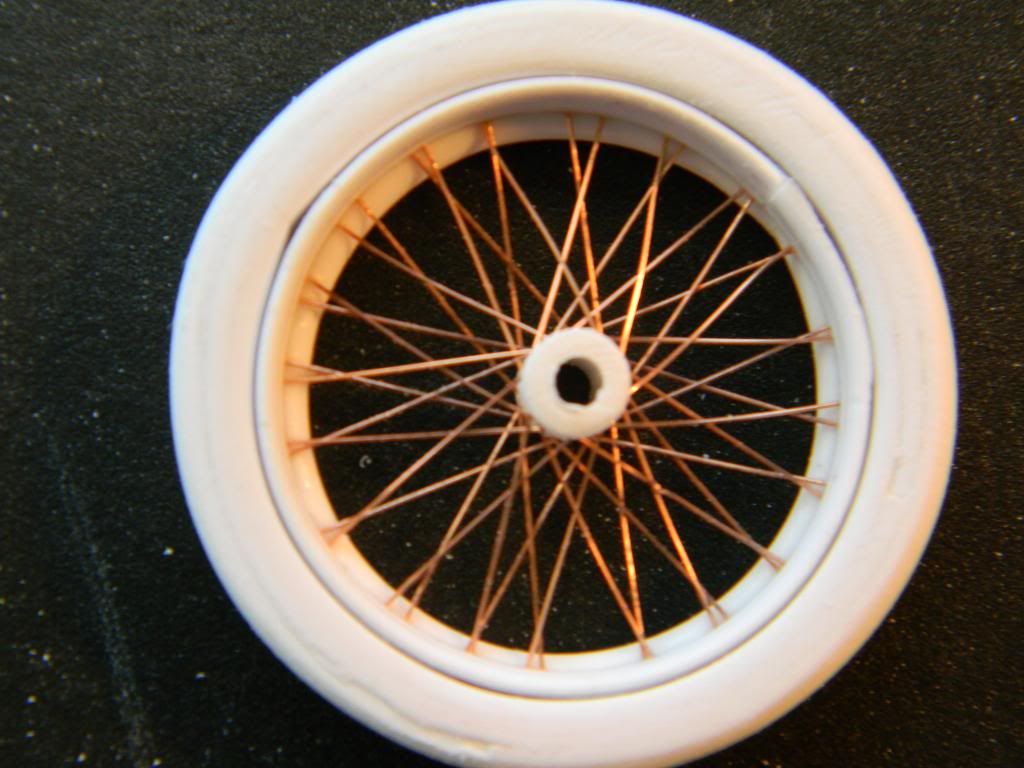

I have revised how I lace the wires....first I went to a 5" 20 peg lacing board and then I finished all the parts better before lacing. The rediction of wire leads to a more stunning lace job as youcan see in the comparison.


This is the final product. As you can see it is far superior to previous lacings....I am sure as time goes on They will get even better. :rolleyes:


Thanks for watching and comments are always welcome,,,,,good or critial suggestions for improvement.

Kenn :P

Edited by kennb

Share this post


Link to post
Share on other sites

Posted · Report post

Youre builder skills are really amaizing...awesome...wonderfull.... :)

Share this post


Link to post
Share on other sites

Posted · Report post

This build is just ridiculous. How the heck am I supposed to compete with that?

I thought the chassis construction was awesome enough, but those wheels are beyond amazing. Never in a million years would I think of building and lacing my own wheels.

Share this post


Link to post
Share on other sites

Posted · Report post

Awwww Troy, that's only caz he's A REAL modeler, and not just one of us guys who put kits together! When your THIS deep, nothing else will do. This way you KNOW the part is right because YOU BUILT IT! You ARE a very talented gentleman, I do gotta admit that! Doin GREAT so far!!!!

Share this post


Link to post
Share on other sites

Posted · Report post

Thank you Jose' Troy and George for the comments and nice things. I never thought I would be laIcing my own wires a month ago.......But now that I am doing it look for projects that have wire wheels :rolleyes:

Kenn :)

Share this post


Link to post
Share on other sites

Posted · Report post

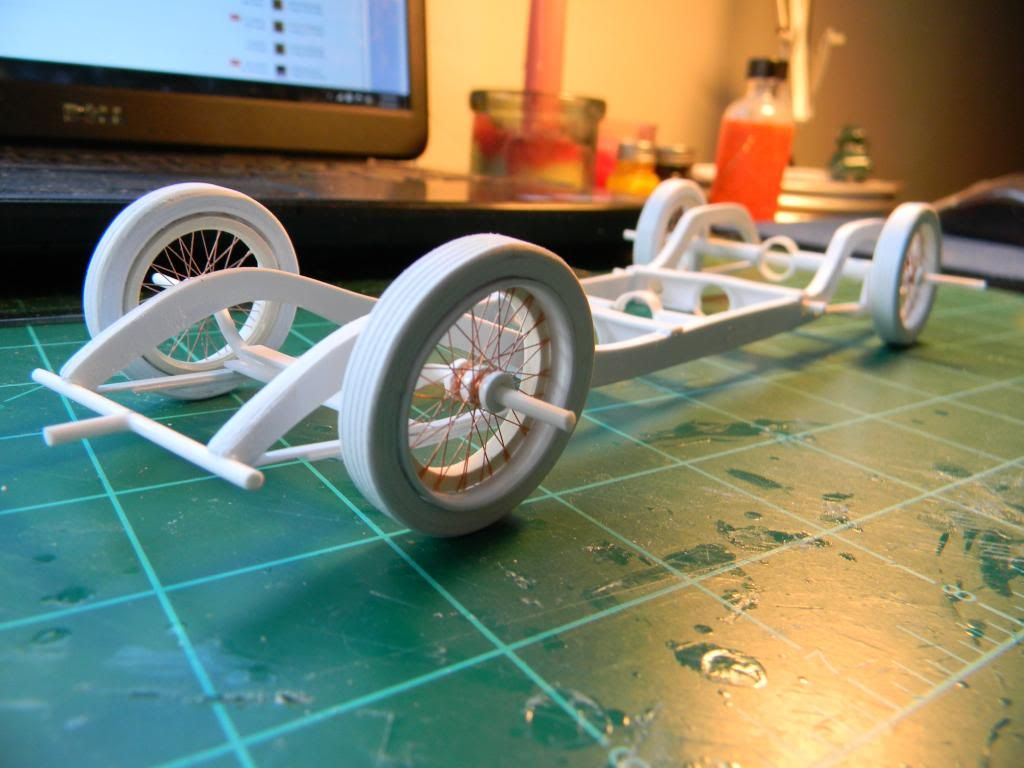

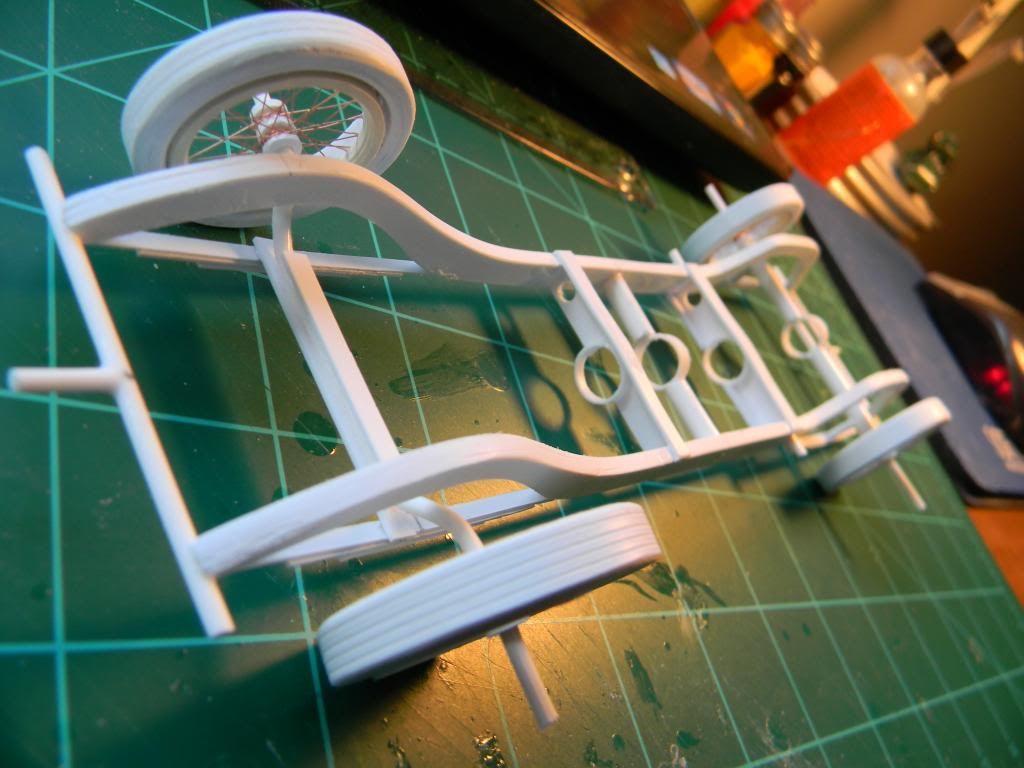

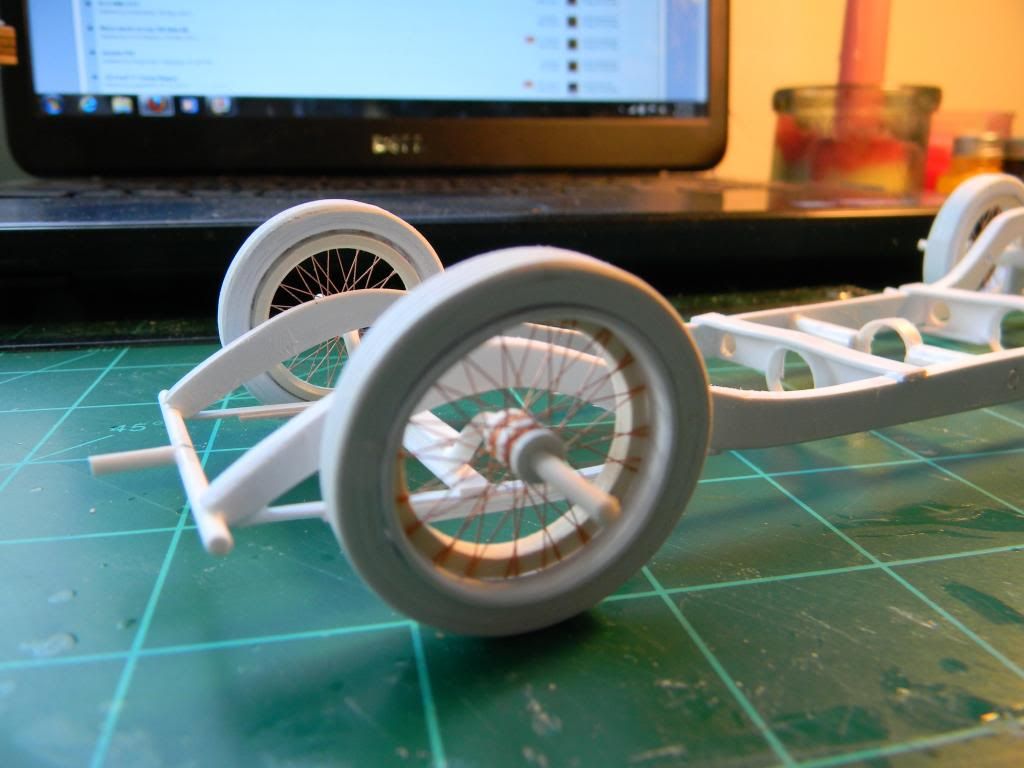

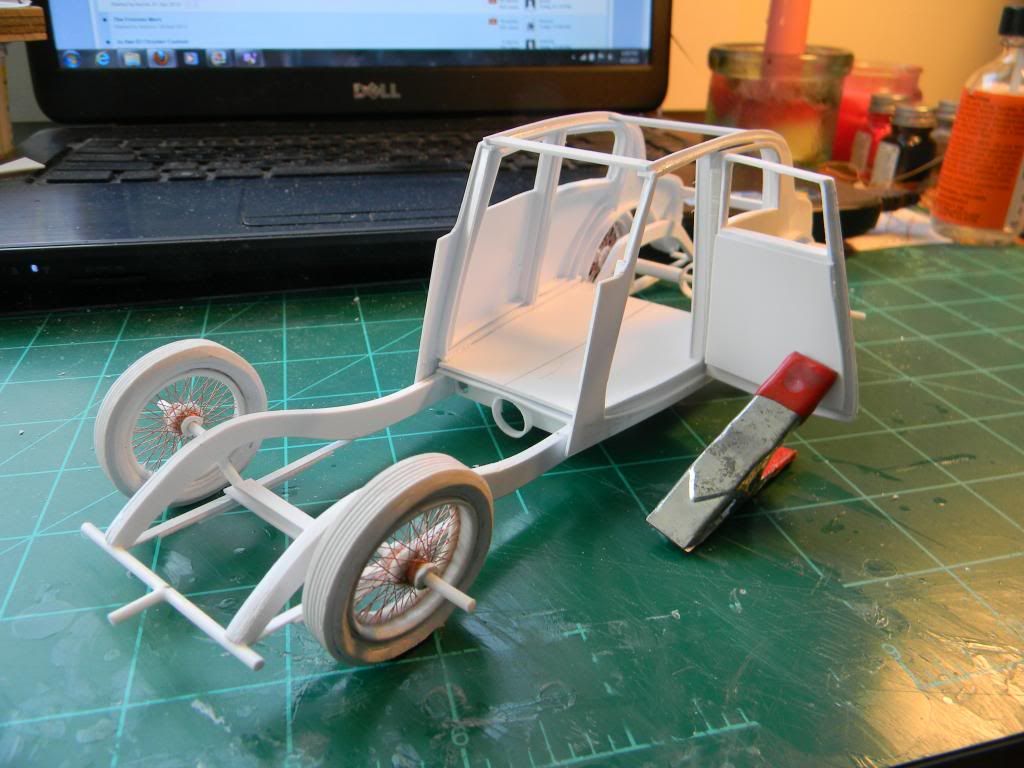

We now have a rolling chassis..................................time to get to work................ :D Note the holes through the right side for the fiber optic runs.




:rolleyes:

Kenn :)

Share this post


Link to post
Share on other sites

Posted · Report post

Im just stunned you are a true craftsman Kenn! Could you show us how you actuly lace the wheels?

Share this post


Link to post
Share on other sites

Posted · Report post

HAHAHAHAHAHAHA - Fiber optics now?!?!??!!? What's the plan for that?

Share this post


Link to post
Share on other sites

Posted · Report post

am going to try to use them for lights .....outside, inside, and upside down................................................ :D we will see how it works.

Kenn :rolleyes:

Share this post


Link to post
Share on other sites

Posted · Report post

Wow, Kenn...Wow!

Share this post


Link to post
Share on other sites

Posted · Report post

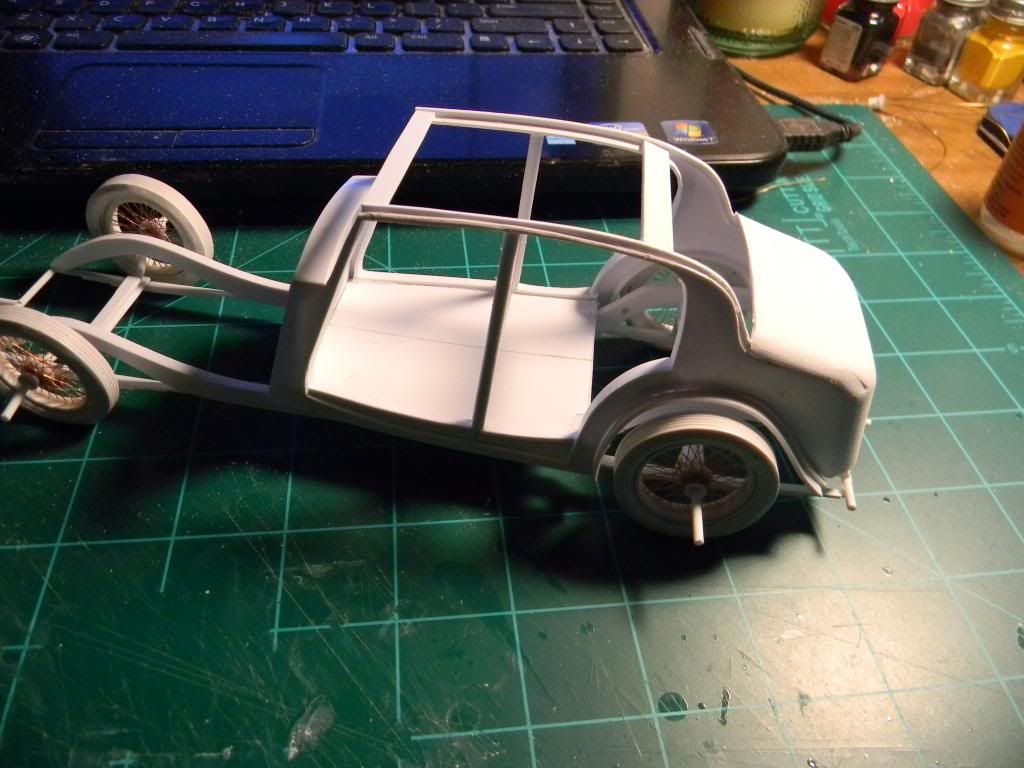

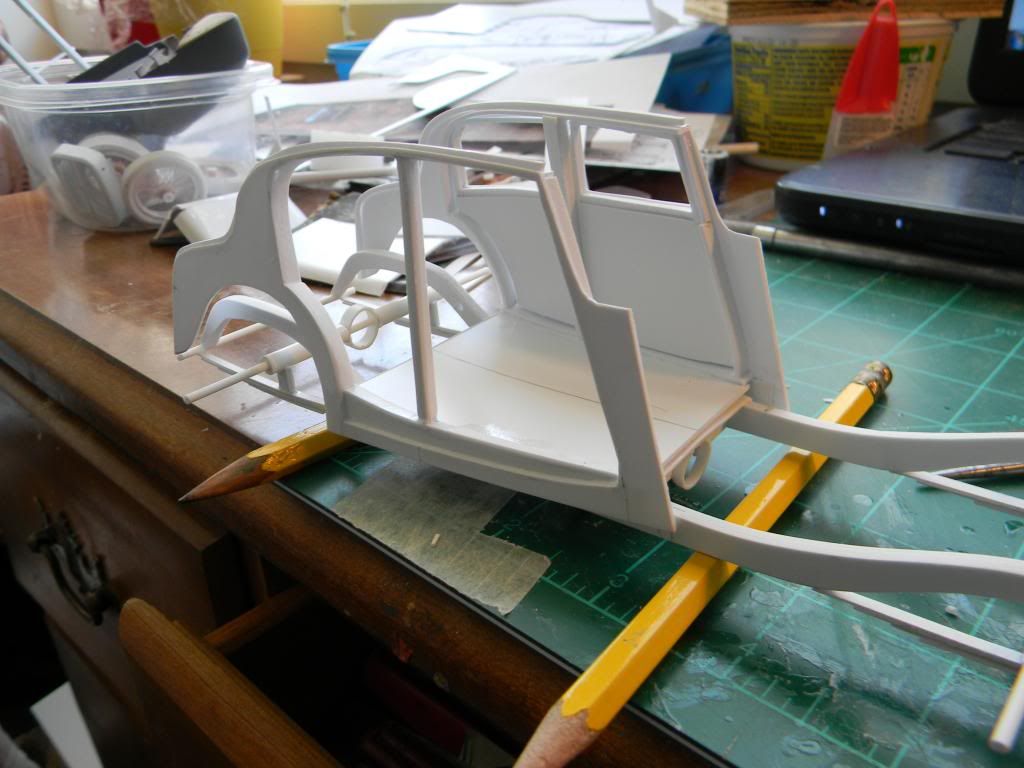

turning to some explorations on doing up the body.... I was looing at how it was going last night and decided to take it apart and do a few changes...Not sure if it will be worth it but I like it. B)



Just adds a few more minutes to the build time is all........................ :lol:

Thanks for the comments and encouragement..

Kenn :)

Share this post


Link to post
Share on other sites

Posted (edited) · Report post

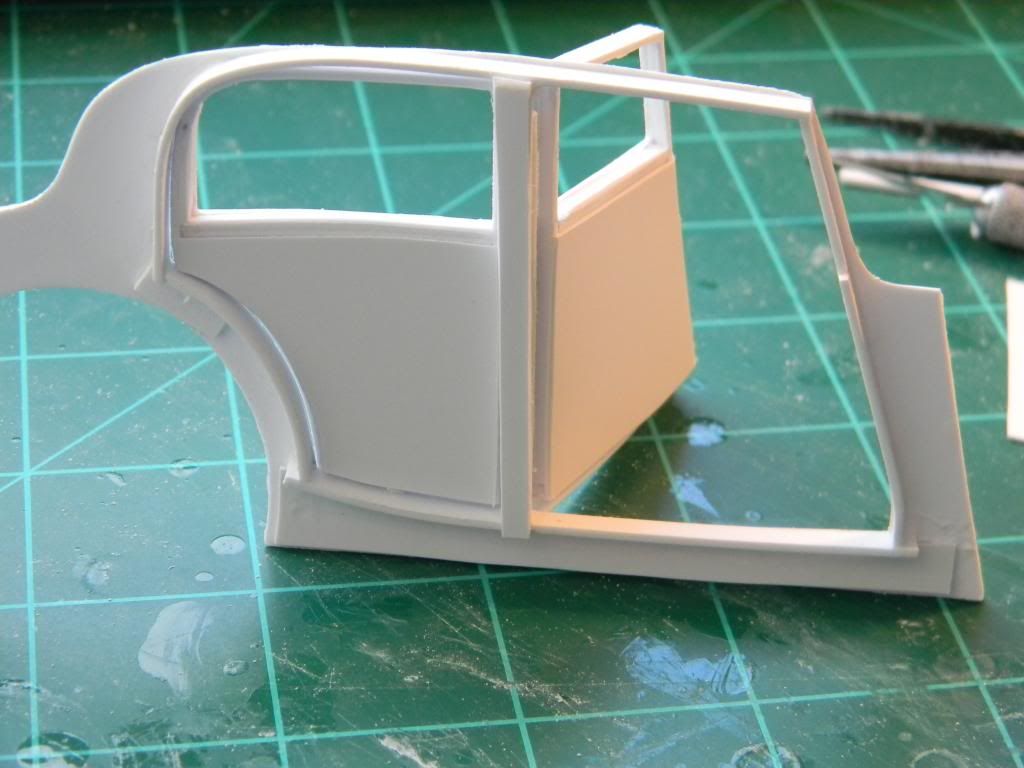

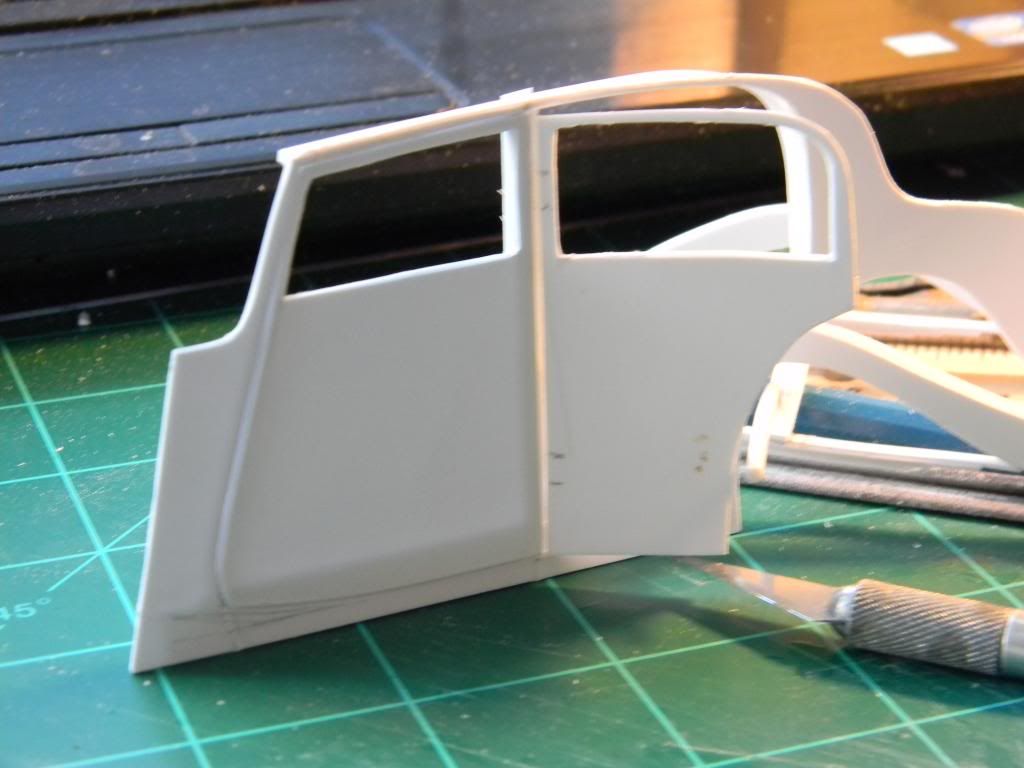

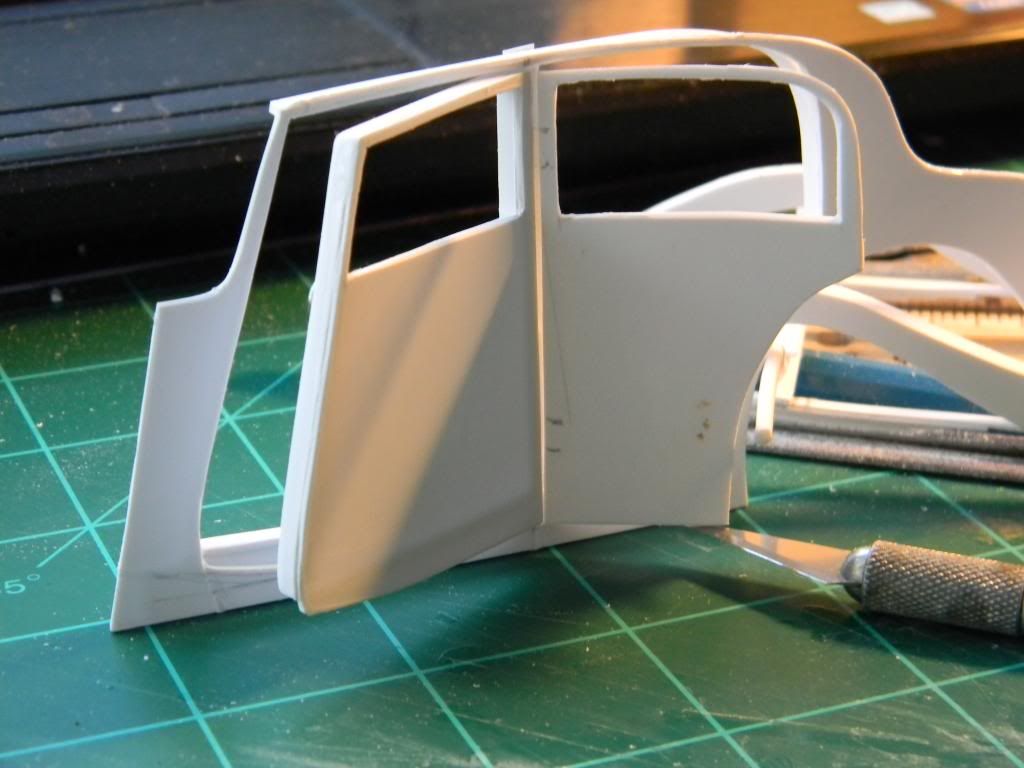

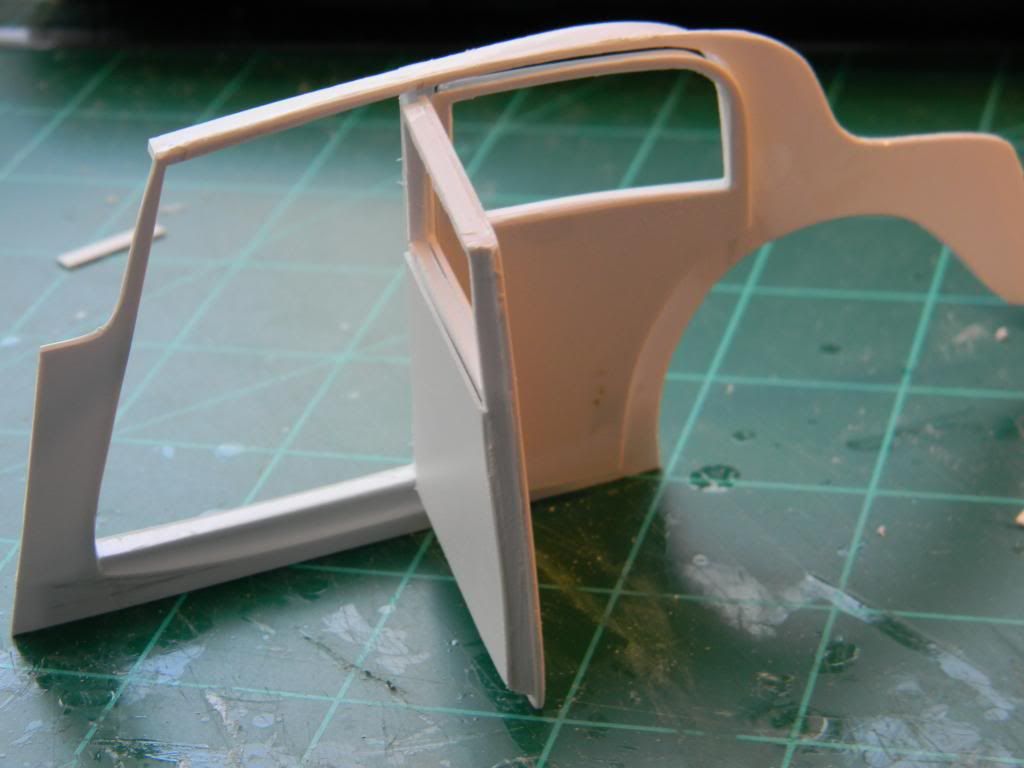

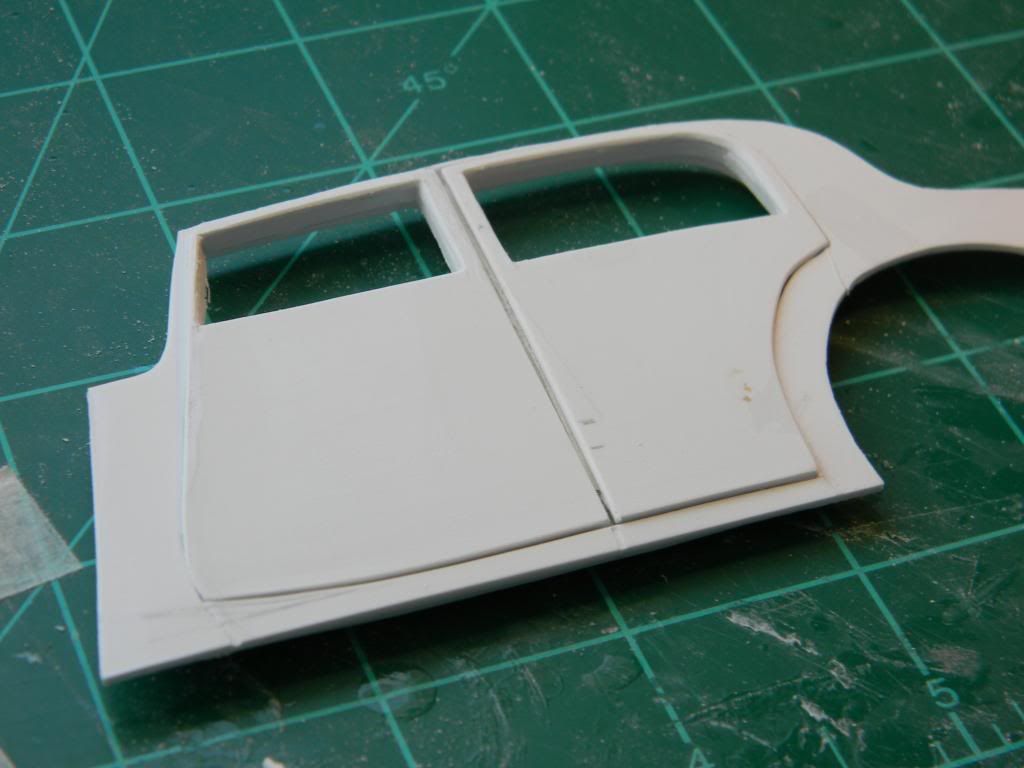

I will be doing opening doors on this one. After some exploring the methods to do it i think it will be just fine. It will involve a new way of building the can and some new ideas will have to be implimented but I think i have them worked out,





Kenn

Edited by kennb

Share this post


Link to post
Share on other sites

Posted · Report post

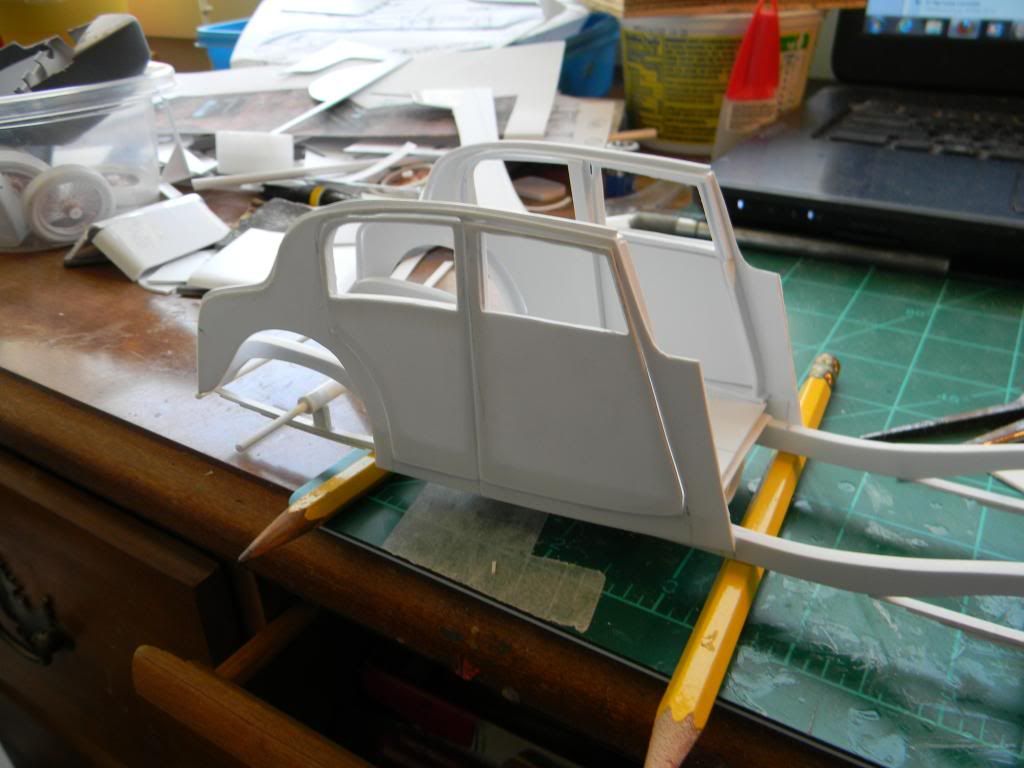

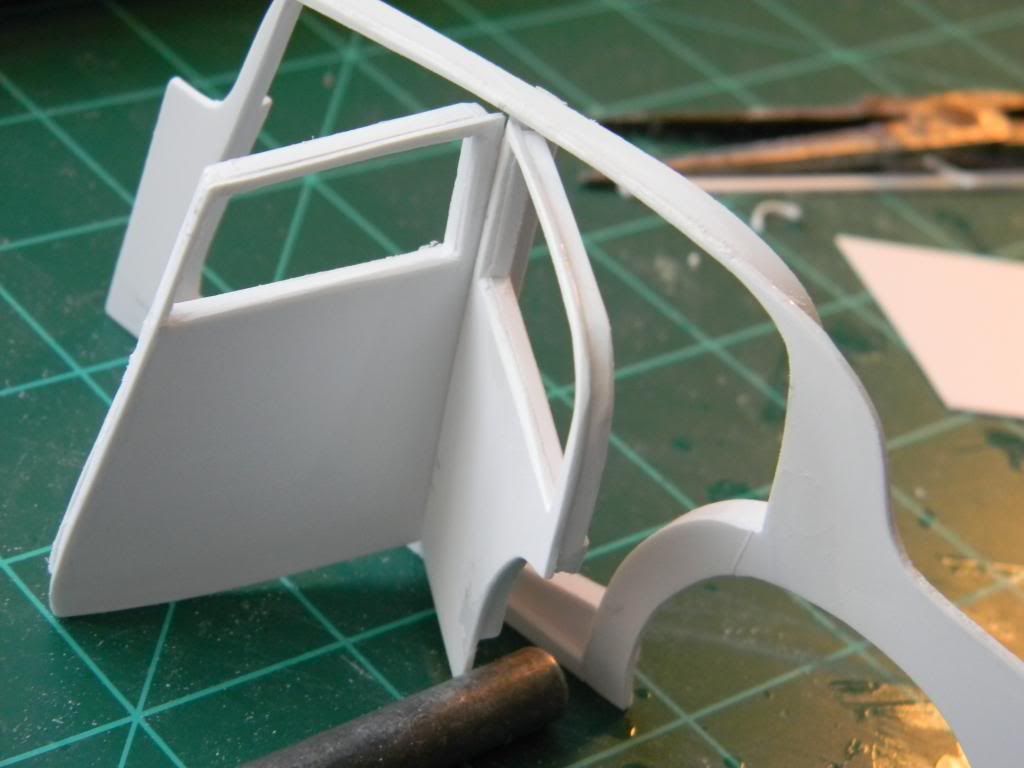

another with the body assembled a little further........................................ :rolleyes: Will post more on the doors later, :P



Again thanks for the comments and watching the build...... :D

Kenn :)

Share this post


Link to post
Share on other sites

Posted · Report post

just update................ :rolleyes:



Kenn :)

Share this post


Link to post
Share on other sites
