Help with Measurements

10 posts in this topic

Posted · Report post

Need to know or find dimensions for a donaldson, or vortex type air cleaner can for big rigs. I would ideally like to have a blueprint or measured diagram, but a search for same turned up nothing I could use. Anybody HELP!!!!

Share this post


Link to post
Share on other sites

Posted (edited) · Report post

are you looking for the size in 1/25 or1/24 or the size of the real one?,if your looking for the real one,we have some mack rb's in the fleet with donaldson cans on them.i can get you pictures and measurements on monday.but different trucks have different size cans on them.is there a particular truck your looking for?

Edited by cappy625

Share this post


Link to post
Share on other sites

Posted · Report post

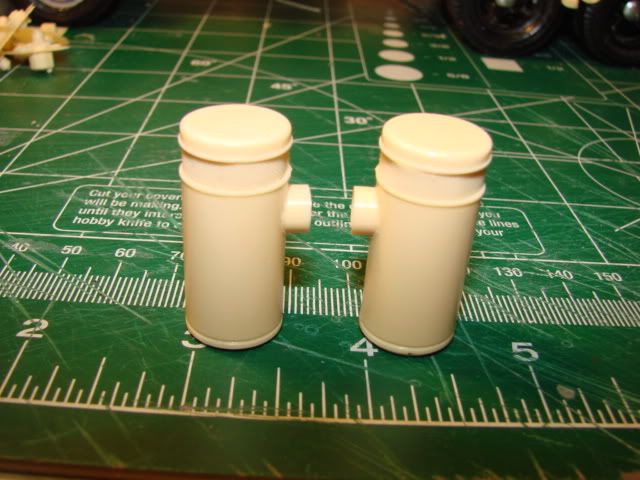

If you just need some for a build, check out P&P Resinworks. Eric makes these Vortex aircleaners


Here is a link to their homepage:

http://www.ppvintagekits.com/index.html

Click on the resin price list.

Share this post


Link to post
Share on other sites

Posted (edited) · Report post

Need the real thing. Real measurements and reference photos will definitely help.Will make scale drawings from the 1:1 prototype. I guess cans from any truck will do, I'd think that they are all generally the same, such as 15" dia. and maybe 24-30" in. length. I'd like to know where in screened parts are located if any and how wide they are along the length of the can, like three in. or six in. Also the diameter of the duct work entering the can from the engine compartment is critical to my need.

Edited by raildogg

Share this post


Link to post
Share on other sites

Posted · Report post

i'll take some pictures and measurments of the mack RB since there the only ones in the fleet with external air breathers we have left.i'll do this on monday when i go in.

Share this post


Link to post
Share on other sites

Posted · Report post

the air intake is 5"or 6" depending.the 379 petes at work are 15"dia.30"tall 6"screenthat is 2"down from top

Share this post


Link to post
Share on other sites

Posted · Report post

O.K that's a start, Thanks

Share this post


Link to post
Share on other sites

Posted (edited) · Report post

hello richard;took some pics and measurments today,post-6613-0-70167700-1365451953_thumb.jppost-6613-0-70167700-1365451953_thumb.jppost-6613-0-70167700-1365451953_thumb.jppost-6613-0-29069200-1365452092_thumb.jp from the top of the can to the bottom,not counting the cap.just the can is 22" the total length including the cap is 27",the circomfrence of the can is 42" there is 7 11/4" nuts on top of the can they are 5 1/4" apart from center to center of nut.the cap sits about 2 3/4" above the can,the cap is 44"in circomfrence,the very bottom of the can tappers down to 331/2" the 2 bands that hold every thing on are 1 3/4" wide.hope this helps

post-6613-0-07190100-1365452015_thumb.jp

post-6613-0-85579400-1365452072_thumb.jp

post-6613-0-39957500-1365452124_thumb.jp

Edited by cappy625

Share this post


Link to post
Share on other sites

Posted · Report post

post-6613-0-88496400-1365452772_thumb.jp notice how the bottom tappers down to a circomf of 33 1/2"post-6613-0-88496400-1365452772_thumb.jppost-6613-0-43211700-1365452872_thumb.jp just more pics.if you need more info let me know.

post-6613-0-99010600-1365452899_thumb.jp

post-6613-0-72361600-1365452918_thumb.jp

post-6613-0-09825200-1365452944_thumb.jp

post-6613-0-86763000-1365452969_thumb.jp

Share this post


Link to post
Share on other sites

Posted · Report post

almost forgot,the inside diameter of the intake is 5"

post-6613-0-60291600-1365453602_thumb.jp

post-6613-0-68437200-1365453618_thumb.jp

Share this post


Link to post
Share on other sites
