ALFA ROMEO 8C 2300 1/8 Restoration


14 posts in this topic

Posted (edited) · Report post

Hi everybody,

I am a fan of 1/8 scale, new to this forum and I would like to share with you my restoration project of a badly assembled and even worse restored in the 90's Alfa Romeo 8C2300 Monza from Pocher

As you can see from the pictures of the model before the beginning of restoration the conditions where very bad.

post-11885-0-58891600-1366454478_thumb.jpost-11885-0-34909400-1366454496_thumb.j

disassembling the car

post-11885-0-33408900-1366447195_thumb.jpost-11885-0-83607600-1366447710_thumb.jpost-11885-0-48944800-1366447737_thumb.j

The engine is the first part being taken care.

Pocher models are fine but they have many imperfections in shape, mould, wrong components and so on. If you have ever built a Pocher you know how painful can be to get the parts to match.

All the cast on nuts and bolts have been removed and 1mm holes have been drilled. Brass hex head screws have been used. The engine mounts have been modified to correct shape so the steering can be mounted correctly and the ugly pocher screws recess filled with putty and also the engine halves have been joined and filled with putty then sanded

post-11885-0-85410700-1366447776_thumb.jpost-11885-0-54212100-1366454714_thumb.j

The oil pan with brass hex nuts and copper rivets

post-11885-0-26813200-1366453999_thumb.j

The exhaust modified as a two piece

post-11885-0-92887800-1366454314_thumb.jpost-11885-0-10974800-1366454336_thumb.j

post-11885-0-87989900-1366454188_thumb.j

post-11885-0-24066600-1366454206_thumb.j

Edited by darthmark71

Share this post


Link to post
Share on other sites

Posted · Report post

Great to have you here. Keep posting.

Share this post


Link to post
Share on other sites

Posted · Report post

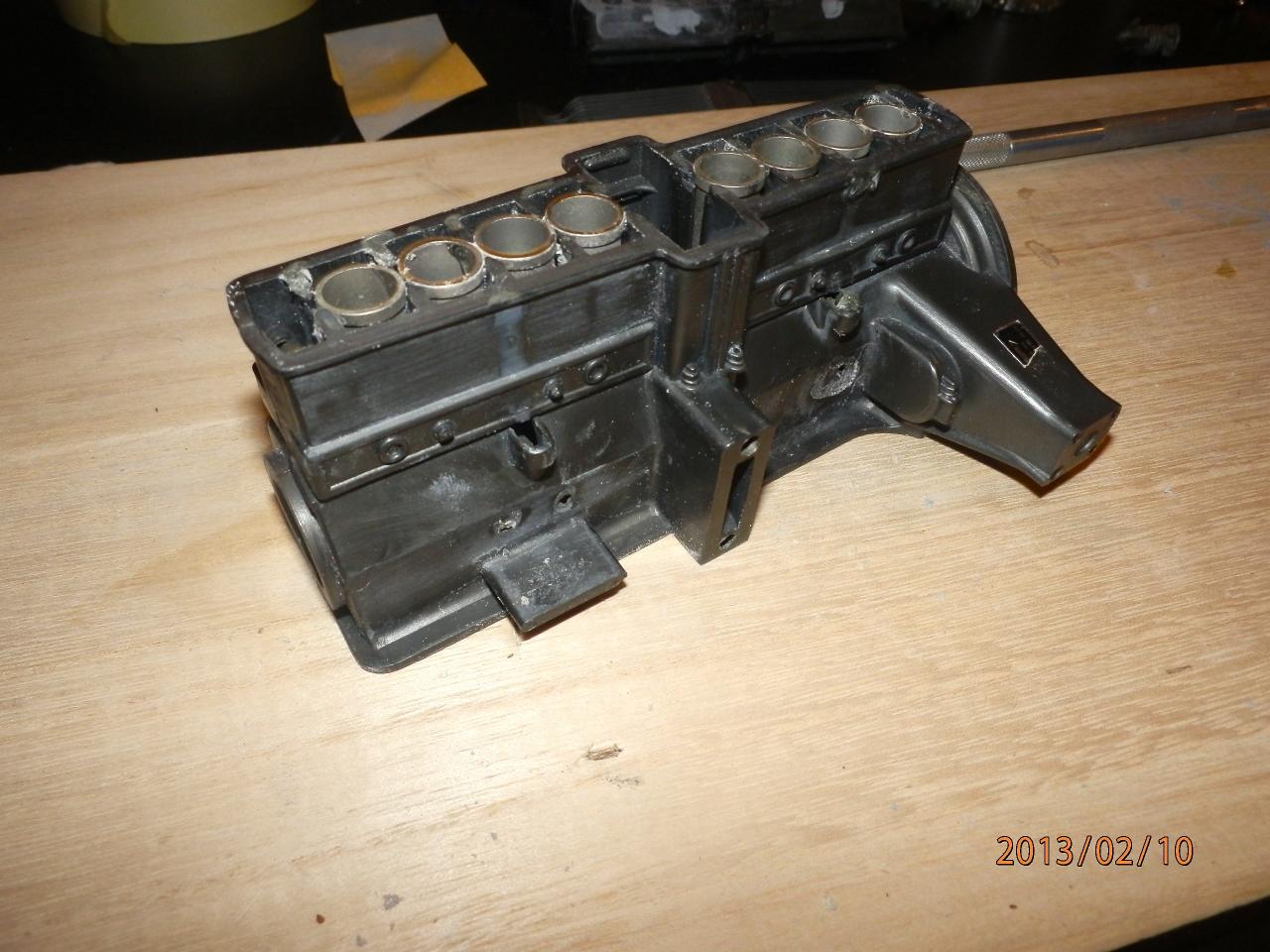

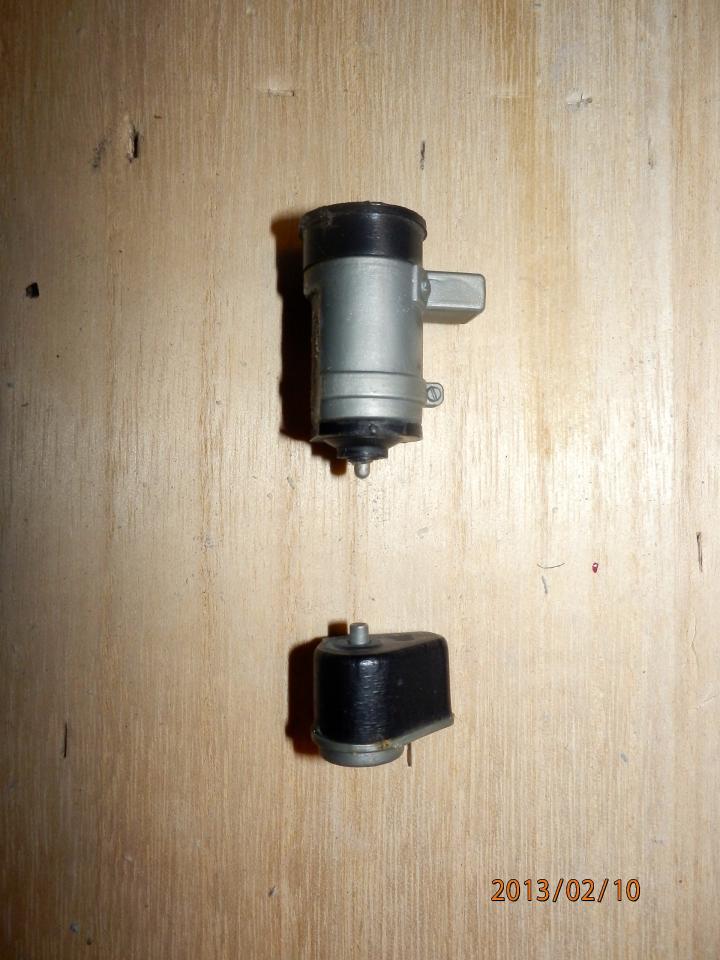

Pocher engine, notice the flat support and ugly alternator and starter

post-11885-0-20130600-1366628620_thumb.j post-11885-0-06250500-1366628727_thumb.j

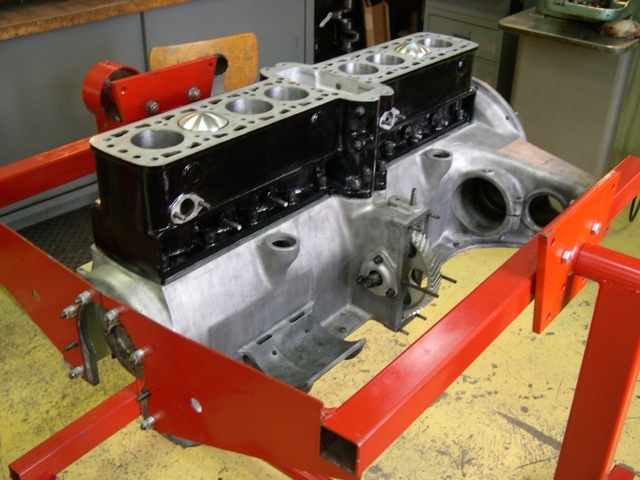

Prototype, notice it is round shaped

post-11885-0-95927100-1366628791_thumb.j

Share this post


Link to post
Share on other sites

Posted · Report post

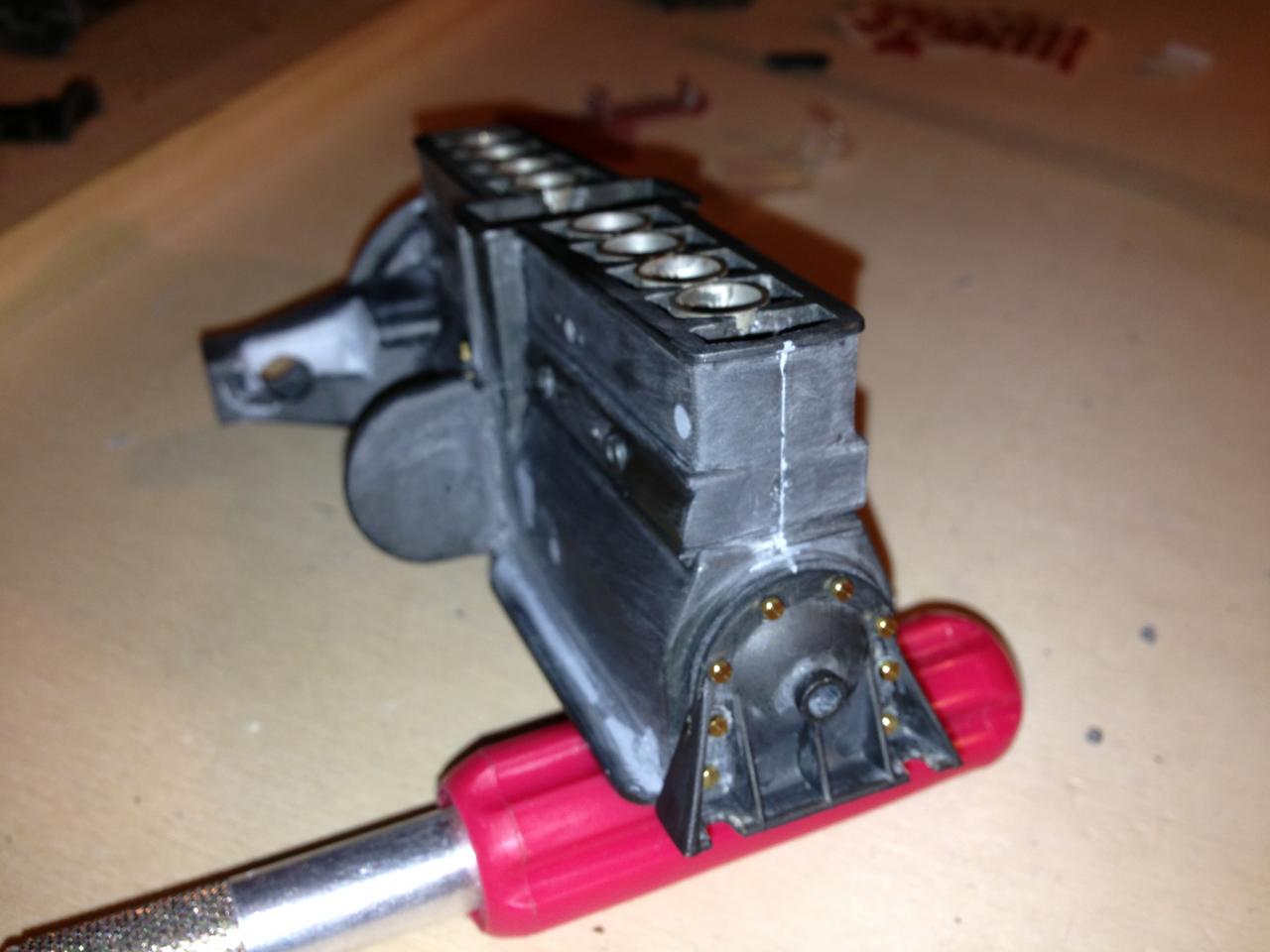

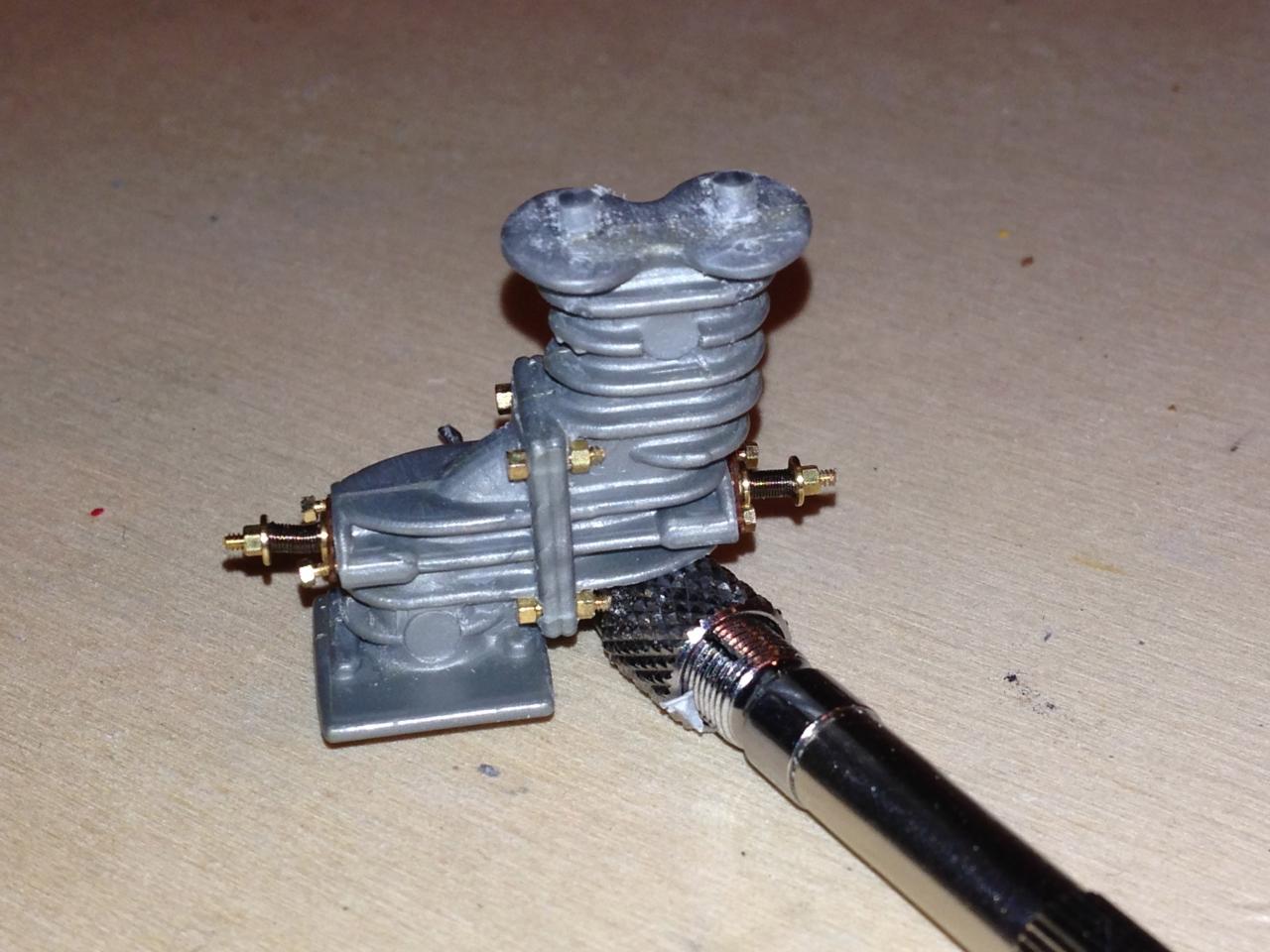

Some parts of the engine

post-11885-0-36449900-1368628614_thumb.j

post-11885-0-26737000-1368628696_thumb.j

Share this post


Link to post
Share on other sites

Posted · Report post

What a cool project. I'll be watching this one.

Share this post


Link to post
Share on other sites

Posted · Report post

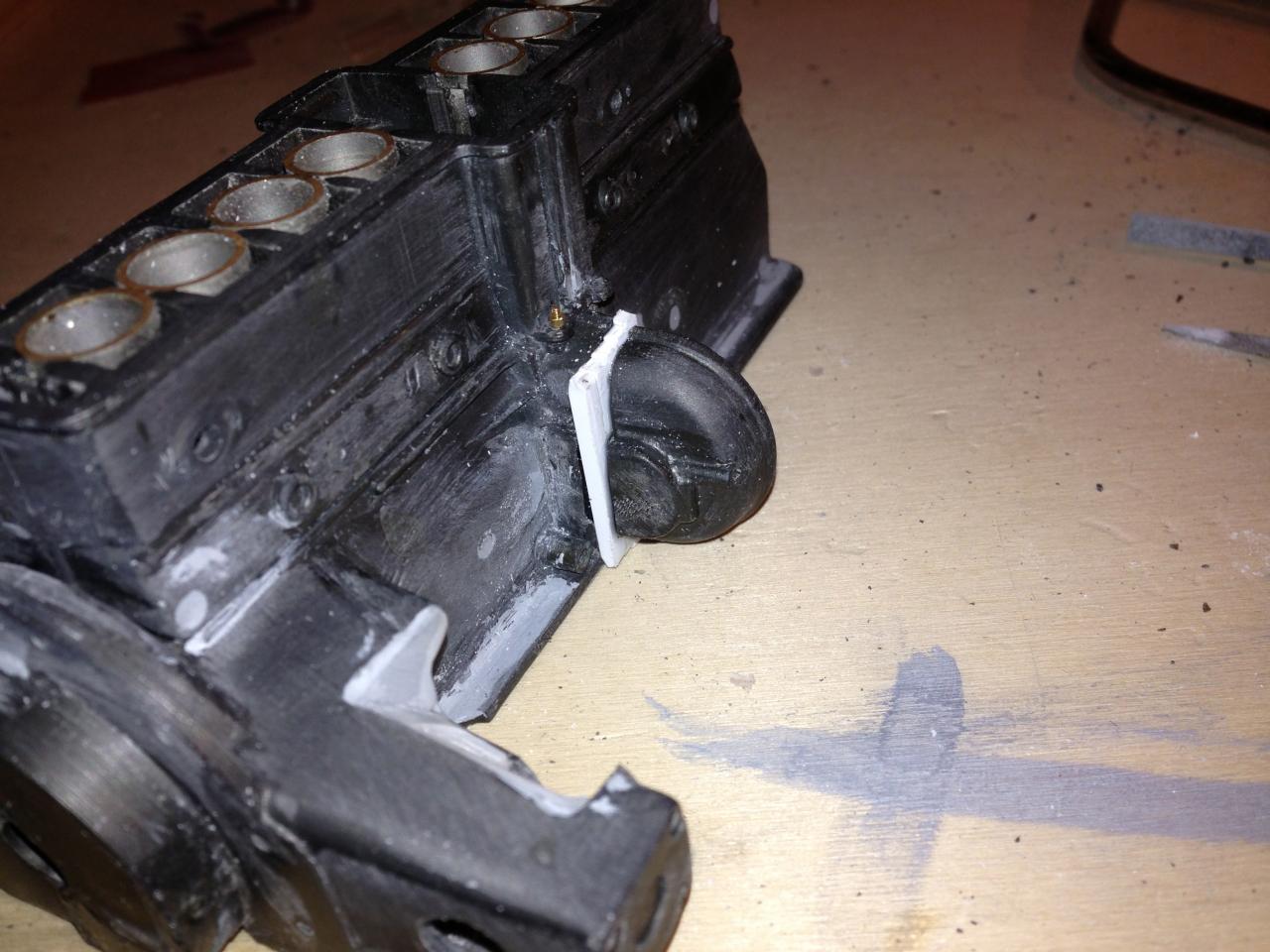

Some progress on the engine.

The back plate for the compressor is too narrow and a 2mm widening has been done with styrene strips. (to be shaped)

One the engine mounts the holes are opened for the fuel and oil lines, and for the wiring.

post-11885-0-71480500-1368720035_thumb.jpost-11885-0-91724300-1368720044_thumb.j

Share this post


Link to post
Share on other sites

Posted · Report post

Looking good.

Share this post


Link to post
Share on other sites

Posted · Report post

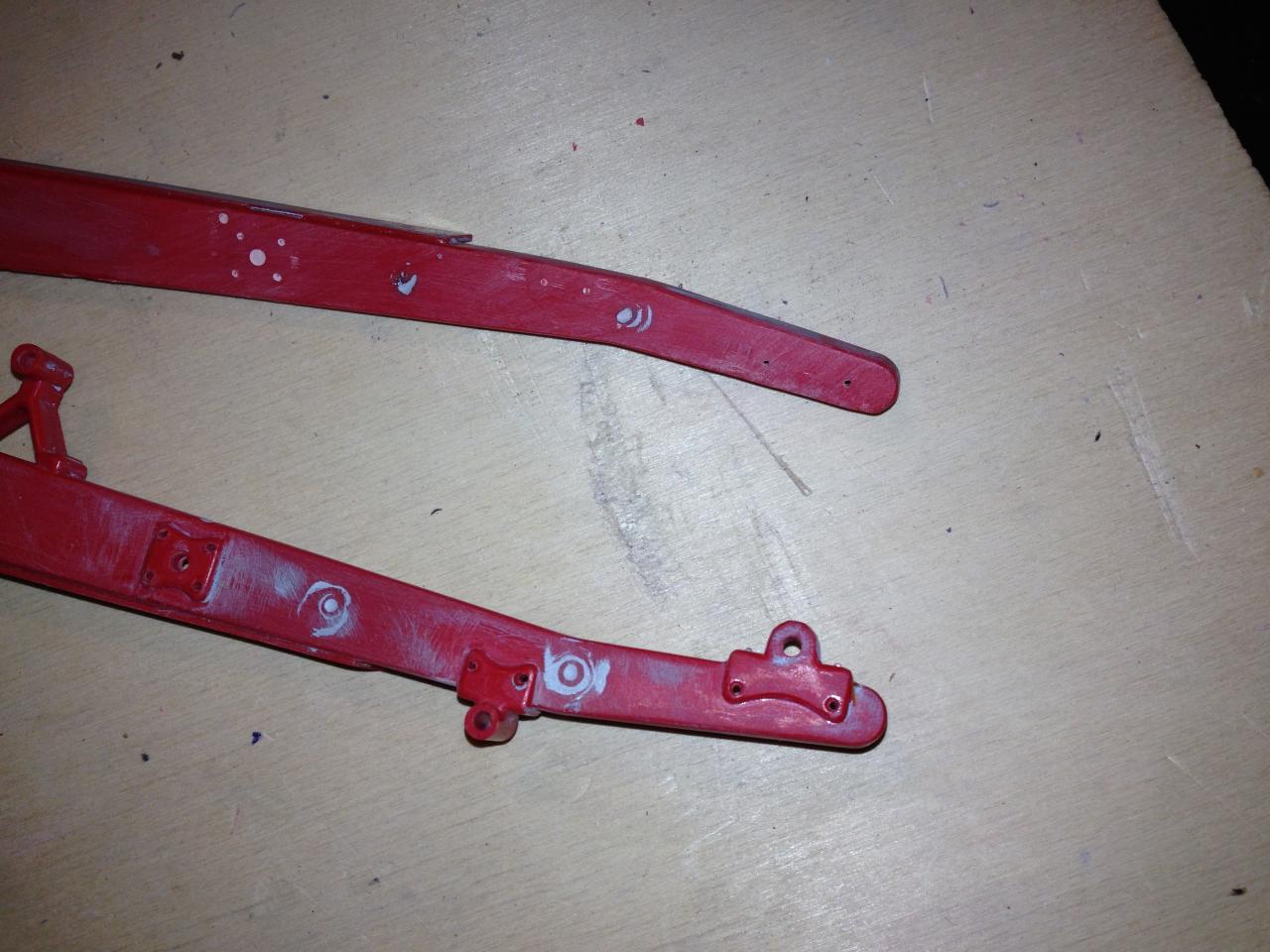

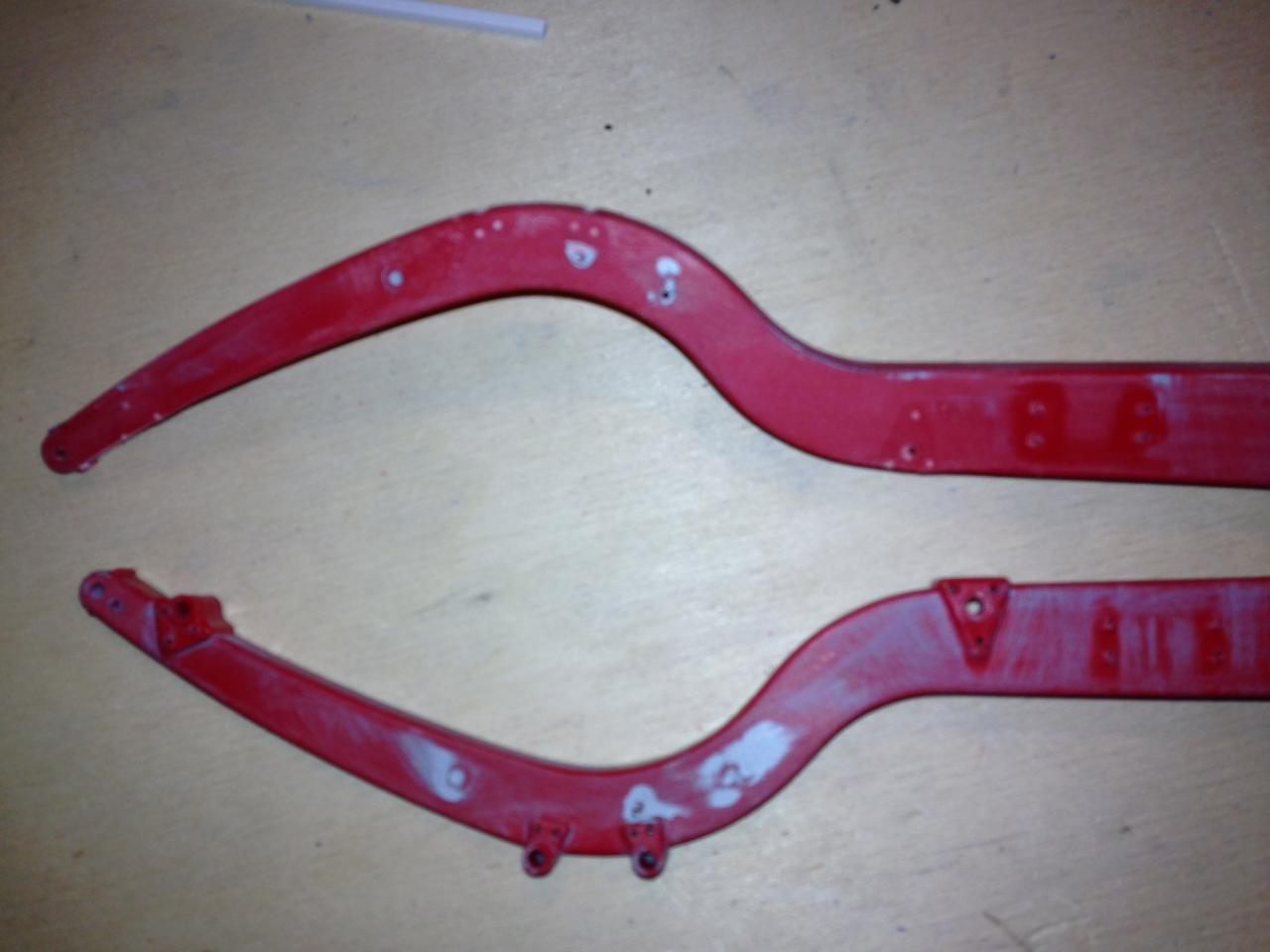

The frame had those ugly and not prototypically correct damper and spring mounts. So they have been flattened and new ones are under work. The new ones will be machined aluminum

post-11885-0-17590500-1368806114_thumb.jpost-11885-0-41438600-1368806127_thumb.j

Share this post


Link to post
Share on other sites

Posted · Report post

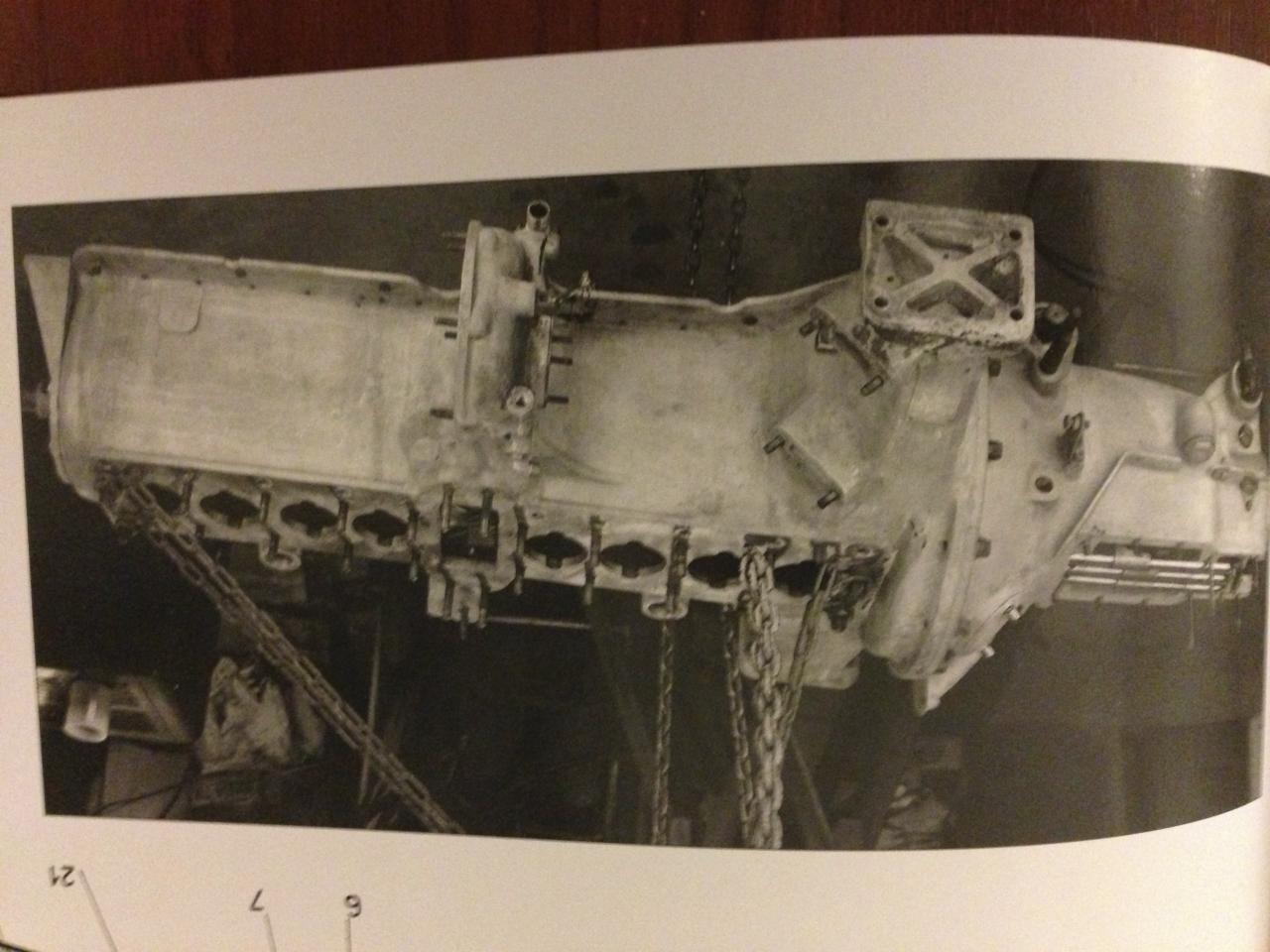

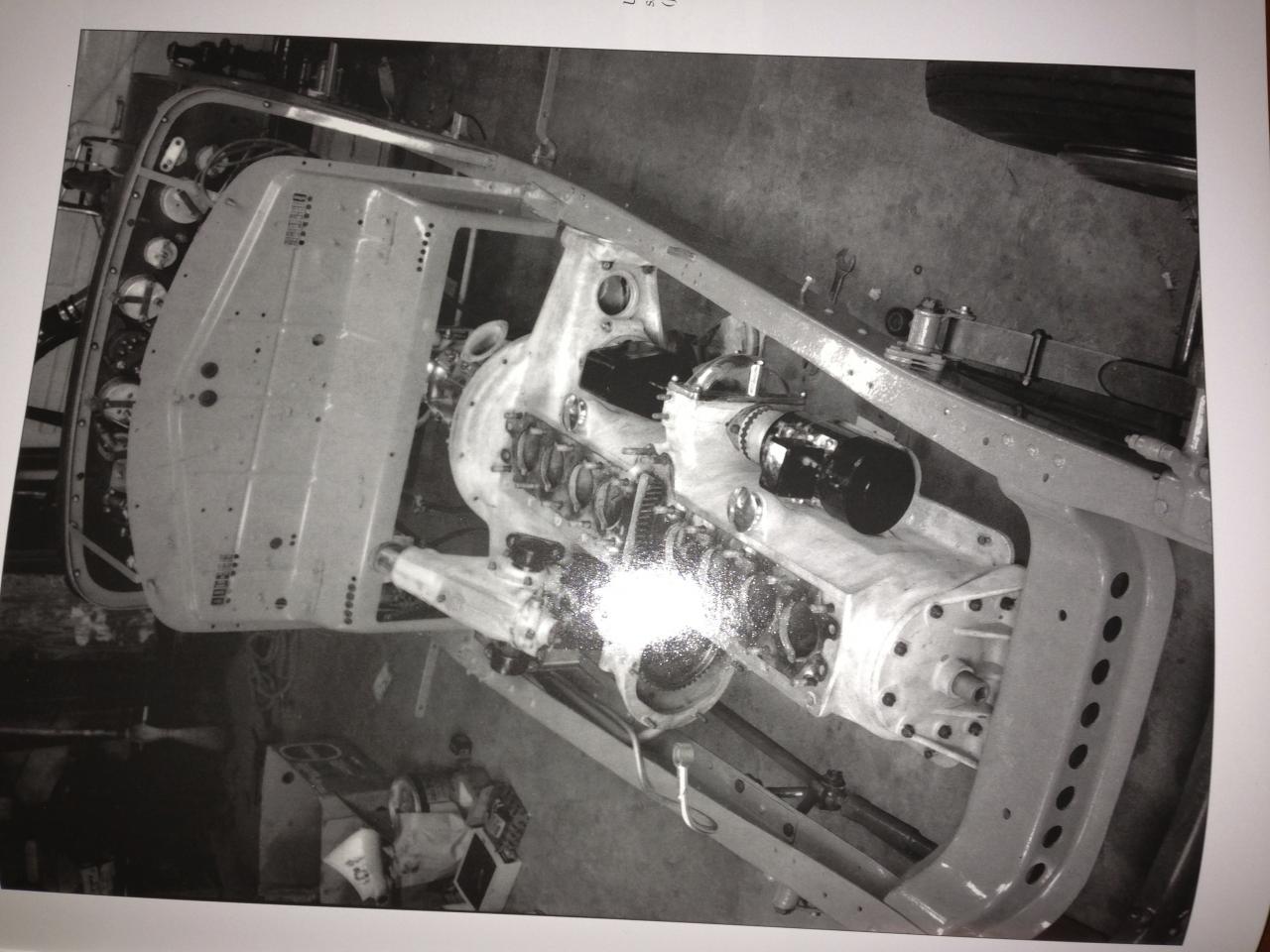

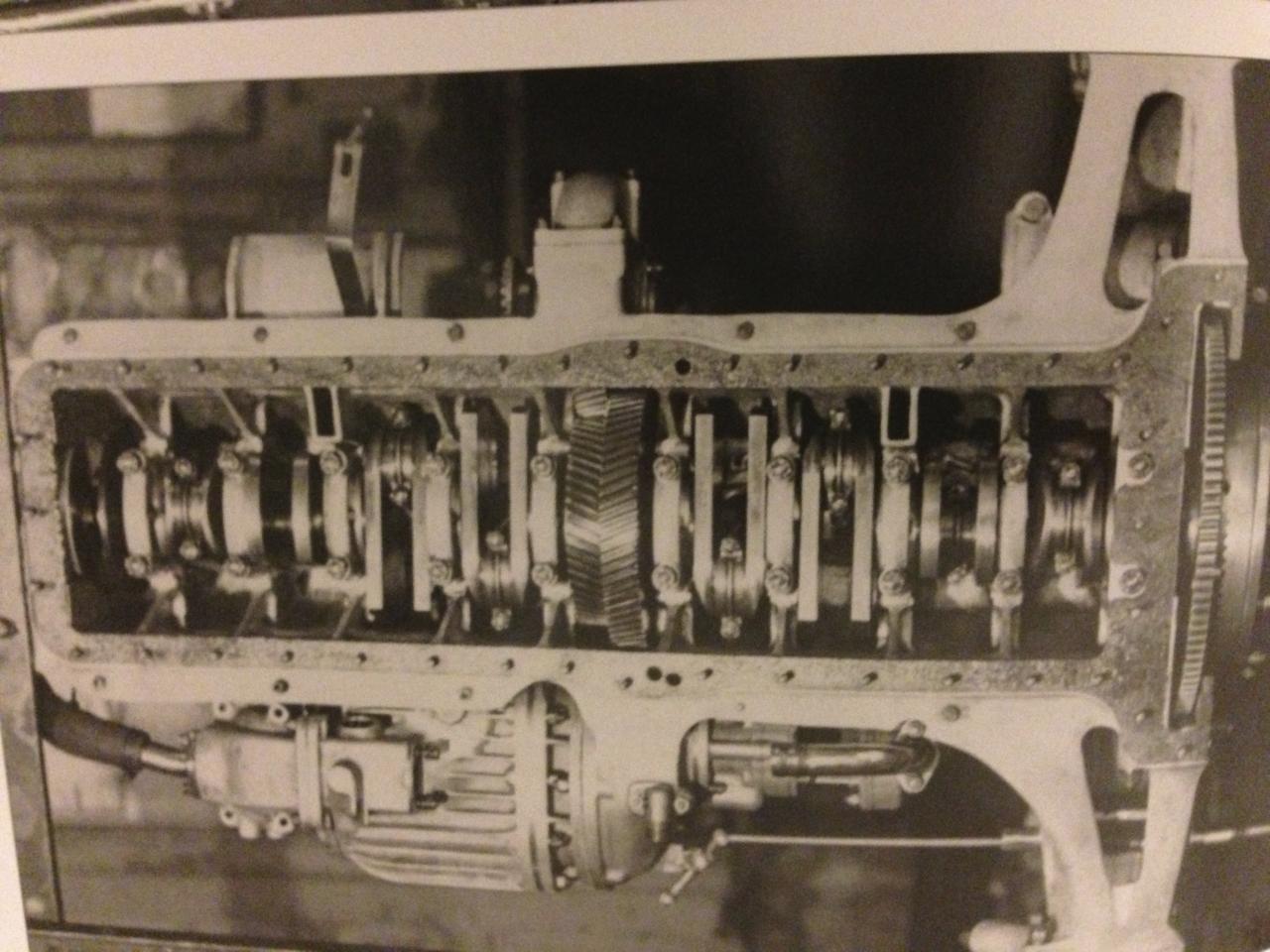

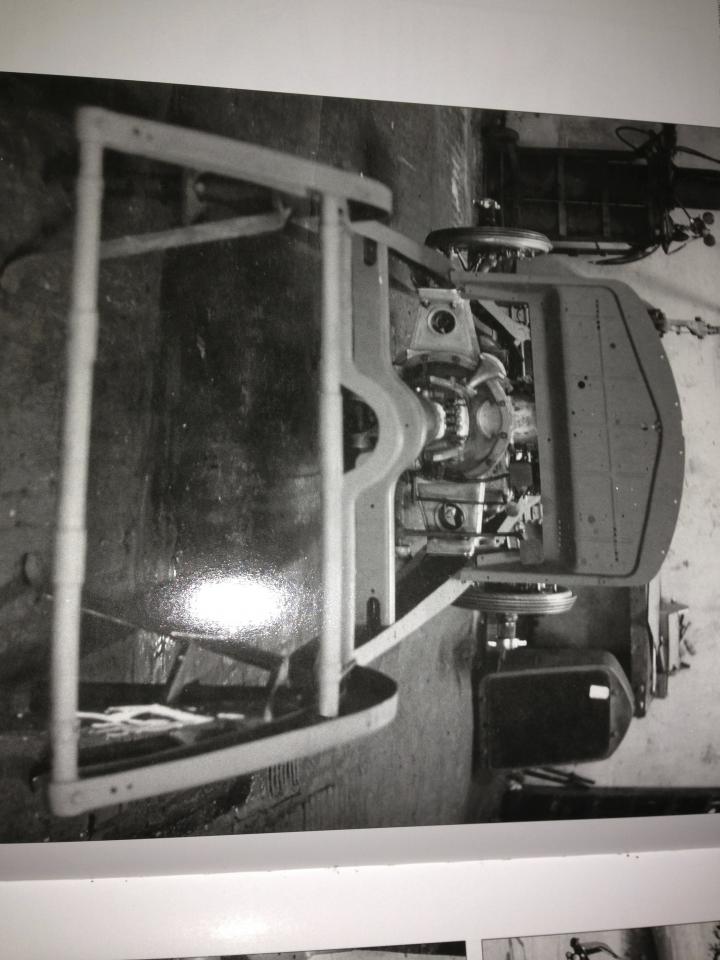

Hello everybody, some pics of the real engine.

post-11885-0-15022500-1368953769_thumb.jpost-11885-0-65168600-1368953793_thumb.jpost-11885-0-78915300-1368953811_thumb.jpost-11885-0-53960100-1368953849_thumb.j

Share this post


Link to post
Share on other sites

Posted · Report post

Very interesting watching this.

Share this post


Link to post
Share on other sites

Posted · Report post

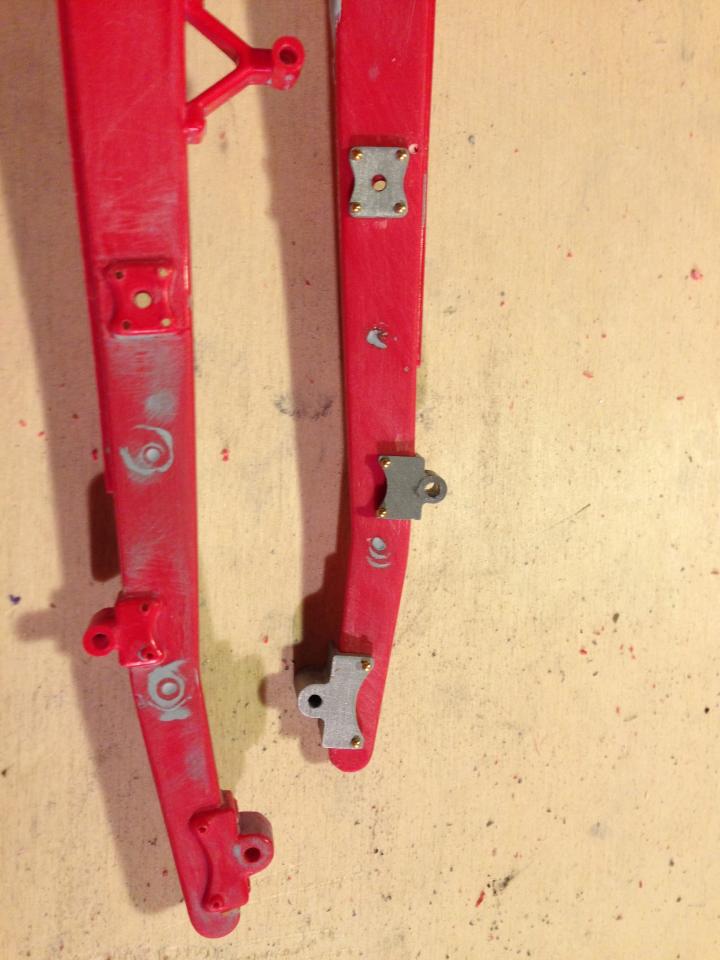

test fitting of the machined chassis supports for dampers and springs. The machined parts are made for testing the dimensions and fitting on the rails, I will post soon the definitive parts.

post-11885-0-46262500-1369039614_thumb.jpost-11885-0-28543400-1369039634_thumb.j

Share this post


Link to post
Share on other sites

Posted · Report post

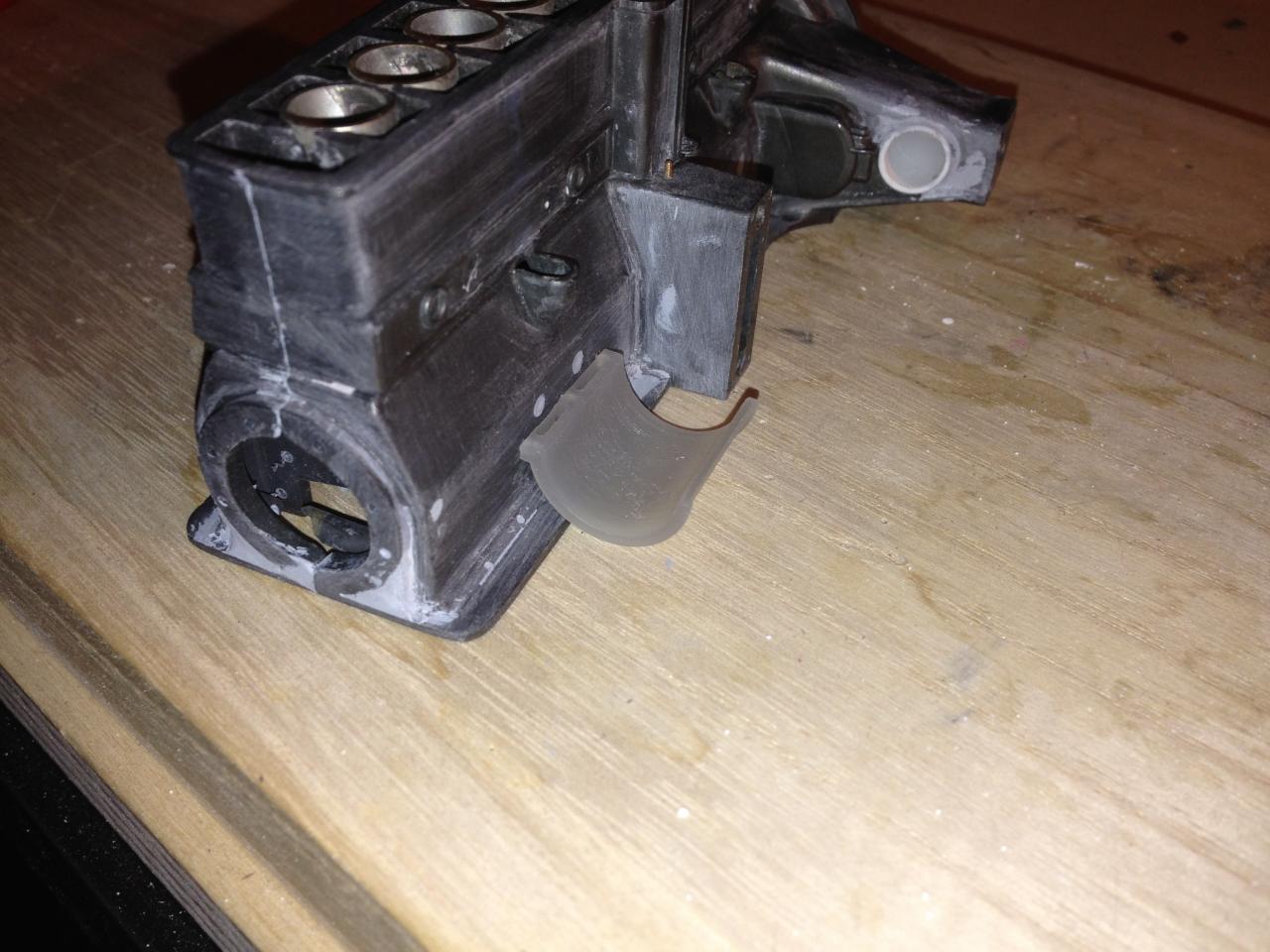

The engine showing correct generator support

post-11885-0-92011000-1369660370_thumb.j

Share this post


Link to post
Share on other sites

Posted · Report post

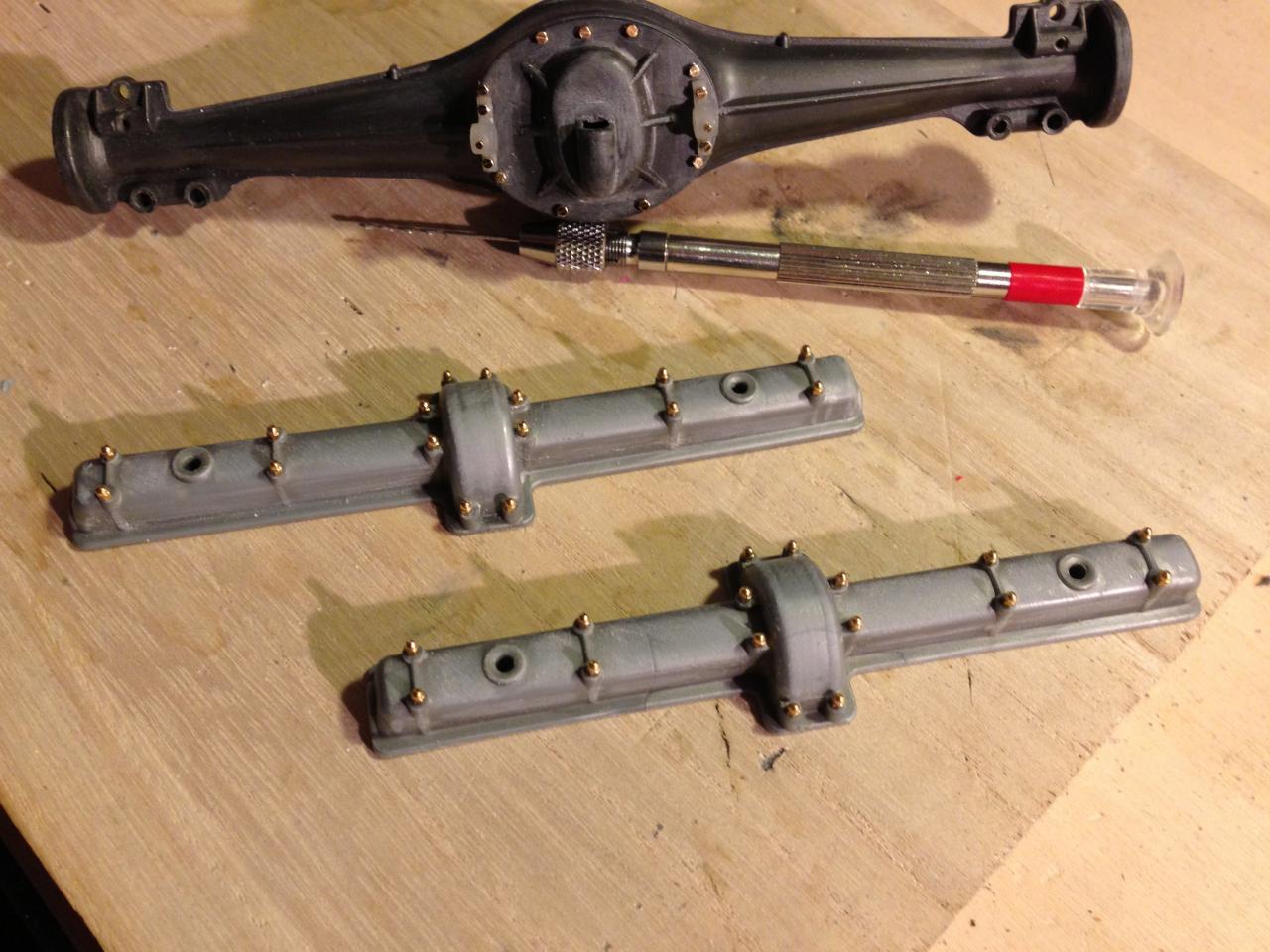

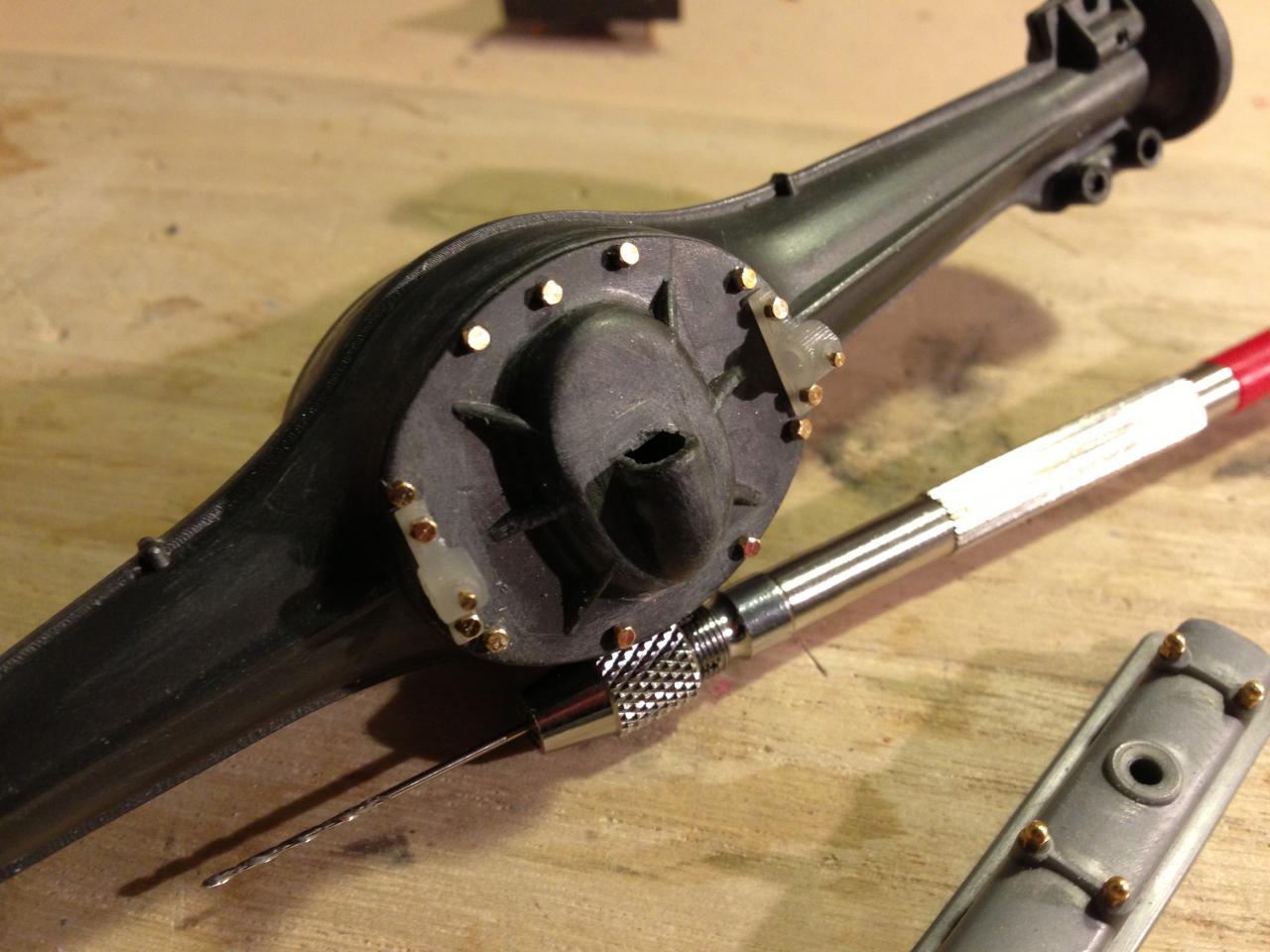

Here are the rear axle with correct brake lever supports and the head covers with brass acorn nuts

post-11885-0-35242600-1369837070_thumb.jpost-11885-0-02404500-1369837087_thumb.j

Share this post


Link to post
Share on other sites

Posted · Report post

Looks great, love the detailing!!
