WIP 84 Candies&Hughes funny car 1/24


MoparMark

Recommended Posts

Hi all , Posting a new build of the 84 C&H car.I'm gonna be using the Revell/Monogram trans am kit and the Slixx decals. I've passed it too many times at the NHRA museum saying I gotta give that a shot, so here it starts.For the body I've shaved off the rear spoiler of the Prudhomme Wendys car and pulled out the nose of the car to give it more of a point.

post-9426-0-13711900-1366491678_thumb.jp

post-9426-0-56723400-1366492074_thumb.jp

I've started already on the frame painting it Arctic Blue Metallic with a pinch of magenta, adding fuel cell, front suspension, rear axel, and roll bar padding, seat, and some engine work done

post-9426-0-59011600-1366494399_thumb.jp

post-9426-0-89453600-1366492768_thumb.jp

post-9426-0-91092600-1366492817_thumb.jp

I'm using Pro-Tech plug wires and will use Pro-Tech braided line and hex nuts to plumb the car so it can look as accurate as can be.

Thanks for looking!!

Edited by MoparMark
Link to comment
Share on other sites

I have an update for my build. Oh by the way thanks to all for all the great support.I did think about making the front axel movable but I'll do that on the next one. So anyway I put in the Mag and the oil filters in (supplied by Pro-Tech). Got the seat pad and seatbelts put in.

post-9426-0-52205300-1367381071_thumb.jp

post-9426-0-73315800-1367381158_thumb.jp

I ran the front fire bottle cables in ans well as the extinguisher lines

post-9426-0-36986700-1367381361_thumb.jp

I attached the cockpit bottles above the rear axel as a guess as they would go there ,for I can't see them in reference photos on the interior boby tin,hope I'm right?

post-9426-0-47199300-1367382261_thumb.jp

I added all the side levers into the cockpit and now that I have all the braided line and hex fittings I need from Pro-Tech I can plumb the engine and get ready to drop it in.Thanks for lookin

post-9426-0-81298100-1367382747_thumb.jp

Link to comment
Share on other sites

Mark, coming along nicely. Love the extra mile you've gone with the cables for hand levers (brake, etc.) that most don't think about. Also nice touch with running the harness/lap belts through the seat itself and tying it to the frame. Look forward to that engine work!!!

Charlie

Pro Tech

Link to comment
Share on other sites

  • 2 months later...

post-9426-0-96027900-1374288871_thumb.jp

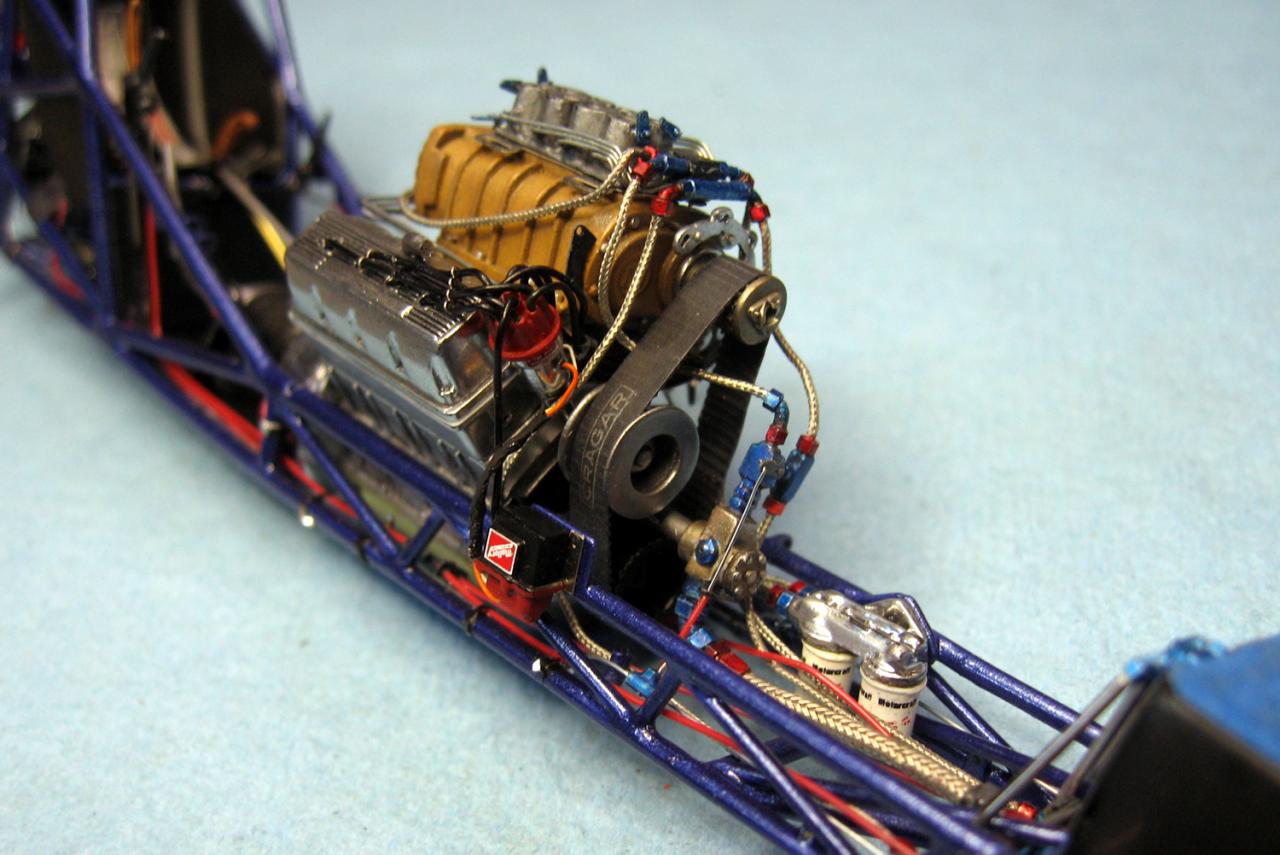

Hi All , I haven't been on in awhile so I thought I'd post some updates on my project. I have put in the engine and checking to make sure everything is lining up good

post-9426-0-78082100-1374288911_thumb.jp

Have the engine finished and bolted in still using Pro Tech braided lines and fittingsaand the headers are brass with aluminum tips.

post-9426-0-22862600-1374289278_thumb.jp

I have the chassis done except for the wheelie bars,fuel cell cap,and front hub covers.

post-9426-0-75373600-1374289479_thumb.jp

Did all the body shop work ,pulled the nose out a little bit and took the Revell/Monogram rear spoiler off to put a more correct spoiler to the 1:1 deal. I laid down the paint using Testors aqua colors, Arctic Ice Blue with a little Kandy Scarlet and some PearleX Micropearl powder to give it a bit more of the violet feel I got when I saw the real Magilla at the NHRA museum. I custom mixed the lighter base color on the bottom and dusted a clear coat over that with a Micropearl and a scoach of violet pearlex powders mixed in to the clear

post-9426-0-14054800-1374290694_thumb.jp

Well I can't wait to get into doing all the decals and tinwork, Thanks for lookin'

Link to comment
Share on other sites

Mark. Unbelievable, gorgeous, inspirational work! Your blower scoop that you made is tremendous. The closest after market blower scoop of this variety that I have fond is from Calnaga Castings. If anyone knows of any other, please let us know.

Link to comment
Share on other sites
