2012 K-5 blazer concept

121 posts in this topic

Posted · Report post

Here is a project I have been working on for the last six months IMAG0789_zps2c7a4e32.jpg IMAG0795_zps36b3b3a3.jpg IMAG0796_zps2a8496d8.jpg IMAG0718_zpsfed7649e.jpg IMAG0738_zps115ff023.jpg IMAG0737_zpse8578c69.jpg

Share this post


Link to post
Share on other sites

Posted · Report post

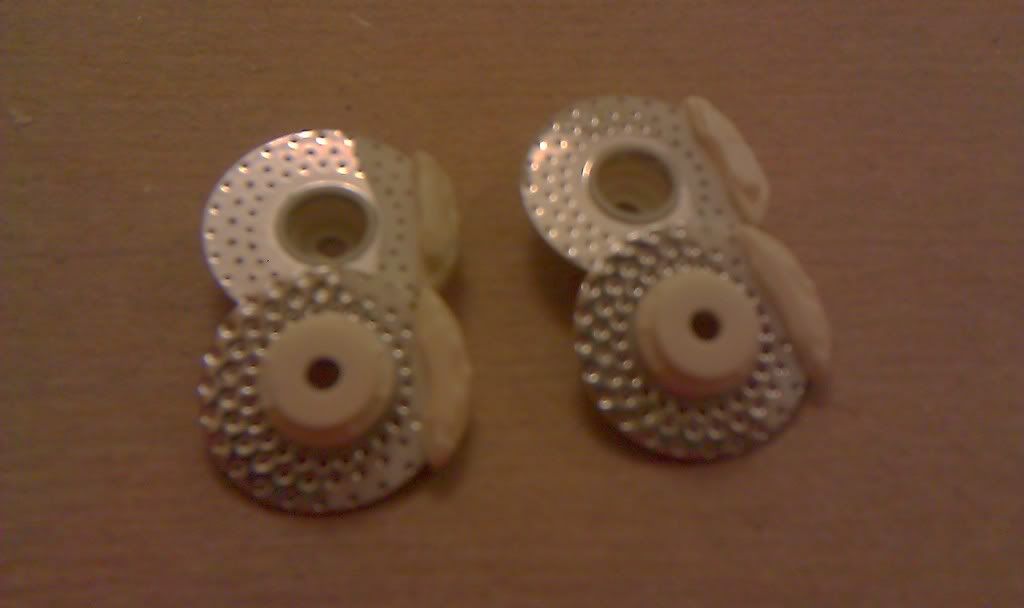

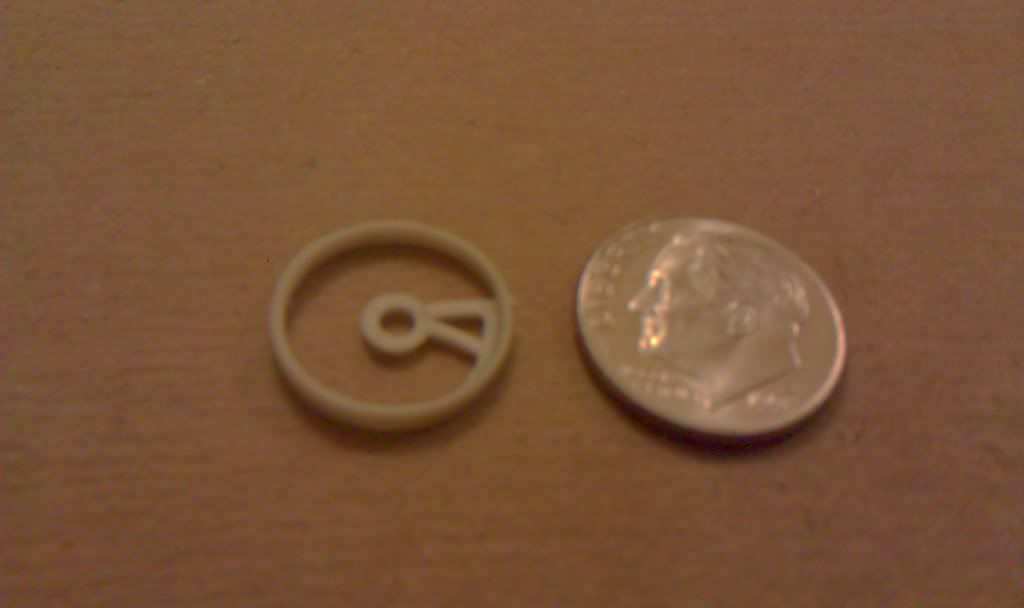

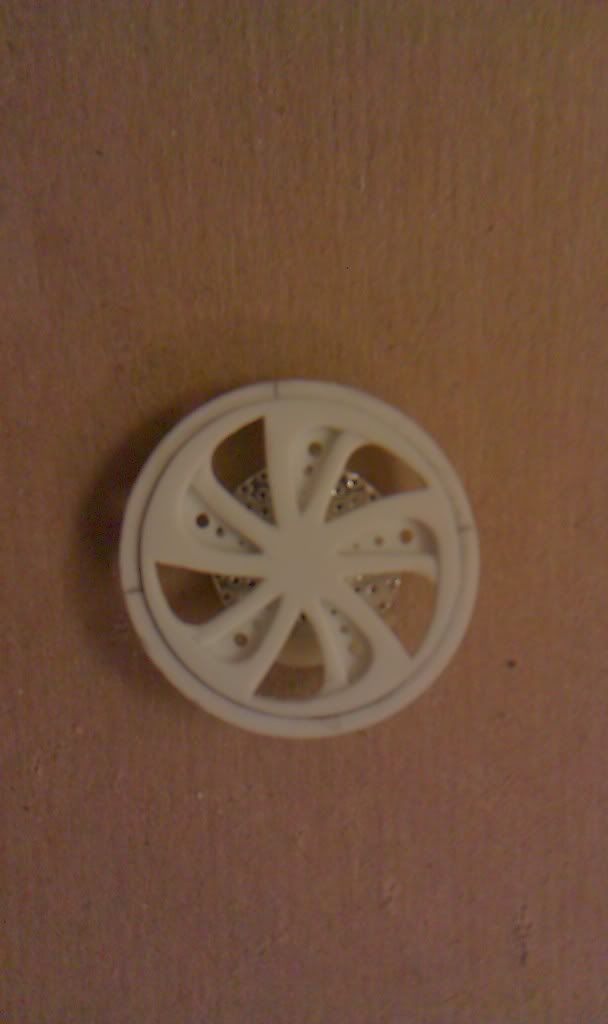

Some more stuff I made for this project IMAG0688_zps2537f429.jpg IMAG0690_zps966a6a44.jpg IMAG0687_zps6ae85acb.jpg IMAG0610_zps14aade64.jpg

Share this post


Link to post
Share on other sites

Posted · Report post

Looking good!! Would love to see how you make those wheels...

Share this post


Link to post
Share on other sites

Posted · Report post

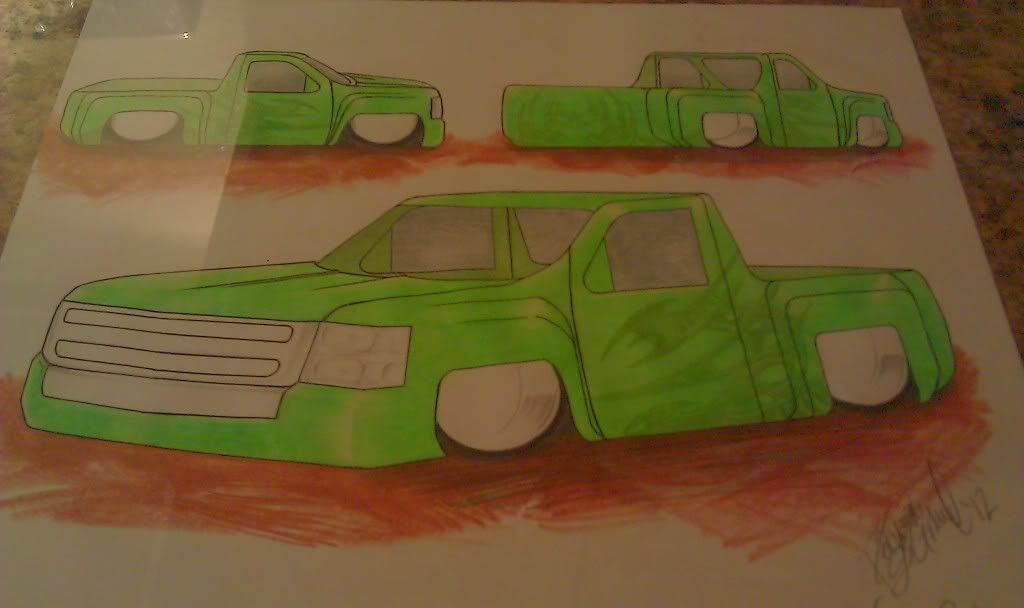

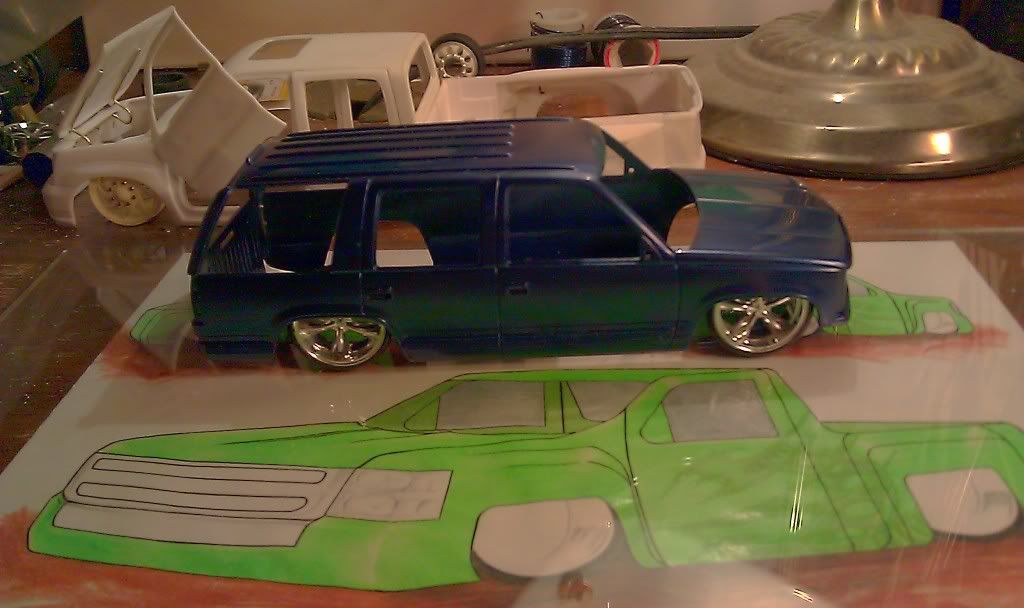

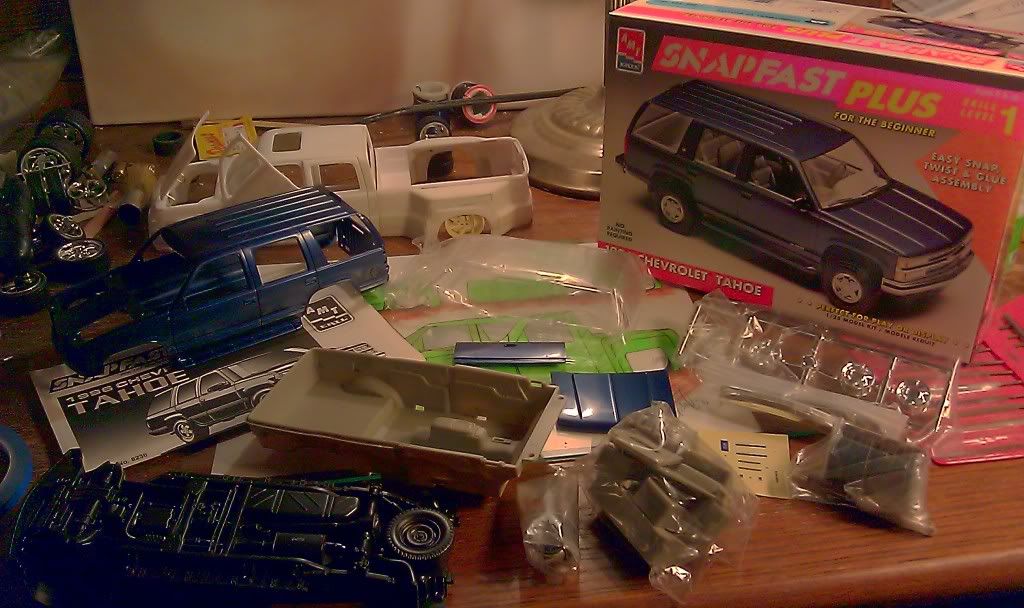

So i thought i would post all the build pics of this truck hope you guys enjoy them let me tell you there are a lot IMAG0441_zps6696eb23.jpg IMAG0438_zps7f3a9fd6.jpg IMAG0468_zpse65d0a9e.jpg IMAG0469_zpsa61f6994.jpg this is my concept drawing,the kit i started with,and the first step i did i cut off the running boards so i could lay rockers

Share this post


Link to post
Share on other sites

Posted (edited) · Report post

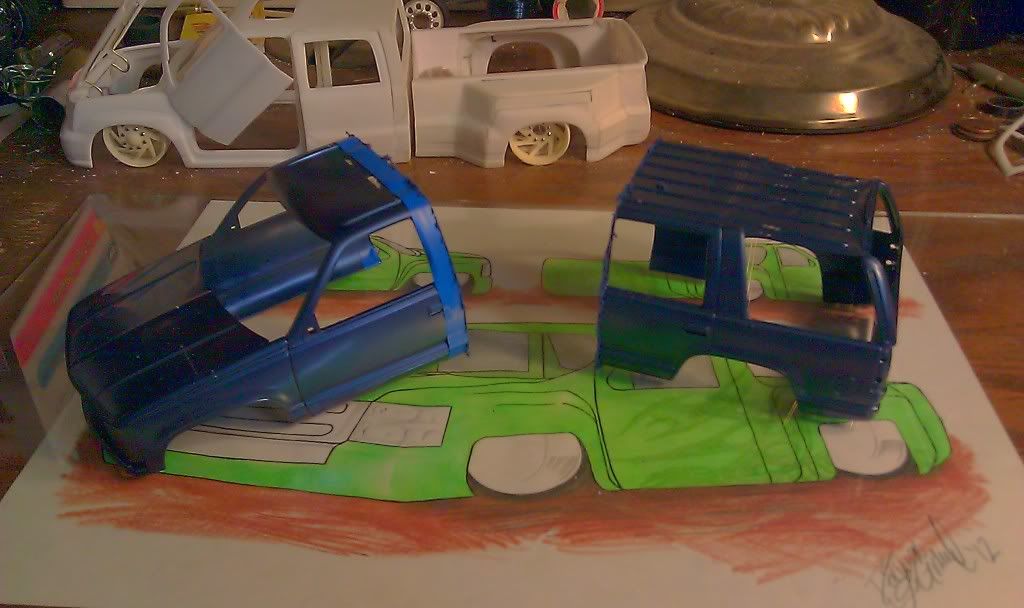

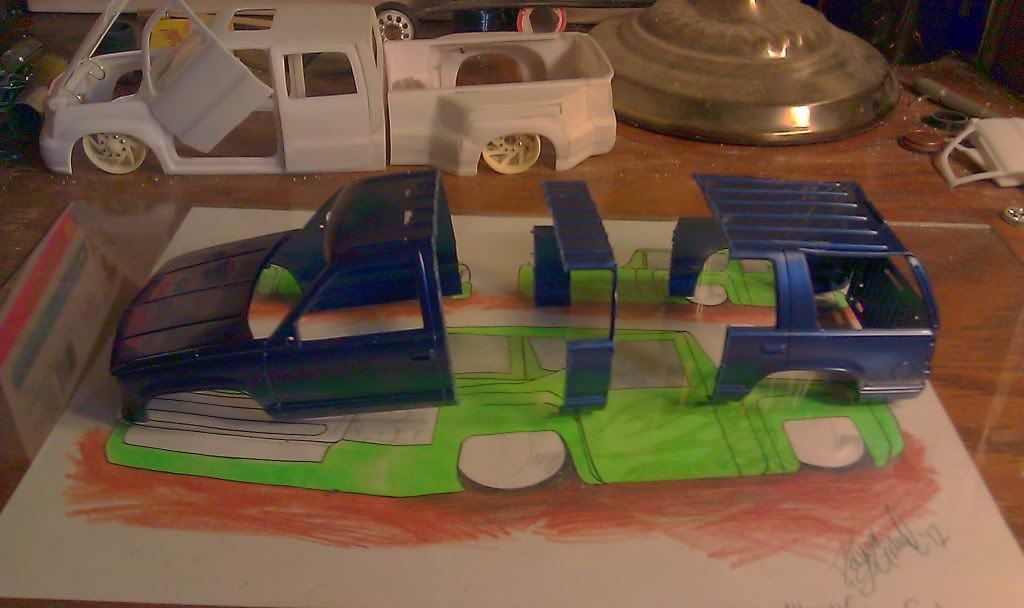

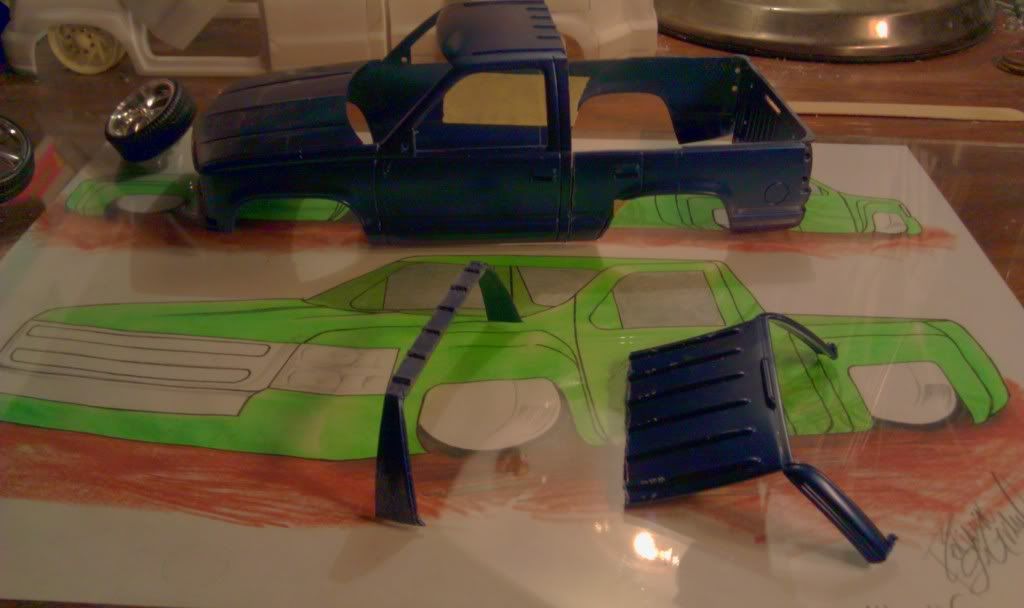

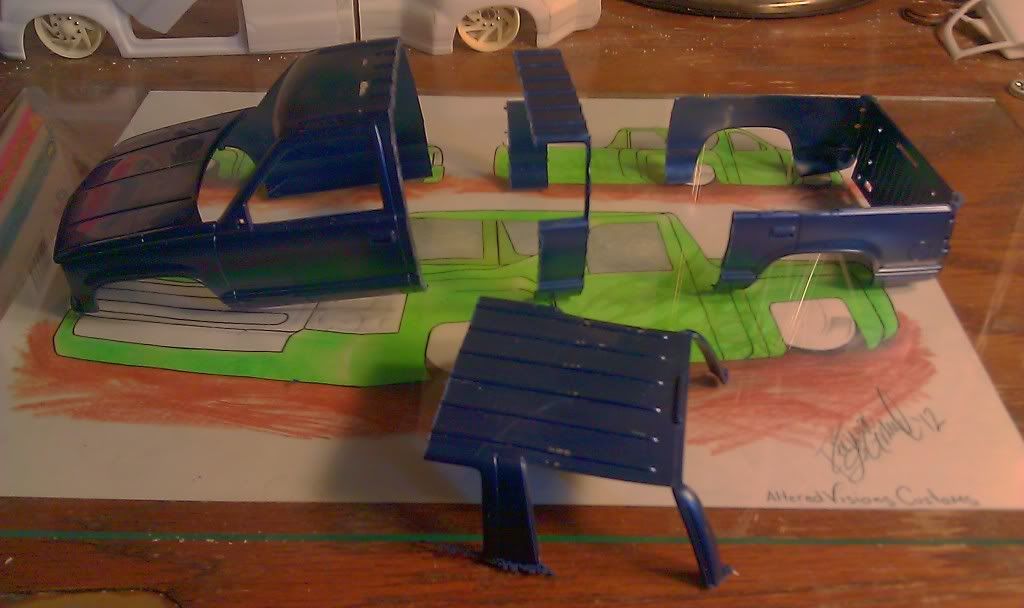

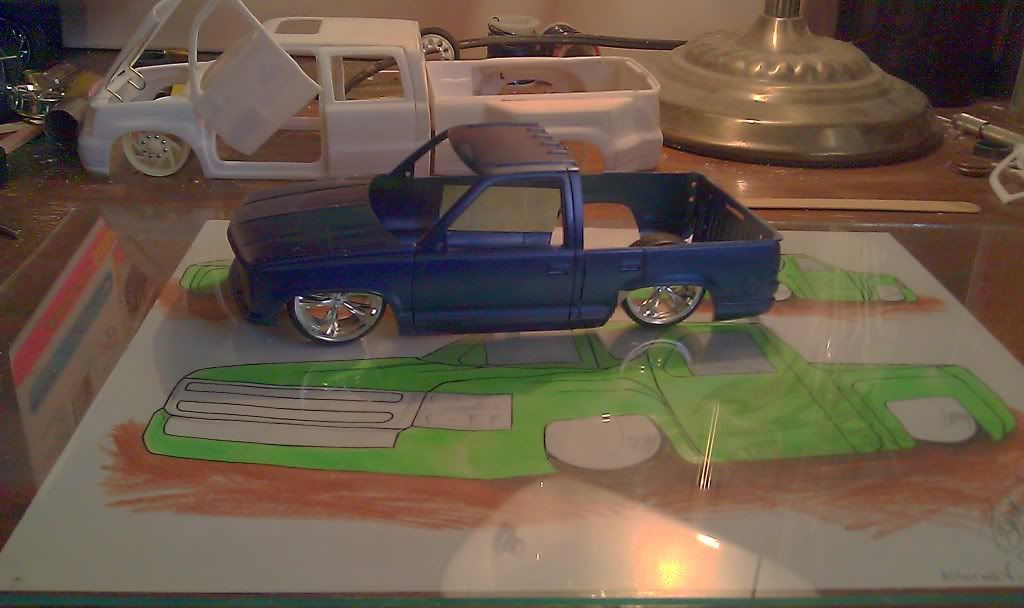

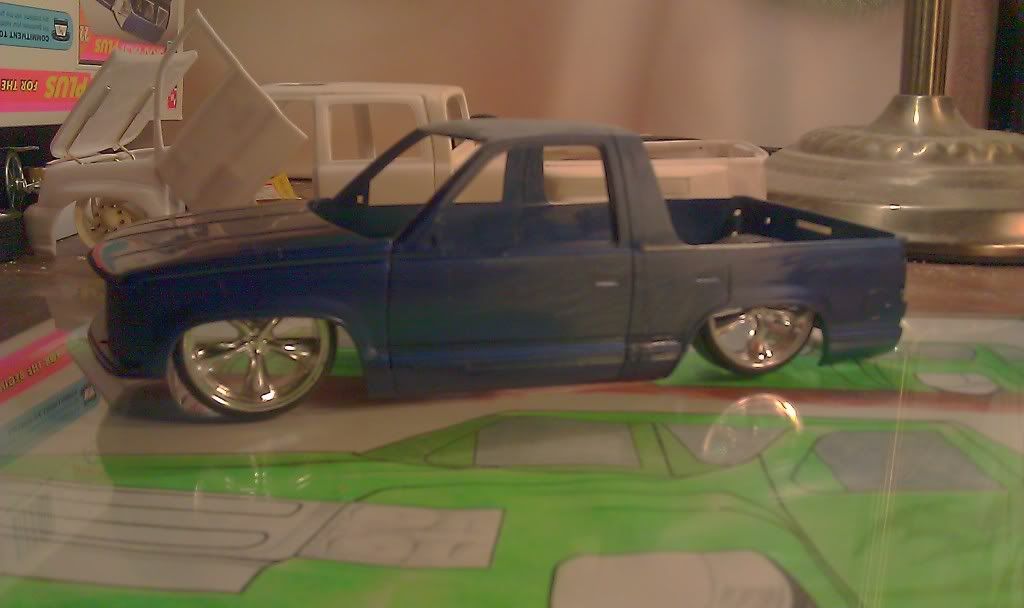

IMAG0473_zps8cd1c9d8.jpg IMAG0474_zps06d81038.jpg IMAG0475_zps3926fdaa.jpg IMAG0477_zps9aafd408.jpg IMAG0478_zpsdc7235f6.jpg IMAG0481_zpsf8422875.jpg this is how i cut the body up to get the basic shape of the truck Edited by Altered Visions Customs

Share this post


Link to post
Share on other sites

Posted · Report post

Looking good!! Would love to see how you make those wheels...

Thanks man, I will have pics up of how I made the rims and everything else on this truck asap im starting at the begining so give me a lil bit

Share this post


Link to post
Share on other sites

Posted · Report post

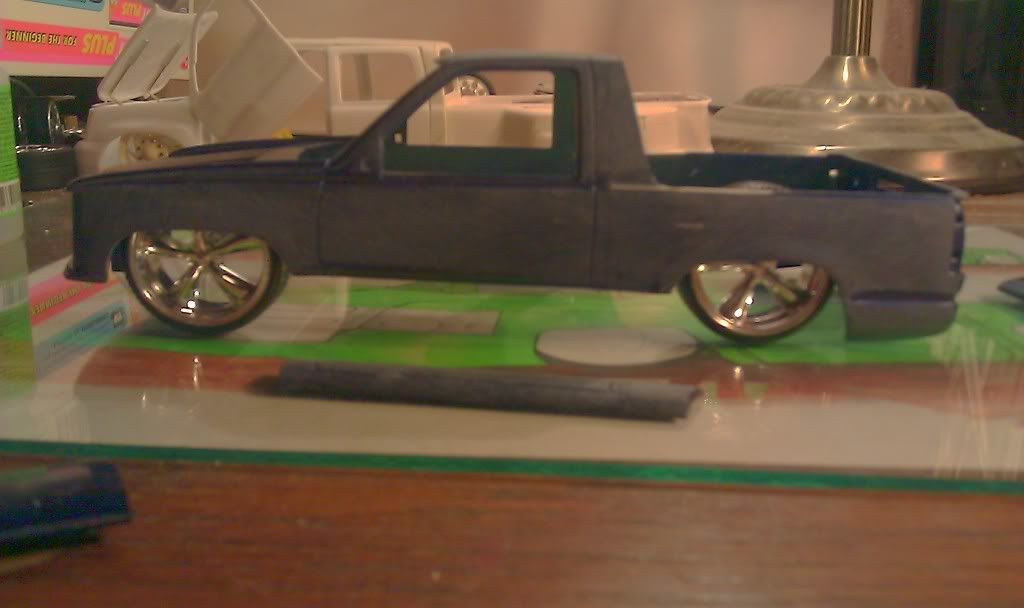

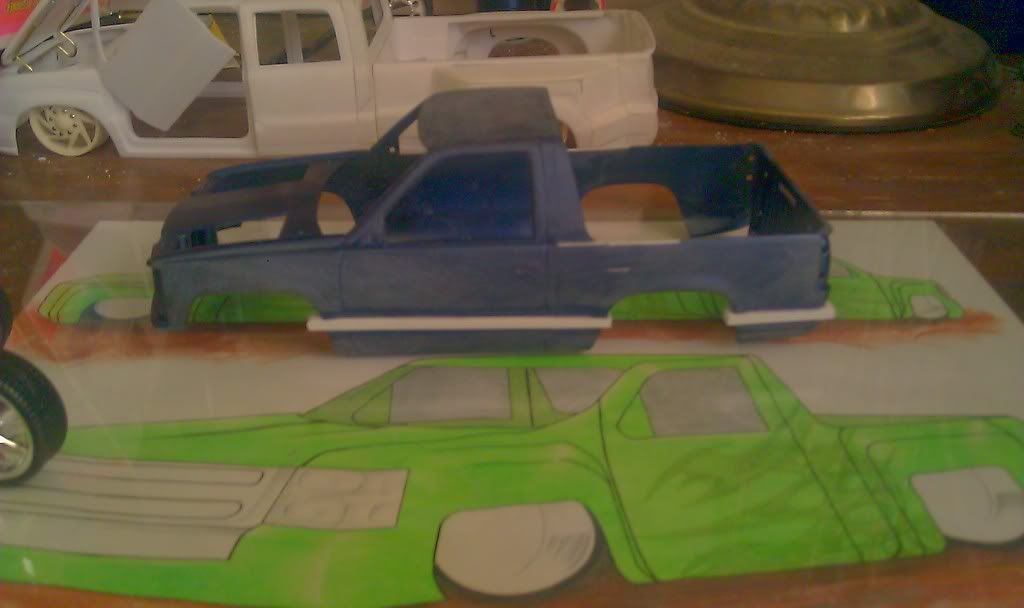

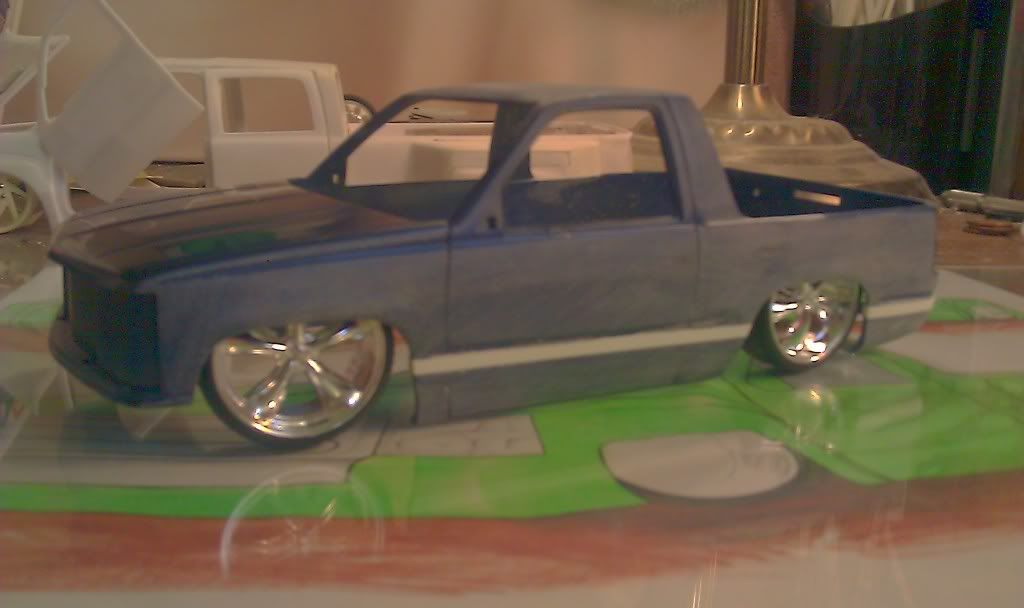

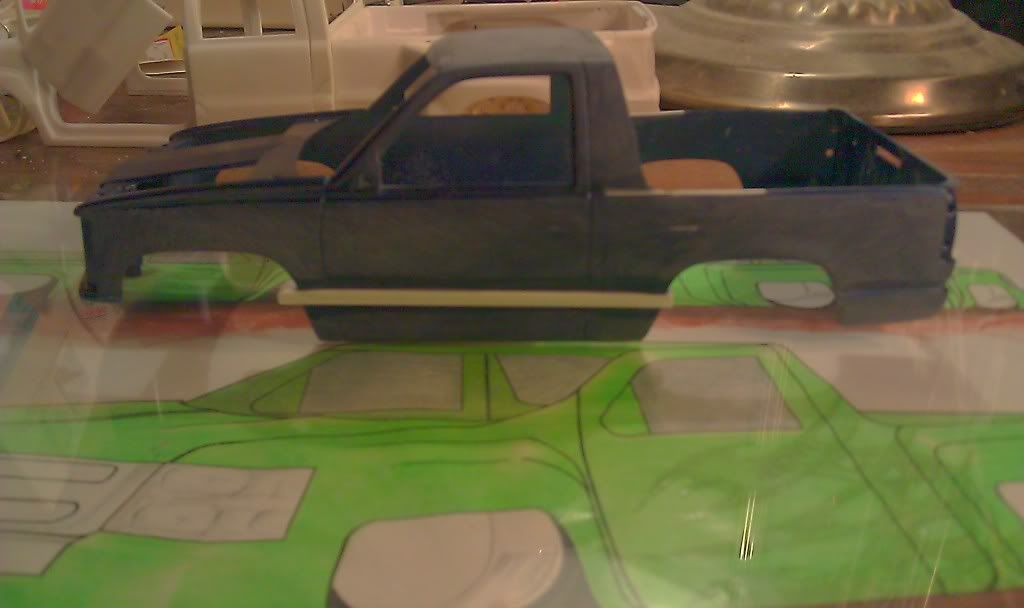

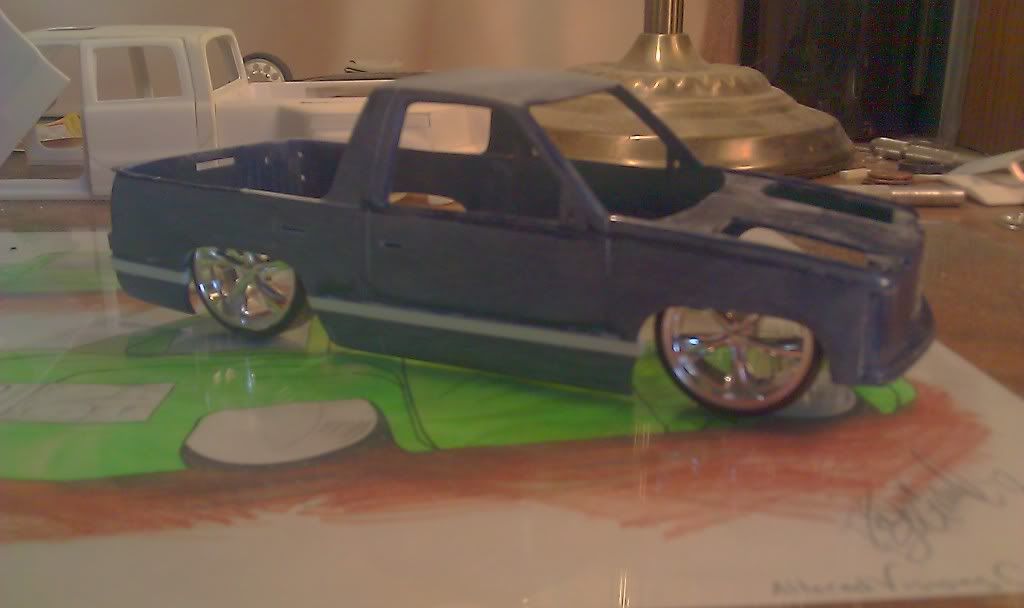

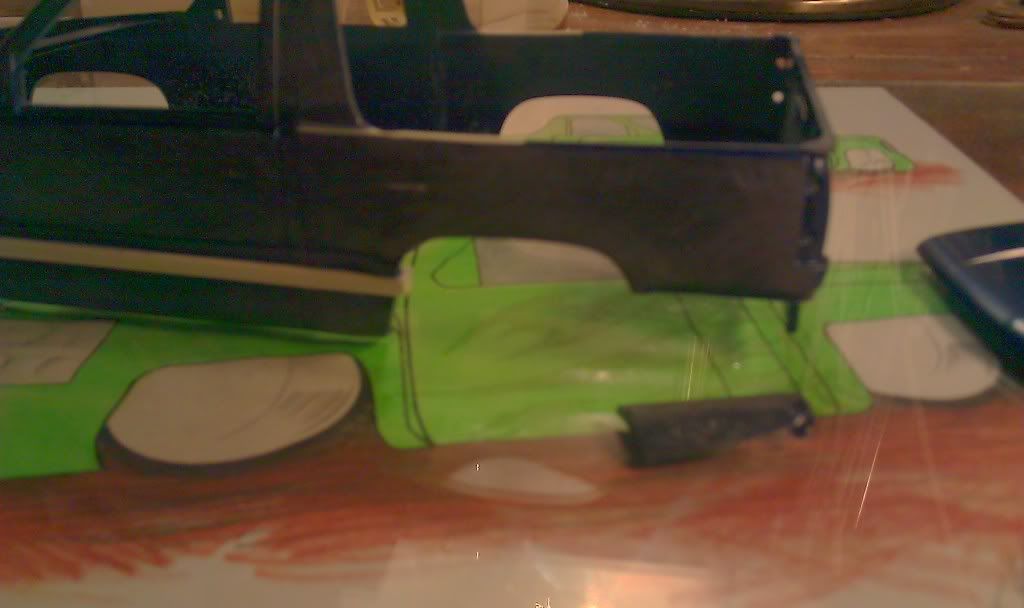

IMAG0483_zps95edad1f.jpg IMAG0484_zpsafcc71eb.jpg IMAG0485_zpsd1c7b4ff.jpg IMAG0486_zps6ed6f93a.jpg IMAG0487_zps2c094bf7.jpg IMAG0488_zpsc8322583.jpg the size rim i wanted to use wouldnt let the truck lay out so i cut the body n added a piece of styrene so i could tuck the rims in the fenders and still lay out

Share this post


Link to post
Share on other sites

Posted · Report post

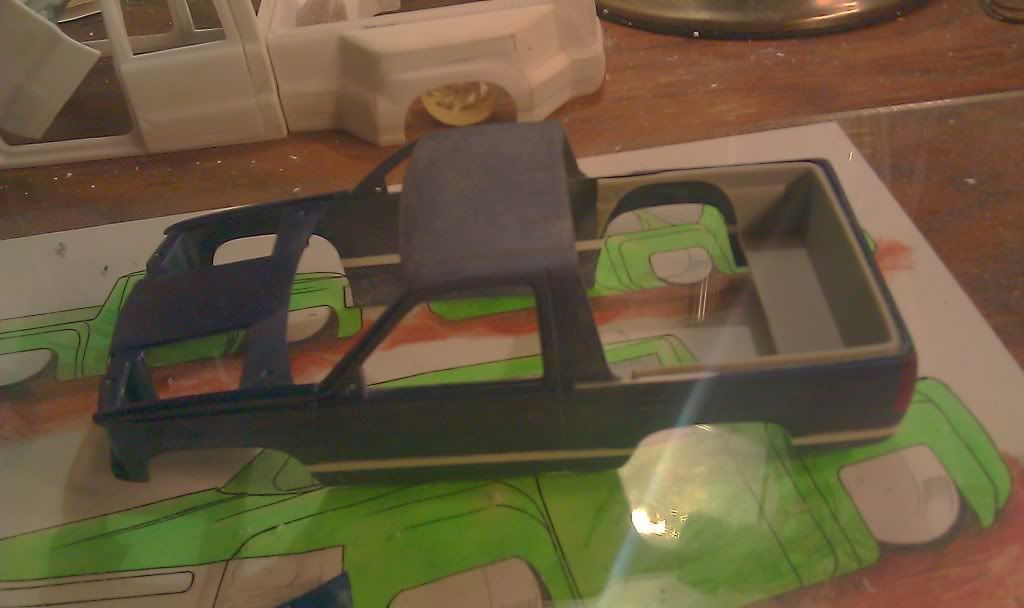

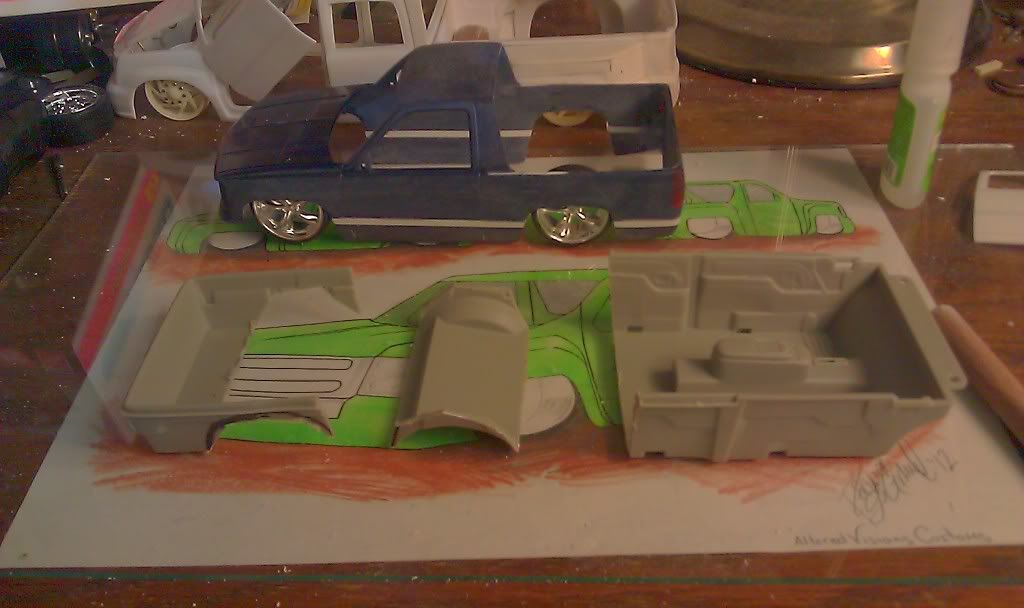

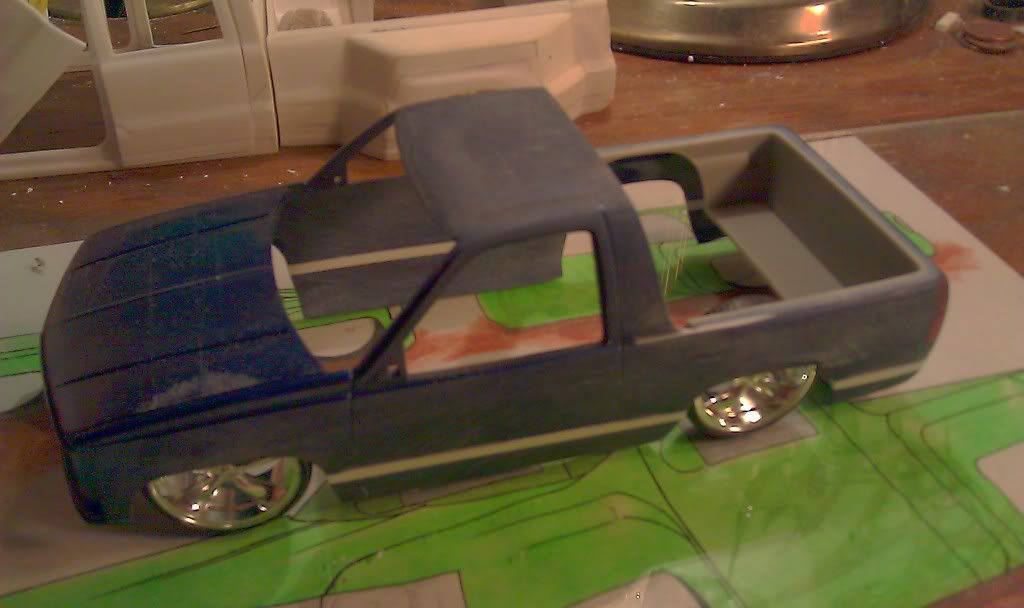

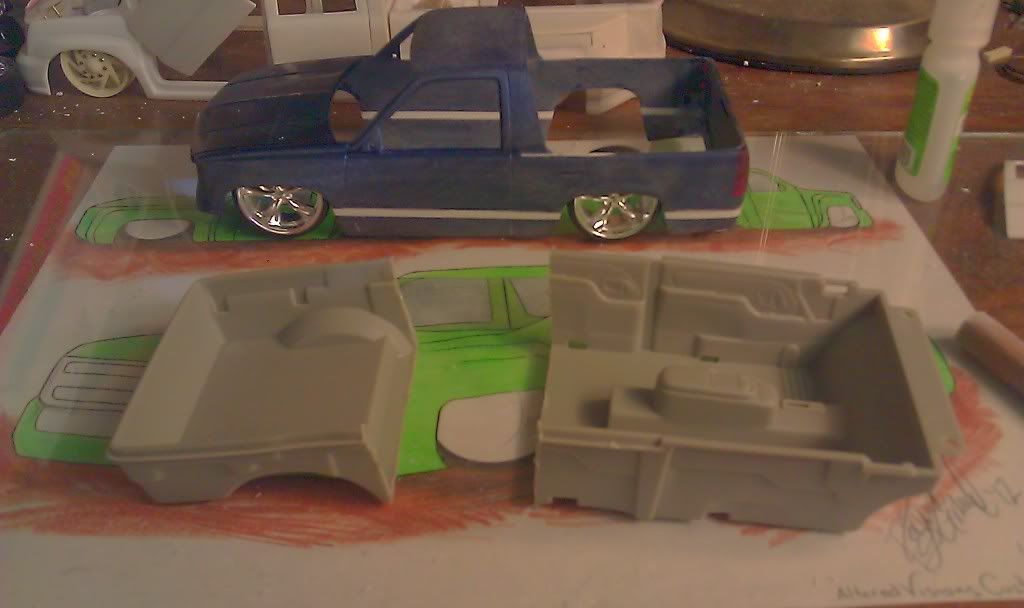

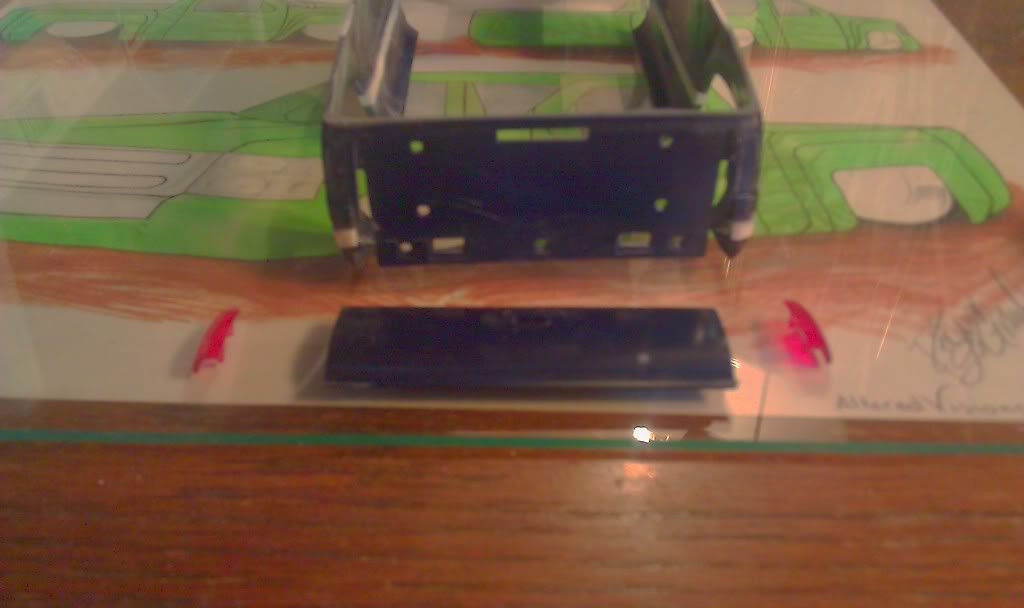

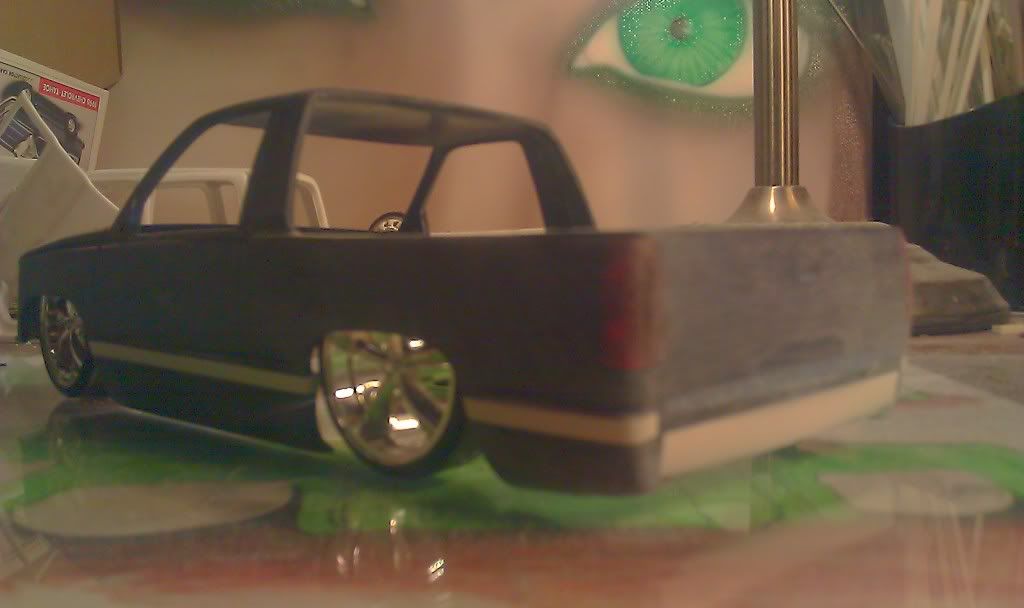

IMAG0489_zps425fa739.jpg IMAG0490_zps10780e49.jpg IMAG0491_zps1a49a17a.jpg IMAG0492_zps87b2a9f7.jpg IMAG0493_zps88aa9a36.jpg IMAG0495_zpsd4336156.jpg i shaved the taillights and tailgate,and built a rollpan out of sheet styrene then cut the interior bucket up n use the back piece for the rear cargo section and filled in the gap where the old window sat

Share this post


Link to post
Share on other sites

Posted · Report post

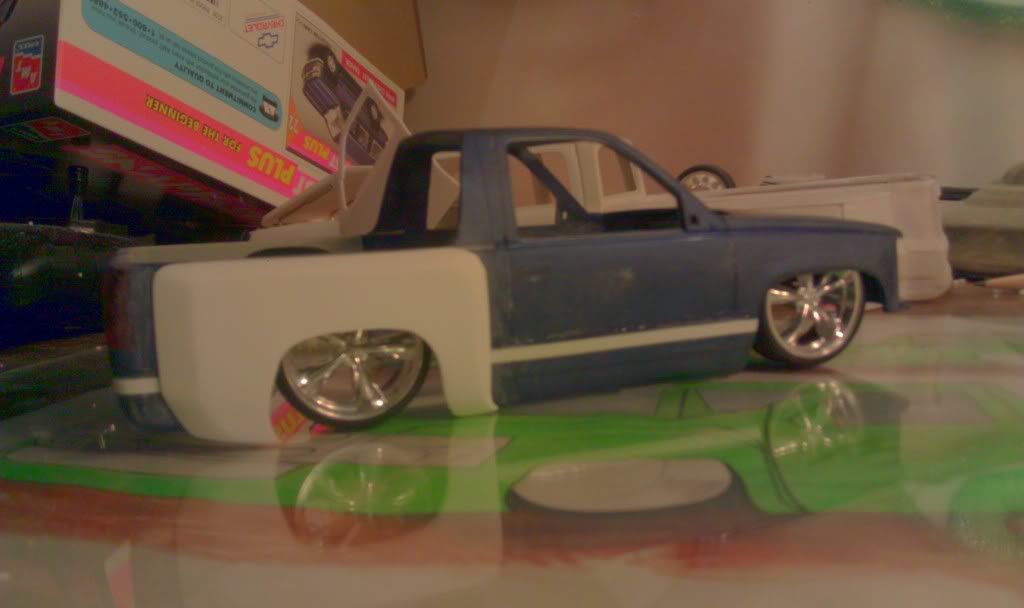

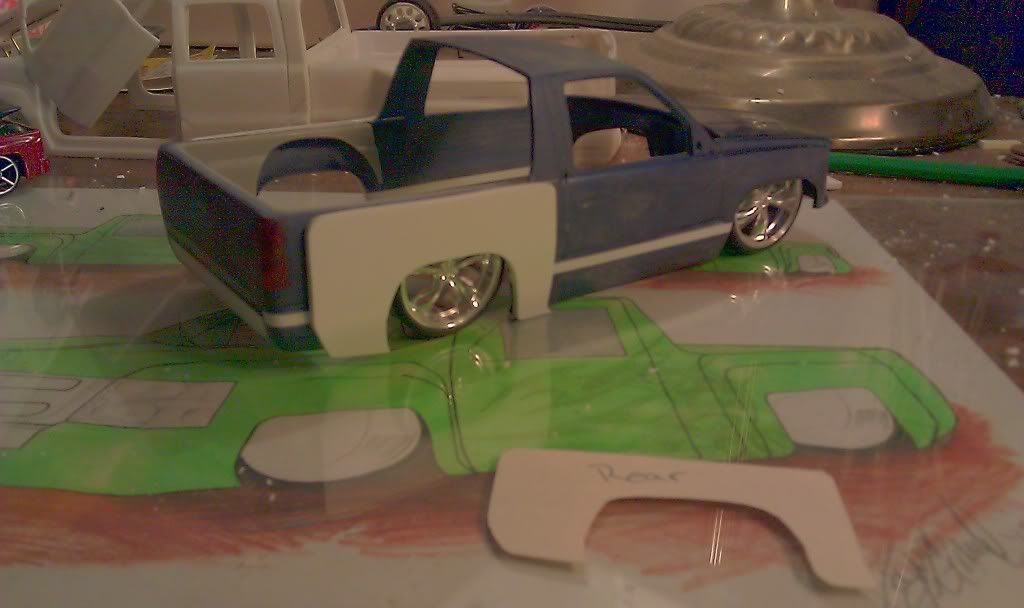

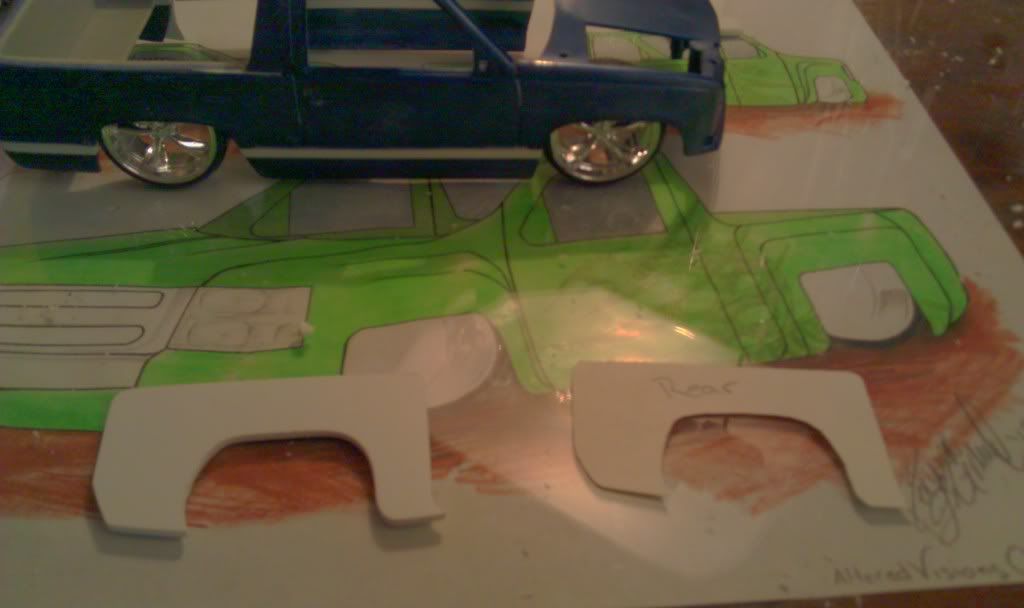

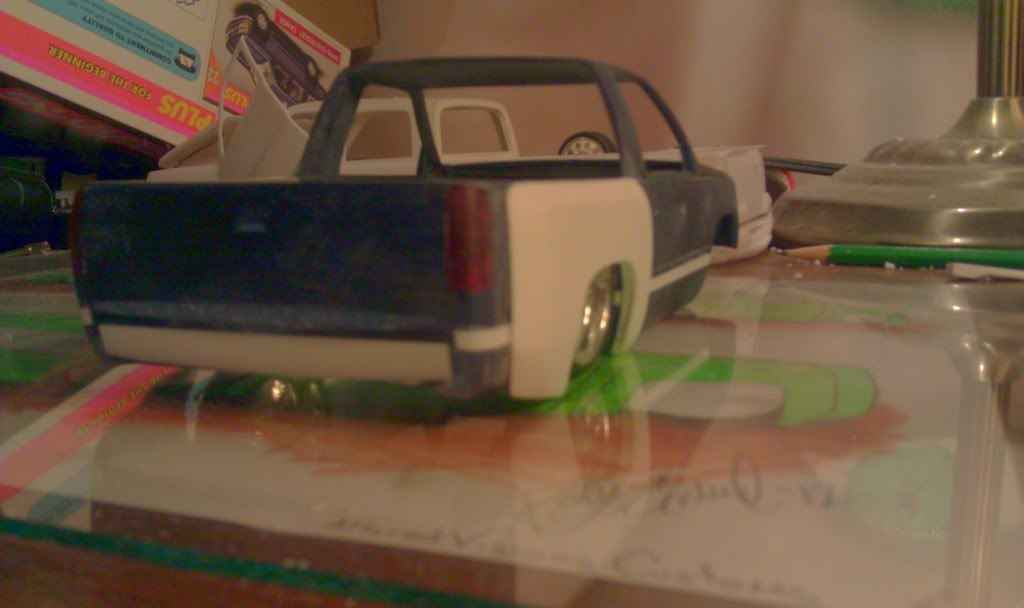

IMAG0496_zpsed3de7ab.jpg IMAG0497_zps453c5bef.jpg IMAG0498_zpse708b928.jpg IMAG0499_zps0f4917df.jpg this is how I made the rear body panels I drew a patteren on a index card cut it out traced it on sheet styrene cut it out layered it on the body and blocked it into shape

Share this post


Link to post
Share on other sites

Posted · Report post

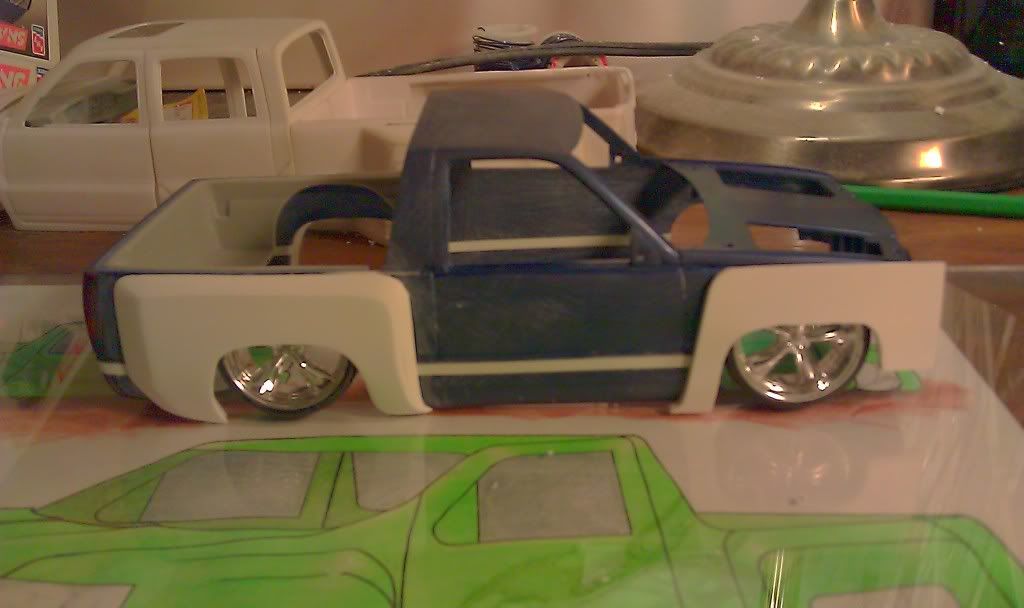

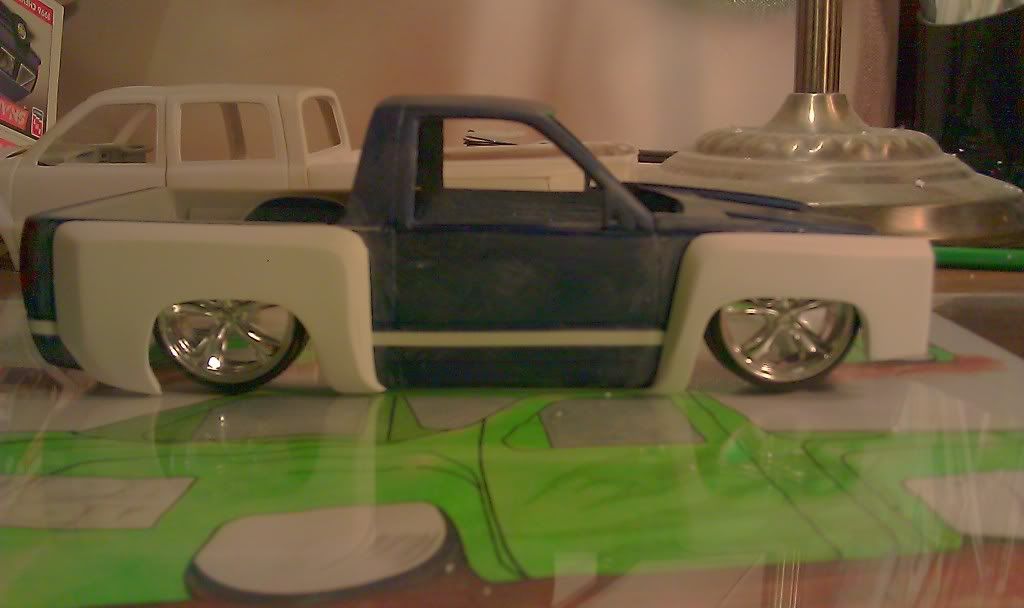

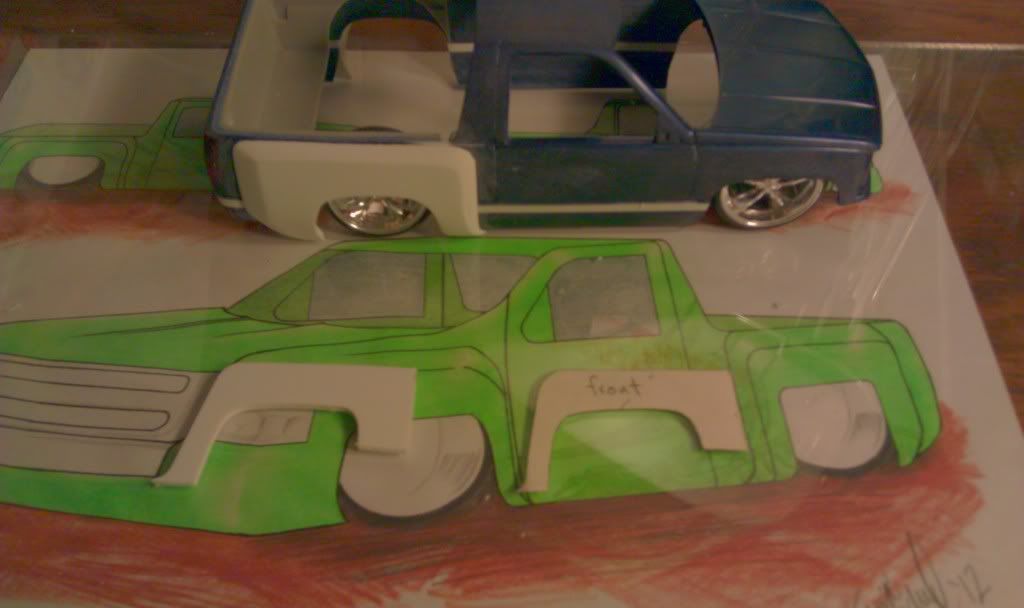

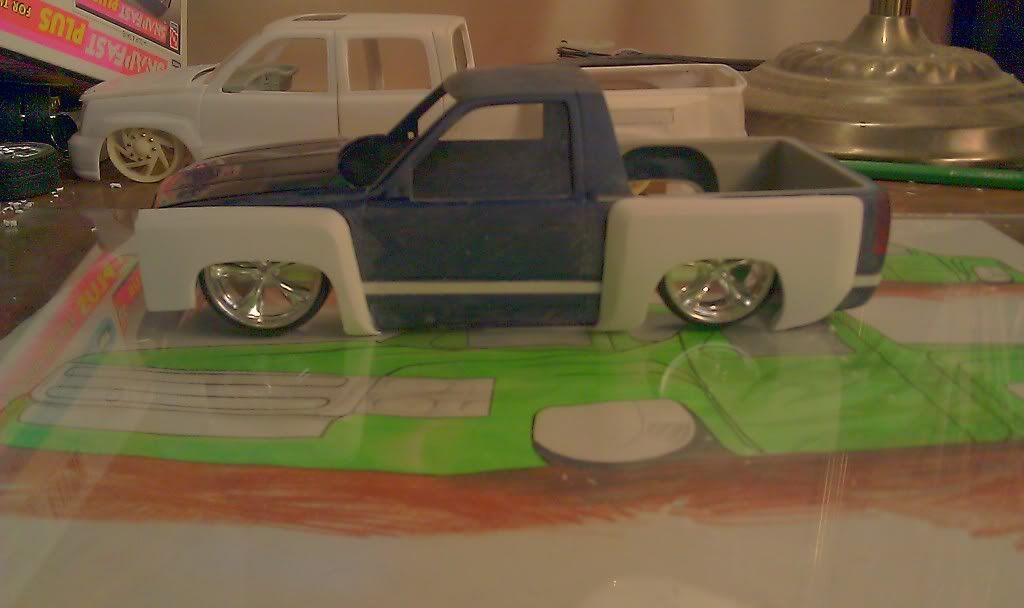

IMAG0500_zps0730e810.jpg IMAG0501_zps77decce1.jpg IMAG0502_zps3df55bb0.jpg IMAG0503_zpsa6101edd.jpg I did the same process as the rear for the front fenders this was to get them roughed in so i could see how i was going to make the frontend

Share this post


Link to post
Share on other sites

Posted · Report post

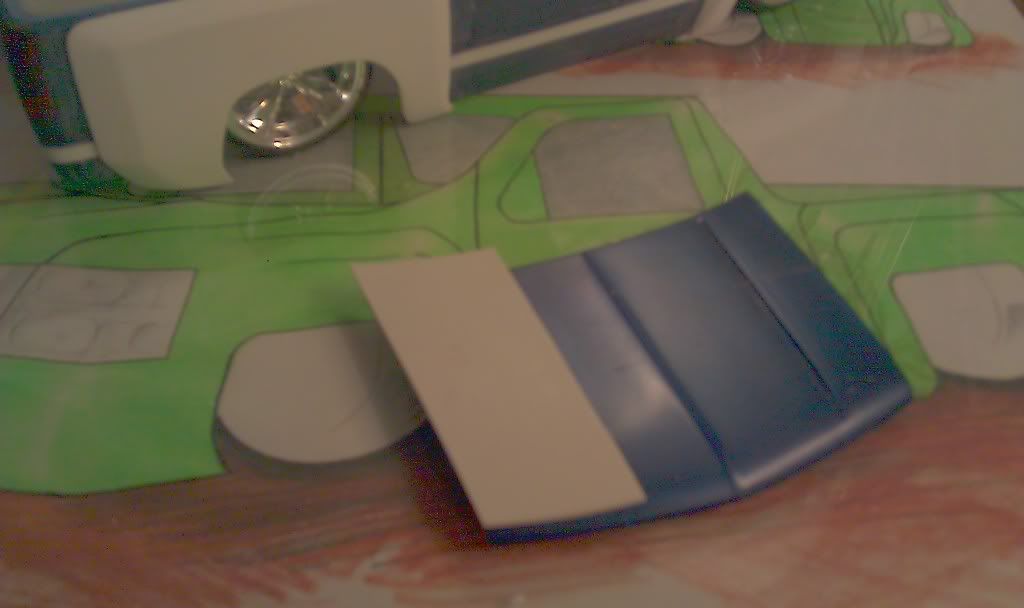

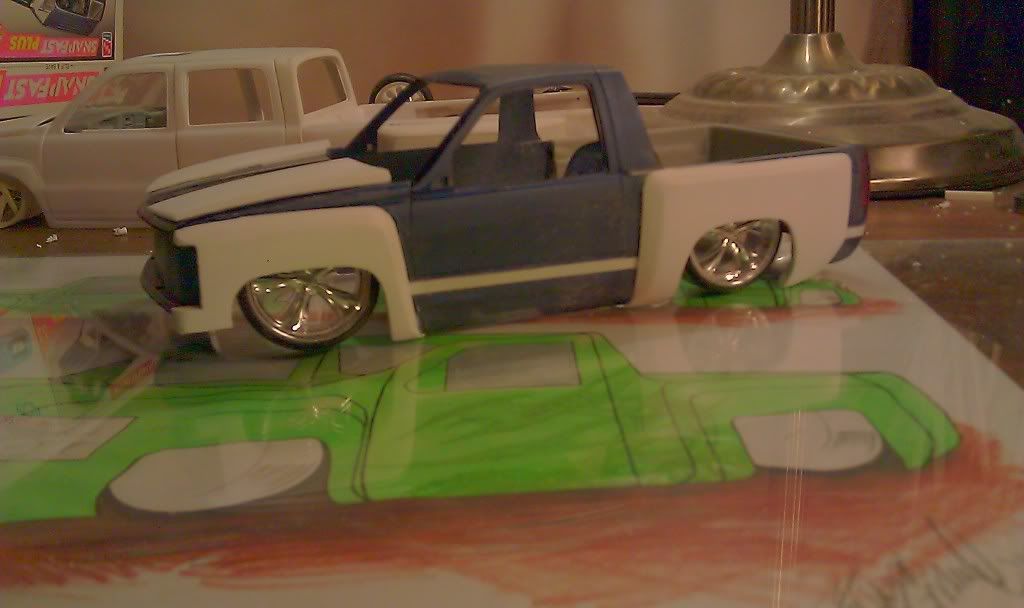

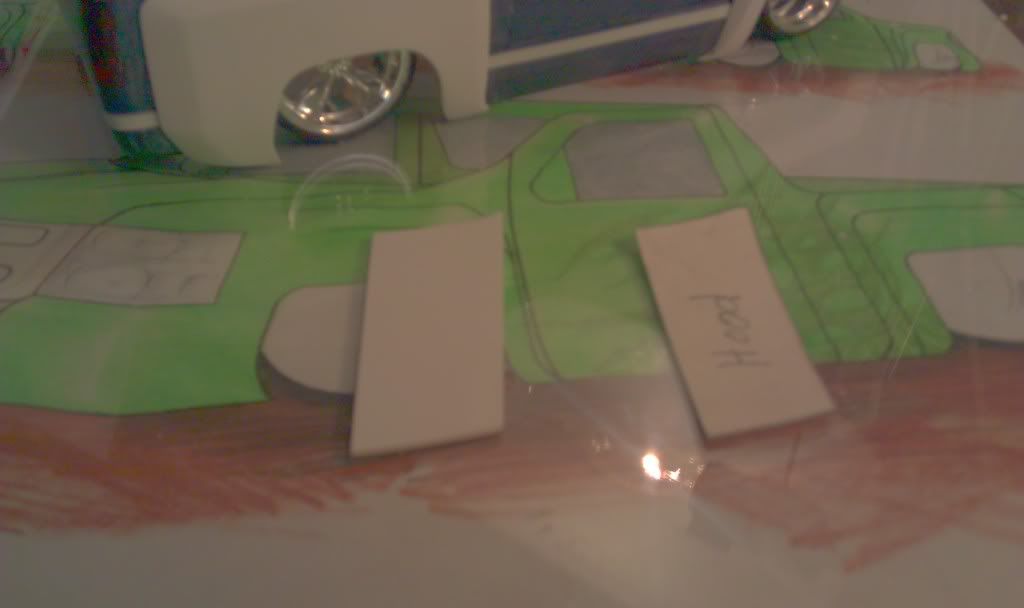

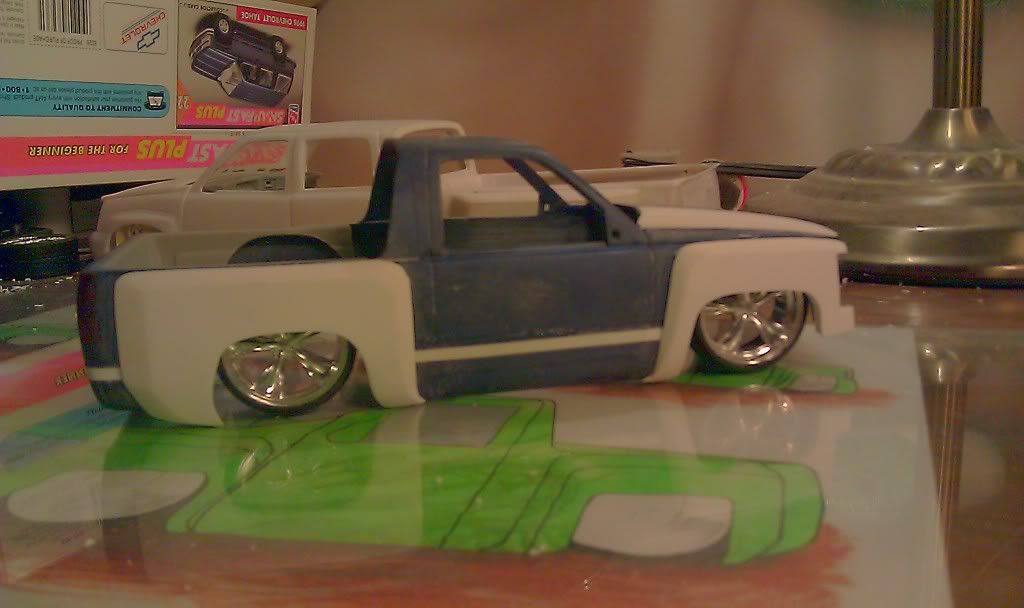

IMAG0504_zps26d840fe.jpg IMAG0505_zps7e302b5c.jpg IMAG0506_zps91251bb4.jpg IMAG0508_zps20250099.jpg this is the hood i made same process as before,and i also started roughing in the headlights at this point

Share this post


Link to post
Share on other sites

Posted · Report post

Really cool idea man. I like the way this is coming. Love seeing crazy body mods. Not to mention that engin set up. Keep it coming. :):):):):)

Share this post


Link to post
Share on other sites

Posted · Report post

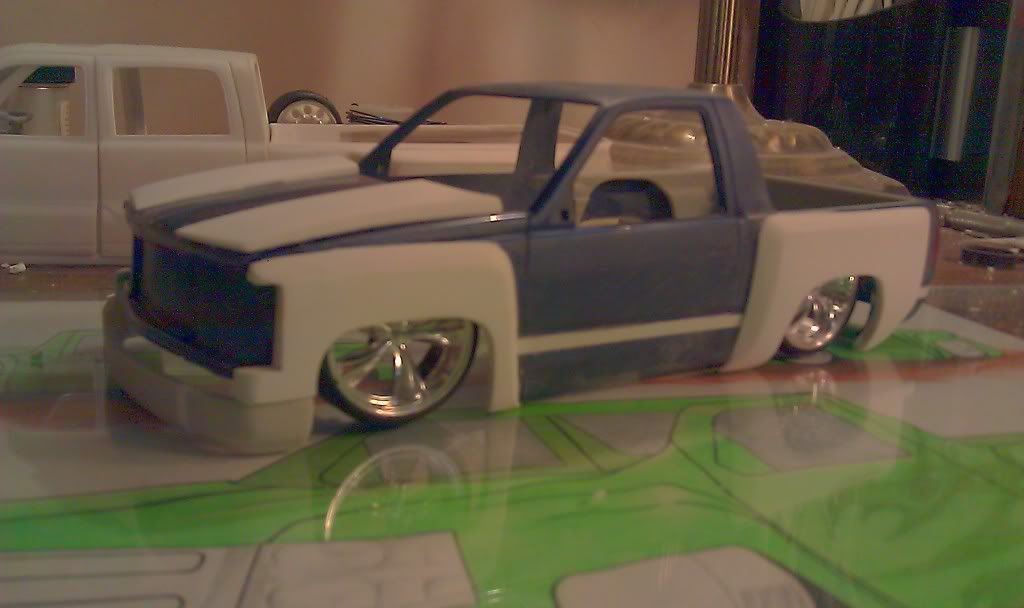

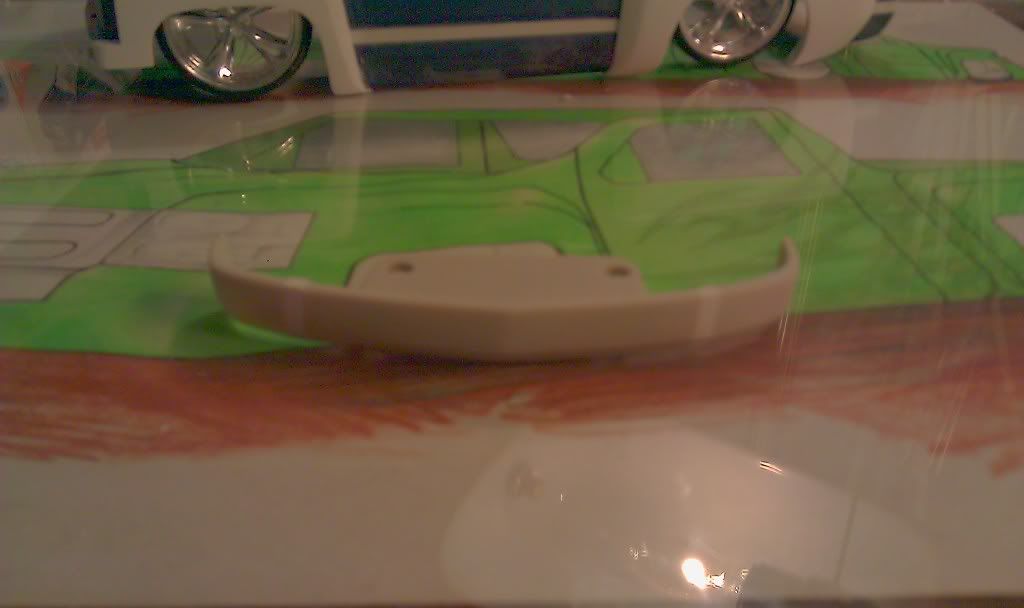

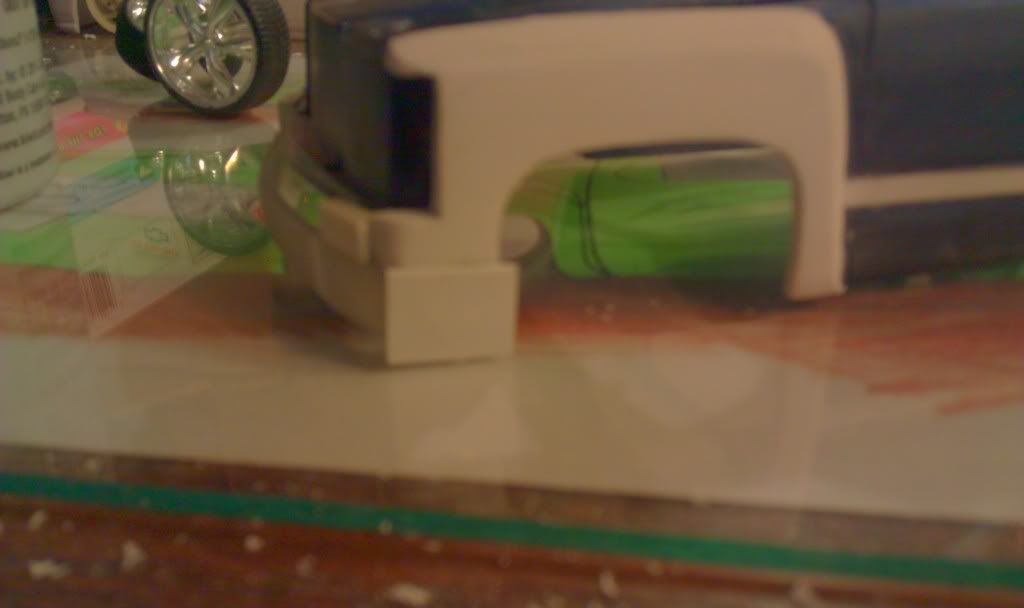

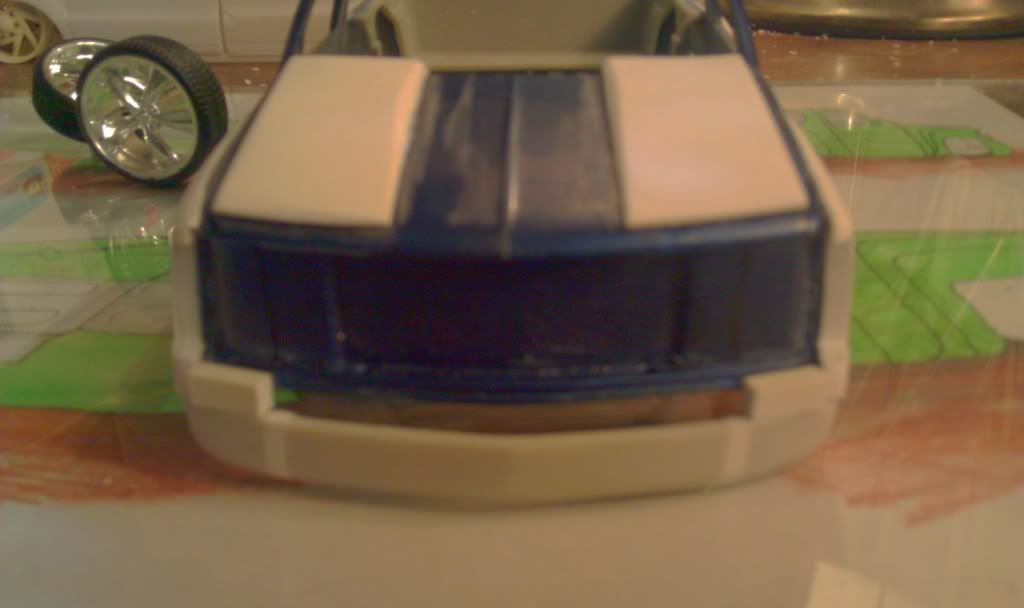

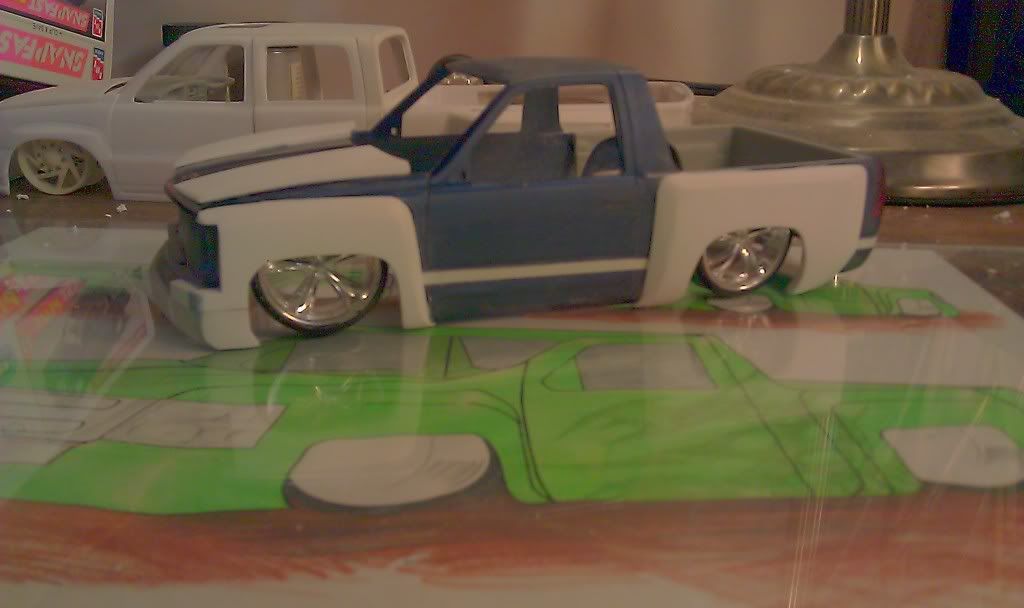

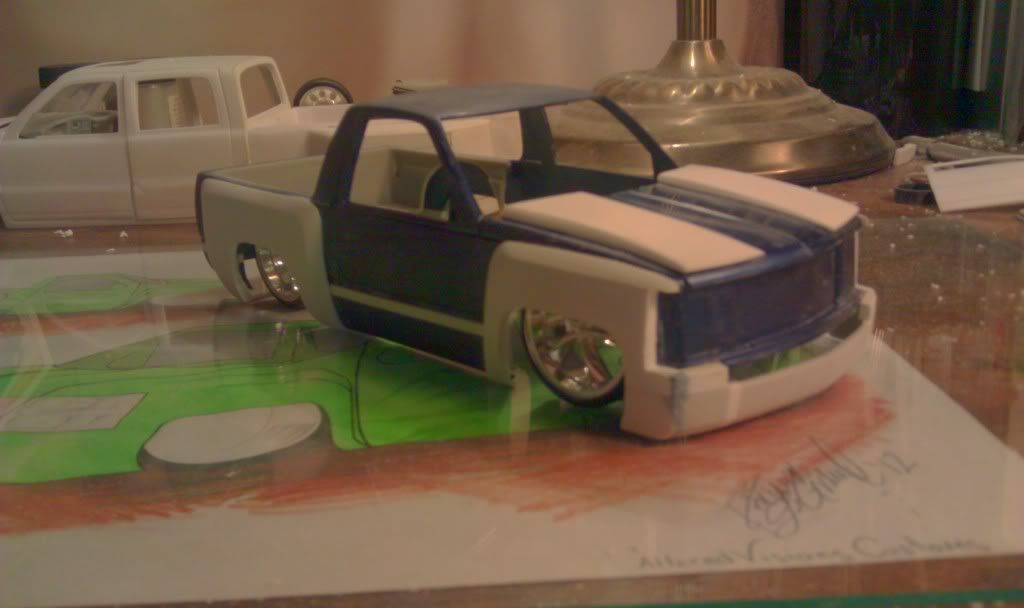

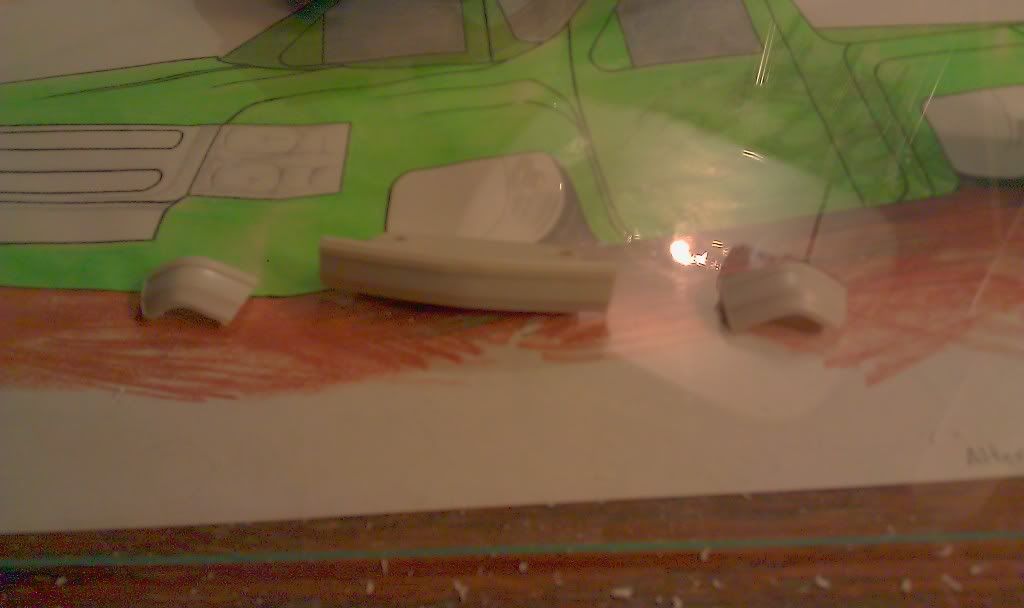

IMAG0509_zpsdbdfa93e.jpg IMAG0510_zps75076522.jpg IMAG0512_zpsc5356281.jpg IMAG0513_zpse6529ddf.jpg IMAG0515_zpsbbf39ec4.jpg IMAG0517_zps322172de.jpg IMAG0518_zps74bcd0e8.jpg this is how i made the front bumper keep in mind i didnt want it to be exactly stock just subtle changes so anyway i sectioned the bumper from a 1500 silverado into three pieces n added styrene to widen it out to the width of the new fenders,added pieces of styrene under the headlight area n the side of the bumper to get the shape right and to shave the bumper into the fenders then blocked it all into shape at this point i was just tryin to get everything roughed into shape

Share this post


Link to post
Share on other sites

Posted · Report post

Whoa, dude!! Make a few modifications, why don't you? Looks fantastic!!!!!

Share this post


Link to post
Share on other sites

Posted · Report post

Really cool idea man. I like the way this is coming. Love seeing crazy body mods. Not to mention that engin set up. Keep it coming. :):):):):)

Thank you sir I just wanted to build something nobody else has and this is what I came up with

Share this post


Link to post
Share on other sites

Posted · Report post

WOW! YOU CANT JUST LEAVE THING ALONE CAN YOU ,YOU JUST HAVE TO BE DIFFERENT , THAT WHAT MY MOM AND DAD WOULD ALWAYS TELL ME ,GREAT JOB ON THE TRUCK ,

Share this post


Link to post
Share on other sites

Posted · Report post

Whoa, dude!! Make a few modifications, why don't you? Looks fantastic!!!!!

lol I think I did and if not she isnt done yet ;).... Thanks man just gettin back into the hobby

Share this post


Link to post
Share on other sites

Posted · Report post

WOW! YOU CANT JUST LEAVE THING ALONE CAN YOU ,YOU JUST HAVE TO BE DIFFERENT , THAT WHAT MY MOM AND DAD WOULD ALWAYS TELL ME ,GREAT JOB ON THE TRUCK ,

Thank you, no I cant leave things alone custom runs thru my vains man

Share this post


Link to post
Share on other sites

Posted · Report post

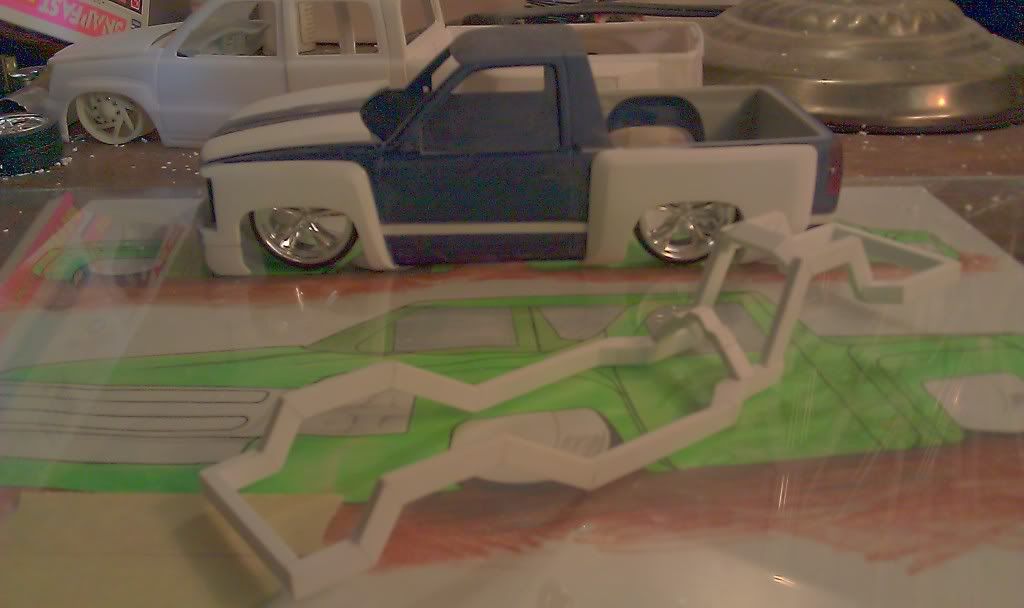

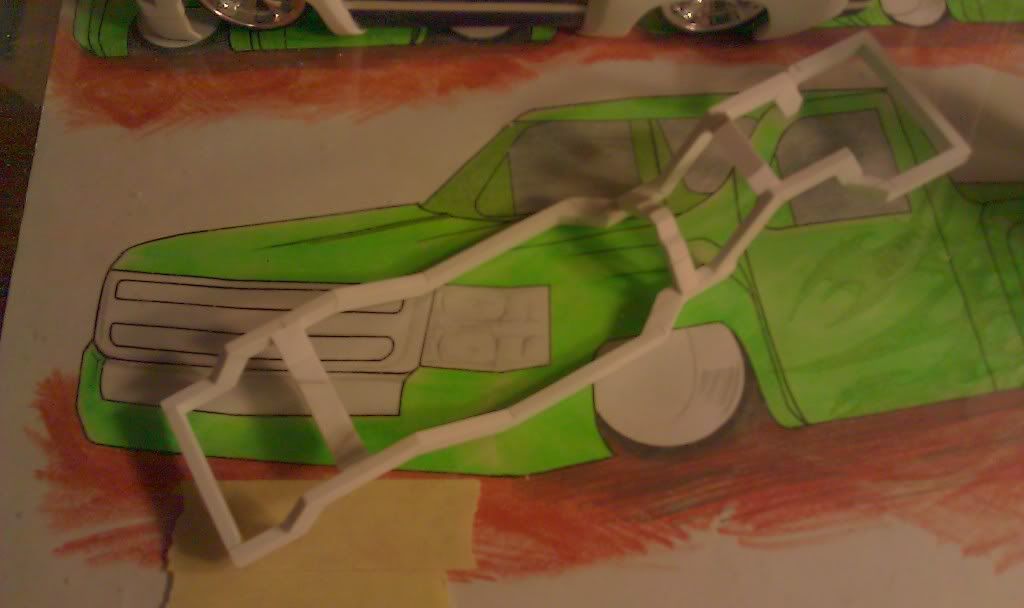

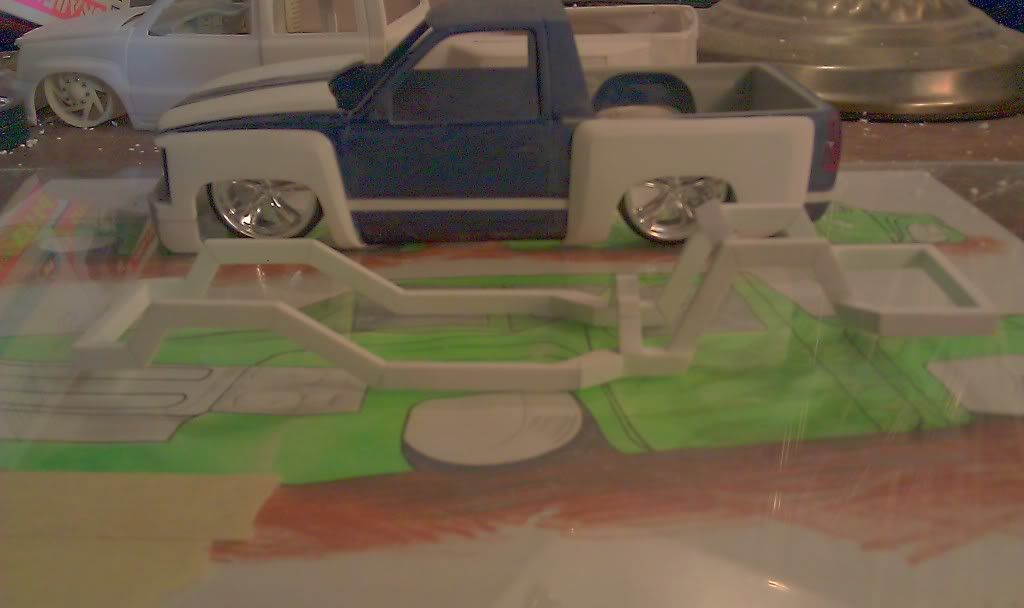

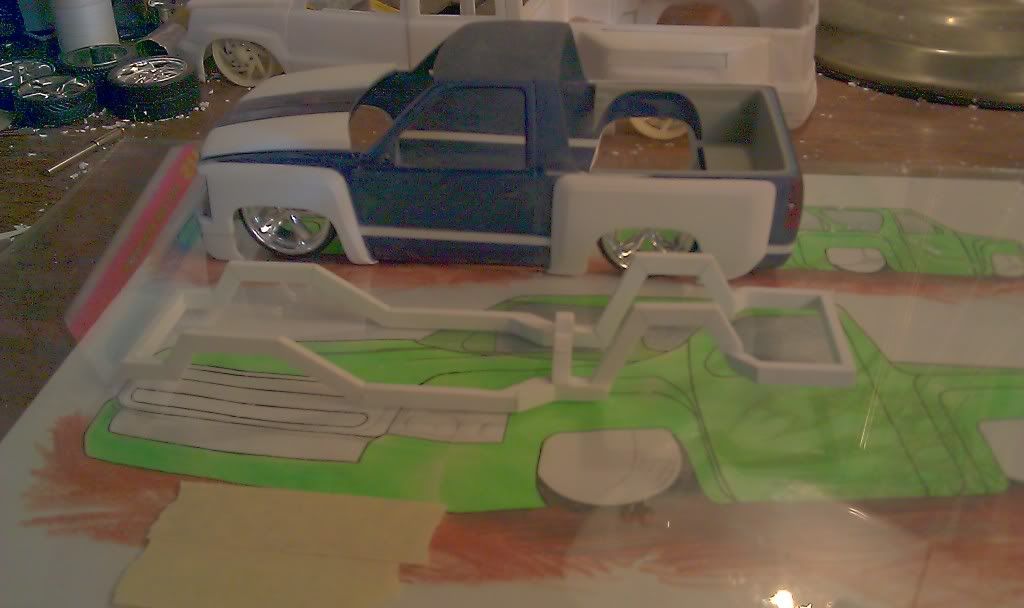

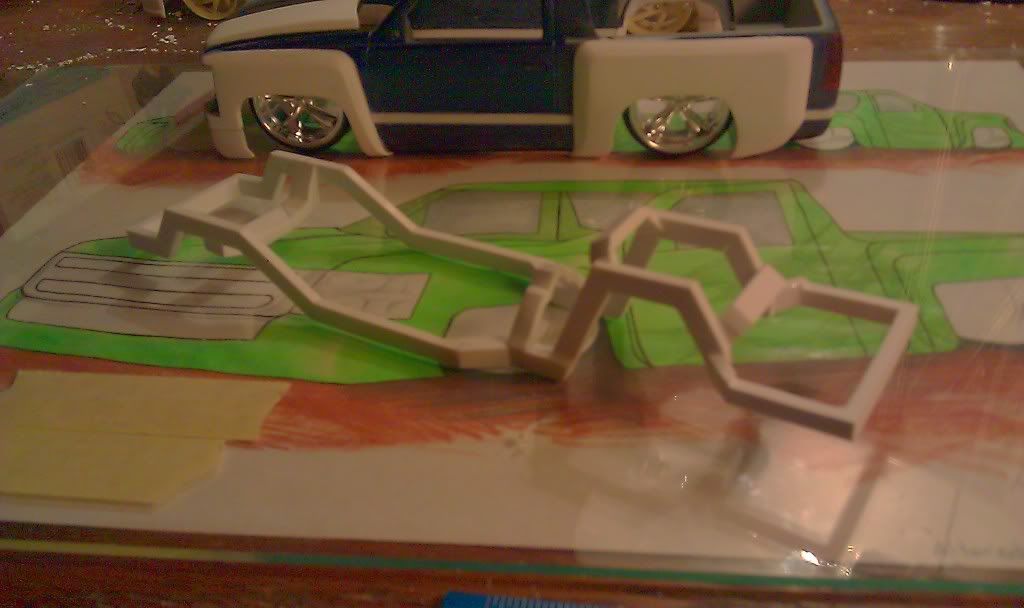

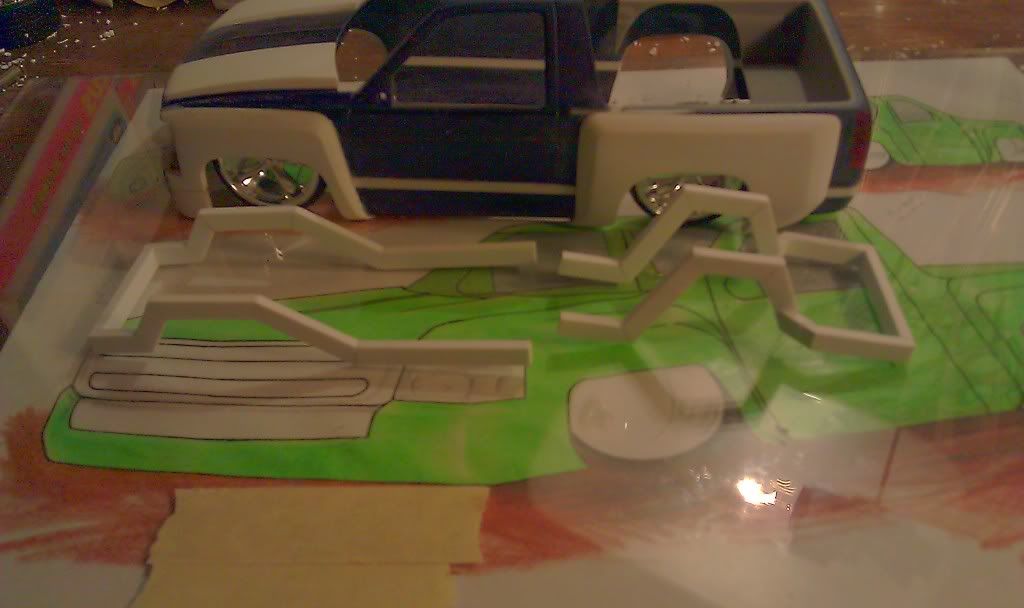

IMAG0524_zps93dd1f39.jpg IMAG0525_zps9e985cf1.jpg IMAG0529_zps14e70f19.jpg IMAG0530_zpsb233ed96.jpg IMAG0533_zpsb56109be.jpg IMAG0550_zps053aa6ce.jpg this the frame im building for this truck its all built out of stock styrene i messured everything and drew it on graph papper then cut n glued all the pieces together i used a miter box for all the cuts

Share this post


Link to post
Share on other sites

Posted · Report post

And WOW again!!! Nice frame. I'm not a lowrider type person, but I really like the you're doing, Ben.

Share this post


Link to post
Share on other sites

Posted · Report post

IMAG0553_zpse6ab1557.jpg IMAG0543_zps9f4c35aa.jpg IMAG0544_zpsc4f5fc60.jpg I made some bucket seats out of the front bucket/bench seats of a dodge superbird, and started cutting down the interior bucket for mock up none of the interior is complete just getting it mocked up at this point i have a full custom interior planned for her

Share this post


Link to post
Share on other sites

Posted · Report post

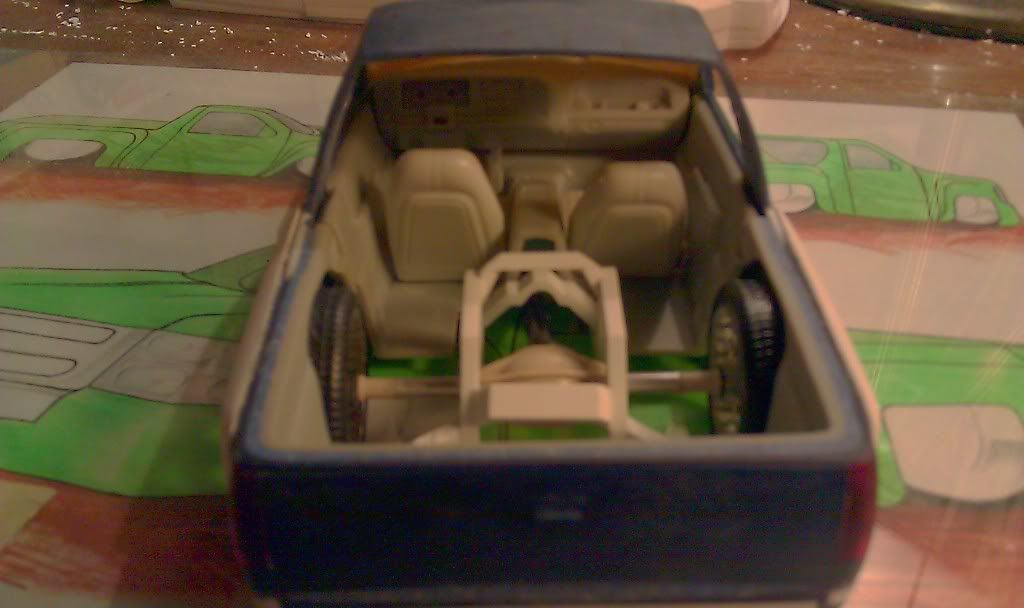

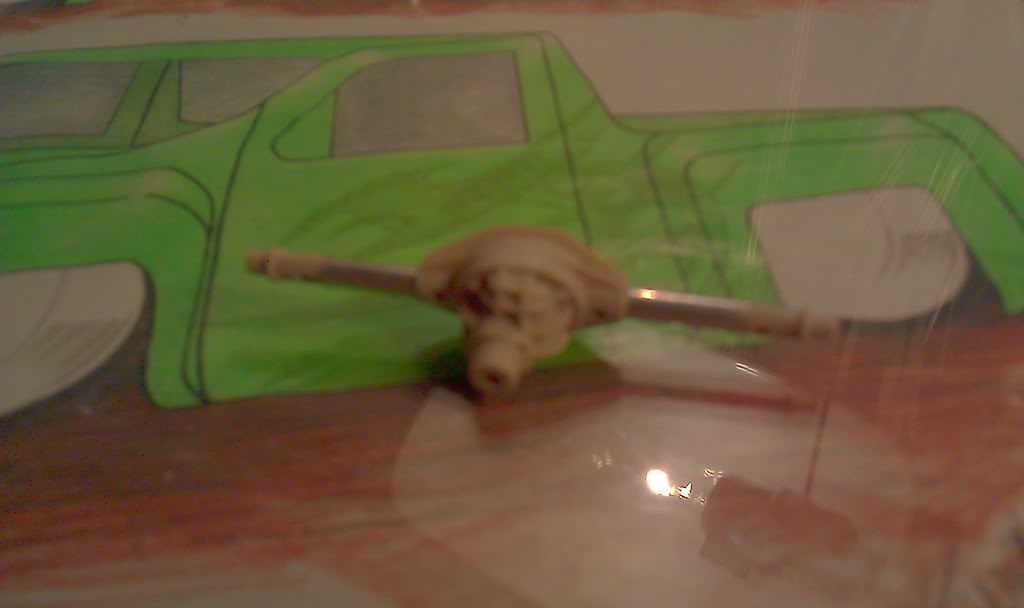

IMAG0546_zpsb7f8aa62.jpg IMAG0547_zpsc1db92e1.jpg this is the rearend i widened the pro street rearend out of the same superbird kit the seats came out of,and a shot of everything so far mocked up together

Share this post


Link to post
Share on other sites

Posted · Report post

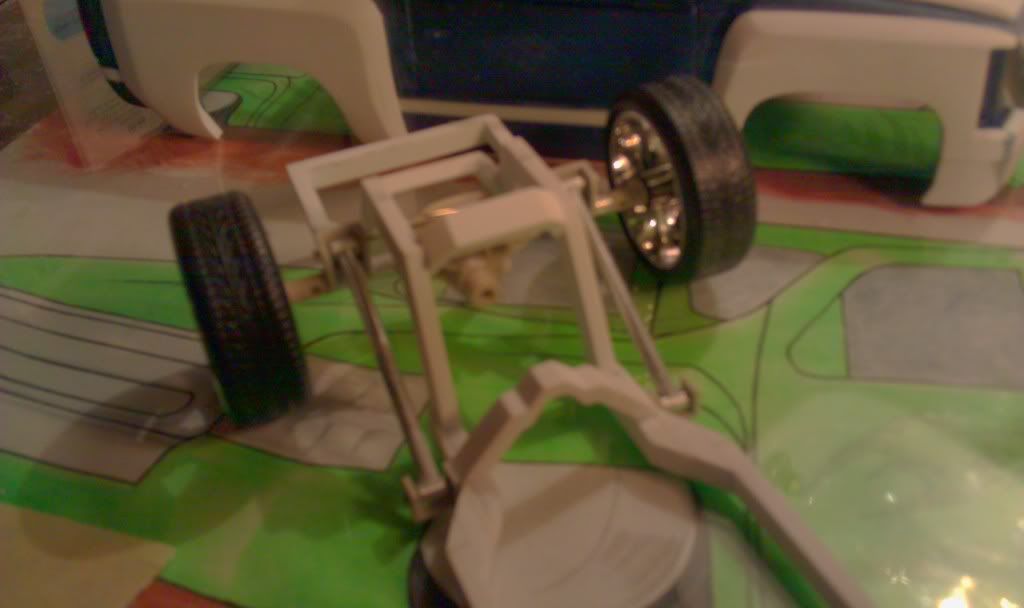

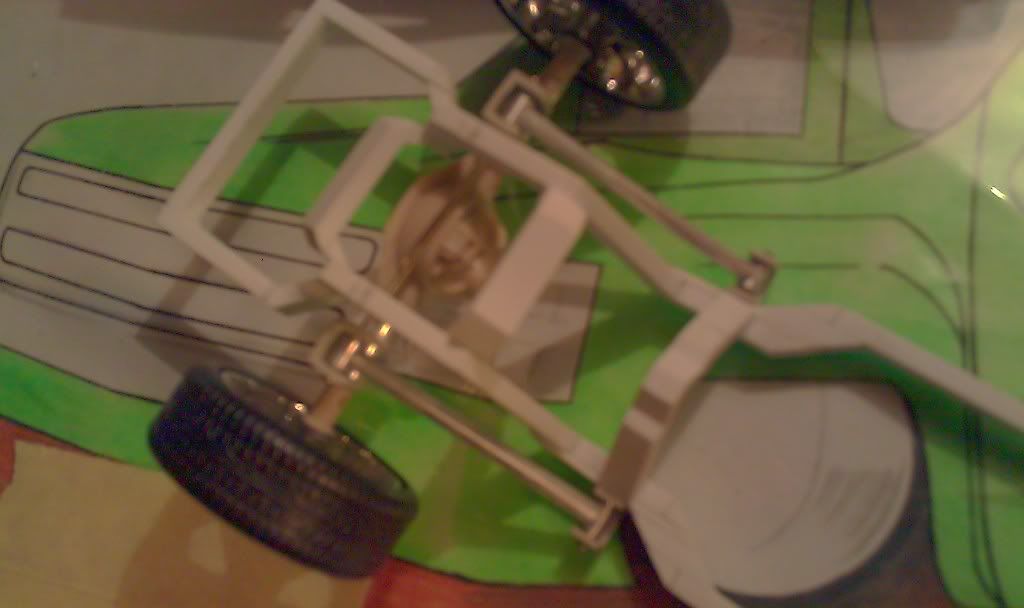

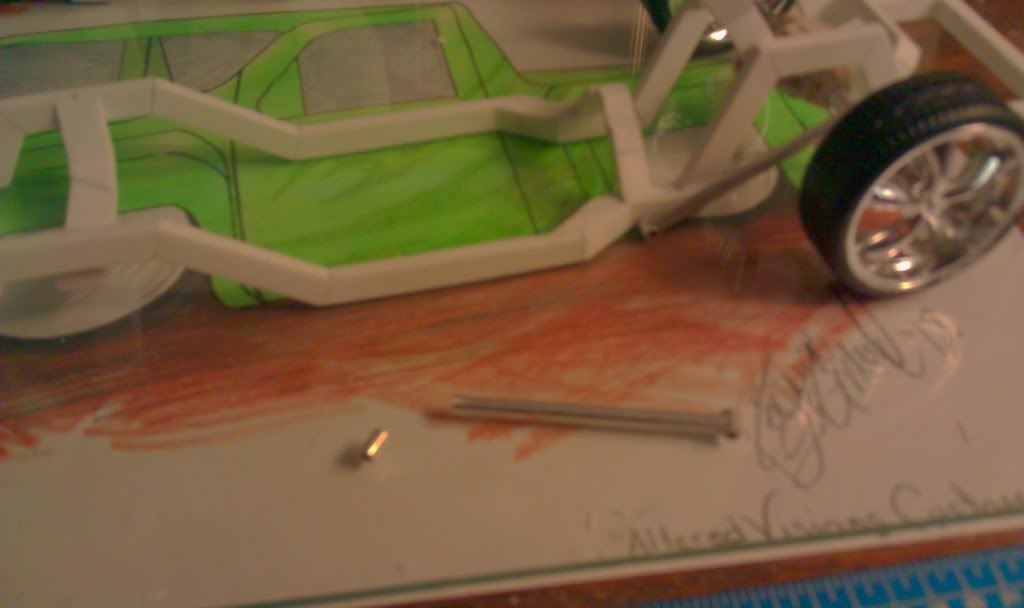

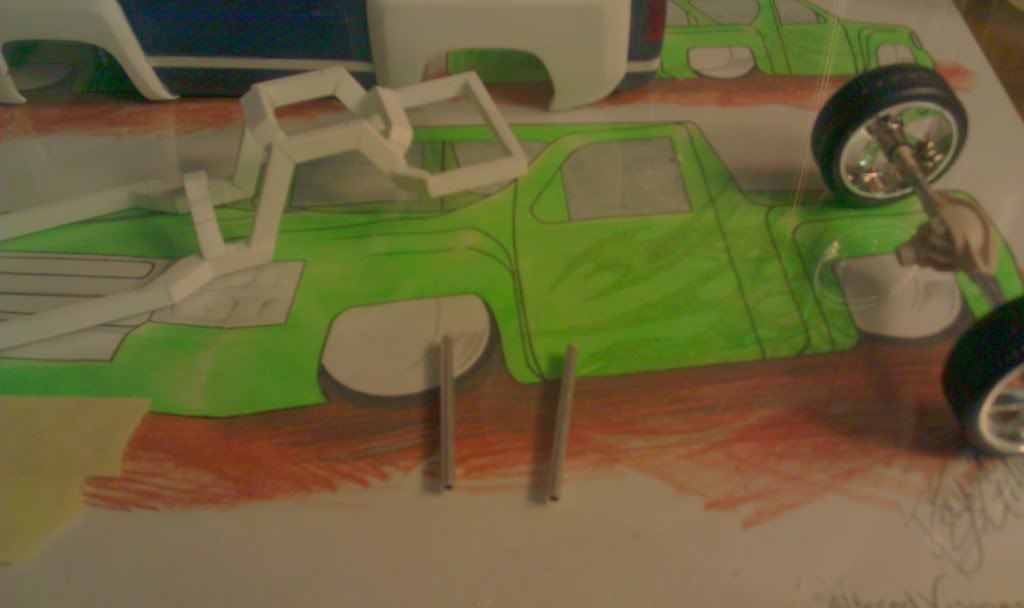

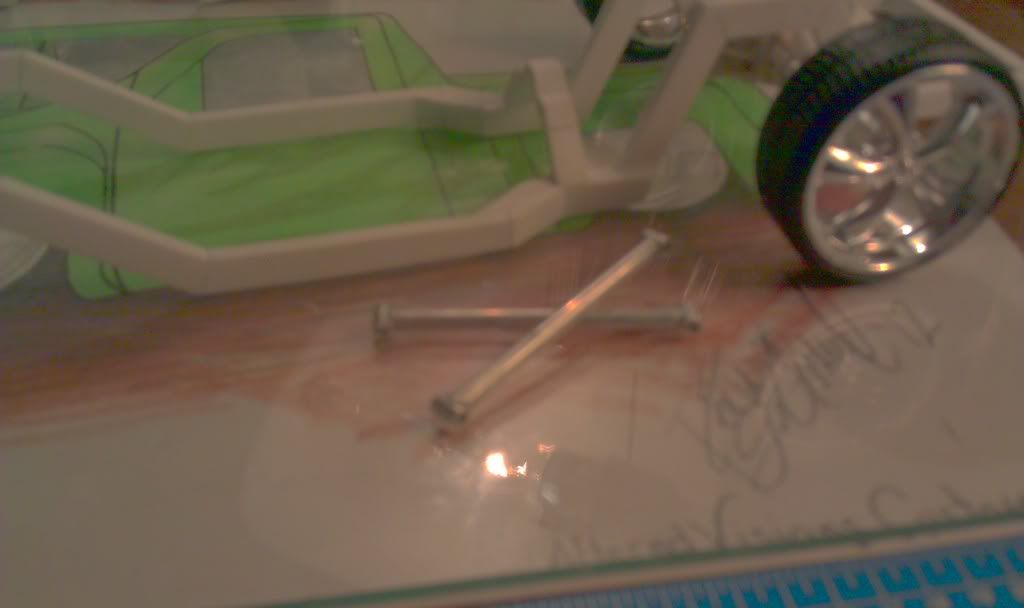

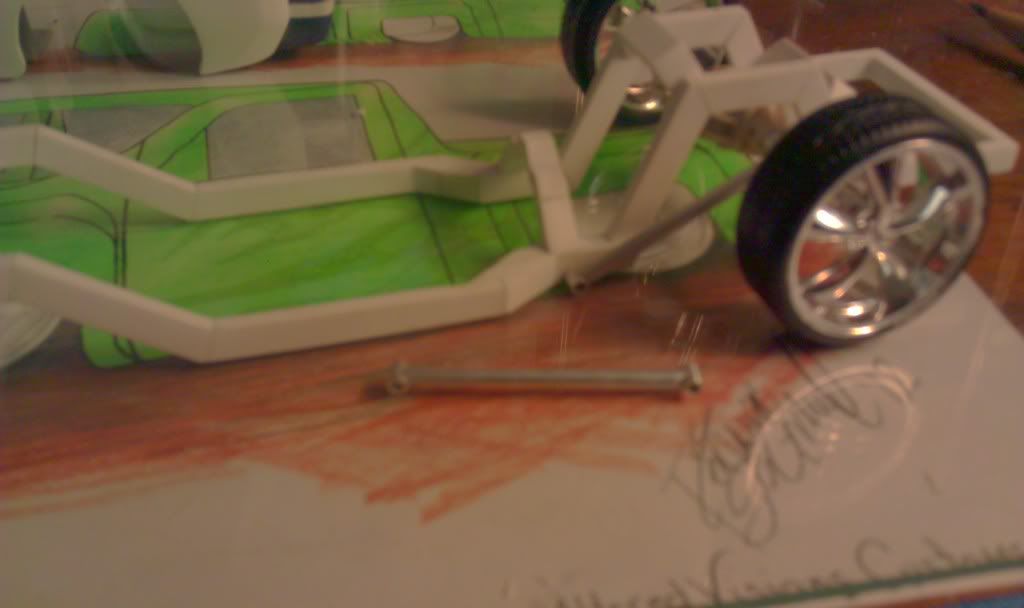

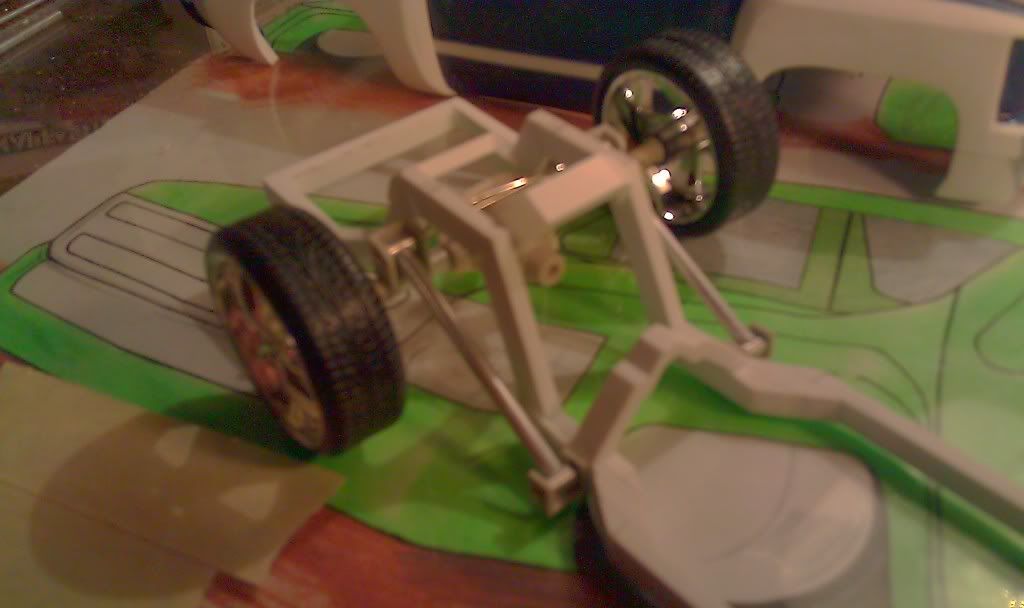

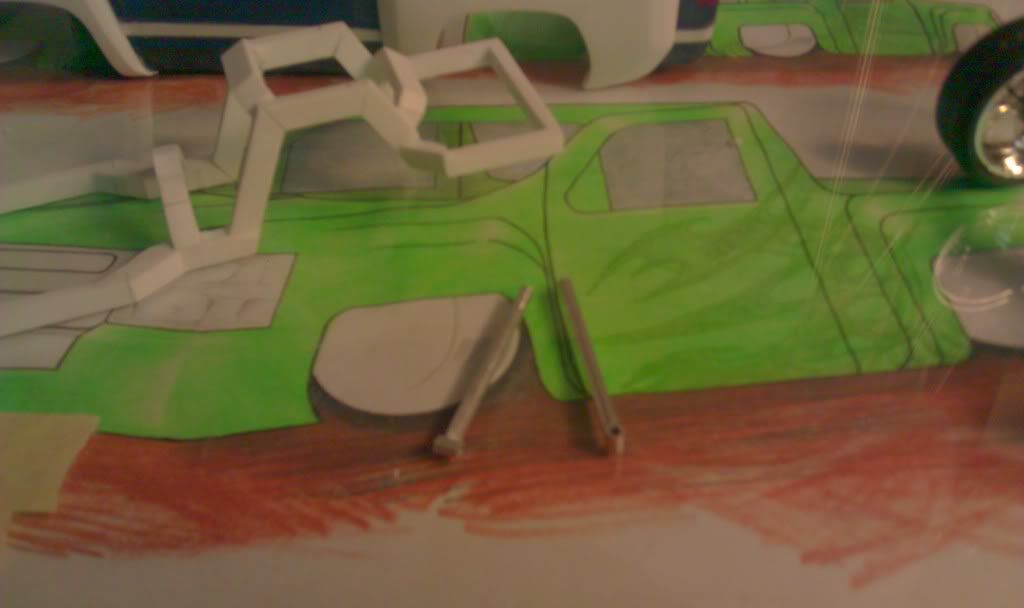

IMAG0556_zps02f525f2.jpg IMAG0557_zpsb80faf62.jpg IMAG0558_zps80abce37.jpg IMAG0559_zps32e3a34c.jpg IMAG0560_zps4fc73ad4.jpg IMAG0561_zps9f336232.jpg IMAG0562_zpsa29c94cd.jpg IMAG0563_zpsb1e2c49a.jpg this is how i made the lower bars for the triangulated four-link,I made them out of aluminum tubing and the brackets are made out of square styrene tubing

Share this post


Link to post
Share on other sites

Posted · Report post

And WOW again!!! Nice frame. I'm not a lowrider type person, but I really like the you're doing, Ben.

Thanks man ive always had a passion for slammed vehicles

Share this post


Link to post
Share on other sites

Posted · Report post

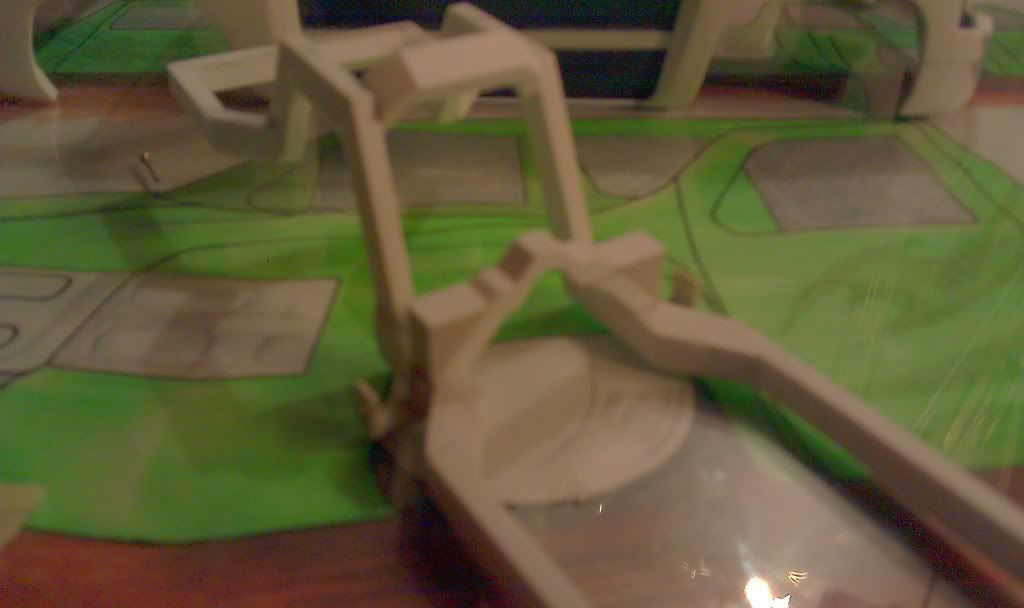

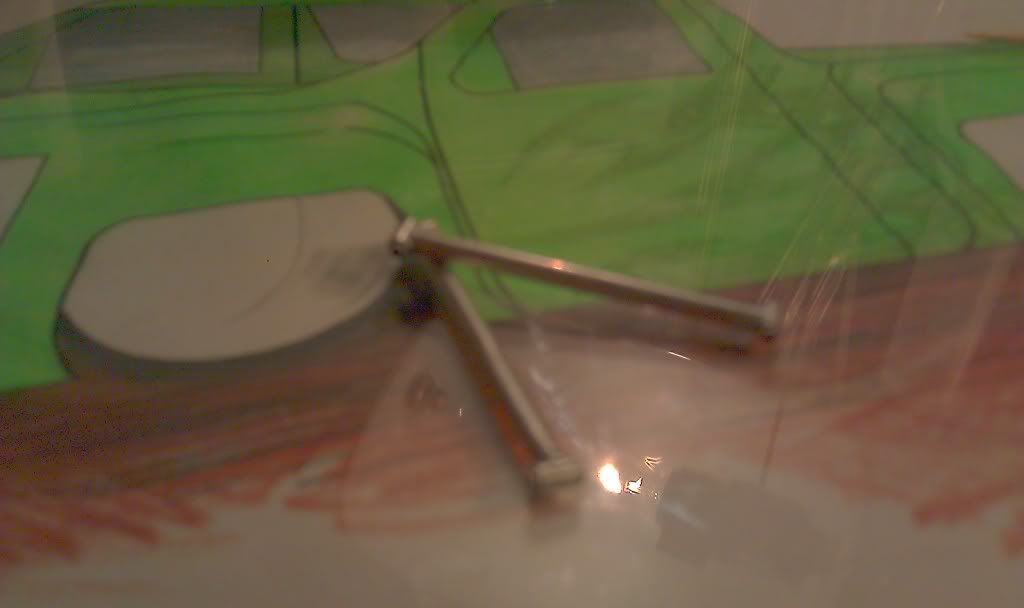

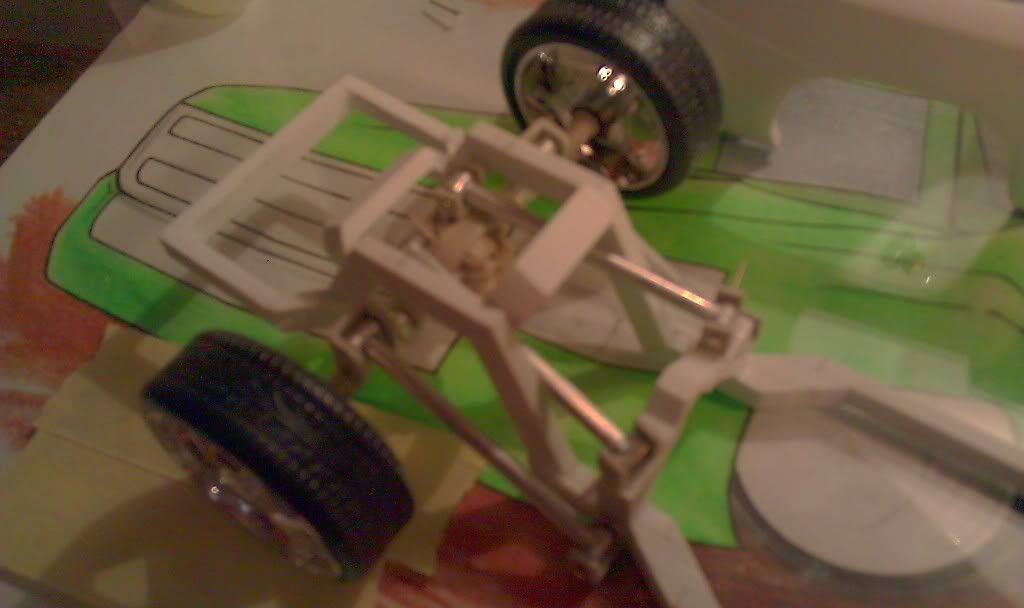

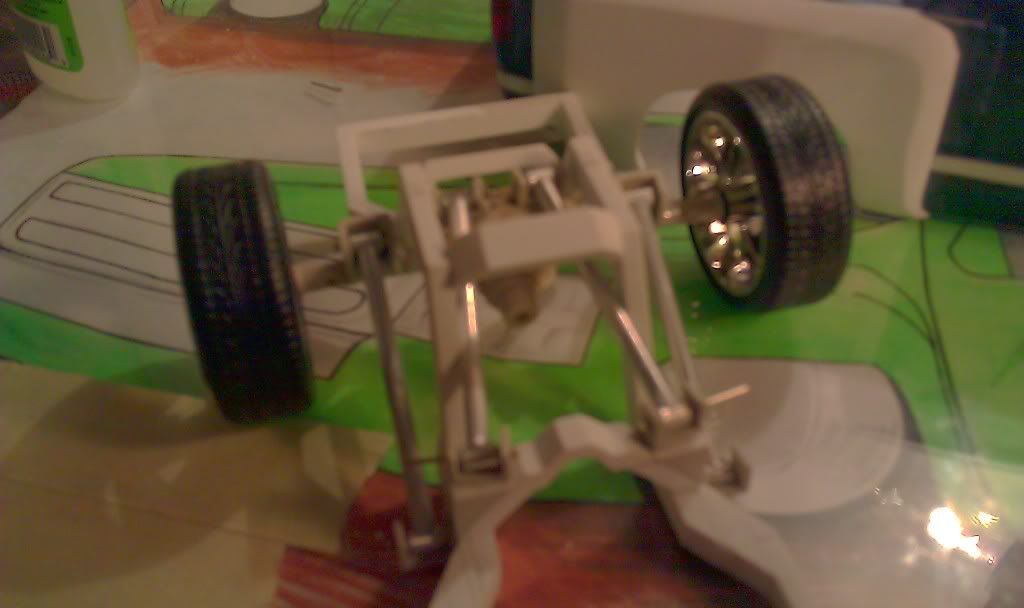

IMAG0567_zps1298ac60.jpg IMAG0568_zpsdf2d9b73.jpg IMAG0572_zps86356ab8.jpg IMAG0573_zpscefdddab.jpg this is the upper bars for the four-link,I had to make a perch for the forward brackets out of square tubing and sheet styrene everything is just bein held together with pins right now but will have scale hardware holding it when done
