Well, I've got 2 of these 1/16th butt ugly MPC "Street Chargers", a 1/16th "Dukes of Hazard" Charger, a "Richard Petty" 1/16th Nascar Charger (clear body), and a "Buddy Baker" 1/16th Nascar Charger.

I've traded the vintage Buddy Baker kit to a pal.......I'm going to toss the other 3 in a large paper bag with a tube of glue, shake 'em up real good and see if I can get at least one bad ass street machine to fall out!

Think I'll start with the engine (Hemi of course). Textured the block to look like cast iron, let's go with aluminum heads and anodized valve covers.



Edited by GrandpaMcGurk

Share this post


Link to post
Share on other sites

Posted (edited) · Report post

A bit of assembly, weathering & paint...


Edited by GrandpaMcGurk

Share this post


Link to post
Share on other sites

Posted · Report post

The 426 Hemi that comes with these MPC kits is pretty well detailed to start with (even has a few internal parts), however, I just can't seem to be able to build anything OOB or leave well enough alone....call it a character fault if you like. Anyway, on with the dog & pony show.

I scratch built a clutch can (hydraulic clutch) to replace the stock bell housing, modified the kit distributor to fatten up the sparker, fabricated a blower belt tensioner (the kit doesn't have one...shame on them), and fabricated a girdle for the bottom end. Added the lower injection lines (gonna have to replace these kit pices as they are pretty clunky looking).

The kit supplied plug wire may be fine for most folks but they are so heavy (thick) they hurt my face).

After all...we all know that plug wires aren't the same thickness as battery cables right?

Did some detailing, tweaking and more weathering...this ain't no trailer queen, I want it to look like it's been run a few times. Keep in mind these are large photos and the engine is only 1/16th. Making the wire looms, plug boots, etc. was really straining my tired old digits & orbs.






Share this post


Link to post
Share on other sites

Posted · Report post

The molded plastic lines that came with the kit were too toy like......so I removed them and made my own, along with some fittings and a blower intake for a couple of double pumpers ( yes...the kit carbs looky funky.....I'll tweak them when I get a little futher along).

Still have to add fuel lines, oil pan & some more plumbing but it's getting there.




Share this post


Link to post
Share on other sites

Posted · Report post

According to this guy......


This is a suitable platform for a Hemi powered street monster (unmolested kit part).........



Well, that ain't gonna happen. This car would twist up like a pretzel running that much H.P. without a full roll cage to hold the rear sub frame to the front. This is a street car and it would be nice to be able to open the door to get in without having to crawl thru the drivers window right?
All that aside, I'm going to be running some really wide meats on the rear and I certainly don't want half the tire hanging out of the wheel well with the rear jacked up so high it needs it's own zip code.

The pics show the rear tire I'll be using sitting in the unmolested pan.....as you can see, I'm going to have to tub the pan, fab a rear half (frame) and narrow the rear.

Share this post


Link to post
Share on other sites

Posted · Report post

Looking good, Don. Anxious to see more of your incredible work.

Share this post


Link to post
Share on other sites

Posted · Report post

Looking great so far. I built the General kit and liked it a lot even with all of its shortcomings.

Share this post


Link to post
Share on other sites

Posted (edited) · Report post

Actually Josh, if you look at all the 1/16th MPC Dodge kits as a sum of thier parts rather than what the various box art scenes depict, you're getting a fair amount of bang for your buck. Sure the later kits have a lot of flash and ill fitting parts not to mention the tired worn out, altered dies they using.....after all, who wants a NASCAR chassis with drum brakes under a 70's custom street machine?

Point is........with a little kit bashing and a touch of scratch building.....there are some really cool builds hiding in those boxes, it just depends on how you arrange the parts.....right?

Edited by GrandpaMcGurk

Share this post


Link to post
Share on other sites

Posted · Report post

Let the butchering begin........




Share this post


Link to post
Share on other sites

Posted (edited) · Report post

Havin' some fun now huh?

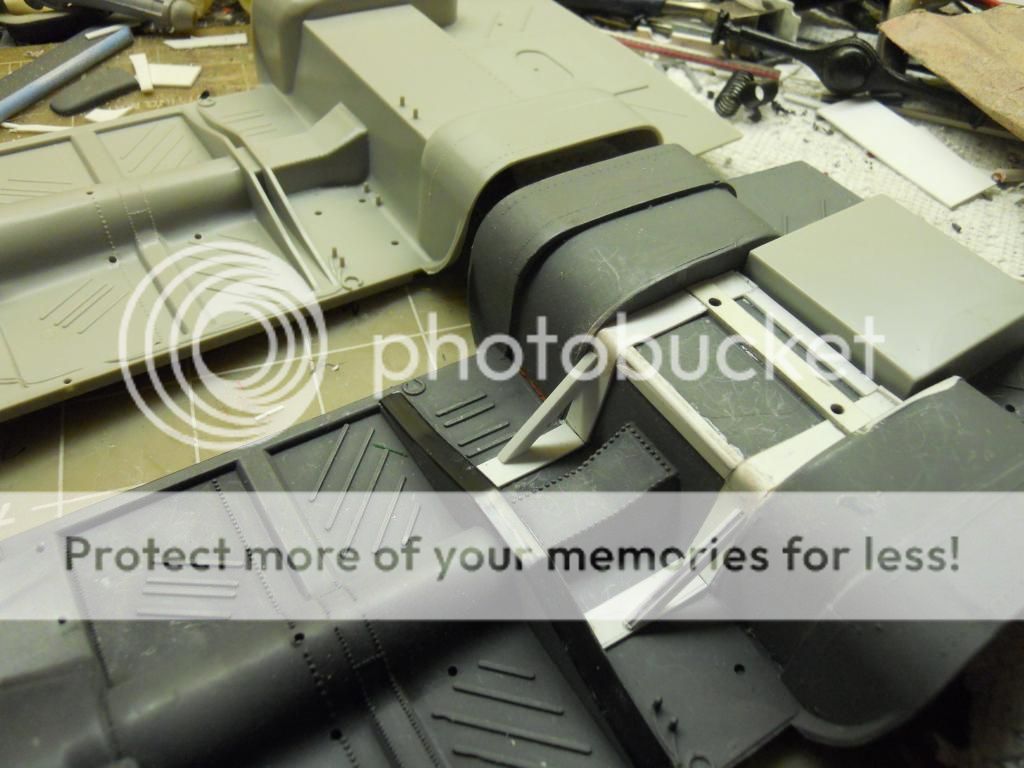

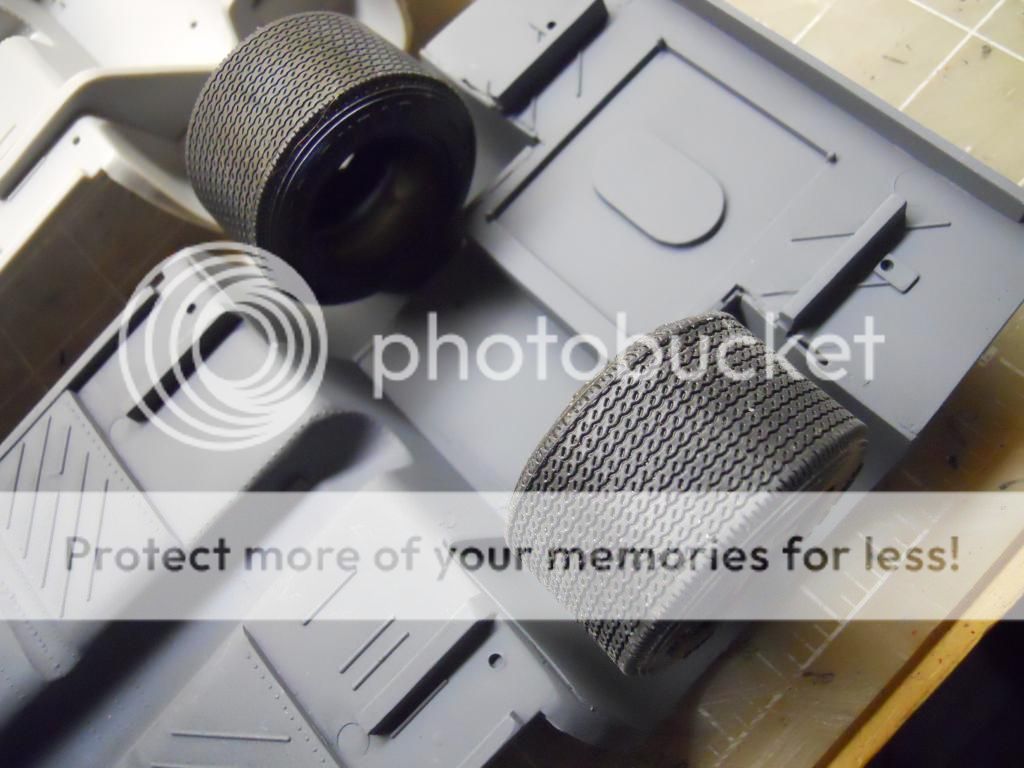

Here's a pic of the kit chassis with the big mutha rubbers in place.....not cool!

I'd need curb feelers with this set up!


Edited by GrandpaMcGurk

Share this post


Link to post
Share on other sites

Posted (edited) · Report post

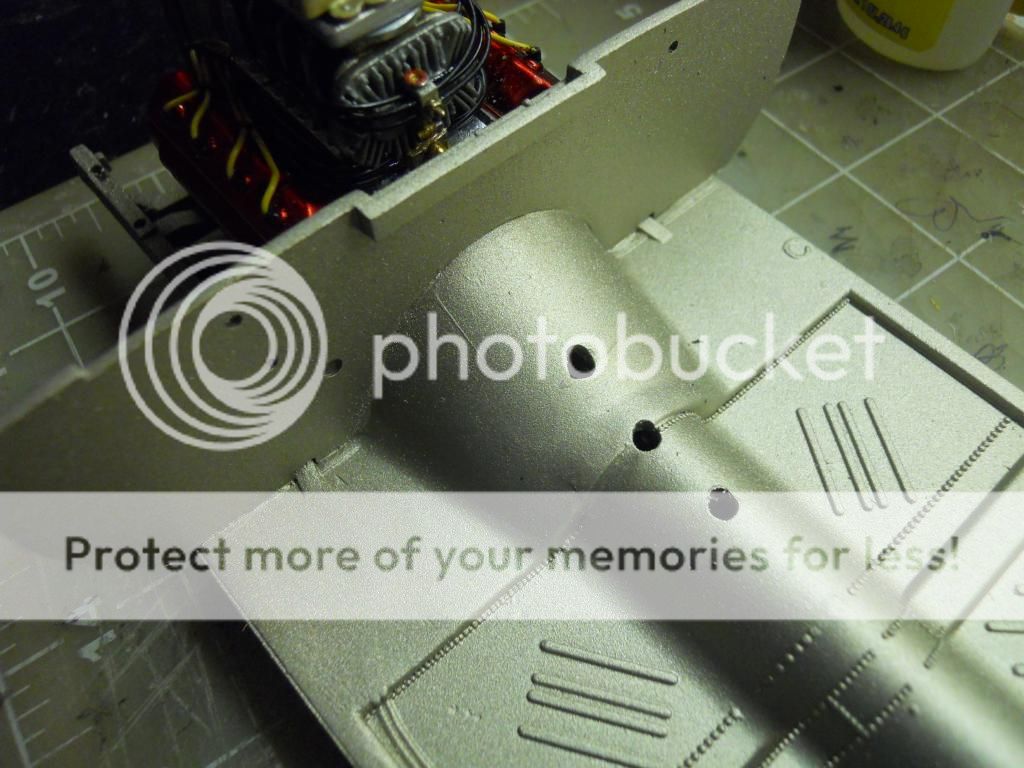

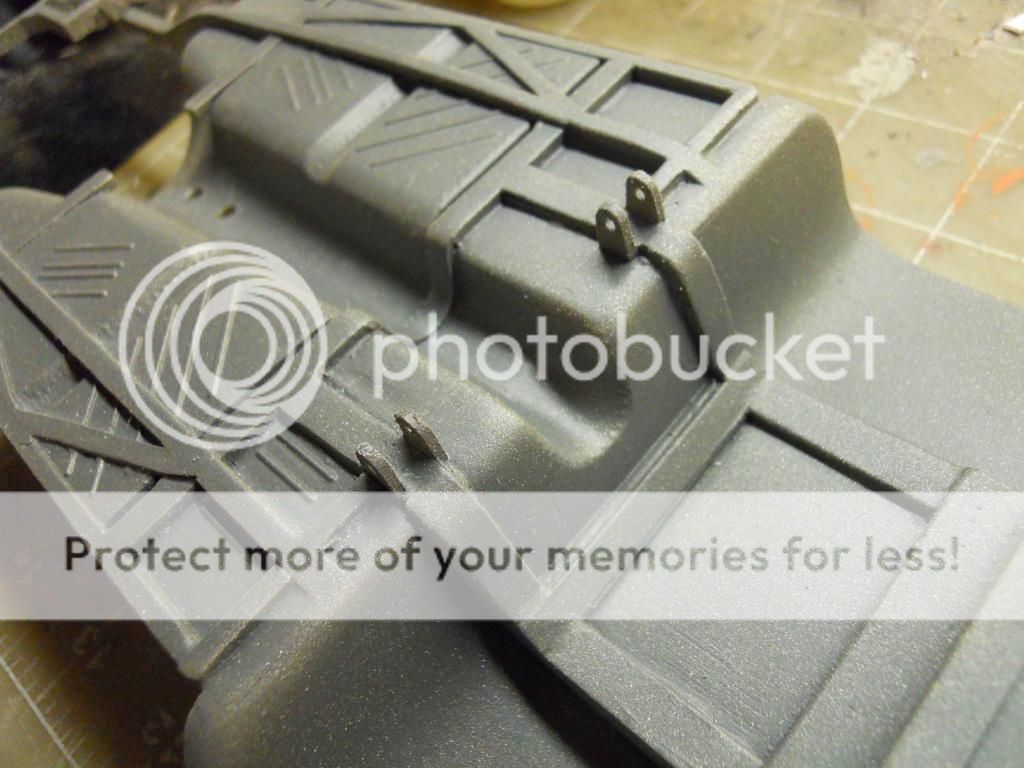

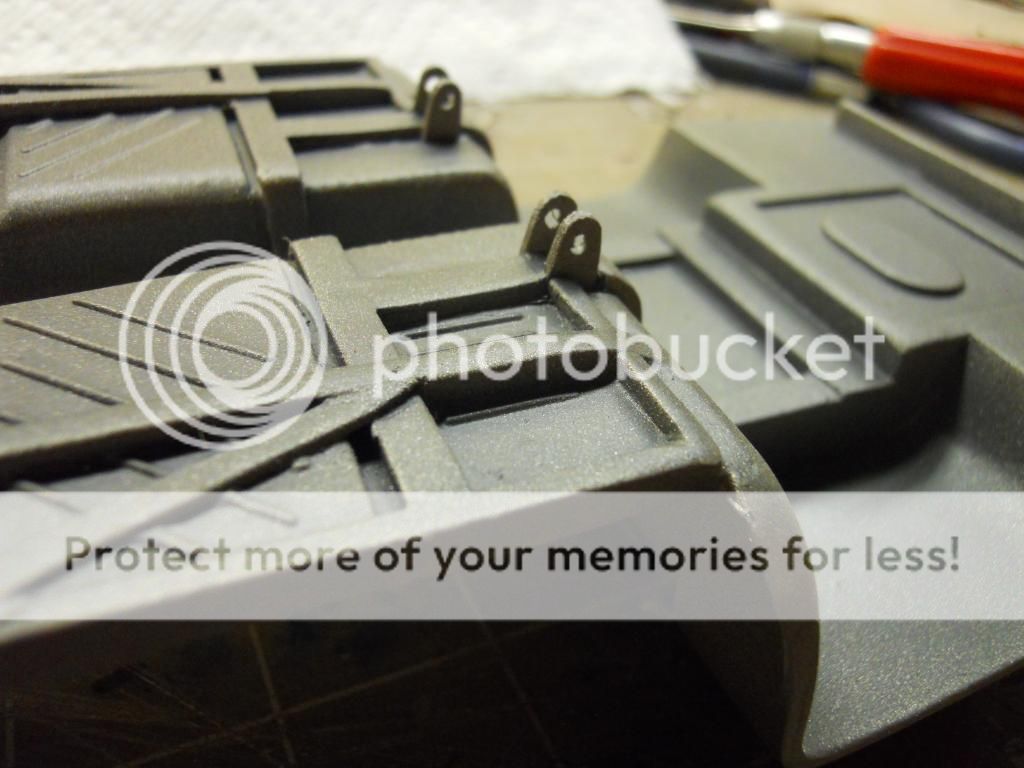

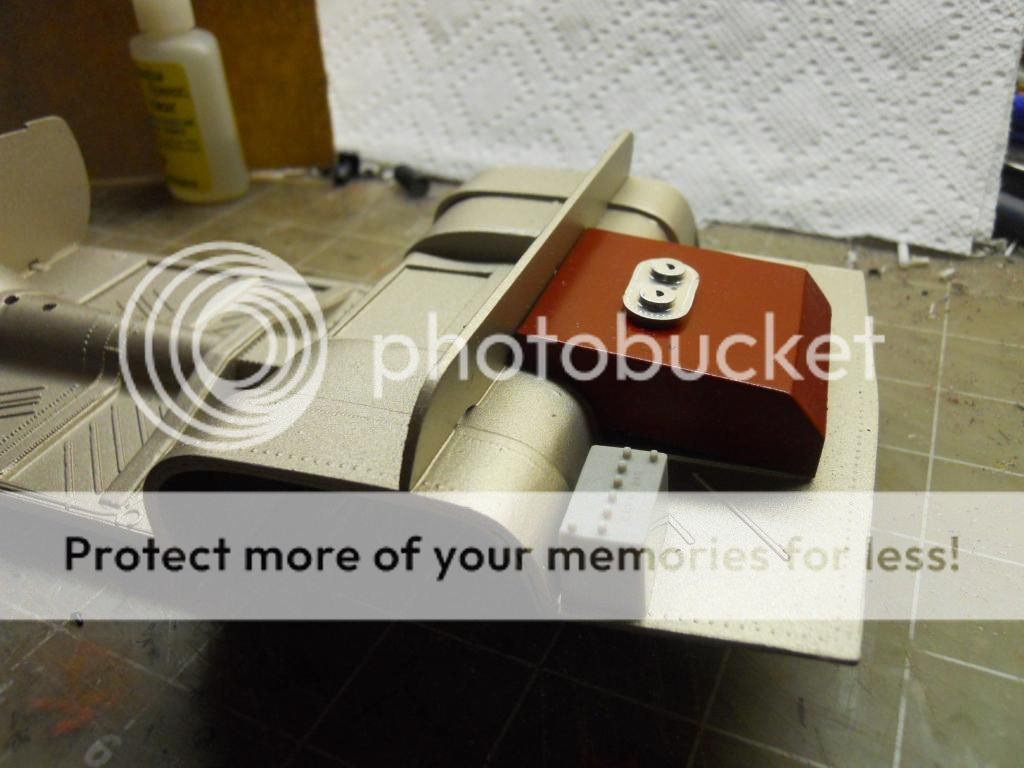

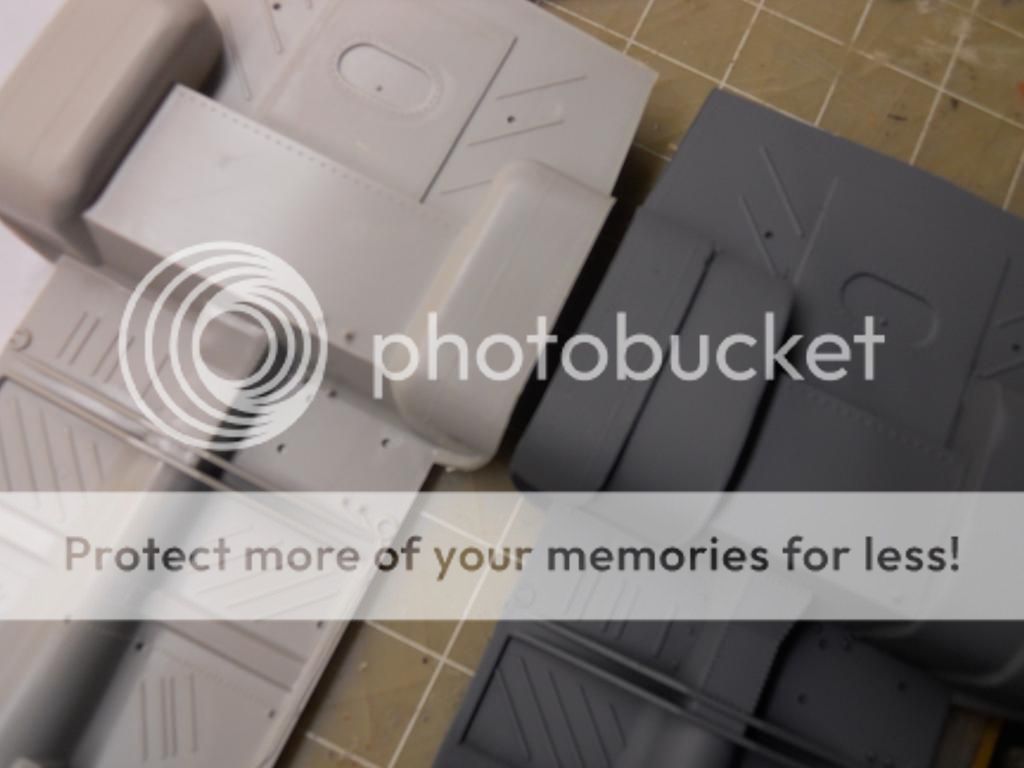

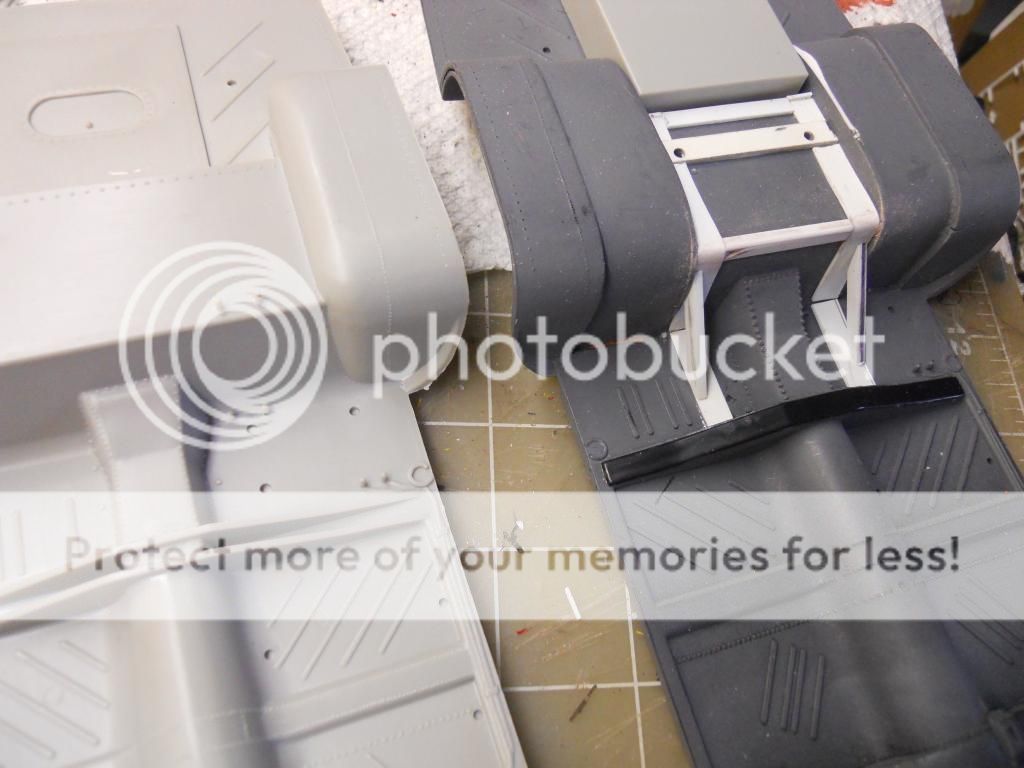

Here's a few shots of the tubs I fabbed up compared to what came in the box, gotta do a little filling and sanding but you'll get the idea....





Whoopeeeee......this last mock up pic puts a smile on my mug....all the rubber will fit inside the the body.


Bye, Bye leaf springs!

Edited by GrandpaMcGurk

Share this post


Link to post
Share on other sites

Posted (edited) · Report post

nice work on the engine and chassis! Are you going to cut off the remains of the rear sub frame and scratch new ones?

BTW thank you for your service!

Edited by Dragfreak

Share this post


Link to post
Share on other sites

Posted · Report post

nice engine work very realistic

Share this post


Link to post
Share on other sites

Posted · Report post

It looks like your off to a good start Don.

On this kit i hear folks say it is such a bad kit.

Just what is the problems with it?

Share this post


Link to post
Share on other sites

Posted · Report post

Very NICE so far!! :D

Share this post


Link to post
Share on other sites

Posted (edited) · Report post

nice work on the engine and chassis! Are you going to cut off the remains of the rear sub frame and scratch new ones?

BTW thank you for your service!

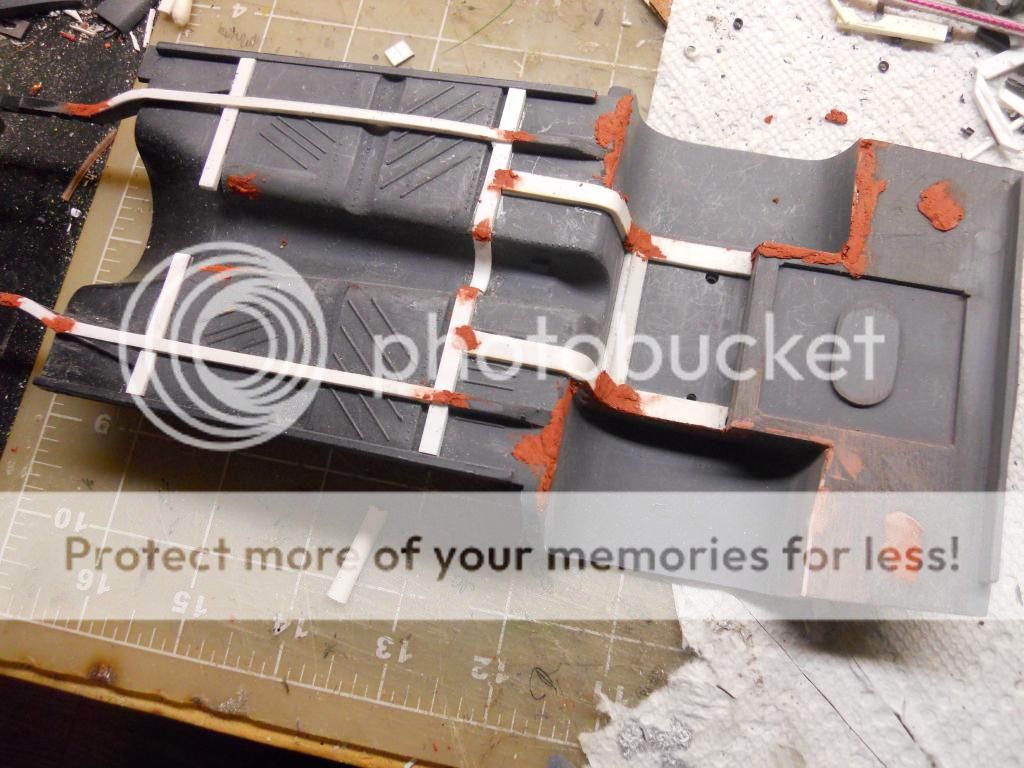

Jason, ordinarily I would cut off the rear section of the pan and scratch build and new "rear half" frame..add some frame connectors and call it a day but then I'd have to go back and fit all new "sheet metal" to replace what was cut off.

However...on this model I'm going to take a somewhat different approach, I'll be adding the lower half of the frame to the bottom side of the pan and then flip it over and add the upper half to the top side.

With any kind of luck it, from the side it should appear the the frame sections are one piece with the sheet metal attached to it.



A little filler, some sanding, a few more braces and I can shoot a coat of primer on this thing....flip it over and get the front engine cage started.

Edited by GrandpaMcGurk

Share this post


Link to post
Share on other sites

Posted · Report post




Share this post


Link to post
Share on other sites

Posted (edited) · Report post

Squint at the pic and guess what this pile of household trash, washers, scrap tubing and half round is going to morph into.

Lencotrans001_zps67c98566.jpg[/url

Edited by GrandpaMcGurk

Share this post


Link to post
Share on other sites

Posted · Report post

Awesome!

Share this post


Link to post
Share on other sites

Posted · Report post

Here's a hint.........

Step 1.........disassemble.


Throw these 2 pieces (ink cartridge and wick) in the trash, if you're fussy about your personal appearance keep in mind they have permananet ink and will turn your didgits black...... :? .

d9672fb4-dc06-4699-9be8-bf053deb3262_zps

Share this post


Link to post
Share on other sites

Posted · Report post

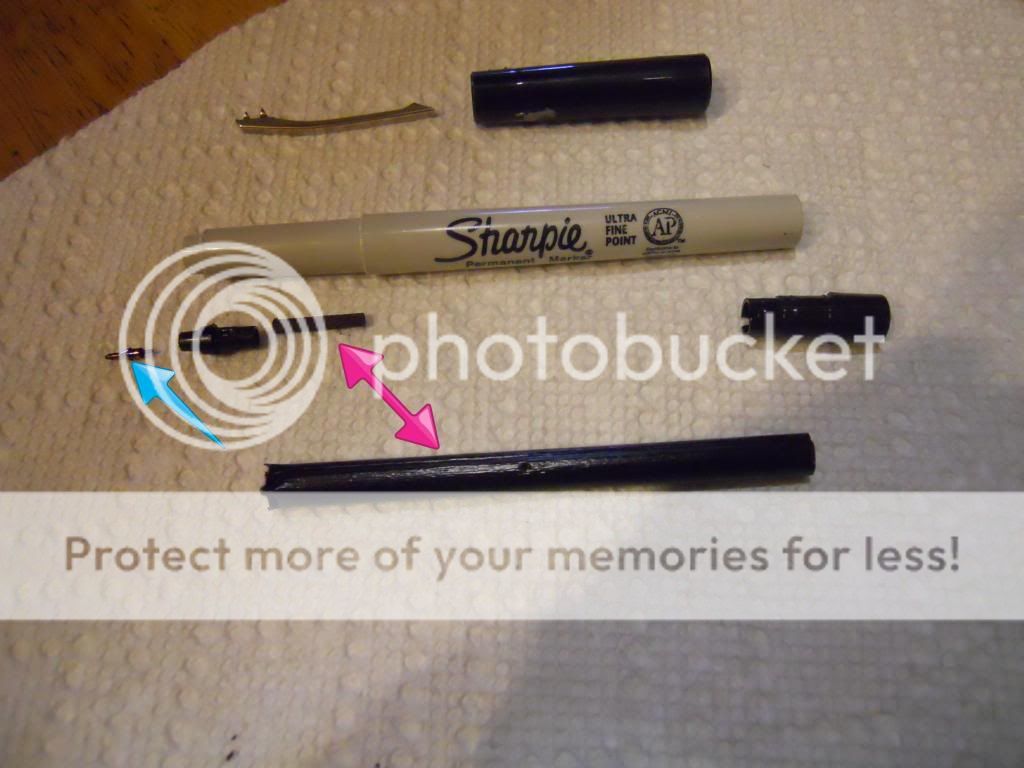

Look at the little bit indicated by the blue arrow, a touch of brass paint on one end, some black on the other with a touch of white (insulator) in the center and you've got a "FREE" metal detail freak spark plug for a 1/12 - 1/8th model engine. I usually buy the pens in bulk packs (do a lot of sketching) for a few bucks. Yeah, I live in a world all my own.

ced9c2c4-8b7c-4e73-bd17-06ad001a6afe_zps

Share this post


Link to post
Share on other sites

Posted · Report post

Okay, 'nuff teasing.........the Sharpie will become a Lenco trans. I could just order one from TDR but I'm kit bashing, scratch building this car. I will however order a couple of juice bottles.

If you don't know what a Lenco trans is......each section is a different gear, you could have one with just 2 sections (2 speeds foward) or 6 sections depending on your application.
There is also a separate section (at the rear) for reverse. They can be shifted manually with individual levers (as in the photo) or hydraulically, air, 'puter, whatever.
I'll be fabbing up a facsmile 3-speed w/reverse using manual linkage (just 'cause all those levers look absolutely rad. on a street machine).

The only drawback to it is it's length, being I'm not using a rear seat I can simply move the seats back a little to put the shift levers within easy reach.
Gives the term "banging thru the gears" a whole new meaning...heeeee!


Share this post


Link to post
Share on other sites

Posted · Report post

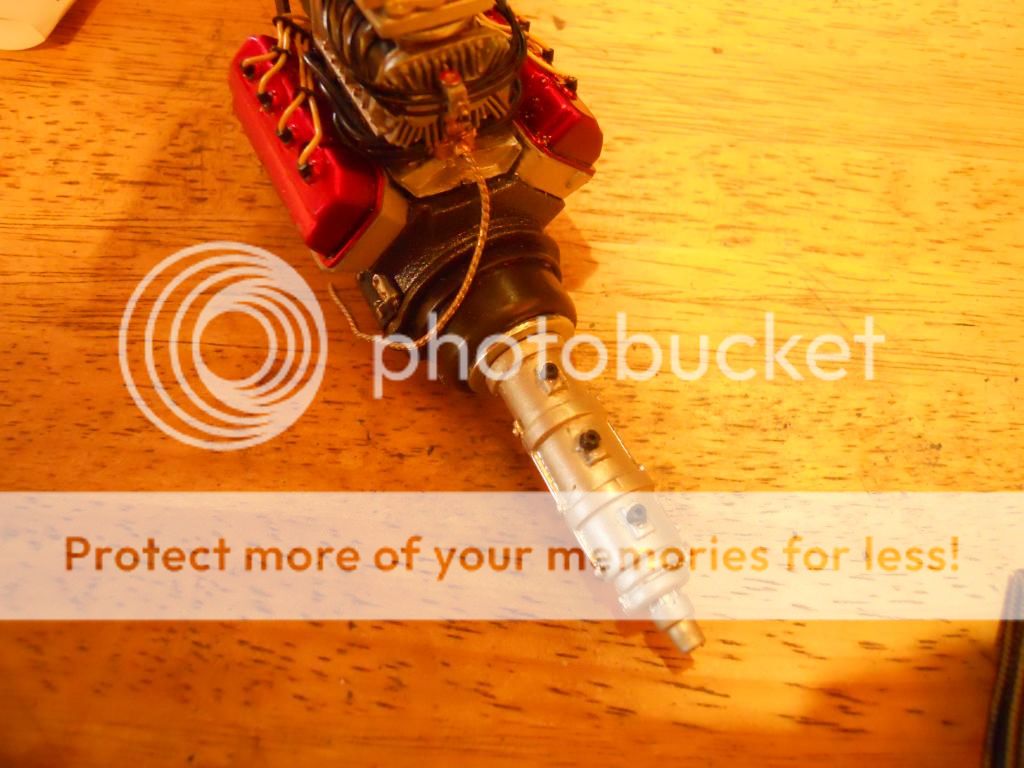

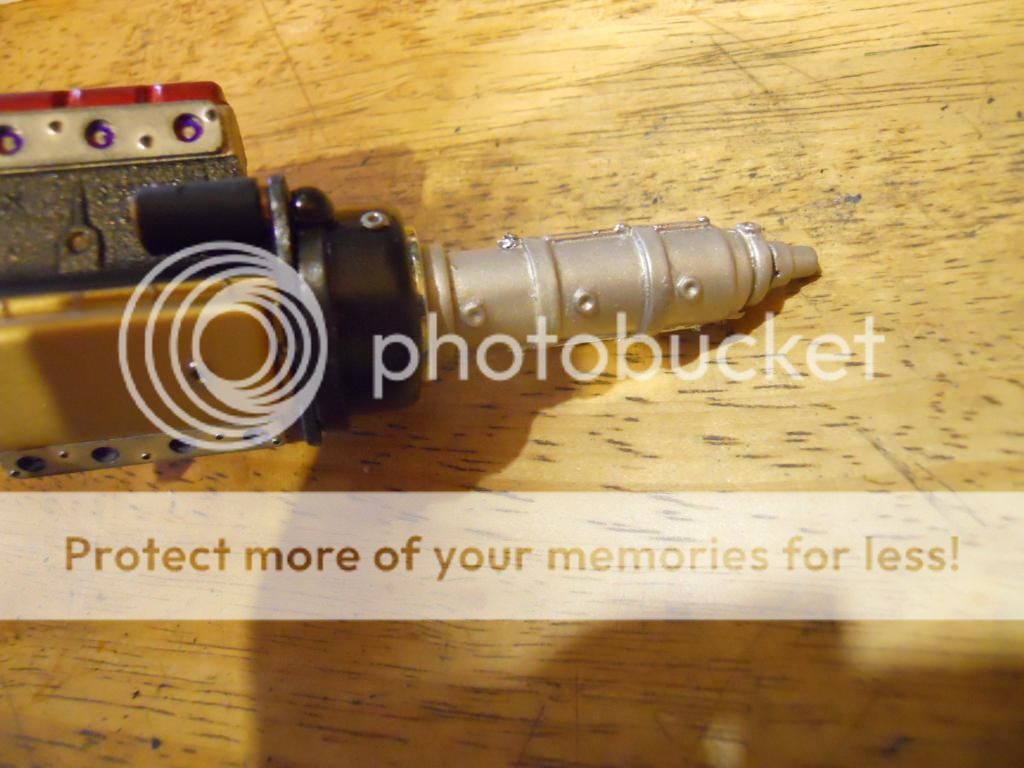

Haven't done the linkage yet and it needs some clean-up but here a couple shots of the "Sharpie" Lenco.




Share this post


Link to post
Share on other sites

Posted (edited) · Report post

Yep....It's going to have working front and rear suspension......



Edited by GrandpaMcGurk
