1974 Econoline

66 posts in this topic

Posted · Report post

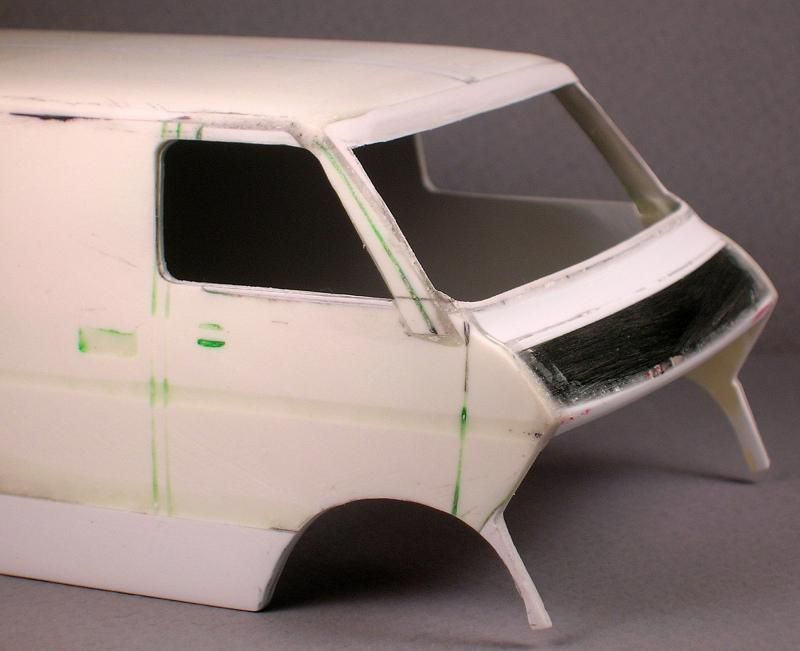

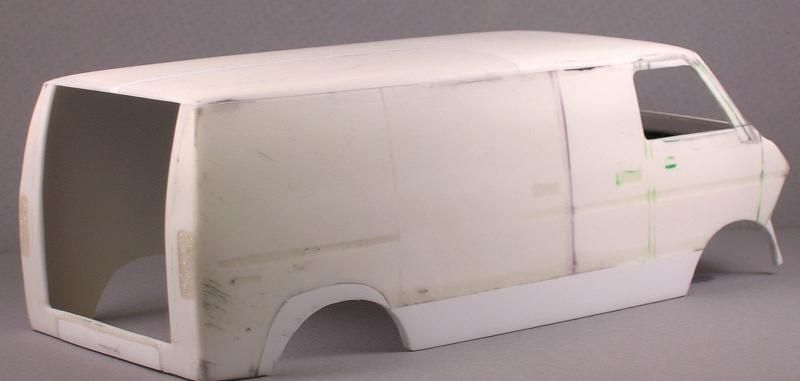

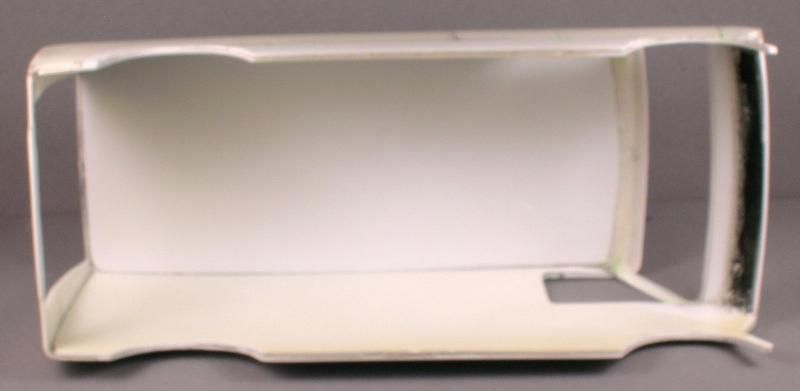

I'm working on a 1974 Econoline. The shape has been roughed in, detailing to come. Since I want more than one :rolleyes: , I am going to see about having this cast. I have a caster in mind who I think would be happy to do this one. The bottom view is to show that I'm trying to keep the inside nice in case a builder would want to detail it. I'll post more as more gets done.

Econoline74_zps1f7a9e9d.jpg?t=1375553399

Econoline741_zps22a870da.jpg?t=137555339Econoline742_zps978f8229.jpg?t=137555339Econoline743_zpsf3994af3.jpg?t=137555340

Share this post


Link to post
Share on other sites

Posted · Report post

This is a great start to what could become a very popular item. I'm surprised no manufacturer ever (?) issued a kit of this van.

Keep up the good work!

Tony

Share this post


Link to post
Share on other sites

Posted (edited) · Report post

MPC did as the Wizard if Iremember right it was 1/20 a tad bit big Get it cast PLEASE !!!!!!! check out 70's Custom van CBP in the fourms

Edited by b_lever1

Share this post


Link to post
Share on other sites

Posted · Report post

Tom, if you're doing this one in the 1-24th scale , I'm definitely interested in buying several of these vans . I'm scared off by resin prices usually. With a "Bull Nose " Ford , I'm going to borrow the money if I have to own the several vans I have enjoyed over the years with this body style .

Share this post


Link to post
Share on other sites

Posted · Report post

nice work tom! i had one of those in high school. my girlfriends grandad wouldnt let her go out with me if i came over in it. i had to pick her up my my 64 comet, then go home and get the van :)

Share this post


Link to post
Share on other sites

Posted · Report post

Tom, if you're doing this one in the 1-24th scale

Looks like it's based on the 1/25 AMT '75-1/2 Ford van. :)

Share this post


Link to post
Share on other sites

Posted (edited) · Report post

Tom, if you're doing this one in the 1-24th scale , I'm definitely interested in buying several of these vans . I'm scared off by resin prices usually. With a "Bull Nose " Ford , I'm going to borrow the money if I have to own the several vans I have enjoyed over the years with this body style .

I guess I could have mentioned the scale. Sorry about that. It's 1/25.

Edited by Repstock

Share this post


Link to post
Share on other sites

Posted · Report post

Tom, if ya do this one in resin, be sure an LET ME KNOW ASAP!!!!!!!!!!! . This is one resin body I will buy and probably more than one too. IO used to have a 70SWB, a 69 LWB E-300, a 70 SWB display side , and a 73 SWB with a slide side , first year they did one . Now If I could find a Rust free SWB with a 240........................

Share this post


Link to post
Share on other sites

Posted · Report post

Another great one in the works, I could be interested in a resin copy too!

Share this post


Link to post
Share on other sites

Posted · Report post

Looks like it's based on the 1/25 AMT '75-1/2 Ford van. :)

I'm thinking its basis is actually the AMT Chevy Van ... ;)

Share this post


Link to post
Share on other sites

Posted · Report post

I'm thinking its basis is actually the AMT Chevy Van ... ;)

Looks more like he started w/ the AMT Ford van...you can see the side crease and taillight shapes in the 2nd pic...

Share this post


Link to post
Share on other sites

Posted · Report post

A very fine addition to the resin world. I'm sure it will do well in sales. I'll be sure to track one down, too.

Share this post


Link to post
Share on other sites

Posted · Report post

Looks more like he started w/ the AMT Ford van...you can see the side crease and taillight shapes in the 2nd pic...

Hmm ... I definitely see that its rear clip does have the E-Van's characteristics to it . I was basing my assessment upon the front clip ; doesn't its doors and slider look like the Chevy van's ? Look at the recessed door handles on both .

So , yeah , probably a conglomeration of two kits .

Cool , no matter what !

( BTW , I would love to get my mitts on one of the MPC 20th scale E's , as long as its factory stock building options are present !)

Share this post


Link to post
Share on other sites

Posted · Report post

This is a great start to what could become a very popular item. I'm surprised no manufacturer ever (?) issued a kit of this van.

There was one done in 1/20 scale as the Ironsides van. There was also the below diecast in 1/24 scale...


Share this post


Link to post
Share on other sites

Posted · Report post

Tom, I see you have one of the 1-24th scale Ford Econolines Wal Wurl sold several years back.. I stripped the paint on mine cause I thought the graphics were kinda cheesey. Overall, the details were actually very nice . The interior was strange with the large Bench in back though ...........

Share this post


Link to post
Share on other sites

Posted · Report post

Tom, I see you have one of the 1-24th scale Ford Econolines Wal Wurl sold several years back.. I stripped the paint on mine cause I thought the graphics were kinda cheesey. Overall, the details were actually very nice . The interior was strange with the large Bench in back though ...........

Ed, yes I have one and just haven't gotten around to doing something with it yet. When I bought it there was a shelf full of them. If I had known they'd be scarce I would've bought them all.

Share this post


Link to post
Share on other sites

Posted · Report post

I bought one of those too, but mine has entirely different cheesey graphics.


It's kind of primitive, but everything opens.


-MJS

Share this post


Link to post
Share on other sites

Posted · Report post

There was one done in 1/20 scale as the Ironsides van. There was also the below diecast in 1/24 scale...


It doesn't look too bad except for those roof ribs. They should be indented, not sticking up. The body is also very tall compared to it's length and width. Finally, and on a die cast this is probably too picky, but there's no twin I beam front suspension, it looks like a Chevy van front suspension. That's no worse than the Hess (GMC) training van, which shows the two rear axles as differentials with drive shafts. The van depicted was front wheel drive.

There's no denying this Ford die cast has a certain coolness too it, though. (Cheesy graphics excluded, of course).

Share this post


Link to post
Share on other sites

Posted · Report post

Tom, probably the true reason behind the chassis engineering is on account of the same company doing a 1971-3 Chevrolet Van at the same time they were doing the 69-74 Ford . Width wise , there were relatively close . I think it's interesting that they chose to do the "Slide side option as it really didn't catch on until the "Super- Snoot", uh 76-91 versions appeared . Oh sure , sliding doors were available from Ford . Chevrolets lousy dual action latches made a lot of , ( MY CUSTOMERS ) livid at the fact that the side door mechanism would break . This was especially true in the very early years of the "Door Extenders ", a product that was mandatory on Chevrolet vans with any kind of a wide tire . If you wanted the Fiberglass flares which I manufactured , yes, you had to run them .

Now Tom, are you going to do this van with a 240 six or the 302 V-8? I ask over the fact that there were TWO different Motor boxes that were used . The V-8 box was pointed at the rear and a good four inches shorter over all and came up a little shorter than the six . The six box was set out to allow the driver a greater access than the passenger side , was flat at the rear and was overall somewhat more vertical because of the length of the block and the height . Don't forget too, that the dash was designed two ways as well. The vans WITH a radio had a open slot beneath the radio . Vans without a radio could have had a lockable glove box . In addition, the 69-74 Ford Econolines also were the last to offer a "Flip- Fold " passenger seat too. These were a not too comfortable "Jump seat " with the ability to allow one to fold the back forward and then lift up slightly and fold it so as to allow a long load on the passenger side . Persons wishing air conditioning were treated to a somewhat abysmal set up where the driver got the A/C alright , on their side . There was also a very RARE auxiliary heater option too. It was located under the truck and on the drivers side . Also , in 1969-70, one could have ordered for the last time a Genuine Chrome FULL horn ring too !

I used to use my little known options at truck In's years ago when we would sit around a campfire getting sauced . Dodge also had some interesting quirks of options too.

Share this post


Link to post
Share on other sites

Posted · Report post

Tom, probably the true reason behind the chassis engineering is on account of the same company doing a 1971-3 Chevrolet Van at the same time they were doing the 69-74 Ford . Width wise , there were relatively close . I think it's interesting that they chose to do the "Slide side option as it really didn't catch on until the "Super- Snoot", uh 76-91 versions appeared . Oh sure , sliding doors were available from Ford . Chevrolets lousy dual action latches made a lot of , ( MY CUSTOMERS ) livid at the fact that the side door mechanism would break . This was especially true in the very early years of the "Door Extenders ", a product that was mandatory on Chevrolet vans with any kind of a wide tire . If you wanted the Fiberglass flares which I manufactured , yes, you had to run them .

Now Tom, are you going to do this van with a 240 six or the 302 V-8? I ask over the fact that there were TWO different Motor boxes that were used . The V-8 box was pointed at the rear and a good four inches shorter over all and came up a little shorter than the six . The six box was set out to allow the driver a greater access than the passenger side , was flat at the rear and was overall somewhat more vertical because of the length of the block and the height . Don't forget too, that the dash was designed two ways as well. The vans WITH a radio had a open slot beneath the radio . Vans without a radio could have had a lockable glove box . In addition, the 69-74 Ford Econolines also were the last to offer a "Flip- Fold " passenger seat too. These were a not too comfortable "Jump seat " with the ability to allow one to fold the back forward and then lift up slightly and fold it so as to allow a long load on the passenger side . Persons wishing air conditioning were treated to a somewhat abysmal set up where the driver got the A/C alright , on their side . There was also a very RARE auxiliary heater option too. It was located under the truck and on the drivers side . Also , in 1969-70, one could have ordered for the last time a Genuine Chrome FULL horn ring too !

I used to use my little known options at truck In's years ago when we would sit around a campfire getting sauced . Dodge also had some interesting quirks of options too.

I'll probably do a V8 box. The interior detail will be limited to the driver's compartment, and I don't want to put a lot of detail in the chassis. I'm hoping these will be easier to cast and cheaper to purchase that way. Also, there are so many possible variations it would probably be best to leave the details to the builder. I'm thinking this will be about the complexity of a snap kit. No opening hood or doors, etc. The builder can then add his own skills to make it into what he wants. I'm not sure what to do about the suspension, as many builders probably don't have a twin I beam setup laying around in the parts box. Any thoughts on how to handle the chassis?

Share this post


Link to post
Share on other sites

Posted · Report post

tom. i used parts from the later ford van chassis under my 66f100. it may not exactly correct, but it fits and looks good

Share this post


Link to post
Share on other sites

Posted · Report post

tom. i used parts from the later ford van chassis under my 66f100. it may not exactly correct, but it fits and looks good

Maybe one of those 1992 Ford pickup promos could donate a representation of the twin I beam. Were they still using Twin I beam in 1992?

Share this post


Link to post
Share on other sites

Posted · Report post

Maybe one of those 1992 Ford pickup promos could donate a representation of the twin I beam. Were they still using Twin I beam in 1992?

Yes and no. The '80- '96 Fords still had the Twin I beam style suspension. But, the beams were very different than their '66-'79 predecessors. They were more of a C shaped beam and camber could be adjusted a lot easier than the old I beams. The '92 setup would definitely not be right for your van. The AMT Ford van Jeff mentioned would probably be your best bet.

Share this post


Link to post
Share on other sites

Posted · Report post

I'll probably do a V8 box. The interior detail will be limited to the driver's compartment, and I don't want to put a lot of detail in the chassis. I'm hoping these will be easier to cast and cheaper to purchase that way. Also, there are so many possible variations it would probably be best to leave the details to the builder. I'm thinking this will be about the complexity of a snap kit. No opening hood or doors, etc. The builder can then add his own skills to make it into what he wants. I'm not sure what to do about the suspension, as many builders probably don't have a twin I beam setup laying around in the parts box. Any thoughts on how to handle the chassis?

If I were to do one, I would use a MPC 1/20 scale as a guide, shrink it to 1/25 scale, and work from there.

Share this post


Link to post
Share on other sites

Posted · Report post

Tom, Great work so far! This will surely be a good kit to have.

Will the suspension from the AMT Phantom van kit work for a '74?
