Toyota Hilux 4x4

16 posts in this topic

Posted · Report post

I originally built this box stock back in 2007.

here it is originally


I robbed the tires off of it a few years ago for a jeep build. So today I decided i would bring it back out and rebuild it into a trail truck/pre runner. I've got tires and more .080 rod coming in to finish up the cage. This should be a quick build, unless I decide to go crazy on it.

here is the stripped chassis and cab.

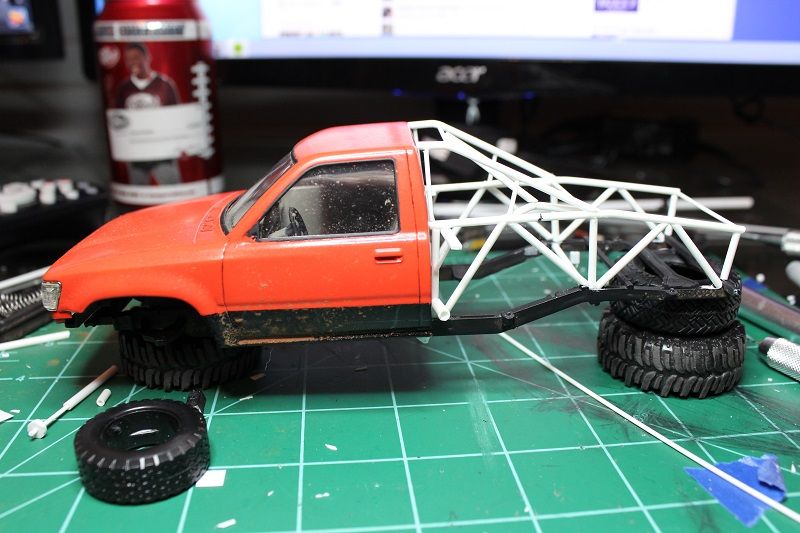

start of the rear cage work


the bed sides will be removable




Share this post


Link to post
Share on other sites

Posted · Report post

Wow! It's sounds like a really cool project, really good start! I'll keep an eye on this one!

Share this post


Link to post
Share on other sites

Posted · Report post

Nice start

Share this post


Link to post
Share on other sites

Posted · Report post

Nice start

I agree...

Share this post


Link to post
Share on other sites

Posted · Report post

Worked on this some more today. Like I said "quick" build.

I got the rear cage almost finished up, I have to add the shock mounts and figure out where I want the fuel cell.




I also got the three link set up for the rear axle figured out, except the last bar and won't know how long to make it until I get the shocks roughly in place.


Share this post


Link to post
Share on other sites

Posted · Report post

Excellent work, already....Very nice scaffolding.... :)

Share this post


Link to post
Share on other sites

Posted · Report post

cool rock/MEGA Truck B)

Share this post


Link to post
Share on other sites

Posted · Report post

got some more done on this the last few nights.

Added some more to the cage

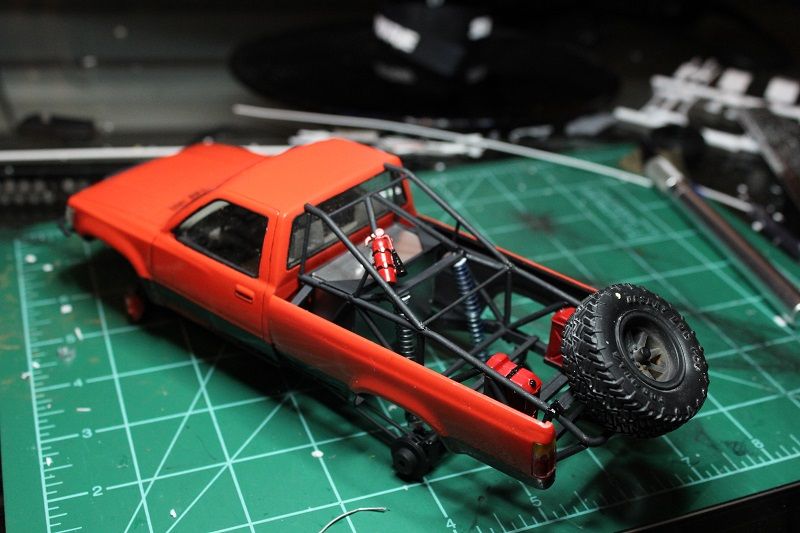

I built a fuel cell and added shock mounts to the cage before I painted it. I might add a spare tire mount and a place for some fuel cans. I have not decided yet.


Here are the shocks and the rear axle mounted. I still need to make the 3rd link to finish up the suspension.



Share this post


Link to post
Share on other sites

Posted (edited) · Report post

This is awesome! great job on the chassis work.

Edited by plasticfrog

Share this post


Link to post
Share on other sites

Posted · Report post

Awesome job!

Share this post


Link to post
Share on other sites

Posted · Report post

great job so far good job on the cage work

Share this post


Link to post
Share on other sites

Posted · Report post

thanks guys!

I've finished up everything that I wanted to do but I am still waiting on tires so I will probably add fuel and brake lines. I will weather it more once the tires come in.

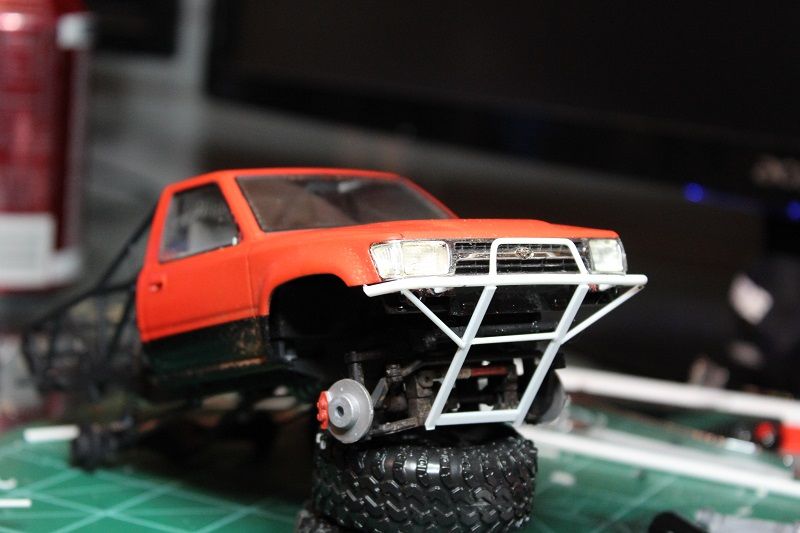

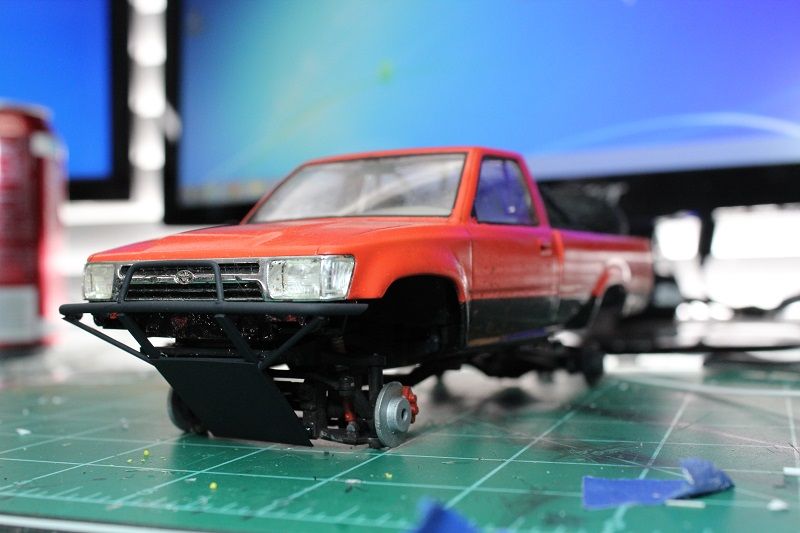

I added a brush guard to the front, skid plate, and added gas cans and a fire extinguisher. I will probably build a jack and add a winch to the front.




Share this post


Link to post
Share on other sites

Posted · Report post

Looking very cool

Share this post


Link to post
Share on other sites

Posted · Report post

Looks great I love the cage and fuel cell.

Share this post


Link to post
Share on other sites

Posted · Report post

awesome truck. a rear mounted radiator and fan would look killer.

Share this post


Link to post
Share on other sites

Posted · Report post

Awesome fabrication of the suspension and cage. Very nice work!

Having owned a Baja Bug when I was younger I had a limited familiarity with off-roading and your truck has the look. Nice build.

Share this post


Link to post
Share on other sites
