1/8 scale Edmund's Super Modified

17 posts in this topic

Posted · Report post

I've found a place to get prints of the original velum drawings/plans for several of Don Edmund's race Cars I am interested in building a 1/24 version of the four bar car Super Modified from the late '60s I sent Don an email & found that the plans are drawn in 1/8scale but as I said I want to build mine in 1/24th scale the prints run around $48 for a two piece set that are signed. If there is any one that would like to build one of these unique cars in 1/8th scale & might consider in going together to purchase a set of these plans let me know,I can come up with some pictures of one of these cars that ran locally in 1969-1970 for reference as to what the finished car looked like. Thanks, Del

Share this post


Link to post
Share on other sites

Posted · Report post

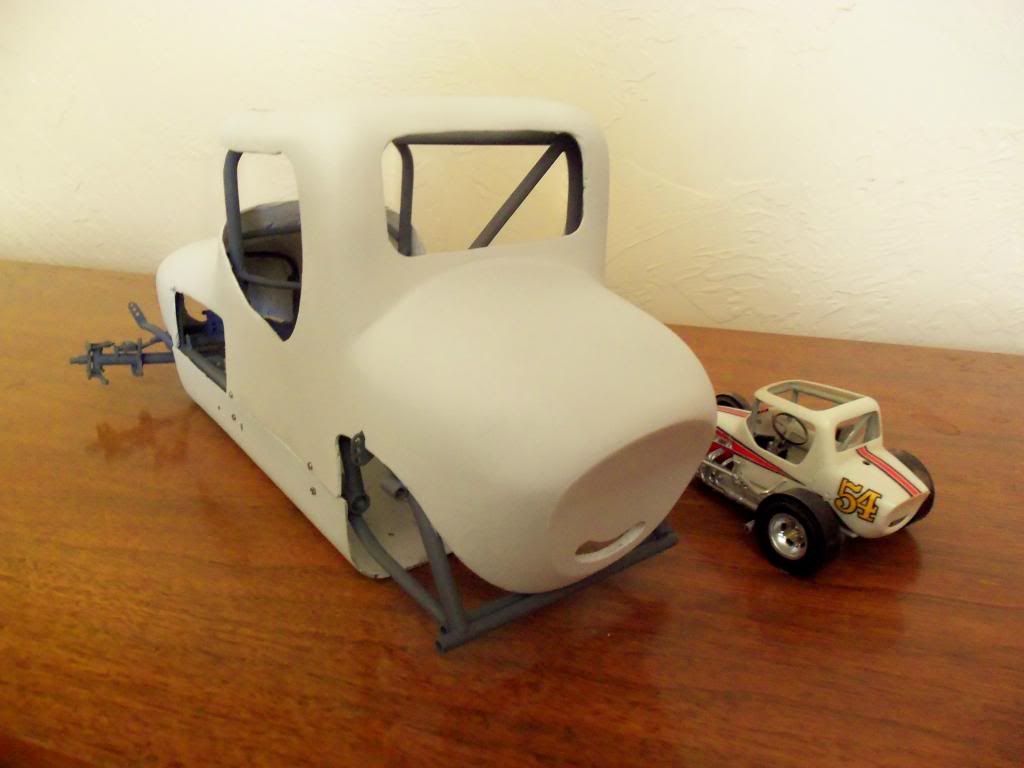

Hi Del; I am currently building that Edmunds supermodified from Don's plans, that I bought from him. They are drawn in 1/8 scale which is all I build in so it's perfect for me. Here's a couple of pictures with my car and a Monogram model in 1/24th scale that you can still buy.It would be cheaper than buying those plans, although they are cool and come with a cut-away drawing.




Share this post


Link to post
Share on other sites

Posted (edited) · Report post

Super (no pun intended) build! I have around a half dozen of the Monogram kits, but the car I want to build is the next version, it is a much lighter car being constructed mainly of 1-1/2 inch tubing, and was a "four bar" car much like a modern sprint car, except it followed the Indy cars of the day in that the front bars were connected to the axle with links, it was a longer wheelbase of around 90 inches. The car I want to model never handled very well until at the last race at the old Sacramento mile when a young kid named Opperman told them to "get rid of those BLAH_BLAH_BLAH_BLAH links and let the front end work" that it actually worked well, the car had come from the back to around 12th place when the race was red flagged for the final time.

Edited by horsepower

Share this post


Link to post
Share on other sites

Posted · Report post

I don't think I ever saw that 4 bar car. The plans I got, from Don, are a front buggy spring, rear torsion bar car. Older sprinters and lots of the old supers ran that set up, as you know, before going to a 4 bar set up. This plan shows an 86" wheelbase so it was for short tracks not like the Sac. mile. The race you saw Opperman in; was that early 70s when Jimmy Gordon and two other died there that day. I saw several USAC "big car" races there as a kid. The one car you're talking about; does it use double radius rods on both sides? That would have put it in a bind.

Share this post


Link to post
Share on other sites

Posted · Report post

Yes to all the questions except the one about the radius rods, it was done like the Indy roadsters & the early Champ cars with the torsion arms attached to the front axle with heim joints on the top & there is a hairpin type radius arm on each side of the axle

Share this post


Link to post
Share on other sites

Posted · Report post

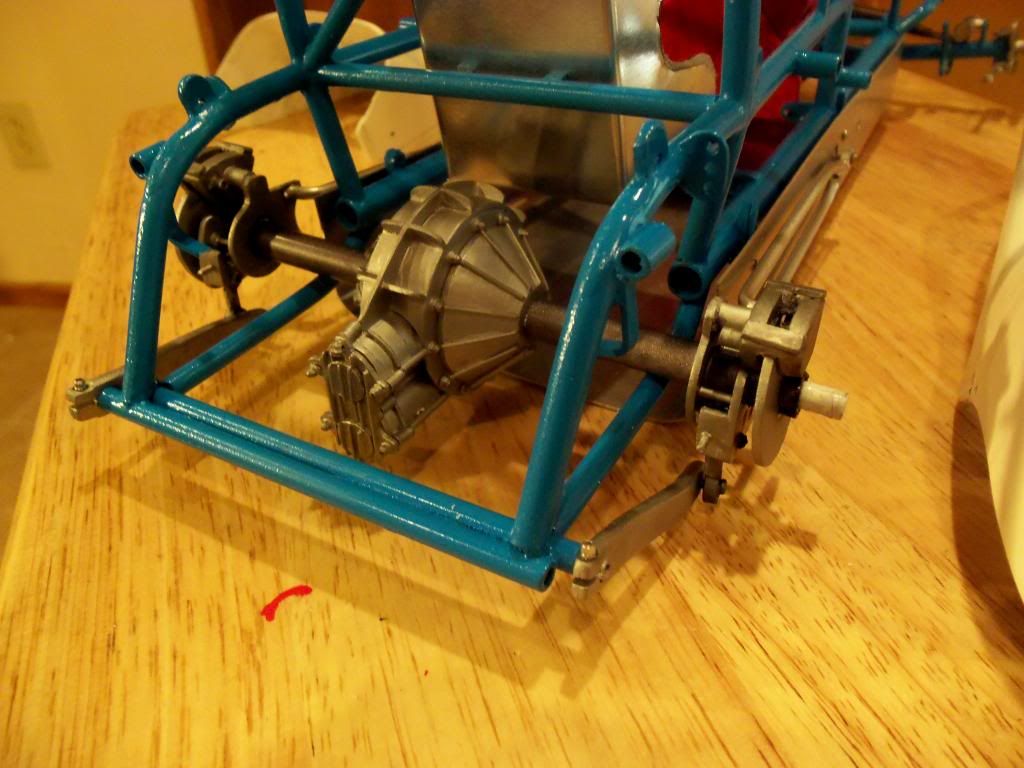

I'm back on this model to finish it. Very colorful, if nothing else. I find the bird cage to wishbone radius rod connection very interesting. The rods attach solid to a plate which is part of the birdcage. There's a hiem's end wher it connects to the frame but that's all. This model suspension actually works, even the buggy spring front.




Share this post


Link to post
Share on other sites

Posted (edited) · Report post



More done.

Edited by Old Sprinter

Share this post


Link to post
Share on other sites

Posted · Report post

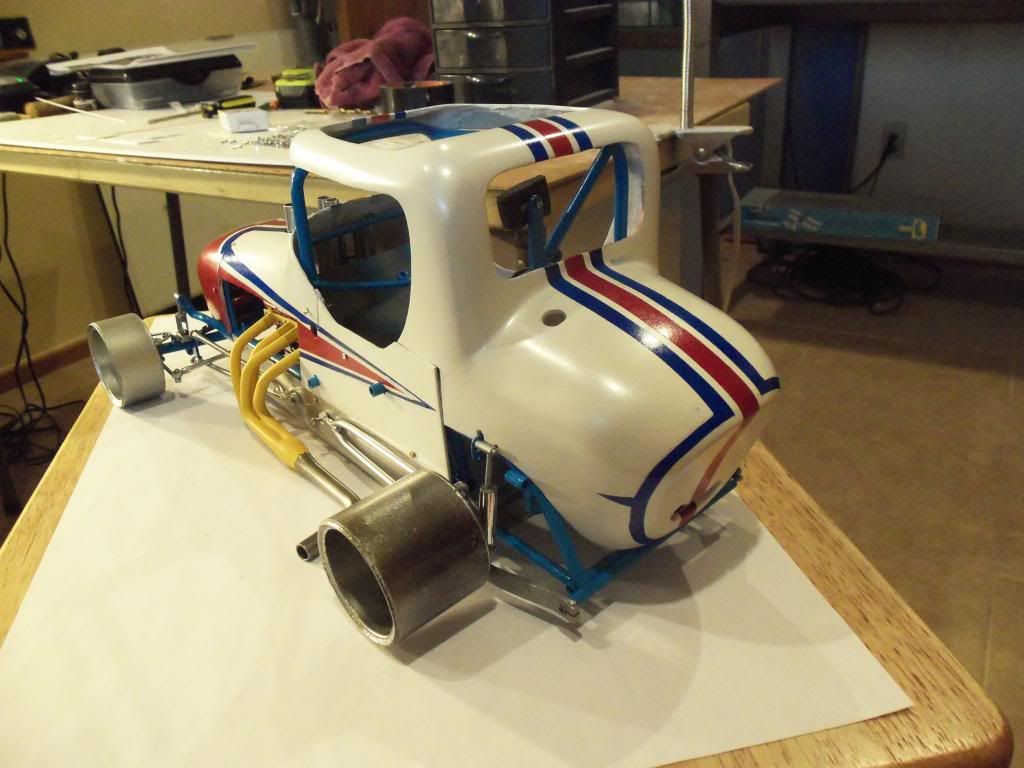

A little color



Share this post


Link to post
Share on other sites

Posted · Report post

Very nice. Great scratchbuilding.

Share this post


Link to post
Share on other sites

Posted · Report post

Thanks Bob; I've finally got it up on tires and wheels.




Share this post


Link to post
Share on other sites

Posted · Report post

That is looking awesome... nice work...

Share this post


Link to post
Share on other sites

Posted (edited) · Report post

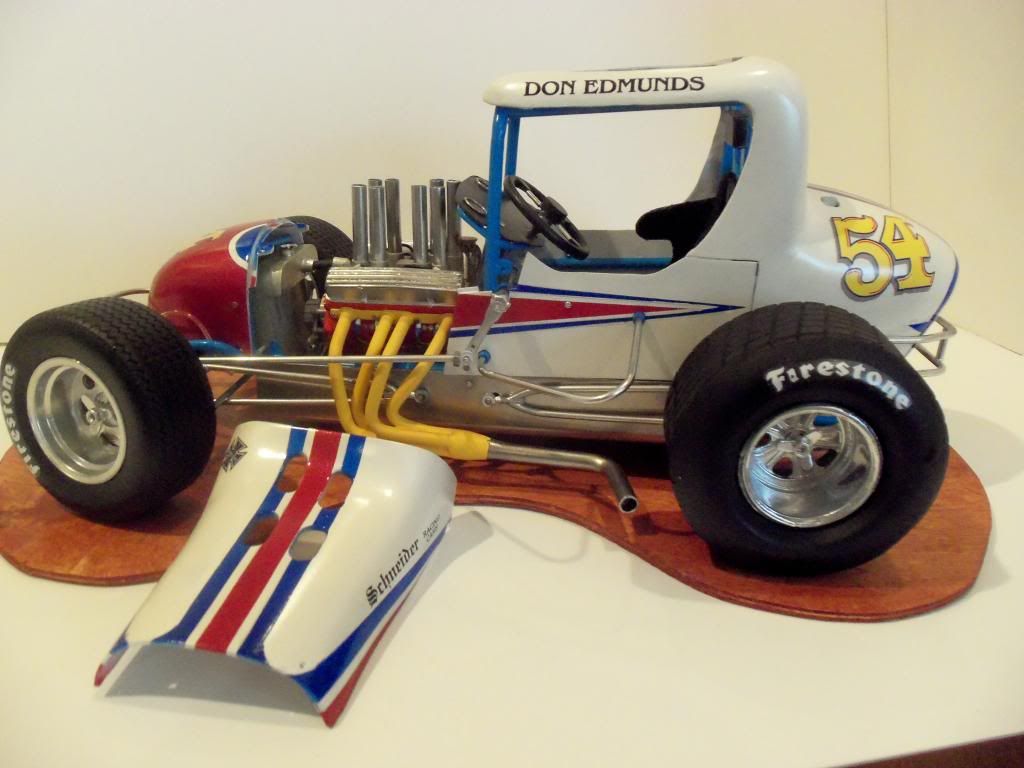

Thanks Jimmy, here's she is with decals.



Edited by Old Sprinter

Share this post


Link to post
Share on other sites

Posted · Report post

O.......M.......G! OUTSTANDING!!!

Share this post


Link to post
Share on other sites

Posted · Report post

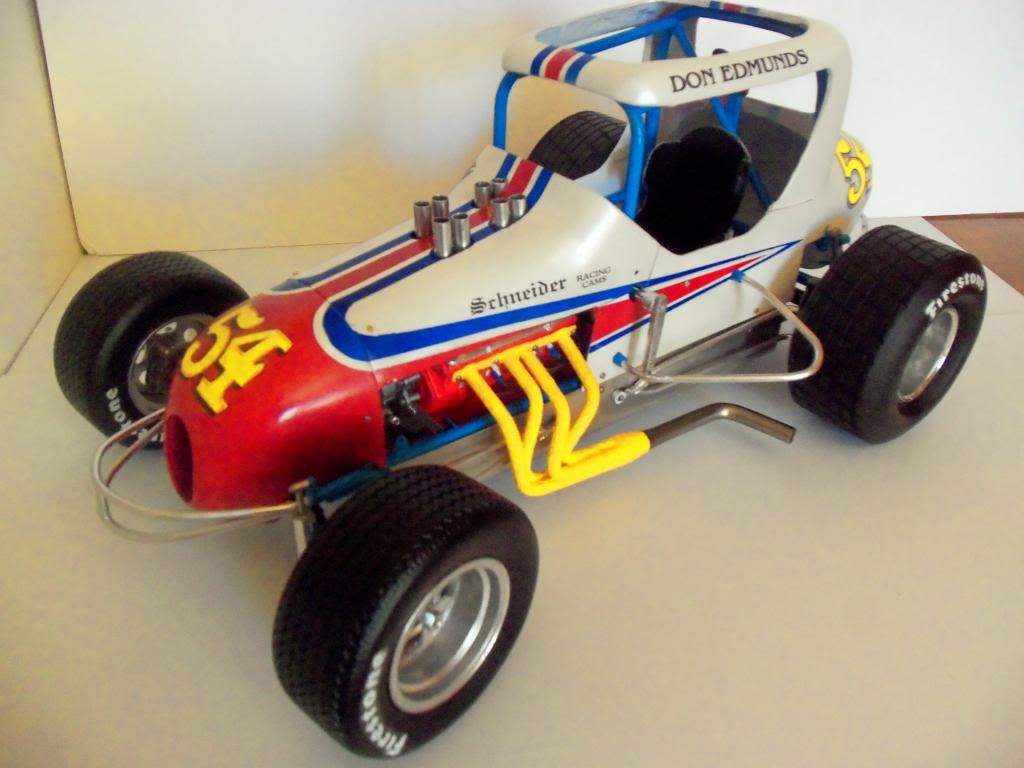

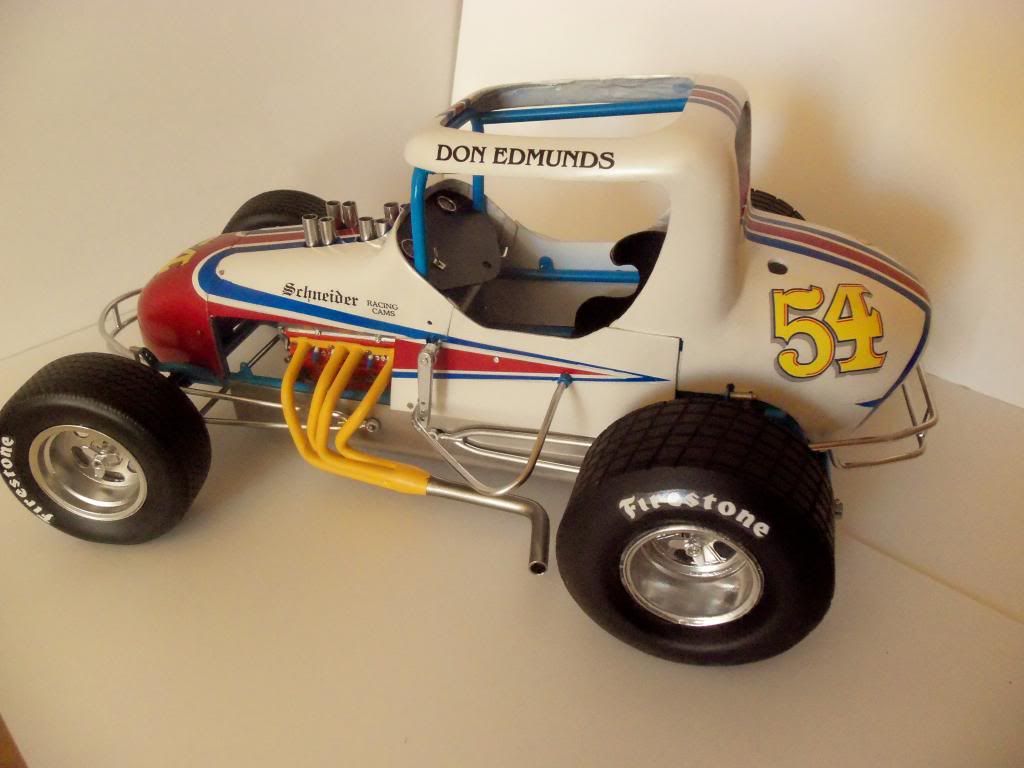

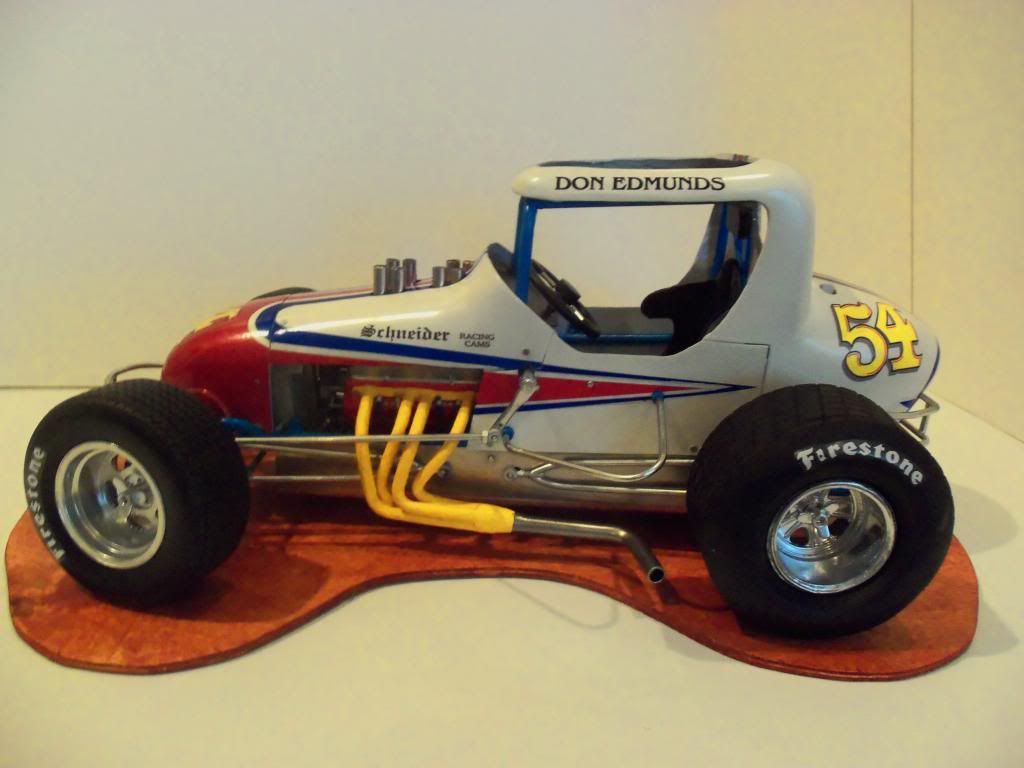

Thanks Maddog; here it is all done and ready to go to it's new owner in Phoenix.




Share this post


Link to post
Share on other sites

Posted · Report post

Sharp!

Share this post


Link to post
Share on other sites

Posted · Report post

I don't get the position of the pitman arm in relation to the position of the front wheels, or is the draglink not yet attached at the front? :)

Share this post


Link to post
Share on other sites

Posted · Report post

The front wheels are turned to the right and the pitman arm is forward. The drag link is hooked up. Not all race cars back then had the pitman arm straight up and down when the wheels are pointed straight.

Share this post


Link to post
Share on other sites
