pro stock detailing?

16 posts in this topic

Posted · Report post

Any pro stock detailing tutorials or diagrams out there

Plenty of beautiful cars done one here but nothing that gets to the nitty gritty

Share this post


Link to post
Share on other sites

Posted · Report post

Starting with the revell firebirds camaros

And sportsman kits

Ive been on here for months and ive seen allot but other than distributor, plug wires, rad hoses im a little lost when it comes to fuel lines dry sump systems ect

Ive got a vast amount of knowlage of pro streets muscle cars and classics

But purpose race cars I have noy been exposed to enouph

Share this post


Link to post
Share on other sites

Posted · Report post

check the web sites for the component manufacurers - there are some diagrams there.

Moroso's dry sump plumbing schematic is an example - it seems to be timeless - was a good reference diagram in the 70's, still is.

Share this post


Link to post
Share on other sites

Posted (edited) · Report post

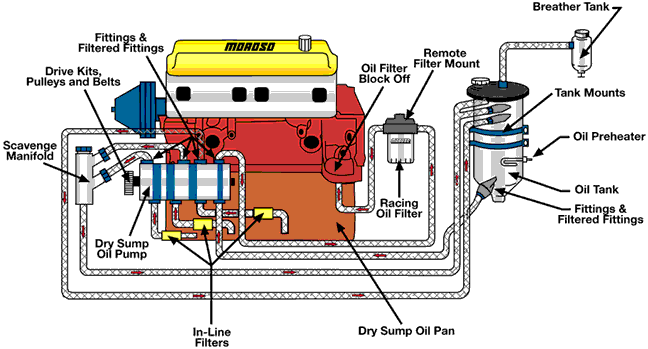

Here is an example of a Dry Sump.Oil System

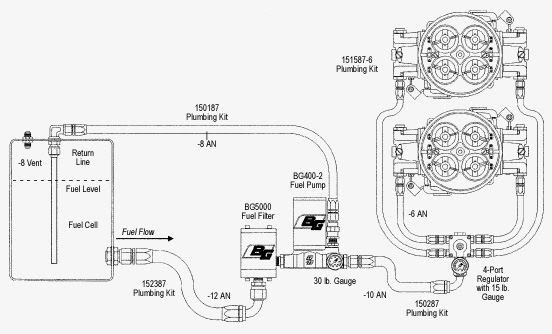

An example of a Fuel System.


They started to use Vacuum Pumps in modern Pro Stock engines some years ago to make vacuum in the crank case wich makes horsepower, and many others use this system too...and here is a pic of how that system is set up.

In fact the Pro Stock racers use two separate Vacuum systems now, one belt driven pump and one electric pump wich gives more vacuum for a short time and are only used under the run itself.


A picture of the electric pump wich you can put anywhere on the car close to the engine.

32725140-278-Pro-Stock-Electric-Vacuum-P

Hope this helps.

Edited by Force

Share this post


Link to post
Share on other sites

Posted · Report post

allen, if it helps i am about to build and plumb the dry sump system on my 1/8 scale pro mod build. you are certainly welcome to look at the build and ask any questions you might have.

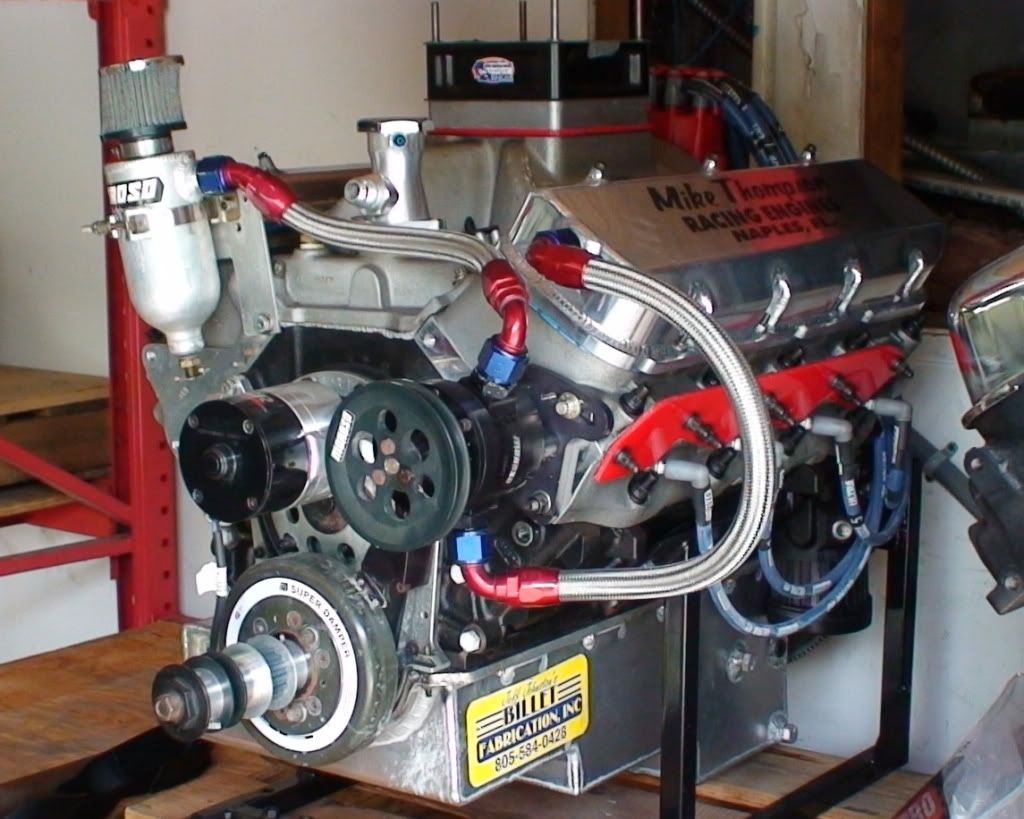

here is a dry sump system i did on a previous build.


also had a vacuum pump.


Share this post


Link to post
Share on other sites

Posted · Report post

You guys are simply incredible I never thought of finding the sump diagrams. Understanding the components is easy but knowing where and how to plumb it is another.

So for future modelers like myself im going to start a step by step tutorial

I cant thank yall enouph

Share this post


Link to post
Share on other sites

Posted · Report post

You're welcome.

Even if you know the basic components and where they are placed on the engine it's easier to understand how they work if you actually see how the lines are routed.

Share this post


Link to post
Share on other sites

Posted · Report post

Summit Racing is a good source. A lot of the parts they sell have installation diagrams included that can be downloaded from their web site. Pick a part type like electric water pump and put it in the search box. More than you ever wanted to know is right there. Also try specific Bing or Google image searches like "pro stock engines" Stay away from Yahoo or MicroSoft searches.

Dale

Share this post


Link to post
Share on other sites

Posted (edited) · Report post

Seems the parts sites have been more of a help than anyone else. google has helped a little but They just dont show the drivers side of the engine.

But im struggling witha couple problems

In late 80s early 90s

Were crank spun fans being competitively used?

And when were chain driven distributers become more popular? Rather than off the cam?

THe fan just dont quite make sence to me

Edited by shift13

Share this post


Link to post
Share on other sites

Posted · Report post

Getting this technical can be frustrating and allot of fun. Makes me feel like im working in an actual shop. DO they make "grinding steel,welding smoke,grease" scented candles?

Share this post


Link to post
Share on other sites

Posted · Report post

Share this post


Link to post
Share on other sites

Posted · Report post

Dale,those are some GREAT links for Pro Stock!!!

I am doing one myself and those will help a lot.

Allen,please post pics of yours and I will probably learn from you.

Also,those are great pics from Force and Dave.

LOVE the older Pro Stocks!!!! :wub: :wub:

Share this post


Link to post
Share on other sites

Posted · Report post

I have to place an order on fri so probley going to me a month before I get started

Share this post


Link to post
Share on other sites

Posted · Report post

Lots good ihfo here. The reference links are great.
