Just another Fox Body drag car.


13 posts in this topic

Posted · Report post

So after a 20 year hiatus I decided to build a couple models seeing they're cheaper than the new turbo I want for my real car.

It's the Revel 1990 LX drag car but I'm trying to put my own spin on it. This is my first time trying to scratch build a cage but I can't bring my self to just use the roll bar in the kit seeing in my mind a proper booster, fox body, should be well under 10 seconds in the quarter. I'm borrowing some pieces off a cheap pro street kit I picked up. Hopefully I don't get discouraged and throw it out :)

post-14144-0-62060300-1405818879_thumb.j

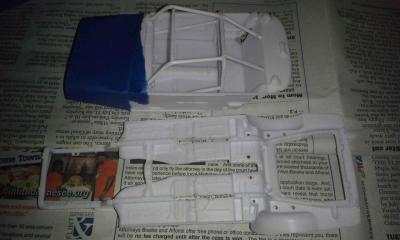

Cage started, lots of finangling will be needed. I want to do a funny car style cage but may have to settle for an 8:50+. I also cut channels for sub frame conectors, cut the front wheel wells out back to the shock towers (not pictured), and cut out the gas tank and spare tire well.

post-14144-0-31639100-1405819098_thumb.j

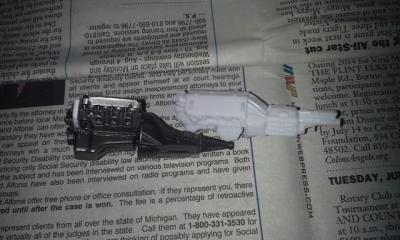

The kit comes with a 302 and 5-speed but my OCD wants a bigger engine and a trans a capable of 1000hp and low 8's so I'm going to try this 351 and automatic. I have a "mock up" motor plate on it.

post-14144-0-16104300-1405819234_thumb.j

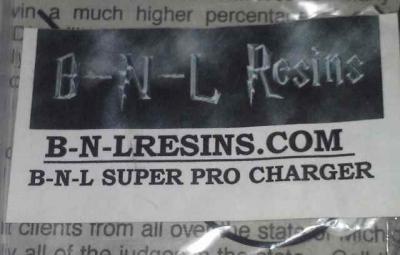

Hopefully I can get this to work with a motor plate and the small under hood area. This will be a lot easier for exhaust but a pain to run a belt with. I have a single turbo which would be easier to mount but I'd have to figure the exhaust out.

post-14144-0-78659200-1405819344_thumb.j

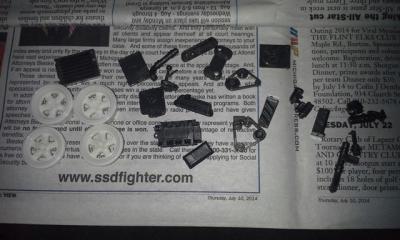

I've always hated chrome plated parts. To me it's never looked right so I gave these items a bleach bath. Included- B&M shifter, breather tank, sheet metal intake, distributor, fire extinguisher, starer, valve covers, trans pan,

Hopefully this turns out. Give me tips, I need them.

Share this post


Link to post
Share on other sites

Posted · Report post

I'm liking your ideas they sound great

Share this post


Link to post
Share on other sites

Posted · Report post

You have a great start hang in there..

Share this post


Link to post
Share on other sites

Posted · Report post

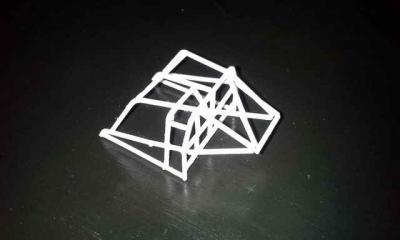

Did a little more cage work. I need to do some sanding and filling. It's not a perfect sub 8:50 funny car cage, but I can either let it slide or do some cutting and adding of more bars. If I know myslef well enough there will be finangling. Like I said this is my first attempt at scratch building really anything.

post-14144-0-88695800-1406079228_thumb.j

Share this post


Link to post
Share on other sites

Posted · Report post

That's a real good cage for your first attempt. Keep up the good work, welcome back to the hobby :D

Share this post


Link to post
Share on other sites

Posted · Report post

Looks good bro...

Share this post


Link to post
Share on other sites

Posted · Report post

Great start on the roll cage.

Share this post


Link to post
Share on other sites

Posted · Report post

......looking good for being on a 20 year break!

Share this post


Link to post
Share on other sites

Posted · Report post


The kit comes with a 302 and 5-speed but my OCD wants a bigger engine and a trans a capable of 1000hp and low 8's so I'm going to try this 351 and automatic. I have a "mock up" motor plate on it.

It's funny you say that, the car that the "drag" version of this kit is based on, actually runs in the neighborhood of low 10's-high 9's. Well, did before he took it apart to change classes. I know the guy and the car.

Share this post


Link to post
Share on other sites

Posted · Report post

Sweet build!!! Nice work on your rollcage!!!

Share this post


Link to post
Share on other sites

Posted · Report post

I've done a little more work on the cage (pictures later) and have decided to go turbo rather than pro-charged. I've been thinking about building some mini-tubs but haven't made a final decision. I really don't want to lose the pre-drilled areas for rear suspension (even though I have a pin vice) as the rear suspension that came with the kit is half-way decent and this is intended to be a small tire street-able car. Hopefully I'll have some more progress pictures soon but here are some pictures of the car it's being based off of. I'm from Michigan and have ran my little 1/1, 13 second, 4 door, all year, daily driver, at Milan Dragway and have seen this car in person and the word beast doesn't full encapsulate it.


I might up grade to a different front spoiler like what Tyrone did on his.


7's with power windows, mostly stock interior, a small block, and 275 radials!


With the turbo clocked this way I don't have to relocate as much, I have those same valve covers which I was planning on using.


Another view, I'm going with the same idea here but my intake manifold and injection will look a little different.

Share this post


Link to post
Share on other sites

Posted · Report post

That's a monstrous turbo... Power windows and all! Wow. Can't wait to see how you do the turbo!

Share this post


Link to post
Share on other sites

Posted · Report post

The cage looks great,
