CAT D11 bulldozer 06-21-15 update


Recommended Posts

I’ve been researching this project for quite some time. It’s the perfect load for my C500 prime mover.

I chose the Bruder #02424…it scales real close to a D11 @ 1/25, though quite a few modifications still have to be made.

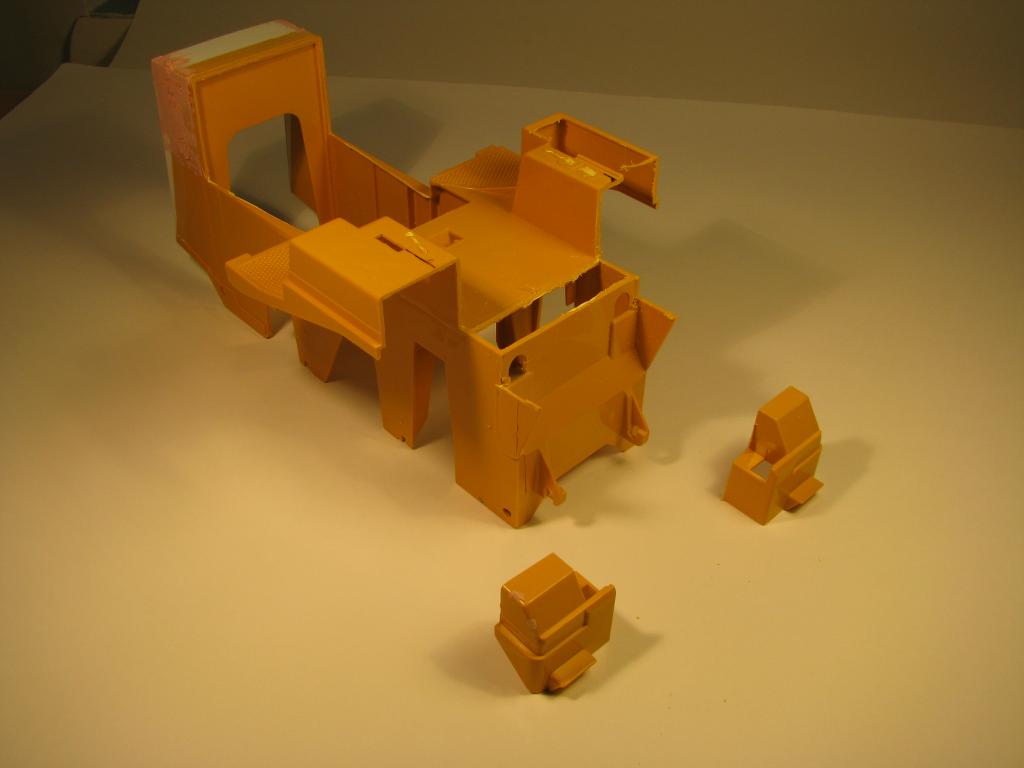

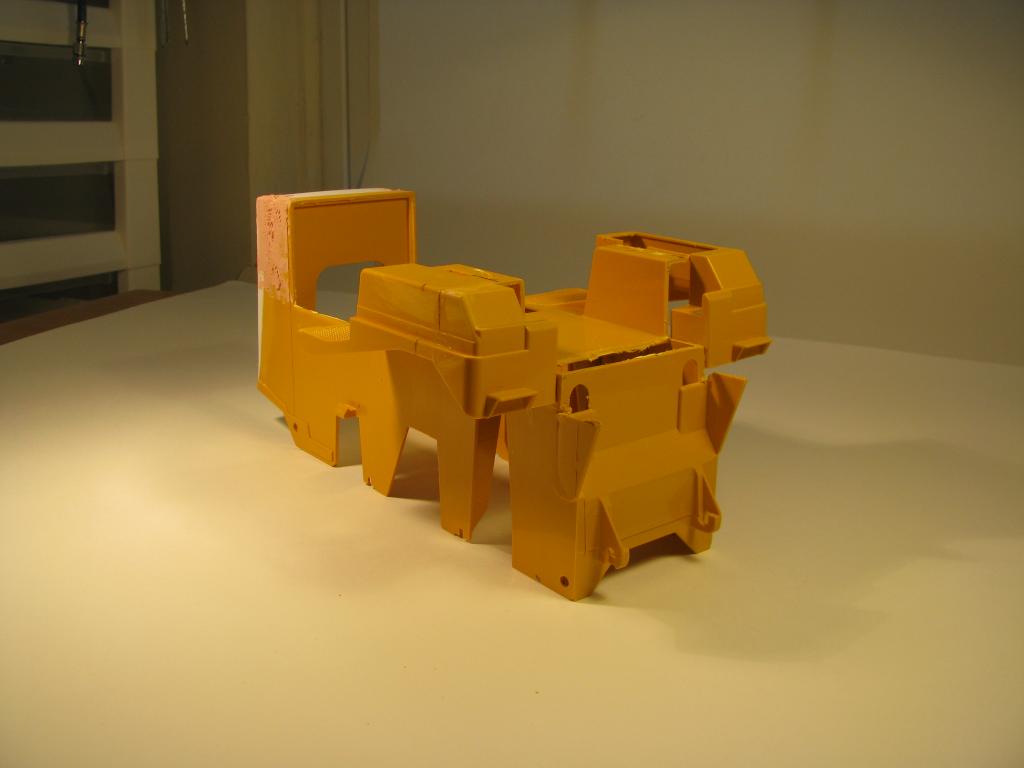

First order of business is disassembly and cab modifications. Cab height and width will decreased by 10 scale inches:

IMG_1654_zpsa7e1242c-vi.jpgHosted on Fotki

IMG_1655_zps711a416f-vi.jpgHosted on Fotki

IMG_1656_zps8ddfbf99-vi.jpgHosted on Fotki



Edited by Tesla
Link to comment
Share on other sites

Oh yeah, one of my most favorite pieces of equipment. Very much looking forward to this one transpire.

(I wish I had a model kit for every hour I spent contortioned down in the cab floor access on these ;) )

That has to be a tight fit!

Link to comment
Share on other sites

Thanks for the kind words. I have to say this project was born out of necessity. There are too few choices in the 1/24 - 1/25 scale for construction equipment. We're not as fortunate to have the selection that's offered in the 1/50 scale.

It only leaves us with one choice...and that's to improvise!

Link to comment
Share on other sites

I completed shaping and drilling each hood side panel. My first step was to get a detailed layout of each panel:

IMG_1681_zps7ddbecc6-vi.jpgHosted on Fotki

My next step was to transfer that onto the metal I used as a template:

IMG_1682_zps056bc593-vi.jpgHosted on Fotki



I drilled out the side panels…538 holes in each. It’s a good thing I have a foot switch for my drill press :D

Here’s a mockup of each side:

IMG_1684_zps17135050-vi.jpgHosted on Fotki

IMG_1685_zps697aec3d-vi.jpgHosted on Fotki





Now panels lines have to be scribed and slam locks installed.

Edited by Tesla
Link to comment
Share on other sites

I completed shaping and drilling each hood side panel. 060" styrene was used. My first step was to get a detailed layout of each panel:




My next step was to transfer that onto the metal I used as a template:




I drilled out the side panels…538 holes in each. It’s a good thing I have a foot switch for my drill press :D



Here’s a mockup of each side:





Now panels lines have to be scribed and slam locks installed.

Edited by Tesla
Link to comment
Share on other sites

One of the next things to tackle are the triple grouser track shoes. I plan on changing them to a single grouser.

Well that cant be much more of a challenge then drilling all those holes !

Singles have that off road heavy duty tear'em up go anywhere look. That will really make this one jump out.

Excellent work , thanks for the detailed progression pics. B)
