Sparkhead42 Posted February 9, 2015 Share Posted February 9, 2015 I'm new to building model rigs and was wondering if I could get some advice for detailing and custom work, such as wiring engines and frame stretching. If anyone wants, I could also post pictures of the first and only rig I built, an AMT Diamond Reo. Quote Link to comment Share on other sites More sharing options...

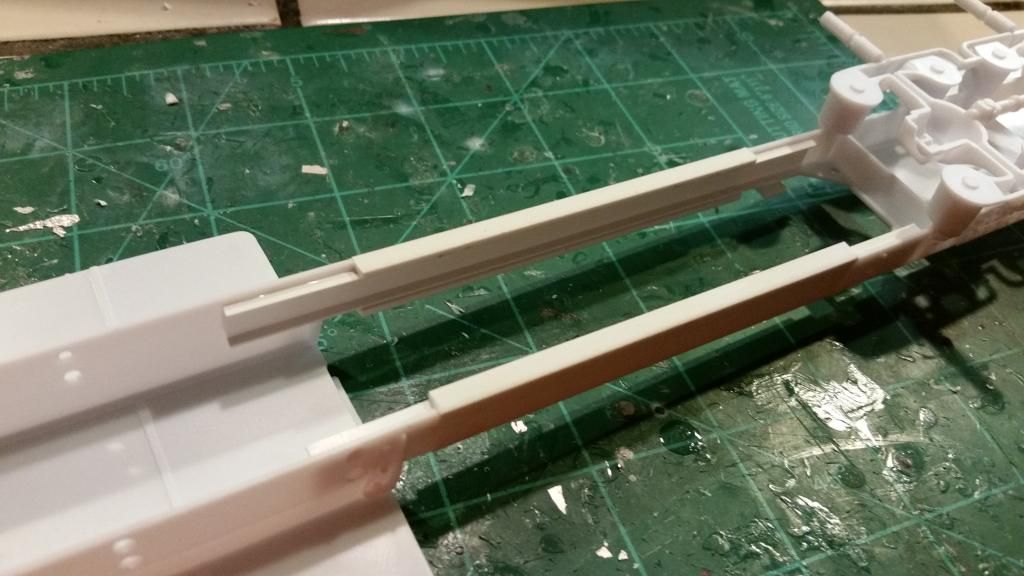

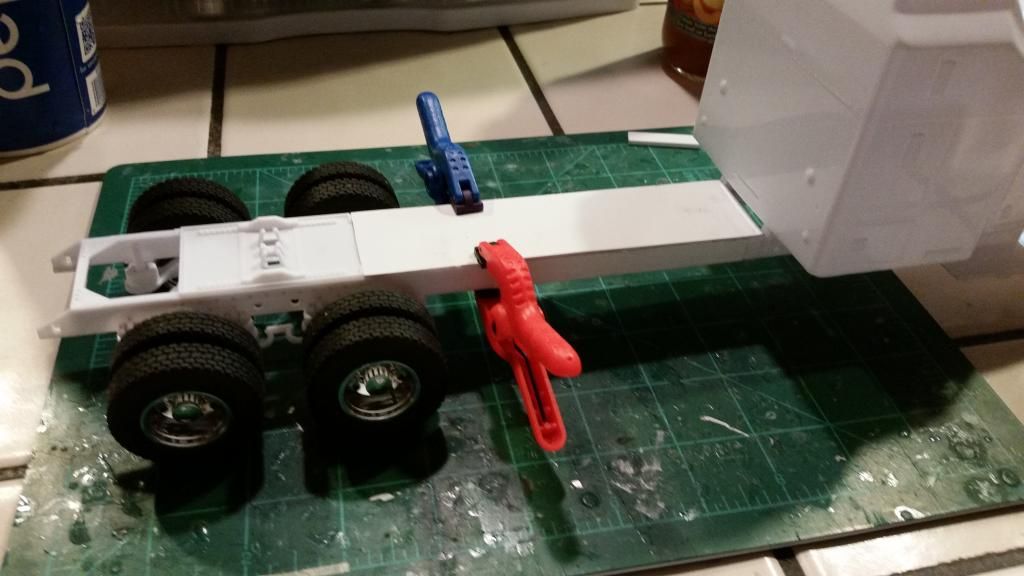

kilrathy10 Posted February 9, 2015 Share Posted February 9, 2015 (edited) Why certainly, my friend....First of all....Welcome to the forum and the world of truck modeling.....I'm sure someone will chime in with some tips on engine wiring, but that's not my expertise....I'm sure Clayton or a few others could help you with the both of these things......I can help you with simple frame extension, though.....It can be accomplished several ways, but I generally use what's on hand and within the budget.....Here's what I've done with the frame from an AMT T-600 Kenworth......Just a few pieces of scrap plastic and a lot of sanding...... Edited February 9, 2015 by kilrathy10 Quote Link to comment Share on other sites More sharing options...
Sparkhead42 Posted February 9, 2015 Author Share Posted February 9, 2015 Thanks, woulda never though to just use scrap plastic. What about lengthening the drive shaft? Quote Link to comment Share on other sites More sharing options...
explorer2770 Posted February 9, 2015 Share Posted February 9, 2015 Two options to lengthen the drive shaft: cut the u-joints off of the original drive shaft and use tube styrene (or K&S aluminum tubing) to reconnect them to fit the new length. Option 2, use the round spruce in your kit that you no longer need after cutting the parts off, cut a piece to length, cut the u-joints off of the original drive shaft and sand them to a smaller diameter, then drill a hole in each end of the spruce to accept the u-joints. Either option works, just depends on what you have on hand. I typically use 3/32 to 1/8 inch tubing when I make adjustments for fire trucks, just depends on the original kit drive shaft diameter. Quote Link to comment Share on other sites More sharing options...
highway Posted February 9, 2015 Share Posted February 9, 2015 Thanks, woulda never though to just use scrap plastic. What about lengthening the drive shaft? If it is just a short extension like JT showed, I'd just get some plastic tubing either similar in size to the kit driveshaft and use that to make a new driveshaft and just use the kit U joints or get some just big enough to slide over the kit shaft and cut the kit shaft in half and insert into the longer tube. Now, if it is a little more extreme like this one I have in (forever) progress, then more driveshafts are in order. I added 7 1/2 inches to the frame, if I remember correctly. The white is the addition. I took these two bits from a wheel adapter kit (MRC or AMT IIRC) and fashioned a midship carrier bearing to attach the kit's original driveshaft to and still have to make a driveshaft from the engine to the carrier bearing. Also, to add strength, I added some square tubing to the top of the framerail to double as a sleeper mount. Quote Link to comment Share on other sites More sharing options...
Petetrucker07 Posted February 9, 2015 Share Posted February 9, 2015 Here's how I did mine. Quote Link to comment Share on other sites More sharing options...
disabled modeler Posted February 9, 2015 Share Posted February 9, 2015 AJ...best advise anyone ever gave me is to treat every part as if it were a model itself....you will find your builds look very much better and clean looking. Quote Link to comment Share on other sites More sharing options...

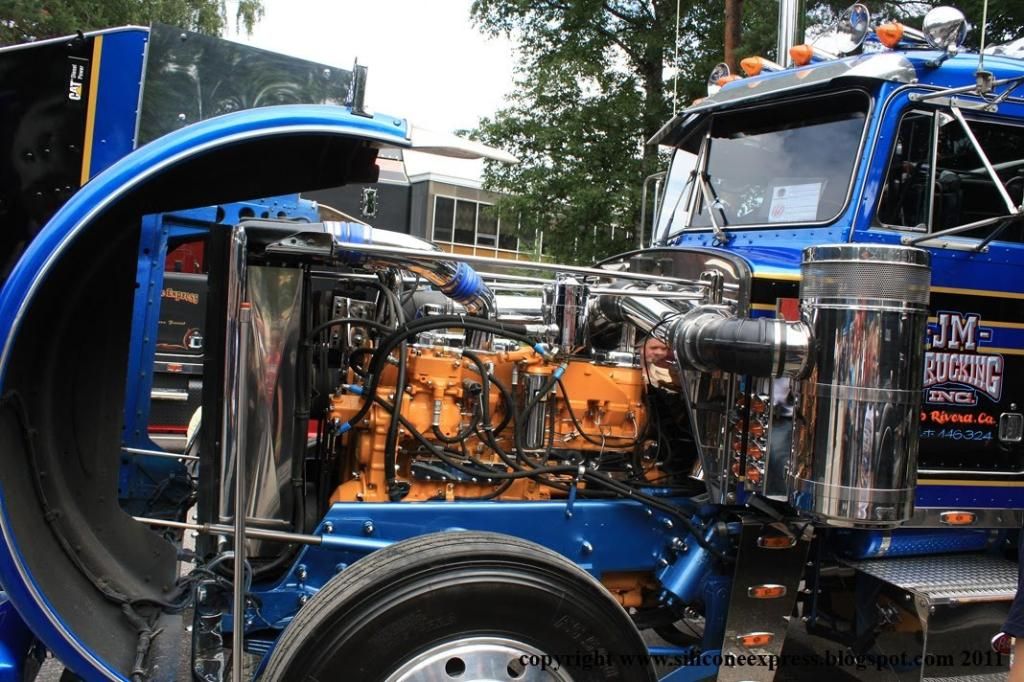

Sparkhead42 Posted February 10, 2015 Author Share Posted February 10, 2015 So any ideas on engine work? I.E. wiring, plumbing, detailing Quote Link to comment Share on other sites More sharing options...

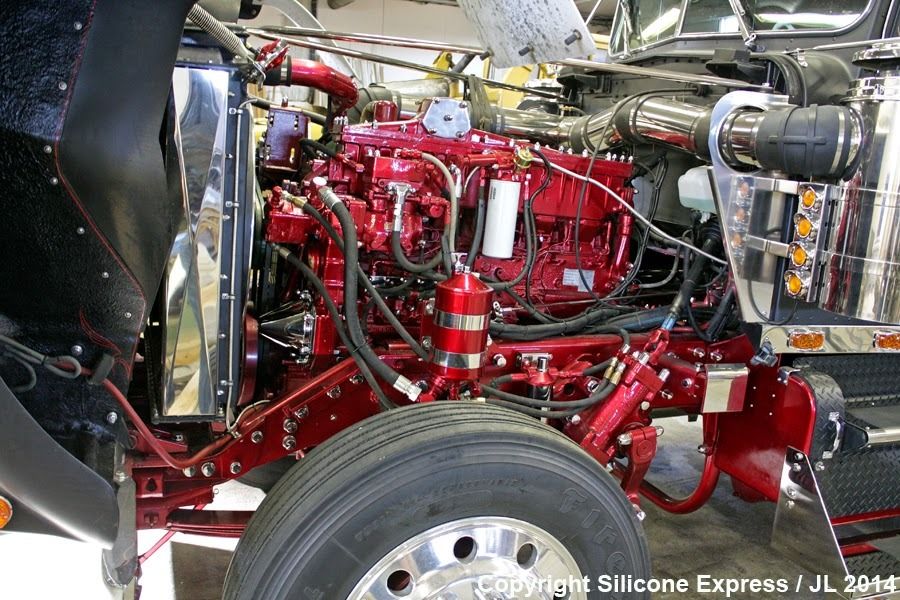

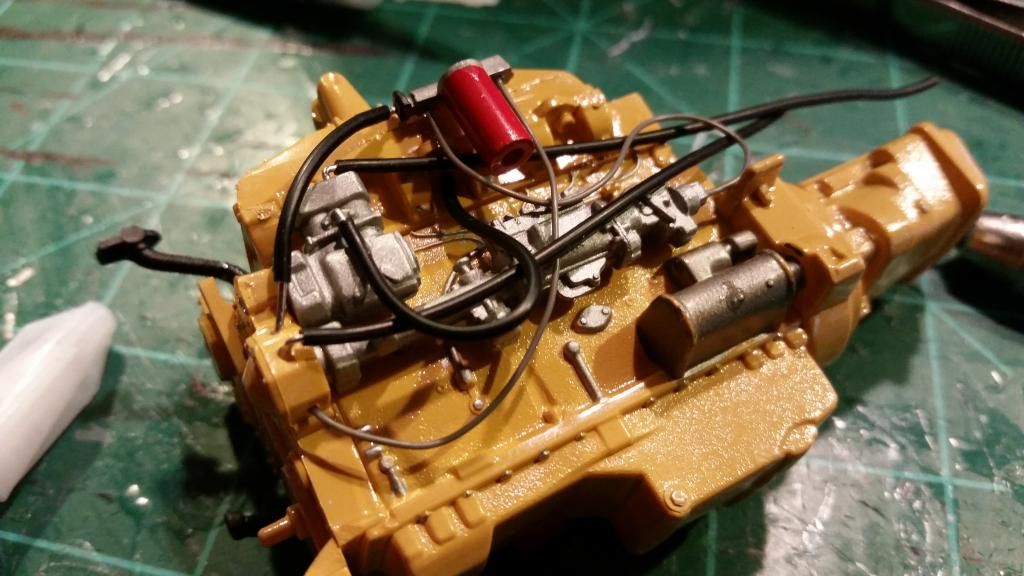

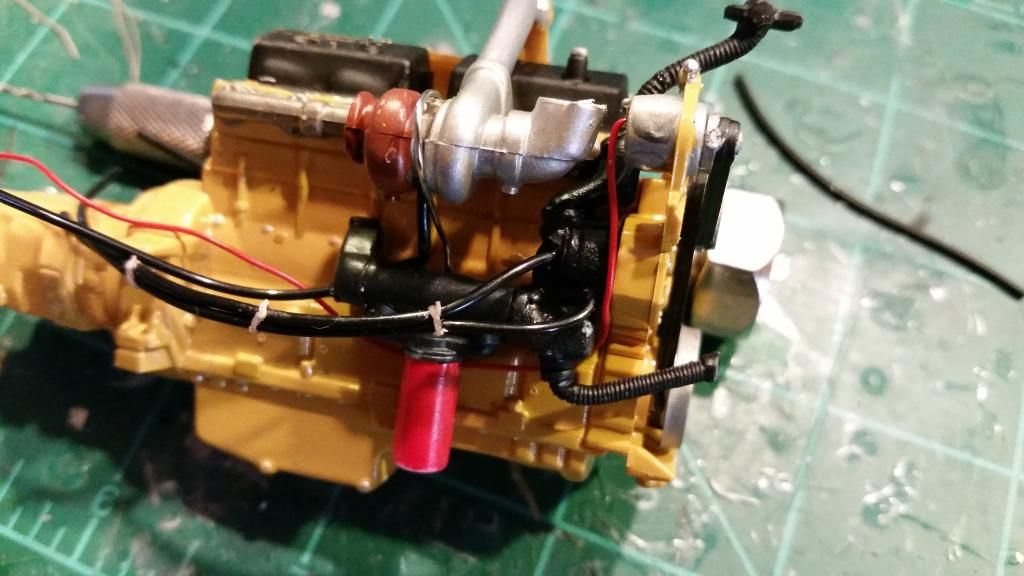

Petetrucker07 Posted February 10, 2015 Share Posted February 10, 2015 Here's a cat. Quote Link to comment Share on other sites More sharing options...
Sparkhead42 Posted February 10, 2015 Author Share Posted February 10, 2015 Thanks for all the tips guys, I'll definitely be using these techniques on my next build. And once I'm good enough at this kinda work I got a big project in mind to truly test my skills. Does a Mad Max style rig with four mopar big blocks tied in with a cummins sound interesting enough? Quote Link to comment Share on other sites More sharing options...
