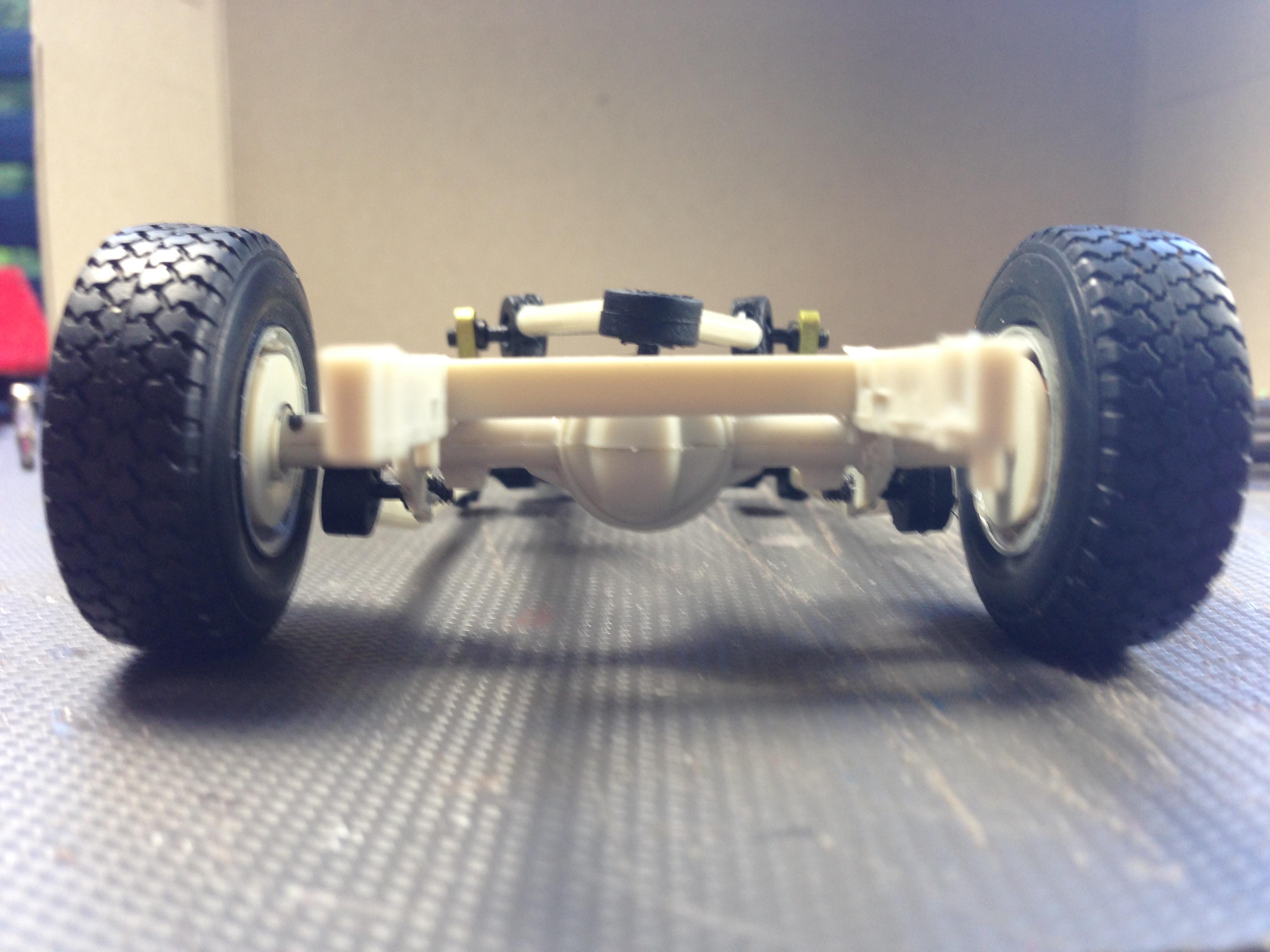

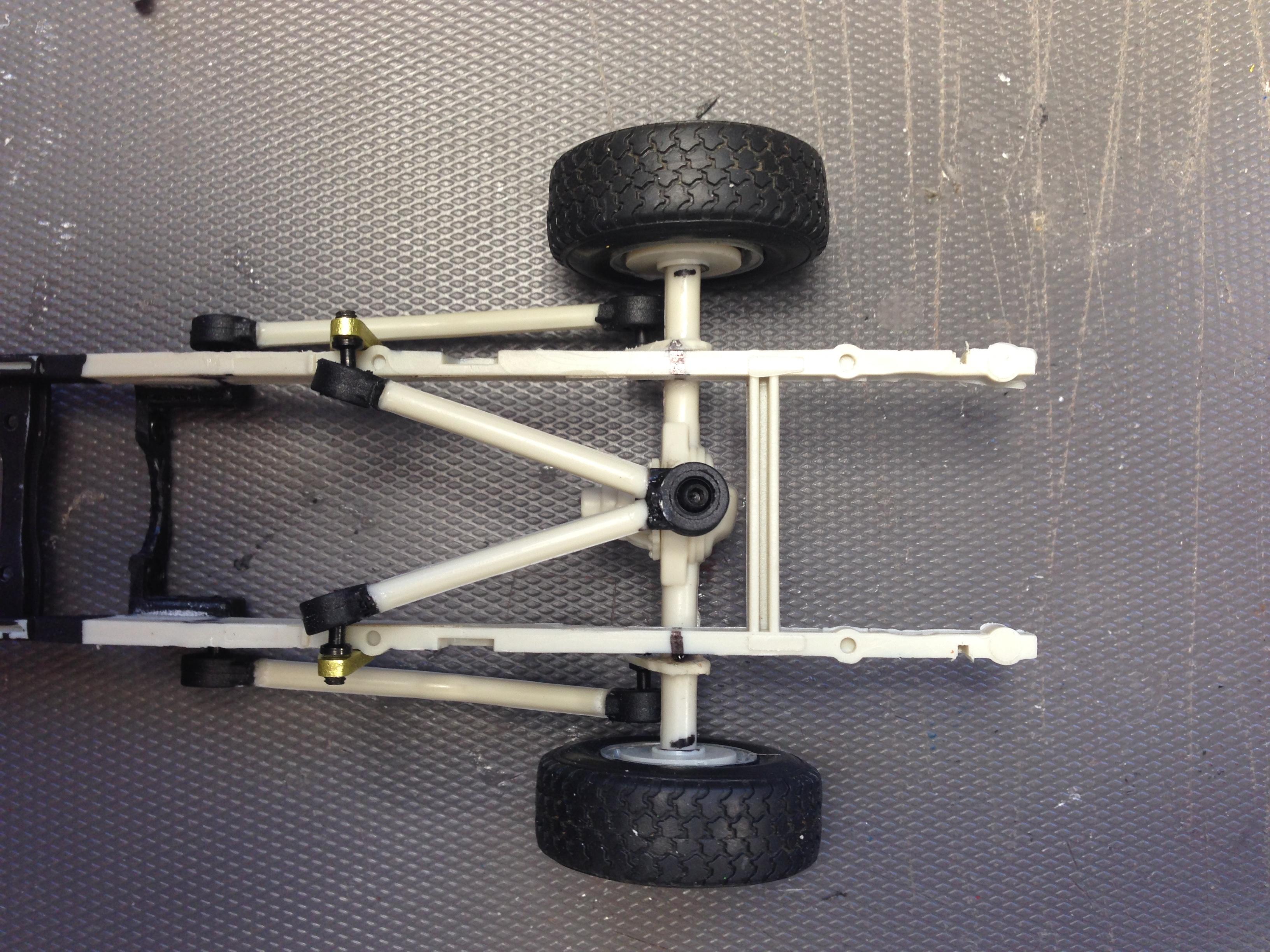

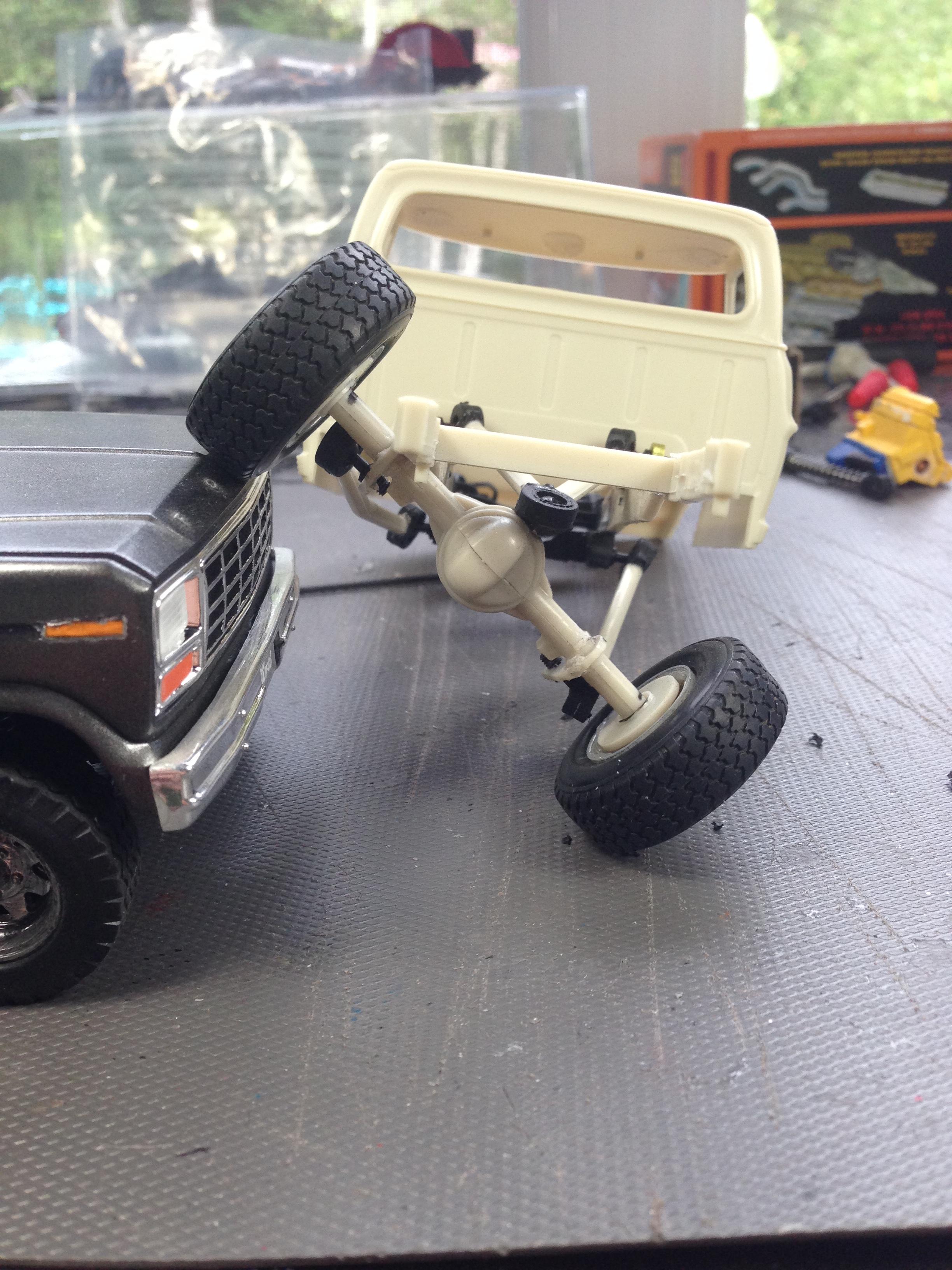

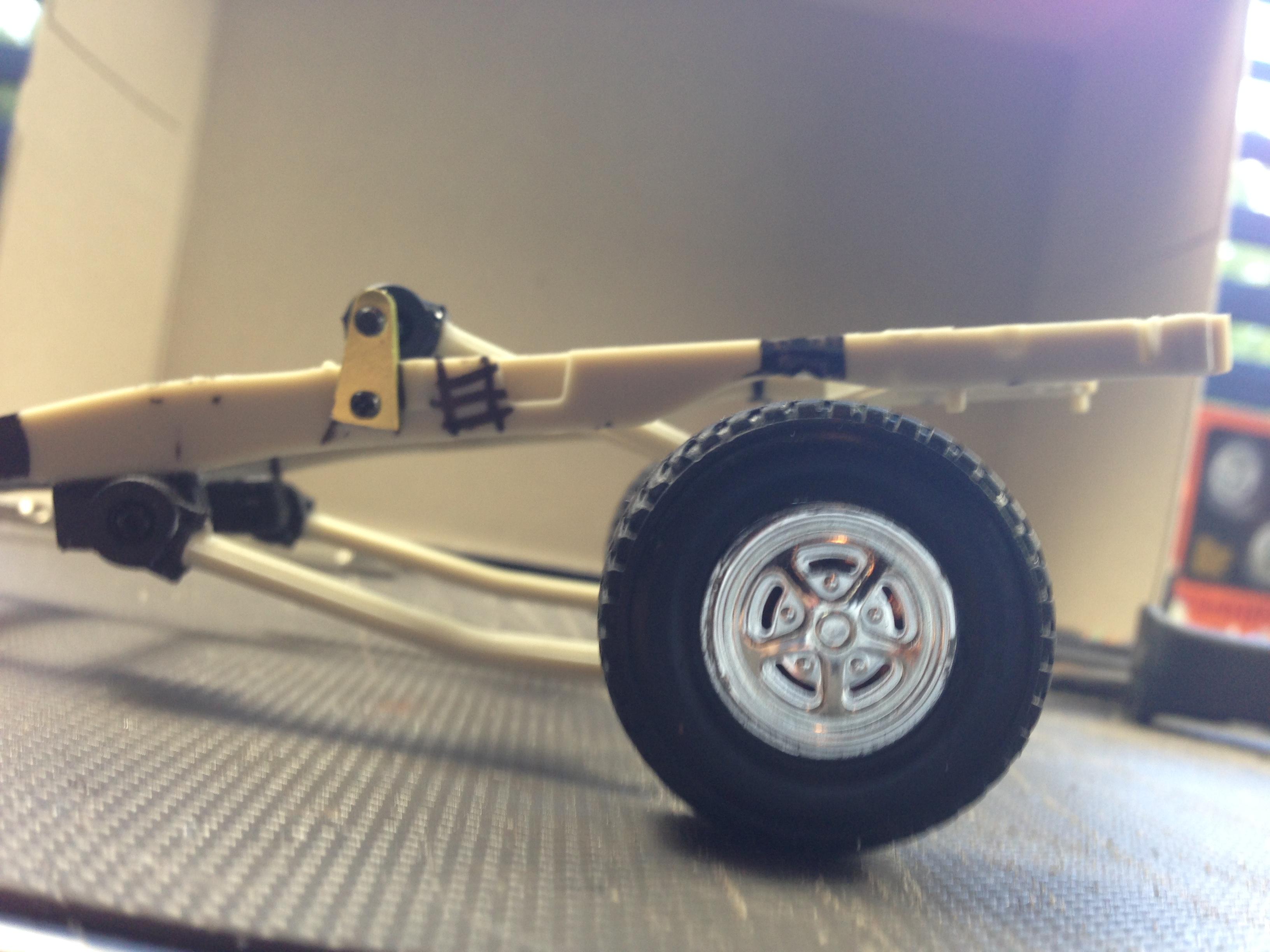

Jay's Customs Posted September 2, 2019 Share Posted September 2, 2019 (edited) Recently started work on this one; the 1972 Ford F100 Sport Custom by Moebius Models. Due to my fascination for the extremely simple Twin I-Beam front suspension on these trucks, I can't help but make it funtional. It won't be my first time building a working suspension like this, the first time being on the 1980 Ford F150 by Revell (posted on this site years ago) where I made a fully working Twin Traction Beam suspension up front. However, it was built as a stock truck, so the rear flex only came from the box stock leaf springs. This one will be MUCH different as it will be a long travel prerunner suspension. All I've done so far is the links to the rear suspension because the front is proving to be a little more difficult; The ball joints are from a small scale rc crawler and the springs will be from the same. As seen in the eighth picture, this setup can achieve extreme flex and travel. Also in that pic is the '80 F150 mentioned above. This last pic is what it should look like when the suspension is fully compressed and with some extra weight all around I hope to get it to flex on dioramas without being pushed down or held. The hood scoop is made to look like those found on some HD dump trucks of the same body style. I have many things planned for this build so stay tuned. Comments welcome! -Jay Edited September 2, 2019 by Jay's Customs Quote Link to comment Share on other sites More sharing options...
66belair Posted September 4, 2019 Share Posted September 4, 2019 Very interesting build, going to follow closely. Quote Link to comment Share on other sites More sharing options...

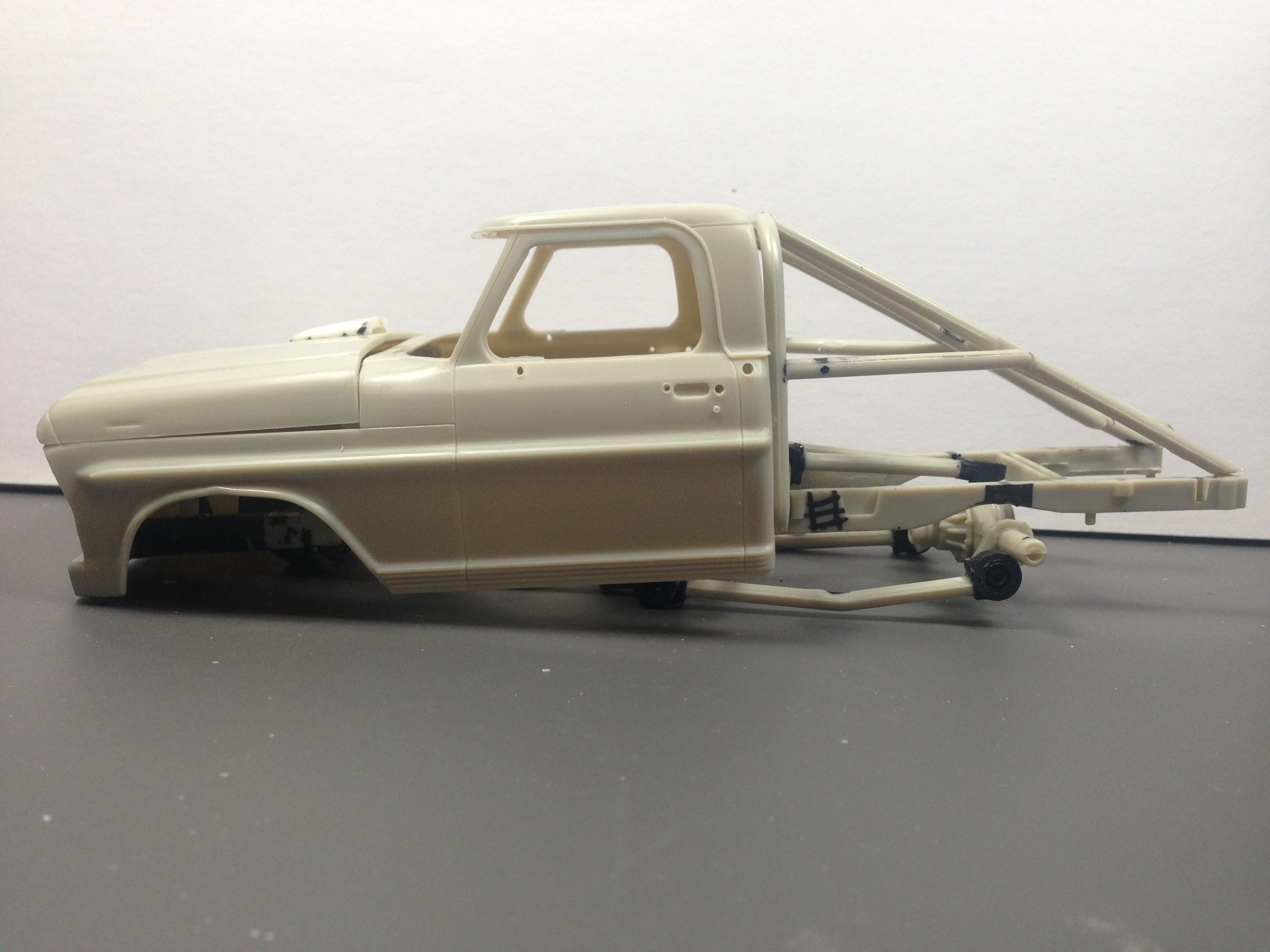

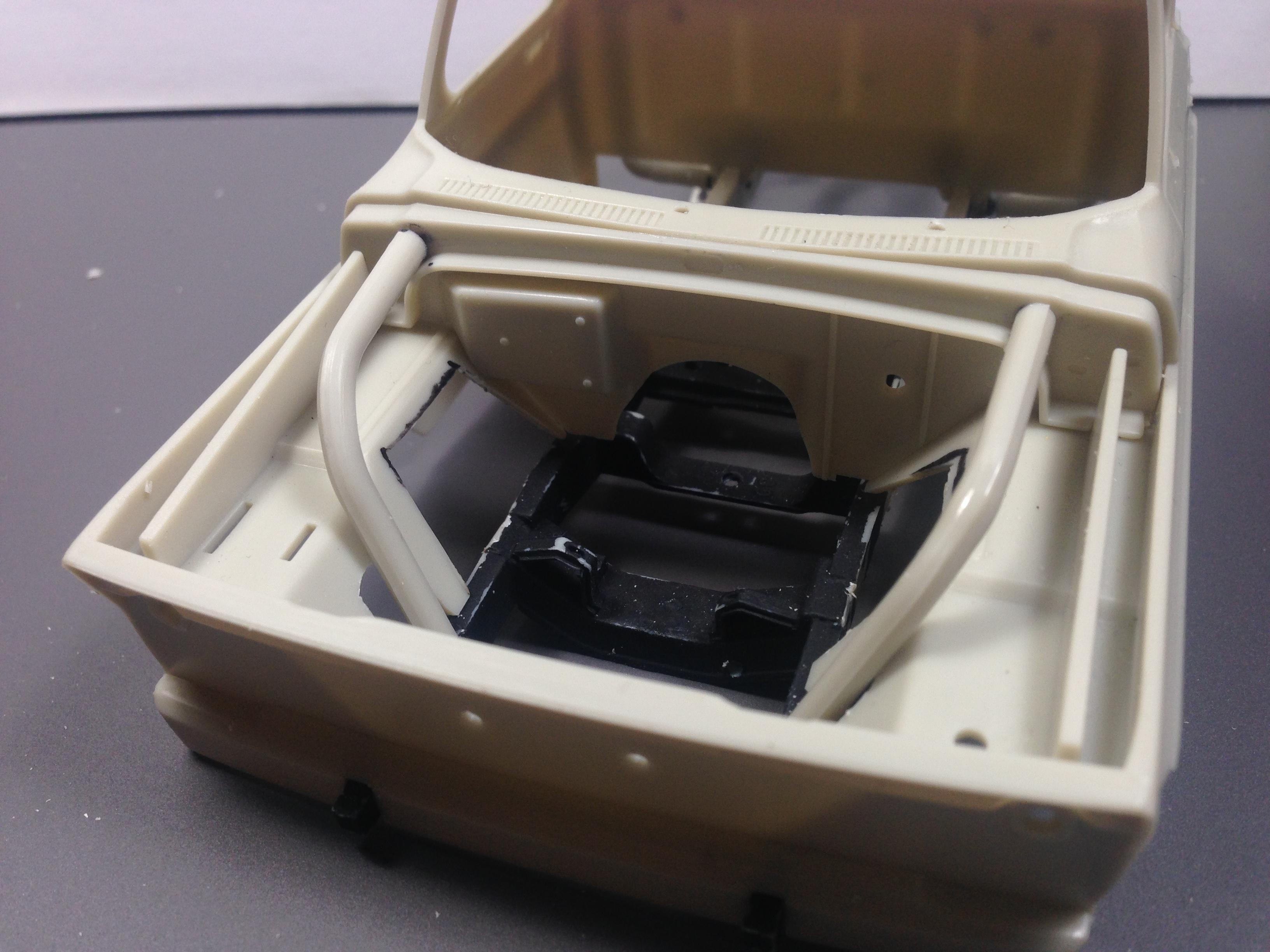

Jay's Customs Posted September 9, 2019 Author Share Posted September 9, 2019 Got some cage work started on the back to hold the coilovers. Also made hoops for the front. Most of this will get small screws and glue just to ensure that nothing falls apart once completed. More to come soon. Pointers are appreciated! Quote Link to comment Share on other sites More sharing options...
hjracing Posted September 10, 2019 Share Posted September 10, 2019 Great start, I'm glad to see prerruners being building Quote Link to comment Share on other sites More sharing options...
average_joe Posted September 10, 2019 Share Posted September 10, 2019 Very interesting build, and that is some crazy flex! Following along for more updates, and looking forward to seeing the front suspension. Will you be installing a panhard bar for the rear? Quote Link to comment Share on other sites More sharing options...
Jay's Customs Posted September 10, 2019 Author Share Posted September 10, 2019 3 hours ago, average_joe said: Very interesting build, and that is some crazy flex! Following along for more updates, and looking forward to seeing the front suspension. Will you be installing a panhard bar for the rear? Actually being that it is a 4 link suspension, with enough triangulation in the links a panhard bar isn't necessary. But just to make sure the axle wouldn't move side to side (because the amount of angle for the links is restricted at this scale and size), the triangulated top links are fixed to the same joint, making sway impossible. Quote Link to comment Share on other sites More sharing options...
leafsprings Posted September 11, 2019 Share Posted September 11, 2019 These trucks did pretty good with the basic twin I beam and rear leafsprings too! Quote Link to comment Share on other sites More sharing options...
leafsprings Posted September 11, 2019 Share Posted September 11, 2019 Quote Link to comment Share on other sites More sharing options...
Jay's Customs Posted September 11, 2019 Author Share Posted September 11, 2019 That is so cool! Thank you Quote Link to comment Share on other sites More sharing options...
larman Posted October 6, 2019 Share Posted October 6, 2019 Nice work! Quote Link to comment Share on other sites More sharing options...
WickedWelder Posted October 21, 2019 Share Posted October 21, 2019 That's awesome work so far. Can't wait to see the rest of the build. I have a f150 flareside kit I'm wanting to build as a pre-runner. Quote Link to comment Share on other sites More sharing options...
