Off on a new adventure!


I took this photo back in 2007 on St John while vacationing in the US Virgin Islands. Unfortunately I took one quick shot, not a side or rear view, which would aid me immensely  building this as a model.


With Google as my friend, I searched “St John, Jeep” and look what popped up?!  Same exact Jeep.. see the plate number! A few years older with more wear on it. So I can reasonably expect it’s still tooling around the island!

As I’ve been accused of “ruining perfectly models” in the past, you may ask “why?”.  I was immediately drawn to this battered Jeep with its locally welded rear section because it fits my theme of unique old survivors.  I’m not alone since I found another picture.  Secondly, I want to undertake the challenge of scratch building it and seeing just how close a replica I can create!

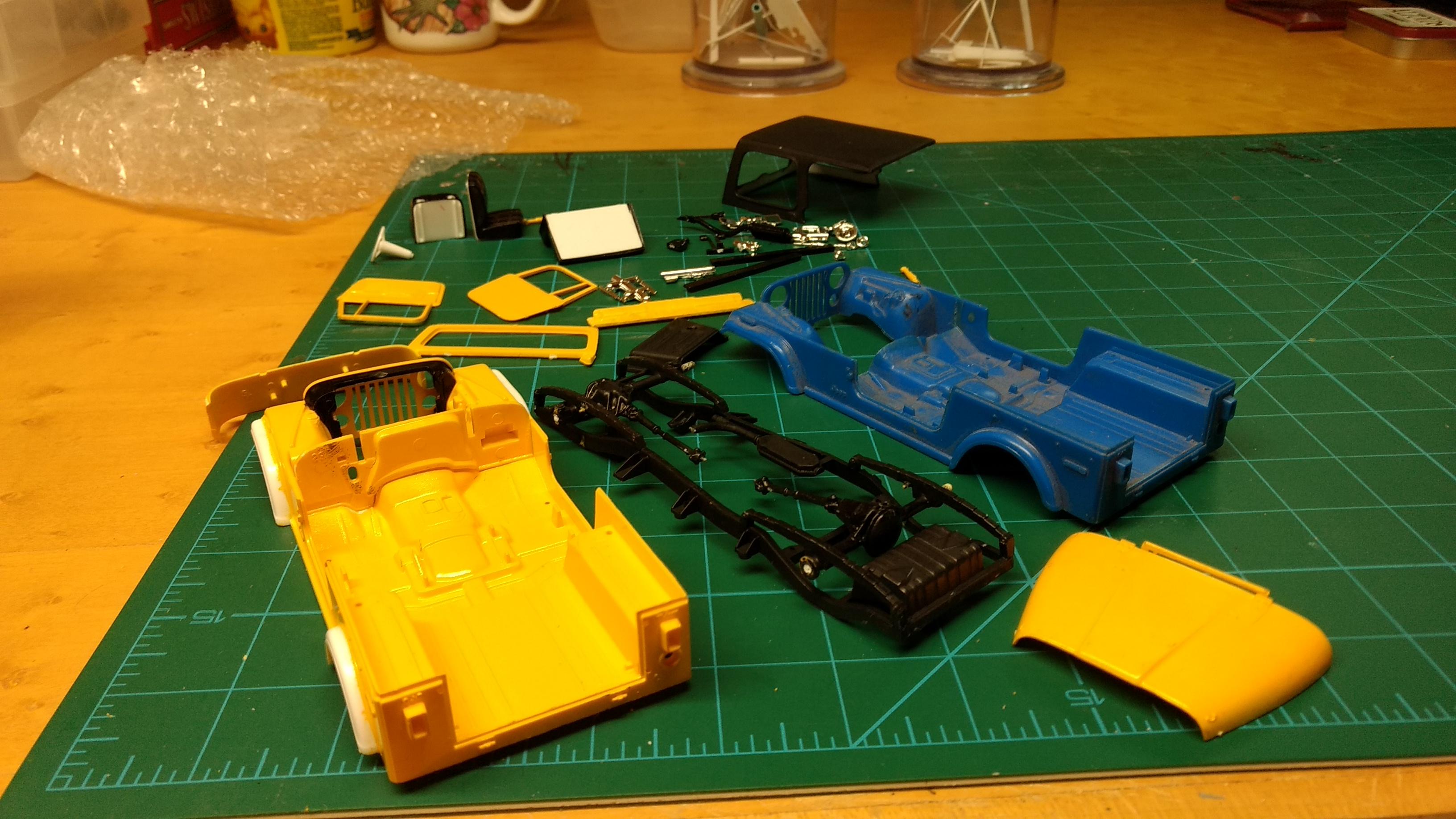

First thing I noticed is that the Jeep has a longer than standard wheelbase. The CJ6 wheelbase is 20” longer than a standard CJ5, so I extended the flat bottom with Evergreen strips. Note that I strengthened it with pins as I always do.


I cleaned up the really poor MPC axles and got it up on wheels.


Here’s how bad the axles actually are! Missing parts and near zero mating surfaces to join the two halves!  On my Junker Jeep, the axles were broken off so I had replaced the shafts with round plastic stock. Probably should have done that here too!


My favorite magic trick of sawing the lady in half. We aren’t going to need anything behind the seat so off with it.  And that back half has become a trailer.


Here I start getting familiar with the relationship the parts will have to deal with. Important as I scratch build the box.


And here we are figuring out the dimensions and fit. I’m having to approximate since I’m working with a single front angle photo.  If I had a side view, I’d scale the photo to the wheel base and simply measure it all off. Note that I’m working with cardboard, and old packaging scraps of it. It’s best to do your trial work in a throw away medium before committing precious sheet plastic to the project.


Working on approximating the body requires a lot of sitting back and staring it it! And I like to review it in photos since they accentuate errors. It’s also important for me to walk away and come back the next day because getting too close to the model  blurs my objectivity. Sometimes I come back and immediately see something in one of those “What was I thinking?” moments!

And as far as the vehicle, I have no idea why it has a crudely welded local body.  Maybe it was damaged. Maybe the owner wanted a longer and wider box.. maybe the chassis was stretched too...  we may never know!  It’s just going to be fun for a project!
