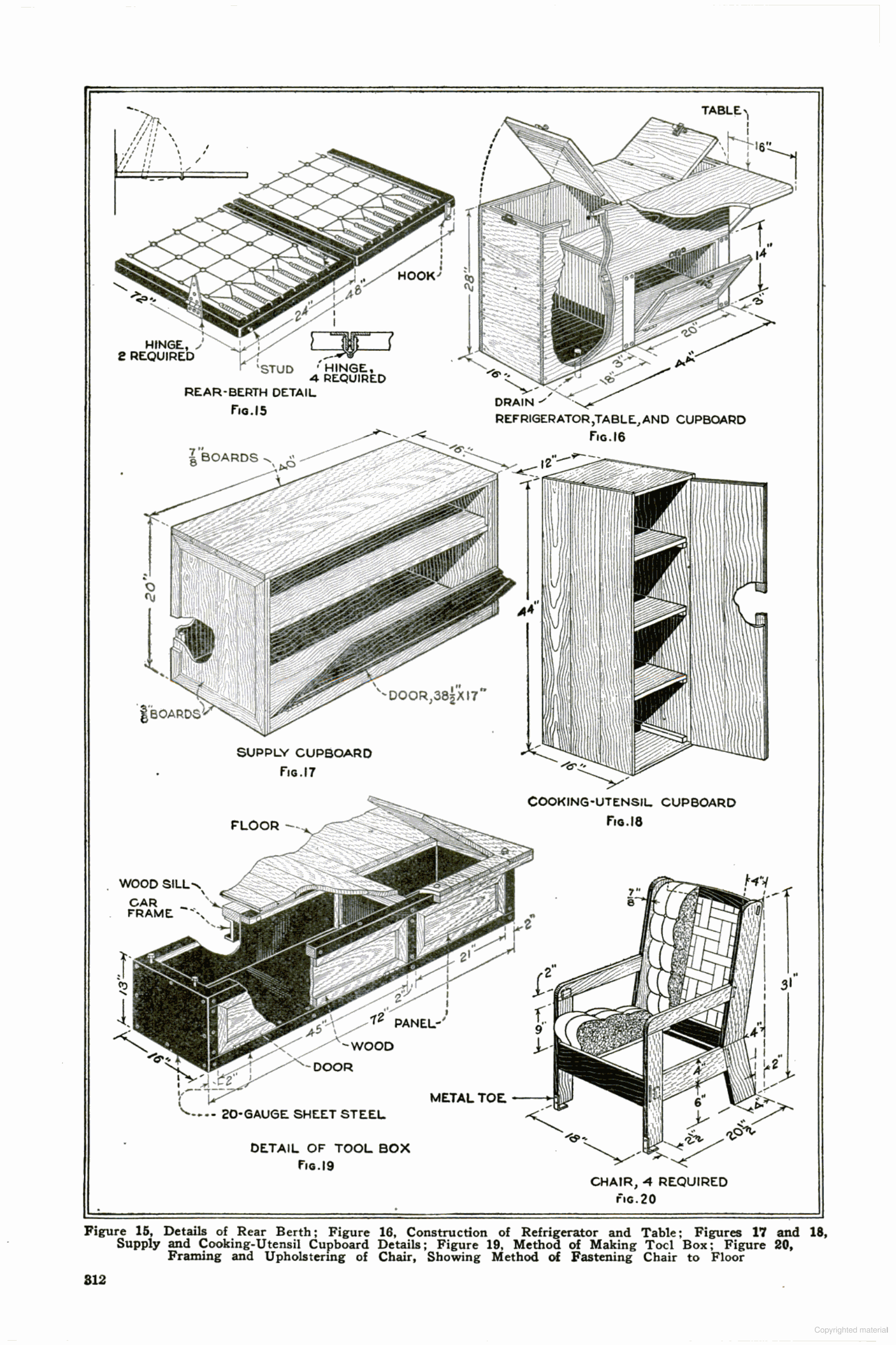

Brian Austin Posted March 19, 2021 Share Posted March 19, 2021 (edited) https://babel.hathitrust.org/cgi/pt?id=wu.89090514811&view=thumb&seq=9 Note there appears to be a little distortion in the last diagram. I'm presuming the bottom edge is supposed to be straight. (Google's book scans are often off-kilter in some manner). Edited March 19, 2021 by Brian Austin Quote Link to comment Share on other sites More sharing options...
Ace-Garageguy Posted March 19, 2021 Share Posted March 19, 2021 Cool stuff. Thanks for the post. Quote Link to comment Share on other sites More sharing options...

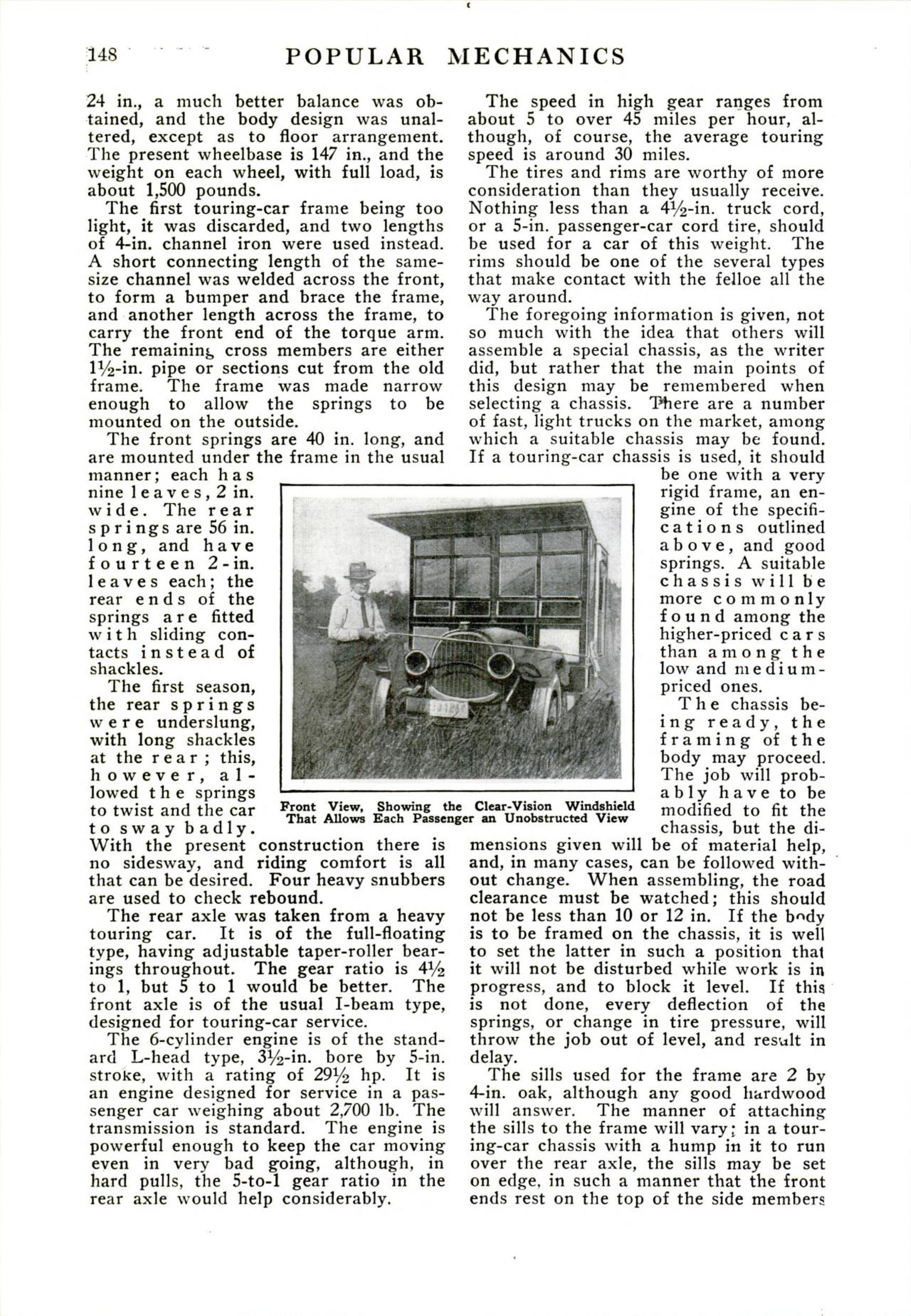

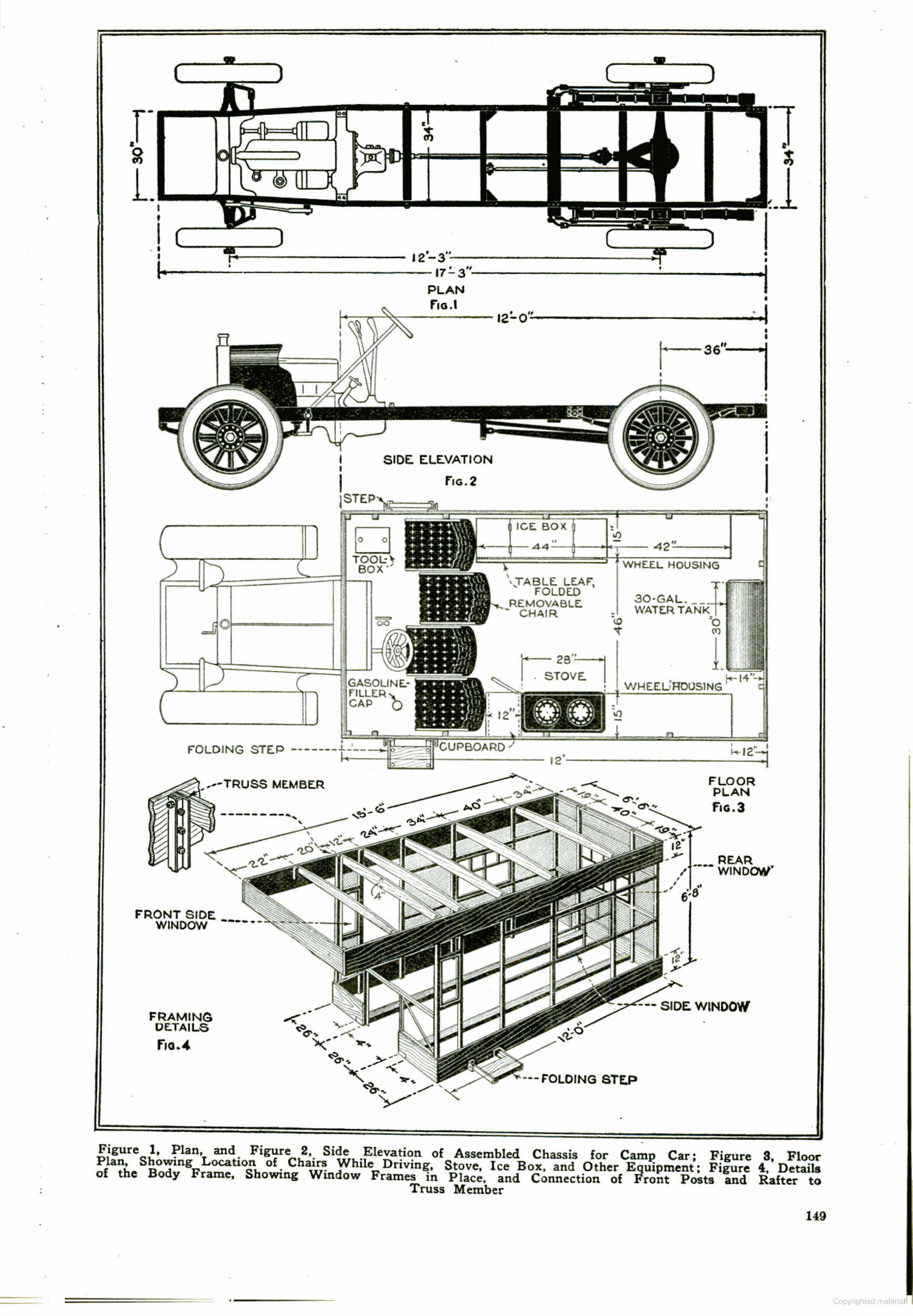

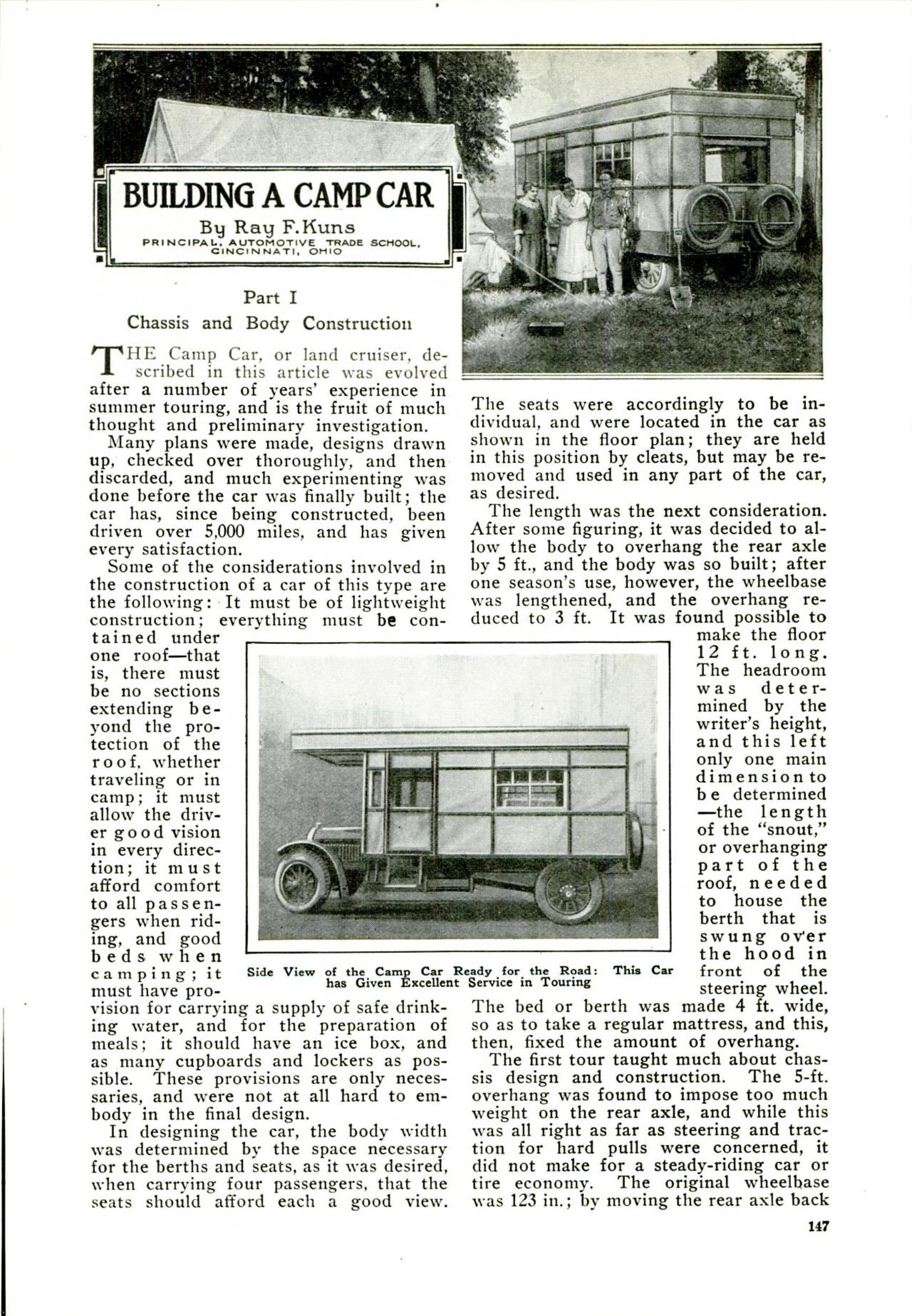

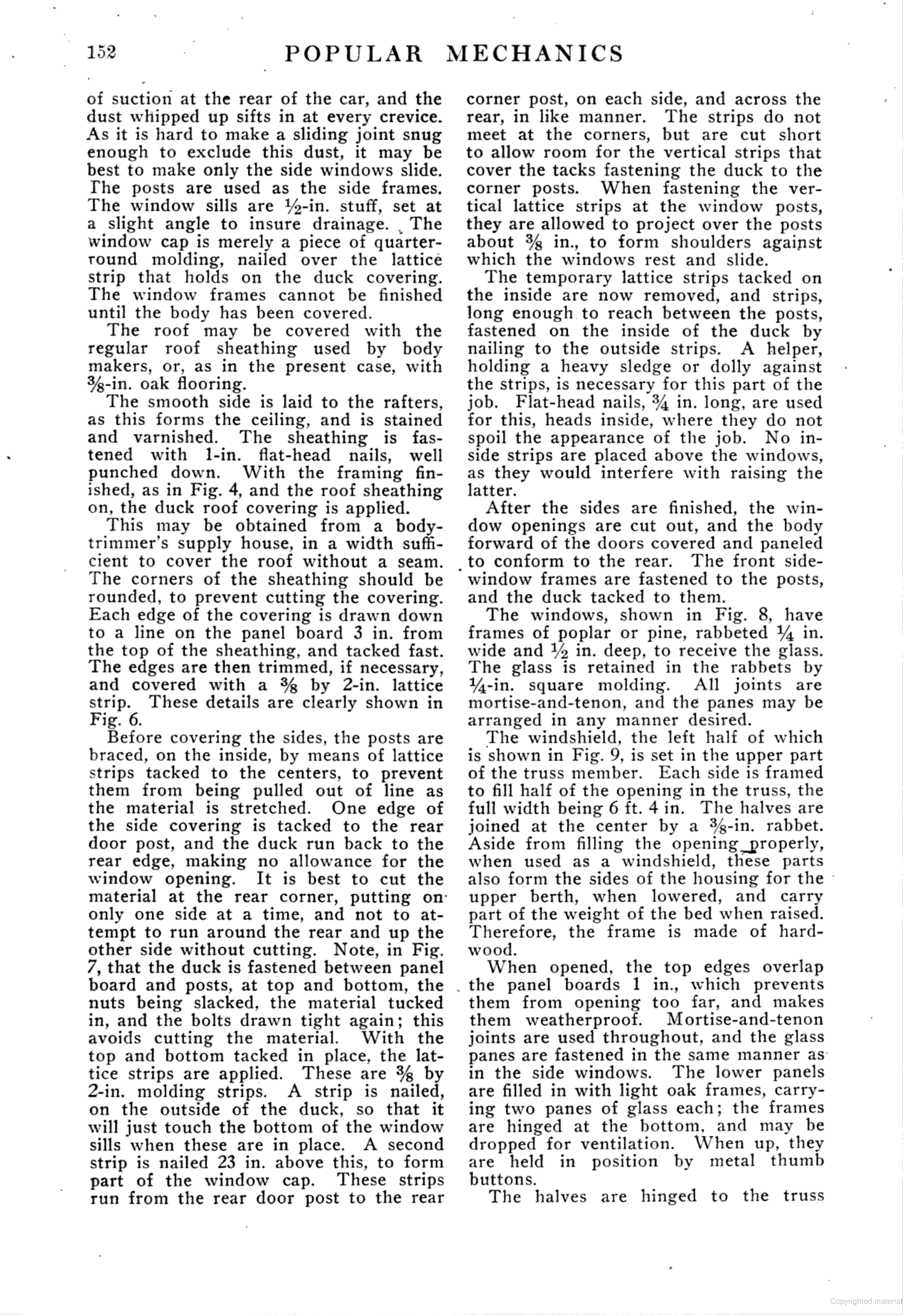

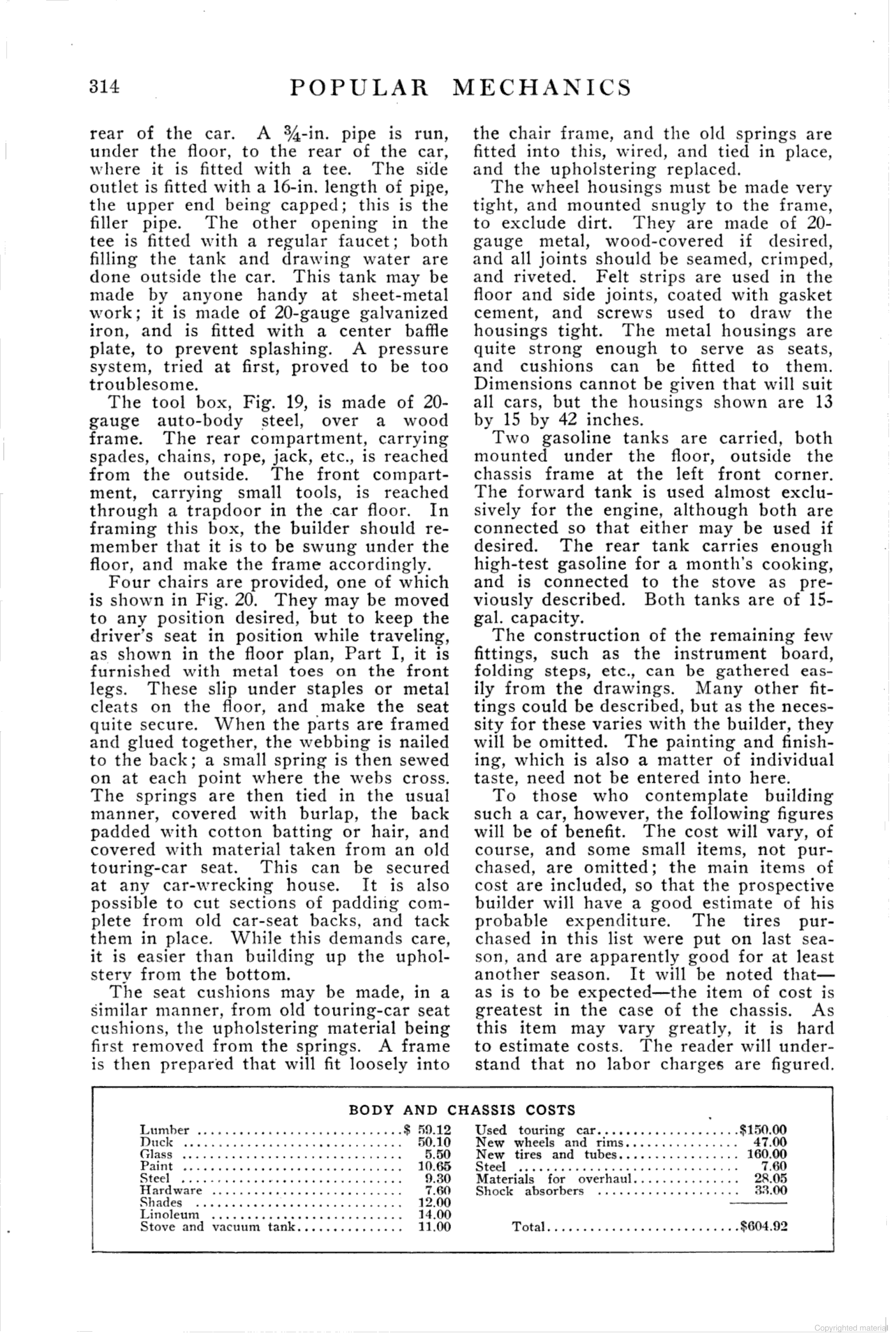

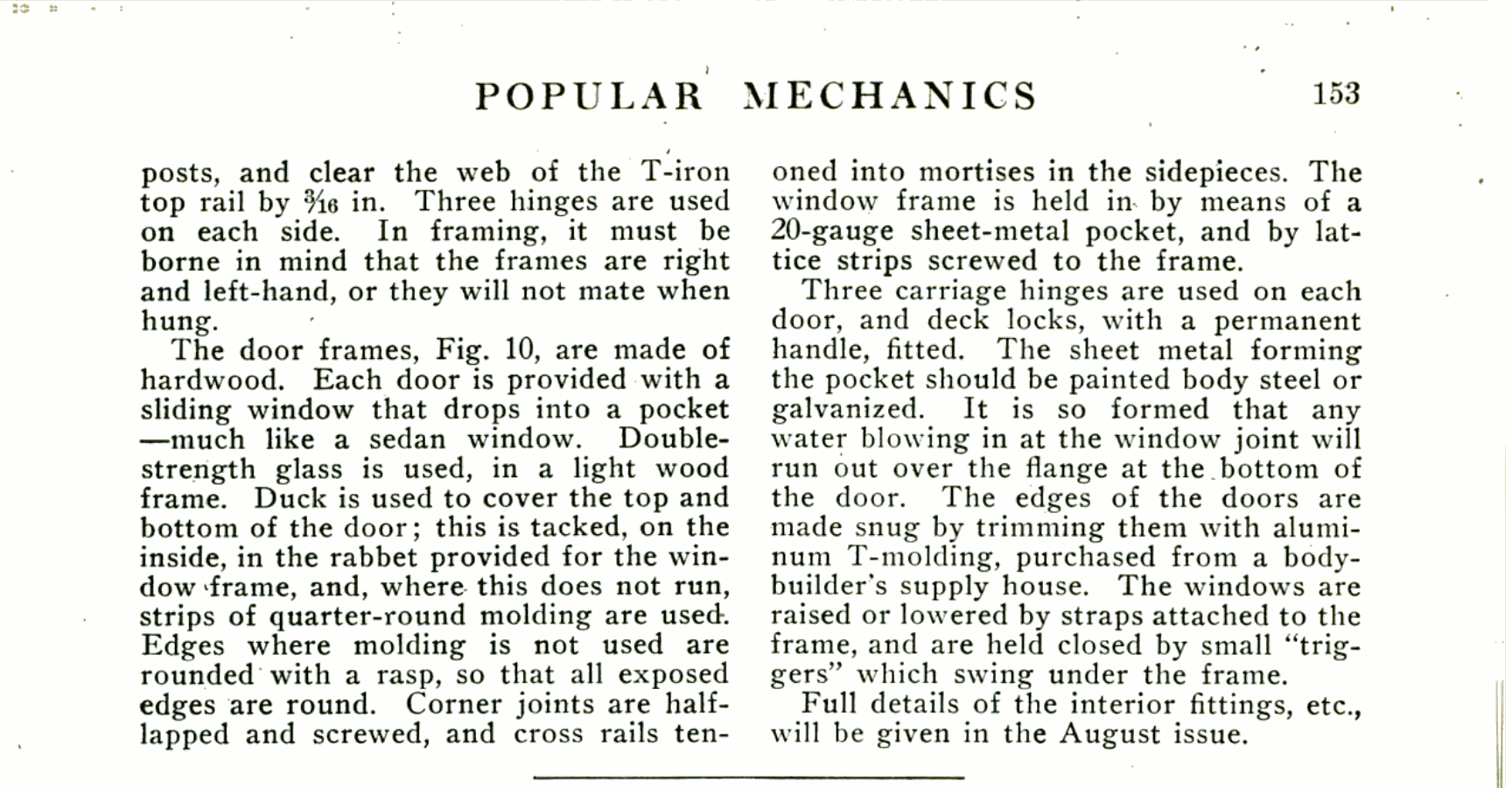

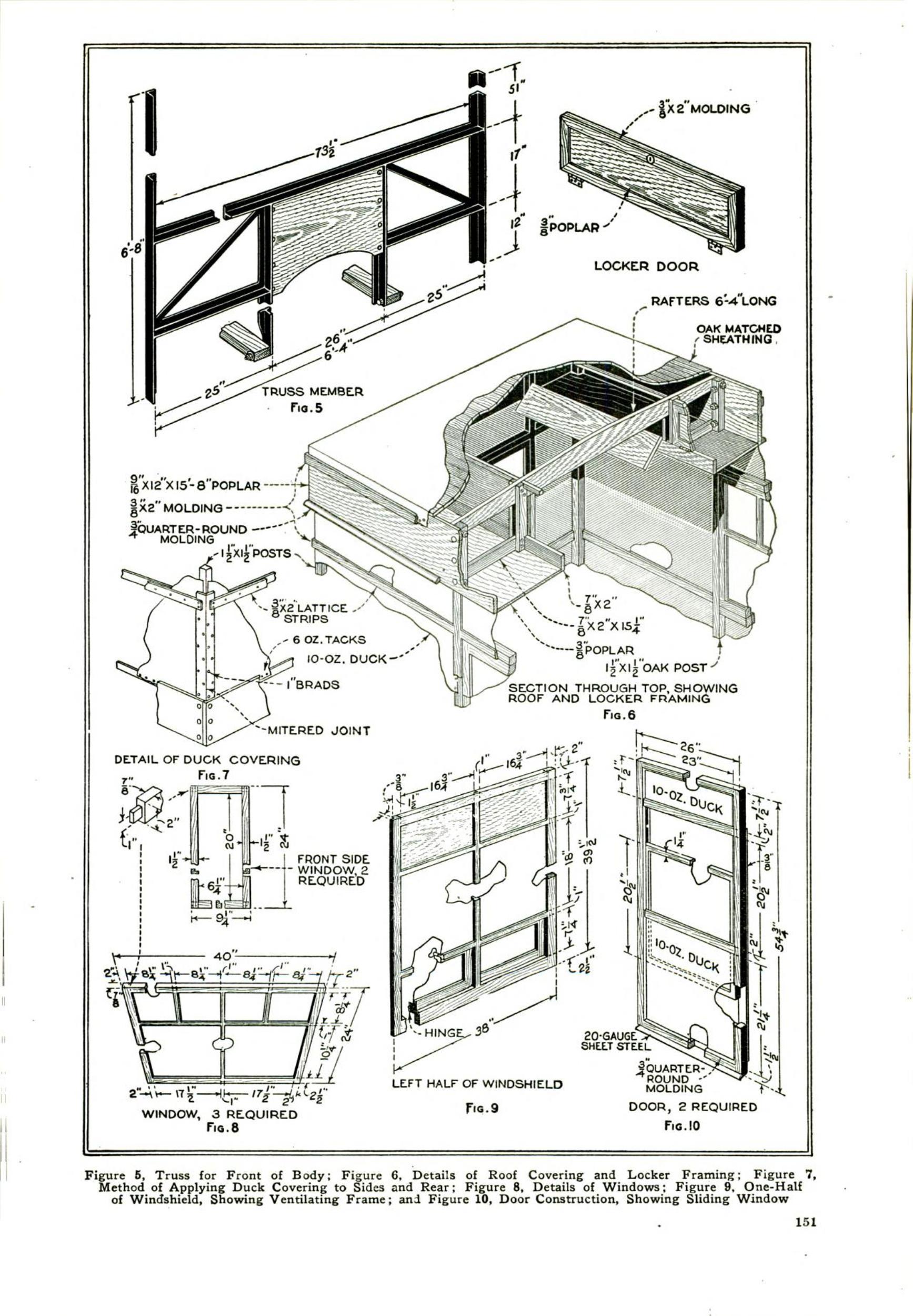

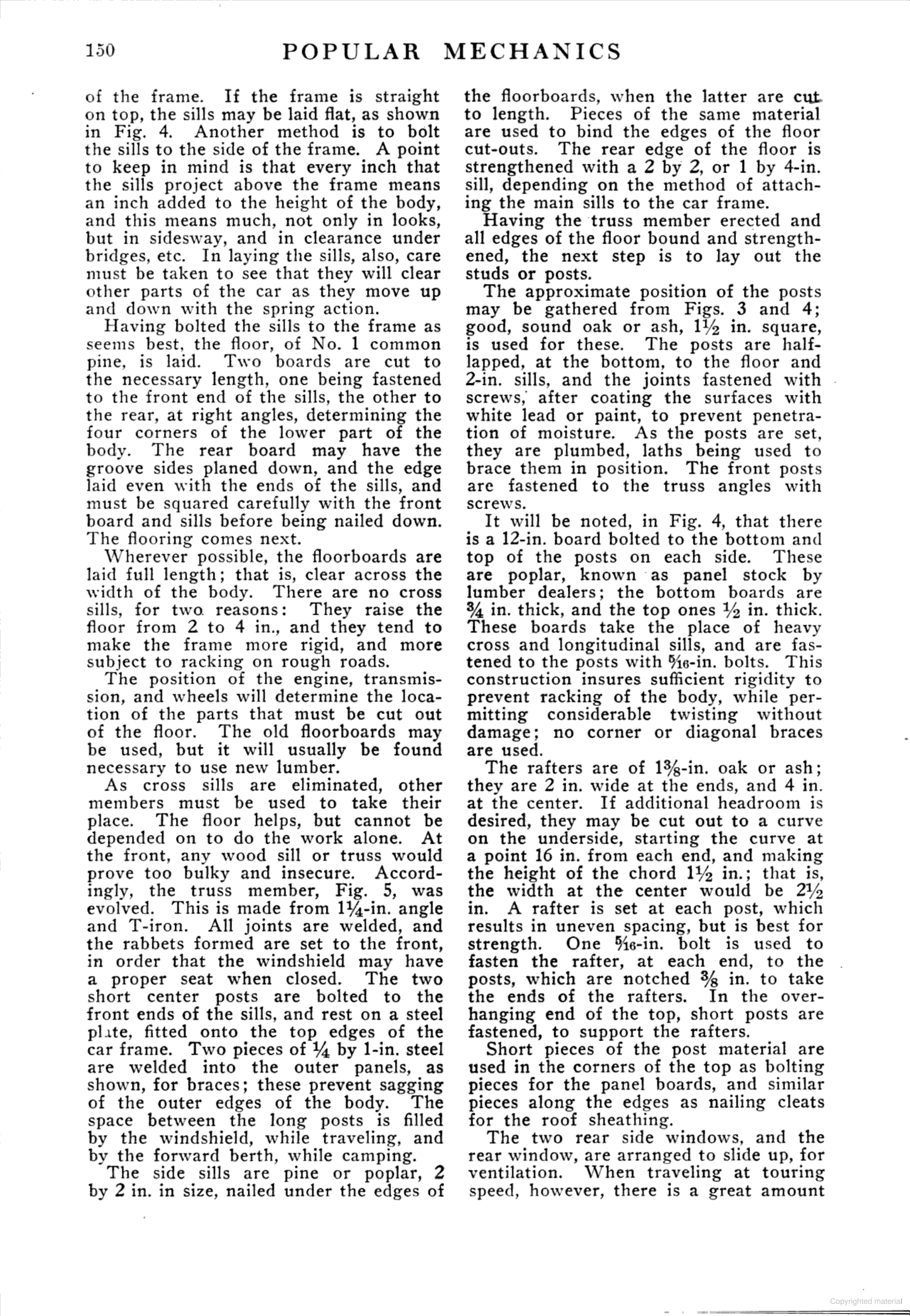

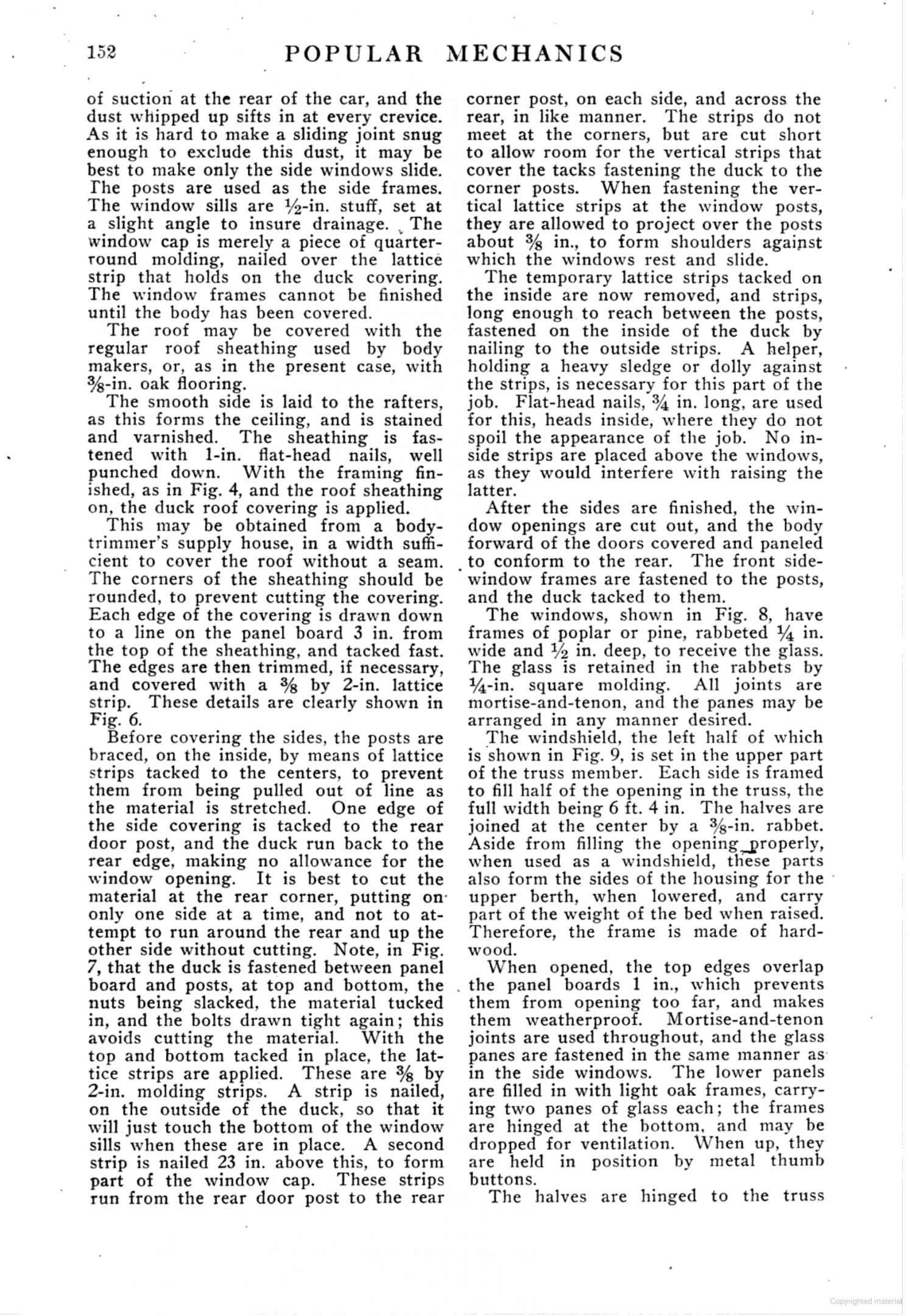

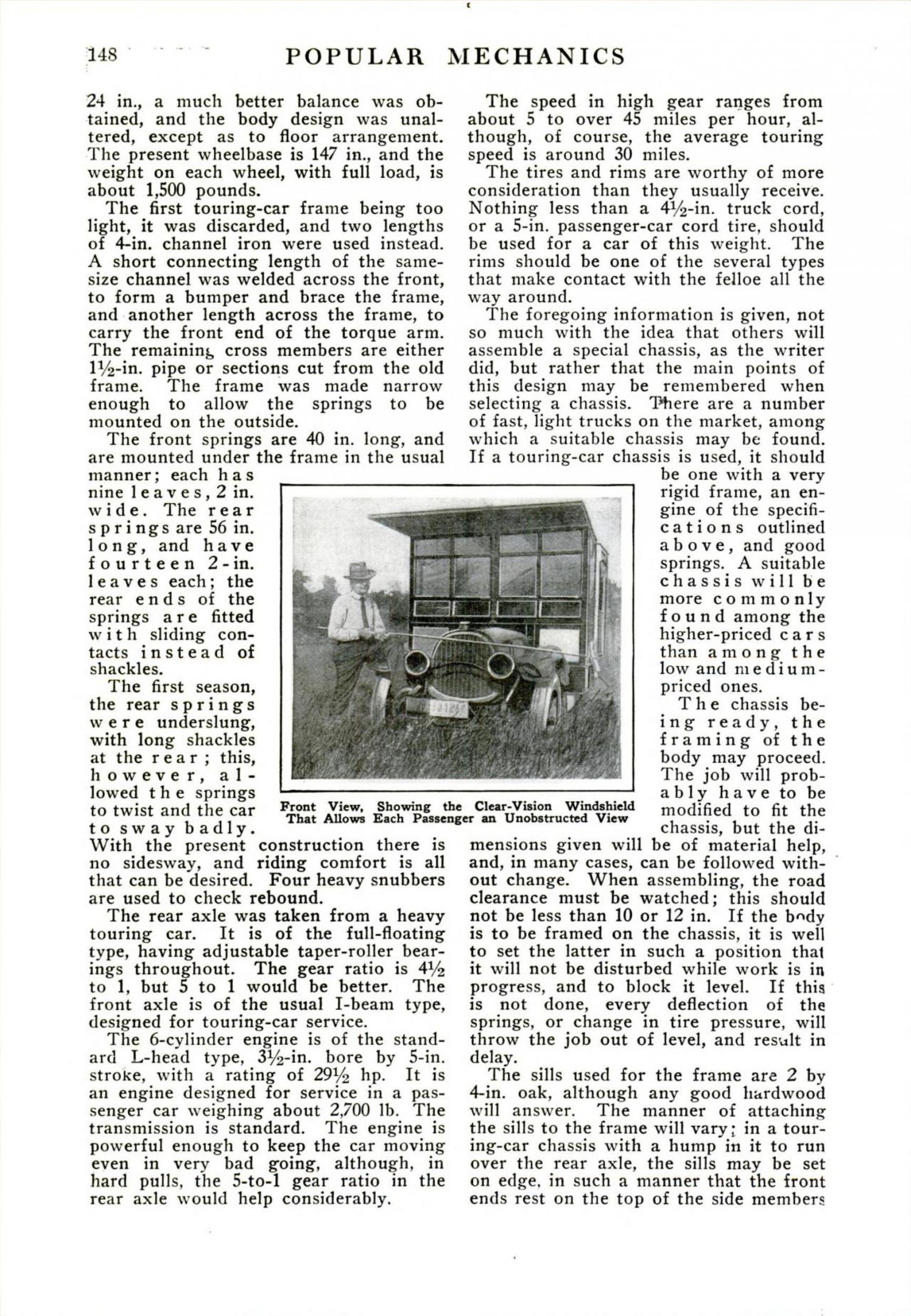

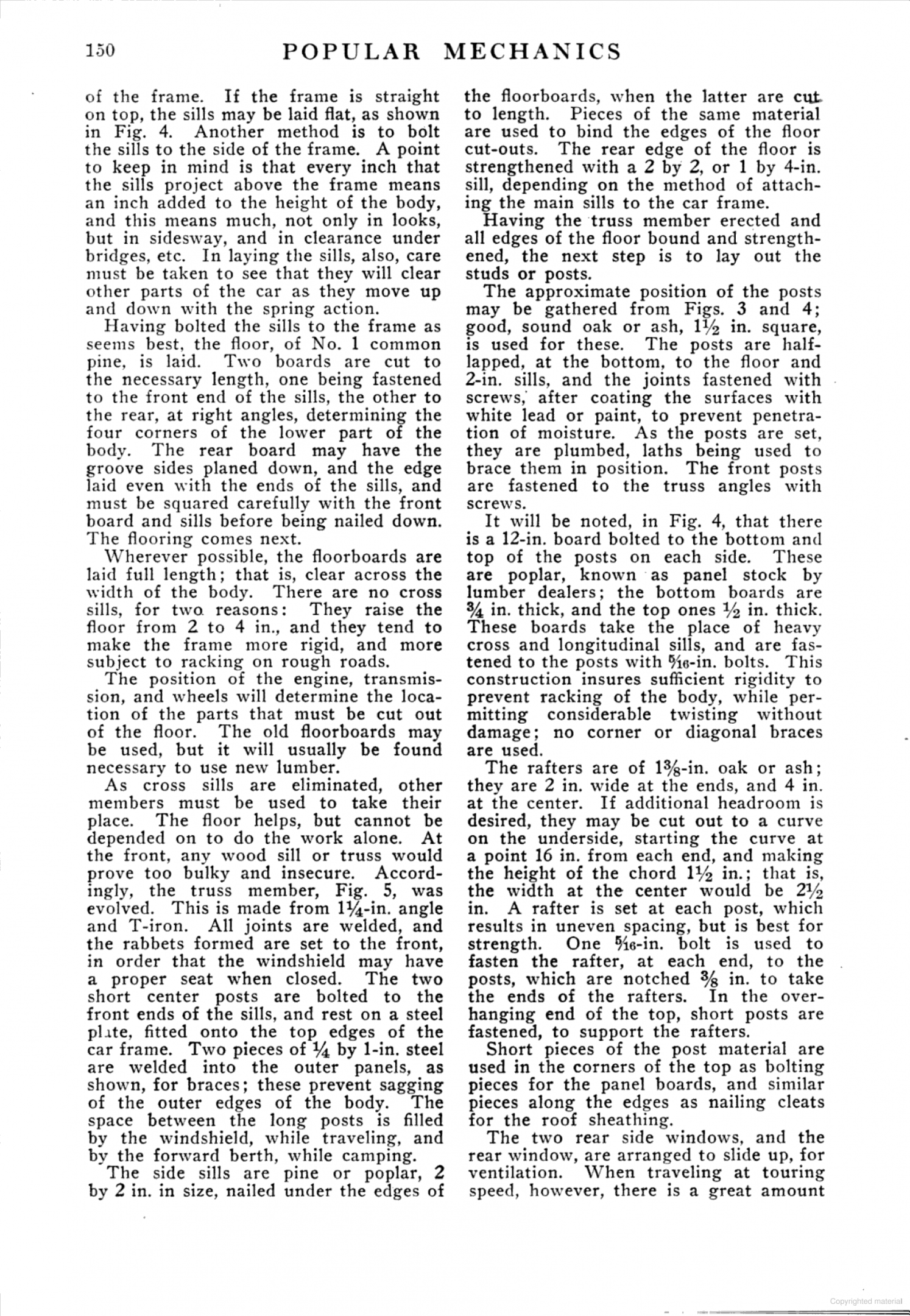

Brian Austin Posted March 20, 2021 Author Share Posted March 20, 2021 I have located the source for some of the drawings. In the July and August, 1924 issues of Popular Mechanics magazine are more illustrations not shown. Here's Part 1. Quote Link to comment Share on other sites More sharing options...

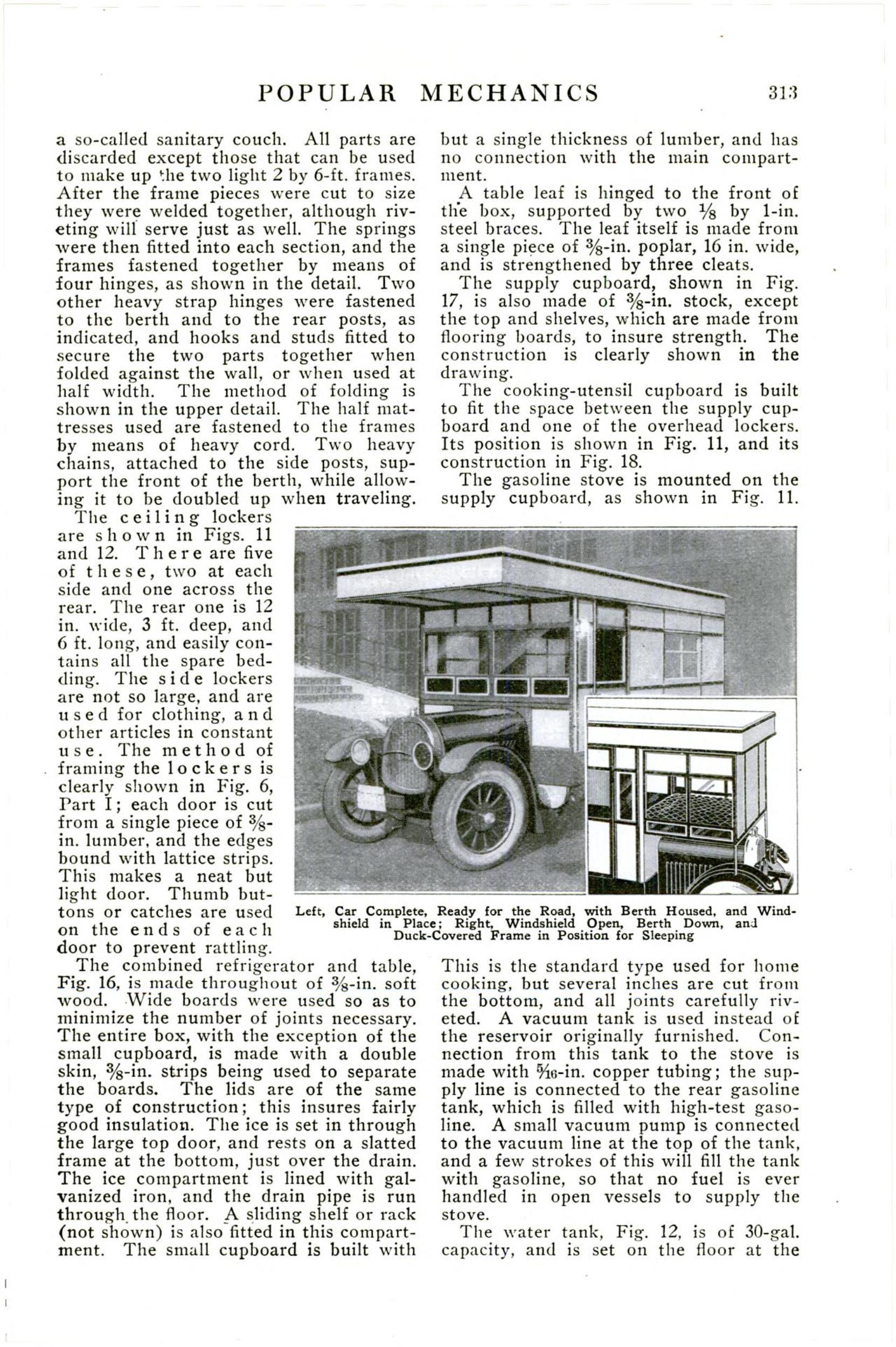

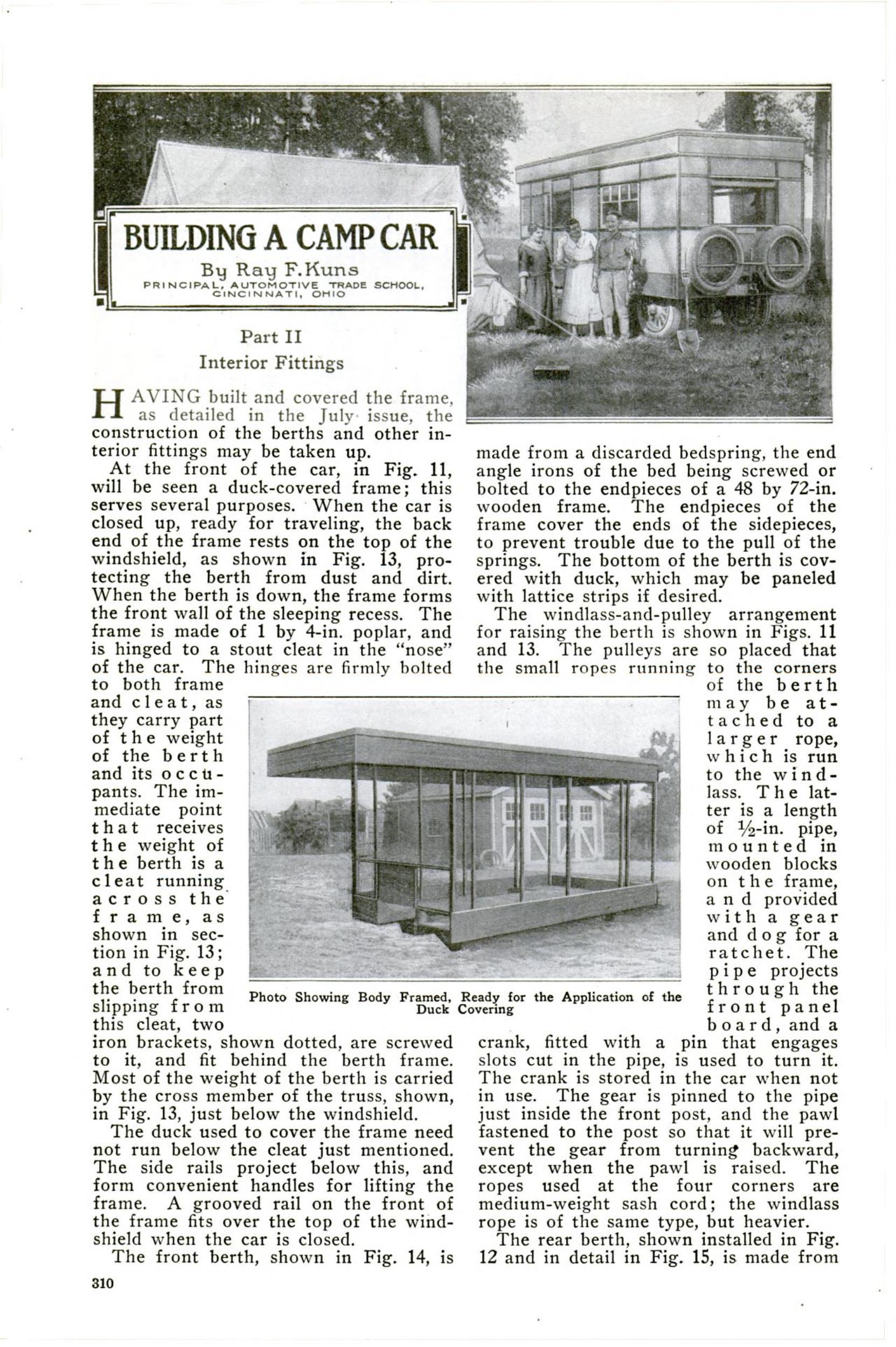

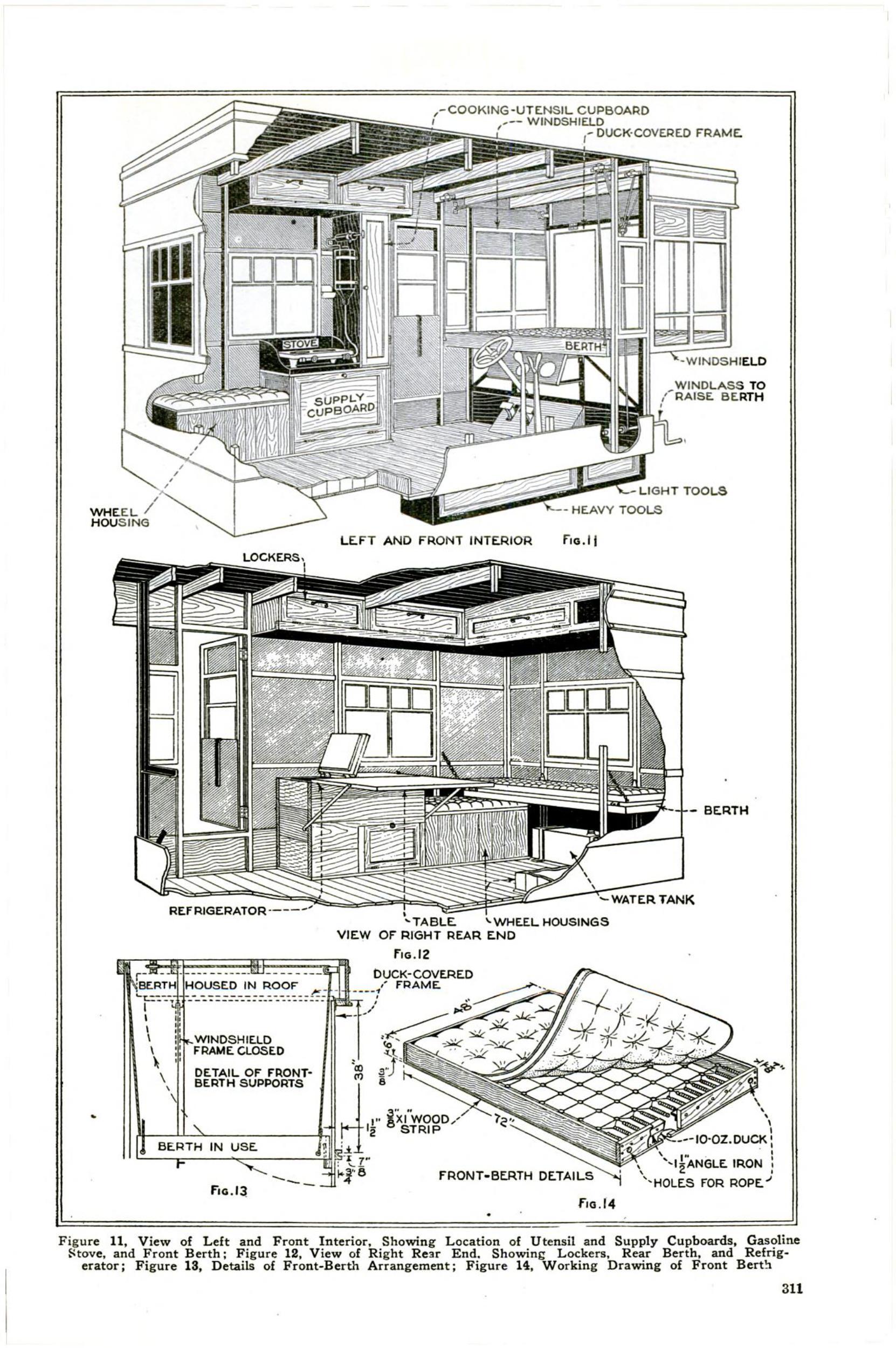

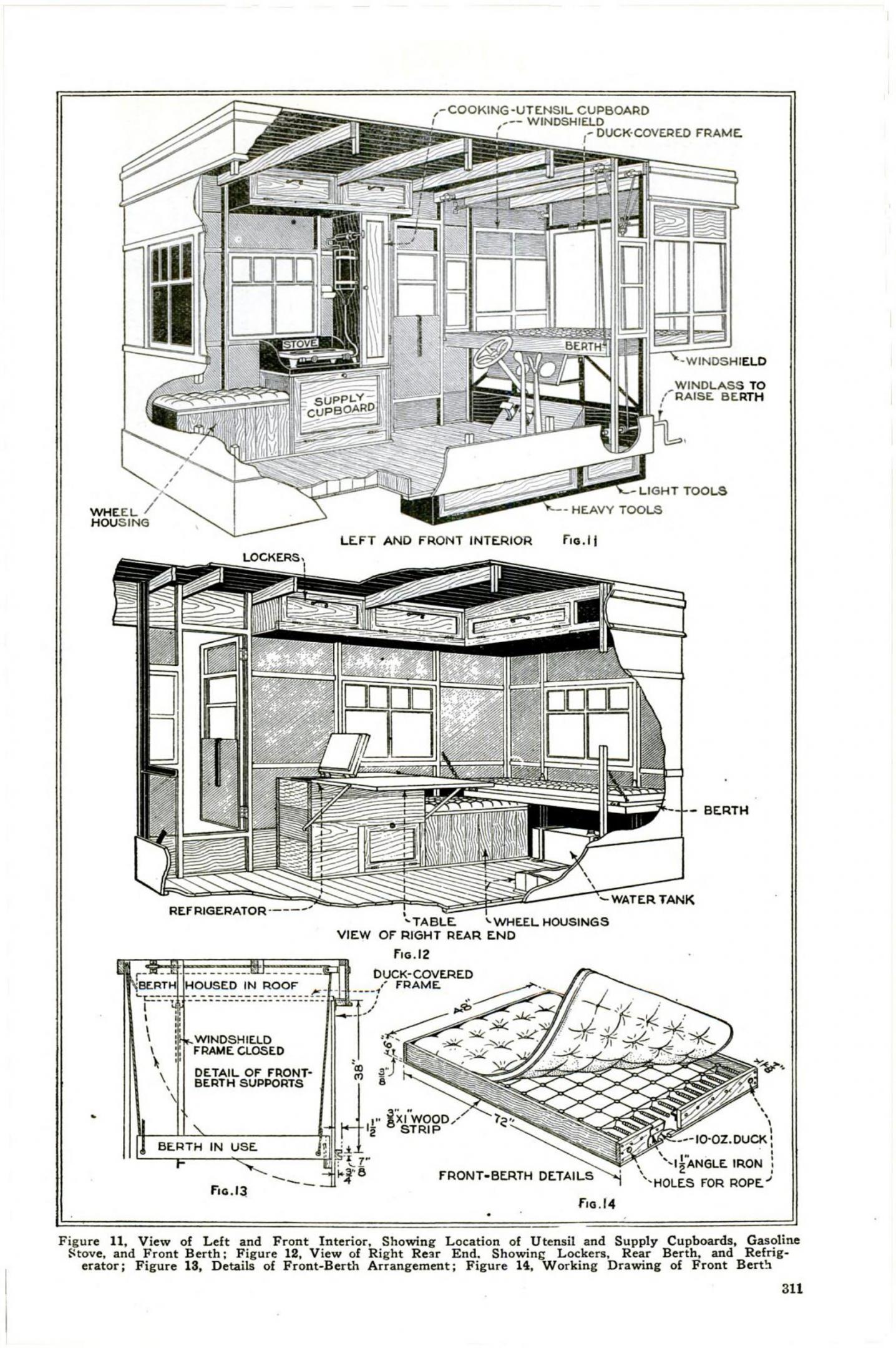

Brian Austin Posted March 20, 2021 Author Share Posted March 20, 2021 Part 2 Quote Link to comment Share on other sites More sharing options...

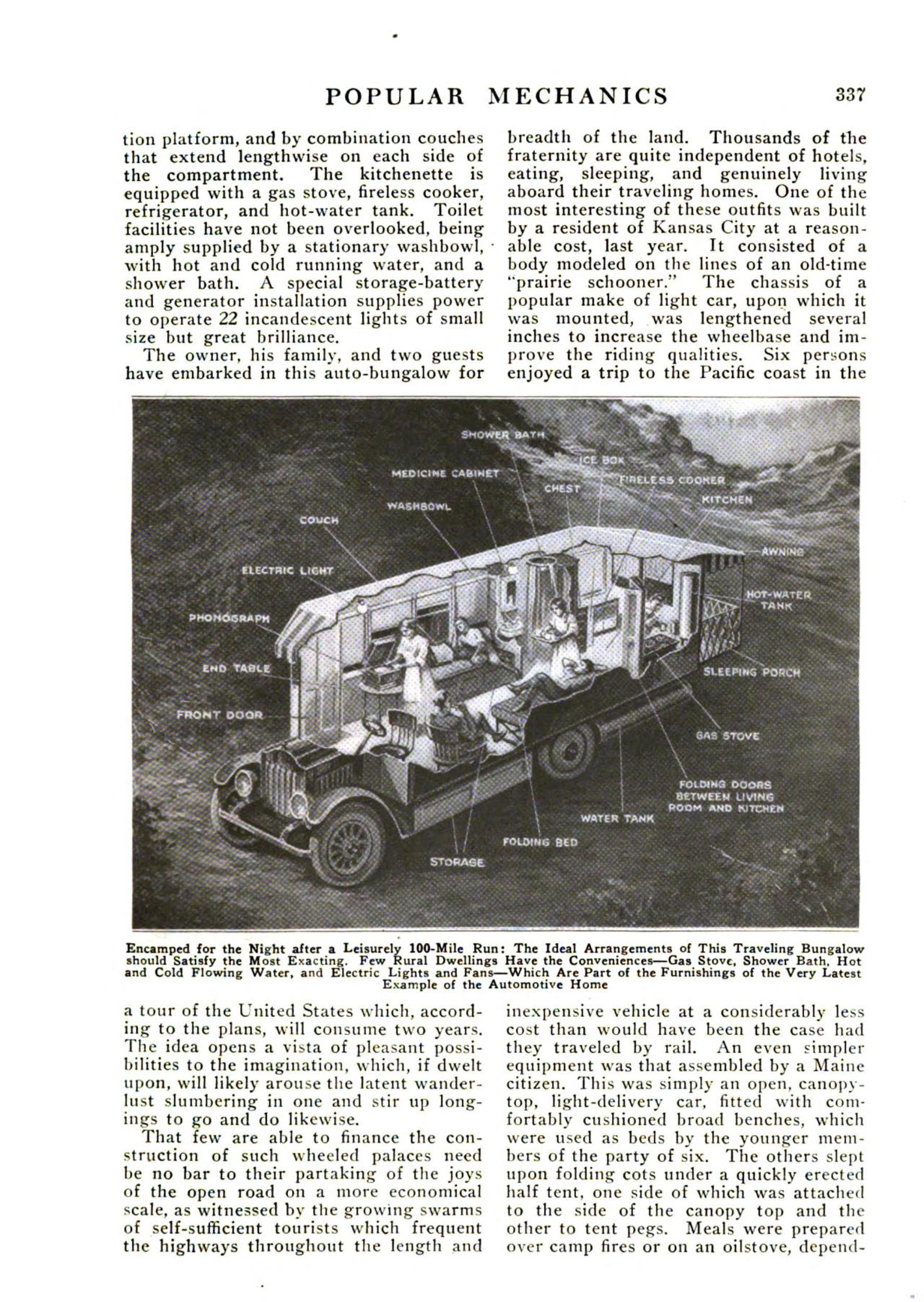

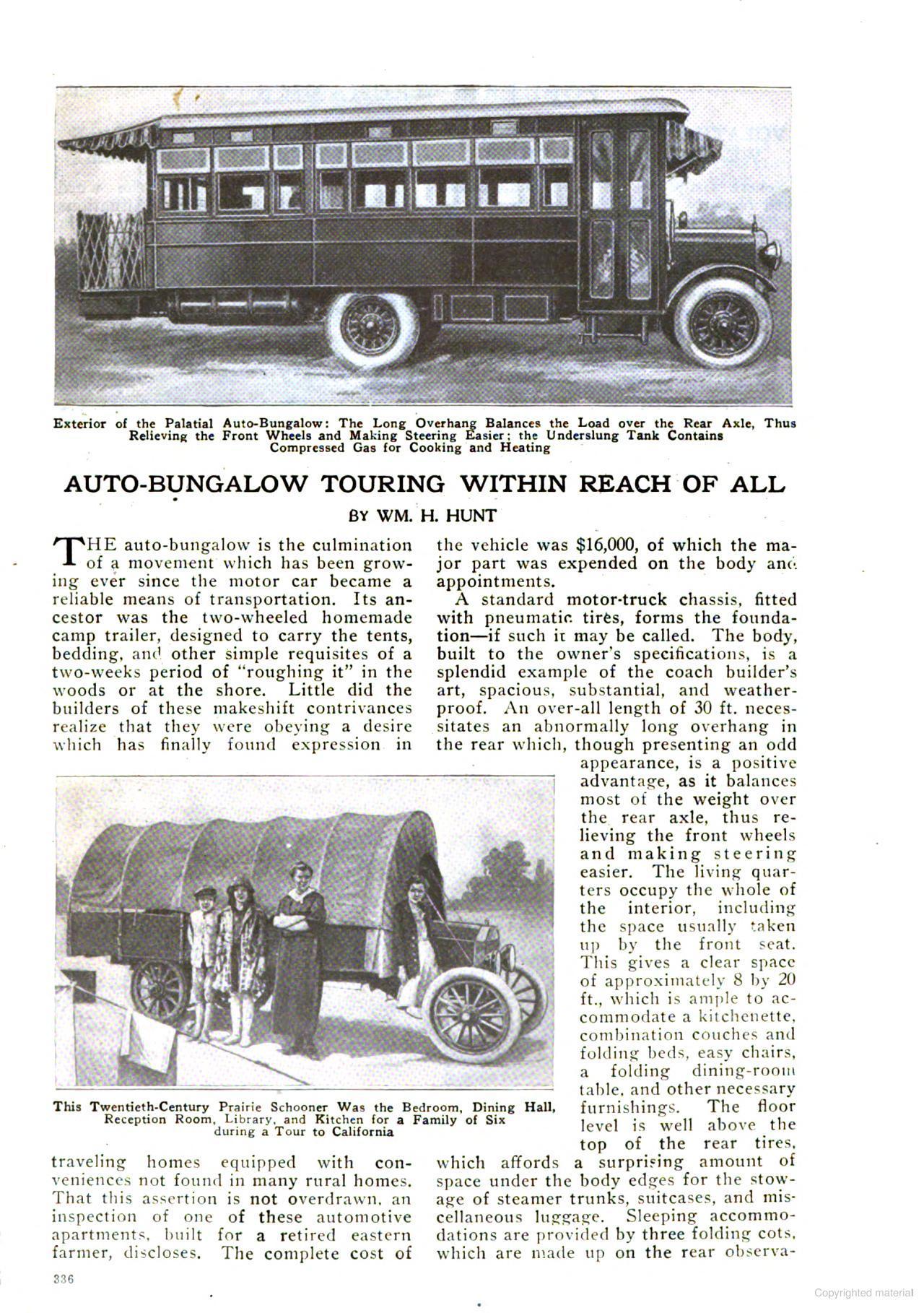

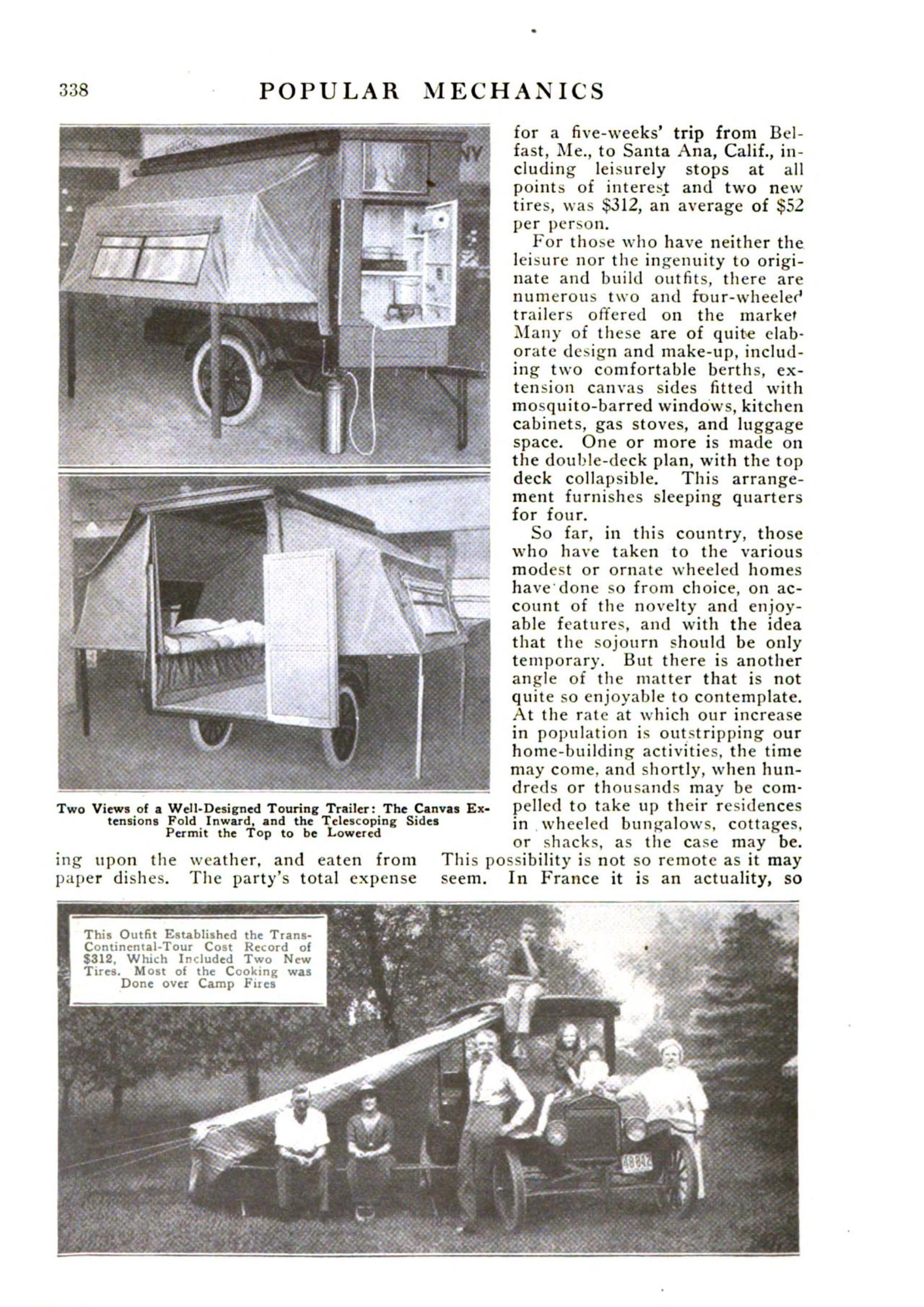

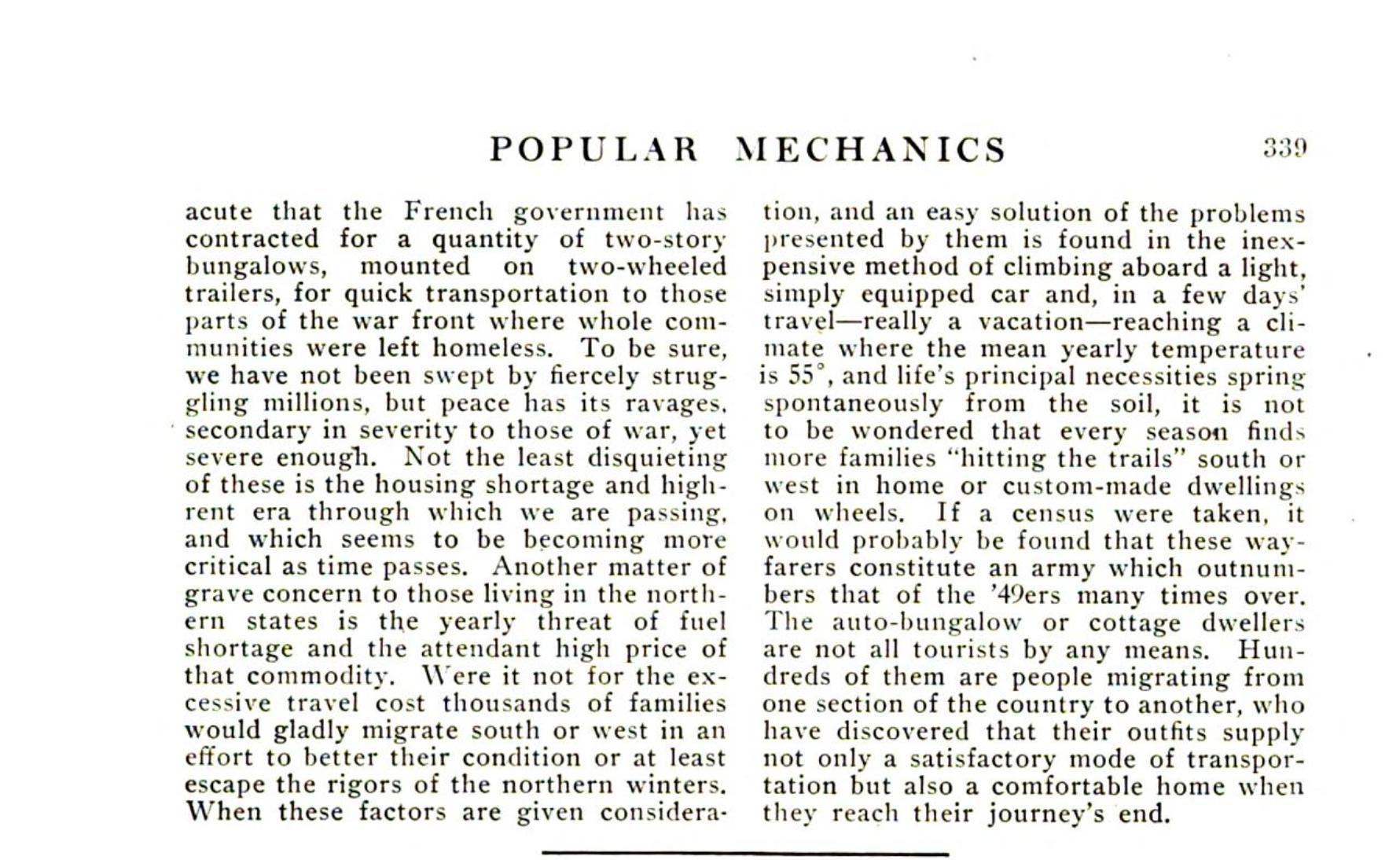

Brian Austin Posted March 20, 2021 Author Share Posted March 20, 2021 (edited) The March 1921 issue of Popular Mechanics ran an article on another camping car. Edited March 20, 2021 by Brian Austin Quote Link to comment Share on other sites More sharing options...
misterNNL Posted March 20, 2021 Share Posted March 20, 2021 O.K. Now that we have all the information and dimensions that we can possibly use , Who's going to step up and build some models?? Maybe vintage RV's will become the latest "thing". Quote Link to comment Share on other sites More sharing options...
