The Official 3D Printing Discussion Thread

[MeatMan]

17 hours ago, V8tiger said:

That's what I'm asking....I subscribed to Polycam and scanned a 33 Willys body. Got the scan. Then I tried to export it as an STL file into my slicer Lychee and it doesn't  work. So that my missing step.. I have to go into program such as Blender, clean it up before I can import it to my slicer.... then to my printer. Thank you so much for the info. I appreciate it.

I viewed this vid when I was interested in scanning for printing (I've since decided its not for me). Its a couple of years old but may get you on the right path.
He talks about using Meshmixer as a converter. I use it for a lot of my 3D printing tasks. Though it was originally designed for FDM printers, I still use it extensively because its way easier to use than Blender, though not as sophisticated.



Edited August 30 by MeatMan

[atomicholiday]

Finished printing my first body this morning.  It’s the largest piece I’ve printed to date.  Everything else has been the size of a scale tire or smaller.

The bottom plate is on the printer now and I’ll try to get the rest done sometime this weekend.

[atomicholiday]

Here’s the rest of the Ferrari kit hot off the printer.  I’m reprinting the rear wing (this one warped when it was curing).
I got some weird lines on the sides of the “frame”, but they won’t show on the finished build.  Not sure what happened though.  That’s the first time I’ve had this problem.

[V8tiger]

On 8/31/2024 at 2:06 PM, atomicholiday said:

Here’s the rest of the Ferrari kit hot off the printer.  I’m reprinting the rear wing (this one warped when it was curing).
I got some weird lines on the sides of the “frame”, but they won’t show on the finished build.  Not sure what happened though.  That’s the first time I’ve had this problem.



[V8tiger]

This is amazing... Thankyou for sharing. the body looks fantastic...



[Mattilacken]

On 8/30/2024 at 4:05 PM, atomicholiday said:

Finished printing my first body this morning.

Hi! Nice work! How do you get the base of the print loosen from the build plate in one piece, mine always breaks. which ends upp disorting flat panels when curing.

[atomicholiday]

My bottom layer exposure is set to around 18 seconds if memory serves.  Also, the edge of the raft is angled allowing a chisel a place to start.  It comes off without too much effort.

Do you cure the part before or after removing it from supports?  I always cure after.  It seems to make the job much easier for me.

After cleaning the part and supports, I submerge the whole thing in hot tap water (not boiling) for about 30 seconds, then remove supports.  Then after the part is dry, it gets cured.

Another consideration is the resin you use.  Some is more brittle than others.

Disclaimer- I’m by no stretch of the imagination an expert.  I’ve only been doing this since spring of this year.  I’m still learning as I go.



[crowe-t]

Is there anyone here who can design a 1991 Dodge Shadow body for me?  I have other pictures, drawings and can provide measurements of the 1:1.

[Lownslow]

i hit a wall with the scanner today that i had to buy a new scanner to complete the project. i still plan on using my detail scanner for other projects.

[Lownslow]

testing the new scanner its much easier to do whole chassis now

[atomicholiday]

4 minutes ago, Lownslow said:

testing the new scanner its much easier to do whole chassis now

Do you have to do any clean up to the files before printing?

I’m curious to see how it looks coming off the printer too.

[Lownslow]

15 minutes ago, atomicholiday said:

Do you have to do any clean up to the files before printing?

I’m curious to see how it looks coming off the printer too.

I use scans to make new parts, cloning kit parts was never part of the plan. I clean them up enough to make it easier to develop a new chassis so that the car is completely low when assembled

[atomicholiday]

Hey guys, quick question about delamination.  I just pulled this body off the printer, and 99% of it came out great. But the front roll pan delaminated a bit.

So I think that’s telling me the angle at that area was too level to the print bed, correct?

But the bigger question is, can I salvage it?  If I trim away the layers that delaminated, can I putty it back in, or is this body scrap?



[RW033]

1 hour ago, atomicholiday said:

Hey guys, quick question about delamination.  I just pulled this body off the printer, and 99% of it came out great. But the front roll pan delaminated a bit.

So I think that’s telling me the angle at that area was too level to the print bed, correct?

But the bigger question is, can I salvage it?  If I trim away the layers that delaminated, can I putty it back in, or is this body scrap?



Would it be possible to separate (in 3D builder or ?) the front roll pan and reprint just that part and then graft that on? I haven't been brave enough to print a body yet.

[stitchdup]

1 hour ago, atomicholiday said:

Hey guys, quick question about delamination.  I just pulled this body off the printer, and 99% of it came out great. But the front roll pan delaminated a bit.

So I think that’s telling me the angle at that area was too level to the print bed, correct?

But the bigger question is, can I salvage it?  If I trim away the layers that delaminated, can I putty it back in, or is this body scrap?



get one of these and you can brush resin on to repair it. its as easy as brush it on, cure for a minute and repeat until its built up enough. the best bt is it wont fall off and no problems with filler sticking and all for 3 bucks. you can also use the same method to stick back the delamination and if your worried about further delamination you can brush a skin of resin over the inside of hiddens areas

https://www.amazon.co.uk/Light-Foldable-Chips-Salon-Narootedkv06rt38e-13/dp/B0D2WLW1FB/ref=sr_1_18?crid=19FAHG0ZITCZE&dib=eyJ2IjoiMSJ9.uLR2khOvP01OyiGyO4nUD0lcnMxwmGf9Ho9o9MbPXGy6CVAlFeFlesYg-9OH7R0r0nr2IpzKsMBd7plIFKILYYQWSn8iah_KQWjwGEy27AxYrIJ0pvGjEqSz0YqL20ltzMw__CskEH2x5RlHAXmm2wZ4Vi5T3RH2GkQX0gxFvbeTt_8GmRjHNU5XRbHs7aEvXNbRZWNv6lsFOUlqcXko28aP3UniucjRroYoz7LcsI7nixzdSeufjs9rbIgu6P2ZYd1Pwh_aRkv7a2iR7fl4VINwBRCC6HrGFYRifG6Pzes.CFDyKN3dsMgiJTyx8VYhnAUMzW5mhjO269lslKrygY4&dib_tag=se&keywords=uv+nail+lamp&qid=1727642873&sprefix=uv+nail+lamp%2Caps%2C338&sr=8-18

Edited September 29 by stitchdup

[atomicholiday]

19 hours ago, stitchdup said:

get one of these and you can brush resin on to repair it. its as easy as brush it on, cure for a minute and repeat until its built up enough. the best bt is it wont fall off and no problems with filler sticking and all for 3 bucks. you can also use the same method to stick back the delamination and if your worried about further delamination you can brush a skin of resin over the inside of hiddens areas

https://www.amazon.co.uk/Light-Foldable-Chips-Salon-Narootedkv06rt38e-13/dp/B0D2WLW1FB/ref=sr_1_18?crid=19FAHG0ZITCZE&dib=eyJ2IjoiMSJ9.uLR2khOvP01OyiGyO4nUD0lcnMxwmGf9Ho9o9MbPXGy6CVAlFeFlesYg-9OH7R0r0nr2IpzKsMBd7plIFKILYYQWSn8iah_KQWjwGEy27AxYrIJ0pvGjEqSz0YqL20ltzMw__CskEH2x5RlHAXmm2wZ4Vi5T3RH2GkQX0gxFvbeTt_8GmRjHNU5XRbHs7aEvXNbRZWNv6lsFOUlqcXko28aP3UniucjRroYoz7LcsI7nixzdSeufjs9rbIgu6P2ZYd1Pwh_aRkv7a2iR7fl4VINwBRCC6HrGFYRifG6Pzes.CFDyKN3dsMgiJTyx8VYhnAUMzW5mhjO269lslKrygY4&dib_tag=se&keywords=uv+nail+lamp&qid=1727642873&sprefix=uv+nail+lamp%2Caps%2C338&sr=8-18

That makes perfect sense.  I’ll give that a try.  Thanks!

[Michael jones]

On 9/19/2024 at 2:04 PM, crowe-t said:

Is there anyone here who can design a 1991 Dodge Shadow body for me?  I have other pictures, drawings and can provide measurements of the 1:1.

You can draw it yourself in blender with some time and learning. Start small and go from there.

[crowe-t]

6 hours ago, Michael jones said:

You can draw it yourself in blender with some time and learning. Start small and go from there.

I know but I wanted to build one for my wife soon for either Christmas or her birthday 3 months after that.  I was hoping to find someone who can help me with this.

[stitchdup]

On 10/1/2024 at 2:48 PM, crowe-t said:

I know but I wanted to build one for my wife soon for either Christmas or her birthday 3 months after that.  I was hoping to find someone who can help me with this.

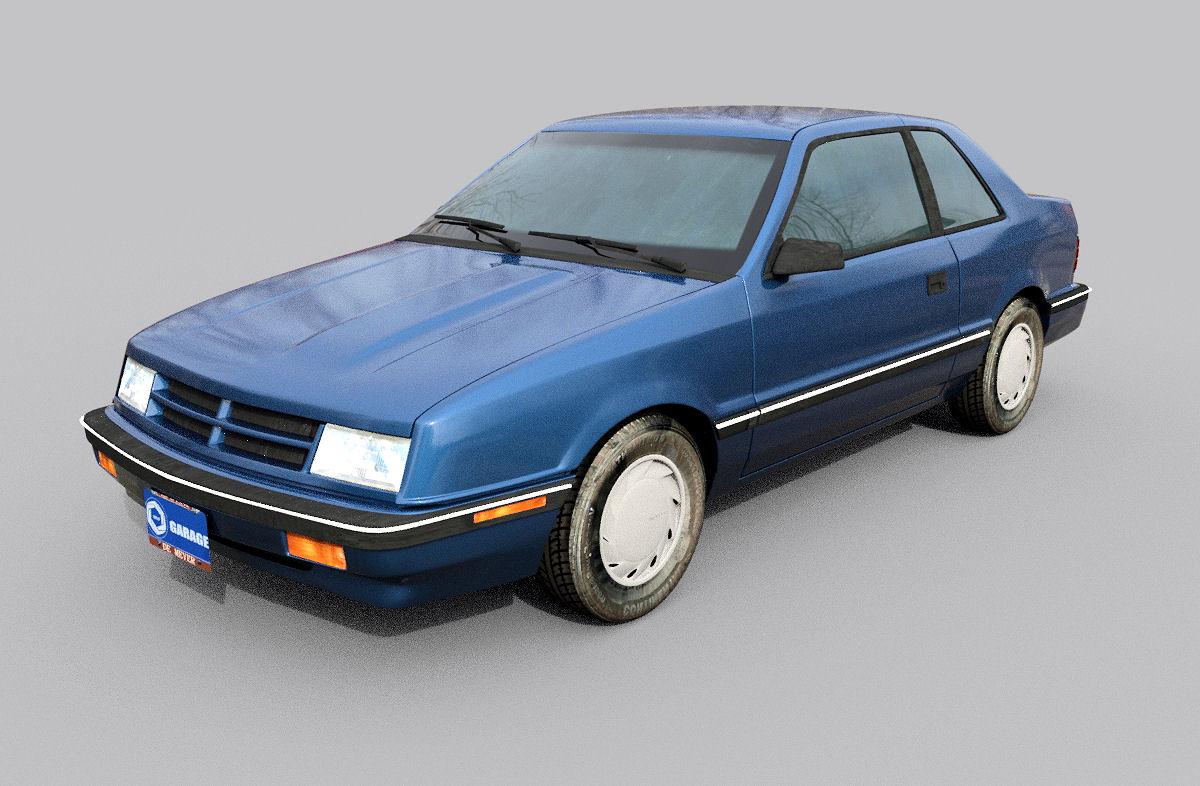

look for EDM 3D model on facebook. they have a 1990 version. i just found it on a google image search. i have no experience of their files but i have seen them used by other people on here

https://www.facebook.com/story.php/?story_fbid=1209659840100836&id=100031704952544&_rdr



[stitchdup]

has anybody printed out any cars from the designer innoventos? they have some that look interesting but the style of assembly looks like they could be toyish being mostly 5 or 6 parts

[iamsuperdan]

9 hours ago, stitchdup said:

has anybody printed out any cars from the designer innoventos? they have some that look interesting but the style of assembly looks like they could be toyish being mostly 5 or 6 parts

I noticed his work a while ago, but have yet to buy anything. He has some interesting designs for sure. His images look pretty accurate.

[Mattilacken]

Printed my first body yesterday, i decided to print it in Primacreator Water Washable ABS like resin, which almost feels like Styreen. But i had some misshaps. the supports came off and the body split in one location. And it looks over exposed, also the bottom layers are suuper thick even though thats not in Chitu. I was running 0.015 layer height and 1,8s exposure. Printer is Anycubic M5 Ideas for improvment?

[MrObsessive]

2 hours ago, Mattilacken said:

Printed my first body yesterday, i decided to print it in Primacreator Water Washable ABS like resin, which almost feels like Styreen. But i had some misshaps. the supports came off and the body split in one location. And it looks over exposed, also the bottom layers are suuper thick even though thats not in Chitu. I was running 0.015 layer height and 1,8s exposure. Printer is Anycubic M5 Ideas for improvment?



Anton, I strongly suggest that with any type of resin, especially if it's the first time using it, I'd run a calibration file/print on the machine first before running any type of long running model. The files are out there online----there's various types to check out, but that will go a long way into zeroing in where your settings should be.

I'm one that doesn't like to throw out setting values for this and that, because even between the same make of machines, there's too many variables that can affect how the print will turn out. I can suggest a setting, but then I don't have the same machine as you do, and what works for one may not work for the other.

BTW, that looks like one of Andrey Bezrodny's files..........I've run a couple of his before, and I've not had any issues. My only complaint with his files is the file size is sometimes waaaaay too big, and that's wreaked havoc in Chitubox to the point I've had it crash.

[crowe-t]

On 10/15/2024 at 8:53 AM, stitchdup said:

look for EDM 3D model on facebook. they have a 1990 version. i just found it on a google image search. i have no experience of their files but i have seen them used by other people on here

https://www.facebook.com/story.php/?story_fbid=1209659840100836&id=100031704952544&_rdr



Thanks Les!  I actually found this a couple weeks ago and already got files from them of a '91 model.

Edited October 24 by crowe-t

[peteski]

There are some excellent words of wisdom in a a post on another forum I frequent.

https://www.therailwire.net/forum/index.php?topic=58804.msg809939#msg809939

Actually skimming through the entire thread is also quite enlightening, and so are other threads in that section of the Railwire forum dedicated to 3D printing.
