Chariots of Fire Posted October 15, 2022 Author Share Posted October 15, 2022 (edited) Got the engine started by going back to the scrap yard, parts bin and some other odds and ends. Photos from the TM and on line have helped a lot. There's plenty left to do but it's coming along bit by bit. Edited October 15, 2022 by Chariots of Fire 1 Quote Link to comment Share on other sites More sharing options...
DRIPTROIT 71 Posted October 15, 2022 Share Posted October 15, 2022 WOW!!! Incredible work! Quote Link to comment Share on other sites More sharing options...
Gary Chastain Posted October 15, 2022 Share Posted October 15, 2022 Outstanding work Quote Link to comment Share on other sites More sharing options...
Chariots of Fire Posted October 16, 2022 Author Share Posted October 16, 2022 (edited) More pix of the engine. Air cleaner is done and the oil breather is added. Plug wires are strung from the distributor through the tube to the plugs. Only temporary as the engine will need to be painted before final installation. Next up will be to turn some double pulleys for the fan and water pump. Edited October 16, 2022 by Chariots of Fire 1 Quote Link to comment Share on other sites More sharing options...
Chariots of Fire Posted October 16, 2022 Author Share Posted October 16, 2022 One more pic with the fan belts and twin oil filters in place. Quote Link to comment Share on other sites More sharing options...
redneckrigger Posted October 17, 2022 Share Posted October 17, 2022 Charlie, you never cease to amaze! Fantastic work sir! Quote Link to comment Share on other sites More sharing options...
gotnitro? Posted October 18, 2022 Share Posted October 18, 2022 Gorgeous work right down to the dip stick. What did you use for fan belts Quote Link to comment Share on other sites More sharing options...
Chariots of Fire Posted October 18, 2022 Author Share Posted October 18, 2022 Two strips of electrical tape, Jeff. 1 Quote Link to comment Share on other sites More sharing options...
Bainford Posted October 18, 2022 Share Posted October 18, 2022 Super impressive work! Nice and clean and well thought out. I always enjoy watching your projects come together. Quote Link to comment Share on other sites More sharing options...

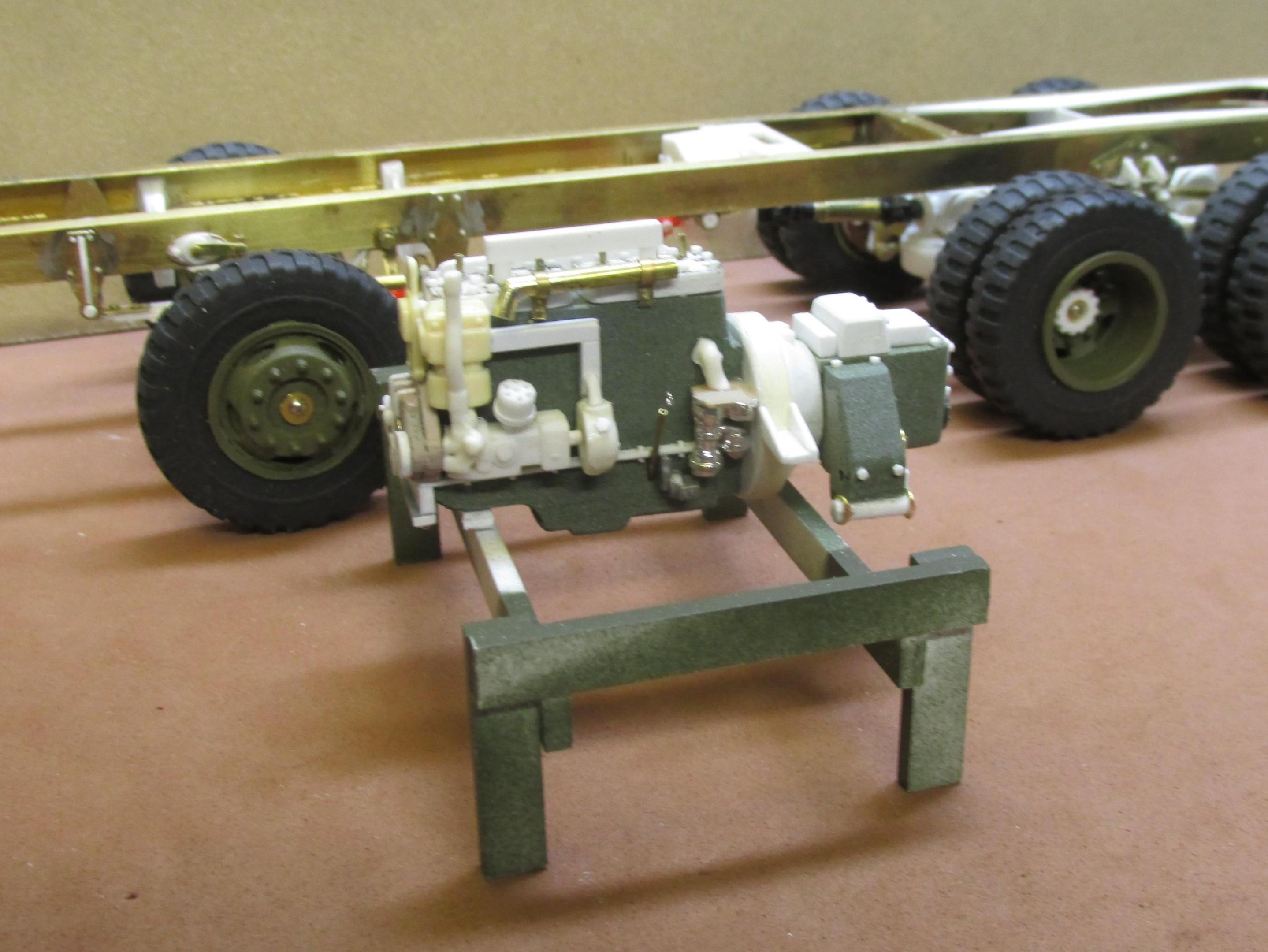

Chariots of Fire Posted October 20, 2022 Author Share Posted October 20, 2022 Got some painting done on the engine. Some wiring left to do and to permanently mount the air cleaner but that will have to wait. I want to be sure there is clearance under the hood. The radiator and cowl need to be constructed first and then the hood sections. 2 Quote Link to comment Share on other sites More sharing options...

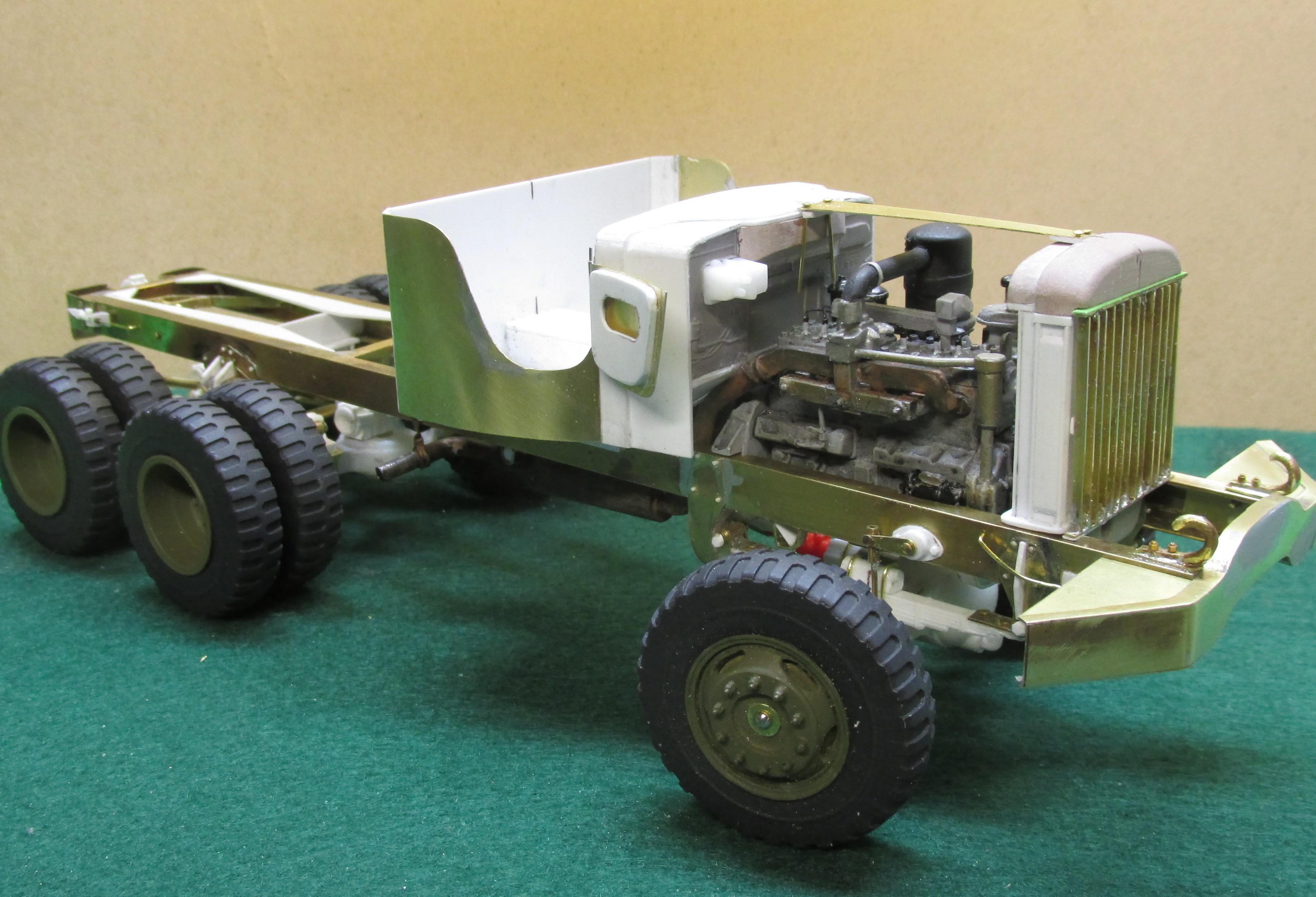

Chariots of Fire Posted October 23, 2022 Author Share Posted October 23, 2022 Work has started on the cab and radiator. The shape and size of the cowl and cab were taken from a 1:35 kit cab of the Diamond T tank hauler. The measurements of the kit pieces were increased by 1.4x to 1:25. Came out reasonably close to what I was able to get from the Walkaround and TM9-811. The radiator was made of several pieces and had to be modified slightly to fit the frame. Distance between cowl and radiator is now close so that some work on the hood pieces can be started soon. The cab portion is raised up about 2mm in order to fit the height of the radiator. It won't make a lot of difference in the look (I hope!). 1 Quote Link to comment Share on other sites More sharing options...

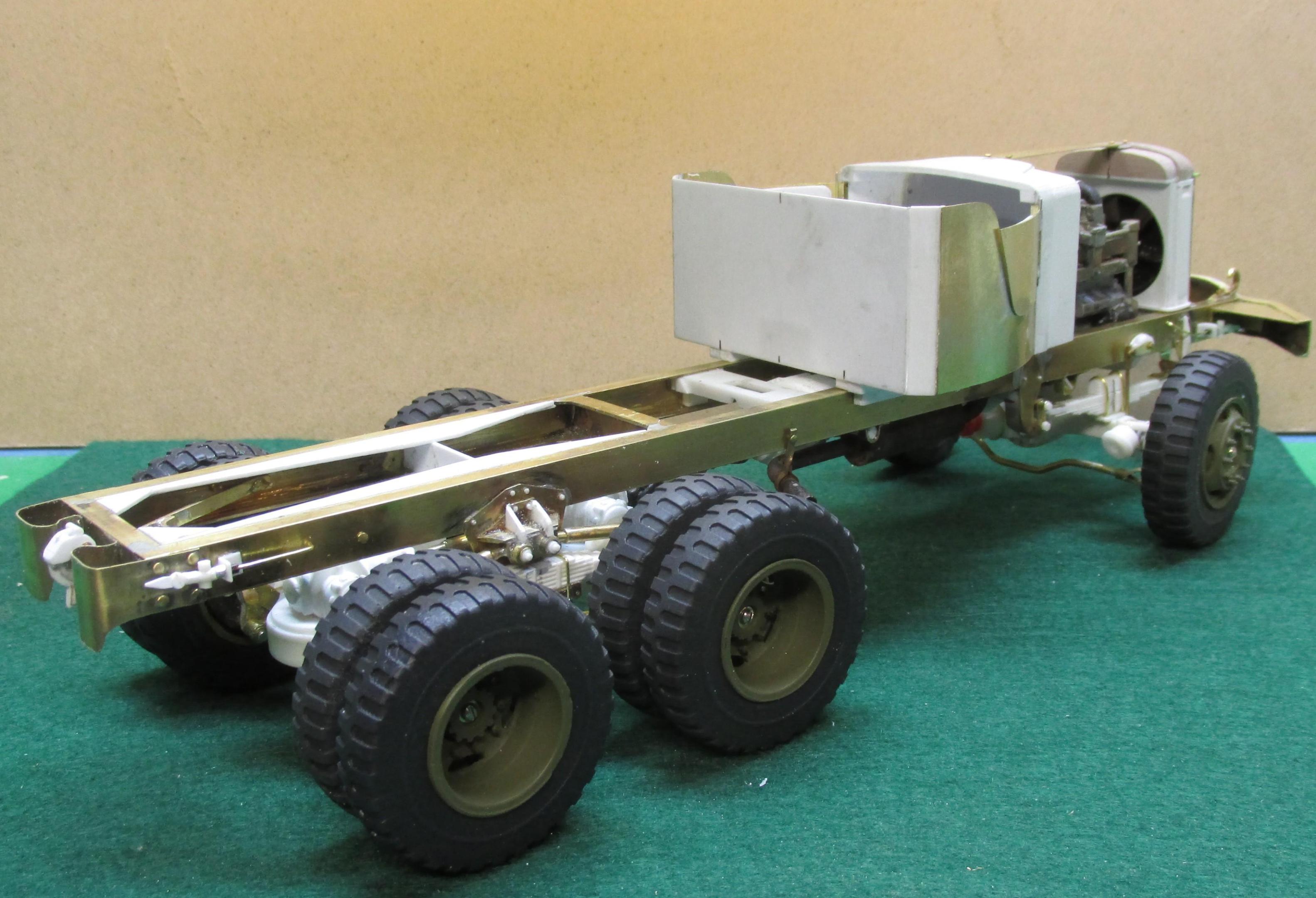

Chariots of Fire Posted October 23, 2022 Author Share Posted October 23, 2022 More done on the cab. The sides of the cab are curved so it made sense to use brass for that. Plastic would tend to creep over time. Don't want that. There are more parts that go on the inside of the panels but now that they are in place it will be easy to add them. It's beginning to take shape! And I got tired of trying to pose the tires and wheels without them falling over so the rear hubs got painted and the wheels were glued on. I can still take the whole works apart by backing out the screw in the center of the hub. That will be done when the frame gets painted. 1 Quote Link to comment Share on other sites More sharing options...
Chariots of Fire Posted October 25, 2022 Author Share Posted October 25, 2022 Made some slight adjustments in the cab sides. The small door opening should have been slanted at the back. So I soldered in a sliver of brass to make it so. Next was to build the bumper and get it attached to the frame. L shaped brackets on the inside of the frame support the bumper. Quote Link to comment Share on other sites More sharing options...
Gary Chastain Posted October 25, 2022 Share Posted October 25, 2022 Fantastic skills, will be following this build Quote Link to comment Share on other sites More sharing options...
DRIPTROIT 71 Posted October 27, 2022 Share Posted October 27, 2022 Excellent craftsmanship! Quote Link to comment Share on other sites More sharing options...
Dutzie Posted October 27, 2022 Share Posted October 27, 2022 Superb as always. Absolutely floored by your craftsmanship. Quote Link to comment Share on other sites More sharing options...
Chariots of Fire Posted October 27, 2022 Author Share Posted October 27, 2022 Here's the latest. The grill in front of the radiator is done. A bit of a challenge getting all of the bars straight and spaced the same. But it's done. 1 Quote Link to comment Share on other sites More sharing options...
Gary Chastain Posted October 27, 2022 Share Posted October 27, 2022 You got some serious skills. Quote Link to comment Share on other sites More sharing options...
Chariots of Fire Posted October 31, 2022 Author Share Posted October 31, 2022 Work continues. More details on the chassis and some work on the cab. The exhaust is now complete. It's more like a truck now than just a plain frame. Doors are hinged. Tow hooks and glad hands are on. Cab is still removable for now. There's a lot to do inside so having it separate makes the work a bit easier. 1 Quote Link to comment Share on other sites More sharing options...
Raoul Ross Posted October 31, 2022 Share Posted October 31, 2022 On 8/13/2022 at 11:25 AM, Chariots of Fire said: ...The only question left is whether it will be the wrecker version or another dump truck to fill out the line... Technically it's a Tank Retriever. Superb workmanship on this! 👍 Quote Link to comment Share on other sites More sharing options...
Chariots of Fire Posted November 1, 2022 Author Share Posted November 1, 2022 I decided it will be the wrecker version. I don't have one in the collection so this will be a first. Quote Link to comment Share on other sites More sharing options...
Chariots of Fire Posted November 2, 2022 Author Share Posted November 2, 2022 Yesterday I worked on the winch and got the basics of it done so that it could be set in place. The shaft that connects it to the power takeoff is also set in place. I had to notch the front engine crossmember for the shaft but when I checked out the Walkaround of the Diamond T I saw that they did the same thing to the real one! Sometimes you win one! Today I concentrated on getting the radiator set up and made the cap and overflow for the top and drilled it out for the top and bottom hoses. Just to see how it would look I gave it a coat of OD. The renshape top is smooth and all it took was some fine sanding with a fine grit block. It has gotten to be the time to start on the fenders. With those done and set in place I can then concentrate on the top and side pieces of the hood. The two blocks in the photo below are pieces of Renshape with the fender profile glued to each one. The shape will be rough cut with a bandsaw and the upper surface sanded to shape with a disc sander. The underside will have to be carved out using a dremel and round sanding disc. This material is great to work with as it has no grain and is strong, even when cut in thin pieces. CA glue works well with it. The left over pieces of Renshape will go in the materials box for future use. It's expensive stuff but a little piece sometimes is all that is needed. No sense in wasting it. 1 Quote Link to comment Share on other sites More sharing options...
Chariots of Fire Posted November 3, 2022 Author Share Posted November 3, 2022 The outside of the fenders have been rough sanded. Now its grind out the underside time. 1 Quote Link to comment Share on other sites More sharing options...
gotnitro? Posted November 3, 2022 Share Posted November 3, 2022 fantastic work, always enjoy your skills w brass. looking forward to you starting on the wrecker body Quote Link to comment Share on other sites More sharing options...
