1957 Cadillac Eldorado Brougham

Andy Oldenburg

Recommended Posts

The ´57 Brougham was Cadillacs answer to Rolls Royce. It cost a staggering 13,000 $ but the manufacturing price was about 10,000 extra. Not a good deal for Cadillac but an impressive marketing move.

This kit misses those standards by far. I was a bit shocked when I unboxed it and was on the brink of not building it at all. I learned later that the original issue was in 1958, but the very low level of molding and fitting quality is a disappointment. After shifting the chances of turning this kit into a reasonable build in my head, I took the challenge and set out to pack everything possible into my Brougham.

The body and undercarriage are in an unusual molding setup. Two parts that connect at the belt line. This kit contains no engine and the details one could call almost nonexistent. Instead of tires you get plastic donuts. So I replaced a lot of parts (only about 60 in the box anyway😂) and fabricated many details from scratch. Fortunately I had enough parts to build an engine and could cut an engine bay of a spare body.

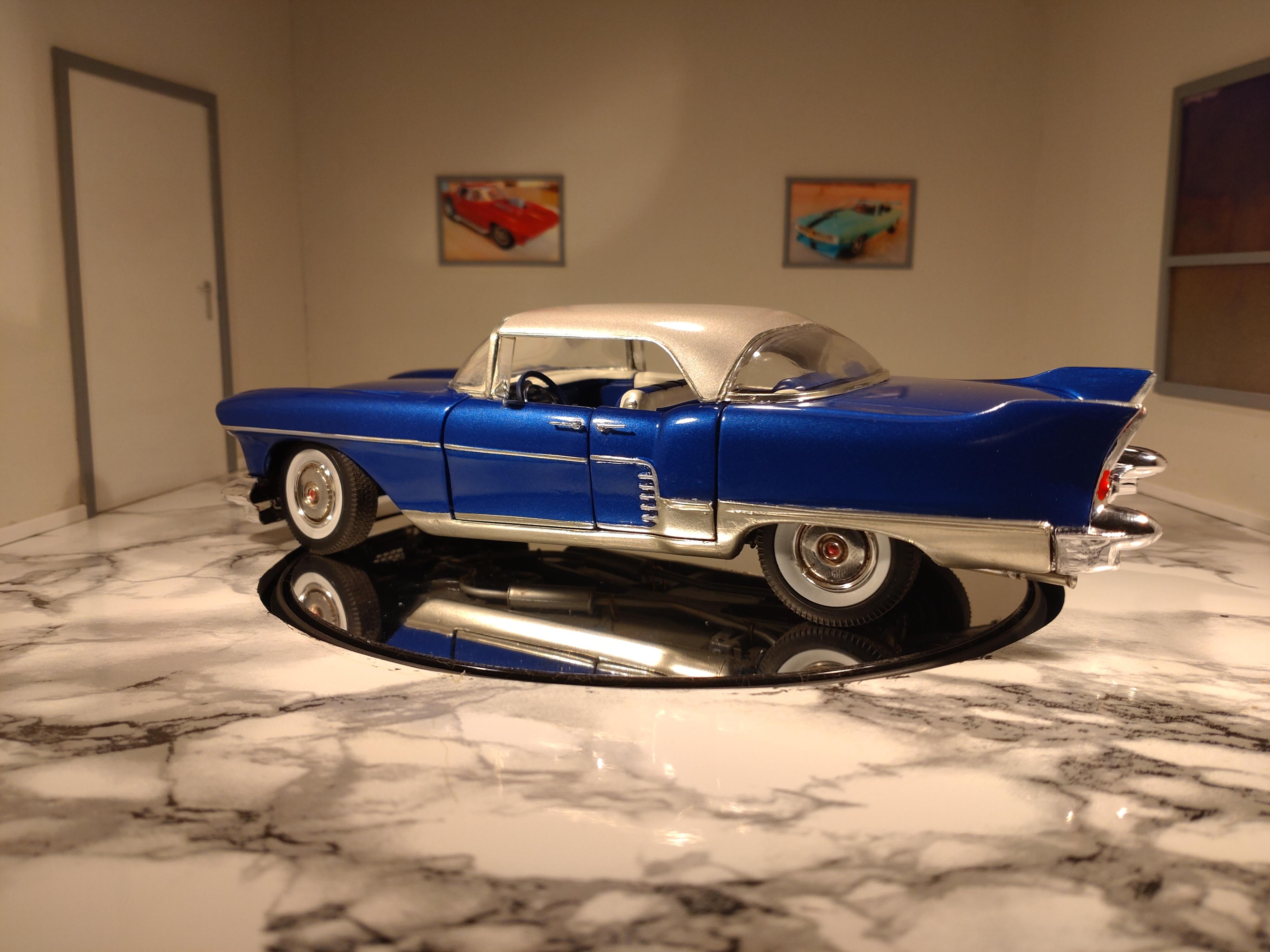

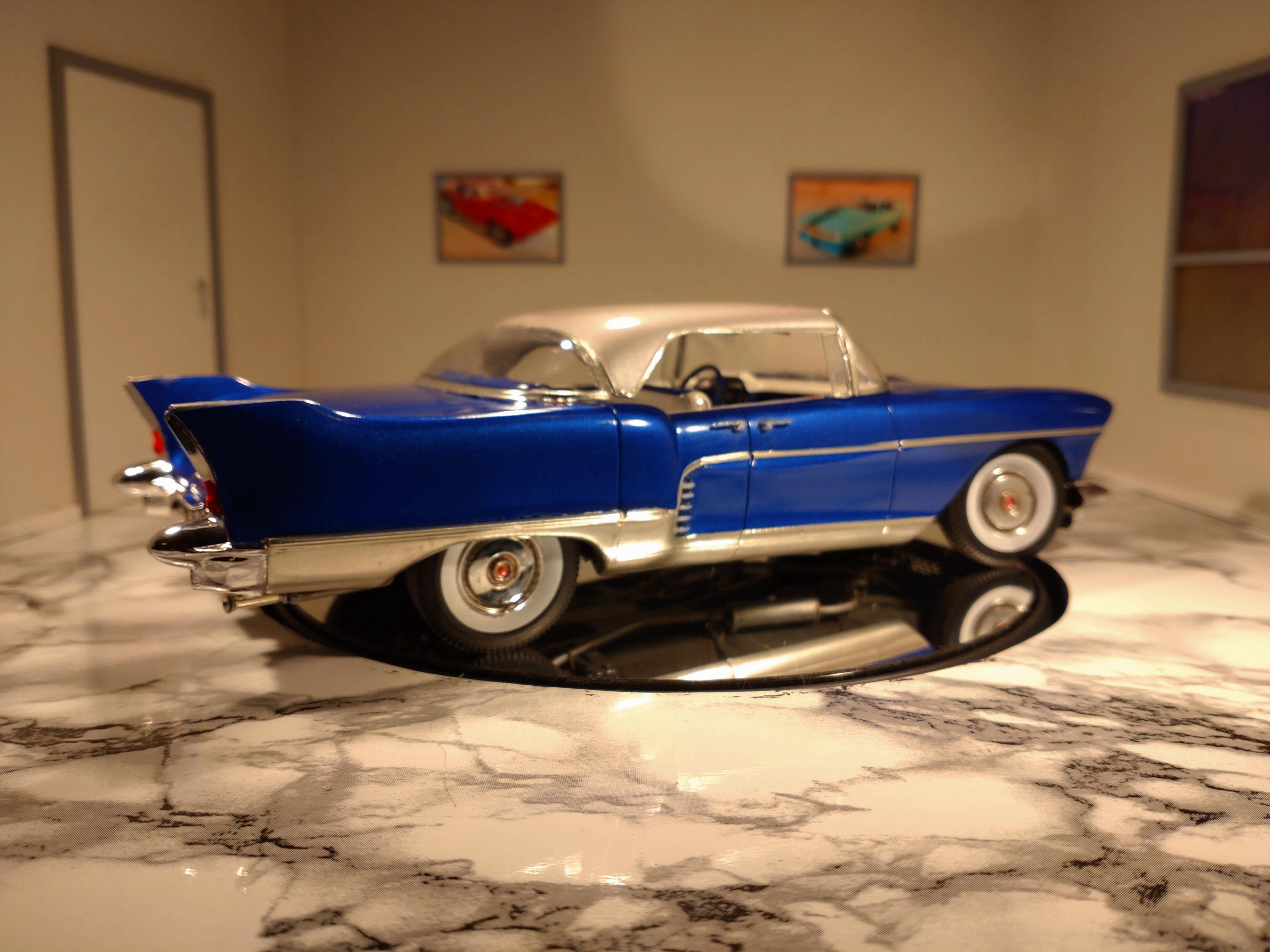

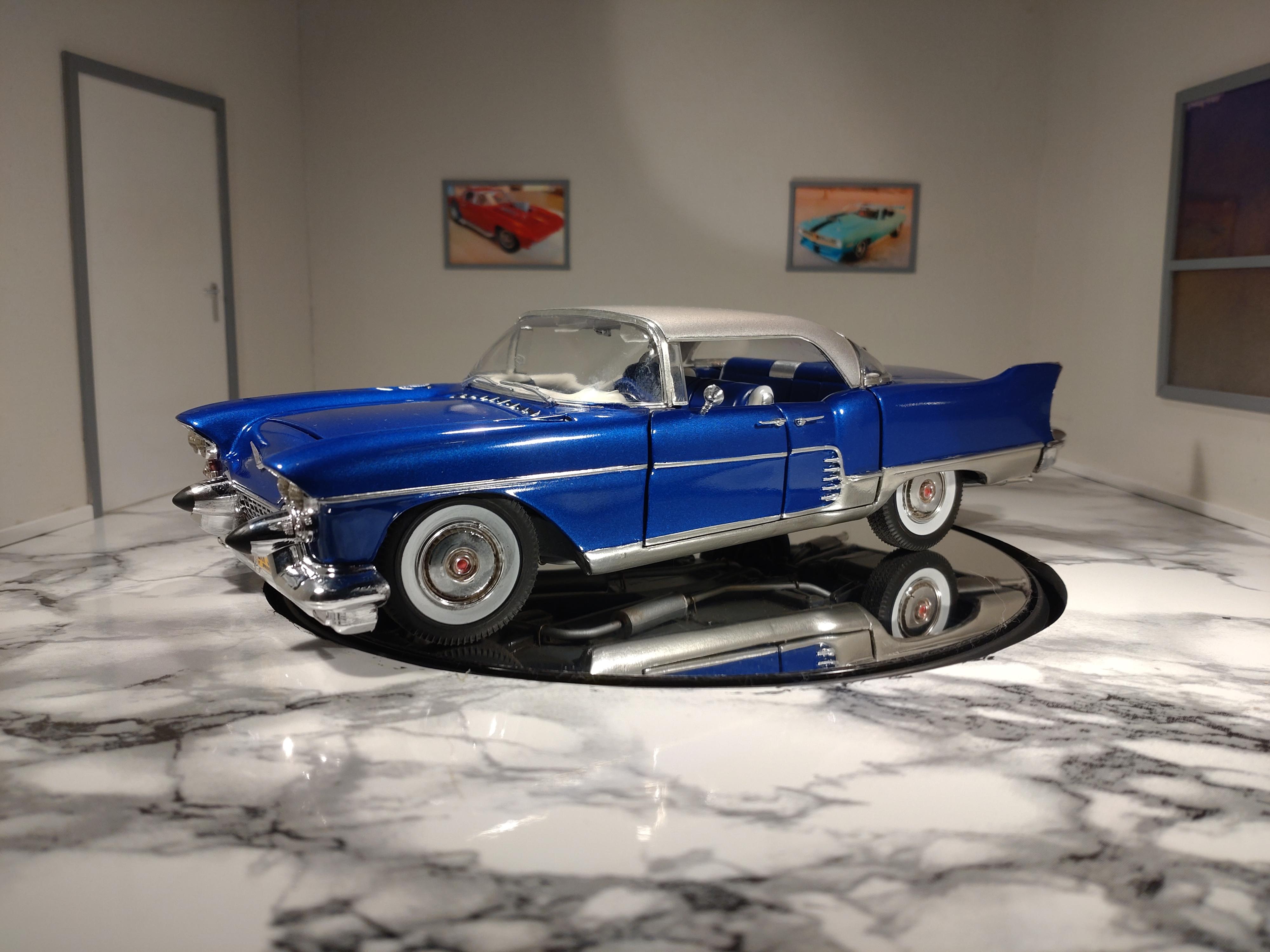

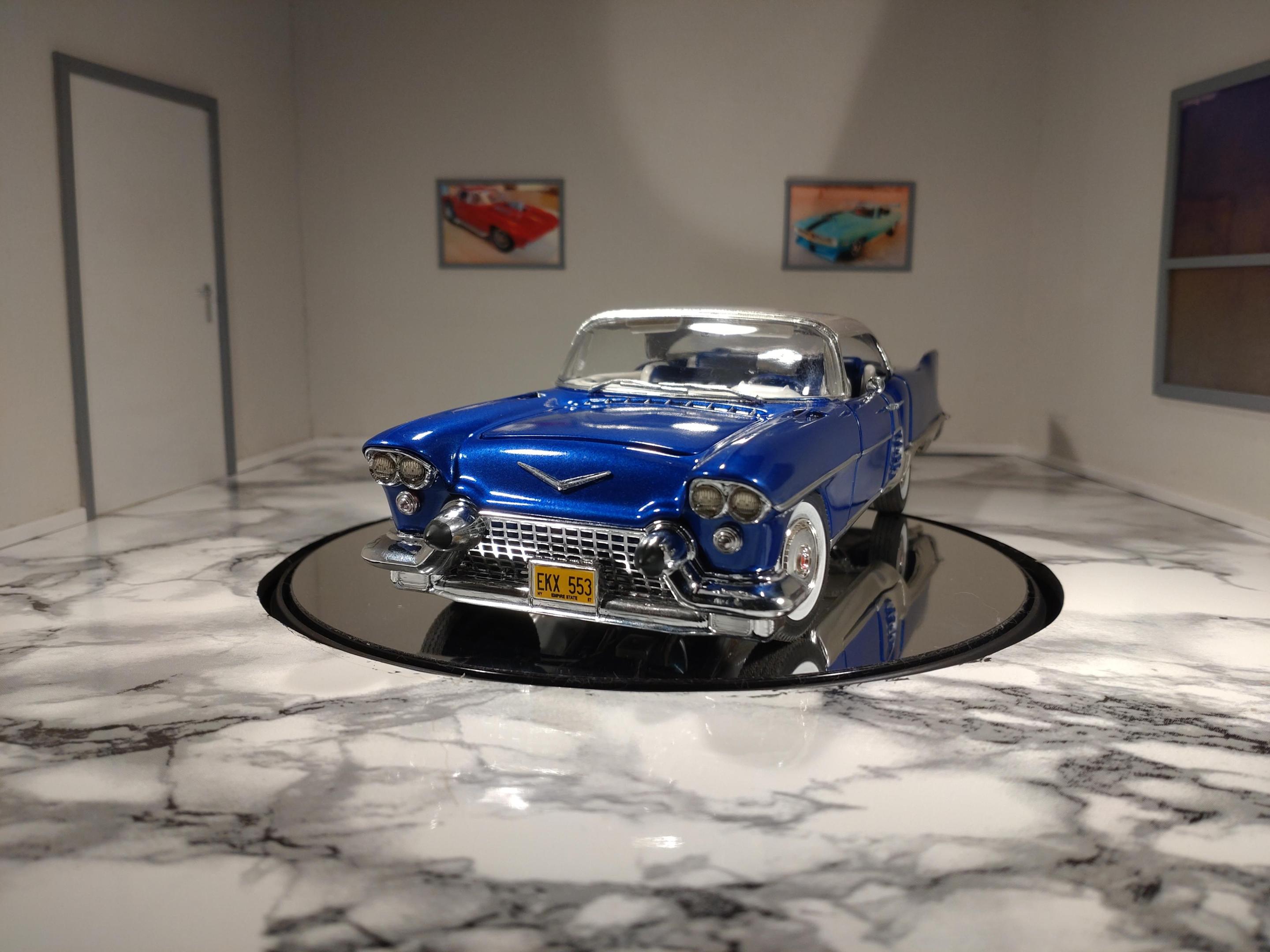

On a blue base coat I sprayed Schmincke AERO Color ultramarine blue with a 50% part of metallic fluid. After applying the BMF I sealed the body parts with AK gloss varnish and gave it a polish. The wheels and tires are from my parts box. The grill is cut out and replaced with a sheet metal grid from my model crafts dealer in town. Headlamps are lenses from Scale Production, same with other details like the wipers, door mirror and the handles.

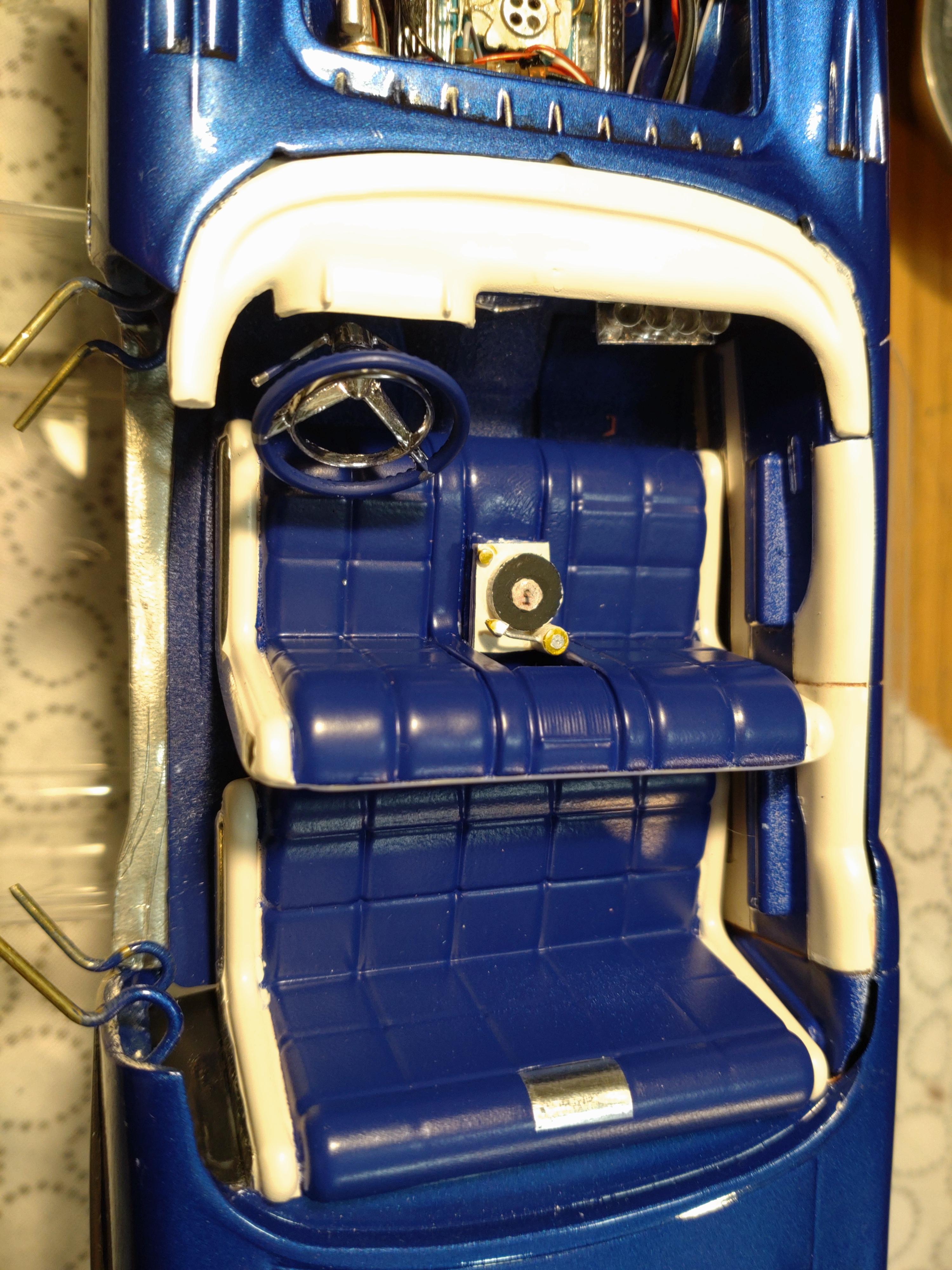

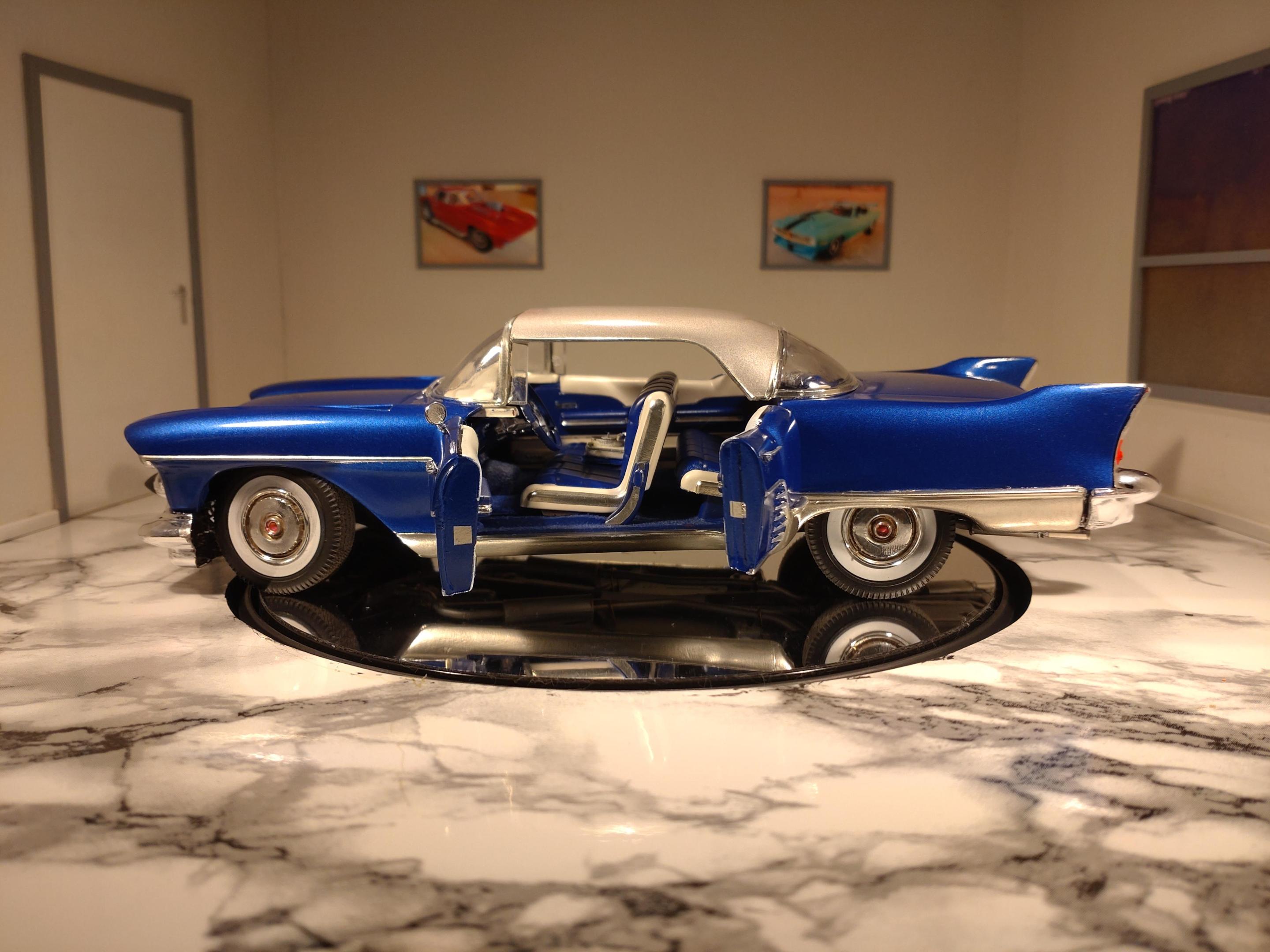

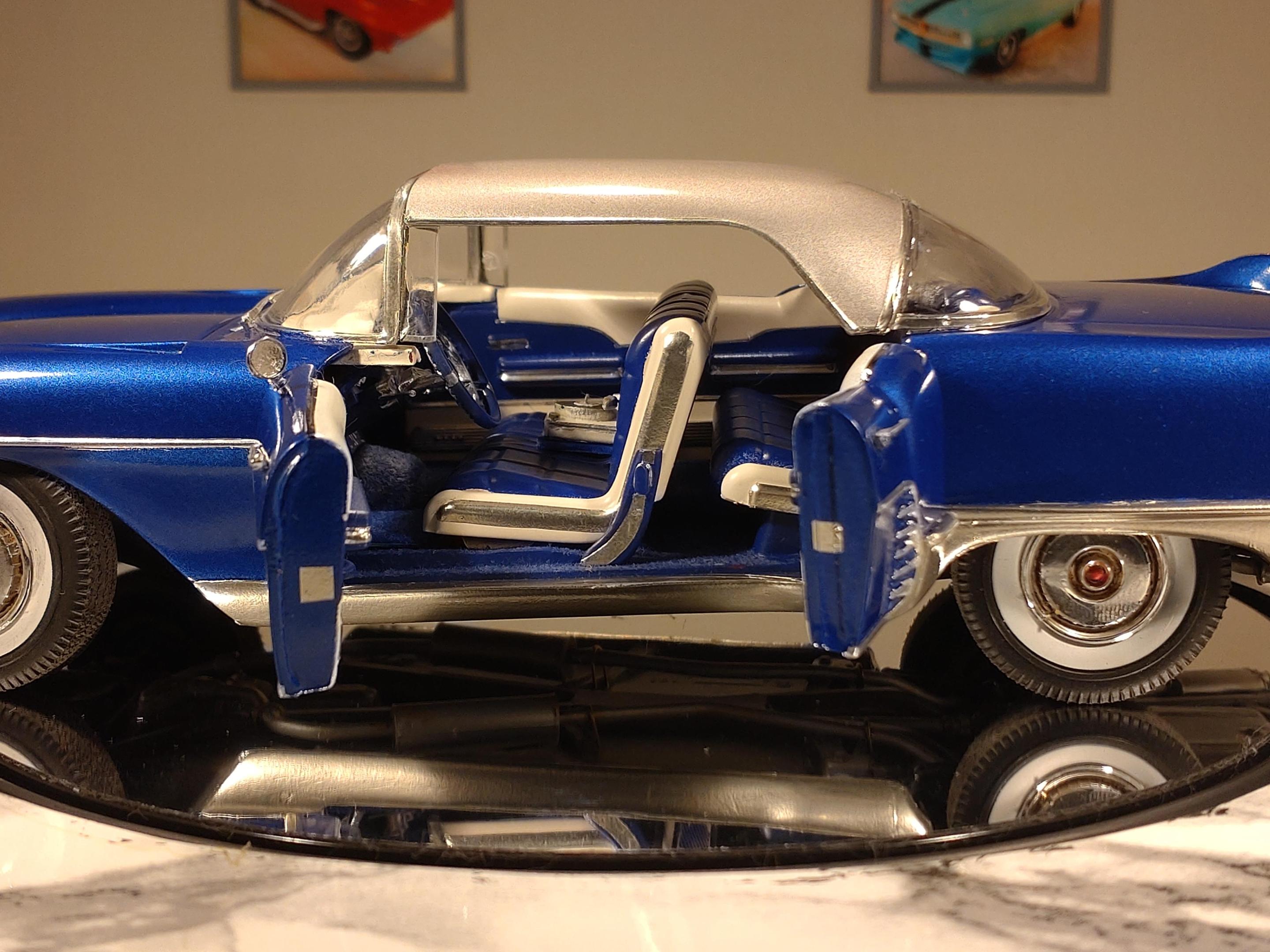

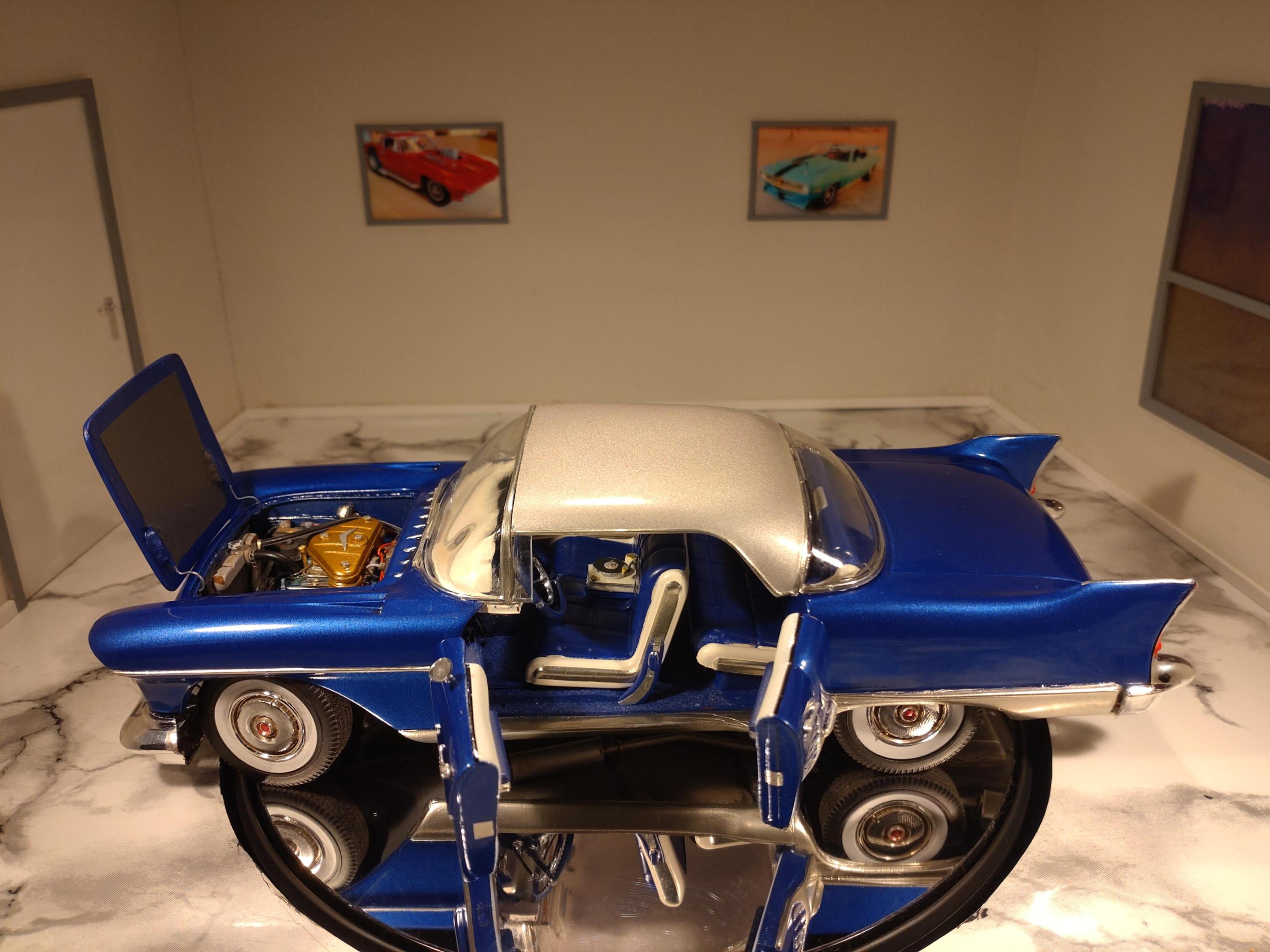

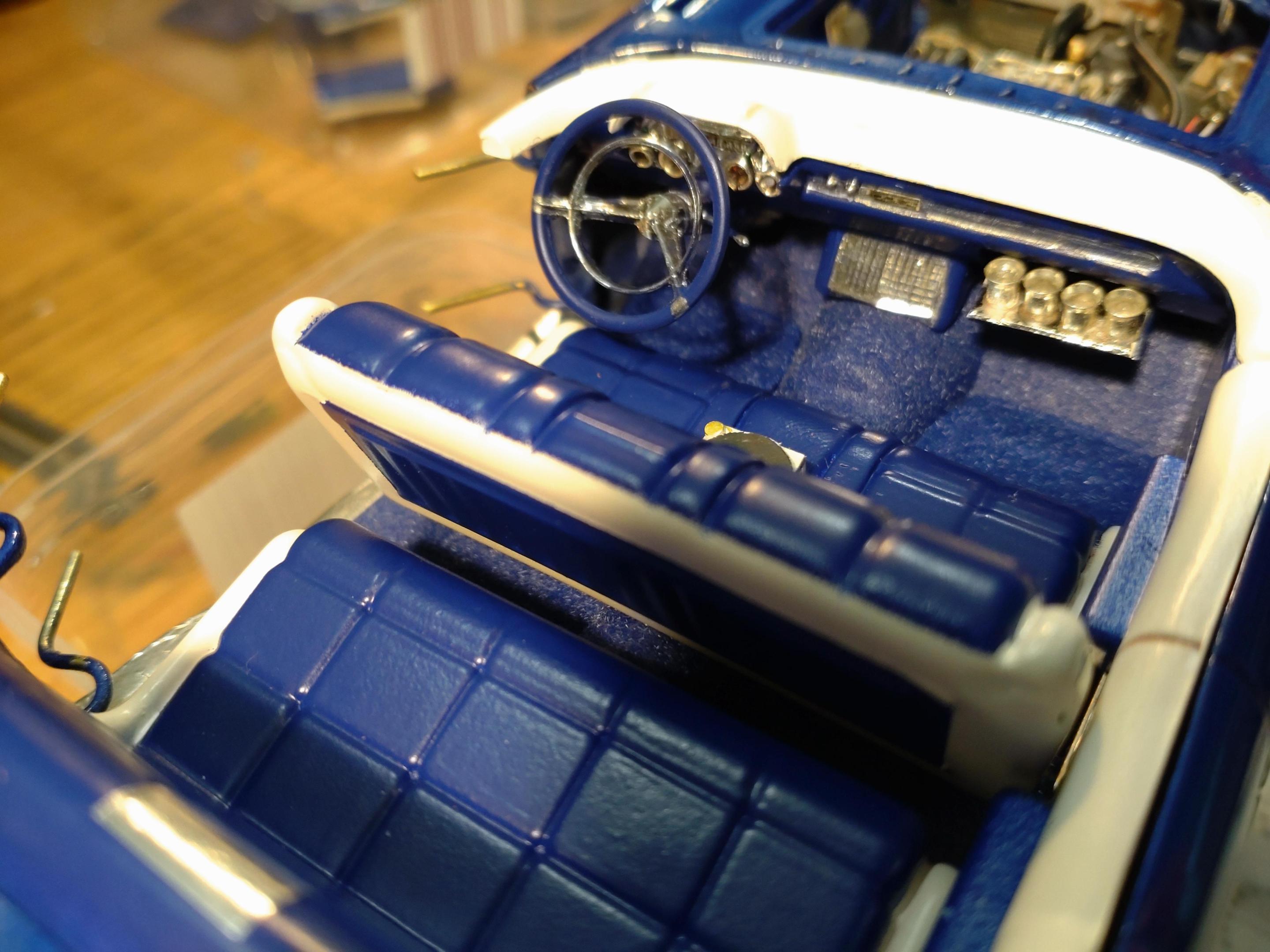

The suicide doors really hooked me and this build cried for getting them. Inside the drivers door I hid a micro magnet and the counterpart is behind the side of the drive seat. This keeps the doors in place and aligned because the drivers door holds the back door tight. The floor and the mats are flocked and the chrome is BMF with a occasional dab of Molotow chrome pen. I tried to get some of those original gimmicks into the interior and chose the record player in the front arm rest and the bar in the glove compartment. The dash got some upgrading for the gauges with printed images and 0.4mm silver wire for the trim.

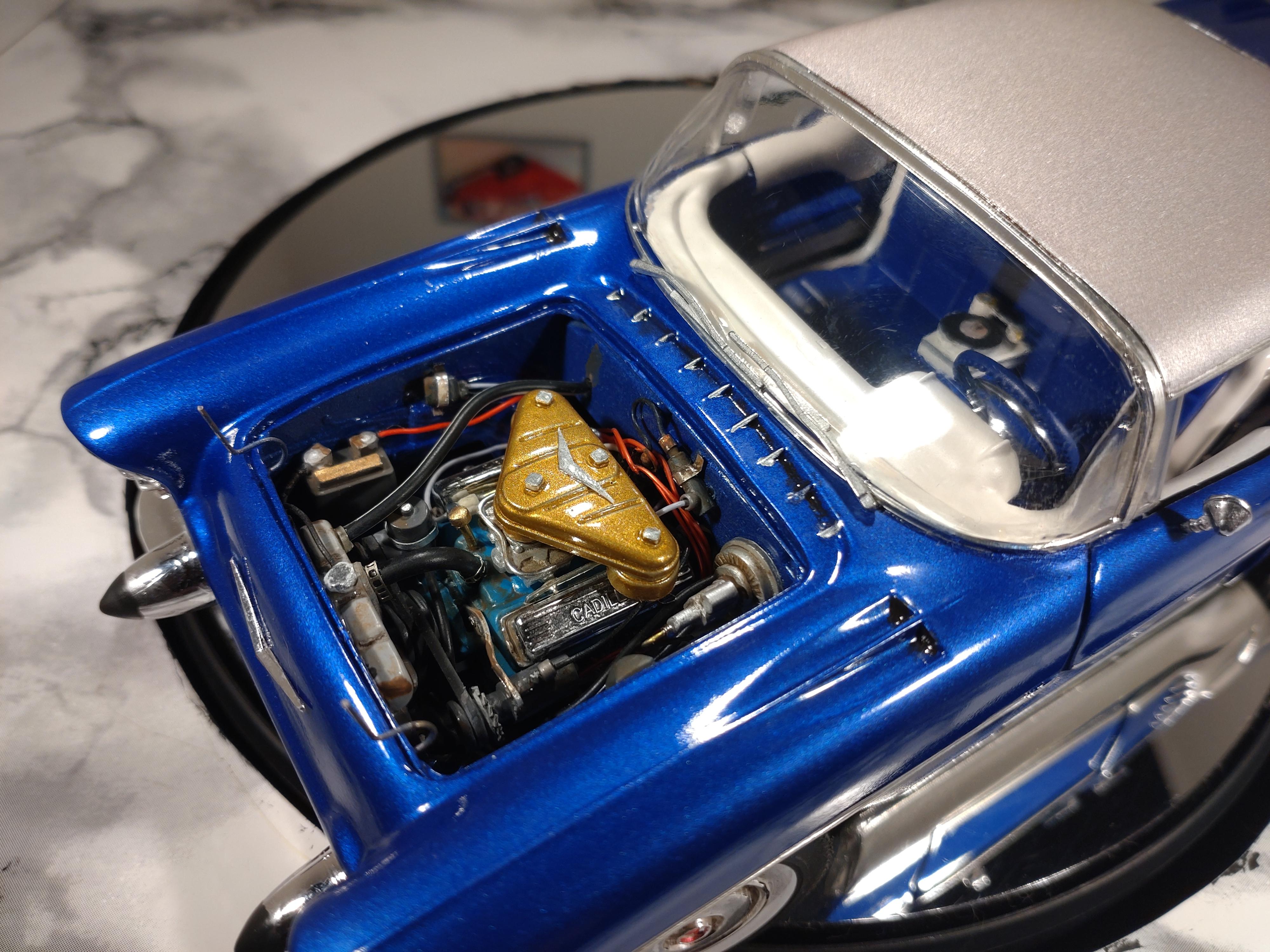

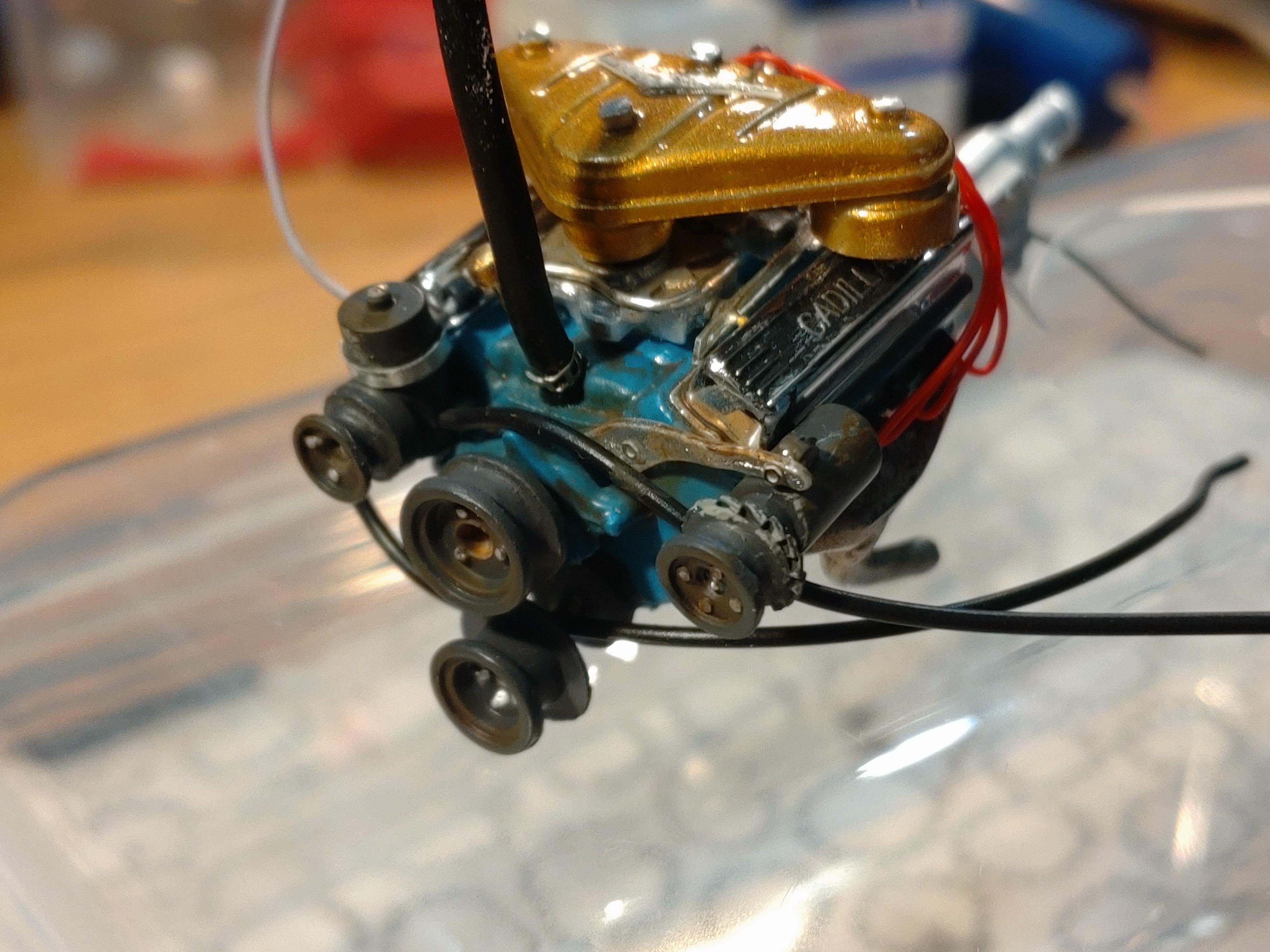

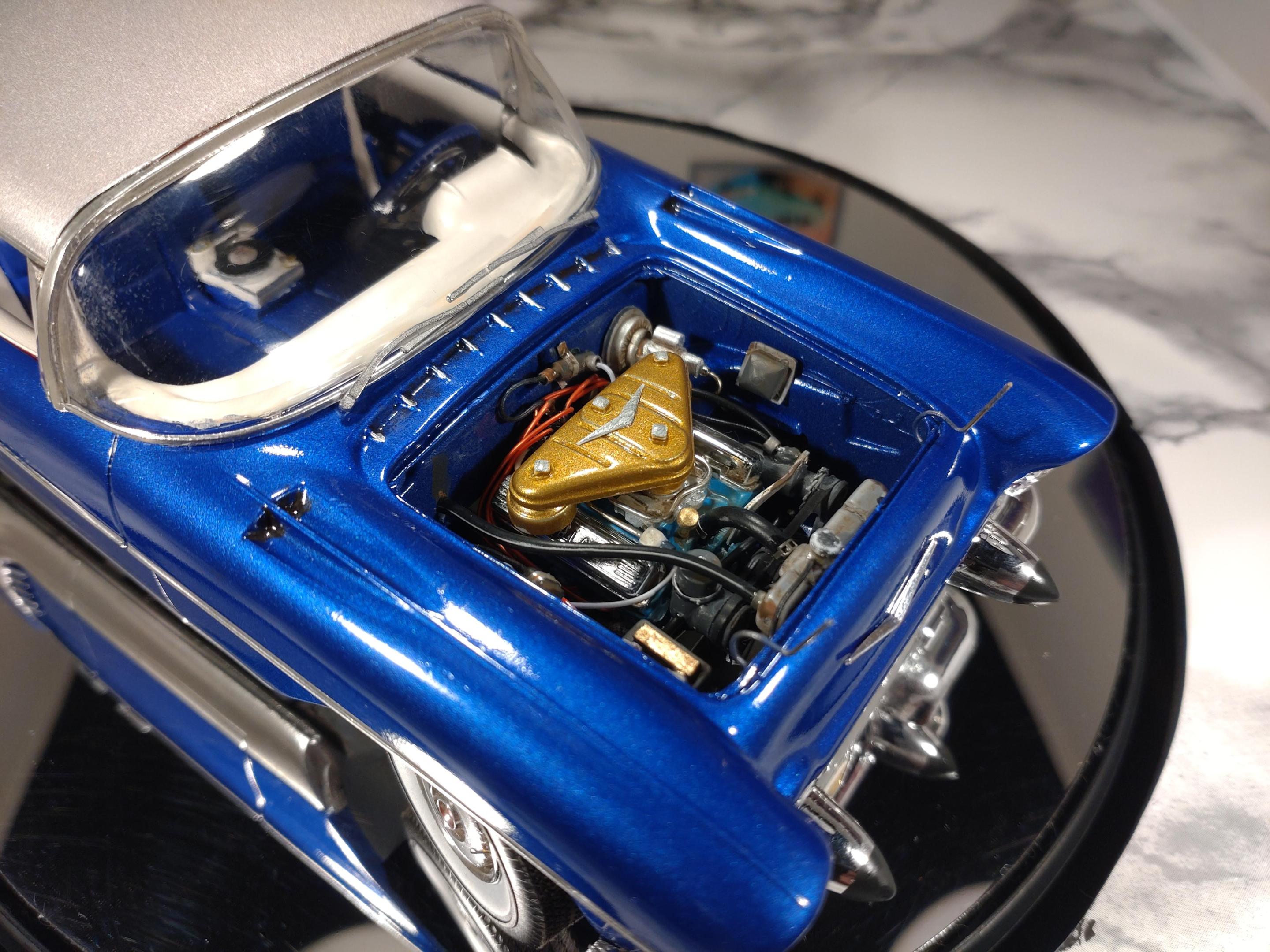

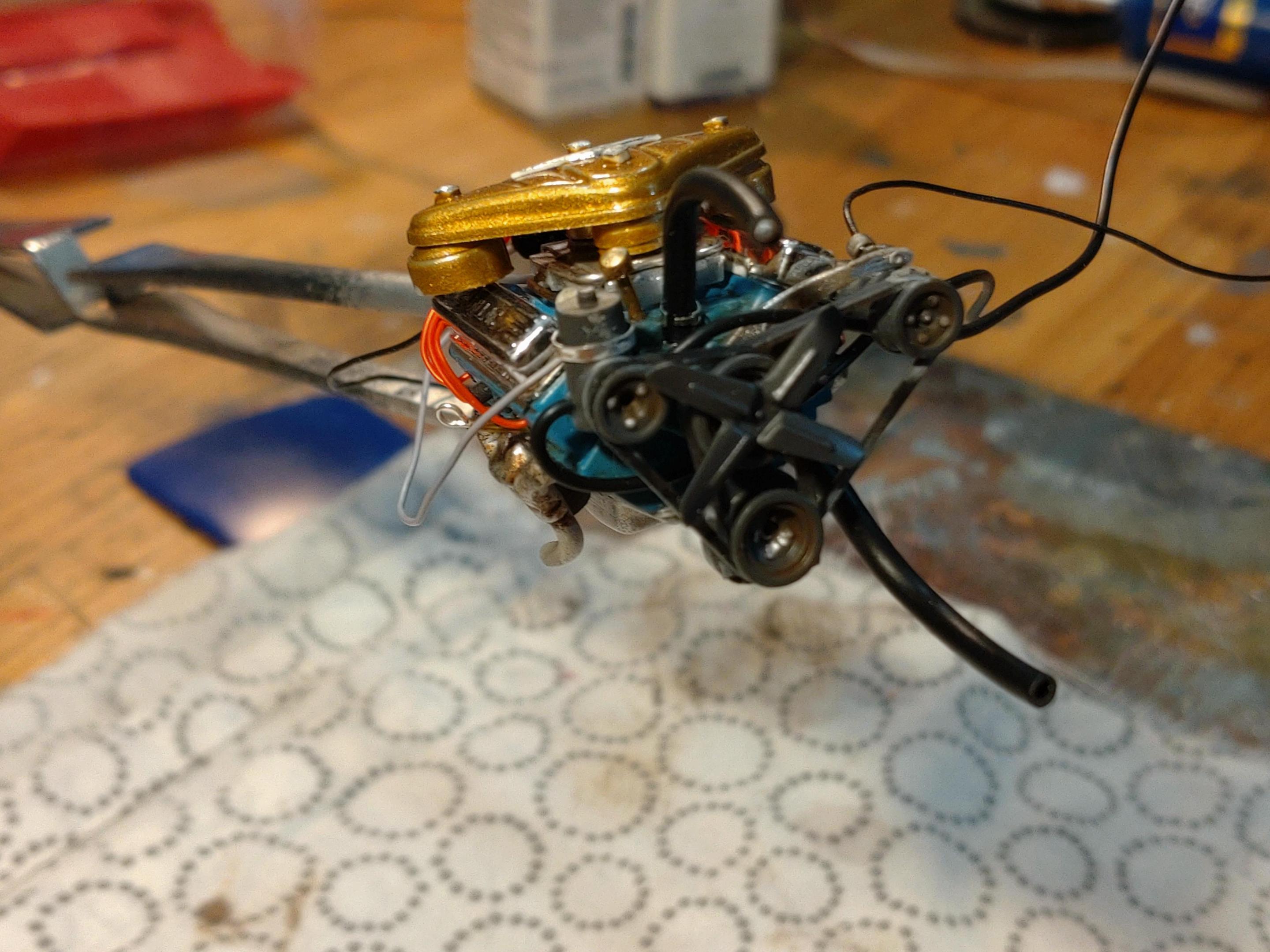

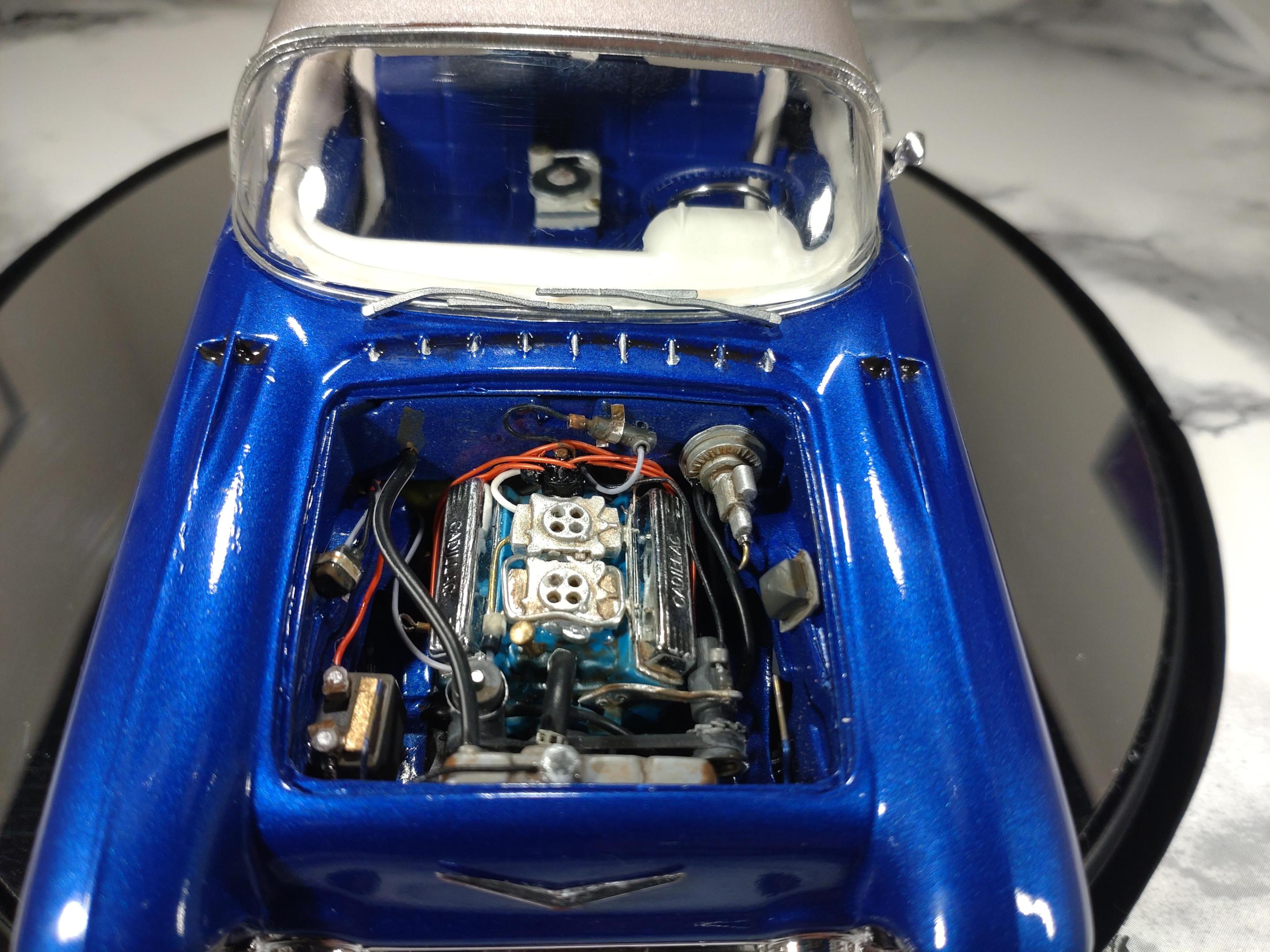

The engine is a mix of 3-4 different kits. Fortunately I had a air filter box that looks the the original. Detailing engines is always my favorite with every build. In this case I had to fabricate the power steering pump  and the generator. The pulley wheels are deconstructed from a kit part and worked to pick up rubber belts. The wheels are connected to the block with 0.5 and 1mm brass pins. The grime comes from AK interior streaks. The extra parts in the engine bay are hand made from scratch styrene sheets and rods, wire and thin sheet aluminum.

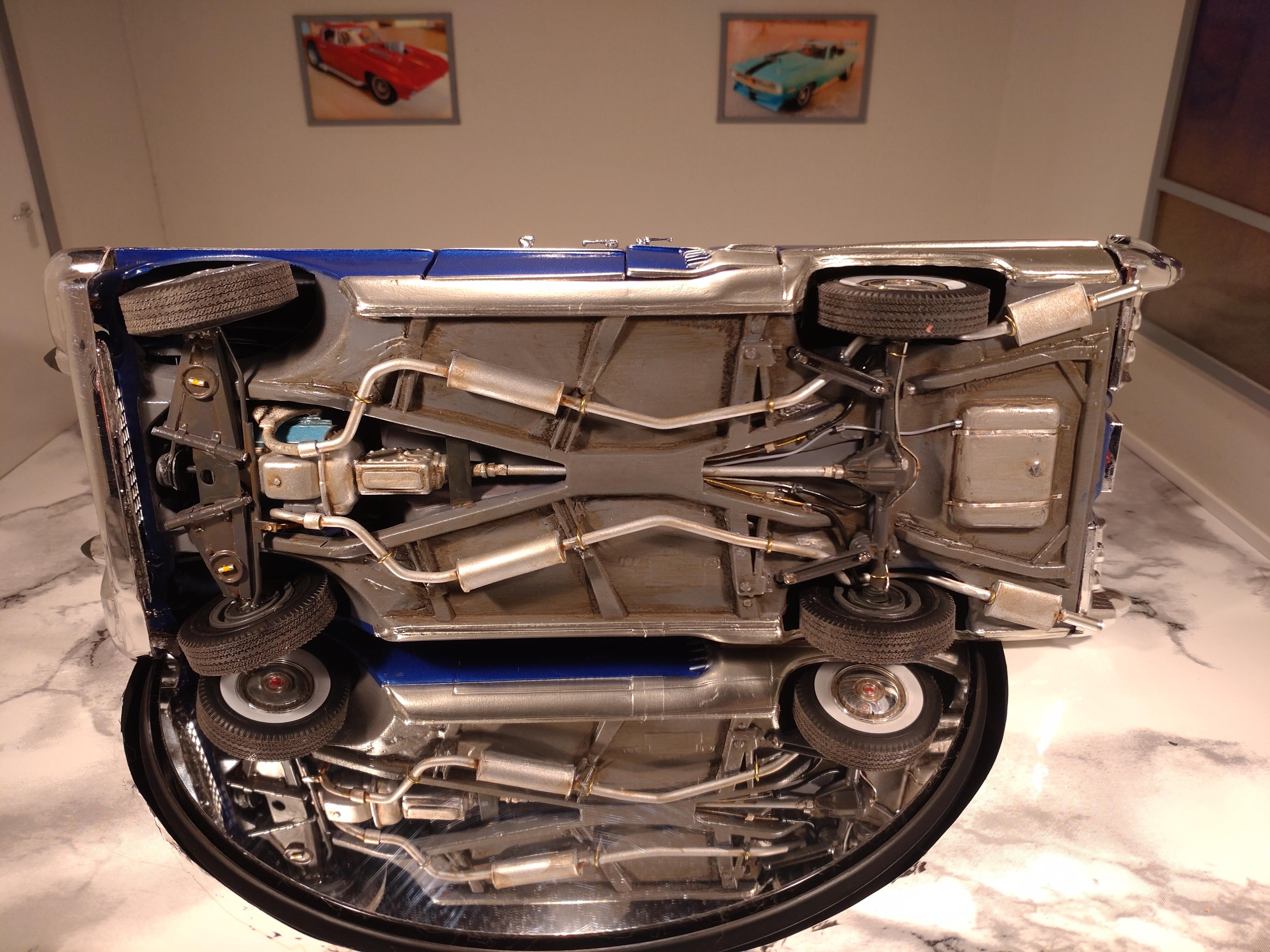

The undercarriage and all the parts for the suspension and transmission needed heavy working. A big part of the undercarriage I cut out or just grinded off. I discarded most of the kit parts and remodeled the few left to get some details on the bottom. The rear axle is from my spare box and received the extra details with styrene raw materials. The brake and fuel lines are inspired by original images. The exhaust system is finger bent 2mm styrene with mufflers from my parts box. Like the engine I weathered the bottom and added a bit of "rust".


You can see the building progress in a thread on the WIP forum.

The video will be released soon with this link:


Thanks to everyone that followed me on the WIP and thank you for watching here!
