Jon Haigwood Posted August 3 Share Posted August 3 This showed up on my FB page and I had to share, 4 Quote Link to comment Share on other sites More sharing options...
Ace-Garageguy Posted August 3 Share Posted August 3 Wow. I thought I knew my flathead schmidtz, but I've never seen that one before. Thanks. Quote Link to comment Share on other sites More sharing options...
Mark Posted August 3 Share Posted August 3 Might that be an Australian rod? I'm not seeing a drag link where I think it should be in the picture, if so then those heads might have been locally made there. With two exhaust ports per side, apparently those heads move the exhaust ports out of the block...very smart move. Easier to keep the engine cool, for one thing. Quote Link to comment Share on other sites More sharing options...
Jon Haigwood Posted August 3 Author Share Posted August 3 (edited) 9 minutes ago, Mark said: Might that be an Australian rod? I'm not seeing a drag link where I think it should be in the picture, if so then those heads might have been locally made there. With two exhaust ports per side, apparently those heads move the exhaust ports out of the block...very smart move. Easier to keep the engine cool, for one thing. That picture was taken at a London car show. It referred to a "Firth Conversion" I will mostly spend a good part of my day searching for info on this Edited August 3 by Jon Haigwood Quote Link to comment Share on other sites More sharing options...
Mark Posted August 3 Share Posted August 3 Never heard of Firth. The heads look a lot like the Smith "Jigglers" which were USA made. Those too are rare pieces, especially the V8-60 version. Quote Link to comment Share on other sites More sharing options...
Jon Haigwood Posted August 3 Author Share Posted August 3 A club member found this: https://www.facebook.com/profile.php?id=100057195649959 Quote Link to comment Share on other sites More sharing options...

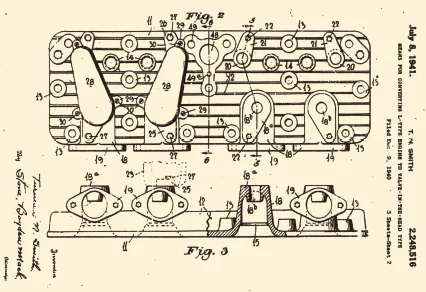

stavanzer Posted August 3 Share Posted August 3 As Mark B. said it looks like the Smith Jiggler. https://myflatheadford.com/the-famous-jiggler/ https://www.motortrend.com/news/hrxp-1111-tiny-smith-flathead-ford-jiggler-v8-60/ A neat Little Engine. I wonder what connection it has to the Firth Conversion? Quote Link to comment Share on other sites More sharing options...
Jon Haigwood Posted August 4 Author Share Posted August 4 (edited) 1 hour ago, stavanzer said: As Mark B. said it looks like the Smith Jiggler. https://myflatheadford.com/the-famous-jiggler/ https://www.motortrend.com/news/hrxp-1111-tiny-smith-flathead-ford-jiggler-v8-60/ A neat Little Engine. I wonder what connection it has to the Firth Conversion? Similar but many differences Same concept maybe Edited August 4 by Jon Haigwood Quote Link to comment Share on other sites More sharing options...
stavanzer Posted August 4 Share Posted August 4 Of Course, but interesting to me that Convergent Evolution seems to have caused these two engines to look similar. I wonder how old the Firth Engine is? Quote Link to comment Share on other sites More sharing options...
Jon Haigwood Posted August 4 Author Share Posted August 4 1 minute ago, stavanzer said: Of Course, but interesting to me that Convergent Evolution seems to have caused these two engines to look similar. I wonder how old the Firth Engine is? After looking at their FB page I would guess the Firth is a more recent design, Quote Link to comment Share on other sites More sharing options...
stavanzer Posted August 4 Share Posted August 4 9 minutes ago, Jon Haigwood said: After looking at their FB page I would guess the Firth is a more recent design, I thought so too. I wonder if the Firth Folks have seen and read about the Jiggler. As obscure as the Smith Engine is, it is not totally Unknown. Seems that somebody could take inspiration from it. Quote Link to comment Share on other sites More sharing options...
Little Timmy Posted August 4 Share Posted August 4 I would. L O V E to hear it run. 1 Quote Link to comment Share on other sites More sharing options...

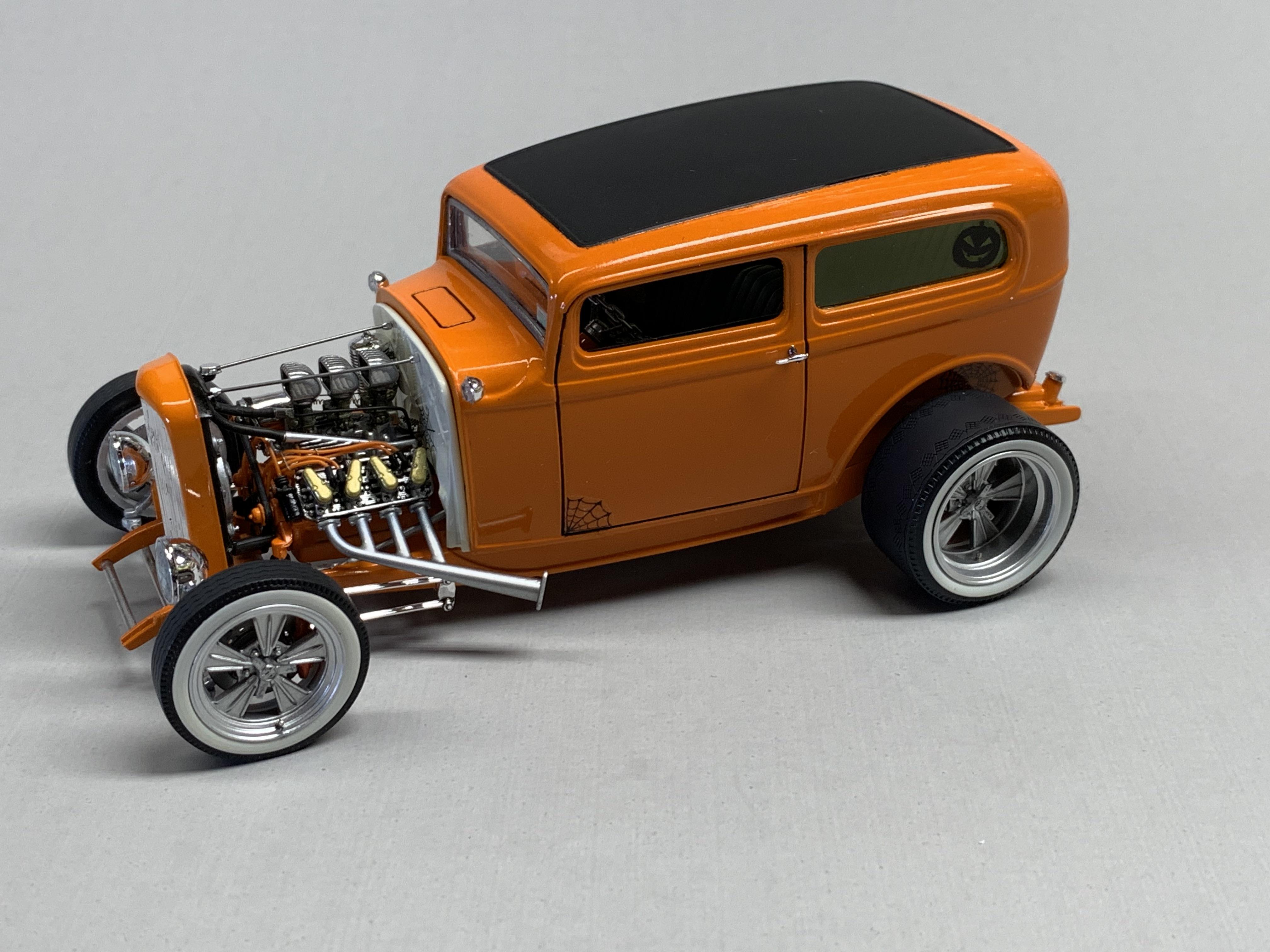

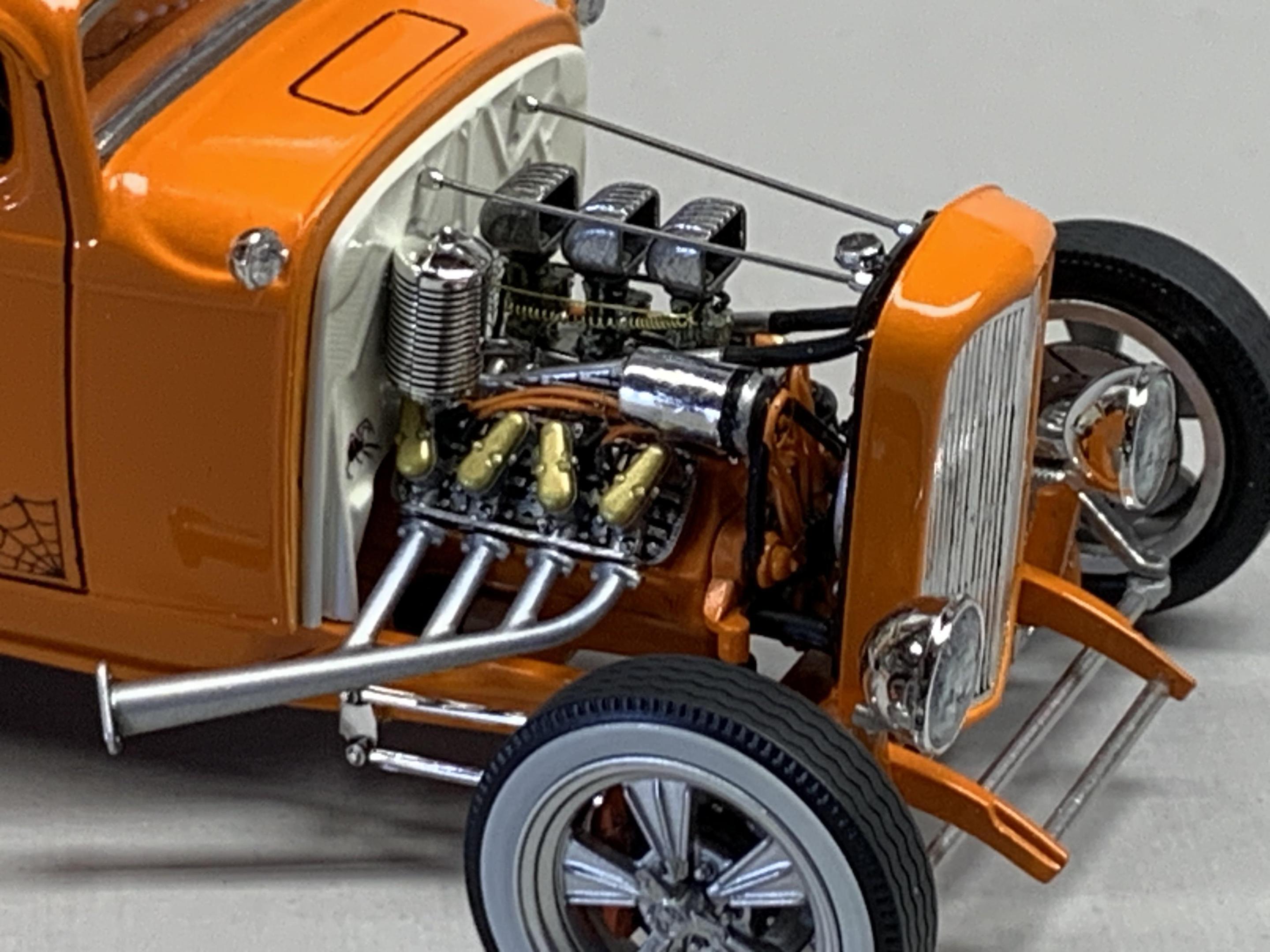

Silvercreeker Posted November 4 Share Posted November 4 The VCG Resins Jiggler is super cool for any exposed engine hot rod! I just had to put it in my 32 build. 5 Quote Link to comment Share on other sites More sharing options...
