Hello,

I have failed to complete the last 2 buildoffs on time.  I'll complete them but the deadlines are far in the past.  So the last time I joined a buildoff was a few months ago. The theme was muscle car with deadline Sept 30th.  I will not be even near halfway done at the deadline. So this will be the third consecutive buildoff I fail to complete.

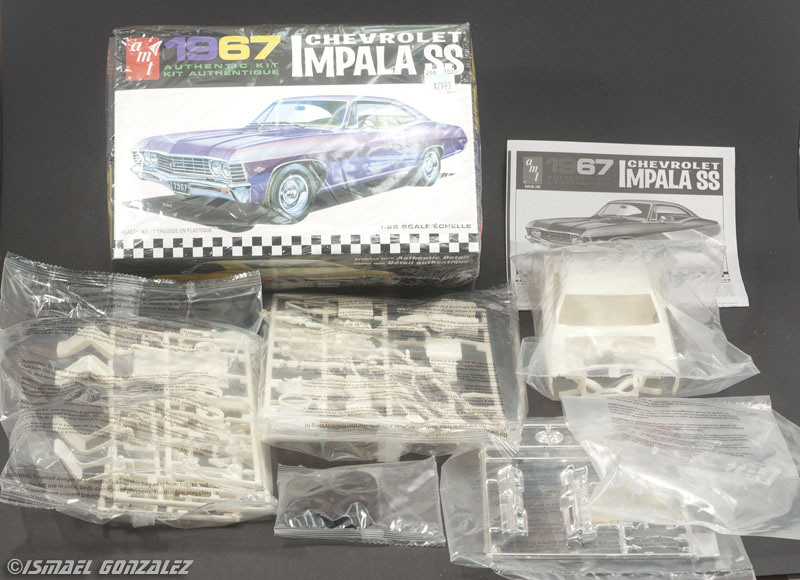

This was my entry in that buildoff.  The idea is to build a street machine daily driver that could be raced on the weekends at the local dragstrip.

Yes, I know, the SS 427 was not called Impala. Just SS.


I started it months ago, but really very little progress.  I'll share the progress here.

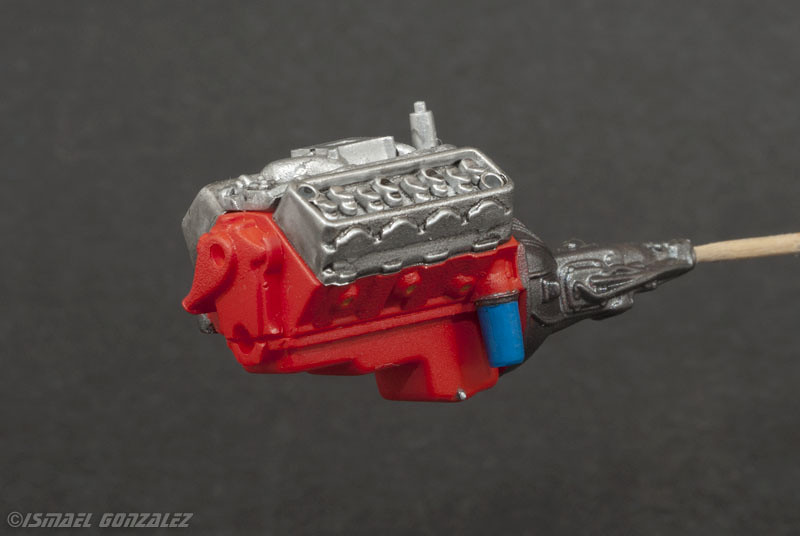

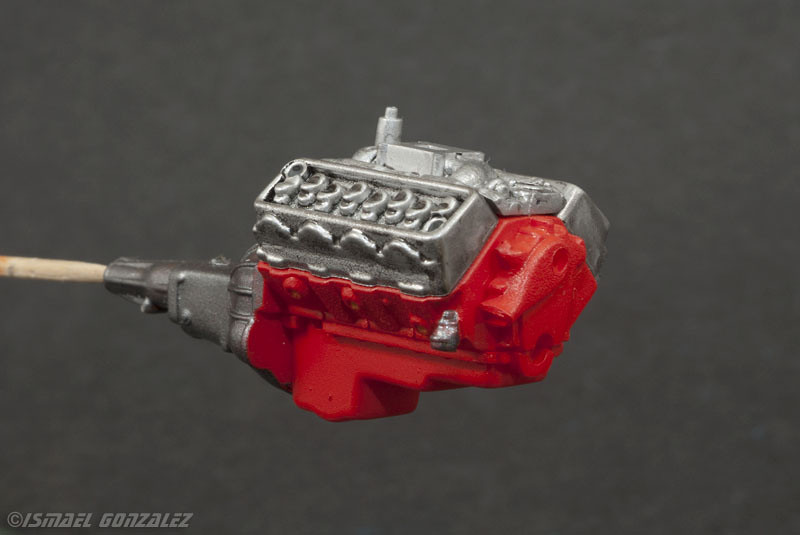

The heart of the project will be the mighty Chevy 427 Big block.

Added oil drain plug.

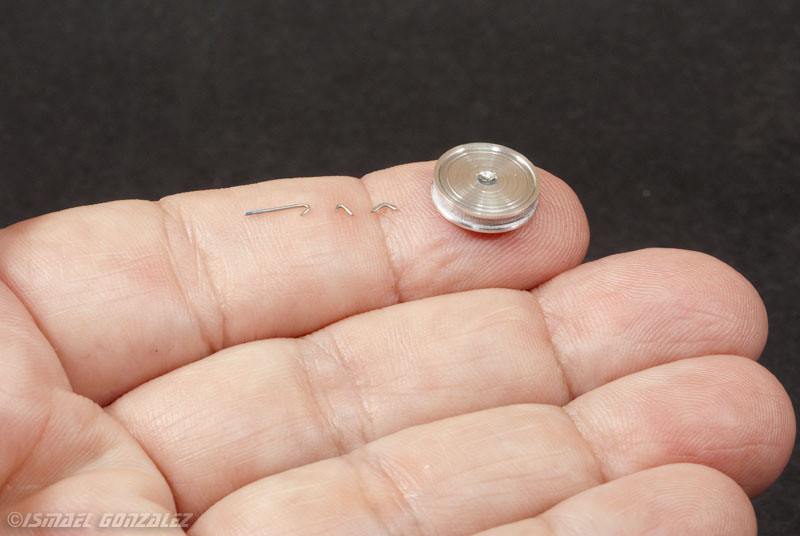

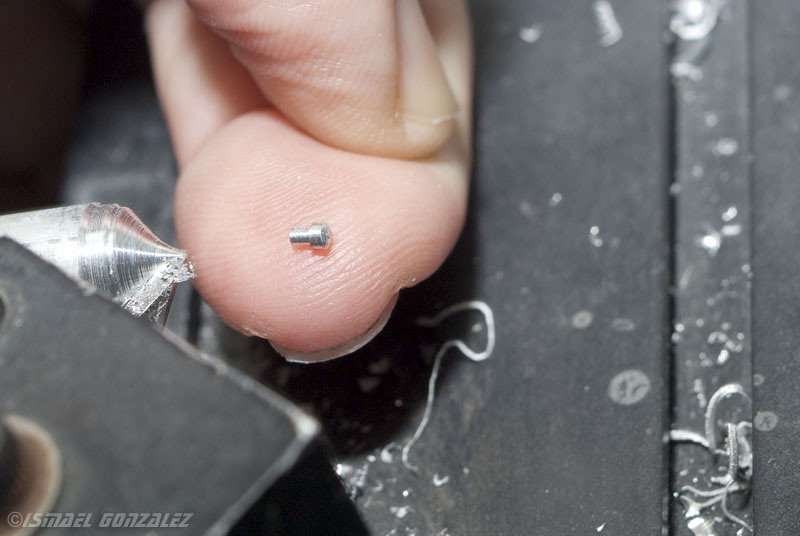

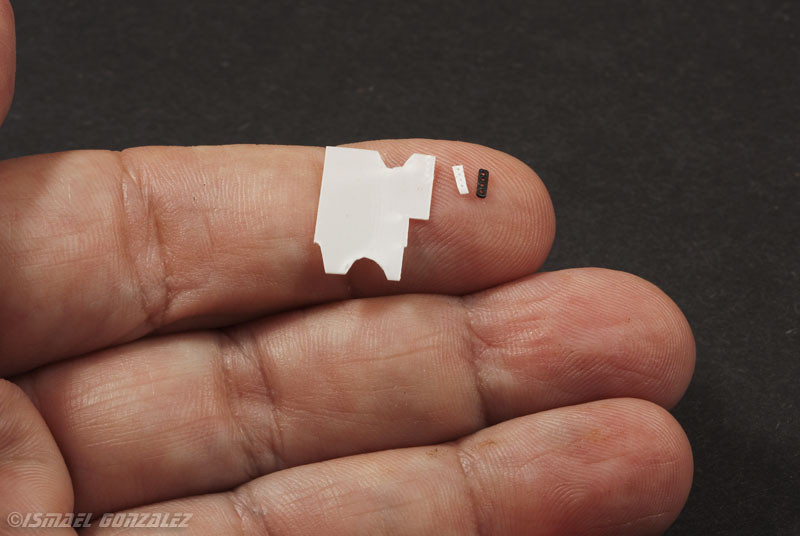

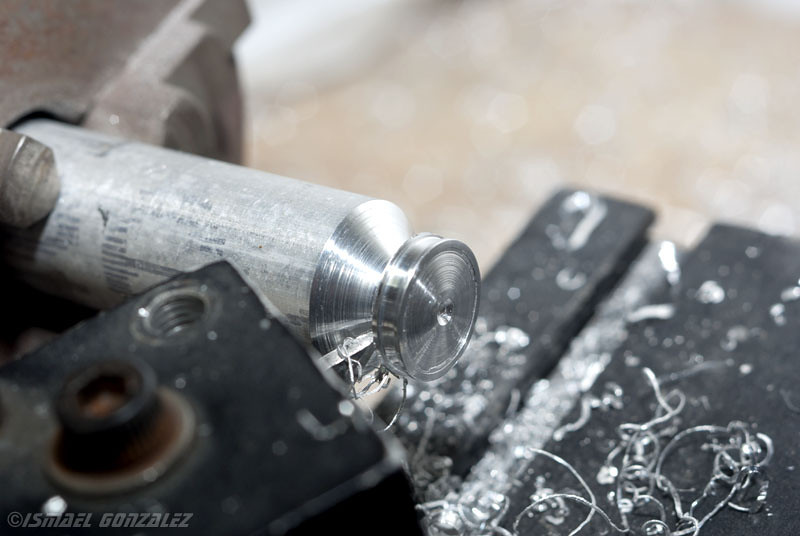

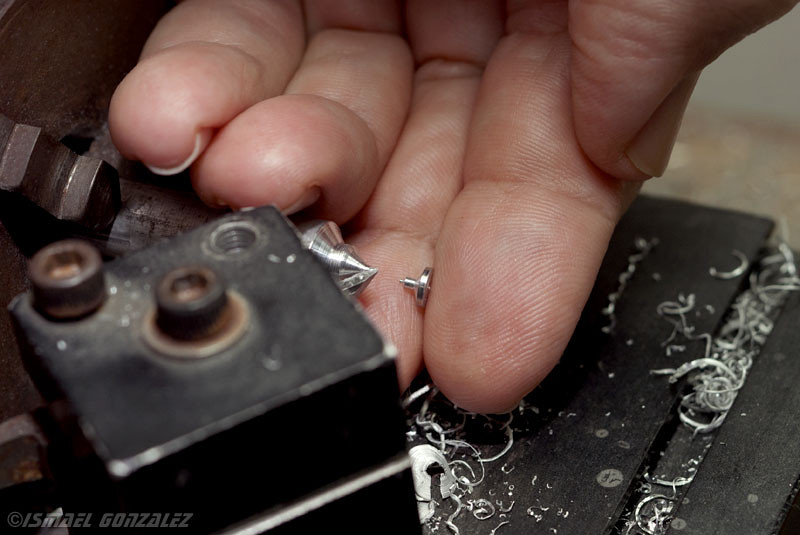

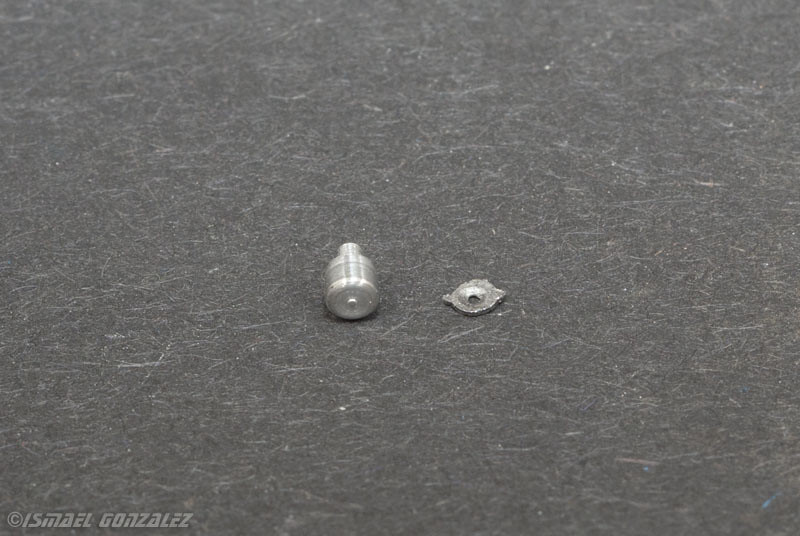

Machined some tiny parts.
Oil breather and oil filler cap.

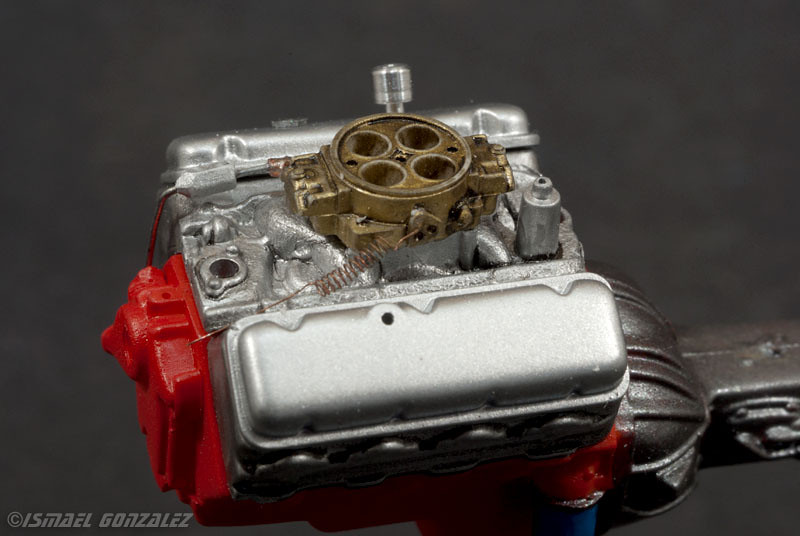

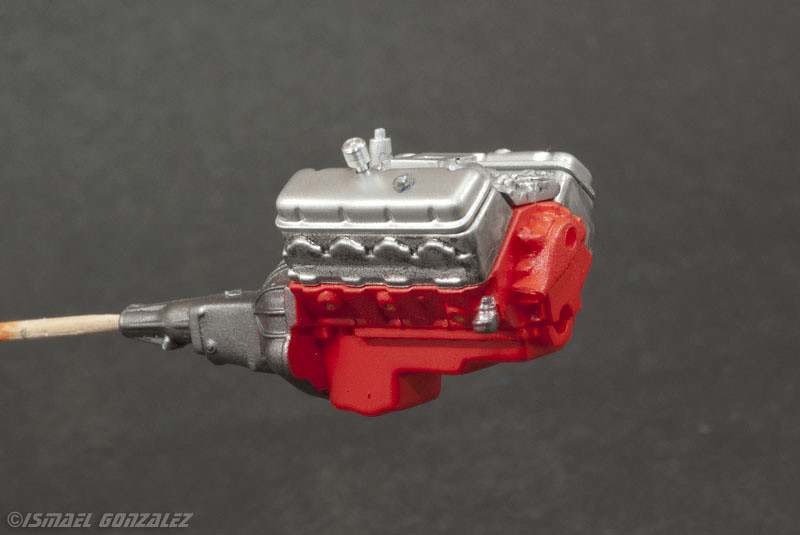

The idea is iron block, aluminum heads, aluminum intake and magnesium valve covers.

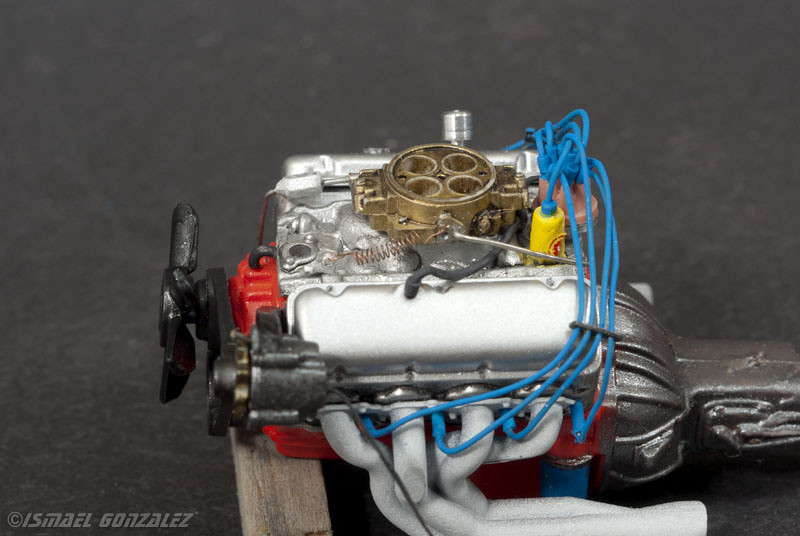

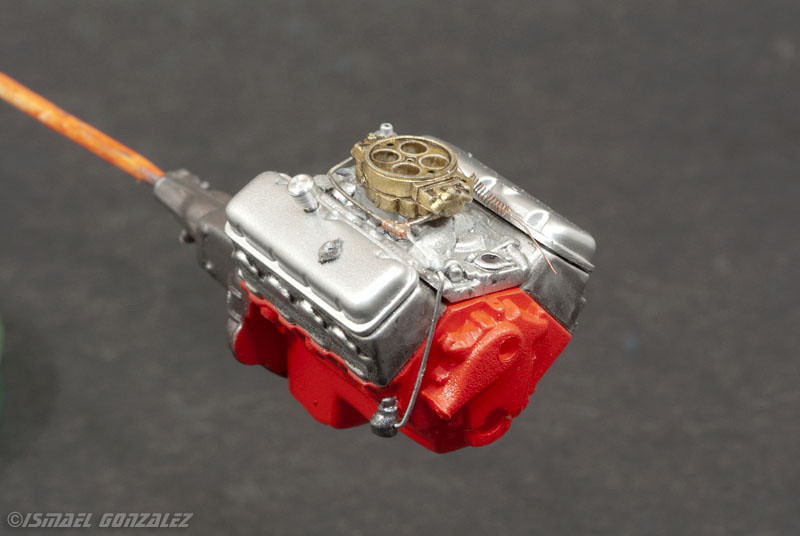

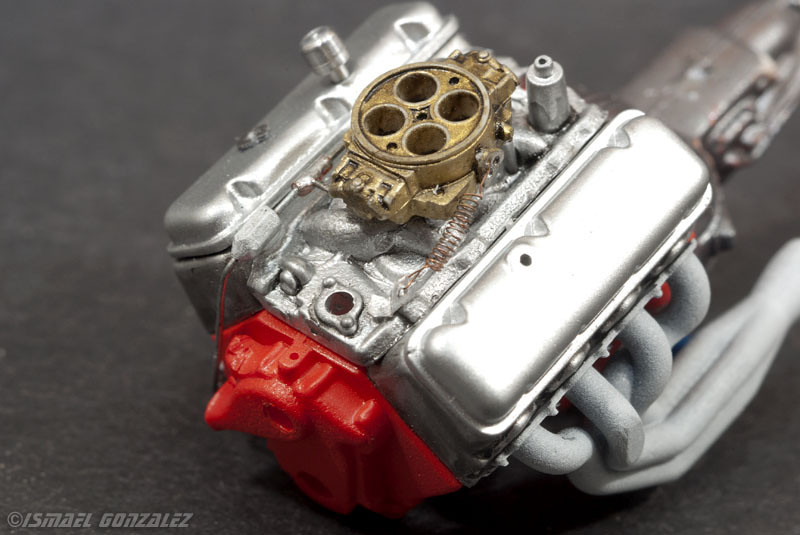

Four barrel / double pumper carburetor. Fuel line from fuel pump to hi flow filter to splitter to each front and rear pumps.

Throttle return spring

Stay tuned for more...

Thanks,
Ismael

  • Like 7
Posted

Hello,

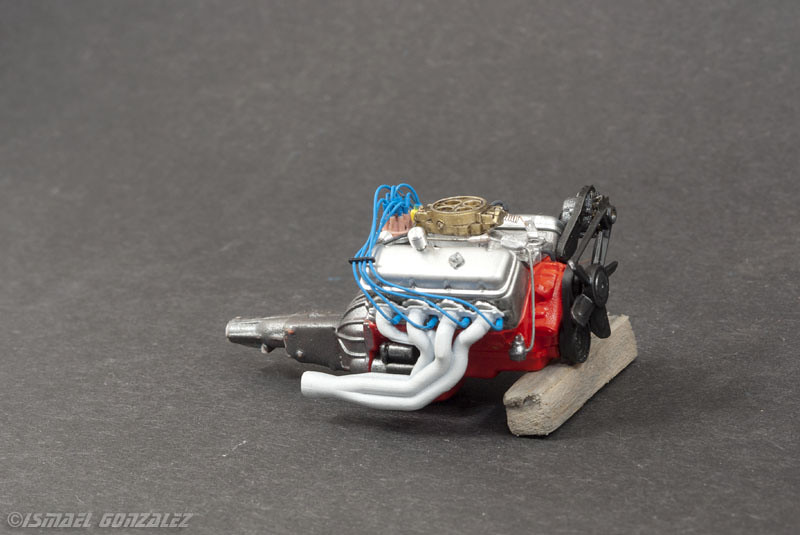

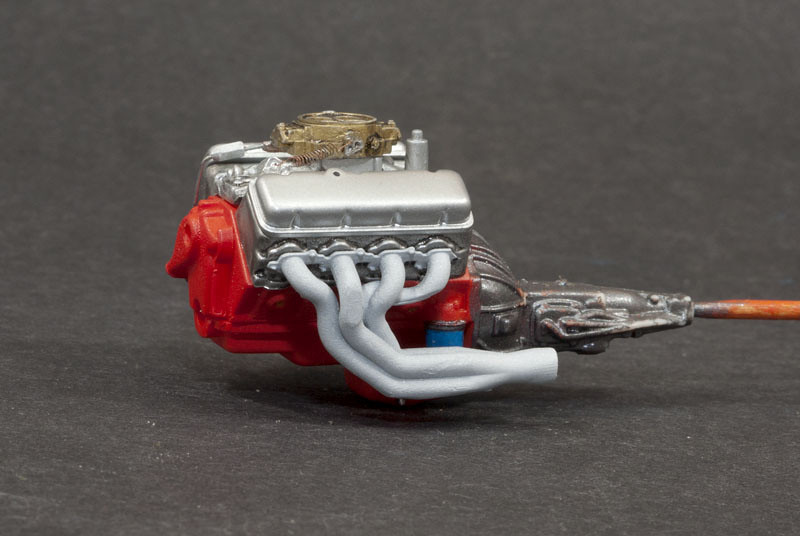

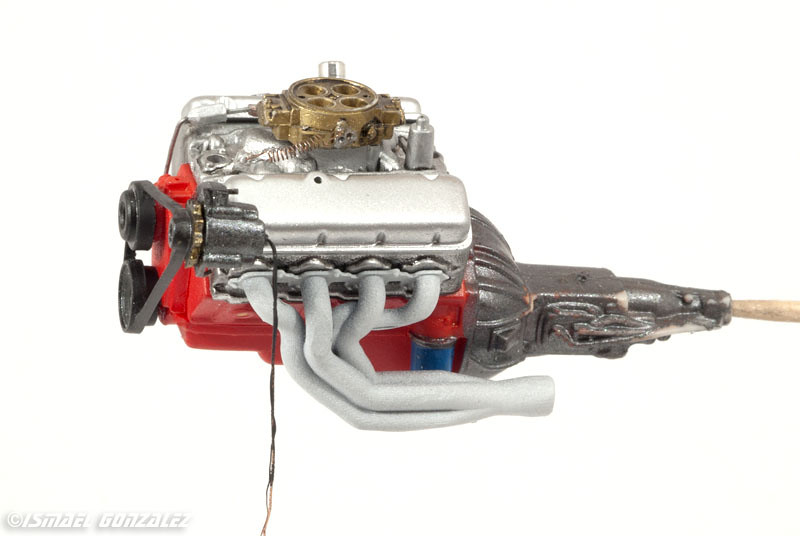

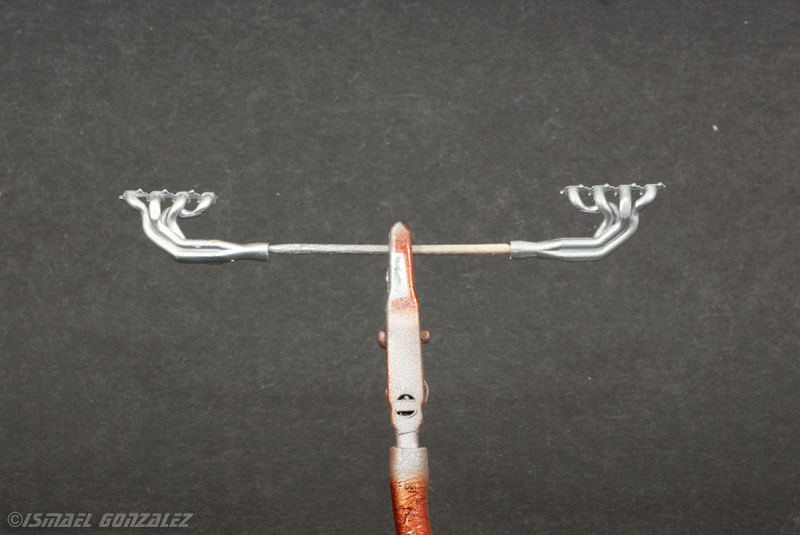

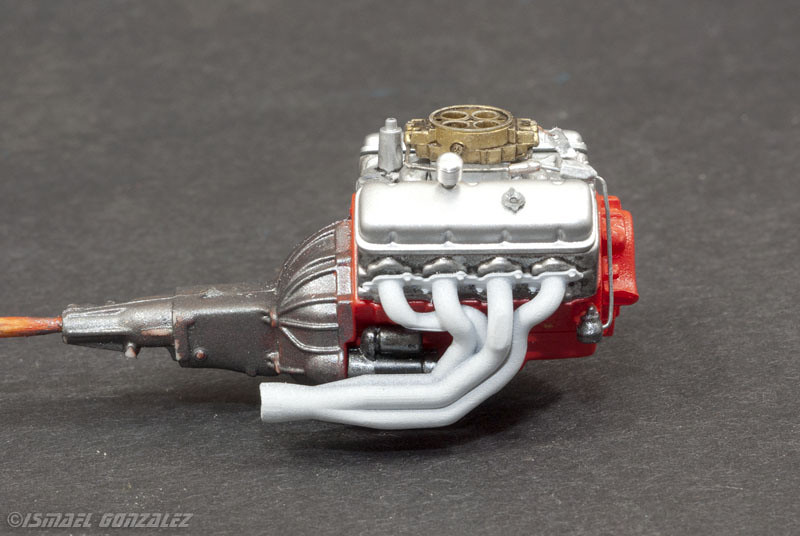

  The most exquisite set of headers I've ever used.  A friend of mine 3D printed them for me.  After cleanup I painted them aluminum, then dusted spray flat white to simulate high heat paint.

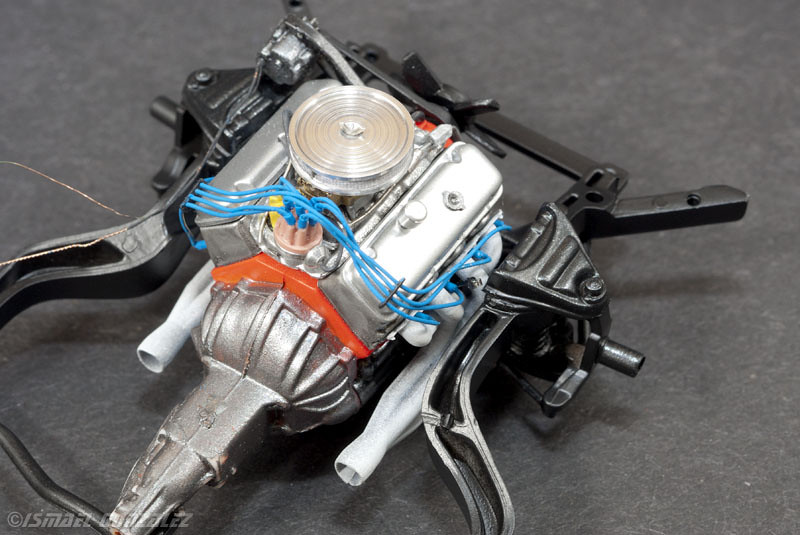

Just like the real car, this monster doesn't fit in the chassis. Some minor modifications were needed to the chassis and the headers for a very tight fit.

Throttle return spring was added.  Did I mention I love those headers?

Thanks,
Ismael

  • Like 8
Posted

Hello,

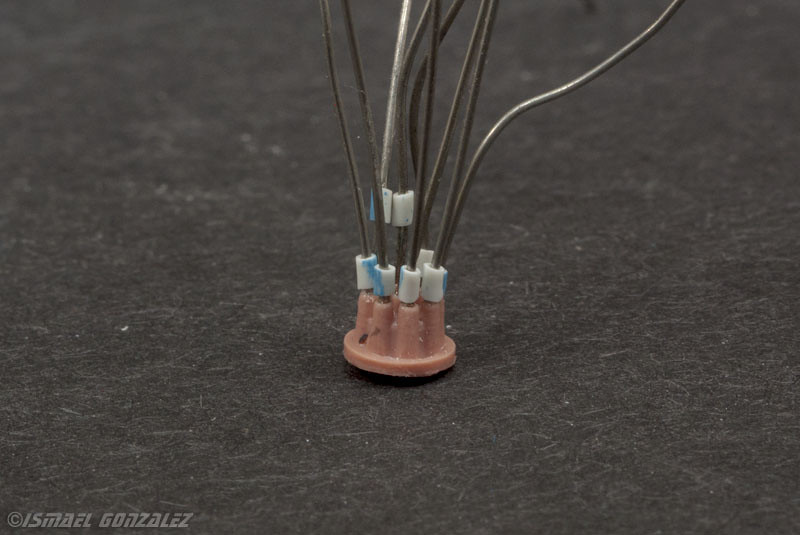

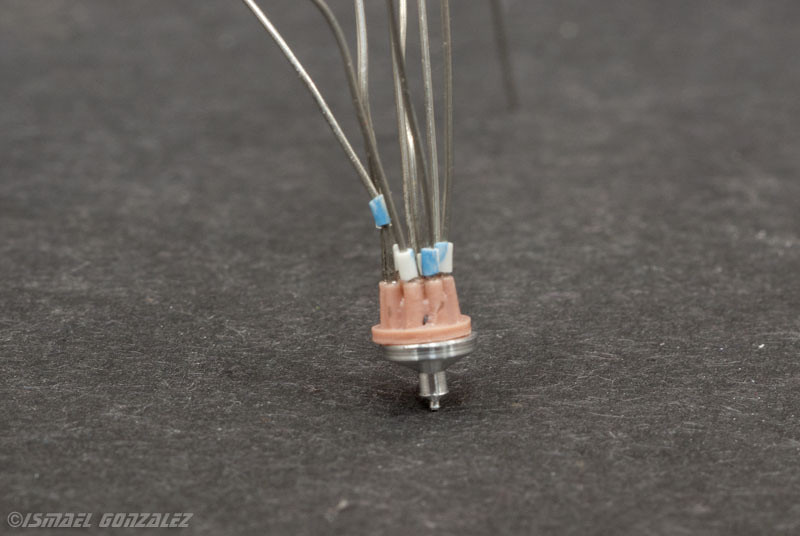

Drilling distributor caps is fun..... said no one ever.



Of course it will be properly centered when done.

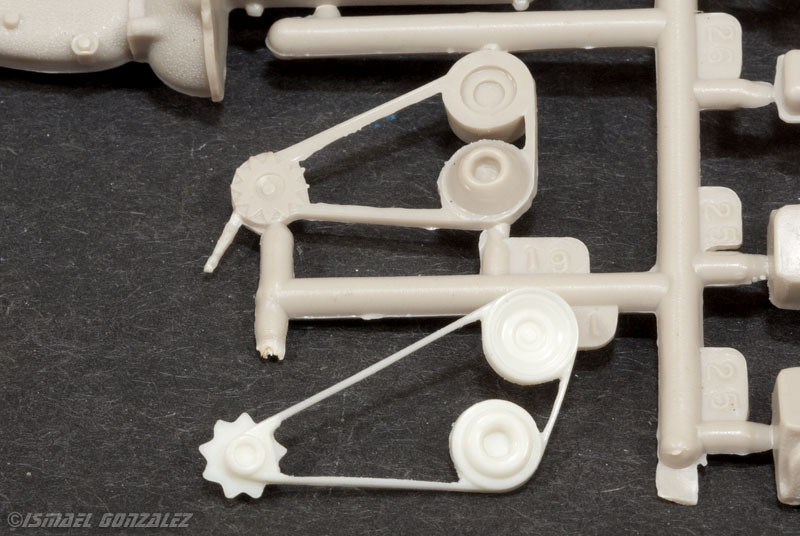

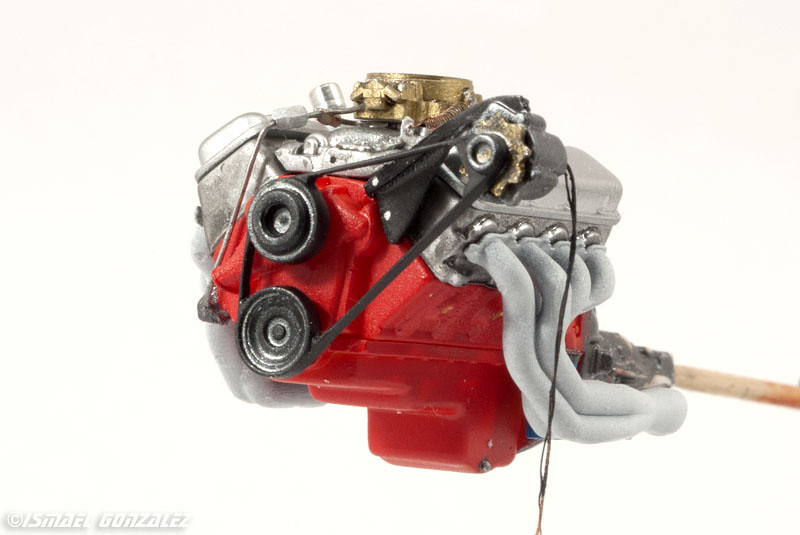

Thinned the kit's belt.

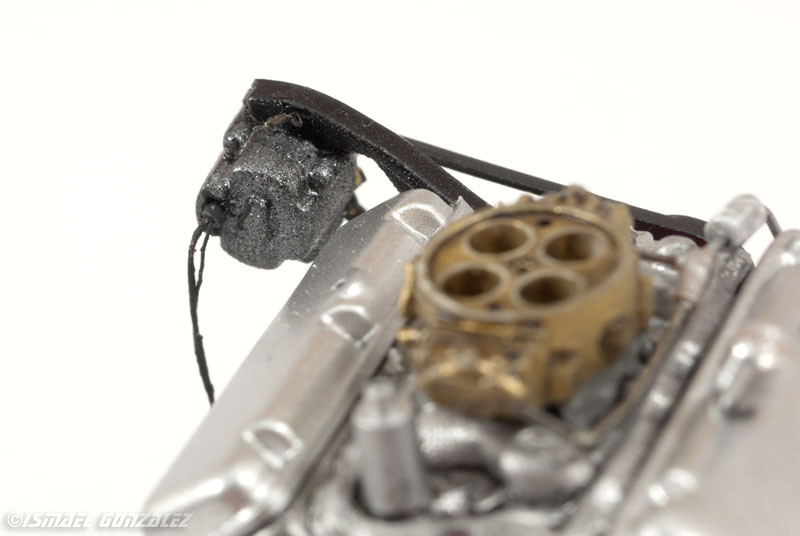

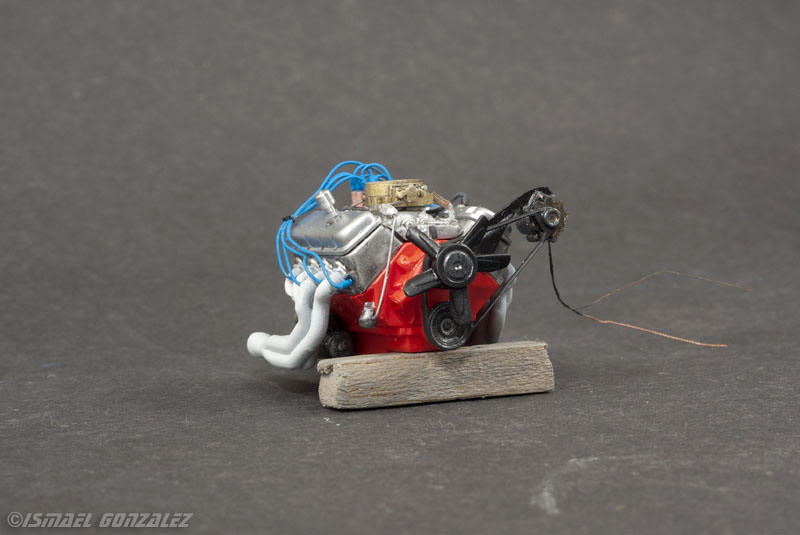

Modified alternator's bracket.  Added tensioning bolts.  Wired the alternator.  Added and attached throttle return spring bracket.






Thanks,
Ismael

  • Like 8
Posted

Hello,

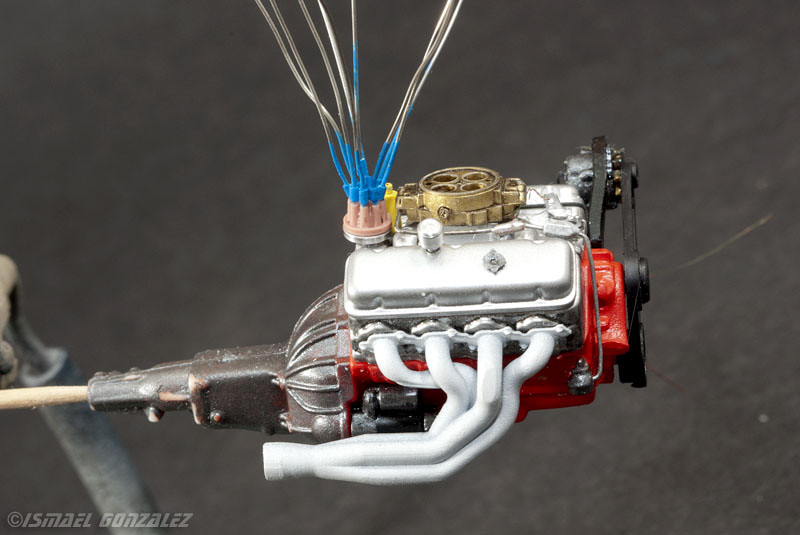

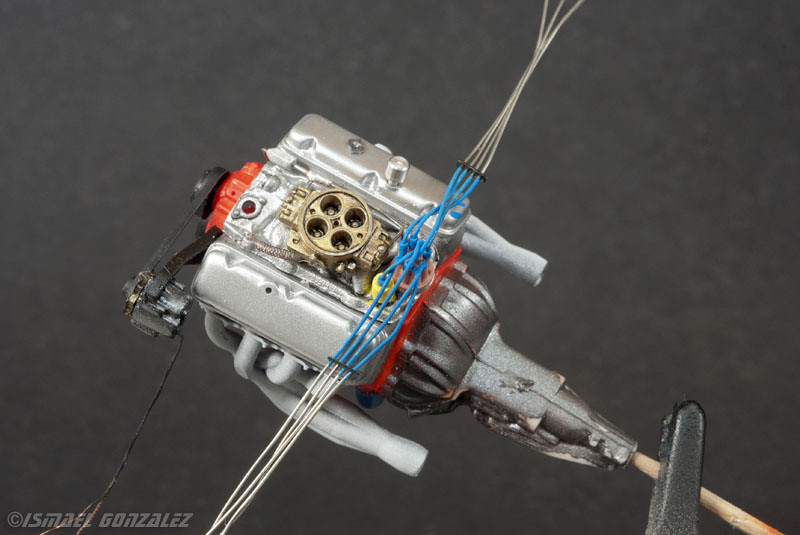

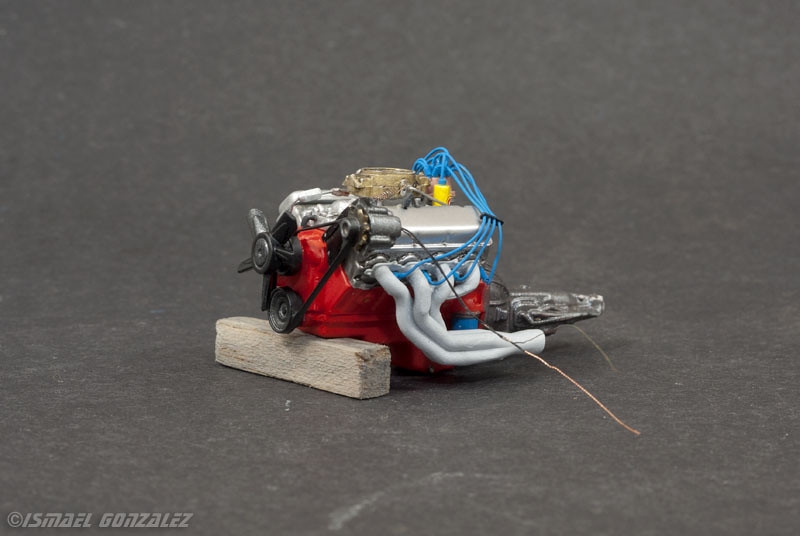

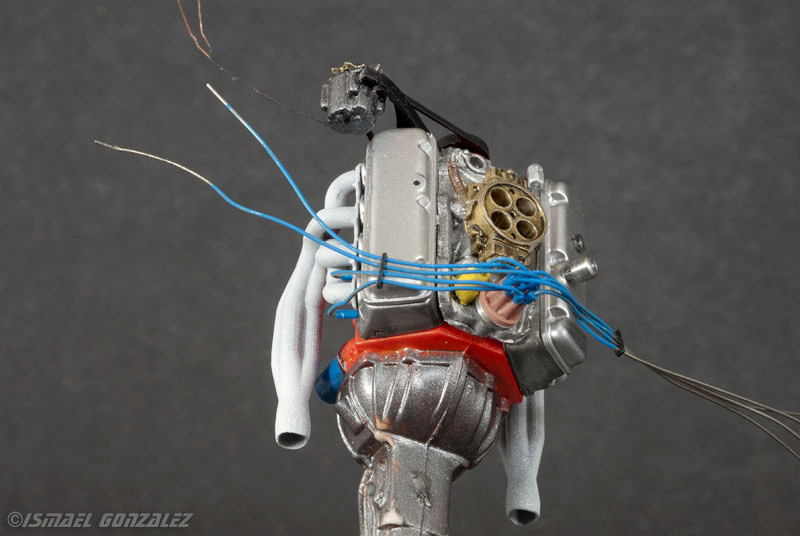

Evolution of a plug wire loom:


This TV commercial was one of my favorites from when I was a teenager in the 80's


"Blue Max Spiral Core from Moroso: RACE PROVEN!"

Correct firing order: 1 8 4 3 6 5 7 2
I wouldn't have it any other way.


No, I it won't start on only 2 cylinders. Be patient!  I'm on it!

Thanks,
Ismael

  • Like 7
Posted

Hello,
















Still pending the air filter which I am working on. I think I'm almost done.
Oh wait! I am missing something else: Ohh yes!  THE REST OF THE CAR!!!!  ?

Thanks,
Ismael

  • Like 9
Posted

Hello,

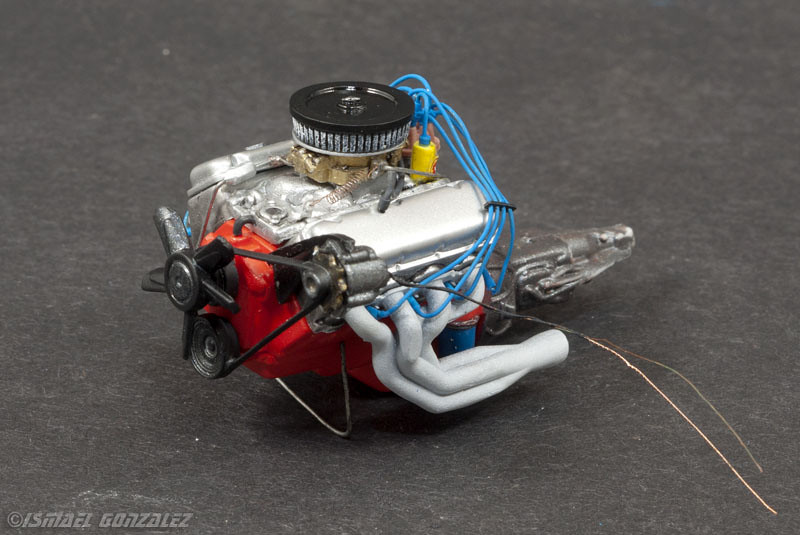

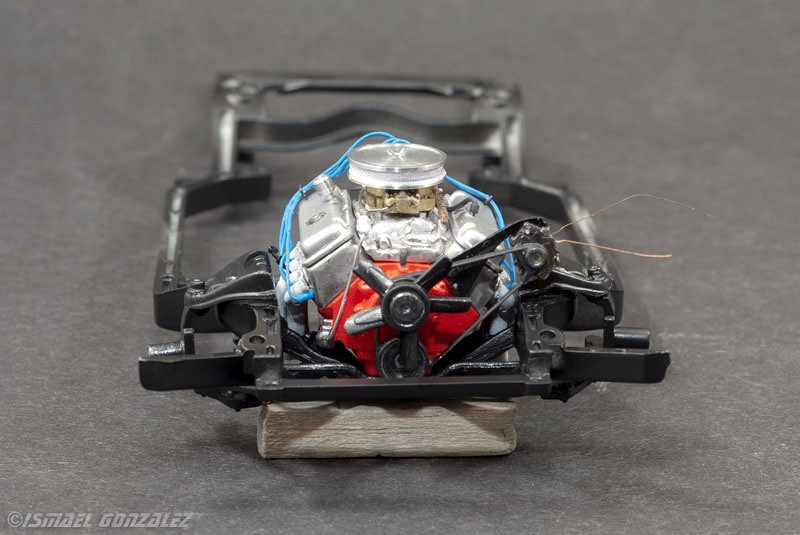

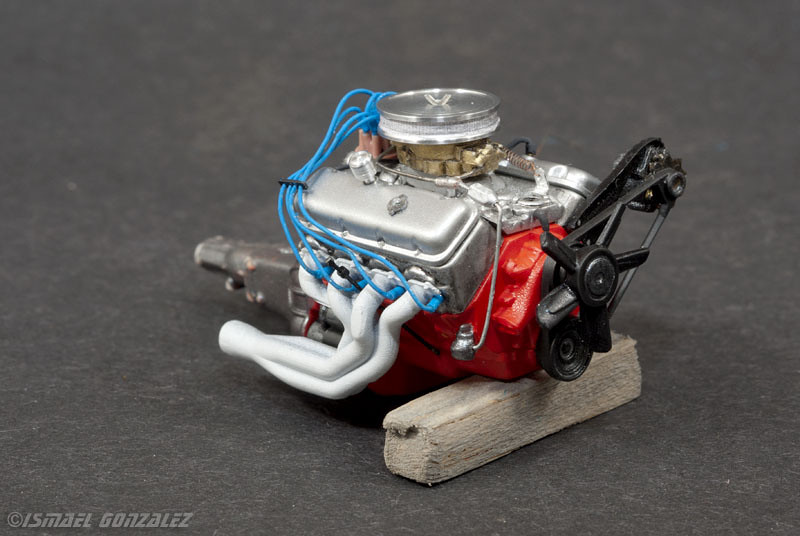

  I played with 4 or 5 different air filters. Did not really like any.  This was the best of them. Painted it black for a more sinister look.   Mehh...







Really tight fit.  Even the oil dipstick feels cramped in there.



Thanks,
Ismael

  • Like 9
Posted

Hello,

  Letting the engine cool off for a minute before going back to it.

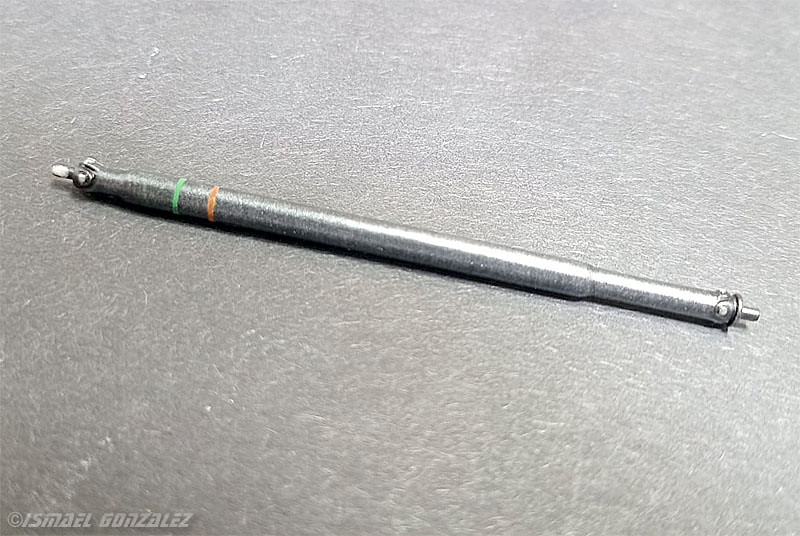

Driveshaft ready for installation.

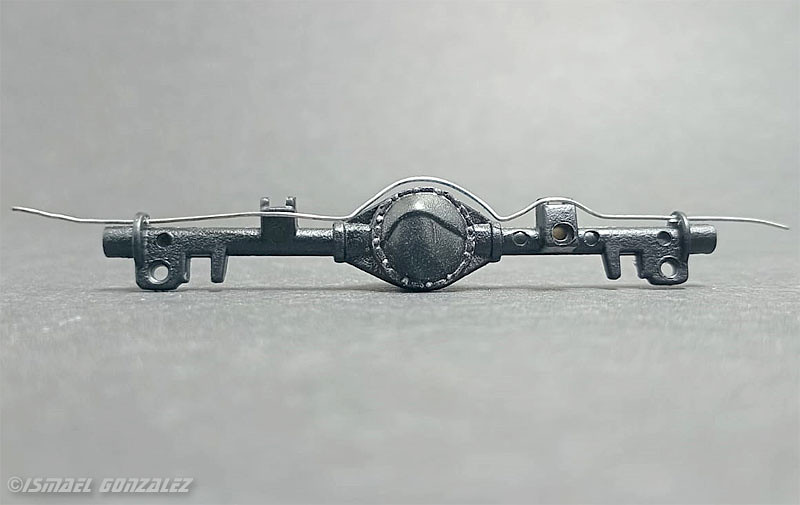

Started working the rear end.  Flat black with a wash of gunmetal. Adding brake lines.



Thanks,
Ismael
