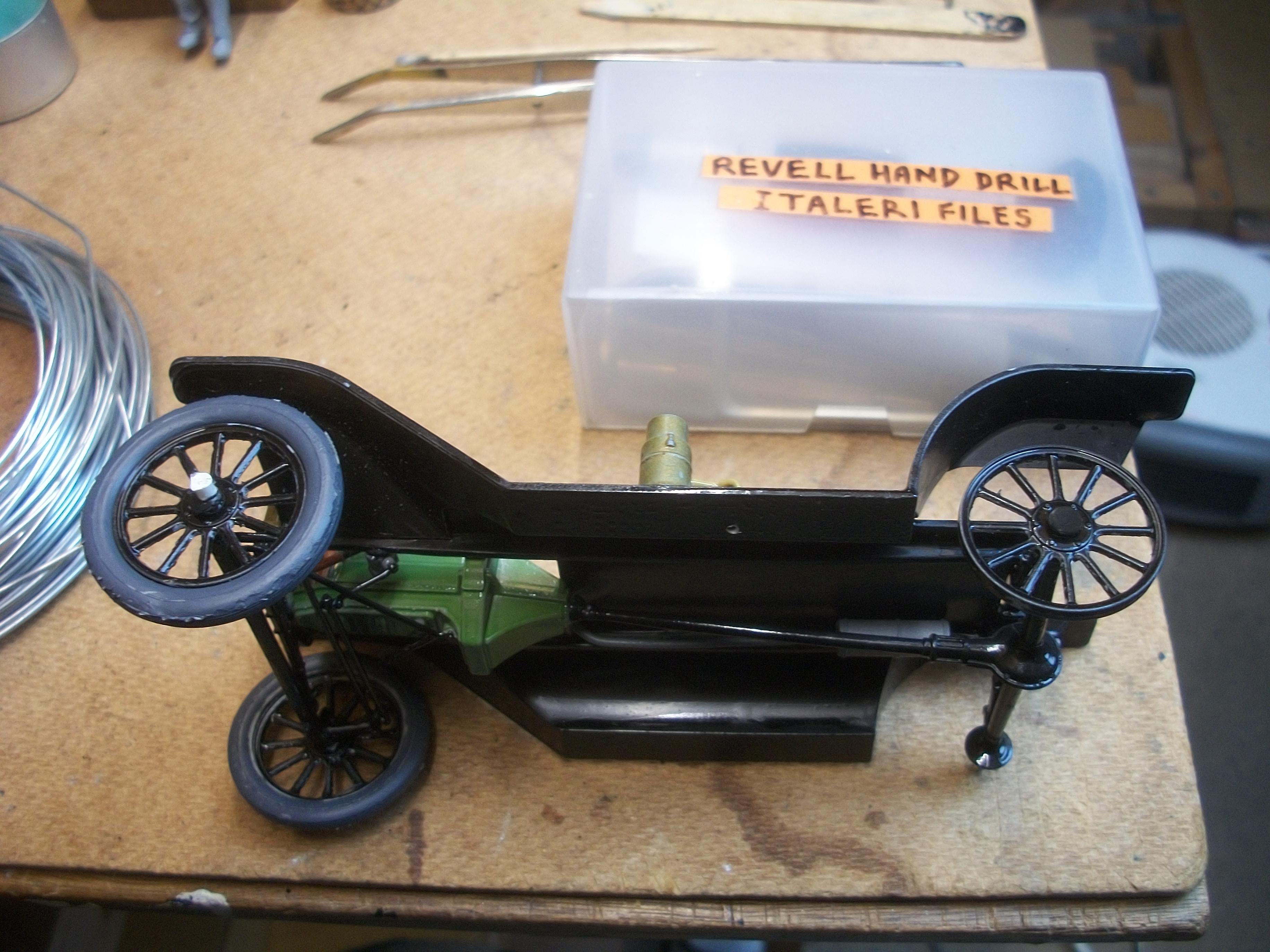

The red rubber tubing became split and broken too easily, and I believe this is because the tubing is from the 40 years old Gunze Sangyo kit.

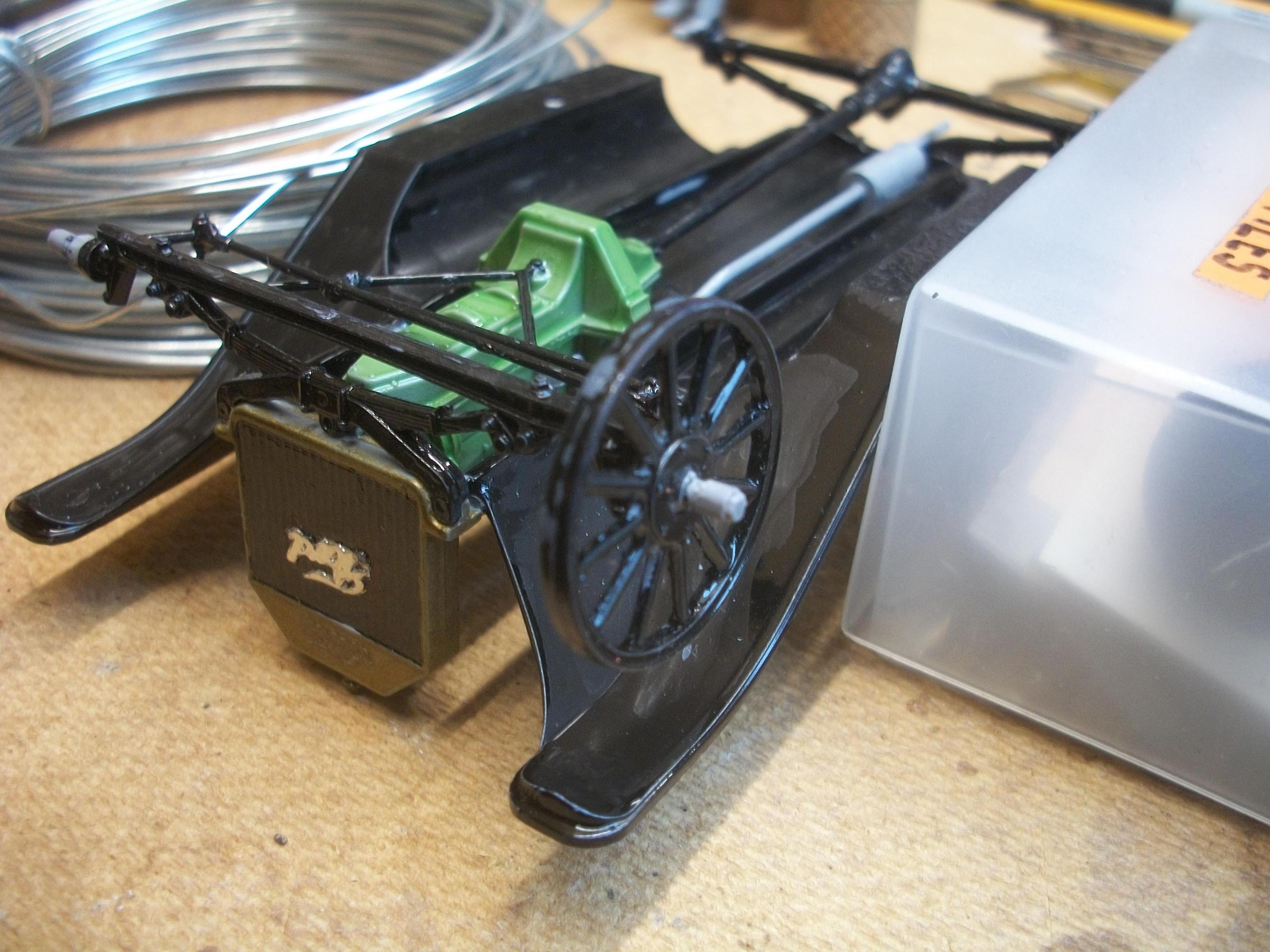

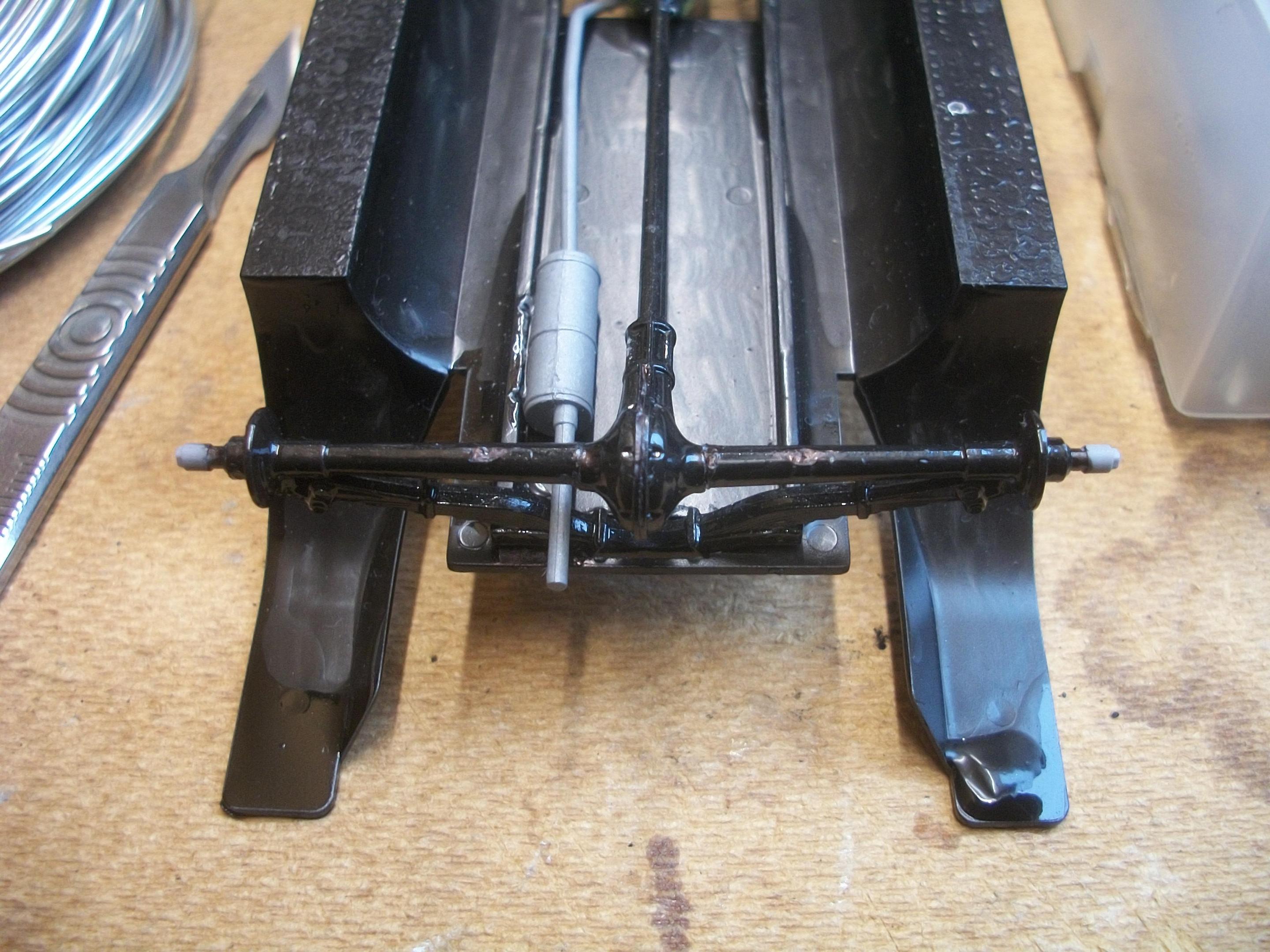

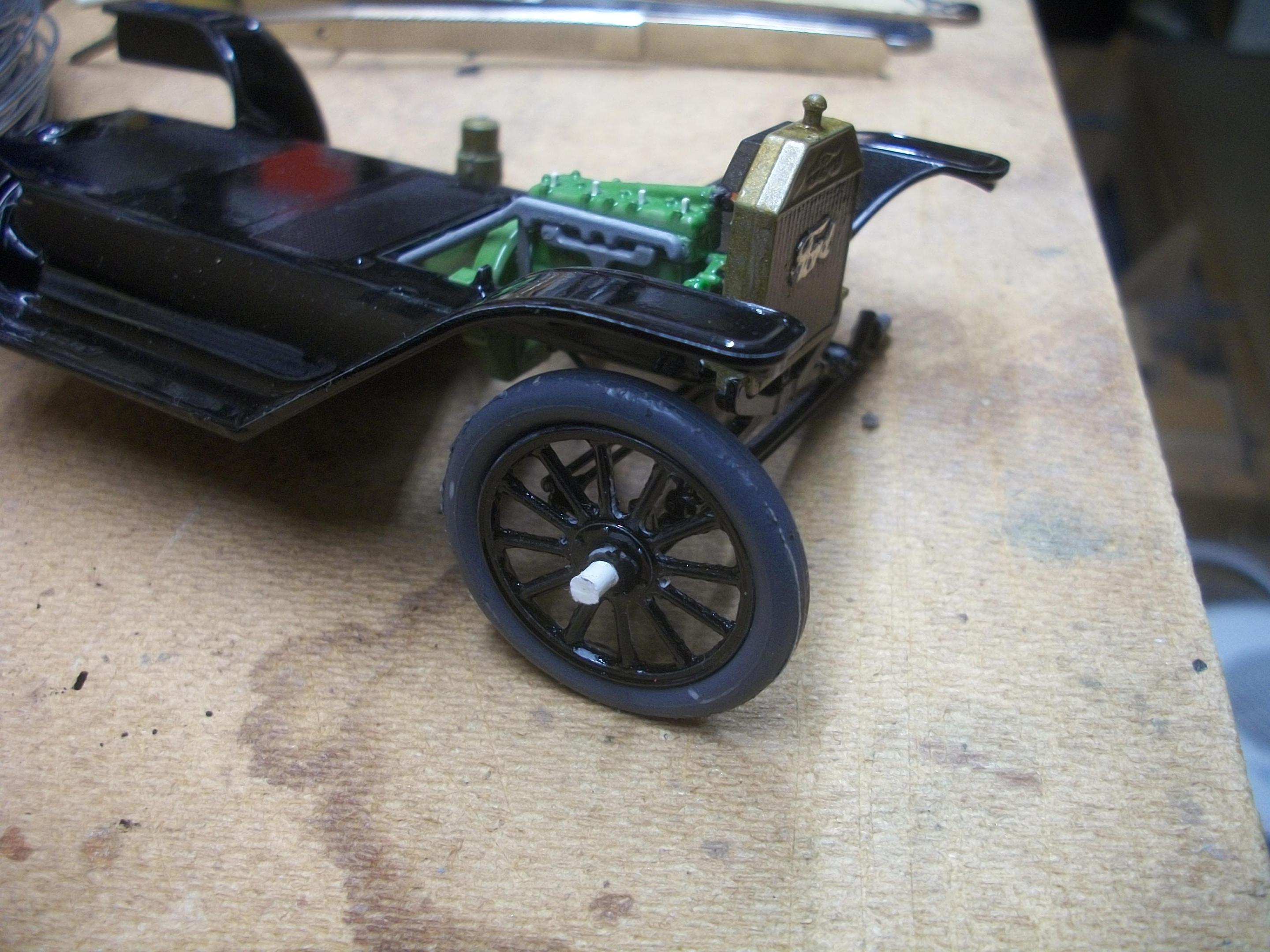

I gave the matter some thought over the next 24 hours, and a better method occurred to me . . . By heating the tip of a flat blade screwdriver in a tea light flame, I set about melting and flattening the outer hub of each stub axle. Having used the hot screwdriver technique with the Phantom III door hinges, I was confident that this approach would work . . . Sure enough, the wheel when fitted over the inner hub was free to rotate, while at the same time the wheel could not come off the axle.

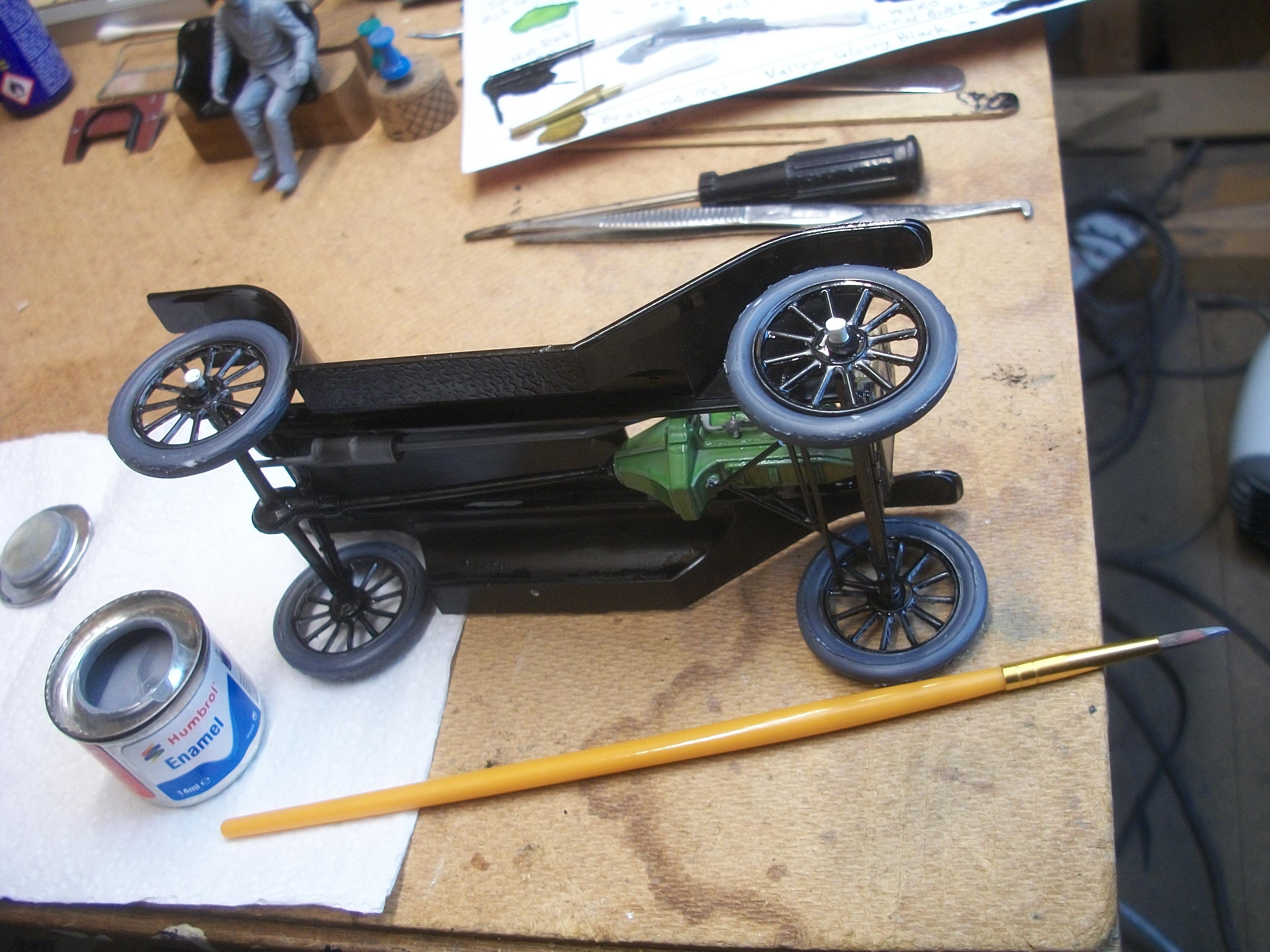

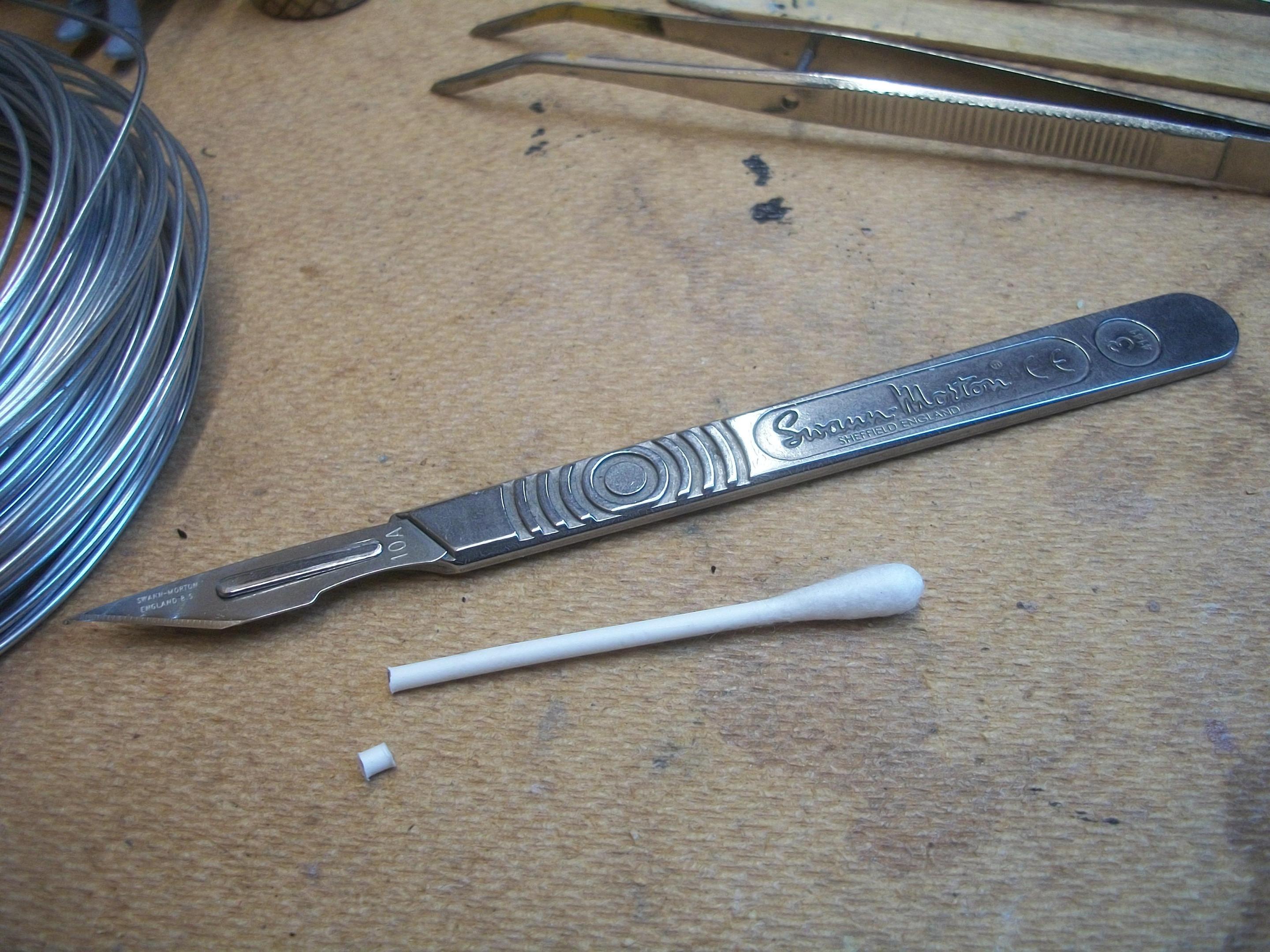

Now that each outer hub was melted into a flat disc, all I needed to do was fabricate four pieces of 3mm material from cotton bud stalks and super glue them onto the hubs . . . These new outer hubs have been given a coat of Humbrol 56 Metallic Aluminium enamel to finish off . . .

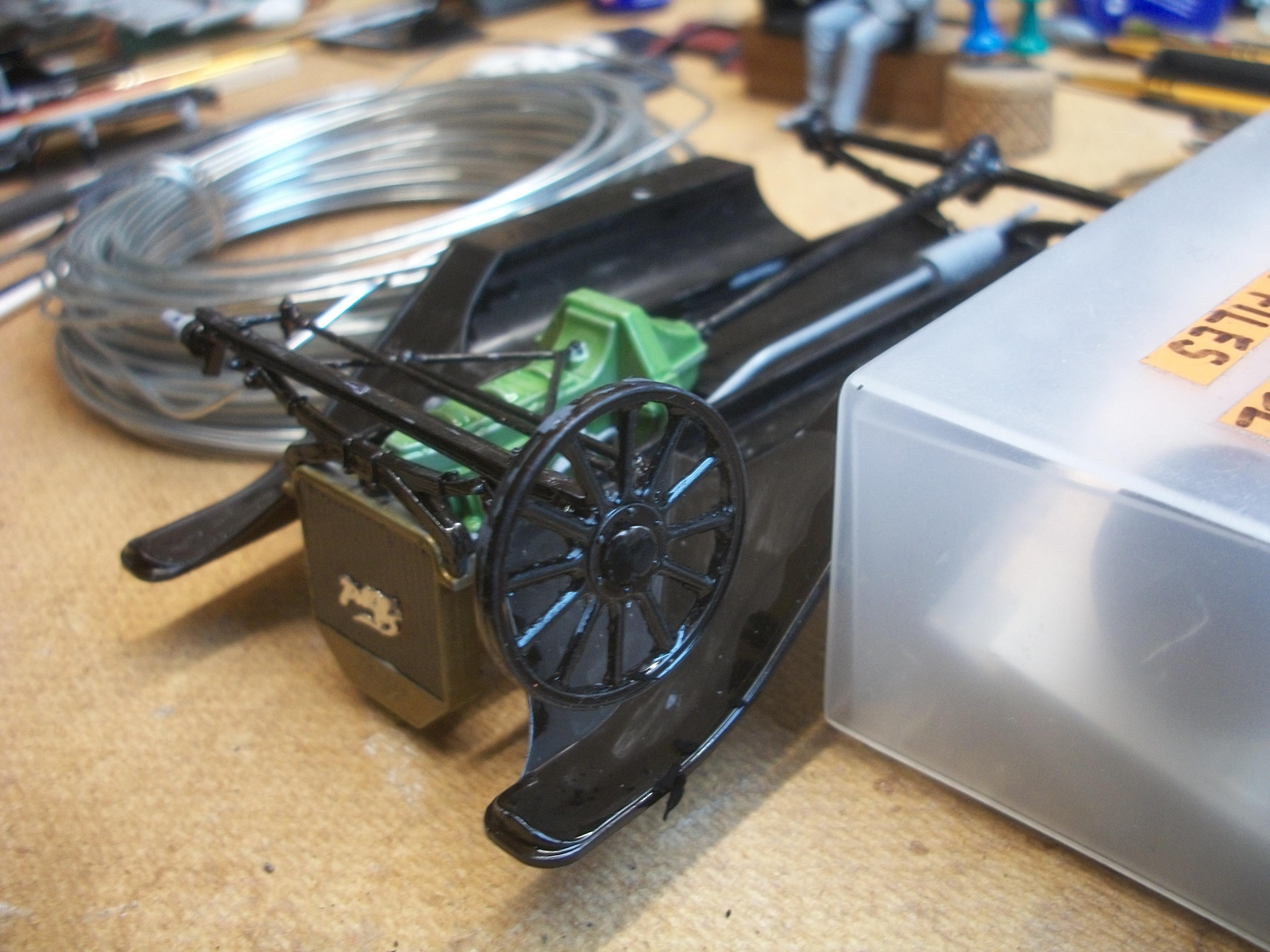

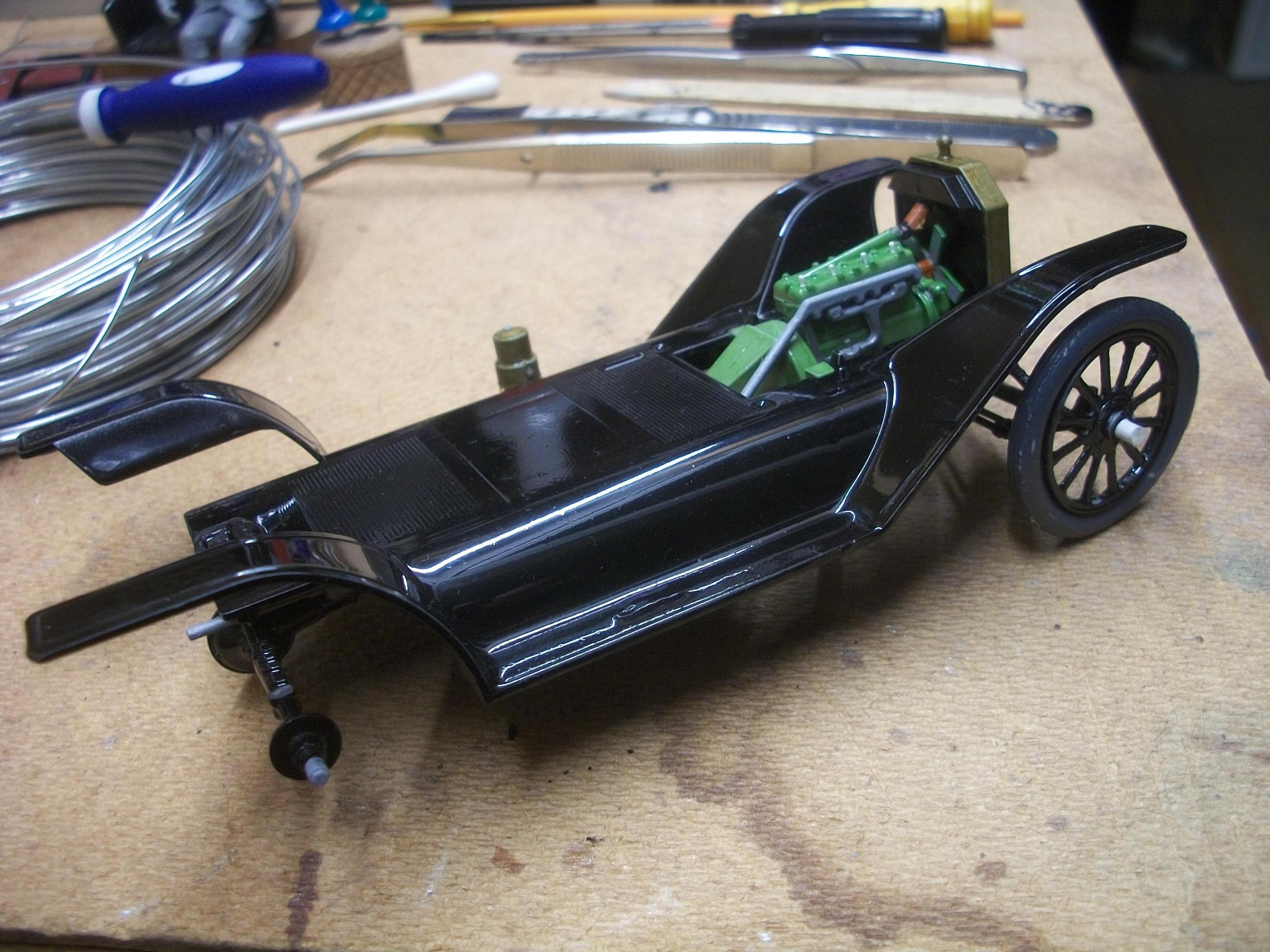

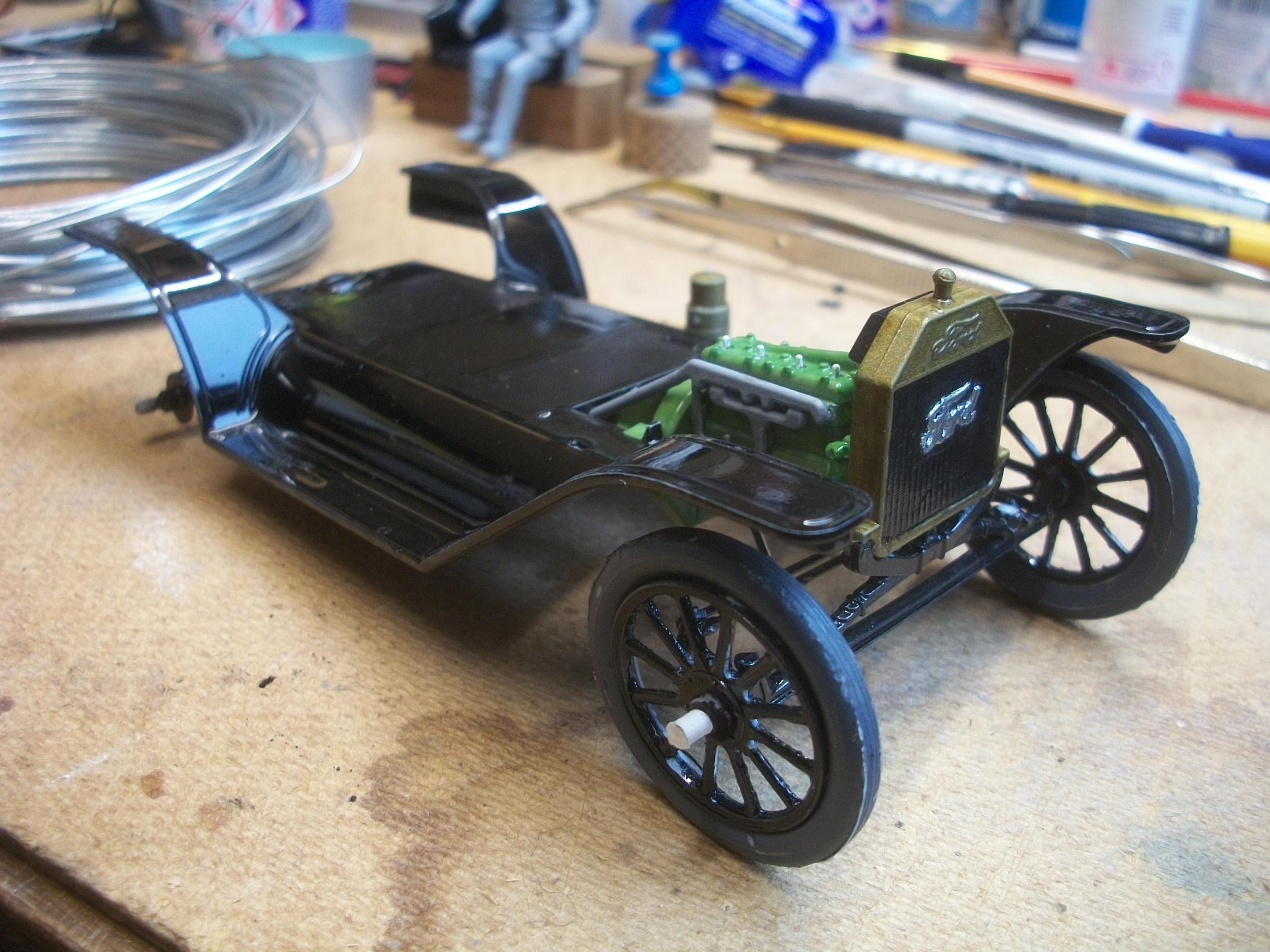

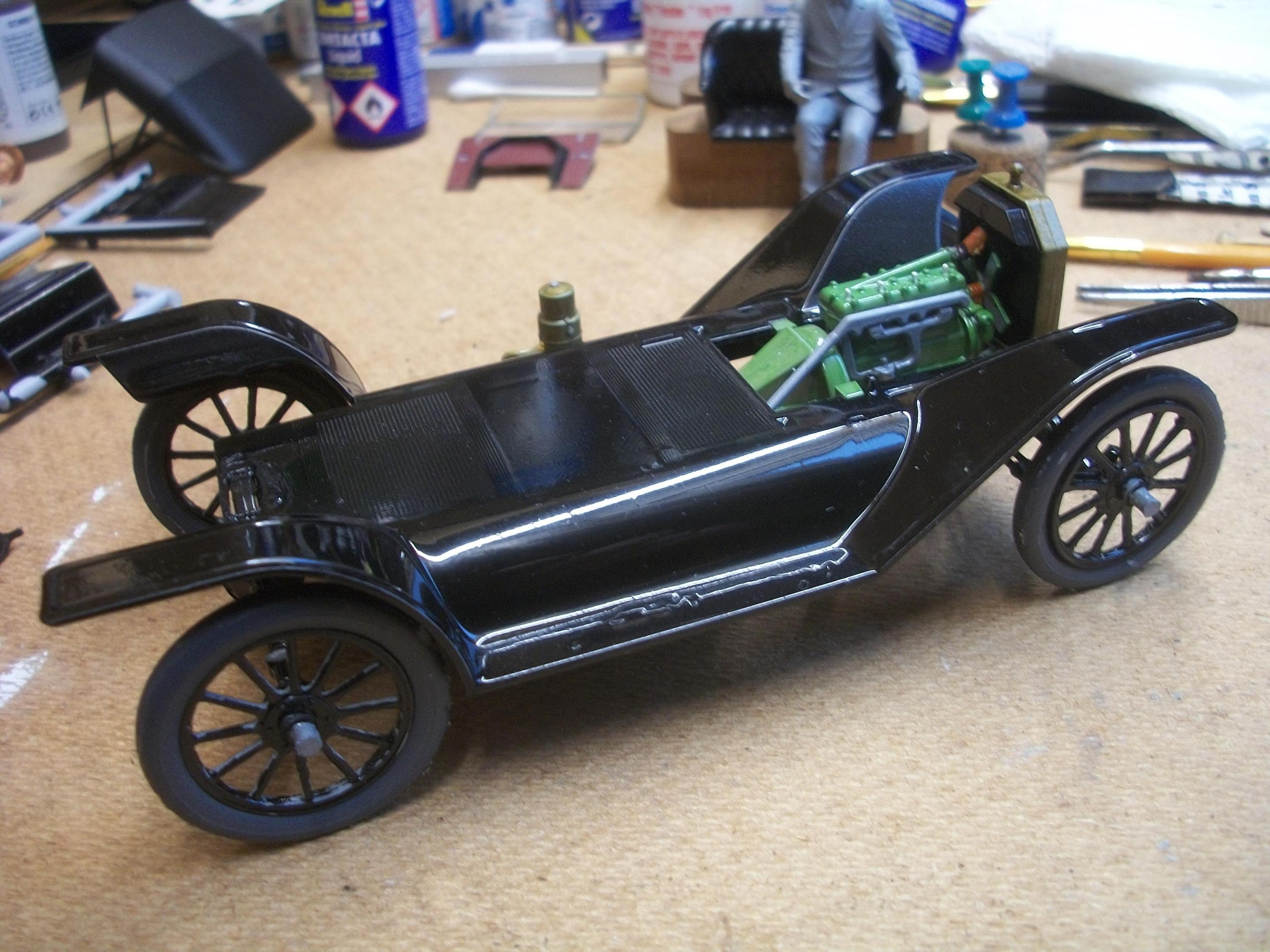

We have a rolling chassis, and the ' car ' stands level on the workbench surface.

David











  • Like 3
Posted
3 hours ago, BK9300 said:

More problems solved!  I like the detailing of the top half of your engine, too.

Thanks Brian . . . The problem solving is all part of the scale model car building process for me.

I shall probably add some spark plug leads from the top of the engine back to the firewall and the coils box . . .

David

  • Like 1
Posted

I always see "Wheels Down" as a turning point in building a model car kit. To me that's when it goes from being a model kit to being a model car.

An excellent solution to the matter of the wheels. Nicely done!

David G.

Posted
1 hour ago, David G. said:

I always see "Wheels Down" as a turning point in building a model car kit. To me that's when it goes from being a model kit to being a model car.

An excellent solution to the matter of the wheels. Nicely done!

David G.

I couldn't have put it better myself David . . . Certainly I begin to feel differently about this build, now that all four wheels are on the ground.

From this point onwards it feels as though I am working on a real car, and I can visualise each process more precisely . . .

David W.

Posted

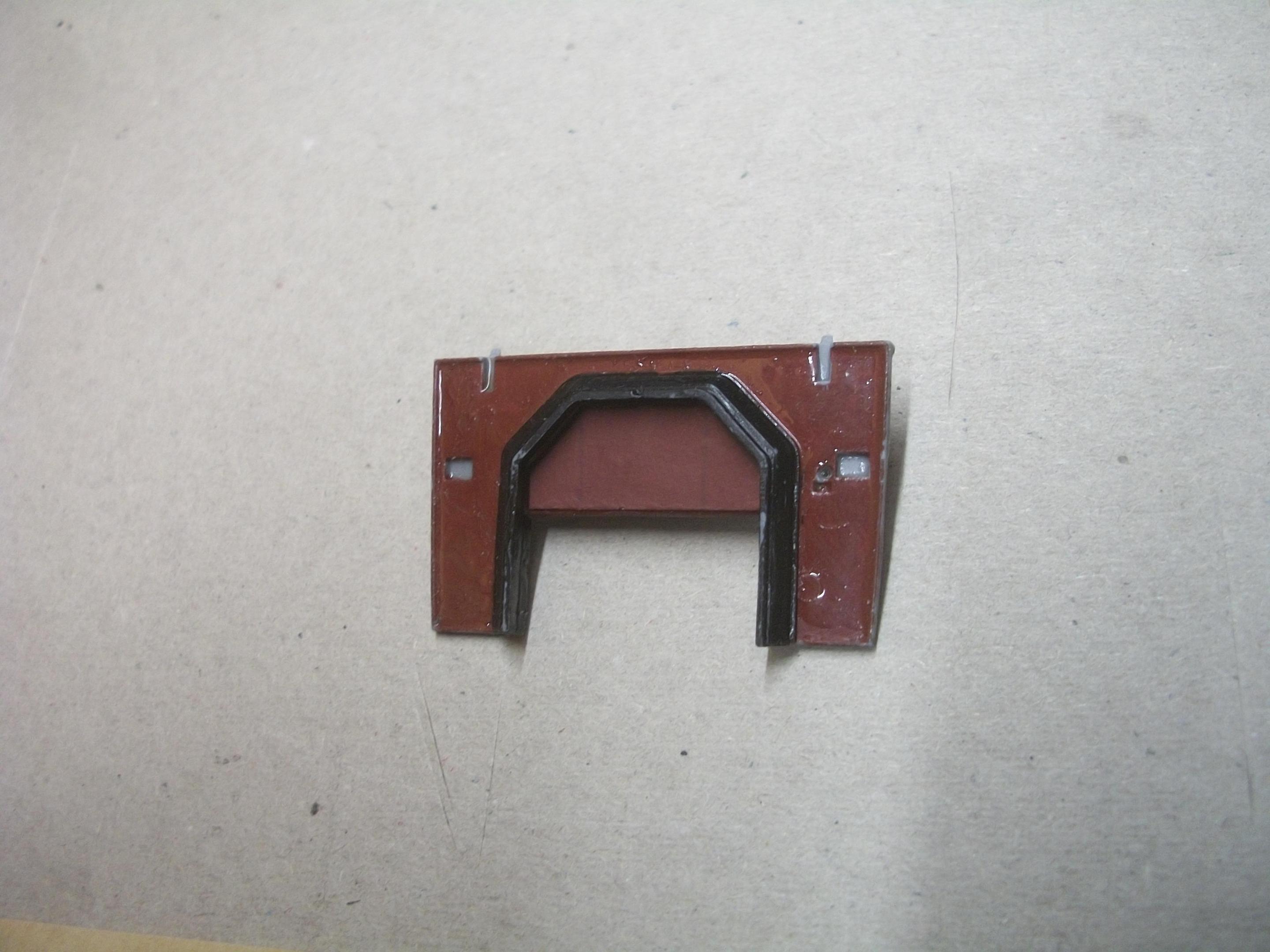

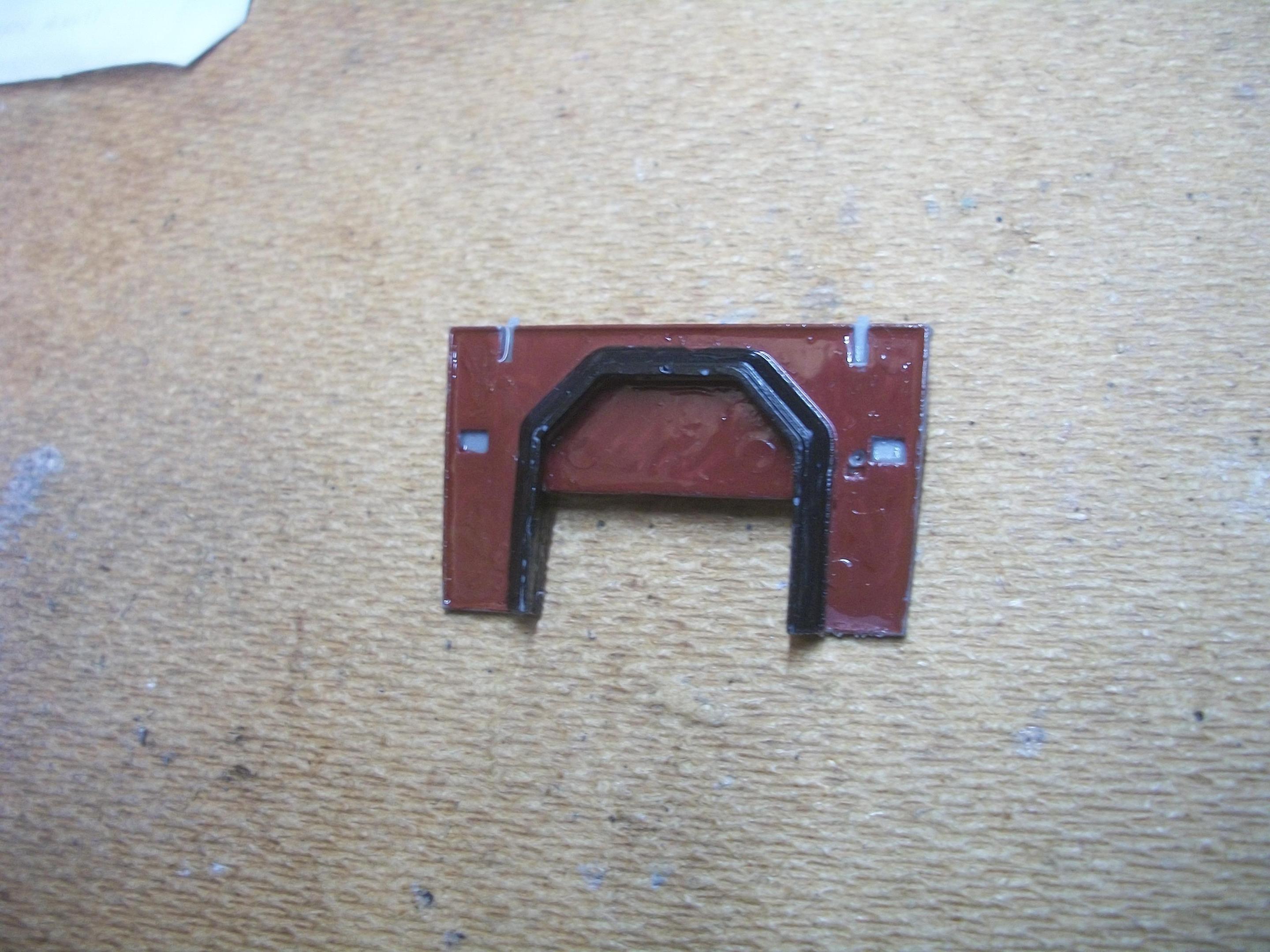

Following an overnight drying period of more than 24 hours, the yacht varnish that I have applied to the firewall is still slightly tacky.

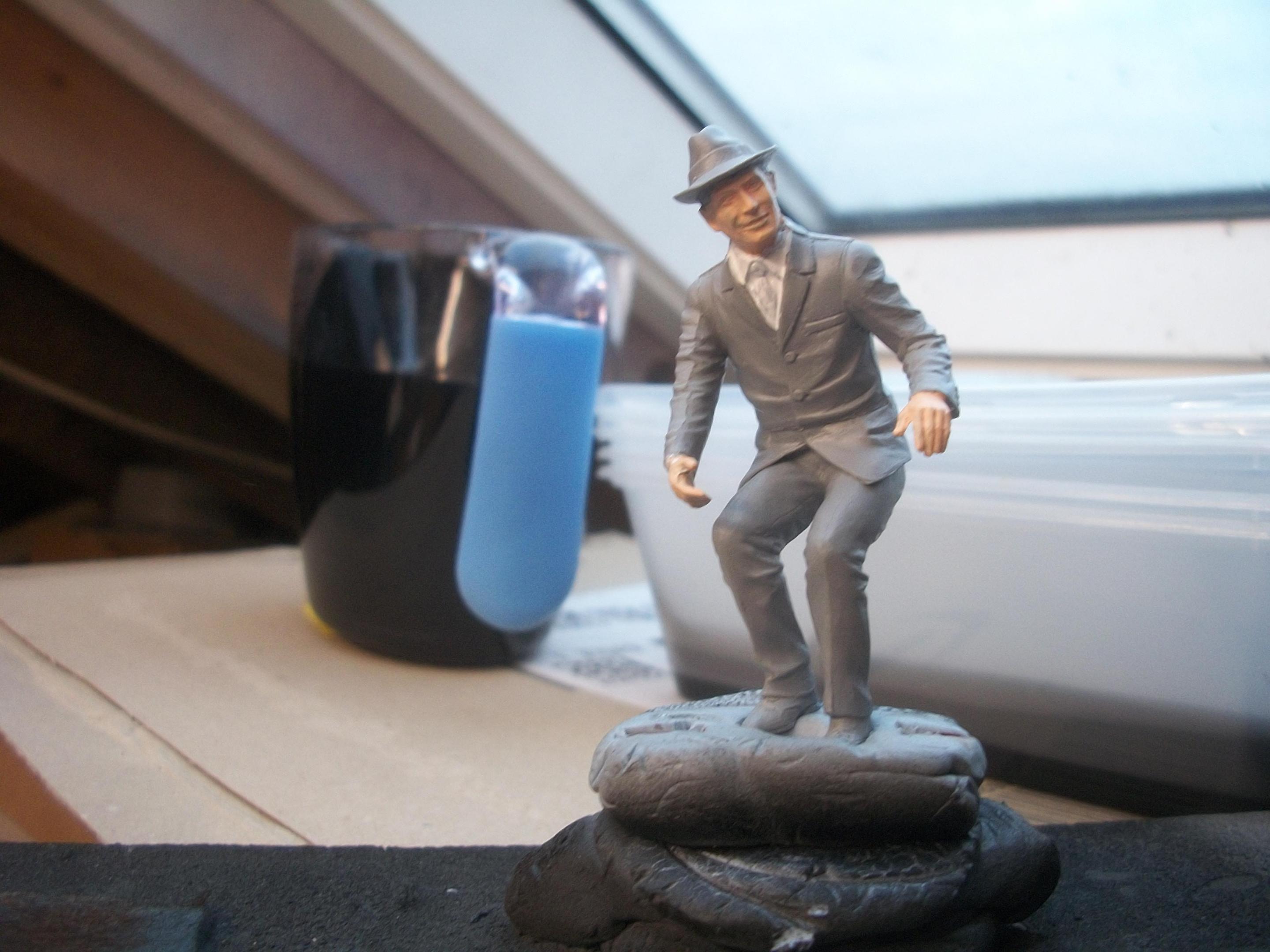

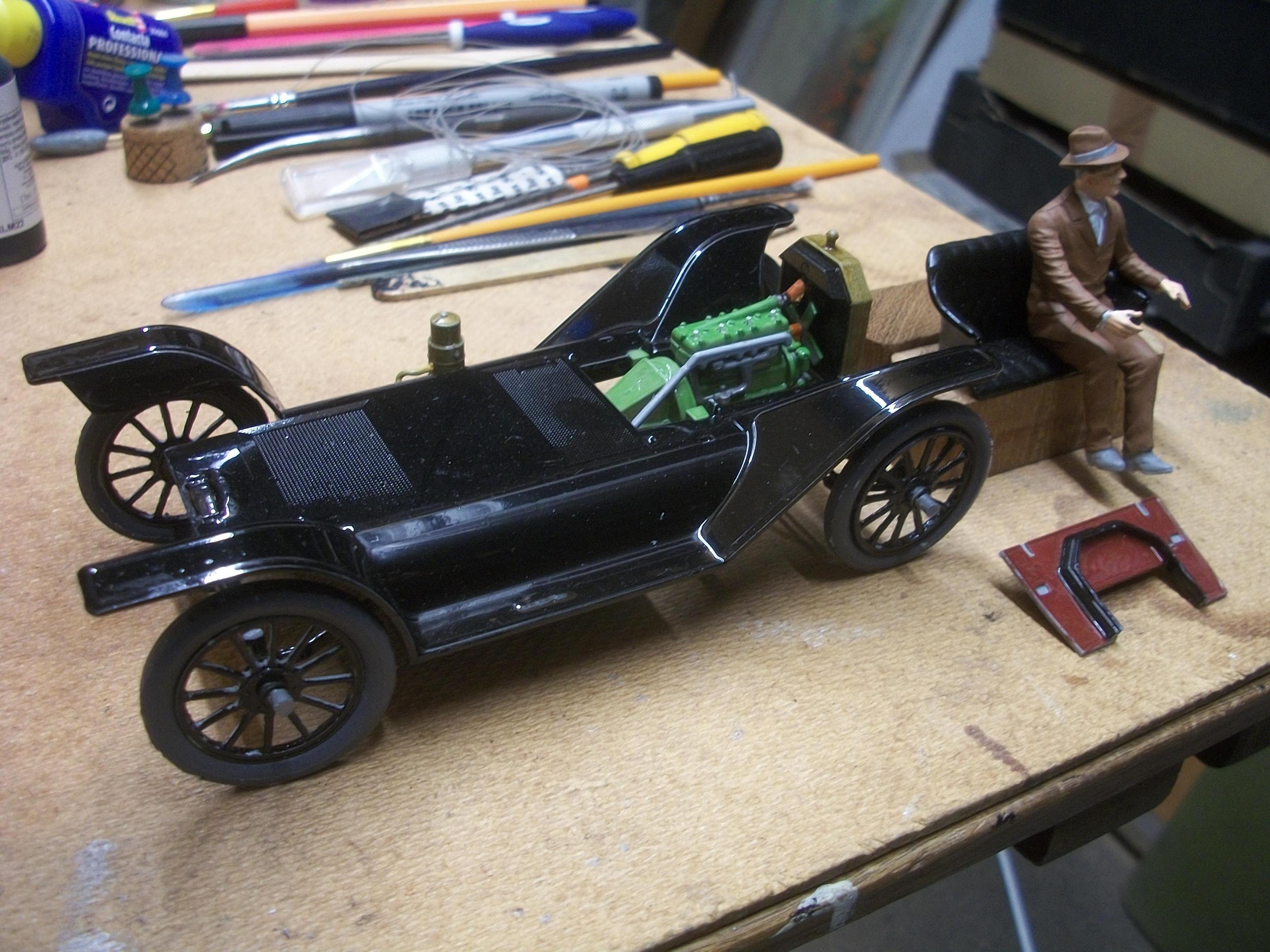

While I am waiting for the firewall varnish to be fully cured before handling the part, I have done some figure painting today . . . The driver figure for the Model T now has a single coat of Vallejo Basic Skin Tone acrylic for his hands and face. Also, he has a white shirt, brown suit and hat.

I need to drill some tiny holes in the firewall for the spark plug leads and mount the firewall on the lower body floor, behind the engine.

David






  • Like 1
Posted

Nice work on the figure. He kind of looks like Ol' Henry himself!

Is that Silly Putty you're using as a painting stand for the figure? I use it as a masking material but never thought to use it as a painting stand; until now.

Good detail painting on the firewall too.

David G.

Posted
1 hour ago, David G. said:

Nice work on the figure. He kind of looks like Ol' Henry himself!

Is that Silly Putty you're using as a painting stand for the figure? I use it as a masking material but never thought to use it as a painting stand; until now.

Good detail painting on the firewall too.

David G.

The blu blob that the figure is standing on is Blu-Tack, which I have on a piece of wood for supporting parts that I cannot hold in other ways.

Yes, I suppose this driver figure does kind of resemble Henry in a way !

Here are two photos showing how another model builder has done the spark plug leads very nicely I think . . .

David W.



Posted

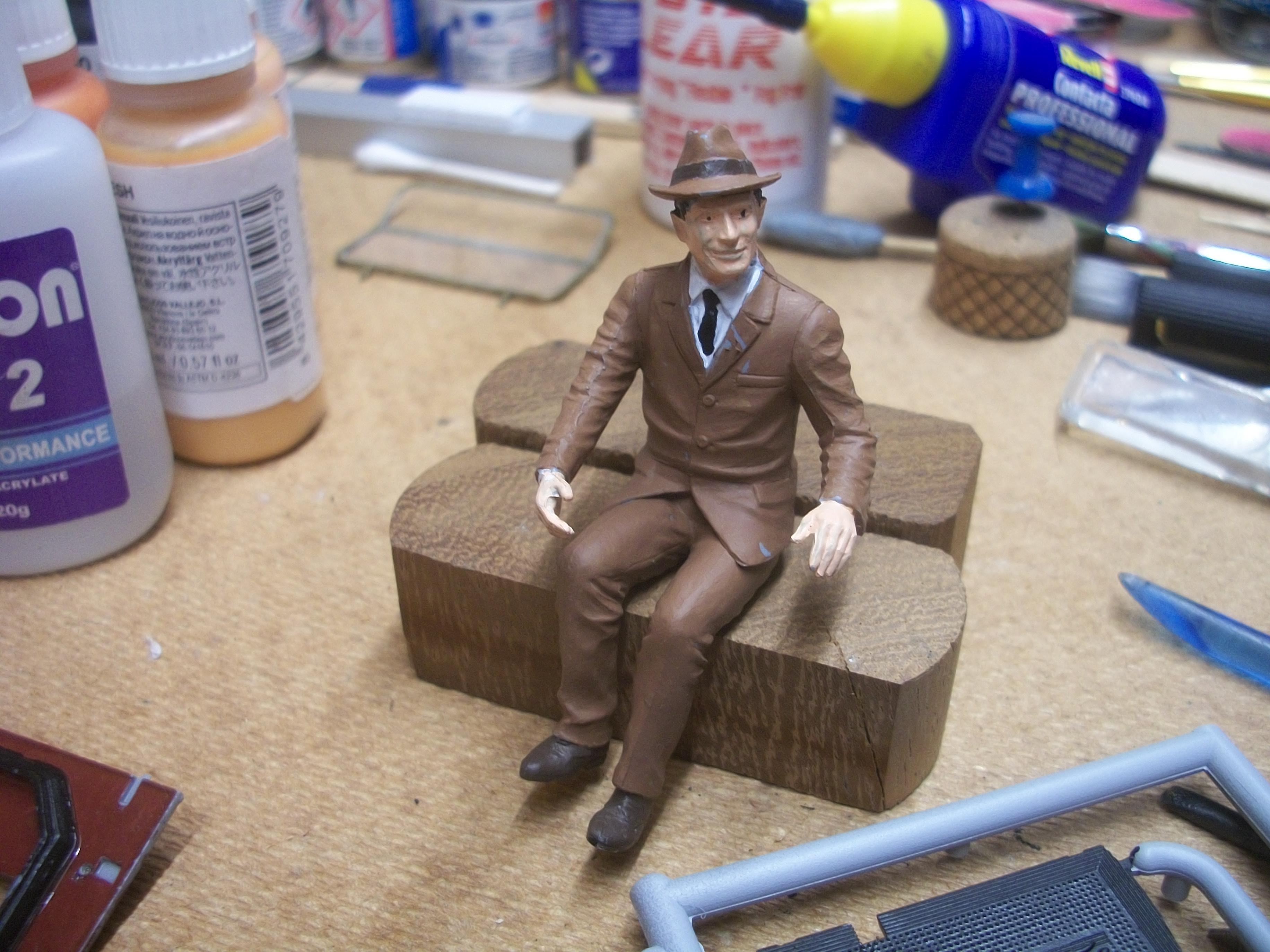

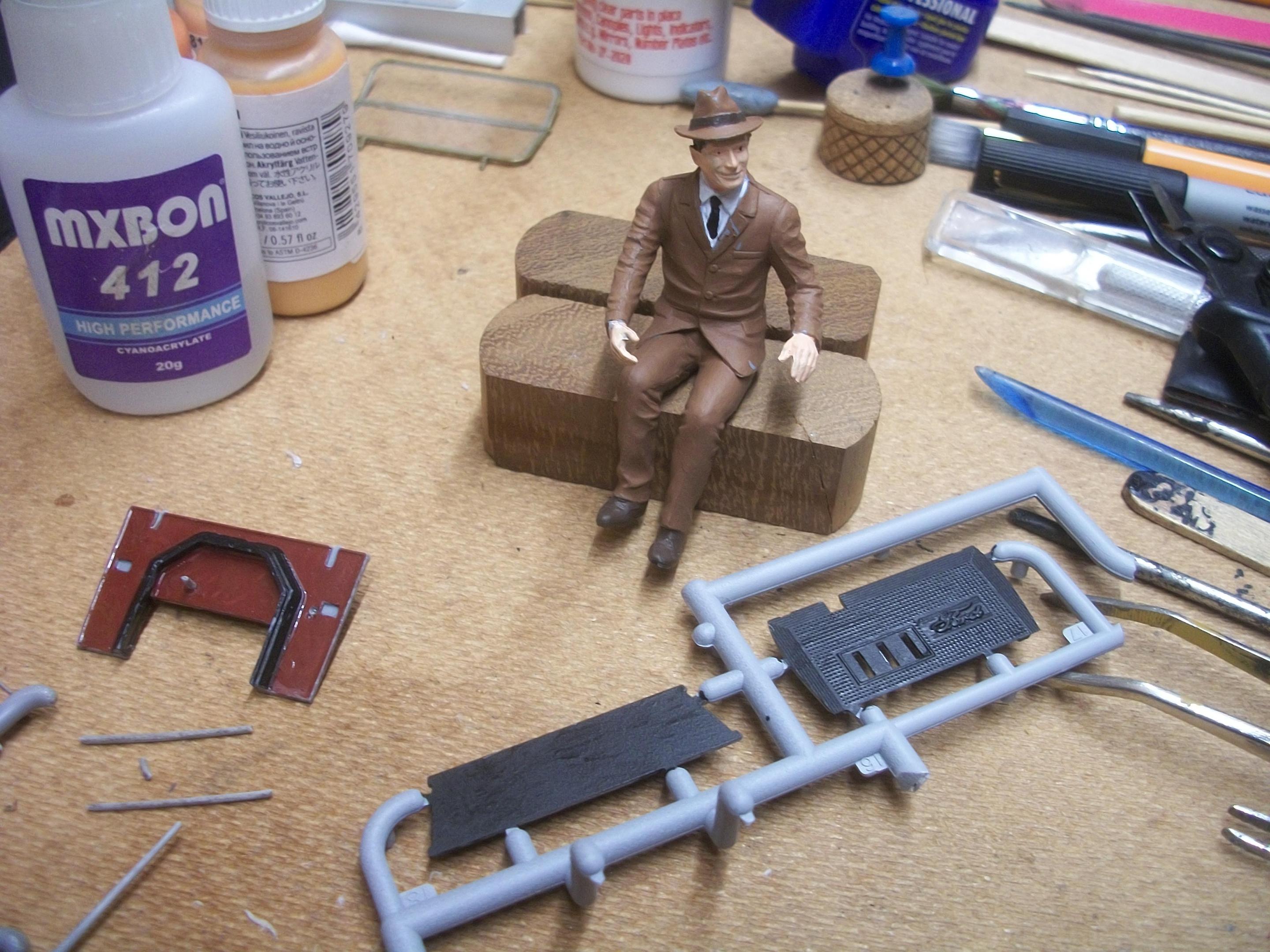

Further progress with the driver figure painting today . . . Vallejo Burnt Umber acrylic for his shoes and the hat band, then Vallejo Black for his tie, hair and eye pupils. The eye pupils need detailing for added realism.

Two floor panels have been coated with the same Vallejo Black acrylic . . . I like to use different shades of black, by using different paint products.

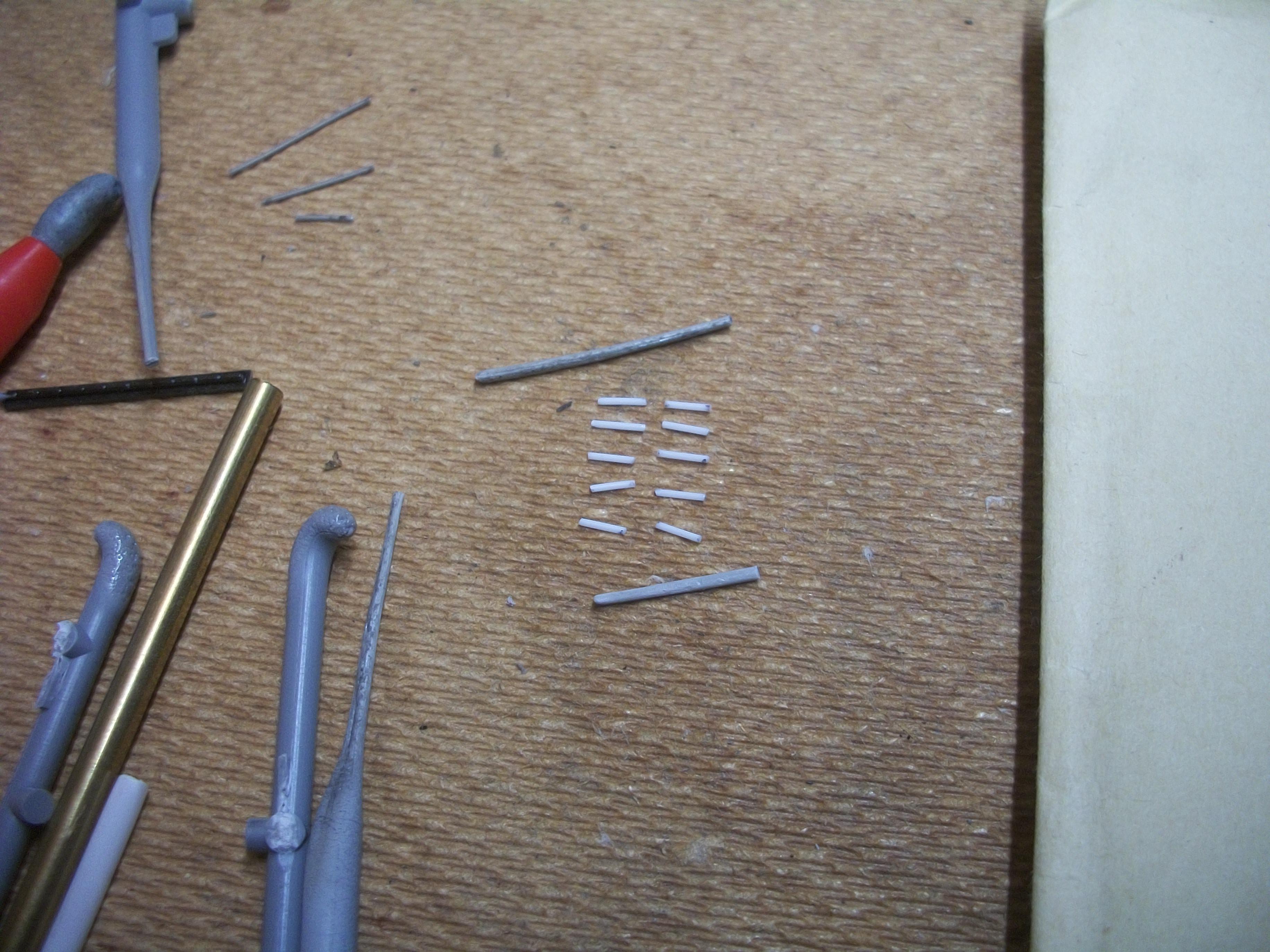

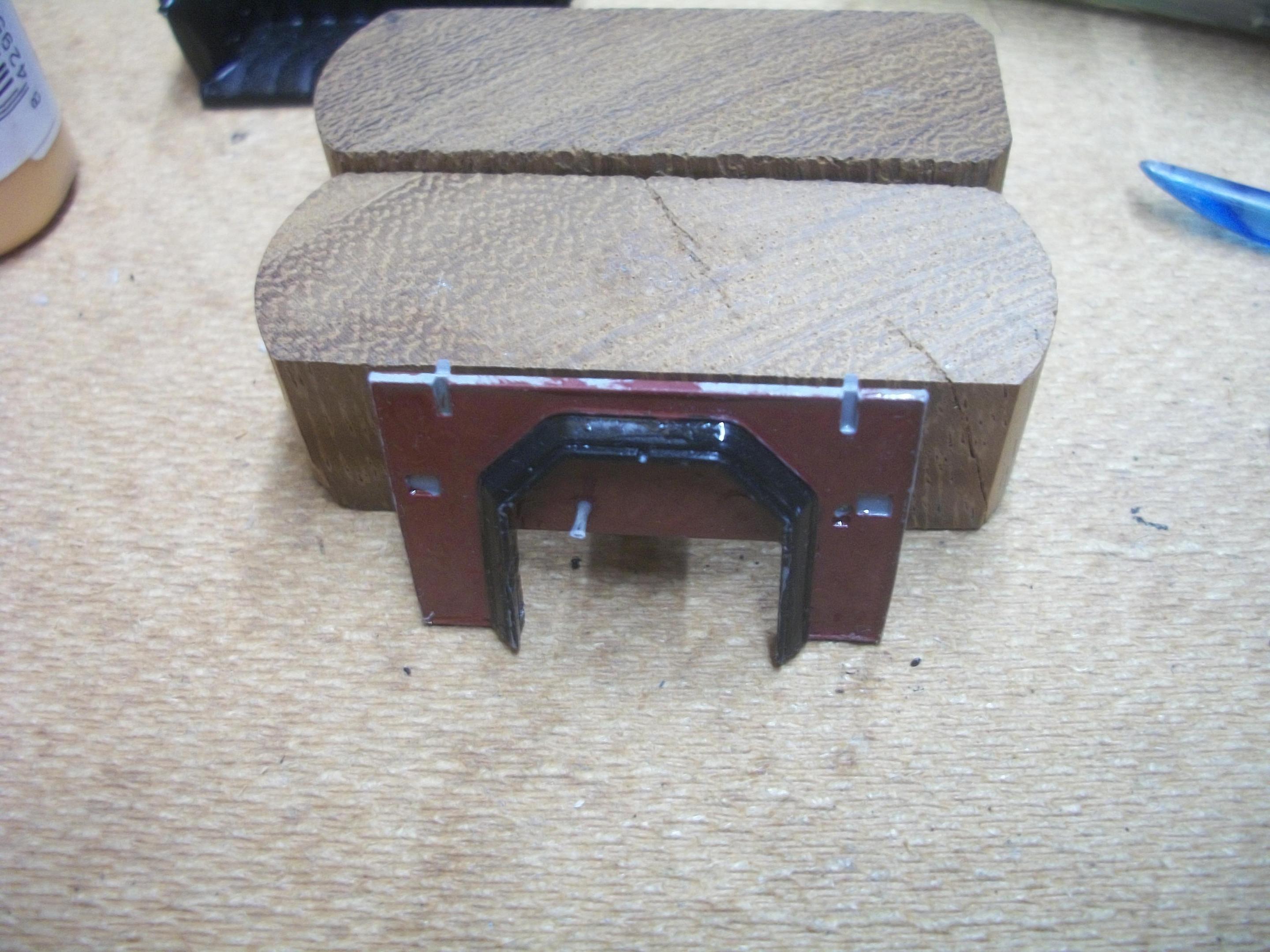

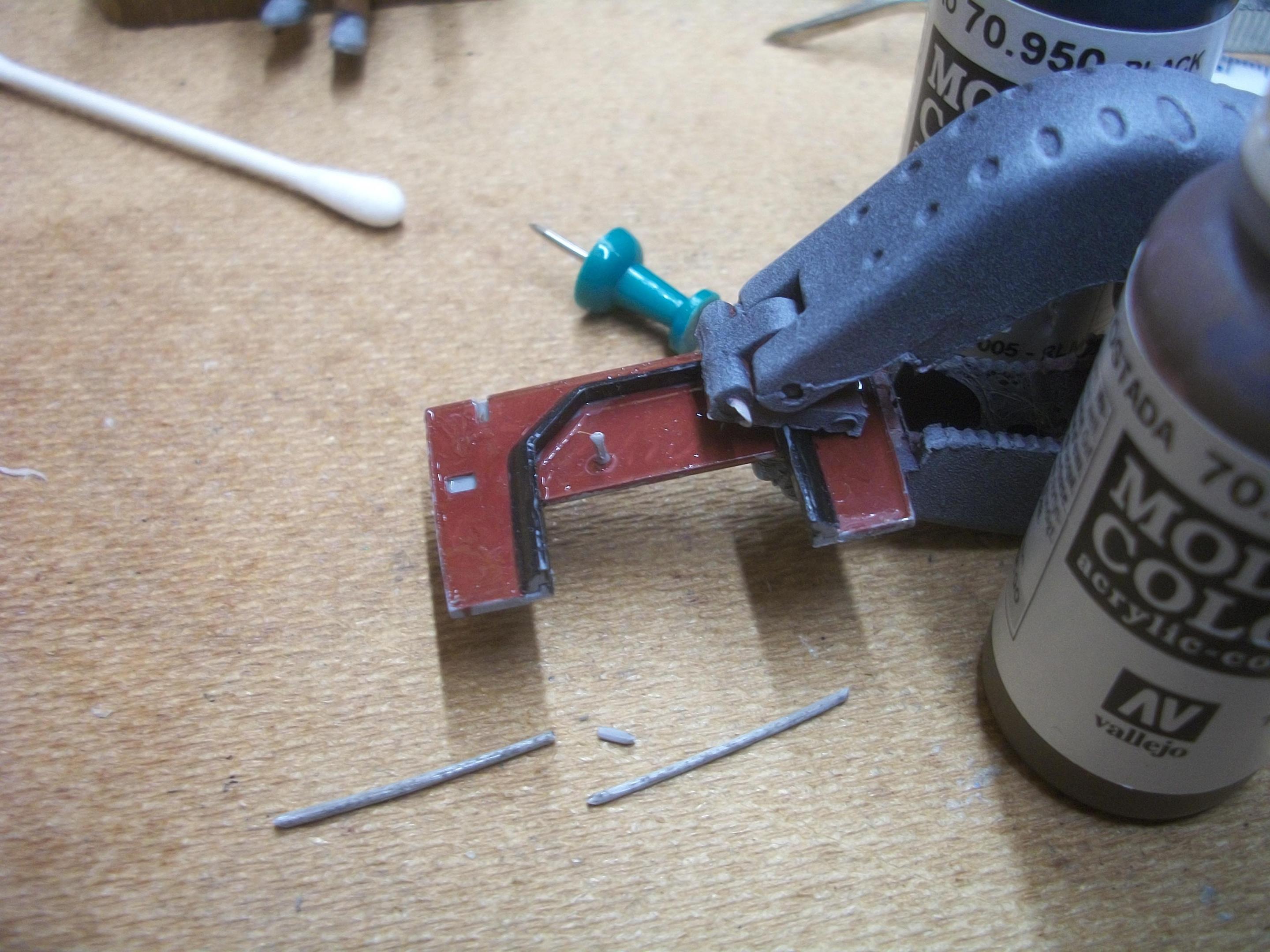

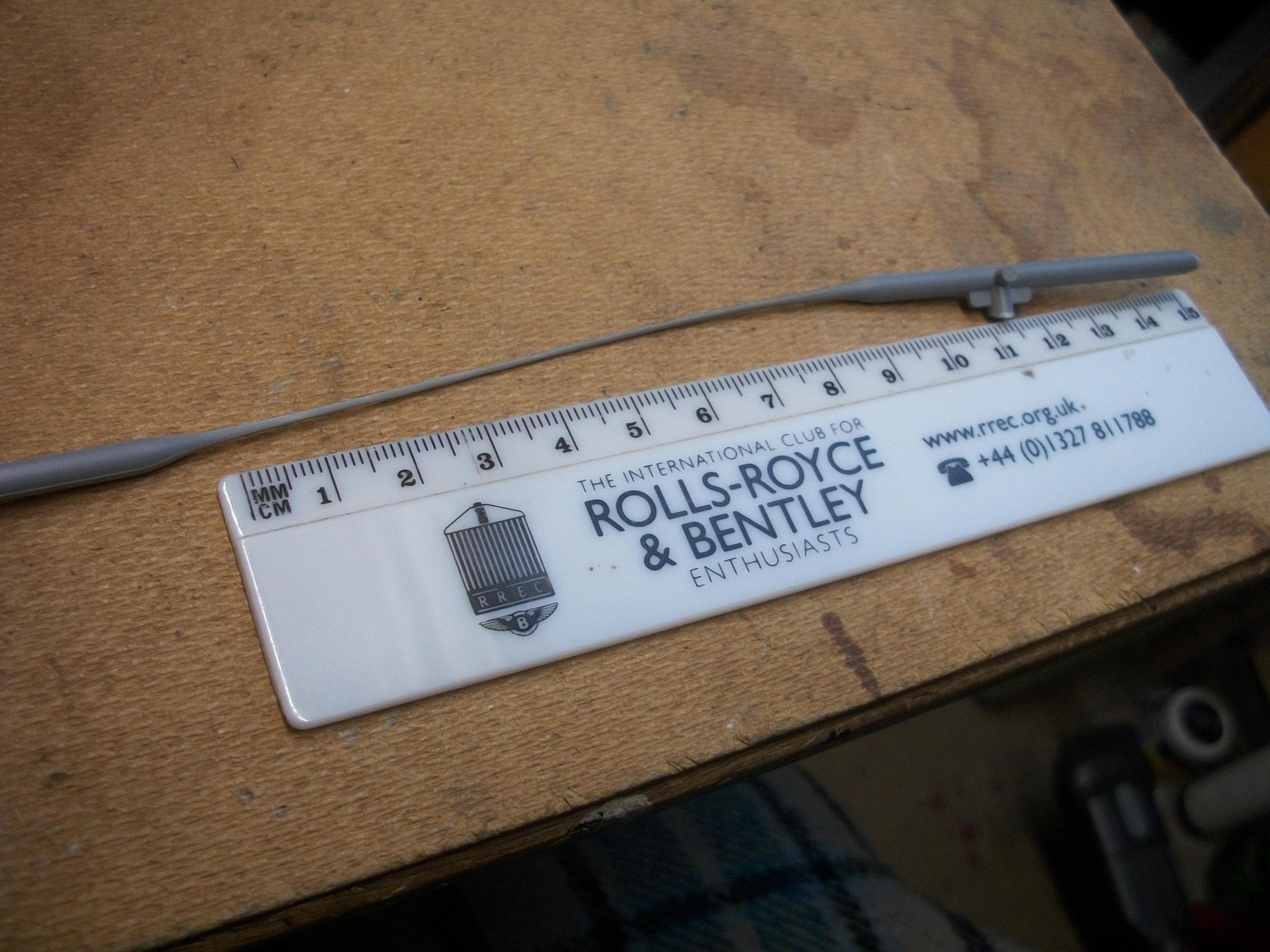

My local model builder friend previously showed me a technique that involves stretching a piece of kit sprue over a hot flame, and this produces a thin strand of styrene. I am cutting four short lengths of this stretched sprue to 3 mm and these tiny pins are being super glued to the firewall on the engine side. Once the pins are painted in brass, the four spark plug leads can be attached to the pins and the spark plug terminals with tiny connectors . . .

As you can see from the following photos, the Vallejo beige brown acrylic paint finish is easily damaged, just by handling the figure while painting, so these areas need to be touched up in due course . . .

David







  • Like 1
Posted

It's all coming along quite nicely David. I like the technique you're using for the spark leads on the firewall.

I've tried sprue stretching a few times but I just can't get consistent results. And it's a thing I'm not overly fond of practicing at due to the fumes and potential risk that an open flame creates.

David G.

Posted
7 hours ago, David G. said:

It's all coming along quite nicely David. I like the technique you're using for the spark leads on the firewall.

I've tried sprue stretching a few times but I just can't get consistent results. And it's a thing I'm not overly fond of practicing at due to the fumes and potential risk that an open flame creates.

David G.

I do understand your concerns regarding the fumes and the open flame, and it's not something that I do very often . . .

More progress below . . .

David W.

Posted

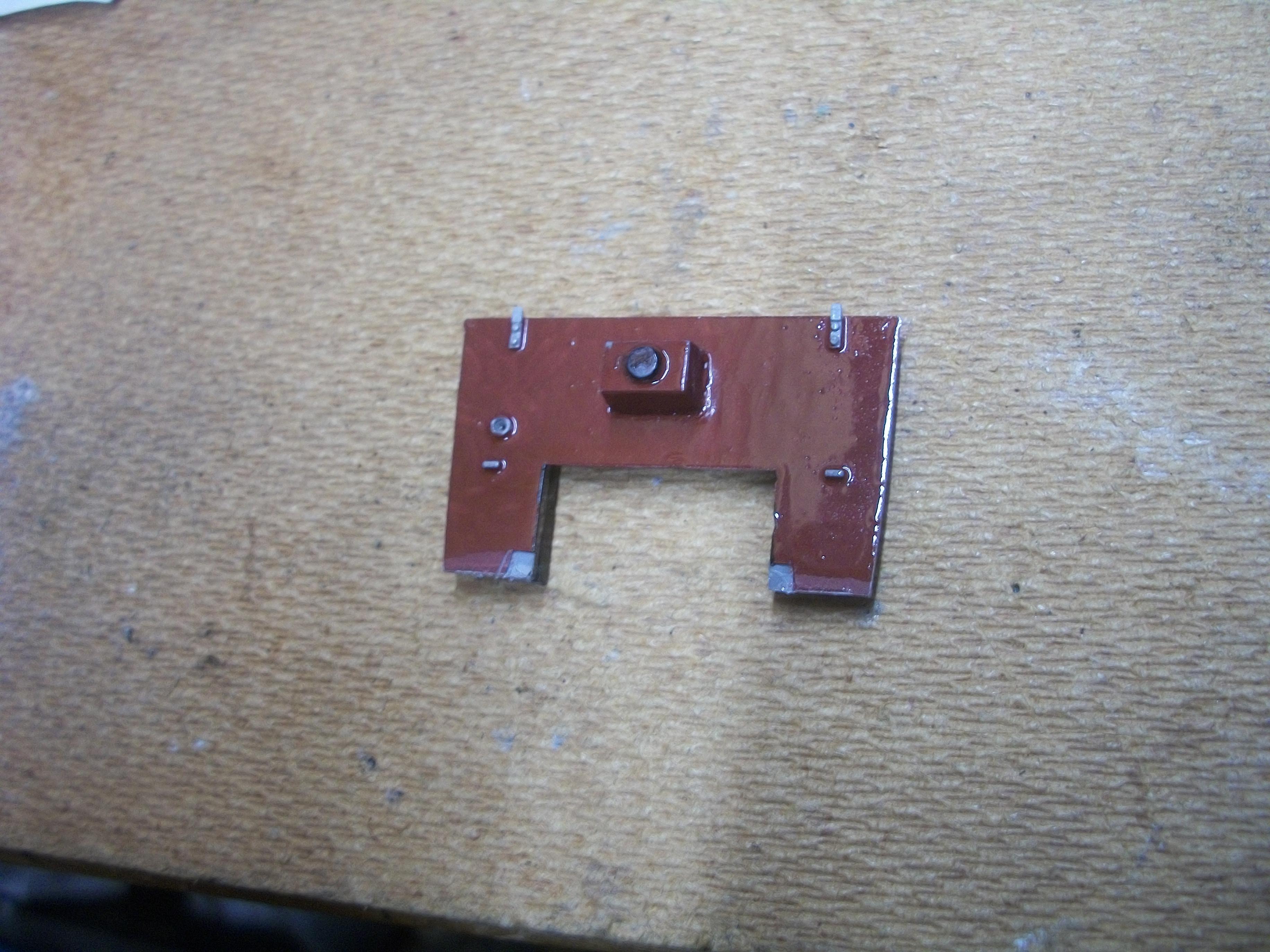

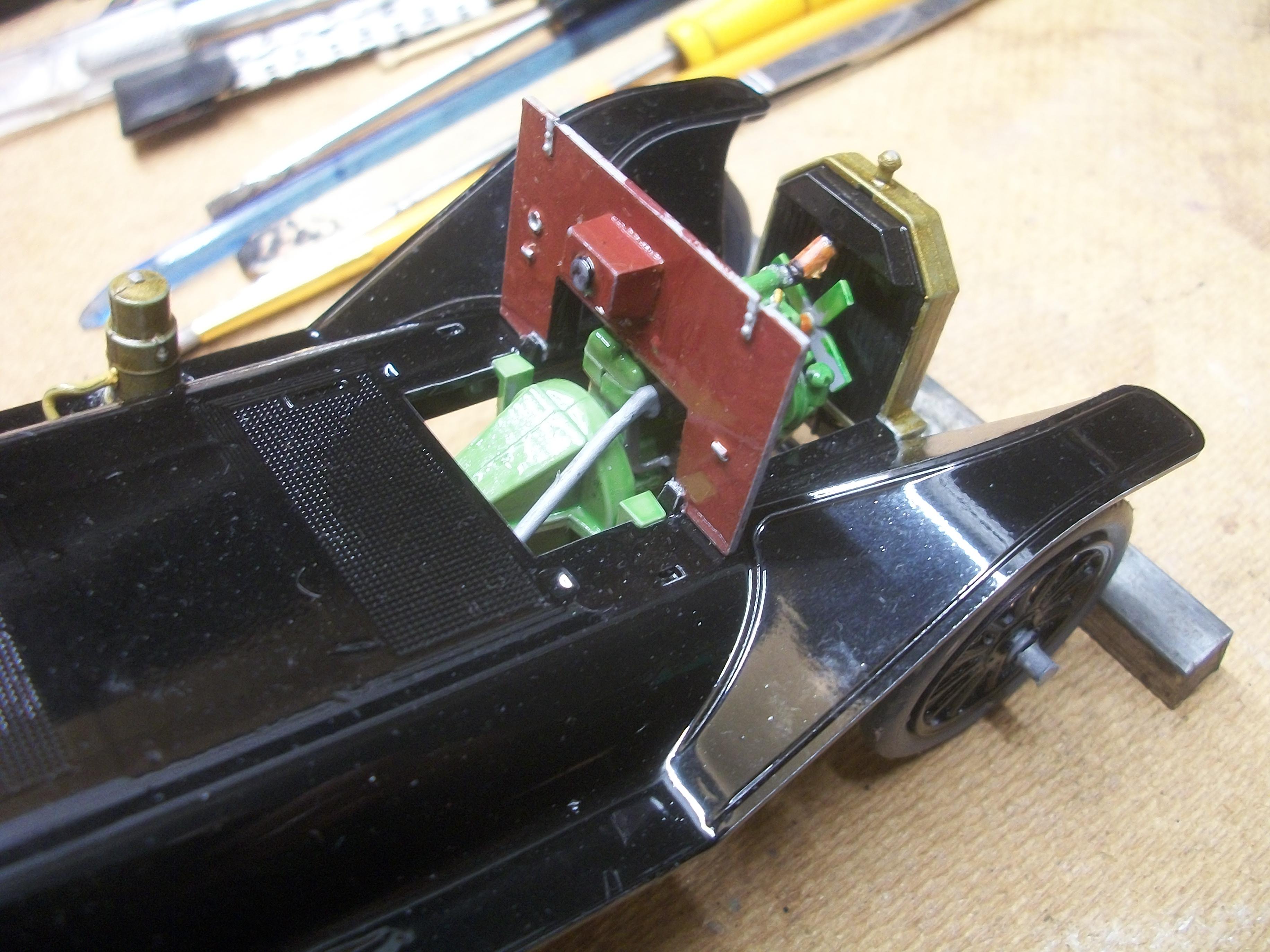

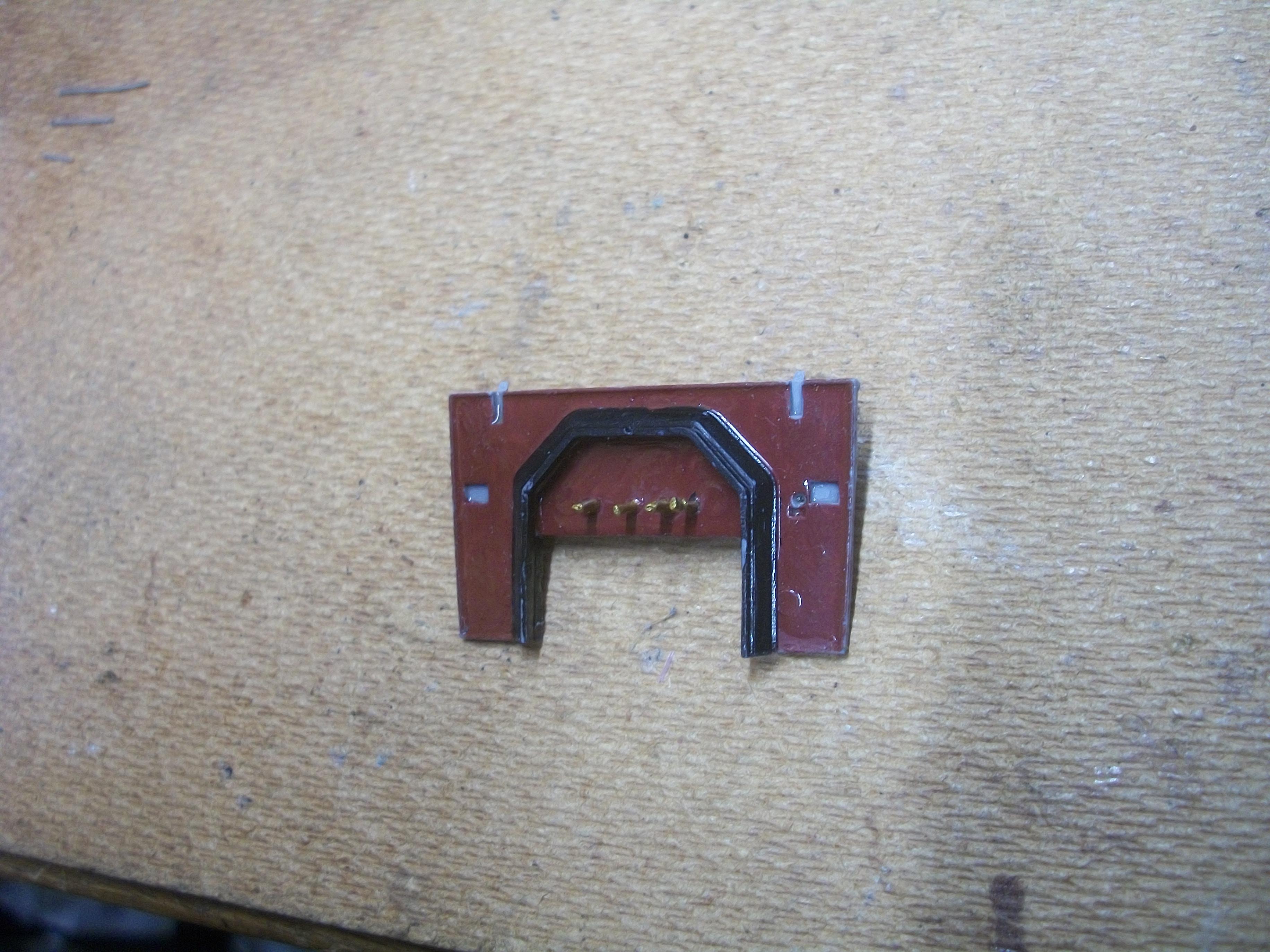

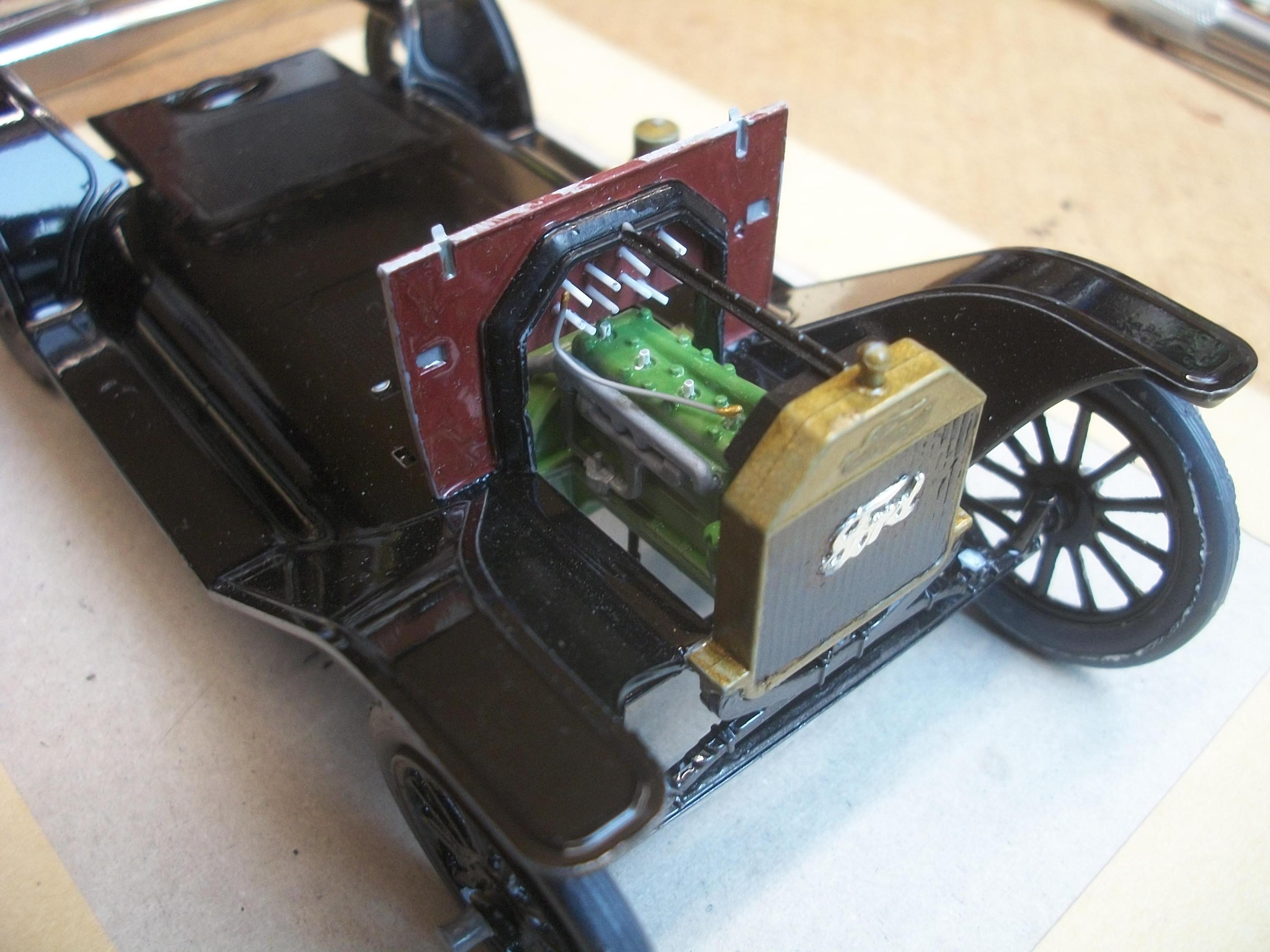

All four pins have been super glued to the firewall, and these have been painted Vallejo Brass acrylic.

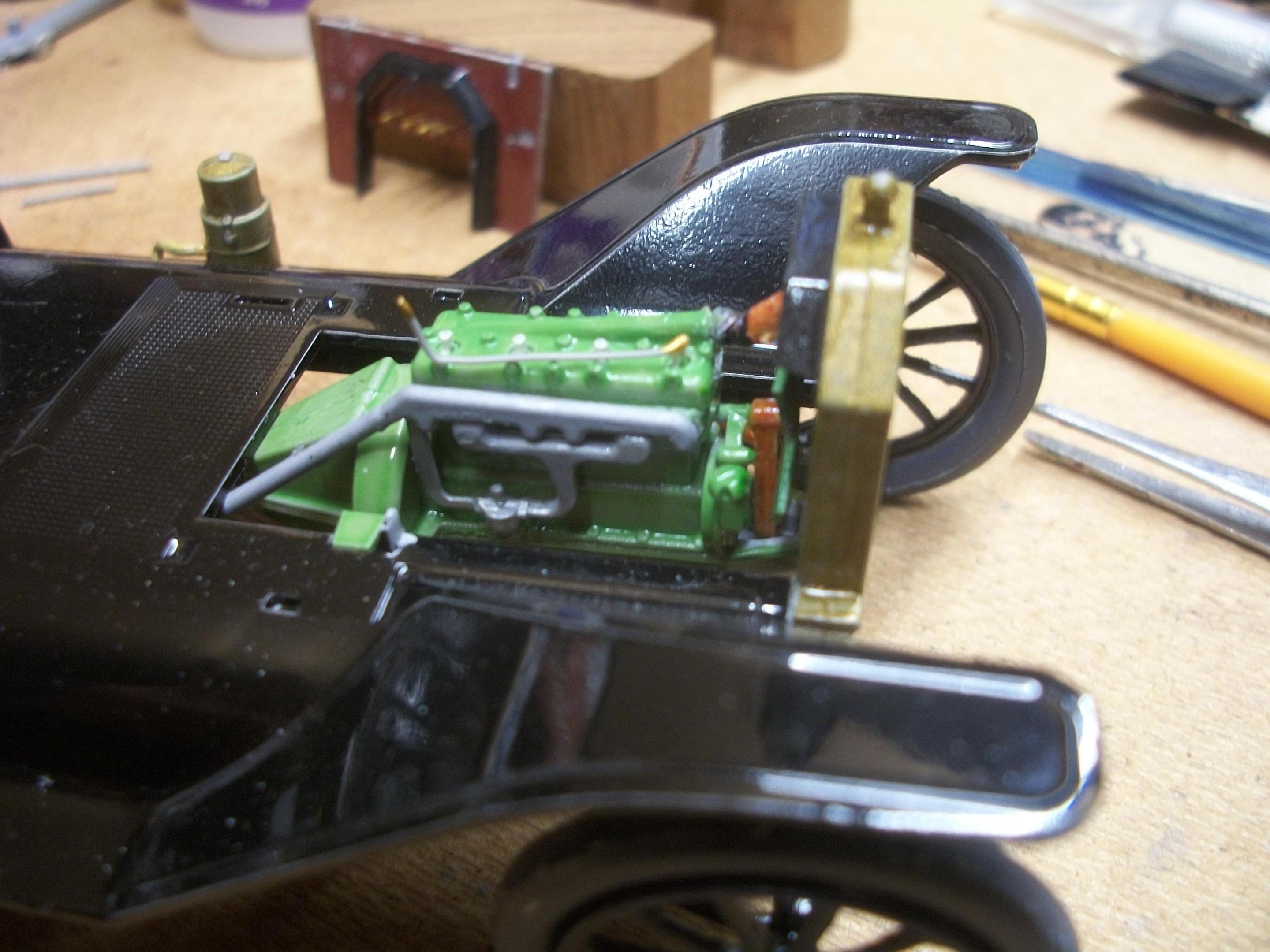

One spark plug lead has been glued in place to spark plug No.1 and the terminals have been painted brass also.

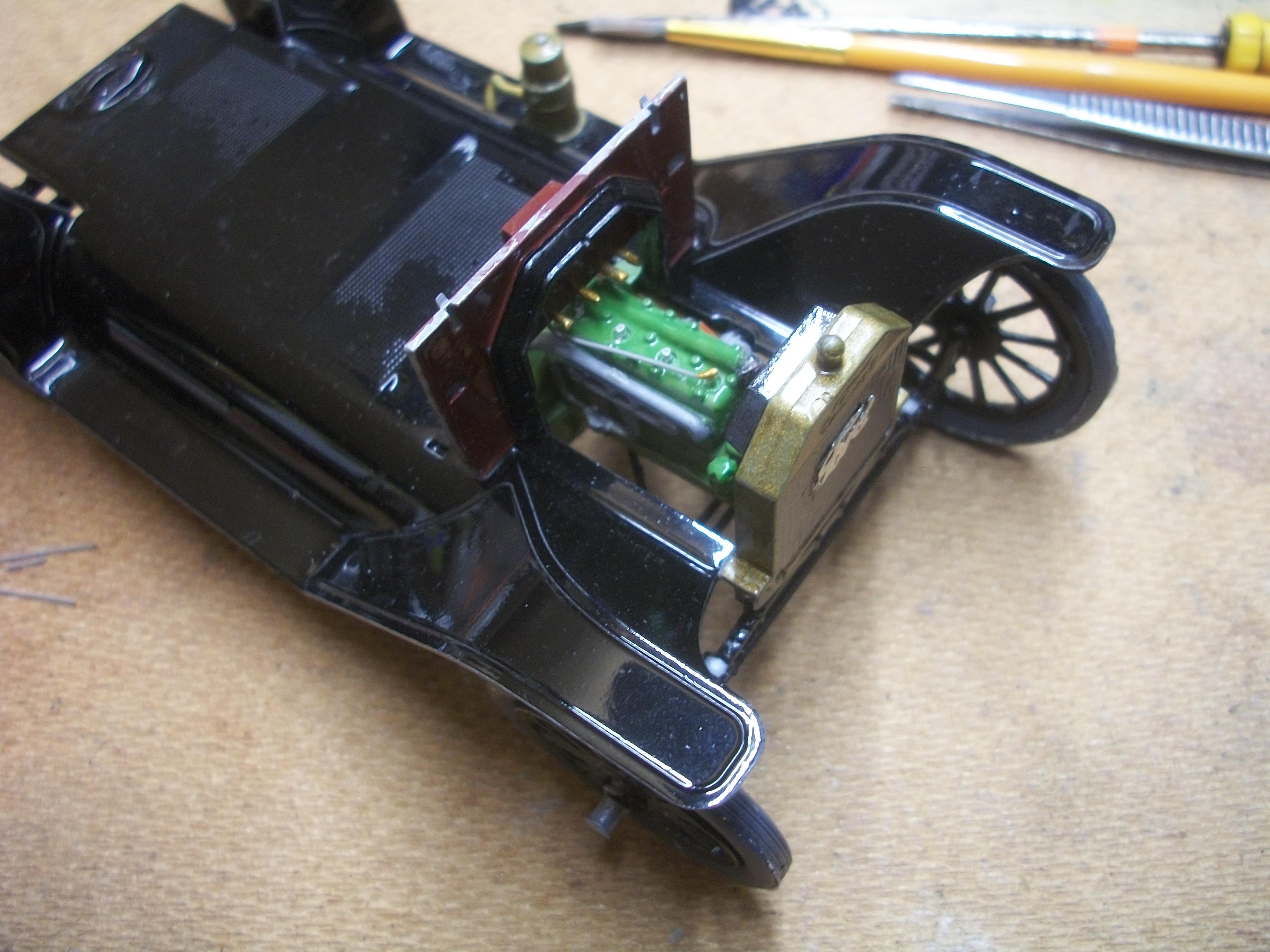

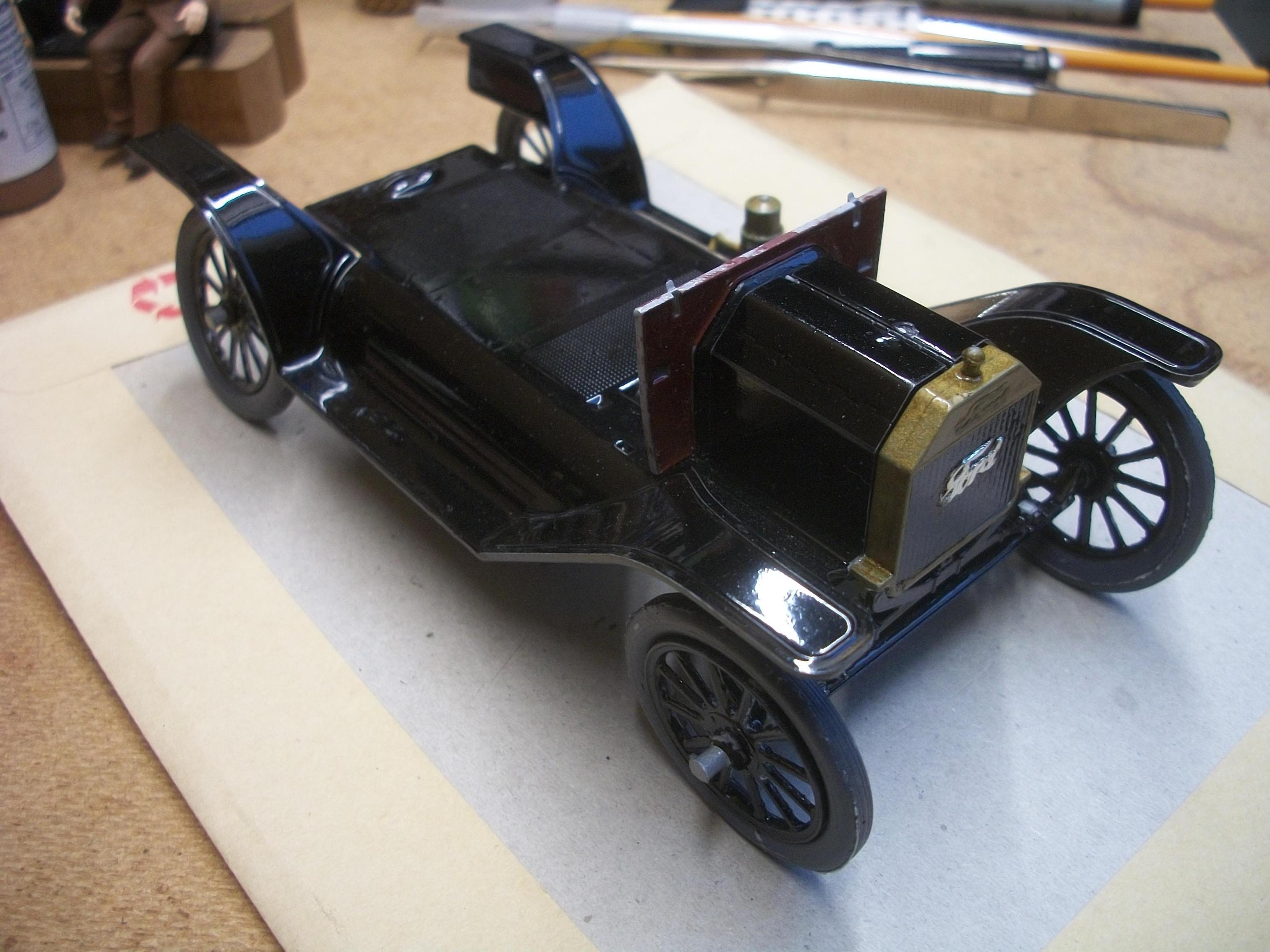

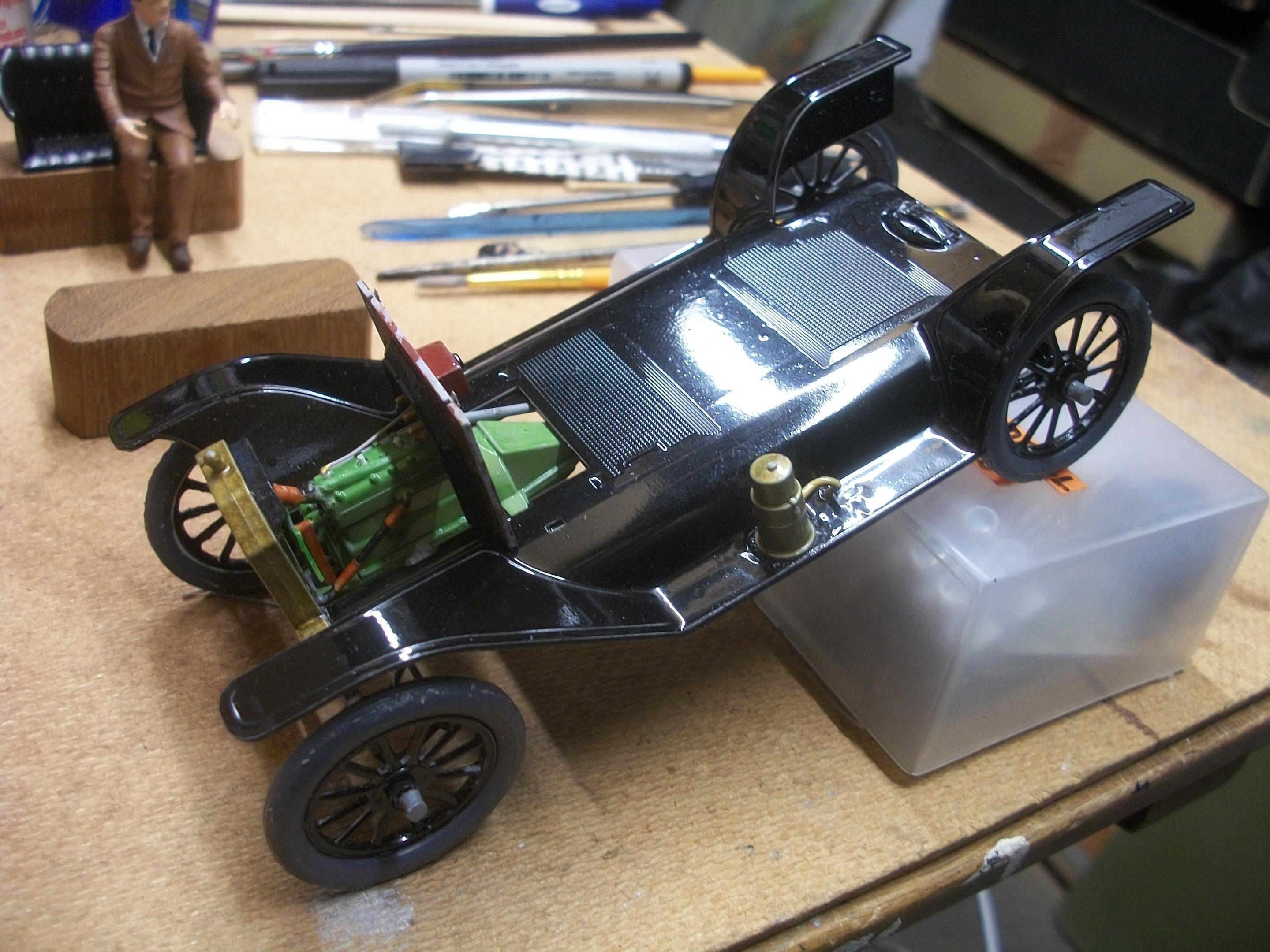

The firewall has now been lowered onto the lower body floor and glued to the mountings.

Next up, following overnight setting, there will be three more spark plug leads added, and all four leads will be glued to the pins on the firewall.

Once the bracing strut that goes between the radiator shell and the firewall has been glued in position, I shall move on to the body parts assembly.

David








  • Like 1
Posted

Everything is looking great! Those pins you made look good but they should be white, they're porcelain. The box on the back of the firewall is the coilbox. Here's a few pics of a coilbox from a 1919 that I have to rebuild for my father. This box is metal and a little different than a 1913, the box on yours would be all wood but still works the same. The top 4 pins have wires going to the commutator, the middle 4 go to the plugs and one bottom one goes to the magneto and the other to the battery or switch if it doesn't have a battery.




Posted
10 hours ago, mchook said:

Everything is looking great! Those pins you made look good but they should be white, they're porcelain. The box on the back of the firewall is the coilbox. Here's a few pics of a coilbox from a 1919 that I have to rebuild for my father. This box is metal and a little different than a 1913, the box on yours would be all wood but still works the same. The top 4 pins have wires going to the commutator, the middle 4 go to the plugs and one bottom one goes to the magneto and the other to the battery or switch if it doesn't have a battery.




Thanks very much Mark . . . I can see from your excellent reference photos how these pins must be white porcelain. Already, I have decided last night to remove my first attempt at those pins, and re-do them in a different material, so this will be my opportunity to colour them in white as you suggest . . .

Of course, I do want the detail for this Model T Ford build to be as accurate as possible, so your expert knowledge has helped me at just the right time !

Thank you again Mark . . .

David

  • Like 1
Posted

First of all, I cut out a piece of thin white card that fitted precisely into the frame of the firewall, and this was PVA glued to the firewall panel . . .

Then I painted the white card with the Vallejo Mahogany Brown and Burnt Red mix, to simulate the cherry wood colour.

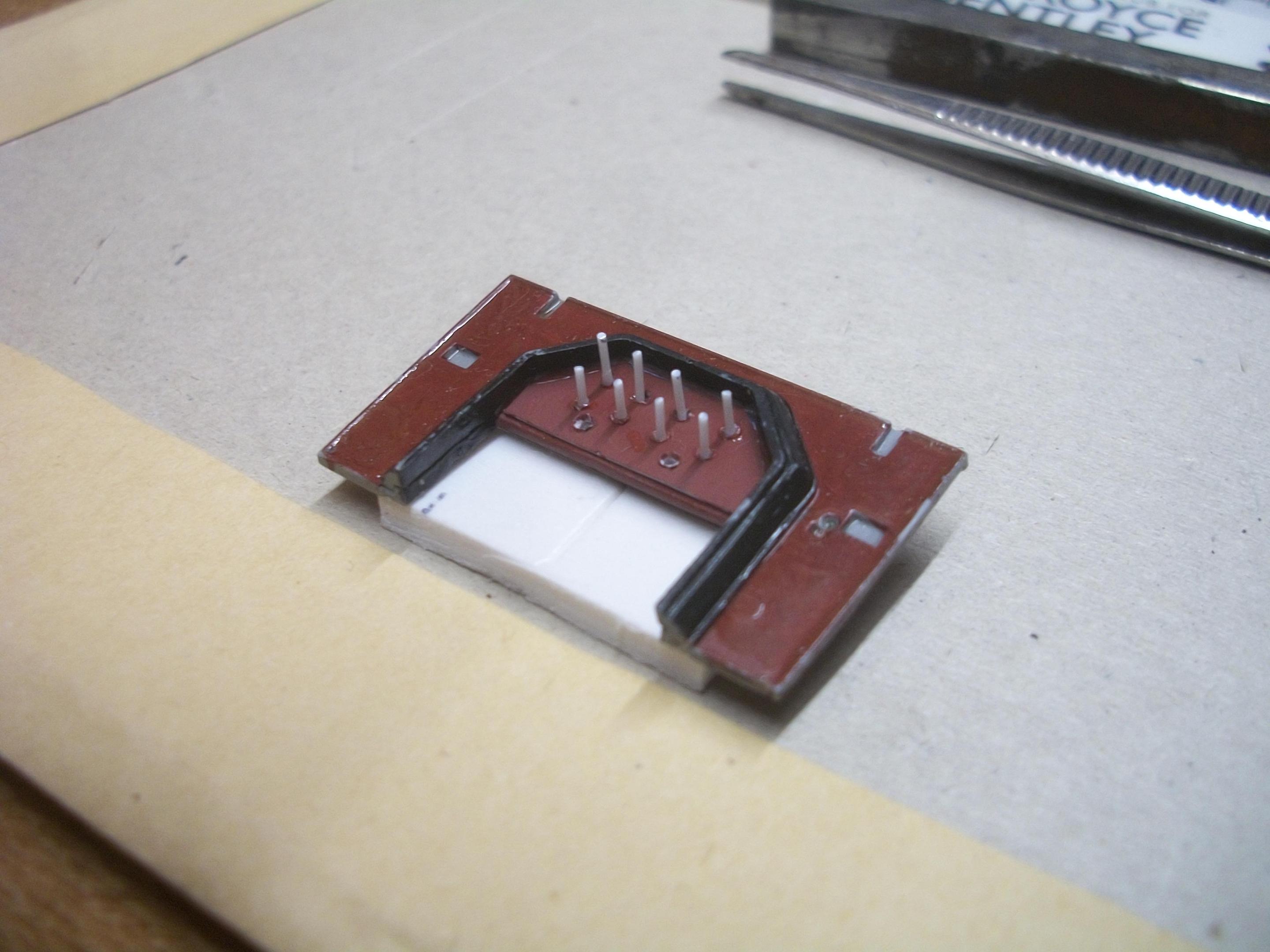

Next step was to cut ten 3 mm lengths of the Evergreen 0.025 inch styrene rod, so that I had 10 white porcelain pins . . .

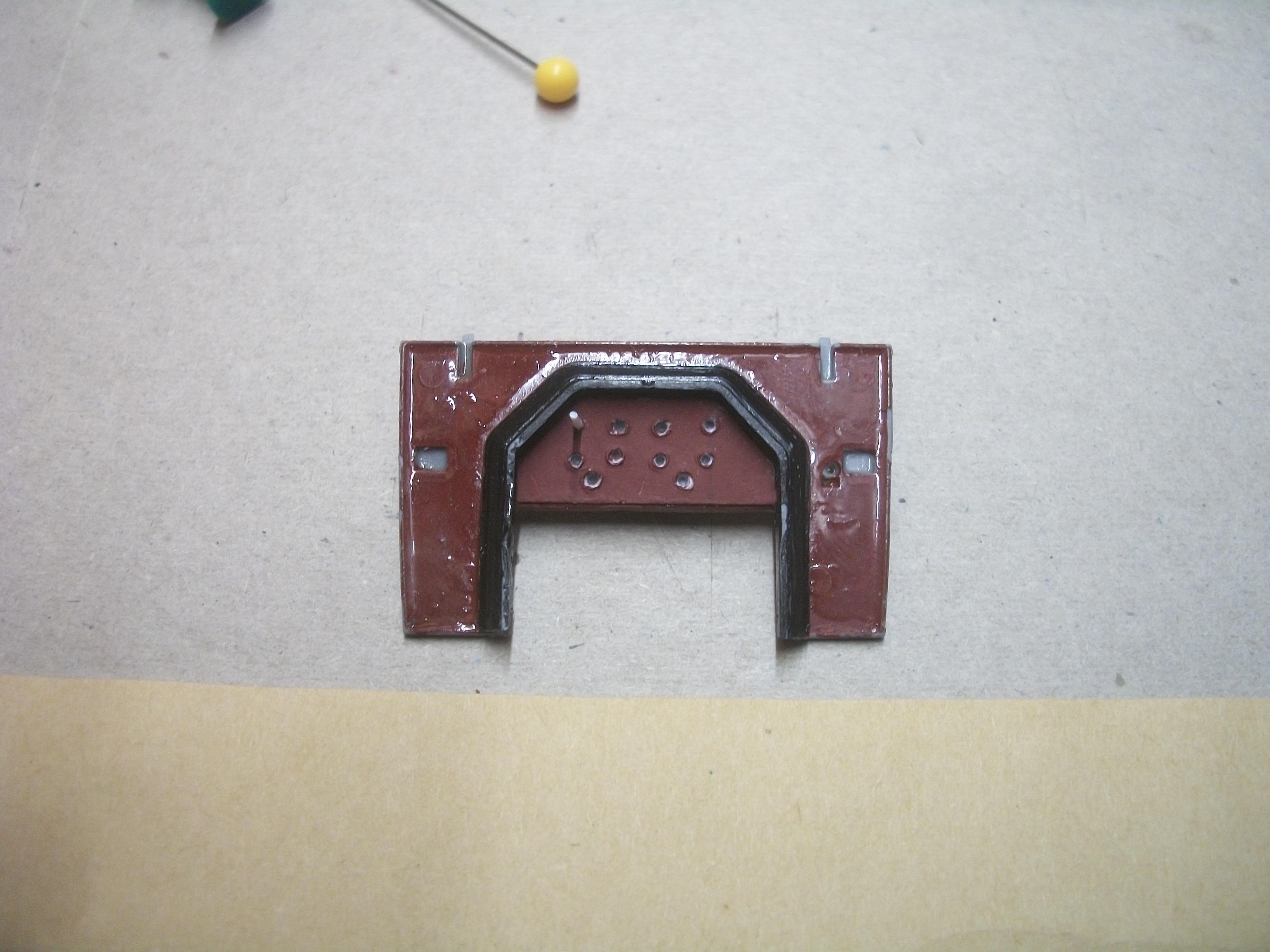

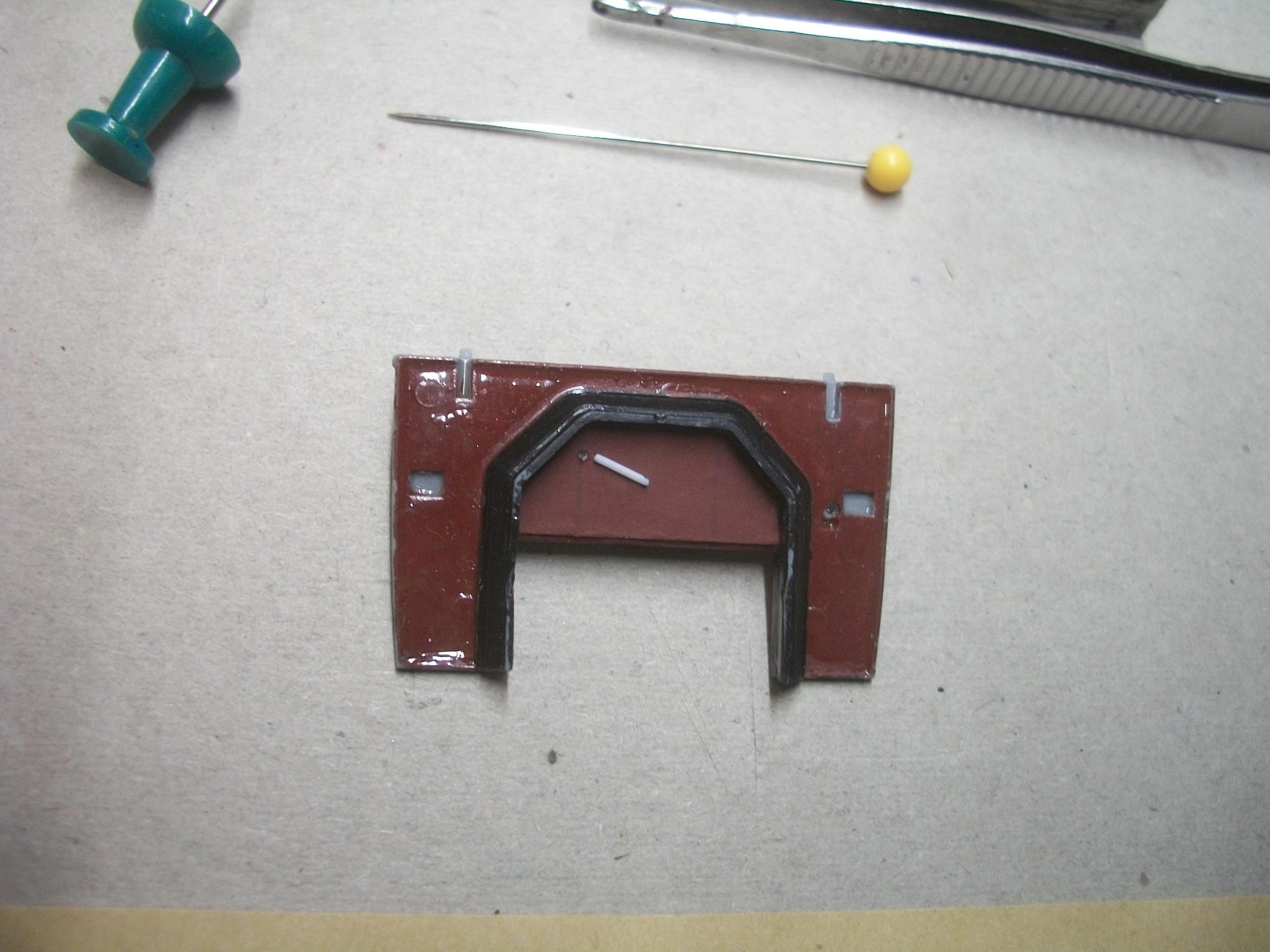

Using a dress pin, the one in the photo with a yellow top, I made ten holes in the card, and then used a push pin with the green top, to enlarge the holes slightly . . . My thinking was to insert each of the ten white styrene pins into the holes of the card, and then the super glue would fix the ends of the pins to the styrene firewall part itself.

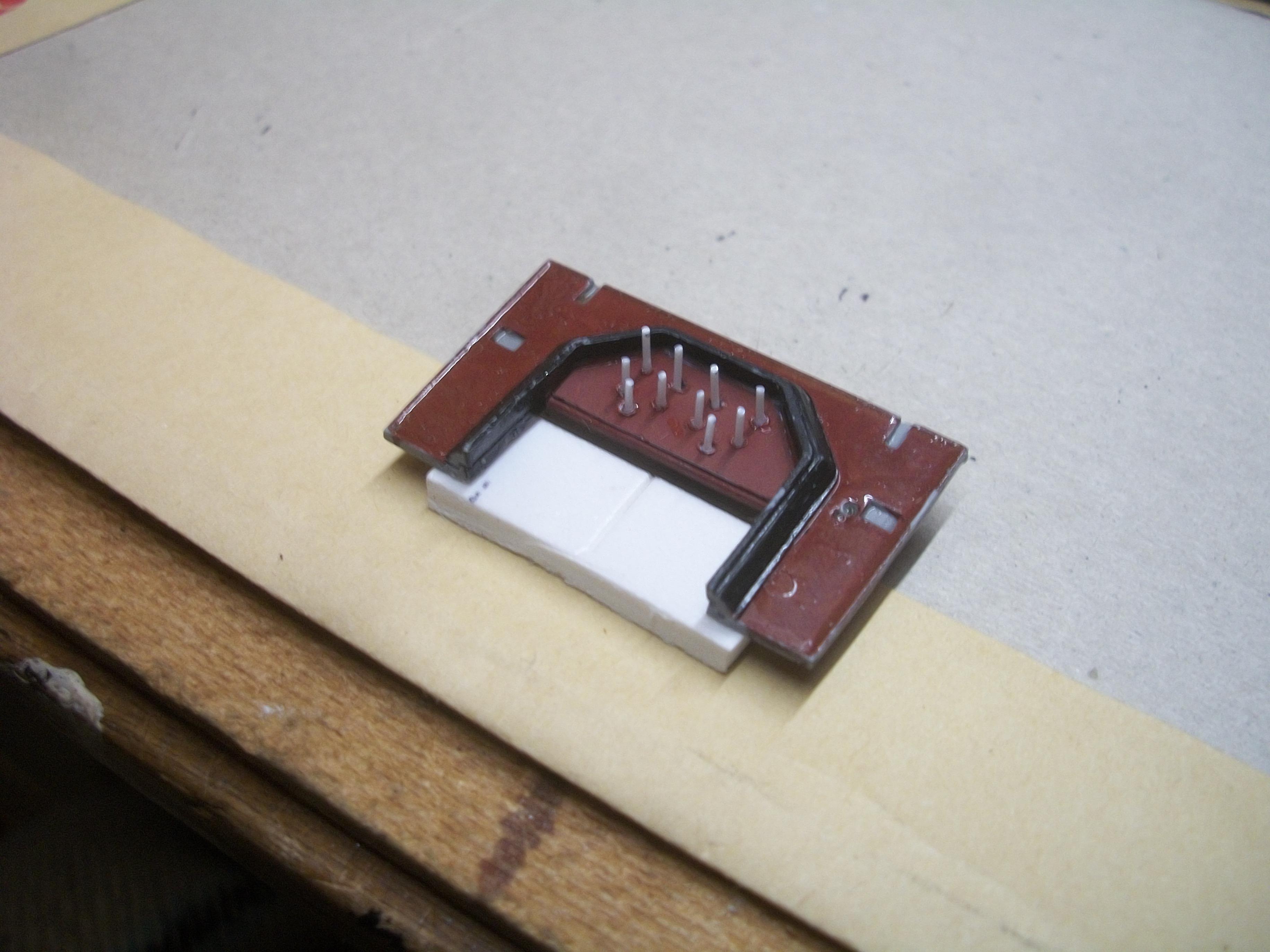

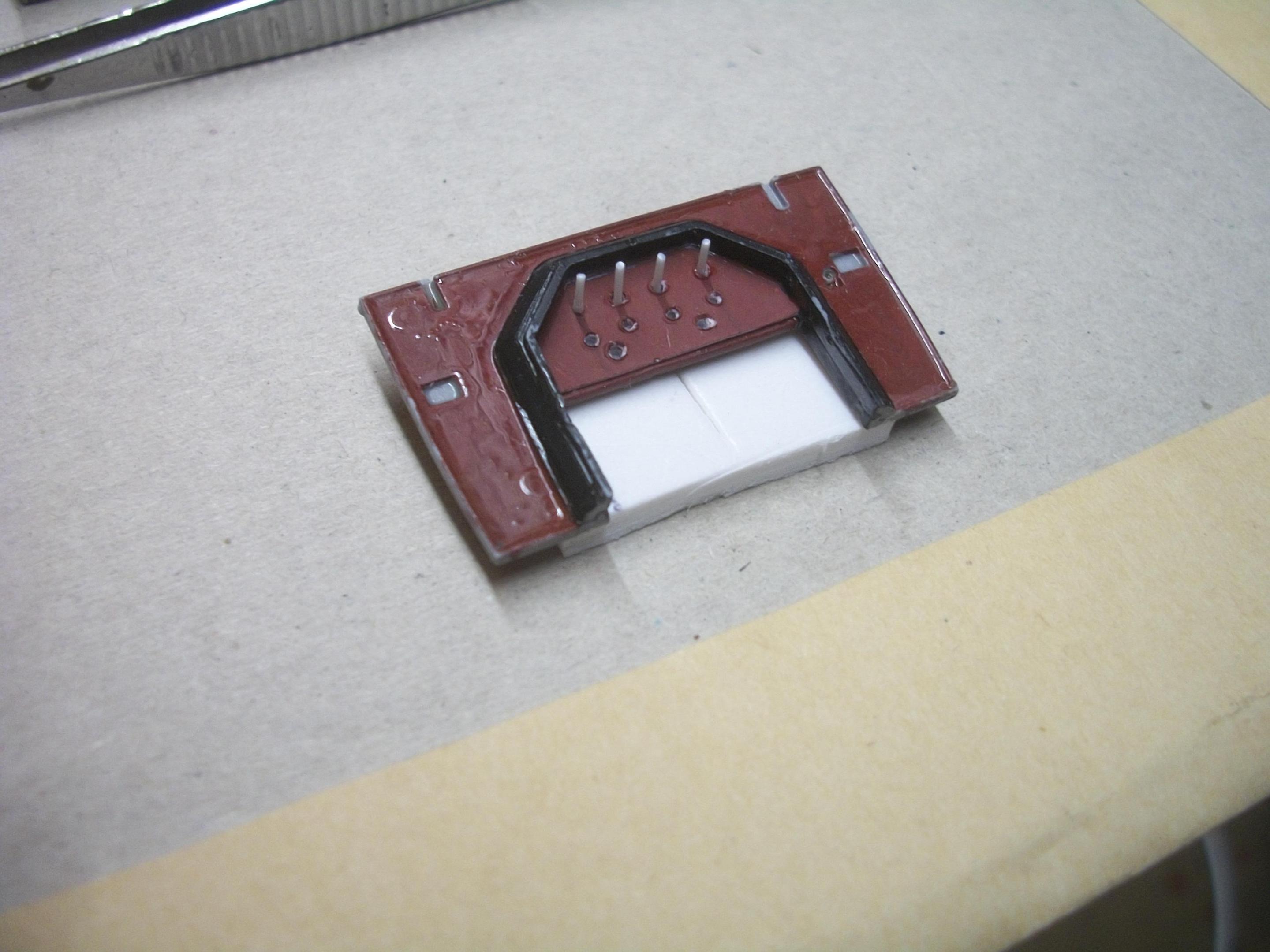

This procedure seems to have worked quite well. All ten white porcelain pins are in place and setting overnight . . . The four spark plug leads will be attached to the second row of pins down from the top . . .

David








  • Like 1
Posted

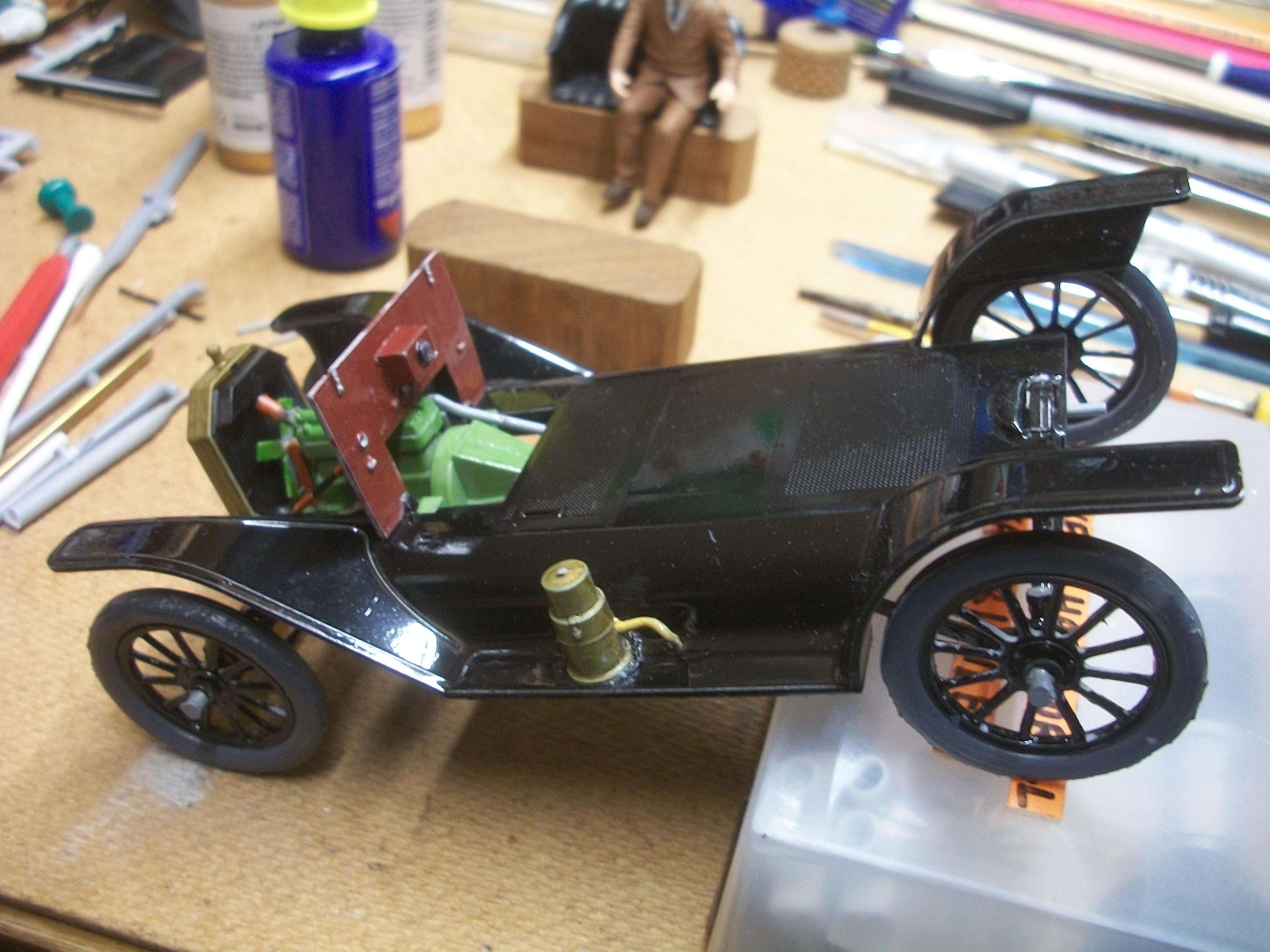

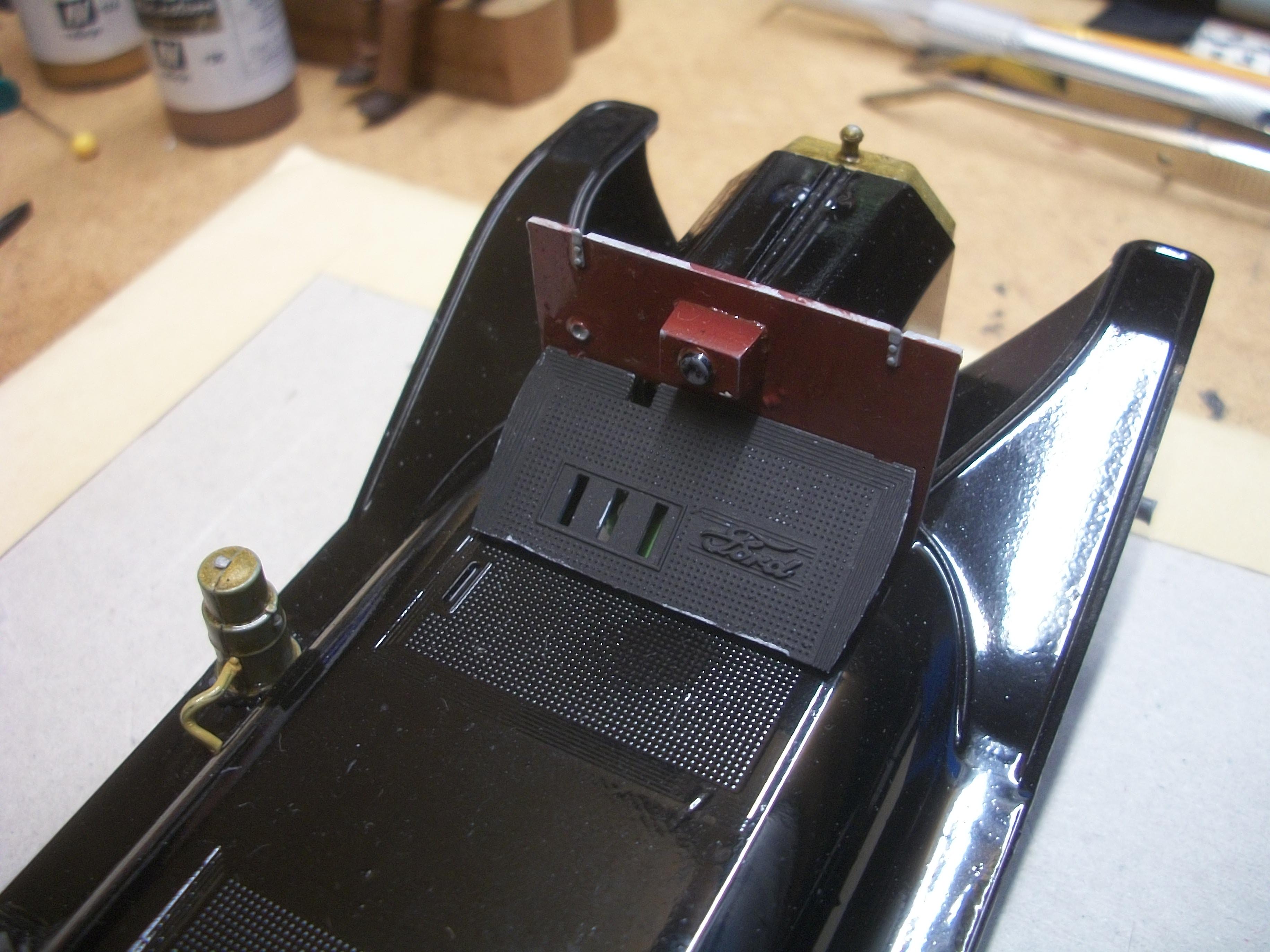

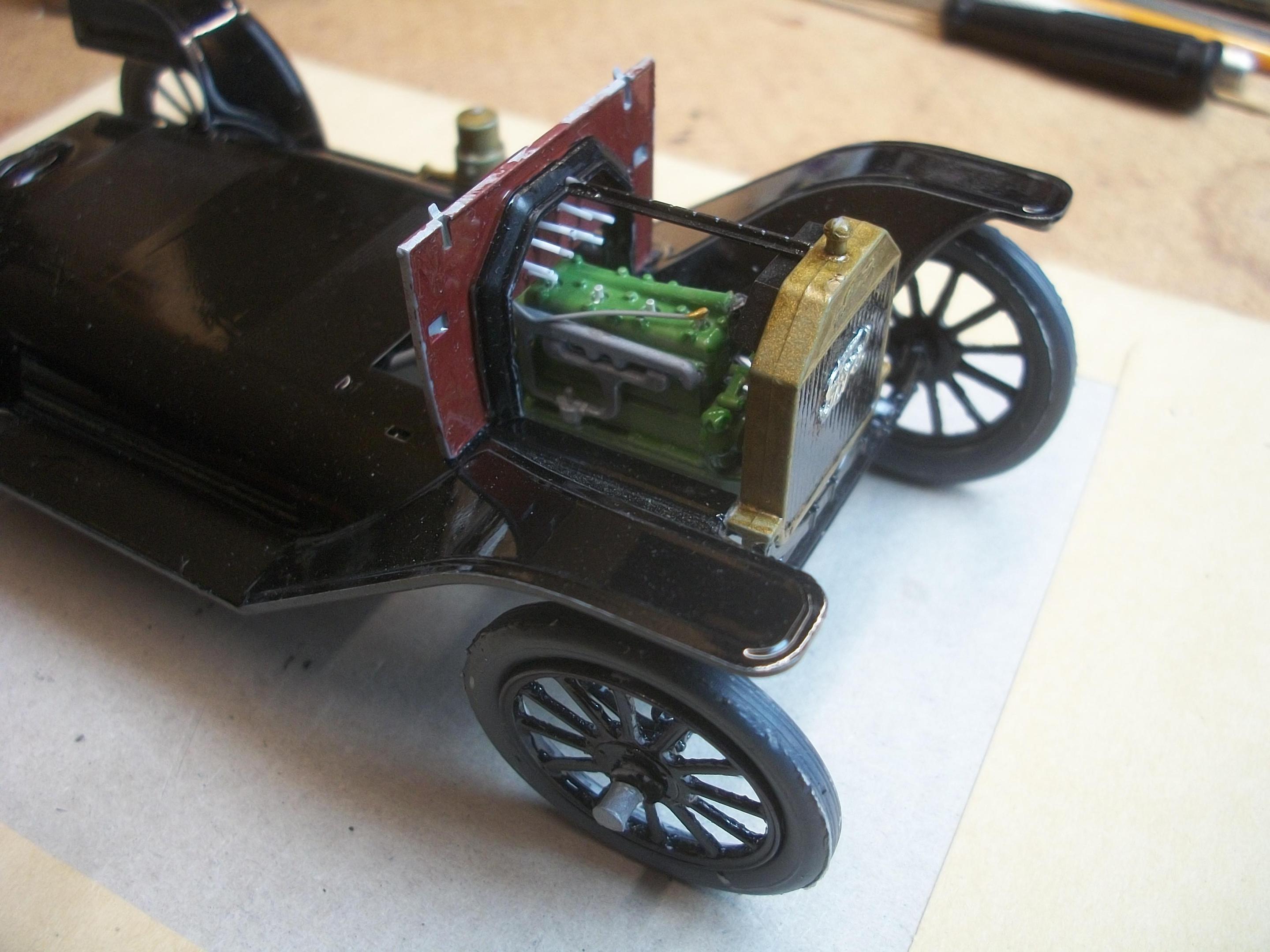

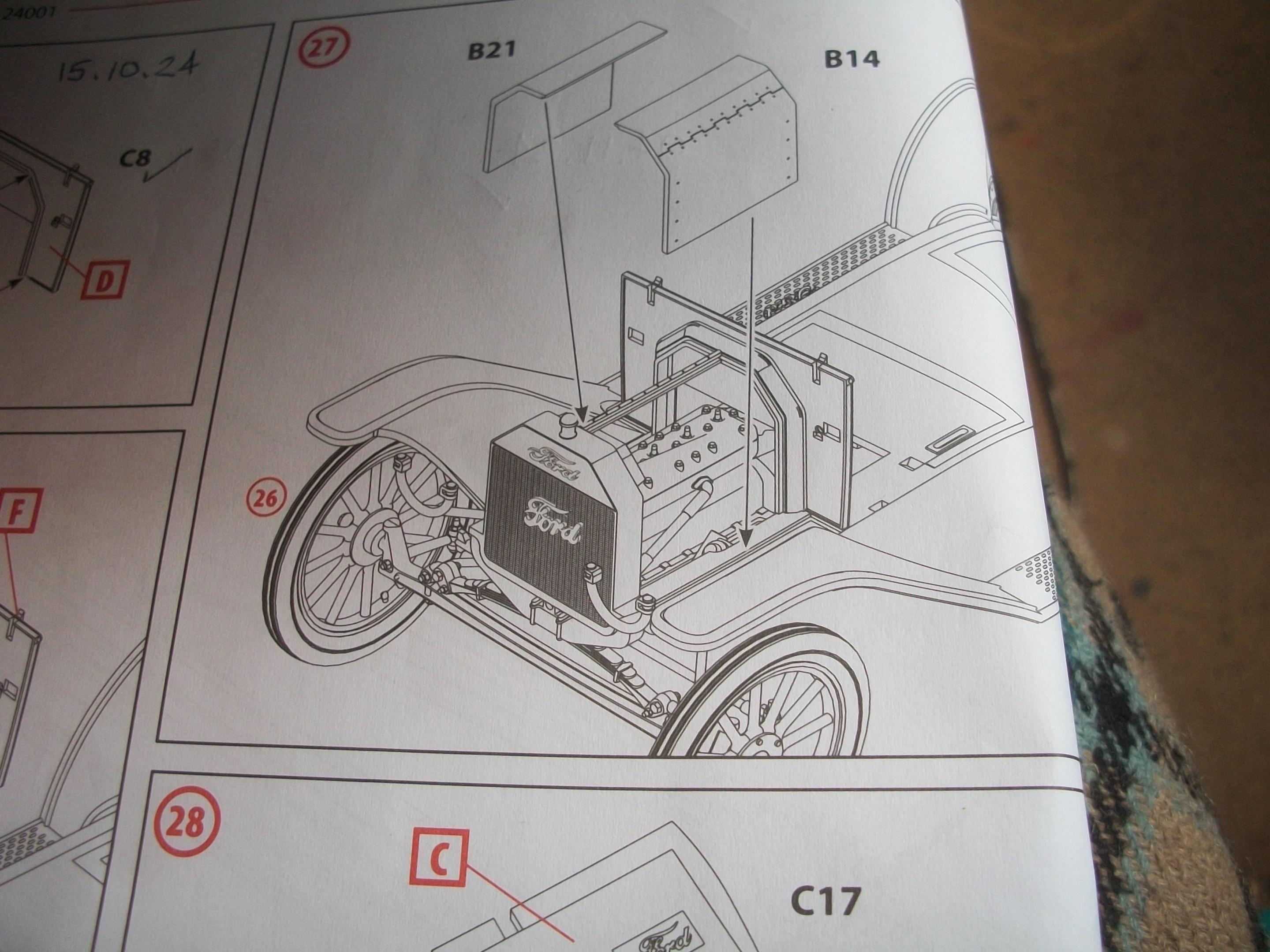

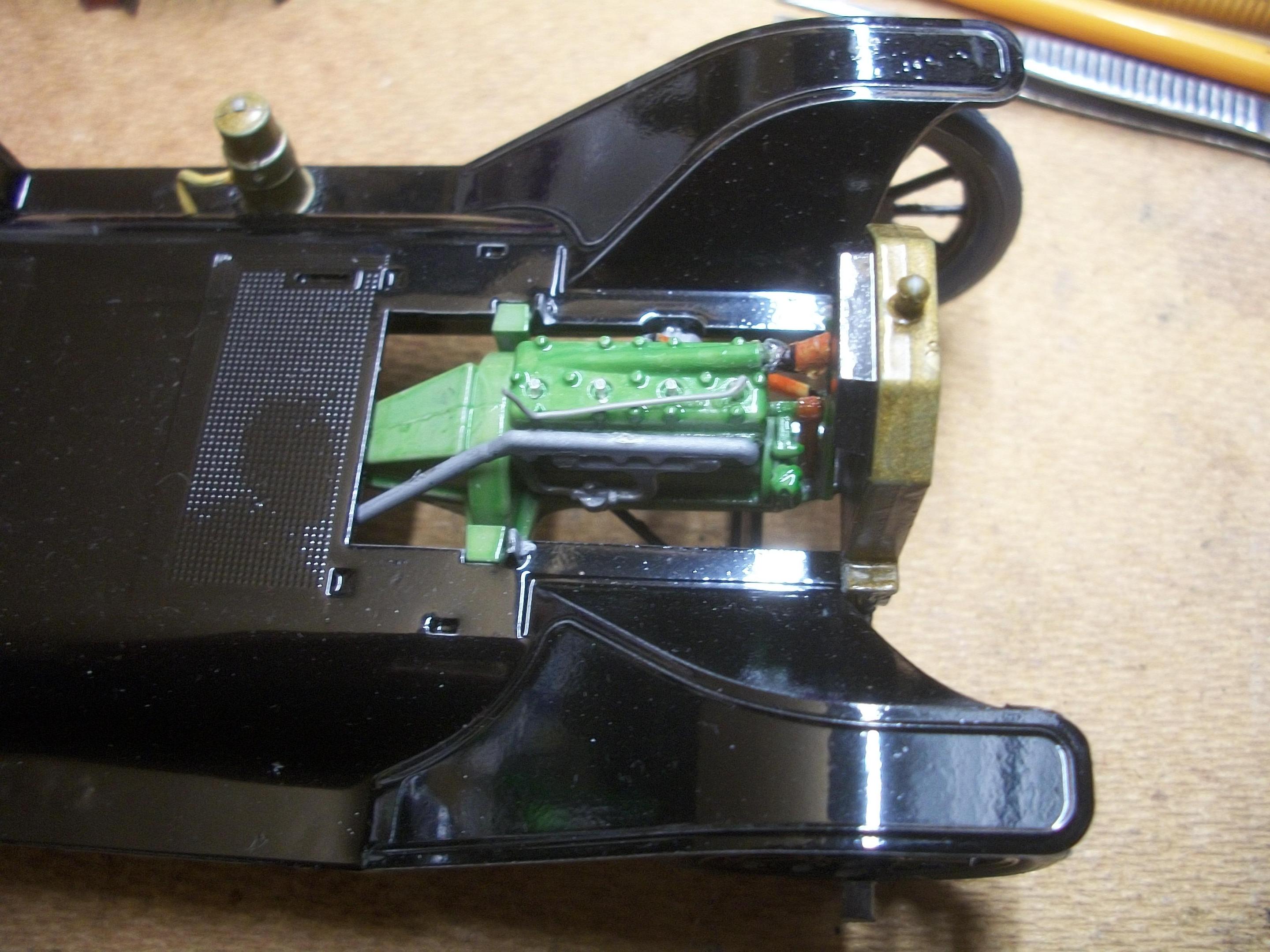

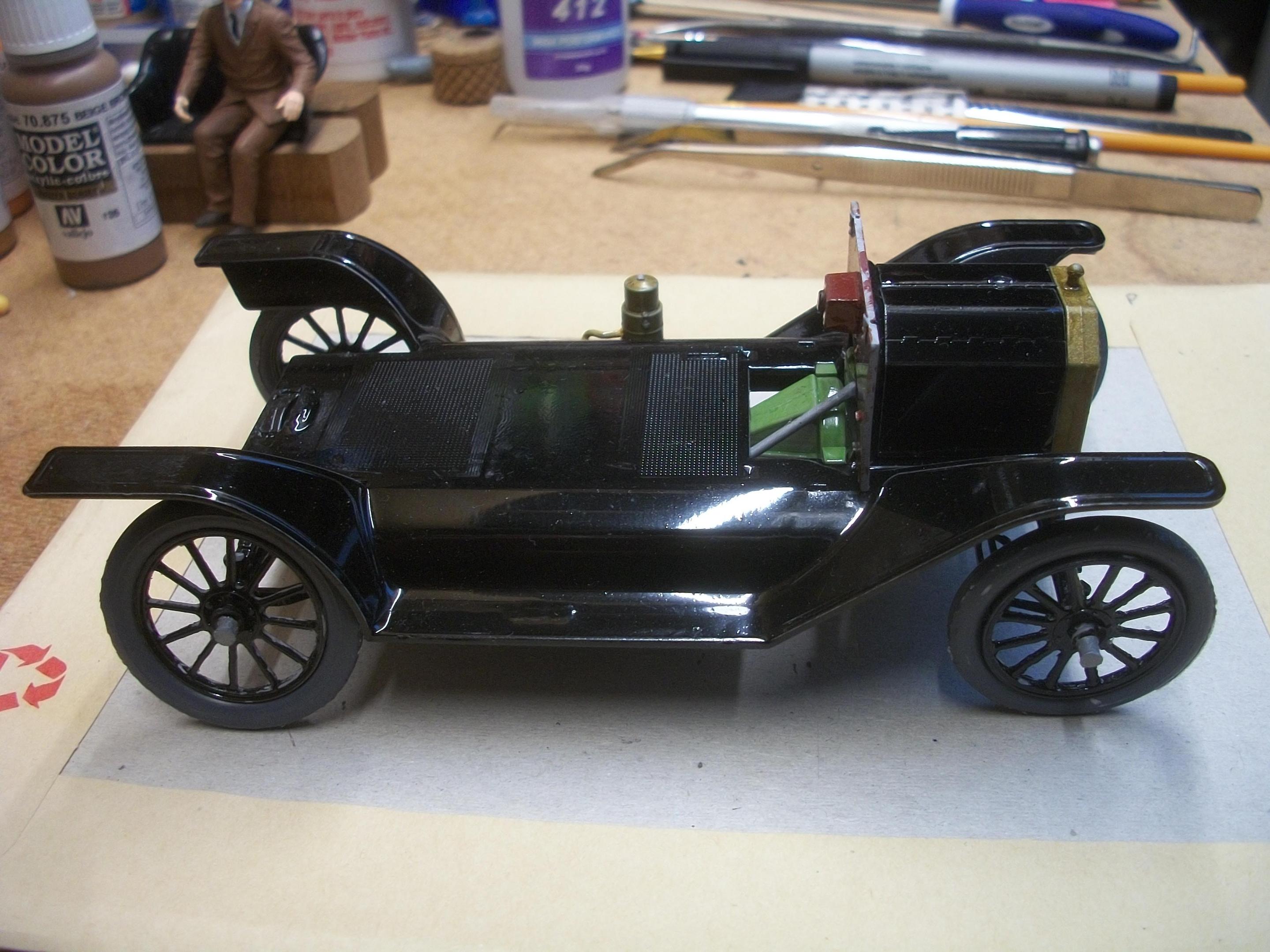

The assembled firewall has now been glued in place, and also the support bar between the firewall and the radiator shell is glued in place. This support bar will have the two bonnet / hood panels attached to it at some point . . . One of the four spark plug leads is waiting to be glued to the top left, second row down white porcelain pin, having already been attached to the No.1 spark plug . . .

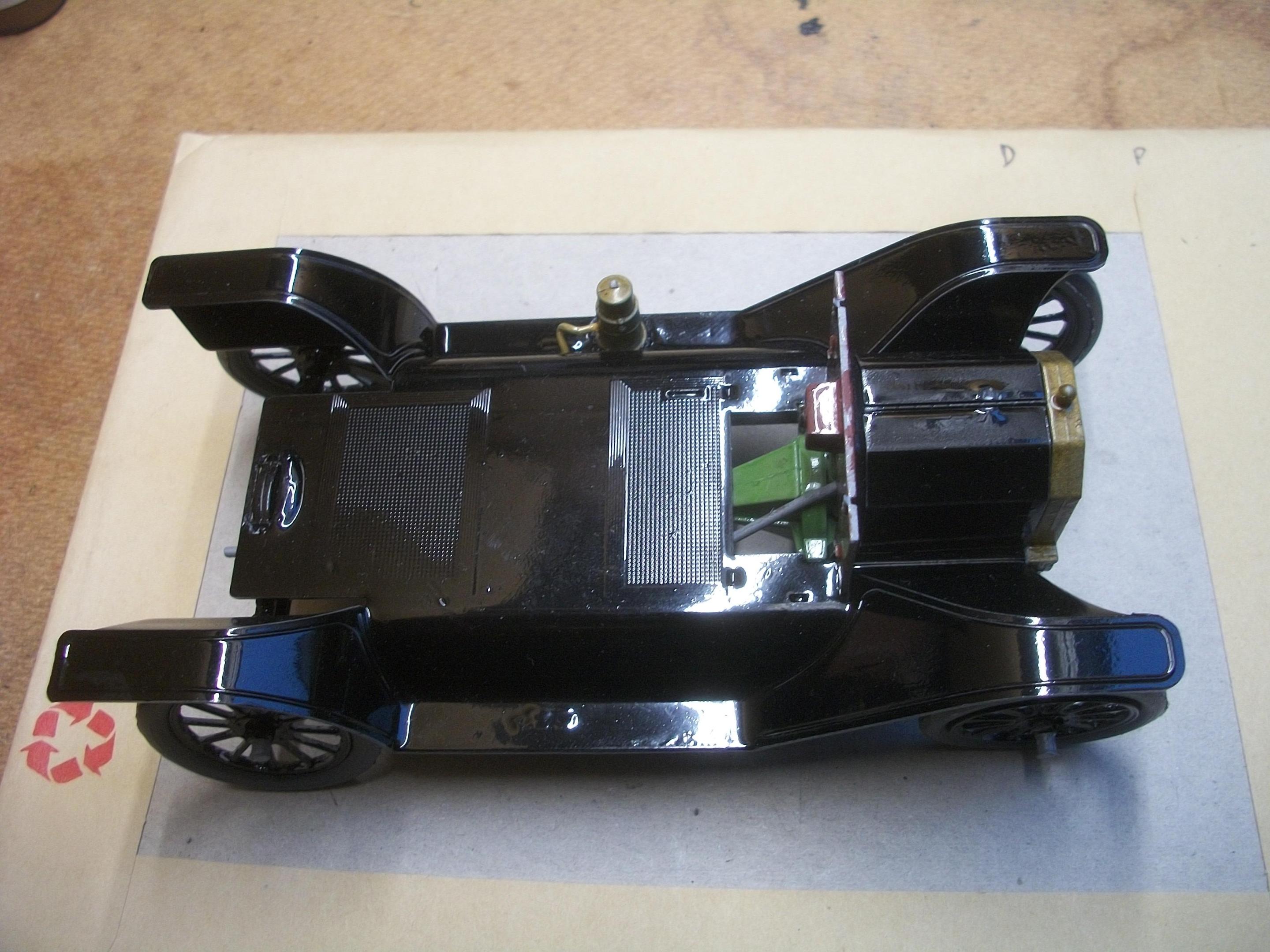

The floor panel is resting on it's mounting points, and almost ready for fitting.

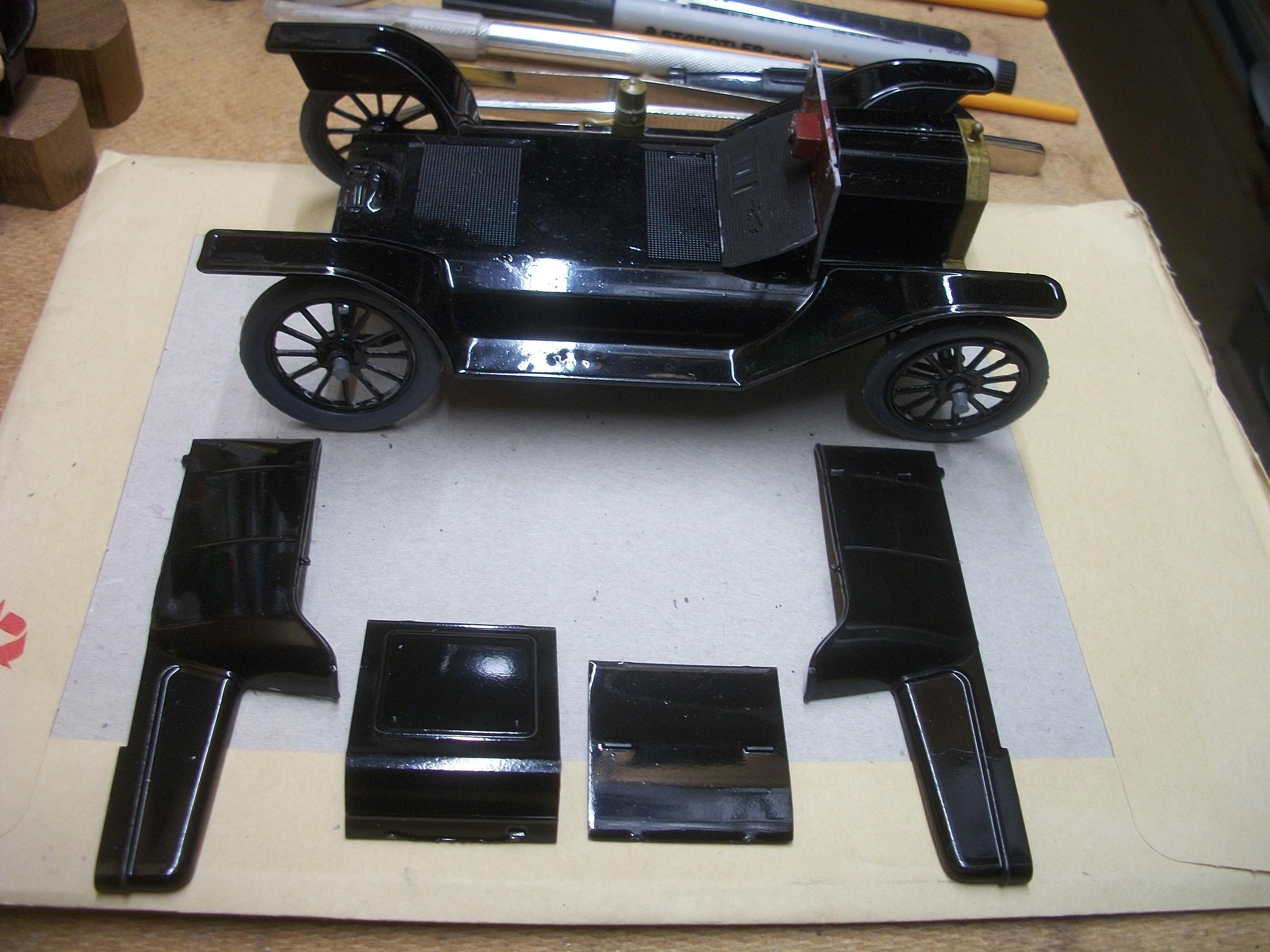

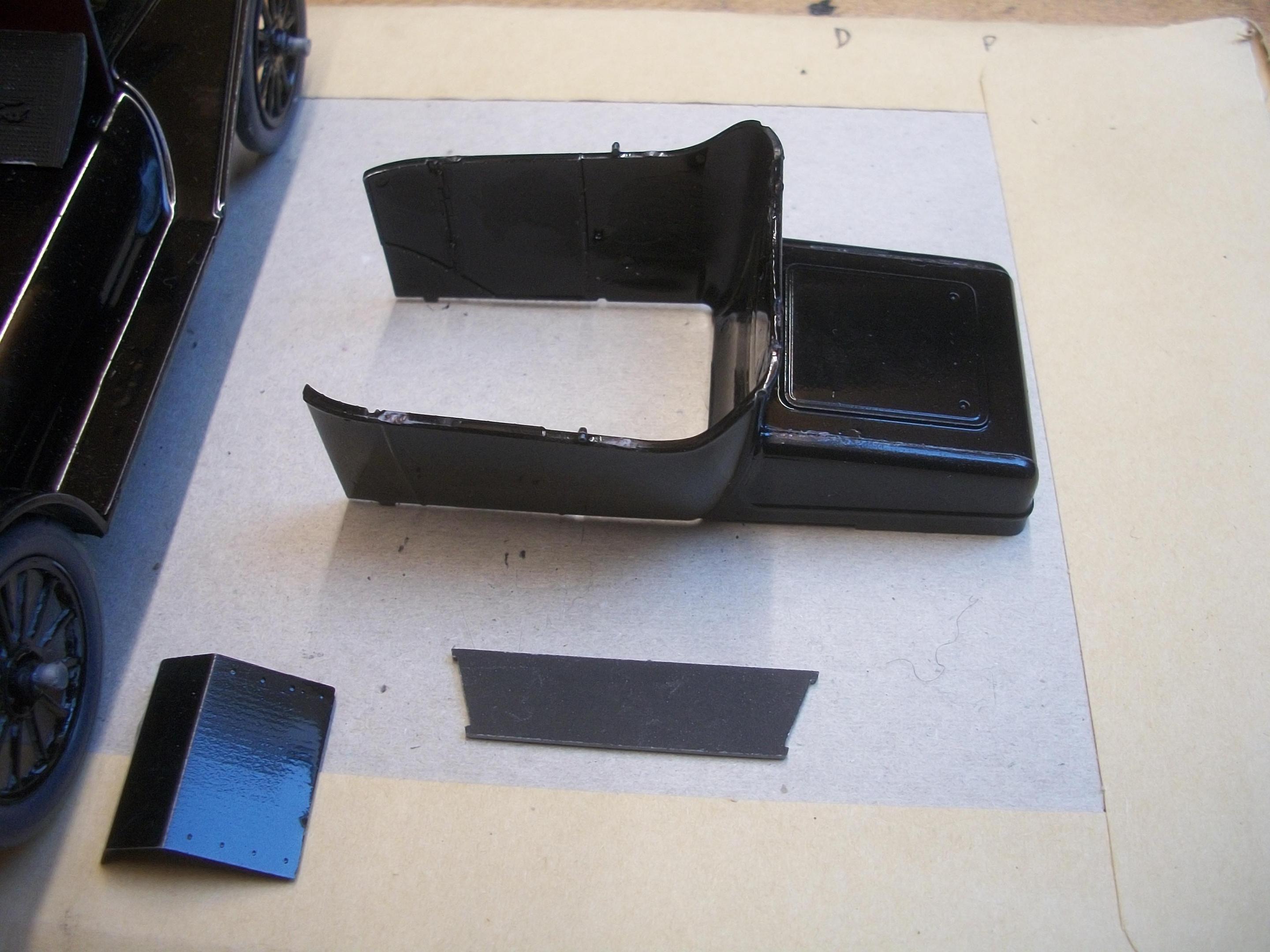

I have prepared the four body panels that you see in the following photos, by scraping the excess black paint from the joining edges, and then test fitting these panels. They are the trunk, the seat back and the two body sides . . .

David








  • Like 2
Posted
11 hours ago, David G. said:

That's a clever bit of engineering you worked on the distributor David.

Impressive!

David G.

Thank you David G., and I do like to think of it as model engineering . . .

Sometimes I get things right, but not always !

David W.

Posted
14 hours ago, Sledsel said:

This is coming along really nicely.

Thanks a lot Andy . . . Yes, I am quite pleased with the progress so far on this build. This is turning out to be a really interesting model car.

We have heavy snow and sub-zero temperatures here in England at the moment, for at least a few days until the weekend . . .

David

Posted

Assembling the four body panels was actually very tricky . . . Part of the problem was of course my 71 year old fingers fumbling with the parts.

I had already cleared the joining edges of the body panels, so that there were no traces of the black paint. Once Revell styrene glue had been applied to those clean edges, I carefully and precisely positioned the adjoining panels . . . Holding them steady while the glue took hold was quite a challenge for me.

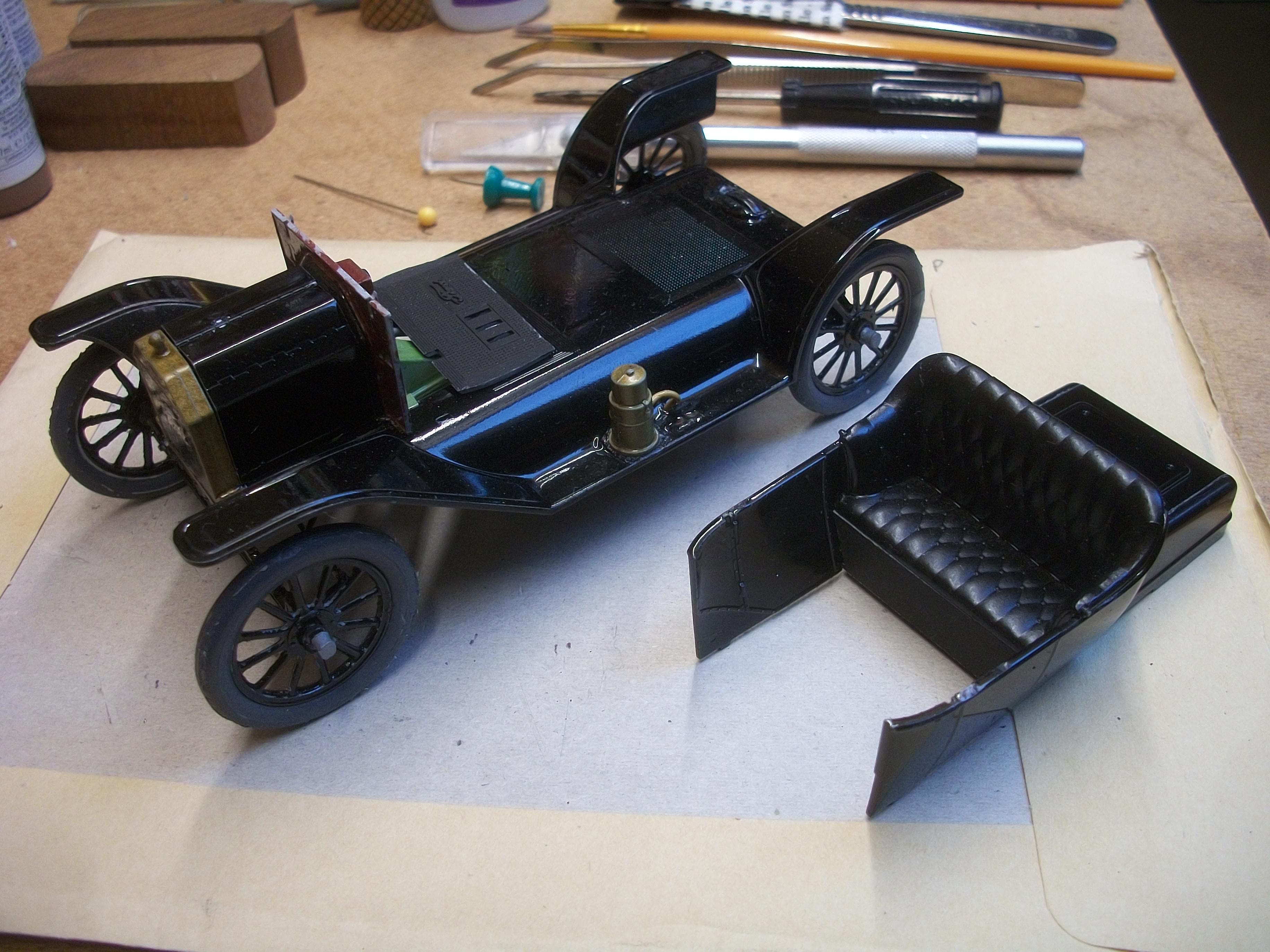

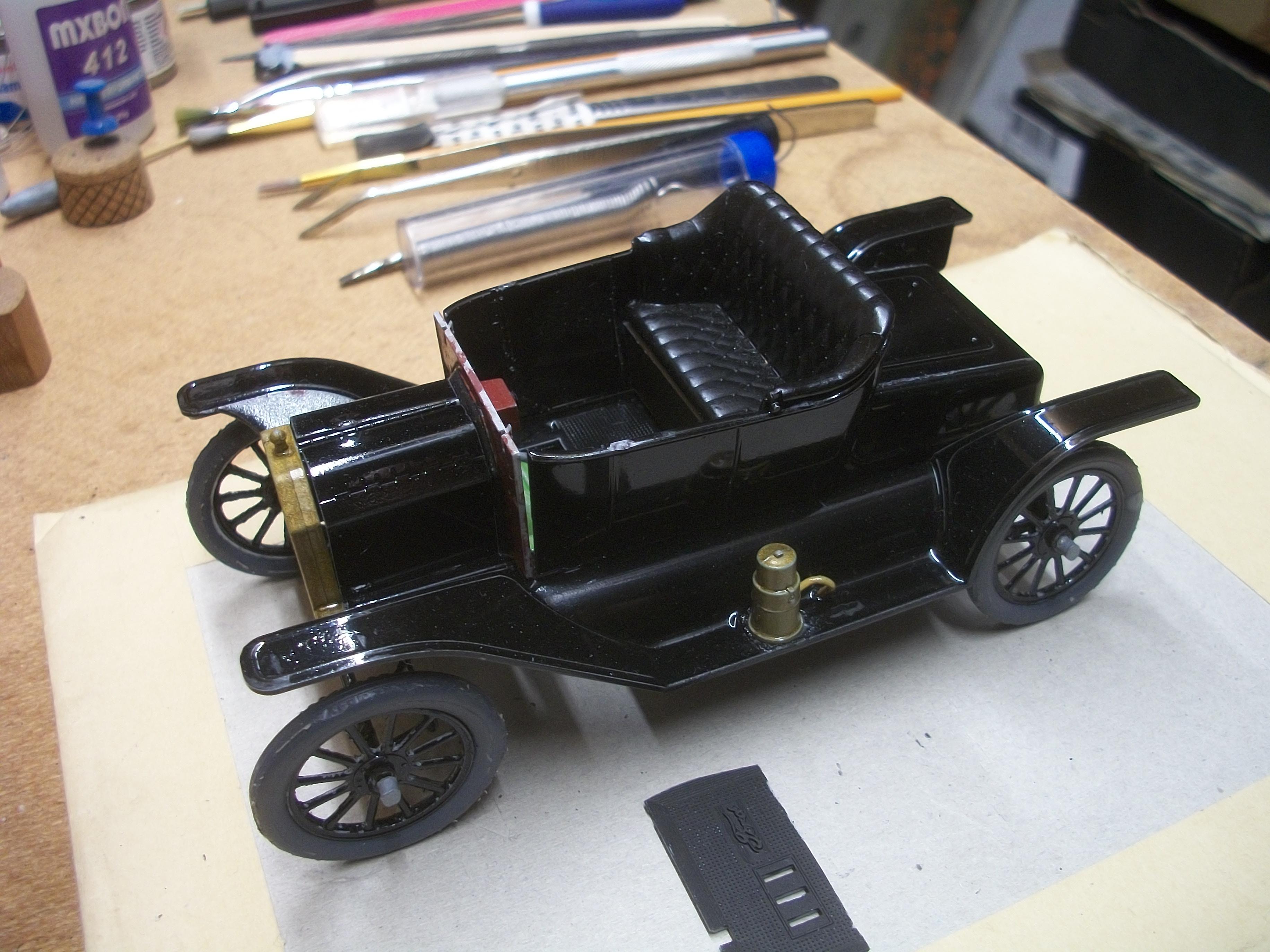

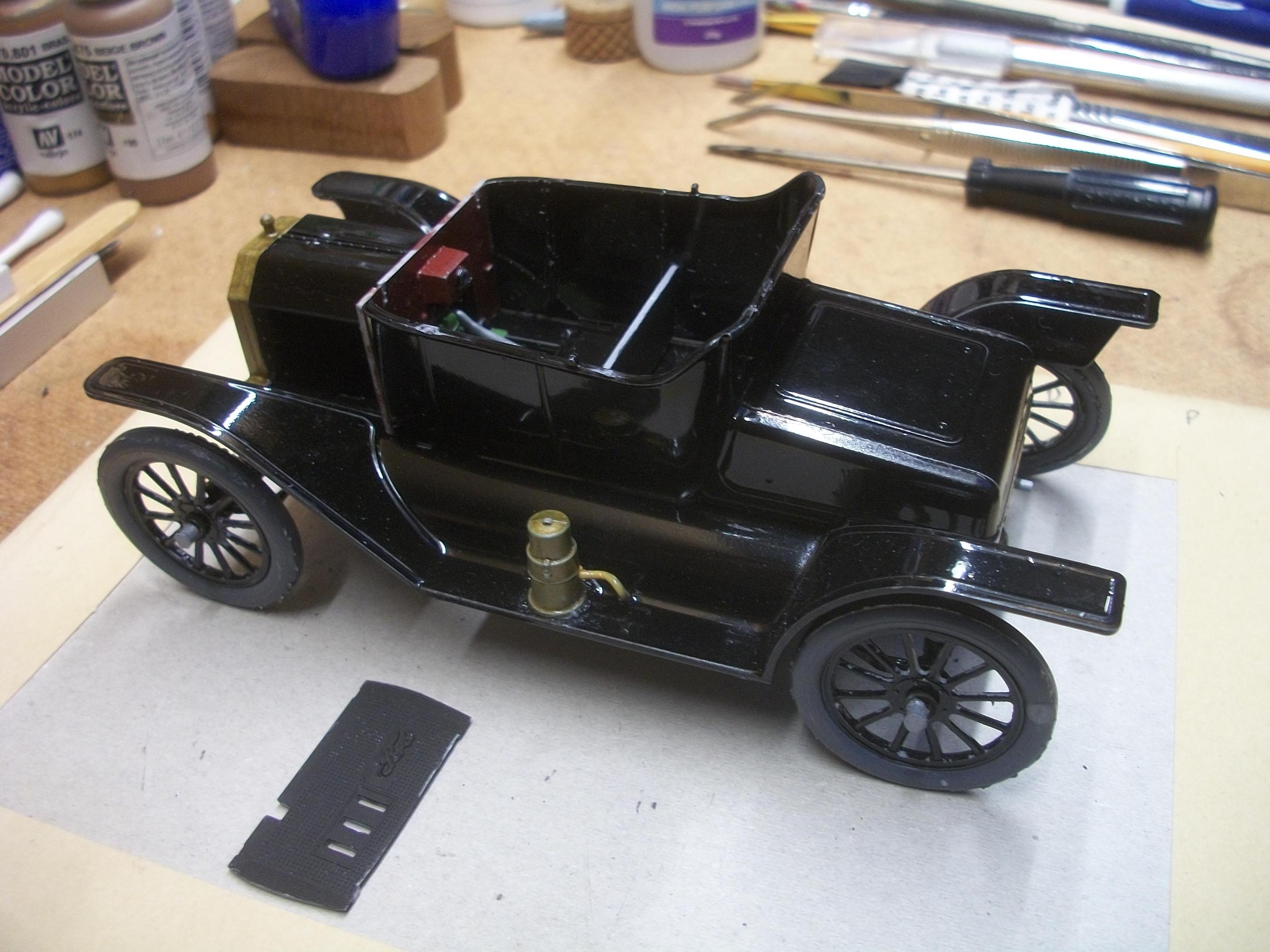

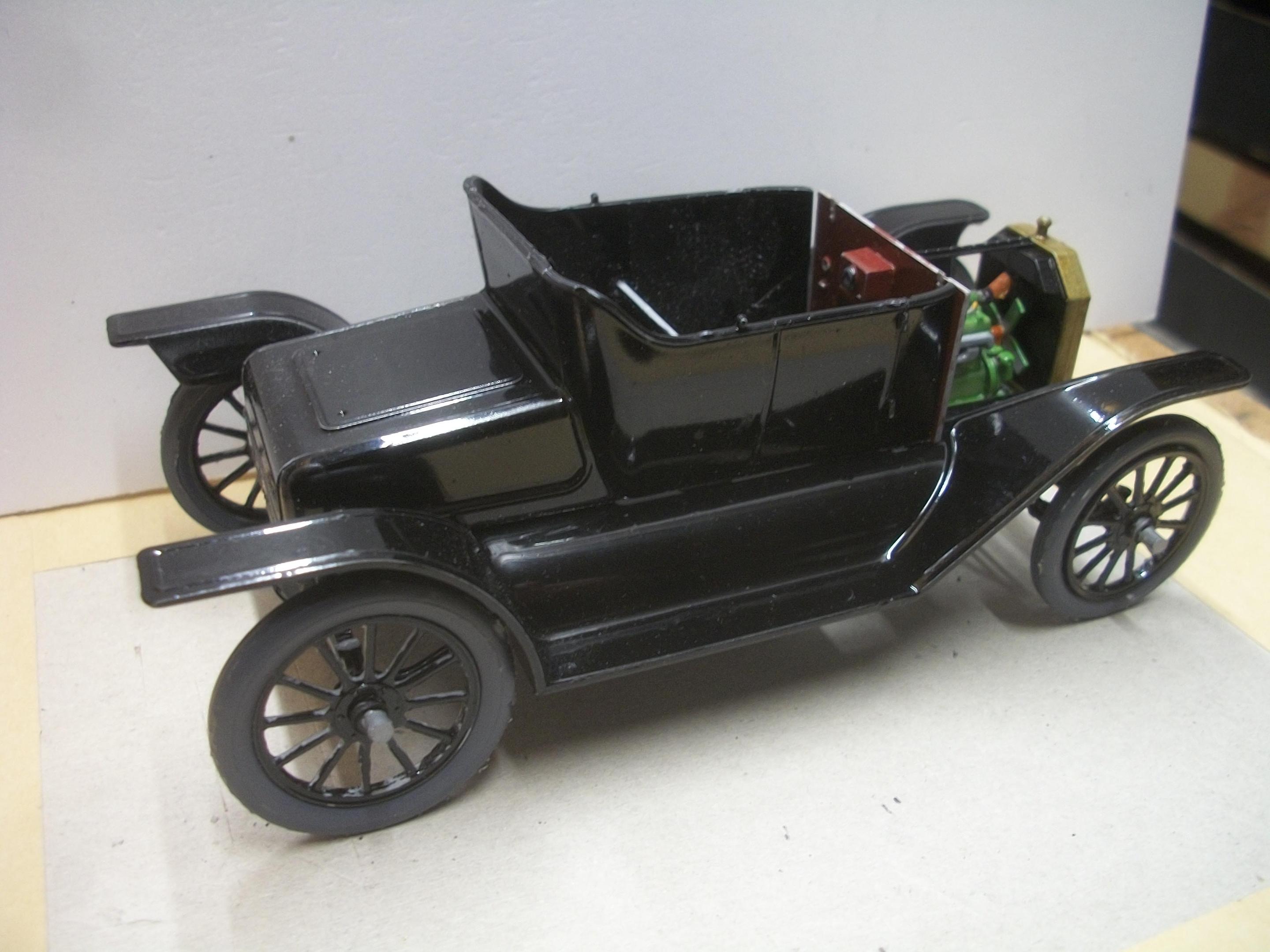

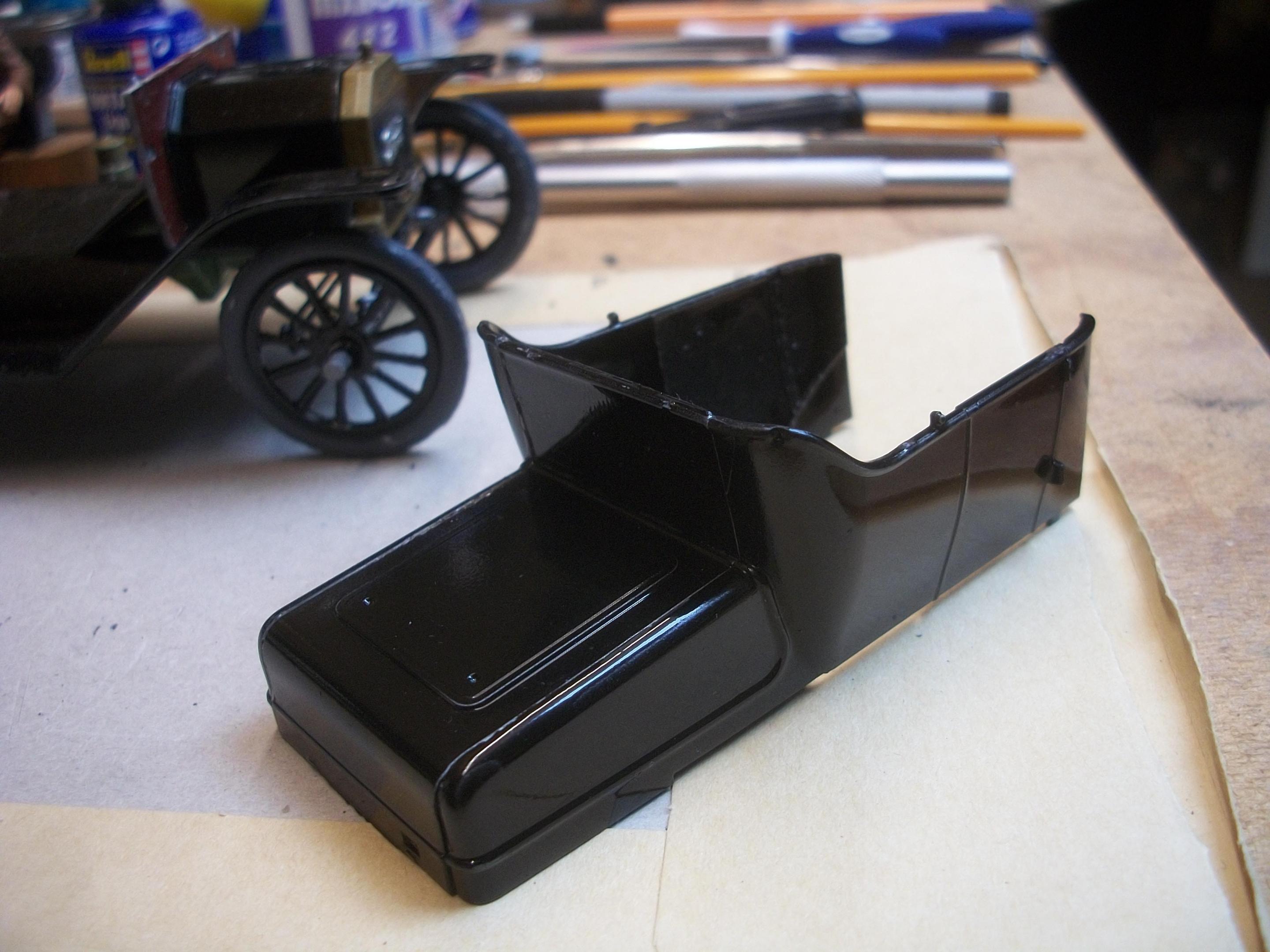

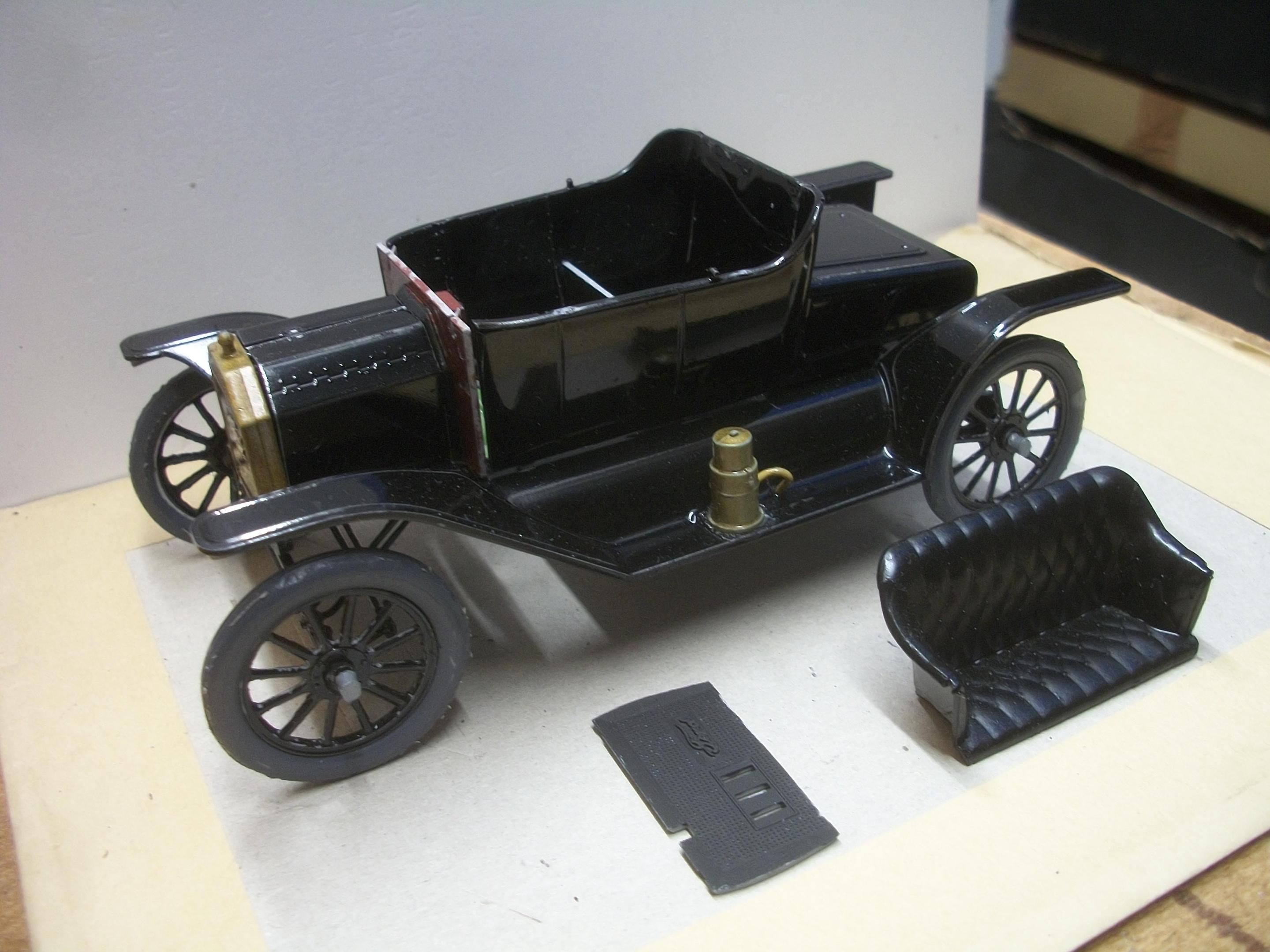

Anyway, the parts all went together reasonably well, and the following photos show the upper body being test fitted to the lower body assembly . . .

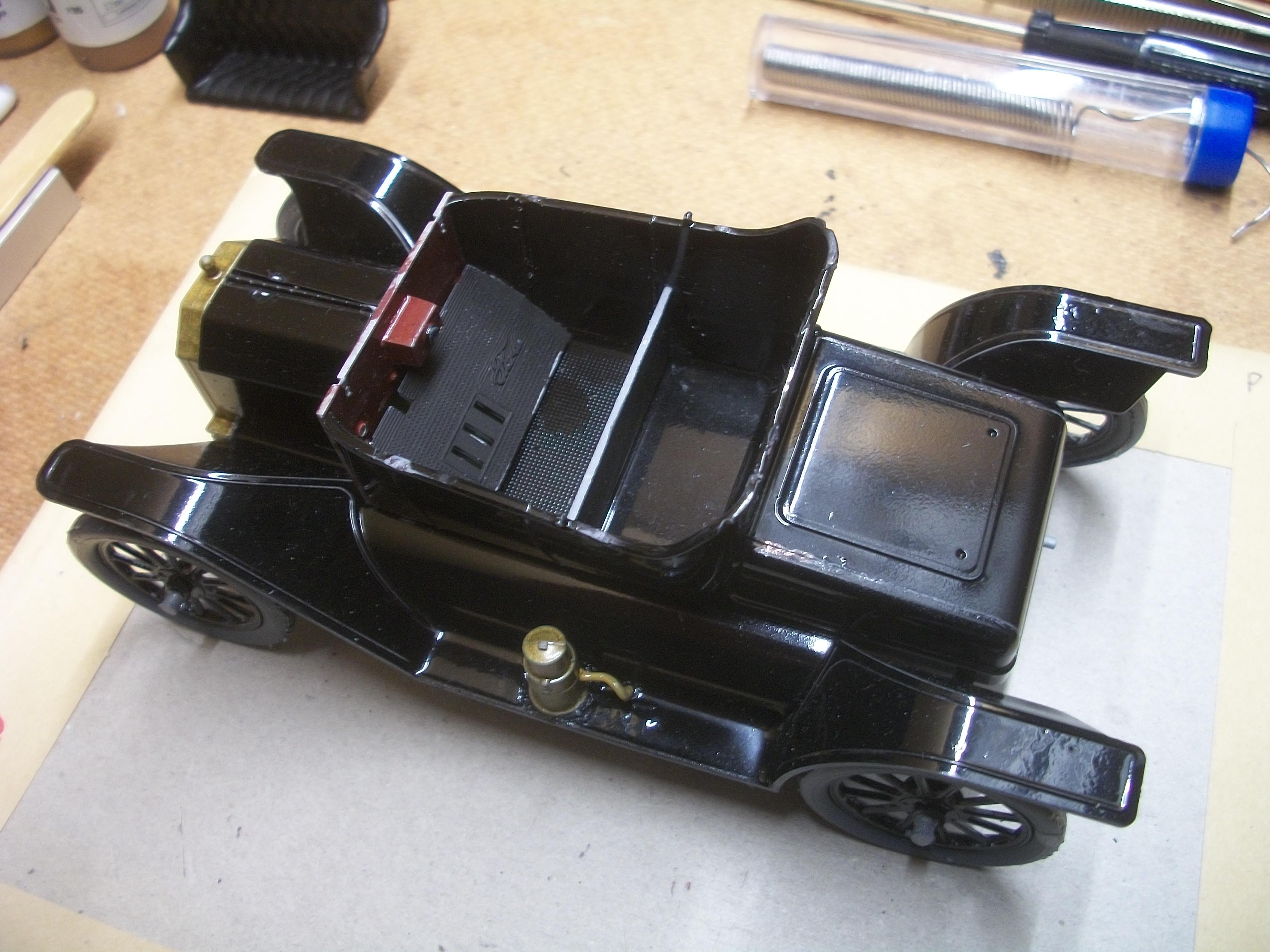

The next part to be fitted into the upper body was the seat support panel, which slotted in nicely and was glued in place.

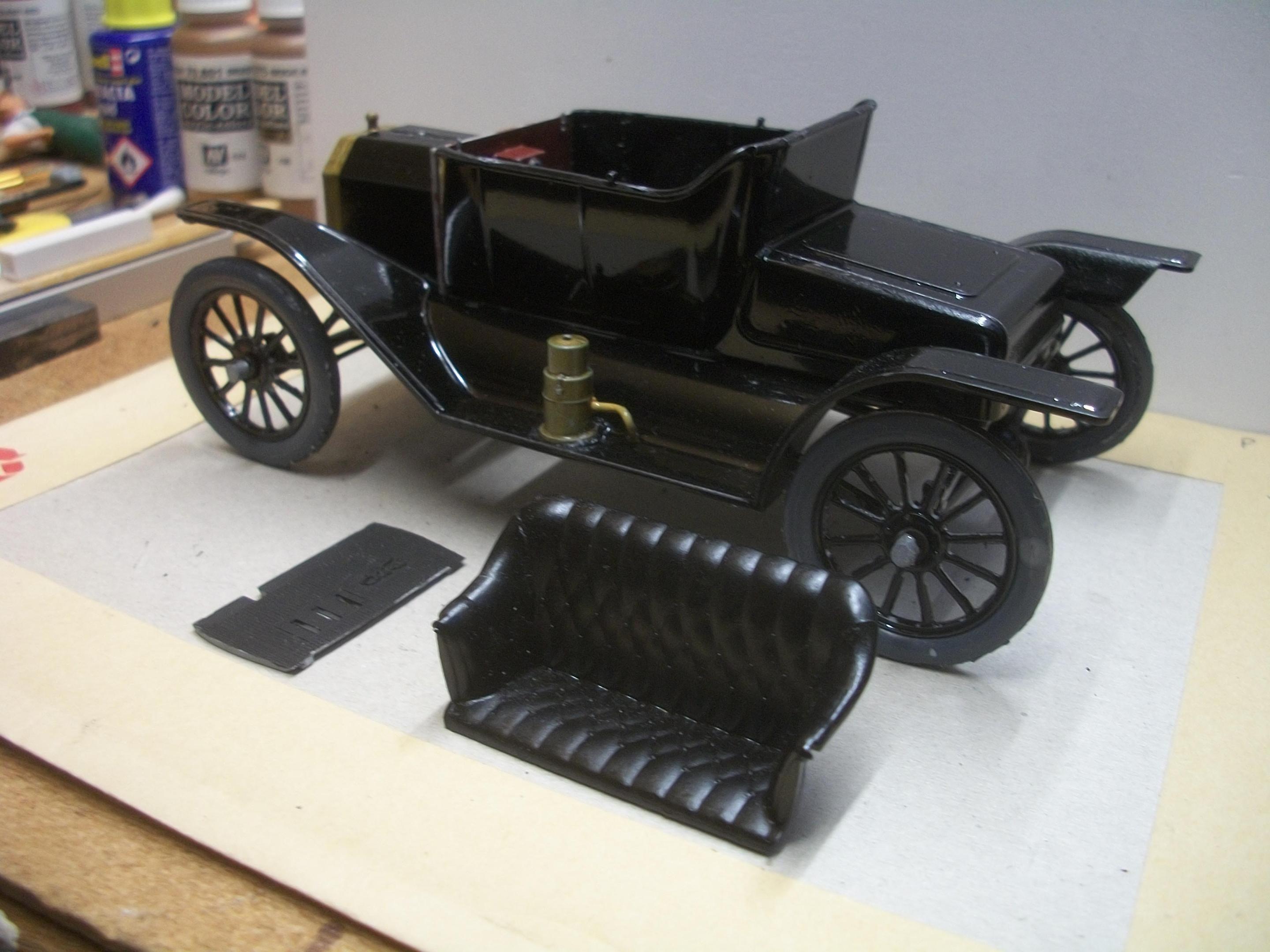

As I was test fitting the seat onto the seat support panel I found that the overall fit of the seat within the body was so good that no glue would be required. This led me to an interesting idea . . . Maybe I could fabricate / scratch build a petrol tank / gas tank to fit under the seat, as on the real car?

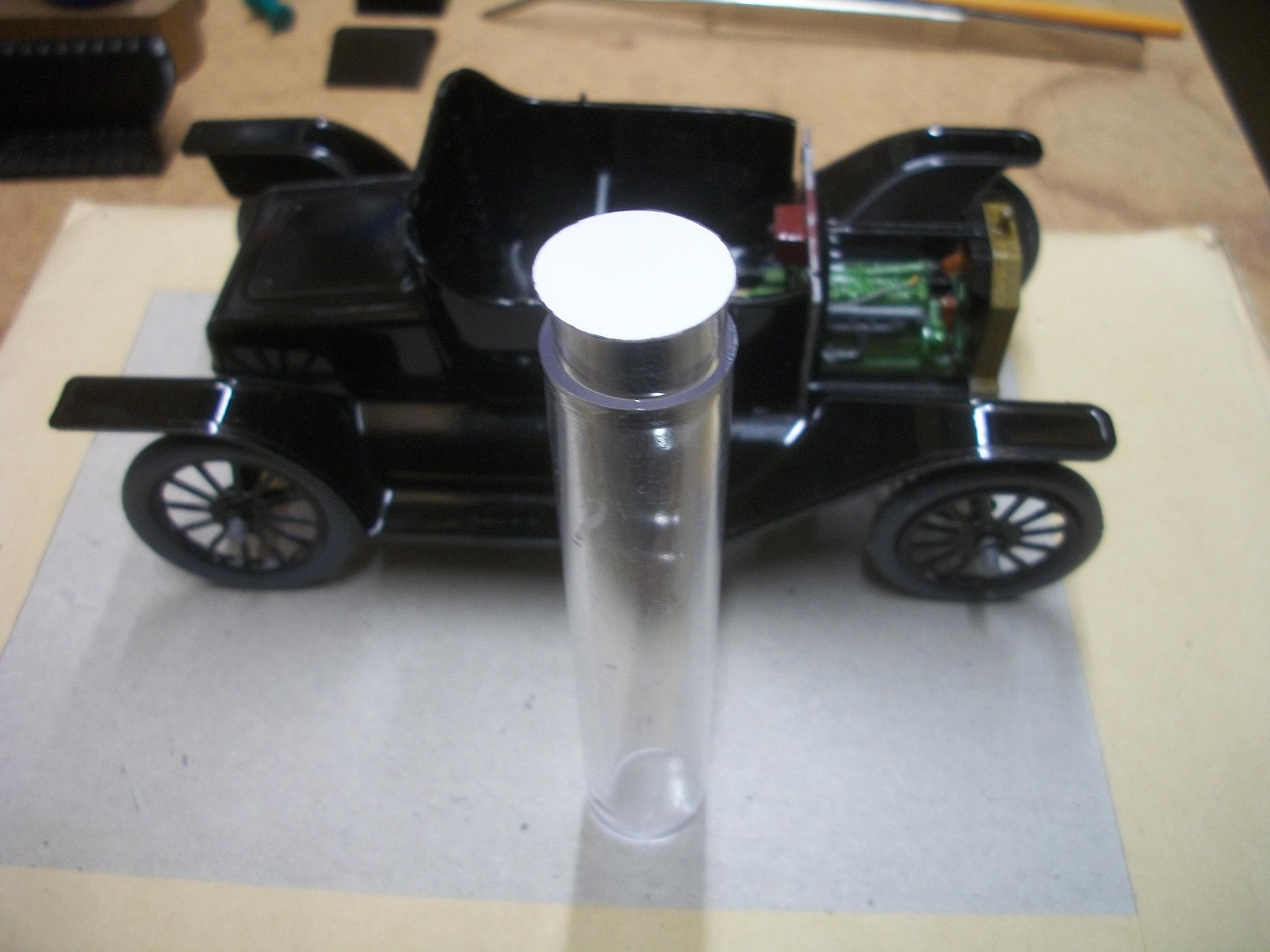

So, the plan now is to make a gas tank from an empty plastic solder container, then glue a circular disc of thin white card to the open end of the container, paint the tank in aluminium enamel and glue the tank inside the under seat space . . .The seat can be placed on top of the tank, with no glue needed, allowing the tank to be viewed easily. A filler cap can also be added to reproduce the tank accurately.

David
