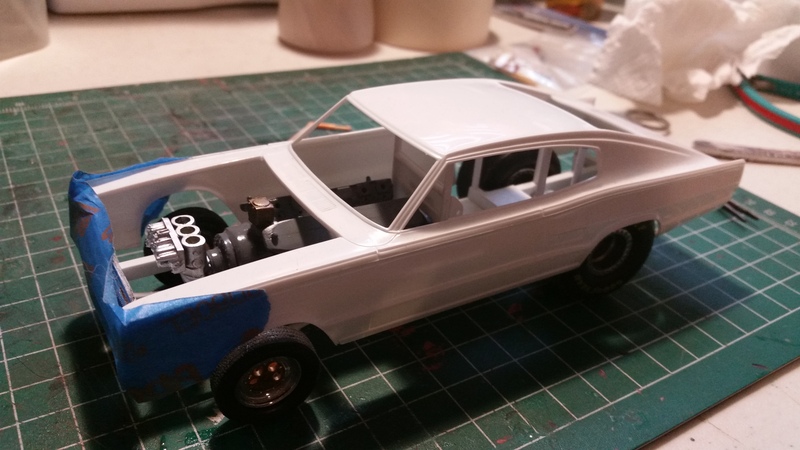

Jantrix Posted December 21, 2014 Share Posted December 21, 2014 (edited) Okay here's my WIP thread for this project, take 2. I'm using the Revell '67 Charger body/chromy bits/glass. The engine and a few random parts from the AMT Allison Thunderland Thunderbird kit. The rest is from the parts bins or scratch-built. Here's what I have so far. There' been quite a bit of trial and error to get the stance and wheelbase squared away. I'm still up in the air on decals/graphics for this project. So if anyone has any suggestions I'm all years. Planning on Inca gold for the color. Let me know whatcha think. Edited May 8, 2018 by Jantrix 1 Quote Link to comment Share on other sites More sharing options...
rustybill1960 Posted December 21, 2014 Share Posted December 21, 2014 (edited) I am ready to watch the out come Thank you for sharing Later Russ Edited November 11, 2015 by rustybill1960 Quote Link to comment Share on other sites More sharing options...
Ace-Garageguy Posted December 22, 2014 Share Posted December 22, 2014 Looks good, perfect for a wild and crazy exhibition car, tire-smoking all the way down the 1320. Quote Link to comment Share on other sites More sharing options...
Jantrix Posted December 22, 2014 Author Share Posted December 22, 2014 I'm not really going for a period piece. Just something wild. The engine hangs very low in the chassis, so the ride height is a matter of necessity. If I raise the engine it no longer fits under the body. Leaf springs were the easiest to engineer with the parts I had on hand. Thanks for you input though, much appreciated. Quote Link to comment Share on other sites More sharing options...
Jantrix Posted December 30, 2014 Author Share Posted December 30, 2014 (edited) Some more chassis work. Got my front/rear roll bars in place (braces and supports in progress), tranny hump and brackets for the steering. There's not a lot of reference photos for a car like this so I'm winging a lot of it. Still got to figure how something like this runs through the gears. I've got no idea what sort of tranny is on it. Edited May 8, 2018 by Jantrix 1 Quote Link to comment Share on other sites More sharing options...
vintagedragcrazy Posted December 30, 2014 Share Posted December 30, 2014 I like it I just did pretty much the same but used a 57 nomad body on mine (under drag racing) but the charger is going to be awesome. Vince Quote Link to comment Share on other sites More sharing options...
Jantrix Posted December 30, 2014 Author Share Posted December 30, 2014 (edited) More chassis work Edited May 8, 2018 by Jantrix 1 Quote Link to comment Share on other sites More sharing options...
rustybill1960 Posted February 20, 2015 Share Posted February 20, 2015 Did this one get shelved for other projects? Quote Link to comment Share on other sites More sharing options...
Jantrix Posted February 21, 2015 Author Share Posted February 21, 2015 Yep, but it hasn't been put away. I'm away on business for a couple of months. I'll be back at it when I get back. Thanks for checking in. Quote Link to comment Share on other sites More sharing options...
Jantrix Posted May 6, 2015 Author Share Posted May 6, 2015 (edited) Folks I'd like to ask you to help me come up with some sort of idea for some cool door art like you would see on a 60's-70's dragster. I've no problem using something from another kit or aftermarket vendor, it just needs to fit the build. Right now my only idea is the using the "BOSS" declas that come with the '67 kit. I could use some input. The paint color is not set yet, it will depend on the decals. And yes, this is back on the bench. New photos soon. Edited May 6, 2015 by Jantrix Quote Link to comment Share on other sites More sharing options...
Erik548 Posted May 7, 2015 Share Posted May 7, 2015 Tell me what you think of my work. Criticisms, comments and sarcastic remarks are kindly welcome. I'm a big boy, I can take it. it would look better if you worked on it more Quote Link to comment Share on other sites More sharing options...
Jantrix Posted May 7, 2015 Author Share Posted May 7, 2015 it would look better if you worked on it more Why didn't I think of that? It's back on the bench, and I'll do the best I can to get it done. Quote Link to comment Share on other sites More sharing options...
mustang1989 Posted May 7, 2015 Share Posted May 7, 2015 Hey.............this is alright Rob!!! Quote Link to comment Share on other sites More sharing options...
Erik548 Posted May 8, 2015 Share Posted May 8, 2015 Why didn't I think of that? It's back on the bench, and I'll do the best I can to get it done. isnt that the point of a model car forum? when your so close to the answer but cant figure it out we help you? Quote Link to comment Share on other sites More sharing options...
Maindrian Pace Posted May 8, 2015 Share Posted May 8, 2015 (edited) Folks I'd like to ask you to help me come up with some sort of idea for some cool door art like you would see on a 60's-70's dragster. I've no problem using something from another kit or aftermarket vendor, it just needs to fit the build. Right now my only idea is the using the "BOSS" declas that come with the '67 kit. I could use some input. The paint color is not set yet, it will depend on the decals. And yes, this is back on the bench. New photos soon. A great name for it would be ReCharged in wavy '60s style lettering on the sides. -MJS Edited May 8, 2015 by Maindrian Pace Quote Link to comment Share on other sites More sharing options...
slusher Posted May 9, 2015 Share Posted May 9, 2015 Here something i found http://www.ebay.com/itm/Gassers-Rat-Rod-Custom-Bad-Hombre-Decals-1-25th-1-24th-Scale-Slixx-8015-/400898832620?pt=LH_DefaultDomain_0&hash=item5d576eb8ec This guy has great decals... http://firebird-designs.ecrater.com/p/17175641/that-old-black-magic Quote Link to comment Share on other sites More sharing options...
Jantrix Posted May 11, 2015 Author Share Posted May 11, 2015 Thanks a lot Carl. Quote Link to comment Share on other sites More sharing options...
Ira Posted May 11, 2015 Share Posted May 11, 2015 Great Project Rob! Quote Link to comment Share on other sites More sharing options...
Jantrix Posted May 11, 2015 Author Share Posted May 11, 2015 (edited) Thanks Ira. I'm a lot further along right now, but work/life has been keeping me off the bench. The engine is painted and being assembled. I just have to fabricate front shock mounts and the gas tank/mounts and I'll be ready to paint the chassis. I'm going to modify the rear bumper to allow for a parachute. And thanks to Carl, I have settled on this set of decals. http://firebird-designs.ecrater.com/p/16316481/big-noise-gasser-decal-set# I'll need two sets though to get the 1710ci correct though. Now I just have to find a color that goes well with the decals. Edited May 11, 2015 by Jantrix Quote Link to comment Share on other sites More sharing options...

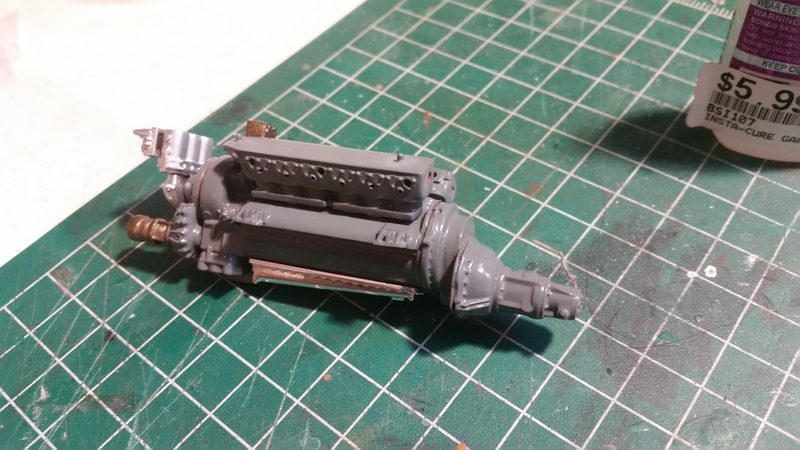

Jantrix Posted May 12, 2015 Author Share Posted May 12, 2015 (edited) Suspension work. I added some coil overs to help with the weight of that beast of a motor. The engine has been modified to get rid of the aircraft gearbox and added a modified tranny. I'm going to come up with a scoop over the carb, I'm not sure how yet. It's a little forward for the standard Mopar scoops to look correct, so I'll come up with an alternative. It sits a little high but due to the size of the motor, it would be double tough to get it lower. More soon. Edited May 8, 2018 by Jantrix 1 Quote Link to comment Share on other sites More sharing options...
blazefox Posted May 12, 2015 Share Posted May 12, 2015 I tryed doing this with with a Torino yours looks so much better great job Quote Link to comment Share on other sites More sharing options...
Jmaracing Posted May 12, 2015 Share Posted May 12, 2015 Great job!! Quote Link to comment Share on other sites More sharing options...
Jantrix Posted May 14, 2015 Author Share Posted May 14, 2015 Thanks guys. This weekend I'll be removing the aircraft carburator and adding a plenum and twin dominator carbs, which I have seen done on some automotive Allison applications. I'll also be reversing the headers and creating a front fenderwell dump. Quote Link to comment Share on other sites More sharing options...
Jantrix Posted May 17, 2015 Author Share Posted May 17, 2015 (edited) More chassis work. After some engineering discussion with Ace-Garageguy (thanks Bill) I decided to add more support to the front of the chassis. I'll add some braces at the weld points and at least one triangulation bar after I get the exhaust figured out, and a bolt-in cross bar that will run between the rails, located between the magneto and the carbs. I've also added a tranny support. More soon. Edited May 8, 2018 by Jantrix Quote Link to comment Share on other sites More sharing options...
Jantrix Posted May 17, 2015 Author Share Posted May 17, 2015 (edited) Here's the planned decals. I'm going to put them over Inca Gold. Edited May 8, 2018 by Jantrix 1 Quote Link to comment Share on other sites More sharing options...
