What have I gotten myself into? P/S Mustang - 9/18 - hood & spoiler update

130 posts in this topic

Posted (edited) · Report post

I began this project sometime back to give myself a break from my Fairmont and business stuff. This is going to be a full throttle effort to capture as many details as possible of a contemporary Mustang pro stock body. So far I havent messed it up, but theres no guarantee itll be anything but a pile o plastic if things dont go according to plan.

As can be seen, the stock body has been removed from the beltline down and replaced with flat panels made out of .040 sheet styrene. Lower door lines have been scribed into the panels and a narrow lip added down at the "rocker panels".

Another alteration has been lengthening and tapering the rear deck along with adding new panels behind the rear wheel well openings.


I successfully pieced together the hood and lengthened it to correctly match up with the lengthened nose. From the centerline of the front wheel well openings to the nose is a scale 45 inches.


Rear wheel wells were opened up and were very recently fitted with much wider lips. More work still needs to be done to get the proper radius on the wheel well openings and match the lips up more with the 1:1s.
NewMustandandslickpics011_zps5fde48b7.jp

Accordingly, the front wheel well openingss have been drastically reduced in size, fore and aft, and the upper arch of the opening lowered.
NewMustandandslickpics002_zpsb962674e.jp
Will call this set of pics good. Will post more later.

Edited by futurattraction

Share this post


Link to post
Share on other sites

Posted · Report post

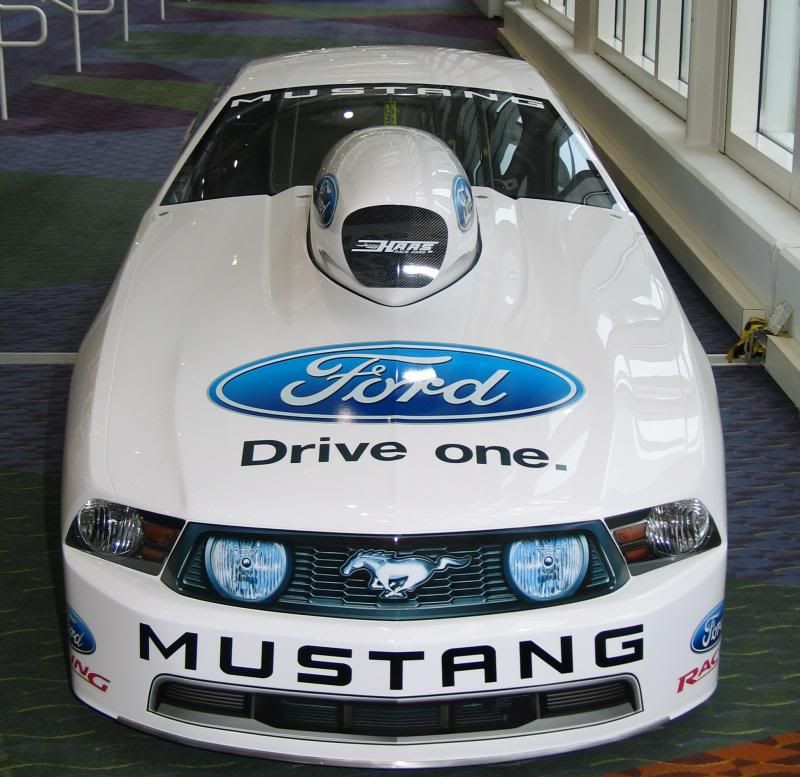

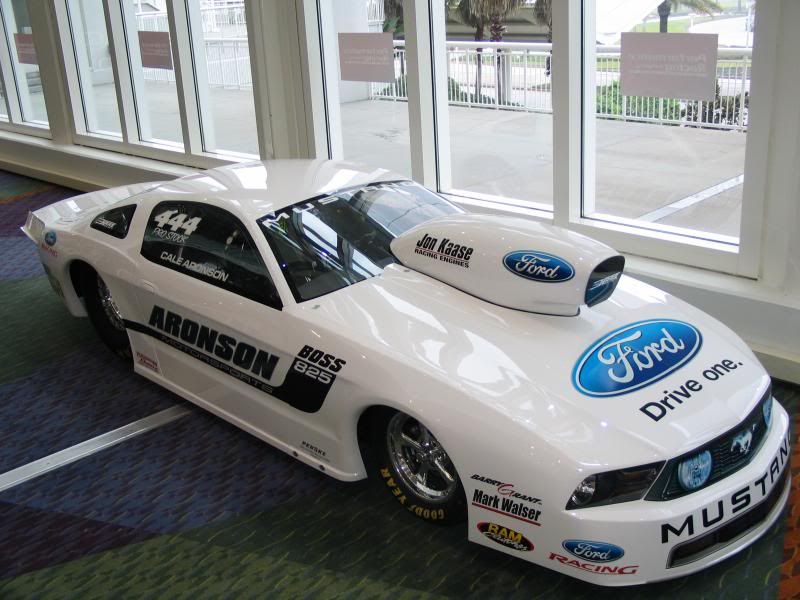

I'll start this entry by posting a couple pictures of what has provided much of the inspiration for this project, Cale Aronson's car:

cale-aronsons-10-pro-stock-mustang-gt-is

the-car-is-powered-by-a-jon-kaase-built-

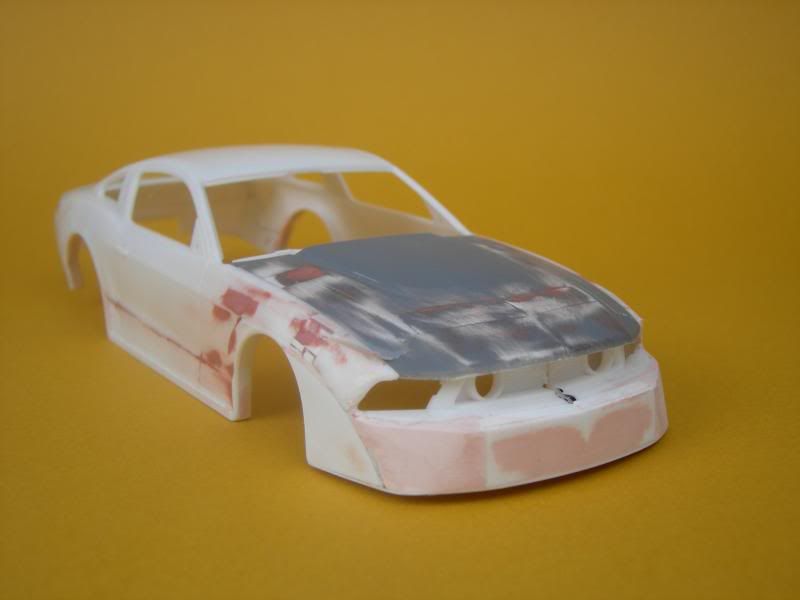

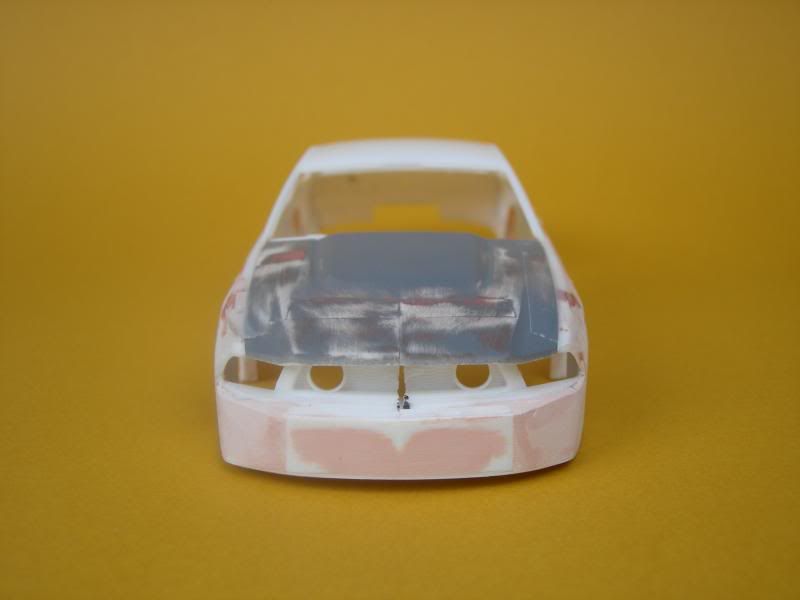

There was a lot of rework I had to do to get the front air dam to look similar to the 1:1s. I messed my first effort up and have something that looks a whole lot closer now. It still needs a bit more massaging, but at least it's getting there.

NewMustandandslickpics004_zpsd1b25ba7.jp

NewMustandandslickpics005_zpsb1ec41a6.jp

I’m to the point where it’s make-or-break time. There are three major changes I want to make to the body to accurately replicate the 1:1 cars: narrow/taper from front to rear, bulge the hood to reduce frontal area and narrow the roof and taper the upper the windshield and B-pillars out into the upper body sides.

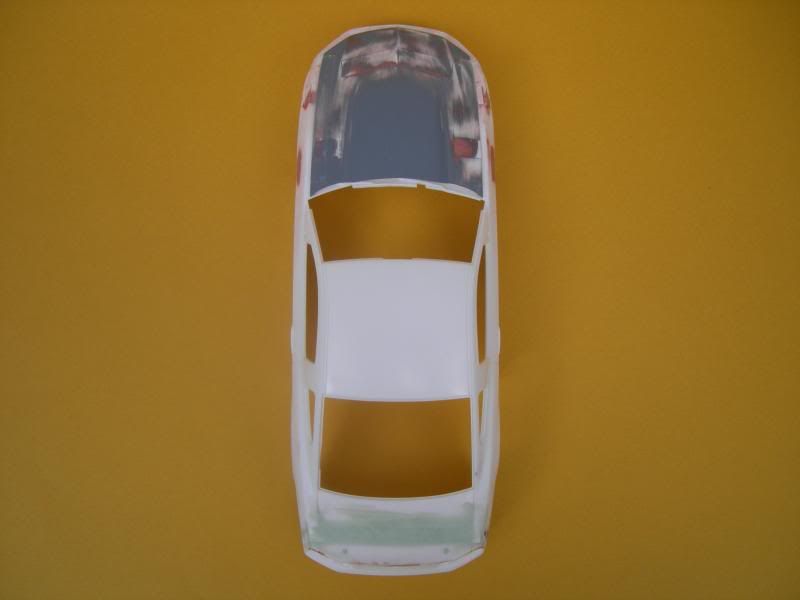

This direct overhead shot shows what the body looks like in its current configuration - soon to change!

NewMustandandslickpics016_zpsf562c666.jp

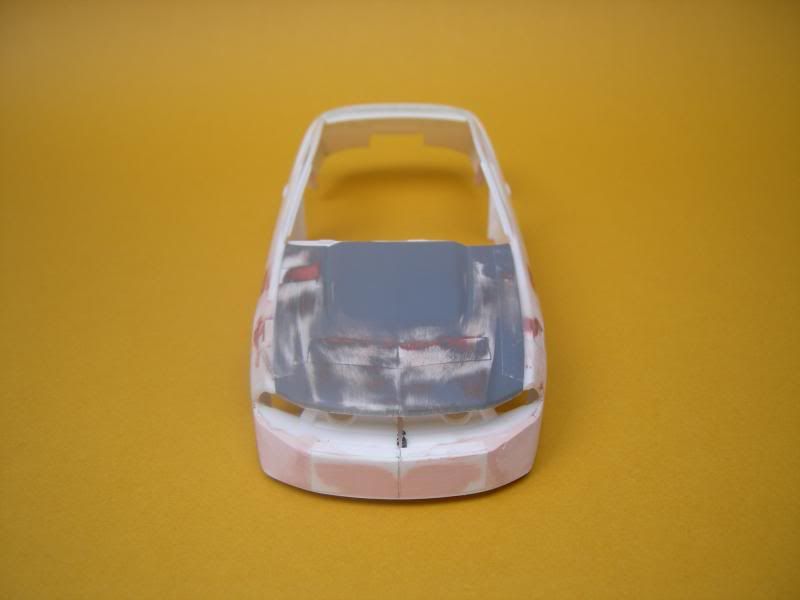

As you see, I’ve taken the first, no-going-back-now step. I removed the roof panel as one piece, from door to door.

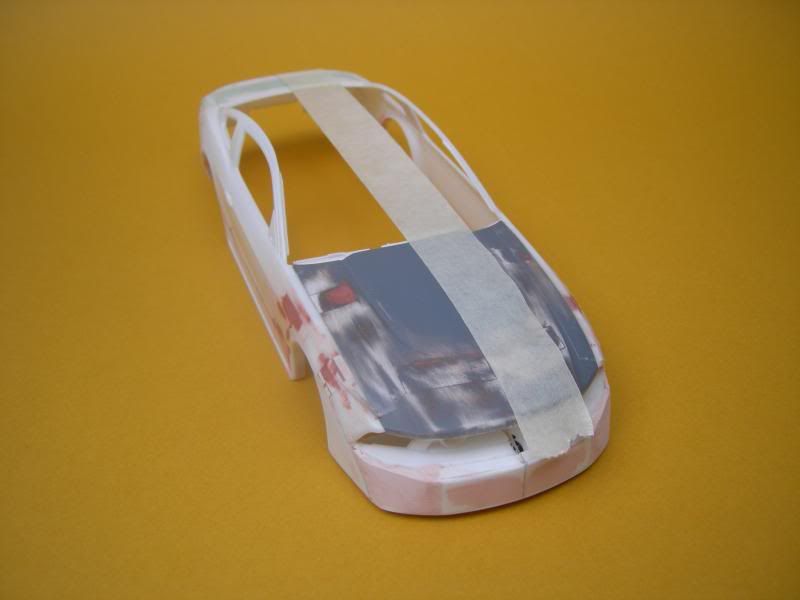

I laid out the centerline of the body and measured outboard the appropriate amount to allow the the narrowing and tapering I'm going for.

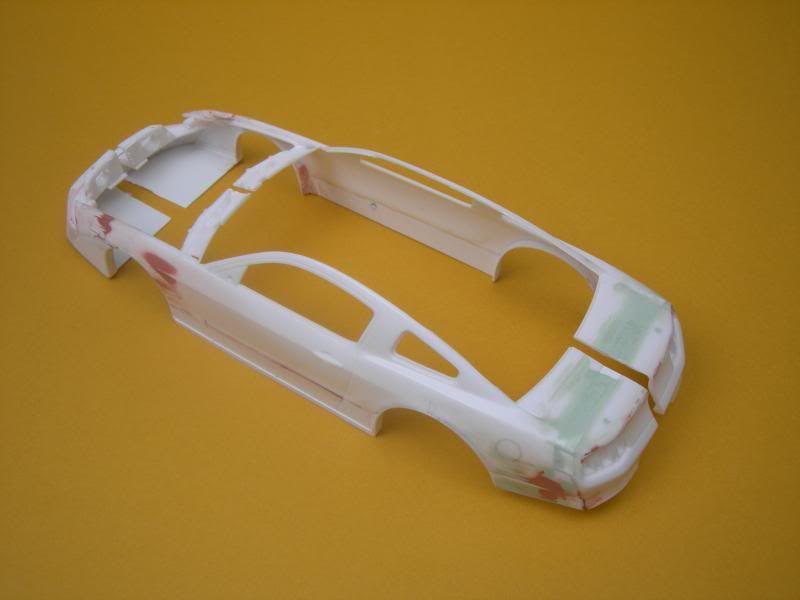

Results from this round of surgery, LOL

SplitMustangampside-by-side005_zpsb042de

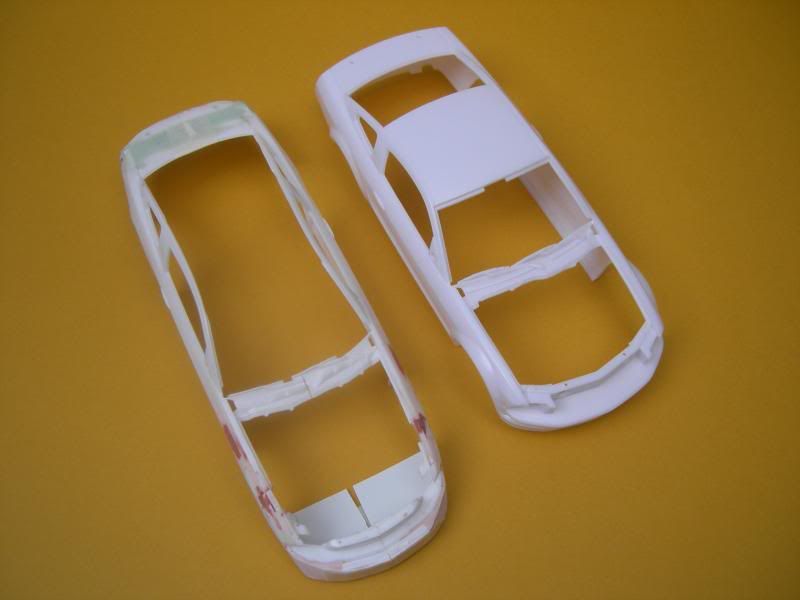

Here is a revealing shot of how the altered body compares to a stone stock 2006 'Stang.

SplitMustangampside-by-side001_zps495ab2

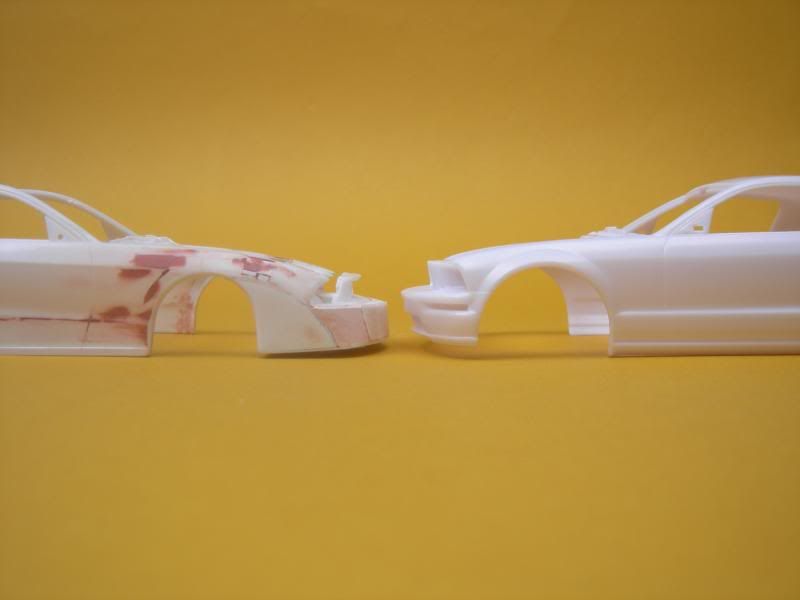

Nose-to-nose comparison...

SplitMustangampside-by-side004_zpsfbc259

More later... Comments welcome.

Share this post


Link to post
Share on other sites

Posted (edited) · Report post

HA!! Welcome to my world. (I edited that way down in honor of your Christian beliefs...)

I know we exchanged a pm or two on this, but if you want i can send you some of the measurement I used on my P/S Mustang build. I have an NHRA approved blueprint of the Five Star Race Car Bodies 2012 Pro Stock Camaro that I used as a reference for how much to cut the body. I can post them or send them to you by PM or email.

Key for the NHRA are these. They are consistent across all brands in current competition.

width at the B post - 2.63 inches / 67mm

wheelbase - 4.2 in / 107mm

overall height - 1.76 / 45mm

width over rear axel - 2.65 / 67mm

All these have been scaled down to 1:25 from the 1:1 measurements. If you stacked all the current Pro Stock cars up, all these numbers would match. The cars have RF chips implanted in the bodies and they run them under scanners to make sure they match the blueprint.

You're on your own if you ever decide to try a P/S Camaro. The wheel wells are so different from stock that they are more like a funny car that a stock car. The body is also narrowed more in the front than the center, which makes for a very difficult mod.

It's a model car, though. That's my standard disclaimer... :)

EDIT: Also note that the grill is airbrushed on but the headlights work. I recommend a two part epoxy putty called Milliput for some of the more radical body work. It fills well, sands smooth and acts as a strong adhesive to hold what is now a severely compromised body together. I used the contemporary Mustang grill from one of the Slixx decal sheets (Pro Mod Grills) on mine. I wound up filling the headlights because I did the front end crazy.

Dale

Edited by ScaleDale

Share this post


Link to post
Share on other sites

Posted · Report post

Awesome project Scott... I love where this is going.....

Share this post


Link to post
Share on other sites

Posted · Report post

Thanks Dale! I'd appreciate any more info you care to share... :)

Share this post


Link to post
Share on other sites

Posted (edited) · Report post

Thanks Tyrone. Coming from you, it means a lot... If worse comes to worst, I can always turn it into a roadster! LOL

Edited by futurattraction

Share this post


Link to post
Share on other sites

Posted · Report post

Scott, man your off to a great start, good luck to you and I'm loving it, go for it, your doing a fine job!

Share this post


Link to post
Share on other sites

Posted · Report post

I hope this means something coming from someone whose builds take on a life of their own no matter how well intended my original plan is.

Good Luck With That !!!!!!!!!!

Awesome start to, what I'm certain will be an ultra kewl finished project.

What ???? I'm out of popcorn ??? Guess I'll have to go to my backup...........BROWNIES. Num.

Share this post


Link to post
Share on other sites

Posted (edited) · Report post

Someone said there was brownies in here so I thought I'd pop in for a few! :D

Scott, looks good thus far. If you do not decide to do it up in resin (hint hint!) at least document it so us other sicko's can have our own version of it please?

I look foward to all the updates on this one. Consider me subscribed!!

Paul

Edited by mr68gts

Share this post


Link to post
Share on other sites

Posted · Report post

Scott: One of the first things I did with my version of this was to get a profile of Larry Morgan's car and scale it to 1:25 in software I have (PhotoShop). Then I measured it and recorded the different dimensions to give a starting point to work from. Here is what I came up with. The wheelbase I scaled it to is an NHRA standard for Pro Stock.

Note: I'll still post my stuff, but a check tells me your reference is built to ADRL Extreme Pro Stock rules and might be different from what I have from NHRA.

ADRL Link: http://www.adrl.us/rules/extreme-pro-stock/


I have more tomorrow if you want.

Dale

Share this post


Link to post
Share on other sites

Posted · Report post

Dale,

Question, what is the 1.1 and the 1.2 line based off of. It looks like it's in the middle of the side wall? I see the leading edge of the wheelwell is part of the 1.2 measurement but the other side (right) is what I'm questioning. And the left side if the 1.1 is the same dimesioning line. Where is this line dimensioned from?

I'm assuming the orange line (just under the quarter window) is the same 1.3 height as the top door plain? (scratch that, I see it says .30 under it) :wacko:

Share this post


Link to post
Share on other sites

Posted · Report post

Nice work, looking great!!

Share this post


Link to post
Share on other sites

Posted · Report post

Lots of slicing and dicing there Scott, but looks like your off to a very NICE start, hanging around for more!! :D I'll have one of those brownies now please!!! :lol:

Share this post


Link to post
Share on other sites

Posted · Report post

looking really good so far Scott, its only plastic has to be pretty far gone to not be able to glue it back together

Share this post


Link to post
Share on other sites

Posted · Report post

Scott this is going to be a masterpiece , I like it a lot .

Good luck buddy.

Leonard

Share this post


Link to post
Share on other sites

Posted · Report post

WOW, scott! you are doing an incredible job. keep up the good work.

jeez, i wish you worked in bigger scales!!!!!!!

Share this post


Link to post
Share on other sites

Posted · Report post

Hey wait! They did do a Mustang in 1/12!!!!!!!! Hmmmmmmm................................. lol

Share this post


Link to post
Share on other sites

Posted · Report post

Great Body Work Scott!

B)

Share this post


Link to post
Share on other sites

Posted · Report post

that's still small scale in my book paul. LOL.

Share this post


Link to post
Share on other sites

Posted (edited) · Report post

Dale,

Question, what is the 1.1 and the 1.2 line based off of. It looks like it's in the middle of the side wall? I see the leading edge of the wheelwell is part of the 1.2 measurement but the other side (right) is what I'm questioning. And the left side if the 1.1 is the same dimesioning line. Where is this line dimensioned from?

I'm assuming the orange line (just under the quarter window) is the same 1.3 height as the top door plain? (scratch that, I see it says .30 under it) :wacko:

All of the red lines got locked together in one layer and I couldn't move them when I found an error. The 1.2 is the width of the rear wheel well (1.25 in a white box) and the 1.1 is the length of the rear overhang measured from the back of the wheel well. The overall length is off by 0.05 inches if you add it all up due to rounding to the nearest 1/10 of an inch. Sue me... :)

The 0.3 is the distance from the bottom of the rear window to the top of the rear wheel well.

Dale

Edited by ScaleDale

Share this post


Link to post
Share on other sites

Posted · Report post

Dale,

Where is the 1.25 rear wheel well opening you referenced being measured at? Most of my other dimensions are spot on or are at least within what I believe are allowable tolerances. What is the prescribed/standard rear tire diameter for this class these days?

Share this post


Link to post
Share on other sites

Posted · Report post

scott, 33.5-17-16 tires are used. goodyeaqr only in nhra. 16x16 beadlocks are mandatory.

Share this post


Link to post
Share on other sites

Posted · Report post

Thanks Dave! Do you know what the real world dimensions of the tires are? OD, section width and tread?

Share this post


Link to post
Share on other sites

Posted · Report post

i can only give you the goodyear sites info. i never ran the goodyear 2200 tire so i don't know it's characteristics.

tire o.d.- 33.8

circumference- 105

section width- 20.5

tread width_17.4

i can tell you they will get bigger in o.d. and width after 3-4 good burnouts. how much really depends on a lot of factors.

Share this post


Link to post
Share on other sites

Posted (edited) · Report post

Dale,

Where is the 1.25 rear wheel well opening you referenced being measured at? Most of my other dimensions are spot on or are at least within what I believe are allowable tolerances. What is the prescribed/standard rear tire diameter for this class these days?

Wheel well at widest point measured directly from the scaled photo. Here's another I worked up from an artists rendition.


Dale

EDIT: I have what Competition Resins sells as current Pro Stock tires, and they seem big. I'll measure them and post later.

Edited by ScaleDale
