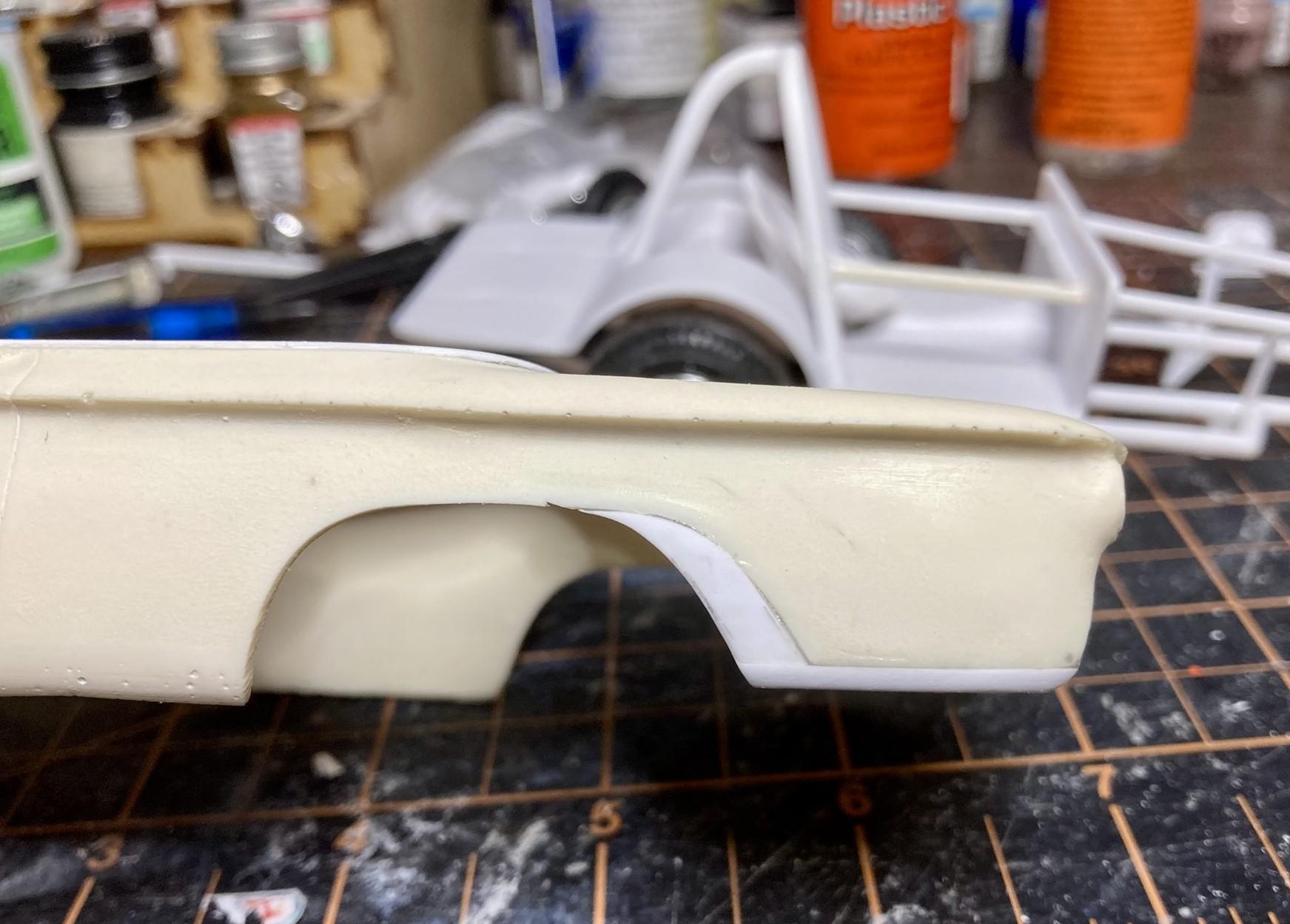

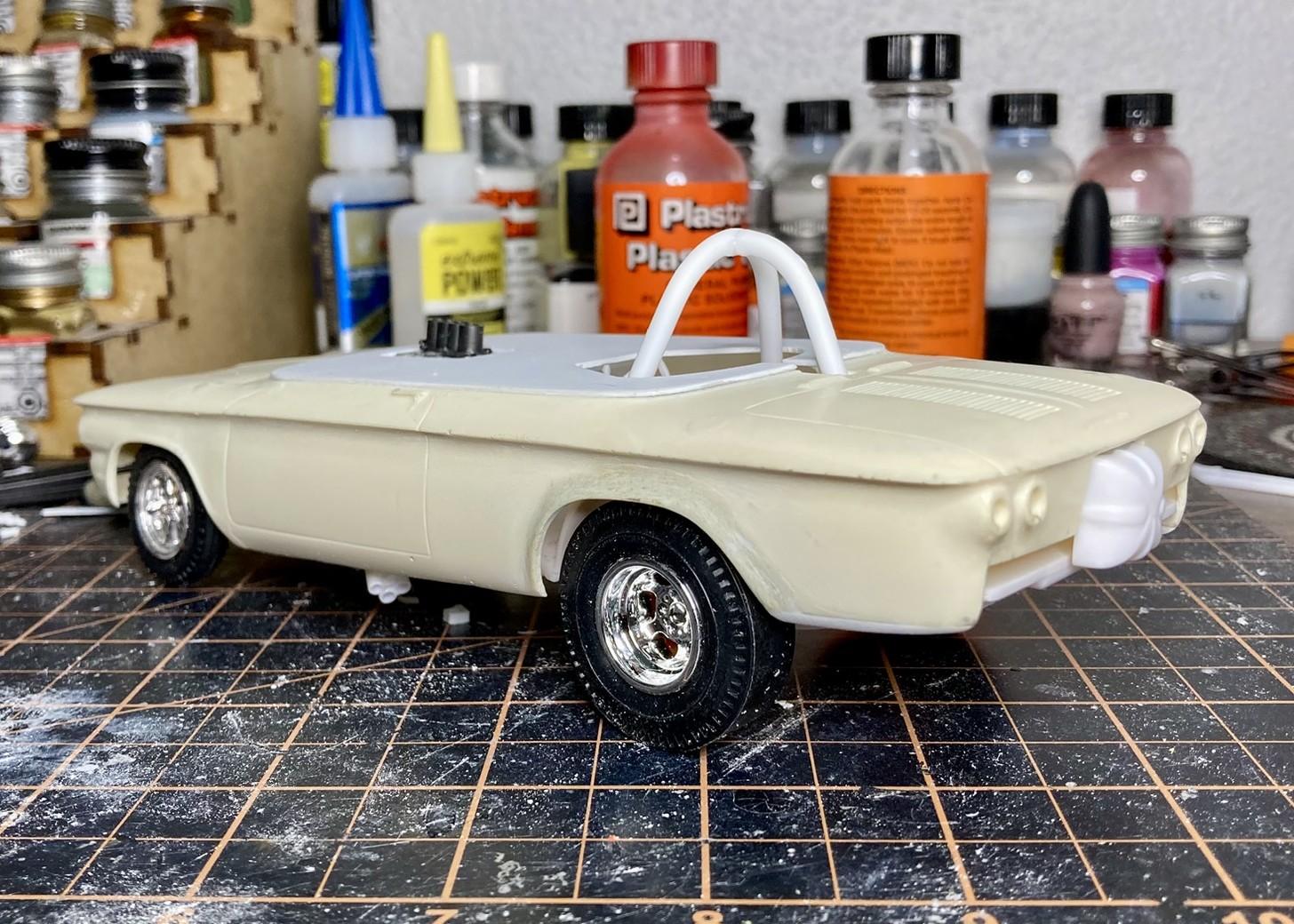

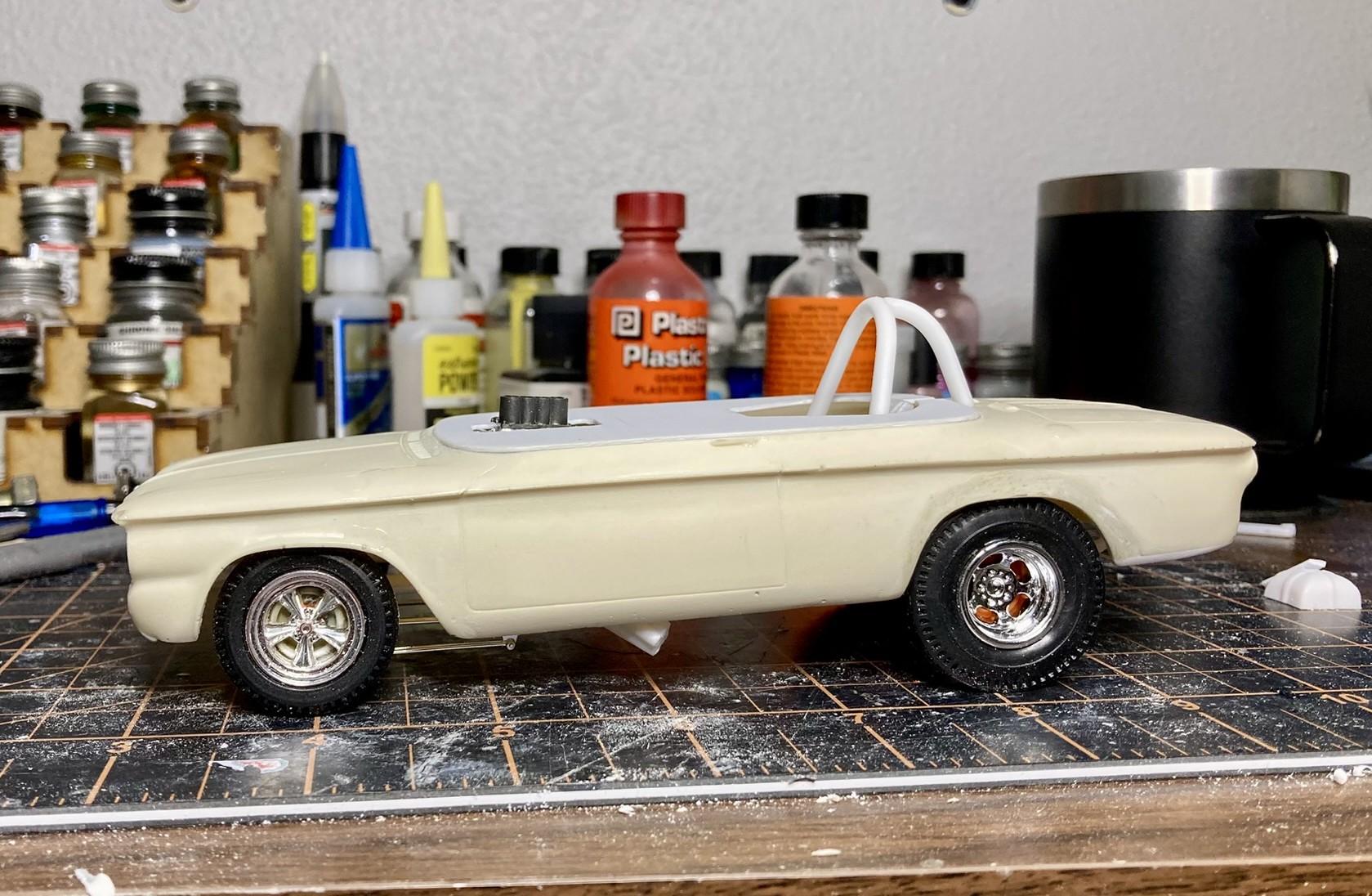

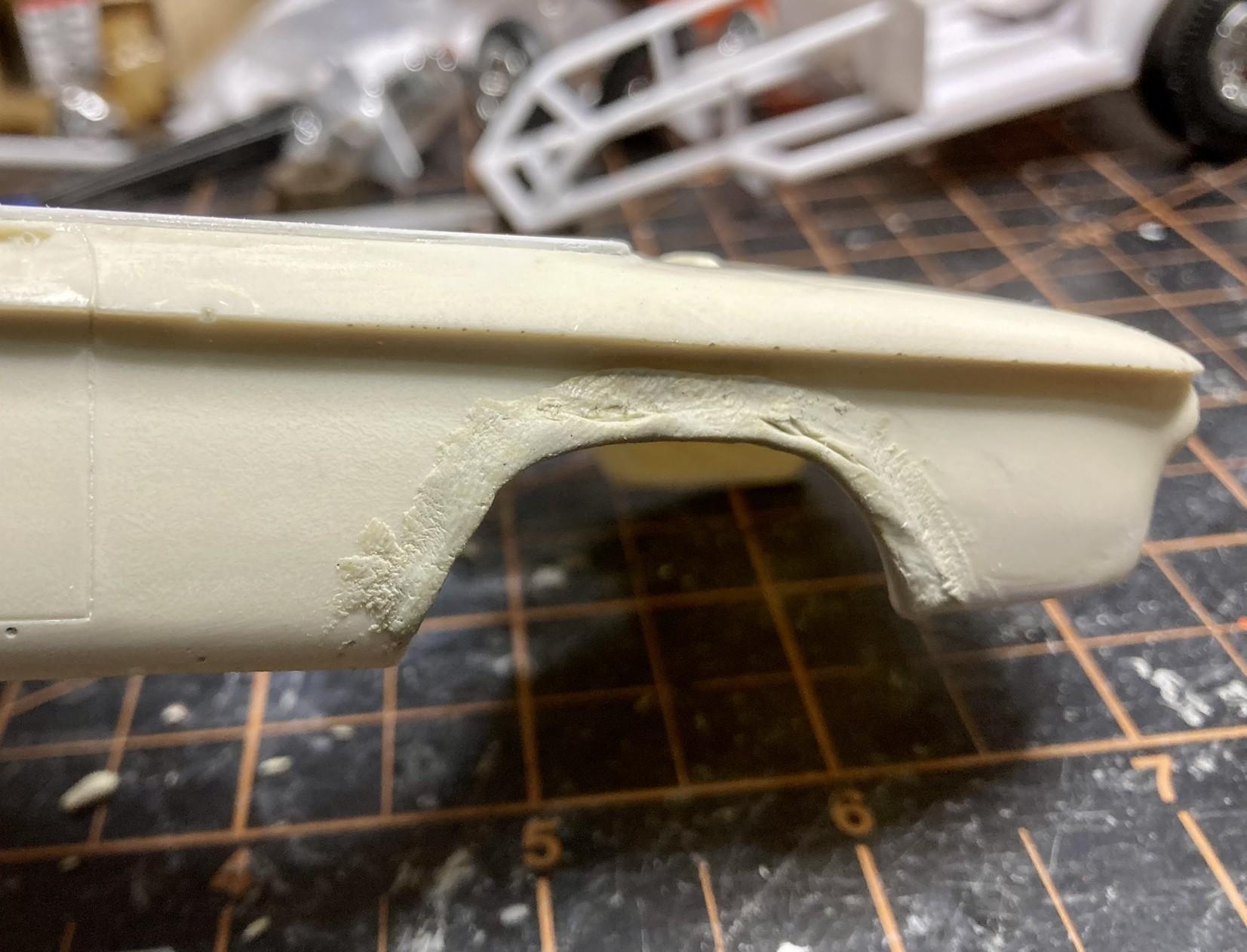

Worked on this one just a little every day this week. I decided to fill in the rear part of the the wheel opening in the quarters. I extended them forward to match the offset to the front, then added just a little to the bottom since they looked too short. Smoothed all of that out, then mixed up some 2-part putty to rebuild the wheel lips. Got those sanded down this morning. Its hard to see what they look like but once I get a coat of primer on this thing they'll show up. I also got the tonneau cover made and glued on. I might do a little more work on the openings later, the steering column still needs a gauge panel so will probably have to make room for that plus I'll add a small lip for a "Lexan" wind deflector in front of the cockpit. The injection unit is going to get a Surfer scoop. I'm also starting to think I will re-make the roll hoop and support. They are too big in diameter and I didn't mind that originally, but this project has started to take a little more serious turn and I think it deserves a little more realism.

I loved this ere of hot rodding when I was a kid. I've got a "full detail" Aluma Coupe and CheZoom to build myself.

Never seen that kit before, very cool!!

It seems to have held up a little better than that Dodge!

Gorgeous!

Made a stop at Summit Racing this morning an found this really clean Fox body in one of my favorite colors.

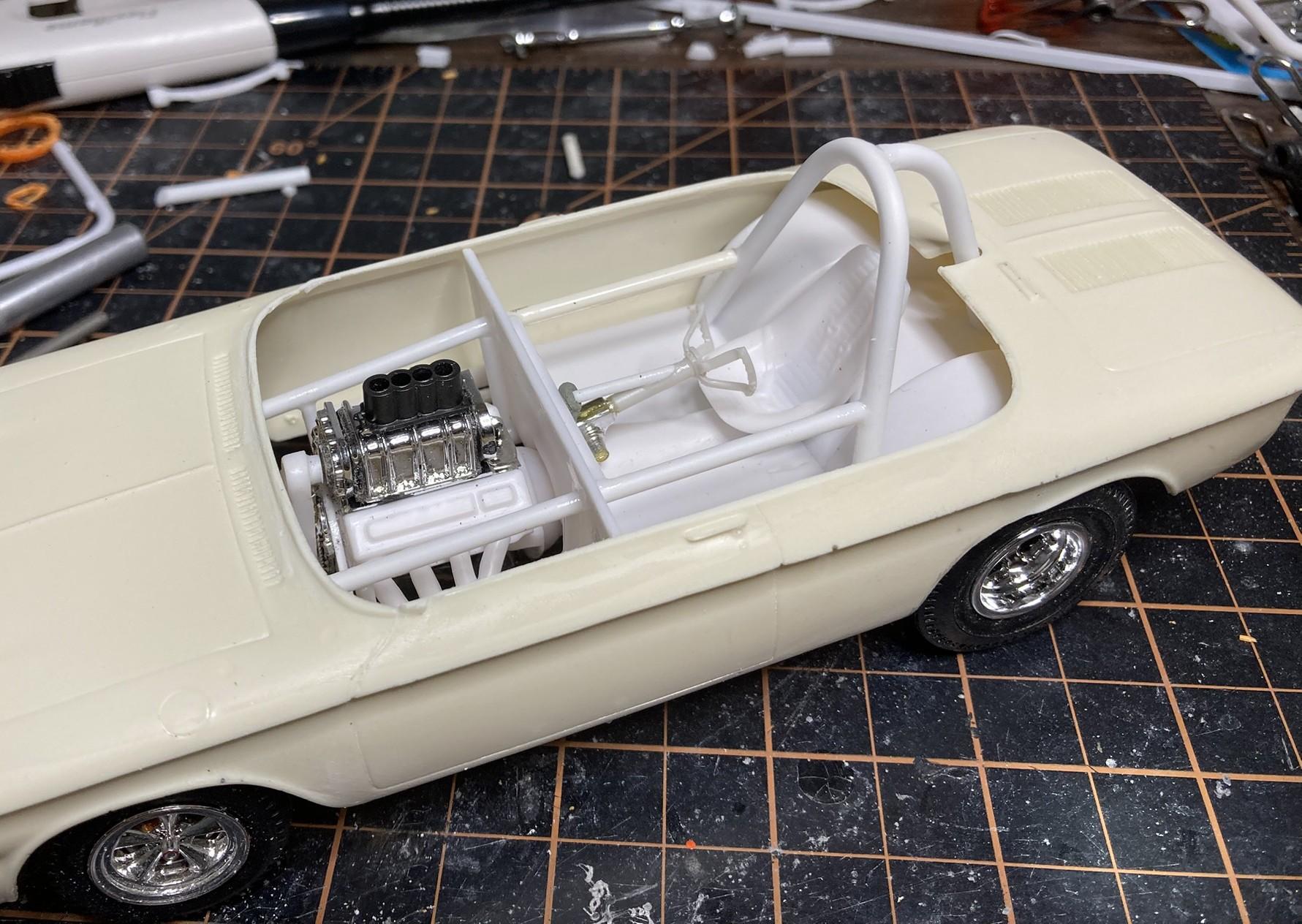

I originally thought this would be a pretty simple build. But I couldn't help but get a little more serious with the chassis. Theres a lot of superglue reinforcement on the joints that I'll shape and sand later. Needed a place to mount the steering box so I had to build the upper half of the framework. I think I'll remake the motor plate to mount to the frame upright bars in that area now. The steering wheel was a 4-spoke I think from a '65 GTO kit that I trimmed and bent. Started getting the body ready for the main cover panel, flattening the opening some and shaving the wipers.

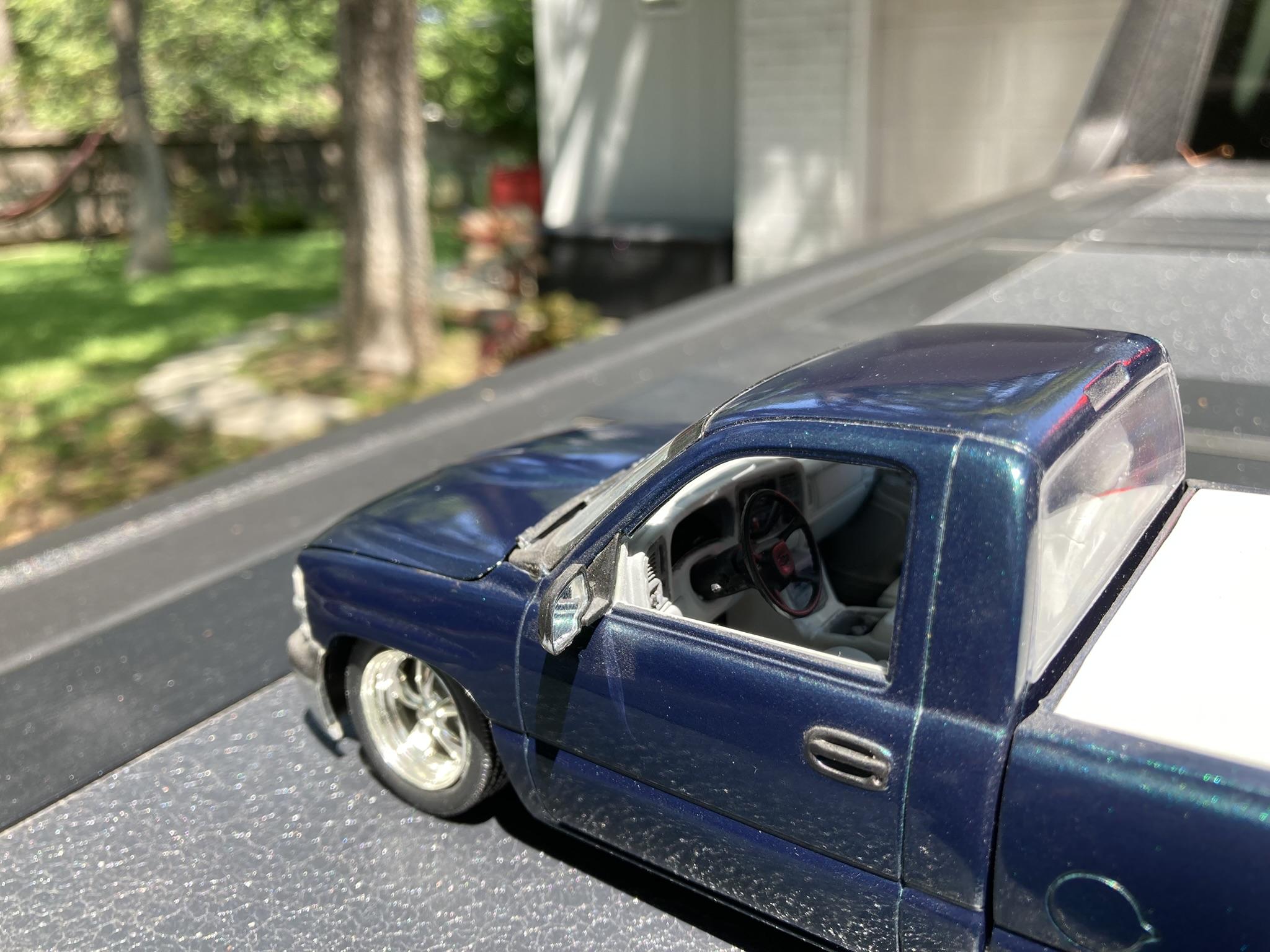

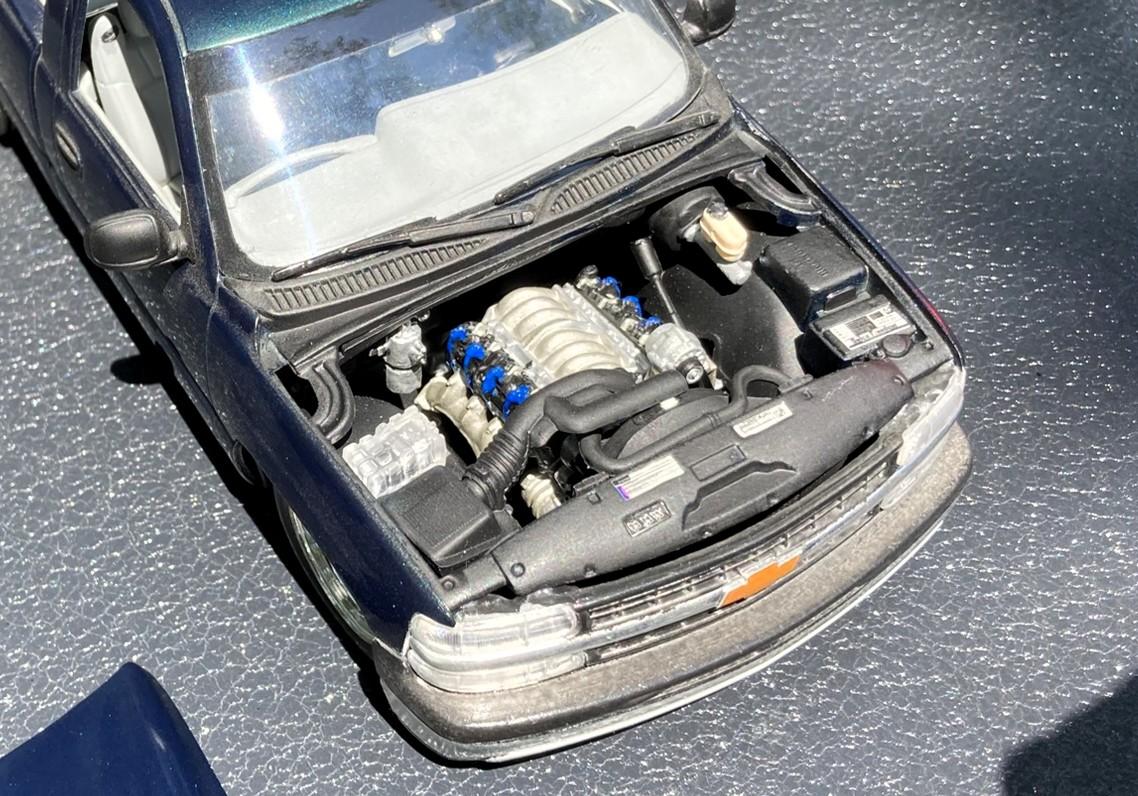

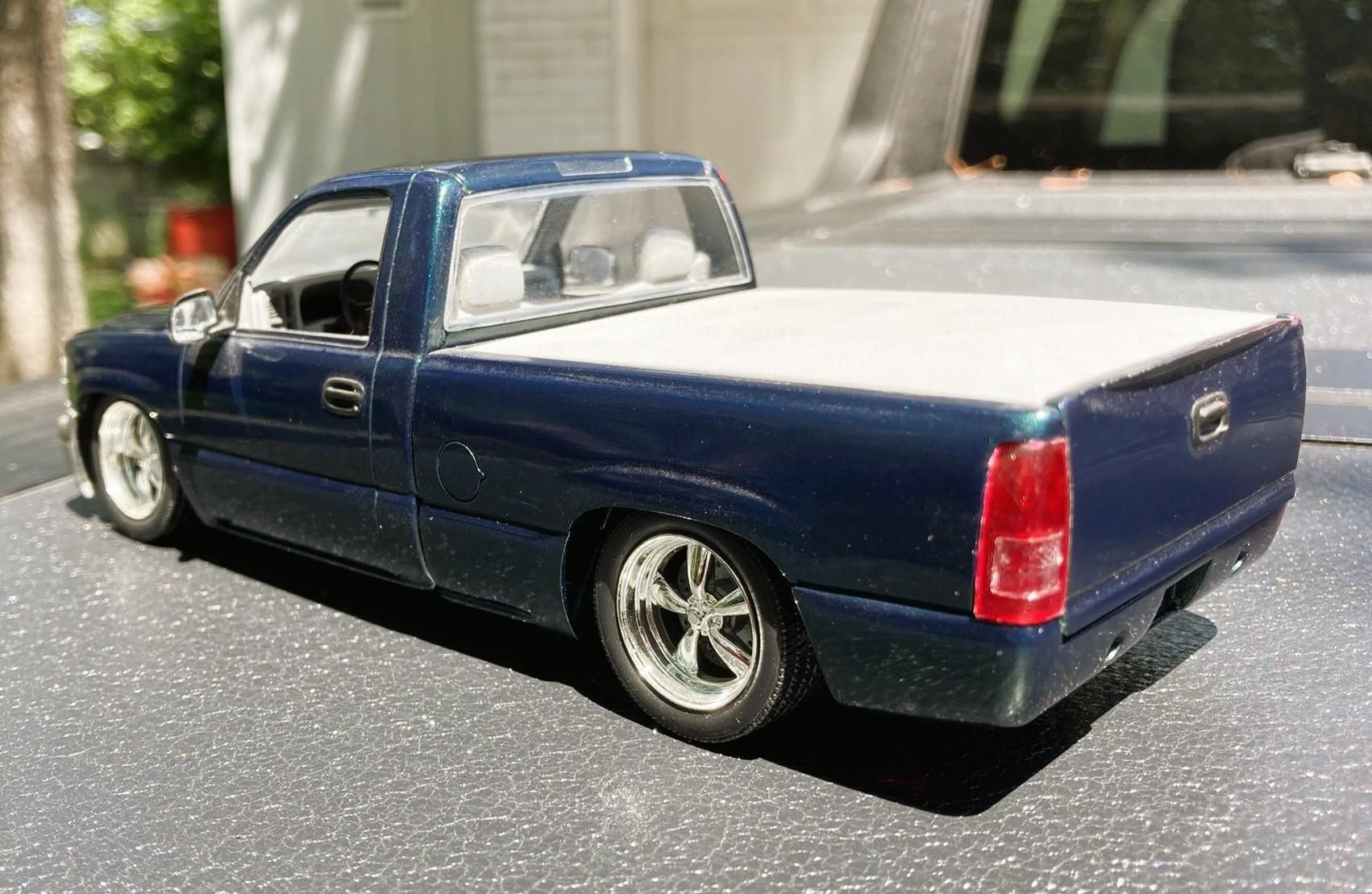

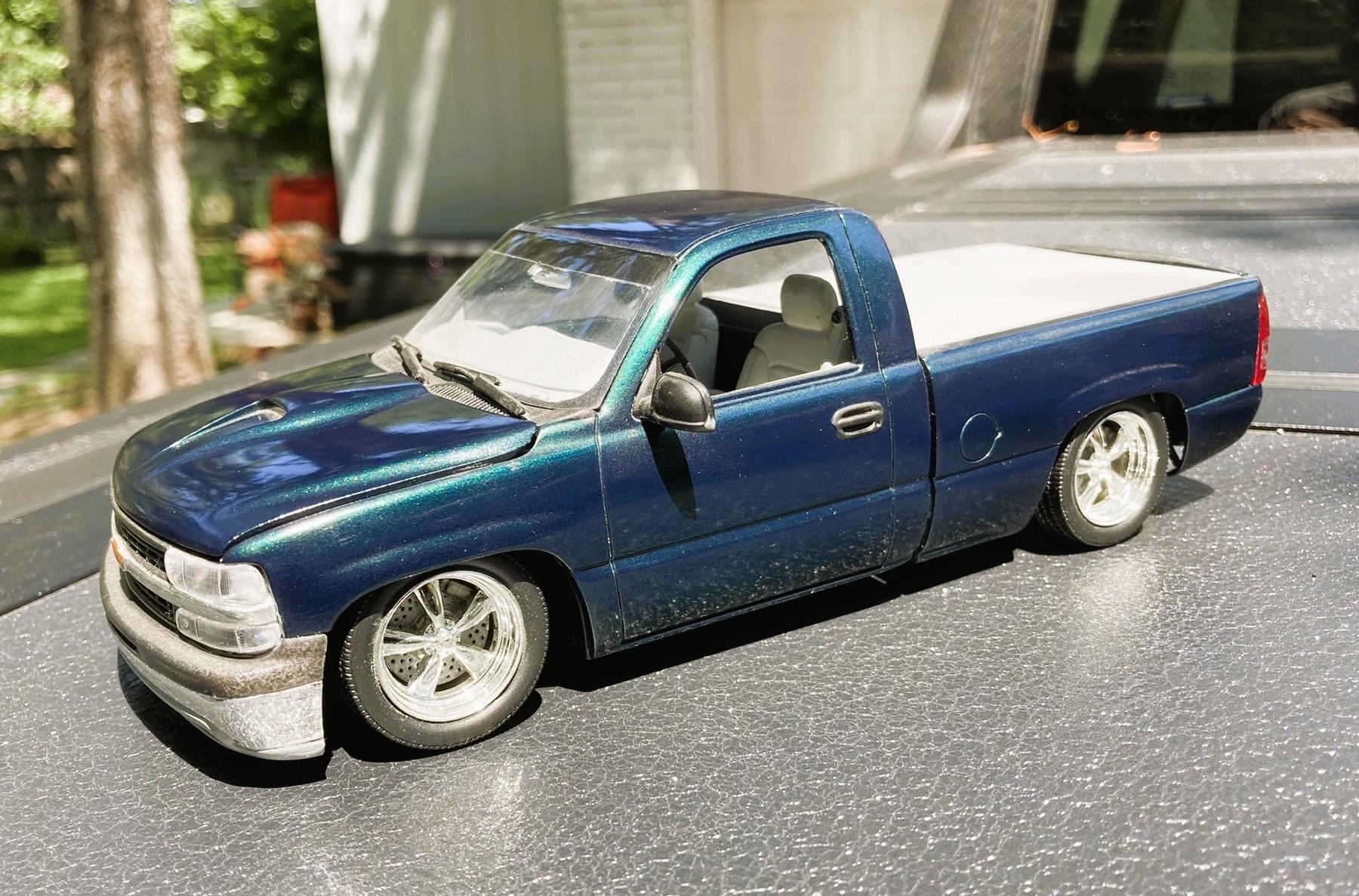

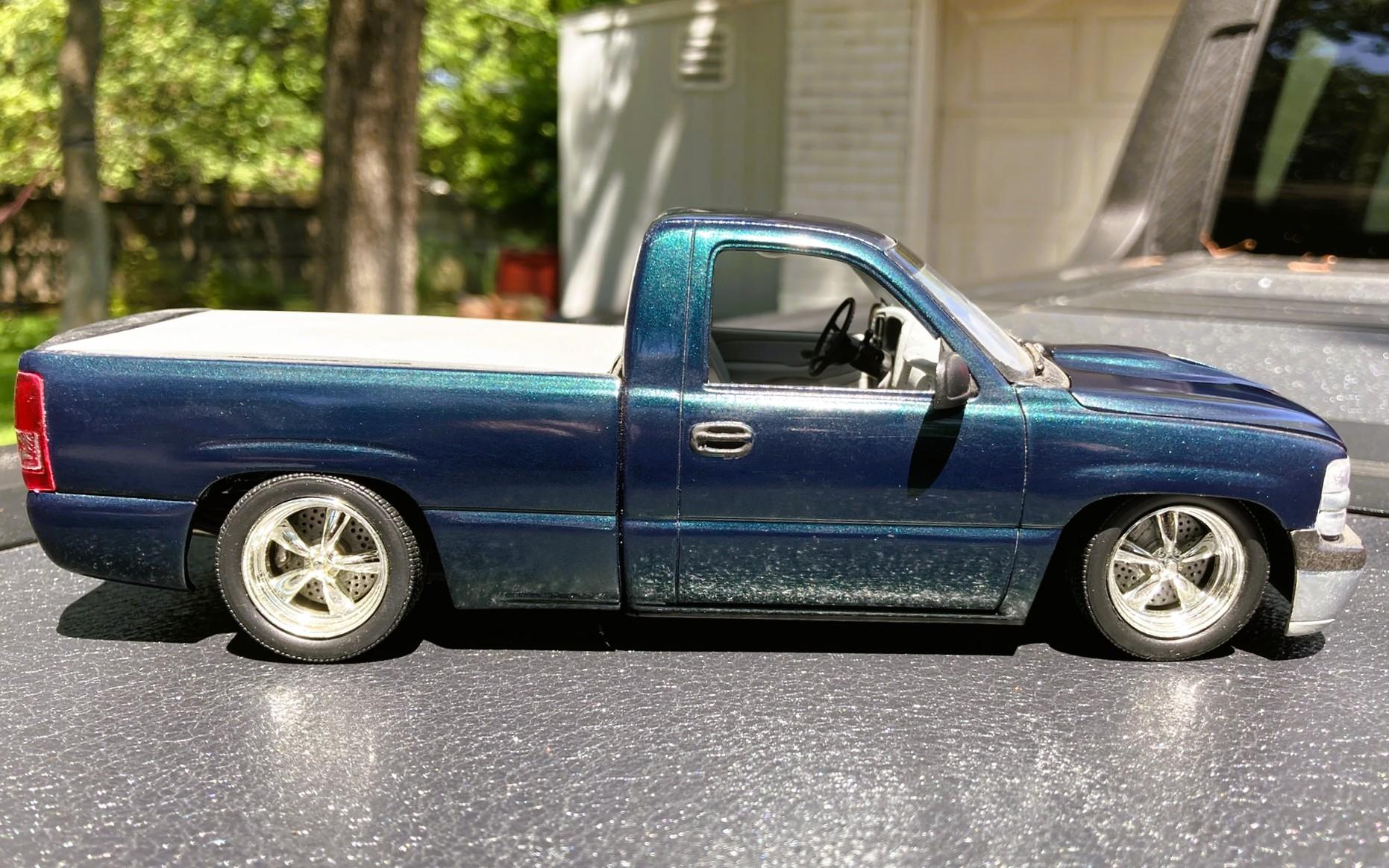

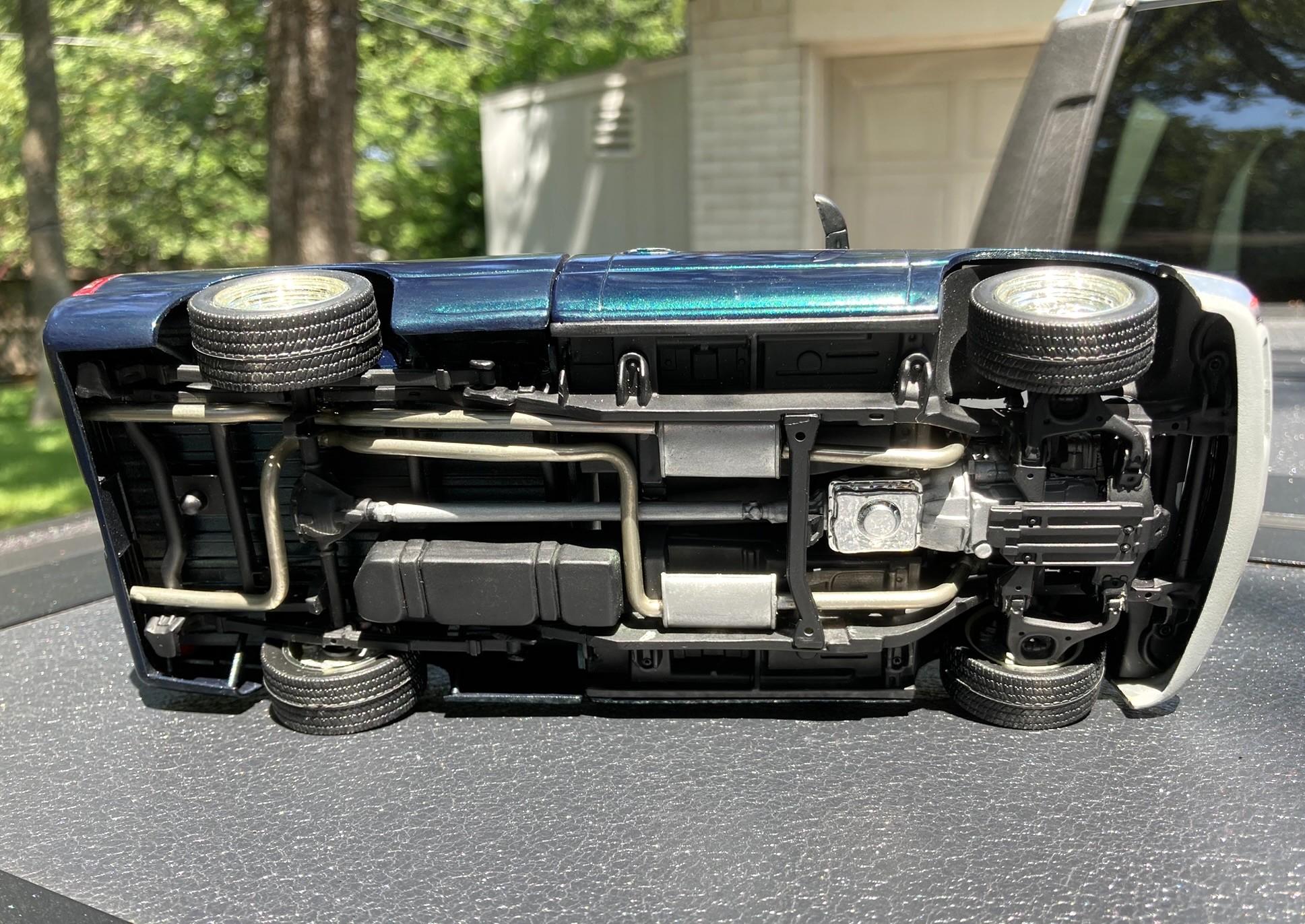

This is one of my older builds I think from '03, but one of my earliest that I started finishing out pretty well and still one of my favorites. Might be the first one I color sanded and polished. Obviously made it into a regular cab. Added a Camaro hood scoop, used the Camaro intake and other engine stuff too. Added a small spoiler to the top of the tailgate and made a bed cover. Did a rolled rear pan. I think the exhaust is solder. "Converted" it to 5-lug and lowered it, a lot. I would share how but I don't remember at all. Took some fresh pictures of it outside today though its still a little dusty.

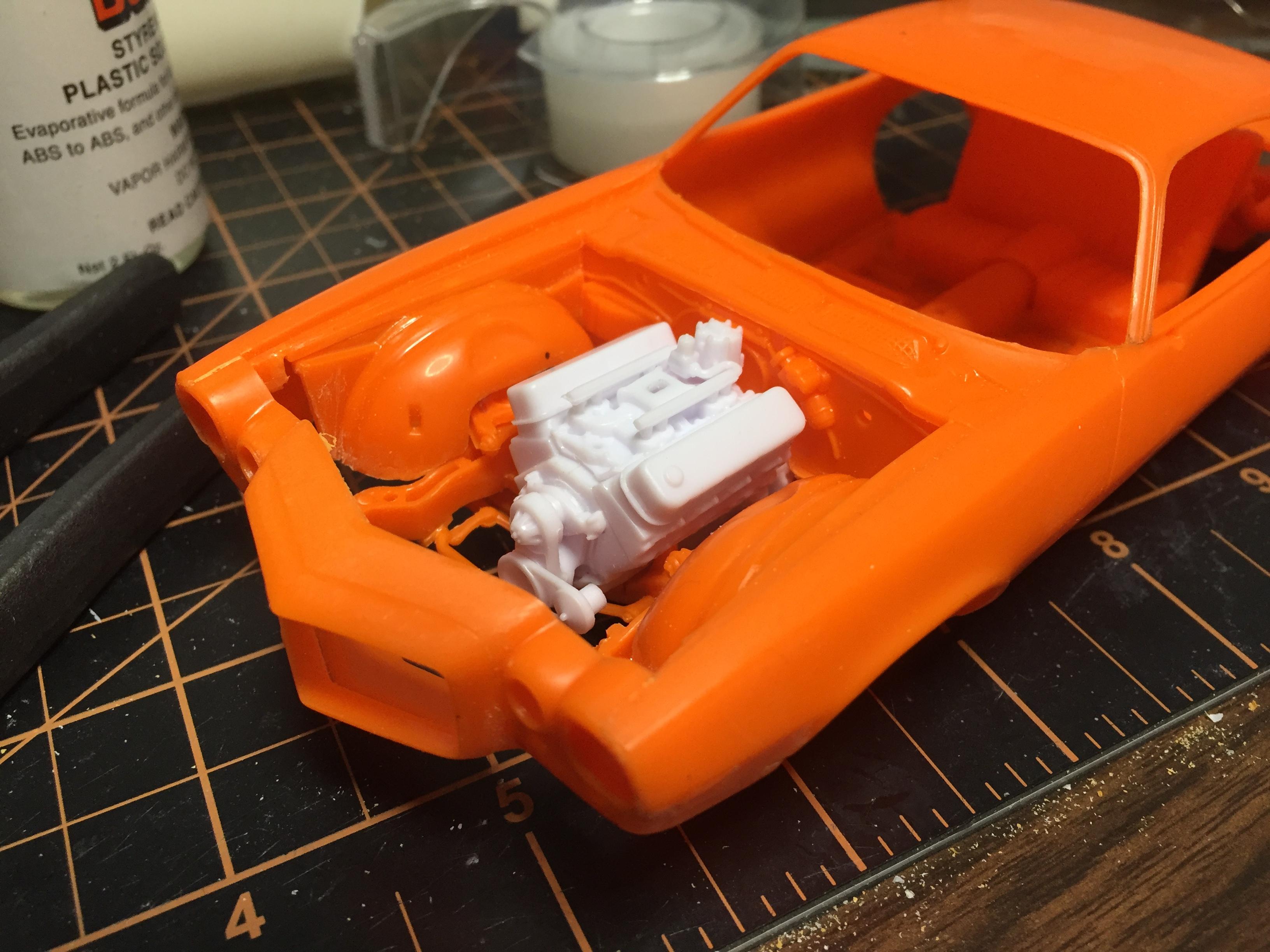

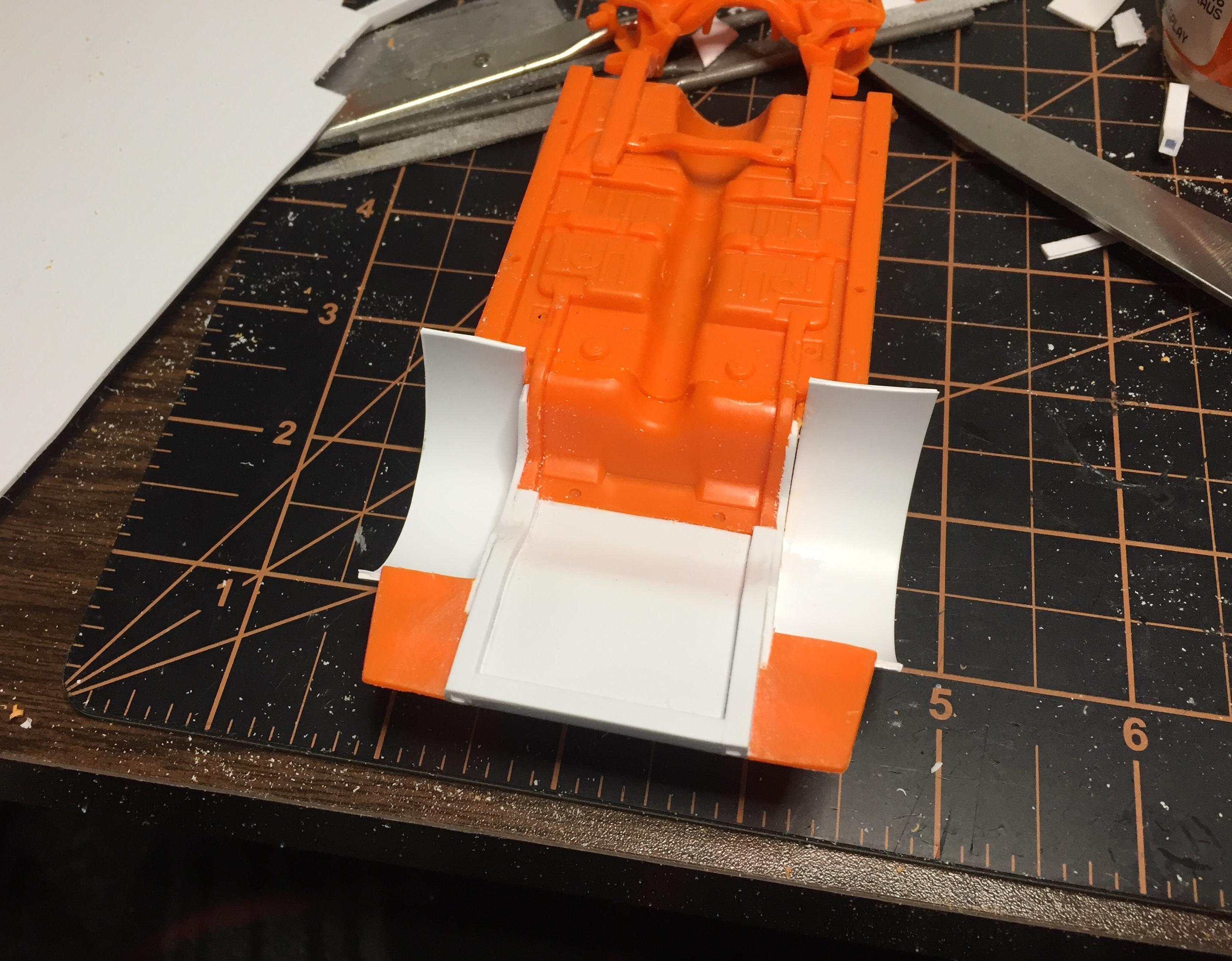

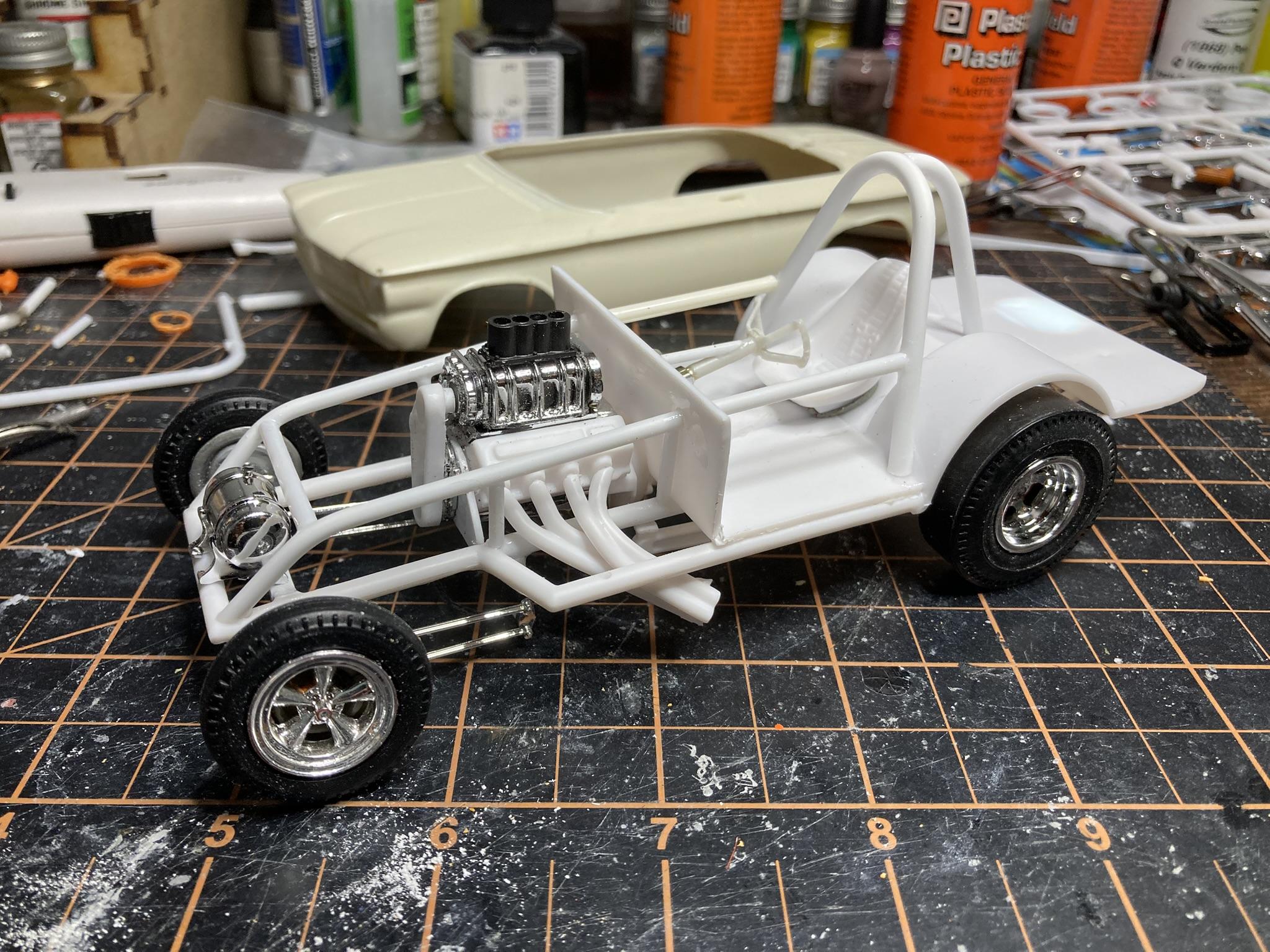

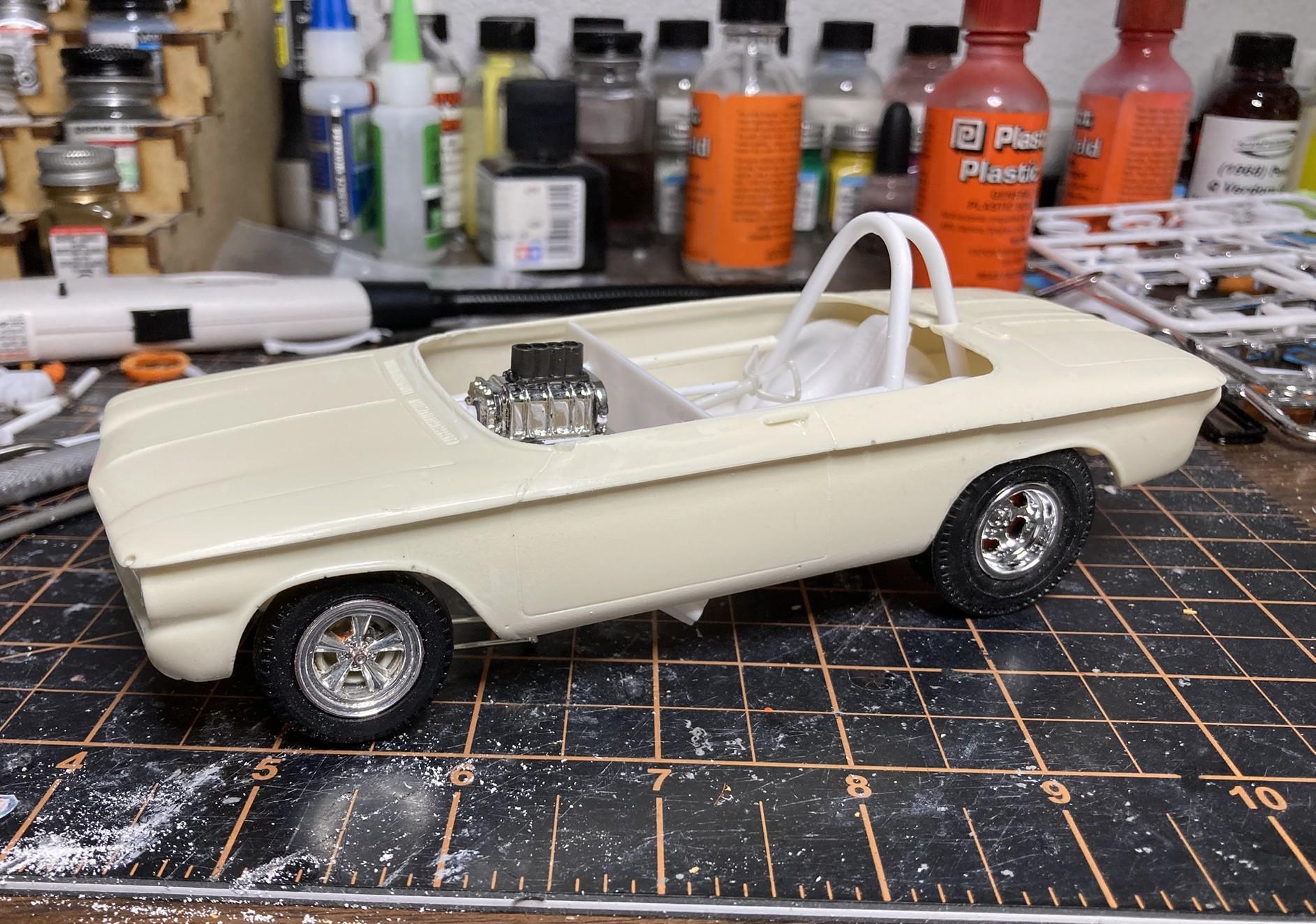

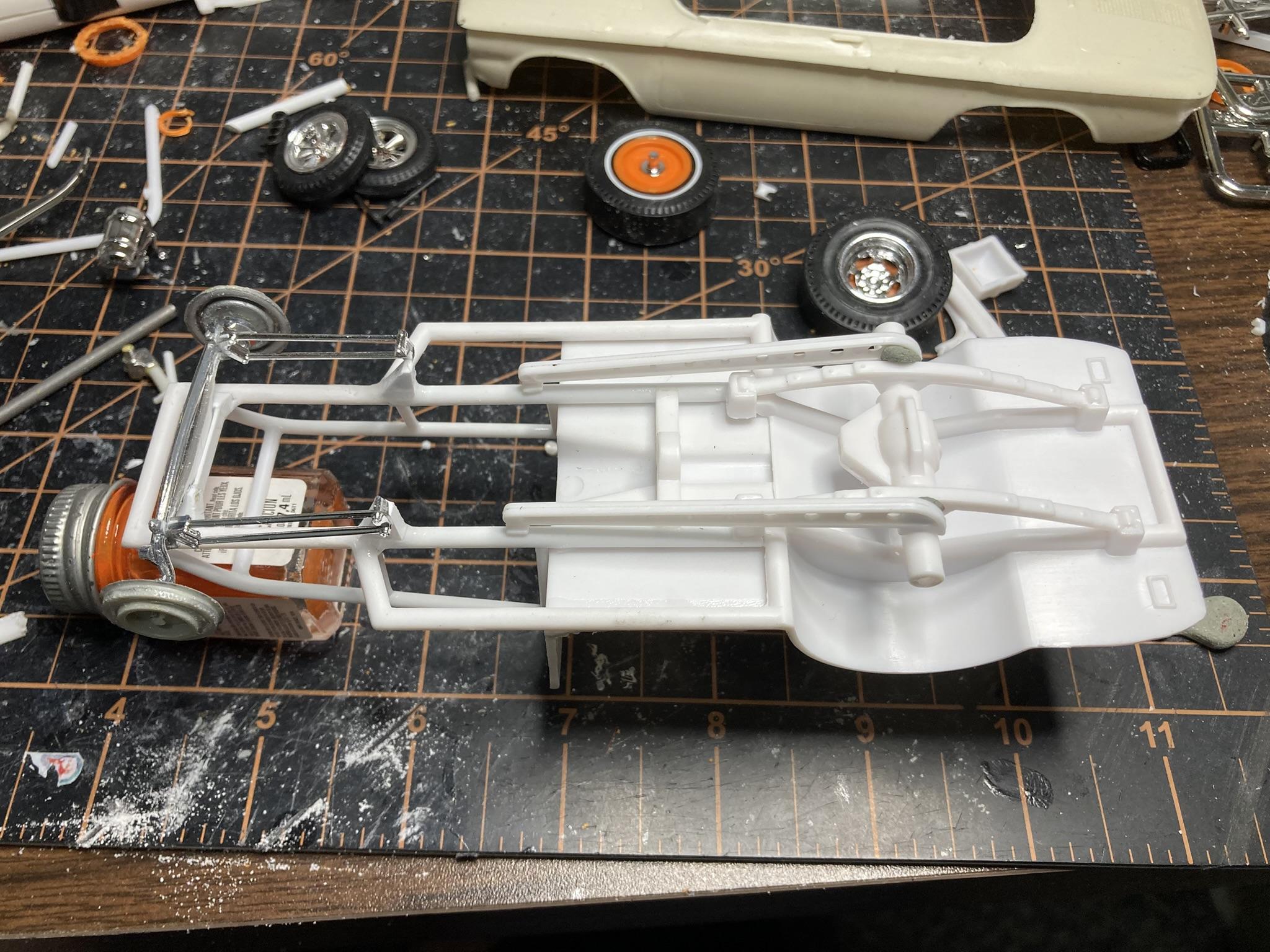

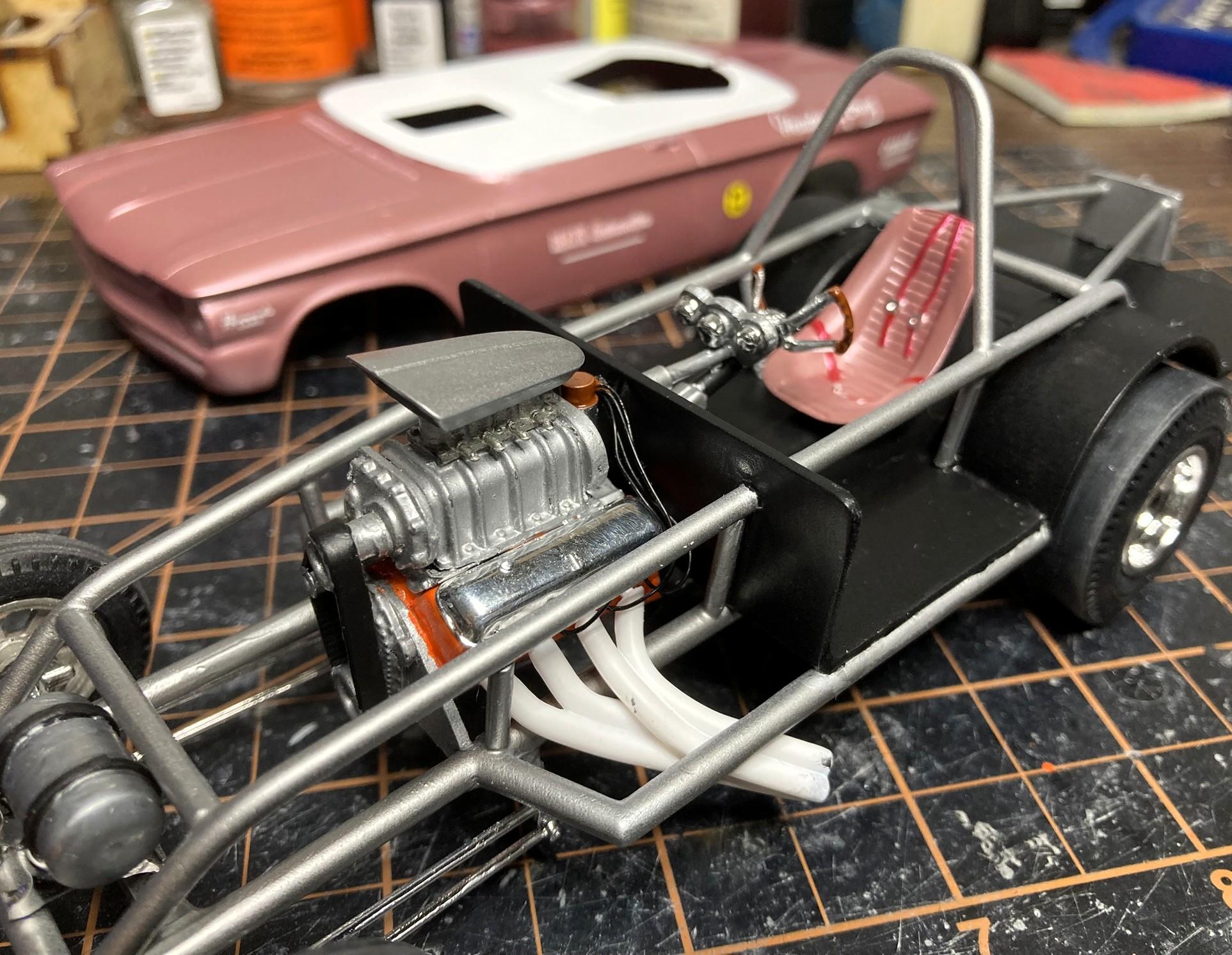

Progress. I decided to start over with a lot of stuff on the chassis. Grabbed a front axle setup from a Revell '32 Ford kit with a much narrower track and made a custom spring crossmember. I'll use the 4-link from that kit too. Cut out the transmission crossmember and added longitudinal bars to the frame. That gives me a place to mount the front of the rear ladder bars since the trans crossmember is gone. Did someone say engine setback? Because theres a lot of it now! Made a motor plate for the front of the engine and reused part of the original transmission crossmember. I cut the rear section of the interior tub away only using the floor and firewall, and shortened it a lot. Whipped up a roll hoop. I think it's pretty close to the original concept.

Everything looks great. Very nice foil work too.

Do you mean around the emblems and such? Admittedly there is a little more buildup around those than I'd like but everything is still plenty raised for foil and and a Molotow pen to bring to life.

Well kinda...I don't think I had as much of the kit to start with as you do. This was a long time ago.

Great save on those fenders! You're really making me want to pick up this version of that kit.

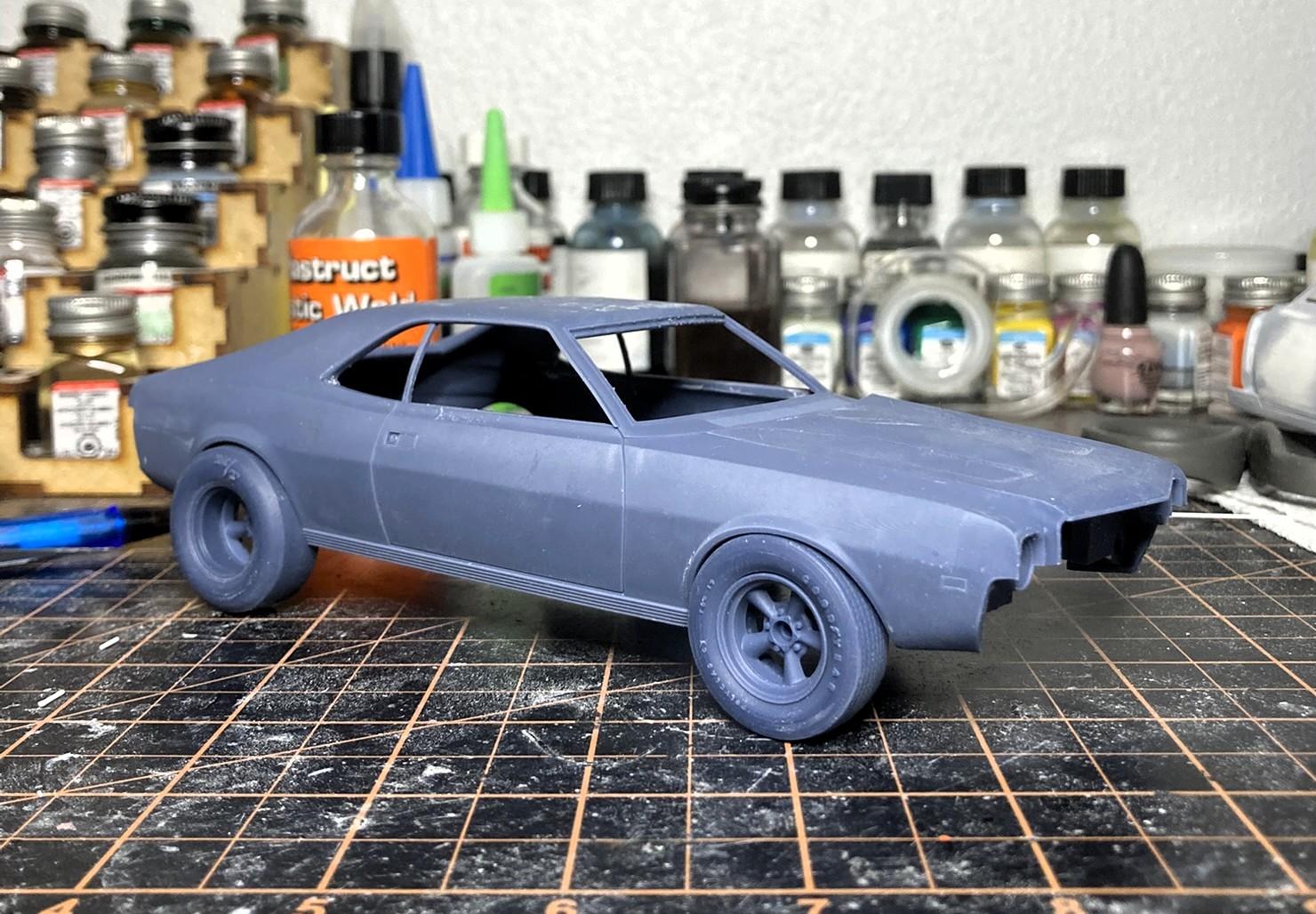

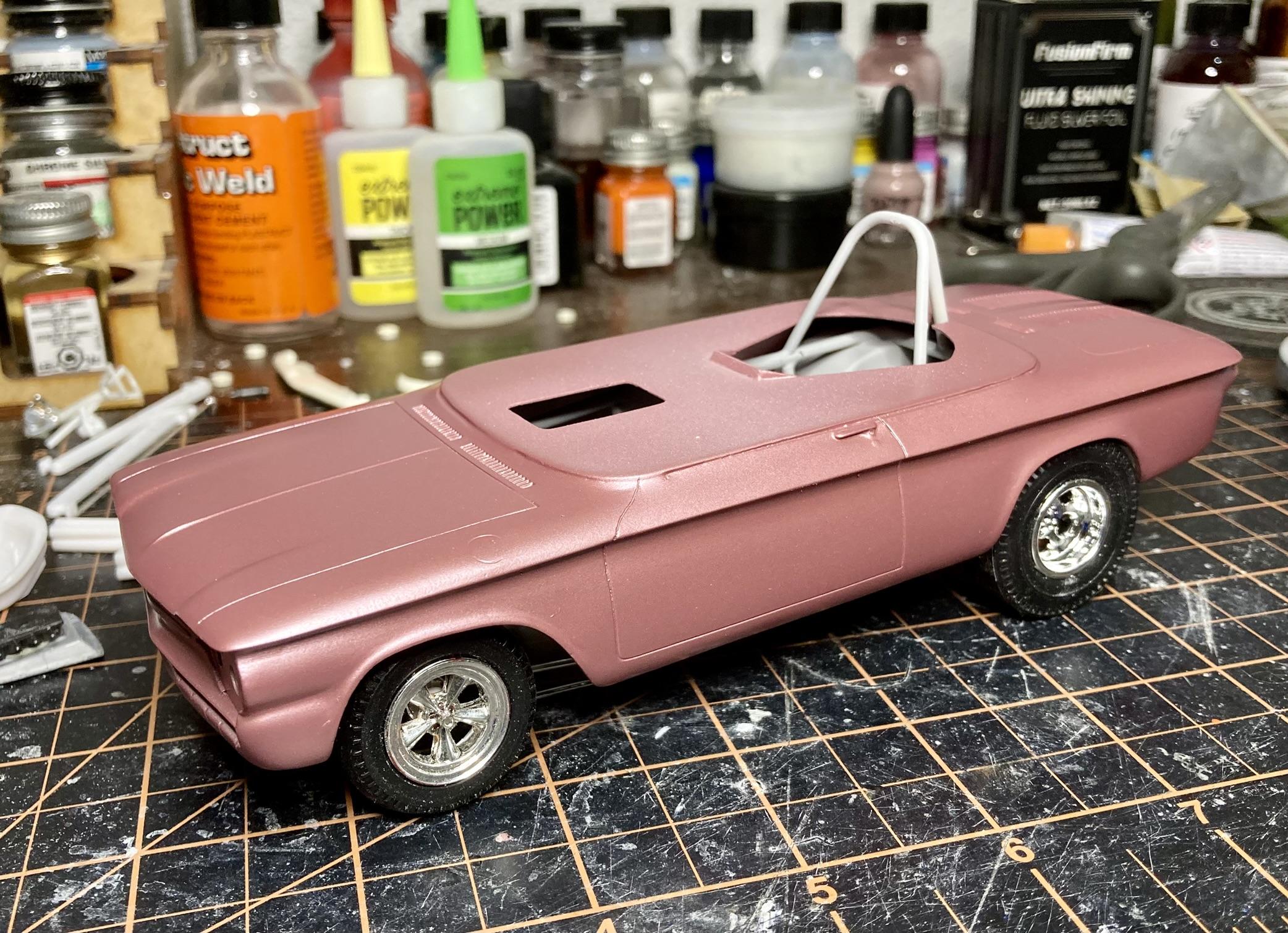

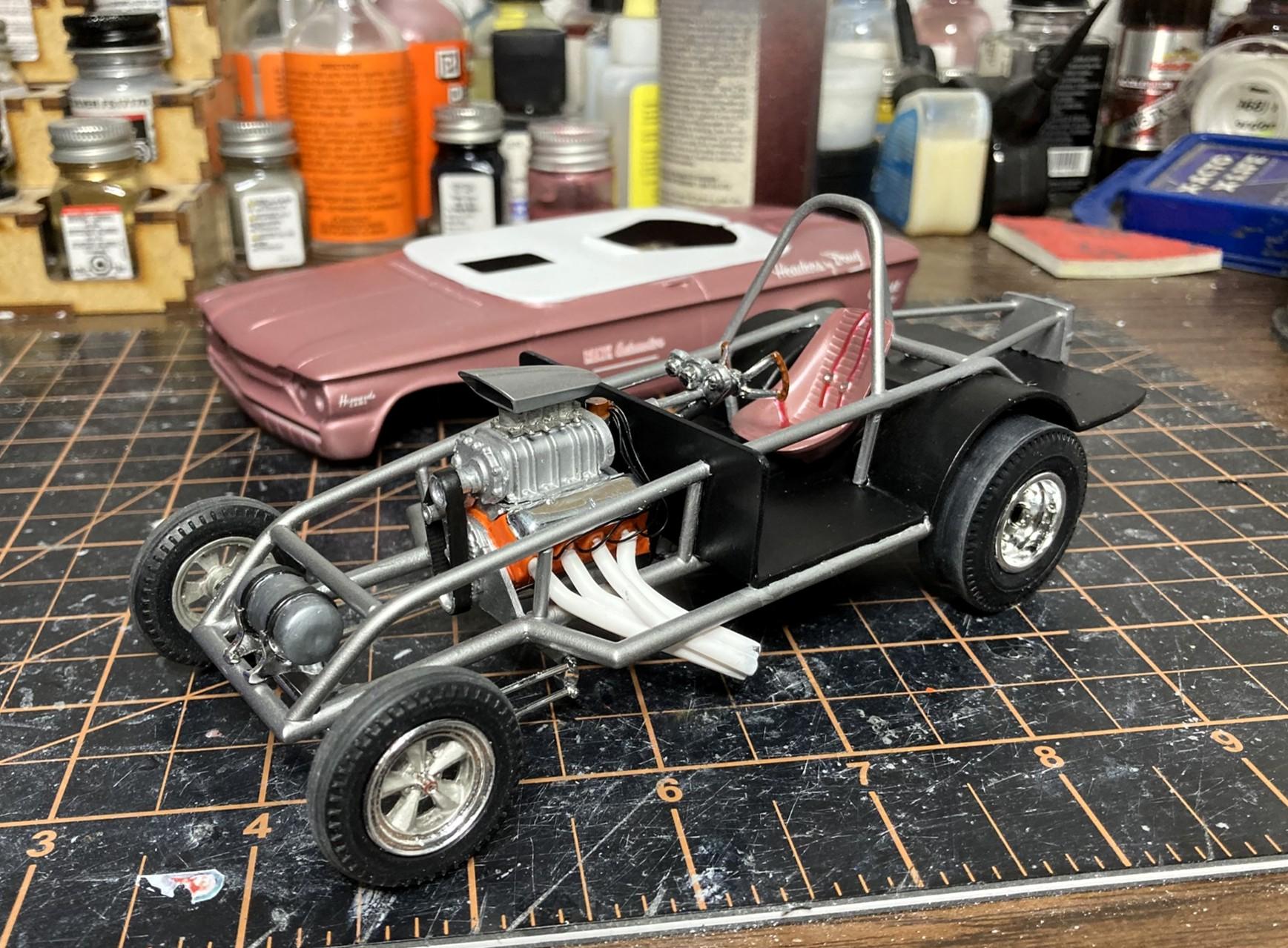

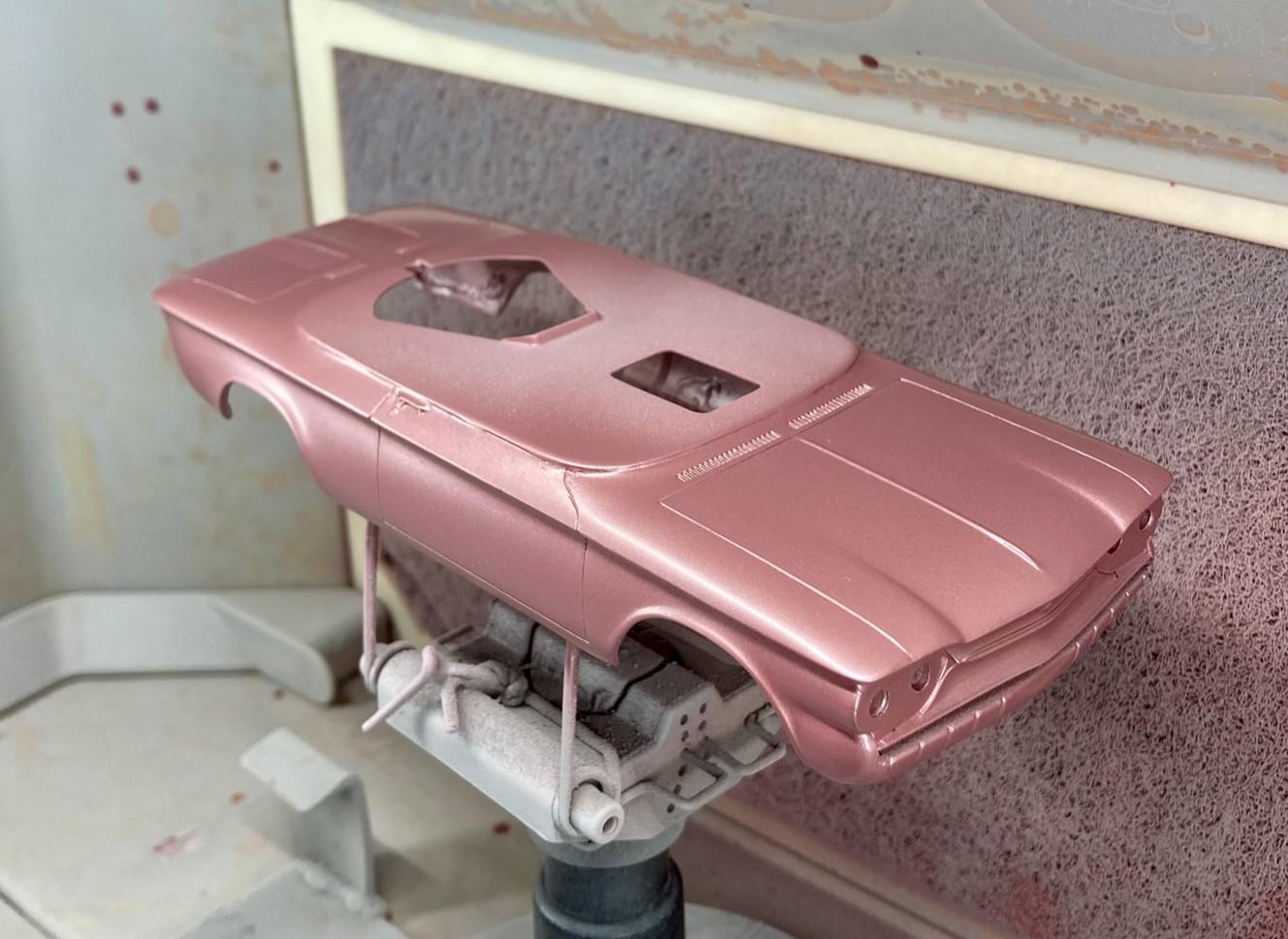

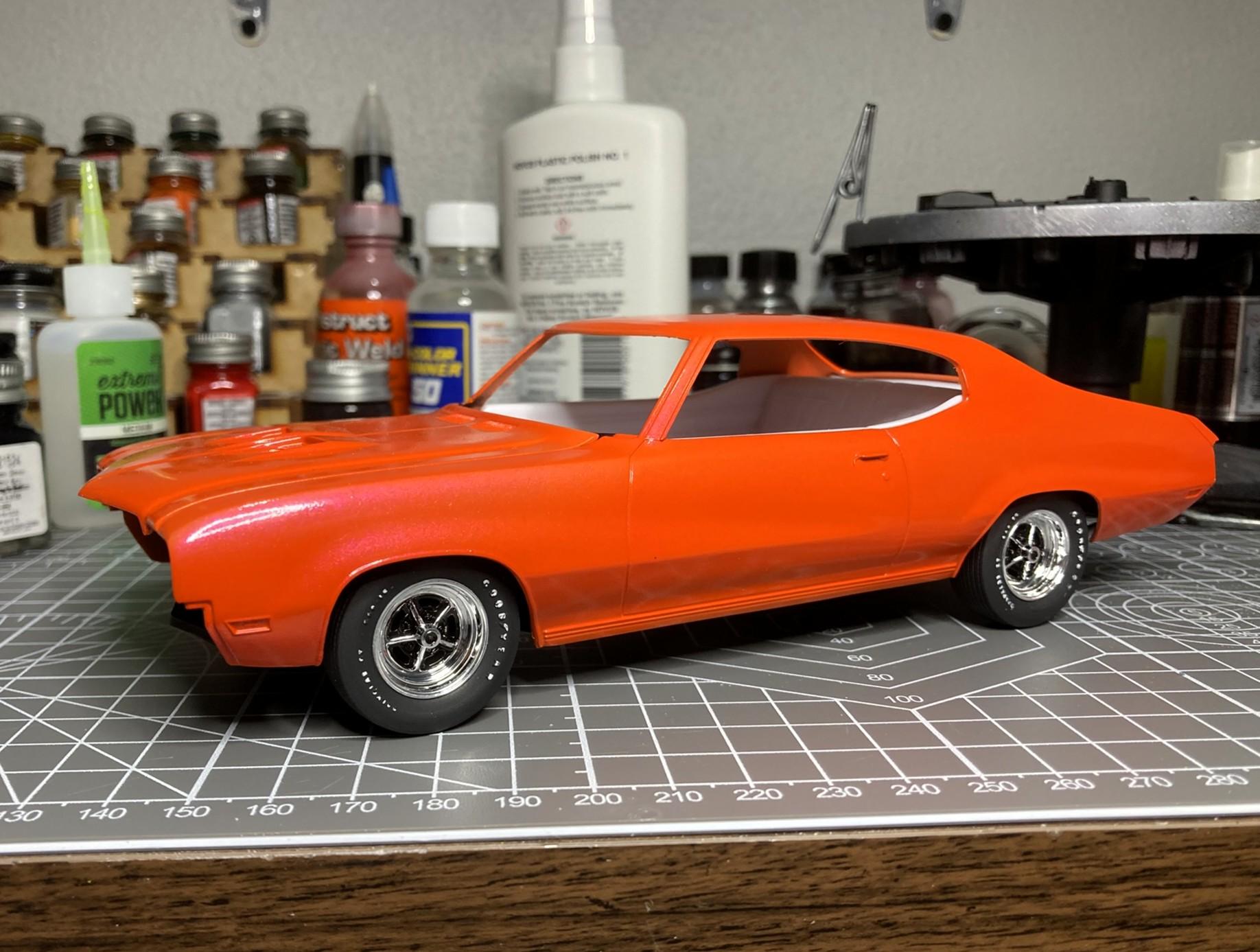

Got it re shot this morning. Still a couple minor issues that I think will disappear with a clear coat. Had to mock it up! Time to wrap up the chassis and start on the interior.

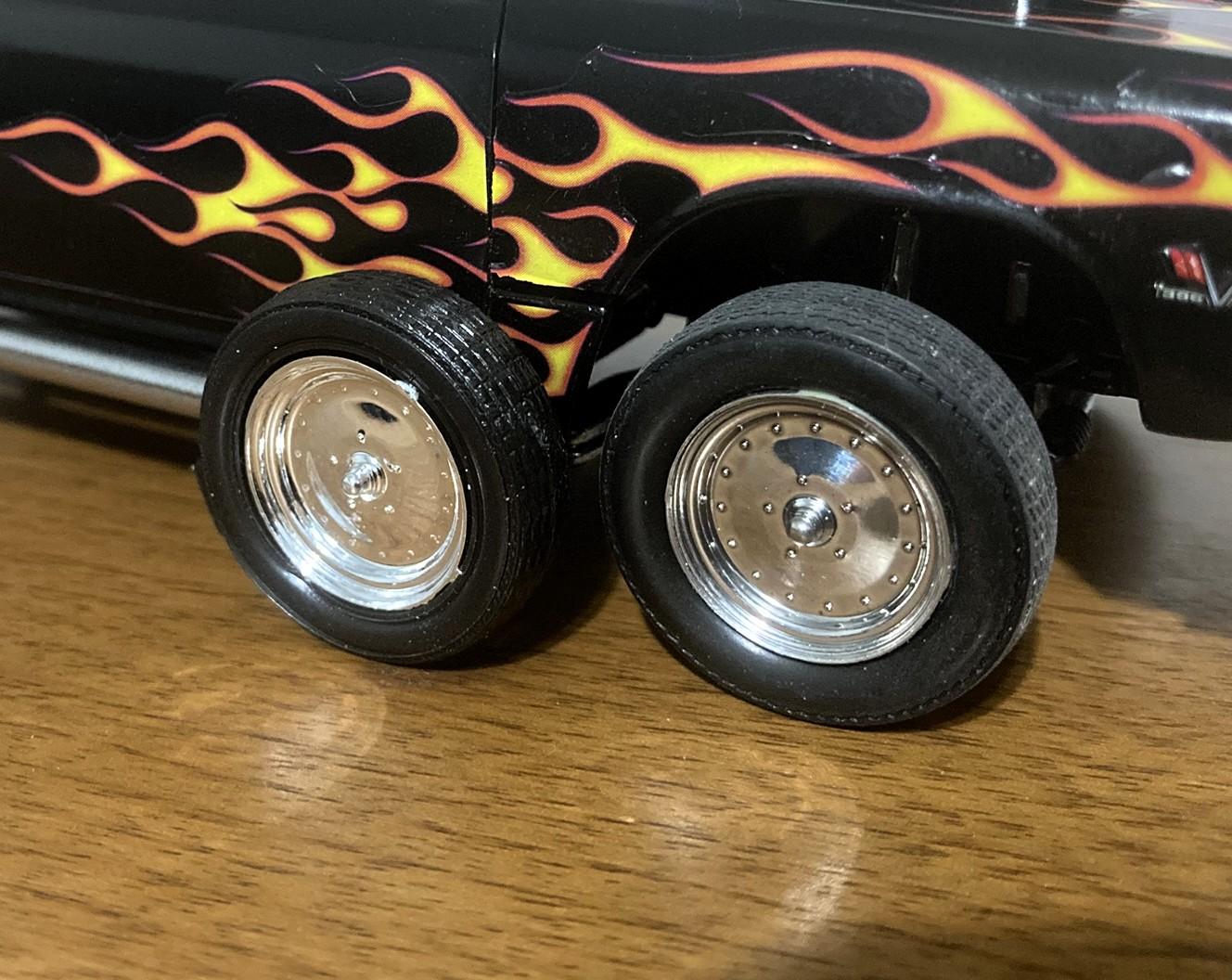

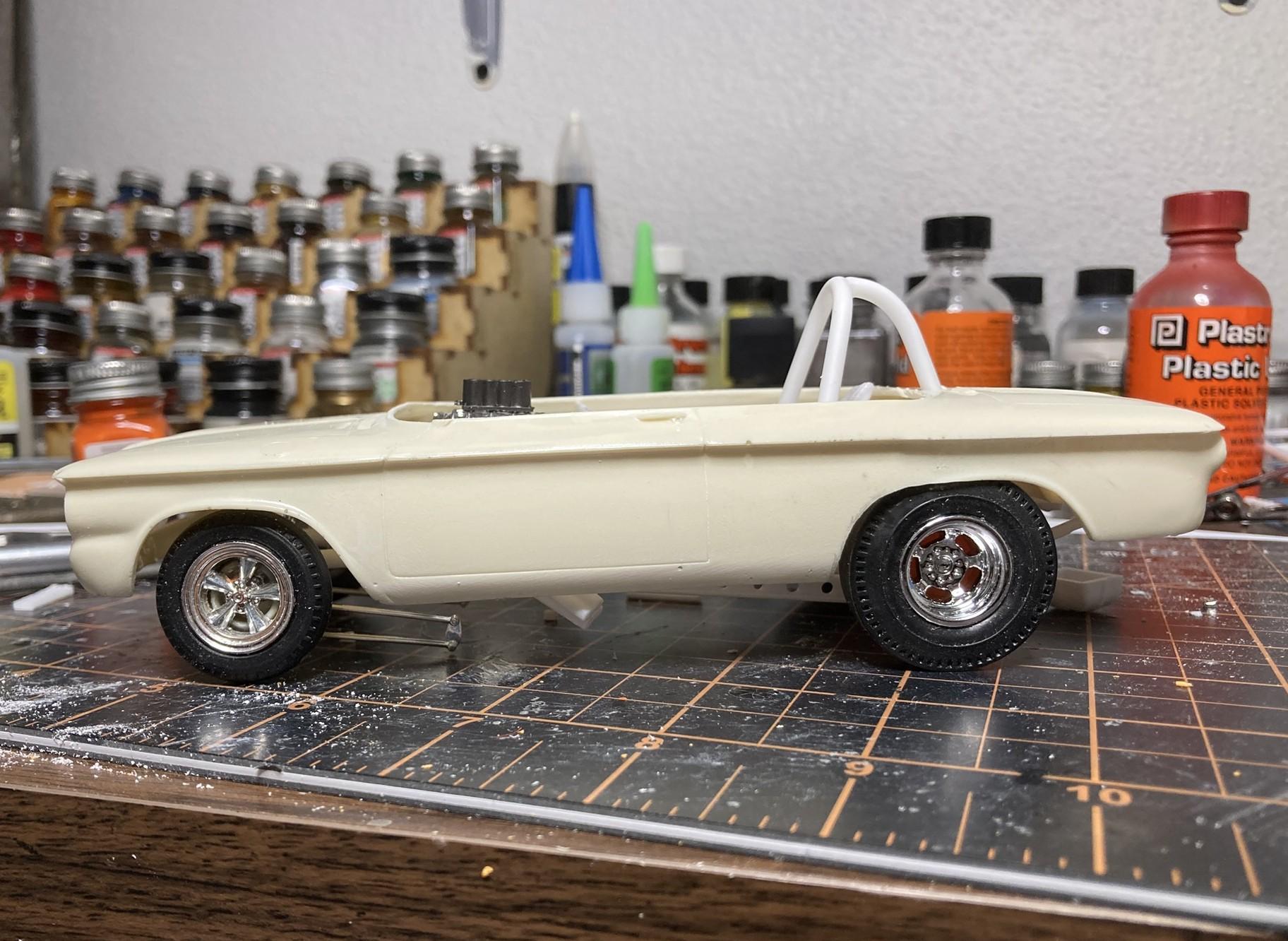

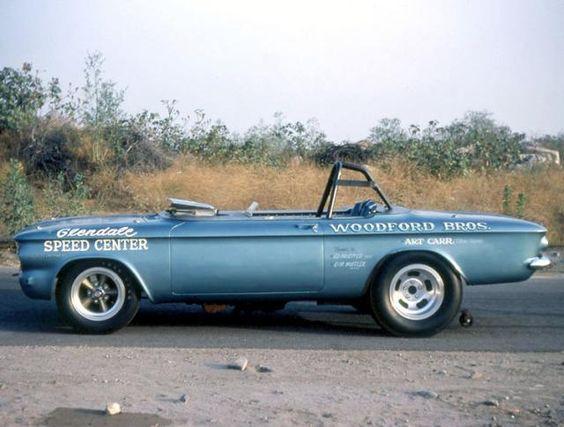

This probably doesn't fit into any actual class, it's more of a match racer. I was very inspired by a picture I saw of the Glendale Speed Center car. I tried a couple times to score an original but rough AMT convertible for this but failed. Next best thing was a reject/rough resin casting I found on ebay. Just what I needed. The chassis is from the current issue '65 Chevelle funny car. I have cut the interior tub up quite a bit to make it fit. I also cut off the front spring perches, moved them forward and shortened them as much as I could to get it lower. I also cheated some an drilled new locating holes in the springs to get the axle even more forward, but I'm not shooting for realism on this one anyway. I still needed to stretch the rear wheel openings to line up. Not sure if I'll keep them stretched or fill in the back area. Front tires are from the kit, wheels I believe are from a Little Red Wagon wheelstander with modified parts box wheel backs to really narrow the track width. Rear wheels are slightly modified from the kit, and the tires are from an AMT Model T kit.
