landman Posted June 5, 2015 Author Posted June 5, 2015 (edited) Had a nice surprise today. Some photos of the actual B-7000 I knew early in my career. The photos were taken in 1964, 6 years before my time. It was orange with a blue logo. Later it became yellow with white doors withy a blue and black logo. Boy this brings back memories. Edited October 25, 2020 by landman
Motor maker Posted June 6, 2015 Posted June 6, 2015 Your progress is impressive! I thought I was the only one building this motor a few weeks ago. However, I found your thread and was impressed. I joined modelcarsmag just recently prompted by my urge to get feedback on your (our) 702 WIPs. landman, would you mind if I post photos of my motor for input/comparison?
landman Posted June 6, 2015 Author Posted June 6, 2015 YYour progress is impressive! I thought I was the only one building this motor a few weeks ago. However, I found your thread and was impressed. I joined modelcarsmag just recently prompted by my urge to get feedback on your (our) 702 WIPs. landman, would you mind if I post photos of my motor for input/comparison? By all means.The more, the merrier.We all can use additional ideas. I am especially curious as hoe you made the exhaust manifolds.

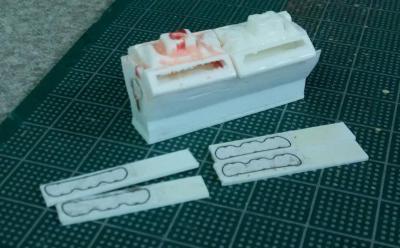

Motor maker Posted June 7, 2015 Posted June 7, 2015 I'm still working on the block, heads, and valve covers. I was preparing to start scratching out the front water pump housing and was waiting for my membership approval to come through when I saw your progress. Here are some highlights of my progress.
landman Posted June 7, 2015 Author Posted June 7, 2015 Coming along nicely,Donovan.What are you using?It almost looks like nailhead engines.
landman Posted June 7, 2015 Author Posted June 7, 2015 And I think your valve covers are tight on.Made from flat stock & shaped.And I think your valve covers are tight on.Made from flat stock & shaped. I meant right on.
MeatMan Posted June 7, 2015 Posted June 7, 2015 This thread has a lot going for it. Nice start Donovan.
Motor maker Posted June 8, 2015 Posted June 8, 2015 (edited) Coming along nicely,Donovan.What are you using?It almost looks like nailhead engines. I used two V8s from the custom 70s Chevy van. I plan to build the van with the doghouse off and a visible 292 L6. The V8s were very low detail so it was toss or recycle. Edited June 8, 2015 by Motor maker
landman Posted June 8, 2015 Author Posted June 8, 2015 (edited) How did you make your valve covers? They look more like 702's than mine which are narrowed 409's. Edited June 8, 2015 by landman

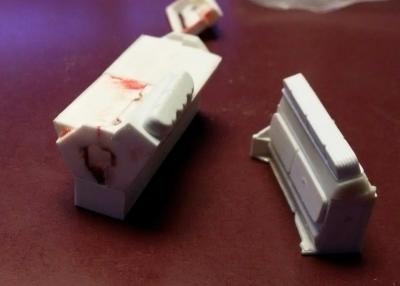

Motor maker Posted June 8, 2015 Posted June 8, 2015 (edited) I glued up a scaled down valve cover seal to multiple strips of styrene. I cut and filled them in a staggered manner, removed the patterns and cemented the layers. Then I drilled and filed it to the shape it is now. I'm going to make just one and duplicate it in resin. Edited June 8, 2015 by Motor maker
Motor maker Posted June 8, 2015 Posted June 8, 2015 This thread has a lot going for it. Nice start Donovan. Thank you.
landman Posted June 8, 2015 Author Posted June 8, 2015 (edited) Made another water pump as the first one was too big. Worked on the generator support casting. Edited October 25, 2020 by landman

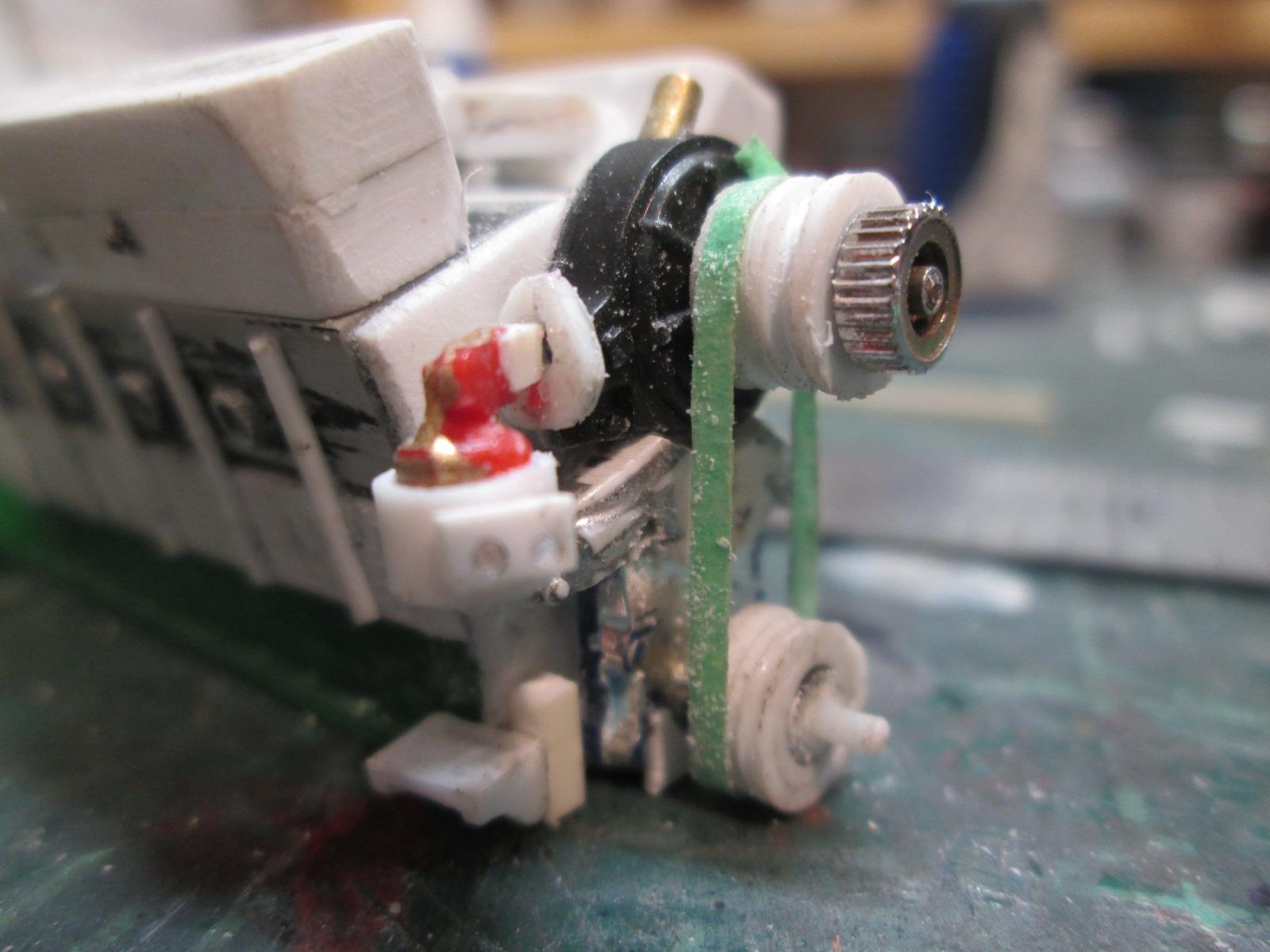

landman Posted June 9, 2015 Author Posted June 9, 2015 (edited) Tried turning some three groove pulleys with a drill press and a hobby knife. Someone should buy me a mini lathe. Installed the pulleys and the generator bracket. Edited October 25, 2020 by landman
Motor maker Posted June 9, 2015 Posted June 9, 2015 (edited) Tried turning some three groove pulleys with a drill press and a hobby knife. Someone should buy me a mini lathe.Installed the pulleys and the generator bracket. Wow! WOW!! I wasn't even sure how I was going to proceed with the front of the motor, but I'm doubtful I'd done that before I'd seen it done... Edited June 9, 2015 by Motor maker

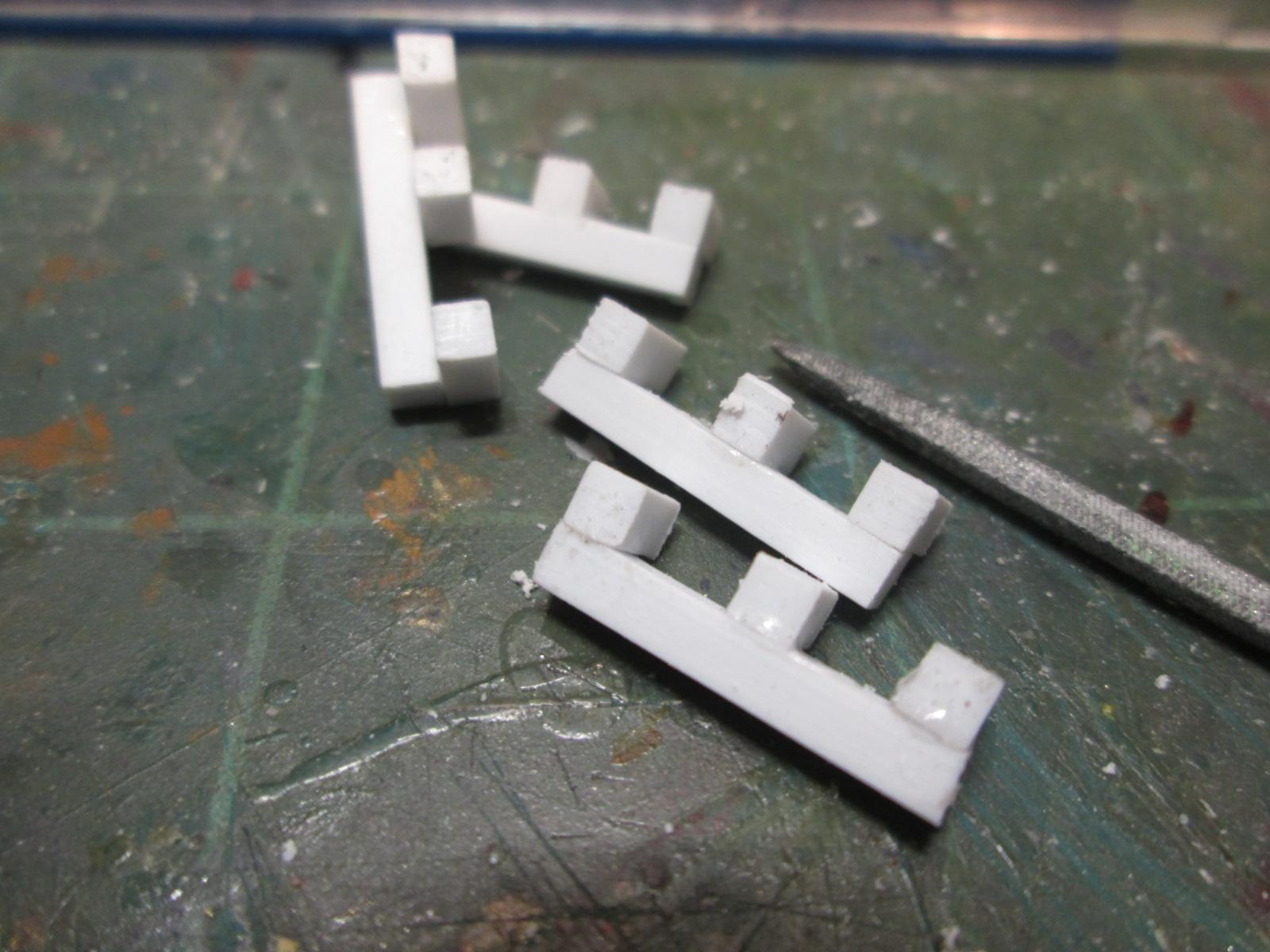

landman Posted June 10, 2015 Author Posted June 10, 2015 (edited) First try at a generator. Second try with a few mods. Tried the masking tape method for the belts. it will work but they'll have to be narrower. Three belts, one for the generator and two for the air compressor. Started on the third set of exhaust manifolds. This time with 2.5 mm stock. this should be more accurate. Edited October 25, 2020 by landman
Motor maker Posted June 10, 2015 Posted June 10, 2015 I duplicated the styrene valve cover and cylinder head in resin. I think the easy part is almost done... Then I get to try the front of the motor. SIGH...
Motor maker Posted June 10, 2015 Posted June 10, 2015 (edited) Pat, I didn't start with a commercial motor so I'm curious if I duplicate a more modern transmission mount area for the rear of my motor will it work (era correct dimensions)? Edited June 10, 2015 by Motor maker
landman Posted June 10, 2015 Author Posted June 10, 2015 If you are duplicating that hot rod, you'll need to use a bell housing to fit whatever transmission you'll be using. In my case it will be a 5-speed GMC truck transmission.
Motor maker Posted June 10, 2015 Posted June 10, 2015 That hot rod still has most of the original transmission mount with an adapter plate.
MeatMan Posted June 10, 2015 Posted June 10, 2015 Nice work on the valve covers Donovan! They match the originals perfectly with the extra dimples that the 409 valve covers don't have.
Motor maker Posted June 10, 2015 Posted June 10, 2015 (edited) Nice work on the valve covers Donovan! They match the originals perfectly with the extra dimples that the 409 valve covers don't have. I kinda lucked out finding a picture of the valve cover seal on eBay and used it. I was going to use the same method as Pat until then. I don't think I've ever cut, trimmed, sanded, filed, etc. as I have on this one motor. Edited June 10, 2015 by Motor maker
landman Posted June 11, 2015 Author Posted June 11, 2015 (edited) The new exhaust manifolds are better proportioned. A bit of tweaking here and there and they will do. Edited October 25, 2020 by landman
