Romell R Posted July 5, 2010 Author Posted July 5, 2010 Thx guys for all the kind words im hoping to wrap this one up by the end of next week (maybe) and get started on the Nova I hope you all will join me on that build also.
mind-9 Posted July 5, 2010 Posted July 5, 2010 (edited) Woow Romell youre master piece is great. And the sneek peek of the Nova i,m ferry curious what you are going to do with it but i,m sure it,s going to be a master piece Edited July 5, 2010 by mind-9
Romell R Posted July 5, 2010 Author Posted July 5, 2010 Woow Romell youre master piece is great. And the sneek peek of the Nova i,m ferry curious what you are going to do with it but i,m sure it,s going to be a master piece Thx for the compliment my friend and the new post is up for the nova check it out when you can.
cazxr2 Posted July 5, 2010 Posted July 5, 2010 (edited) This is looking ace as usual I have to say u got some proper tallent there like. How u manage to replicate the gas tank is just amazing. Can't wait to watch the nova. Although al be sad when u finish the chevelle as it's been like a tv series that u just can't miss a singal episode. I've been watching from the start, and it's been great thanks so much for showing us the way. My hat is off to u my friend. Edited July 5, 2010 by cazxr2

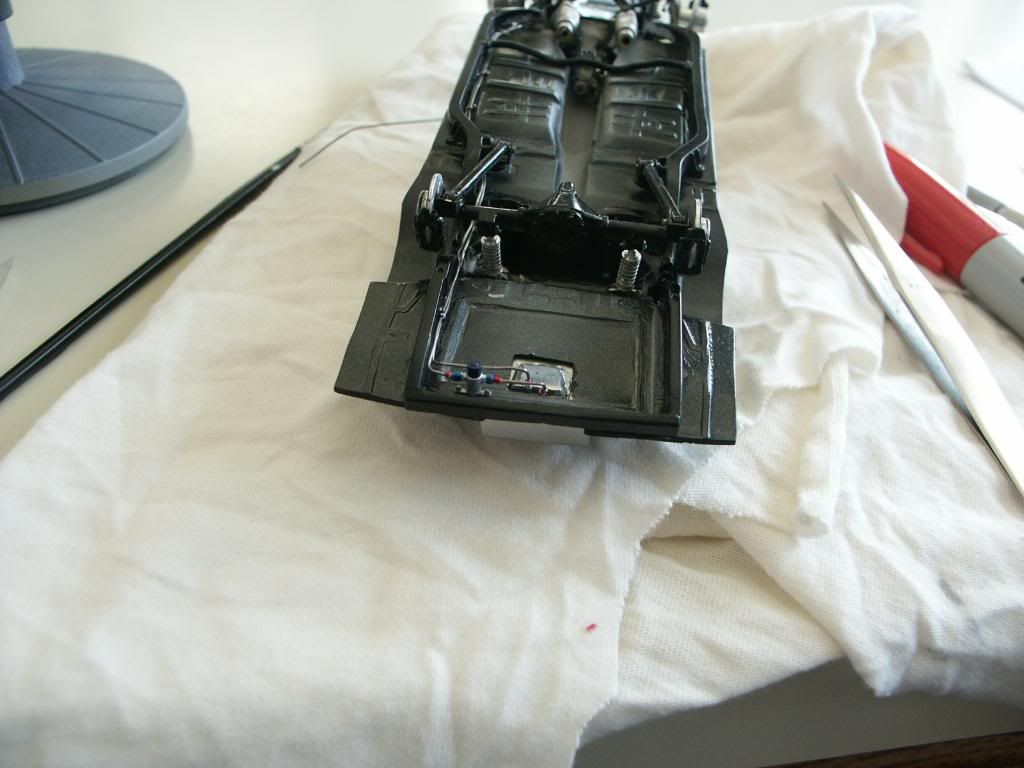

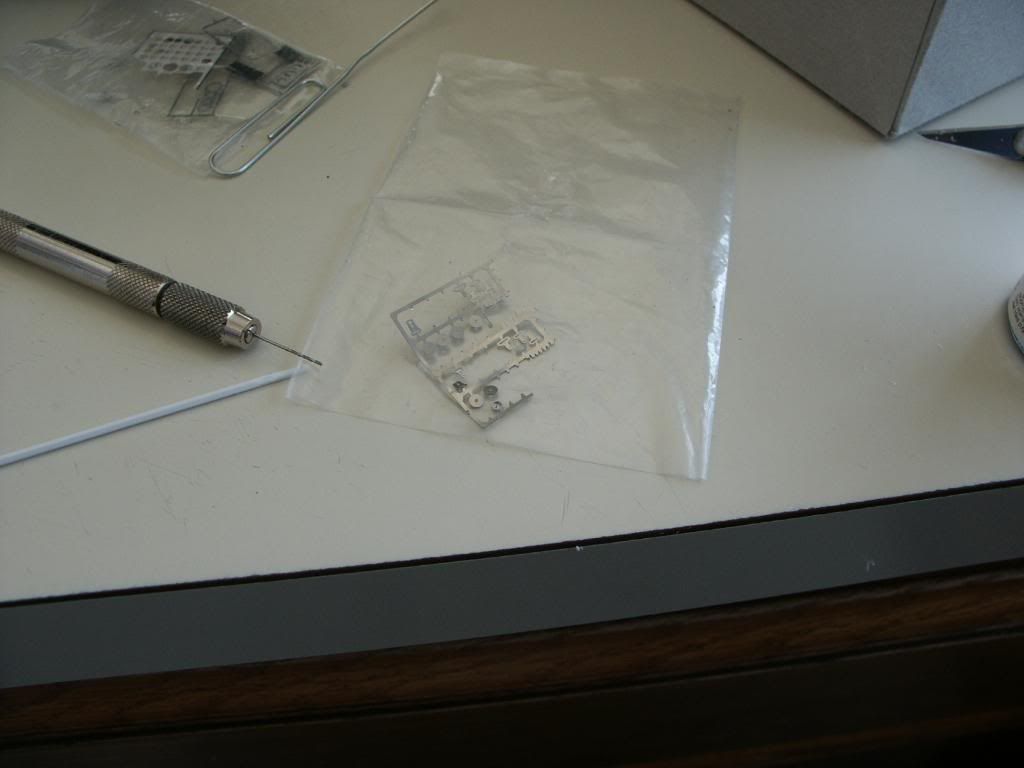

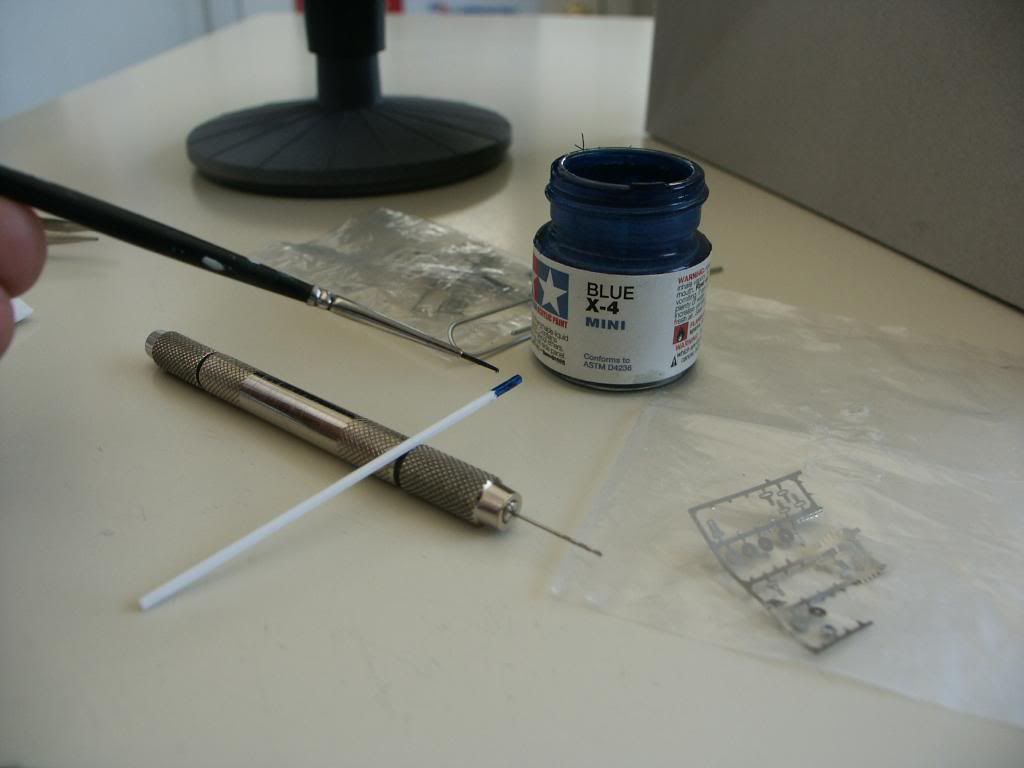

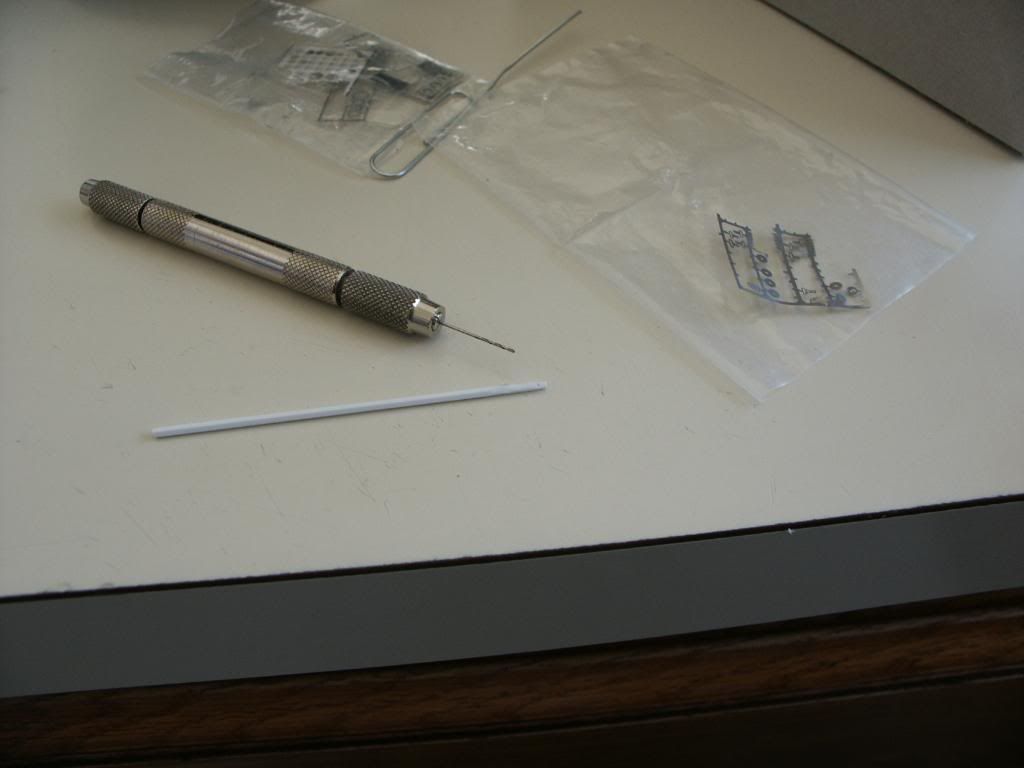

Romell R Posted July 5, 2010 Author Posted July 5, 2010 (edited) Ok were not done with the Chevelle just yet ! So today while sitting in my office i was able to get the fuel pump and lines hooked up to the tank and run to the front of the car cant complete the hook-up untill the body is on the frame. I also made a in-line pressure gauge and line splitter. enjoy..... I started with a piece of hexagon styrene and flatened it to make a box and then drilled 3 small holes one in each end and one in the middle, this will be the splitter for the fuel lines between the carbs If you look closely you might be able to see the very small pressure gauge i made. (look inside the bottom of photoetch sprue) here I painted the splitter box Tamiya Blue x-4 Edited July 5, 2010 by Aftashox

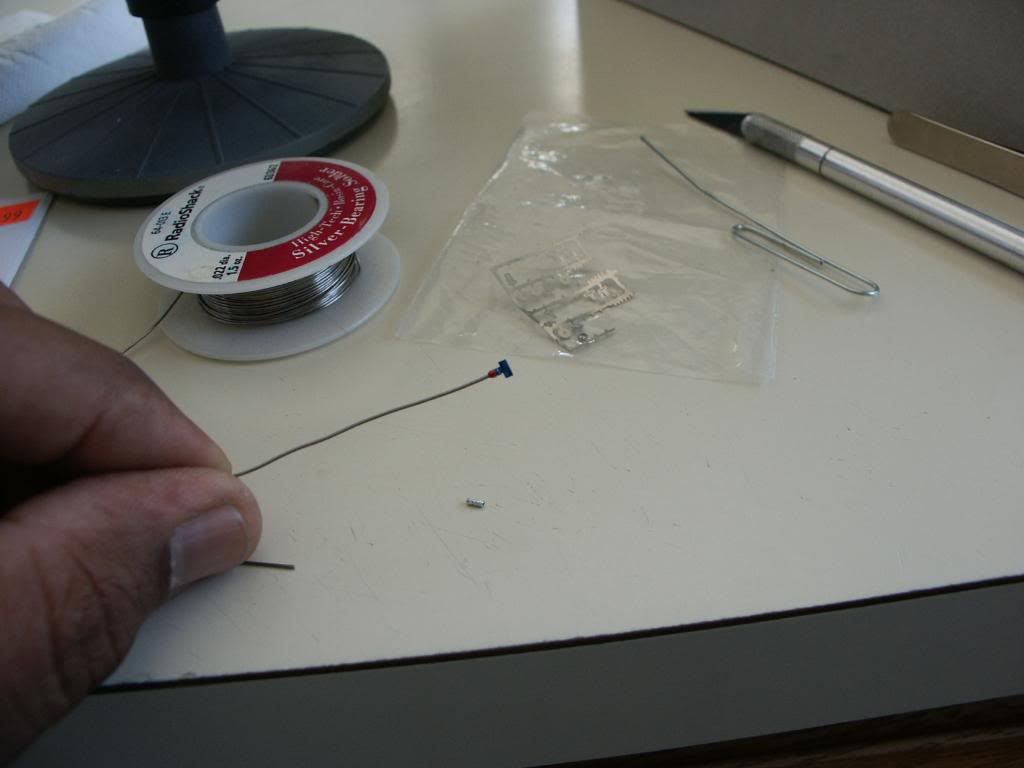

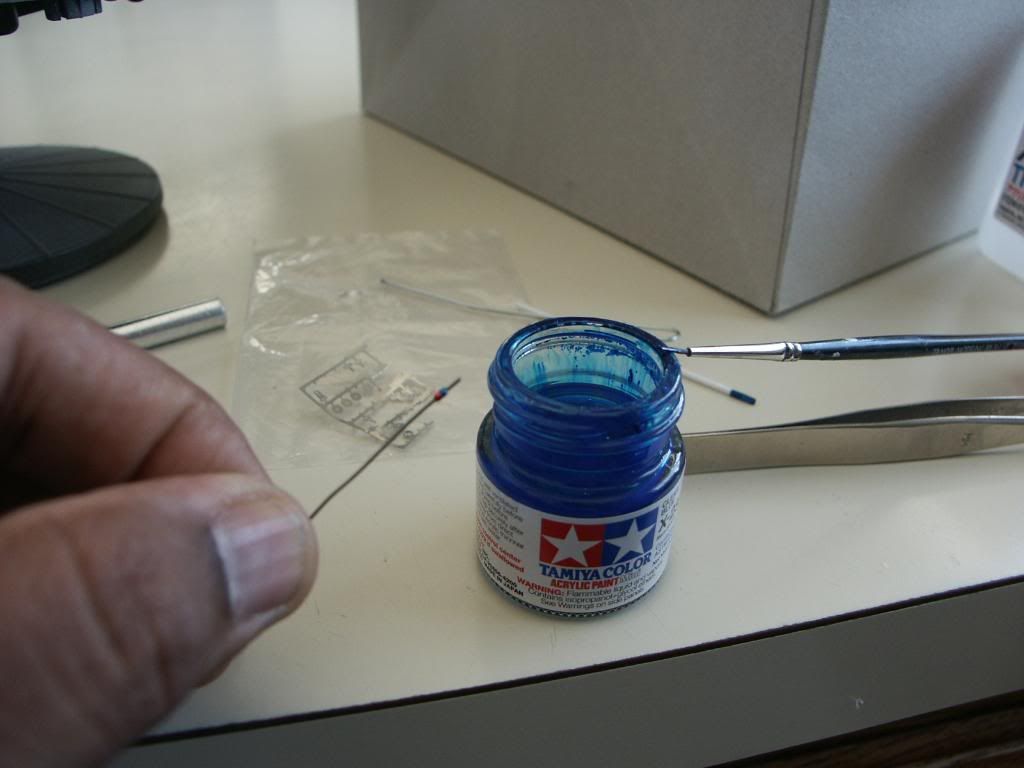

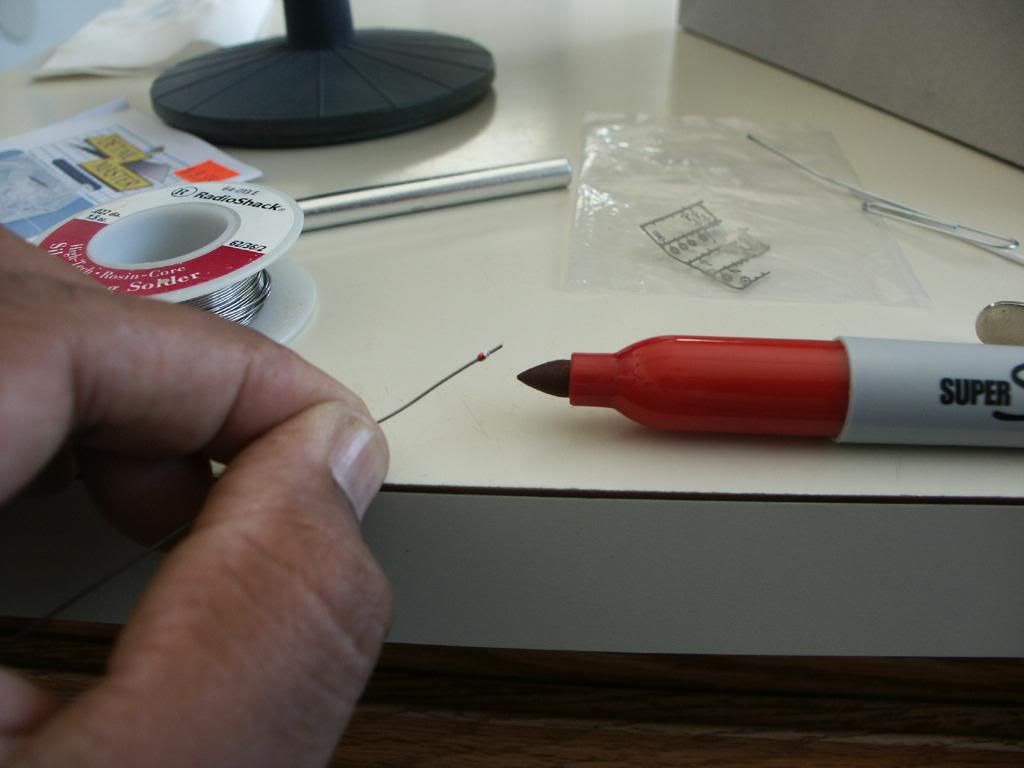

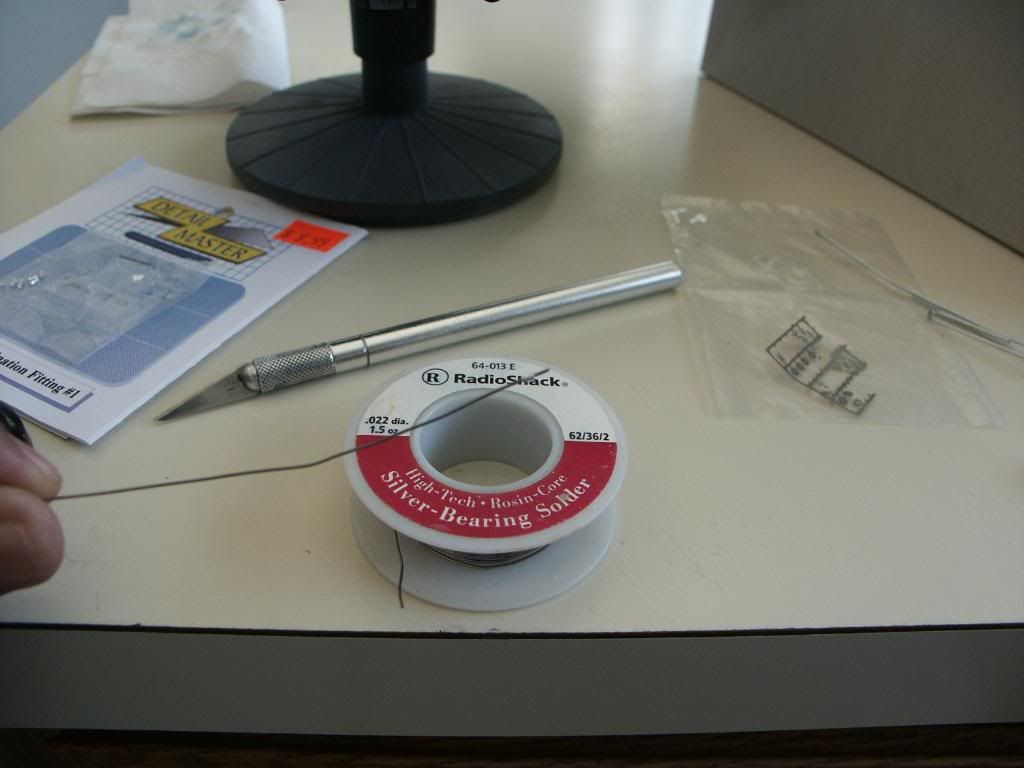

Romell R Posted July 5, 2010 Author Posted July 5, 2010 Ok for the line itself I used .022 Silver-bearing solder from RadioShack and #1 A-N fittings I usually use sharpie markers to color the A-N fittings I couldnt find my blue one so I used Tamiya clear blue when it came time to color the blue A-N fittings.

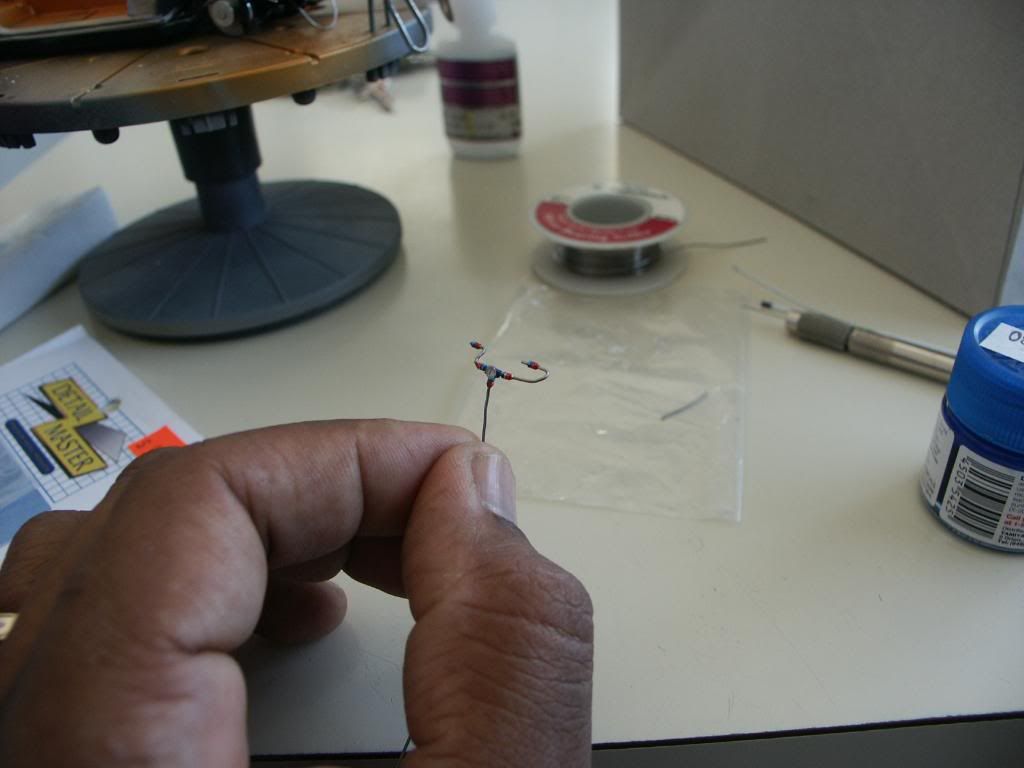

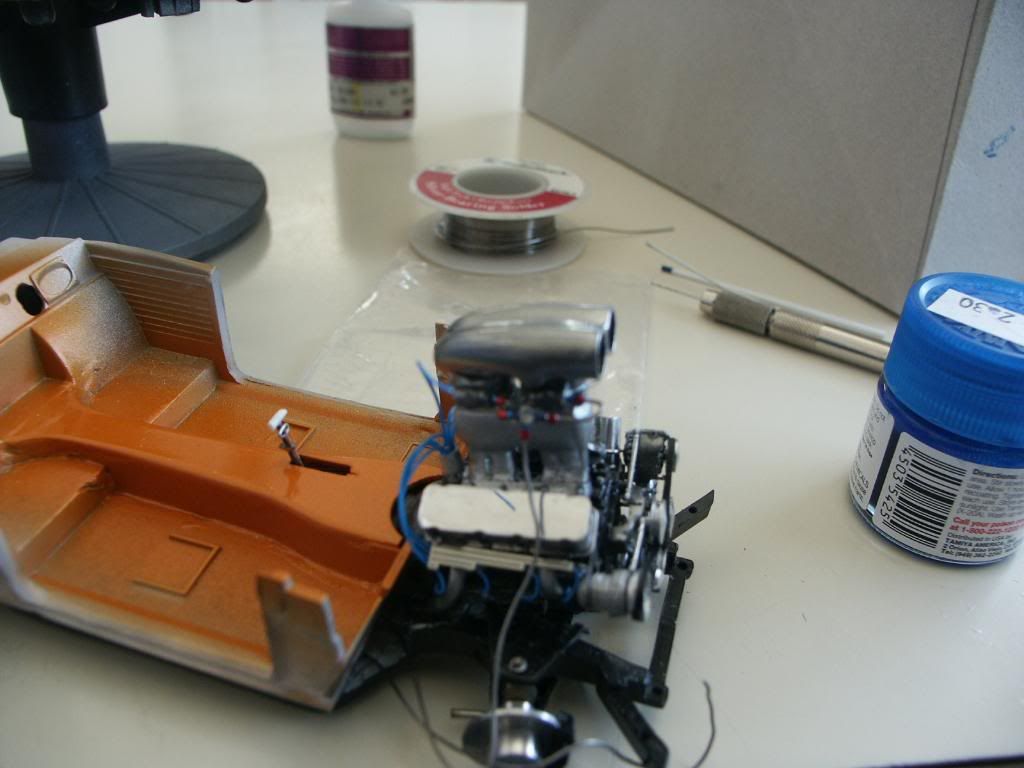

Romell R Posted July 5, 2010 Author Posted July 5, 2010 (edited) OK now I need to put it all together ...... heres the splitter box gluded to the fuel line that will be comming from the fuel cell... here the assembaly has been pretty much completed. all thats left to do is conect it to the carbs cant really see it good (camera didnt want to focus on the lines) but here it is conected to the carbs. Edited July 5, 2010 by Aftashox
Tony T Posted July 5, 2010 Posted July 5, 2010 Man, that is some great line work you got going there. Nicely done!

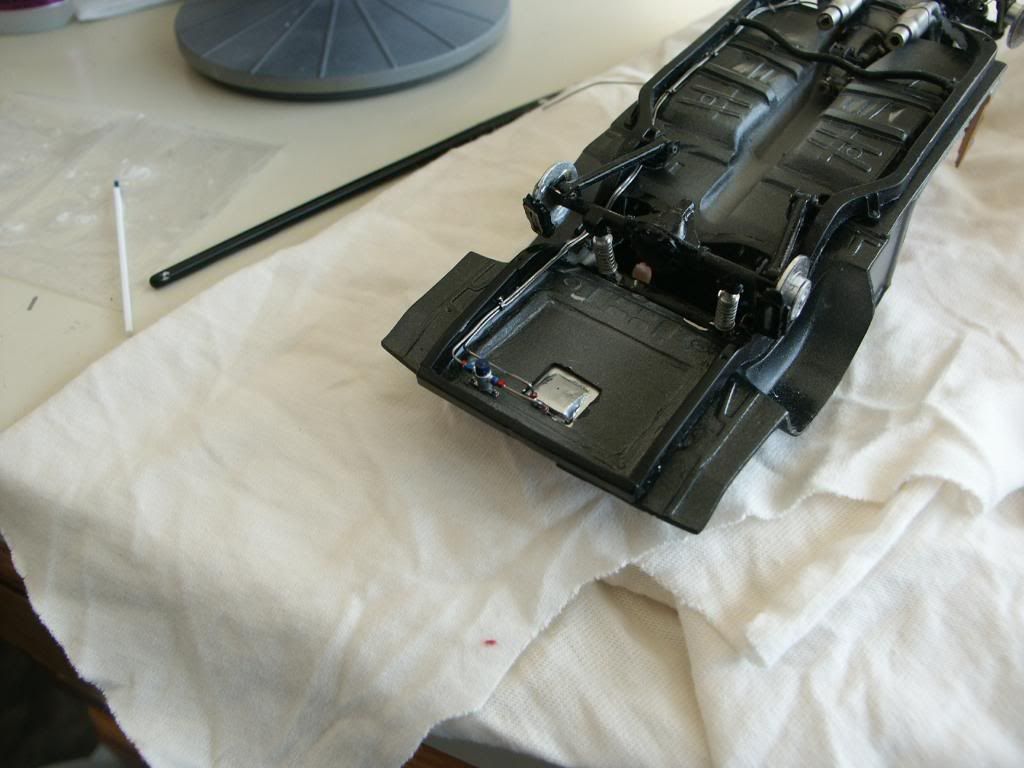

Romell R Posted July 5, 2010 Author Posted July 5, 2010 (edited) Almost left out the pics of the completed lines from the fuel cell. the fuel line holds were made from the same solder the lines were made from I just pressed it flat by rolling my exacto blade handle over it. I couldnt find a fuel pump anywhere so I ended up making one. enjoy..... Edited July 5, 2010 by Aftashox
Semi Trailer Mechanic Posted July 6, 2010 Posted July 6, 2010 AWESOME!!! I'm taking notes on some of your techniques. I can really learn from them.
Romell R Posted July 6, 2010 Author Posted July 6, 2010 (edited) Here ya go Jim let me know what you think..... Edited July 6, 2010 by Aftashox

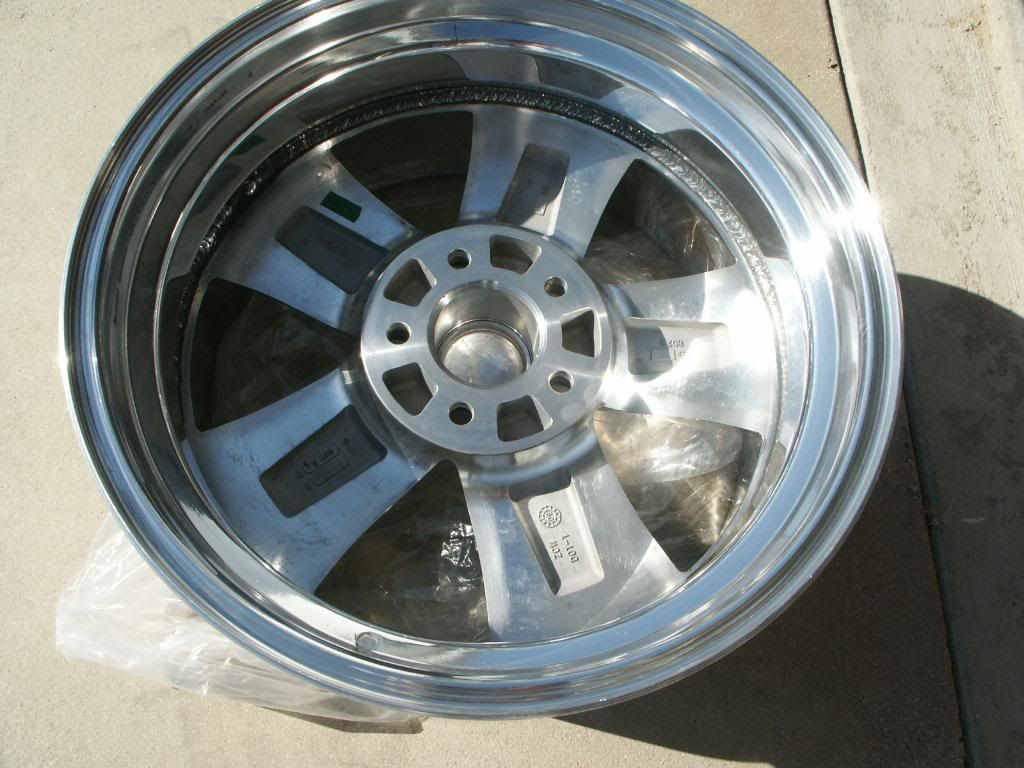

Jim Gibbons Posted July 6, 2010 Posted July 6, 2010 Ok, cool Romell...gives me something to work with. What I probably wasn't clear about is what the model wheel backs need to be like. That'll be an important part of the CAD drawing. The 1:1 wheel backs aren't worth duplicating, mainly for the $. We'll talk further on it, but with those pics, I could interpolate a pretty close dimensional drawing! I'll send you a sketch with dimensions I'll need.
Romell R Posted July 6, 2010 Author Posted July 6, 2010 Ok, cool Romell...gives me something to work with. What I probably wasn't clear about is what the model wheel backs need to be like. That'll be an important part of the CAD drawing. The 1:1 wheel backs aren't worth duplicating, mainly for the $. We'll talk further on it, but with those pics, I could interpolate a pretty close dimensional drawing! I'll send you a sketch with dimensions I'll need. this is gonna be good!!!!!!
AlanNZ Posted July 6, 2010 Posted July 6, 2010 Romell, this thread contains so much brilliant work it is more like a giant 19 page tutorial.
Romell R Posted July 6, 2010 Author Posted July 6, 2010 Romell, this thread contains so much brilliant work it is more like a giant 19 page tutorial. Now thats the ultimate compliment!
sweptline64 Posted July 6, 2010 Posted July 6, 2010 awesome work! i've never really tried to do any scratchbuilding but watching you makes me think i can do it so i think on the next build i will try to do some cause you make it look so easy. thank you for sharing this can't wait to see more.
Scalper Posted July 7, 2010 Posted July 7, 2010 Romell, this thread contains so much brilliant work it is more like a giant 19 page tutorial. I would have to agree.

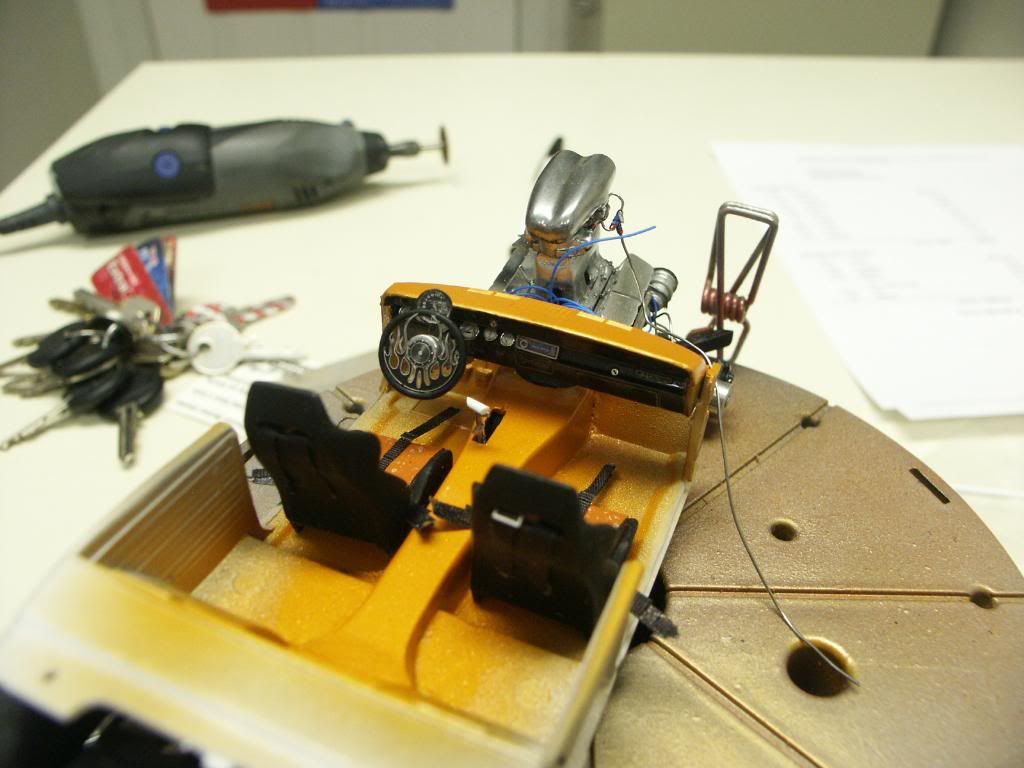

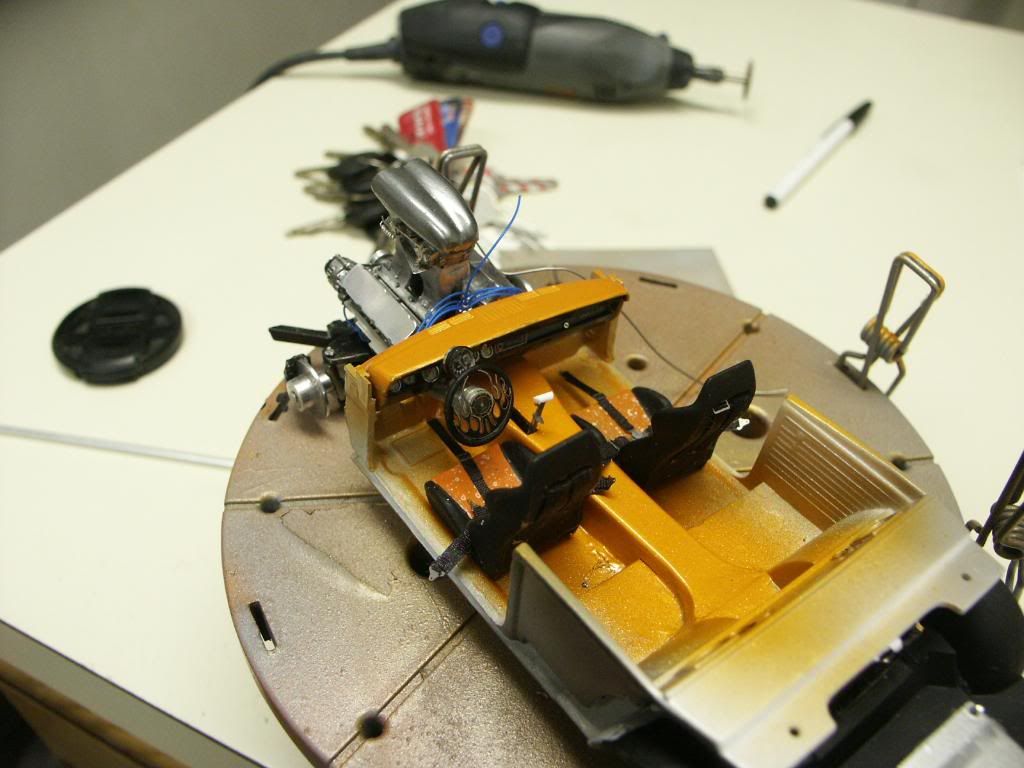

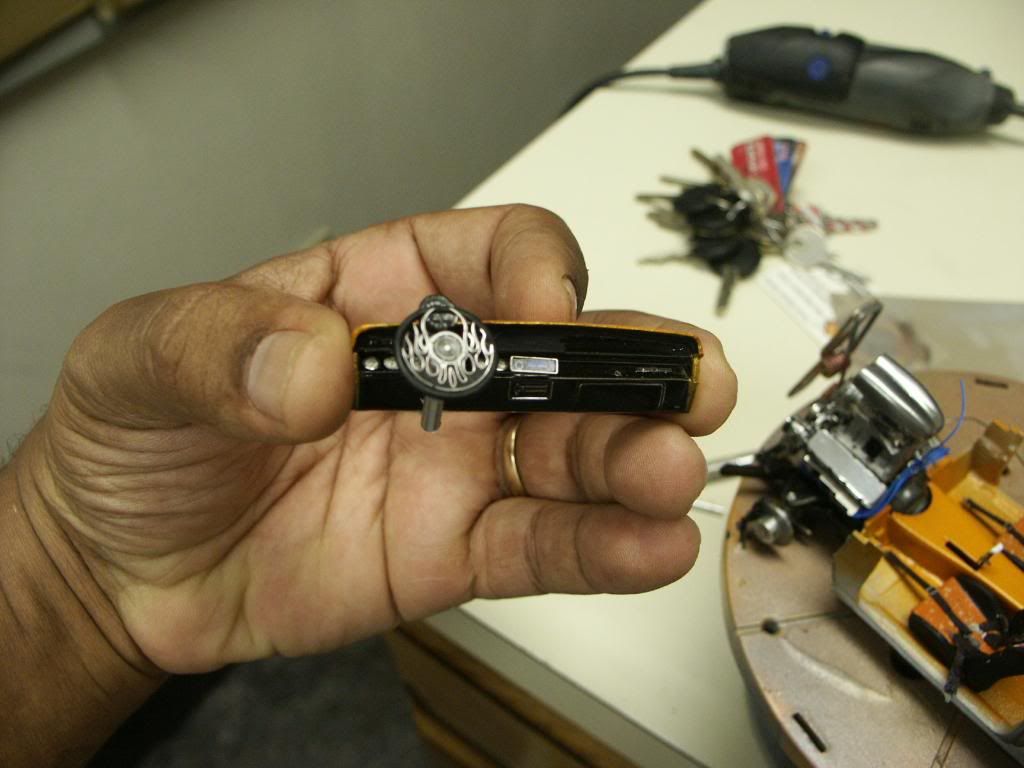

Romell R Posted July 7, 2010 Author Posted July 7, 2010 (edited) Just wanted to update you guys on the interior comming together heres some of the dash, Added steering wheel and stereo face. Nuf said, what do you think? Edited July 7, 2010 by Aftashox
MoparWoman Jamie Posted July 7, 2010 Posted July 7, 2010 I think it more then the word "good" can even explain! More then beautiful also! I love it man!
mannyclub Posted July 7, 2010 Posted July 7, 2010 Hey Romell, The dash looks killer bro! The detail on the chassis is awesome. I always have to go back a few pages to make sure I dont miss anything lol Manny
ROY AVERY Posted July 7, 2010 Posted July 7, 2010 WATCHING YOUR WORK MAKES WE WANT TO DO MORE SCRATCH BUILDING
Jim Gibbons Posted July 7, 2010 Posted July 7, 2010 Awesome, Romell...I take it you'll have that style steering wheel on your 1:1. One question, though; won't that block reading your instruments? Way over the top, and cooler than dry ice!
Romell R Posted July 7, 2010 Author Posted July 7, 2010 WATCHING YOUR WORK MAKES WE WANT TO DO MORE SCRATCH BUILDING Thats the reason why were here Roy to Inspire and be Inspired.....thx for the compliment buddy!
