Zeed Frame and Chopping on Ford 31 Model A


Recommended Posts

Hi guys,

I just got a Ford 31 Model A this morning, and I would like to make a Ratrod of it.

But before I cut, I would like you check if my cut lines are correct.

1st is the frame: As you can see, I marked the vertical lines where the firewall starts and the wheel arch at the back starts as well, and I marked the 45 degres lines than I will cut to make the zeed frame.

Are those two 45 degres cut are correct?

At the front, is it a problem if the cut is right after the engine "stand'?

for the back, is that gonna be a problem for the floor?

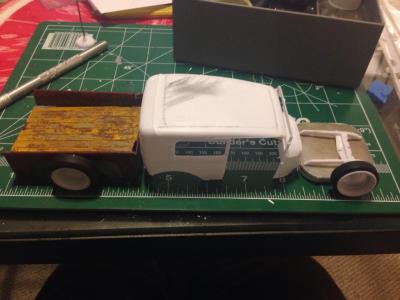

2nd is the chopping roof: I applied tape around the body, the cut lines are the edges on both side of the tape, is it correct?

I am sure I will have more questions as I go further in the project.

thank you for your time.

Mickael.

post-13324-0-24122300-1421965730_thumb.j

post-13324-0-75348300-1421965739_thumb.j

post-13324-0-57583600-1421965747_thumb.j

post-13324-0-54581500-1421965754_thumb.j

post-13324-0-73185100-1421965760_thumb.j

Link to comment
Share on other sites

You have the right idea, but to get a square and symmetrical frame at the end, you need accurate cuts. To get accurate cuts you need accurate lines to follow.

Here's a tutorial I did on the subject, and it's the same way I zee frames on the very expensive full-scale traditional rods I build in real life.

http://www.modelcarsmag.com/forums/index.php?showtopic=70728

Of course, if you zee a frame, it won't fit the rear floor any more. You'll have to modify the floor.

You have the right idea on chopping the roof, but again...accuracy counts. Cut very carefully.

Edited by Ace-Garageguy
